Article

Passive Biotelemetric Detection of Tibial Debonding in Wireless Battery-Free Smart Knee Implants

by
Thomas A. G. Hall
1,
Frederic Cegla
2 and
Richard J. van Arkel
1,*
1
Biomechanics Group, Department of Mechanical Engineering, Imperial College London, London SW7 2AZ, UK
2
Non-Destructive Evaluation Group, Department of Mechanical Engineering, Imperial College London, London SW7 2AZ, UK
*
Author to whom correspondence should be addressed.
Sensors 2024, 24(5), 1696; https://doi.org/10.3390/s24051696
Submission received: 23 December 2023 / Revised: 23 February 2024 / Accepted: 25 February 2024 / Published: 6 March 2024
(This article belongs to the Special Issue Novel Implantable Sensors and Biomedical Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Aseptic loosening is the dominant failure mechanism in contemporary knee replacement surgery, but diagnostic techniques are poorly sensitive to the early stages of loosening and poorly specific in delineating aseptic cases from infections. Smart implants have been proposed as a solution, but incorporating components for sensing, powering, processing, and communication increases device cost, size, and risk; hence, minimising onboard instrumentation is desirable. In this study, two wireless, battery-free smart implants were developed that used passive biotelemetry to measure fixation at the implant–cement interface of the tibial components. The sensing system comprised of a piezoelectric transducer and coil, with the transducer affixed to the superior surface of the tibial trays of both partial (PKR) and total knee replacement (TKR) systems. Fixation was measured via pulse-echo responses elicited via a three-coil inductive link. The instrumented systems could detect loss of fixation when the implants were partially debonded (+7.1% PKA, +32.6% TKA, both p < 0.001) and fully debonded in situ (+6.3% PKA, +32.5% TKA, both p < 0.001). Measurements were robust to variations in positioning of the external reader, soft tissue, and the femoral component. With low cost and small form factor, the smart implant concept could be adopted for clinical use, particularly for generating an understanding of uncertain aseptic loosening mechanisms.

1. Introduction

Arthroplasty is a restorative, pain-relieving treatment for end-stage knee osteoarthritis [1]. Whilst the treatment is widely practised and highly successful, its high volume use (>2 million p.a.) means that large numbers of patients are affected by implant failures even when percentage revision rates are low [2,3]. Aseptic loosening has been the principal failure mechanism since 2016, accounting for one in three of all revision procedures [4]. Timely detection of loosening will not only avoid its most severe, life-changing consequences, but by limiting progressive damage, treatment outcomes will also be improved.
Aseptic loosening may be induced by one or more of several biological and mechanical mechanisms [5]. Historically, the predominant cause of loosening was biological [6]: polyethylene wear debris caused osteolysis and resorption of periprosthetic bone. Following improvements in implant materials and manufacturing, however, osteolysis rates have substantially reduced. Instead, most contemporary loosening failures are mechanical in origin, initiating from the cement mantle. A bias towards failure at the implant–cement interface (tibial debonding) has been regularly reported in recent arthroplasty literature [7,8,9,10,11,12,13,14,15,16,17,18]. Indeed, a 94% failure rate at the implant–cement interface was recorded in a recent retrospective study of 149 knees that were revised for aseptic loosening [8]. Whilst several causal factors have been implicated in this failure mode, including cementation technique [19,20,21], implant design [10], and surface finish [22], no common systematic mechanism or presentation has been reported [23].
Suspected aseptic loosening is conventionally examined using radiographs, which are effective in detecting gross loosening through implant malposition, radiolucency, or periprosthetic fracture. Radiographic examination, however, is either poorly sensitive to the early stages of aseptic loosening [9,24] or poorly specific in determining implant stability [25] and cannot be used alone to differentiate between septic and aseptic cases [26]. Indeed, aseptic loosening is often only confirmed intra- or postoperatively, with the preoperative assessment frequently being a misdiagnosis of a low-grade infection [27]. Several radionuclide imaging techniques—scintigraphic [28,29] and tomographic [30,31,32]—have been implemented to provide more conclusive diagnoses of aseptic loosening [24]; radionuclide imaging has also been used to detect periprosthetic joint infection with reasonable success, but these advanced imaging techniques are time-consuming and only available at specialist centres.
As an alternative to radiological investigations, which can only be undertaken by specialist clinicians following patient self-reporting, a “smart implants” approach functionalises prostheses with failure-detecting mechanisms for simpler, more prompt diagnoses. The field of orthopaedics has been using sensor-embedded implants for several decades to generate valuable information for orthopaedic research, and concepts have been presented to detect loosening through analysis of vibration [33], micromotion [34,35], and acoustic response [36], but such implants have not yet translated into mainstream clinical practice. One of the challenges faced by designers of smart implants has been minimising the overall size and cost of the onboard circuitry used for power, communication, sensing, and processing, with inflated architectures having been associated with increased bone loss [37]. In particular, batteries have limited power reserves and increase device size, but they can be offloaded when using passive interrogation techniques.
In our previous work [36], a concept for loosening detection requiring only two implanted components (a piezoelectric transducer and a coil) was demonstrated in benchtop tests. The aim of this work was to embody the system into modern knee replacement systems and comprehensively characterise measurement sensitivity for detecting tibial debonding. A partial knee prosthesis was analysed as it is one of the smallest cemented implants in routine clinical use, and to date, no smart implant system has been small enough to be successfully embodied within such a device. A total knee replacement system was also analysed, as it is the highest volume cemented orthopaedic procedure.

2. Materials and Methods

Partial and total knee replacement systems were made “smart” with minimal embedded circuitry, with fixation measurements to detect tibial debonding elicited using an external reader.

2.1. Smart Implant Design

The smart partial knee replacement (Figure 1a) was a modified version of an Oxford Fixed Lateral Partial Knee (Zimmer Biomet, Warsaw, IN, USA). It consisted of a standard femoral component (CoCr) and an instrumented fixed-bearing tibial component (UHMWPE/CoCr). The ultrasonic sensing element was a shear-wave piezoelectric transducer (material: NCE51; area: 5 × 5 mm2; resonant frequency: 3.5 MHz; Noliac, Kvistgaard, Denmark) affixed to the superior surface of the metallic subcomponent in a posterolateral position (Figure 1b). The embedded coil was wound around the perimeter of the overmoulded polymer subcomponent (external groove: 1 × 1 mm2) for inductive coupling to an external reader.
The smart total knee replacement was a modified version of a Persona Total Knee (Zimmer Biomet, Warsaw, IN, USA). Similarly, it constituted an unmodified femoral component (CoCr) and an instrumented fixed-bearing tibial component (UHMWPE/Ti); a piezoelectric transducer of the same specification was affixed in a medial position using the same epoxy technique, and the embedded coil (10 turns) was wound around the perimeter of the polymer bearing in a groove of the same dimensions.
The same external reader (Figure 1c) was used to acquire measurements from both implants. The reader consisted of a three-turn circular-coil transmitter (diameter: 105 mm) and a twelve-turn helical-coil receiver (diameter: 105 mm; height: 10 mm), which were used to initiate and receive a pulse-echo measurement (Figure 1d) with five cycles at a center frequency of 3.5 MHz.

2.2. Signal Acquisition and Processing

Raw signals were initiated by a five-cycle, Hanning-windowed toneburst (central frequency: 3.5 MHz), and the response was sampled at 100 MHz (Handyscope HS5, TiePie, Sneek, The Netherlands). These signals were amplified (gain: 60 dB; WaveMaker Duet, Macro Design Ltd., London, UK).
Data were then analysed in MatLab (R2018b, MathWorks) with a custom script. The data were averaged across many measurements (N > 5000), bandpass-filtered (passband: 2–5 MHz), resampled at 10 GHz, and cross-correlated with the original signals. Hilbert envelopes were extracted from the processed signals, and the fixation measurement ( Γ ) was computed as the arithmetic average of the relative amplitude between successive echoes for the first three echo pairs.

2.3. Simulated Tibial Debonding

Prior to cementation, n = 50 measurements were acquired. The instrumented tibial and unmodified femoral components of both implants were then cemented into synthetic knee models using polymethyl methacrylate (PMMA) bone cement (target layer thickness: ~2 mm). The knee models (Figure 1a) consisted of synthetic tibia and femur (Sawbones 1146, Vashon Island, WA, USA) plus string lateral collateral, medial collateral, and posterior cruciate ligaments. The models were cut using standard instrumentation and surgical techniques. A new bone model was used for each implantation. Bone cement was mixed in a 1.5:1 mass-volume ratio of powder to liquid and applied whilst viscous to ensure good interdigitation at the cement-bone interface. Measurements (n = 50) were acquired post-cementation whilst the implants were “well-fixed”.
The implants were then loosened at the implant–cement interface with a manually applied anterior lift-off moment. Measurements (n = 50 per state) were acquired in each of three different states of loosening: partially debonded (loose directly beneath the transducer but still fixed more posteriorly), fully debonded with no implant migration (in situ), and fully debonded with displacement from the original position.
In each measurement condition, the embedded and reader coils were coplanar with the reader coil axis parallel to the tibial proximal–distal z axis (Figure 2). The femoral component was moved through a range of flexion angles (0–90°) for varying ligamentous tensions (uncontrolled) in each condition; each measurement for the total knee consisted of 5000 signal averages, and each measurement for the partial knee consisted of 25,000 to compensate for its smaller size (less inductive coupling).

2.4. Measurement Sensitivity

The signal-to-noise ratio was lower for the smaller partial knee implant (due to worse inductive coupling with the smaller coil size), and hence, the sensitivity analyses focused on the partial knee implant. A coordinate system that mapped the position and orientation of the transmit coil was defined relative to the intercondylar eminence at the center of the knee (Figure 2). Translations in x , y , and z were in the posteroanterior (PA), mediolateral (ML), and caudocranial (CC) directions, respectively, whilst rotations in ϕ and ψ were angular deviations of the reader’s coil axis about the x and y axes (i.e., in the sagittal and coronal planes), respectively. Rotation about the z axis was not investigated as the reader coil was axisymmetric. The position of the reader coil was varied from the neutral position ( x , y , z , ϕ , ψ = 0 ) in each direction independently (range: ±10 mm/±10°; interval: 5 mm/5°) with fifty measurements recorded in each pose prior to fixation of the tibial component. These ranges were set according to the physical possibility of deviations for the Ø105 mm reader. The femoral component was maintained at 30° flexion and no tissue was present.
Sensitivity to musculoskeletal tissue was established by comparing fifty measurements in the neutral position with and without a 10-millimetre-thick wall of porcine soft tissue lining the inside of the reader. The effect of the femoral component on tibial measurements was then analysed by removing the femoral component and acquiring fifty measurements in the neutral reader position. Each of the fifty measurements in the sensitivity studies consisted of 5000 signal averages.

2.5. Statistical Analysis

One-tail independent samples t-tests were used to determine statistical significance in the debonding study. Sensitivity to the reader positioning in each measurement direction was analysed independently to determine the potential for a false-positive detection of debonding. The effect on noise (variance) due to displacement was assessed using Levene’s test for the equality of variance in each case, whilst drift (mean difference) was assessed using one-way Welch ANOVAs (a robust test for the equality of means; no assumption of homogeneity of variance). In the anatomical and femoral component sensitivity studies, Levene’s test and two-tail independent samples t-tests were used to determine equality of variance and mean value, respectively. Minimum sample sizes were determined a priori using a power analysis (see Appendix A).

3. Results

3.1. Debonding Detection with Smaller Partial Knee Replacement

Compared to the well-fixed partial knee implant, the mean relative amplitude between successive echoes increased in all loosening states (Figure 3): partially debonded beneath the transducer (+7.1%; 95% CI: +6.6 to +7.6%; p < 0.001), fully debonded in situ (+6.3%; 95% CI: +6.0% to +6.6%; p < 0.001), and fully debonded with displacement (+6.4%; 95% CI: +6.0% to +6.9%; p < 0.001). A similar trend was seen in the mean relative amplitude measurements before and after cementation (+5.1%; 95% CI: 4.6% to 5.6%; p < 0.001). Furthermore, measurement sets were distinct—no crossover in values—for each of the loosening states with respect to the well-fixed implant.

3.2. Debonding Detection with Total Knee Replacement

Debonding detection results were similar for the total knee replacement but with an improved signal-to-noise ratio compared to the smaller partial knee replacement. The mean relative amplitude between successive echoes (Γ) was 0.5938 ± 0.0021 when the implant was cemented, rising to 0.7876 ± 0.0019 (+32.6%; p < 0.001) and 0.7865 ± 0.0017 (32.5%; p < 0.001) when partially and fully debonded, respectively. Again, there was no crossover in values between the well-fixed and debonded states.

3.3. Measurement Sensitivity for the Smaller Partial Knee Replacement

Fixation measurements for the smaller partial knee implant were robust to changes in reader positioning in all translational and rotational directions within the ranges investigated (Figure 4; ±10 mm and ±10°). There was homogeneity of variances in the fixation measurements when the reader was displaced in the posteroanterior, sagittal, and coronal directions but not in the mediolateral and caudocranial directions (Table 1). The SNR in the neutral position was 35.4 dB with 5000 signal averages; the best SNR (lowest variance; 38.2 dB) was observed at +10 mm in mediolateral translation where the implant was in closest proximity to the reader; and the worst SNR (highest variance: 31.2 dB) was recorded at +10 mm caudocranial translation when the implant and the reader had the greatest planar displacement. No significant effect was detected on mean fixation measurement due to changes in reader positioning in any direction (Table 1). SNR improved with the number of signal averages per measurement (Figure 5).
Measurements of fixation were also shown to be highly robust to the presence/absence of soft tissue (Figure 6; ΔSNR: −0.72 dB) and the metallic femoral component (Figure 6; ΔSNR: −1.29 dB). The mean differences in fixation measurement due to the presence/absence of soft tissue (−0.001; 95% CI: −0.006 to +0.004) and the metallic femoral component (−0.002; 95% CI: −0.007 to +0.003) were not statistically significant at the level powered (Table 1).

4. Discussion

This study evaluated the sensing performance of a low-cost concept for detecting implant–cement debonding following knee arthroplasty. Even at the small scale of the partial knee implant, it was found that tibial debonding could be robustly detected when the implant was partially debonded, fully debonded in situ, and fully debonded with displacement (all p < 0.001) under varying degrees of ligamentous tension and femoral component position. This measurement was not affected by the positioning of the external reader or femoral component, and musculoskeletal tissue was quantified. To our knowledge, this is the first study to successfully embody a loosening detection method for a small partial knee replacement implant.
Clinical implementation of the technology is attractive as the functionalisation of the implants does not require modification of their external form. Thus, the smart implants were able to be implanted with the standard instrument set and surgical technique. This would minimise cost upon translation as it would not increase hospital inventory for surgical instruments and would not require surgeons to learn new operative techniques. The form factor of the modification was also sufficiently small to apply the concept to other implants, including hip and shoulder components, with loosening remaining a key challenge for the latter [38,39]. The low cost of the embedded piezoelectric transducer (<USD 1) removes barriers to translation into regular clinical practice, which have beset previous smart implants.
The coil arrangement in the present study allowed improved inductive coupling compared to our previous work [36]; with the new arrangement, displacements of 10 mm had little effect on the loosening measurement (Figure 4). This is a significant improvement over our previous work, where we were not able to measure loosening at this distance. Other authors have proposed modified implants to detect loosening [33,35,40,41,42,43], most of which were also evaluated under simulated conditions. Of those concepts, an acoustic analysis technique was able to detect osseointegration in rabbits in vivo [44]. Their excitation and acquisition were also percutaneous at a depth < 2 mm, which was considerably less than the implantation depth simulated here (tissue depth > 10 mm).
Synthetic rather than cadaveric bone was used. This limitation was considered acceptable as the fixation measurement is primarily driven by the implant–cement interface, not the cement–bone interface. The cement–implant interface is designed to withstand millions of load cycles, and hence, inducing loosening through cyclic loading was impractical. Rather, a lift-off moment was used to simulate a mechanism for aseptic loosening described in the literature [45,46,47]. It was sufficiently controllable to enable research for a partial loosening state, and it produced a failure at the implant–cement interface that resembled contemporary clinical reports of tibial debonding [7,8,9,10,11,12,13,14,15,16,17,18]. The work is also limited in that only a single cementation technique for a single brand of bone–cement was studied. The cementation technique does vary between surgeons and manufacturers, and exact failure mechanisms and timescales are yet to be fully described; therefore, it is challenging to prescribe a sensitivity and specificity for tibial debonding detection without clinical validation. It is expected that a single embedded transducer would suffice for a tibial-debonding mechanism characterised by fast-acting catastrophic failure, whereas a slow-acting propagation mechanism would necessitate an array of embedded piezoelectric transducers.
Clinical implementation of this technology would need to consider data security (the implanted device stores no data, but the external reader data would need to be uploaded to a hospital computer system). Also, while piezoelectric transducers are widely regarded as appropriate for long-term structural health monitoring applications [48], their use for long-term monitoring in an implant would require further research. For example, to verify that the transducer would not be damaged in the event of extreme implant-bearing wear. An advantage of the developed solution is that by minimising the number of electronics implanted, such testing is greatly simplified. Finally, the piezoelectric transducer used was lead-based (PZT). While in the short-term, this material does not lead to cytotoxic effects for bone cells [49], long-term lead ion release is a concern, and hence, the sensor would likely require hermetical sealing for clinical applications. In our previous research, we also demonstrated that lead-free alternatives, such as BNT-6BT, could be used to acquire ultrasonic pulse-echo measurements in applications where hermetic sealing is not possible [49].

5. Conclusions

In this study, it was demonstrated that tibial debonding at the implant–cement interface of the smallest clinically relevant knee implant, a fixed lateral partial knee, could be reliably detected in a laboratory model of orthopaedic surgery and postoperative loosening. Debonding results were then replicated on a larger total knee implant in the same model. The novel system was insensitive to the reader positioning and tissue and adjacent large metallic components. With its low cost and small form factor, the smart implant concept could be developed towards clinical trials to enable new research into uncertain aseptic loosening mechanisms, with the potential for future use in clinical practice to inform decision making.

Author Contributions

Conceptualisation, T.A.G.H. and R.J.v.A.; methodology, T.A.G.H.; software, T.A.G.H.; formal analysis, T.A.G.H.; investigation, T.A.G.H.; resources, R.J.v.A.; data curation, T.A.G.H.; writing—original draft preparation, T.A.G.H.; writing—review and editing, F.C. and R.J.v.A.; visualisation, T.A.G.H.; supervision, F.C. and R.J.v.A.; project administration, R.J.v.A.; funding acquisition, R.J.v.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Engineering and Physical Sciences Research Council (EPSRC), grant number EP/R513052/1 and EP/S022546/1.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Analyzed data are contained within the article. Raw data are available upon reasonable request.

Acknowledgments

The authors would like to thank Zimmer Biomet, and in particular, Imran Khan, Saurabh Lal, and Tony Lane, for their support in fabricating prototypes and synthetic biomechanical models. Thank you also to Gareth Jones and Omar Musbahi for sharing their clinical insight and for providing access to a patient and public involvement group, from whom we also received invaluable feedback. Thank you to Mark Eid for his contribution to acquiring measurements from the TKA device as part of his Master’s individual project.

Conflicts of Interest

The authors of this work hold intellectual property related to smart orthopaedic implants. Zimmer Biomet (Warsaw, IN, USA) supported this work through the manufacture of the prototypes. Neither Zimmer Biomet nor the funders had a role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

For the debonding study, the mean (μ = 0.706) and standard deviation (σ = 0.0059) for the debonded implant were calculated from fifty measurements of the implant before cementation. The mean difference (−15%) due to cementation was estimated based on debonding detection results from a previous study [36], while variance was calculated from 50 pre-cementation measurements and was assumed homogeneous for the purpose of calculation. Target significance (α) and power (1 − β) were set to standard values of 5% and 90%, respectively, and the allocation ratio (well-fixed vs. debonded) was set as even. The minimum sample size (n > 2 per group) was computed using G*Power 3.1 software [50]; higher sample sizes (n = 50 per group) were used in the eventual experimental protocol (actual power > 99.9%).
For the reader positioning sensitivity study, the same mean was used as the basis for the loosening power calculation, but a higher standard deviation was used to account for the lower number of signal averages (σ = 0.01319). The clinically important mean difference that would trigger a false positive for loosening was drawn from the debonding detection results (Figure 3; ε = 0.049). Target significance (α) and power (1 − β) were again set to 5% and 90%, respectively, and allocation ratios were set as even. For calculation purposes, the mean vector was set up to detect a clinically important mean difference at the extent of the displacement range, where standard deviation was assumed to increase by 10%, i.e.,
μ = μ μ μ μ μ + ε
and
σ = 1.1 σ 1.05 σ σ 1.05 σ 1.1 σ .
Minimum sample sizes were computed using an R program developed by Jan and Shieh [51]. The minimum sample size for loosening (n > 4 per group) was lower than the 50 measurements that were ultimately acquired per group.
The same mean (μ), standard deviation (σ), clinically important mean difference (ε), significance (α), and power (1 − β) were used for the other sensitivity studies. Minimum samples were calculated using G*Power 3.1 software for debonding (n > 3 per group). In total, 50 were ultimately acquired per group.

References

  1. Carr, A.J.; Robertsson, O.; Graves, S.; Price, A.J.; Arden, N.K.; Judge, A.; Beard, D.J. Knee replacement. Lancet 2012, 379, 1331–1340. [Google Scholar] [CrossRef]
  2. Evans, J.T.; Walker, R.W.; Evans, J.P.; Blom, A.W.; Sayers, A.; Whitehouse, M.R. How long does a knee replacement last? A systematic review and meta-analysis of case series and national registry reports with more than 15 years of follow-up. Lancet 2019, 393, 655–663. [Google Scholar] [CrossRef]
  3. Liddle, A.D.; Judge, A.; Pandit, H.; Murray, D.W. Adverse outcomes after total and unicompartmental knee replacement in 101,330 matched patients: A study of data from the National Joint Registry for England and Wales. Lancet 2014, 384, 1437–1445. [Google Scholar] [CrossRef]
  4. Ben-Shlomo, Y.; Blom, A.; Boulton, C.; Brittain, R.; Clark, E.; Dawson-Bowling, S.; Deere, K.; Esler, C.; Espinoza, O.; Goldberg, A.; et al. The National Joint Registry 18th Annual Report 2021; National Joint Registry: London, UK, 2021. [Google Scholar]
  5. Sundfeldt, M.; Carlsson, L.V.; Johansson, C.B.; Thomsen, P.; Gretzer, C. Aseptic loosening, not only a question of wear: A review of different theories. Acta Orthop. 2006, 77, 177–197. [Google Scholar] [CrossRef]
  6. Sharkey, P.F.; Hozack, W.J.; Rothman, R.H.; Shastri, S.; Jacoby, S.M. Insall Award paper. Why are total knee arthroplasties failing today? Clin. Orthop. Relat. Res. 2002, 404, 7–13. [Google Scholar] [CrossRef] [PubMed]
  7. Foran, J.R.; Whited, B.W.; Sporer, S.M. Early aseptic loosening with a precoated low-profile tibial component: A case series. J Arthroplasty 2011, 26, 1445–1450. [Google Scholar] [CrossRef]
  8. Murphy, J.D.; Braunlich, P.R.; Judson Iv, W.R.; Harker, J.N.; Baumann, P.A. Early Aseptic Failure of the Tibial Component-Cement Interface in ATTUNE(R) Total Knee Arthroplasty: A Report of Three Cases. Cureus 2021, 13, e20582. [Google Scholar] [CrossRef]
  9. Arsoy, D.; Pagnano, M.W.; Lewallen, D.G.; Hanssen, A.D.; Sierra, R.J. Aseptic tibial debonding as a cause of early failure in a modern total knee arthroplasty design. Clin. Orthop. Relat. Res. 2013, 471, 94–101. [Google Scholar] [CrossRef] [PubMed]
  10. Ries, C.; Heinichen, M.; Dietrich, F.; Jakubowitz, E.; Sobau, C.; Heisel, C. Short-keeled cemented tibial components show an increased risk for aseptic loosening. Clin. Orthop. Relat. Res. 2013, 471, 1008–1013. [Google Scholar] [CrossRef]
  11. Hazelwood, K.J.; O’Rourke, M.; Stamos, V.P.; McMillan, R.D.; Beigler, D.; Robb, W.J., III. Case series report: Early cement-implant interface fixation failure in total knee replacement. Knee 2015, 22, 424–428. [Google Scholar] [CrossRef] [PubMed]
  12. Kopinski, J.E.; Aggarwal, A.; Nunley, R.M.; Barrack, R.L.; Nam, D. Failure at the Tibial Cement-Implant Interface With the Use of High-Viscosity Cement in Total Knee Arthroplasty. J. Arthroplasty 2016, 31, 2579–2582. [Google Scholar] [CrossRef]
  13. Bonutti, P.M.; Khlopas, A.; Chughtai, M.; Cole, C.; Gwam, C.U.; Harwin, S.F.; Whited, B.; Omiyi, D.E.; Drumm, J.E. Unusually High Rate of Early Failure of Tibial Component in ATTUNE Total Knee Arthroplasty System at Implant-Cement Interface. J. Knee Surg. 2017, 30, 435–439. [Google Scholar] [PubMed]
  14. Kutzner, I.; Hallan, G.; Hol, P.J.; Furnes, O.; Gothesen, O.; Figved, W.; Ellison, P. Early aseptic loosening of a mobile-bearing total knee replacement. Acta Orthop. 2018, 89, 77–83. [Google Scholar] [CrossRef] [PubMed]
  15. Cerquiglini, A.; Henckel, J.; Hothi, H.; Allen, P.; Lewis, J.; Eskelinen, A.; Skinner, J.; Hirschmann, M.T.; Hart, A.J. Analysis of the Attune tibial tray backside: A comparative retrieval study. Bone Jt. Res. 2019, 8, 136–145. [Google Scholar] [CrossRef] [PubMed]
  16. Sadauskas, A.; Engh, C., III; Mehta, M.; Levine, B. Implant Interface Debonding After Total Knee Arthroplasty: A New Cause for Concern? Arthroplast Today 2020, 6, 972–975. [Google Scholar] [CrossRef]
  17. Keohane, D.; Power, F.; Cullen, E.; O’Neill, A.; Masterson, E. High rate of tibial debonding and failure in a popular knee replacement: A cause for concern. Knee 2020, 27, 459–468. [Google Scholar] [CrossRef]
  18. Cox, Z.C.; Green, C.C.; Otero, J.E.; Mason, J.B.; Martin, J.R. Varus Collapse in Total Knee Arthroplasty: Does Fixation or Bone Fail First? J. Arthroplasty 2022, 37, 162–167. [Google Scholar] [CrossRef]
  19. Randall, D.J.; Anderson, M.B.; Gililland, J.M.; Peters, C.L.; Pelt, C.E. A potential need for surgeon consensus: Cementation techniques for total knee arthroplasty in orthopedic implant manufacturers’ guidelines lack consistency. J. Orthop. Surg. (Hong Kong) 2019, 27, 2309499019878258. [Google Scholar] [CrossRef]
  20. Buller, L.T.; Rao, V.; Chiu, Y.F.; Nam, D.; McLawhorn, A.S. Primary Total Knee Arthroplasty Performed Using High-Viscosity Cement is Associated With Higher Odds of Revision for Aseptic Loosening. J. Arthroplasty 2020, 35, S182–S189. [Google Scholar] [CrossRef]
  21. Hampton, C.B.; Berliner, Z.P.; Nguyen, J.T.; Mendez, L.; Smith, S.S.; Joseph, A.D.; Padgett, D.E.; Rodriguez, J.A. Aseptic Loosening at the Tibia in Total Knee Arthroplasty: A Function of Cement Mantle Quality? J. Arthroplasty 2020, 35, S190–S196. [Google Scholar] [CrossRef]
  22. van Tol, A.F.; Tibballs, J.E.; Roar Gjerdet, N.; Ellison, P. Experimental investigation of the effect of surface roughness on bone-cement-implant shear bond strength. J. Mech. Behav. Biomed. Mater. 2013, 28, 254–262. [Google Scholar] [CrossRef] [PubMed]
  23. van Otten, T.J.M.; van Loon, C.J.M. Early aseptic loosening of the tibial component at the cement-implant interface in total knee arthroplasty: A narrative overview of potentially associated factors. Acta Orthop. Belg. 2022, 88, 103–111. [Google Scholar] [CrossRef] [PubMed]
  24. Barnsley, L.; Barnsley, L. Detection of aseptic loosening in total knee replacements: A systematic review and meta-analysis. Skeletal. Radiol. 2019, 48, 1565–1572. [Google Scholar] [CrossRef] [PubMed]
  25. Chalmers, B.P.; Sculco, P.K.; Fehring, K.A.; Trousdale, R.T.; Taunton, M.J. A Novel Percentage-Based System for Determining Aseptic Loosening of Total Knee Arthroplasty Tibial Components. J. Arthroplasty 2017, 32, 2274–2278. [Google Scholar] [CrossRef] [PubMed]
  26. Mandalia, V.; Eyres, K.; Schranz, P.; Toms, A.D. Evaluation of patients with a painful total knee replacement. J. Bone Jt. Surg. Br. 2008, 90, 265–271. [Google Scholar] [CrossRef] [PubMed]
  27. Schiffner, E.; Latz, D.; Karbowski, A.; Grassmann, J.P.; Thelen, S.; Windolf, J.; Jungbluth, P.; Schneppendahl, J. Loosening of total knee arthroplasty—Always aseptic? J. Clin. Orthop. Trauma 2020, 11 (Suppl. 2), S234–S238. [Google Scholar] [CrossRef] [PubMed]
  28. Claassen, L.; Ettinger, M.; Plaass, C.; Daniilidis, K.; Calliess, T.; Ezechieli, M. Diagnostic value of bone scintigraphy for aseptic loosening after total knee arthroplasty. Technol. Health Care 2014, 22, 767–773. [Google Scholar] [CrossRef]
  29. Kitchener, M.I.; Coats, E.; Keene, G.; Paterson, R. Assessment of radionuclide arthrography in the evaluation of loosening of knee prostheses. Knee 2006, 13, 220–225. [Google Scholar] [CrossRef]
  30. Delank, K.S.; Schmidt, M.; Michael, J.W.; Dietlein, M.; Schicha, H.; Eysel, P. The implications of 18F-FDG PET for the diagnosis of endoprosthetic loosening and infection in hip and knee arthroplasty: Results from a prospective, blinded study. BMC Musculoskelet. Disord. 2006, 7, 20. [Google Scholar] [CrossRef]
  31. Bao, B.; Liu, C.S.; Masson, E.C.O.; Abele, J.T. Diagnostic accuracy of SPECT/CT arthrography in patients with suspected aseptic joint prostheses loosening. Eur. J. Hybrid Imaging 2021, 5, 4. [Google Scholar] [CrossRef]
  32. Peng, Z.; Jia, Y.; Li, J.; Wang, G. Diagnostic Performance of Single-Photon Emission Computed Tomography/Computed Tomography in Aseptic Loosening: A Systematic Review and Meta-Analysis. J. Arthroplasty 2021, 36, 4003–4012.e3. [Google Scholar] [CrossRef]
  33. Arami, A.; Delaloye, J.R.; Rouhani, H.; Jolles, B.M.; Aminian, K. Knee Implant Loosening Detection: A Vibration Analysis Investigation. Ann. Biomed Eng. 2018, 46, 97–107. [Google Scholar] [CrossRef]
  34. Khokle, R.P.; Franco, F.; de Freitas, S.C.; Esselle, K.P.; Heimlich, M.C.; Bokor, D.J. Eddy Current–Tunneling Magneto-Resistive Sensor for Micromotion Detection of a Tibial Orthopaedic Implant. IEEE Sens. J. 2019, 19, 1285–1292. [Google Scholar] [CrossRef]
  35. Mohammadbagherpoor, H.; Ierymenko, P.; Craver, M.H.; Carlson, J.; Dausch, D.; Grant, E.; Lucey, J.D. An Implantable Wireless Inductive Sensor System Designed to Monitor Prosthesis Motion in Total Joint Replacement Surgery. IEEE Trans. Biomed. Eng. 2020, 67, 1718–1726. [Google Scholar] [CrossRef]
  36. Hall, T.A.G.; Cegla, F.; van Arkel, R.J. Simple Smart Implants: Simultaneous Monitoring of Loosening and Temperature in Orthopaedics With an Embedded Ultrasound Transducer. IEEE Trans. Biomed. Circuits Syst. 2021, 15, 102–110. [Google Scholar] [CrossRef] [PubMed]
  37. Martin, J.R.; Watts, C.D.; Levy, D.L.; Miner, T.M.; Springer, B.D.; Kim, R.H. Tibial Tray Thickness Significantly Increases Medial Tibial Bone Resorption in Cobalt-Chromium Total Knee Arthroplasty Implants. J. Arthroplasty 2017, 32, 79–82. [Google Scholar] [CrossRef]
  38. Grob, A.; Freislederer, F.; Marzel, A.; Audige, L.; Schwyzer, H.K.; Scheibel, M. Glenoid Component Loosening in Anatomic Total Shoulder Arthroplasty: Association between Radiological Predictors and Clinical Parameters-An Observational Study. J. Clin. Med. 2021, 10, 234. [Google Scholar] [CrossRef] [PubMed]
  39. Zmistowski, B.; Carpenter, D.P.; Chalmers, P.N.; Smith, M.J.; Keener, J.D. Symptomatic aseptic loosening of a short humeral stem following anatomic total shoulder arthroplasty. J. Shoulder Elbow Surg. 2021, 30, 2738–2744. [Google Scholar] [CrossRef] [PubMed]
  40. Hao, S.Y.; Taylor, J.T.; Bowen, C.R.; Gheduzzi, S.; Miles, A.W. Sensing methodology for stability evaluation of total hip and knee arthroplasty. Sens. Actuat. A-Phys. 2010, 157, 150–160. [Google Scholar] [CrossRef]
  41. Marschner, U.; Grätz, H.; Jettkant, B.; Ruwisch, D.; Woldt, G.; Fischer, W.J.; Clasbrummel, B. Integration of a wireless lock-in measurement of hip prosthesis vibrations for loosening detection. Sens. Actuat. A-Phys. 2009, 156, 145–154. [Google Scholar] [CrossRef]
  42. Ponder, R.I.; Meneghini, R.M.; Anton, S.R. Evaluation of electromechanical impedance based structural health monitoring for detection of loosening in total knee arthroplasty. In Health Monitoring of Structural and Biological Systems XIII 2019; SPIE: Bellingham, WA, USA, 2019; Volume 10972, pp. 476–486. [Google Scholar]
  43. Puers, R.; Catrysse, M.; Vandevoorde, G.; Collier, R.J.; Louridas, E.; Burny, F.; Donkerwolcke, M.; Moulart, F. A telemetry system for the detection of hip prosthesis loosening by vibration analysis. Sens. Actuat. A-Phys. 2000, 85, 42–47. [Google Scholar] [CrossRef]
  44. Ruther, C.; Gabler, C.; Ewald, H.; Ellenrieder, M.; Haenle, M.; Lindner, T.; Mittelmeier, W.; Bader, R.; Kluess, D. In Vivo Monitoring of Implant Osseointegration in a Rabbit Model Using Acoustic Sound Analysis. J. Orthop. Res. 2014, 32, 606–612. [Google Scholar] [CrossRef] [PubMed]
  45. Yokhana, S.S.; Bergum, C.; Ren, W.; Markel, D.C. Isolated Tibial Component Failure in Total Knee Arthroplasty: A Case Series Evaluating Inflammatory Response versus Mechanical Failure. J. Knee Surg. 2019, 32, 659–666. [Google Scholar] [CrossRef]
  46. Chong, D.Y.; Hansen, U.N.; Amis, A.A. Analysis of bone-prosthesis interface micromotion for cementless tibial prosthesis fixation and the influence of loading conditions. J. Biomech. 2010, 43, 1074–1080. [Google Scholar] [CrossRef]
  47. Scott, C.E.; Biant, L.C. The role of the design of tibial components and stems in knee replacement. J. Bone Jt. Surg. Br. 2012, 94, 1009–1015. [Google Scholar] [CrossRef] [PubMed]
  48. Brunner, A.J. A Review of Approaches for Mitigating Effects from Variable Operational Environments on Piezoelectric Transducers for Long-Term Structural Health Monitoring. Sensors 2023, 23, 7979. [Google Scholar] [CrossRef]
  49. Hall, T.A.G.; Theodoridis, K.; Kechagias, S.; Kohli, N.; Denonville, C.; Rorvik, P.M.; Cegla, F.; van Arkel, R.J. Electromechanical and biological evaluations of 0.94Bi0.5Na0.5TiO3-0.06BaTiO3 as a lead-free piezoceramic for implantable bioelectronics. Biomater. Adv. 2023, 154, 213590. [Google Scholar] [CrossRef] [PubMed]
  50. Faul, F.; Erdfelder, E.; Lang, A.G.; Buchner, A. G*Power 3: A flexible statistical power analysis program for the social, behavioral, and biomedical sciences. Behav. Res. Methods 2007, 39, 175–191. [Google Scholar] [CrossRef]
  51. Shieh, G. Optimal sample sizes for the design of reliability studies: Power consideration. Behav. Res. Methods 2014, 46, 772–785. [Google Scholar] [CrossRef]
Sensors 24 01696 g001

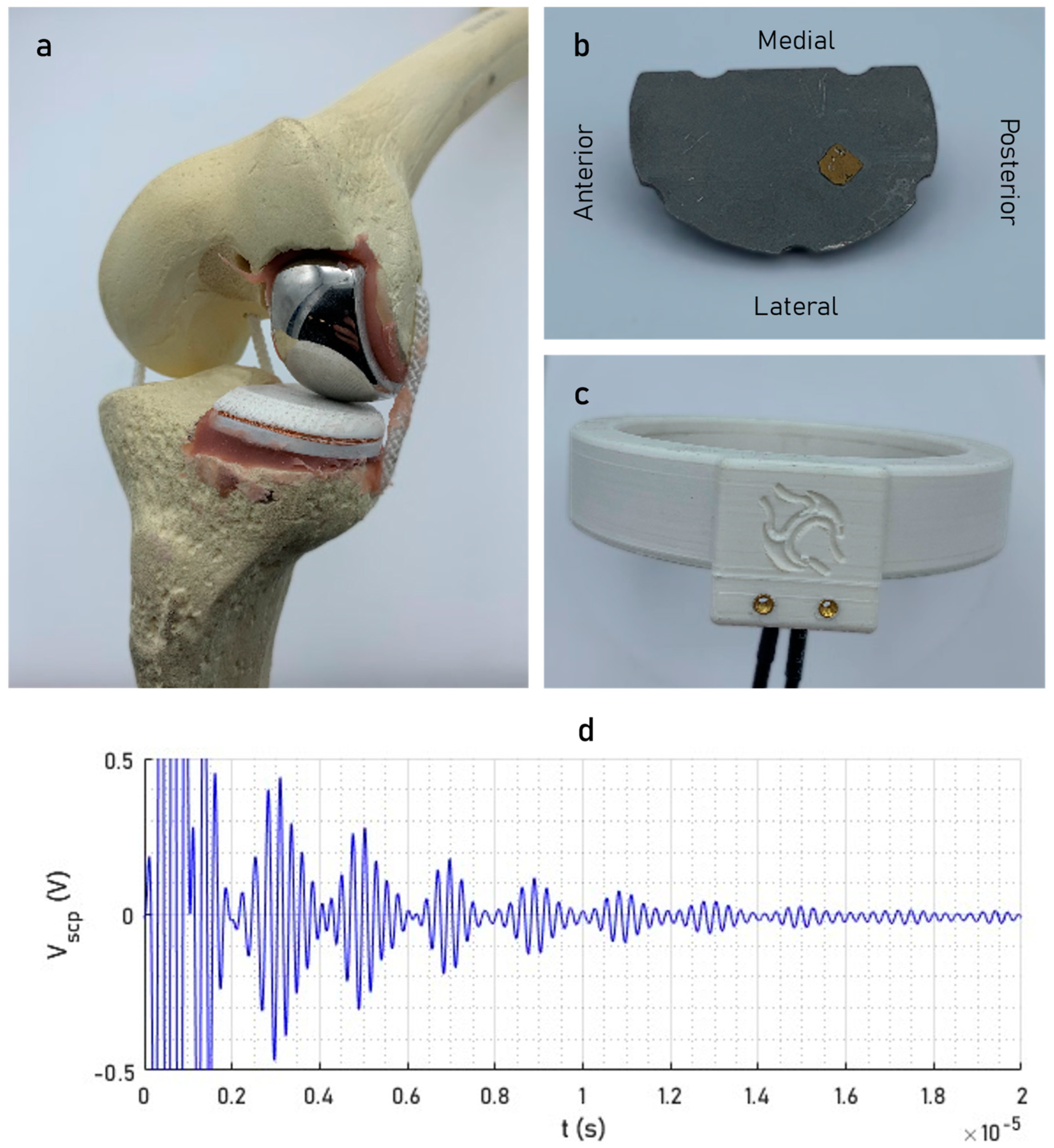

Figure 1. The instrumented unicondylar knee prosthesis (a) shown cemented into a synthetic bone model and (b) showing the position of the shear-wave piezoelectric transducer on the tibial component; (c) the reader used to acquire wireless pulse-echo measurements; and (d) the pulse-echo response.
Figure 1. The instrumented unicondylar knee prosthesis (a) shown cemented into a synthetic bone model and (b) showing the position of the shear-wave piezoelectric transducer on the tibial component; (c) the reader used to acquire wireless pulse-echo measurements; and (d) the pulse-echo response.
Sensors 24 01696 g001
Sensors 24 01696 g002

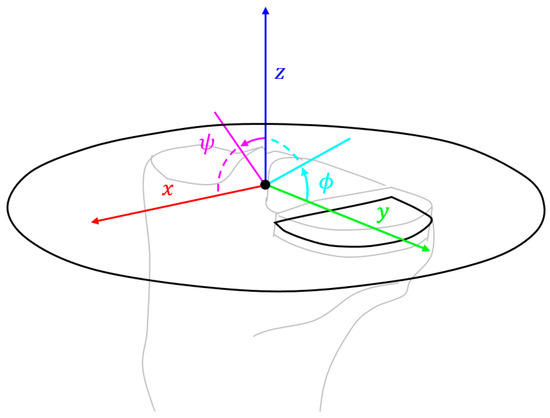

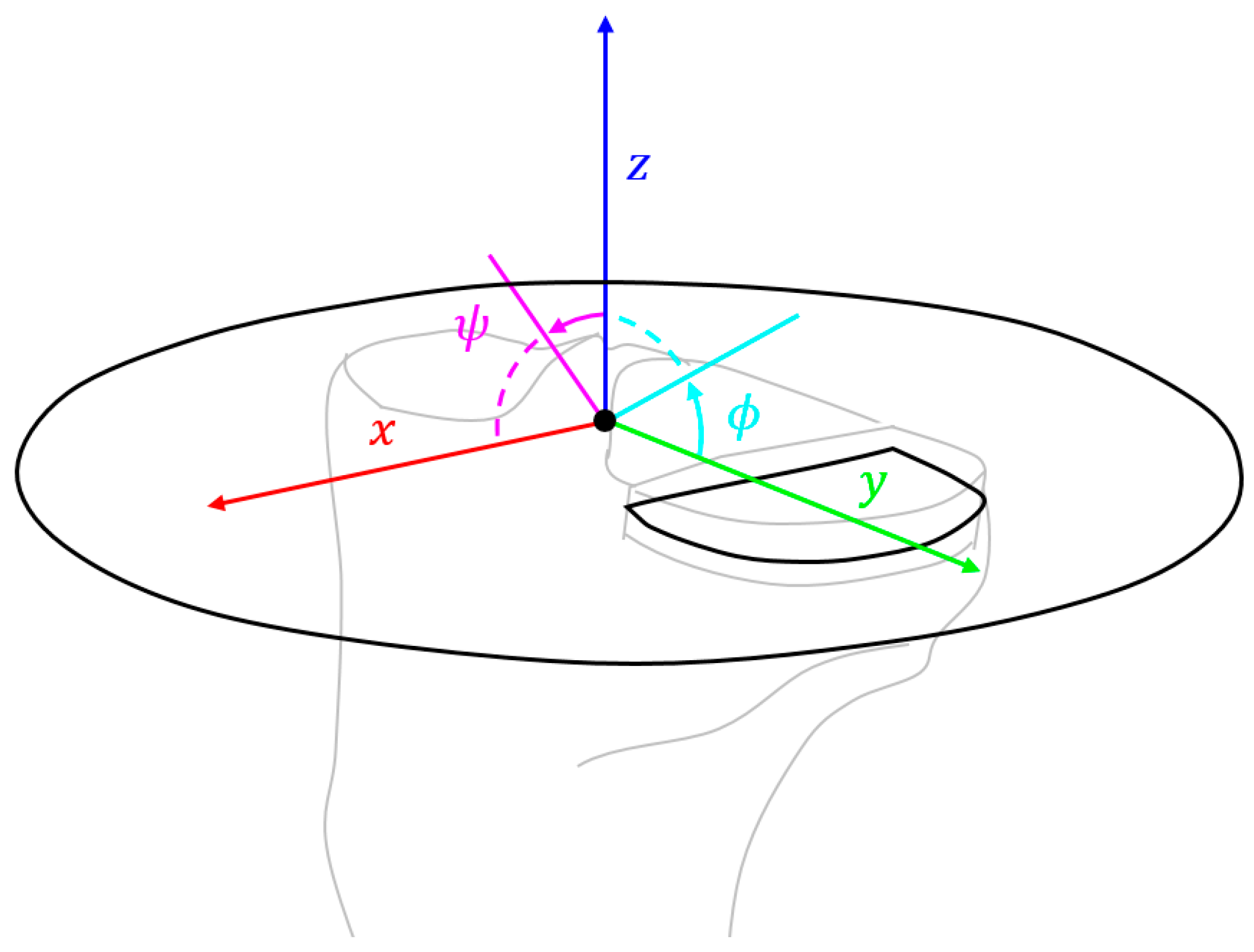

Figure 2. The coordinate system centred on the intercondylar eminence of the tibia used to describe the position and orientation of the reader–embedded coil and external transmitter coil in black.
Figure 2. The coordinate system centred on the intercondylar eminence of the tibia used to describe the position and orientation of the reader–embedded coil and external transmitter coil in black.
Sensors 24 01696 g002
Sensors 24 01696 g003

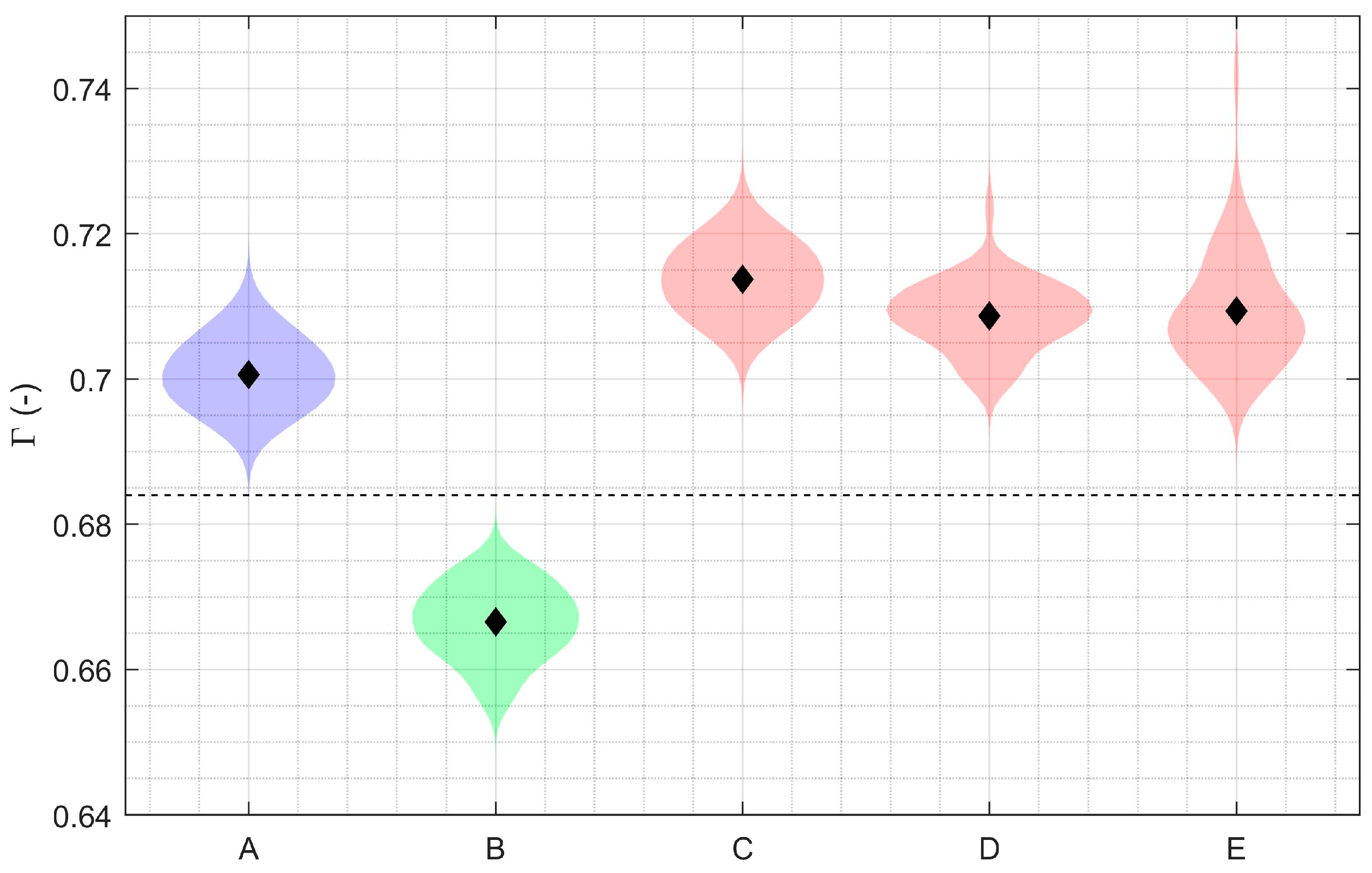

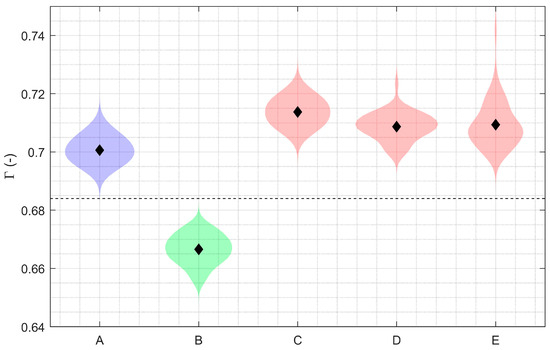

Figure 3. Violin plots showing a decrease in the fixation parameter ( Γ ) when the uncemented partial knee implant (A; blue) was cemented into synthetic bone (B; green), and then a subsequent increase when the implant–cement interface was compromised beneath the piezoelectric transducer (red): partially debonded (C), fully debonded in situ (D), and fully debonded with gross displacement (E). The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Figure 3. Violin plots showing a decrease in the fixation parameter ( Γ ) when the uncemented partial knee implant (A; blue) was cemented into synthetic bone (B; green), and then a subsequent increase when the implant–cement interface was compromised beneath the piezoelectric transducer (red): partially debonded (C), fully debonded in situ (D), and fully debonded with gross displacement (E). The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Sensors 24 01696 g003
Sensors 24 01696 g004

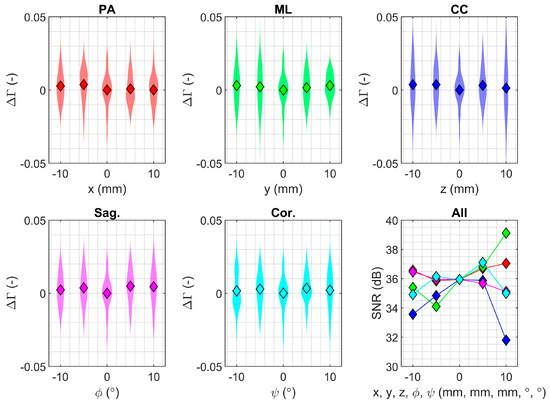

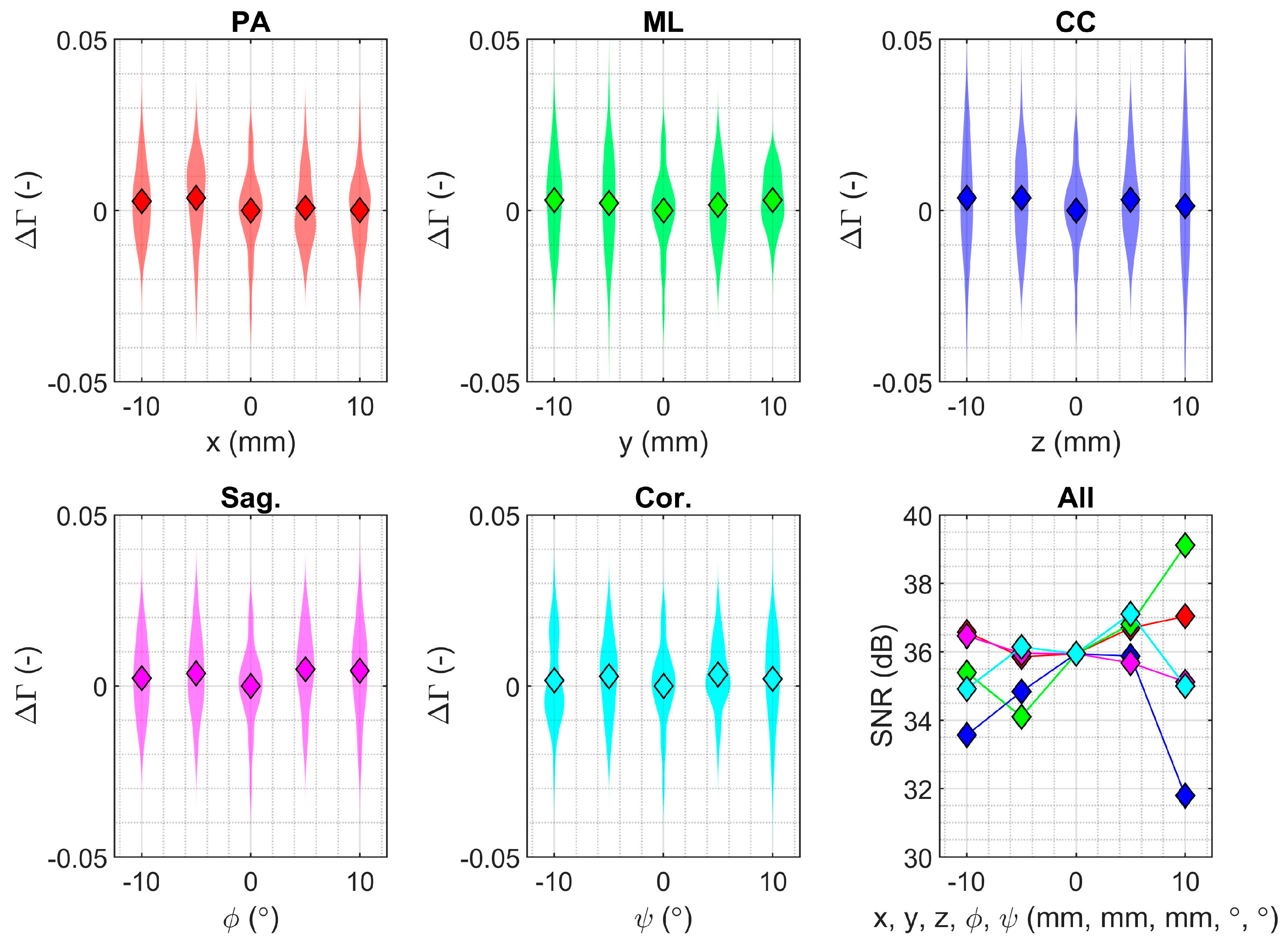

Figure 4. Deviation in the fixation measurement ( Γ ) from the mean value recorded in the neutral position, shown as violin plots, for anteroposterior translation (red, top left), mediolateral translation (green, top middle), craniocaudal translation (dark blue, top right), sagittal plane rotation (pink, bottom left) and coronal plane rotation (light blue, bottom middle), and corresponding signal-to-noise ratio plot (bottom right, colours consistent with that of the individual plots). The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Figure 4. Deviation in the fixation measurement ( Γ ) from the mean value recorded in the neutral position, shown as violin plots, for anteroposterior translation (red, top left), mediolateral translation (green, top middle), craniocaudal translation (dark blue, top right), sagittal plane rotation (pink, bottom left) and coronal plane rotation (light blue, bottom middle), and corresponding signal-to-noise ratio plot (bottom right, colours consistent with that of the individual plots). The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Sensors 24 01696 g004
Sensors 24 01696 g005

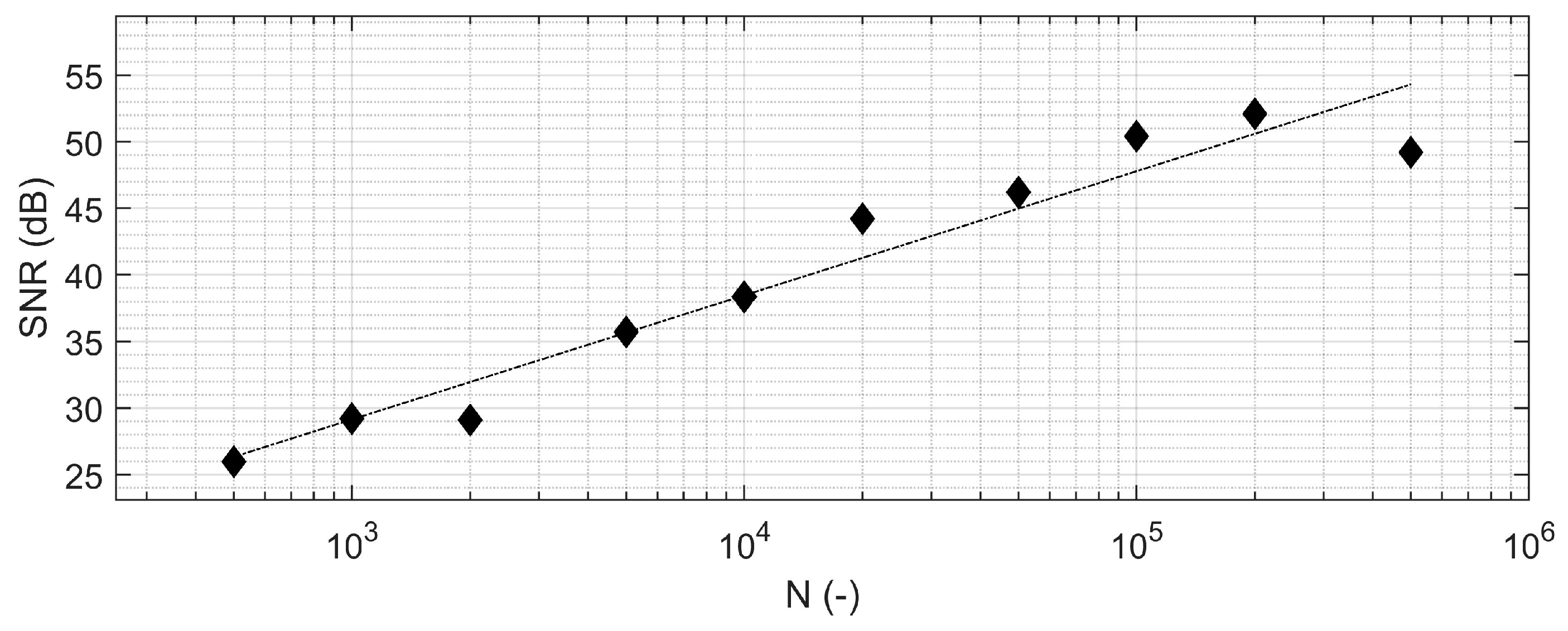

Figure 5. Signal-to-noise (SNR) for the fixation measurement ( Γ ) increased by ~20 dB/decade as a function of the number of signal averages.
Figure 5. Signal-to-noise (SNR) for the fixation measurement ( Γ ) increased by ~20 dB/decade as a function of the number of signal averages.
Sensors 24 01696 g005
Sensors 24 01696 g006

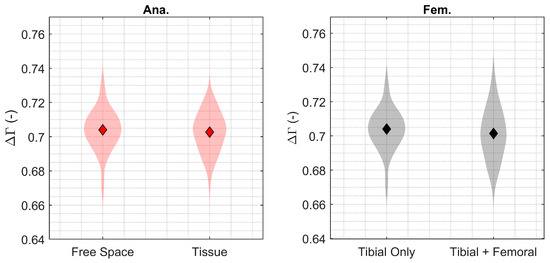

Figure 6. Sensitivity of the fixation parameter measurement ( Γ ) to transmission through free space versus soft tissue (Ana.: left, red) and the presence of the femoral component (Fem.: right, grey), shown as violin plots. The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Figure 6. Sensitivity of the fixation parameter measurement ( Γ ) to transmission through free space versus soft tissue (Ana.: left, red) and the presence of the femoral component (Fem.: right, grey), shown as violin plots. The diamond symbols indicate the mean, and the shaded regions are the distribution of the data.
Sensors 24 01696 g006
Table 1. Statistical analyses for the difference in fixation measurement due to reader positioning in posteroanterior (PA), mediolateral (ML), caudocranial (CC), sagittal (Sag.), and coronal (Cor.), and due to the presence of the femoral component (Fem.), and soft tissue (Ana.).
Table 1. Statistical analyses for the difference in fixation measurement due to reader positioning in posteroanterior (PA), mediolateral (ML), caudocranial (CC), sagittal (Sag.), and coronal (Cor.), and due to the presence of the femoral component (Fem.), and soft tissue (Ana.).
Homogeneity of VarianceEquality of Mean
Stat.Sig.Stat.Sig.
PAF(4,245) = 0.354p = 0.841F(4,122.413) = 1.187p = 0.329
MLF(4,245) = 3.264p = 0.012F(4,121.398) = 0.596p = 0.666
CCF(4,245) = 4.563p = 0.001F(4,121.816) = 0.898p = 0.467
Sag.F(4,245) = 0.501p = 0.735F(4,122.397) = 1.361p = 0.252
Cor.F(4,245) = 1.469p = 0.212F(4,122.189) = 0.591p = 0.670
Fem.F(1,98) = 2.219p = 0.140t(95.974) = 0.599p = 0.551
Ana.F(1,98) = 0.000p = 0.999t(97.310) = 0.435p = 0.664
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
