Discrete-Time Visual Servoing Control with Adaptive Image Feature Prediction Based on Manipulator Dynamics
Abstract
:1. Introduction
- (1)

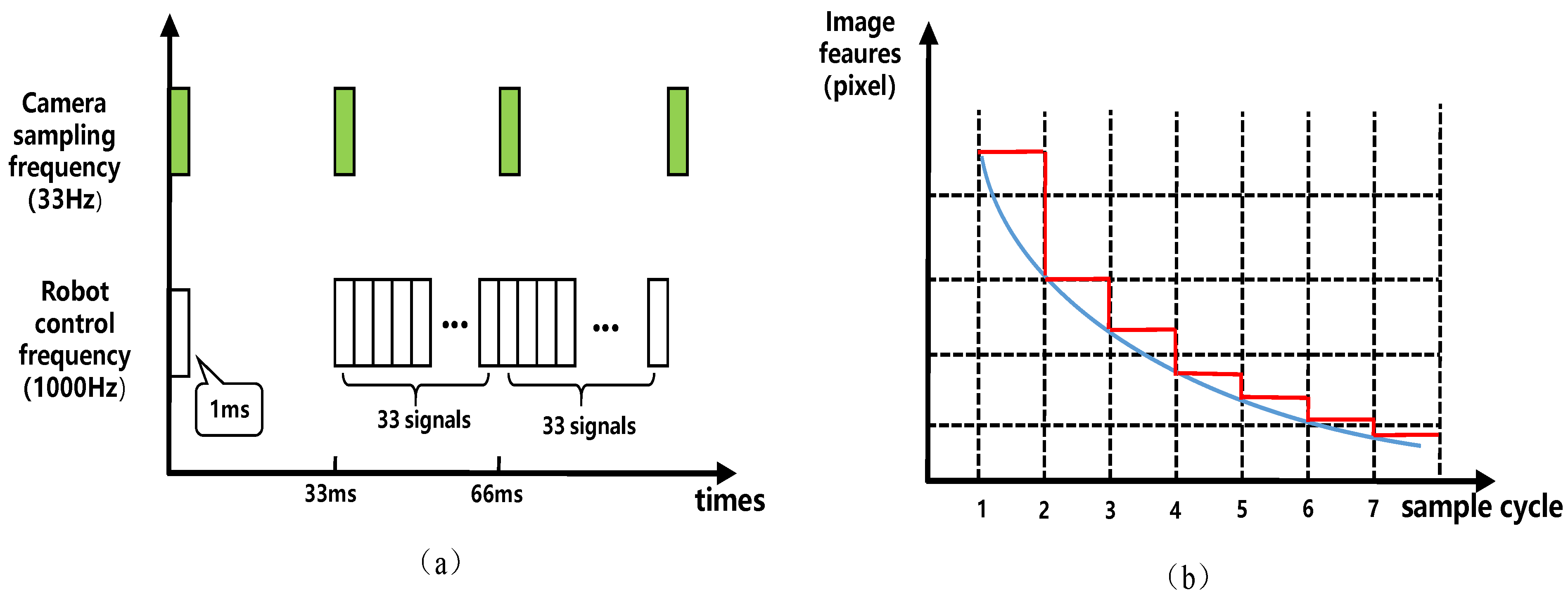

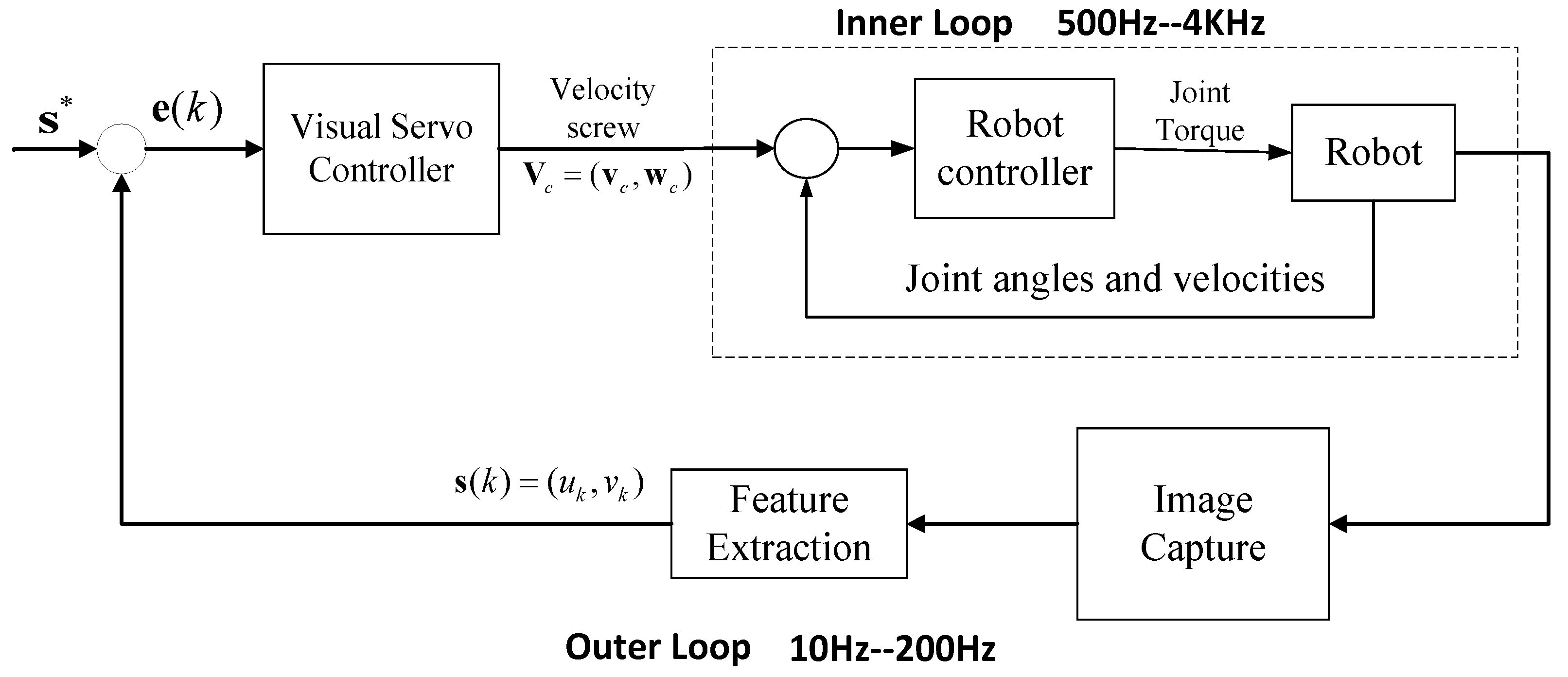

- We present a visual servoing method from the perspective of discrete-time analysis. Based on the visual servo inner–outer loop control architecture, the impact of low-frequency visual feedback on system performance is analyzed.
- (2)
- A linear dynamic model is investigated to describe the movement of the robot under the velocity control mode. By using this model, the actual velocity of the robot end effector can be more accurately estimated.
- (3)
- An adaptive image feature prediction method is proposed to predict the positions of image features during the image sampling and processing time. Past image feature data and real robot velocity data are employed to adjust the predictor parameters.
2. System Description and Control Architecture

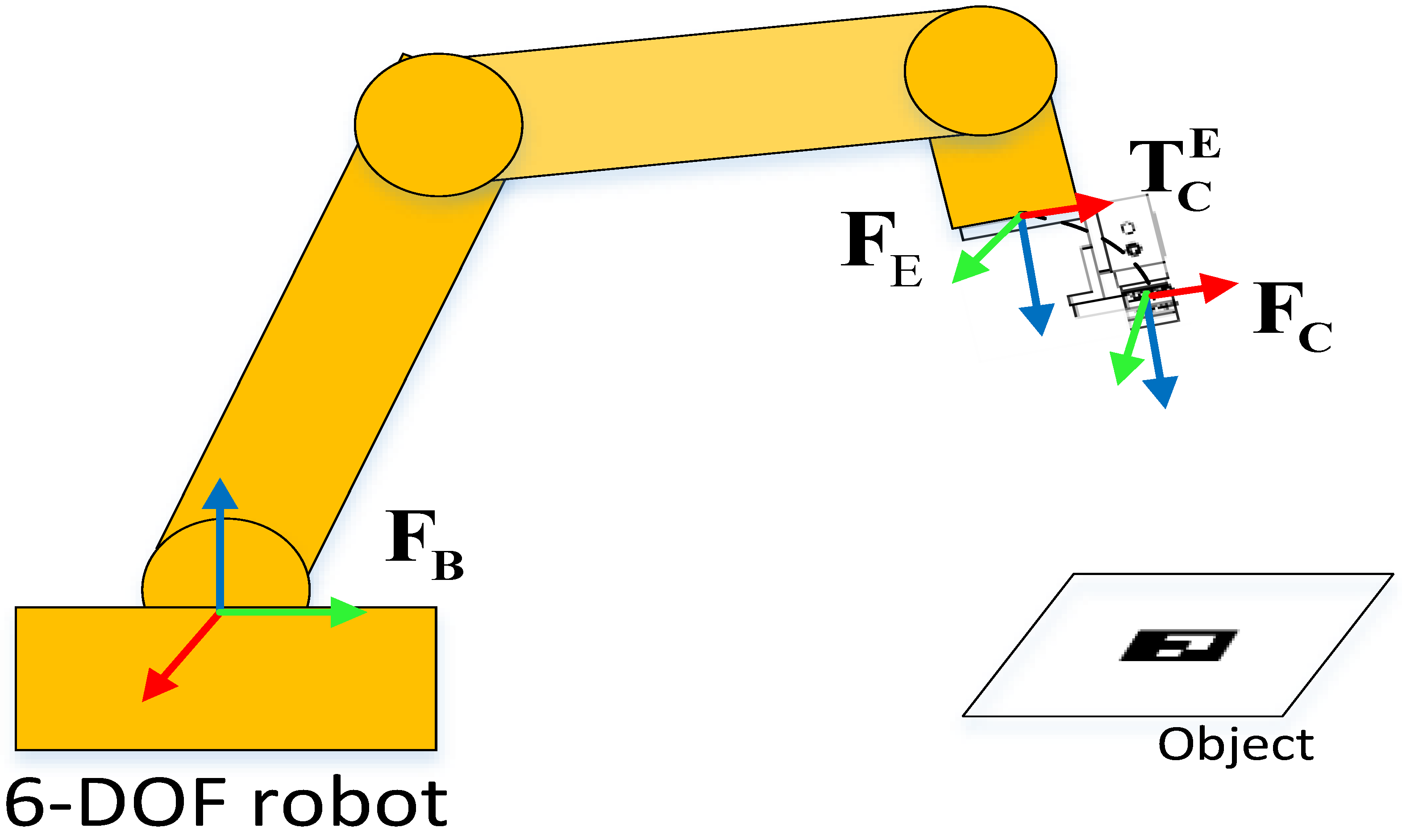

2.1. System Description

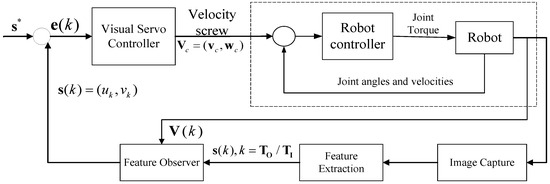

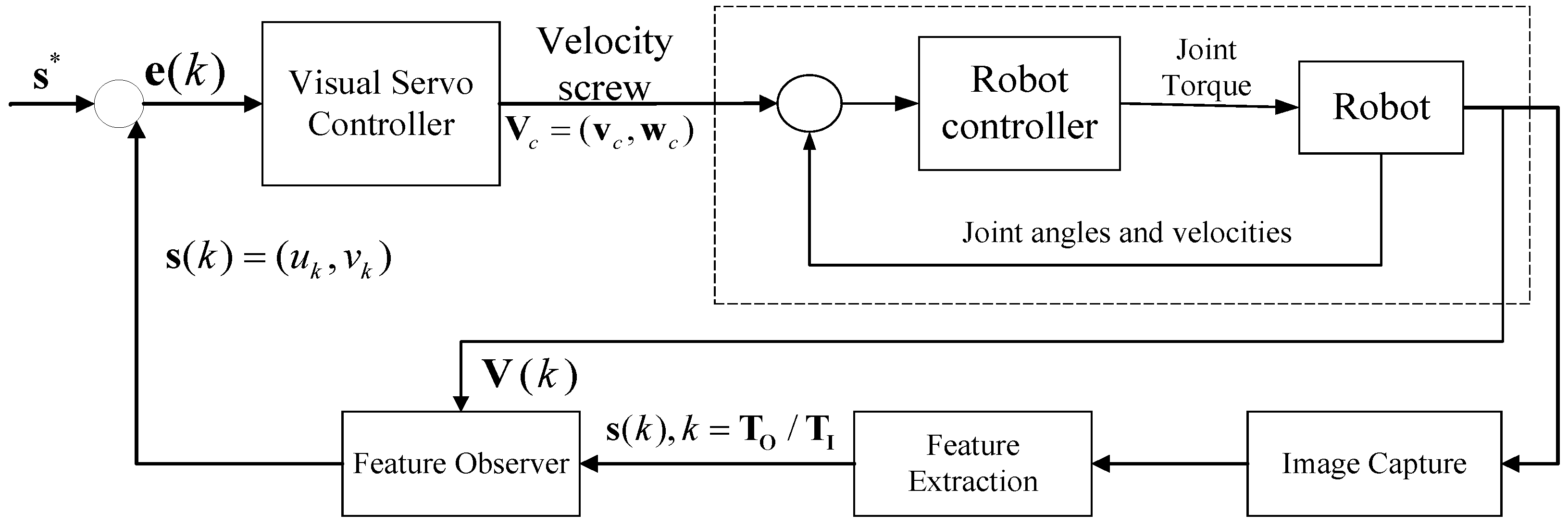

2.2. Control Architecture
3. Adaptive Image Feature Prediction Based on Robot Velocity Linear Dynamic Model
3.1. Linear Dynamic Model of Robot and Camera Motion
3.2. Adaptive Image Feature Prediction
Algorithm 1 Visual Servoing Controller With Adaptive Image Feature Prediction |
Input: the robot end-effcetor velocity and the image features Output: the robot end-effector velocity command ;
|
3.3. Stability Analysis

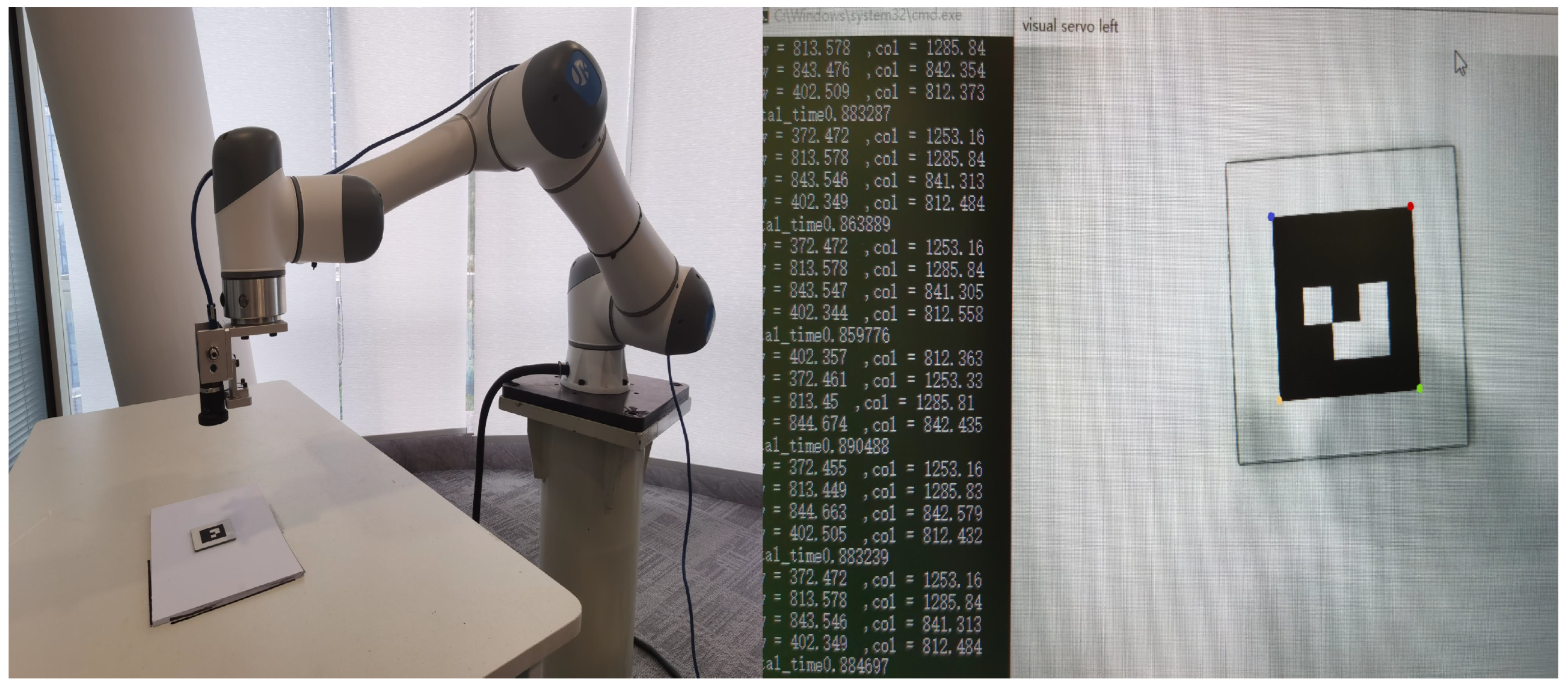

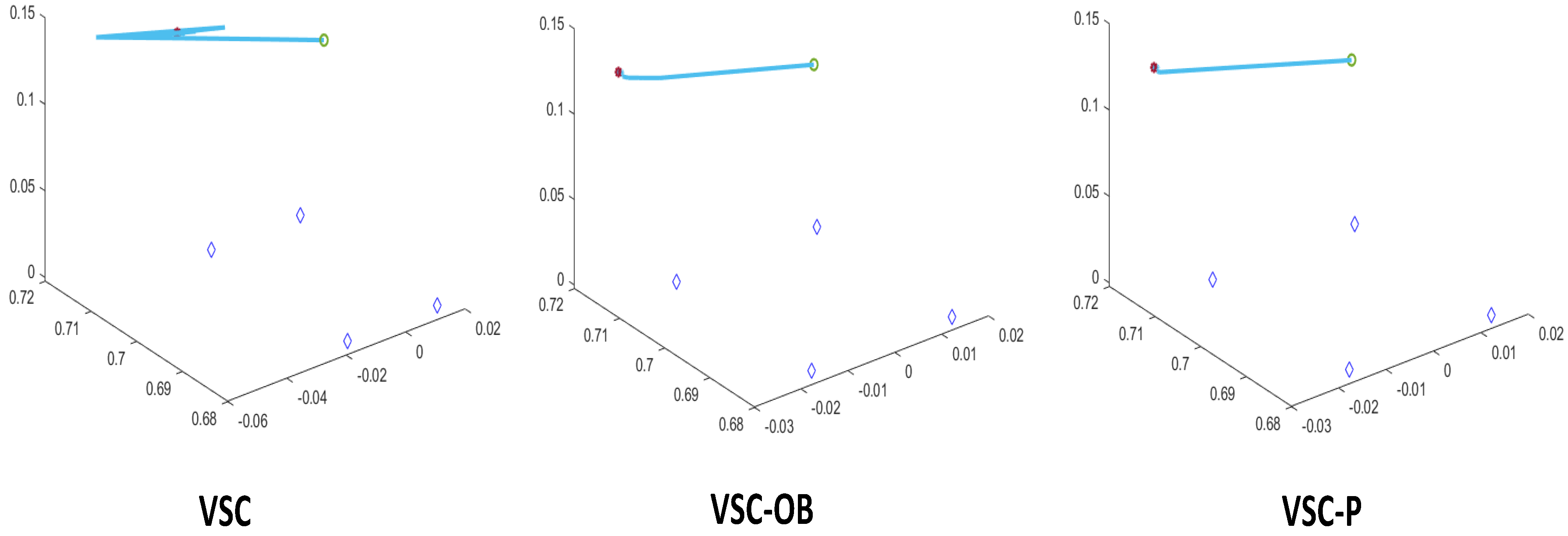

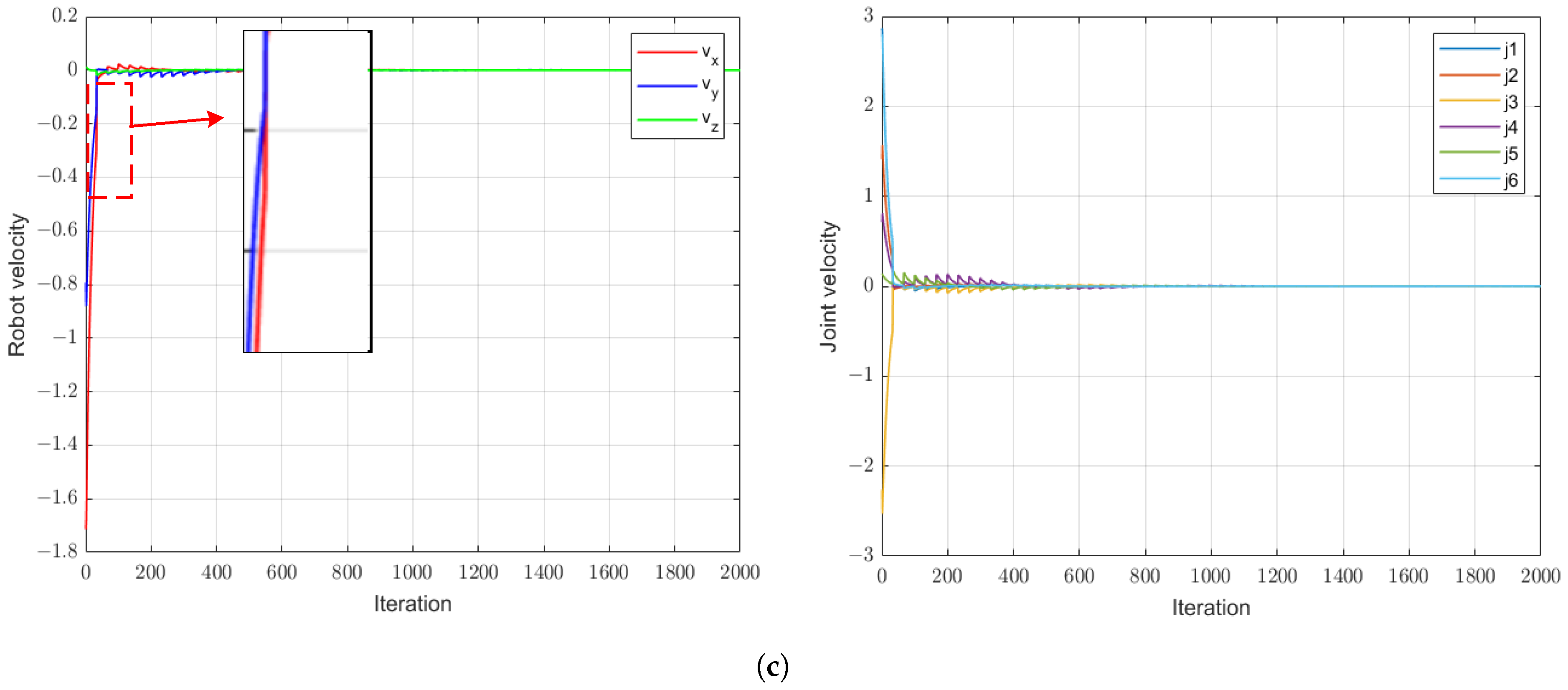

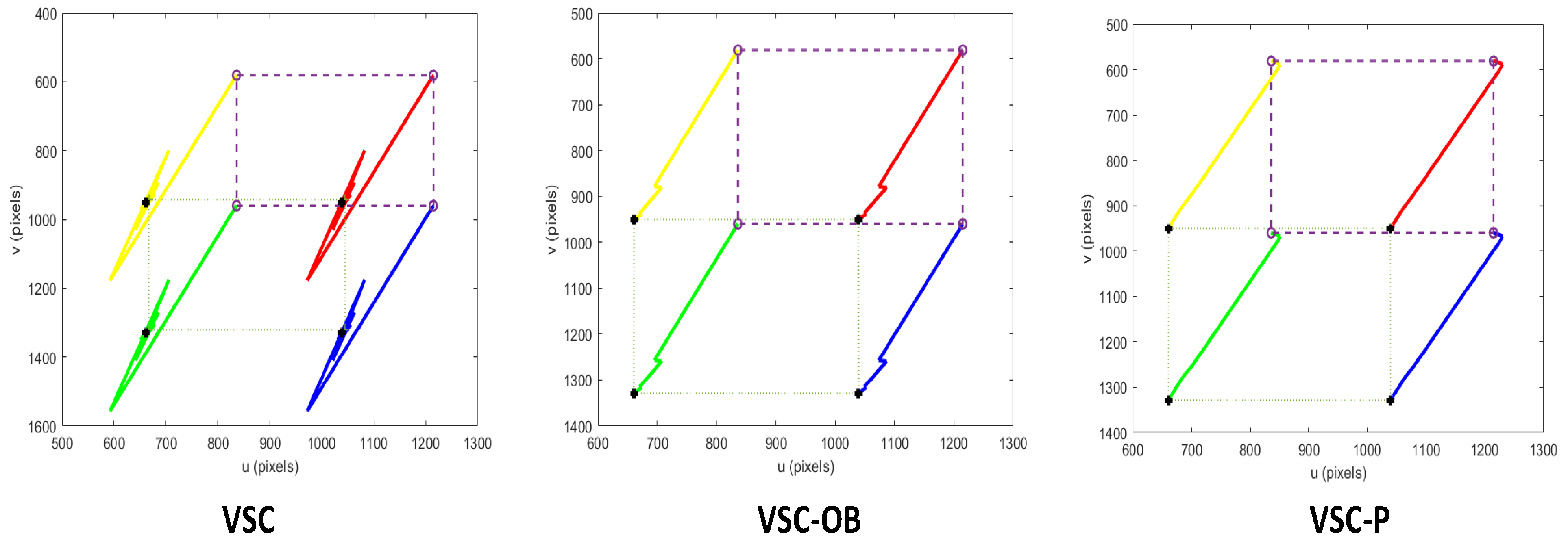

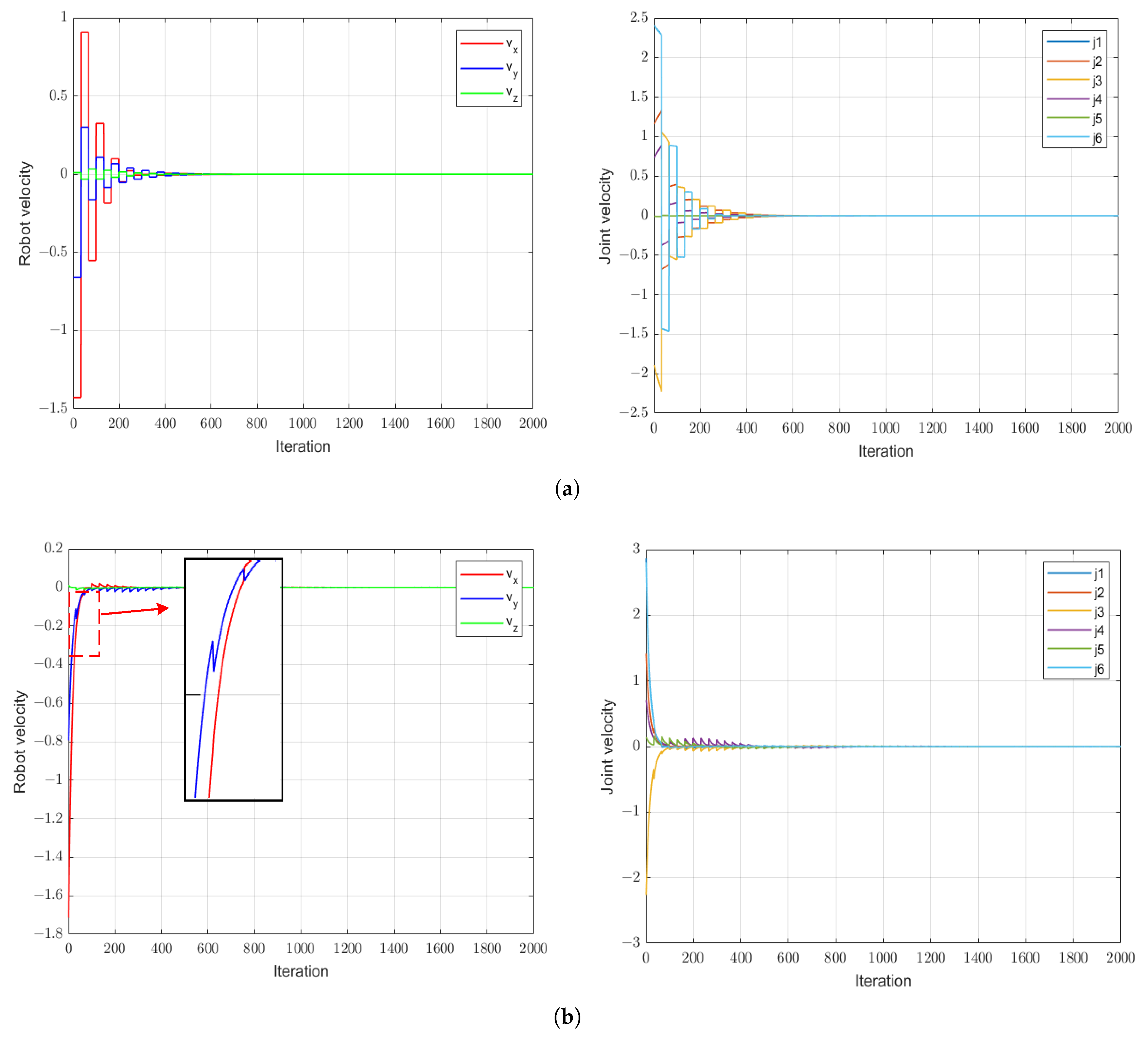

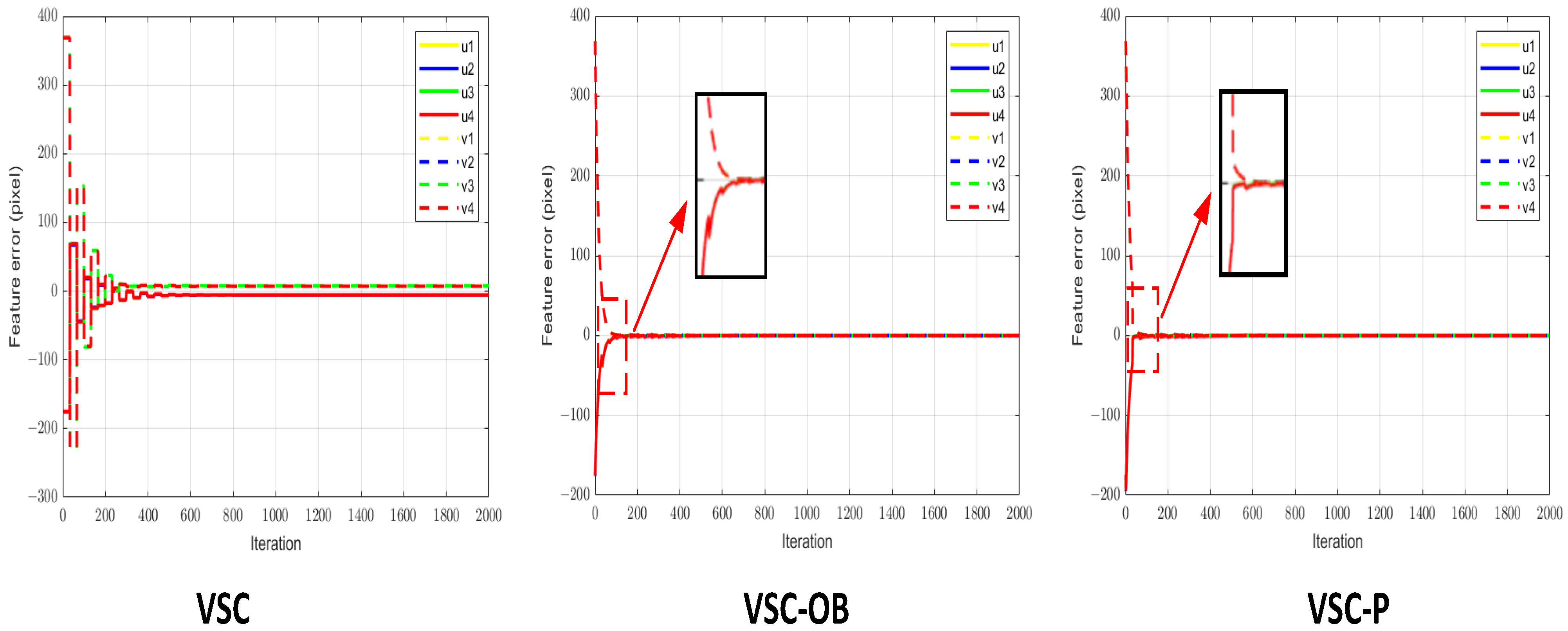

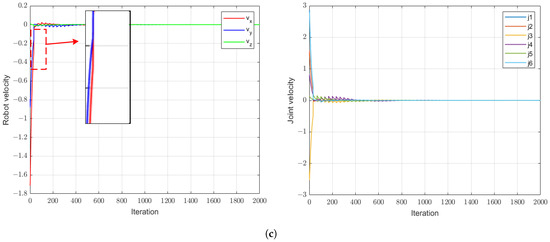

4. Experiments
- (1)
- Method 1 utilized the classical visual servoing scheme (VSC) [18]. In VSC, the four points are employed as image features. Due to the easy recognition of image features, the simple interaction matrix of point features, and high computational efficiency, this scheme has been widely applied in practice.
- (2)
- Method 2 (VSC-OB) employed the image prediction method based on the observer, which only uses Equation (6) and does not consider the robot dynamic model.
- (3)
- Method 3 (VSC-P) utilized the proposed adaptive image prediction based on the input-mapping method in combination with the robot’s dynamic model.

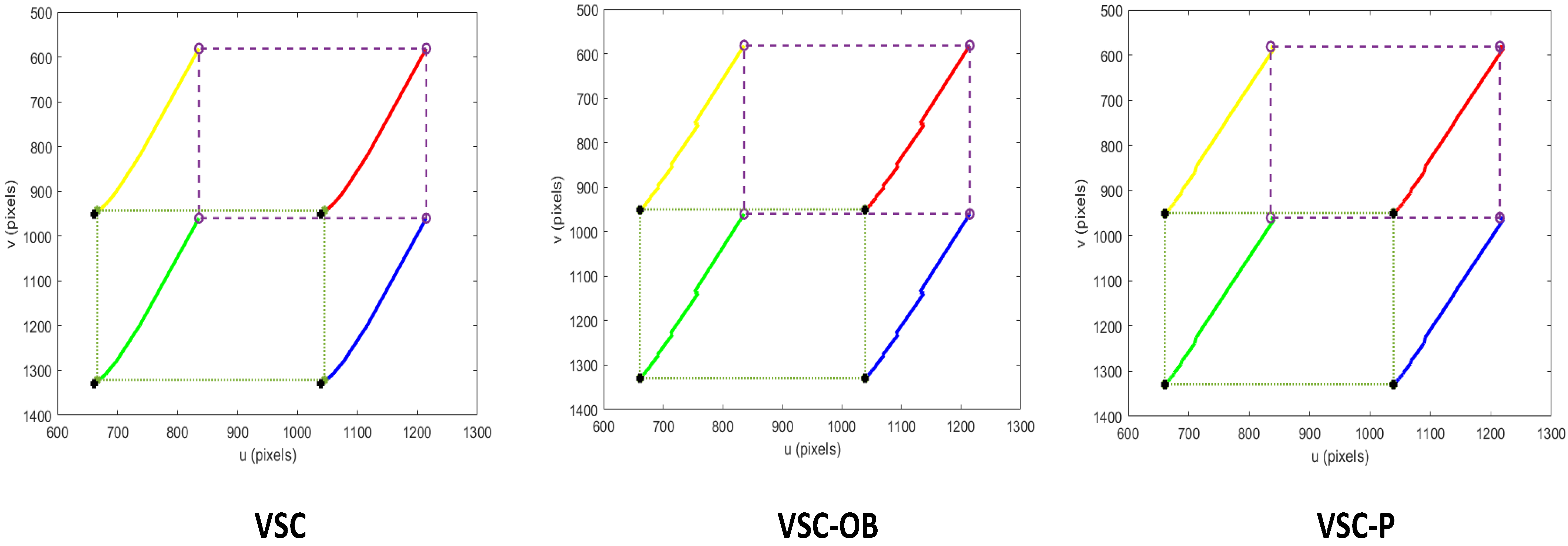

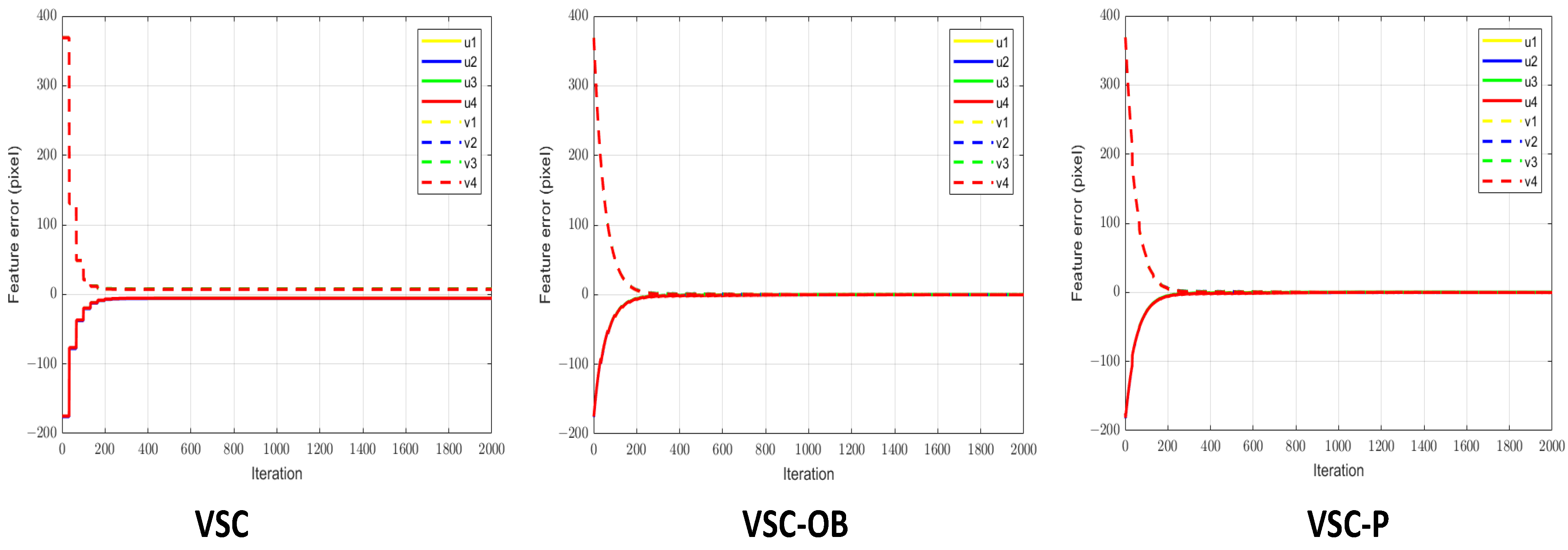

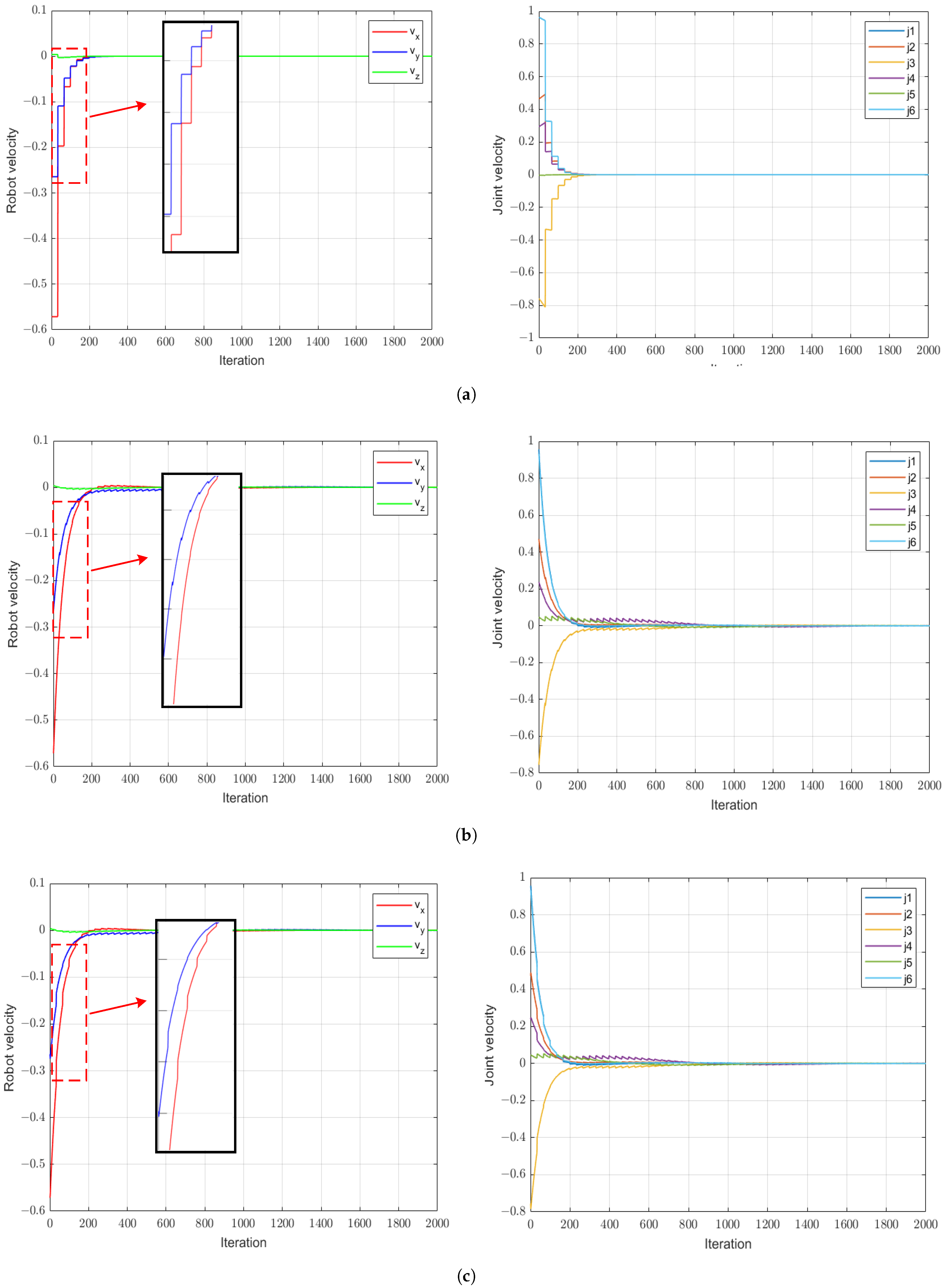

4.1. Controller with Smaller Proportional Gain

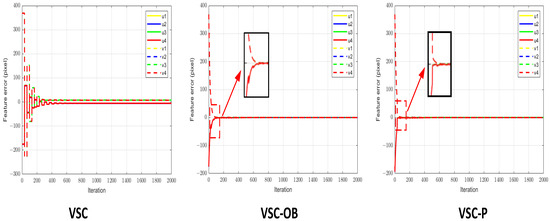

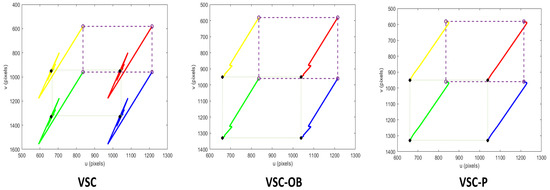

4.2. Controller with Large Proportional Gain
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
