Review

Research Progress on Ammonia Sensors Based on Ti3C2Tx MXene at Room Temperature: A Review

1
School of Materials and Energy, Yunnan University, Kunming 650091, China
2
Yunnan Key Laboratory of Carbon Neutrality and Green Low-Carbon Technologies, Yunnan University, Kunming 650091, China
*
Author to whom correspondence should be addressed.
Sensors 2024, 24(14), 4465; https://doi.org/10.3390/s24144465
Submission received: 27 May 2024 / Revised: 7 July 2024 / Accepted: 8 July 2024 / Published: 10 July 2024
(This article belongs to the Special Issue Chemical Sensors for Toxic Chemical Detection)

Abstract

:
Ammonia (NH3) potentially harms human health, the ecosystem, industrial and agricultural production, and other fields. Therefore, the detection of NH3 has broad prospects and important significance. Ti3C2Tx is a common MXene material that is great for detecting NH3 at room temperature because it has a two-dimensional layered structure, a large specific surface area, is easy to functionalize on the surface, is sensitive to gases at room temperature, and is very selective for NH3. This review provides a detailed description of the preparation process as well as recent advances in the development of gas-sensing materials based on Ti3C2Tx MXene for room-temperature NH3 detection. It also analyzes the advantages and disadvantages of various preparation and synthesis methods for Ti3C2Tx MXene’s performance. Since the gas-sensitive performance of pure Ti3C2Tx MXene regarding NH3 can be further improved, this review discusses additional composite materials, including metal oxides, conductive polymers, and two-dimensional materials that can be used to improve the sensitivity of pure Ti3C2Tx MXene to NH3. Furthermore, the present state of research on the NH3 sensitivity mechanism of Ti3C2Tx MXene-based sensors is summarized in this study. Finally, this paper analyzes the challenges and future prospects of Ti3C2Tx MXene-based gas-sensitive materials for room-temperature NH3 detection.

1. Introduction

NH3 is a colorless, alkaline gas with a pungent odor that is now widely used in industry, agriculture, and other fields such as refrigerant and nitrogen fertilizer production. Excessive NH3 emissions are closely related to the biological environment and the health of humans, such as the formation of acid rain and some human diseases [1,2]. According to the Occupational Safety and Health Administration (OSHA), when the human body is exposed to 35 ppm of NH3 for more than 15 min, this will endanger human health, and when the concentration of NH3 reaches 500 ppm, people will suffer from acute toxicity, eye pain, shortness of breath, and other symptoms, as well as the risk of asphyxiation [3,4]. In addition, NH3 can be a marker gas for human diseases such as kidney, liver, or H. pylori infections [5], and NH3 can be used for the early prevention of diseases and monitoring of the disease process via changes in the concentration of exhaled NH3 in the human body [6].
A gas sensor is a sensitive device capable of converting the gas concentration that needs to be measured into an electrical signal. By analyzing the electrical signal, the sensor can obtain information such as the gas concentration present in the environment [7,8,9]. In recent decades, traditional commercialized NH3 gas-sensitive materials have focused on metal oxide semiconductors (MOS) such as SnO2, TiO2, WO3, ZnO, and other materials. Scientists have conducted many studies on them because they have high gas-response values [10]. However, most of the MOS-based NH3 sensors operate at temperatures above 100 °C, and the higher operating temperature and their consumption of large amounts of energy limit their applications at room temperature and the flexible wearable applications of NH3 [11]. Therefore, the development of a sensing material that can realize the real-time and efficient detection of NH3, which exhibits strong sensitivity and a rapid response and can work at room temperature, is urgently needed for production safety and human health [12].
Two-dimensional (2D) transition metal carbons and nitrides (MXenes) are emerging 2D materials with a graphene-like layered structure with the general formula Mn+1XnTx, where the “M” stands for the early transition metals, such as Ti, V, Ta element, etc.; the “X” is the C or N element; the “n” is 1, 2, or 3; and the “T” is the surface functional group, such as hydroxyl (-OH), oxygen (-O), fluorine (-F), chlorine (-Cl), and so on [13]. MXenes were first discovered by Prof. Yury Gogotsi in 2011 [14]. Their excellent electrical conductivity, large specific surface area, and rich surface functional groups that provide more active sites for gas adsorption and reaction have attracted widespread attention and led to their use in energy storage, photovoltaic devices, supercapacitors, and gas sensors [15,16,17]. Ti3C2Tx is one of the first and most extensively studied MXene materials [18]. It has been shown both theoretically and experimentally that Ti3C2Tx MXene has excellent NH3 sensitivity at room temperature [19]. Density functional theory (DFT) calculations have shown that the -F, -O, and -OH groups on the surface of Ti3C2Tx MXene materials have high adsorption energies with NH3. It was also shown that Ti3C2Tx MXene materials are effective at sensitizing gases to NH3 [20,21].
However, it is the high adsorption energy between Ti3C2Tx MXene and NH3 that also leads to the resistance drift and long recovery time from the NH3 environment to the air. NH3 sensors based on pure Ti3C2Tx MXene often exhibit poor selectivity, slow response and recovery times, and low response values [22,23]. So, in order to obtain an excellent NH3-sensitive performance at room temperature, scientists have paid a lot of attention and conducted a lot of research focused on the choice of synthesis method, composite modification, and systematic sensitization mechanism of Ti3C2Tx MXene-based ammonia sensors.
In this context, this paper begins with Ti3C2Tx MXene synthesis methods, provides a classified overview of the most recent research progress in Ti3C2Tx MXene synthesis, which is primarily classified as HF etching, in situ HF etching and alkali solution etching, and summarizes the benefits and drawbacks of the various etching techniques. In addition, several types of composites, including metal–oxide semiconductors, conductive polymers, and 2D material composites, are briefly discussed in order to enhance the NH3-sensitive behavior of NH3 sensors based on pure Ti3C2Tx MXene. These Ti3C2Tx MXene composites are further analyzed to prove that the primary mechanisms of the enhanced NH3-sensing performance of these sensors are the synergistic effects between the composites, such as the formation of a heterojunction of the composites, adsorption energy and charge transfer, chemical sensitization and electron sensitization, and the increase in specific surface area and adsorption sites due to their unique morphology [24,25].
Finally, this paper reviews the research progress regarding the sensitization mechanism of NH3 sensors based on Ti3C2Tx MXene, then summarizes and discusses the two current sensitization mechanisms that can explain the p-type response of MXene to either electron acceptor or electron donor gases: (1) MXene is metallic in nature, and the number of carriers decreases and the electrical resistance increases after the gas adsorption. When they exhibit semiconductor properties, the charge transfer mechanism follows the Wockenstein model [26,27,28]. (2) When the MXenes are exposed to the gas, the interlayer expansion hinders electron transfer and the resistance increases [16]. Finally, the paper summarizes the key challenges and potential paths forward for NH3 sensors based on Ti3C2Tx MXene. We expect that this review will provide novel ideas for the development of high-performance, room-temperature Ti3C2Tx MXene NH3 sensors.

2. Synthesis of Ti3C2Tx MXene

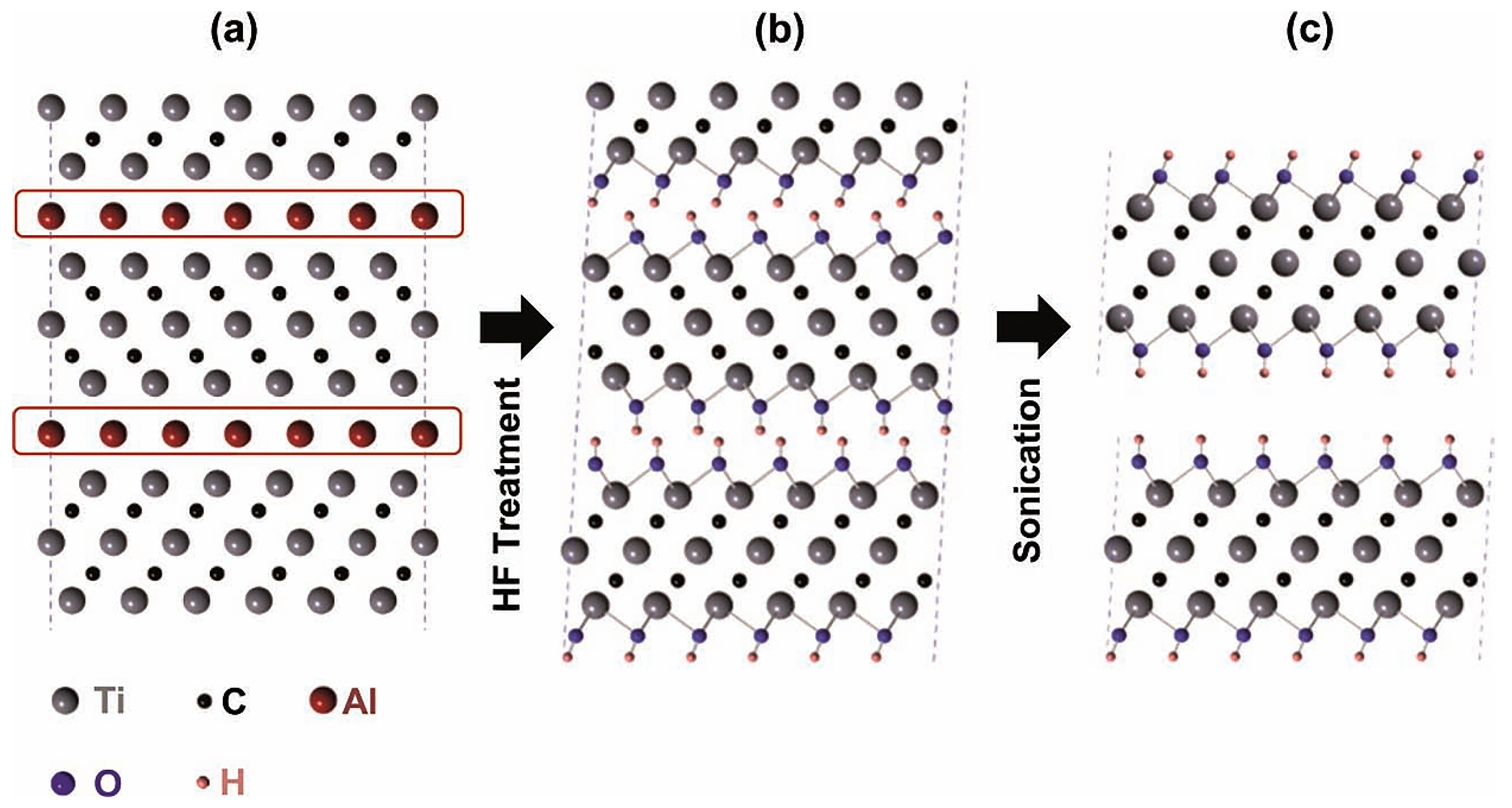

The majority of Ti3C2Tx MXene materials are produced by selectively etching the precursor MAX phase (a hexagonal layered structure with the common structural formula Mn+1AnXn, where the “n” = 1, 2, or 3; examples of such materials are Ti2AlC, Ti3AlC2, Ti2SiC, Ti4AlN3, etc.; the “A” is a group IIIA or IVA element [29,30]). The A atomic layer is more easily etched away during the reaction with the etchant, leaving a 2D layered structure with alternating M and X layers because the M-A bonds in the MAX phase are stronger than the M-X bonds in terms of bond strength.
The functional groups -OH, -O, and -F in the etching system are easily attached to the surface of this alternating layer structure, eventually forming a 2D layered structure, Ti3C2Tx MXene [31,32]. Ti3AlC2 is most used in the MAX phase, as shown in Figure 1, which presents a schematic diagram of the etching process of Ti3AlC2 by HF, where the Ti3AlC2 structure consists of a single Ti3C2 layer separated by Al atoms. The Al atom layers between the Ti3AlC2 layers are eliminated by the HF treatment, and the subsequent loss of metallic bonds causes the individual Ti3Al2C layers to separate, producing Ti3C2Tx. The reaction process is shown in Equations (1)–(3):
T i 3 A l C 2 + 3 H F = A l F 3 + 3 / 2 H 2 + T i 3 C 2
T i 3 C 2 + 2 H 2 O = T i 3 C 2 ( O H ) 2 + H 2
T i 3 C 2 + 2 H F = T i 3 C 2 F 2 + H 2
The substitution of the -F functional group represented by Equation (3) is similar to that of -OH; therefore, its reaction mechanism can be considered to regard -OH in Figure 1 as -F.
The different etching methods and the choice of etchant can change the types and ratios of the functional groups at the end of the Ti3C2Tx MXene material, thus affecting the adsorption behaviors of Ti3C2Tx MXene and NH3 and influencing the NH3-sensitive performance of the sensors. In the current study, most Ti3C2Tx-based NH3-sensing materials are synthesized using HF etching and in situ HF etching. In addition, there are a small number of research papers that mention the alkaline solution etching method. Therefore, this chapter will briefly describe these three etching methods and their effects on ammonia gas-sensing.

2.1. HF Etching

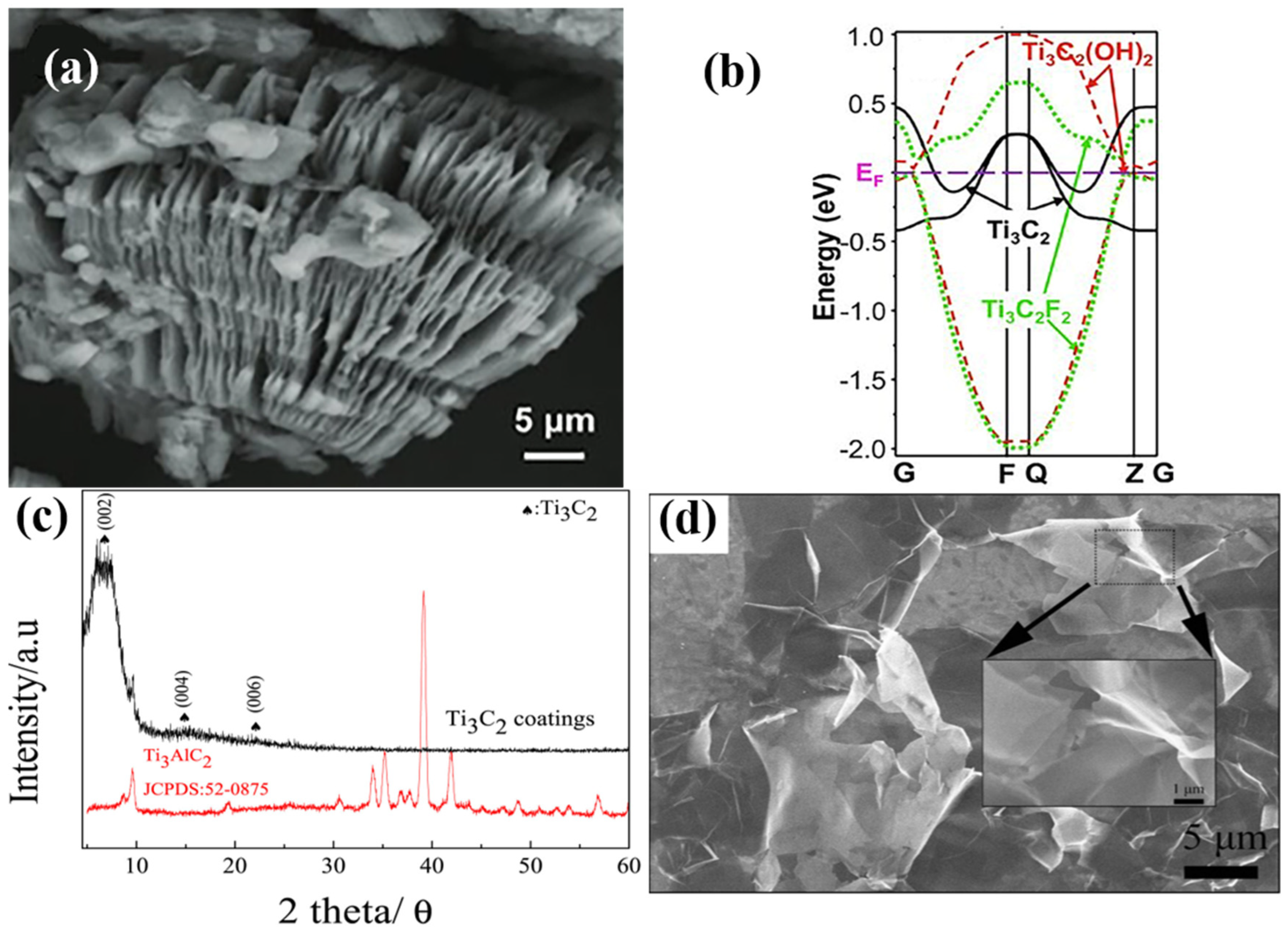

HF etching is a useful approach for preparing Ti3C2Tx MXene, which can be created by etching the MAX phase. In 2011, Naguib et al. [14] prepared the first 2D Ti3C2 phase MXene by etching Ti3AlC2 powder with high concentrations of HF. Figure 2a shows an HFtreated SEM image of Ti3AlC2, revealing that the Ti3C2Tx basal plane is accordion-like with a fan-like dispersion. The energy band structure of the synthesized MXene (Ti3C2) terminated with the −OH and −F end groups was calculated, and the results displayed that the mechanism of the electrical conductivity of the Ti3AlC2 material changed from metallic to semiconducting after etching due to a change in its surface chemistry (Figure 2b). Due to the simplicity of the HF etching method, it remains one of the most commonly used etchants for synthesizing Ti3C2Tx MXene.
The specific surface area of Ti3C2Tx MXene has a great influence on its gas-sensitive properties. The gas-sensitive properties can be improved by increasing the specific surface area of Ti3C2Tx Mxene through intercalation and layering. For the further intercalation and delamination of Ti3C2Tx obtained by HF etching, Lian et al. [33] reported a method involving 2D Ti3C2Tx nanosheets synthesized by intercalation and a delamination reaction in tetramethylammonium hydroxide (TMAOH) solution after dilute HF etching. They added a quantitative amount of Ti3AlC2 powder to a 5% concentrated HF solution, which was magnetically stirred at room temperature for 24 h. Then, the suspension was washed with deionized water until the pH of the supernatant was 5–6 and centrifuged. After that, the precipitate was put in a 25% solution of tetramethyl hydroxide (TMAOH) and magnetically agitated for another 24 h to allow for more intercalation and delamination. Afterward, the precipitate was centrifuged to obtain the two-dimensional, less-layered Ti3C2Tx nanosheets. Figure 2c displays the XRD spectra of Ti3AlC2 and Ti3C2. After HF etching, the (104) diffraction peak of Ti3AlC2 at 2θ ≈ 39.1° almost disappeared, which indicated that the Ti3C2 was completely stripped [34,35]. The SEM image of the Ti3C2 nanoflakes intercalated with TMAOH is shown in Figure 2d. A high level of delamination is indicated by the two-dimensional structure, semi-transparent, and wrinkled textures of the Ti3C2 nanoflakes. In future research, we can increase the specific surface area of Ti3C2Tx MXene-sensitive materials through the intercalation and delamination of Ti3C2Tx to increase the adsorption sites on the surface of the materials to promote their adsorption and gas reaction with ammonia molecules, ultimately aiming to achieve the purpose of improving the sensitivity of Ti3C2Tx MXene.

2.2. In-Situ HF Etching

Although the HF etching process is easy to operate, it has obvious disadvantages, such as a longer etching time and a more dangerous operation [36]. Furthermore, the Ti3C2Tx MXene obtained by this process has more shortcomings: HF is dangerous to humans and the environment, and fluorine-containing functional groups are inert, degrading their properties. In 2014, Ghidiu et al. [37] presented a method to synthesize Ti3C2Tx MXene by etching the Ti3AlC2 phase in situ with LiF and HCl solution. Specifically, LiF was added to a 6 M HCl solution and stirred to dissolve before slowly adding Ti3AlC2 powder and maintaining this at 40 °C for 45 h. After that, the mixture was washed until the pH of the supernatant was 6. The obtained deposit formed a clay-like paste, which was rolled between the roller mill’s permeable membranes to produce pliable, freestanding thin films within a few minutes. When diluted, it can be applied as an ink to deposit or print MXene on various substrates.
During the reaction process, Li+ can spontaneously insert into the interlayer of Ti3C2Tx MXene, and due to the hydrophilicity of Ti3C2Tx MXene, water molecules can easily enter the interlayer, leading to a much larger lattice parameter for Ti3C2Tx MXenes obtained by LiF/HCl etching than for Ti3C2Tx MXenes obtained by HF etching. This process produces large-component monolayer Ti3C2Tx flakes with a high yield, large lateral size, and excellent quality. More importantly, using LiF and HCl to etch MAX avoids the use of concentrated HF, which is very corrosive and poisonous, while also reducing the nanoscale defects generated by direct etching with HF. Furthermore, the simplicity of this method contrasts with previous films produced through laborious insertion, layering, and filtration techniques [38]. It is noteworthy that MXenes can still be obtained when H2SO4 is used instead of HCl. However, fine-tuning the etching reagent might affect the surface chemistry or the intercalation ions, which needs more exploration. Currently, in situ etching by LiF and HCl solutions is widely used in the synthesis of Ti3C2Tx MXene materials.
Han et al. [39] compared the ammonia sensitivity of Ti3C2Tx MXene materials synthesized by HF etching and LiF/HCl etching. They found that the Ti3C2Tx materials prepared by the LiF/HCl etchant had better gas sensitivity than that of HF etchant. They could detect a wide range of NH3 at room temperature with higher sensitivity and stability. The higher sensing performance of the Ti3C2Tx MXene materials obtained by the LiF/HCl etching method was analyzed to be due to the high ratio of -O and -OH functional groups on the surface of Ti3C2Tx materials prepared by this method.

2.3. Alkali Solution Etching

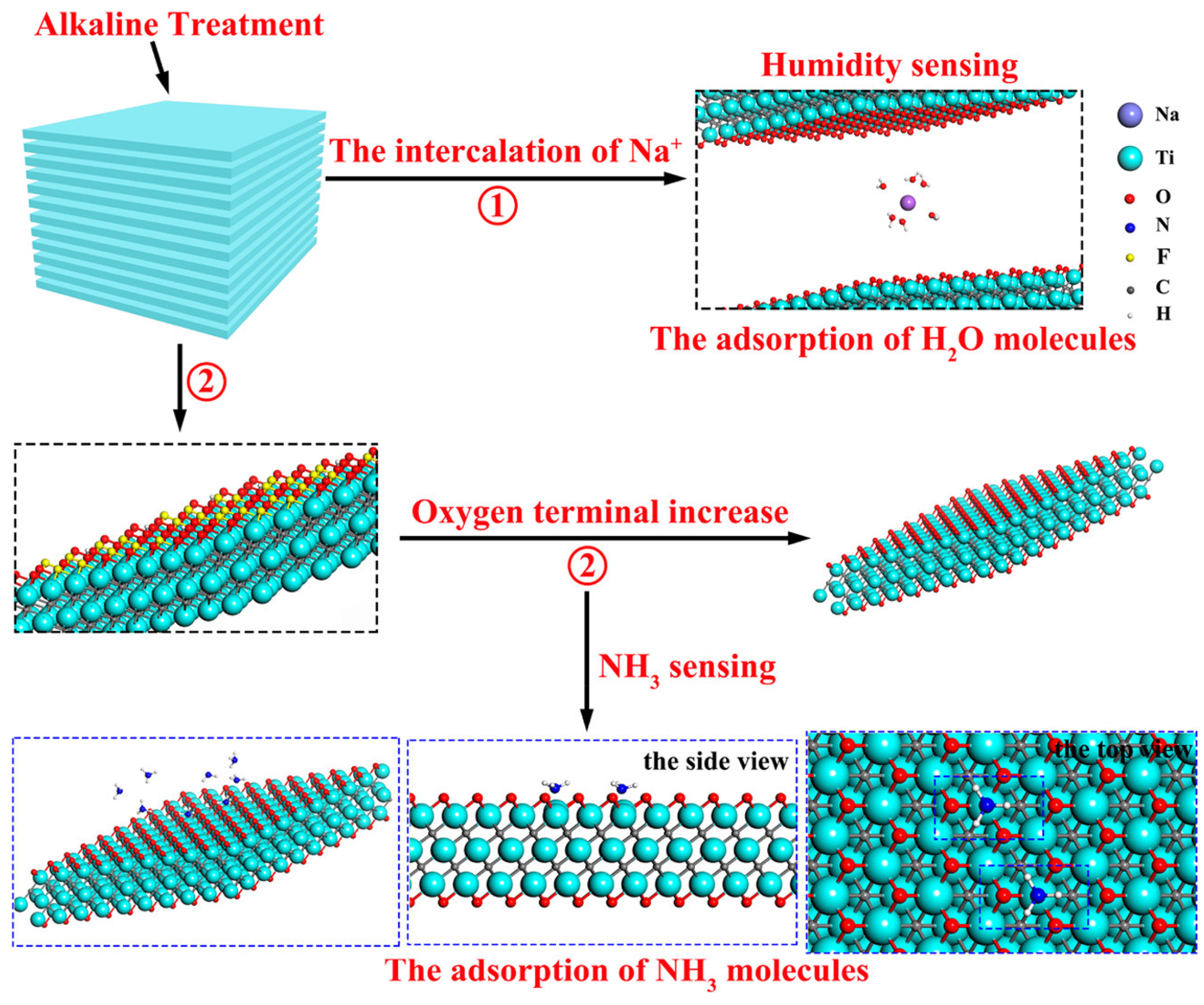

Yang et al. [40] improved the humidity and NH3-sensing properties of organ-like Ti3C2Tx MXene synthesized from HF solution via alkalization. Organ-like Ti3C2Tx MXene is a class of Ti3C2Tx MXene materials that can provide a fast pathway for charge and ion transfer, thereby preventing the reduction in specific surface area due to the restacking of layers. Firstly, Ti3C2Tx MXene powder was prepared through HF acid etching using Ti3AlC2 and a 45 wt% HF solution. Subsequently, the obtained Ti3C2Tx MXene powder was put into a 5 M NaOH solution and subjected to continuous magnetic stirring at room temperature for 2 h, and the alkalized Ti3C2Tx powder was finally obtained. The alkali treatment embeds Na+ in the interlayer of Ti3C2Tx, which plays a crucial role in regulating water for humidity sensing. During stage 1 of Figure 3, several water molecules are coupled with a single Na+ ion, forming a stable [Na(H2O)m]+ cluster structure. Meanwhile, in stage 2 of Figure 3, the alkaline treatment enhances the N-Ti bonding sites due to the increased -O terminus, resulting in higher NH3 adsorption. The alkalized Ti3C2Tx devices have an improved sensing performance for humidity and NH3 compared to non-alkalized Ti3C2Tx, due to the embedding of Na+ and the higher oxygen-to-fluorine atomic number ratio ([O]/[F]), and have the opposite response signal.
Although there is no report on the synthesis of Ti3C2Tx MXene ammonia-sensitive materials using only alkali etching, this method allows for the preparation of Ti3C2Tx MXene with a large number of oxygen-containing functional groups, is simple to perform, and does not contain inert groups -F. Therefore, it is expected to be applicable to the synthesis of Ti3C2Tx MXene-based ammonia-sensitive materials in the future and to obtain sensitive materials with a strong ammonia-adsorption capacity.
Ti3C2Tx MXene synthesized by conventional fluoride-containing methods usually uses fluoride ion-containing solutions as an etchant, which is harmful to the environment. In addition, highly reactive fluoride ions can penetrate into the human body and cause fatal damage to body tissues [41,42]. It has been demonstrated that fluoride-based etching procedures generate a large number of -F-terminal functional groups [43,44], which substantially limit charge transfer and diminish chemically active sites, hence compromising the electrochemical characteristics of Ti3C2Tx MXene [45,46,47]. Therefore, modulating the terminal functional groups of Ti3C2Tx MXene can affect its electrochemical properties and NH3 sensitivity [48]. Furthermore, the popular HF and LiF/HCl etching methods are typically time-consuming [49]. Therefore, it is important to develop environmentally friendly and F-free synthesis routes for NH3 sensor-based Ti3C2Tx MXene in the future.

3. Ti3C2Tx MXene-Based Nanocomposites Material Gas Sensors for NH3

Ti3C2Tx Mxenes are a typical new 2D material with high selectivity for ammonia at room temperature. Dillon, Lipatov et al. [35,50] measured the high electrical conductivity of Ti3C2Tx MXene to be 6500 S cm−1 and 4600 ± 1100 S cm−1. Halim et al. [51] have also reported that Ti3C2 films exhibit metal conductivity at a temperature of about 100 K. Ti3C2Tx MXenes is considered to have good application prospects for ammonia detection at room temperature due to its excellent electrical conductivity, unique structure, and the large number of adsorption sites provided by functional groups such as -O and -OH on the surface [52,53,54]. Due to the low response values, serious base-resistance drift, and poor stability of pure Ti3C2Tx MXenes when utilized as ammonia-sensing materials, it is essential to combine Ti3C2Tx MXene with other sensitive materials to enhance their sensing capabilities [25,55,56]. In this chapter, a brief overview will be provided of the most-researched methods of compositing several sensitive materials with Ti3C2Tx MXenes to improve their sensing performance. These methods include combining them with MOS materials, conductive polymer materials, and certain 2D materials.

3.1. Metal Oxide Modification

MOS materials such as TiO2, SnO2, In2O3, WO3, and Ti3C2Tx MXene usually use synergistic effects such as the Fermi energy level effect (Fermi level bending, carrier separation, depletion layer regulation, and increase in interfacial barrier energy) between the composites, the formation of heterojunctions, and the specific morphology, etc., to enhance the gas-sensitive performance of the sensors [57,58,59]. In particular, for TiO2/Ti3C2Tx MXene nanocomposites, in addition to the introduction of TiO2 material in the matrix, due to the instability of Ti3C2Tx MXene, TiO2can be synthesized through partial oxidization to Ti3C2Tx MXene, leading to in situ derivatization using techniques such as high-temperature sintering.
When a semiconductor material is irradiated by UV light whose optical energy is larger than its band gap, photocarrier pairs are generated at the interface of the sensitive material [60,61], and the additionally generated photogenerated electrons and holes can promote the adsorption and desorption processes and redox reactions of gases, thus improving the response value and shortening the response recovery time of the sensor [62,63]. Therefore, using the UV irradiation of gas sensors to obtain highly NH3-sensitive Ti3C2Tx MXene-based sensors operating at room temperature is a feasible strategy.
To overcome the limitations of Ti3C2Tx MXene as a room-temperature ammonia gas sensor, such as limited its sensitivity and selectivity, Zhang et al. [64] proposed growing TiO2 on Ti3C2Tx MXene in situ. They also utilized UV light (the light energy of the used 365 nm UV light source is 3.4 eV, which is larger than the band gap 1.6 eV of (001)TiO2/Ti3C2Tx) to boost the performance of the (001) TiO2/MXene heterostructure ammonia gas sensor. The Ti3C2Tx powder was prepared by removing the Al layer from MAX (Ti3AlC2) with a 50% HF solution. NaBF4 (0.1 mol/L, 8 mL) was introduced as a control agent for the crystal surface in the HCl solution of Ti3C2Tx. The mixture was then hydrothermally treated at 160 °C for 8, 12, 16, and 32 h. The hydrothermal reaction promoted the formation of (001) planes during the crystal growth process, converting Ti in Ti3C2 into hydrated Ti3+ ions and binding F ions to the (001) planes with the aid of NaBF4 as an inducer. As shown in Figure 4a, the T-T-12 h TiO2/MXene sensor that undergoes a hydrothermal reaction for 12 h is more sensitive to ammonia, with a lower detection limit than that of the pure Ti3C2Tx-based sensor, and also exhibits good durability in terms of its response/recovery time, repeatability, and selectivity. Analyzing the energy band diagram schematic of the T-T-12 h TiO2/MXene-based sensor demonstrated in Figure 4c, it can be concluded that the enhanced gas-sensitive performance of NH3 is obtained because Ti3C2Tx greatly facilitates the separation of electron–hole pairs by storing holes through the Schottky junctions formed at the interfaces with TiO2, which enhances the ammonia-sensing performance. In Figure 4d, we can see that adding UV light to the highly active (001) crystalline TiO2 makes the charge separation of the T-T-12 h TiO2/MXene sensor when exposed to UV light even better, which leads to a better gas-sensing performance. Figure 4b also shows a two-fold increase in sensitivity compared to when UV is absent. The TiO2/MXene sensor type T-T-12 h exhibited 34 times more sensitivity to 30 ppm of ammonia compared to pristine Ti3C2Tx. Density functional theory reveals that the (001) side of the TiO2 and Ti3C2Tx composite has the greatest attraction in terms of ammonia adsorption [64].
To further improve the sensing performance of pure Ti3C2Tx MXene for NH3, Kan et al. [65] combined surface-functionalized In2O3 nanotubes with Ti3C2Tx nanosheets. The composite was further loaded onto thermoplastic polyurethane (TPU) foam, a dual-functional sensing platform constructed based on Ti3C2Tx/In2O3 nanocompositesand modified TPU foam sensors. The produced nanocomposites exhibited an improved ammonia-sensing performance and pressure-sensitive properties, utilizing the strong synergistic effect of the sensing of In2O3 nanotubes and high conductivity of Ti3C2Tx nanoflakes, as well as the foam substrate’s pressure-sensitive and gas-permeable capabilities. Ti3C2Tx nanoflakes are negatively charged on the surface due to the terminal functional groups such as -OH and -F. At this time, the modification of In2O3 with the cationic surfactant (3-aminopropyl) triethoxysilane (APTES) can make the surface of In2O3 positively charged, and the two can be compounded to obtain Ti3C2Tx/In2O3 composites via simple ultrasonication with electrostatic adsorption, which was shown to have higher NH3 response values than pure Ti3C2Tx nanoflakes. In2O3 is an n-type sensing material, which has a bandgap in the range of 3.55–3.75 eV [66] and a work function of about 4.28 eV [67]; Ti3C2Tx MXene behaves as a p-type sensing material, which has a bandgap of 0.19 eV [68] and a work function of about 4.5 eV [69]. Two main factors are used to investigate the enhanced sensing ability: First, n-type In2O3 has a high Fermi energy level, and electrons will be transferred from the In2O3 nanotubes to the Ti3C2Tx nanoflakes until the Fermi energy levels of the two reach equilibrium, thus forming a space charge layer at the Ti3C2Tx and In2O3 interface. At the same time, the energy bands at the interface are bent on both sides, generating a potential barrier that increases the base value resistance of the sensor, thus increasing the gas response. Second, the In2O3 nanotubes work as isolators to inhibit the re-stacking of Ti3C2Tx nanoflakes, thereby increasing the layer space and effectively facilitating the diffusion and permeation of gases in the sensing layer. In addition, the sensor achieves the flexible and interference-free detection of complex exhaled environments at room temperature, with a memory function for detecting NH3 gases down to 1 ppm, realizing the dual-mode detection of NH3 gases.

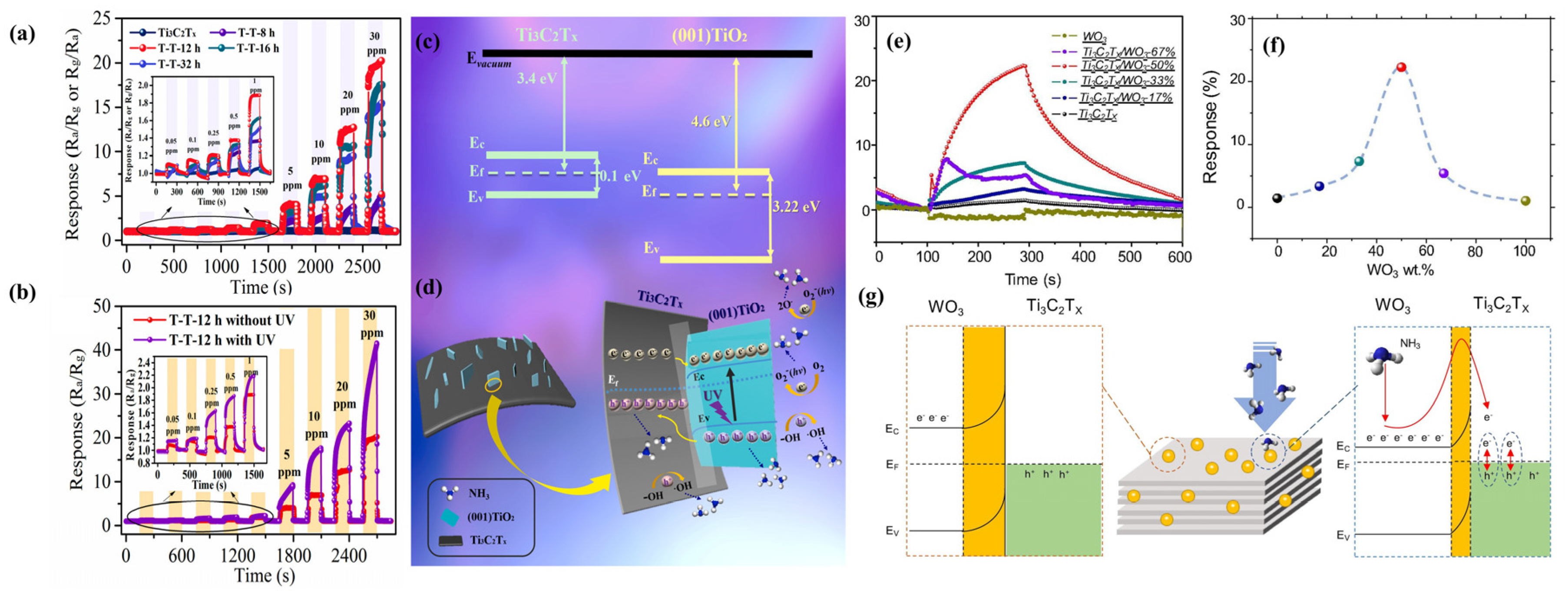

Figure 4. (a) Dynamic response curves of TT8 h-, TT12 h-, TT16 h- and TT32 h-based sensors; (b) dynamic response curves with UV illumination on T-T-12 h and without UV illumination on TT12 h; (c) schematic illustration of band diagrams of Ti3C2Tx and (001) TiO2; (d) schematic illustration of ammonia gas-sensing mechanism under UV irradiation [64]. (e) The transient response curves of the composite sensors with different WO3 contents to 1 ppm NH3 at room temperature; (f) the dependence of the composite sensor response on the WO3 content; (g) schematic illustration of the gas-sensing mechanism and the energy band structure diagram of Ti3C2Tx/WO3 before and after exposed NH3 [70].
Figure 4. (a) Dynamic response curves of TT8 h-, TT12 h-, TT16 h- and TT32 h-based sensors; (b) dynamic response curves with UV illumination on T-T-12 h and without UV illumination on TT12 h; (c) schematic illustration of band diagrams of Ti3C2Tx and (001) TiO2; (d) schematic illustration of ammonia gas-sensing mechanism under UV irradiation [64]. (e) The transient response curves of the composite sensors with different WO3 contents to 1 ppm NH3 at room temperature; (f) the dependence of the composite sensor response on the WO3 content; (g) schematic illustration of the gas-sensing mechanism and the energy band structure diagram of Ti3C2Tx/WO3 before and after exposed NH3 [70].
Sensors 24 04465 g004
To address the limited sensitivity of Ti3C2Tx MXene gas sensors, Guo et al. [70] reported a Ti3C2Tx/WO3 composite resistive sensor that had excellent NH3 sensitivity at room temperature. Ti3C2Tx/WO3 composites with WO3 nanoparticles anchored on Ti3C2Tx nanosheets were prepared using an ultrasonic technique. As demonstrated in Figure 4e,f, the detection sensitivity of the Ti3C2Tx/WO3-50% sensor was up to 22.3%, which was 15.4 times higher than that of the pure Ti3C2Tx sensor, at 1 ppm NH3 at room temperature. The improved NH3-sensing performance is mainly attributed to the increase in the aspect ratio of the composite, the increase in the active sites provided by WO3, and the more effective charge transfer bestowed by the formed heterojunction (Figure 4g). It was demonstrated that the Ti3C2Tx/WO3-50% sensor remained effective over a wide range of relative humidity (RH) conditions (3.5%~72.9% RH), and low concentrations of NH3 were still detected even at high humidity. As RH increases, the sensor response to NH3 sensing gradually decreases. Humidity compensation methods, which are often used in practical applications, can help to solve the humidity effect’s limitations.
Table 1 outlines the gas-sensitive properties of different MOS/Ti3C2Tx MXene composites towards NH3 at room temperature in recent years. The acronym “LOD” in the table refers to “the limit of detection”.

3.2. Conductive Polymer Addition

Conducting polymers, such as polyaniline (PANI), polypyrrole (PPy), polydioxothiophene (PEDOT), and their derivatives, possess the advantages of high flexibility, the ability to work at room temperature, and a high response to ammonia. As a result, they are receiving increasing attention for their use in NH3 sensing at room temperature [77,78]. To address the issues of Ti3C2Tx MXene resistance drift, the long recovery time, the low response value, and susceptibility to mechanical deformation, it has been proposed to hybridize Ti3C2Tx MXene with conductive polymers. This approach aims to enhance the sensitivity and wearable performance at room temperature of Ti3C2Tx MXene through the heterojunctions formed between the two materials and the high flexibility of the conducting polymers [79,80].
Polyaniline (PANI) has been widely used in room-temperature ammonia sensors due to its strong electrical conductivity, superior selectivity to ammonia, and room-temperature workability [81,82]. Yang et al. [82] used electrostatic spinning to combine polyaniline with Ti3C2Tx nanosheets to construct polyaniline/Ti3C2Tx composite nanofibers with excellent ammonia responsiveness for room-temperature flexible ammonia sensors. The SEM image in Figure 5a demonstrates that the synthesized Ti3C2Tx exhibits a distinct layer structure, and the Tyndall phenomenon can be seen in the inset. Figure 5b is an SEM image of PANI/Ti3C2Tx, which reveals a 3D network fiber structure with random fiber orientation. Figure 5c shows that the PANI/Ti3C2Tx flexible sensor has a greater NH3-sensing response at 25 °C (2.3 times the response value at 20 ppm compared to pure PANI), with good selectivity, repeatability, and long-term stability. Figure 5f demonstrates that by adjusting the bending angle (0°–150°) and the number of bending times (up to 3200), a high sensing performance at 20 ppm NH3 and enduring flexible bending stability can be attained. PANI is a conductive p-type semiconductor with a band gap of about 2.47 eV [83]; the resistance of the pure Ti3C2Tx sensor, exhibiting a metallic nature, was tested to be about 24 Ω [79], and the Ti3C2Tx band gap was reviewed in the literature to be about 0.19 eV [68]. In the UPS results of the composites in Figure 5d,e, the figures of merit for Ti3C2Tx and PANI/Ti3C2Tx composite nanofibers are 2.99 eV and 3.44 eV, respectively (UV is He I, 21.22 eV). Therefore, the formation of the Schottky junction at the interface between Ti3C2Tx and PANI enhances the resistance modulation of the flexible sensor. The gas sensitivity of the PANI/Ti3C2Tx flexible sensor was shown to be enhanced because the composite of the PANI and Ti3C2Tx nanosheets constitutes a Schottky junction, the degree of PANI protonation is increased, and the two are hybridized to form a special three-dimensional reticulated fibrous structure, which has great potential for the construction of flexible ammonia gas sensors.
In addition, electrostatic spinning has been widely used in conductive polymer sensors as an easy, efficient, low-cost nanofiber preparation technique. Compared with the traditional synthesis method, the electrostatic spinning method can greatly increase nanomaterials’ specific surface area volume ratio [84]. By integrating polymers with nanofiber structures into resistive gas sensors, porous materials with a high surface area and large porosity can be prepared to enhance the adsorption of ammonia molecules by the sensors and improve the sensitivity of the sensors, as well as to further optimize the properties of the polymer-sensitive materials, such as their hydrophobicity, conductivity, and flexibility [85,86]. In addition, these sensors also showed fast response and recovery times. Zhang synthesized polyaniline and polymethyl methacrylate (PMMA) nanocomposite fibers using electrostatic spinning [87]. This sensitive material was shown to have a fast response and high sensitivity to NH3, with a sensitivity of 4.5% to 5 ppm NH3 and a response/recovery time of about 5 s/12 s. On this basis, through the composite of different conductive polymer materials and Ti3C2Tx MXene, as well as the optimization of the electrostatic spinning process conditions, the development of NH3-sensitive materials with a high sensing performance is expected. This is essential for further optimizing the ammonia sensor performance of the conducting polymer/Ti3C2Tx MXene composites.
Poly (3,4-ethylenedioxythiophene):polystyrene sulfonate (PEDOT:PSS) has attracted a lot of attention in the field of gas sensing because of its good electrical conductivity, low bandgap, environmental friendliness, capacity to detect dangerous chemicals at low operating temperatures [88,89,90,91], and environmental stability [92,93]. Jin et al. [94] created PEDOT:PSS/Ti3C2Tx MXene composites by combining 3,4-ethylenedioxythiophene (PEDOT) and poly (4-styrenesulfonate) (PSS) on a Ti3C2Tx MXene material on a polyimide (PI) substrate through in situ polymerization. Figure 5g,h show the SEM images of Ti3C2Tx MXene and PEDOT:PSS/Ti3C2Tx MXene composites, respectively, where the Ti3C2Tx exhibits a monolayered or few-layered lamellar structure after the introduction of the PEDOT:PSS, where the surface of Ti3C2Tx MXene is covered by micro- and submicrometer PEDOT:PSS plates. Comparing Figure 5i,j reveals that the introduction of PEDOT:PSS increases the gap between the layers of the composite material. The gas sensitivity of NH3 achieved the highest response value (Figure 5k) when Ti3C2Tx MXene contained 15 wt% and the fastest recovery/response with 36.6% response to 100 ppm NH3 at room temperature, a 116 s response time, and a 40 s recovery time. Furthermore, Figure 5l shows a bending test of the sensor at a maximum angle of 240°, and the gas response of the device does not change with the change in the bending angle, indicating that it has good mechanical stability.

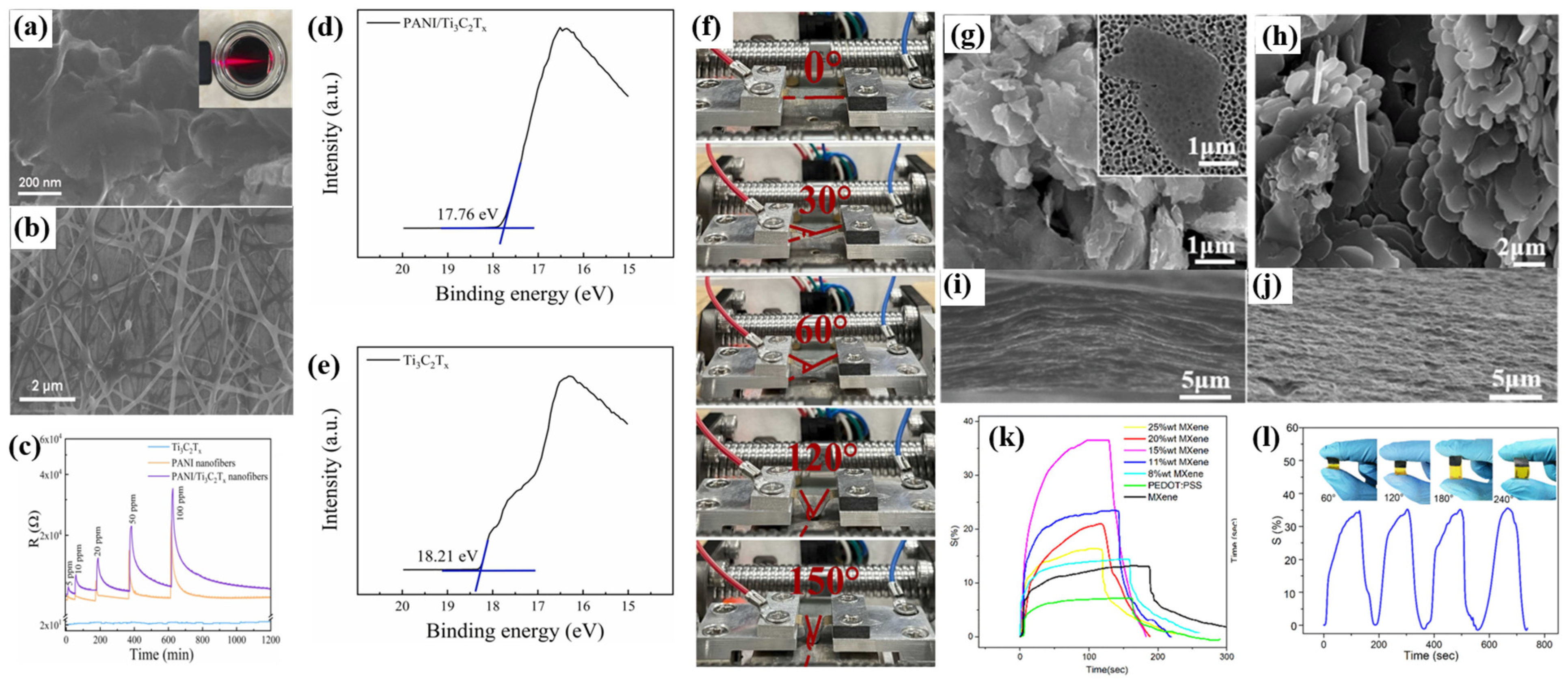

Figure 5. (a) SEM image of Ti3C2Tx MXene; (b) SEM image of PANI/Ti3C2Tx; (c) PANI/Ti3C2Tx composite nanofiber sensor for the detection of NH3 at room temperature; (d) UPS spectra of pure Ti3C2Tx sensor and (e) PANI/Ti3C2Tx composite sensors; (f) the PANI/Ti3C2Tx-based flexible sensor bent at different angles [82]. FESEM images of (g) Ti3C2Tx MXene (inset is Ti3C2Tx MXene on an AAO membrane) and (h) PEDOT:PSS/Ti3C2Tx MXene composites. The cross-sectional FESEM images of (i) Ti3C2Tx MXene films and (j) PEDOT:PSS/Ti3C2Tx MXene films, (k) effect of the Ti3C2Tx MXene content in PEDOT-PSS on the sensor response toward 100 ppm NH3 at room temperature (27 °C), and (l) gas response of the PEDOT:PSS/Ti3C2Tx MXene composite-based sensor against 100 ppm NH3 bent at different angles [94].
Figure 5. (a) SEM image of Ti3C2Tx MXene; (b) SEM image of PANI/Ti3C2Tx; (c) PANI/Ti3C2Tx composite nanofiber sensor for the detection of NH3 at room temperature; (d) UPS spectra of pure Ti3C2Tx sensor and (e) PANI/Ti3C2Tx composite sensors; (f) the PANI/Ti3C2Tx-based flexible sensor bent at different angles [82]. FESEM images of (g) Ti3C2Tx MXene (inset is Ti3C2Tx MXene on an AAO membrane) and (h) PEDOT:PSS/Ti3C2Tx MXene composites. The cross-sectional FESEM images of (i) Ti3C2Tx MXene films and (j) PEDOT:PSS/Ti3C2Tx MXene films, (k) effect of the Ti3C2Tx MXene content in PEDOT-PSS on the sensor response toward 100 ppm NH3 at room temperature (27 °C), and (l) gas response of the PEDOT:PSS/Ti3C2Tx MXene composite-based sensor against 100 ppm NH3 bent at different angles [94].
Sensors 24 04465 g005
The mechanism for analyzing the gas-sensitive performance enhancement of the PEDOT:PSS/Ti3C2Tx MXene composite mainly involves the redox reaction between the composite and the analyte, the charge transfer between the composite and the analyte, and synergistic effect of the increase in the specific surface area of the composite materials. Compared with pure PEDOT:PSS and Ti3C2Tx MXene-based sensors, the composite sensors have a high gas response, fast response/recovery, a low detection limit, good reproducibility, high selectivity, and excellent mechanical stability. A number of studies have demonstrated that the NH3 sensors prepared from Ti3C2Tx MXene and conductive polymer hybrid materials have a low detection limit, flexibility, and an excellent sensing performance [95].
Table 2 outlines the gas-sensing properties of different conductive polymer /Ti3C2Tx MXene composites towards NH3 at room temperature that were determined in recent years.

3.3. Other 2D Material Hybrids

In addition to MXene, graphene, as well as various emerging 2D materials such as transition metal disulfide compounds (TMDs), reduced graphene oxide (rGO), and black phosphorus (BP), have been rapidly developed for NH3-sensing due to their graphene-like layered structure, large specific surface area, semiconducting properties, and room-temperature operation. It has been demonstrated that the heterojunction constructed by compositing Ti3C2Tx MXenes with these 2D materials can obtain complementary electrical and adsorption properties, which enhances their sensing performance [95].

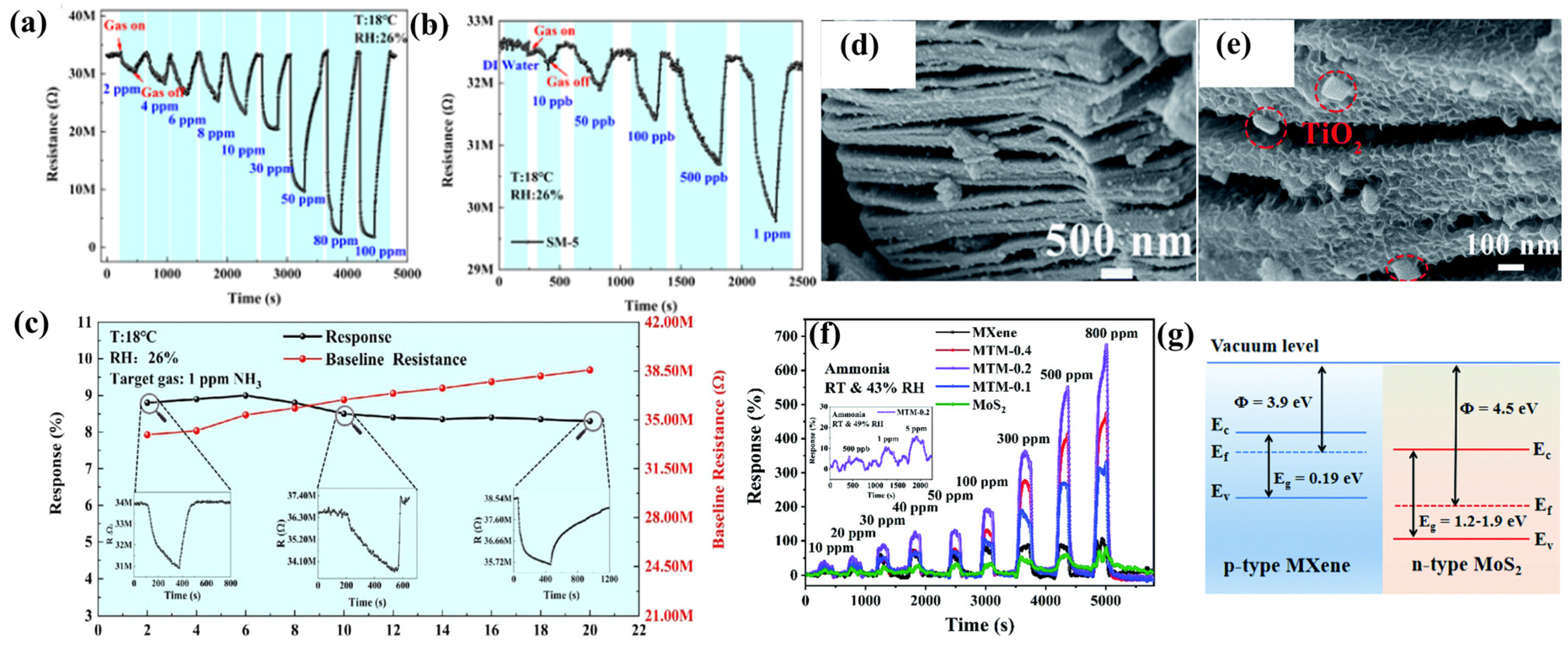

It has been demonstrated that when MXenes are combined with TMDs, such as molybdenum disulfide (MoS2), tin disulfide (SnS2), tungsten disulfide (WS2), and other transition metal disulfide compounds, their charge transfer and adsorption abilities are enhanced, which leads to better sensing effects [100,101]. In addition, the composite of TMDs and MXene has almost no lattice mismatch [102], and is expected to replace the traditional metal oxide composite with MXene to construct high-performance ammonia gas-sensitive materials [103,104]. In order to overcome the difficulty of detecting ultra-low concentrations of ammonia at room temperature in chemical-based gas sensors, He et al. [56] developed an MXene/SnS2 heterojunction-type chemoresistive sensor SM-5 (the nominal weight ratio of MXene/SnS is 1:5), as shown in Figure 6a,b, which exhibits an excellent gas-sensitive performance for ammonia at sub-ppm at room temperature. The SM-5 sensor can detect NH3 concentrations of as low as 10 ppb at room temperature. In addition, Figure 6c shows the excellent long-term stability of the sensor, with a decrease in response value of about 3.4% in 20 days. Meanwhile, the SM-5 sensor showed good selectivity to a wide range of possible interfering gases, such as HCHO, C2H5OH, CH3OH, C3H6O, C6H6, and NO2. The sensing mechanism of the MXene/SnS2-based sensor is closely related to the formation of heterostructures. DFT calculations show that the higher sensitivity and selectivity may be due to the more effective charge transfer bestowed by the formed heterostructure, the better catalytical activity, and the stronger NH3 adsorption of the formed MXene/SnS2 composite material.
Our group [30] demonstrated a Ti3C2Tx MXene@TiO2/MoS2 nanocomposite gas sensor, which successfully realized the detection of 500 ppb NH3 at room temperature. MoS2 nanosheets were grown in situ on the etched Ti3C2Tx MXene material via the hydrothermal method, and then some of the Ti3C2Tx MXene was converted into rectangular TiO2 particles through hydrothermal reaction. The SEM images of Ti3C2Tx MXene@TiO2/MoS2 at different scales are shown in Figure 6e; it can be observed that rectangular TiO2 nanoparticles are attached between the layers of the material and on the surface, which increase the spacing of the layers of the composite material and can provide more reaction sites for the target gas. As shown in Figure 6f, this novel gas sensor (MTM-0.2) based on a layered structure exhibits the advantages of a fast response and high stability in detecting NH3. At 100 ppm ammonia, the composite gas sensor had 1.79 and 2.75 times higher response values than the pristine Ti3C2Tx MXene and MoS2. Furthermore, at room temperature, the Ti3C2Tx MXene@TiO2/MoS2 nanocomposite gas sensor exhibited high selectivity for triethylamine, trimethylamine, n-butanol, acetone, formaldehyde, and nitrogen dioxide. As shown in Figure 6g, MoS2 is an n-type sensing material, which has a bandgap in the range of 1.2–1.9 eV [105] and a work function of about 3.9 eV [106]. Ti3C2Tx MXene behaves as a p-type sensing material, which has a bandgap of 0.19 eV [68] and a work function of about 4.5 eV [69]. The heterojunction of the p-type Ti3C2Tx MXene and n-type MoS2 was the primary reason for the sensor’s improved gas-sensitive performance for NH3. Bader charge analysis can further obtain the adsorption between sensitive materials and gases by evaluating the amount of charge transfer between gas molecules and sensitive material models [107]. Bader analysis further confirmed that ammonia molecules increase charge transfer in the heterojunction, which enhances the interaction of Ti3C2Tx MXene@TiO2/MoS2 nanocomposites with ammonia.

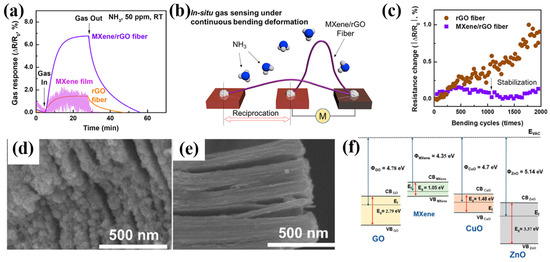

Graphene fibers (GFs) have a high mechanical flexibility, electrical conductivity, and wear ability and have enormous potential for application in wearable electronic devices [108,109]. Lee et al. [19] reported a simple, scalable, and effective strategy for wet-spinning MXene/graphene-based hybrid fibers using a wet-spinning process to obtain metal-free binder Ti3C2Tx MXene/graphene hybrid fibers. These hybrid fibers have excellent mechanical and electrical properties, making them suitable for flexible, wearable gas sensors. The synergistic effect of the electronic properties and gas adsorption capacity of MXene/graphene resulted in a high NH3 gas sensitivity at room temperature. Figure 7a compares the response values of MXene, rGO fiber, and MXene/rGO fiber sensors, and shows that the Ti3C2Tx MXene/graphene hybrid fiber exhibited a significantly improved NH3-sensing response (ΔR/R0 = 6.77%). The hybrid fiber exhibits excellent mechanical flexibility. Figure 7b depicts a schematic diagram of the device used to detect the stability of the fiber optic sensor by bending it repeatedly and detecting the change in the resistance of the sensor. As shown in Figure 7c, the resistance fluctuation remains small, ±0.2%, even after more than 2000 bends. In addition, the highly flexible MXene/rGO hybrid fiber was woven/knitted into the lab coat using a simple conventional weaving procedure, demonstrating a dependable sensing capability. The synergistic effect of the optimized bandgap and the enhanced atomic oxygen content at the MXene end of the MXene/rGO hybrid fiber significantly improved the NH3-sensing response performance of the MXene/rGO hybrid fiber with low power consumption.
Yotsarayuth et al. [25] successfully synthesized Ti3C2Tx Mxene/GO/CuO/ZnO nanocomposites by mixing common NH3-sensing materials such as graphene oxide (GO), copper oxide (CuO), and zinc oxide (ZnO) into Ti3C2Tx Mxene via a simple and low-cost hydrothermal method. Figure 7d shows the SEM images of the composites, and the Ti3C2Tx Mxene/GO/CuO/ZnO nanocomposites exhibit a highly uniform two-dimensional stacked structure. A comparison with the SEM image of pure Ti3C2Tx MXene in Figure 7e reveals that the composites have a high surface roughness, which enhances the active sites for the adsorption of NH3 gas molecules. Figure 7f depicts Ti3C2Tx MXene, GO, CuO, and ZnO figures of work functions of 4.35, 4.78, 4.7, and 5.14 eV [19,110,111,112], respectively, with Ti3C2Tx MXene having the lowest figure of work function. As a result, electrons are transferred from Ti3C2Tx MXene to the other three materials to achieve Fermi energy level equilibrium, forming multiple p-n heterojunctions at the interfaces of the different materials. Ti3C2Tx MXene/GO/CuO/ZnO exhibits a 59.9% response to 100 ppm NH3 at room temperature, with a response time of 26 s and a recovery time of 25 s. The Ti3C2Tx MXene/GO/CuO/ZnO exhibits excellent selectivity, high responsiveness, good repeatability, strong stability, a quick response recovery time, and humidity independence. The Ti3C2Tx MXene/GO/CuO/ZnO gas sensor exhibits a remarkable NH3-sensing performance. This is because of the inherent features and properties of the nanocomposites, including their functional groups, their bonding, the strong intermolecular attraction between NH3 molecules, the nanocomposites, and the formation of a p-n heterojunction.
Table 3 outlines the gas-sensitive properties of different 2D materials/Ti3C2Tx MXene composites towards NH3 at room temperature in recent years.

4. Ti3C2Tx MXenes-Based Nanocomposite Material Mechanism for NH3

The unique properties of terminating functional groups on the surface of MXenes make them ideal for ammonia-sensitive materials. Bhardwaj et al. [115] found that the effective adsorption energy of Ti2CO2 with NH3 was −0.37 eV using DFT calculations, and the charge transfer between monolayer Ti2CO2, which has a similar structure to that of Ti3C2O2 and NH3, was 0.174 e. Similarly, Atkare et al. [95] discovered that MXenes, including monolayers of Ti3C2O2, Ti2C(OH)2, and others, exhibit a significant affinity to NH3, resulting in a charge transfer of 0.117 e.
At room temperature, the reaction mechanism of Ti3C2Tx MXene to NH3 molecules can consist of two parts: the reaction between NH3 molecules and oxygen molecules on the surface of the sensitive material and the reaction between NH3 molecules and specific functional groups at the end of Ti3C2Tx MXene [18,57]. First, the adsorption of O2 molecules on the surface of the sensitive material traps electrons in the form of oxygen ions, mainly in the form of O2−. When the sensor is exposed to a reducing gas such as NH3, the O2− will react with the NH3 molecules to form NO and H2O while releasing electrons. The resistance decreases when these electrons return to the conduction band of Ti3C2Tx MXene and its composites. The reaction process is shown in Equations (4)–(6):
O 2   ( gas ) O 2   ( ads )
O 2 a d s + e O 2
4 N H 3 + O 2 4 N O + 6 H 2 O + 5 e

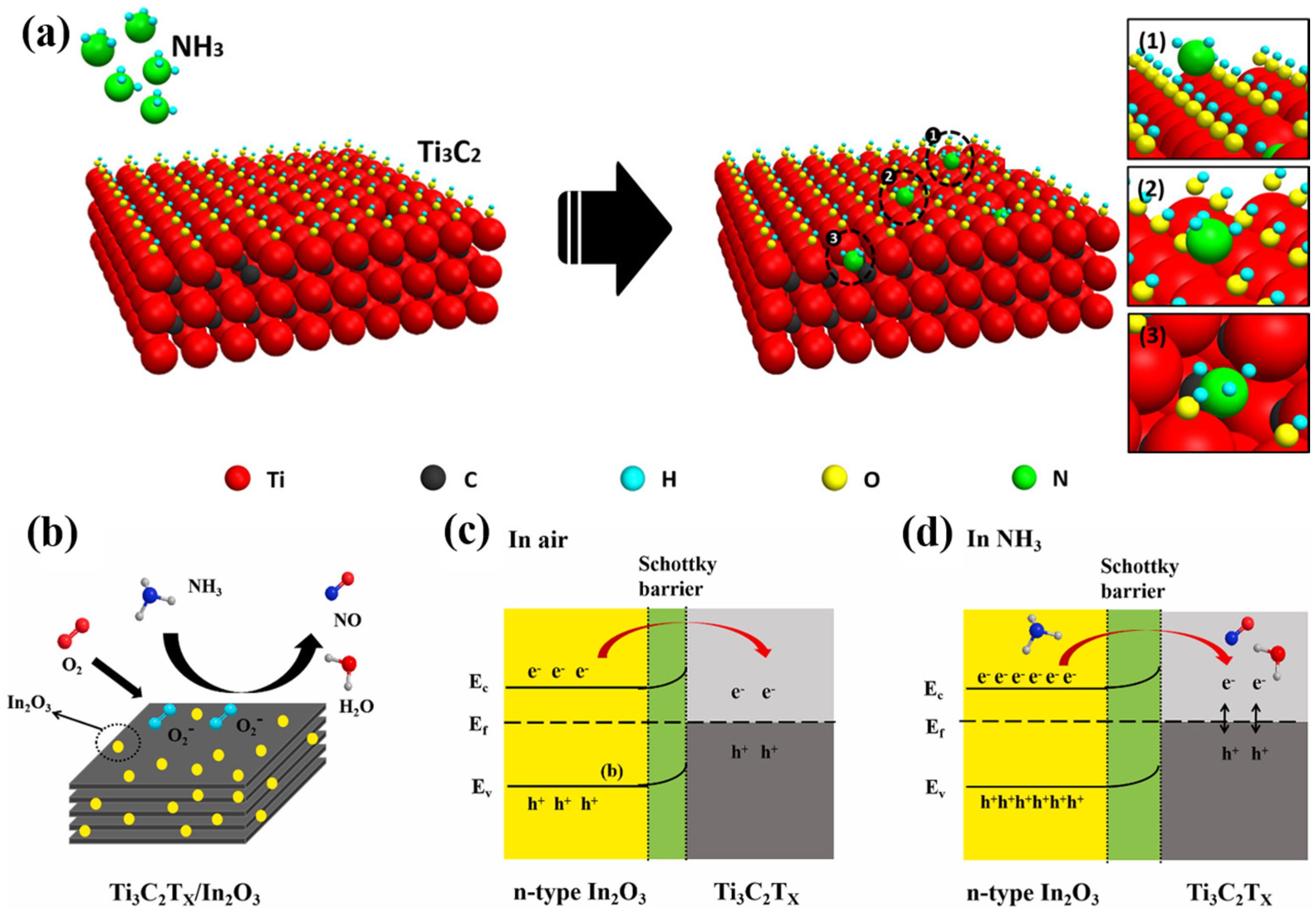

The gas-sensing mechanism of Ti3C2Tx/In2O3 composites to NH3 shown in Figure 8b can be used as a reference. In addition to the electron transfer process between oxygen ions and NH3 molecules on the surface of Ti3C2Tx MXene-sensitive materials, Lee et al. [57] mentioned that the reaction of -O and -OH on the surface of Ti3C2Tx with NH3 resulted in hole–electron complexation and a subsequent increase in resistance, and the conjectured mechanism diagram is shown in Figure 8a. The reaction formulae are shown in Equations (7) and (8) as follows:
2 N H 3 + 3 O N 2 + 3 H 2 O + 3 e
N H 3 + O H N H 2 + H 2 O + e
The mechanism for the enhanced gas sensitivity of Ti3C2Tx MXene composite materials to NH3 is generally achieved by the synergistic effect between the two materials, such as the formation of a heterojunction of the composites, adsorption energy and charge transfer, chemical sensitization and electron sensitization, unique morphology, etc. [11,61]. When heterojunctions are formed, the gap in the work function between Ti3C2Tx MXene and its composite material causes electrons to transfer directionally from the lower to the higher work function. This transfer occurs due to the equilibrium of the Fermi energy levels when the materials come into contact with each other. This results in the formation of an electron depletion layer and an electron accumulation layer on the low-work-function material. The electron accumulation layer promotes oxygen adsorption on the surface of the sensing material. In contrast, the electron depletion layer increases the potential energy barrier at the interface, while the height of the intergranular barrier hinders the transport of carriers, resulting in an increase in the initial resistance [116] and a higher gas response. As an illustration, Zhou et al. [57] synthesized Ti3C2Tx/In2O3 nanocomposites. In2O3 is classified as an n-type semiconductor, while Ti3C2Tx is regarded as a metallic phase because of its excellent conductivity. When Ti3C2Tx comes into contact with In2O3, it exhibits a high work function. As a result, electrons migrate from In2O3 to Ti3C2Tx, forming a Schottky barrier and a depletion layer at the interface of In2O3 and Ti3C2Tx (as shown in Figure 8c,d). As a result, the charge transfer is blocked, and the base-value resistance of Ti3C2Tx/In2O3 becomes high in the air, resulting in a significant increase in the gas-sensitive response [22]. In addition, the improved gas-sensitive performance of the sensitive material is also related to its lattice mismatch, and the oxygen vacancies generated at the heterojunction due to the lattice mismatch will also provide additional active sites for the sensitive material [117].
The most significant characteristic of MXenes is their demonstration of similar metallic properties to their precursor MAX, with a fixed electron density near the Fermi energy level. In fact, the gas-sensing mechanism of MXene is notably more complex than the classical charge transfer model [95]. Lee et al. [18] were the first to report the gas-sensing mechanism of Ti3C2Tx MXene. They observed increased resistance in Ti3C2Tx sensors when exposed to four electron donor gases (ethanol, methanol, acetone, and ammonia). Conversely, the resistance of Ti3C2Tx films decreased without the presence of these gases. Therefore, they inferred that Ti3C2Tx films exhibit p-type sensing behavior. The analysis suggests that the p-type semiconductor nature of Ti3C2Tx MXene may be due to the many molecules introduced during the Al etching process acting as p-type dopants to Ti3C2Tx, such as water and oxygen.
It is well known that gas sensors for semiconductor materials exhibit either a positive or negative resistance change depending on the gas type [118]. Specifically, an n-type semiconductor-sensitive material exposed to oxidizing gases decreases in resistance due to the loss of electrons and increases due to the gain in electrons when exposed to reducing gases, and the opposite is true for p-type semiconductor-sensitive materials. In contrast, Kim et al. [118] found that Ti3C2Tx exhibits a positive resistance change under oxidized or reduced gas conditions, indicating that the carrier transport of Ti3C2Tx will be blocked when it adsorbs gases. In other words, the sensing mechanism of Ti3C2Tx is different from that of semiconductor materials such as metal oxides. Therefore, the mechanism for the universal p-type response of Ti3C2Tx was proposed. Due to the metallic conductivity of Ti3C2Tx MXene [119], the gas adsorption reduces the number of carriers and therefore increases the channel resistance. While Koh et al. [120] investigated the effect of the interlayer swelling of Ti3C2Tx MXene films upon gas action on the gas-sensitive properties, the change in the interlayer space of Ti3C2Tx MXene upon the introduction of gas was studied by in situ XRD measurements, which found that the degree of swelling of Ti3C2Tx MXene films was consistent with the gas response. Therefore, another mechanism is proposed: gas-phase molecules are inserted into the MXene interlayer instead of surface adsorption, and the interlayer expansion induced to reduce the conductivity due to the metallic nature of Ti3C2Tx MXene is one of the reasons why MXene generally exhibits a p-type response to various gases.
Both mechanisms currently explain MXene’s p-type response to the electron acceptor gas and the electron donor gas. To date, the gas-sensing mechanism of Ti3C2Tx MXene and its composites has not been explained in a unified manner. The electron transfer model of the adsorbed gas molecules on the surface of Ti3C2Tx composites may be more complex than reported and thus needs to be further developed and refined through experimental validation.

5. Conclusions and Outlook

Ti3C2Tx MXene, as the earliest discovered MXene material, which has been extensively studied in the field of ammonia gas sensing, has been regarded as an excellent room-temperature NH3-sensing material due to its graphene-like two-dimensional lamellar structure, which confers a large specific surface area, good room-temperature sensitivity, and a high adsorption capacity between its surface-rich functional groups and NH3. This review describes the current research progress in modulating the ammonia gas-sensing properties of Ti3C2Tx MXene by means of its preparation method and composite modification. Ti3C2Tx MXene with differences in its morphology, surface functional groups, electrochemical properties, nano-defects, and stability can be obtained through improvements in the preparation method to achieve the desired performance, which in turn affects the NH3-sensing behavior of the sensors. Ti3C2Tx MXene-based composites incorporating additional composites can demonstrate enhanced response values, lower detection limits, quicker response recovery, and an improved stability compared to pure Ti3C2Tx MXene.
Although significant progress has been made in the design and modification of Ti3C2Tx MXene materials for ammonia gas sensors in recent years, there are still many challenges and much room for further development in optimizing and improving the sensing performance. Since the gas-sensing mechanism of MXenes is much more complex than the traditional semiconductor classical charge-transfer model, further calculations and investigations regarding the charge transfer and adsorption–desorption are needed in terms of the NH3-sensing principle of Ti3C2Tx MXene. Meanwhile, a large number of studies have demonstrated that the surface-functional groups of Ti3C2Tx MXene have a significant effect on its electrochemical properties and stability. Therefore, synthesizing Ti3C2Tx MXene materials with controllable surface-functional groups is significant for its application in room-temperature ammonia gas sensors. Furthermore, Ti3C2Tx MXene’s composite structure can be further optimized to improve its NH3-sensing performance. In the next step, we could design Ti3C2Tx MXene sensors with excellent long-term stability and a response value that is less impacted by humidity to widen their applications. In the future, we should broaden our research on Ti3C2Tx MXene in these fields to develop higher-performance Ti3C2Tx MXene-based room-temperature ammonia sensors.
