Generalized Design, Modeling and Control Methodology for a Snake-like Aerial Robot
Abstract
:1. Introduction
1.1. Related Works
1.1.1. Existing Snake-like Robots
1.1.2. Modular Aerial Robots
1.2. Contributions

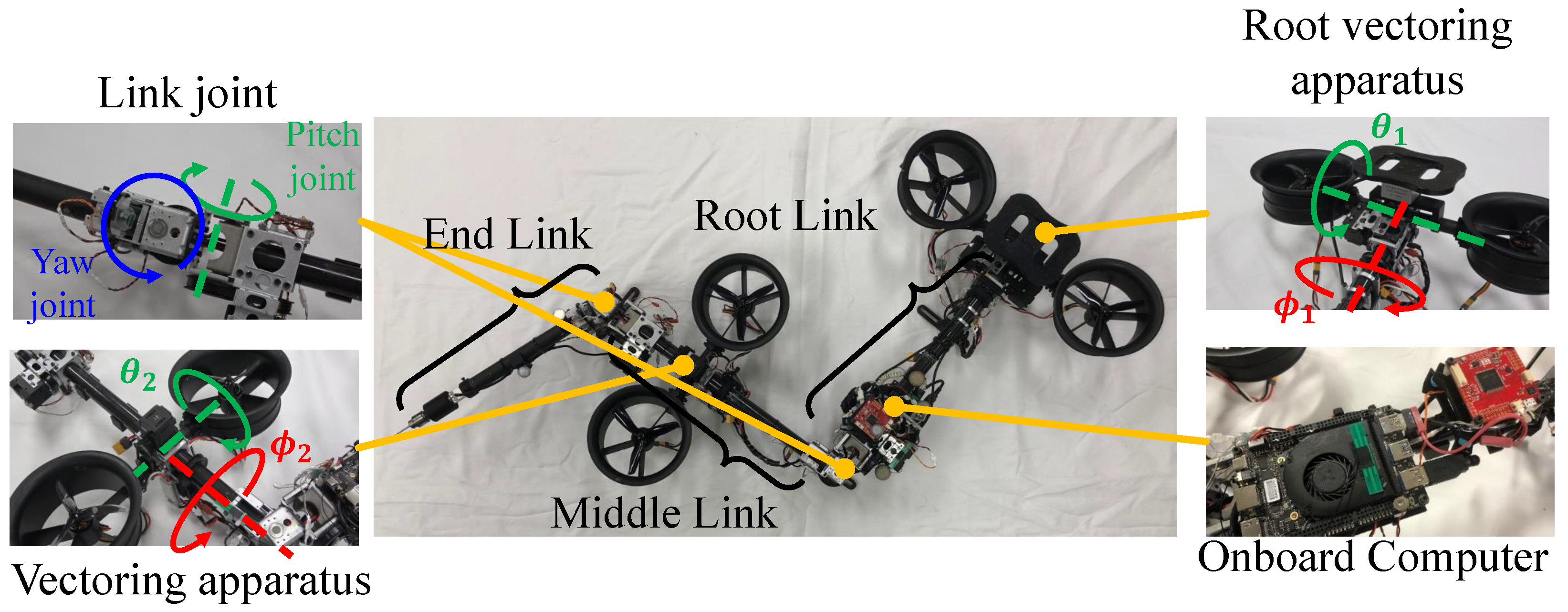

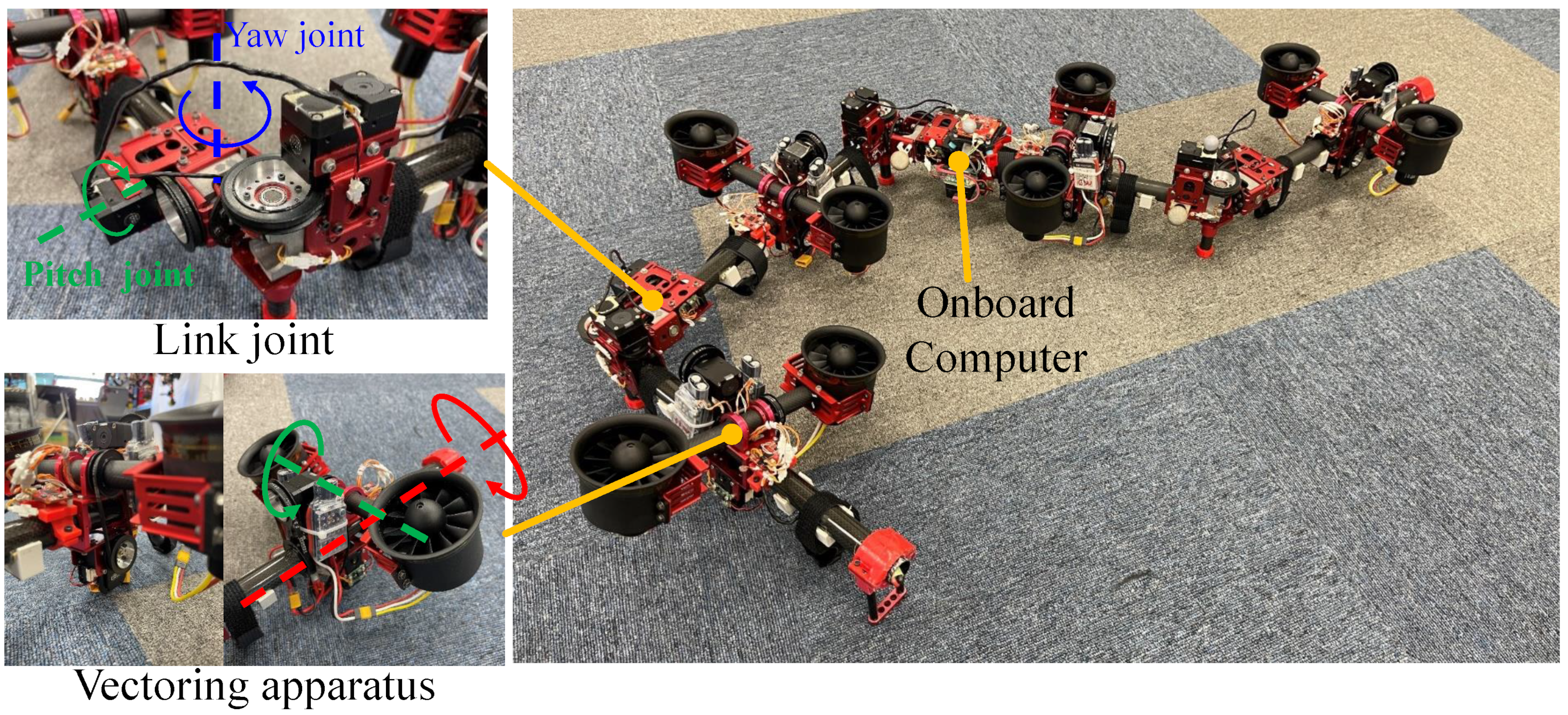

- We introduced a generalized design for snake-like aerial robots, including a thrust vectoring apparatus with dual rotors that can generate different thrust forces.

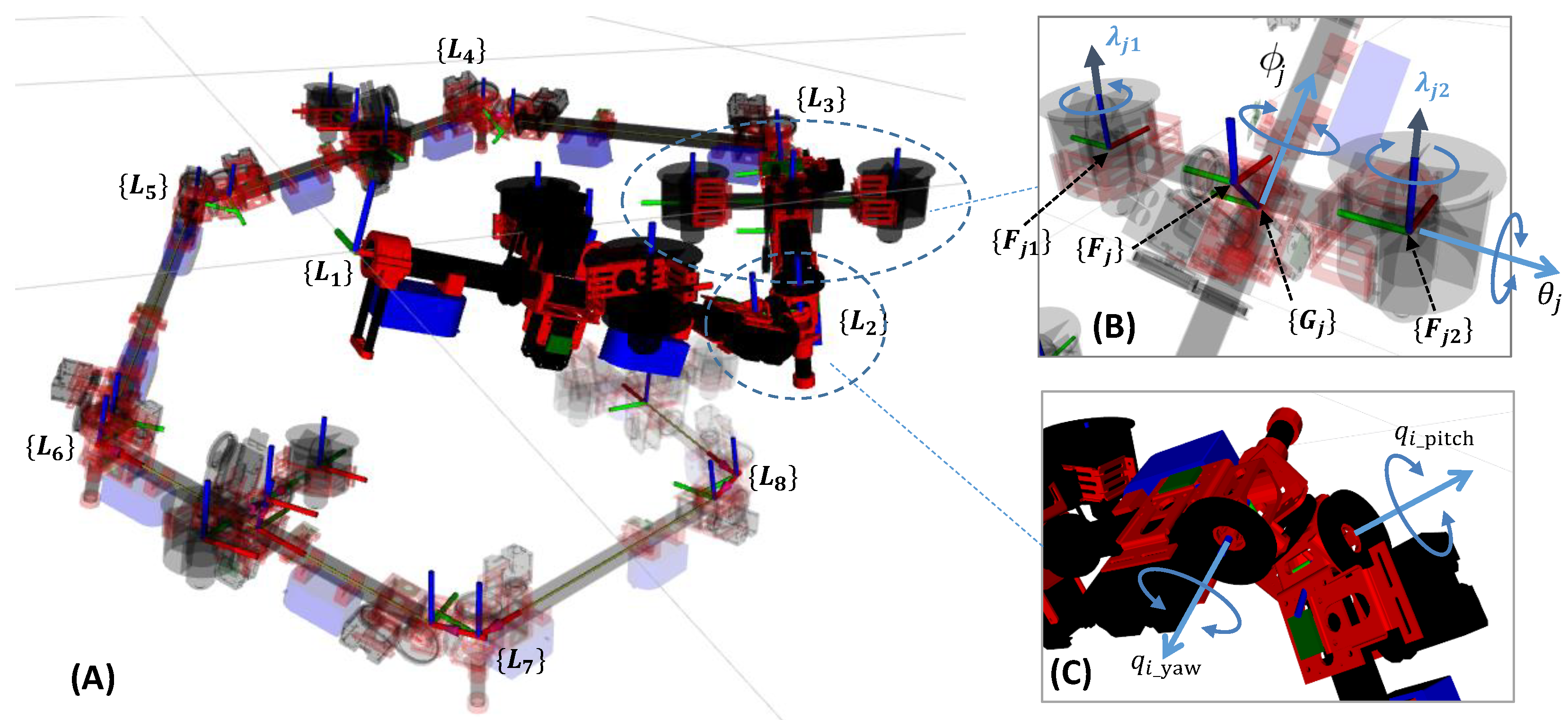

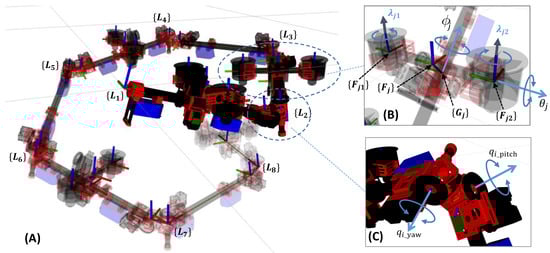

- We presented a generalized modeling method for articulated aerial robots based on an approximated model and further proposed two different actuator allocation strategies according to the number of vectoring apparatus.

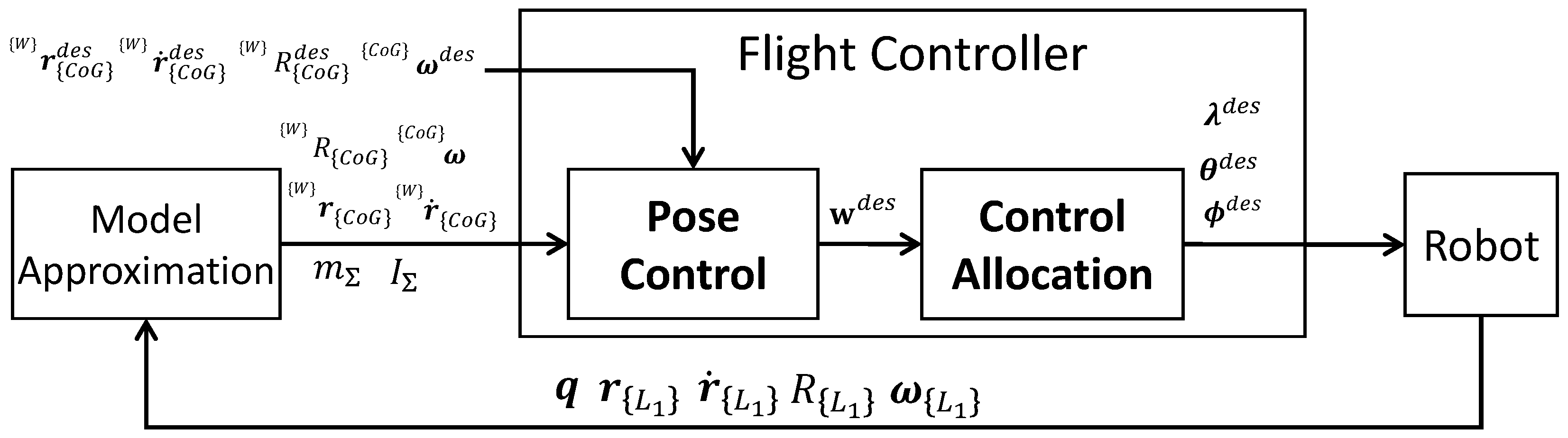

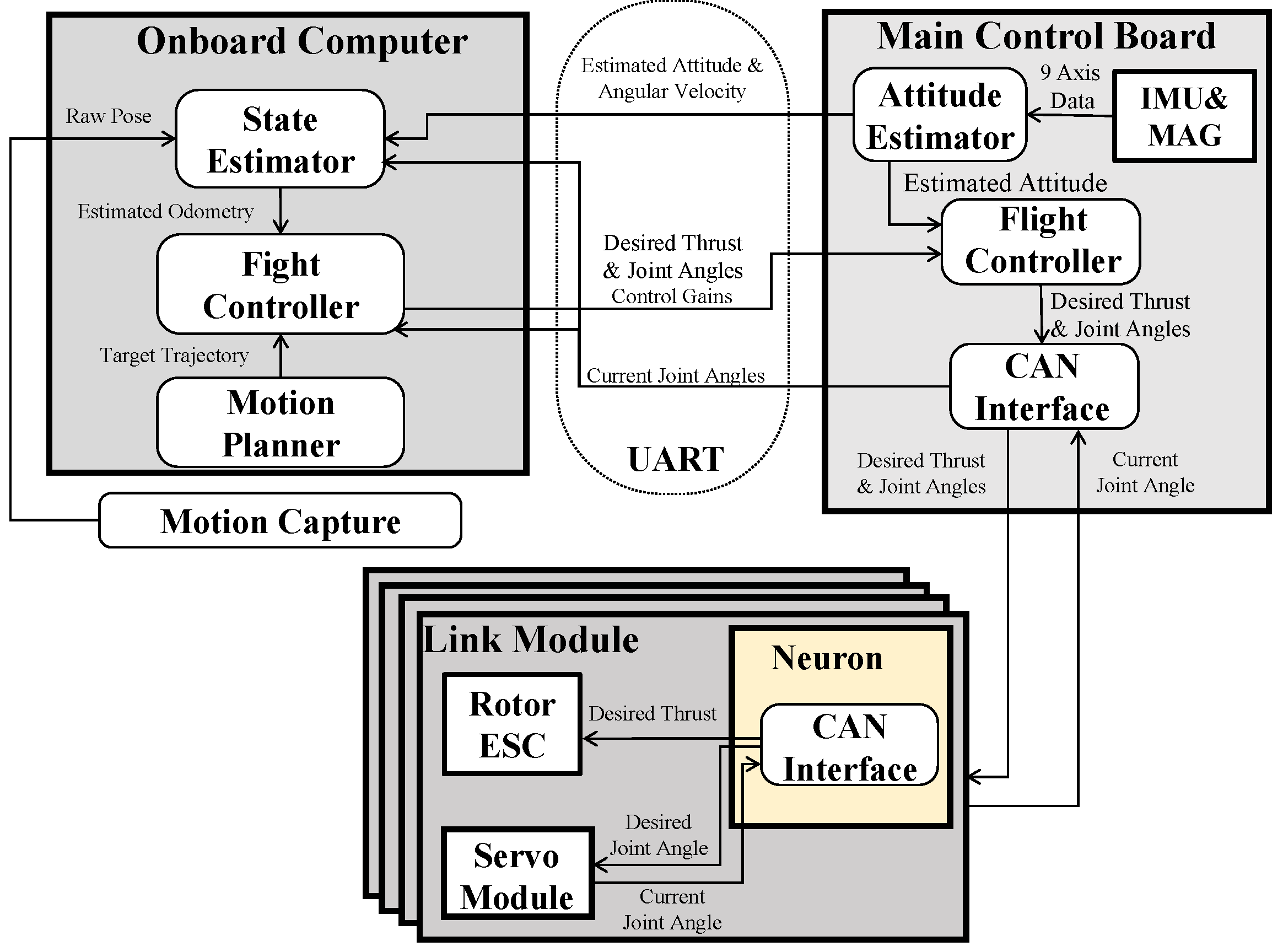

- We developed a generalized control framework that utilizes the proposed actuator allocation to enable the stable flight for both under-actuated and fully actuated models.

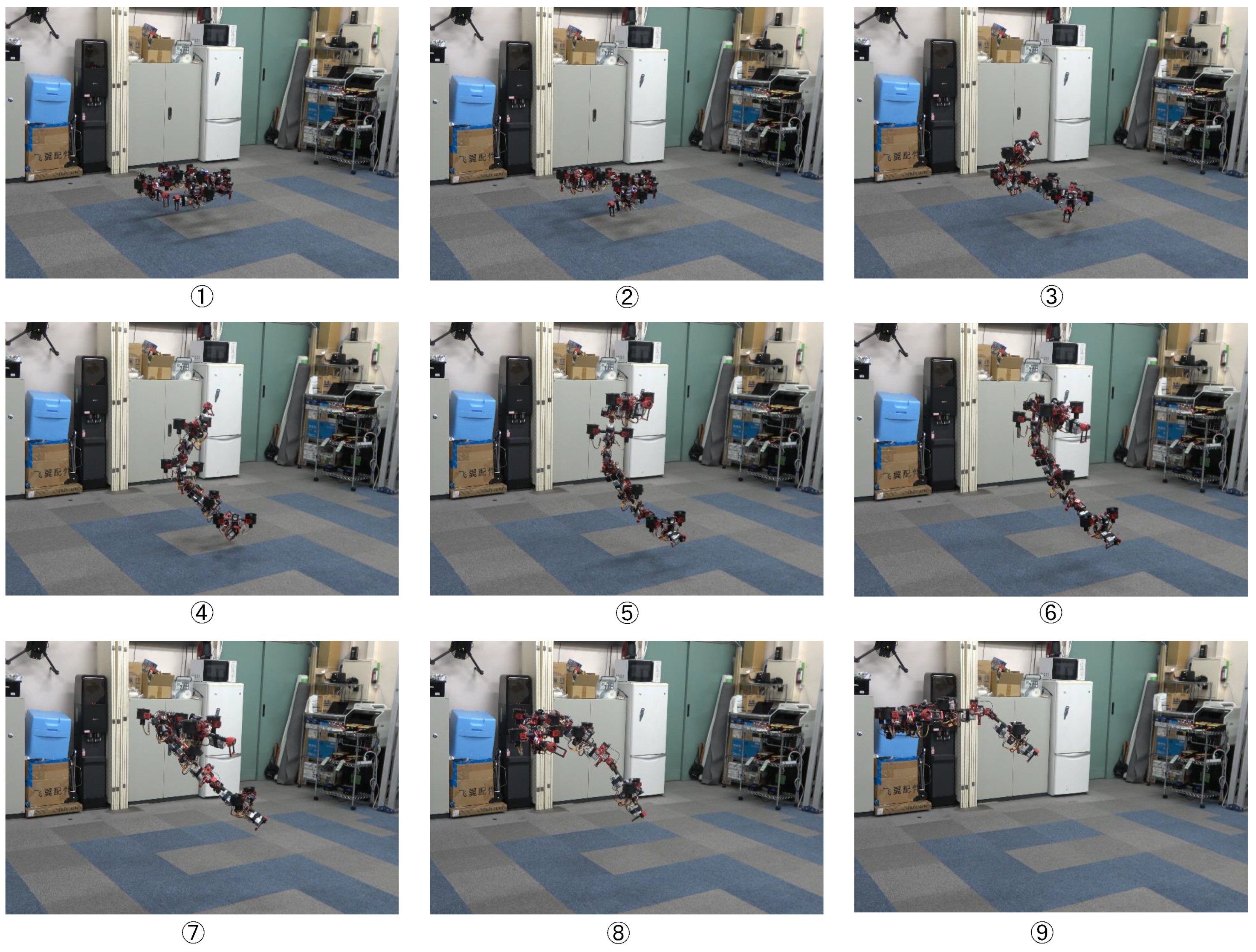

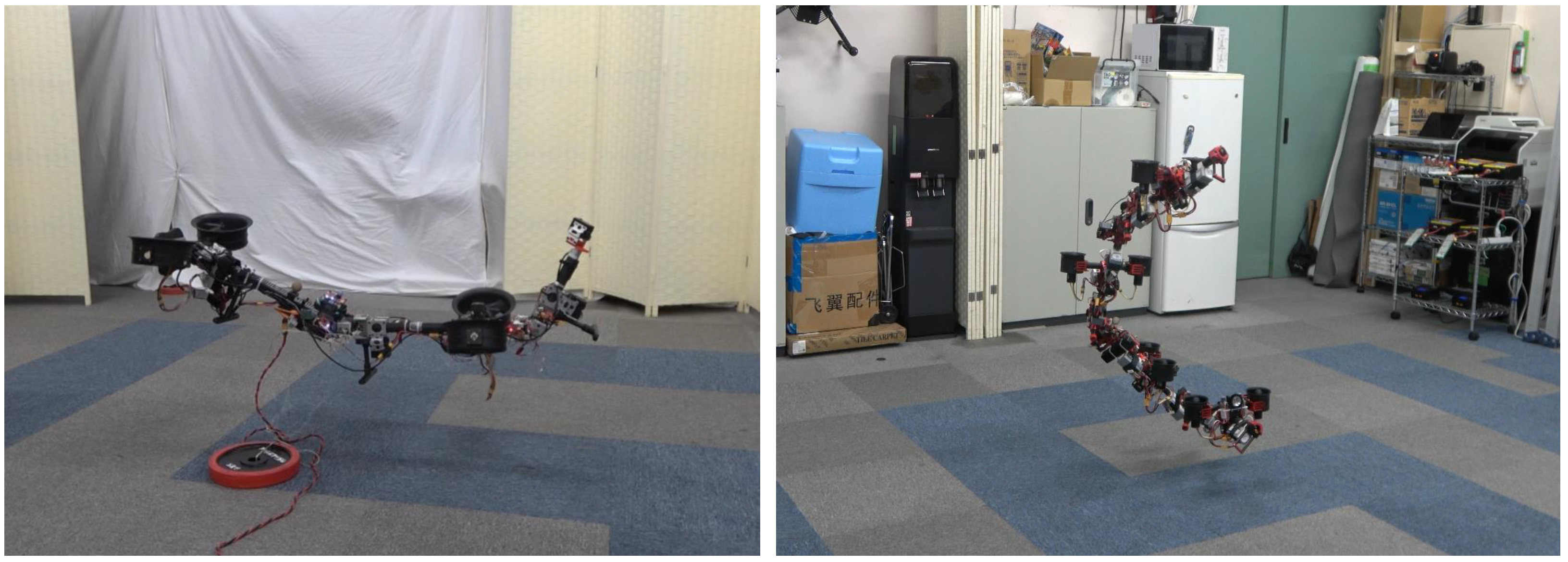

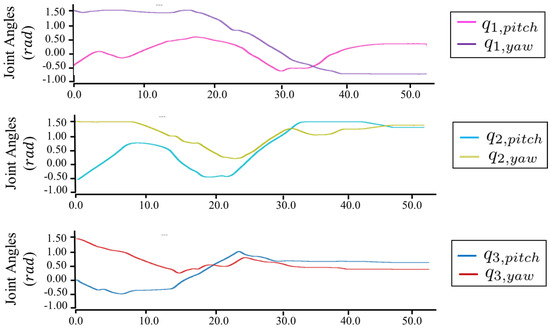

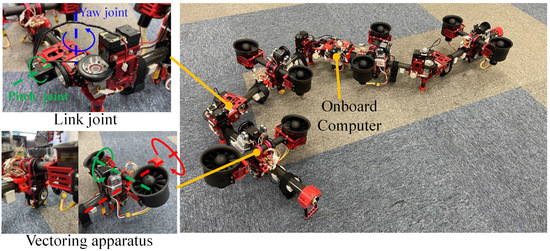

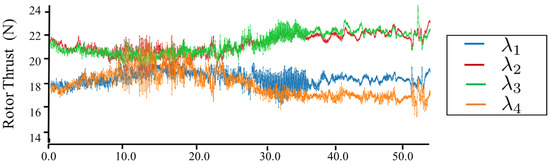

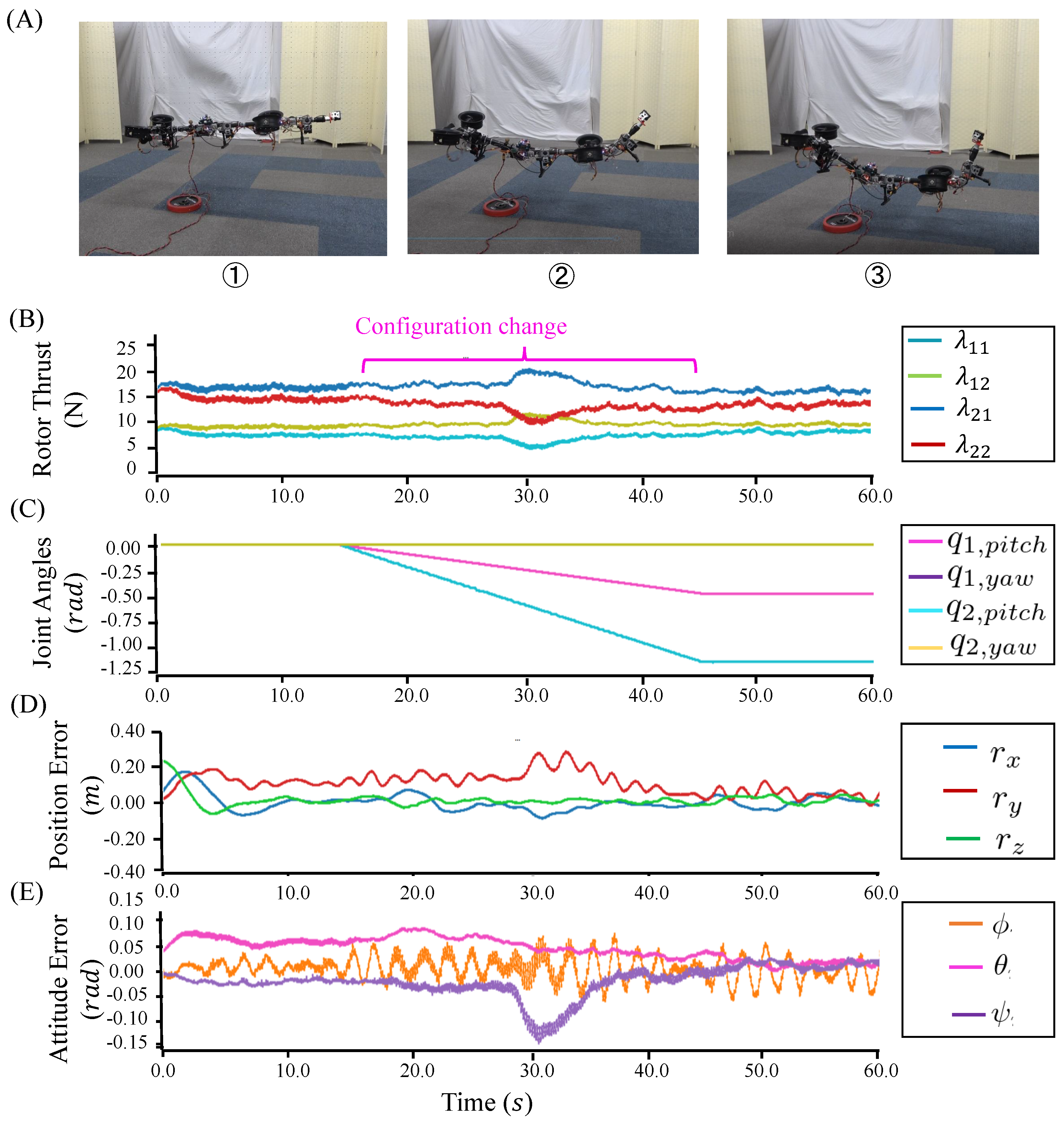

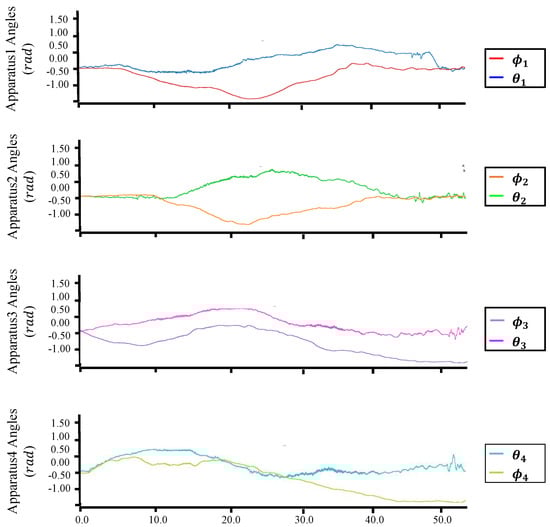

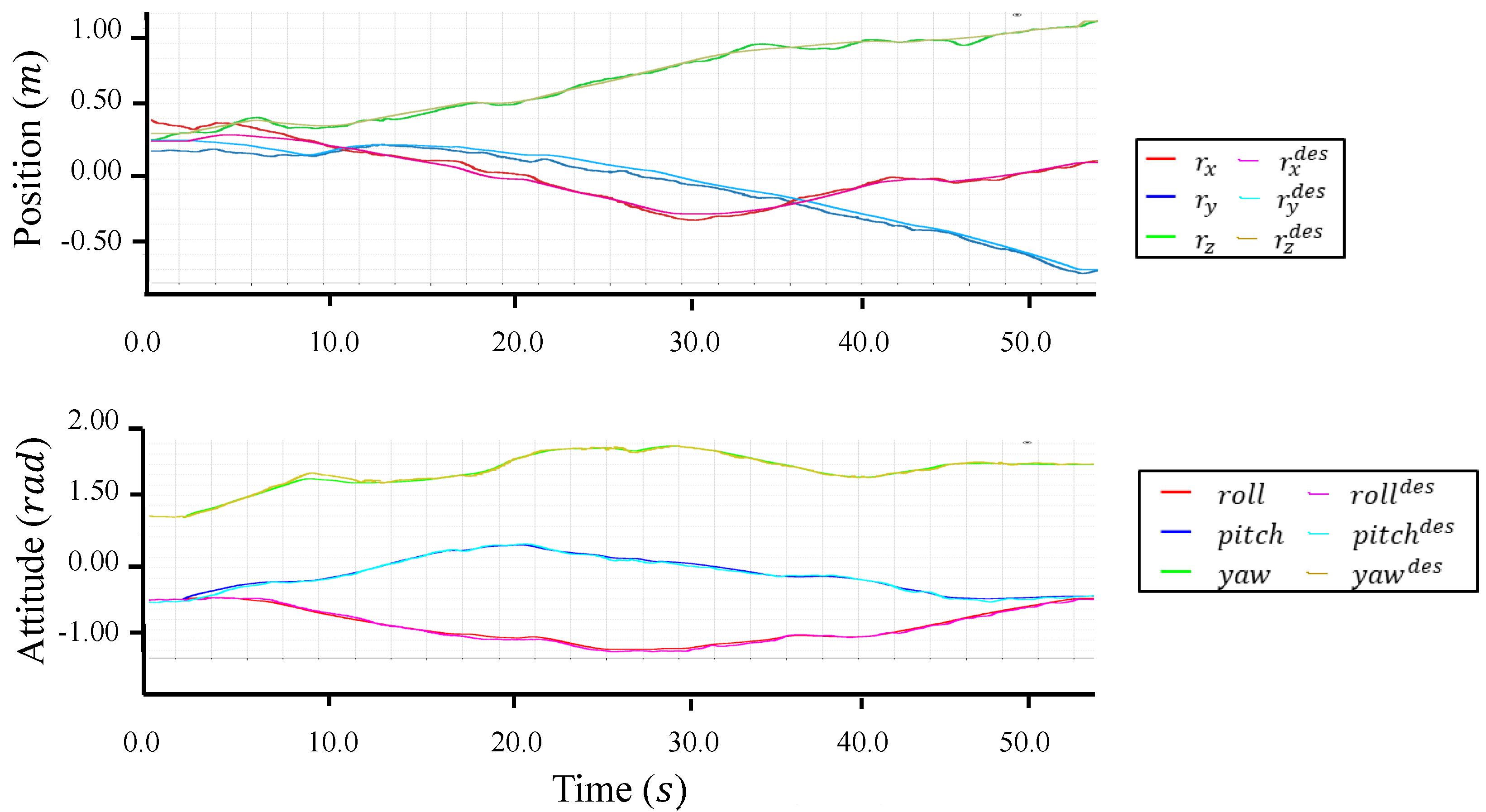

- We performed experiments with two different platforms, as shown in Figure 1, to demonstrate the feasibility of the proposed design, and modeling and control methods for the flight with joint motion in midair.
