1. Introduction
Agility, fast deployment, and unprecedented coverage are potential prospects for emergency communication networks. The terrestrial networks are often vulnerable to unexpected and emergency events, such as earthquakes, floods, or terrorist attacks. Moreover, they lack mobility and altitude adaptation to provide eminent coverage. This completely hinders or severely disrupts the information dissemination to public safety responders and security agencies to perform the desired relief and rescue work.
UAVassisted communication is considered a promising solution for emergency networks. UAVassisted emergency networks (ENs) have the potential to accelerate rescue efforts owing to their inherent characteristics of fast deployment, flexible infrastructure, mobility, and coverage areas [
1]. UAVs can efficiently detect and recognize situations from high altitudes or long distances [
2]. According to the Research and Markets Report, the public safety drone market is expected to reach USD 1.15 billion worldwide by the end of 2022 [
3]. Coherent Market Insights forecasts the global safety and security drones’ market to grow at a CAGR of
$34.7\%$ over 2019–2027, which was estimated to be USD 354.8 million in 2019 [
4]. Meanwhile, the authors in [
5] recommend that more research is required in order to implement UAVassisted remote sensing in disaster regions.
1.1. UAVAssisted Communication
Recently, UAVassisted communication has garnered a lot of interest. They can be deployed as independent pieces of equipment for ubiquitous coverage or as part of larger networks for relaying, offloading, information dissemination, data collection, and surveillance. UAVassisted communications mostly span relaying [
6], offloading [
7], load balancing [
8], energy harvesting [
9], etc. Unlike conventional networks, ensuring communication in UAVassisted networks is constrained by multiple factors [
10], such as lineofsight/nonlineofsight (LoS/NLoS) links, node distribution and behavior, and data and power transmission strategies [
11]. LoS/NLoS propagationbased UAVassisted cellular networks are studied in [
12]. Moreover, the efficacy of such a deployment is dependent on the number of UAVs and their placement. The optimized placement of UAV relays for dual and multihop UAV links is studied in [
13]. Mobilityaware UAVs’ performance in mobile edge computing is studied/optimized using deep reinforcement learning in [
14]. UAVs are specifically deployed where terrestrial networks do not meet the coverage and rate constraints. Optimal UAV placement ensures enhanced coverage, improved capacity, and effective QoS of the network. Optimal UAV altitude to ensure maximum coverage is studied in [
15,
16]. Capacity analysis over random UAV trajectories is performed in [
17]. Capacity enhancement based on UAV placement is studied for relaying networks in [
18], wireless sensor networks (WSNs) in [
19], and OFDM network in [
20]. Most of the existing literature on UAV placement often assumes UAVs to be a part of a welldefined network where their placement and coverage regions are readily defined/optimized.
1.2. UAVAssisted Emergency Networks
UAVassisted emergency networks, however, demand extra communication design parameters as the underlying network differs from the conventional welldefined network. UAVs in emergency scenarios do not have prior information about placement, coverage, user density, user classification, etc. Therefore, the aforementioned techniques provide limited insight into the placement of UAVs in emergency networks. Coverage maximization based on the altitude of UAVs in an emergency network is studied in [
21]. The capacity and overall outage probability for fixed altitude UAVs acting as relays for onscene available devices (OSAs) in emergency scenarios are analyzed in [
22]. Optimized UAV placement is discussed for periodically gathering information over multizone disaster regions in [
23]. A similar study optimizing UAV placement to maximize the number of covered OSAs with different qualityofservice (QoS) requirements is carried out in [
24]. Further, computational intelligence techniques for optimized placement to ensure coverage and QoS in an emergency network are employed in [
25].
The basic aim of a UAVassisted EN is to enable reliable and timely information flow from onscene available devices OSAs to command control [
26]. The freshness of data is a prominent feature in ensuring effective relief and rescue operations. Age of information (AoI) serves as an important factor in such situations, ensuring the freshness of data. AoI minimization in WSNs and Internet of things (IoTs) is studied in [
27,
28]. UAV trajectory design to ensure the timeliness of information in an emergency network is evaluated in [
29]. However, not much literature is available on AoI minimization concerning emergency networks. Although some of the existing literature focuses on UAV placement based on capacity and AoI of UAVassisted emergency networks, the presence of critical nodes (CNs) is overlooked. Most of the literature on emergency networks considers an OSA to be a conventional network device that can be classified based on its QoS requirement. However, this approach is inconsequential in the context of emergency networks.
1.3. Critical Nodes in Emergency Networks
Critical nodes can be identified as the ones carrying crucial information that needs to be shared with command control in a reliable and timely manner. As the emergency networks differ from trivial setups, it is often observed that certain OSAs, termed critical nodes, carry indispensable information i.e., more decisive in comparison to other OSAs’ information. For instance, in case of a terrorist attack, an OSA in the vicinity of a terrorist can relay more meaningful information than other OSAs. Such a scenario cannot be handled by treating that particular node as a conventional OSA. In addition, the unavailability/lack of onspot device charging facilities may hinder data acquisition. The OSAs carrying crucial information with low battery levels require urgent connectivity to avoid any setback in rescue operations. The efficacy of rescue and relief operations highly depends on the timeliness and accuracy of knowledge about the affected region. Therefore, the placement of UAV(s) based on a conventional set of OSAs is not a rational approach in emergency networks. A disaster situation in [
30] incorporates 2D UAV placement in the presence of critical nodes, whereas the efficiency in UAV networks highly depends on LoS/NLoS probabilities and elevationdemanding 3D optimization. A secondary critical challenge in certain emergency networks is to secure this communication link as discussed in [
31,
32].
1.4. Contribution of Work
In this work, the 3D optimized placement for a multiUAV emergency network is studied over a disaster region for critical nodes. The emergency situation and network are depicted in

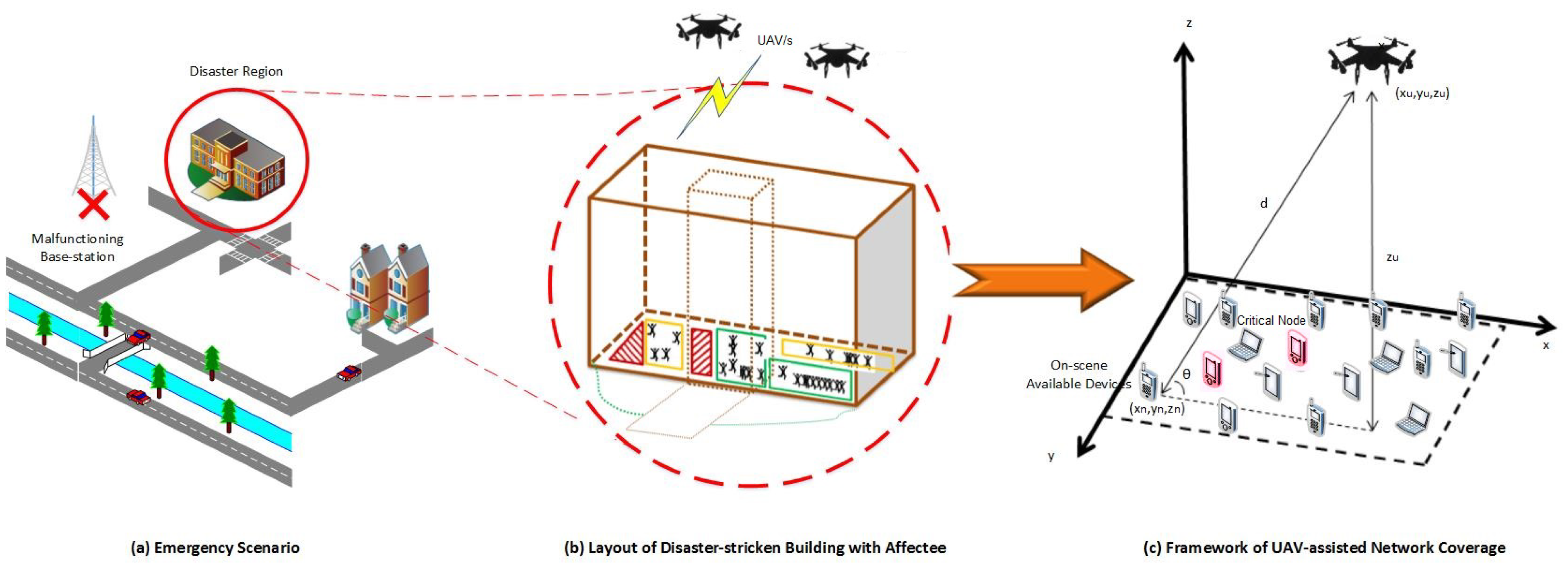

Figure 1. As the terrestrial network is destroyed, the area is deprived of network coverage. The UAVassisted EN is deployed to connect the OSAs to the outside world. Several CNs are detected among these OSAs, which may have critical information, critical battery levels, or both. The presence of CNs and OSAs in the network is analyzed from two aspects: (i) capacity and (ii) age of information [
33].
A capacity maximization problem is formulated to improve the network capacity for CNs, whereas an AoI minimization problem is formulated to ensure the freshness and timeliness of data retrieval from CNs. For comparison, two schemes are considered: random placement and equal region partitioning (ERP). The results for both problems show prominent improvement compared to baseline schemes for an increased number of UAVs. Further, coverage to OSAs is analyzed for optimally placed UAVs. In addition to providing coverage to critical nodes, the proposed scheme ensures maximum coverage of other OSAs as well. Specifically, in this paper, the following contributions are made:
Initially, capacity maximization and AoI minimization problems are formulated from CNs’ perspective in an emergency network. A reinforcement learning (RL) framework, along with various partitioning techniques, is employed to optimize the UAV(s) placement for the capacity and AoI optimization problems.
The results of different partitioning schemes are then compared and analyzed in terms of capacity, AoI, and computational complexity.
Furthermore, the coverage region of optimally placed UAV(s) is analyzed, specifically for CNs and generally for overall OSAs, over two scenarios, i.e., networkcentric and usercentric.
The rest of the paper is arranged in the following manner. The system model and channel specifications are described in
Section 2. The problem formulation, region partitioning, and RL framework are presented in
Section 3. The simulation results for capacity maximization and AoI minimization problems are shown in
Section 4 for various partitioning techniques. It also covers the performance for networkcentric and usercentric scenarios. Finally, the conclusion is drawn at the end.
2. System Model
Consider a situation in which
N OSAs, represented as a set
$\mathbb{N}$, are randomly distributed in a disaster region. These OSAs are indexed by
$n\in \mathbb{N}$ with coordinates
$({x}_{n},{y}_{n},{z}_{n})$. Among
$\mathbb{N}$ OSAs, certain nodes are critical and represented as a set
${\mathbb{N}}_{\mathbb{CN}}$, such that
${\mathbb{N}}_{\mathbb{CN}}\subseteq \mathbb{N}$. The set
${\mathbb{N}}_{\mathbb{CN}}$ is indexed by
${n}_{CN}$. The network coverage is provided by
U UAVs with coordinates
$({x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime})$, where
$u\in \{1,2,\dots ,U\}$. Both the uplink and downlink consist of
${n}_{sub}$ subcarriers. The bandwidth of each subcarrier is defined as
W. The
${n}_{sub}$ subcarriers are exclusively assigned to a set of
${N}_{u}$ (indexed by
${n}_{u}$) OSAs associated with
${u}^{\mathrm{th}}$ UAV in its coverage area. It is assumed that all channels exhibit both path loss and fading [
13,
15]. The path loss between
${n}^{\mathrm{th}}$ OSA and
${u}^{\mathrm{th}}$ UAV is defined as:
where
$d=\sqrt{{({x}_{u}^{\prime}{x}_{n})}^{2}+{({y}_{u}^{\prime}{y}_{n})}^{2}+{({z}_{u}^{\prime}{z}_{n})}^{2}}$,
$\alpha $ is the pathloss exponent, and
$\beta $ is the path loss at the reference point. The value of pathloss greatly depends on the altitude
${z}_{u}^{\prime}$, elevation angle
$\theta $, and certain environmental factors, such as
a and
b.
where
A and
B are the additional attenuation factors for LoS and NLoS connections given by
$A={\eta}_{LoS}{\eta}_{NLoS}$ and
$B=10{log}_{10}{\left(\frac{4\pi f}{c}\right)}^{2}+{\eta}_{LoS}$,
${\eta}_{LoS}$ and
${\eta}_{NLoS}$ depend on propagation environment,
f is the carrier frequency,
c specifies the speed of light, and
$\theta =\frac{180}{\pi}arcsin\left(\frac{{z}_{u}^{\prime}}{d}\right)$.
The signal to interference plus noise ratio (SINR)
${\gamma}_{{n}_{u},u}$ for
${n}_{u}$ thus becomes
where
${\sigma}_{{n}_{u},u}\left(k\right)$ is an indicator function of subcarrier assignment to the OSA
${n}_{u}$ of the
${u}^{\mathrm{th}}$ UAV. If a subcarrier is assigned to
${n}_{u}$ then
${\sigma}_{{n}_{u},u}\left(k\right)=1$, and 0 otherwise.
${p}_{u}$ is the transmit power of
${u}^{\mathrm{th}}$ UAV,
${g}_{{n}_{u},u}$ follows Nakagami distribution with variance
$\Omega $,
${\mathcal{N}}_{0}$ is the thermal noise power, and
${I}_{{n}_{u},u}$ is the interference given by (
4).
where
${\rho}_{{n}_{u},{u}^{\prime}}\left(k\right)=\frac{{p}_{{u}^{\prime}}{\left{g}_{{n}_{u},{u}^{\prime}}\left(k\right)\right}^{2}}{P{L}_{{n}_{u},{u}^{\prime}}}$In this paper, the OSA’s association with UAV(s) is based on the minimum pathloss criterion. The indicator function can only be 1 if the minimum pathloss is less than a given threshold.
The overall network capacity
C is defined by (
5).
3. Problem Formulation and Optimized 3D Placement
The point of interest in this work is the placement of UAV(s) to maximize the capacity of critical nodes
${C}_{CN}$; therefore, an optimization problem is defined by (7). In a similar manner to (
5), the capacity of CNs is given as:
The capacity maximization problem of CNs constrained by the location of UAV(s) in the network is defined by
where (7b)–(7d) represent the 3D placement constraints, (7e) ensures coverage to all the CNs based on rate requirement
${R}_{{n}_{CN}}$ and (7f) indicates the pathloss threshold value
$P{L}_{th}$ for overall network nodes. Minimum pathloss criterionbased coverage would be added specifically with this constraint. After
$P{L}_{th}$, the node
${n}_{u}$ no longer remains connected to UAV
u. The methodology for the capacity maximization problem is described in Algorithm 1.
Algorithm 1 Framework for Capacity Maximization
Require: System Parameters $(P{L}_{{n}_{CN},u},W,{\sigma}_{{n}_{CN},u},{p}_{u},{p}_{{n}_{CN},u},{\mathcal{N}}_{0})\forall {n}_{CN}\in {\mathbb{N}}_{\mathbb{CN}}$
Find Optimal UAV placement (${x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime}$) by solving Equation (7)
return Maximum Capacity for CNs.

To formulate the AoI minimization problem, the average AoI of the data collected from critical nodes
${\overline{\Delta}}_{CN}$ is given by (
8)
where
${t}_{{n}_{CN},u}$ is the datauploading time by
${n}_{CN}$ to
u [
33]. The uploaded data during hovering of UAV is the expectation taken over distancedependent pathloss, which is thus impacted by UAV placement. The indicator function
${\sigma}_{{n}_{CN},u}\left(k\right)$ defines the subcarrier assignment of
${n}_{CN}$ connected to
${u}^{\mathrm{th}}$ UAV.
The AoI minimization problem is defined as (9).
where (9b) constraints the amount of data
${D}_{{n}_{CN},u}$ uploaded by CN
${n}_{CN}$ to UAV
u in time
${t}_{{n}_{CN},u}$. The methodology for the AoI minimization problem is described in Algorithm 2.
Algorithm 2 Framework for AoI Minimization
Require: System Parameters ($P{L}_{{n}_{CN},u},W,{\sigma}_{{n}_{CN},u},{p}_{u},{p}_{{n}_{CN},u},{D}_{{n}_{CN},u},{\mathcal{N}}_{0})\forall {n}_{CN}\in {\mathbb{N}}_{\mathbb{CN}}$
Find Optimal UAV placement (${x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime}$) by solving Equation (9)
return Minimum average AoI for CNs.

Apart from capacity enhancement and AoI minimization for critical nodes, the coverage to all CNs is also ensured. The steps to analyze network coverage are elaborated in Algorithm 3. Two parameters are defined to analyze network coverage, i.e., PL coverage and rate coverage. The overall coverage region is the overlap of these two. The PL coverage probability
${\mathbb{P}}_{cvg,PL}$, at a given pathloss threshold
$\tau $, is given by:
Similarly, the rate coverage probability
${\mathbb{P}}_{cvg,R}$ is calculated, for a given rate requirement or threshold
$\Gamma $, as:
The objective functions of (7) and (9) can not be solved directly over
${x}_{u}^{\prime}$,
${y}_{u}^{\prime}$, and
${z}_{u}^{\prime}$. Therefore, a twostep approach is adopted to get the optimal solution. At first, the regions for multiUAV placement are identified. Fine adjustment in the position of the UAV(s) is carried out using RL.
Algorithm 3 Framework for Network Coverage
Require: (${x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime}$), ${p}_{u},{p}_{n,u},\tau ,\Gamma ,{R}_{n}$
Find Coverage based on (10) and (11)
return Coverage of CNs and OSAs over optimized placement.

3.1. Region Partitioning
In this step, for all the objective functions, the disaster region is partitioned into nonoverlapping and distinct subregions. The number of subregions is defined by the number of UAVs so that each UAV serves one subregion containing a cluster of OSAs. For instance, for $U=4$, four subregions are formed with each subregion covered by a UAV u. Two methods for region partitioning are employed, namely Kmean clustering partition (KP) and a customized partition (CP).
In KP, the clusters or subregions are formed by minimizing the sum of the squared distance between the OSAs and the cluster’s centroid [
34]. The KP approach does not rely on location information of UAVs. In effect, it only uses 2D information of OSAs. However, in CP, the partitioning requires the location information of UAV and the OSAs. Unlike KP, which only uses distance information between OSAs, the partitioning in CP is carried out while considering both LoS/NLoS probabilities and the elevation of UAVs. An exhaustive search is performed over the region in three dimensions to find CP. In CP, the sum minimum pathloss criterion is used. It is possible that some of the OSAs are not covered by any UAV considering (7f).
For both types of partition, the UAV(s) placement over the partitioned region is found using both the Kmean centroid and RL methods. This leads to four cases:
UAV(s) placement by calculating centroid in KP: The UAV(s) ${x}_{u}^{\prime}$ and ${y}_{u}^{\prime}$ coordinates are calculated based on cluster’s centroid, whereas the altitude is varied between ${z}_{u,min}^{\prime}\le {z}_{u}^{\prime}\le {z}_{u,max}^{\prime}$ to satisfy the objective functions (7) and (9).
UAV(s) placement with RL over KP: A 3D RL technique is applied over the KP partitioned subregions to obtain the placement of UAV(s), satisfying the respective objective functions.
UAV(s) placement by calculating centroid in CP: The UAVs ${x}_{u}^{\prime}$ and ${y}_{u}^{\prime}$ are calculated based on cluster’s centroid in CP partitioned subregions, whereas the altitude is varied between ${z}_{u,min}^{\prime}\le {z}_{u}^{\prime}\le {z}_{u,max}^{\prime}$ to satisfy the objective functions (7) and (9).
UAV(s) placement with RL over CP: A 3D RL technique is applied over the alreadypartitioned CP subregions to obtain the placement of UAV, satisfying the objective functions.
Equal Region Partitioning (ERP)
Another partition termed equal region partitioning (ERP) is considered for comparison purposes. In ERP, the disaster region is divided into U regions of equal area. The UAVs are placed at the center of these equally partitioned regions and their altitude is derived from RL over CP placement method. For instance, if a single UAV is to be placed in a 100 m × 100 m region, then $({x}_{u}^{\prime},{y}_{u}^{\prime})=(50,50)$.
3.2. RL Framework
The placement of each UAV is obtained using a low complexity QLearning technique where the UAV acts as an agent. At each iteration, the agent is in a state
$s\in \mathcal{S}$ performing an action
$a\in \mathcal{A}$ according to the policy
$\pi $ to maximize the reward
r. At any point, the state of UAV
${u}_{s}$ is specified by
$({x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime})$, and the action space is defined as
$\mathcal{A}=\{forward,backward,up,down,ascend,descend\}$. A reward is calculated when the UAV transitions from one state to the next state
${s}^{\prime}$ after performing a random action. The new location of the UAV
${u}_{{s}^{\prime}}\leftarrow ({u}_{s},a)$ depends on its previous state and action taken according to conditional transition probability
$\mathcal{P}({s}^{\prime},r\mid s,a)$. The reward is chosen under some prominent network performance metrics. In the current case, it is defined by capacity and AoI for their respective optimization problems. The reward structure for the capacity maximization problem is defined and calculated by (12).
A similar function is defined for AoI in (13):
The objective is to maximize the reward in a given interval while aiming to maximize the longterm reward over all future intervals:
where
$E[.]$ is the expectation over discounted reward,
$\psi $ is discount factor, and
$r\left(I\right)$ is instantaneous reward.
The optimization problems can be reformulated as (15).
All subsequent actions are selected based on the greedy policy [
35]. At each iteration, the state–action pair is updated according to (16) with learning rate
$\delta $ and discount factor
$\psi $, generating a tuple
$<s,a,r,Q>$.
The RL approach converges when the change in
${Q}_{new}(s,a)$ during the subsequent iterations becomes negligible. Algorithm 4 depicts the working of the proposed RL framework.
Algorithm 4 QLearning for UAV Placement
Require: Learning Rate $\delta $, Discount Factor $\psi $, Reward Structure ${r}_{C},{r}_{\overline{\Delta}}$
Region Partition based on KP and CP
Initialize Q(s, a) $\forall s\in \mathcal{S}$, $a\in \mathcal{A}$ arbitrarily
Select random s
repeat (for each step of episode):
choose a from s using policy derived from Q to obtain $maxQ$;
take action a, observe r, update s;
${Q}_{new}(s,a)\leftarrow Q(s,a)+\delta [r(s,a)+\psi ma{x}_{a}Q({s}^{\prime},a)]$;
$s\leftarrow {s}^{\prime}$;
until s is terminal
(no more learning episodes)
return evaluation results.

3.3. Computational Complexity
The simplest and most reliable algorithm to find optimal values is considered to be the exhaustive search. It examines every possible element inside the search region providing the best possible match, thus proving to be stable and optimal. However, for the present scenario, its complexity would be $\mathcal{O}\left(\mathcal{I}U{N}^{U}\right)$ over $\mathcal{I}$ iterations for U number of UAVs and N OSAs, demanding a more effective algorithm.
In region partitioning, the KP and CP algorithms are applied. Both algorithms have the computational complexity of $\mathcal{O}\left(\mathcal{I}UN\right)$. The performance of KP is dependent on the initial center, is deterministic over the runs and is regarded as nonstable and suboptimal. Further, the optimal placement is determined using Qlearning through an iterative process. Its computational complexity is similar to Kmean, i.e., $\mathcal{O}\left(\mathcal{I}UN\right)$ when the Qtable is updated through the training process. It is a stable but suboptimal algorithm.
The ERP scheme used for comparison purposes involves basic arithmetic operations; thus, it is considered a constant–time operation with complexity $\mathcal{O}\left(1\right)$. However, the scheme would only be effective for symmetrical regions and would not work with amorphous boundaries.
4. Simulation and Performance Evaluation
A disaster region of 100 m × 100 m, with 100 randomly distributed OSAs, is considered. Among these, 15 are randomly chosen to act as CNs. UAV(s) are deployed to retrieve information for first responders. The transmit power for a UAV(s) is set at
$0.5$ W and the nodes could transmit at
$0.125$ W. The bandwidth provided to each tier is 20 MHz and each band is divided into 64 subcarriers. Roundrobin scheduling is applied to assign subcarriers to the nodes. The results are obtained by employing extensive Monte Carlo simulations in MATLAB and the simulation parameters are given in
Table 1 [
36].
At first, an optimal location for a single static UAV is obtained based on capacity maximization and AoI minimization subject to the distribution of CNs. The placement decision is made either by the UAV, if it has enough computational capacity, or by the command control. The disaster region is then divided into U subregions to optimize the placement of multiple UAVs. Each subregion is governed by a single UAV. The results are studied over the aforementioned region partitions. The observations are carried out spanning a range of coordinates, i.e., $\{{x}_{u,min}^{\prime},\dots ,{x}_{u,max}^{\prime}\}$, $\{{y}_{u,min}^{\prime},\dots ,{y}_{u,max}^{\prime}\}$, and $\{{z}_{u,min}^{\prime},\dots ,{z}_{u,max}^{\prime}\}$ to find optimal location coordinates of UAV(s) $({x}_{u}^{\prime},{y}_{u}^{\prime},{z}_{u}^{\prime})$.

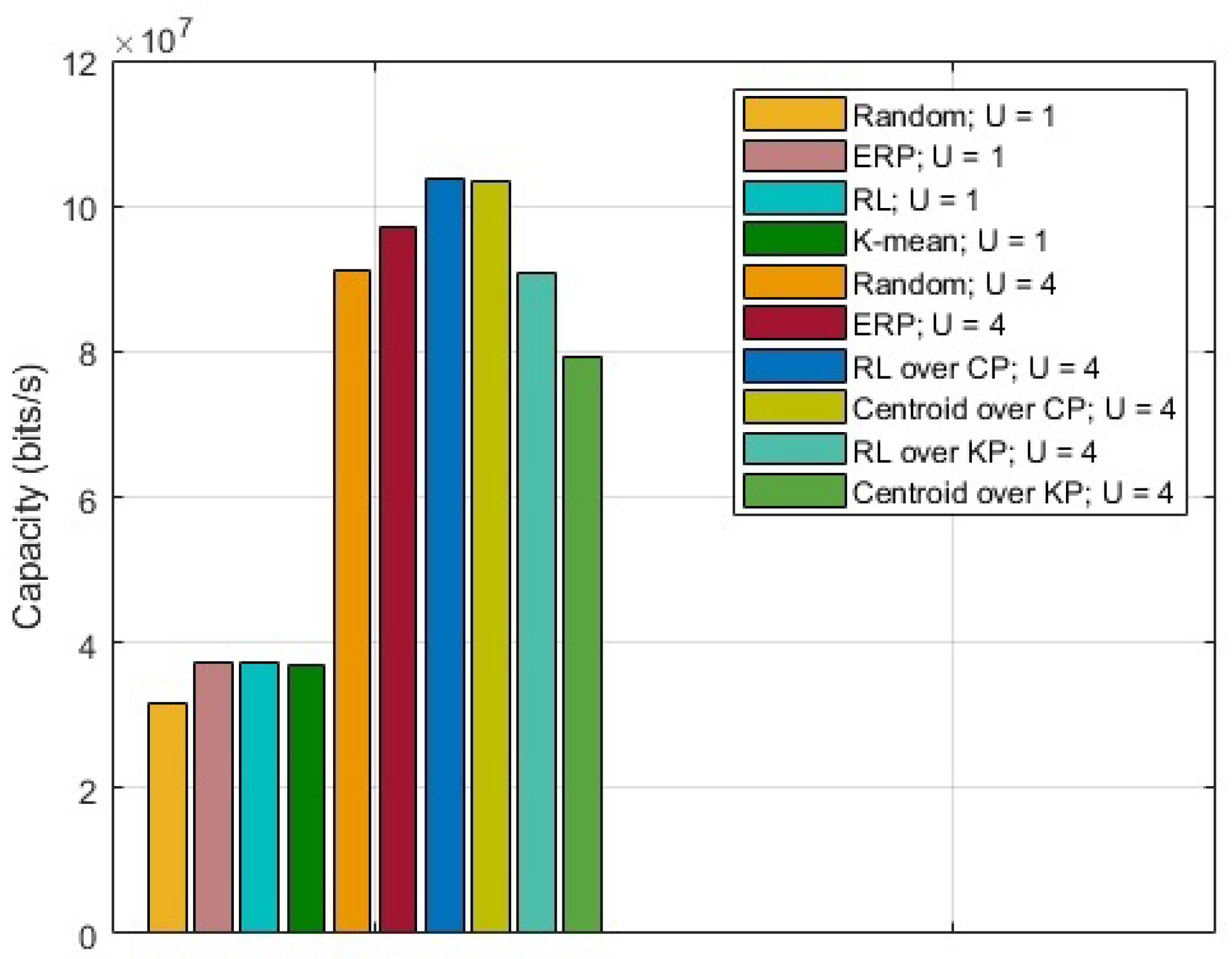

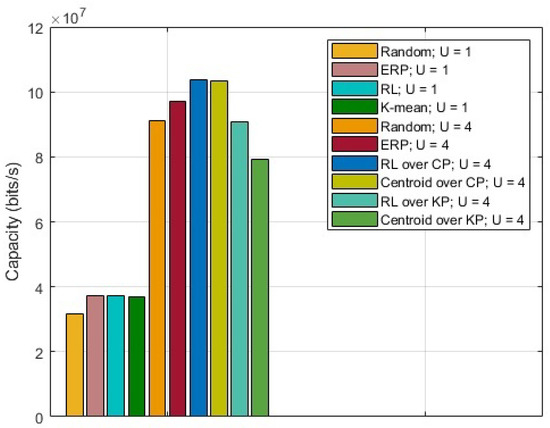

The results for the capacity maximization problem are shown in
Figure 2. For comparison, random placement and ERP are also presented. ERP acts as a middle ground between random placement and proposed RL over CP. It is observed that the UAV(s) placement with RL over CP provides the highest capacity. Based on region partition, for
$U=4$, it is observed that the capacity obtained by calculating centroids in KP is
$56.06\%$ lower than the one obtained by calculating centroids in CP, whereas introducing RL reduces that difference to
$13.86\%$.

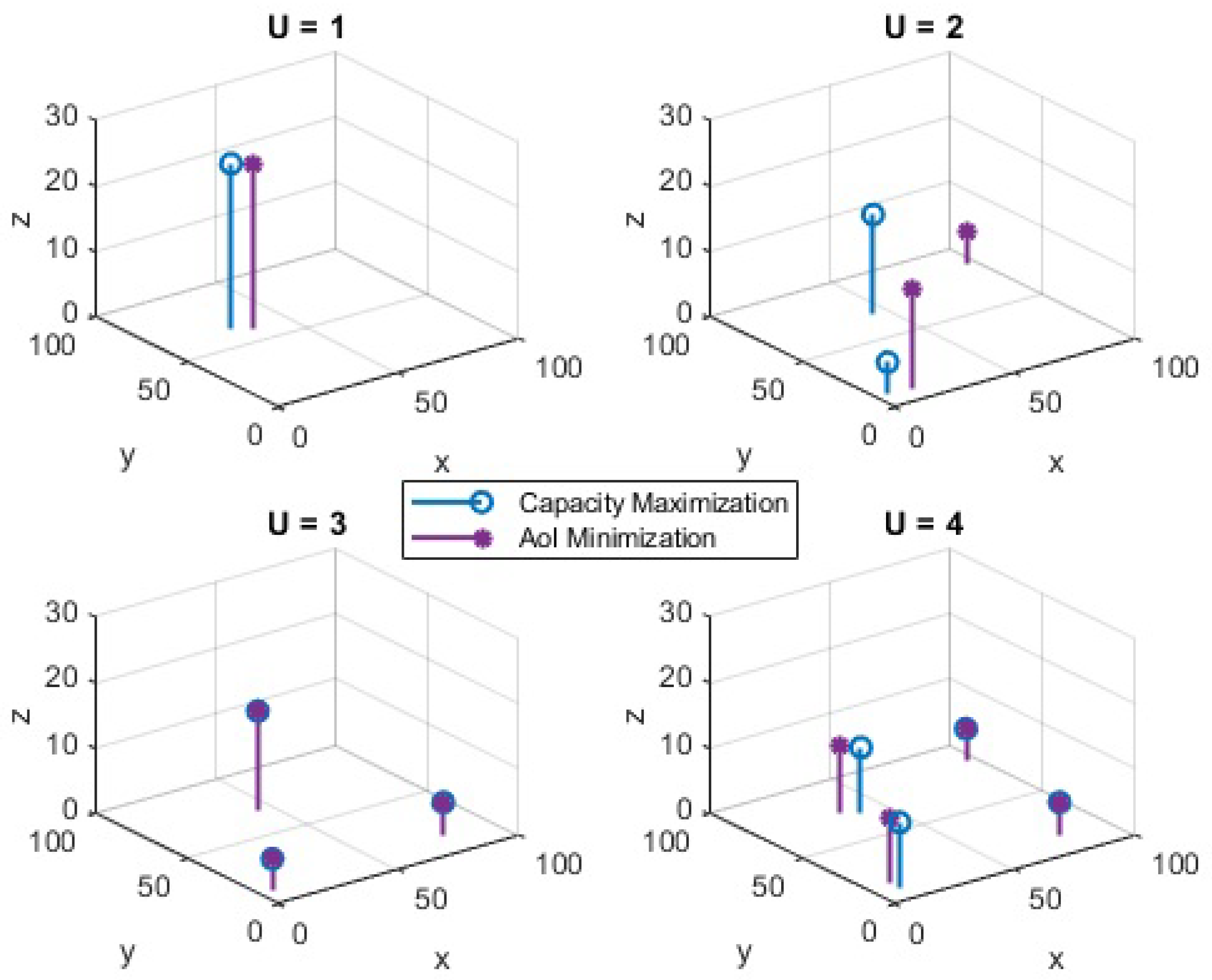

The optimized UAV placement from individual optimization problems, namely capacity maximization and AoI minimization, are shown in
Figure 3. Considering the capacity performance in

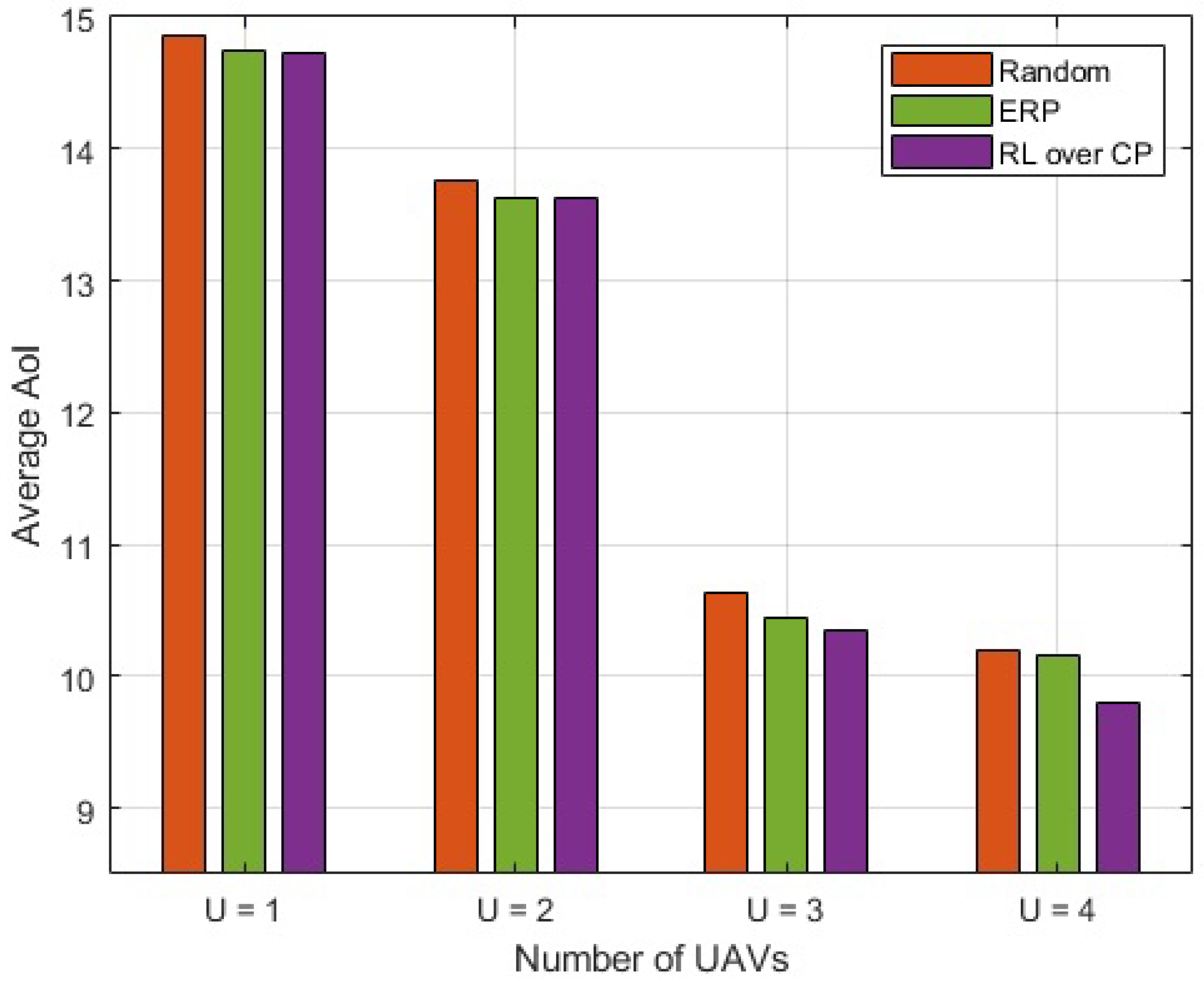

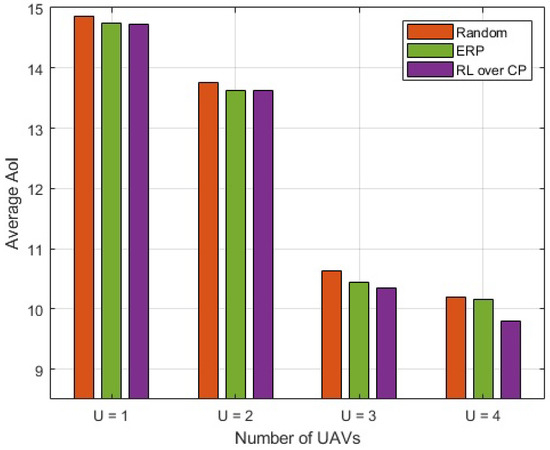

Figure 2, the results are only shown for UAV(s) placement with RL over CP. The number of UAVs varies from 1 to 4. It can be seen that when the number of UAVs is lower than 3, the UAV positions for capacity and AoI are different. However, when the number of UAVs is increased, the UAVs converge to an almost similar position for capacity and AoI. In general, when the number of UAVs is large, the UAV placement for the above problems is found to be significantly close to each other and, in some situations, it overlaps. The average optimized AoI for different numbers of UAVs is depicted in
Figure 4. It is observed that with an increase in the number of UAVs, the difference between the AoI of RL over CP, and ERP increases. The difference becomes significant when the number of UAVs is increased beyond 2. With
$U=4$, the average AoI of RL over CP is
$3.692\%$ reduced compared to ERP. It is to be noted that for fewer UAVs, ERP shows an improved performance compared to random placement but almost similar to RL over CP; however, as the number of UAVs increases, it becomes closer to random placement. Therefore, for fewer UAVs it is favorable to deploy ERP and avoid complexity; however, as the number of UAVs increases, RL over CP is the best option.

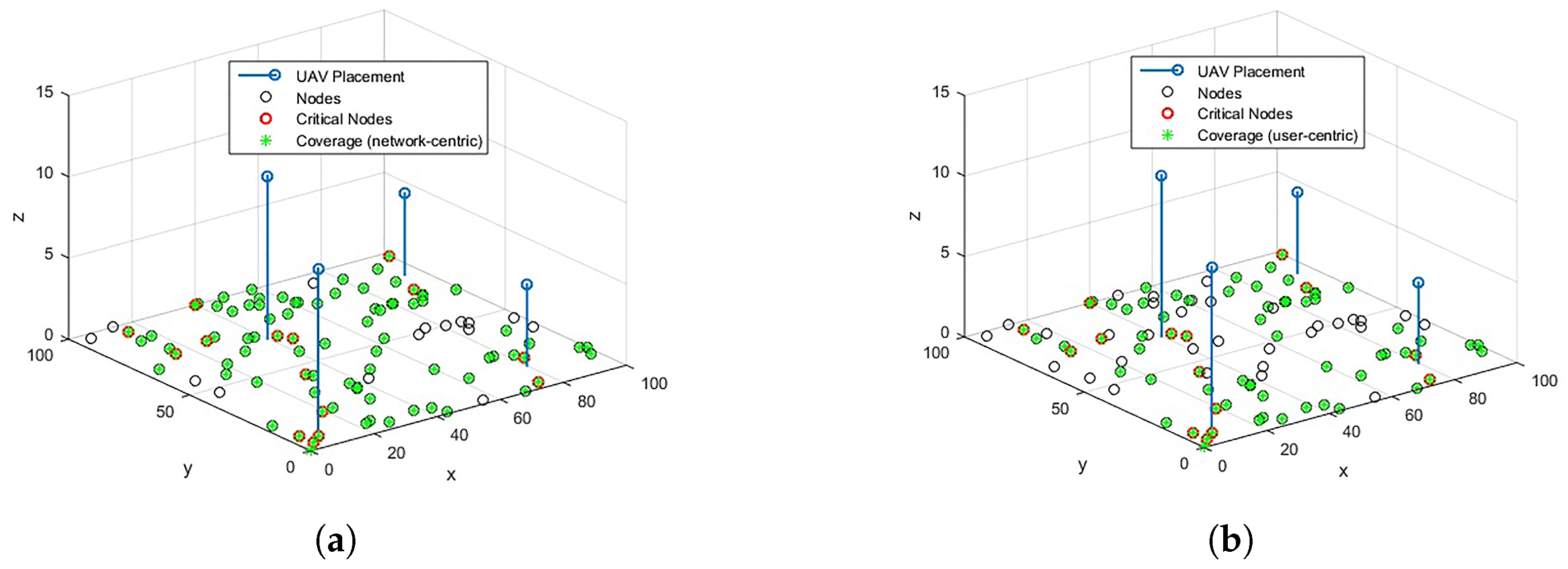

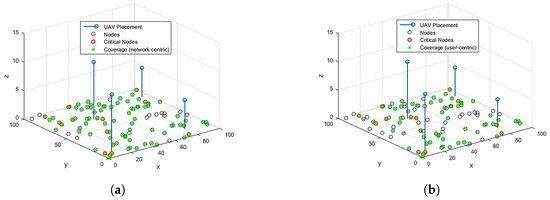

For RL over CPbased 3D optimal locations for
$U=4$, the coverage results for networkcentric and usercentric scenarios are depicted in

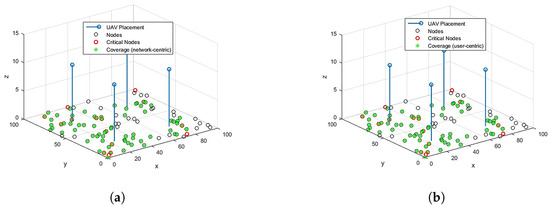

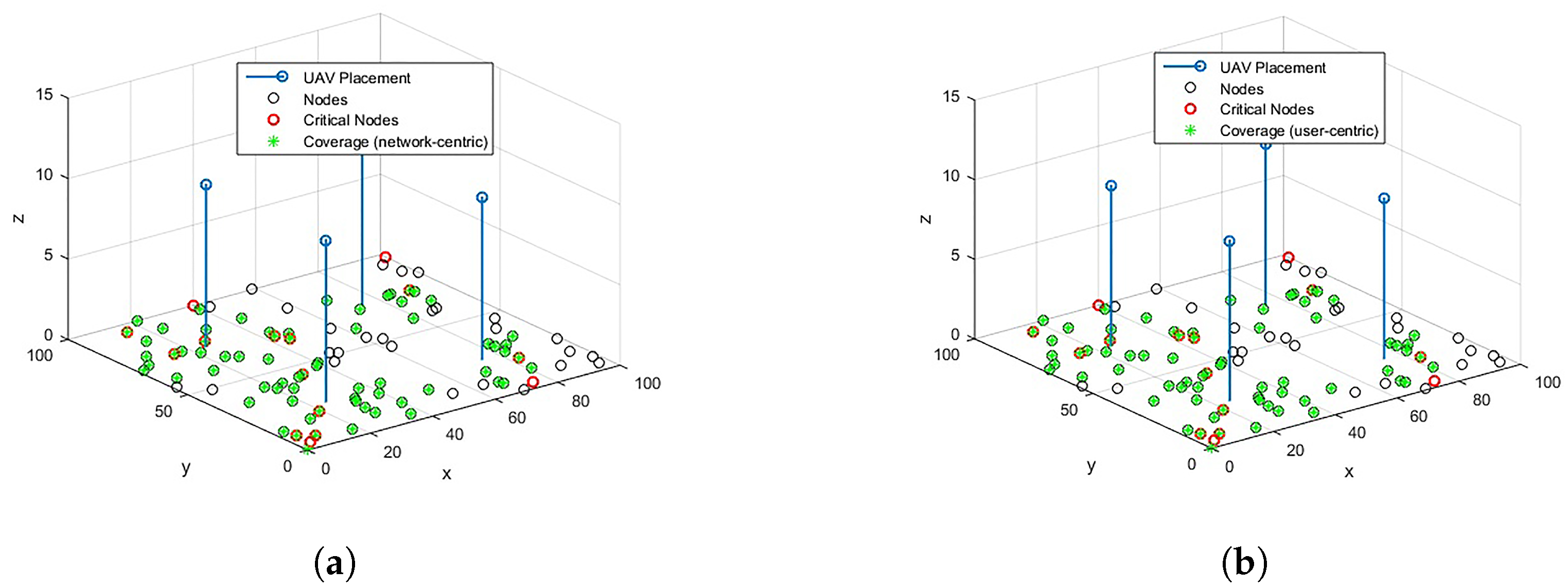

Figure 5. The results for ERP are also shown in
Figure 6 for comparison. The networkcentric scenario assumes that all the OSAs have the same data rate requirement,
${R}_{n}=1$ Mbps, whereas in a usercentric scenari, o the data rates
${R}_{n}$ are userspecific. The data rates are randomly assigned to the OSAs from set
${R}_{n}$. With
$U=4$,
$100\%$ coverage to CNs and
$85\%$ coverage to overall network OSAs can be provided through optimized placement. In the usercentric case, although the coverage of overall network OSAs is reduced to

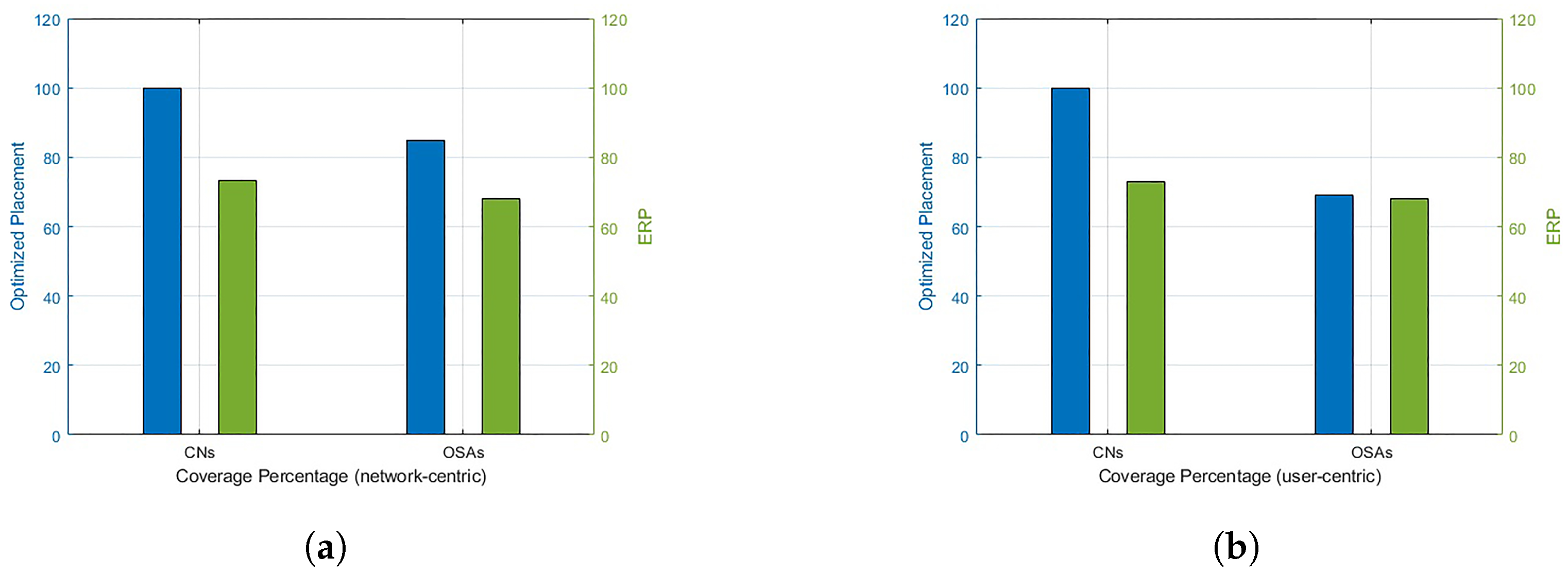

$68\%$, the coverage to all the CNs is still guaranteed. A comparison of the proposed scheme with baseline ERP is provided in
Figure 7. It is noted that RL over CPbased placement provides
$26.7\%$ improved coverage to CNs in both cases compared to ERP. The coverage to the overall network is also reduced by
$16\%$ in the networkcentric case, whereas the reduction for usercentric cases is negligible.
5. Conclusions
This research aims to maximize the capacity and minimize the average AoI for CNs using optimized UAV placement in UAVassisted EN. The problem is simplified through the partitioning of the disaster region using KP and CP approaches. Subsequently, the required goal is achieved using RL to derive the 3D optimal placement of UAV(s) over partitioned regions. The results indicate that RL over CP provides $6.68\%$ improved capacity and $3.692\%$ reduced average AoI compared to ERP. The result of the proposed scheme shows visible improvements compared to random placement for all scenarios. In comparison to ERP, the improvement is negligible for a lower number of UAVs. However, as the number of UAVs increases, prominent improvement is observed for the proposed RL over CP scheme. It is also observed that as the number of UAVs increases, the optimal locations for both capacity maximization and AoI minimization problems converge. The AoI minimization requires that a significant number of UAVs must be deployed. However, this may lead to an increased interference in EN. Finally, the optimal placement provides unprecedented coverage to critical nodes, along with $85\%$ coverage to overall network nodes. It is also observed that the performance of ERP is ostensibly reduced compared to RL over CP. It covers $26.6\%$ fewer CNs and $16\%$ fewer overall OSAs compared to the proposed scheme. The work provides the performance indicators for the basic platform to start with complex optimization problems. The work in its current form is limited to simulations and not extended to experiments. Future tasks, with regards to simulation, include but are not limited to joint capacity and AoI optimization, implementation of mobile UAVs, training for location information, and backhaul limitation parameters. Further, future work involves conducting real experiments based on this study and its extended simulation versions. In addition, securing communication links for certain emergency networks will be explored further.
