# A Hybrid Scheme for Disaster-Monitoring Applications in Wireless Sensor Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Motivation

#### 1.2. Problem Statement

#### 1.3. Contributions

- A hybrid superior node token ring MAC (HT-MAC) scheme is proposed, which is based on the virtual token ring of ordinary nodes, the polling of all superior nodes in one period, and alert transmissions with a low-power listening (LPL) and shortened preamble approach during the sleep state. A low-power clustering method for heterogeneous WSNs is proposed in order to increase the lifetime of disaster-monitoring systems;
- Based on embedded Markov chains, a model of the HT-MAC scheme was developed, and the mean queue length, mean cycle time, and mean upper bound of the frame delay were obtained;
- Using the HT-MAC, WirelessHART, and DRX simulation models, simulations were performed under various conditions, and the delay specifications for the three types of data were explored. The theoretical results were verified through simulations. Based on the simulation results, this HT-MAC scheme satisfies the delay and throughput requirements for the three types of data in disaster-monitoring applications, and can enhance the effective lifetime of heterogeneous networks with the proposed clustering algorithm;
- An architecture for a collaborative disaster-monitoring system is proposed, and a method for obtaining seismic data using a highly energy-efficient approach is presented.

#### 1.4. Paper Organization

## 2. Related Work

#### 2.1. Contention-Based MAC

#### 2.2. Schedule-Based MAC

#### 2.3. Hybrid MAC

#### 2.4. Multiple Wireless Interfaces MAC

#### 2.5. Clustering Methods

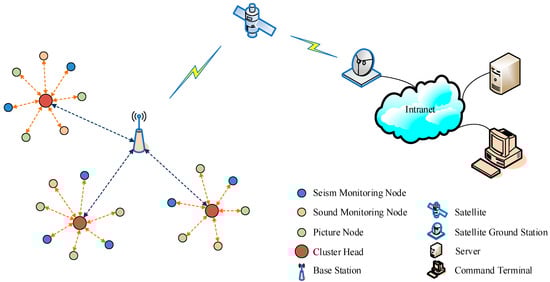

## 3. Collaborative Disaster-Monitoring System

## 4. Scheme Description

#### 4.1. Set-Up Stage

_{rwtch}as the residual working time of the CH, as a cluster head, for the basis of cluster head selection:

_{r}is the residual energy of a sensor node, P

_{sc}is the mean power of sensing and calculation for this type of sensor node, and P

_{ar}is the mean power of data aggregation and relay as a cluster head for a sensor node. T

_{rwtch}indicates the persistent working time if a node is selected as a cluster head.

_{Tx}(l,d) is the energy of l-bit message transmission over distance d, E

_{elec}is the energy consumption for digital coding, modulation, filtering, and spreading of the signal, ε

_{fs}is the energy consumption of short distance transmission, and ε

_{mp}is the energy consumption of long distance transmission. In addition, d

_{0}is the threshold of the distance and can be obtained when d = d

_{0}, in Equation (2):

_{rwtch}, the residual working time, as a cluster head for each ordinary node. Subsequently, an ordinary node with the maximum T

_{rwtch}in a cluster is selected as the cluster head. Finally, the base station broadcasts information on the cluster heads and members of a cluster to all the sensor nodes. The information consists of the locations of the sensor nodes in a cluster; thus, the nodes can adjust their transmission power to fit the transmission distance within a cluster.

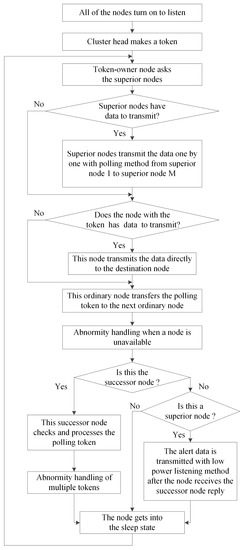

#### 4.2. Steady-State Stage

#### 4.3. Abnormity Handling

Algorithm 1. Abnormity handling when a node is unavailable. | |

Input: current node—current node with the polling tokenOutput: current node—current node with the new successor node | |

1 | A node delivers the polling token to its successor node; |

2 | if this node does not receive the token acknowledgement frame from the successor node |

3 | This node continues to deliver the polling token to the successor node several times; |

4 | if these retransmissions all fail |

5 | This node delivers the token for setting up a new successor to the next node of the successor node; |

6 | In the next node of the successor, the token is received and the predecessor node is set up with the current node; |

7 | The new successor node is set up with the next node of the successor; |

8 | The ring is reconfigured; |

9 | end if |

10 | end if |

11 | End |

Algorithm 2. Abnormity handling of multiple tokens. | |

Input: token maker—token with the ring address and token sequence numberOutput: current node—deleted token | |

1 | Token maker produces the ring address; |

2 | Token maker sets the token sequence number by adding one every time when it passes the token maker; |

3 | The nodes in the ring record the token identifier and sequence number of the polling token; |

4 | A node receives a new polling token; |

5 | if the sequence number is less than the previous one |

6 | Delete the received polling token; |

7 | else |

8 | if the token identifier is less than the previous token |

9 | Delete the polling token received; |

10 | else |

11 | This node transmits the data; |

12 | In this node, the polling token is transmitted to the successor node; |

13 | end if |

14 | end if |

15 | End |

## 5. Theoretical Analysis

_{i}. The service time for the frames transmitted by an ordinary node is independent. The distribution function of the service time in an ordinary node i is H

_{i}(x). P1 and P2 represent the queues of superior Nodes 1 and 2, respectively. The input of the superior nodes is a Poisson process, and in superior Nodes 1 and 2, the arrival rates of the Poisson process are λ

_{P}

_{1}and λ

_{P}

_{2}, respectively. The service time for the frames transmitted by a superior node is independent. The probability distribution of the frame transmission time is a general distribution in superior Nodes 1 and 2, and the distribution functions are H

_{P}

_{1}(x) and H

_{P}

_{2}(x), respectively. In the period from t

_{n}to t

_{n}

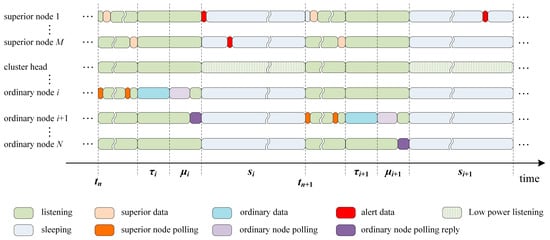

_{+1}, as shown in Figure 2, the data frame transmission time of ordinary node i is τ

_{i}, the sleep time is s

_{i}, and the polling token walking time is μ

_{i}. Within time t, the number of frames arriving in an ordinary node queue i is υ

_{i}(t). When the token ring system reaches a stable state, the instant at which ordinary node i begins to transmit frames, the probability of ordinary node k with j

_{k}frames waiting is g

_{i}(j

_{1}, j

_{2}, …, j

_{P}

_{1}, j

_{P}

_{2}). In ordinary nodes, assume that the instant when an ordinary node begins to transmit the data is …, t

_{n}, t

_{n}

_{+1}, …, so that … < t

_{n}< t

_{n}

_{+1}< …. According to the random process, random variables may be defined as follows: ε

_{n}(i) is the frame number in ordinary node I when the very moment is t

_{n}; ε

_{n}is the ordinary node identifier when ordinary node i starts transmitting packets in the period from t

_{n}to t

_{n}

_{+1}; in ordinary node i, h

_{i}is the mean frame transmission time; and h

_{P}

_{1}and h

_{P}

_{2}are the mean frame transmission times of superior nodes P1 and P2, respectively. Subsequently, the state of the system at t

_{n}is described by (ε

_{n}, ε

_{n}(1), ε

_{n}(2), …, ε

_{n}(N), ε

_{n}(P1), ε

_{n}(P2)); meanwhile, the state space of the system becomes I = {(i, k

_{1}, k

_{2}, …, k

_{j}, …,k

_{N}, k

_{P}

_{1}, k

_{P}

_{2}): i = 1, 2, …, N; k

_{j}= 0, 1, 2, …; j = 1, 2, …, N, P1, P2}. Hence, the transition probabilities with respect to the state (ε

_{n}, ε

_{n}(1), ε

_{n}(2), …, ε

_{n}(N), ε

_{n}(P1), ε

_{n}(P2)) construct an irreducible, aperiodic Markov chain. The Markov chain is ergodic, and the system can be assumed to be in statistical equilibrium. In this case, the limiting probabilities of the states (ε

_{n}, ε

_{n}(1), ε

_{n}(2), …, ε

_{n}(N), ε

_{n}(P1), ε

_{n}(P2)) are obtained as follows:

_{i}is the traffic intensity for ordinary node i, and ρ

_{P}

_{1}and ρ

_{P}

_{2}are the traffic intensities for superior nodes P1 and P2, respectively. The above equation shows that the system exists in an equilibrium state when the total traffic intensity of the system is less than 1.

_{P}

_{1}(x) and F

_{P2}(x) are the frame transmission times for superior nodes P1 and P2 at any instant t

_{i}with x frames, respectively. Between t

_{n}and t

_{n}

_{+1}, in superior nodes P1 and P2, the frame transmission times are F

_{P}

_{1}[ε

_{n}(P1)] and F

_{P}

_{2}[ε

_{n}(P2)], respectively.

_{n+}

_{1}:

_{i}, μ

_{i}and s

_{i}do not overlap:

_{n}

_{+1}(1), ε

_{n}

_{+1}(2), …, ε

_{n}

_{+1}(N), ε

_{n}

_{+1}(P1), ε

_{n}

_{+1}(P2)) is as follows:

_{n}

_{+1}(1), ε

_{n}

_{+1}(2), …, ε

_{n}

_{+1}(N), ε

_{n}

_{+1}(P1), ε

_{n}

_{+1}(P2)) is G

_{i}(x

_{1}, x

_{2}…, x

_{N}, x

_{P}

_{1}, x

_{P}

_{2}) as follows:

_{n}to t

_{n}

_{+1}, ${U}_{i}^{*}(s)$(i = 1,2, …, N) is the Laplace–Stieltjes transform of the walking time probability distribution; ${S}_{i}^{*}(s)$ is the Laplace–Stieltjes transform of the sleeping time probability distribution when the polling token moves forward from t

_{n}to t

_{n}

_{+1}. In ordinary node i with a Poisson input, H

_{i}(x) represents the busy period probability distribution, and ${H}_{i}^{*}(s)$ is the Laplace–Stieltjes transform of H

_{i}(x). In superior nodes P1 and P2 with a Poisson input, H

_{P}

_{1}(x) and H

_{P}

_{2}(x) represent the busy period probability distributions for P1 and P2, respectively, and ${H}_{P1}^{*}(s)$ and ${H}_{P2}^{*}(s)$ are the Laplace–Stieltjes transforms of H

_{P}

_{1}(x) and H

_{P}

_{2}(x), respectively. Using the above recursive formula, G

_{i}(x

_{1}, x

_{2}…, x

_{N}, x

_{P}

_{1}, x

_{P}

_{2}) can be described as a functional equation; however, an explicit representation cannot be derived.

_{i}(j) as the mean node queue length in queue j (j = 1, 2, …, N, P1, P2), when ordinary node i begins to transmit data, where i = 1, 2, …, N:

_{j}and x

_{l}→1 (l = 1, 2, …, N, P1, P2) yields

_{i}= λ, μ

_{i}= μ, h

_{i}= h, and s

_{i}= s, and the system is in the equilibrium state, the following can be set:

_{2}) can be expressed as

_{1}and P

_{2}, respectively. Thereafter, we can derive the mean cycle time of the token ring network when the ordinary nodes are symmetric and the system is in an equilibrium state:

## 6. Performance Evaluation

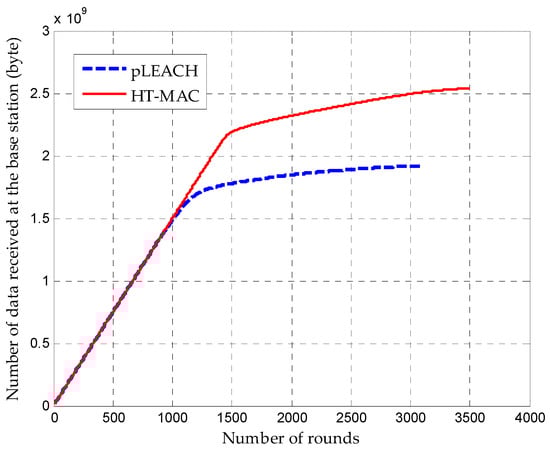

#### 6.1. Clustering Performance

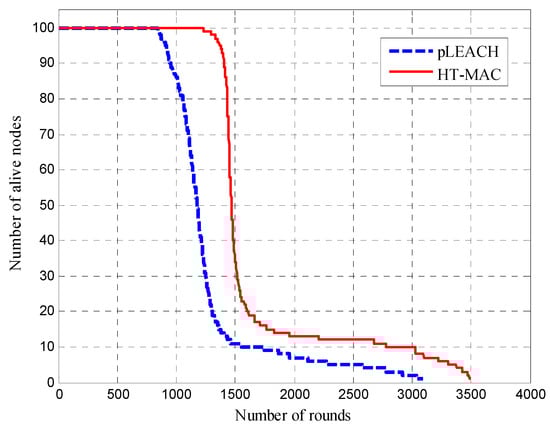

_{rwtch}, the residual working time as a cluster head, is the variable that determines which node is the cluster head. We assume that a sensor node gains l bits of sensing data in time t

_{sc}; thus, P

_{sc}the mean power of sensing and calculation for this node is

_{sc}is the energy consumption for sensing and calculating this type of node. If a sensor node aggregates k bits of data and relays them to a base station at a distance d in time t

_{ar}, P

_{ar}is the mean power of the data aggregation and relay as a cluster head:

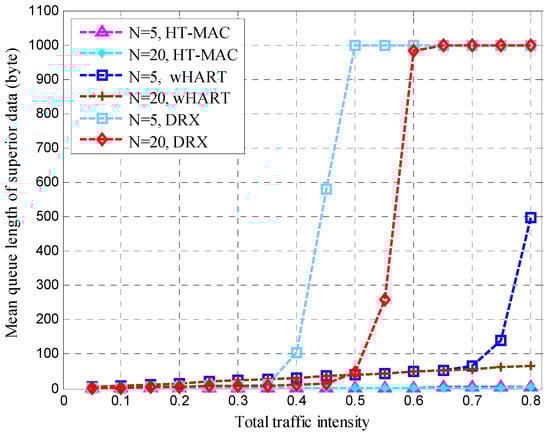

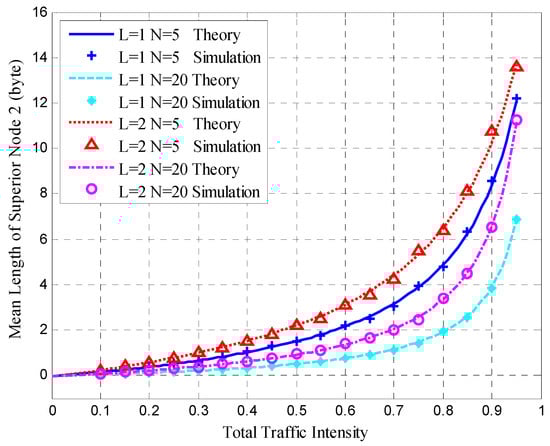

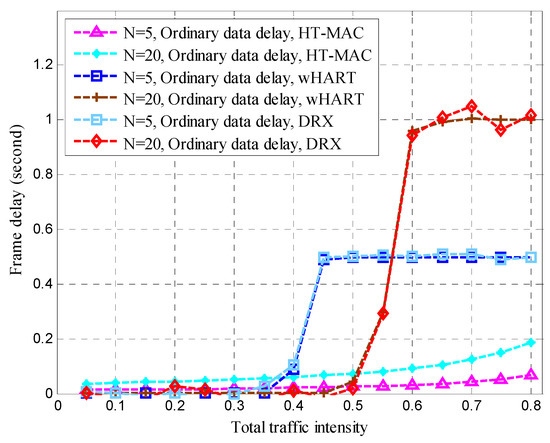

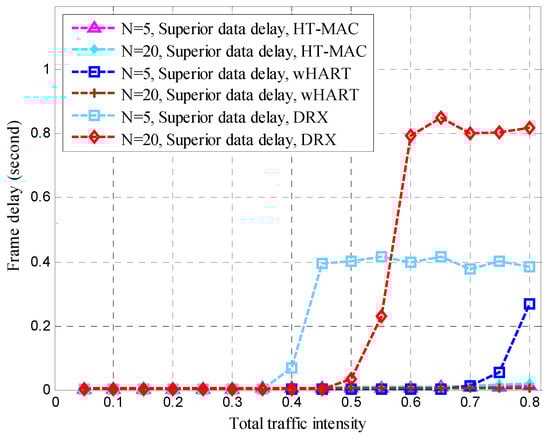

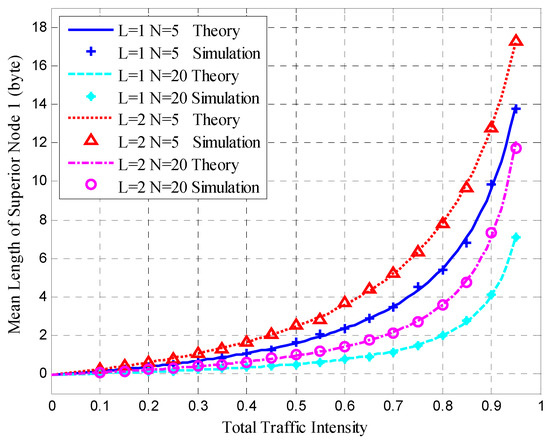

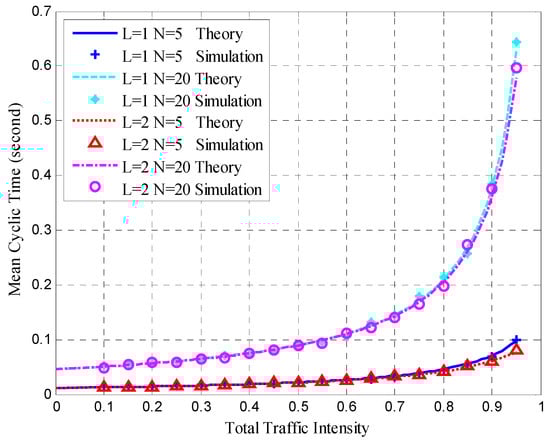

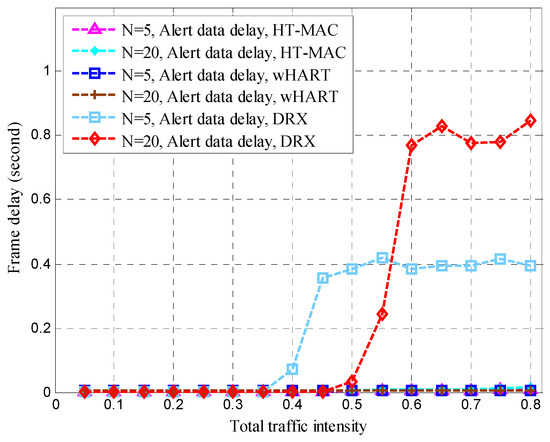

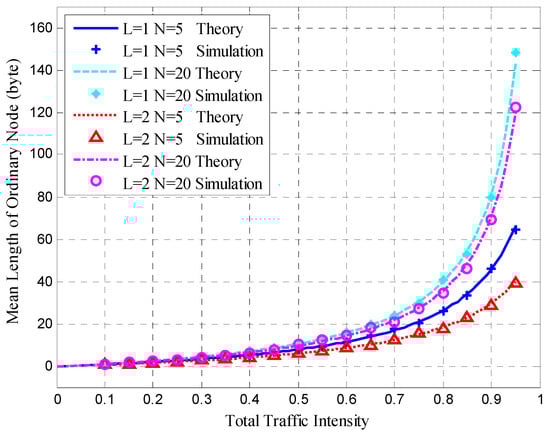

#### 6.2. Data Transmission Performance

## 7. Conclusions and Future Work

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Srivastava, S.; Singh, M.; Gupta, S. Wireless Sensor Network: A Survey. In Proceedings of the 2018 International Conference on Automation and Computational Engineering (ICACE), Greater Noida, India, 3–4 October 2018; IEEE: New York, NY, USA, 2018; pp. 159–163. [Google Scholar]
- Singh, P.K.; Paprzycki, M. Introduction on Wireless Sensor Networks Issues and Challenges in Current Era. In Handbook of Wireless Sensor Networks: Issues and Challenges in Current Scenario’s; Singh, P.K., Bhargava, B.K., Paprzycki, M., Kaushal, N.C., Hong, W.-C., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 3–12. ISBN 978-3-030-40305-8. [Google Scholar]
- Yick, J.; Mukherjee, B.; Ghosal, D. Wireless Sensor Network Survey. Comput. Netw.
**2008**, 52, 2292–2330. [Google Scholar] [CrossRef] - Kaur, T.; Kumar, D. QoS Mechanisms for MAC Protocols in Wireless Sensor Networks: A Survey. IET Commun.
**2019**, 13, 2045–2062. [Google Scholar] [CrossRef] - Bangotra, D.K.; Singh, Y.; Selwal, A.; Kumar, N.; Singh, P.K.; Hong, W.-C. An Intelligent Opportunistic Routing Algorithm for Wireless Sensor Networks and Its Application towards E-Healthcare. Sensors
**2020**, 20, 3887. [Google Scholar] [CrossRef] - Coburn, A.; Spence, R. Earthquake Protection; John Wiley & Sons: Hoboken, NJ, USA, 2003; pp. 71–176. [Google Scholar]
- Cremen, G.; Galasso, C. Earthquake Early Warning: Recent Advances and Perspectives. Earth Sci. Rev.
**2020**, 205, 103184. [Google Scholar] [CrossRef] - Yuan, Z.; Shan, X.; Xu, S. An Overview of Earthquake Early Warning Technology. J. Nat. Disasters
**2007**, 16, 216–223. [Google Scholar] - Sollberger, D.; Igel, H.; Schmelzbach, C.; Edme, P.; van Manen, D.-J.; Bernauer, F.; Yuan, S.; Wassermann, J.; Schreiber, U.; Robertsson, J.O.A. Seismological Processing of Six Degree-of-Freedom Ground-Motion Data. Sensors
**2020**, 20, 6904. [Google Scholar] [CrossRef] - Oliveira, L.M.; Rodrigues, J.J. Wireless Sensor Networks: A Survey on Environmental Monitoring. J. Commun.
**2011**, 6, 143–151. [Google Scholar] [CrossRef] - Zollo, A.; Festa, G.; Emolo, A.; Colombelli, S. Source Characterization for Earthquake Early Warning. In Encyclopedia of Earthquake Engineering; Springer: Berlin/Heidelberg, Germany, 2015; pp. 3327–3346. [Google Scholar]
- Scislo, L. High Activity Earthquake Swarm Event Monitoring and Impact Analysis on Underground High Energy Physics Research Facilities. Energies
**2022**, 15, 3705. [Google Scholar] [CrossRef] - Esposito, M.; Palma, L.; Belli, A.; Sabbatini, L.; Pierleoni, P. Recent Advances in Internet of Things Solutions for Early Warning Systems: A Review. Sensors
**2022**, 22, 2124. [Google Scholar] [CrossRef] - Terray, L.; Royer, L.; Sarramia, D.; Achard, C.; Bourdeau, E.; Chardon, P.; Claude, A.; Fuchet, J.; Gauthier, P.-J.; Grimbichler, D.; et al. From Sensor to Cloud: An IoT Network of Radon Outdoor Probes to Monitor Active Volcanoes. Sensors
**2020**, 20, 2755. [Google Scholar] [CrossRef] - Vivienne, S.; Madhukar, B.; Gary, J. High Efficiency Video Coding (HEVC): Algorithms and Architectures; Springer Publishing Company, Incorporated: Berlin/Heidelberg, Germany, 2014; pp. 275–302. [Google Scholar]
- Ye, W.; Heidemann, J.; Estrin, D. An Energy-Efficient MAC Protocol for Wireless Sensor Networks. In Proceedings of the Twenty-First Annual Joint Conference of the IEEE Computer and Communications Societies, New York, NY, USA, 23–27 June 2002; IEEE: New York, NY, USA, 2002; Volume 3, pp. 1567–1576. [Google Scholar]
- Polastre, J.; Hill, J.; Culler, D. Versatile Low Power Media Access for Wireless Sensor Networks. In Proceedings of the 2nd International Conference on Embedded Networked Sensor Systems, Baltimore, MD, USA, 3–5 November 2004; pp. 95–107. [Google Scholar]
- Zheng, T.; Radhakrishnan, S.; Sarangan, V. PMAC: An Adaptive Energy-Efficient MAC Protocol for Wireless Sensor Networks. In Proceedings of the 19th IEEE International Parallel and Distributed Processing Symposium, Denver, CO, USA, 4–8 April 2005; IEEE: New York, NY, USA, 2005; pp. 1–8. [Google Scholar]
- Singh, B.K.; Tepe, K.E. Feedback Based Real-Time MAC (RT-MAC) Protocol for Wireless Sensor Networks. In Proceedings of the GLOBECOM 2009–2009 IEEE Global Telecommunications Conference, Honolulu, HI, USA, 30 November–4 December 2009; IEEE: New York, NY, USA, 2009; pp. 1–6. [Google Scholar]
- Hurni, P.; Braun, T. Maxmac: A Maximally Traffic-Adaptive Mac Protocol for Wireless Sensor Networks. In Proceedings of the European Conference on Wireless Sensor Networks, Porto, Portugal, 9–11 February 2015; Springer: Berlin/Heidelberg, Germany, 2010; pp. 289–305. [Google Scholar]
- Demirkol, I.; Ersoy, C. Energy and Delay Optimized Contention for Wireless Sensor Networks. Comput. Netw.
**2009**, 53, 2106–2119. [Google Scholar] [CrossRef] - Sun, W.; Yuan, X.; Wang, J.; Han, D.; Zhang, C. Quality of Service Networking for Smart Grid Distribution Monitoring. In Proceedings of the 2010 First IEEE International Conference on Smart Grid Communications, Gaithersburg, MD, USA, 4–6 October 2010; IEEE: New York, NY, USA, 2010; pp. 373–378. [Google Scholar]
- Al-Anbagi, I.; Erol-Kantarci, M.; Mouftah, H.T. Priority-and Delay-Aware Medium Access for Wireless Sensor Networks in the Smart Grid. IEEE Syst. J.
**2013**, 8, 608–618. [Google Scholar] [CrossRef] - Tang, L.; Sun, Y.; Gurewitz, O.; Johnson, D.B. PW-MAC: An Energy-Efficient Predictive-Wakeup MAC Protocol for Wireless Sensor Networks. In Proceedings of the 2011 Proceedings IEEE INFOCOM, Shanghai, China, 10–15 April 2011; IEEE: New York, NY, USA, 2011; pp. 1305–1313. [Google Scholar]
- Richert, V.; Issac, B.; Israr, N. Implementation of a Modified Wireless Sensor Network MAC Protocol for Critical Environments. Wirel. Commun. Mob. Comput.
**2017**, 2017, 2801204. [Google Scholar] [CrossRef] - Li, J.; Lazarou, G.Y. A Bit-Map-Assisted Energy-Efficient MAC Scheme for Wireless Sensor Networks. In Proceedings of the 3rd International Symposium on Information Processing in Sensor Networks, Berkeley, CA, USA, 26–27 April 2004; pp. 55–60. [Google Scholar]
- Bokri, J.; Ouni, S.; Kamoun, F. End-to-End Delay Guarantee for TDMA-Based Ad Hoc Networks with RT-DSR Protocol. In Proceedings of the 2009 Third International Conference on Mobile Ubiquitous Computing, Systems, Services and Technologies, Washington, DC, USA, 11–16 October 2009; IEEE: New York, NY, USA, 2009; pp. 225–231. [Google Scholar]
- Rajendran, V.; Obraczka, K.; Garcia-Luna-Aceves, J.J. Energy-Efficient Collision-Free Medium Access Control for Wireless Sensor Networks. In Proceedings of the 1st International Conference on Embedded Networked Sensor Systems, Los Angeles, CA, USA, 5–7 November 2003; pp. 181–192. [Google Scholar]
- Chen, Z.; Khokhar, A. Self Organization and Energy Efficient TDMA MAC Protocol by Wake up for Wireless Sensor Networks. In Proceedings of the 2004 First Annual IEEE Communications Society Conference on Sensor and Ad Hoc Communications and Networks, 2004, IEEE SECON 2004, Santa Clara, CA, USA, 4–7 October 2004; IEEE: New York, NY, USA, 2004; pp. 335–341. [Google Scholar]
- Chin, K.-W.; Raad, R. ArDeZ: A Low Power Asymmetric Rendezvous MAC for Sensor Networks. In Proceedings of the 14th International Conference on Computer Communications and Networks, 2005, ICCCN 2005, San Diego, CA, USA, 17–19 October 2005; IEEE: New York, NY, USA, 2005; pp. 99–104. [Google Scholar]
- Lu, G.; Krishnamachari, B.; Raghavendra, C.S. An Adaptive Energy-Efficient and Low-Latency MAC for Tree-Based Data Gathering in Sensor Networks. Wirel. Commun. Mob. Comput.
**2007**, 7, 863–875. [Google Scholar] [CrossRef] - Rezazade, L.; Aghdasi, H.S.; Ghorashi, S.A.; Abbaspour, M. A Novel STDMA MAC Protocol for Vehicular Ad-Hoc Networks. In Proceedings of the 2011 International Symposium on Computer Networks and Distributed Systems (CNDS), Tehran, Iran, 23–24 February 2011; IEEE: New York, NY, USA, 2011; pp. 148–151. [Google Scholar]
- Bhar, J.; Bouazzi, I. Elastic Hybrid MAC Protocol for Wireless Sensor Networks. Int. J. Electr. Comput. Eng. (2088–8708)
**2021**, 11, 4174–4182. [Google Scholar] [CrossRef] - Devan, P.A.M.; Hussin, F.A.; Ibrahim, R.; Bingi, K.; Khanday, F.A. A Survey on the Application of WirelessHART for Industrial Process Monitoring and Control. Sensors
**2021**, 21, 4951. [Google Scholar] [CrossRef] [PubMed] - Rhee, I.; Warrier, A.; Aia, M.; Min, J. Z-MAC: A Hybrid MAC for Wireless Sensor Networks. In Proceedings of the 3rd International Conference on Embedded Networked Sensor Systems, San Diego, CA, USA, 2–4 November 2005; pp. 90–101. [Google Scholar]
- Zhonghai, G.; Yongguang, C.; Miyi, D.; Qiong, L. A Token Cycle Scheduling of MAC Protocols for TDMA Based Airborne Ad Hoc Network. In Proceedings of the 2009 2nd IEEE International Conference on Broadband Network & Multimedia Technology, Beijing, China, 18–20 October 2009; IEEE: New York, NY, USA, 2009; pp. 28–32. [Google Scholar]
- Almotairi, K.H.; Shen, X. Multichannel Medium Access Control for Ad Hoc Wireless Networks. Wirel. Commun. Mob. Comput.
**2013**, 13, 1047–1059. [Google Scholar] [CrossRef] - Almotairi, K.H.; Shen, X. A Distributed Multi-Channel MAC Protocol for Ad Hoc Wireless Networks. IEEE Trans. Mob. Comput.
**2014**, 14, 1–13. [Google Scholar] [CrossRef] - Heinzelman, W.B.; Chandrakasan, A.P.; Balakrishnan, H. An Application-Specific Protocol Architecture for Wireless Microsensor Networks. IEEE Trans. Wirel. Commun.
**2002**, 1, 660–670. [Google Scholar] [CrossRef] - Ding, P.; Holliday, J.; Celik, A. Distributed Energy-Efficient Hierarchical Clustering for Wireless Sensor Networks. In Proceedings of the Distributed Computing in Sensor Systems: First IEEE International Conference, DCOSS 2005, Marina del Rey, CA, USA, 30 June–1 July 2005; Springer: Berlin/Heidelberg, Germany, 2005; pp. 322–339. [Google Scholar]
- Cherappa, V.; Thangarajan, T.; Meenakshi Sundaram, S.S.; Hajjej, F.; Munusamy, A.K.; Shanmugam, R. Energy-Efficient Clustering and Routing Using ASFO and a Cross-Layer-Based Expedient Routing Protocol for Wireless Sensor Networks. Sensors
**2023**, 23, 2788. [Google Scholar] [CrossRef] - Smaragdakis, G.; Matta, I.; Bestavros, A. Others SEP: A Stable Election Protocol for Clustered Heterogeneous Wireless Sensor Networks. In Proceedings of the Second International Workshop on Sensor and Actor Network Protocols and Applications (SANPA 2004), Boston, MA, USA, 26 November 2004; Volume 3, pp. 1–11. [Google Scholar]
- Qing, L.; Zhu, Q.; Wang, M. Design of a Distributed Energy-Efficient Clustering Algorithm for Heterogeneous Wireless Sensor Networks. Comput. Commun.
**2006**, 29, 2230–2237. [Google Scholar] [CrossRef] - Varma, S.; Nigam, N.; Tiwary, U. Base Station Initiated Dynamic Routing Protocol for Heterogeneous Wireless Sensor Network Using Clustering. In Proceedings of the 2008 Fourth International Conference on Wireless Communication and Sensor Networks, Indore, India, 27–29 December 2008; IEEE: New York, NY, USA, 2008; pp. 1–6. [Google Scholar]
- Chen, D.; Feng, J.; Liu, Q.; Gao, F.; Zhang, Y.; Wang, X. An Energy-Efficient Collaborative Ground Vibration Measurement Scheme Based on Compressed Sensing and Belief Propagation. Int. J. Distrib. Sens. Netw.
**2014**, 10, 254710. [Google Scholar] [CrossRef] - Gou, H.; Yoo, Y.; Zeng, H. A Partition-Based LEACH Algorithm for Wireless Sensor Networks. In Proceedings of the 2009 Ninth IEEE International Conference on Computer and Information Technology, Xiamen, China, 11–14 October 2019; IEEE: New York, NY, USA, 2009; Volume 2, pp. 40–45. [Google Scholar]
- Buettner, M.; Yee, G.V.; Anderson, E.; Han, R. X-MAC: A Short Preamble MAC Protocol for Duty-Cycled Wireless Sensor Networks. In Proceedings of the 4th International Conference on Embedded Networked Sensor Systems, Boulder, CO, USA, 31 October–3 November 2006; pp. 307–320. [Google Scholar]
- Chen, D.; Gao, F.; Pang, G.; Feng, J.; Wang, X. A Real Time MAC Protocol for Mobile Ad Hoc Networks Application. In Proceedings of the 2012 International Conference on Systems and Informatics (ICSAI2012), Yantai, China, 19–20 May 2012; IEEE: New York, NY, USA, 2012; pp. 1364–1368. [Google Scholar]

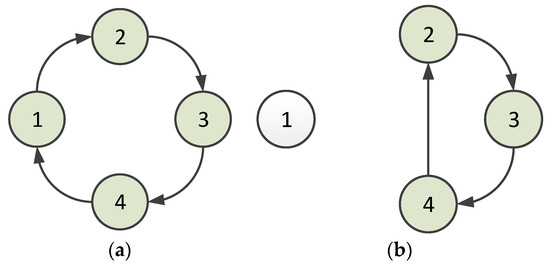

**Figure 3.**Situation when a node leaves a ring (1, 2, 3, and 4 denote nodes 1, 2, 3, and 4): (

**a**) when Node 1 is about to leave the ring; (

**b**) after Node 1 leaves.

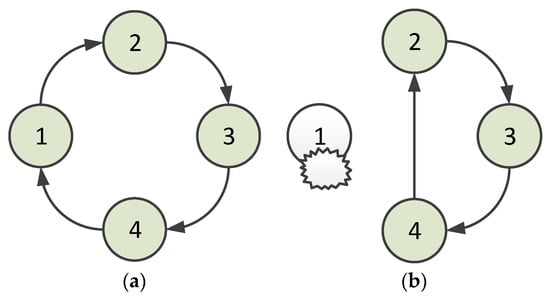

**Figure 4.**Situation in which a node is unavailable (1, 2, 3, and 4 denote nodes 1, 2, 3, and 4): (

**a**) the normal ring; (

**b**) after abnormity handling.

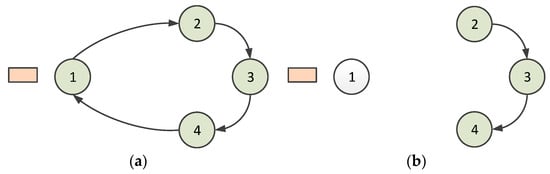

**Figure 5.**Situation without a token in the ring (1, 2, 3, and 4 denote nodes 1, 2, 3, and 4): (

**a**) when Node 1 owns the polling token; (

**b**) after Node 1 departs from the coverage of all the other nodes.

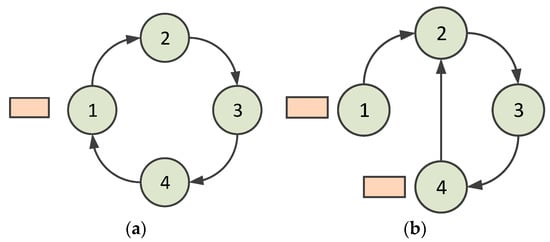

**Figure 6.**Situation with multiple tokens (1, 2, 3, and 4 denote nodes 1, 2, 3, and 4): (

**a**) the normal situation; (

**b**) with multiple tokens.

Classification | Protocol |
---|---|

Contention-based MAC | S-MAC, B-MAC, PMAC, RT-MAC, MaxMAC, ENCO, QoS-MAC, DRX, PW-MAC, CSMA/WSD |

Schedule-based MAC | BMA, TRAMA, TDMA-W, ArDez, DMAC |

Hybrid MAC | CSMA-STDMA, E-hybrid, WirelessHART, Z-MAC, TCS |

Multiple wireless interfaces MAC | MMAC-HR, DSP |

Protocol | Main Scheme | Computation Overhead | Control Overhead | Adaptivity to Topology Changes | Delay | Time Synchronization Precision |
---|---|---|---|---|---|---|

S-MAC | Virtual cluster, adaptive listening | No | Rather high | Good | Rather high | Low |

B-MAC | LPL, clear channel assessment | No | High | Good | Moderate | Moderate |

PMAC | Pattern exchange, avoid overhearing | Pattern generation | High | Good | Moderate | Moderate |

RT-MAC | Feedback control, avoid contending | Clear channel control | Rather high | Low | Low | High |

MaxMAC | Extra wake-ups, traffic adaptation | Duty cycle control | High | Good | Moderate | Low |

ENCO | Estimated number of contenders | Contention window sizes | Moderate | Good | Moderate | Low |

QoS-MAC | Differentiated service | No | Rather low | Good | Moderate | Low |

DRX | Priority- and delay-aware | No | Rather low | Good | Low | Low |

PW-MAC | Predictive wakeup duty cycle | On-demand Prediction | Low | Good | Low | Moderate |

CSMA/WSD | Weak signal detection | Packet loss diagnosis | Low | Poor | Moderate | Low |

BMA | Clustered network, slot assignment | Slot assignment | High | Moderate | High | High |

TRAMA | Winning slot, reservation, piggy back | Transmission priority | High | Moderate | High | High |

TDMA-W | Graph-coloring, wakeup slot | Slot assignment | High | Moderate | High | High |

ArDez | Rendezvous-based scheme | Rendezvous period | High | Good | Moderate | Low |

DMAC | Staggered wakeup, data prediction | Data-gathering tree | Low | Rather poor | Rather poor | High |

CSMA-STDMA | CSMA initializing, STDMA data | Frequent slot assignment | Rather high | Poor | Moderate | High |

E-hybrid | Contention period, reserved slots | Slot assignment | Rather high | Poor | Low | High |

WirelessHART | Time-synchronized TDMA/CSMA | Slot assignment | High | Poor | Low | High |

Z-MAC | LPL, adaptability to contention level | Slot assignment | Low | Poor | Moderate | Moderate |

TCS | Token cycle scheduling | Slot scheduling | Moderate | Moderate | Low | High |

MMAC-HR | Multichannel, hopping reservation | Hopping reservation | High | Poor | Low | Low |

DSP | Multichannel, fast and slow hopping | Multiple rendezvous | High | Poor | Low | Low |

Description | Symbol | Value |
---|---|---|

Energy consumption of short distance transmission | ε_{fs} | 10 pJ/bit/m^{2} |

Energy consumption of long distance transmission | ε_{mp} | 0.0013 pJ/bit/m^{4} |

Energy consumption for digital coding, modulation, filtering, and spreading of the signal | E_{elec} | 50 nJ/bit |

Energy for data aggregation | E_{DA} | 5 nJ/bit/signal |

Energy for sound-sensing and calculating | E_{sc-sou} | 50 pJ/bit |

Energy for picture-sensing and calculating | E_{sc-pic} | 5 nJ/bit |

Energy for seismicity-sensing and calculating | E_{sc-sei} | 3 nJ/bit |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Chen, D.; Zhang, Y.; Pang, G.; Gao, F.; Duan, L.
A Hybrid Scheme for Disaster-Monitoring Applications in Wireless Sensor Networks. *Sensors* **2023**, *23*, 5068.
https://doi.org/10.3390/s23115068

**AMA Style**

Chen D, Zhang Y, Pang G, Gao F, Duan L.
A Hybrid Scheme for Disaster-Monitoring Applications in Wireless Sensor Networks. *Sensors*. 2023; 23(11):5068.
https://doi.org/10.3390/s23115068

**Chicago/Turabian Style**

Chen, Danqi, Yanxia Zhang, Guoli Pang, Fangping Gao, and Li Duan.
2023. "A Hybrid Scheme for Disaster-Monitoring Applications in Wireless Sensor Networks" *Sensors* 23, no. 11: 5068.
https://doi.org/10.3390/s23115068
