Article

Quantification of Humidity and Salt Detection in Historical Building Materials via Broadband Radar Measurement

Institute of Sensor and Actuator Technology, Coburg University of Applied Sciences and Arts, Am Hofbräuhaus 1b, 96450 Coburg, Germany
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(10), 4616; https://doi.org/10.3390/s23104616
Submission received: 16 March 2023 / Revised: 25 April 2023 / Accepted: 5 May 2023 / Published: 10 May 2023
(This article belongs to the Section Radar Sensors)

Abstract

:
For the investigation of moisture and salt content in historic masonry, destructive drilling samples followed by a gravimetric investigation is still the preferred method. In order to prevent the destructive intrusion into the building substance and to enable a large-area measurement, a nondestructive and easy-to-use measuring principle is needed. Previous systems for moisture measurement usually fail due to a strong dependence on contained salts. In this work, a ground penetrating radar (GPR) system was used to determine the frequency-dependent complex permittivity in the range between 1 and 3 GHz on salt-loaded samples of historical building materials. By choosing this frequency range, it was possible to determine the moisture in the samples independently of the salt content. In addition, it was possible to make a quantitative statement about the salt level. The applied method demonstrates that with ground penetrating radar measurements in the frequency range selected here, a salt-independent moisture determination can be carried out.

1. Introduction

High levels of salt and moisture in masonry can cause significant damage. Alongside aesthetic impairments (discoloration, salt crystallization, crumbling of plaster and paint), high moisture contents can result in structural problems (decrease in compressive strength of materials) as well as worsening the indoor climate (fungal attack, degradation of thermal insulation) [1,2]. Therefore, it is important to measure and control the varying moisture content regularly in order to evaluate the risk of damage and to take preventive conservation measures [2].
Special attention has to be paid to the water and salt contents during the restoration and maintenance of historic buildings, which often lack horizontal water spears and are therefore susceptible to moisture [1,3].
Detailed knowledge of the actual condition of the masonry enables targeted and gentle treatment to prevent further damage and maintain the original building structure. Likewise, early detection of penetrating moisture and rapid treatment can prevent damage.
To address these problems, a measuring method is needed that can nondestructively detect the moisture and salt content of masonry walls, and it should be easy and fast to handle and operate.
A wide variety of methods to measure moisture in historical building materials such as sandstone and brick have been compiled in the literature over the past years. Techniques such as infrared thermography [4,5,6,7], high-frequency sensors [8,9], and evanescent field dielectrometry [10] have to be mentioned here. The latter has also been used for concrete [11,12]. Additionally, concrete and other construction materials, such as limestone, cement, clay, or other porous materials, were measured in the laboratory by gamma ray attenuation [13,14,15], X-ray radiography [16,17,18], neutron radiography [19,20,21,22], time-domain reflectometry [23,24,25], wireless inductive–capacitive sensors [26,27], optic fiber sensors [28,29,30,31,32], impedance tomography [33,34], and the capacitance method [35,36,37]. These methods are either too complex, too expensive, do not achieve the necessary resolution, are very susceptible to external influences, or are not available as a generally applicable measuring technique. Therefore, in the restoration and inspection of masonry, damaging drilling samples is still the standard for determining moisture and salt content.
The most promising method is the determination of the complex permittivity [38]. An overview of previous scientific works on this method is presented in the next chapter.
The aim of the study is to prove whether a quantitative salt and moisture determination is possible in a nondestructive manner with the help of a GPR sensor. Unlike previous studies, this study differs in the frequency-resolved broadband signal evaluation considering various relevant salts in historic masonry. In addition, the method presented here is capable of directly measuring on masonry without preparation or destructive sampling, in contrast to other studies using dielectric cells for broadband evaluation of radar signals.
Within this study it is shown that the moisture content of sandstones and bricks can be determined nondestructively by measuring the complex permittivity in the frequency range between 1 and 3 G Hz . In addition, making a quantitative statement about existing dissolved salts is possible. The permittivity is measured using an stepped-frequency continuous wave (SFCW) ground penetrating radar (GPR) sensor based on the principle of time-domain reflectometry.

2. Materials and Methods

2.1. Theoretical Background

As mentioned above, the measurement of complex permittivity is a suitable parameter for investigating bound water in masonry. Free water is clearly different from bound water. The relaxation frequency for free water is about 16 G Hz [38]. In 1974 [39], it was shown that the relaxation frequency of bound water in sand, silt, and clay is reduced to frequencies between 1 and 4 G Hz . Later, this reduction in relaxation frequency was also demonstrated for concrete [40]. For historic building materials such as sandstone and brick, frequency-dependent dielectric constant values were measured in publications, but the relaxation frequency of the bound water could not be determined due to the limited frequency spectrum range of the measuring instruments [41,42,43]. However, based on the existing dielectric constant measurement values, it can be assumed that the relaxation frequency of the water is also greatly reduced in the later materials.
Previous scientific work determining the moisture content of bricks, sandstone, or limestone using radar waves is summarized in Table 1. These results can basically be divided into two different categories based on their measurement principle. The first group [42,43] used a dielectric cell to measure permittivity. For this purpose, a test specimen (70 m m × Ø 75 m m [41], 80–120 m m × Ø 102 m m (inner hole 45 m m ) [43]) is inserted into a cell and the complex permittivity is measured as a function of frequency. West et al. [43] showed a quadratic relationship between the real part of the permittivity and the volumetric humidity using two frequencies (150 M Hz , 500 M Hz ). In addition, it was found that clay and NaCl concentration have an influence on the real and imaginary parts of the electric permitivity. Gilbert et al. [42], on the other hand, chose an artificial intelligence (AI) model for evaluation that uses the frequency-dependent permittivity (50–300 M Hz ) as input variables. These results had a mean relative error of 1.9 vol%.
The second group of papers [42,44,45] used a pulse or stepped-frequency continuous wave ground penetrating radar (GPR) system to detect the temporal signal of the reflection from the back of the wall. This is a nondestructive measurement method that does not require sampling.
In the work of Agliata et al. [45], tuff bricks with an step frequency continuous wave ground penetrating radar (SFCW-GPR) were investigated. In the frequency range of 1.2 and 3.0   G Hz , a constant permittivity as well as a constant electrical conductivity was assumed. Based on these assumptions, an inverse modeling of the radar signal allowed the calculation of both quantities. It was shown that both values correlated with the volumetric humidity in the range between 5 and 35 V%. Cetrangolo et al. [41] used a pulse radar with a center frequency of 1.6   G Hz . The real part of the permittivity is determined on the basis of the transit time of the radar pulse. The permittivity determined in this way has a linear relationship with the volumetric moisture content. The correlation varies with different bricks.
Maierhofer [44] used a pulse radar with a very high frequency compared to other investigations (center frequency of 7.2   G Hz and a 3 dB bandwidth of 0.325   G Hz ). The reason given for the high frequency is that the salt influence decreases with higher frequencies. The real part of the permittivity was determined by the transit time of the radar pulse and the imaginary part by the ratio of two intensities. Both quantities were not frequency-resolved. The building materials investigated were solid bricks, hollow bricks, and sand–lime bricks. The results show that the permittivity differs depending on the volumetric moisture of the building materials. The different salt loads (0.2–5.0 m% NaCl in water) are not noticeable in the real part of the permittivity, and in the imaginary part only at high NaCl concentration ( 5.0 m%).
Table 1. Overview of scientific studies on the determination of the moisture content in bricks, sandstone, and limestone using radar waves.
Table 1. Overview of scientific studies on the determination of the moisture content in bricks, sandstone, and limestone using radar waves.
SourceInvestigated MaterialsMethodMeasured ValueFrequency RangeWater Content RangeQuality of Results/Measurement Error
[46]One type of saline brickDielectric and microwave methodUnspecified electric measurementUnspecified0–11 m% with different salt types and concentrations10% mean relative error
[42]One type of limestoneDielectric cell ϵ ( f ) , ϵ ( f ) 0.05– 0.3   GHz 0–100% saturation 1.9 % mean relative error (saturation)
[43]Different types of sandstoneDielectric cell ϵ ( f ) , ϵ ( f ) 0.075–1 GHz 0–35 vol% with different clay and NaCl contents8% relative error (estimated by author)
[45]One type of brickSFCW-GPRElectrical conductivity, ϵ 1.2–3 GHz 5–35 vol%Not mentioned by author, estimated mean error: 3–4 vol%
[41]Different types of ceramic bricksPulse-GPRTime of flight, ϵ ( 1.6   GHz ) 1.6   GHz center frequency0–30 vol%Not mentioned by author, estimated mean relative error: 5 vol%
[44]Different types of bricksPulse-GPR ϵ ( 7.2   GHz ) , ϵ ( 7.2   GHz ) 7.2   GHz center frequency0–25 vol% with different NaCl contentNot mentioned by author
Apart from moisture analysis in natural stones and bricks, there are many studies on concrete [47,48,49,50,51,52,53,54,55]. Since this work focuses on historical building materials, concrete will not be discussed in detail here.
Based on the publications listed, it can be concluded that a high-frequency radar measurement is necessary to determine the moisture content of the building materials independently of the salts. Low-frequency radar signals can be used to obtain information on the salt content. Accordingly, the aim should be a radar measurement with the widest possible bandwidth and a frequency-resolved determination of the complex permittivity. In addition, it must be considered that the damping increases at higher frequencies. A dielectric cell should be avoided because of the destructive sampling while GPR systems allow nondestructive, uncomplicated, and large-area measurement of masonry.
For these reasons, the SFCW-GPR described in Section 2.2 was chosen, which has the highest bandwidth of commercially available GPR systems to our knowledge.

2.2. Materials and Samples

Measurements were carried out on two types of construction materials. The first one was brick, which was produced based on a historical manufacturing process (Wienerberger solid brick, NZ-Voll 2,0/20, 240 m m × 115 m m × 71 m m , 5 different samples). The second material was sandstone (Sander reed sandstone, 400 m m × 250 m m × 200 m m , 6 different samples). Both materials were chosen since they were used in historical buildings. Measurements were carried out along the 240 m m respectively 200 m m side. The physical properties of the samples are listed in Table 2.
The influence of NaCl (CAS: 7647-14-5), MgSO4 (CAS: 10034-99-8), and KNO3 (CAS: 7757-79-1) on the radar measurements were investigated.
The measurements were carried out using the commercial radar system GP 8800 from Screening Eagle. This system is a stepped-frequency continuous wave GPR with a frequency between 400 and 6000 M Hz with the dimensions of 89 m m × 89 m m × 76 m m [56].
The scale used to measure the weight of the specimens had a sensitivity of 5 g .
The measurement equipment can be seen in Figure 1.

2.3. Preparation and Testing

To measure different moisture, we placed the specimens into a deionised water bath for a couple of days until the specimens were fully saturated. The drying of the stones was accompanied by measuring the reflection of the radar signals at the back of the stone. The radar probe was positioned at the center of the sample. To ensure that there were no additional interfering signals, the stone lay on a metal plate. Concurrently, the weight of the stone was measured to calculate the water content w inside the specimen as mass percent ( m %).
w = m m e a s m d r y m d r y × 100 %
The measurements were carried out twice per day until the samples reached a moisture equilibrium at room conditions. In addition, we evaluated the brick specimens after drying for two days at 105 C .
To measure different salt contents inside the material, the whole process was repeated using salt water instead of deionised water. The salt content in the water was adjusted to achieve an anion (Cl, SO42−, NO3) concentration inside the dry sample of 0.1 m%. For this purpose, the soaking ratio mentioned in Table 2 was used.

2.4. Radar Data Processing

The calculation of the frequency-dependent phase velocity of the radar wave was performed with the phase spectral analysis [57]. This method needs a reference wave r e f ( t ) , which was prerecorded. The reference wave enables the calculation of the cross-power spectrum density ( C P S D ) to determine the frequency-dependent power of the reflected wave m e a s ( t ) .
C P S D = FFT ( r e f ) * × FFT ( m e a s )
with FFT being the fast Fourier transformation functional of the reference and measured time signal, and * indicating the complex conjugation.
By comparing the reference wave and the received wave, we can calculate the phase spectrum
ϕ = 2 π f ϕ m e a s ( f ) ϕ r e f ( f )
With ϕ being the phase of the reference/measured wave obtained by the fast Fourier transformation and f being the frequency.
Knowing the thickness of the specimens, Δ x , the frequency dependent phase velocity can be calculated [58]:
c p h = 2 π f Δ x ϕ m e a s ( f ) ϕ r e f ( f )
Using the Kramers–Kronig relation for nonmagnetic materials ( μ r 1 ), the complex permittivity ϵ = ϵ + i ϵ can be calculated [59]:
( n + i k ) 2 = ϵ + i ϵ μ r ϵ = n 2 k 2 ϵ = 2 n k
For building materials, the imaginary refractive index k is usually small compared to the refractive index n. Additionally, the absorption coefficient can be approximated using the amplitude spectrum A of the reference and measured wave, with c 0 being the speed of light in a vacuum.
ϵ ( f ) n 2 = c 0 c p h ( f ) 2 ϵ ( f ) ln A r e f ( f ) A m e a s ( f ) c 0 π f Δ x

3. Results

3.1. Frequency-Dependent Effects

The measurements, carried out as stated in Section 2.3, were processed in such a way that at first the cross-power density spectra ( C P S D ) were calculated similar to in Equation (2). The C P S D for a single brick, which was initially completely saturated with deionised water, for different timestamps at the continuous drying process are shown in Figure 2. For every C P S D , there was a peak frequency range which was defined as the section which contained the 3 dB drop from the maximum value of the curve. The further evaluation of the signals in the frequency domain was restricted to this peak frequency range in order to maintain a significant signal intensity. Note that this peak frequency range broadens and also shifts to higher frequency components as the drying process continues. Further, there was an increase in total noticeable signal intensity. In fact, the higher frequency components are highly dampened in the initial drying process. Worth mentioning is that the frequency response of the C P S D is highly dependent on the characteristics of the SFCW radar device as the emitted frequency spectra, directivity, and the transmitted power varies. The signal intrusions, which are observable in Figure 2, lead from these device characteristics in combination with the attenuation of the construction material.
The dispersion curves of the real and imaginary part of the complex relative permittivity associated with the above C P S D curves are displayed in Figure 3 and Figure 4. Similar to the C P S D , the permittivity curves are highly dependent on frequency and drying time, respectively, water content. In Figure 3, it is shown that the overall absolute value of the real part of permittivity in the peak frequency range decreases with increase in drying time and frequency. As for the imaginary part of the permittivity in Figure 4, a steep decline at the lower end of the frequency band can be observed for all curves at all drying times. With increase in frequency, the imaginary permittivity raises after a local minimum with a gradient dependent on the drying time. Similar to the real permittivity curves, the absolute values of the imaginary curves also decrease with the drying time.
To link the dispersion curves with the associated moisture determined by gravimetric analysis, various model curves were adapted to the curves of the real and imaginary part of the permittivity. For the real part, in addition to a constant model averaged over the peak frequency range, a linear model and a mean value model weighted with the normalized and logarithmic-scaled C P S D w C P D S were analyzed. The latter proved to be the most suitable and is defined as follows:
ϵ ¯ w e i g h t = ϵ ( f ) × w C P D S ( f ) w C P D S ( f ) .
The information of the imaginary part is represented by the absolute value of the local minimum in the peak frequency range. Figure 3 and Figure 4 show the curve sections of the real and imaginary part of the permittivity with adjusted parameters.
In Figure 5, it is shown that the parameters of the real part of the permittivity can represent the humidity independently of the salt content. The reason is the diminishing influence of the dissolved ions of the salts with increase in frequency. However, the imaginary part parameter shows a high sensitivity to the salt load in the examined frequency range, as depicted in Figure 6. By choosing suitable model parameters in conjunction with the moisture data obtained by weighing, it is possible to establish a link between the measured curves and the moisture, as can be seen for the building material brick in Figure 5 and Figure 6.

3.2. Salt-Dependent Effects

When applying the evaluation scheme used in this study to sandstone samples to which different types of structurally relevant salts were added, it was observed that again there was no significant impact of the salt on the real part of permittivity according to Figure 7. However, it was noticeable that different measurement effects can be noted in the imaginary part of the permittivity at the same anion concentration in mass percentage, which was 0.1 m% related to the dry sandstone samples. Figure 8 shows that sodium chloride at the same concentration has the strongest influence on the measurement signal and, thus, on the parameterized imaginary part absolute value. Over the considered moisture horizon above 1.0 m%, these values are clearly above the reference values of the samples mixed with deionised water, as well as the measured values of the other salt types. The samples with potassium nitrate and magnesium sulfate showed a medium attenuation. Basically, it can be stated that different salt types with the same total mass of anions cause different impacts on the measurement method related to the imaginary part value. At the current state, the presented method allows only a qualitative distinction between high, medium, and small attenuation effects caused by the dissolved salts in the specimens. A differentiation between diverse salt types cannot be performed, nor is it possible to measure the salts if they are in a crystalline state, as they are electrically neutral. This can be observed in Figure 8, as the measurements with saline specimens converge into the measurements with deionised water as the moisture level tends to zero.

3.3. Material Dependent Effects

Investigations of bricks and sandstones showed that the different types of material cause different behavior in the absolute values and the slopes of the models. This is illustrated by Figure 9a–d for the real part, as well as the imaginary part, parameter of the complex permittivity.
It should be noted that the sandstones absorbed significantly less water than the bricks in relation to their dry mass. This results in a higher slope for the building material sandstone with a linear correlation between moisture and real part parameter value. The measurements on bricks have a parabolic dependence with deviation in the oven-dry measurements close to a moisture content of 0 m%. The imaginary part parameter is also clearly different, whereby the measurement points for sandstones with deionised water follow a root function-like course and the brick measurement points are mostly quadratic with the exception of the oven-dry measurement points, which were not used for fitting the model in Figure 9.

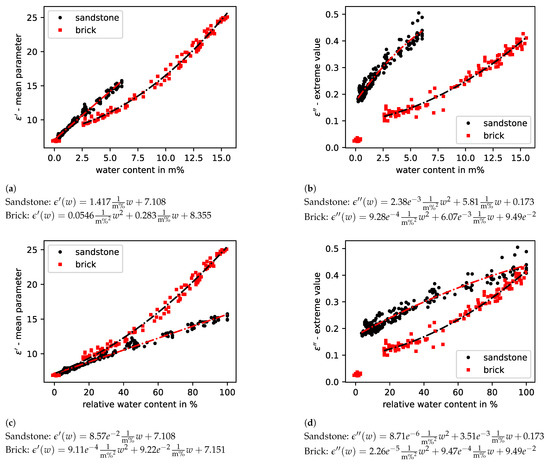

The root-mean-square deviation from the fitting curve in Figure 9a for brick is 0.99 m%, and for sandstone 0.19 m%, resulting in a relative error regarding the saturation humidity of 6.4% and 3.1%, respectively.

4. Discussion and Conclusions

The measurement method described here uses a variable frequency range, which is based on the signal intensity of the cross-power spectrum as a function of the moisture content of the examined historical building material. Due to the selected measuring range of above 1 G Hz , a salt-independent moisture determination can be carried out within a single measurement, accompanied by the possibility of salt detection.
It is shown that at the same mass concentration of anions, different structurally relevant salts cause various measurement effects. Furthermore, only the dissolved salts can be detected with the measuring method, since in crystallized form the salt crystals are electrically neutral. A quantitative measurement of the salt content is therefore not possible, but at least a qualitative statement can be made. However, it is assumed that the attenuation effect of different salt types is mostly affected by the total amount of free ions, as sodium chloride has a much smaller molar mass as compared to potassium nitrate and magnesium sulfate. This topic is currently under research.
The examination of various historical building materials has shown that they differ in terms of measurement. A material-independent moisture measurement is therefore not feasible. However, prior referencing of the building materials to be examined under laboratory conditions can create a basis for determining the moisture in masonry in a nondestructive manner under real conditions. Alternatively, at least a relative observation of the permittivity can identify areas of different moisture content in a structure. These can be verified by targeted drilling sampling.
Further limitations of the current setup are a limited penetration depth of the radar signal resulting in a maximum specimen thickness of about 20 to 50 c m , which is highly dependent on the humidity and salt load. In addition, the measured moisture is a mean value across the sample thickness and does not allow the depth-resolved evaluation, except that there are different reflection positions inside the specimen, such as, e.g., multilayered walls.
The radar measurements allow qualitative statements to be made about the salt load, but do not allow the respective salts to be assigned. Similar to moisture and unknown masonry, a locally resolved measurement is comparative and enables the targeted drilling sampling for a detailed analysis of the occurring salts.
As for now, the error analyses show that simple polynomial models achieve a relative error for the investigated materials in the range of 3.1% ( 0.99 m%) and 6.4% ( 0.19 m%) independent of any added salts. Compared to the works mentioned in Table 1, the method presented here has a lower relative error. The exception is source [42], which does not use a GPR probe but, instead, uses a dielectric cell, which is a destructive measurement technique.
The further steps in optimizing the presented method would be to make use of machine learning algorithms to take more dispersion characteristics into account, as it was presented here with a weighted mean model and the local minimum model for the real and imaginary part of relative permittivity. In addition to the frequency domain data, machine learning algorithms can also make use of time-domain characteristics such as position of zero crossing of the backpropagated signal. The inclusion of these factors can result in an accurate prediction of moisture content and salt detection as well as a reduced expense in user interaction.
Thus, this method can replace, or at least reduce, the taking of drilling samples to a minimum in the case of known materials. The intervention in the building fabric is consequently reduced.

Author Contributions

Conceptualization, O.B., F.B. and K.S.D.; Methodology, O.B. and F.B.; Software, O.B. and F.B.; Writing—original draft, O.B. and F.B.; Writing—review & editing, K.S.D.; Supervision, K.S.D.; Project administration, K.S.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the innovation program ”Future Building” of the Federal Ministry for Housing, Urban Development and Building (BMWSB) (grant number SWD-10.08.18.7-20.49).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Alexandra Troi, Daniel Frenzel, Franziska Haas (Coburg University of Applied Sciences and Arts), and Christoph Franzen (IDK e.V.) for their support, helpful discussions, and providing materials.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
GPRGround penetrating radar
SFCWStepped-frequency continuous wave
CPSDCross-power spectrum density

References

  1. Adamowski, J.; Hoła, J.; Matkowski, Z. Probleme und Lösungen beim Feuchtigkeitsschutz des Mauerwerks von Baudenkmälern am Beispiel zweier großer Barockbauten in Wrocław. Bautechnik 2005, 82, 426–433. [Google Scholar] [CrossRef]
  2. DIN-Normenausschuss Bauwesen. Erhaltung des kulturellen Erbes—Verfahren zur Bestimmung des Feuchte- bzw. Wassergehalts in Materialien des unbeweglichen kulturellen Erbes; Deutsche Fassung EN_16682:2017. 2017. Available online: https://www.beuth.de/de/norm/din-en-16682/258798597 (accessed on 15 March 2023).
  3. Hola, A. Measuring of the moisture content in brick walls of historical buildings – the overview of methods. IOP Conf. Ser. Mater. Sci. Eng. 2017, 251, 012067. [Google Scholar] [CrossRef]
  4. Tavukçuoğlu, A.; Düzgüneş, A.; Caner-Saltık, E.N.; Demirci, Ş. Use of IR thermography for the assessment of surface-water drainage problems in a historical building, Ağzıkarahan (Aksaray), Turkey. NDT E Int. 2005, 38, 402–410. [Google Scholar] [CrossRef]
  5. Capitani, D.; Proietti, N.; Gobbino, M.; Soroldoni, L.; Casellato, U.; Valentini, M.; Rosina, E. An integrated study for mapping the moisture distribution in an ancient damaged wall painting. Anal. Bioanal. Chem. 2009, 395, 2245–2253. [Google Scholar] [CrossRef] [PubMed]
  6. Rosina, E.; Ludwig, N. Optimal thermographic procedures for moisture analysis in building materials. Proc. SPIE 1999, 3827, 22–33. [Google Scholar] [CrossRef]
  7. Garrido, I.; Solla, M.; Lagüela, S.; Fernández, N. IRT and GPR Techniques for Moisture Detection and Characterisation in Buildings. Sensors 2020, 20, 6421. [Google Scholar] [CrossRef]
  8. Gärtner, G.; Plagge, R.; Sonntag, H. Determination of moisture content of the outer wall using hf-sensor technology. In Proceedings of the 1st European Conference on Moisture Measurement, Weimar, Germany, 5–7 October 2010. [Google Scholar]
  9. Orr, S.A.; Fusade, L.; Young, M.; Stelfox, D.; Leslie, A.; Curran, J.; Viles, H. Moisture monitoring of stone masonry: A comparison of microwave and radar on a granite wall and a sandstone tower. J. Cult. Herit. 2020, 41, 61–73. [Google Scholar] [CrossRef]
  10. Di Tullio, V.; Proietti, N.; Gobbino, M.; Capitani, D.; Olmi, R.; Priori, S.; Riminesi, C.; Giani, E. Non-destructive mapping of dampness and salts in degraded wall paintings in hypogeous buildings: The case of St. Clement at mass fresco in St. Clement Basilica, Rome. Anal. Bioanal. Chem. 2010, 396, 1885–1896. [Google Scholar] [CrossRef]
  11. Riminesi, C.; Marie-Victoire, E.; Bouichou, M.; Olmi, R. Moisture and salt monitoring in concrete by evanescent field dielectrometry. Meas. Sci. Technol. 2017, 28, 014002. [Google Scholar] [CrossRef]
  12. Bouichou, M.; Marie-Victoire, E.; Jourdan, H.; Thauvin, B.; Queguiner, R.; Olmi, R.; Riminesi, C. Measurement of water content and salinity index in concrete by evanescent field dielectrometry. J. Cult. Herit. 2018, 34, 237–246. [Google Scholar] [CrossRef]
  13. Nielsen, A.F. Gamma-ray-attenuation used for measuring the moisture content and homogeneity of porous concrete. Build. Sci. 1972, 7, 257–263. [Google Scholar] [CrossRef]
  14. Priyada, P.; Ramar, R. Determining the water content in concrete by gamma scattering method. Ann. Nucl. Energy 2014, 63, 565–570. [Google Scholar] [CrossRef]
  15. da Rocha, M.; da Silva, L.; Appoloni, C.; Portezan Filho, O.; Lopes, F.; Melquiades, F.; dos Santos, E.; dos Santos, A.; Moreira, A.; Pötker, W.; et al. Moisture profile measurements of concrete samples in vertical water flow by gamma ray transmission method. Radiat. Phys. Chem. 2001, 61, 567–569. [Google Scholar] [CrossRef]
  16. Cadoret, T.; Marion, D.; Zinszner, B. Influence of frequency and fluid distribution on elastic wave velocities in partially saturated limestones. J. Geophys. Res. 1995, 100, 9789–9803. [Google Scholar] [CrossRef]
  17. Roels, S.; Carmeliet, J. Analysis of moisture flow in porous materials using microfocus X-ray radiography. Int. J. Heat Mass Transf. 2006, 49, 4762–4772. [Google Scholar] [CrossRef]
  18. Pease, B.J.; Scheffler, G.A.; Janssen, H. Monitoring moisture movements in building materials using X-ray attenuation: Influence of beam-hardening of polychromatic X-ray photon beams. Constr. Build. Mater. 2012, 36, 419–429. [Google Scholar] [CrossRef]
  19. Pel, L.; Ketelaars, A.; Adan, O.; van Well, A.A. Determination of moisture diffusivity in porous media using scanning neutron radiography. Int. J. Heat Mass Transf. 1993, 36, 1261–1267. [Google Scholar] [CrossRef]
  20. Pleinert, H.; Sadouki, H.; Wittmann, F.H. Determination of moisture distributions in porous building materials by neutron transmission analysis. Mater. Struct. 1998, 31, 218–224. [Google Scholar] [CrossRef]
  21. Waters, E.H. Measurement of moisture in concrete and masonry with special reference to neutron scattering techniques. Nucl. Struct. Eng. 1965, 2, 494–500. [Google Scholar] [CrossRef]
  22. Zhang, P.; Wittmann, F.H.; Zhao, T.j.; Lehmann, E.H.; Vontobel, P. Neutron radiography, a powerful method to determine time-dependent moisture distributions in concrete. Nucl. Eng. Des. 2011, 241, 4758–4766. [Google Scholar] [CrossRef]
  23. Selker, J.S.; Graff, L.; Steenhuis, T. Noninvasive Time Domain Reflectometry Moisture Measurement Probe. Soil Sci. Soc. Am. J. 1993, 57, 934–936. [Google Scholar] [CrossRef]
  24. Phillipson, M.C.; Baker, P.H.; Davies, M.; Ye, Z.; Galbraith, G.H.; McLean, R.C. Suitability of time domain reflectometry for monitoring moisture in building materials. Build. Serv. Eng. Res. Technol. 2008, 29, 261–272. [Google Scholar] [CrossRef]
  25. Mollo, L.; Greco, R. Moisture Measurements in Masonry Materials by Time Domain Reflectometry. J. Mater. Civ. Eng. 2011, 23, 441–444. [Google Scholar] [CrossRef]
  26. Stojanović, G.; Radovanović, M.; Malešev, M.; Radonjanin, V. Monitoring of water content in building materials using a wireless passive sensor. Sensors 2010, 10, 4270–4280. [Google Scholar] [CrossRef]
  27. Ong, J.B.; You, Z.; Mills-Beale, J.; Tan, E.L.; Pereles, B.D.; Ong, K.G. A Wireless, Passive Embedded Sensor for Real-Time Monitoring of Water Content in Civil Engineering Materials. IEEE Sens. J. 2008, 8, 2053–2058. [Google Scholar] [CrossRef]
  28. Caponero, M.; D’Amato, R.; Polimadei, A.; Terranova, G. Polymer-coated FBG humidity sensors for monitoring cultural heritage stone artworks. Measurement 2018, 125, 325–329. [Google Scholar] [CrossRef]
  29. Yeo, T.L.; Cox, M.A.C.; Boswell, L.F.; Sun, T.; Grattan, K.T.V. Optical fiber sensors for monitoring ingress of moisture in structural concrete. Rev. Sci. Instruments 2006, 77, 055108. [Google Scholar] [CrossRef]
  30. Venugopalan, T.; Sun, T.; Grattan, K.T.V. Structural concrete condition monitoring using a long period grating-based humidity sensor. Proc. SPIE 2008, 7004, 789–792. [Google Scholar] [CrossRef]
  31. Minardo, A.; Catalano, E.; Zeni, L.; Agliata, R.; Greco, R.; Mollo, L. Measurement of Moisture Content in Masonry Materials by Active Distributed Optical Fiber Sensors. In Proceedings of the 18th Italian National Conference on Photonic Technologies, Rome, Italy, 6–8 June 2016. [Google Scholar] [CrossRef]
  32. Agliata, R.; Bogaard, T.A.; Greco, R.; Minardo, A.; Mollo, L.; Steele-Dunne, S.C. Non-invasive water content estimation in a tuff wall by DTS. Constr. Build. Mater. 2019, 197, 821–829. [Google Scholar] [CrossRef]
  33. Rymarczyk, T. Moisture Wall Inspection Using Electrical Tomography Measurements. Electrotech. Rev. 2018, 1, 99–102. [Google Scholar] [CrossRef]
  34. Hoła, J.; Matkowski, Z.; Schabowicz, K.; Sikora, J.; Nita, K.; Wójtowicz, S. Identification of moisture content in brick walls by means of impedance tomography. COMPEL—Int. J. Comput. Math. Electr. Electron. Eng. 2012, 31, 1774–1792. [Google Scholar] [CrossRef]
  35. Hudec, P.; MacInnis, C.; Moukwa, M. The capacitance effect method of measuring moisture and salt content of concrete. Cem. Concr. Res. 1986, 16, 481–490. [Google Scholar] [CrossRef]
  36. Alam, M.N.; Bhuiyan, R.H.; Dougal, R.A.; Ali, M. Concrete Moisture Content Measurement Using Interdigitated Near-Field Sensors. IEEE Sensors J. 2010, 10, 1243–1248. [Google Scholar] [CrossRef]
  37. Tesárek, P.; Pavlík, J.; Černý, R. Comparison of the Capacitance Method and the Microwave Impulse Method for Determination of Moisture Profiles in Building Materials. Acta Polytech. 2005, 45. [Google Scholar] [CrossRef]
  38. Leschnik, W. Feuchtemessung an Baustoffen—Zwischen Klassik und Moderne. Feuchtetag 99 1999, 7, 8. [Google Scholar]
  39. Hoekstra, P.; Delaney, A. Dielectric properties of soils at UHF and microwave frequencies. J. Geophys. Res. 1974, 79, 1699–1708. [Google Scholar] [CrossRef]
  40. Mouhasseb, H. Bestimmung des Wassergehalts bei Beton mittels eines neuen dielektrischen Messverfahrens. Ph.D. Thesis, Universität Fridericiana zu Karlsruhe, Karlsruhe, Germany, 25 July 2007. Available online: https://publikationen.bibliothek.kit.edu/1000008175 (accessed on 15 March 2023).
  41. Cetrangolo, G.P.; Domenech, L.D.; Moltini, G.; Morquio, A.A. Determination of Moisture Content in Ceramic Brick Walls Using Ground Penetration Radar. J. Nondestruct. Eval. 2017, 36, 109. [Google Scholar] [CrossRef]
  42. Guilbert, D.; Guan, B.; Ihamouten, A.; Villain, G.; Derobert, X. Linking Degree of Saturation With the Complex Dielectric Permittivity of Limestone in a GPR Frequency Band Using SVR. IEEE Trans. Instrum. Meas. 2021, 70, 1–9. [Google Scholar] [CrossRef]
  43. West, L.J.; Handley, K.; Huang, Y.; Pokar, M. Radar frequency dielectric dispersion in sandstone: Implications for determination of moisture and clay content. Water Resour. Res. 2003, 39, 746. [Google Scholar] [CrossRef]
  44. Maierhofer, C.; Wöstmann, J. Investigation of dielectric properties of brick materials as a function of moisture and salt content using a microwave impulse technique at very high frequencies. NDT E Int. 1998, 31, 259–263. [Google Scholar] [CrossRef]
  45. Agliata, R.; Bogaard, T.A.; Greco, R.; Mollo, L.; Slob, E.C.; Steele-Dunne, S.C. Non-invasive estimation of moisture content in tuff bricks by GPR. Constr. Build. Mater. 2018, 160, 698–706. [Google Scholar] [CrossRef]
  46. Goetzke-Pala, A.; Hoła, A.; Sadowski, Ł. A non-destructive method of the evaluation of the moisture in saline brick walls using artificial neural networks. Arch. Civ. Mech. Eng. 2018, 18, 1729–1742. [Google Scholar] [CrossRef]
  47. Dérobert, X.; Villain, G. Effect of water and chloride contents and carbonation on the electromagnetic characterization of concretes on the GPR frequency band through designs of experiment. NDT E Int. 2017, 92, 187–198. [Google Scholar] [CrossRef]
  48. Du Plooy, R.; Villain, G.; Palma Lopes, S.; Ihamouten, A.; Dérobert, X.; Thauvin, B. Electromagnetic non-destructive evaluation techniques for the monitoring of water and chloride ingress into concrete: A comparative study. Mater. Struct. 2015, 48, 369–386. [Google Scholar] [CrossRef]
  49. Bourdi, T.; Rhazi, J.E.; Boone, F.; Ballivy, G. Application of Jonscher model for the characterization of the dielectric permittivity of concrete. J. Phys. D Appl. Phys. 2008, 41, 205410. [Google Scholar] [CrossRef]
  50. Hugenschmidt, J.; Loser, R. Detection of chlorides and moisture in concrete structures with ground penetrating radar. Mater. Struct. 2008, 41, 785–792. [Google Scholar] [CrossRef]
  51. Ihamouten, A.; Villain, G.; Dérobert, X. Complex Permittivity Frequency Variations From Multioffset GPR Data: Hydraulic Concrete Characterization. IEEE Trans. Instrum. Meas. 2012, 61, 1636–1648. [Google Scholar] [CrossRef]
  52. Kalogeropoulos, A.; van der Kruk, J.; Hugenschmidt, J.; Busch, S.; Merz, K. Chlorides and moisture assessment in concrete by GPR full waveform inversion. Near Surf. Geophys. 2011, 9, 277–286. [Google Scholar] [CrossRef]
  53. Kalogeropoulos, A.; van der Kruk, J.; Hugenschmidt, J. Monitoring the evolution of water and chloride in concrete using GPR full-waveform inversion. In Proceedings of the 6th International Workshop on Advanced Ground Penetrating Radar, Aachen, Germany, 22–24 June 2011; pp. 1–6. [Google Scholar] [CrossRef]
  54. Klysz, G.; Balayssac, J.P. Determination of volumetric water content of concrete using ground-penetrating radar. Cem. Concr. Res. 2007, 37, 1164–1171. [Google Scholar] [CrossRef]
  55. Lai, W.L.; Kind, T.; Wiggenhauser, H. A Study of Concrete Hydration and Dielectric Relaxation Mechanism Using Ground Penetrating Radar and Short-Time Fourier Transform. EURASIP J. Adv. Signal Process. 2010, 2010, 259. [Google Scholar] [CrossRef]
  56. Screening Eagle. Proceq GP8800 Product Page. Available online: https://www.screeningeagle.com/en/products/proceq-gp8800-ultraportable-concrete-gpr-radar (accessed on 19 December 2022).
  57. Sachse, W.; Pao, Y.H. On the determination of phase and group velocities of dispersive waves in solids. J. Appl. Phys. 1978, 49, 4320–4327. [Google Scholar] [CrossRef]
  58. Singer, F. Mess- und Analysemethoden in der Laserakustik bei breitbandiger Laseranregung. tm-Tech. Mess. 2015, 82, 45–51. [Google Scholar] [CrossRef]
  59. Jackson, J.D. Classical Electrodynamics, 3rd ed.; Wiley: Hoboken, NY, USA, 2009. [Google Scholar]

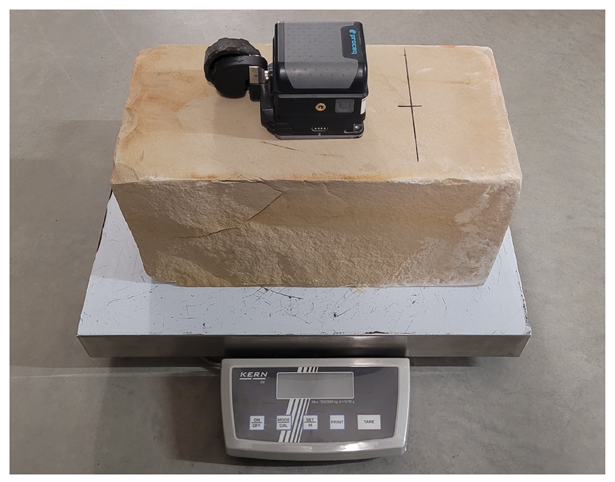

Figure 1. Measurement of a sandstone with the GP 8800 radar system.
Figure 1. Measurement of a sandstone with the GP 8800 radar system.
Sensors 23 04616 g001

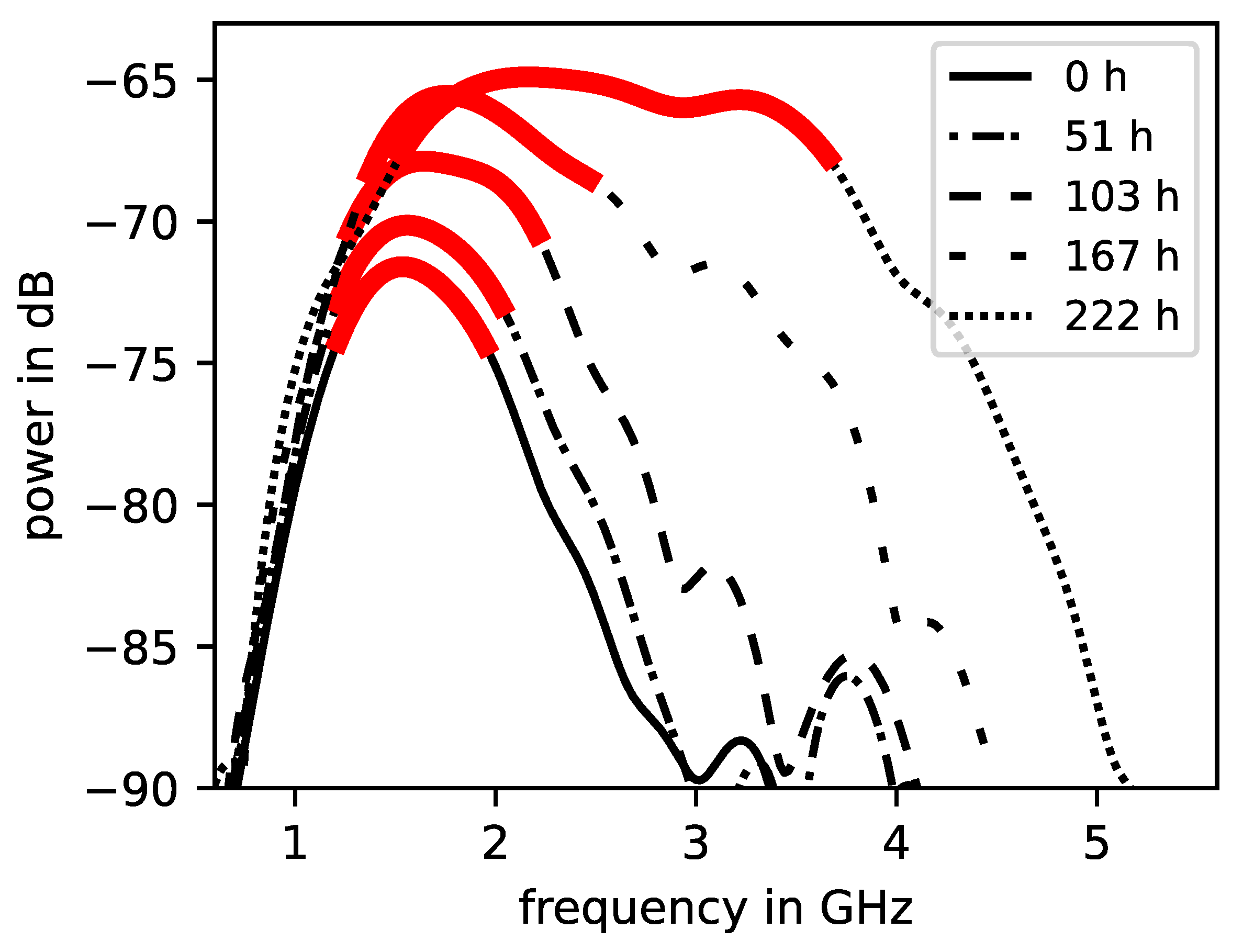

Figure 2. Cross-power density spectra as defined in Equation (2) from an initially saturated brick specimen at different drying times in hours according to the legend. Peak frequency range ( 3 dB drop) is marked in red/bold.
Figure 2. Cross-power density spectra as defined in Equation (2) from an initially saturated brick specimen at different drying times in hours according to the legend. Peak frequency range ( 3 dB drop) is marked in red/bold.
Sensors 23 04616 g002

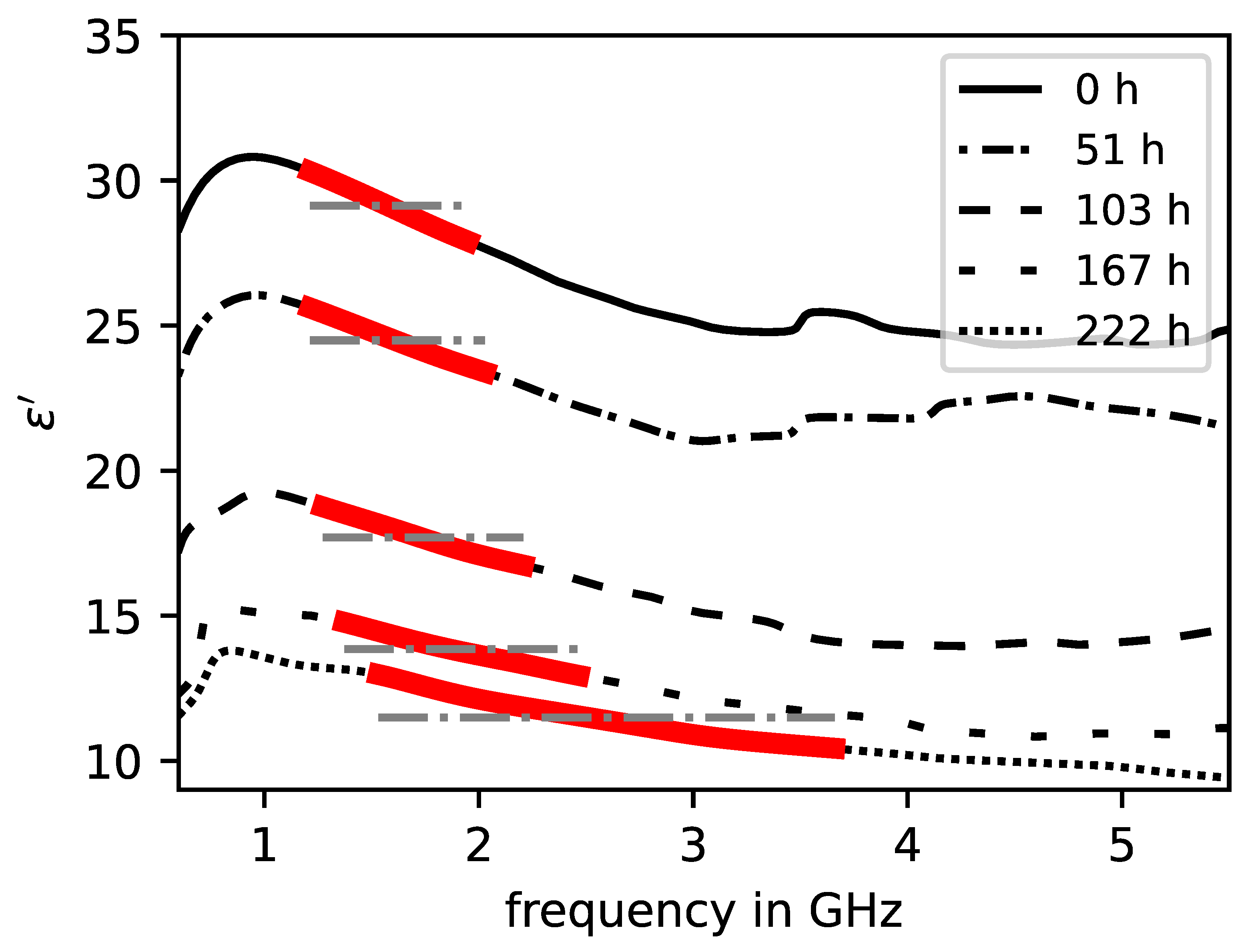

Figure 3. Dispersion curves of the real part of permittivity of an initially saturated brick specimen at different drying times. Significant evaluation range is marked in red with corresponding weighted mean model.
Figure 3. Dispersion curves of the real part of permittivity of an initially saturated brick specimen at different drying times. Significant evaluation range is marked in red with corresponding weighted mean model.
Sensors 23 04616 g003

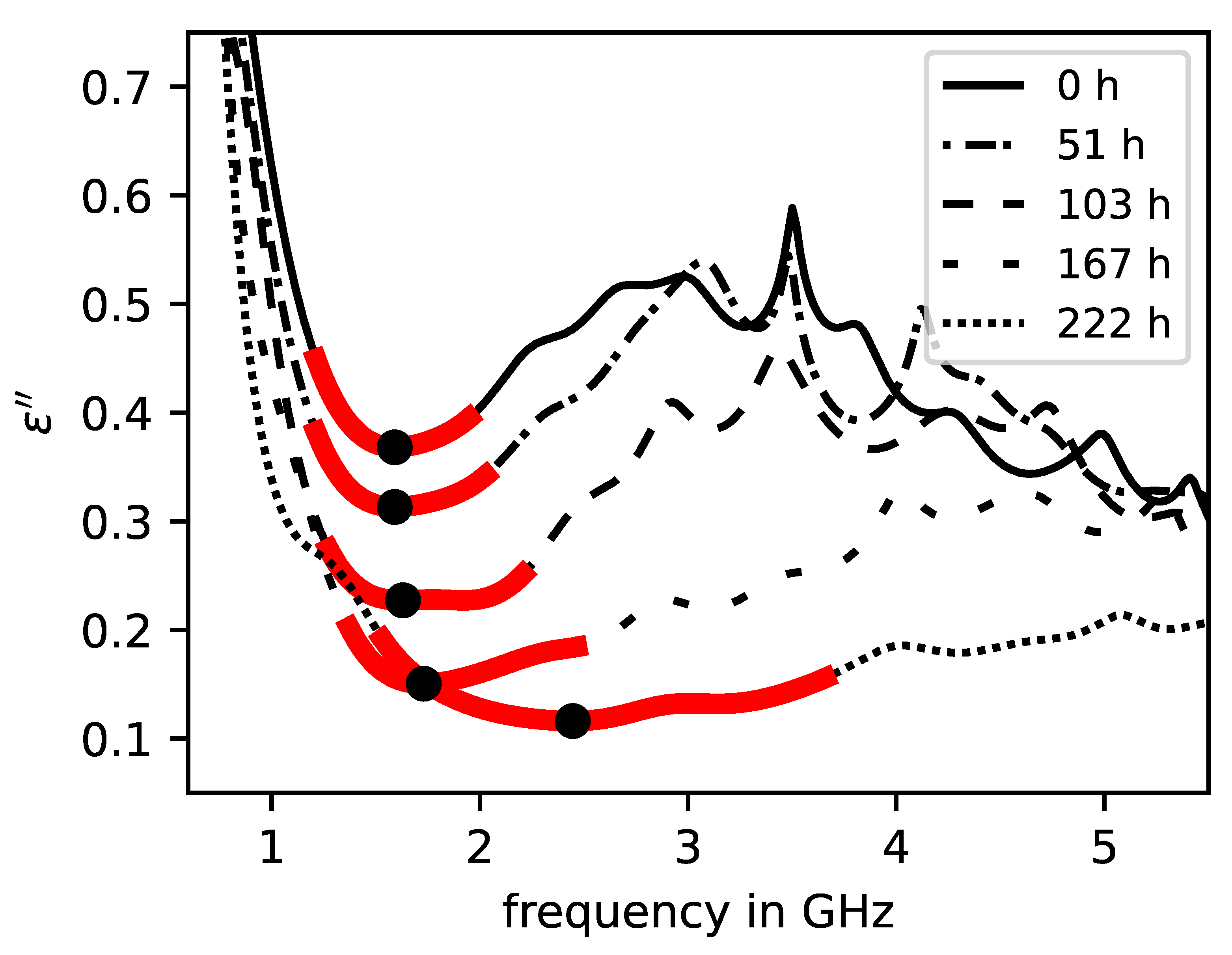

Figure 4. Dispersion curves of the imaginary part of permittivity of an initially saturated brick specimen at different drying times. Local extreme values (black dots) within the evaluation range (red lines) are model parameters.
Figure 4. Dispersion curves of the imaginary part of permittivity of an initially saturated brick specimen at different drying times. Local extreme values (black dots) within the evaluation range (red lines) are model parameters.
Sensors 23 04616 g004

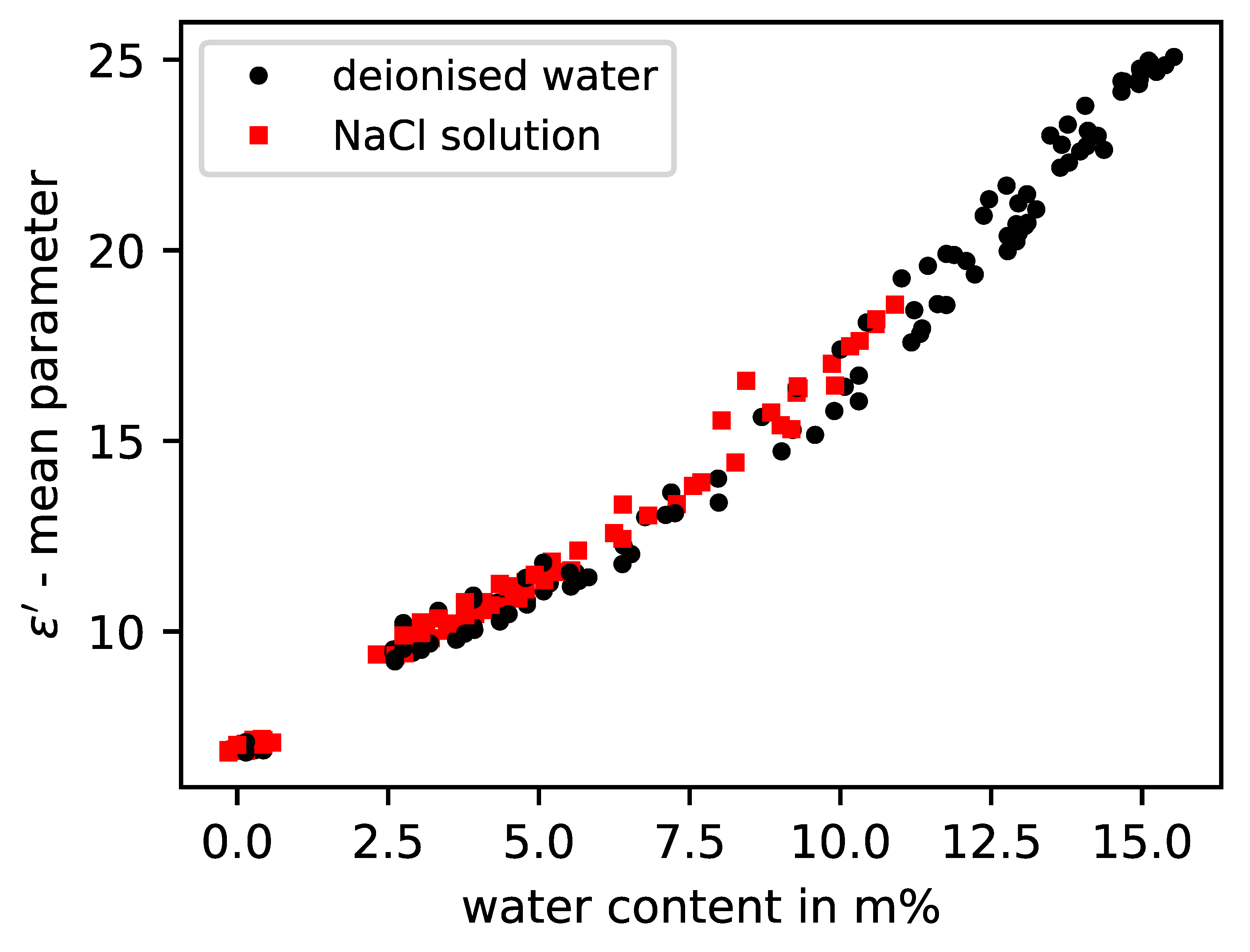

Figure 5. Real permittivity model values from five different brick specimens with either deionised water or NaCl solution according to measured water content.
Figure 5. Real permittivity model values from five different brick specimens with either deionised water or NaCl solution according to measured water content.
Sensors 23 04616 g005

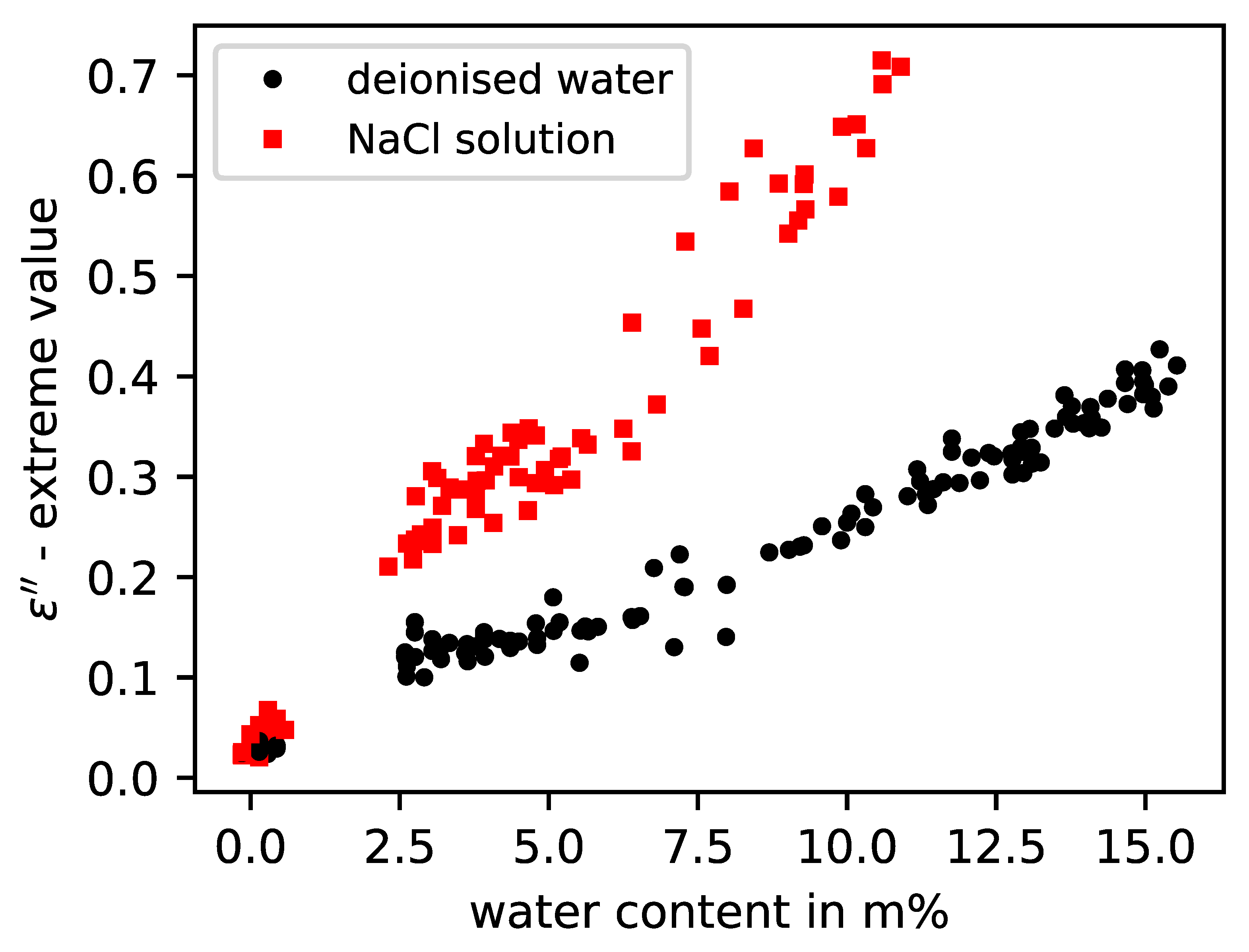

Figure 6. Imaginary permittivity model values from five different brick specimens with either deionised water or NaCl solution according to measured water content.
Figure 6. Imaginary permittivity model values from five different brick specimens with either deionised water or NaCl solution according to measured water content.
Sensors 23 04616 g006

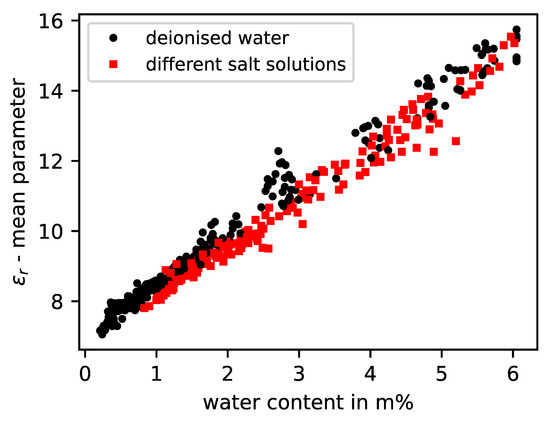

Figure 7. Real permittivity model values of six sandstone specimens with different salt solutions and deionised water according to measured water content.
Figure 7. Real permittivity model values of six sandstone specimens with different salt solutions and deionised water according to measured water content.
Sensors 23 04616 g007

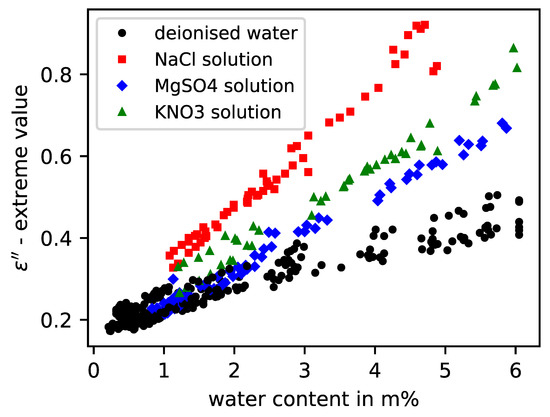

Figure 8. Imaginary permittivity model values of six sandstone specimens with different salt solutions and deionised water according to measured water content.
Figure 8. Imaginary permittivity model values of six sandstone specimens with different salt solutions and deionised water according to measured water content.
Sensors 23 04616 g008
Figure 9. Model values of real (a,c) and imaginary (b,d) permittivity for brick and sandstone probes saturated with deionised water. Panels (a,b) depict the dependency on the absolute water content; (c,d) are scaled to the relative water content.
Figure 9. Model values of real (a,c) and imaginary (b,d) permittivity for brick and sandstone probes saturated with deionised water. Panels (a,b) depict the dependency on the absolute water content; (c,d) are scaled to the relative water content.
Sensors 23 04616 g009
Table 2. Overview of the physical properties of the used materials.
Table 2. Overview of the physical properties of the used materials.
MaterialDensityPorositySoaking Ratio
Brick 1.84   g / c m 3 28.2 % 15.6 m%
Sandstone 2.01   g / c m 3 23.7 % 6.1 m%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Blaschke, O.; Brand, F.; Drese, K.S. Quantification of Humidity and Salt Detection in Historical Building Materials via Broadband Radar Measurement. Sensors 2023, 23, 4616. https://doi.org/10.3390/s23104616

AMA Style

Blaschke O, Brand F, Drese KS. Quantification of Humidity and Salt Detection in Historical Building Materials via Broadband Radar Measurement. Sensors. 2023; 23(10):4616. https://doi.org/10.3390/s23104616

Chicago/Turabian Style

Blaschke, Oliver, Felix Brand, and Klaus Stefan Drese. 2023. "Quantification of Humidity and Salt Detection in Historical Building Materials via Broadband Radar Measurement" Sensors 23, no. 10: 4616. https://doi.org/10.3390/s23104616

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
