# 3D Poisson-Based Neighborhood Capacity Analysis for Millimeter Wave Communications

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Scenario

## 3. Analysis

## 4. Results and Discussion

#### 4.1. Model Validation

#### 4.2. Impact of Cell Radius

#### 4.3. Impact of Maximum Product Gain

#### 4.4. Impact of Beam Alignment Error

#### 4.5. Impact of Modulation

## 5. Conclusions

## Author Contributions

## Funding

## Informed Consent Statement

## Conflicts of Interest

## Abbreviations

BS | base station |

CCDF | complementary cumulative distribution function |

CDF | cumulative distribution function |

LoS | line of sight |

mmWave | millimeter wave |

ME | Mobile Equipment |

NLoS | Non line of sight |

OUT | OUTage |

probability density function | |

PMF | probability mass function |

PPP | Poisson point process |

RV | random variable |

SNR | signal to noise ratio |

w.p. | with probability |

## References

- Andrews, J.G.; Buzzi, S.; Choi, W.; Hanly, S.V.; Lozano, A.; Soong, A.C.K.; Zhang, J.C. What will 5G be? IEEE J. Sel. Areas Commun.
**2014**, 32, 1065–1082. [Google Scholar] [CrossRef] - Akdeniz, M.R.; Liu, Y.; Samimi, M.K.; Sun, S.; Rangan, S.; Rappaport, T.S.; Erkip, E. Millimeter wave channel modeling and cellular capacity evaluation. IEEE J. Sel. Areas Commun.
**2014**, 32, 1164–1179. [Google Scholar] [CrossRef] - Thomas, T.A.; Nguyen, H.C.; MacCartney, G.R., Jr.; Rappaport, T.S. 3D mmWave channel model proposal. In Proceedings of the 2014 IEEE 80th Vehicular Technology Conference (VTC2014-Fall), Vancouver, BC, Canada, 14–17 September 2014; pp. 1–6. [Google Scholar] [CrossRef]
- Bai, T.; Vaze, R.; Heath, R.W., Jr. Analysis of blockage effects on urban cellular networks. IEEE Trans. Wirel. Commun.
**2014**, 13, 5070–5083. [Google Scholar] [CrossRef] [Green Version] - Samimi, M.K.; MacCartney, G.R., Jr.; Sun, S.; Rappaport, T.S. 28 GHz millimeter-wave ultrawideband small-scale fading models in wireless channels. In Proceedings of the 2016 IEEE 83rd Vehicular Technology Conference (VTC Spring), Nanjing, China, 15–18 May 2016; pp. 1–6. [Google Scholar] [CrossRef] [Green Version]
- Di Renzo, M. Stochastic geometry modeling and analysis of multi-tier millimeter wave cellular networks. IEEE Trans. Wirel. Commun.
**2015**, 14, 5038–5057. [Google Scholar] [CrossRef] [Green Version] - Feng, J.; Feng, Z. Optimal base station density of dense network: From the viewpoint of interference and load. Sensors
**2017**, 17, 2077. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Andrews, J.G.; Bai, T.; Kulkarni, M.N.; Alkhateeb, A.; Gupta, A.K.; Heath, R.W., Jr. Modeling and analyzing millimeter wave cellular systems. IEEE Trans. Commun.
**2017**, 65, 403–430. [Google Scholar] [CrossRef] [Green Version] - Saha, R.K. 3D spatial reuse of multi-millimeter-wave spectra by ultra-dense in-building small cells for spectral and energy efficiencies of future 6G mobile networks. Energies
**2020**, 13, 1748. [Google Scholar] [CrossRef] [Green Version] - Babich, F.; Comisso, M.; Dorni, A. A novel SIR-based access scheme for multi-packet communication in 802.11 networks. In Proceedings of the 2012 IEEE International Conference on Communications (ICC), Ottawa, ON, Canada, 10–15 June 2012; pp. 1–5. [Google Scholar] [CrossRef]
- Li, Y.; Xu, S. Traffic offloading in unlicensed spectrum for 5G cellular network: A two-layer game approach. Entropy
**2018**, 20, 88. [Google Scholar] [CrossRef] [Green Version] - Álvarez-Merino, C.S.; Luo-Chen, H.Q.; Khatib, E.J.; Barco, R. WiFi FTM, UWB and cellular-based radio fusion for indoor positioning. Sensors
**2021**, 21, 7020. [Google Scholar] [CrossRef] - Ayub, A.; Jangsher, S.; Butt, M.M.; Maud, A.R.; Bhatti, F.A. A comparative analysis of Wi-Fi offloading and cooperation in small-cell network. Electronics
**2021**, 10, 1493. [Google Scholar] [CrossRef] - Comisso, M. On the use of dimension and lacunarity for comparing the resonant behavior of convoluted wire antennas. Prog. Electromagn. Res.
**2009**, 96, 361–376. [Google Scholar] [CrossRef] [Green Version] - Simone, M.; Fanti, A.; Mazzarella, G. 5G wideband stacked patch antennas. In Proceedings of the 2021 15th European Conference on Antennas and Propagation (EuCAP), Dusseldorf, Germany, 22–26 March 2021; pp. 1–5. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, S.; Lin, X.; Fan, Y.; Pedersen, G. 3D radiation pattern reconfigurable phased array for transmission angle sensing in 5G mobile communication. Sensors
**2018**, 18, 4204. [Google Scholar] [CrossRef] [Green Version] - Comisso, M.; Buttazzoni, G.; Vescovo, R. Reconfigurable antenna arrays with multiple requirements: A versatile 3D approach. Int. J. Antennas Propag.
**2017**, 2017, 6752108. [Google Scholar] [CrossRef] - Yifei, Y.; Longming, Z. Application scenarios and enabling technologies of 5G. China Commun.
**2014**, 11, 69–79. [Google Scholar] [CrossRef] - Scott-Hayward, S.; Garcia-Palacios, E. Multimedia resource allocation in mmwave 5G networks. IEEE Commun. Mag.
**2015**, 53, 240–247. [Google Scholar] [CrossRef] [Green Version] - Corrado, R.; Comisso, M.; Babich, F. On the impact of the video quality assessment in 802.11e ad-hoc networks using adaptive retransmissions. In Proceedings of the 2014 13th Annual Mediterranean Ad Hoc Networking Workshop (MED-HOC-NET), Piran, Slovenia, 2–4 June 2014; pp. 47–54. [Google Scholar] [CrossRef]
- Shokri-Ghadikolaei, H.; Fischione, C.; Fodor, G.; Popovski, P.; Zorzi, M. Millimeter wave cellular networks: A MAC layer perspective. IEEE Trans. Commun.
**2015**, 63, 3437–3458. [Google Scholar] [CrossRef] [Green Version] - Cheng, M.; Wang, J.-B.; Wu, Y.; Xia, X.-G.; Wong, K.-K.; Lin, M. Coverage analysis for millimeter wave cellular networks with imperfect beam alignment. IEEE Trans. Veh. Technol.
**2018**, 67, 8302–8314. [Google Scholar] [CrossRef] [Green Version] - Singh, S.; Mudumbai, R.; Madhow, U. Interference analysis for highly directional 60-GHz mesh networks: The case for rethinking medium access control. IEEE/ACM Trans. Netw.
**2011**, 19, 1513–1527. [Google Scholar] [CrossRef] - Babich, F.; Comisso, M. Impact of segmentation and capture on slotted Aloha systems exploiting interference cancellation. IEEE Trans. Veh. Technol.
**2019**, 68, 2878–2892. [Google Scholar] [CrossRef] [Green Version] - Yu, X.; Zhang, J.; Haenggi, M.; Letaief, K.B. Coverage analysis for millimeter wave networks: The impact of directional antenna arrays. IEEE J. Sel. Areas Commun.
**2017**, 35, 1498–1512. [Google Scholar] [CrossRef] - Di Renzo, M.; Lu, W.; Guan, P. The intensity matching approach: A tractable stochastic geometry approximation to system-level analysis of cellular networks. IEEE Trans. Commun.
**2016**, 15, 5963–5983. [Google Scholar] [CrossRef] - Thompson, H.R. Distribution of distance to nth neighbour in a population of randomly distributed individuals. Ecology
**1956**, 37, 391–394. [Google Scholar] [CrossRef] - Gupta, B.; Lamba, S.S. On k-th nearest neighbor distance distribution of random ad-hoc network. In Proceedings of the 2014 IEEE Region 10 Symposium, Kuala Lumpur, Malaysia, 14–16 April 2014; pp. 518–521. [Google Scholar] [CrossRef]
- Comisso, M.; Vatta, F.; Buttazzoni, G.; Babich, F. Impact of the neighbor’s order on the capacity of millimeter-wave links with Poisson-distributed nodes in line of sight conditions. In Proceedings of the 2021 International Conference on Software, Telecommunications and Computer Networks (SoftCOM), Split, Hvar, Croatia, 23–25 September 2021; pp. 1–6. [Google Scholar] [CrossRef]
- Yates, R.D.; Goodman, D.J. Probability and Stochastic Processes; John Wiley and Sons: New York, NY, USA, 1999. [Google Scholar]
- Holtzman, J.M. A simple, accurate method to calculate spread-spectrum multiple-access error probabilities. IEEE/ACM Trans. Netw.
**1992**, 40, 461–464. [Google Scholar] [CrossRef] - Frühwirth-Schnatter, S. Finite Mixture and Markov Switching Models; Springer: New York, NY, USA, 2006. [Google Scholar]
- Babich, F.; Comisso, M. Multi-packet communication in heterogeneous wireless networks adopting spatial reuse: Capture analysis. IEEE Trans. Wirel. Commun.
**2013**, 12, 5346–5359. [Google Scholar] [CrossRef] - Comisso, M.; Vatta, F.; Buttazzoni, G.; Babich, F. 3D millimeter-wave peer-to-peer networks with boundary located destination. IEEE Commun. Lett.
**2019**, 23, 1227–1230. [Google Scholar] [CrossRef]

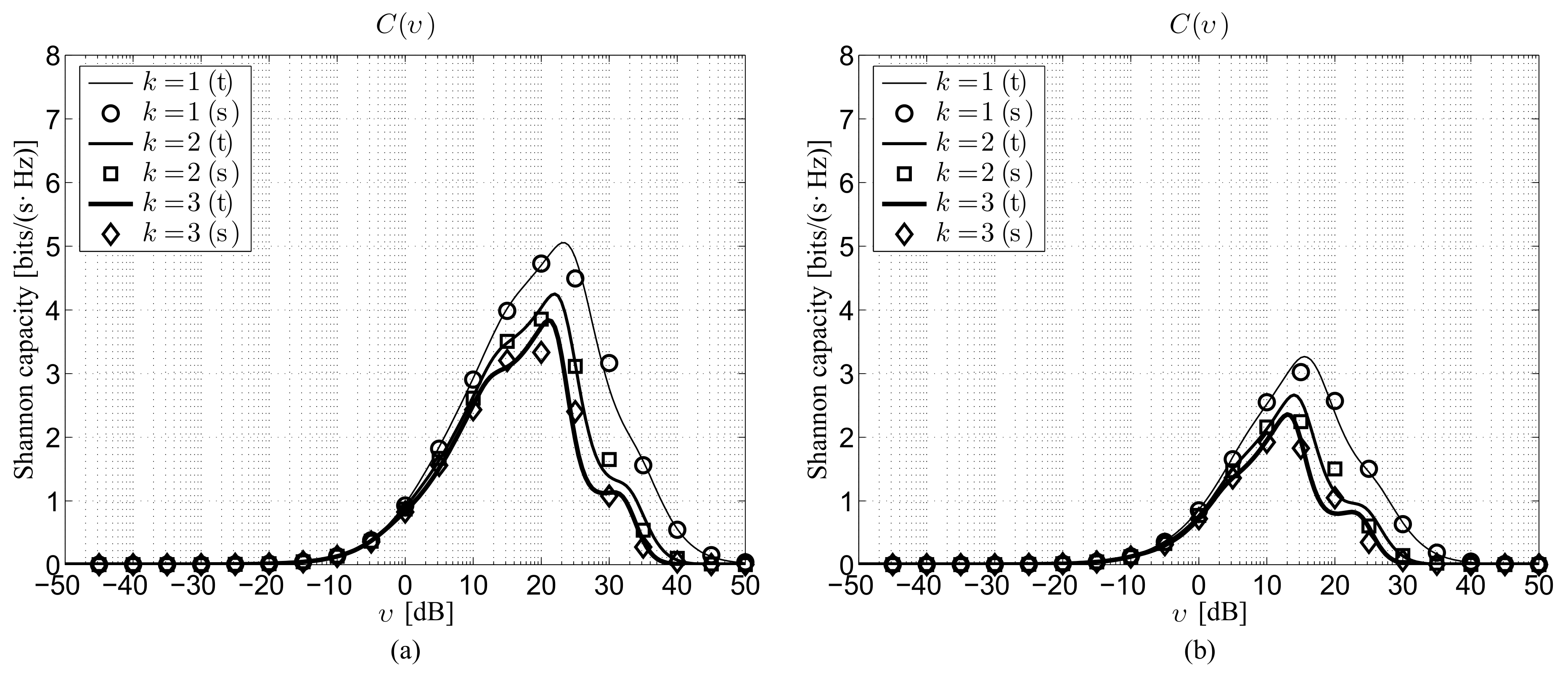

**Figure 1.**Theoretical and simulated Shannon capacity under perfect beam alignment for $\rho =100$ m and $G=10$ dB as a function of the SNR: (

**a**) 28 GHz channel, (

**b**) 73 GHz channel (t: theory, s: Monte Carlo simulation).

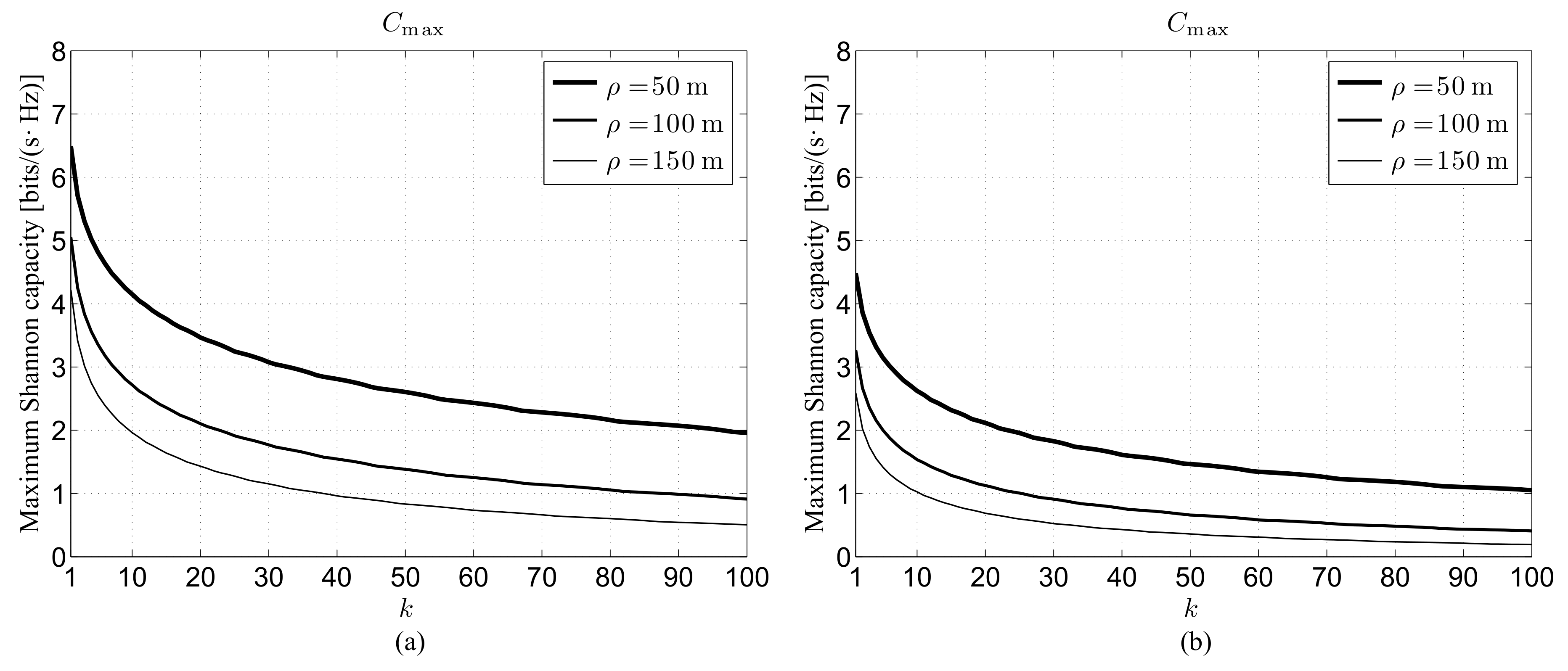

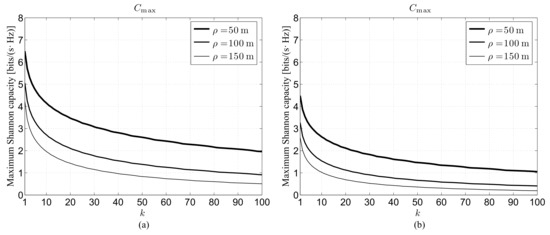

**Figure 2.**Maximum link capacity under perfect beam alignment for $G=10$ dB and different cell radii as a function of the neighbor order: (

**a**) 28 GHz channel, (

**b**) 73 GHz channel.

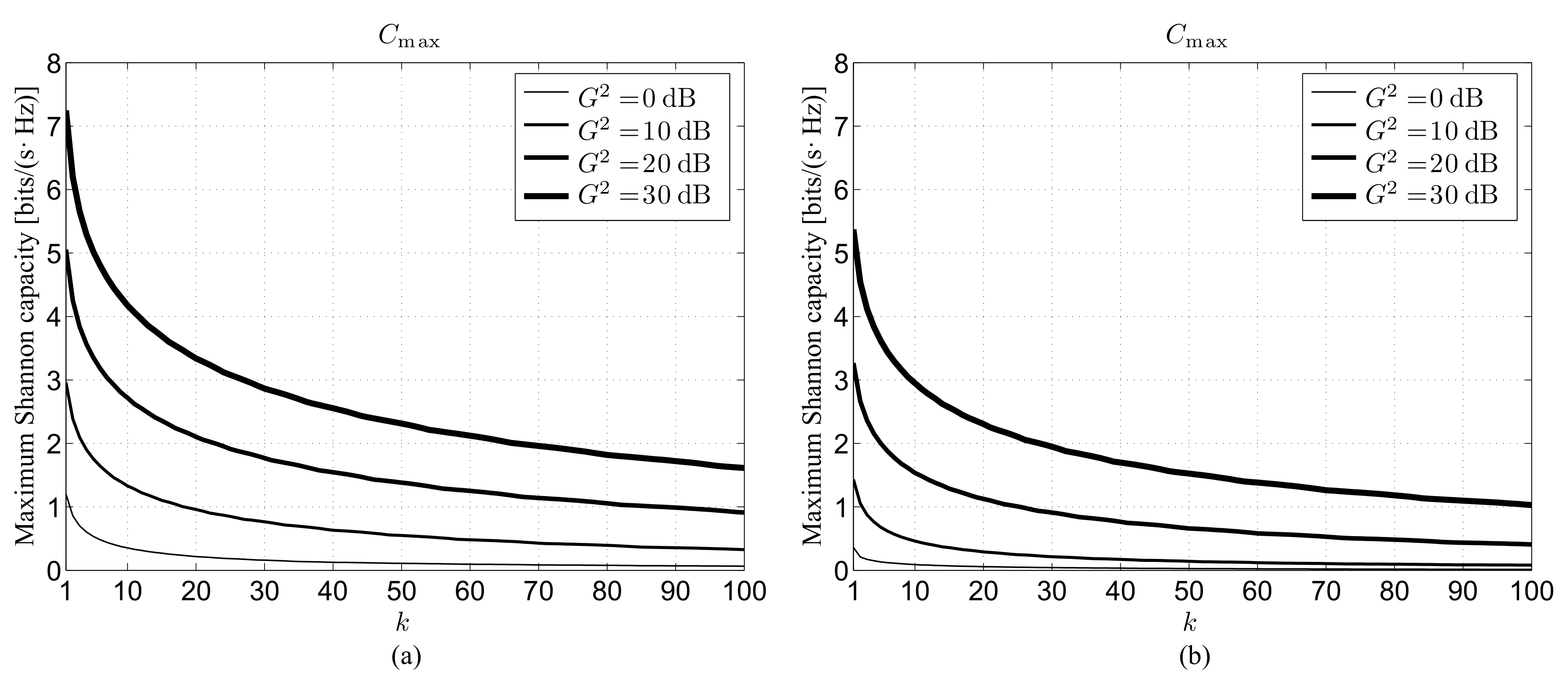

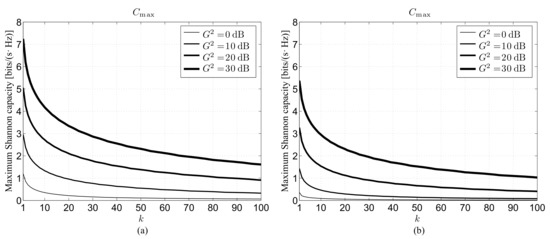

**Figure 3.**Maximum link capacity under perfect beam alignment for $\rho =100$ m and different maximum product gains ${G}^{2}$ as a function of the neighbor order: (

**a**) 28 GHz channel, (

**b**) 73 GHz channel.

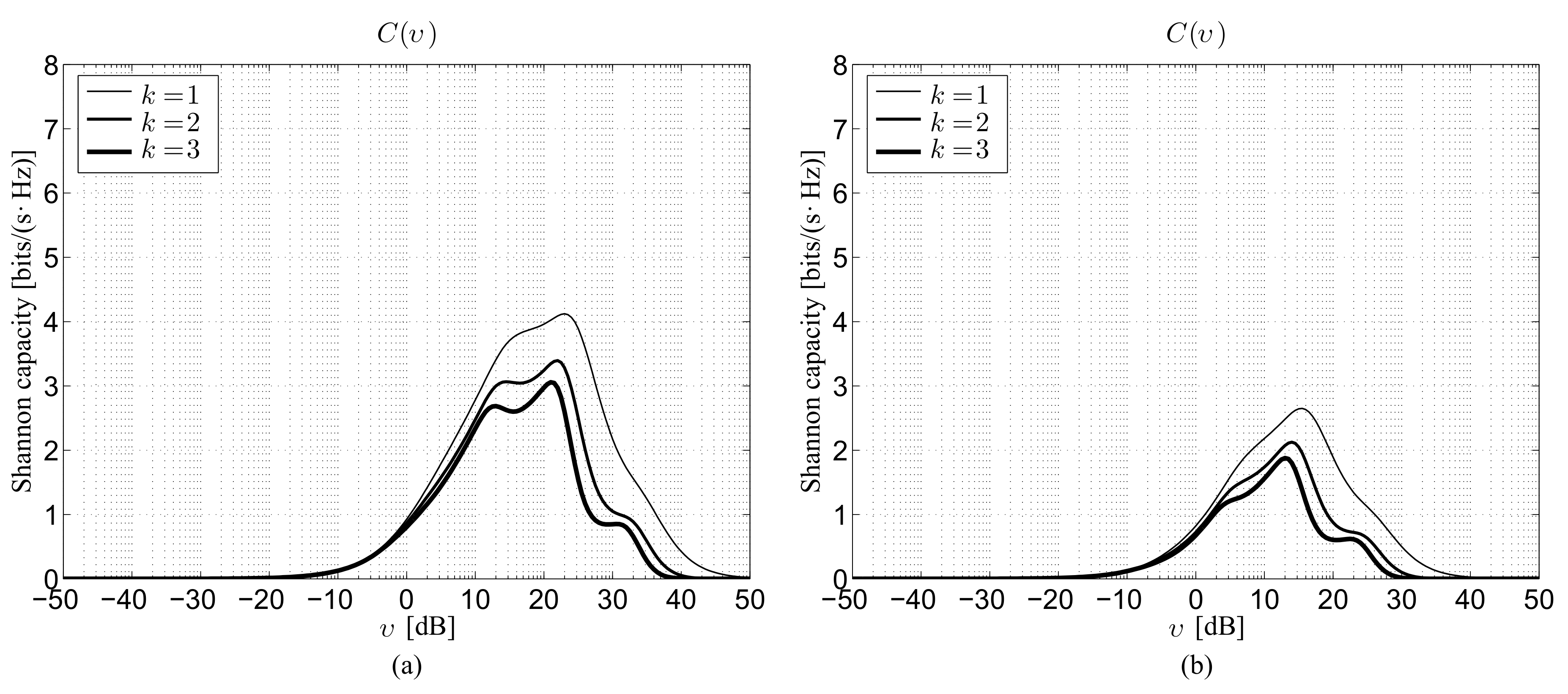

**Figure 4.**Theoretical Shannon capacity obtained in the presence of beam alignment error for $\rho =100$ m, $G=10$ dB, and $g=0$ dB as a function of the SNR: (

**a**) 28 GHz channel, (

**b**) 73 GHz channel.

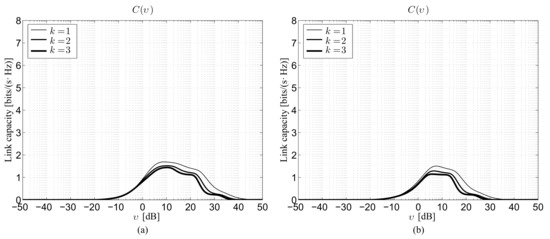

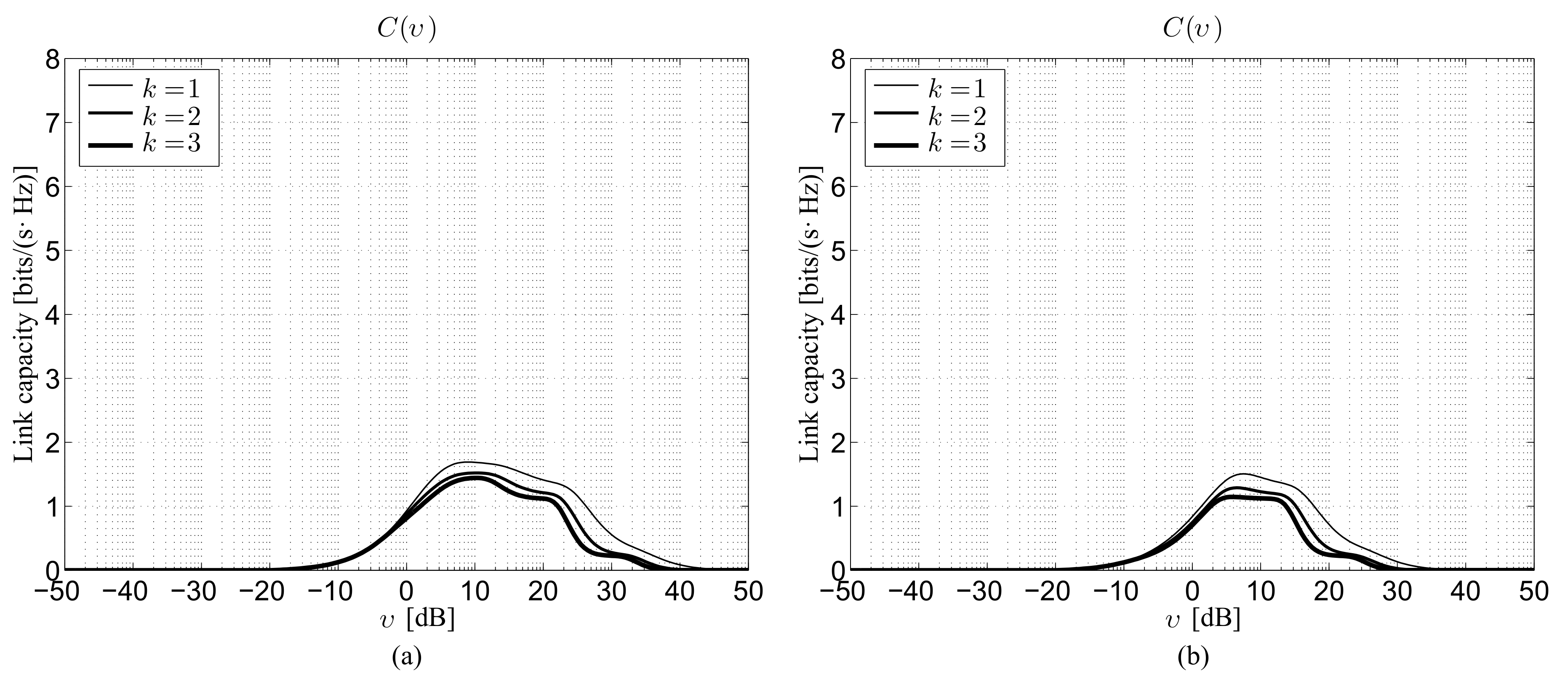

**Figure 5.**Theoretical capacity obtained using the QPSK modulation in the absence of beam alignment error for $\rho =100$ m and $G=10$ dB as a function of the SNR: (
