Article

P-type Inversion at the Surface of β-Ga2O3 Epitaxial Layer Modified with Au Nanoparticles

by
Maciej Krawczyk
1,*,
Ryszard Korbutowicz
1,
Rafał Szukiewicz
2,
Patrycja Suchorska-Woźniak
1,
Maciej Kuchowicz
2 and
Helena Teterycz
1
1
Faculty of Electronics, Photonics and Microsystems, Wrocław University of Science and Technology, Wybrzeże Wyspiańskiego 27, 50-370 Wroclaw, Poland
2
Institute of Experimental Physics, University of Wrocław, M. Borna 9, 50-204 Wroclaw, Poland
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(3), 932; https://doi.org/10.3390/s22030932
Submission received: 14 December 2021 / Revised: 17 January 2022 / Accepted: 22 January 2022 / Published: 25 January 2022
(This article belongs to the Special Issue Thin Film Gas Sensors)

Abstract

:
The electric properties and chemical and thermal stability of gallium oxide β-Ga2O3 make it a promising material for a wide variety of electronic devices, including chemiresistive gas sensors. However, p-type doping of β-Ga2O3 still remains a challenge. A β-Ga2O3 epitaxial layer with a highly developed surface was synthesized on gold electrodes on a Al2O3 substrate via a Halide Vapor Phase Epitaxy (HVPE) method. The epitaxial layer was impregnated with an aqueous colloidal solution of gold nanoparticles with an average diameter of Au nanoparticle less than 5 nm. Electrical impedance of the layer was measured before and after modification with the Au nanoparticles in an ambient atmosphere, in dry nitrogen, and in air containing dimethyl sulfide C2H6S (DMS). After the impregnation of the β-Ga2O3 epitaxial layer with Au nanoparticles, its conductance increased, and its electric response to air containing DMS had been inversed. The introduction of Au nanoparticles at the surface of the metal oxide was responsible for the formation of an internal depleted region and p-type conductivity at the surface.

Graphical Abstract

1. Introduction

The properties of gallium oxide β-Ga2O3, such as ultrawide bandgap, high breakdown voltage, high carrier mobility, and chemical and thermal stability; and the fact that high quality bulk crystals (and therefore also monocrystalline substrates) can be fabricated with melt-growth methods [1,2] predestine β-Ga2O3 to be the material of choice for high power and high frequency electronic devices [3], solar-blind photodetectors [4,5], UV emitters, transparent conductive films, and gas sensors [6,7]. However, due to its electric properties, p-type doping of β-Ga2O3 still remains a challenge [2]. Many reports of highly oriented and high quality β-Ga2O3 thin films can be found in the literature [8]. The synthesis is carried out by methods such as Halide Vapor Phase Epitaxy (HVPE) [9], Chemical Vapor Deposition (CVD), Metalorganic Vapor Deposition (MOCVD) [10], Molecular-Beam Epitaxy (MBE) [3], Pulsed Laser Deposition (PLD) [5], magnetron sputtering [4], evaporation in oxygen plasma [11], and sol-gel [12]. In the vast majority of these methods, the synthesis is carried out at reduced pressure, or in a vacuum; however, regardless of the conditions of synthesis, their common goal is to produce smooth, homogenous layers for later applications in semiconductor devices. On the other hand, for gas sensor applications, layers with highly developed surfaces are desirable. The larger the specific surface of the gas sensitive material, the greater the concentration of active centers that determine the sensitivity of the sensor material. It is widely believed that materials with large active surface areas are characterized by very good sensitivity [13,14].
Stoichiometric, undoped β-Ga2O3 is an isolator; however, crystals grown at low partial pressure of oxygen exhibit n-type conductivity at high temperature. Opinions on the source of n-type conductivity are divided. The literature attributes it to unintentional dopants (introduced during the process of synthesis) as well as the presence of various types of defects in the crystal structure of this material: oxygen vacancies, hydrogen interstitials and substitutions, and Ga interstitials [2,15,16]. Experimental studies show that the resistivity of the crystalline grains’ boundaries, but also their bulk, increases with the concentration of oxygen in the ambient atmosphere [17]. This relationship is explained by the adsorption and desorption of oxygen ions at the surface of the metal oxide, and by the diffusion of oxygen atoms from the ambient atmosphere to the crystal lattice, which causes a decrease in the number of oxygen vacancies. The ions adsorbed at the surface of the metal oxide can react with the reducing gases present in the atmosphere. As a result of these reactions, electrons bound at the surface of the oxide are released to the bulk of the material, which narrows the depleted layer at the grains’ boundaries and increases the conductivity of the material.
The literature reports on chemiresistive oxygen concentration sensors based on undoped β-Ga2O3 thin films operating at high temperature (1000 °C) [18,19] and, more recently, on β-Ga2O3 thin films doped with Si, and Cr2O3 operating at a medium temperature (400 °C) [20,21]. The conductivity of thin and thick films of gallium oxide increases in the presence of ethanol, methanol, carbon monoxide, acetone, hydrogen, hydrogen sulfide, and ammonia in the ambient atmosphere [22,23,24]. Moreover, β-Ga2O3 thin films exhibit hydrophobic properties, which is why the humidity of the ambient atmosphere has little effect on their gas sensing properties, even at room temperature [24]. It is worth noting that the majority of the thin film β-Ga2O3 gas sensors presented in the literature use electrodes made of platinum. Given the intended high temperature of operation, the use of platinum is justified; however, it is often overlooked that the Pt/β-Ga2O3 interface can behave like a Schottky diode and that it can affect the detection mechanism and even dominate it. The reason for this is a significant difference between the work functions of β-Ga2O3 (4.1 eV) [25] and Pt (5.65 eV) [26].
Gold nanoparticles are commonly used as a growth catalyst of β-Ga2O3 fibrous nanostructures (e.g., nanowires), where they remain anchored at the top of the growing structures [27,28,29,30]. However, Lu et al. [31] have researched the photocatalytic activity of β-Ga2O3 nanowires surface-decorated with 4–8 nm Au nanoparticles with a distribution density of approximately 420/µm2. The comparison of dark current and UV photocurrent of pristine and Au-decorated β-Ga2O3 nanowires has shown that the dark current decreases after modification with gold, while the UV photocurrent increases. The literature reports that β-Ga2O3 thin films modified with Au nanoparticles are scarce. Zhang et al. [32] have deposited β-Ga2O3 thin films on thin films made of gold nanoparticles. Similarly, they have observed an increase of UV photocurrent density for layers deposited on Au nanoparticles. Zhang et al. have explained this by the influence of Au nanoparticles acting as electron sinks that inhibit the recombination of electron-hole pairs under the UV light. To the best of our knowledge, the only gas sensor based on β-Ga2O3 thin film modified with Au particles described in the literature is to be found in the work of Schwebel et al. [33], who prepared a CO gas sensor. Au particles ranging in size from 10 nm up to 300 nm were deposited on the surface of β-Ga2O3 thin film by a wet chemical method. The resistance of the thin film increased after the modification with Au.
Currently, research on gas sensors is carried out in two main directions [34,35]. One is aimed at searching for gas-sensitive materials, including nanomaterials [14], with improved gas sensing parameters. The other is aimed at understanding the phenomena occurring during the operation of sensors, because this would facilitate the development of sensors with better usable parameters [36]—this aspect is the focus of this paper.
This article presents research on a β-Ga2O3 epitaxial layer impregnated with gold nanoparticles and the influence of this modification on the inversion of the type of electric conductivity at the surface of the layer. A β-Ga2O3 layer with an average thickness of 2.2 µm was synthesized on gold interdigitated electrodes on an Al2O3 substrate by the Halide Vapor Phase Epitaxy method. The study of the microstructure, the crystal structure, and the chemical composition of the obtained layer is presented. The impedance of the epitaxial layer in the atmosphere of ambient air, dry nitrogen, and air containing dimethyl sulfide (DMS) was investigated with impedance spectroscopy method. After the modification with Au nanoparticles, the conductance of the β-Ga2O3 epitaxial layer increased and its electric response in the atmosphere of dimethyl sulfide was inversed to p-type.

2. Materials and Methods

Interdigitated electrodes (IDE), leads, and soldering pads were screen printed with 8846-G gold paste (ESL Europe, Reading, UK) on the top surface of alumina substrate (96% Al2O3, CeramTec, Plochingen, Germany) with dimensions 25.4 mm × 2.5 mm × 0.254 mm. A meander-shaped heater was screen printed on the bottom surface with 5545 platinum paste (ESL Europe, Reading, UK). The heater leads and soldering pads were made with gold paste. The heater was covered with dielectric thick film (ESL Europe, Reading, UK). The substrate was fired for 10 min at 850 °C in the atmosphere of air. Before the synthesis of the epitaxial layer, the substrate was washed in an ultrasonic bath, first with isopropanol, and then with deionized water. Finally, the substrate was left to dry in the ambient atmosphere.
The synthesis of the β-Ga2O3 layer by Halide Vapor Phase Epitaxy method was carried out in a quartz tube reactor placed in a resistance furnace. The carrier gas was nitrogen obtained from liquefied nitrogen (Linde, Krakow, Poland) purified by GateKeeper inert gas purifier (Entegris, Billerica, MA, USA). The source of gallium was liquid metallic 6N purity grade gallium Ga (ITME, Warsaw, Poland). Gaseous 5.5 purity grade hydrogen chloride HCl (Messer, Chorzow, Poland) was used to produce GaCl gallium monochloride, which is a volatile compound at high temperature. Synthetic air (5.5 purity 20.5 ± 0.5% O2 in 6.0 purity N2) was used as a source gas (Messer, Chorzow, Poland) to produce gallium oxide Ga2O3 in a reaction with GaCl.
The three-zone resistance furnace was set to 840 °C in the deposition zone. The temperature shelf in the chlorination zone was set to 860 °C. The crystallization temperature of gallium oxide β-Ga2O3 by HVPE method is typically higher than 1000 °C—then the growth rate is significant and the surface morphology of the epitaxial layer is suitable for semiconductor devices (smooth and mirror-like) [9,37]. The β-Ga2O3 epitaxial layer obtained at a lower temperature, i.e., 840 °C, was characterized by a highly developed surface, suitable for gas sensors [14]. The synthesis was carried out at atmospheric pressure. Nitrogen was flowing through the open quartz reactor as the main carrier gas at a rate of 6000 mL/min. The flow rate of the synthetic air was 1000 mL/min. A quartz boat with metallic gallium was placed in the high-temperature zone. Hydrogen chloride HCl was flowing through the boat at a rate of 30 mL/min along a diluting stream of 250 mL/min of nitrogen gas. A quartz stand with the alumina substrate was inserted into the heated furnace and placed in the deposition zone (840 °C). The entire substrate was masked, except the gold interdigitated electrodes, and gallium oxide was deposited for 50 min only in the area of IDE. There was no need to use bed layers that crystallize at a lower temperature because then the α-Ga2O3 would be obtained.
After characterization, the obtained gallium oxide layer was impregnated with 25 µL of an aqueous colloidal solution of gold nanoparticles with a concentration of 200 ppm and an average diameter of Au particles of less than 5 nm [38] (Figure 1). The epitaxial layer was re-examined after modification with the Au nanoparticles.
The thickness of the epitaxial layer was assessed using the Talysurf CCI (Taylor Hobson, Leicester, UK) interference optical profilometer.
The microstructure was observed using the SEM SU6600 Scanning Electron Microscope (Hitachi, Hitachinaka, Japan) at an acceleration voltage of 15 kV. The distribution of gold particles on the surface of the epitaxial layer and its chemical composition after impregnation with Au nanoparticles were investigated using the Energy-Dispersive X-ray Spectroscopy EDS NORAN System 7 (Thermo Fisher Scientific, Waltham, MA, USA) built into the chamber of the Hitachi SU6600 SEM.
The crystal structure of the β-Ga2O3 epitaxial layer was investigated by X-ray Diffraction using the Empyrean diffractometer (Malvern Panalytical, Malvern, UK) equipped with the PIXcel3D detector. CuKα radiation with a wavelength of 0.15406 nm, a voltage of 40 kV, and a current of 40 mA were used. The test sample was placed on an antireflective Si backing. Bragg–Bentano geometry was used. The characteristic peaks on the X-ray diffractogram were fitted with the Voigt profile.
The chemical composition of the surface of the studied epitaxial layer was investigated with X-ray Photoelectron Spectroscopy (XPS). The non-monochromatized X-ray source based on Mg anode lamp (Mg Kα emission line) was used. High-resolution photoelectron energy spectra were recorded with AES/XPS system (Leybold–Heraeus, Cologne, Germany). Base pressure in the UHV chamber during measurements was lower than 1 × 10−9 mbar. All of the acquired spectra were calibrated to adventitious carbon C1s at 285 eV. The overall resolution of the spectrometer during measurements was 0.96 eV as a full width of half maximum (FWHM) of the Ag3d5/2 line. CasaXPS software (Casa Software, Teignmouth, UK) was used for XPS data deconvolution and surface composition analysis.
The electrical characterization of the epitaxial layer of β-Ga2O3 was performed by impedance spectroscopy using the 1260 impedance analyzer (Solartron Analytical, Farnborough, UK). The impedance of the layer was measured in a frequency range of 1 MHz to 1 Hz with 2 VRMS sinusoidal voltage. The measurements were made at the temperature of 600, 650, 700, and 750 °C. The impedance of the epitaxial layer was measured before and after its modification with gold nanoparticles, in ambient air (Tair ≈ 20 °C, RHair ≈ 35%), dry nitrogen, and in ambient air containing 1–16 ppm of dimethyl sulfide (DMS). The sample was heated by the platinum meander heater made on the bottom surface of the substrate (Figure 1). The heater was powered by DC voltage generated by the E3632A power supply (Agilent Technologies, Santa Clara, CA, USA). The impedance analyzer 1260 was controlled by ZPlot software version 3.5f (Scibner Associates, Southern Pines, NC, USA). The electric equivalent model was fitted with ZView software version 4.0c (Scribner Associates, Southern Pines, NC, USA).

3. Results

3.1. Microstructure

The thickness of the obtained β-Ga2O3 layer was assessed based on a layer grown on a Si/SiO2 substrate. The synthesis was carried out under the same condition as for the layer grown on the alumina substrate. The average thickness of the layer was found to be approximately 2.2 µm. Additionally, the surface of the layer is highly developed (Figure 2).
An accurate assessment of the surface microstructure of the layer grown on the alumina substrate was made using the scanning electron microscope. The observations have shown that the layer evenly covers both the substrate and the gold interdigitated electrodes (Figure 3a). The position of the electrodes is noticeable because their thickness is 12 ± 1 µm, which is about six times the thickness of the gallium oxide layer. The surface of the layer is highly developed and porous. It consists of grains of various shapes, with the majority of grains being clearly crystalline, as evidenced by the smooth sides of the grains (Figure 3). The average size of the crystalline grains is less than 1 µm.

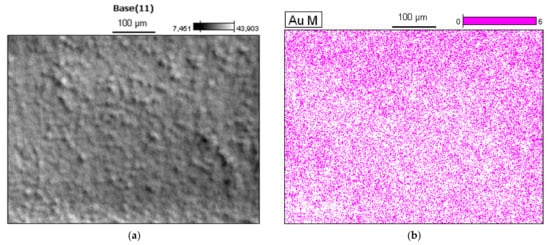

Observations of the layer surface made after its impregnation with aqueous solution of Au nanoparticles did not reveal the presence of these nanoparticles, which is understandable given their very small diameter of less than 5 nm on average [38]. No changes in the microstructure of the layer itself were observed.

3.2. Crystal Structure

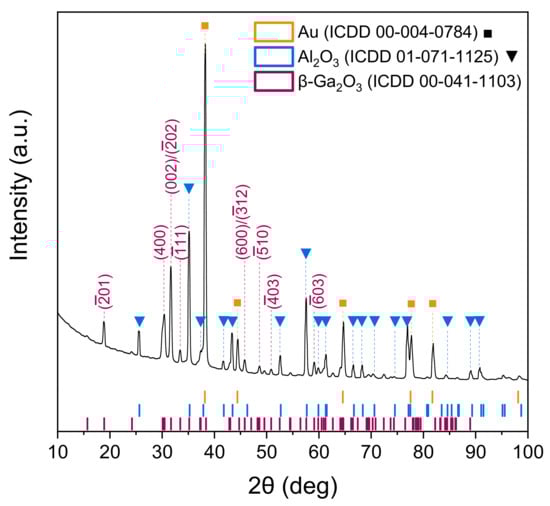

The analysis of the X-ray diffraction was conducted for the β-Ga2O3 epitaxial layer before it was modified with Au nanoparticles. The X-ray diffractogram was found to correspond with the standard data for β-Ga2O3 bulk monocrystal (ICDD 00-041-1103) with a monoclinic structure and belonging to the space group C2/m (Figure 4). The peaks corresponding to the studied epitaxial layer are slightly shifted relative to the standard data by less than −0.02°. The X-ray diffractogram also shows characteristic peaks from gold electrodes, as well as from the Al2O3 substrate. All of these peaks form Kα doublets [39], which, in some cases, overlap with peak characteristic to β-Ga2O3.

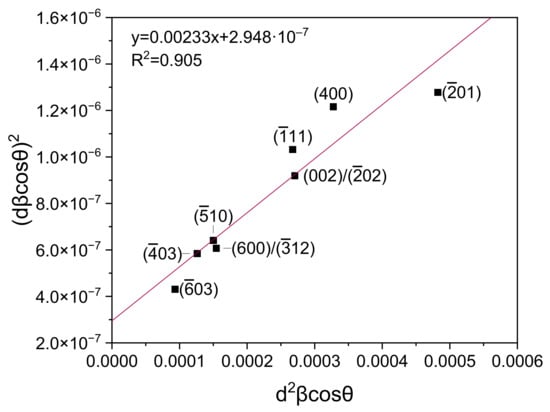

Due to the overlapping of peaks from different materials, peaks with 2θ angles of 18.88°, 30.06°, 31.66°, 33.43°, 45.79°, 48.62°, 50.85°, and 59.09° were used to calculate the strain and average crystallite size. The peaks correspond to the following crystallographic planes: ( 2 ¯ 01), (400), (002)/( 2 ¯ 02), ( 1 ¯ 11), (600)/( 3 ¯ 12), ( 5 ¯ 10), (403), ( 6 ¯ 03) (Figure 4). The average crystallite size D was determined from the slope of the Equation (1) plotted on the Size-Strain plot (Figure 5), and the strain ε was determined from the y-intercept [40,41]:
d β cos θ 2 = k λ D d 2 β cos θ + ε 2 4
D = k λ a = 59.5   nm
ε = 2 b = 1.086 · 10 3 ,
where: d—interplanar spacing of the monoclinic system, β—broadening of the diffraction peak measured at half maximum (FWHM), θ—the scattering angle, k = 0.9—the shape factor for a spherical crystallite, λ = 0.15406 nm—X-ray wavelength, D—the average crystallite size, ε—the strain, a—the slope of the Equation (1), and b—y-intercept of Equation (1) (Figure 5).
By solving Equation (4) for the known values of Miller’s indices h, k, l, and sin2θ corresponding to characteristic peaks of the β-Ga2O3 epitaxial layer on the X-ray diffractogram, the parameters of the monoclinic unit cell a, b, c, β
sin 2 θ = λ 2 4 sin 2 β h 2 a 2 + k 2 sin 2 β b 2 + 2 c 2 2 h cos β a c ,
were calculated to be: a = 12.23 Å, b = 3.04 Å, c = 5.81 Å, β = 103.7°. The derivation of Equation (4) is given in [30]. The calculated parameters of the unit cell of β-Ga2O3 are very similar to the values given in the ICDD card 00-041-1103, which is understandable given that the 2θ angles of the characteristic peaks visible in the X-ray diffractogram, and therefore also the values of sin2θ, vary only slightly from the standard values.

3.3. Chemical Composition of the Surface

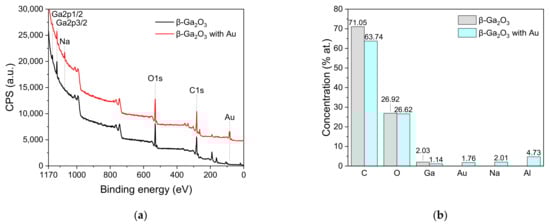

The surface composition of the β-Ga2O3 epitaxial layer before and after its modification with Au nanoparticles has been determined by X-ray Photoelectron Spectroscopy (XPS). Figure 6 presents the survey spectra of both analyzed surfaces. Sodium was found on the surface of the layer modified with Au nanoparticles, most likely due to the fact that Na was used as an acidity regulator during the synthesis of gold nanoparticles. Carbon C1s region mainly contains C-C, C-O, and carbonates bonds. The origin of these species is likely to stem from environmental contamination.

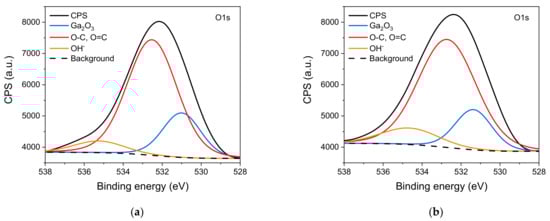

Ga2O3 network bonds and O-C and O=C bonds were observed in the O1s region (Figure 7). Additionally, a small amount of OH group was observed. Ga2O3 crystal lattice signal was more intense for the unmodified β-Ga2O3 epitaxial layer. The percentage of OH group bonds increased after modification with Au nanoparticles (Table 1).

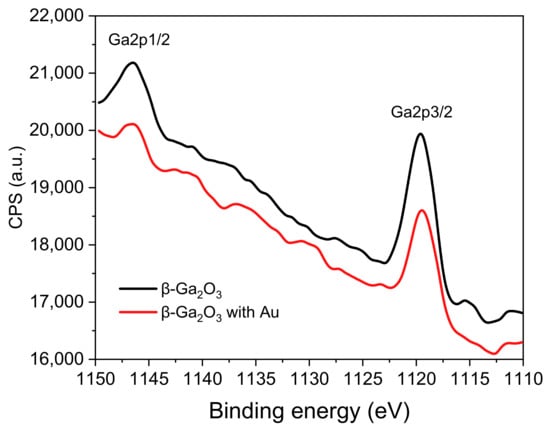

The analysis of the Ga2p region has shown that Ga2O3 oxide was present at the surface of both of the studied epitaxial layers (Figure 8) [30].

3.4. Impedance Spectroscopy

Gold interdigitated electrodes were printed on a separate Al2O3 ceramic substrate and their impedance in the ambient air atmosphere was measured. The measured impedance spectra were in the form of a single depressed semicircle; therefore, an electric equivalent model consisting of a parallel connection of a resistor Rsubstrate and a constant phase element CPEsusbtrate was proposed (Figure 9a). It was observed that in the measured range of 600 °C to 750 °C, the amplitude and the coefficient α of the constant phase element did not change and were, successively, 1.5 × 10−10 sΩ−1 and 0.954, while the value of Rsubstrate decreased with an increase in the temperature from 2.08 × 108 Ω to 2.07 × 107 Ω.

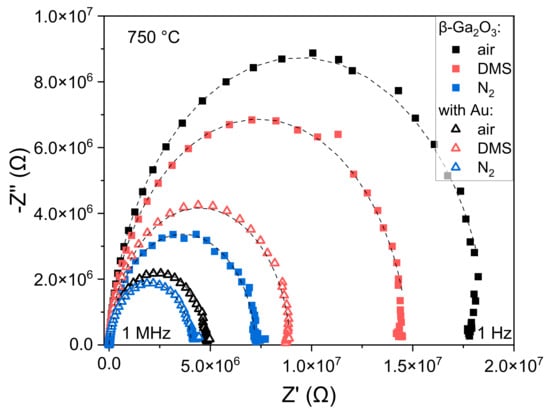

The impedance spectra of the β-Ga2O3 epitaxial layer measured in the 1 MHz–1 Hz range are represented by single semicircles, which makes it difficult to extract the contributions to the impedance coming from the bulk of the β-Ga2O3 crystalline grains and their boundaries. Therefore, an electric equivalent circuit of the epitaxial layer consisting of a parallel connection of a resistor Rlayer and capacitor Clayer was proposed (Figure 9a). The arrangement of the elements of this model were independent of the temperature, composition of the gas atmosphere, or the presence of gold nanoparticles at the surface of the layer; however, it should be noted that this circuit is not suitable for modeling the measured impedance spectra below 10 Hz. In addition, the capacitance of the epitaxial layer Clayer fitted in the 1 MHz–10 Hz frequency range was very small, in the order of 1 × 10−20 F. Changes in the capacitance of the measured system in the frequency range below 10 Hz were analyzed using a parallel RC circuit (Figure 9b).

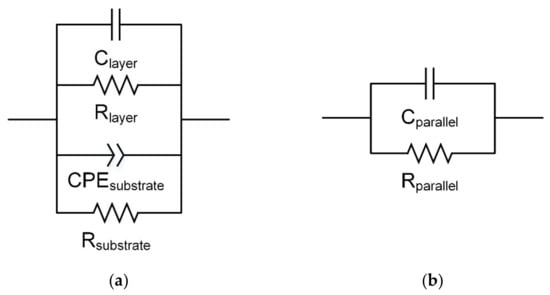

The equivalent circuit (Figure 9a) was fitted to the measured impedance spectra (Figure 10). The influence of 1–16 ppm of dimethyl sulfide (DMS) on the conductance of the layer Glayer = 1/Rlayer was tested for the unmodified β-Ga2O3 at 600 °C. The analysis of the results has shown that the conductivity of this metal oxide increases slightly with the concentration of DMS (Figure 11). Further experiments in the atmosphere containing dimethyl sulfide were performed only for a concertation of 16 ppm.

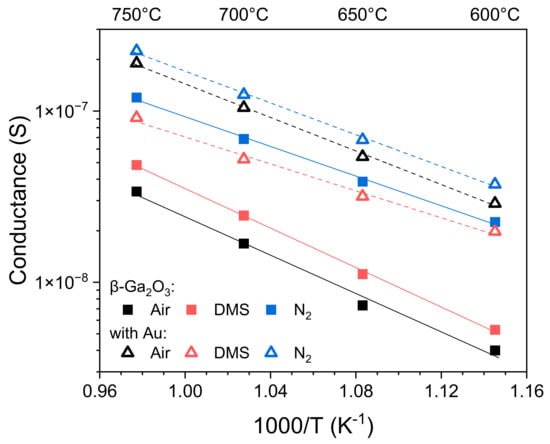

In air and in nitrogen, the conductance of the epitaxial layer increased with the temperature for both the unmodified and Au-modified sample. As predicted, the conductance of the unmodified layer was greater in nitrogen than in atmospheric air; however, in nitrogen, the conductance of the layer modified with gold nanoparticles increased very slightly. On the other hand, contrary to predictions and previous literature reports [33], the conductance of the layer increased after modification with Au nanoparticles (Figure 12).

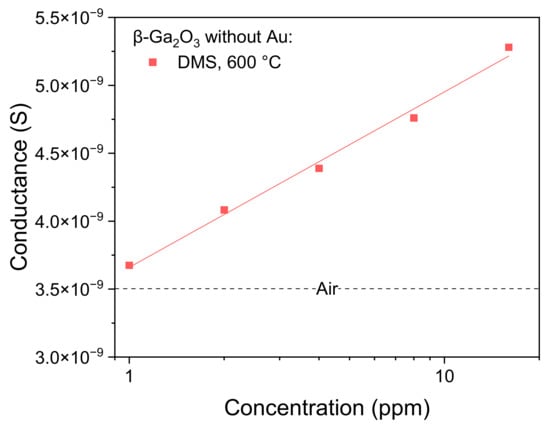

The conductance of the unmodified β-Ga2O3 epitaxial layer increased slightly in the atmosphere containing dimethyl sulfide, compared to the ambient air (Figure 12). An opposite response was noticed for the layer modified with Au nanoparticles. Its conductance was significantly lower in the atmosphere containing dimethyl sulfide over the entire measured temperature range. In addition, the slope of the linear fit in the Arrhenius plot changed, which indicates a different nature of physicochemical processes occurring at the surface of the modified gallium oxide layer in the presence of dimethyl sulfide.
For the unmodified β-Ga2O3 layer (in the atmosphere of air, nitrogen, DMS) (Figure 13a) and the layer modified with Au nanoparticles (in the atmosphere containing DMS) (Figure 13b), a decrease in capacitance in the 3–30 Hz frequency range is noticeable on the Bode diagram. This phenomenon, together with curling of the impedance spectra in the low frequency range (Figure 10), is likely caused by adsorption and desorption of chemical species at the surface of the metal oxide [42]. In the atmosphere containing DMS, these phenomena intensified with increasing temperature. Additionally, the drop in the capacitance was more pronounced for the epitaxial layer modified with Au nanoparticles. The noticeable decrease in the capacity for the unmodified layer measured in the ambient air at 750 °C may have been caused by the preceding series of measurements conducted in the atmosphere containing dimethyl sulfide (Figure 13a).

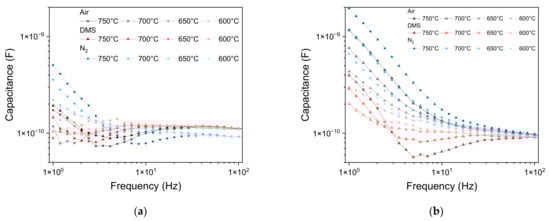

A sharp increase in capacitance was observed in the low frequency range (f < 3 Hz), which may have been caused by the accumulation of charges at the interface of metal oxide/gold electrodes and the formation of a depleted layer. The capacitance at low frequency increased with temperature, which can be explained by the decrease in the width of this depleted layer, which causes an increase in the capacity of the studied system [43]:
C = e ε r ε 0 N d 2 ϕ = ε 0 ε r w ,
where: e—electron charge, ε0—vacuum permittivity, εr—relative permittivity, Nd—donor concentration, ϕ—barrier height, and w—width of the depletion region.
Schipani et al. [43] suggest that an increase in layer capacitance in the low frequency range (f < 1 Hz) may be attributable to the charging and discharging of electron traps located in defects of the crystal structure at the boundaries outside of the depleted layers.
Since the conductance of the layer modified with Au nanoparticles decreased in the presence of dimethyl sulfide, its sensitivity (S) to DMS was defined as the ratio of conductance in the air to conductance in DMS, S = GAir/GDMS, analogous to how this parameter is defined in the case of chemoresistive sensors with a p-type sensor layer. The sensitivity of the unmodified β-Ga2O3 layer was low with a maximum at 650 °C; however, the sensitivity of the Au-modified layer increased with the temperature (Figure 14). This indicates a different nature of physicochemical process occurring at the surface of gallium oxide modified with gold nanoparticles.

4. Discussion

Ideally stoichiometric, undoped β-Ga2O3 is an insulator, while oxygen deficiency in the form of oxygen vacancies is responsible for conductivity at high temperature. Nonstoichiometric β-Ga2O3 is exclusively an n-type semiconductor at high temperature. The intrinsic n-type electrical conductivity of β-Ga2O3 has long been attributed to oxygen vacancies, as it has been for most metal oxides [15]. Changes in the conductivity of this material are attributed to changes in the concentration of free charge carriers, as a result of adsorption and desorption of oxygen ions at its surface and the diffusion of oxygen to the bulk of the crystal [44,45]. Thus, the conductivity of thin films of β-Ga2O3 depends on the concentration of oxygen in the ambient atmosphere [46].
It is well known that the conductivity σ of a porous polycrystalline semiconducting oxide depends on the conductivity of the grain boundary σgb and the conductivity of the bulk of the grains σb [47,48,49]:
σ = σ gb + σ b
σ g b = A · p gas n · exp e V S k T
σ b = A · exp E a k T ,
where: σgb—conductivity of the grain boundary, σgb—conductivity of the grain bulk, A, A′—coefficients dependent on partial pressure of oxygen, eVS—height of the energy barrier between the grains, and Ea—activation energy.
Both factors of the above function depend on the partial pressure of oxygen in the environment and on the temperature, but only the conductivity of the grain boundary σgb depends on the composition of the gas atmosphere. Thus, in the case of a constant concentration of oxygen, changes in conductance are caused by a change in temperature and are the result of physicochemical processes occurring at the surface and in the bulk of the sensor material.
Four mechanisms of electrical conductivity are commonly distinguished: at the grain boundary, at the grain surface, in the grain bulk, on the Schottky contact [50]. Taking into account the microstructure of the studied gallium oxide (Figure 3), it can be assumed that the mechanism of electrical conductivity is determined by physicochemical processes occurring at the grain boundary. The results of electrical characterization of unmodified β-Ga2O3 confirm this assumption because its conductivity increases in the nitrogen atmosphere. In this atmosphere, oxygen adsorbed at the surface of the grains is desorbed, causing a change in the conductivity of the grain boundary. In addition, as indicated by literature data, bulk conductivity of grains also changes because the lower the partial pressure of oxygen, the more oxygen vacancies are formed [15,17]. However, the small change in conductance in the presence of dimethyl sulfide may result from too high operation temperature. It is difficult to identify the exact reactions that occur on the surface of the unmodified gallium oxide, as dimethyl sulfide can oxidize gradually:
CH 3 SCH 3 O 2 2 CH 3 SCH 2 OO T CH 3 S O 2 CH 3 SO 2 T , O 2 CO 2 + SO 2 + H 2 O
The response of β-Ga2O3 impregnated with Au nanoparticles is different. Its conductivity decreases in the atmosphere containing the reducing gas that is dimethyl sulfide. The activation energy determined on the basis of electrical measurements in air, nitrogen, and DMS atmosphere was clearly different for unmodified and modified β-Ga2O3 (Table 2). This indicates that the physicochemical processes taking place at the surfaces of these layers differ.
In the band theory of semiconductors, the phenomenon of bending of energy bands in the near-surface region is well known. There are many reasons for this, such as native surface states [51]. According to Stoneham [52], the bending of bands in oxide semiconductors reveals the general characteristics of the material in which anions are removed from the network nodes. Such a process occurs in semiconducting oxides with n-type conductivity. However, the main reason for the band bending at the surface of oxide materials properties characteristic of n-type semiconductors is the chemisorption of oxidizing gas (oxygen) or reducing gas (hydrogen), associated with electron exchange. Therefore, during the interaction of gases with the surface of n-type semiconductor materials, two main types of interactions are possible [53].
In the case of unmodified gallium oxide, taking into account the composition of the atmosphere in which the layers were studied, there was a bending of the bands at the grain boundary caused by the chemisorption of oxygen at the surface of the oxide and the exchange of electrons according to the reaction (10–12). It can be assumed that when establishing the equilibrium of the adsorption process, only the simplest intermediate stages occur:
O 2 + e O 2
O 2 2 O
O + e O
At low oxygen pressure and/or high temperature, the dominant ionic form of oxygen at the surface will be O ions.
In the case of β-Ga2O3 impregnated with Au nanoparticles, both the properties of gallium oxide and gold should be taken into account. Analyzing the catalytic properties of gold particles deposited on metal oxides with semiconductor properties, it is widely believed that the dominant role is played by oxygen molecules that dissociate at the surface of gold [54,55]. At elevated temperatures, atomic oxygen recombines to O2. The recombination temperature depends on the crystallographic orientation of the surface of gold. It occurs at: 377 °C on polycrystalline gold [56], 317 °C at the surface with (110) orientation [57], and as low as 200 °C at the surface with (100) orientation [58]. Apart from the chemical aspect, the electronic aspect must also be taken into account [59,60]

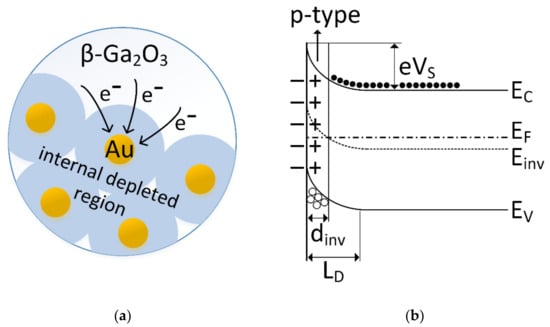

Au nanoparticles randomly scattered on the surface of β-Ga2O3 grains create Schottky barriers between metallic Au island and semiconductor β-Ga2O3 grains. The work function of gallium oxide n-type semiconductor is 4.1 eV, which is much smaller than that of gold, 5.1 eV. Since the Fermi levels of Au and β-Ga2O3 must equalize, the electrons migrate from β-Ga2O3 to Au, and therefore the Schottky barrier is formed at the β-Ga2O3/Au interface [60]. Thus, gold nanoparticles cause local changes in the Fermi level of gallium oxide [61]. As a result, the Au islands charge negatively, and in their vicinity a charge depleted layer forms on the surface of the β-Ga2O3 grains.
For this reason, the conductance of β-Ga2O3 modified with gold nanoparticles should be lower than that of pure β-Ga2O3. However, the impregnation with Au nanoparticles of a thin layer of gallium oxide made of grains with a much larger diameter than the Au nanoparticles resulted in an increase in the conductivity of the layer and anomalous response in the presence of dimethyl sulfide. The reason for this may be the phenomenon of inversion on the surface of gas-sensitive material [62,63] (Figure 15), where holes become the charge carriers (p-type semiconductivity).
An analysis of the results of this study leads us to the conclusion that the Au/β-Ga2O3 contact is responsible for the unusual electrical response. The height of the potential barrier formed at the β-Ga2O3 grain and Au boundary depends on the difference in work functions ϕβ-Ga2O3 = 4.1 eV [64] and ϕAu = 5.1 eV [65], hence the built-in potential:
V b i = ϕ A u ϕ β G a 2 O 3 q 1   eV
The width of the depletion layer depends also on the electrical permeability of the semiconductor and the concentration of donors. The relative permeability of β-Ga2O3 is 9.9–10.2 [66] or 13.5 [67]. It is assumed that the concentration of donors ND in gallium oxide can range from 6 × 1022 to 8 × 1023 m−3 [68]. Using the equation [51]:
w = 2 ε q N D V bi V k T q ,
where: ε—semiconductor permittivity, ND—donor density, Vbi—built-in potential, V—voltage, q—electronic charge, T—temperature, and assuming that V and kT/q are much smaller than Vbi it can be estimated that for ND = 6 × 1022 m−3 the width of the depleted layer is approximately 35 nm. Thus, if the distance between the gold nanoparticles is at least 70 nm, then the entire surface of gallium oxide will be covered with a depleted layer and inversion should occur (Figure 16).
If dimethyl sulfide is present in the atmosphere, where molecules show a high affinity for gold, then they will form a covalent bond together with Au nanoparticles [69]. As a result, the thickness of the inversion layer will decrease because some of the electrons returning to gallium oxide will recombine with the holes of the inversion layer. The conductance of the β-Ga2O3 layer modified with Au nanoparticles will decrease as a result of these physicochemical processes.

5. Conclusions

In this work, a β-Ga2O3 epitaxial layer surface-modified with Au nanoparticles was investigated. The results of the electrical characterization of the epitaxial layer before modification in atmospheric air, dry nitrogen, and air containing dimethyl sulfide were typical to an n-type semiconductor sensor material. However, the conductance of the β-Ga2O3 epitaxial layer after modification with Au nanoparticles changed in an unusual way. The conductance of the layer did not decrease but, instead, it increased after modification with Au nanoparticles. The conductance in the atmosphere of air and nitrogen was similar. Only a slight increase of the conductance was observed in the atmosphere of nitrogen. In the atmosphere of air containing dimethyl sulfide the conductance decreased, which is characteristic of the p-type sensor layers.
The increase of conductance of the β-Ga2O3 epitaxial layer after modification with Au nanoparticles may be the result of the formation of an inversion layer on the surface of the metal oxide grains and a change in the type of conductivity from the n-type to the p-type. In other words, the surface of β-Ga2O3, which is an n-type semiconductor, after modification with Au nanoparticles was depleted of donor carriers (electrons) to such an extent that the holes became the majority carriers on the surface. According to the authors, this is consistent with previous studies, in which the conductance of β-Ga2O3 decreased after the introduction of gold particles [33]; however, in the case of the layer described in this paper, the concentration of gold nanoparticles at the surface of the grains was sufficient for the occurrence of the phenomenon of inversion of the conductivity type. In addition, the occurrence of p-type inversion is also evidenced by the anomalous electrical response of the β-Ga2O3 layer in the presence of dimethyl sulfide. The modification of the material resulted in an increase in sensitivity to this compound; however, it still remained low compared to the gas sensitive layers based on metal oxide nanomaterials described in the literature [70]. This demonstrates the superiority of nanomaterials with an extremely large active surface area that affects changes in sensitivity. Due to the difficulty in p-type doping of β-Ga2O3, the phenomenon of inversion, observed as a result of modification of the surface of this material with gold nanoparticles, should be studied more closely.

Author Contributions

Conceptualization, R.K. and H.T.; methodology, H.T.; writing—original draft preparation, H.T. and M.K. (Maciej Krawczyk); writing—review and editing, H.T., M.K. (Maciej Krawczyk) and P.S.-W.; visualization, M.K. (Maciej Krawczyk); supervision, H.T.; synthesis, R.K.; SEM/EDS survey, R.K.; XPS measurement and analysis, R.S. and M.K. (Maciej Kuchowicz). All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded through statutory funds from the Wrocław University of Science and Technology, Faculty of Electronics, Photonics and Microsystems. Rafał Szukiewicz and Maciej Kuchowicz are grateful to the University of Wrocław for financing of the purchase of electronics for the XPS system under the fund (20404) and to the Initiative Excellence–Research University programme for the financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kuramata, A.; Koshi, K.; Watanabe, S.; Yamaoka, Y.; Masui, T.; Yamakoshi, S. High-quality β-Ga2O3 single crystals grown by edge-defined film-fed growth. Jpn. J. Appl. Phys. 2016, 55, 1202A2. [Google Scholar] [CrossRef]
  2. Zhang, J.; Shi, J.; Qi, D.-C.; Chen, L.; Zhang, K.H.L. Recent progress on the electronic structure, defect, and doping properties of Ga2O3. APL Mater. 2020, 8, 020906. [Google Scholar] [CrossRef] [Green Version]
  3. Higashiwaki, M.; Sasaki, K.; Kuramata, A.; Masui, T.; Yamakoshi, S. Gallium oxide (Ga2O3) metal-semiconductor field-effect transistors on single-crystal β-Ga2O3 (010) substrates. Appl. Phys. Lett. 2012, 100, 013504. [Google Scholar] [CrossRef]
  4. Arora, K.; Kumar, M. Sputtered-Growth of High-Temperature Seed-Layer Assisted β-Ga2O3 Thin Film on Silicon-Substrate for Cost-Effective Solar-Blind Photodetector Application. ECS J. Solid State Sci. Technol. 2020, 9, 065013. [Google Scholar] [CrossRef]
  5. Shi, Y.-L.; Huang, D.; Ling, F.C.-C. Band offset and electrical properties of ErZO/β-Ga2O3 and GZO/β-Ga2O3 heterojunctions. Appl. Surf. Sci. 2022, 576, 151814. [Google Scholar] [CrossRef]
  6. Nakagomi, S.; Sai, T.; Kokubun, Y. Hydrogen gas sensor with self temperature compensation based on β-Ga2O3 thin film. Sens. Actuators B Chem. 2013, 187, 413–419. [Google Scholar] [CrossRef]
  7. Vorobyeva, N.; Rumyantseva, M.; Platonov, V.; Filatova, D.; Chizhov, A.; Marikutsa, A.; Bozhev, I.; Gaskov, A. Ga2O3(Sn) Oxides for High-Temperature Gas Sensors. Nanomaterials 2021, 11, 2938. [Google Scholar] [CrossRef] [PubMed]
  8. Patil, V.; Lee, B.-T.; Jeong, S.-H. Optical and structural characterization of high crystalline β-Ga2O3 films prepared using an RF magnetron sputtering. J. Alloys Compd. 2022, 894, 162551. [Google Scholar] [CrossRef]
  9. Murakami, H.; Nomura, K.; Goto, K.; Sasaki, K.; Kawara, K.; Thieu, Q.T.; Togashi, R.; Kumagai, Y.; Higashiwaki, M.; Kuramata, A.; et al. Homoepitaxial growth of β-Ga2O3 layers by halide vapor phase epitaxy. Appl. Phys. Express 2015, 8, 015503. [Google Scholar] [CrossRef]
  10. Boschi, F.; Bosi, M.; Berzina, T.; Buffagni, E.; Ferrari, C.; Fornari, R. Hetero-epitaxy of ε-Ga2O3 layers by MOCVD and ALD. J. Cryst. Growth 2016, 443, 25–30. [Google Scholar] [CrossRef]
  11. Nakagomi, S.; Kokubun, Y. Crystal orientation of β-Ga2O3 thin films formed on c-plane and a-plane sapphire substrate. J. Cryst. Growth 2012, 349, 12–18. [Google Scholar] [CrossRef]
  12. Shen, H.; Yin, Y.; Tian, K.; Baskaran, K.; Duan, L.; Zhao, X.; Tiwari, A. Growth and characterization of β-Ga2O3 thin films by sol-gel method for fast-response solar-blind ultraviolet photodetectors. J. Alloys Compd. 2018, 766, 601–608. [Google Scholar] [CrossRef]
  13. Kwon, O.S.; Hong, J.-Y.; Park, S.J.; Jang, Y.; Jang, J. Resistive Gas Sensors Based on Precisely Size-Controlled Polypyrrole Nanoparticles: Effects of Particle Size and Deposition Method. J. Phys. Chem. C 2010, 114, 18874–18879. [Google Scholar] [CrossRef]
  14. Korotcenkov, G. Current Trends in Nanomaterials for Metal Oxide-Based Conductometric Gas Sensors: Advantages and Limitations. Part 1: 1D and 2D Nanostructures. Nanomaterials 2020, 10, 1392. [Google Scholar] [CrossRef] [PubMed]
  15. Afzal, A. β-Ga2O3 nanowires and thin films for metal oxide semiconductor gas sensors: Sensing mechanisms and performance enhancement strategies. J. Mater. 2019, 5, 542–557. [Google Scholar] [CrossRef]
  16. Usseinov, A.; Koishybayeva, Z.; Platonenko, A.; Pankratov, V.; Suchikova, Y.; Akilbekov, A.; Zdorovets, M.; Purans, J.; Popov, A.I. Vacancy Defects in Ga2O3: First-Principles Calculations of Electronic Structure. Materials 2021, 14, 7384. [Google Scholar] [CrossRef] [PubMed]
  17. Kiss, G.; Krafcsik, O.H.; Kovács, K.; Josepovits, V.K.; Fleischer, M.; Meixner, H.; Deák, P.; Réti, F. Impedance spectroscopic and secondary ion mass spectrometric studies of β-Ga2O3/O2 interaction. Thin Solid Films 2001, 391, 239–242. [Google Scholar] [CrossRef]
  18. Bartic, M.; Baban, C.-I.; Suzuki, H.; Ogita, M.; Isai, M. β-Gallium Oxide as Oxygen Gas Sensors at a High Temperature. J. Am. Ceram. Soc. 2007, 90, 2879–2884. [Google Scholar] [CrossRef]
  19. Baban, C.; Toyoda, Y.; Ogita, M. Oxygen sensing at high temperatures using Ga2O3 films. Thin Solid Films 2005, 484, 369–373. [Google Scholar] [CrossRef]
  20. Almaev, A.V.; Chernikov, E.V.; Kushnarev, B.O.; Yakovlev, N.N. Effect of oxygen on the properties of Ga2O3:Si thin films. J. Phys. Conf. Ser. 2019, 1410, 012201. [Google Scholar] [CrossRef]
  21. Almaev, A.V.; Chernikov, E.V.; Novikov, V.V.; Kushnarev, B.O.; Yakovlev, N.N.; Chuprakova, E.V.; Oleinik, V.L.; Lozinskaya, A.D.; Gogova, D.S. Impact of Cr2O3 additives on the gas-sensitive properties of β-Ga2O3 thin films to oxygen, hydrogen, carbon monoxide, and toluene vapors. J. Vac. Sci. Technol. A 2021, 39, 023405. [Google Scholar] [CrossRef]
  22. Dyndal, K.; Zarzycki, A.; Andrysiewicz, W.; Grochala, D.; Marszalek, K.; Rydosz, A. CuO-Ga2O3 Thin Films as a Gas-Sensitive Material for Acetone Detection. Sensors 2020, 20, 3142. [Google Scholar] [CrossRef] [PubMed]
  23. Balasubramani, V.; Ahamed, A.N.; Chandraleka, S.; Kumar, K.K.; Kuppusamy, M.R.; Sridhar, T.M. Highly Sensitive and Selective H2S Gas Sensor Fabricated with β-Ga2O3/rGO. ECS J. Solid State Sci. Technol. 2020, 9, 055009. [Google Scholar] [CrossRef]
  24. Pandeeswari, R.; Jeyaprakash, B.G. High sensing response of β-Ga2O3 thin film towards ammonia vapours: Influencing factors at room temperature. Sens. Actuators B Chem. 2014, 195, 206–214. [Google Scholar] [CrossRef]
  25. Eastman, D.E. Photoelectric Work Functions of Transition, Rare-Earth, and Noble Metals. Phys. Rev. B 1970, 2, 1. [Google Scholar] [CrossRef]
  26. Michaelson, H.B. The work function of the elements and its periodicity. J. Appl. Phys. 1977, 48, 4729–4733. [Google Scholar] [CrossRef] [Green Version]
  27. Miao, Y.; Liang, B.; Tian, Y.; Xiong, T.; Sun, S.; Chen, C. Epitaxial growth of β-Ga2O3 nanowires from horizontal to obliquely upward evolution. Vacuum 2021, 192, 110444. [Google Scholar] [CrossRef]
  28. Jia, C.; Jeon, D.-W.; Xu, J.; Yi, X.; Park, J.-H.; Zhang, Y. Catalyst-Assisted Large-Area Growth of Single-Crystal β-Ga2O3 Nanowires on Sapphire Substrates by Metal–Organic Chemical Vapor Deposition. Nanomaterials 2020, 10, 1031. [Google Scholar] [CrossRef]
  29. Sivakumar, C.; Tsai, G.-H.; Chung, P.-F.; Balraj, B.; Lin, Y.-F.; Ho, M.-S. High-Quality Single-Crystalline β-Ga2O3 Nanowires: Synthesis to Nonvolatile Memory Applications. Nanomaterials 2021, 11, 2013. [Google Scholar] [CrossRef]
  30. Krawczyk, M.; Suchorska-Woźniak, P.; Szukiewicz, R.; Kuchowicz, M.; Korbutowicz, R.; Teterycz, H. Morphology of Ga2O3 Nanowires and Their Sensitivity to Volatile Organic Compounds. Nanomaterials 2021, 11, 456. [Google Scholar] [CrossRef] [PubMed]
  31. Lu, J.; Xing, J.; Chen, D.; Xu, H.; Han, X.; Li, D. Enhanced photocatalytic activity of β-Ga2O3 nanowires by Au nanoparticles decoration. J. Mater. Sci. 2019, 54, 6530–6541. [Google Scholar] [CrossRef]
  32. Zhang, H.; Deng, J.; Meng, T.; Xu, Z.; Li, R.; Sun, J.; Zhang, X.; Zhang, J.; Zhang, X. Growth of Au nanoparticles modified β-Ga2O3 film and enhanced performance in the photocatalytic decomposition. J. Mater. Sci. Mater. Electron. 2020, 31, 12522–12527. [Google Scholar] [CrossRef]
  33. Schwebel, T.; Fleischer, M.; Meixner, H.; Kohl, C.-D. CO-Sensor for domestic use based on high temperature stable Ga2O3 thin films. Sens. Actuators B Chem. 1998, 49, 46–51. [Google Scholar] [CrossRef]
  34. Feng, S.; Farha, F.; Li, Q.; Wan, Y.; Xu, Y.; Zhang, T.; Ning, H. Review on Smart Gas Sensing Technology. Sensors 2019, 19, 3760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wang, H.; Ma, J.; Zhang, J.; Feng, Y.; Vijjapu, M.T.; Yuvaraja, S.; Surya, S.G.; Salama, K.N.; Dong, C.; Wang, Y.; et al. Gas sensing materials roadmap. J. Phys. Condens. Matter 2021, 33, 303001. [Google Scholar] [CrossRef] [PubMed]
  36. Capone, S.; Forleo, A.; Francioso, L.; Rella, R.; Siciliano, P.; Spadavecchia, J.; Presicce, D.S.; Taurino, A.M. Solid state gas sensors: State of the art and future activities. J. Optoelectron. Adv. Mater. 2003, 5, 1335–1348. [Google Scholar] [CrossRef]
  37. Nikolaev, V.I.; Pechnikov, A.I.; Stepanov, S.I.; Nikitina, I.P.; Smirnov, A.N.; Chikiryaka, A.V.; Sharofidinov, S.S.; Bougrov, V.E.; Romanov, A.E. Epitaxial growth of (201) β-Ga2O3 on (0001) sapphire substrates by halide vapour phase epitaxy. Mater. Sci. Semicond. Process. 2016, 47, 16–19. [Google Scholar] [CrossRef]
  38. Suchorska-Woźniak, P.; Rac, O.; Klimkiewicz, R.; Fiedot, M.; Teterycz, H. Dehydrogenation properties of ZnO and the impact of gold nanoparticles on the process. Appl. Catal. A Gen. 2016, 514, 135–145. [Google Scholar] [CrossRef]
  39. Waseda, Y.; Matsubara, E.; Shinoda, K. X-ray Diffraction Crystallography; Springer: Berlin/Heidelberg, Germany, 2011; ISBN 978-3-642-16634-1. [Google Scholar]
  40. Zak, A.K.; Majid, W.A.; Abrishami, M.E.; Yousefi, R. X-ray analysis of ZnO nanoparticles by Williamson–Hall and size–strain plot methods. Solid State Sci. 2011, 13, 251–256. [Google Scholar] [CrossRef]
  41. Kushwaha, P.; Chauhan, P. Microstructural evaluation of iron oxide nanoparticles at different calcination temperature by Scherrer, Williamson-Hall, Size-Strain Plot and Halder-Wagner methods. Phase Transitions 2021, 94, 731–753. [Google Scholar] [CrossRef]
  42. Lasia, A. Electrochemical Impedance Spectroscopy and Its Applications; Springer: New York, NY, USA, 2014; ISBN 978-1-4614-8932-0. [Google Scholar]
  43. Schipani, F.; Miller, D.R.; Ponce, M.A.; Aldao, C.M.; Akbar, S.A.; Morris, P.A. Electrical Characterization of Semiconductor Oxide-Based Gas Sensors Using Impedance Spectroscopy: A Review. Rev. Adv. Sci. Eng. 2016, 5, 86–105. [Google Scholar] [CrossRef]
  44. Galazka, Z. β-Ga2O3 for wide-bandgap electronics and optoelectronics. Semicond. Sci. Technol. 2018, 33, 113001. [Google Scholar] [CrossRef]
  45. Wei, Z.; Akbari, M.K.; Hai, Z.; Ramachandran, R.K.; Detavernier, C.; Verpoort, F.; Kats, E.; Xu, H.; Hu, J.; Zhuiykov, S. Ultra-thin sub-10 nm Ga2O3-WO3 heterostructures developed by atomic layer deposition for sensitive and selective C2H5OH detection on ppm level. Sens. Actuators B Chem. 2019, 287, 147–156. [Google Scholar] [CrossRef]
  46. Demin, I.E.; Kozlov, A.G. In2O3–Ga2O3 thin films for ammonia sensors of petrochemical industry safety systems.; 2018; p. 050004. In AIP Conference Proceedings; AIP Publishing LLC: Melville, NY, USA.
  47. Wang, Y.; Duan, L.; Deng, Z.; Liao, J. Electrically Transduced Gas Sensors Based on Semiconducting Metal Oxide Nanowires. Sensors 2020, 20, 6781. [Google Scholar] [CrossRef]
  48. Teterycz, H.; Halek, P.; Wiśniewski, K.; Halek, G.; Koźlecki, T.; Polowczyk, I. Oxidation of Hydrocarbons on the Surface of Tin Dioxide Chemical Sensors. Sensors 2011, 11, 4425–4437. [Google Scholar] [CrossRef] [PubMed]
  49. Fleischer, M.; Meixner, H. Selectivity in high-temperature operated semiconductor gas-sensors. Sens. Actuators B Chem. 1998, 52, 179–187. [Google Scholar] [CrossRef]
  50. Xu, C.; Tamaki, J.; Miura, N.; Yamazoe, N. Grain size effects on gas sensitivity of porous SnO2-based elements. Sens. Actuators B Chem. 1991, 3, 147–155. [Google Scholar] [CrossRef]
  51. Sze, S.M.; Ng, K.K. Physics of Semiconductor Devices; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006; ISBN 9780470068328. [Google Scholar]
  52. Stoneham, A. Oxide Surfaces: The Basic Processes of Sensor Behaviour in Solid State Gas Sensors; Hilger, A., Ed.; Adam Hilger: Bristol, UK, 1987. [Google Scholar]
  53. Nenov, T.G.; Yordanov, S.P. Ceramic Sensors; CRC Press: Boca Raton, FL, USA, 2020; ISBN 9781003075837. [Google Scholar]
  54. Meyer, R.; Lemire, C.; Shaikhutdinov, S.K.; Freund, H.-J. Surface chemistry of catalysis by gold. Gold Bull. 2004, 37, 72–124. [Google Scholar] [CrossRef] [Green Version]
  55. Janssens, T.V.W.; Clausen, B.S.; Hvolbæk, B.; Falsig, H.; Christensen, C.H.; Bligaard, T.; Nørskov, J.K. Insights into the reactivity of supported Au nanoparticles: Combining theory and experiments. Top. Catal. 2007, 44, 15–26. [Google Scholar] [CrossRef]
  56. Canning, N.D.S.; Outka, D.; Madix, R.J. The adsorption of oxygen on gold. Surf. Sci. 1984, 141, 240–254. [Google Scholar] [CrossRef]
  57. Outka, D.A.; Madix, R.J. The oxidation of carbon monoxide on the Au(110) surface. Surf. Sci. 1987, 179, 351–360. [Google Scholar] [CrossRef]
  58. Gottfried, J.; Elghobashi, N.; Schroeder, S.L.; Christmann, K. Oxidation of gold by oxygen-ion sputtering. Surf. Sci. 2003, 523, 89–102. [Google Scholar] [CrossRef]
  59. Gines, M.J.L.; Iglesia, E. Bifunctional Condensation Reactions of Alcohols on Basic Oxides Modified by Copper and Potassium. J. Catal. 1998, 176, 155–172. [Google Scholar] [CrossRef] [Green Version]
  60. Flores, F.; Miranda, R. Tuning Schottky Barriers by atomic layer control at metal-semiconductor interfaces. Adv. Mater. 1994, 6, 540–548. [Google Scholar] [CrossRef]
  61. Sun, L.; Zhao, D.; Song, Z.; Shan, C.; Zhang, Z.; Li, B.; Shen, D. Gold nanoparticles modified ZnO nanorods with improved photocatalytic activity. J. Colloid Interface Sci. 2011, 363, 175–181. [Google Scholar] [CrossRef] [PubMed]
  62. Licznerski, B.; Nitsch, K.; Teterycz, H.; Wiśniewski, K. The influence of Rh surface doping on anomalous properties of thick-film SnO2 gas sensors. Sens. Actuators B Chem. 2001, 79, 157–162. [Google Scholar] [CrossRef]
  63. Teterycz, H.; Licznerski, B.; Nitsch, K.; Wiśniewski, K.; Golonka, L. Anomalous behaviour of new thick film gas sensitive composition. Sens. Actuators B Chem. 1998, 47, 153–157. [Google Scholar] [CrossRef]
  64. Pliskin, W.A. Comparison of properties of dielectric films deposited by various methods. J. Vac. Sci. Technol. 1977, 14, 1064–1081. [Google Scholar] [CrossRef]
  65. Zhong, H.; Heuss, G.; Misra, V. Electrical properties of RuO2 gate electrodes for dual metal gate Si-CMOS. IEEE Electron Device Lett. 2000, 21, 593–595. [Google Scholar] [CrossRef]
  66. Passlack, M.; Schubert, E.F.; Hobson, W.S.; Hong, M.; Moriya, N.; Chu, S.N.G.; Konstadinidis, K.; Mannaerts, J.P.; Schnoes, M.L.; Zydzik, G.J. Ga2O3 films for electronic and optoelectronic applications. J. Appl. Phys. 1995, 77, 686–693. [Google Scholar] [CrossRef]
  67. Lee, S.-A.; Hwang, J.-Y.; Kim, J.-P.; Jeong, S.-Y.; Cho, C.-R. Dielectric characterization of transparent epitaxial Ga2O3 thin film on n-GaN∕Al2O3 prepared by pulsed laser deposition. Appl. Phys. Lett. 2006, 89, 182906. [Google Scholar] [CrossRef]
  68. Irmscher, K.; Galazka, Z.; Pietsch, M.; Uecker, R.; Fornari, R. Electrical properties of β-Ga2O3 single crystals grown by the Czochralski method. J. Appl. Phys. 2011, 110, 063720. [Google Scholar] [CrossRef]
  69. Kokkin, D.L.; Zhang, R.; Steimle, T.C.; Wyse, I.A.; Pearlman, B.W.; Varberg, T.D. Au–S Bonding Revealed from the Characterization of Diatomic Gold Sulfide, AuS. J. Phys. Chem. A 2015, 119, 11659–11667. [Google Scholar] [CrossRef] [PubMed]
  70. Srinivasan, P.; Rayappan, J.B.B. Investigations on room temperature dual sensitization of ZnO nanostructures towards fish quality biomarkers. Sens. Actuators B Chem. 2020, 304, 127082. [Google Scholar] [CrossRef]

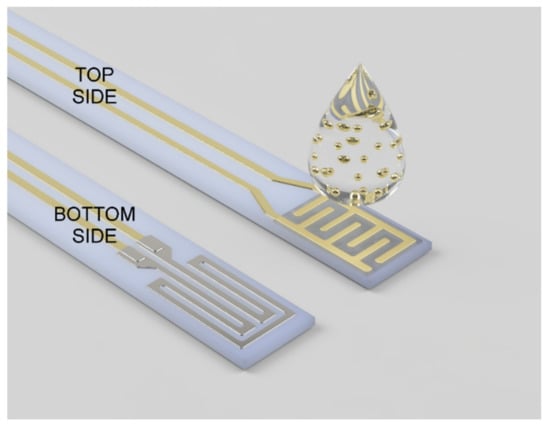

Figure 1. A render of the top and bottom layer of the ceramic substrate. The β-Ga2O3 epitaxial layer grown on the gold interdigitated electrodes was later impregnated with an aqueous colloidal solution of Au nanoparticles. The platinum heater made on the bottom of the substrate was covered with a thick dielectric film (not shown in the figure).
Figure 1. A render of the top and bottom layer of the ceramic substrate. The β-Ga2O3 epitaxial layer grown on the gold interdigitated electrodes was later impregnated with an aqueous colloidal solution of Au nanoparticles. The platinum heater made on the bottom of the substrate was covered with a thick dielectric film (not shown in the figure).
Sensors 22 00932 g001

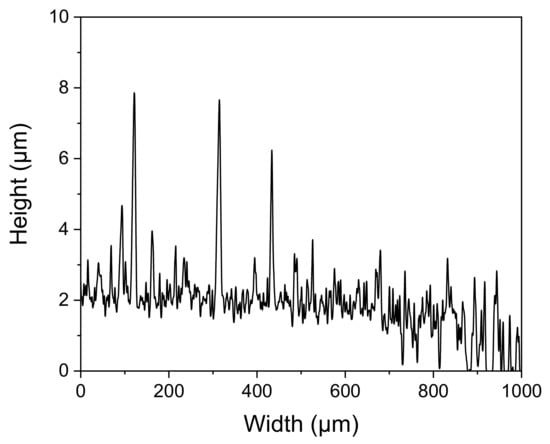

Figure 2. Profile of the surface of the β-Ga2O3 layer grown on the Si/SiO2 substrate.
Figure 2. Profile of the surface of the β-Ga2O3 layer grown on the Si/SiO2 substrate.
Sensors 22 00932 g002
Figure 3. Microstructure of the surface of gallium oxide epitaxial layer: (a) under ×30 magnification. Gold interdigitated electrodes are visible under the epitaxial layer; (b) under ×1000 magnification; (c) under ×5000 magnification; (d) under ×10,000 magnification.
Figure 3. Microstructure of the surface of gallium oxide epitaxial layer: (a) under ×30 magnification. Gold interdigitated electrodes are visible under the epitaxial layer; (b) under ×1000 magnification; (c) under ×5000 magnification; (d) under ×10,000 magnification.
Sensors 22 00932 g003
Figure 4. X-ray diffractogram of β-Ga2O3 epitaxial layer.
Figure 4. X-ray diffractogram of β-Ga2O3 epitaxial layer.
Sensors 22 00932 g004
Figure 5. Size-Strain plot.
Figure 5. Size-Strain plot.
Sensors 22 00932 g005
Figure 6. (a) XPS survey spectra of β-Ga2O3 epitaxial layer before and after impregnation with Au nanoparticles; (b) concentration of atoms present on the analyzed surfaces.
Figure 6. (a) XPS survey spectra of β-Ga2O3 epitaxial layer before and after impregnation with Au nanoparticles; (b) concentration of atoms present on the analyzed surfaces.
Sensors 22 00932 g006
Figure 7. XPS spectra in the O1s region of: (a) unmodified β-Ga2O3 epitaxial layer; (b) β-Ga2O3 epitaxial layer modified with Au nanoparticles.
Figure 7. XPS spectra in the O1s region of: (a) unmodified β-Ga2O3 epitaxial layer; (b) β-Ga2O3 epitaxial layer modified with Au nanoparticles.
Sensors 22 00932 g007
Figure 8. XPS spectra in the Ga2p region of β-Ga2O3 epitaxial layer before and after impregnation with Au nanoparticles.
Figure 8. XPS spectra in the Ga2p region of β-Ga2O3 epitaxial layer before and after impregnation with Au nanoparticles.
Sensors 22 00932 g008
Figure 9. Electric equivalent circuits: (a) model of β-Ga2O3 epitaxial layer grown on Au interdigitated electrodes on Al2O3 substrate; (b) parallel RC connection used to analyze changes of the capacitance of the measured system in the frequency range below 10 Hz.
Figure 9. Electric equivalent circuits: (a) model of β-Ga2O3 epitaxial layer grown on Au interdigitated electrodes on Al2O3 substrate; (b) parallel RC connection used to analyze changes of the capacitance of the measured system in the frequency range below 10 Hz.
Sensors 22 00932 g009
Figure 10. Impedance spectra measured at 750 °C of the β-Ga2O3 epitaxial layer before and after its modification with Au nanoparticles, in the atmosphere of air, nitrogen, and 16 ppm of dimethyl sulfide. Dashed lines represent the equivalent model fitting.
Figure 10. Impedance spectra measured at 750 °C of the β-Ga2O3 epitaxial layer before and after its modification with Au nanoparticles, in the atmosphere of air, nitrogen, and 16 ppm of dimethyl sulfide. Dashed lines represent the equivalent model fitting.
Sensors 22 00932 g010
Figure 11. The conductance of the unmodified β-Ga2O3 epitaxial layer as a function of dimethyl sulfide concentration in the air (T ≈ 20 °C, RH ≈ 35%).
Figure 11. The conductance of the unmodified β-Ga2O3 epitaxial layer as a function of dimethyl sulfide concentration in the air (T ≈ 20 °C, RH ≈ 35%).
Sensors 22 00932 g011
Figure 12. Conductance of β-Ga2O3 epitaxial layer, before and after its modification with Au nanoparticles, in the atmosphere of air, nitrogen, and air containing 16 ppm of dimethyl sulfide.
Figure 12. Conductance of β-Ga2O3 epitaxial layer, before and after its modification with Au nanoparticles, in the atmosphere of air, nitrogen, and air containing 16 ppm of dimethyl sulfide.
Sensors 22 00932 g012
Figure 13. Low frequency capacitance of the parallel RC electric equivalent circuit of: (a) unmodified β-Ga2O3 epitaxial layer; (b) β-Ga2O3 epitaxial layer modified with Au nanoparticles. Data is smoothed with four-point adjacent-averaging.
Figure 13. Low frequency capacitance of the parallel RC electric equivalent circuit of: (a) unmodified β-Ga2O3 epitaxial layer; (b) β-Ga2O3 epitaxial layer modified with Au nanoparticles. Data is smoothed with four-point adjacent-averaging.
Sensors 22 00932 g013

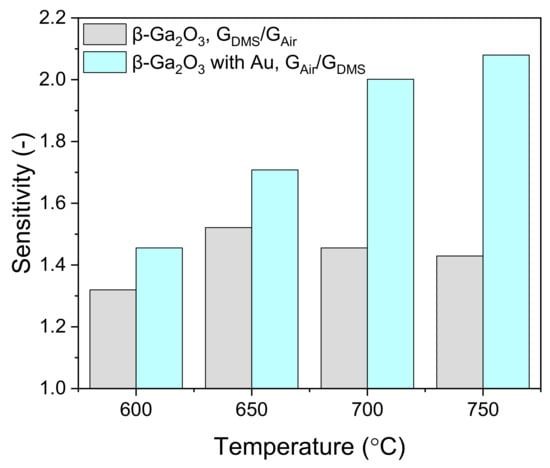

Figure 14. Sensitivity to 16 ppm of dimethyl sulfide of the unmodified and the modified β-Ga2O3 layer. The response of the β-Ga2O3 layer modified with Au nanoparticles is inversed; therefore, to keep the sensitivity greater than 1, the formula is also inversed (i.e., S = GAir/GDMS).
Figure 14. Sensitivity to 16 ppm of dimethyl sulfide of the unmodified and the modified β-Ga2O3 layer. The response of the β-Ga2O3 layer modified with Au nanoparticles is inversed; therefore, to keep the sensitivity greater than 1, the formula is also inversed (i.e., S = GAir/GDMS).
Sensors 22 00932 g014
Figure 15. (a) Internal depleted layer at the β-Ga2O3/Au phase boundary; (b) corresponding band diagram; Einv—energy of the inversion level, EF—energy of the Fermi level, EC—energy of the lower edge of the conduction band, EV—energy of the upper edge of the valence band, LD—width of the depleted layer, dinv—width of the inversion layer, ○—holes, ●—electrons, eVS—height of the potential barrier at the surface of the grain.
Figure 15. (a) Internal depleted layer at the β-Ga2O3/Au phase boundary; (b) corresponding band diagram; Einv—energy of the inversion level, EF—energy of the Fermi level, EC—energy of the lower edge of the conduction band, EV—energy of the upper edge of the valence band, LD—width of the depleted layer, dinv—width of the inversion layer, ○—holes, ●—electrons, eVS—height of the potential barrier at the surface of the grain.
Sensors 22 00932 g015
Figure 16. (a) SEM/EDS image of the surface of the β-Ga2O3 layer; (b) distribution map of Au nanoparticles on the surface of the β-Ga2O3 layer. Determined by the EDS method.
Figure 16. (a) SEM/EDS image of the surface of the β-Ga2O3 layer; (b) distribution map of Au nanoparticles on the surface of the β-Ga2O3 layer. Determined by the EDS method.
Sensors 22 00932 g016
Table 1. Oxygen bonds’ atomic concentration in O1s region.
Table 1. Oxygen bonds’ atomic concentration in O1s region.
Oxygen BondsUnmodified β-Ga2O3β-Ga2O3 Impregnated with Au Nanoparticles
Ga-O5.68%4.61%
O-C, O=C19.30%17.48%
OH- 1.94%4.54%
Table 2. The value of the activation energy Ea of β-Ga2O3 layers in various atmospheres.
Table 2. The value of the activation energy Ea of β-Ga2O3 layers in various atmospheres.
Atmosphere CompositionUnmodified β-Ga2O3β-Ga2O3 Impregnated with Au Nanoparticles
Ambient air(1.11 ± 0.07) eV(0.97 ± 0.03) eV
Dry nitrogen(0.86 ± 0.03) eV(0.92 ± 0.03) eV
Ambient air + 16 ppm
dimethyl sulfide
(1.14 ± 0.03) eV(0.78 ± 0.05) eV
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Krawczyk, M.; Korbutowicz, R.; Szukiewicz, R.; Suchorska-Woźniak, P.; Kuchowicz, M.; Teterycz, H. P-type Inversion at the Surface of β-Ga2O3 Epitaxial Layer Modified with Au Nanoparticles. Sensors 2022, 22, 932. https://doi.org/10.3390/s22030932

AMA Style

Krawczyk M, Korbutowicz R, Szukiewicz R, Suchorska-Woźniak P, Kuchowicz M, Teterycz H. P-type Inversion at the Surface of β-Ga2O3 Epitaxial Layer Modified with Au Nanoparticles. Sensors. 2022; 22(3):932. https://doi.org/10.3390/s22030932

Chicago/Turabian Style

Krawczyk, Maciej, Ryszard Korbutowicz, Rafał Szukiewicz, Patrycja Suchorska-Woźniak, Maciej Kuchowicz, and Helena Teterycz. 2022. "P-type Inversion at the Surface of β-Ga2O3 Epitaxial Layer Modified with Au Nanoparticles" Sensors 22, no. 3: 932. https://doi.org/10.3390/s22030932

APA Style

Krawczyk, M., Korbutowicz, R., Szukiewicz, R., Suchorska-Woźniak, P., Kuchowicz, M., & Teterycz, H. (2022). P-type Inversion at the Surface of β-Ga2O3 Epitaxial Layer Modified with Au Nanoparticles. Sensors, 22(3), 932. https://doi.org/10.3390/s22030932

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
