Estimating Congestion in a Fixed-Route Bus by Using BLE Signals
Abstract
:1. Introduction
- We propose a BLE-based congestion estimation system that protects the privacy of passengers while reducing the cost of installation.
- We propose new features of learning models for estimating congestion of public route buses.
- Our estimation model, which is trained data from real-world experiments, achieves high accuracy for practical use.
2. Related Work
2.1. Estimating the Number of Passengers
2.2. Congestion Estimation Using BLE Signals
2.3. Positioning of This Research
3. Proposed System
3.1. System Requirements
- Collection of data that does not include passenger privacy information
- Reduction of the installation cost of sensing devices

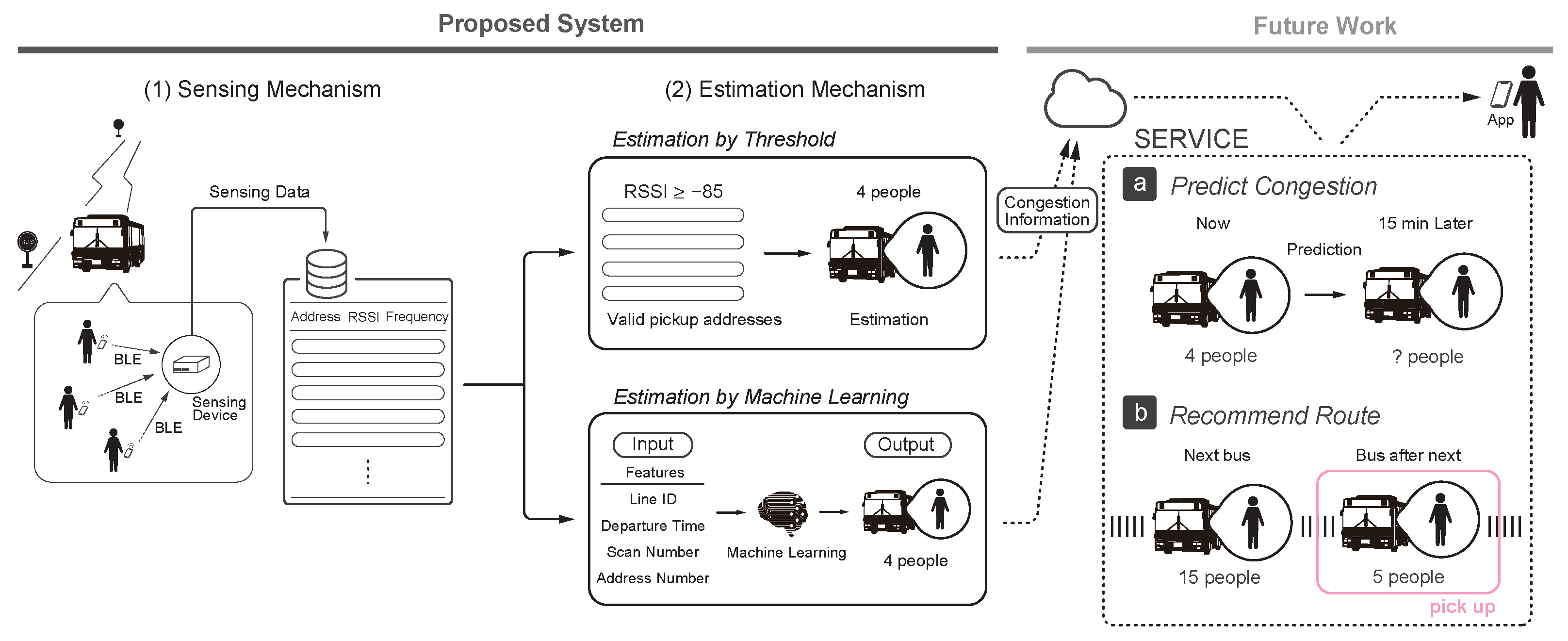

3.2. Overview of the Proposed System
3.3. System Design
- (1)
- Sensing Mechanism
- (2)
- Estimation Mechanism
4. Implementing the Data Collection Device
4.1. Implementation Overview

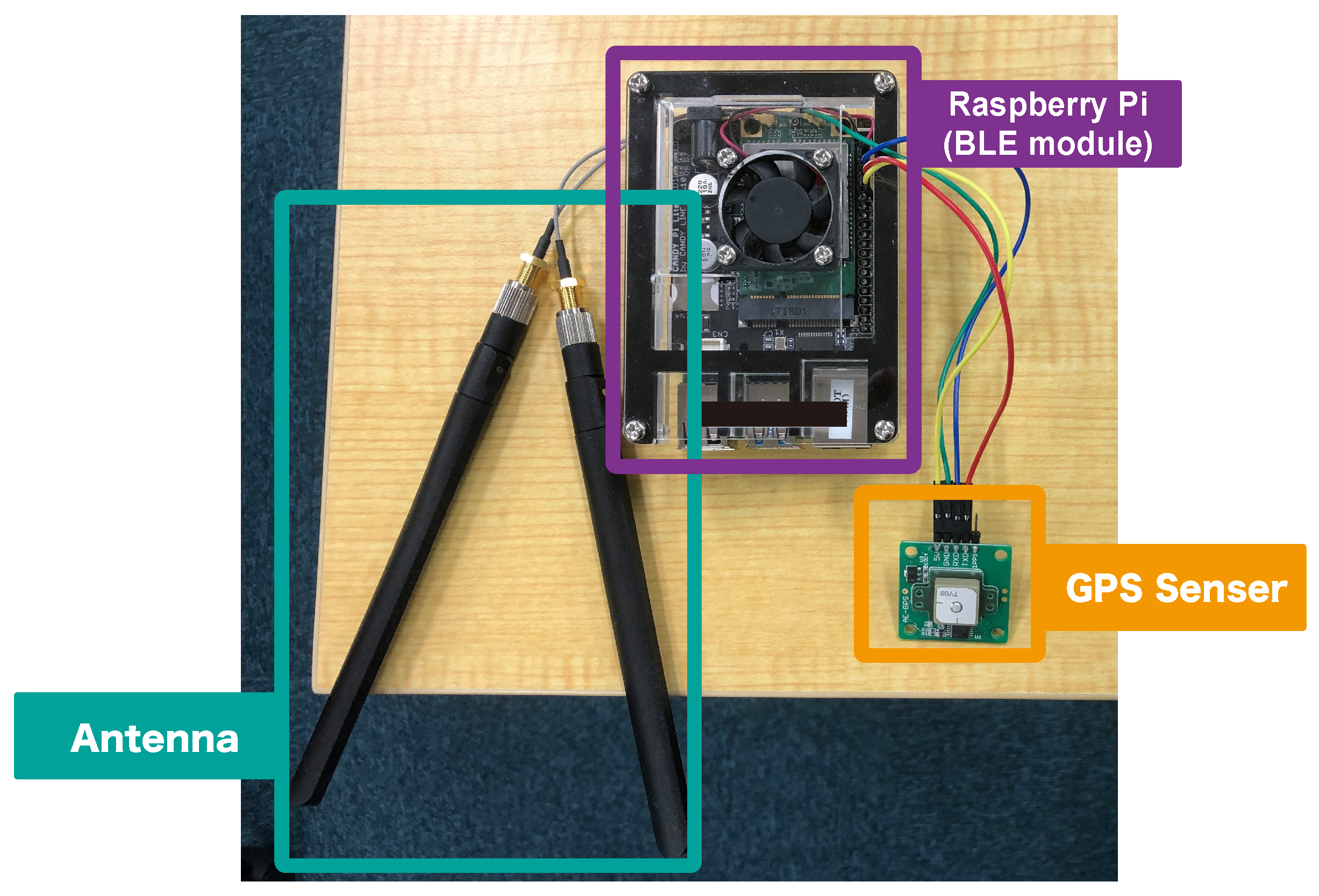

4.2. Sensing Device

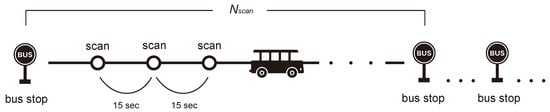

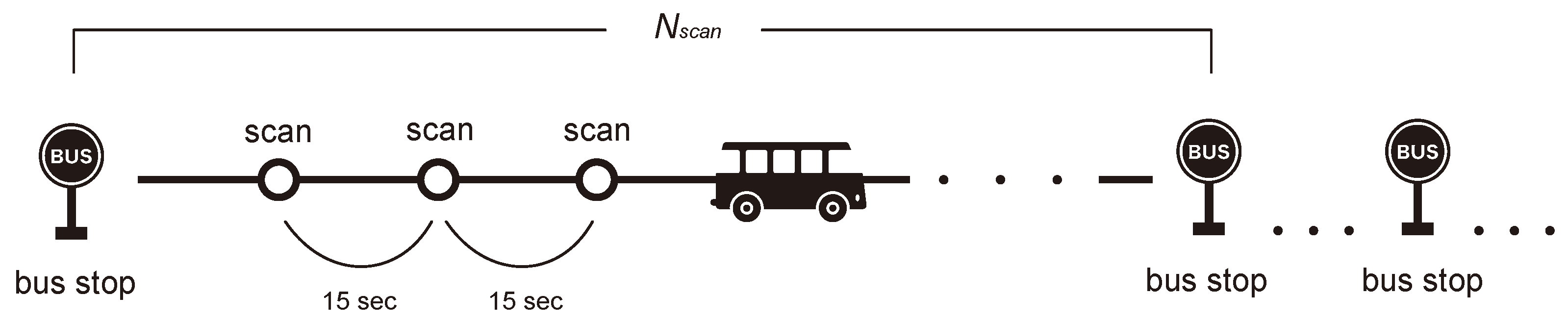

4.3. Sensing Process
5. Data Collection Experiment

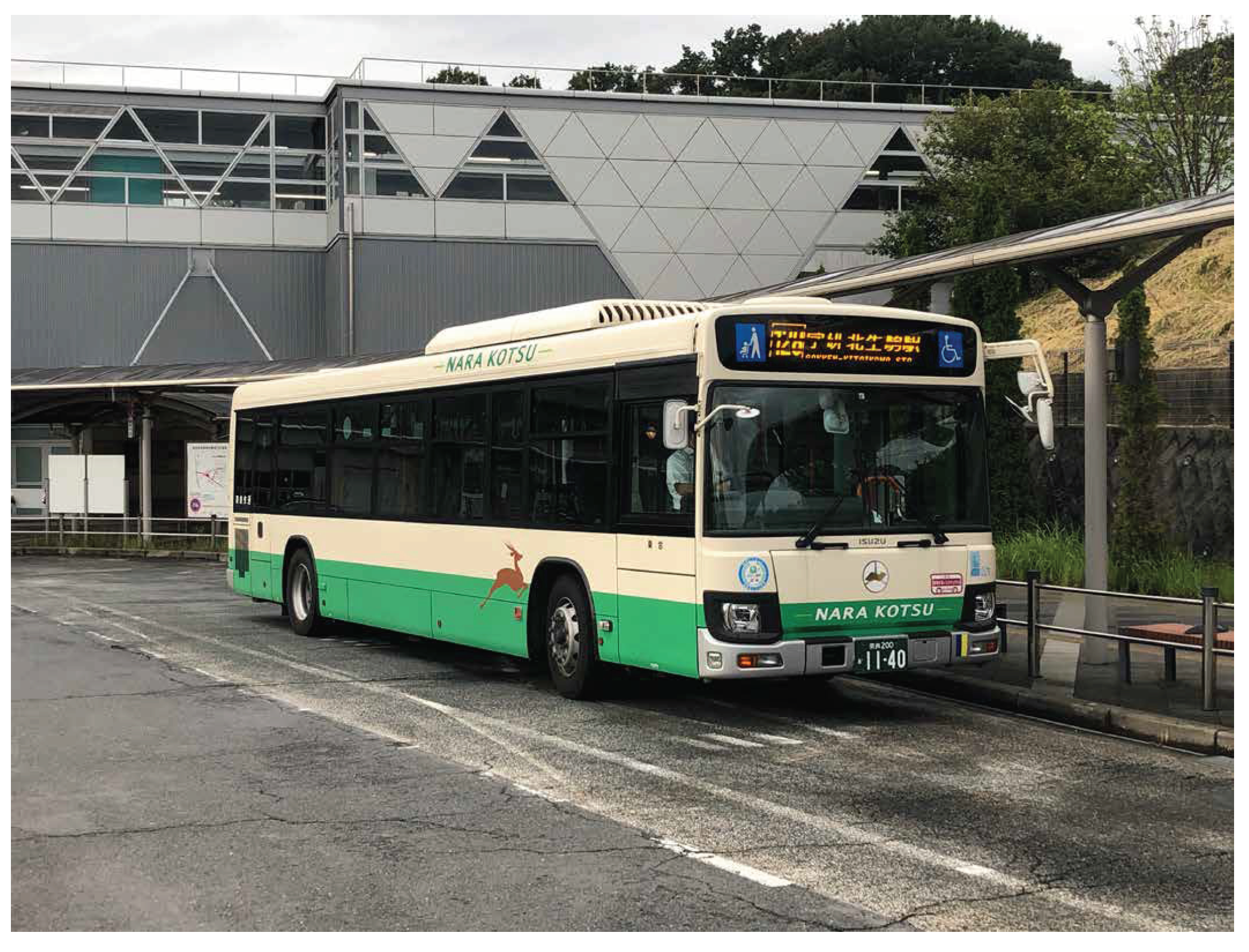

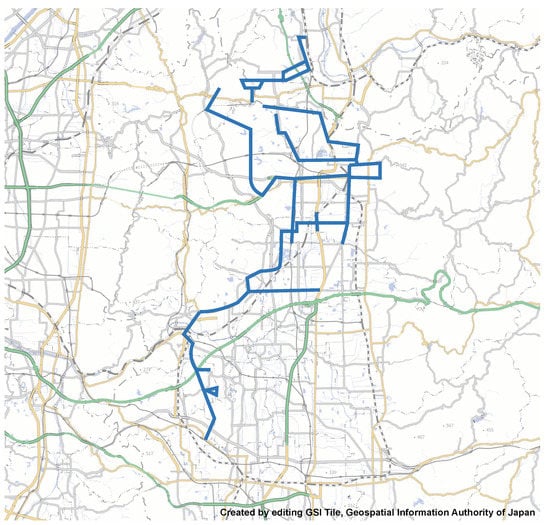

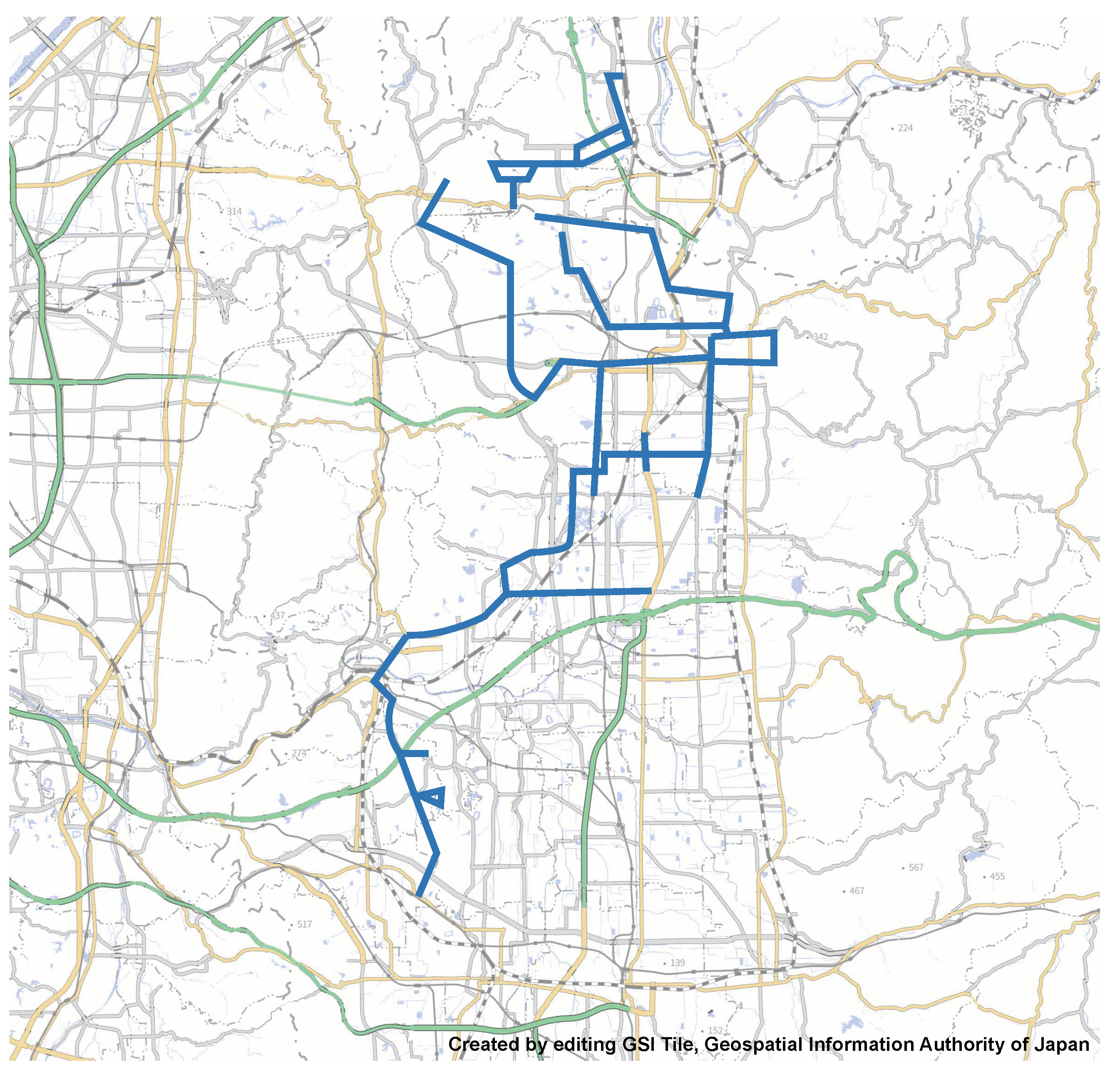

5.1. Experiment Overview
5.2. Results of the Experiment
6. Estimation and Evaluation

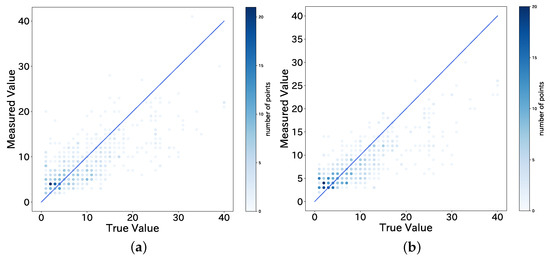

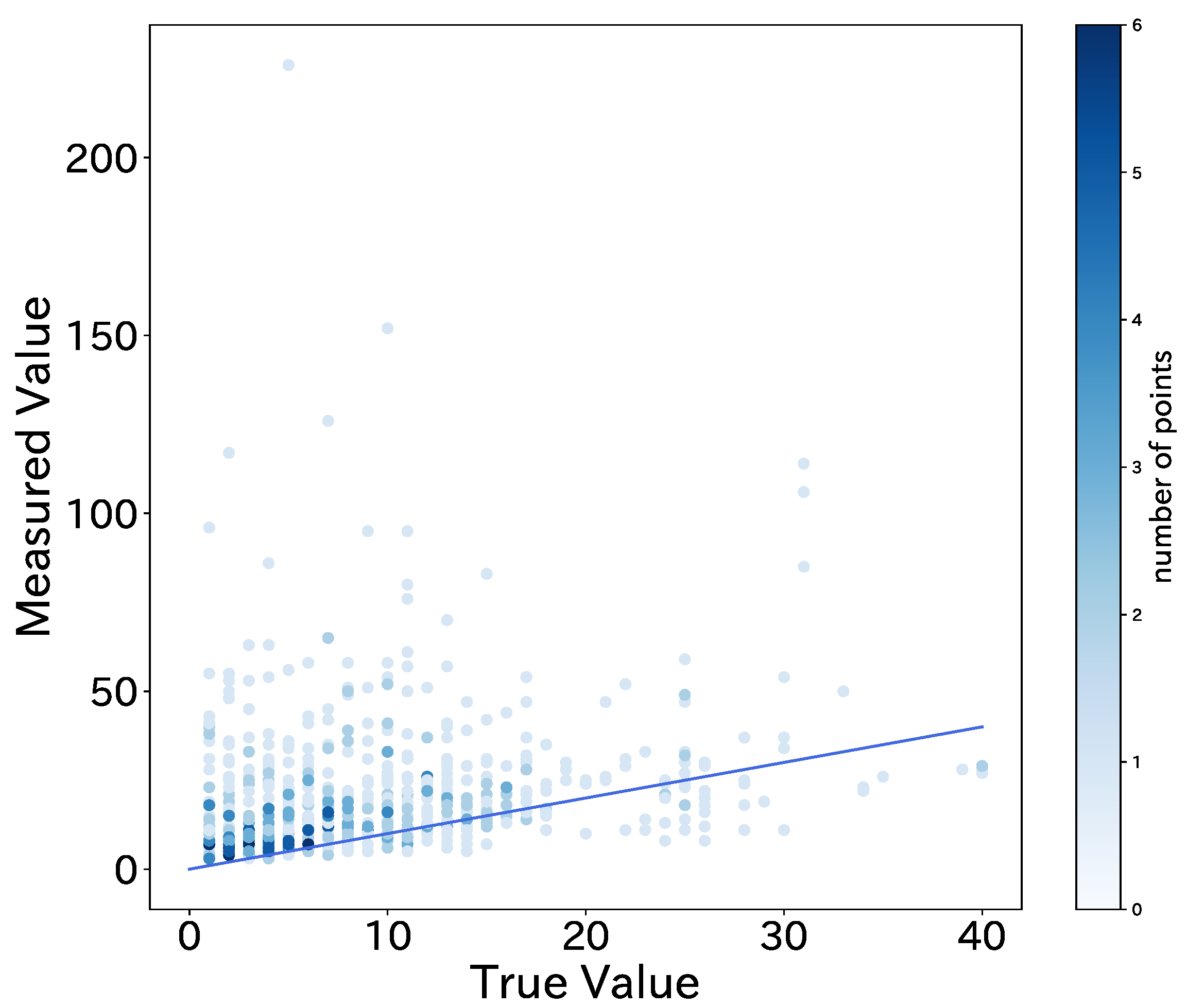

6.1. Estimation by Threshold

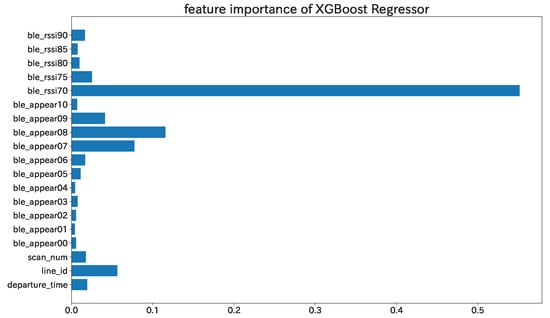

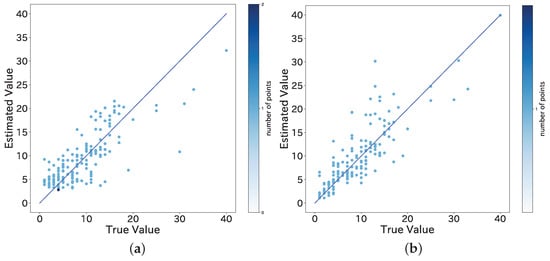

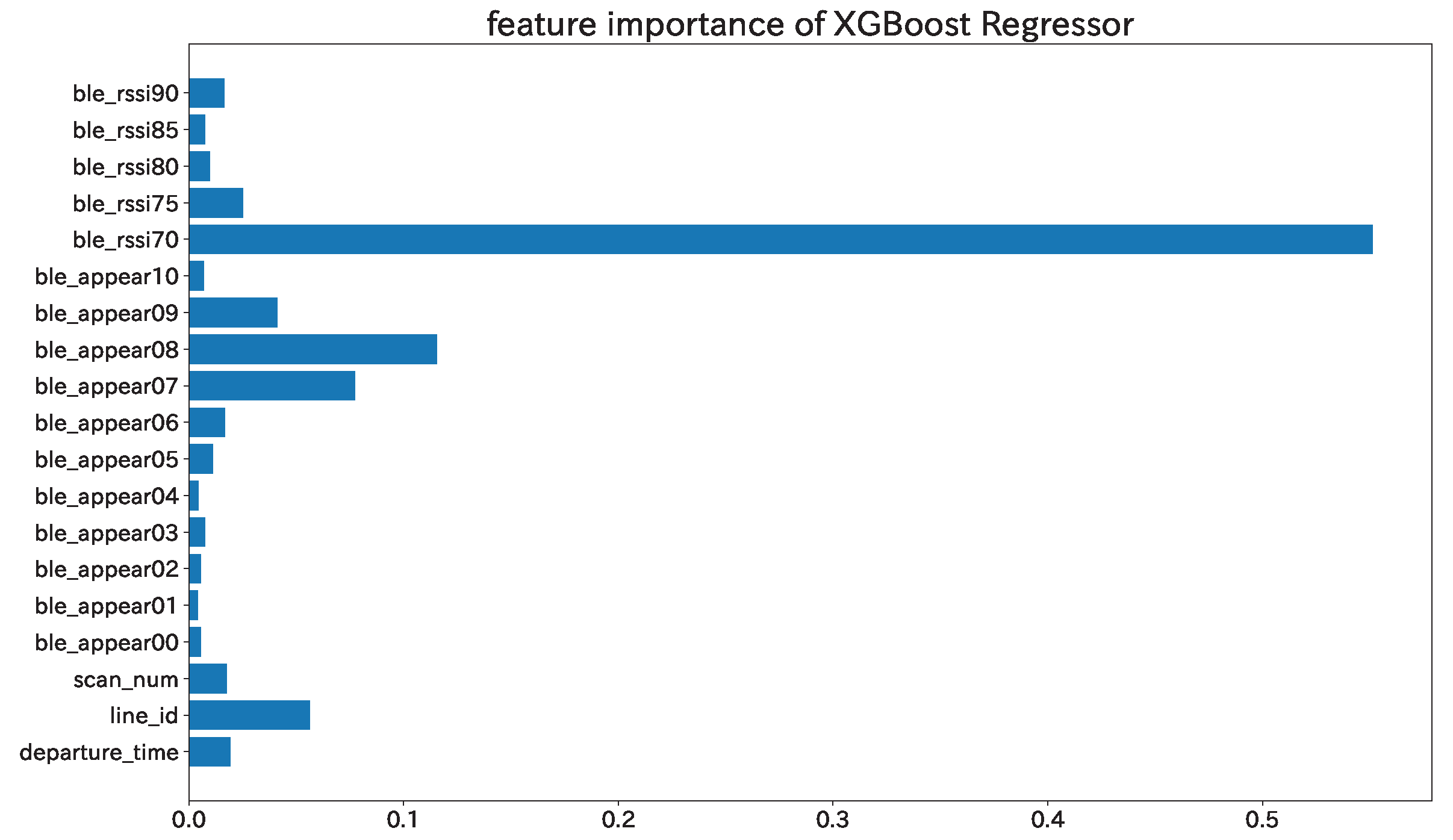

6.2. Estimation by Machine Learning Models
7. Discussion
8. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Hsu, Y.W.; Chen, Y.W.; Perng, J.W. Estimation of the Number of Passengers in a Bus Using Deep Learning. Sensors 2020, 20, 2178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Yamada, Y.; Hiromori, A.; Yamaguchi, H.; Higashino, T. Development of Bus Passenger Counter Using LiDAR Sensors. IPSJ J. Inf. Process. Soc. Jpn. 2019, 60, 934–944. (In Japanese) [Google Scholar]
- Draghici, A.; Steen, M.V. A Survey of Techniques for Automatically Sensing the Behavior of a Crowd. ACM Comput. Surv. 2018, 51, 1–40. [Google Scholar] [CrossRef] [Green Version]
- Abedi, N.; Bhaskar, A.; Chung, E. Bluetooth and Wi-Fi MAC address based crowd collection and monitoring: Benefits, challenges and enhancement. In Proceedings of the Australasian Transport Research Forum 2013 Proceedings, Australasian Transport Research Forum, Brisbane, Australia, 2–4 October 2013; pp. 1–17. [Google Scholar]
- Del Pizzo, L.; Foggia, P.; Greco, A.; Percannella, G.; Vento, M. A versatile and effective method for counting people on either RGB or depth overhead cameras. In Proceedings of the 2015 IEEE International Conference on Multimedia & Expo Workshops (ICMEW), Turin, Italy, 29 June–3 July 2015; pp. 1–6. [Google Scholar]
- Pore, S.D.; Momin, B. Bidirectional people counting system in video surveillance. In Proceedings of the 2016 IEEE International Conference on Recent Trends in Electronics, Information & Communication Technology (RTEICT), Bangalore, India, 20–21 May 2016; pp. 724–727. [Google Scholar]
- Kannan, P.G.; Venkatagiri, S.P.; Chan, M.C.; Ananda, A.L.; Peh, L.S. Low cost crowd counting using audio tones. In Proceedings of the 10th ACM Conference on Embedded Network Sensor Systems, Toronto, ON, Canada, 6–9 November 2012; pp. 155–168. [Google Scholar]
- Chan, A.B.; Liang, Z.S.J.; Vasconcelos, N. Privacy preserving crowd monitoring: Counting people without people models or tracking. In Proceedings of the 2008 IEEE Conference on Computer Vision and Pattern Recognition, Anchorage, AK, USA, 23–28 June 2008; pp. 1–7. [Google Scholar]
- Nishimura, T.; Higuchi, T.; Yamaguchi, H.; Higashino, T. Detecting Smoothness of Pedestrian Flows by Participatory Sensing with Mobile Phones. In Proceedings of the 2014 ACM International Symposium on Wearable Computers (ISWC ’14), Seattle, WA, USA, 13–17 September 2014; pp. 15–18. [Google Scholar] [CrossRef]
- Wada, Y.; Higuchi, T.; Yamaguchi, H.; Higashino, T. Accurate positioning of mobile phones in a crowd using laser range scanners. In Proceedings of the 2013 IEEE 9th International Conference on Wireless and Mobile Computing, Networking and Communications (WiMob), Lyon, France, 7–9 October 2013; pp. 430–435. [Google Scholar] [CrossRef]
- Fu, M.; Xu, P.; Li, X.; Liu, Q.; Ye, M.; Zhu, C. Fast crowd density estimation with convolutional neural networks. Eng. Appl. Artif. Intell. 2015, 43, 81–88. [Google Scholar] [CrossRef]
- Li, G.; Chen, C.J.; Peng, W.; Yi, C. Estimating Crowd Flow and Crowd Density from Cellular Data for Mass Rapid Transit. In Proceedings of the 6th International Workshop on Urban Computing (UrbComp), Halifax, NS, Canada, 14 August 2017; pp. 18–30. [Google Scholar]
- Nagao, K.; Yanagisawa, D.; Nishinari, K. Estimation of crowd density applying wavelet transform and machine learning. Phys. A Stat. Mech. Appl. 2018, 510, 145–163. [Google Scholar] [CrossRef] [Green Version]
- Song, H.; Liu, X.; Zhang, X.; Hu, J. Real-time monitoring for crowd counting using video surveillance and GIS. In Proceedings of the 2012 2nd International Conference on Remote Sensing, Environment and Transportation Engineering, Nanjing, China, 1–3 June 2012; pp. 1–4. [Google Scholar]
- Takayanagi, H.; Sano, T.; Watanabe, H. A study on the pedestrian occupied territory in the crossing flow: The analysis with pedestrian territory model. J. Archit. Plan. (Trans. AIJ) 2001, 66, 185–191. [Google Scholar] [CrossRef] [Green Version]
- Su, H.; Yang, H.; Zheng, S. The large-scale crowd density estimation based on effective region feature extraction method. In Proceedings of the 10th Asian Conference on Computer Vision (ACCV), Queenstown, New Zealand, 8–12 November 2010; pp. 302–313. [Google Scholar] [CrossRef]
- Bauer, D.; Ray, M.; Seer, S. Simple sensors used for measuring service times and counting pedestrians: Strengths and weaknesses. Transp. Res. Rec. 2011, 2214, 77–84. [Google Scholar] [CrossRef]
- Qian, H.b.; Han, H. The Applications and Methods of Pedestrian Automated Detection. In Proceedings of the 2010 International Conference on Measuring Technology and Mechatronics Automation, Changsha, China, 13–14 March 2010; Volume 3, pp. 806–809. [Google Scholar] [CrossRef]
- Yang, H.; Ozbay, K.; Bartin, A. Investigating the Performance of Automatic Counting Sensors for Pedestrian Traffic Data Collection. In Proceedings of the 12th World Conference on Transport Research (WCTR), Lisbon, Portugal, 11–15 July 2010; Volume 1115, pp. 1–11. [Google Scholar]
- Greene-Roesel, R.; Diogenes, M.C.; Ragland, D.R.; Lindau, L.A. Effectiveness of a Commercially Available Automated Pedestrian Counting Device in Urban Environments: Comparison with Manual Counts; Institute of Transportation Studies: Berkeley, CA, USA, 2008; pp. 1–16. [Google Scholar]
- Scheunert, U.; Cramer, H.; Fardi, B.; Wanielik, G. Multi sensor based tracking of pedestrians: A survey of suitable movement models. In Proceedings of the 2004 IEEE Intelligent Vehicles Symposium (IV), Parma, Italy, 14–17 June 2004; pp. 774–778. [Google Scholar] [CrossRef]
- Handte, M.; Foell, S.; Wagner, S.; Kortuem, G.; Marrón, P.J. An internet-of-things enabled connected navigation system for urban bus riders. IEEE Internet Things J. 2016, 3, 735–744. [Google Scholar] [CrossRef]
- Jackson, S.; Lesani, A.; Miranda-Moreno, L. Toward a WIFI system for traffic monitoring in different transportation facilities. In Proceedings of the Transportation Research Board 93rd Annual Meeting, Washington, DC, USA, 12–16 January 2014. [Google Scholar]
- Hidayat, A.; Terabe, S.; Yaginuma, H. WiFi scanner technologies for obtaining travel data about circulator bus passengers: Case study in Obuse, Nagano prefecture, Japan. Transp. Res. Rec. 2018, 2672, 45–54. [Google Scholar] [CrossRef]
- Hidayat, A.; Terabe, S.; Yaginuma, H. Estimating bus passenger volume based on a Wi-Fi scanner survey. Transp. Res. Interdiscip. Perspect. 2020, 6, 100142. [Google Scholar] [CrossRef]
- Schauer, L.; Werner, M.; Marcus, P. Estimating Crowd Densities and Pedestrian Flows Using Wi-Fi and Bluetooth. In Proceedings of the 11th International Conference on Mobile and Ubiquitous Systems: Computing, Networking and Services (MOBIQUITOUS’ 14), London, UK, 2–5 December 2014; pp. 171–177. [Google Scholar] [CrossRef] [Green Version]
- Lesani, A.; Miranda-Moreno, L. Development and testing of a real-time WiFi-bluetooth system for pedestrian network monitoring, classification, and data extrapolation. IEEE Trans. Intell. Transp. Syst. 2018, 20, 1484–1496. [Google Scholar] [CrossRef]
- Umeki, K.; Nakamura, Y.; Fujimoto, M.; Arakawa, Y.; Yasumoto, K. Real-Time Congestion Estimation in Sightseeing Spots with BLE Devices. In Proceedings of the 2018 IEEE International Conference on Pervasive Computing and Communications Workshops (PerCom Workshops), Athens, Greece, 19–23 March 2018; pp. 430–432. [Google Scholar]
- Weppner, J.; Lukowicz, P. Bluetooth based collaborative crowd density estimation with mobile phones. In Proceedings of the 2013 IEEE international conference on pervasive computing and communications (PerCom), San Diego, CA, USA, 18–22 March 2013; pp. 193–200. [Google Scholar]
- Kostakos, V.; Camacho, T.; Mantero, C. Towards proximity-based passenger sensing on public transport buses. Pers. Ubiquitous Comput. 2013, 17, 1807–1816. [Google Scholar] [CrossRef] [Green Version]
- Weppner, J.; Lukowicz, P. Collaborative crowd density estimation with mobile phones. In Proceedings of the 2nd International Workshop on Sensing Applications on Mobile Phones (PhoneSense), Seattle, WA, USA, 1–4 November 2011; pp. 1–5. [Google Scholar]
- Ji, M.; Kim, J.; Jeon, J.; Cho, Y. Analysis of positioning accuracy corresponding to the number of BLE beacons in indoor positioning system. In Proceedings of the 2015 17th International Conference on Advanced Communication Technology (ICACT), Pyeongchang, Korea, 1–3 July 2015; pp. 92–95. [Google Scholar] [CrossRef]
- Ma, Z.; Poslad, S.; Bigham, J.; Zhang, X.; Men, L. A BLE RSSI ranking based indoor positioning system for generic smartphones. In Proceedings of the 2017 Wireless Telecommunications Symposium (WTS), Chicago, IL, USA, 26–28 April 2017; pp. 1–8. [Google Scholar] [CrossRef]
Domain | Subject | Sensor | Privacy | Number of Sensors | Location Constraints | Estimate | |
---|---|---|---|---|---|---|---|
[26] | indoor | pedestrian flow | BLE | ◯ | 1 | △ | correlation |
[27] | outdoor | pedestrian flow | Wi-Fi | △ | 3 | △ | correlation |
[28] | outdoor | congestion | BLE | ◯ | 2 | △ | classification |
[29] | outdoor | congestion | BLE | ◯ | 2 | △ | classification |
[30] | bus | onboard devices | BLE | ◯ | 1 | △ | correlation |
Proposed | bus | number of passengers | BLE | ◯ | 1 | ◯ | regression |
BD Address | The Mean Value of RSSI | The Frequency of Occurrence |
---|---|---|
00:00:5e:00:53:1a | −78.5 | 25 |
00:00:5e:00:53:38 | −90.0 | 100 |
00:00:5e:00:53:90 | −56.4 | 75 |
… | … | … |
Departure Time | Bus Stop | Number1 | Number2 |
---|---|---|---|
08:52 | Gakken Nara Tomigaoka | 25 | 4 |
08:54 | Kita Tomigaoka Ittyoume | 25 | 4 |
08:55 | Higashi Tomigaoka Yontyoume | 25 | 5 |
08:56 | Higashi Tomigaoka Gotyoume | 25 | 6 |
08:57 | Higashi Tomigaoka Rokutyoume | 51 | 7 |
08:58 | Tomigaoka Rokutyoume Higashi | 104 | 8 |
09:00 | Oshikuma/Jinkou | 75 | 11 |
09:02 | Seika Sakuragaoka Santyoume | 40 | 15 |
09:03 | Kabutodai Santyoume | 44 | 15 |
09:04 | Kabutodai Nityoume | 51 | 15 |
09:05 | Kabutodai Ittyoume Nishi | 21 | 15 |
09:05 | Kabutodai Ittyoume | 78 | 15 |
Method | MAE | MAPE |
---|---|---|
All | 75.8 | 2182.5 |
Baseline (RSSI ≥ −74) | 3.9 | 77.3 |

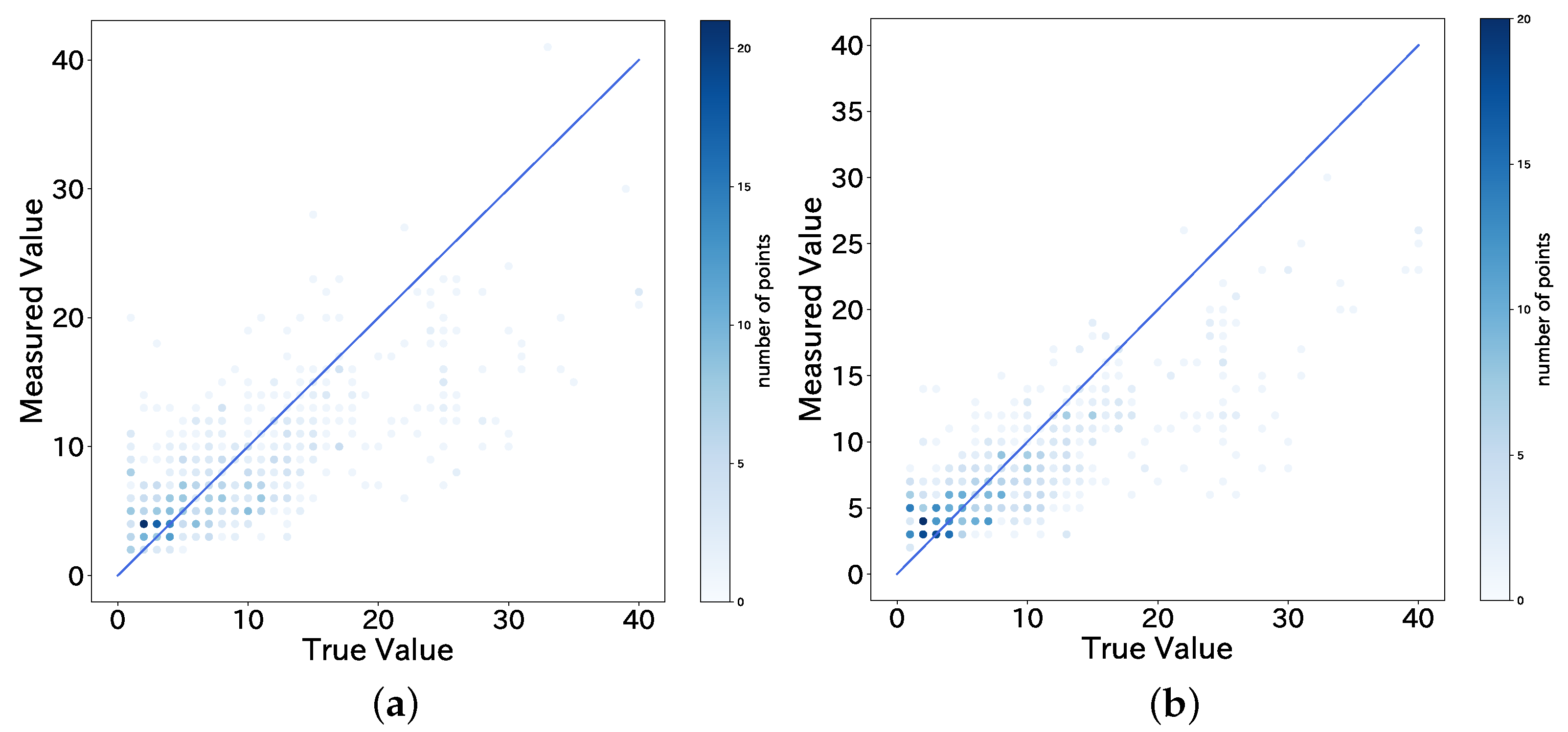

Proposed (RSSI ≥ −80, F ≥ 40%) | 3.4 | 61.4 |
ND | ||||
---|---|---|---|---|

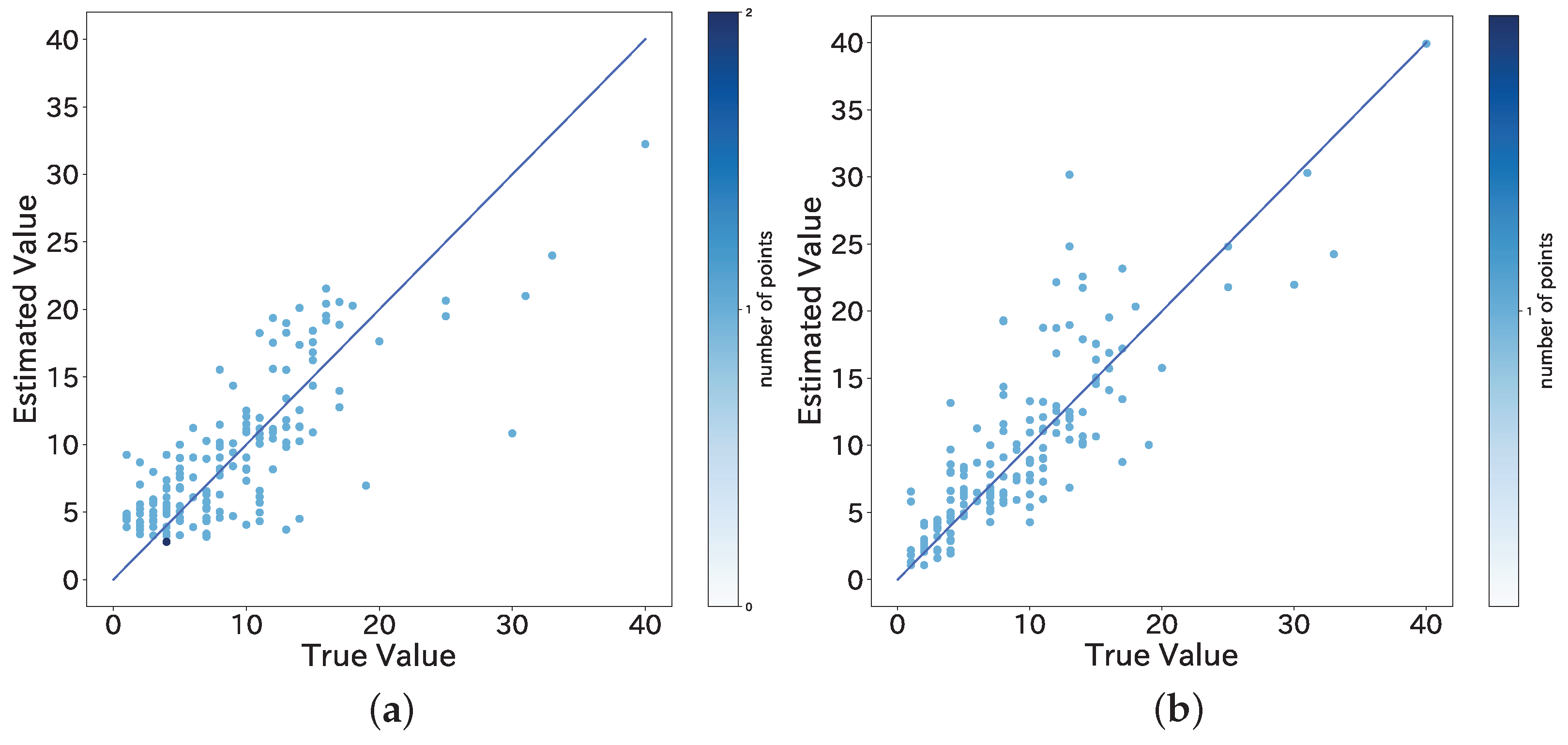

Model | MAE | MAPE | MAE | MAPE |
LR | 3.65 | 81.4 | 3.41 | 64.4 |
SVM | 3.09 | 66.5 | 2.97 | 44.7 |
RF | 2.93 | 63.1 | 2.54 | 47.7 |
XGB | 2.98 | 60.0 | 2.49 | 38.8 |
