# Localization of a Power-Modulated Jammer

^{*}

## Abstract

**:**

## 1. Introduction

**Contribution.**In this paper, we propose a new type of jammer, i.e., the power-modulated jammer. Our intuition is that a jammer that randomly changes its transmission power can make the localization process much harder (even impossible in some cases). In particular, after defining the power-modulated jammer model, we test a standard jammer (constant power) against a power-modulated jammer in the presence of a network of nodes running a classical localization technique, i.e., linear least square (LLS). Our findings confirm our intuition. In particular, we show that the power-modulated jammer—when compared against the constant-power jammer—makes the localization process particularly difficult, even in the presence of a high density of sensing nodes (10 nodes in a $40\times 40$ m area) and under conservative assumptions of the (shadow) fading process of the wireless channel ($\sigma <3$ dBm).

**Paper organization.**The remainder of this paper is organized as follows. In Section 2, we review background information and related work, while in Section 3, we introduce the system and the adversary model discussed in this work. In Section 4, we compare the new proposed jammer model (power modulated) with the classical one (constant-power) in terms of localization error. We provide a comprehensive discussion on the performance of the proposed jammer model and some potential mitigation technique in Section 5, while in Section 6, we draw conclusions and discuss future work.

## 2. Related Work

## 3. Scenario and Assumptions

**Path loss model.**We adopted the standard log-normal path loss model as depicted by Equation (1) where ${R}_{x}\left(t\right)$ is the received signal strength, ${T}_{x}\left(t\right)$ is the jamming power, $\gamma $ is the path loss exponent, and ${d}_{0}$ is a reference distance at which the path loss $PL\left({d}_{0}\right)$ is measured. Finally, ${X}_{\sigma}$ is a log-normal random variable with a mean $\mu =0$ and standard deviation $\sigma $ taking into account the shadowing effect of a flat-fading channel:

**Jamming power.**As previously mentioned, the jamming power is the result of a trade-off between the actual available transmission power of the jammer and the power requested to jam the whole area, i.e., the jammer wants to jam all the playground with a minimum amount of transmission power. Without loss of generality, we assume a node receiver sensitivity ${S}_{rx}$ is equal to ${S}_{rx}=-80$ dBm, and we dynamically set the minimum transmission power as a function of the deployment as depicted by Equation (2):

**Ranging.**Assuming the propagation model introduced by Equation (1), the approximated distance $\tilde{d}$ between the sensor and the jammer can be computed as described by Equation (3):

**Localization.**The estimated distances $\{{d}_{1},\dots ,{d}_{N}\}$ from the ranging process are combined to generate an approximated position for the jammer $[{x}_{J},{y}_{J}]$. We first compute a linearization of the problem by choosing one sensor (${x}_{N},{y}_{N}$) and its related distance to the jammer (${d}_{n}$) as a reference, and by subtracting it to the $n-1$ equations obtaining a system of $n-1$ equations in the form $Az=b$, yielding:

#### Constant and Power-Modulated Jammer

## 4. Jammer Localization

## 5. Discussion

**Mitigation and future work.**Locating a power-modulated jammer turns out to be a challenging problem. A naive solution might involve an ultra-dense sensing network, but this solution might be impractical in many scenarios and not scaling up with the area to be protected by the action of the jammer. All our considerations mainly focus on sensing devices featuring an isotropic antenna. While this set-up is very effective in the localization of a standard transmitter (such as a constant jammer), it turns out to be much less ineffective against a power-modulated jammer. Conversely, a directive antenna might be much more effective for determining the direction of the jamming signal, thus making multiple collaborating directive antennas able to effectively locate the power-modulated jammer. We observe how, in this case, the localization algorithm should not be based on multilateration but on triangulation. Another consideration might be concerned with detecting the actual presence of a power-modulated jammer in order to subsequently deploy an ad hoc strategy for its localization. Indeed, we can assume that the sensing nodes monitor the spectrum, and they can detect and identify the jamming signal. The sensing nodes might be able to model the random process behind the power-modulation, thus pre-conditioning the input to the localization algorithm. Finally, we would like to highlight that different localization algorithms might be affected in different ways by the modulated jammer—and in turn, the associated localization error. Our contribution aims at defining the theoretical framework for a new jammer strategy willing to evade the localization process. The choice of proper localization algorithm is only one of the parameters that can mitigate the evasion and we leave this wider discussion to future works.

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, L.; Ren, J.; Li, T. Time-Varying Jamming Modeling and Classification. IEEE Trans. Signal Process.
**2012**, 60, 3902–3907. [Google Scholar] [CrossRef] - Sciancalepore, S.; Di Pietro, R. Bittransfer: Mitigating Reactive Jamming in Electronic Warfare Scenarios. IEEE Access
**2019**, 7, 156175–156190. [Google Scholar] [CrossRef] - Di Pietro, R.; Oligeri, G. GopJam: Key-less jamming mitigation via gossiping. J. Netw. Comput. Appl.
**2018**, 123, 57–68. [Google Scholar] [CrossRef] - Di Pietro, R.; Oligeri, G. Enabling broadcast communications in presence of jamming via probabilistic pairing. Comput. Netw.
**2017**, 116, 33–46. [Google Scholar] [CrossRef] - Di Pietro, R.; Oligeri, G. Freedom of speech: Thwarting jammers via a probabilistic approach. In Proceedings of the 8th ACM Conference on Security & Privacy in Wireless and Mobile Networks, New York, NY, USA, 22–26 June 2015; pp. 1–6. [Google Scholar]
- Di Pietro, R.; Oligeri, G. Silence is golden: Exploiting jamming and radio silence to communicate. ACM Trans. Inf. Syst. Secur. (TISSEC)
**2015**, 17, 1–24. [Google Scholar] [CrossRef] - Jameel, F.; Wyne, S.; Kaddoum, G.; Duong, T.Q. A Comprehensive Survey on Cooperative Relaying and Jamming Strategies for Physical Layer Security. IEEE Commun. Surv. Tutor.
**2018**, 21, 2734–2771. [Google Scholar] [CrossRef] [Green Version] - Wei, X.; Wang, Q.; Wang, T.; Fan, J. Jammer Localization in Multi-Hop Wireless Network: A Comprehensive Survey. IEEE Commun. Surv. Tutorials
**2017**, 19, 765–799. [Google Scholar] [CrossRef] - Pelechrinis, K.; Koutsopoulos, I.; Broustis, I.; Krishnamurthy, S.V. Lightweight Jammer Localization in Wireless Networks: System Design and Implementation. In Proceedings of the GLOBECOM 2009—2009 IEEE Global Telecommunications Conference, Honolulu, HI, USA, 30 November–4 December 2009; pp. 1–6. [Google Scholar]
- Wang, Q.; Wei, X.; Fan, J.; Wang, T.; Sun, Q. A step further of PDR-based jammer localization through dynamic power adaptation. In Proceedings of the 11th International Conference on Wireless Communications, Networking and Mobile Computing (WiCOM 2015), Shanghai, China, 21–23 September 2015; pp. 1–6. [Google Scholar]
- Kim, Y.S.; Mokaya, F.; Chen, E.; Tague, P. All your jammers belong to us—Localization of wireless sensors under jamming attack. In Proceedings of the 2012 IEEE International Conference on Communications (ICC), Ottawa, ON, Canada, 10–15 June 2012; pp. 949–954. [Google Scholar]
- Liu, Z.; Liu, H.; Xu, W.; Chen, Y. Exploiting Jamming-Caused Neighbor Changes for Jammer Localization. IEEE Trans. Parallel Distrib. Syst.
**2012**, 23, 547–555. [Google Scholar] [CrossRef] - Liu, H.; Wenyuan, X.; Chen, Y.; Liu, Z. Localizing jammers in wireless networks. In Proceedings of the 2009 IEEE International Conference on Pervasive Computing and Communications, Galveston, TX, USA, 9–13 March 2009; pp. 1–6. [Google Scholar]
- Liu, H.; Liu, Z.; Chen, Y.; Xu, W. Localizing Multiple Jamming Attackers in Wireless Networks. In Proceedings of the 2011 31st International Conference on Distributed Computing Systems, Minneapolis, MN, USA, 20–24 June 2011; pp. 517–528. [Google Scholar]
- Sun, Y.; Molva, R.; Önen, M.; Wang, X.; Zhou, X. Catch the Jammer in Wireless Sensor Network. In Proceedings of the 2011 IEEE 22nd International Symposium on Personal, Indoor and Mobile Radio Communications, Toronto, ON, Canada, 11–14 September 2011; pp. 1156–1160. [Google Scholar]
- Tedeschi, P.; Oligeri, G.; Di Pietro, R. Leveraging jamming to help drones complete their mission. IEEE Access
**2019**, 8, 5049–5064. [Google Scholar] [CrossRef] - Cheng, T.; Li, P.; Zhu, S. An Algorithm for Jammer Localization in Wireless Sensor Networks. In Proceedings of the 2012 IEEE 26th International Conference on Advanced Information Networking and Applications, Fukuoka, Japan, 26–29 March 2012; pp. 724–731. [Google Scholar]
- Cheng, T.; Li, P.; Zhu, S.; Torrieri, D. M-cluster and X-ray: Two methods for multi-jammer localization in wireless sensor networks. Integr. Comput.-Aided Eng.
**2014**, 21, 19–34. [Google Scholar] [CrossRef] [Green Version] - Bhamidipati, S.; Gao, G.X. Locating Multiple GPS Jammers Using Networked UAVs. IEEE Internet Things J.
**2019**, 6, 1816–1828. [Google Scholar] [CrossRef] - Liu, Z.; Liu, H.; Xu, W.; Chen, Y. Wireless Jamming Localization by Exploiting Nodes’ Hearing Ranges. In Distributed Computing in Sensor Systems; Rajaraman, R., Moscibroda, T., Dunkels, A., Scaglione, A., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 348–361. [Google Scholar]
- CRI-LAB. Open-source code of the implementation of Power Modulated Jammer. Available online: https://github.com/pietrotedeschi/power-modulated-jammer/ (accessed on 2 January 2022).

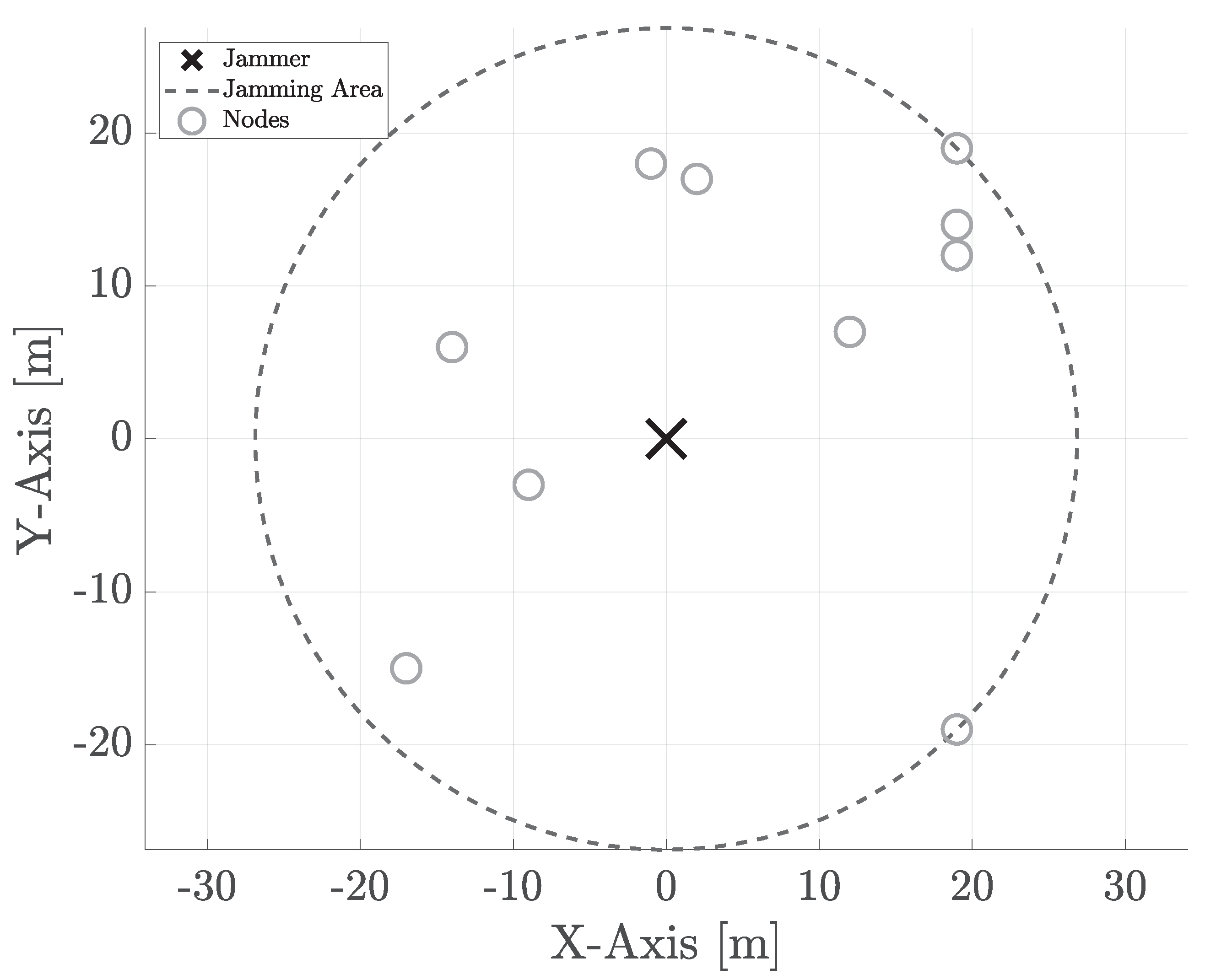

**Figure 1.**A typical random deployment: 10 nodes and the jammer (black cross) at the center of the scene. The black dashed circle represents the jamming area.

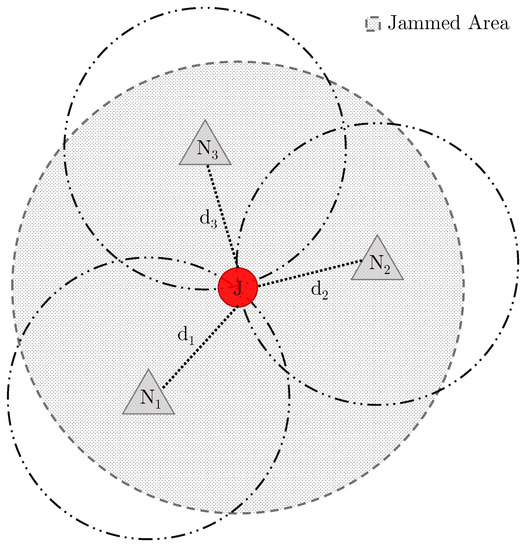

**Figure 2.**Jammer localization by three-lateration: 3 sensors collaborating to estimate the jammer position.

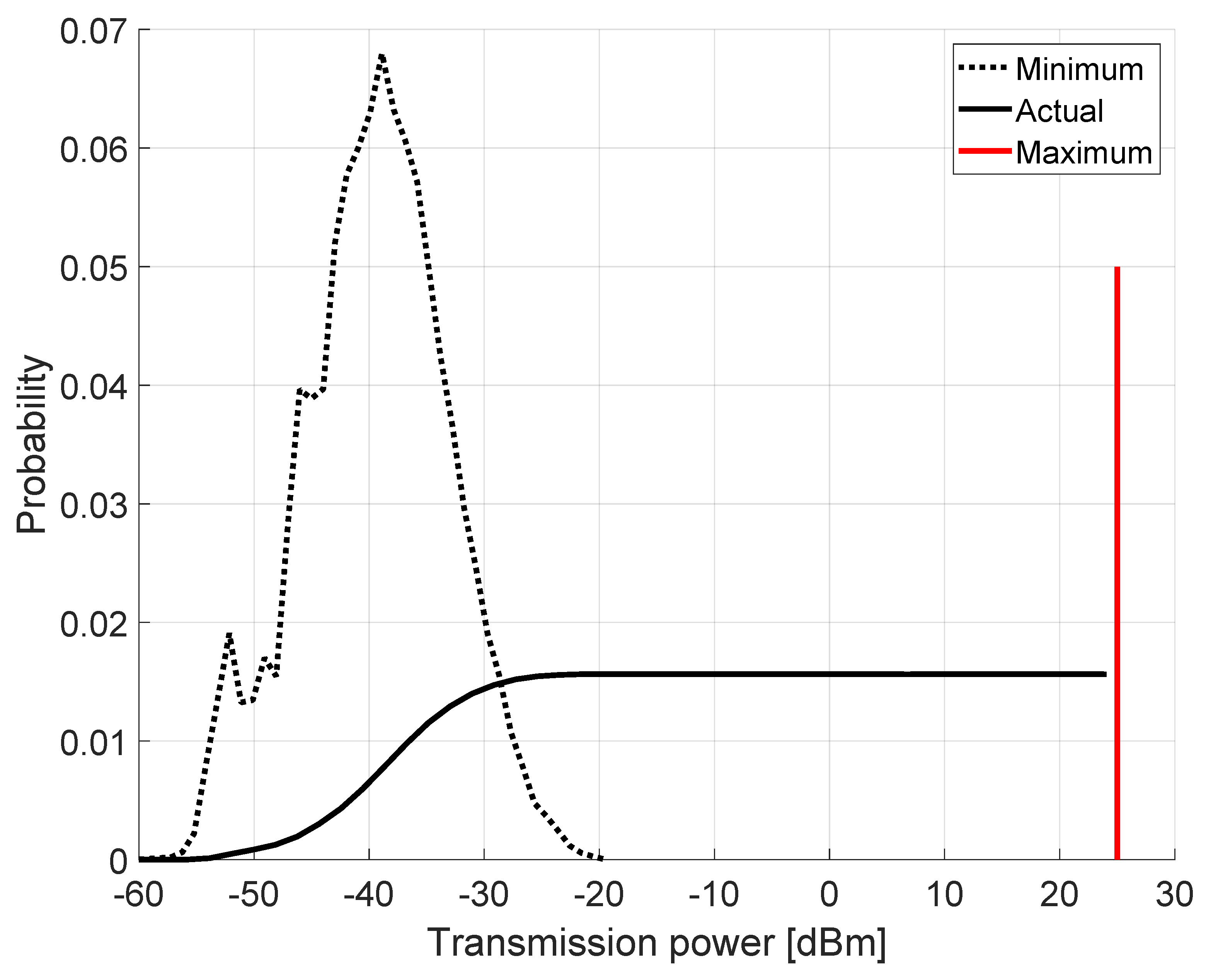

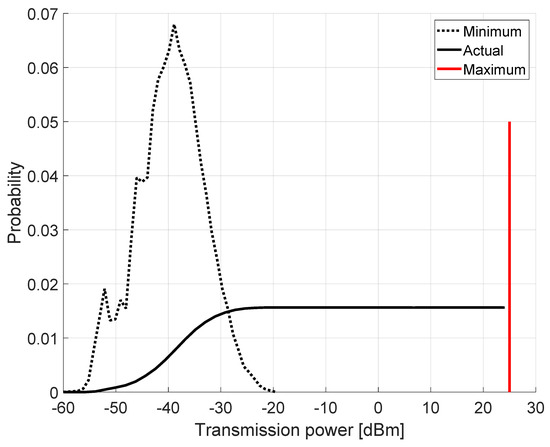

**Figure 3.**Power-modulated jammer: the minimum transmission power is opportunistically chosen in order cover the whole area.

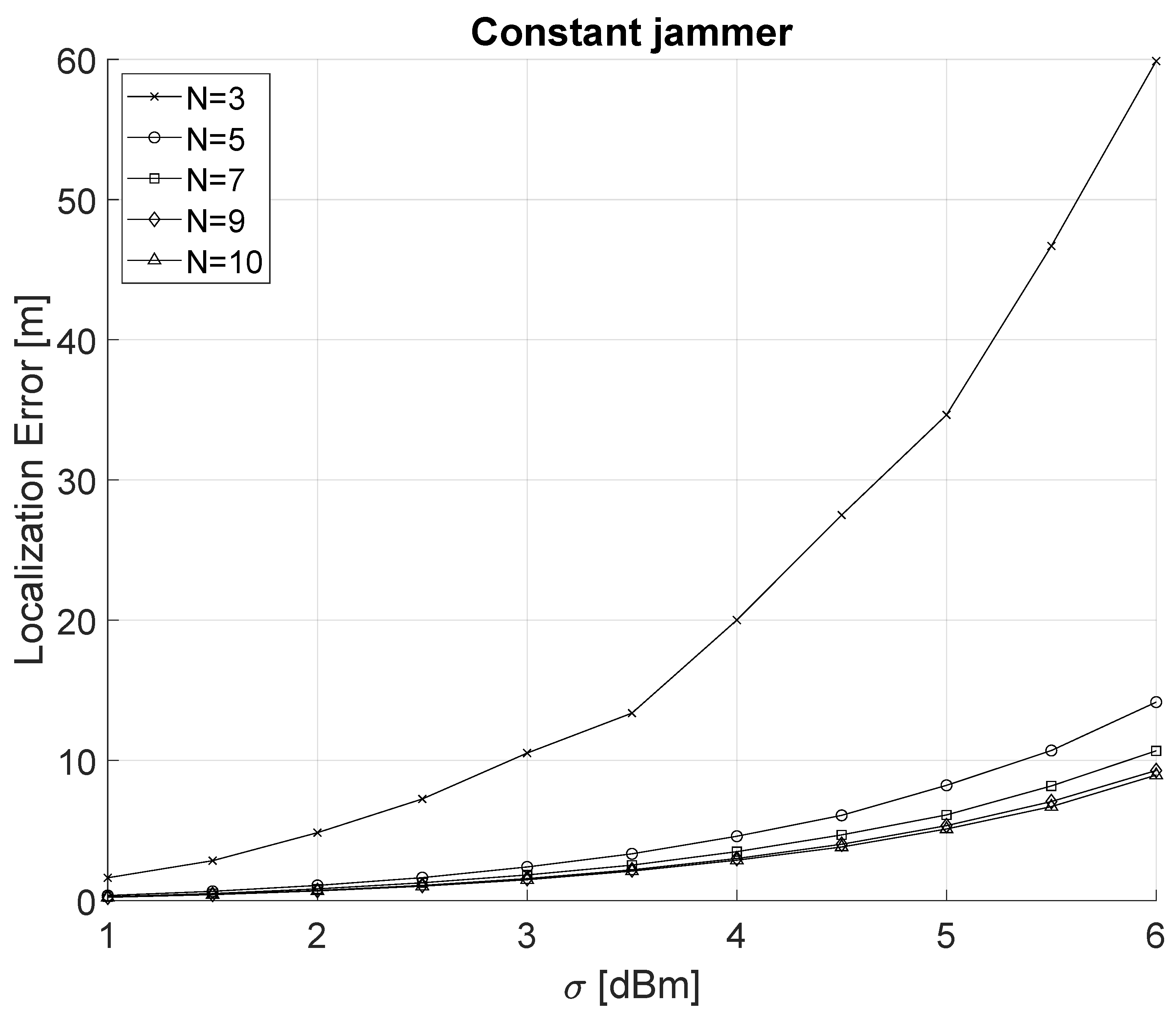

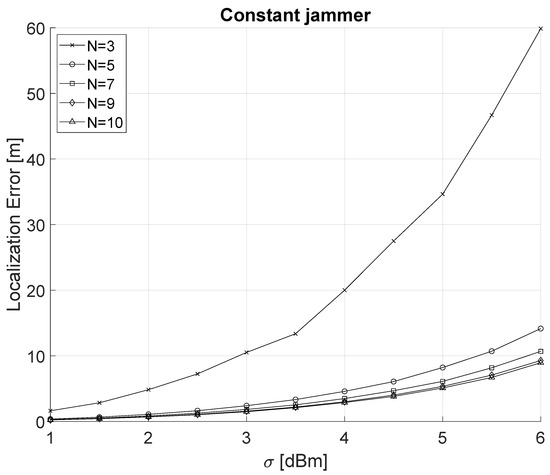

**Figure 4.**Localization of a constant jammer as a function of $\sigma $ (1 dBm $\le \sigma \le $ 6 dBm) and the number N of sensing nodes ($3\le N\le 10$).

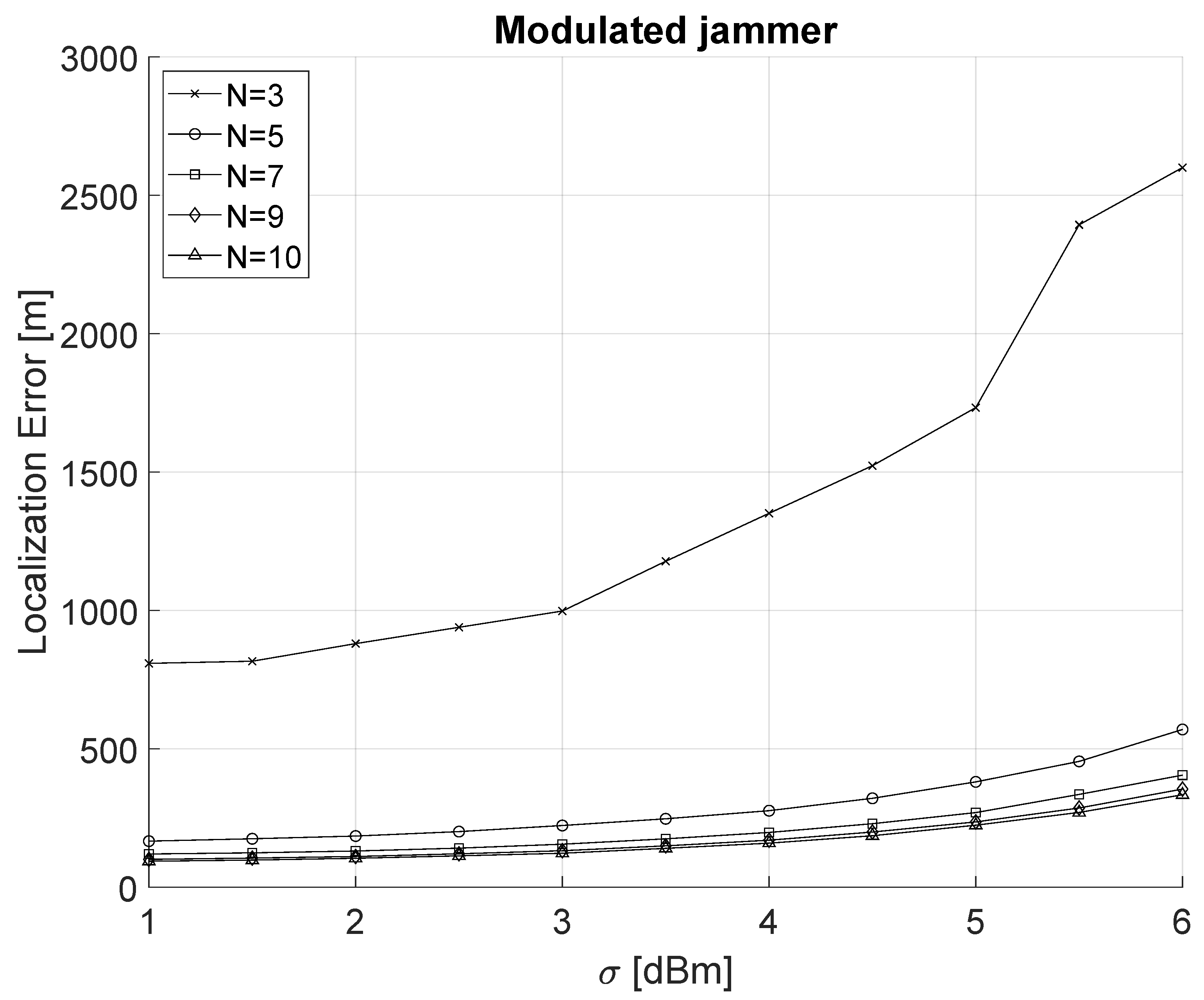

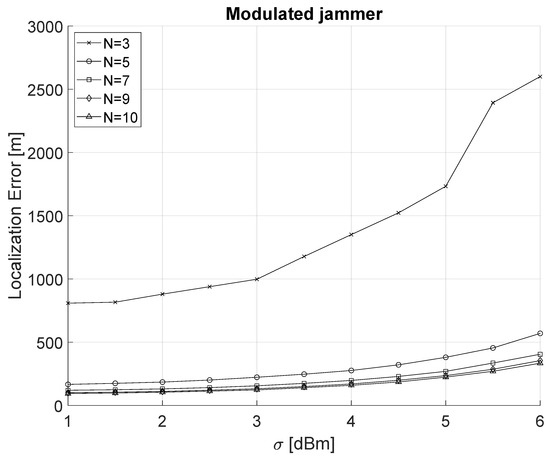

**Figure 5.**Localization of a power-modulated jammer as a function of $\sigma $ (1 dBm $\le \sigma \le $ 6 dBm) and the number N of sensing nodes ($3\le N\le 10$).

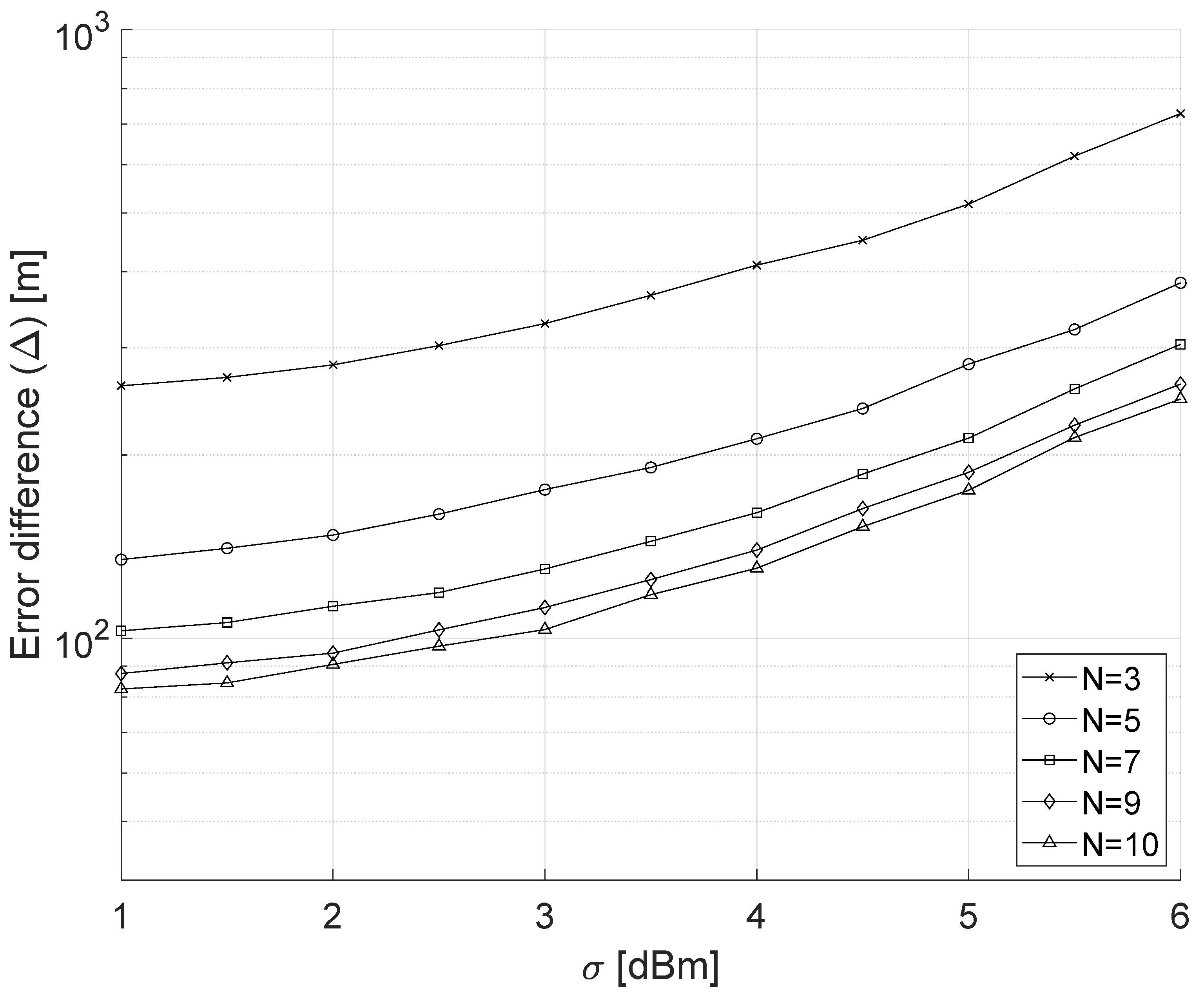

**Figure 6.**Comparison between the modulated-power and constant-power jammer: localization error as a function of $\sigma $ while the number of nodes in the playground spans between $N=3$ and $N=9$.

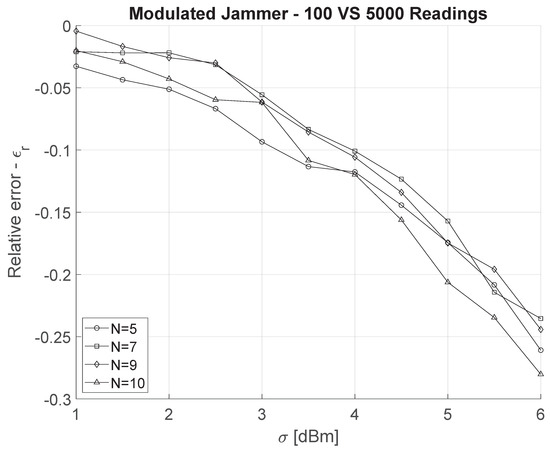

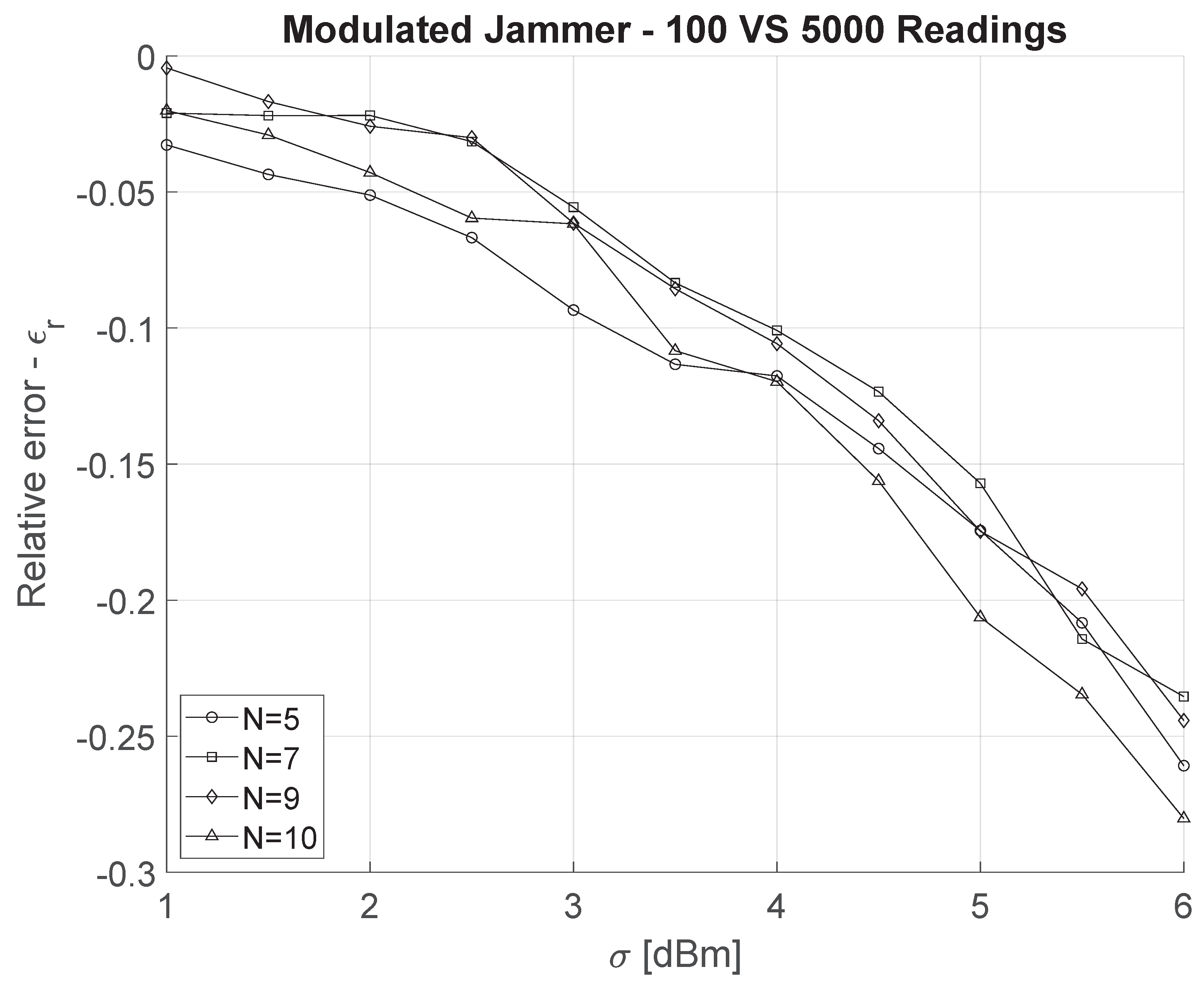

**Figure 7.**Comparison between 100 and 5000 readings of the jamming signal as a function of $\sigma $ and the number of nodes.
