# Three-Dimensional Engine-Based Geometric Model Optimization Algorithm for BIM Visualization with Augmented Reality

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### BIM-AR Integration

## 2. Background

#### 2.1. Model Optimization Methods

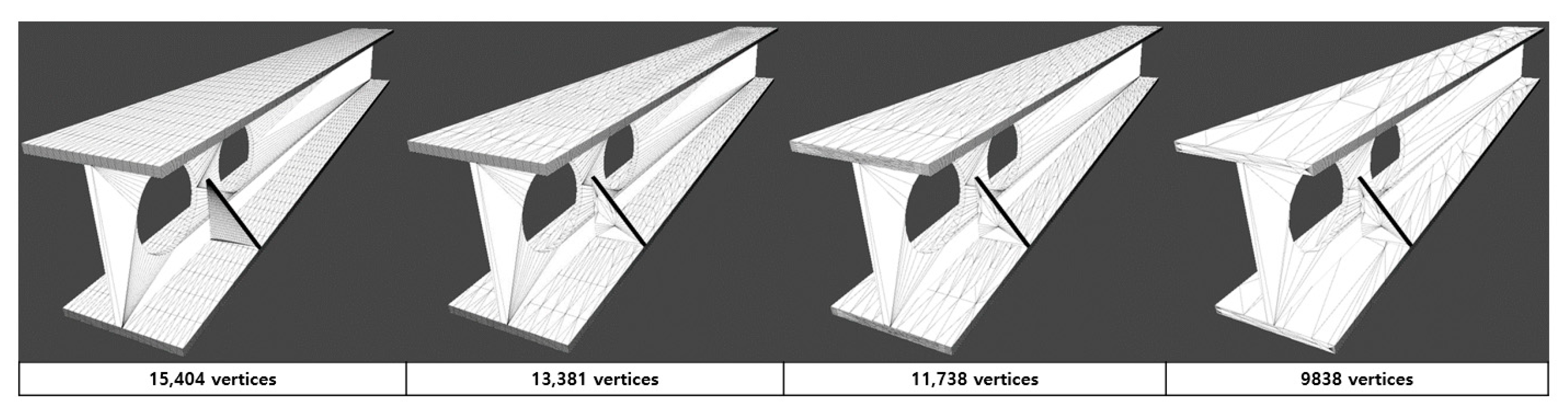

#### 2.1.1. Quadrics Error Metrics Method

#### 2.1.2. Curvature Calculation-based Check Method for Border Mesh

_{1}) and Q(v

_{2}) are the quadrics related to vertices v

_{1}and v

_{2}, respectively; W

_{b}is a user-defined weight factor; k(v

_{1}) and k(v

_{2}) are the curvatures of the boundary at vertices v

_{1}and v

_{2}, respectively; and Q

_{bcp}is a quadric of the boundary constraint plane at the edge (v

_{1},v

_{2}).

## 3. Materials and Methods

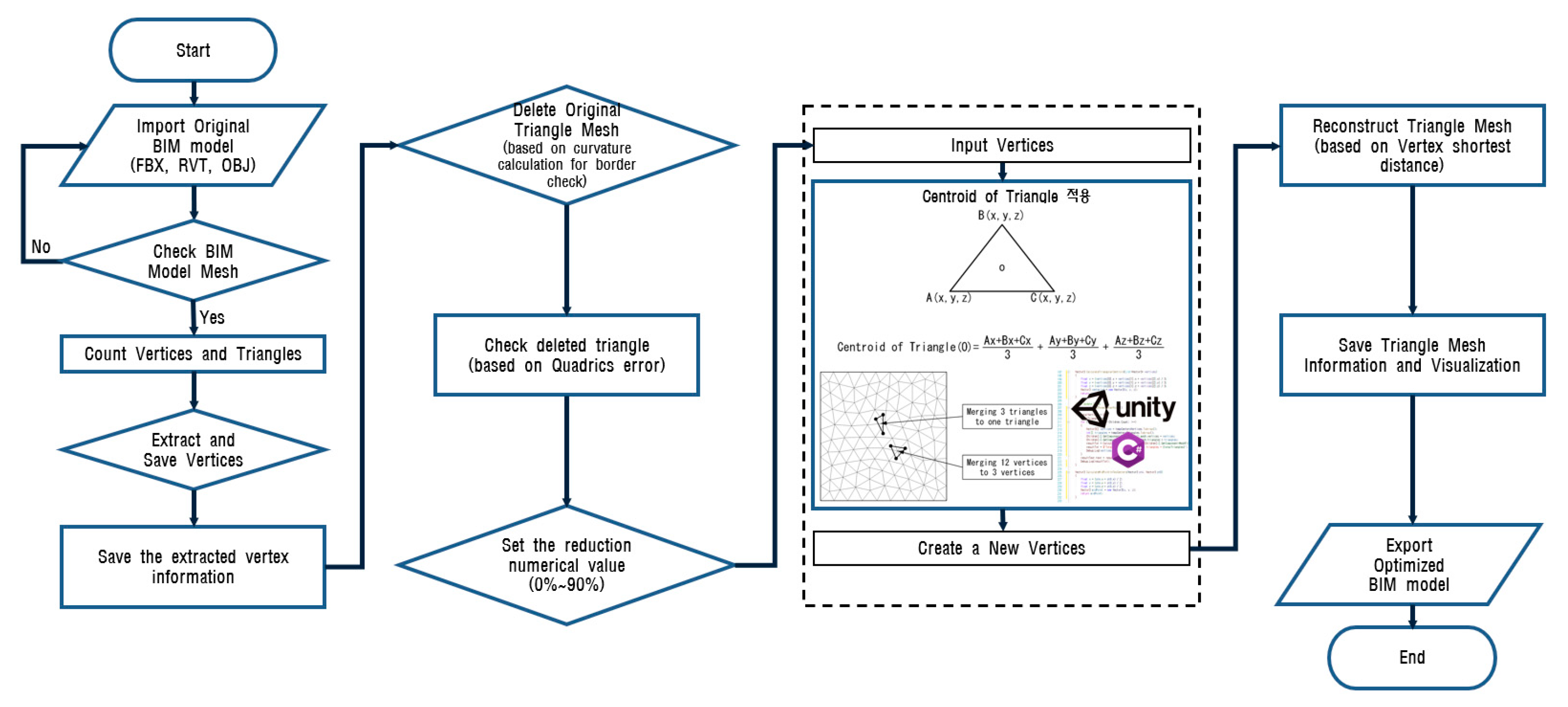

#### 3.1. Geometric Model Optimization for BIM

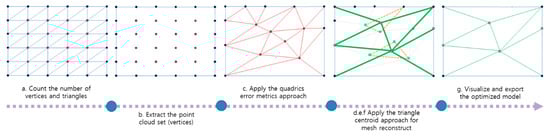

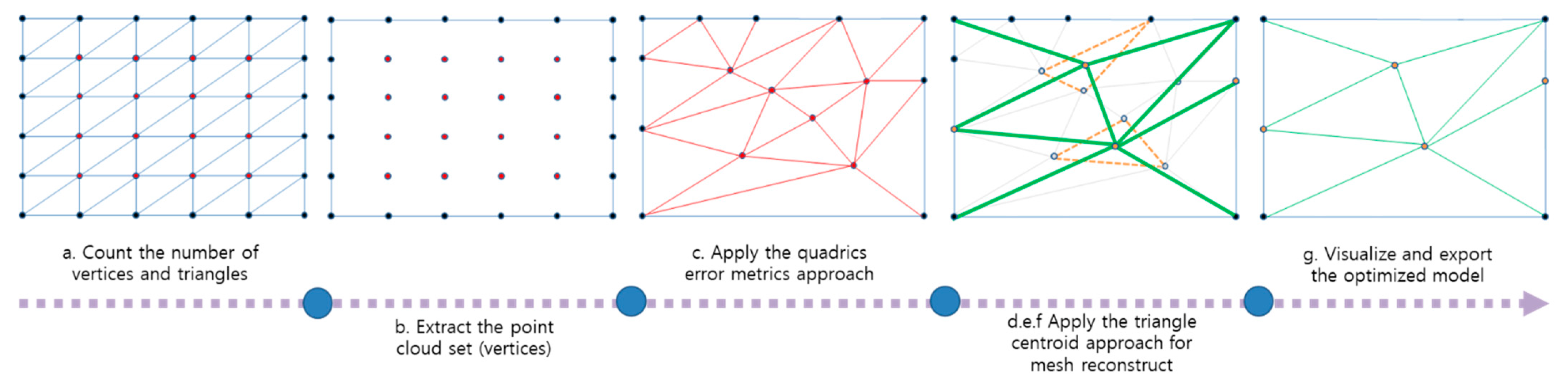

#### 3.1.1. Mesh Reconstruction Method

#### 3.1.2. Barycentric Coordinates-Based Triangle Centroid Formula

#### 3.2. Test-Bed Specifications and 3D Modeling

## 4. Results

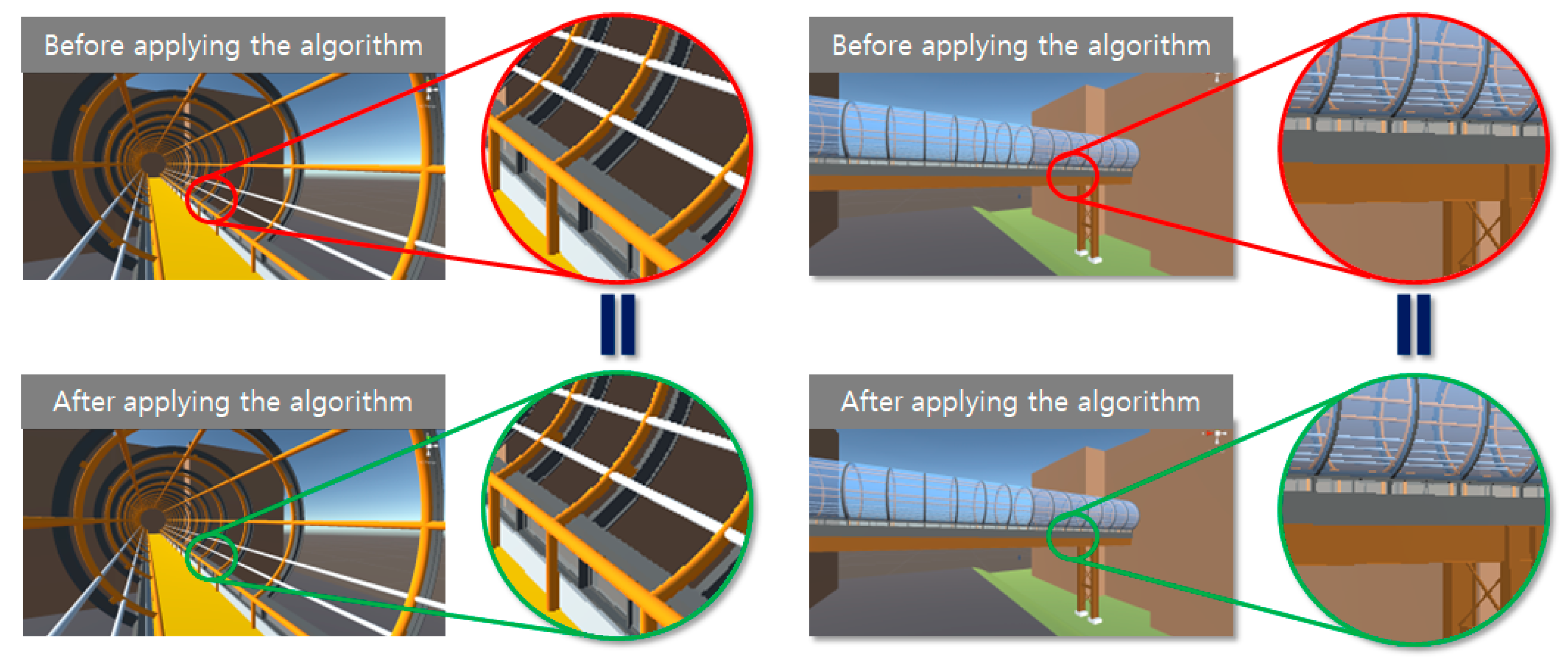

#### 4.1. Validation of Mesh Reconstruction Method for Bridge

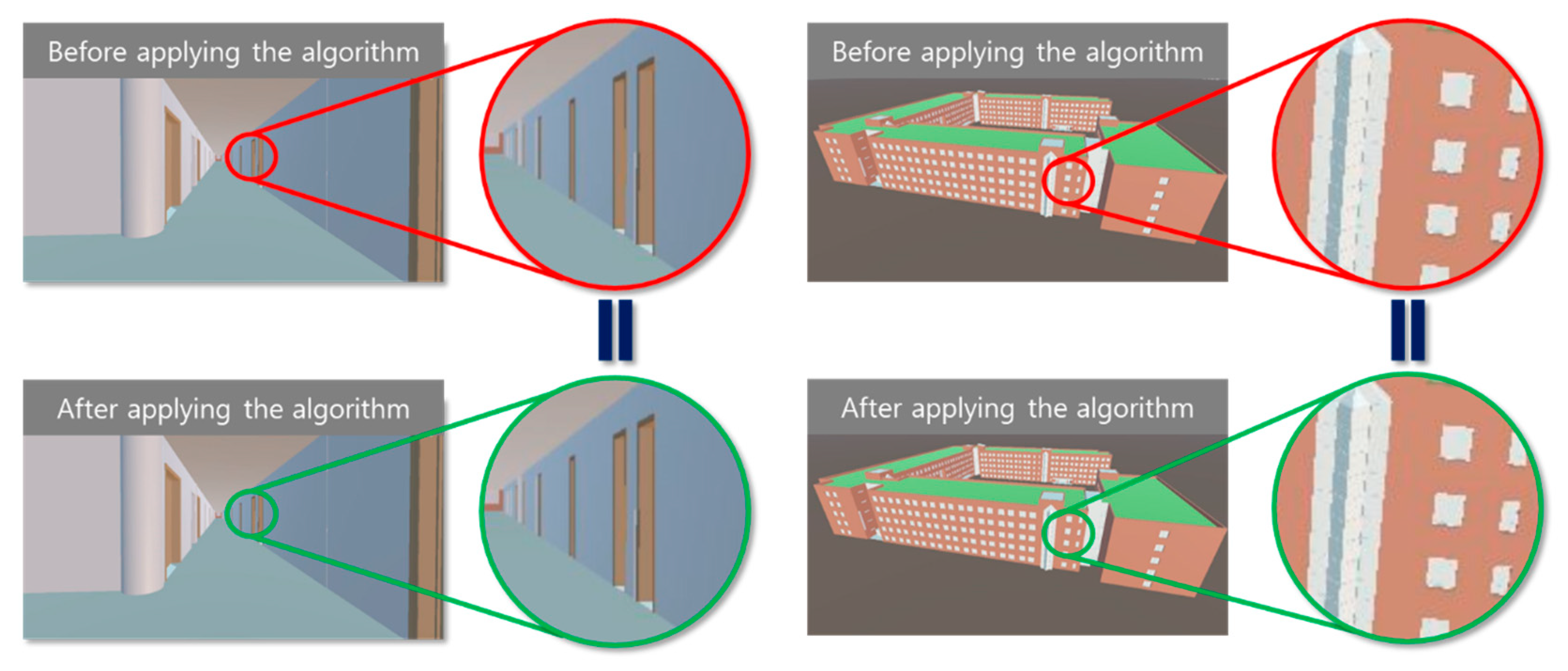

#### 4.2. Validation of Mesh Reconstruction Method for Building

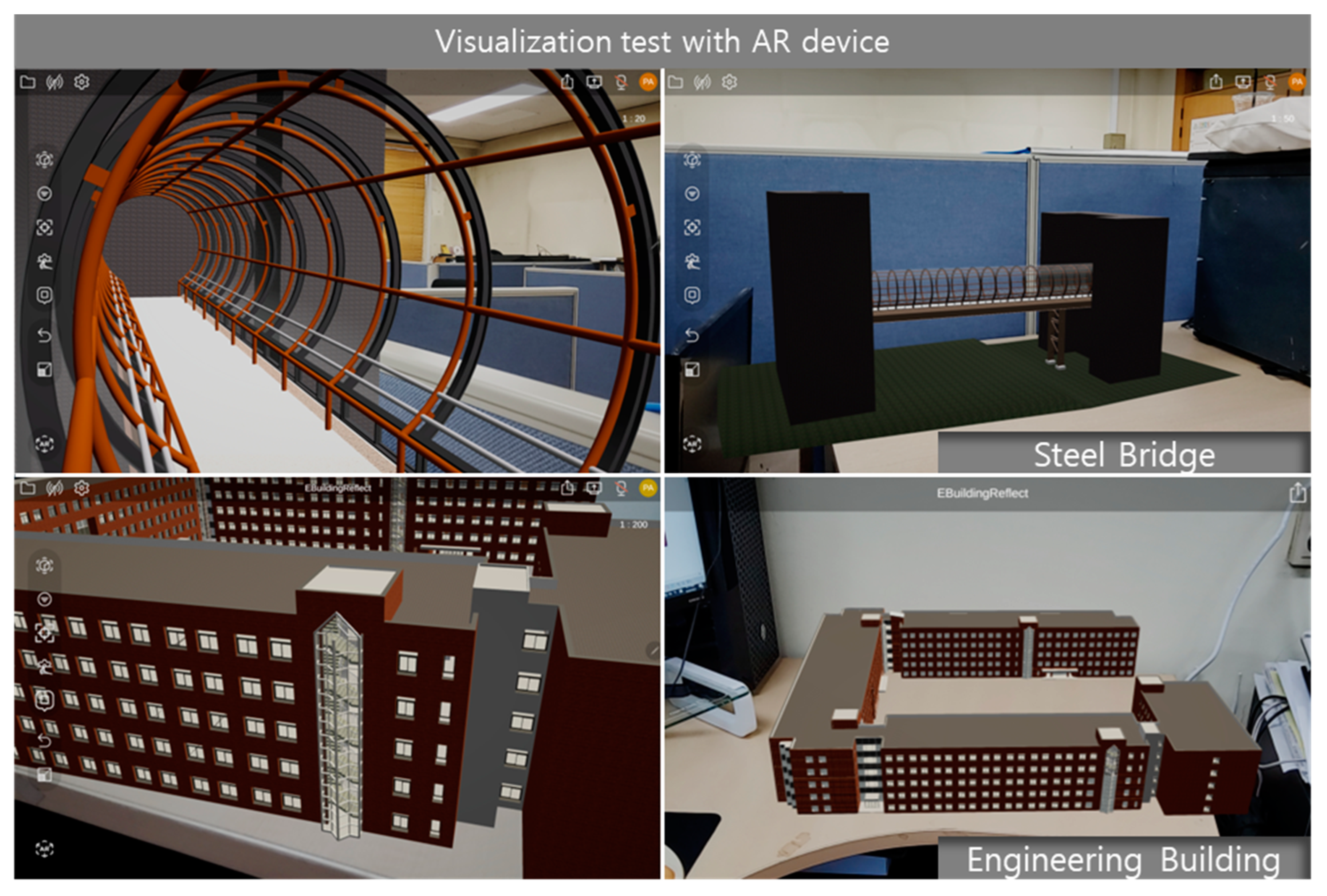

#### 4.3. AR Visualization Test of the Optimized Models

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Schiavi, B.; Havard, V.; Beddiar, K.; Baudry, D. BIM data flow architecture with AR/VR technologies: Use cases in architecture, engineering and construction. Autom. Constr.
**2022**, 134, 104054. [Google Scholar] [CrossRef] - Chin, S.Y. Storytelling Building Information Modeling, 1st ed.; Book Publishing CIR: Suwon, Korea, 2020; pp. 23–28. [Google Scholar]
- Wang, J.; Wang, X.; Shou, W.; Xu, B. Integrating BIM and augmented reality for interactive architectural visualization. Constr. Innov.
**2014**, 14, 453–476. [Google Scholar] [CrossRef] - Chai, C.; Mustafa, K.; Kuppusamy, S.; Yusof, A.; Lim, C.S.; Wai, S.H. BIM integration in augmented reality model. Civ. Eng.
**2019**, 10, 1266–1275. [Google Scholar] [CrossRef] [Green Version] - An, J.Y.; Choi, J.M.; Kwon, S.H.; Song, D.H.; Ock, J.H. A study on the development of the project management system based on augmented reality. J. Korea Acad.-Ind. Coop. Soc.
**2010**, 11, 3083–3093. [Google Scholar] [CrossRef] [Green Version] - Karji, A.; Woldesenbet, A.; Rokooei, S. Integration of augmented reality, building information modeling, and image processing in construction management: A content analysis. In Proceedings of the Architectural Engineering Conference 2017, Oklahoma City, OK, USA, 11–13 April 2017; Volz, J.S., Ed.; ASCE: Reston, VA, USA, 2017; pp. 983–992. [Google Scholar]
- Yan, W.; Culp, C.; Graf, R. Integrating BIM and gaming for real-time interactive architectural visualization. Autom. Constr.
**2011**, 20, 446–458. [Google Scholar] [CrossRef] - Chen, W.; Chen, K.; Cheng, J.C.P.; Wang, Q.; Gan, V.J. BIM based framework for automatic scheduling of facility maintenance work orders. Autom. Constr.
**2018**, 91, 15–30. [Google Scholar] [CrossRef] - Dunston, P.S.; Wang, X. Mixed reality-based visualization interfaces for architecture, engineering, and construction industry. J. Constr. Eng. Manag.
**2005**, 131, 1301–1309. [Google Scholar] [CrossRef] - Wang, X.; Dunston, P.S. Potential of augmented reality as an assistant viewer for computer-aided drawing. J. Constr. Eng. Manag.
**2006**, 20, 437–441. [Google Scholar] [CrossRef] - Turkan, Y.; Radkowski, R.; Karabulut-Ilgu, A.; Behzadan, A.H.; Chen, A. Mobile augmented reality for teaching structural analysis. Adv. Eng. Inform.
**2017**, 34, 90–100. [Google Scholar] [CrossRef] - Sheng, Y.; Yapo, T.C.; Young, C.; Cutler, B. A spatially augmented reality sketching interface for architectural daylighting design. IEEE Trans. Vis. Comput. Graph.
**2011**, 17, 38–50. [Google Scholar] [CrossRef] - Park, C.-S.; Lee, D.-Y.; Kwon, O.-S.; Wang, X. A framework for proactive construction defect management using BIM, augmented reality and ontology-based data collection template. Autom. Constr.
**2013**, 33, 61–71. [Google Scholar] [CrossRef] - Rohani, M.; Fan, M.; Yu, C. Advanced visualization and simulation techniques for modern construction management. Indoor Built Environ.
**2014**, 23, 665–674. [Google Scholar] [CrossRef] - Han, S.; Pena-Mora, F.; Golparvar-Fard, M.; Roh, S. Application of a visualization technique for safety management. In Computing in Civil Engineering; ASCE: Reston, VA, USA, 2009; pp. 543–551. [Google Scholar]
- Ahn, J.; Han, R. An indoor augmented-reality evacuation system for the smartphone using personalized pedometry. Hum. Comput. Inf. Sci.
**2012**, 2, 18. [Google Scholar] [CrossRef] [Green Version] - Irizarry, J.; Gheisari, M.; Williams, G.; Walker, B.N. InfoSPOT:A mobile augmented reality method for accessing building information through a situation awareness approach. Autom. Constr.
**2013**, 33, 11–23. [Google Scholar] [CrossRef] - Alizadehsalehi, S.; Hadavi, A.; Huang, J.C. From BIM to extended reality in AEC industry. Autom. Constr.
**2020**, 116, 103254. [Google Scholar] [CrossRef] - Rahimian, F.; Seyedzadeh, S.; Oliver, S.; Rodriguez, S.; Dawood, N. On-demand monitoring of construction projects through a game-like hybrid application of BIM and machine learning. Autom. Constr.
**2020**, 110, 103012. [Google Scholar] [CrossRef] - Dudhee, V.; Vukovic, V. Integration of building information modelling and augmented reality for building energy systems visualization. In Energy and Sustainable Futures: Proceedings of 2nd ICESF; Springer: Cham, Switzerland, 2020; pp. 83–89. [Google Scholar]
- Wang, X.; Truijens, M.; Hou, L.; Wang, Y.; Zhou, Y. Integrating augmented reality with building information modeling: Onsite construction process controlling for liquefied natural gas industry. Autom. Constr.
**2014**, 40, 96–105. [Google Scholar] [CrossRef] - Park, C.-S.; Kim, H.-J. A framework for construction safety management and visualization system. Autom. Constr.
**2013**, 33, 95–103. [Google Scholar] [CrossRef] - Lin, T.-H.; Liu, C.-H.; Tsai, M.-H.; Kang, S.-C. Using augmented reality in a multiscreen environment for construction discussion. J. Comput. Civ. Eng.
**2015**, 29, 04014088. [Google Scholar] [CrossRef] - May, K.W.; KC, C.; Ochoa, J.J.; Gu, N.; Walsh, J.; Smith, R.T.; Thomas, B.H. The Identification, Development, and Evaluation of BIM-ARDM: A BIM-Based AR Defect Management System for Construction Inspections. Buildings
**2022**, 12, 140. [Google Scholar] [CrossRef] - Garbett, J.; Hartley, T.; Heesom, D. A multi-user collaborative BIM-AR system to support design and construction. Autom. Constr.
**2021**, 122, 103487. [Google Scholar] [CrossRef] - WIKIPEDIA. Polygonal Modeling. Available online: https://en.wikipedia.org/wiki/Polygonal_modeling (accessed on 19 April 2022).
- Hoppe, H. Progressive Meshes. In Proceedings of the 23rd Annual Conference on Computer Graphics and Interactive Techniques, New Orleans, LA, USA, 4–9 August 1996; ACM Press: New York, NY, USA, 1996; Volume 30, pp. 99–108. [Google Scholar]
- Garland, M.; Heckbert, P.S. Surface simplification using quadric error metrics. In Proceedings of the 24th Annual Conference on Computer Graphics and Interactive Techniques, Los Angeles, CA, USA, 3–8 August 1997; ACM Press: NewYork, NY, USA, 1997; pp. 209–216. [Google Scholar]
- Rossignac, J.; Borrel, P. Multi-resolution 3D approximations for rendering complex scenes. In Modeling in Computer Graphics; Springer: Berlin/Heidelberg, Germany, 1993; pp. 455–465. [Google Scholar]
- He, T.; Hong, L.; Kaufman, A.; Varshney, A.; Wang, S. Voxel-based object simplification. In Proceedings of the Visualization ’95, Atlanta, GA, USA, 29 October–3 November 1995; IEEE: New York, NY, USA, 1995; pp. 296–303. [Google Scholar]
- Eck, M.; DeRose, T.; Duchamp, T.; Hoppe, H.; Lounsbery, M.; Stuetzle, W. Multi-resolution analysis of arbitrary meshes. In Proceedings of the 22nd Annual Conference on Computer Graphics and Interactive Techniques; ACM Press: New York, NY, USA, 1995; pp. 173–182. [Google Scholar]
- Garland, M.; Heckbert, P.S. Simplifying surfaces with color and texture using quadric error metrics. In Proceedings of the Visualization ‘98, Research Triangle Park, Research Triangle Park, NC, USA, 18–23 October 1998; IEEE: New York, NY, USA, 1998; pp. 263–269. [Google Scholar]
- Bahirat, K.; Lai, C.; Mcmahan, R.P.; Prabhakaran, B. Designing and evaluating a mesh simplification algorithm for virtual reality. ACM Trans. Multimed. Comput. Commun. Appl. (TOMM)
**2018**, 14, 63. [Google Scholar] [CrossRef] - Goldman, R. Curvature formulas for implicit curves and surfaces. Comput. Aided Geom. Des.
**2005**, 22, 632–658. [Google Scholar] [CrossRef] - Ungar, A.A. Barycentric Calculus in Euclidean and Hyperbolic Geometry, 3rd ed.; World Scientific: Singapore, 2010. [Google Scholar]
- Kimberling, C. Triangle centers and central triangles. Math. Gaz.
**2001**, 85, 172–173. [Google Scholar] [CrossRef] - Unity3D. Unity3D Game Engine, Retrieved. Available online: http://unity3d.com (accessed on 5 July 2022).
- Buyuksalih, I.; Bayburt, S.; Buyuksalih, G.; Baskaraca, A.P.; Karim, H.; Rahman, A.A. 3D modelling and visualization based on the unity game engine--advantages and challenges. ISPRS Ann. Photogramm. Remote Sens. Spat. Inf. Sci.
**2017**, 4. [Google Scholar] [CrossRef] - Unity Technologies 2022. Available online: https://unity.com/products/unity-reflect (accessed on 5 July 2022).

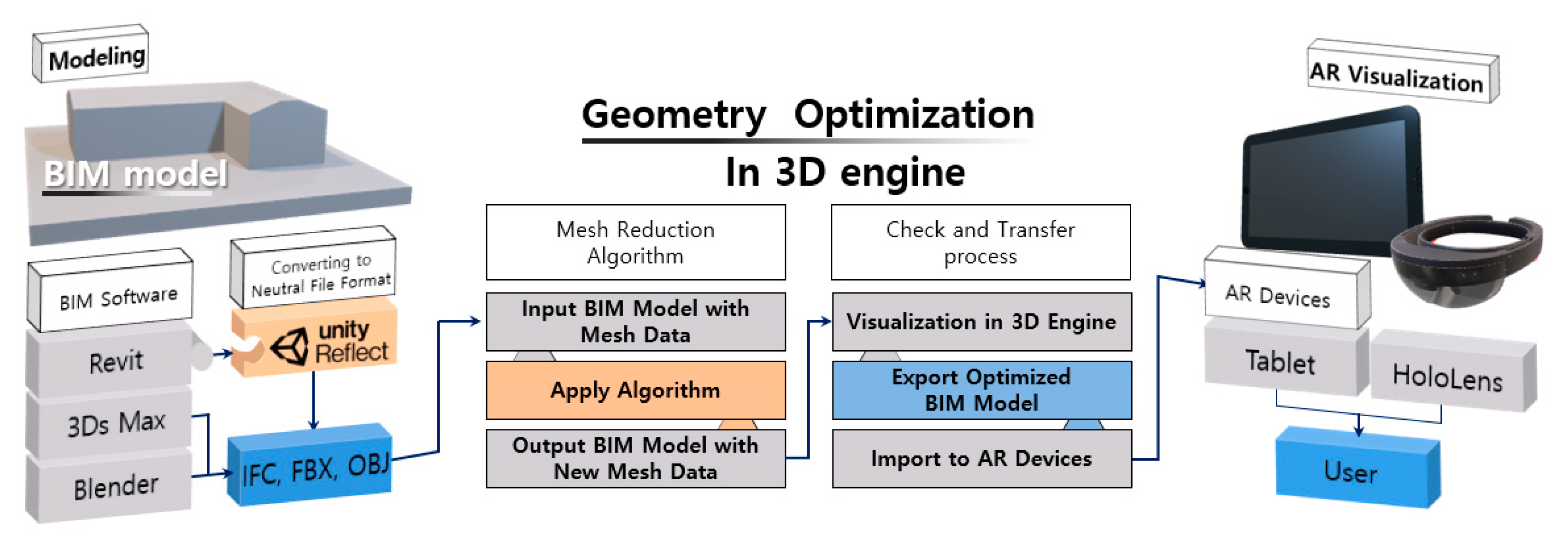

**Figure 1.**Conceptual framework of 3D engine-based geometry optimization for augmented reality (AR) visualization.

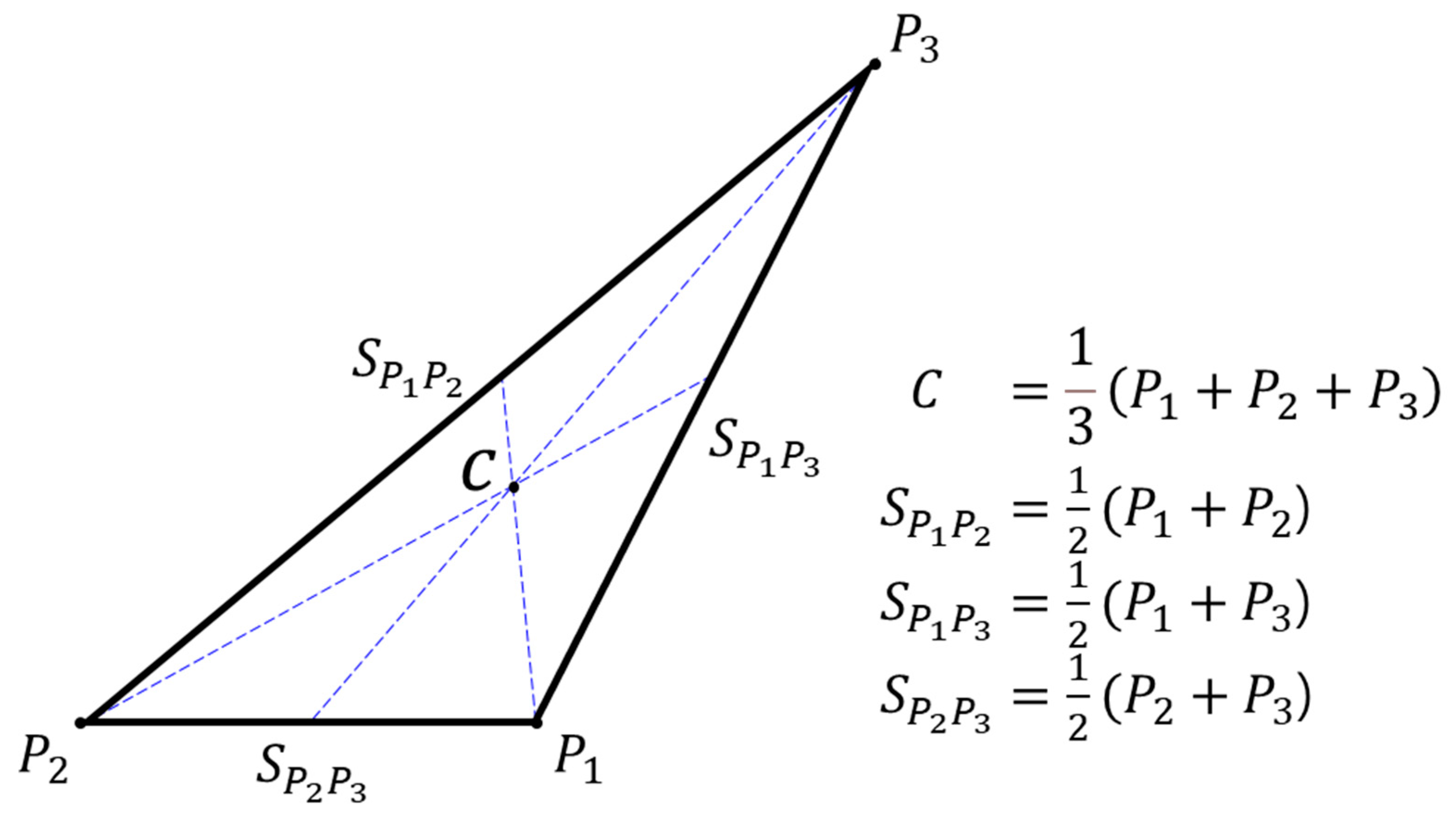

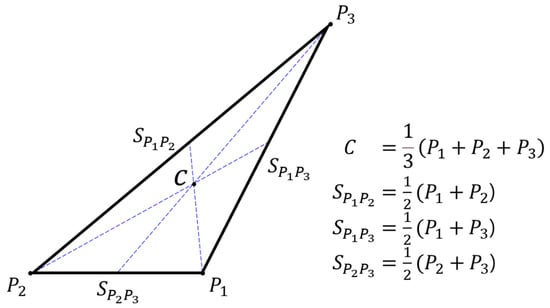

**Figure 5.**Triangle centroid formulation by Abraham Albert Ungar in August 2010 [35].

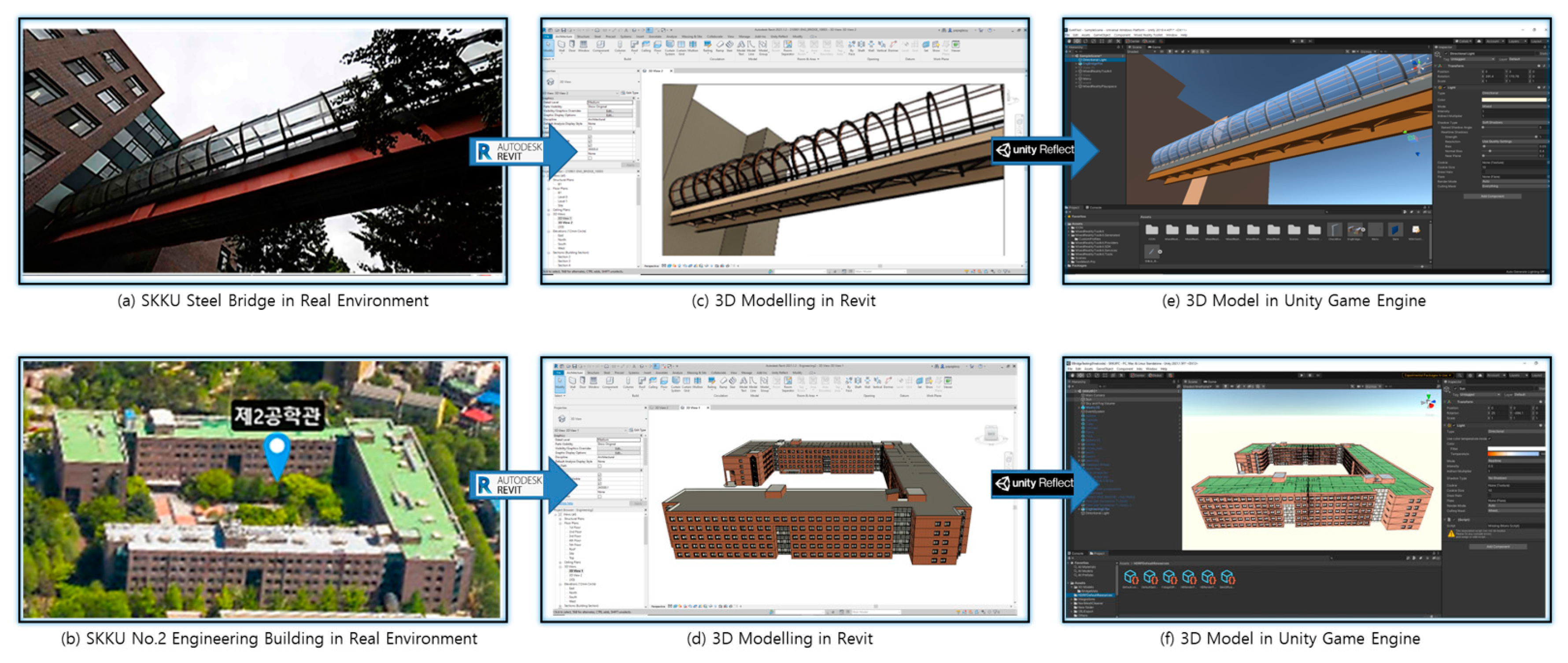

**Figure 6.**Three-dimensional modeling process for SKKU steel bridge and No. 2 engineering building. Real environment: (

**a**) bridge, and (

**b**) building. Model in Revit: (

**c**) bridge, and (

**d**) building. Model in Unity: (

**e**) bridge, and (

**f**) building.

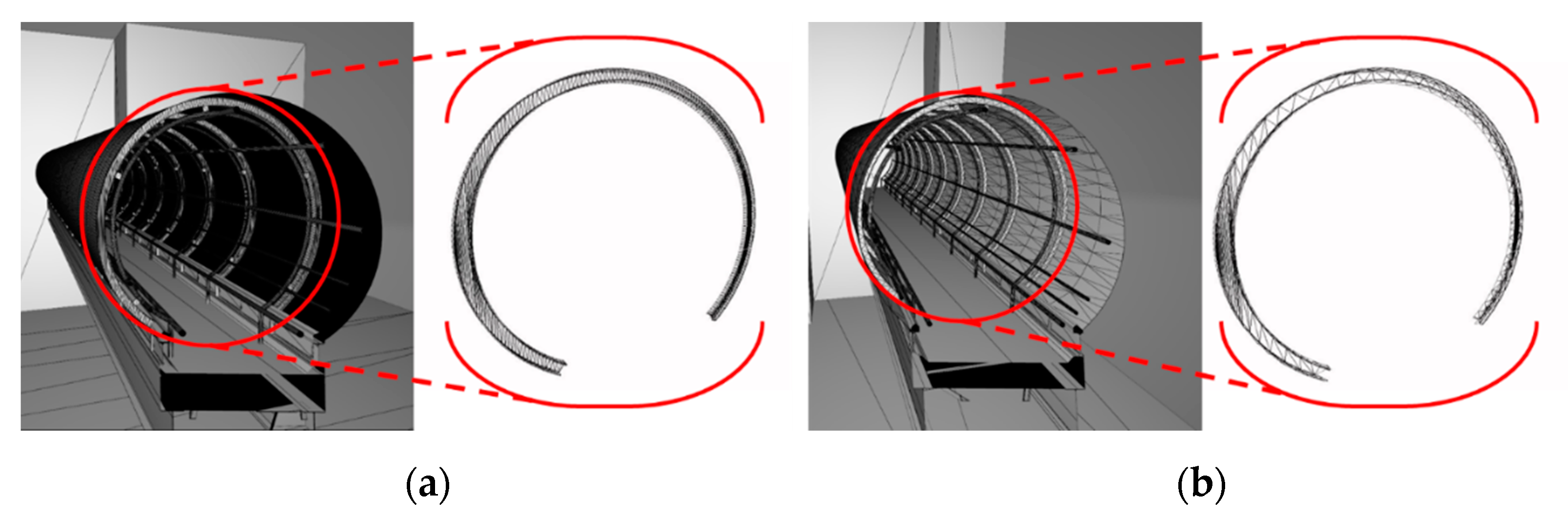

**Figure 7.**SKKU steel bridge models and internal glass structure (mesh-form): (

**a**) original and (

**b**) optimized.

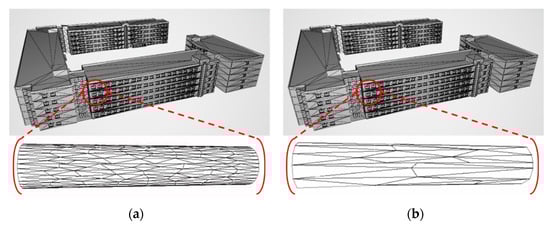

**Figure 8.**SKKU No. 2 engineering building models and internal round-column structure (mesh form): (
