Detection of Water Spread Area Changes in Eutrophic Lake Using Landsat Data

by
Vaibhav Deoli
1,2,
Deepak Kumar
2 and
Alban Kuriqi
3,4,*
1
Department of Environmental Science and Technology, Indian Institute of Technology, Indian School of Mines, Dhanbad 826004, India
2
Department of Soil and Water Conservation Engineering, GB Pant University of Agriculture and Technology, Pantnagar 263145, India
3
CERIS, Instituto Superior Técnico, Universidade de Lisboa, 1049-001 Lisboa, Portugal
4
Civil Engineering Department, University for Business and Technology, 10000 Pristina, Kosovo
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(18), 6827; https://doi.org/10.3390/s22186827
Submission received: 10 August 2022 / Revised: 31 August 2022 / Accepted: 6 September 2022 / Published: 9 September 2022
(This article belongs to the Special Issue Remote Sensing for Hydrogeological/Hydrological Modelling and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Adequate water resource management is essential for fulfilling ecosystem and human needs. Nainital Lake is a popular lake in Uttarakhand State in India, attracting lakhs of tourists annually. Locals also use the lake water for domestic purposes and irrigation. The increasing impact of climate change and over-exploration of water from lakes make their regular monitoring key to implementing effective conservation measures and preventing substantial degradation. In this study, dynamic change in the water spread area of Nainital Lake from 2001 to 2018 has been investigated using the multiband rationing indices, namely normalized difference water index (NDWI), modified normalized difference water index (MNDWI), and water ratio index (WRI). The model has been developed in QGIS 3.4 software. A physical GPS survey of the lake was conducted to check the accuracy of these indices. Furthermore, to determine the trend in water surface area for a studied period, a non-parametric Mann–Kendall test was used. San’s slope estimator test determined the magnitude of the trend and total percentage change. The result of the physical survey shows that NDWI was the best method, with an accuracy of 96.94%. Hence, the lake water spread area trend is determined based on calculated NDWI values. The lake water spread area significantly decreased from March to June and July to October at a 5% significance level. The maximum decrease in water spread area has been determined from March to June (7.7%), which was followed by the period July to October (4.67%) and then November to February (2.79%). The study results show that the lake’s water spread area decreased sharply for the analyzed period. The study might be helpful for the government, policymakers, and water experts to make plans for reclaiming and restoring Nainital Lake. This study is very helpful in states such as Uttarakhand, where physical mapping is not possible every time due to its tough topography and climate conditions.

1. Introduction

Lakes are important water bodies assets; therefore, their conservation is crucial in ensuring water security to maintain both ecological and economic benefits [1,2]. A substantial reduction or augmentation of lake areas and their status in water quality can reflect the global environment and climate change impacts [3]. Thus, shrinkage in the water surface areas of lakes is caused by natural phenomena or anthropogenic processes [4,5,6]. Hence, the mappings of surface water bodies are extremely important for policy-making and research purposes.
Remote sensing technology is broadly utilized for surface features mapping, extracting and monitoring the changes, and real-time information acquisition due to its high accuracy and cost-effectiveness [7,8,9,10]. Remote sensing applications in water resources include potential groundwater assessment, change in water bodies areas, flood hazard/damage assessment and management, and water quality assessment and monitoring [11].
So far, various water extraction methods utilizing optical symbolism have been created, which may be graded under four basics types: statistical pattern recognition techniques [12,13], linear unmixing [14], thresholding by a single band [15,16], and spectral indices [17,18]. The spectral index is the most frequently utilized method for simplicity and practicality. Normalized difference water index (NDWI), modified NDWI (MNDWI), automated water extraction index (AWEI), water ratio index (WRI), normalized difference vegetation index (NDWI), enhanced water index (EWI), revised normalized difference water index (RNDWI) and other water extraction indices have been developed and used to extract water features [19,20,21,22,23].
Many recent studies have been conducted on the dynamic changes in water surface area using remote sensing and satellite imagery data [24,25,26,27,28,29,30,31,32,33,34]. Du et al. [35] observed changes in the Qingjiang River basin surface water area from 1973 to 2010 using NDWI and MNDWI. They observed increasing and decreasing trends in the river’s water level through their analysis. Sarp and Ozcelik [36] extracted Burdur Lake of Turkey. They detected the change from 1987 to 2011 using NDWI, MNDWI, AWEI, and support vector machine (SWM). The study concluded that the lake lost almost one-fifth of the water area in 2011 compared to 1987. Wang et al. [37] monitored changes in the water surface area of Ebinur Lake of China using Landsat and Sentinel imageries. They used NDWI and MNDWI to extract the lake. Herndon et al. [38] used Landsat 5–8 series of satellites from 1984 to 2015 to estimate the change in the lake water area. The authors developed fifteen spectral indices to classify the surface water extent. Three simple decision tree methods were developed to identify the surface water in semi-arid environments. Acharya et al. [39] evaluated changes in Phewa, Begnas, and Rupa Lakes of Pokhara, Nepal, using Landsat data within a 25-year gap (1988–2013) using NDWI, MNDWI, and NDVI. The authors suggested that the result might help reclaim and restore the lake. Babaei et al. [40] used Landsat imageries to extract water bodies for Urmia Lake, Iran, by NDWI and MNDWI indices. Cao et al. [41] used cloud-free Landsat imageries to determine the change in the extent of water bodies using Google Earth Engine for the Yellow River of China. The author concluded that the change in river surface area is related to climate change and human activities. Xing et al. [42] traced surface water changes using Landsat images for Shandong Province, China, from 1990 to 2020. The result of the study shows an increasing trend in water bodies. Li et al. [43] extracted surface water using Landsat 8 OLI images using the maximum entropy model.
Uttarakhand is a hilly state of India where the physical mapping of resources is impossible due to its tough topography and climate variability. The periodic study of lake water spread area has not been studied for Nainital Lake. Based on the remote sensing and GIS technique, this is the first study to determine water surface area fluctuation for Nainital Lake. This study attempts to fill this gap by fulfilling the following objectives: (i) to detect the dynamic change in Nainital Lake using different water indices from 2001 to 2018, and (ii) to estimate the accuracy of used water indices by the physical survey of the lake using GPS, and (iii) to estimate the non-parametric trend and magnitude of trend in water spread area of the studied lake.

2. Materials and Methods

2.1. Study Area

Nainital Lake (Figure 1) is situated in the middle of the Nainital town of Uttarakhand State of India. It is located at an altitude of 1944 m above sea level, at a latitude of 29°23′ N and a longitude of 79°27′. The lake is mango-shaped, approximately 2.5 km in circumference, and surrounded by mountains. The highest are Naina in the north, Deopathaon in the west, and Ayarpathaon in the south. The main water source in Nainital Lake is rainwater and natural base flow. It is fed by twenty water channels, from which only two are perennial open drains [44]. The average annual rainfall of Nainital is 3500 mm, of which 85% is received during the southwest monsoon season [45].

2.2. Dataset

Landsat-7 images from 2001 to 2012 and Landsat 8 images from 2013 to 2018 have been used in this study. These images were level-1 from the United States Geological Survey (https://earthexplorer.usgs.gov/) accessed between 2 March 2019 to 10 March 2019 and 15 April 2019. Specifications of these imageries are shown in Table 1.
To estimate the spatiotemporal changes in Nainital lakes, each year is divided into three periods: November to February, March to June, and July to October. The days at which cloud-free Landsat imagery was used in the study every year are in Table 2.
“QGIS 3.4 Madeira” software has created an open-source model for analyzing satellite imagery. The QGIS software can extract water bodies from non-water bodies to calculate land cover area, built-up area, and temperature variations.

2.3. Water Body Extraction

The multiband rationing technique has been used to extract the water area from Landsat imageries. Three water indices, namely NDWI, MNDWI, and WRI, have been used to extract the lake water surface area from the image. NDWI, MNDWI, and WRI are based on the spectral index method using QGIS software. NDWI, MNDWI, and WRI were developed primarily to delineate water bodies and enhance their presence in remotely sensed imagery while eliminating soil and vegetation features.
NDWI is primarily used to monitor and detect slight changes in the water content area of the water bodies. Using NIR (near-infrared) and green spectral bands, NDWI can enhance the water bodies in a satellite image. MNDWI uses green and SWIR bands to enhance open water feature extraction. MNDWI can enhance open water features while efficiently suppressing and removing built-up land, vegetation, and soil noise. In the WRI technique, four spectral reflectance bands were used. It is the ratio of the total spectral reflectance of two visible bands (i.e., green and red) to the spectral reflectance of the near-infrared and middle infrared bands (MIR). This method only applies to satellite images with a middle infrared band.
The formulas for the calculation of NDWI, MNDWI, and WRI are described as follows:
NDWI = (Green − NIR)/(Green + NIR)
MNDWI = (Green − SWIR_1)/(Green + SWIR_1)
WRI = (Green + Red)/(NIR + SWIR_2)
where Green, NIR, SWIR_1, and SWIR_2 represent the reflection of band 3, band 5, band six, and band 7, respectively, for Landsat 8 images and band 2, band 4, band 5, and band 7 for Landsat 7 images, respectively.

2.4. Accuracy Analysis

In remote sensing techniques, physical mapping is important to verify and accurately check satellite data. For this purpose, a survey of the Nainital Lake has been completed using GPS. The GPS survey of Nainital Lake was completed on 20 March 2019, and the area obtained by this survey was compared with the area obtained by the nearest Landsat-8 image on 20 March 2019. The comparison was made to find the error. The best method was determined among NDWI, MNDWI, and WRI by comparing GPS results.

2.5. Trend Analysis

To detect the non-parametric trend in hydro-climate data, the Mann–Kendall test [46,47,48,49] has been widely used by researchers and recommended by the World Meteorological Organization [50,51,52,53]. The Sen slope method is used to obtain the magnitude of the trend and percentage change of the lake. Sen’s slope method is a non-parametric method in which slope calculation carries trend prediction [54]. Detailed mathematical expressions have been given in [55,56].

3. Results

3.1. Comparison of Different Band Ratios for Accurate Water Spread Mapping

The water spread area from 2001 to 2018, from November to February, March to June, and July to October, has been shown in Table 3, Table 4 and Table 5, respectively. A threshold value between −0.05 and 0.9 has been used to estimate the water spread mapping. From Table 3, it could be suggested that the maximum and minimum area obtained by NDWI was 0.464 km2 in 2015–2016 and 0.412 km2 in 2005–2006, respectively.
This method’s average lake water spread area for the studied period was 0.4406 km2 with a standard deviation (SD) of 0.0139 km2. The maximum and minimum spread area obtained by the MNDWI method was 0.443 in 2001–2002 and 0.400 km2 in 2005–2006, respectively. The average area for the studied period by the MNDWI method was 0.4144 km2 with an SD of 0.0102 km2. By the WRI method, the maximum and minimum water spread area was 0.449 km2 in 2012–2013 and 0.404 km2 in 2017–2018, respectively. This method’s average water spread area was 0.4258 km2 with SD 0.0125.
Similarly, Table 4 depicted that the average lake water spread area estimated from March to June by NDWI was 0.409 km2 with a standard deviation (SD) of 0.01833 km2. The maximum and minimum water spread area obtained by MNDWI was 0.423 km2 in 2014–2015 and 0.383 km2 in 2011–2012, respectively.
The average area for the studied period by the MNDWI method is 0.3998 km2 with an SD of 0.0100 km2. By the WRI method, the maximum and minimum water spread area is 0.431 km2 in the study year 2002–2003 and 0.388 km2 in 2017–2018, respectively. This method’s average water spread area was 0.4119 km2 with an SD of 0.0124 km2.
Further, Table 5 shows Nainital Lake’s calculated water spread area for July to October. The maximum and minimum area obtained by NDWI was 0.467 km2 in 2007–2008 and 0.432 km2 in 2015–2016, respectively. This method’s average lake water spread area for the studied period was 0.450 km2 with a standard deviation (SD) of 0.012 km2. The maximum area obtained by the MNDWI method was 0.449 km2 in 2008–2009, and the minimum area by this method was 0.405 km2 in 2005–2006. The average area for the studied period by the MNDWI method is 0.426 km2 with an SD of 0.0132 km2. By the WRI method, the maximum and minimum water spread area was 0.479 km2 in 2005–2006 and 0.425 km2 in 2014–2015, respectively. This method’s average water spread area was 0.4489 km2 with an SD of 0.01388.
The water spread area of Nainital Lake was conducted using a GPS survey on 16–17 March 2019, and its results are presented in Table 6. Landsat-8 imagery of 20 March 2019, nearest to the day of the GPS survey, was obtained from earth explorer and then extracted to identify the lake’s area using different multiband water indices.
A comparison between surveyed and estimated water areas by Landsat imagery is presented in Table 6. Table 6 also shows the overall errors in estimating water spread mapping using different water indices. It was also found that the accuracy of all methods used was more than 80%. However, the overall accuracy of NDWI was higher, followed by the WRI method. A 3.06% error or deviation from the original surface water of the lake was noted by NDWI.
In contrast, a 3.16% deviation was noted by using WRI. Due to the higher accuracy, the NDWI method’s areas were considered accurate areas of Nainital Lake in different seasons from 2001 to 2018. The water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 of Nainital Lake using NDWI are shown in Figure 2, Figure 3 and Figure 4 for the periods November to February, March to June, and July to October, respectively.

3.2. Seasonal Fluctuation in Water Spread Area Using NDWI

Since NDWI estimated the water spread area more accurately in this study than other indices, this rationing technique has been used to analyze water spread fluctuations further. Figure 5 depicts the fluctuations in water spread area from November to February, March to June, and July to October estimated using NDWI.
Since July to October is a monsoon month in India, the water spread area is expected to be maximum for these months. A remarkable change in water spread could be noticed from March to June. From 2001 to 2018, from July to October, there was a reduction in the water spread area of 0.028154 km2 from March to June. Similarly, from November to February, there was a decrease of 0.016846 km2.

3.3. Trend and Spatio-Temporal Variability in Water Spread Area

Trend analysis of lake spread area has been conducted using the non-parametric test for 17 years from 2001–2002 to 2017–2018. Due to the unavailability of cloud-free Landsat images, data on the water spread area was unavailable for November to February for the study years 2002–2003 and 2010–2011. Similarly, no data were available for March to June from 2002–2003, 2010–2011, 2012–2013, and 2013–2014. In these cases, linear interpolation has been conducted to determine the trend.
The main results of the trend analysis based on the Mann–Kendall test are presented in Table 7.
The Z-statistics value for November to February was −1.090, March to June was −2.818, and July to October was −2.961. The Mann–Kendall test results indicated a significant negative trend in the water surface area of Nainital Lake for the period March to June and for the period July to October, whereas for November to February, the trend was not significant at a 5% significance level.
The magnitude of the trend and percentage changes of the lake water spread area over the studied period was found using Sen’s slope estimator test. The results have been tabulated in Table 8.
The magnitude of the trend for the period November to February, March to June, and July to October was −0.00070 km2/year, −0.00187 km2/year, and −0.00123 km2/year, respectively. The maximum decrease in water spread area has been obtained for the period March to June (−7.70%), which was followed by the period July to October (−4.67%) and the period November to February (−2.79%).

4. Discussion

Accurately estimating surface water bodies becomes essential as water problems increase globally. The important objective of this study is to estimate changes in the surface area of water in Nainital Lake using remote sensing and satellite data. Lake data have been extracted from Landsat images using NDWI, MNDWI, and WRI. Furthermore, a GPS survey of the lake has been completed to estimate the most accurate index for Nainital Lake. Compared to the result of the GPS survey with the area obtained by water indices, the overall accuracy of all used indices is more than 95%. The accuracy of 96.94% when using the NDWI approach compared to 94.31% when using MNDWI and 96.29% using WRI indicates that NDWI is better at extracting small water bodies in the Himalayas region’s water bodies and at separating water bodies from water-like features such as forest shadows. This study’s findings also agree with Rokani et al. [21]. They observed that for modeling temporal lake area change, the NDWI performed better than other indices. Acharya et al. [57] employed the same indices as NDVI, NDWI, MNDWI, and WRI. NDWI can be easily applied to satellite imagery to detect water features from the land surface.
Nevertheless, it should be emphasized that extracting water bodies using a multiband pixel-based method has inherent challenges because they require expertise from analysts to select the accurate training data set [58]. Using a water index such as NDWI is crucial for extracting water bodies to provide information for stockholders, policymakers, and decision-makers. Namely, the developed methodology in this study might be very useful for decision-makers and water managers to take effective measures such as reducing pollution and overwater exploitation from such important and fragile water bodies.
On the other hand, Deoli et al. [59] observed that WRI is the best method to calculate the water extraction area of some Himalayan lakes of India among the studied NDWI, MNDW, WRI, and NDVI indices based on a physical survey of lakes. Furthermore, they calculated the trend in all studied lakes based on Mann–Kendall and Sen’s slope test. The data show a strong downward tendency, and their results align with this study. In addition, Elshabi et al. [60] extract the water surface area using the same water indices. Their overall study accuracy varied from 97.90 to 99.40%, and they recommended these techniques in the areas with the same conditions to extract water bodies. Bijeesh and Narasimhamurthy [61] performed a comparative study to identify water suitability for NDWI, MNDWI, WRI, normalized difference forest index (NDFI), automated water extraction index (AWEI), tasseled cap water index, EWI, and weighted normalized difference water index (WNDWI). All these indices are important for water extraction. All these indices are quick and beneficial in extracting the water bodies. The Mann–Kendall and Sen’s slope estimator shows their efficiency in calculating the trend and magnitude of the trend in hydrological data.

5. Conclusions

In this study, the dynamic change in the water spread area of Nainital Lake of India has been completed using the band rationing (i.e., multiband water indices) technique in QGIS software by Landsat images. The results evaluate that the area found by NDWI is very close to the actual area of the lake determined by the GPS survey. The Mann–Kendall test and Sen’s slope were employed to detect a trend in Nainital Lake water spread obtained from NDWI. It has been observed that the water spread area of Nainital Lake shrunk for all studied periods by 0.00070 km2/year for the period November to February; −0.00187 km2/year for the period March to June, and −0.00123 km2/year for the period July to October. The overall decrease in the water spread area of Nainital Lake in the studied years (from 2001 to 2019) was 7.70% for the period March to June, followed by 4.67% for the period July to October and 2.79% for the period November to February. The decreasing lake water area is not a good sign for Nainital Lake. It attracts lakhs of tourists annually and is one of the famous hill stations in India.
Furthermore, the study can also assist policymakers and water information specialists in managing surface water resources. This work will focus on the fusion of the data of studied indices using machine learning techniques to increase efficiency and accuracy. In further work, we will try new indices with machine learning for water surface mapping and monitoring.

Author Contributions

Conceptualization, V.D., D.K. and A.K.; methodology, V.D., D.K. and A.K.; software, V.D.; validation, V.D., D.K. and A.K.; formal analysis, V.D.; investigation, V.D., D.K. and A.K.; resources V.D., D.K. and A.K.; data curation, V.D., D.K. and A.K.; writing—original draft preparation, V.D., D.K. and A.K.; writing—review and editing, V.D., D.K. and A.K.; visualization, V.D.; supervision, A.K.; project administration, D.K. and A.K.; funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Upon reasonable request.

Acknowledgments

Alban Kuriqi acknowledges the support of the Portuguese Foundation for Science and Technology (FCT) through the project PTDC/CTA-OHR/30561/2017 (WinTherface).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ridd, M.K.; Liu, J. A Comparison of Four Algorithms for Change Detection in an Urban Environment. Remote Sens. Environ. 1998, 63, 95–100. [Google Scholar] [CrossRef]
  2. Williamson, C.E.; Saros, J.E.; Vincent, W.F.; Smol, J.P. Lakes and reservoirs as sentinels, integrators, and regulators of climate change. Limnol. Oceanogr. 2009, 54, 2273–2282. [Google Scholar] [CrossRef]
  3. Yamazaki, D.; Trigg, M.A.; Ikeshima, D. Development of a global ~90m water body map using multi-temporal Landsat images. Remote Sens. Environ. 2015, 171, 337–351. [Google Scholar] [CrossRef]
  4. Feng, L.; Hu, C.; Chen, X.; Cai, X.; Tian, L.; Gan, W. Assessment of inundation changes of Poyang Lake using MODIS ob-servations between 2000 and 2010. Remote Sens. Environ. 2012, 121, 80–92. [Google Scholar] [CrossRef]
  5. Jiang, H.; Feng, M.; Zhu, Y.; Lu, N.; Huang, J.; Xiao, T. An Automated Method for Extracting Rivers and Lakes from Landsat Imagery. Remote Sens. 2014, 6, 5067–5089. [Google Scholar] [CrossRef]
  6. Klein, I.; Dietz, A.; Gessner, U.; Dech, S.; Kuenzer, C. Results of the Global WaterPack: A novel product to assess inland water body dynamics on a daily basis. Remote Sens. Lett. 2015, 6, 78–87. [Google Scholar] [CrossRef]
  7. Lu, S.; Wu, B.; Yan, N.; Wang, H. Water body mapping method with HJ-1A/B satellite imagery. Int. J. Appl. Earth Obs. Geoinf. 2011, 13, 428–434. [Google Scholar] [CrossRef]
  8. Ko, B.C.; Kim, H.H.; Nam, J.Y. Classification of Potential Water Bodies Using Landsat 8 OLI and a Combination of Two Boosted Random Forest Classifiers. Sensors 2015, 15, 13763–13777. [Google Scholar] [CrossRef]
  9. Malahlela, O.E. Inland waterbody mapping: Towards improving discrimination and extraction of inland surface water fea-tures. Int. J. Remote Sens. 2016, 37, 4574–4589. [Google Scholar] [CrossRef]
  10. Kaplan, G.; Avdan, U. Object-based water body extraction model using Sentinel-2 satellite imagery. Eur. J. Remote Sens. 2017, 50, 137–143. [Google Scholar] [CrossRef] [Green Version]
  11. Feyisa, G.L.; Meilby, H.; Fensholt, R.; Proud, S.R. Automated Water Extraction Index: A new technique for surface water mapping using Landsat imagery. Remote Sens. Environ. 2014, 140, 23–35. [Google Scholar] [CrossRef]
  12. Tulbure, M.G.; Broich, M. Spatiotemporal dynamic of surface water bodies using Landsat time-series data from 1999 to 2011. ISPRS J. Photogramm. Remote Sens. 2013, 79, 44–52. [Google Scholar] [CrossRef]
  13. Sivanpillai, R.; Miller, S.N. Improvements in mapping water bodies using ASTER data. Ecol. Inform. 2010, 5, 73–78. [Google Scholar] [CrossRef]
  14. Sethre, P.R.; Rundquist, B.C.; Todhunter, P.E. Remote Detection of Prairie Pothole Ponds in the Devils Lake Basin, North Dakota. GIScience Remote Sens. 2005, 42, 277–296. [Google Scholar] [CrossRef]
  15. Leavesley, S.J.; Annamdevula, N.; Boni, J.; Stocker, S.; Grant, K.; Troyanovsky, B.; Rich, T.; Alvarez, D.F. Hyperspectral im-aging microscopy for identification and quantitative analysis of fluorescently-labeled cells in highly autofluorescent tissue. J. Biophotonics. 2012, 5, 67–84. [Google Scholar] [CrossRef] [PubMed]
  16. Work, E.A.; Gilmer, D.S. Utilization of satellite data for inventorying prairie ponds and lakes, Photogramm. Eng. Remote Sens. 1976, 42, 685–694. [Google Scholar]
  17. Li, Y.; Gong, X.; Guo, Z.; Xu, K.; Hu, D.; Zhou, H. An index and approach for water extraction using Landsat–OLI data. Int. J. Remote Sens. 2016, 37, 3611–3635. [Google Scholar] [CrossRef]
  18. Zhang, A.; Zhang, S.; Sun, G.; Li, F.; Fu, H.; Zhao, Y.; Huang, H.; Cheng, J.; Wang, Z. Mapping of Coastal Cities Using Optimized Spectral–Spatial Features Based Multi-Scale Superpixel Classification. Remote Sens. 2019, 11, 998. [Google Scholar] [CrossRef]
  19. McFeeters, S.K. The use of the Normalized Difference Water Index (NDWI) in the delineation of open water features. Int. J. Remote Sens. 1996, 17, 1425–1432. [Google Scholar] [CrossRef]
  20. Xu, H. Modification of normalised difference water index (NDWI) to enhance open water features in remotely sensed imagery. Int. J. Remote Sens. 2006, 27, 3025–3033. [Google Scholar] [CrossRef]
  21. Rokni, K.; Ahmad, A.; Selamat, A.; Hazini, S. Water Feature Extraction and Change Detection Using Multitemporal Landsat Imagery. Remote Sens. 2014, 6, 4173–4189. [Google Scholar] [CrossRef] [Green Version]
  22. Wang, S.; Baig MH, A.; Zhang, L.; Jiang, H.; Ji, Y.; Zhao, H.; Tian, J. A simple enhanced water index (EWI) for present surface water estimation using Landsat data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 9097. [Google Scholar] [CrossRef]
  23. Deoli, V.; Kumar, D. Remote Sensing and GIS Approach for Spatiotemporal Mapping of Ramganga Reservoir. Int. J. Curr. Microbiol. Appl. Sci. 2019, 8, 775–783. [Google Scholar] [CrossRef]
  24. Ouma, Y.O.; Tateishi, R. A water index for rapid mapping of shoreline changes of five East African Rift Valley lakes: An em-pirical analysis using Landsat TM and ETM+ data. Int. J. Remote Sens. 2006, 27, 3153–3181. [Google Scholar] [CrossRef]
  25. Haibo, Y.; Zongmin, W.; Hongling, Z.; Yu, G. Water Body Extraction Methods Study Based on RS and GIS. Procedia Environ. Sci. 2011, 10, 2619–2624. [Google Scholar] [CrossRef]
  26. Tang, Z.; Ou, W.; Dai, Y.; Xin, Y. Extraction of Water Body Based on LandSat TM5 Imagery—A Case Study in the Yangtze River. In International Conference on Computer and Computing Technologies in Agriculture; Springer: Berlin/Heidelberg, Germany, 2012; pp. 416–420. [Google Scholar] [CrossRef]
  27. Zhai, K.; Wu, X.; Qin, Y.; Du, P. Comparison of surface water extraction performances of different classic water indices using OLI and TM imageries in different situations. Geo-Spat. Inf. Sci. 2015, 18, 32–42. [Google Scholar] [CrossRef]
  28. Elsahabi, M.; Negmb, A.; Ali, K. Performances Evaluation of Water Body Extraction Techniques Using Landsat ETM+ Data: Case- Study of Lake Nubia, Sudan. Egypt. J. Eng. Sci. Technol. 2016, 19, 275–281. [Google Scholar] [CrossRef]
  29. Guo, Q.; Pu, R.; Li, J.; Cheng, J. A weighted normalized difference water index for water extraction using Landsat imagery. Int. J. Remote Sens. 2017, 38, 5430–5445. [Google Scholar] [CrossRef]
  30. Yang, X.; Chen, L. Evaluation of automated urban surface water extraction from Sentinel-2A imagery using different water indices. J. Appl. Remote Sens. 2017, 11, 026016. [Google Scholar] [CrossRef]
  31. Rishikeshan, C.A.; Ramesh, H. An automated mathematical morphology driven algorithm for water body extraction from remotely sensed images. ISPRS J. Photogramm. 2018, 146, 11–21. [Google Scholar] [CrossRef]
  32. Xiao, X.; Xie, J.; Niu, J.; Cao, W. A Novel Image Fusion Method for Water Body Extraction Based on Optimal Band Combi-nation. Trait. Signal. 2020, 37, 195–207. [Google Scholar] [CrossRef]
  33. Gu, Z.; Zhang, Y.; Fan, H. Mapping inter- and intra-annual dynamics in water surface area of the Tonle Sap Lake with Landsat time-series and water level data. J. Hydrol. 2021, 601, 126644. [Google Scholar] [CrossRef]
  34. Deliry, S.I.; Avdan, Z.Y.; Do, N.T.; Avdan, U. Assessment of human-induced environmental disaster in the Aral Sea using Landsat satellite images. Environ. Earth Sci. 2020, 79, 1–15. [Google Scholar] [CrossRef]
  35. Du, Z.; Linghu, B.; Ling, F.; Li, W.; Tian, W.; Wang, H.; Gui, Y.; Sun, B.; Zhang, X. Estimating surface water area changes using time-series Landsat data in the Qingjiang River Basin, China. J. Appl. Remote Sens. 2012, 6, 063609. [Google Scholar] [CrossRef]
  36. Sarp, G.; Ozcelik, M. Water body extraction and change detection using time series: A case study of Lake Burdur, Turkey. J. Taibah Univ. Sci. 2017, 11, 381–391. [Google Scholar] [CrossRef]
  37. Wang, J.; Ding, J.; Li, G.; Liang, J.; Yu, D.; Aishan, T.; Zhang, F.; Yang, J.; Abulimiti, A.; Liu, J. Dynamic detection of water surface area of Ebinur Lake using multi-source satellite data (Landsat and Senti-nel-1A) and its responses to changing environment. Catena 2019, 177, 189–201. [Google Scholar] [CrossRef]
  38. Herndon, K.; Muench, R.; Cherrington, E.; Griffin, R. An Assessment of Surface Water Detection Methods for Water Resource Management in the Nigerien Sahel. Sensors 2020, 20, 431. [Google Scholar] [CrossRef]
  39. Acharya, T.D.; Yang, I.T.; Subedi, A.; Lee, D.H. Change Detection of Lakes in Pokhara, Nepal Using Landsat Data. Multidiscip. Digit. Publ. Inst. Proc. 2016, 1, 17. [Google Scholar] [CrossRef]
  40. Babaei, H.; Janalipour, M.; Tehrani, N.A. A simple, robust, and automatic approach to extract water body from Landsat images (case study: Lake Urmia, Iran). J. Water Clim. Chang. 2019, 12, 238–249. [Google Scholar] [CrossRef]
  41. Cao, H.; Han, L.; Li, L. Changes in extent of open-surface water bodies in China’s Yellow River Basin (2000–2020) using Google Earth Engine cloud platform. Anthropocene 2022, 39, 100346. [Google Scholar] [CrossRef]
  42. Xing, W.; Guo, B.; Sheng, Y.; Yang, X.; Ji, M.; Xu, Y. Tracing surface water change from 1990 to 2020 in China’s Shandong Province using Landsat series images. Ecol. Indic. 2022, 140, 108993. [Google Scholar] [CrossRef]
  43. Li, W.; Zhang, W.; Li, Z.; Wang, Y.; Chen, H.; Gao, H.; Zhou, Z.; Hao, J.; Li, C.; Wu, X. A new method for surface water extraction using multi-temporal Landsat 8 images based on maximum entropy model. Eur. J. Remote Sens. 2022, 55, 303–312. [Google Scholar] [CrossRef]
  44. Dash, R.R.; Mehrotra, I.; Kumar, P.; Grischek, T. Lake bank filtration at Nainital, India: Water-quality evaluation. Appl. Hydrogeol. 2008, 16, 1089–1099. [Google Scholar] [CrossRef]
  45. Sah, N.; Kumar, M.; Upadhyay, R.; Dutt, S. Hill slope instability of Nainital City, Kumaun Lesser Himalaya, Uttarakhand, India. J. Rock Mech. Geotech. Eng. 2018, 10, 280–289. [Google Scholar] [CrossRef]
  46. Mann, H.B. Non-parametric tests against trend. Econ. J. Econ. Soc. 1945, 13, 245–259. [Google Scholar]
  47. Kendall, M.G. Rank correlation methods. Charles Griffin. 1975, 202. [Google Scholar] [CrossRef]
  48. Neeti, N.; Eastman, J.R. A Contextual Mann-Kendall Approach for the Assessment of Trend Significance in Image Time Series. Trans. GIS 2011, 15, 599–611. [Google Scholar] [CrossRef]
  49. Mohammad, L.; Mondal, I.; Bandyopadhyay, J.; Pham, Q.B.; Nguyen, X.C.; Dinh, C.D.; Al-Quraishi, A.M.F. Assessment of spatio-temporal trends of satellite-based aerosol optical depth using Mann–Kendall test and Sen’s slope estimator model. Geomat. Nat. Hazards Risk 2022, 13, 1270–1298. [Google Scholar] [CrossRef]
  50. Pingale, S.M.; Khare, D.; Jat, M.K.; Adamowski, J. Spatial and temporal trends of mean and extreme rainfall and temperature for the 33 urban centers of the arid and semi-arid state of Rajasthan, India. Atmos. Res. 2014, 138, 73–90. [Google Scholar] [CrossRef]
  51. Kumar, K.S.; Rathnam, E.V. Analysis and Prediction of Groundwater Level Trends Using Four Variations of Mann Kendall Tests and ARIMA Modelling. J. Geol. Soc. India 2019, 94, 281–289. [Google Scholar] [CrossRef]
  52. Kuriqi, A.; Ali, R.; Pham, Q.B.; Gambini, J.M.; Gupta, V.; Malik, A.; Linh, N.T.T.; Joshi, Y.; Anh, D.T.; Nam, V.T.; et al. Seasonality shift and streamflow flow variability trends in central India. Acta Geophys. 2020, 68, 1461–1475. [Google Scholar] [CrossRef]
  53. Rana, S.; Deoli, V.; Chavan, S.R. Detection of abrupt change in trends of rainfall and rainy day’s pattern of Uttarakhand. Arab. J. Geosci. 2022, 15, 1–17. [Google Scholar] [CrossRef]
  54. Abeysingha, N.S.; Singh, M.; Sehgal, V.K.; Khanna, M.; Pathak, H. Analysis of trends in streamflow and its linkages with rainfall and anthropogenic factors in Gomti River basin of North India. Arch. Meteorol. Geophys. Bioclimatol. Ser. B 2015, 123, 785–799. [Google Scholar] [CrossRef]
  55. Longobardi, A.; Villani, P. Trend analysis of annual and seasonal rainfall time series in the Mediterranean area. Int. J. Climatol. 2010, 30, 1538–1546. [Google Scholar] [CrossRef]
  56. Kisi, O.; Ay, M. Comparison of Mann–Kendall and innovative trend method for water quality parameters of the Kizilirmak River, Turkey. J. Hydrol. 2014, 513, 362–375. [Google Scholar] [CrossRef]
  57. Acharya, T.D.; Subedi, A.; Huang, H.; Lee, D.H. Application of Water Indices in Surface Water Change Detection Using Landsat Imagery in Nepal. Sens. Mater. 2019, 31, 1429. [Google Scholar] [CrossRef]
  58. Li, W.; Du, Z.; Ling, F.; Zhou, D.; Wang, H.; Gui, Y.; Sun, B.; Zhang, X. A Comparison of Land Surface Water Mapping Using the Normalized Difference Water Index from TM, ETM+ and ALI. Remote Sens. 2013, 5, 5530–5549. [Google Scholar] [CrossRef]
  59. Deoli, V.; Kumar, D.; Kumar, M.; Kuriqi, A.; Elbeltagi, A. Water spread mapping of multiple lakes using remote sensing and satellite data. Arab. J. Geosci. 2021, 14, 1–15. [Google Scholar] [CrossRef]
  60. Elsahabi, M.; Negm, A.; El Tahan, A.H.M. Performances Evaluation of Surface Water Areas Extraction Techniques Using Landsat ETM+ Data: Case Study Aswan High Dam Lake (AHDL). Procedia Technol. 2016, 22, 1205–1212. [Google Scholar] [CrossRef] [Green Version]
  61. Bijeesh, T.V.; Narasimhamurthy, K.N. A comparative study of spectral indices for surface water delineation using Landsat 8 Images. In Proceedings of the 2019 International Conference on Data Science and Communication (IconDSC), Bangalore, India, 1–2 March 2019; IEEE: Bangalore, India, 2019; pp. 1–5. [Google Scholar]
Sensors 22 06827 g001 550

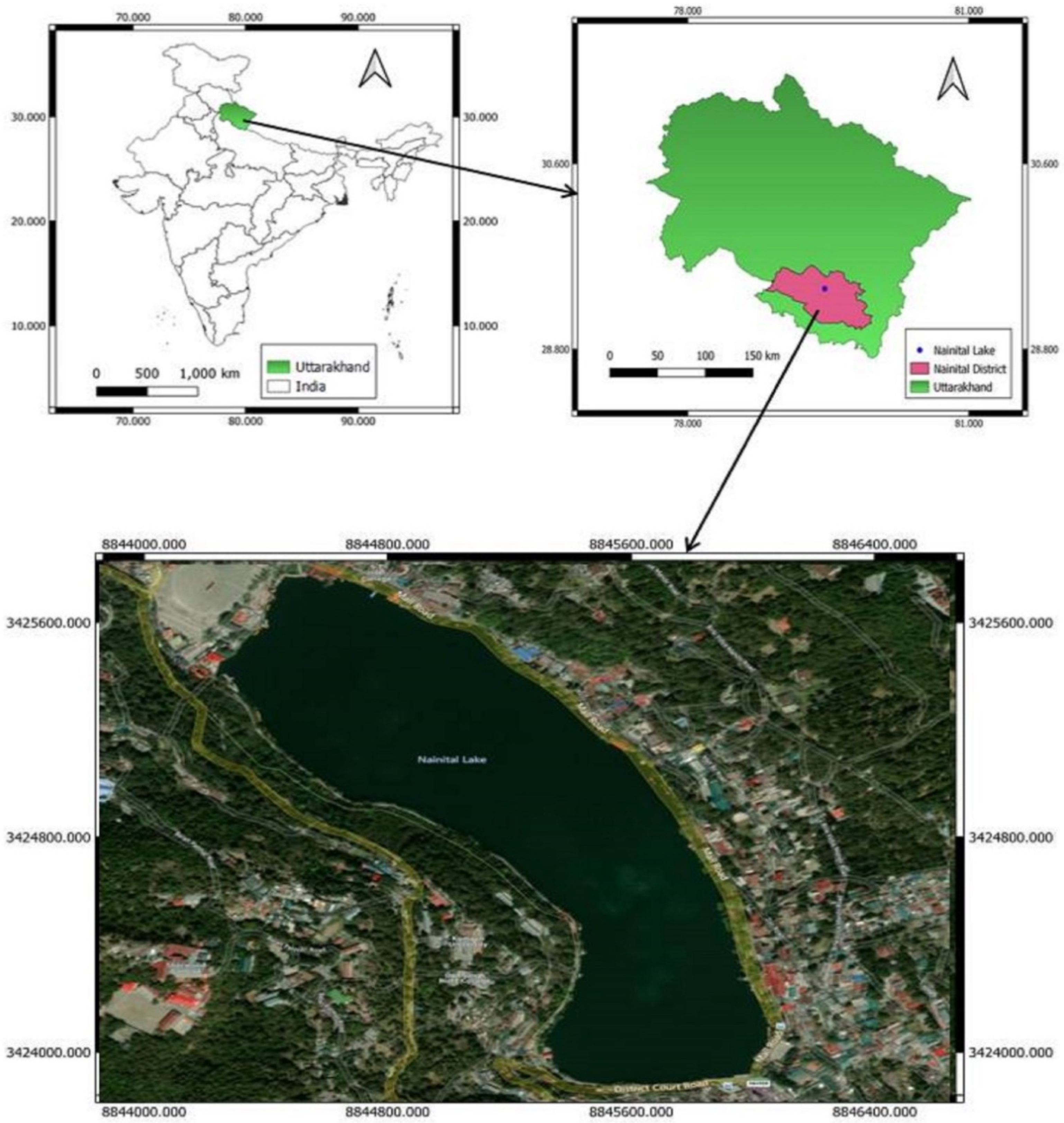

Figure 1. Location Map of Nainital Lake.
Figure 1. Location Map of Nainital Lake.
Sensors 22 06827 g001
Sensors 22 06827 g002a 550Sensors 22 06827 g002b 550

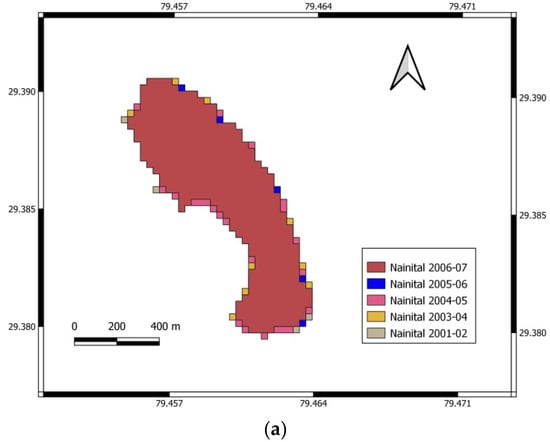

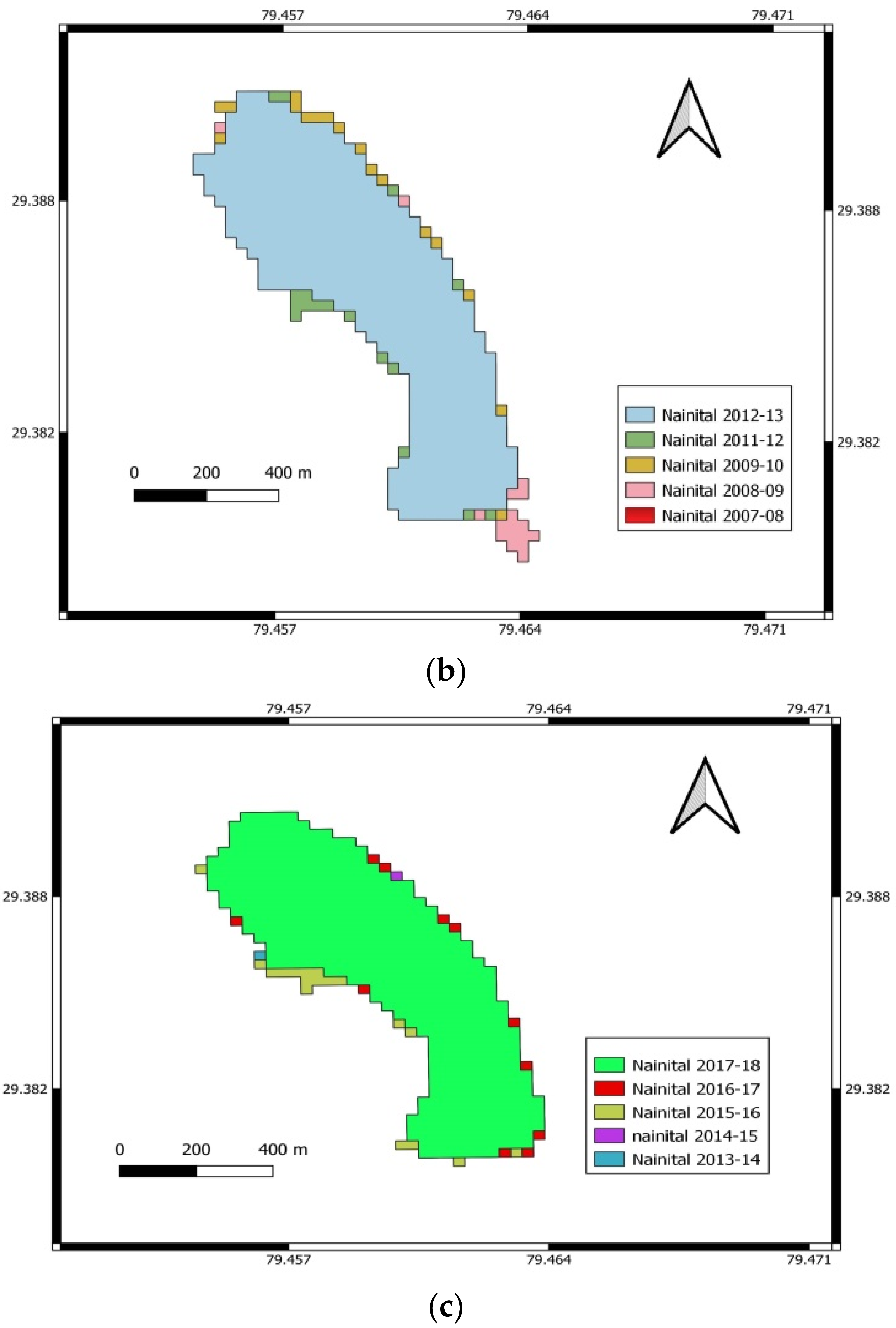

Figure 2. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for November to February. (a) Variation of water in Nainital Lake from November to February for 2001–2002 to 2006–2007. (b) Variation of water in Nainital Lake from November to February for 2007–2008 to 2012–2013. (c) Variation of water in Nainital Lake from November to February for 2013–2014 to 2017–2018.
Figure 2. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for November to February. (a) Variation of water in Nainital Lake from November to February for 2001–2002 to 2006–2007. (b) Variation of water in Nainital Lake from November to February for 2007–2008 to 2012–2013. (c) Variation of water in Nainital Lake from November to February for 2013–2014 to 2017–2018.
Sensors 22 06827 g002aSensors 22 06827 g002b
Sensors 22 06827 g003a 550Sensors 22 06827 g003b 550

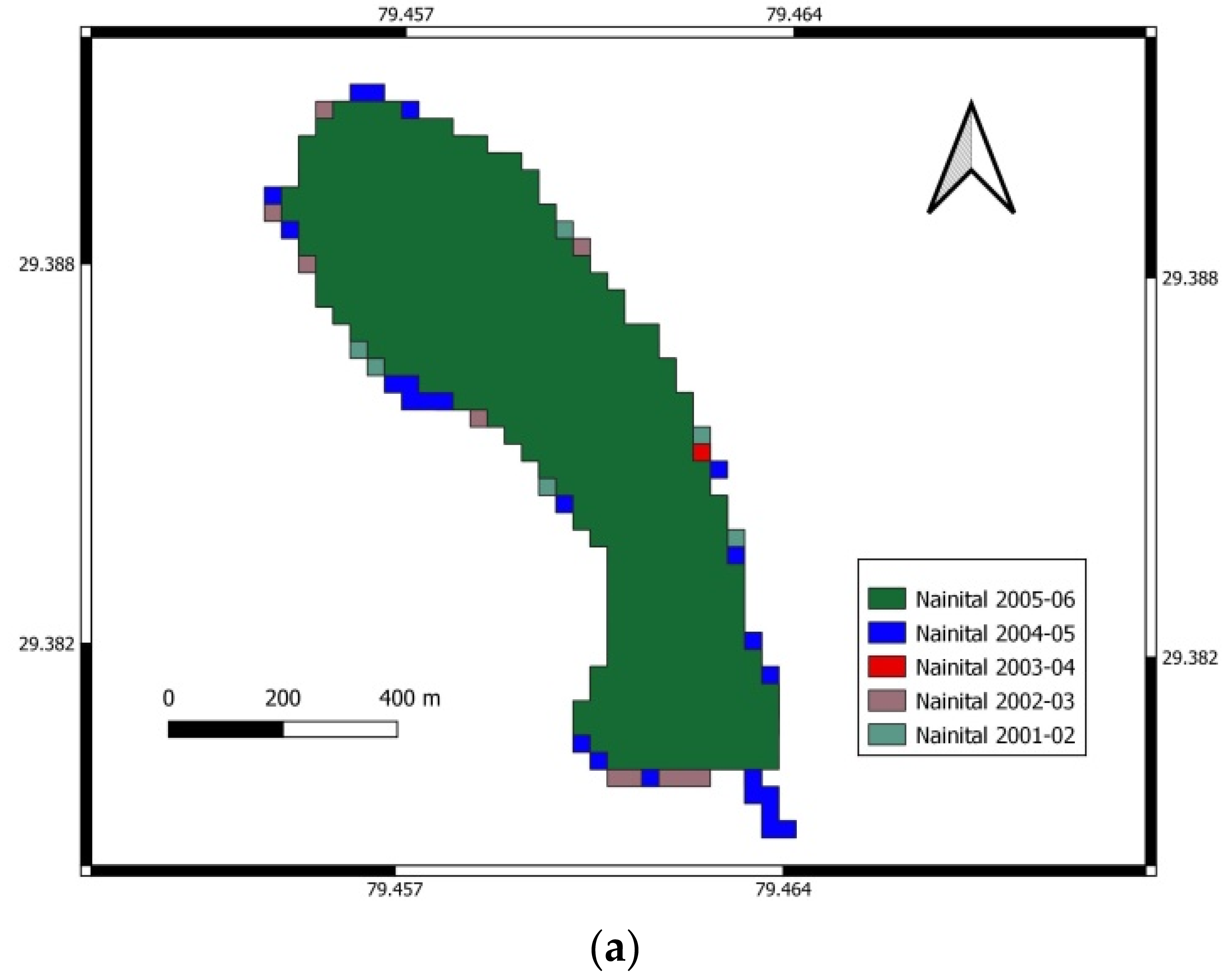

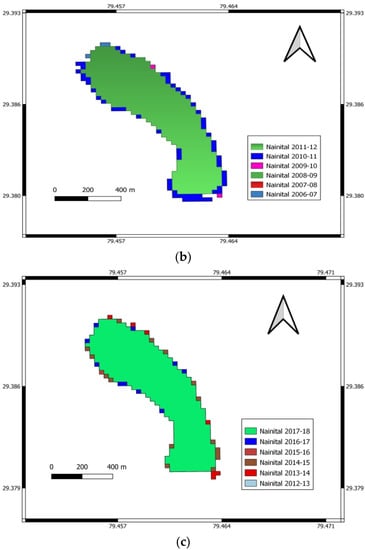

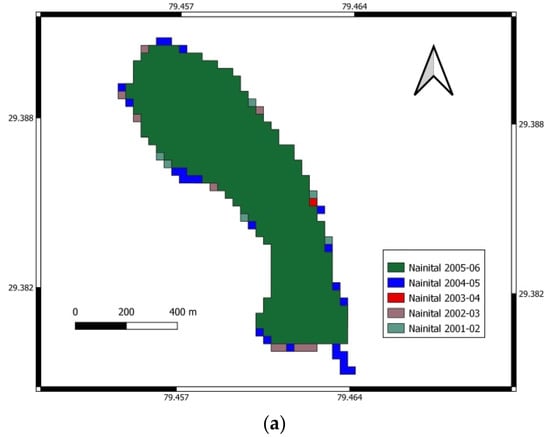

Figure 3. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for March to June. (a) Variation of water in Nainital Lake from March to June for 2001–2002 to 2005–2006. (b) Variation of water in Nainital Lake from March to June for 2006–2007 to 2011–2012. (c) Variation of water in Nainital Lake from March to June for 2012–2013 to 2017–2018.
Figure 3. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for March to June. (a) Variation of water in Nainital Lake from March to June for 2001–2002 to 2005–2006. (b) Variation of water in Nainital Lake from March to June for 2006–2007 to 2011–2012. (c) Variation of water in Nainital Lake from March to June for 2012–2013 to 2017–2018.
Sensors 22 06827 g003aSensors 22 06827 g003b
Sensors 22 06827 g004a 550Sensors 22 06827 g004b 550

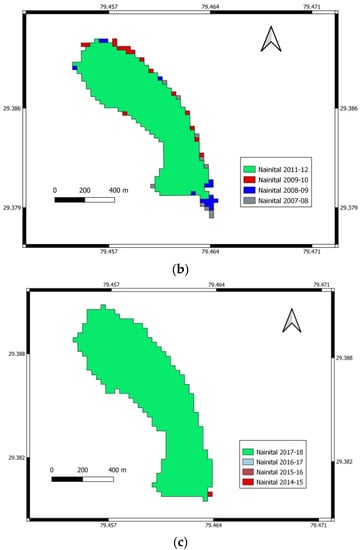

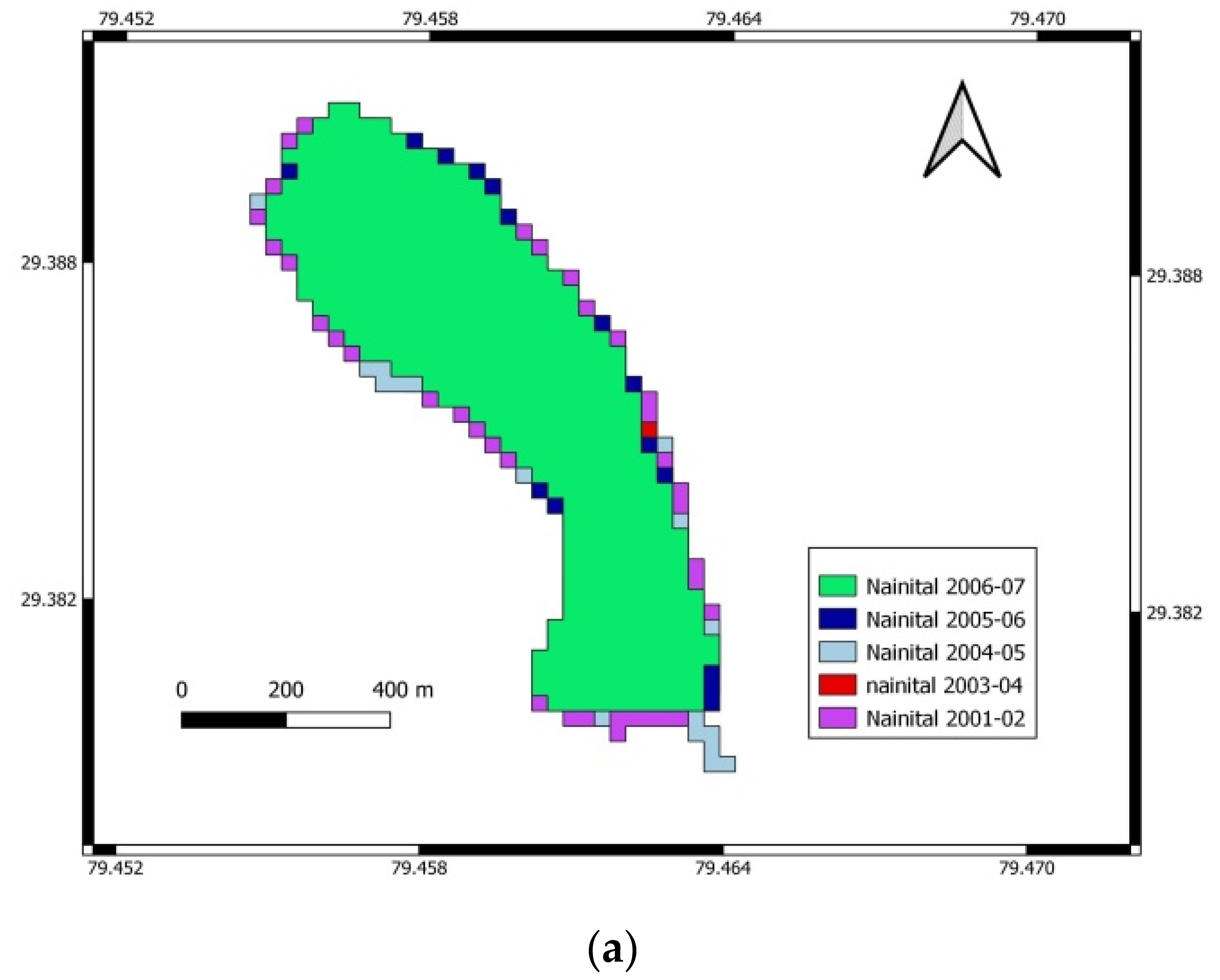

Figure 4. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for July to October. (a) Variation of water in Nainital Lake from July to October for 2001–2002 to 2005–2006. (b) Variation of water in Nainital Lake from July to October for the years 2006–2007 to 2011–2012. (c) Variation of water in Nainital Lake from July to October for 2012–2013 to 2017–2018.
Figure 4. Water spread mapping and spatial changes in water spread from 2001–2002 to 2017–2018 for July to October. (a) Variation of water in Nainital Lake from July to October for 2001–2002 to 2005–2006. (b) Variation of water in Nainital Lake from July to October for the years 2006–2007 to 2011–2012. (c) Variation of water in Nainital Lake from July to October for 2012–2013 to 2017–2018.
Sensors 22 06827 g004aSensors 22 06827 g004b
Sensors 22 06827 g005 550

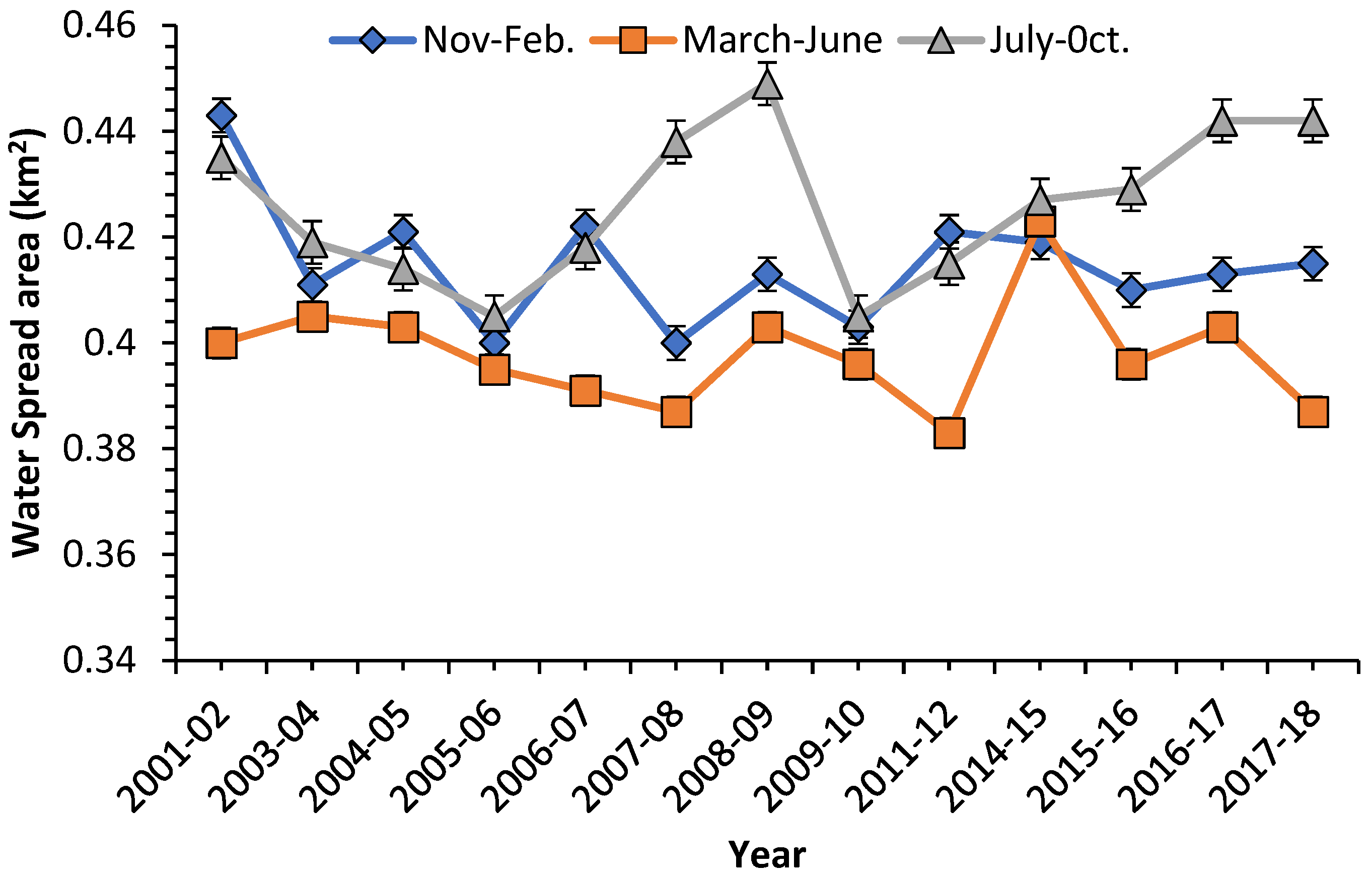

Figure 5. Variation in water spread area of Nainital Lake from 2001 to 2018 (determined by NDWI).
Figure 5. Variation in water spread area of Nainital Lake from 2001 to 2018 (determined by NDWI).
Sensors 22 06827 g005
Table
Table 1. Specification of Landsat-7 and Landsat 8 bands.
Table 1. Specification of Landsat-7 and Landsat 8 bands.
Band NameBand NumberResolution (m)
Landsat 7Landsat 8
Deep Blue-130
Blue1230
Green2330
Red3430
Near Infrared (NIR)4530
Short-wave Infrared 1 (SWIR 1)5630
Short-wave Infrared 2 (SWIR 2)7730
Panchromatic8815
Cirrus-930
Thermal Infra-Red 161030
Thermal Infra-Red 261130
Table
Table 2. Cloud-free Landsat imageries were used in this study.
Table 2. Cloud-free Landsat imageries were used in this study.
SatelliteYearNov–FebMar–JunJuly–Oct
Landsat-72000–200121-01-200127-04-200118-09-2001
2001–200223-12-200129-03-200223-10-2002
2002–2003-01-04-2003-
2003–200427-11-200305-05-200428-10-2004
2004–200515-12-200409-06-200515-10-2005
2005–200604-02-200612-06-20062-10-2006
2006–200706-01-200728-04-200721-10-2007
2007–200810-02-200830-04-200823-10-2008
2008–200927-01-200917-04-200910-10-2009
2009–201030-01-201004-04-201029-10-2010
2010–2011-22-03-2011-
2011–201203-12-201127-05-201218-10-2012
2012–201322-01-201314-05-2013-
Landsat-82013–201416-12-201310-06-2014-
2014–201521-02-201510-04-201503-10-2015
2015–201622-12-201512-04-201621-10-2016
2016–201710-02-201702-06-201724-10-2017
2017–201828-01-201820-05-201827-10-2018
Note: “-” indicates no cloud-free Landsat image available for that duration.
Table
Table 3. Water Spread Area of Nainital Lake from November to February.
Table 3. Water Spread Area of Nainital Lake from November to February.
YearNDWIMNDWIWRI
Area
(km2)		Area
(km2)		Area
(km2)
2001–20020.4450.4430.433
2002–2003---
2003–20040.4400.4110.427
2004–20050.4380.4210.424
2005–20060.4120.4000.430
2006–20070.4230.4220.416
2007–20080.4220.4000.415
2008–20090.4330.4130.427
2009–20100.4460.4030.415
2010–2011---
2011–20120.4550.4210.435
2012–20130.4430.4150.449
2013–20140.4630.4110.448
2014–20150.4360.4190.433
2015–20160.4640.4100.422
2016–20170.4470.4130.409
2017–20180.4420.4150.404
Note: “-” indicates no cloud-free Landsat image available for that duration.
Table
Table 4. Water Spread Area of Nainital Lake from March to June.
Table 4. Water Spread Area of Nainital Lake from March to June.
YearNDWIMNDWIWRI
Area
(km2)		Area
(km2)		Area
(km2)
2001–20020.4280.4000.421
2002–20030.4270.4040.431
2003–20040.3960.4050.416
2004–20050.4320.4030.428
2005–20060.3950.3950.422
2006–20070.4080.3910.420
2007–20080.3870.3870.401
2008–20090.3980.4030.403
2009–20100.4150.3960.406
2010–20110.4510.4150.445
2011–20120.3830.3830.406
2012–20130.3970.3960.410
2013–20140.4210.4100.408
2014–20150.4200.4230.402
2015–20160.3990.3960.403
2016–20170.4010.4030.393
2017–20180.3970.3870.388
Table
Table 5. Water Spread Area of Nainital Lake July to October.
Table 5. Water Spread Area of Nainital Lake July to October.
YearNDWIMNDWIWRI
Area
(km2)		Area
(km2)		Area
(km2)
2001–20020.4600.4350.462
2002–2003---
2003–20040.4520.4190.461
2004–20050.4420.4140.451
2005–20060.4650.4050.479
2006–20070.4340.4180.436
2007–20080.4670.4380.452
2008–20090.4600.4490.445
2009–20100.4410.4050.442
2010–2011---
2011–20120.4450.4150.440
2012–2013---
2013–2014---
2014–20150.4380.4270.425
2015–20160.4320.4290.447
2016–20170.4510.4420.445
2017–20180.4630.4420.451
Note: “-” indicates no cloud-free Landsat image available for that duration.
Table
Table 6. Water spread area using the GPS survey and multiband water indices.
Table 6. Water spread area using the GPS survey and multiband water indices.
LakeUsing GPS (km2)Using NDWI (km2)Using MNDWI (km2)Using WRI
(km2)
Nainital0.4570.471
(−3.06% deviation from the surveyed area)		0.431
(5.69% deviation from the surveyed area)		0.440
(−3.71% deviation from the surveyed area)
Table
Table 7. Trend detection for surface area changes of lakes at a 5% significance level.
Table 7. Trend detection for surface area changes of lakes at a 5% significance level.
StationDurationZ-ValueTrend
NainitalNovember–February−1.090No
March–June−2.818Yes (-) *
July–October−2.961Yes (-) *
* Significant negative trend at 5% significance level.
Table
Table 8. The magnitude of change in the water spread area of Nainital Lake is at 5% significance.
Table 8. The magnitude of change in the water spread area of Nainital Lake is at 5% significance.
StationSeasonTrend Magnitude
(km2/year)		Change over Study Periods (%)
NainitalNovember–February−0.00070−2.79
March–June−0.00187−7.70
July–October−0.00123−4.67
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Deoli, V.; Kumar, D.; Kuriqi, A. Detection of Water Spread Area Changes in Eutrophic Lake Using Landsat Data. Sensors 2022, 22, 6827. https://doi.org/10.3390/s22186827

AMA Style

Deoli V, Kumar D, Kuriqi A. Detection of Water Spread Area Changes in Eutrophic Lake Using Landsat Data. Sensors. 2022; 22(18):6827. https://doi.org/10.3390/s22186827

Chicago/Turabian Style

Deoli, Vaibhav, Deepak Kumar, and Alban Kuriqi. 2022. "Detection of Water Spread Area Changes in Eutrophic Lake Using Landsat Data" Sensors 22, no. 18: 6827. https://doi.org/10.3390/s22186827

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
