# Non-Linear Regression Models with Vibration Amplitude Optimization Algorithms in a Microturbine

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Rana, V.; Ansari, M.; Chauhan, Y.K.; Tyagi, A.; Kumar, K. A novel scheme of parameters control of microturbine system at different loading conditions. J. Inf. Optim. Sci.
**2020**, 41, 293–303. [Google Scholar] [CrossRef] - Shen, F.; Ju, P.; Shahidehpour, M.; Li, Z.; Wang, C.; Shi, X. Singular perturbation for the dynamic modeling of integrated energy systems. IEEE Trans. Power Syst.
**2019**, 35, 1718–1728. [Google Scholar] [CrossRef] - Saib, S.; Gherbi, A.; Bayindir, R.; Kaabeche, A. Multi-objective Optimization of a Hybrid Renewable Energy System with a Gas Micro-turbine and a Storage Battery. Arab. J. Sci. Eng.
**2020**, 45, 1553–1566. [Google Scholar] [CrossRef] - Hampel, C.A.; Braun, R.J. Off-design modeling of a microturbine combined heat & power system. Appl. Therm. Eng.
**2021**, 202, 117670. [Google Scholar] [CrossRef] - Pirkandi, J.; Jahromi, M.; Sajadi, S.Z.; Ommian, M. Thermodynamic performance analysis of three solid oxide fuel cell and gas microturbine hybrid systems for application in auxiliary power units. Clean Technol. Environ. Policy
**2018**, 20, 1047–1060. [Google Scholar] [CrossRef] - Zhao, Q.; Yuan, J.; Jiang, H.; Yao, H.; Wen, B. Vibration control of a rotor system by shear thickening fluid dampers. J. Sound Vib.
**2021**, 494, 115883. [Google Scholar] [CrossRef] - Tang, X.; Hu, X.; Yang, W.; Yu, H. Novel Torsional Vibration Modeling and Assessment of a Power-Split Hybrid Electric Vehicle Equipped with a Dual-Mass Flywheel. IEEE Trans. Veh. Technol.
**2018**, 67, 1990–2000. [Google Scholar] [CrossRef] - Komorska, I.; Puchalski, A. Rotating machinery diagnosing in non-stationary conditions with empirical mode decomposition-based wavelet leaders multifractal spectra. Sensors
**2021**, 21, 7677. [Google Scholar] [CrossRef] [PubMed] - Ferrari, M.L.; Silvestri, P.; Pascenti, M.; Reggio, F.; Massardo, A.F. Experimental dynamic analysis on a T100 microturbine connected with different volume sizes. J. Eng. Gas Turbines Power
**2018**, 140, 021701. [Google Scholar] [CrossRef] - Kaczmarczyk, T.Z.; Żywica, G.; Ihnatowicz, E. Measurements and vibration analysis of a five-stage axial-flow microturbine operating in an ORC cycle. Diagnostyka
**2017**, 18, 51–58. [Google Scholar] - Żywica, G.; Kaczmarczyk, T.Z.; Breńkacz, Ł.; Bogulicz, M.; Andrearczyk, A.; Bagiński, P. Investigation of dynamic properties of the microturbine with a maximum rotational speed of 120 krpm–predictions and experimental tests. J. Vibroeng.
**2020**, 22, 298–312. [Google Scholar] [CrossRef] - Mohamadi, M.R.; Abedini, M.; Rashidi, B. An adaptive multi-objective optimization method for optimum design of distribution networks. Eng. Optim.
**2019**, 52, 194–217. [Google Scholar] [CrossRef] - Fausto, F.; Reyna-Orta, A.; Cuevas, E.; Andrade, Á.G.; Pérez-Cisneros, M. From ants to whales: Metaheuristics for all tastes. Artif. Intell. Rev.
**2019**, 53, 753–810. [Google Scholar] [CrossRef] - Mishra, S.K.; Shakya, P.; Babureddy, V.; Ajay Vignesh, S. An approach to improve high-frequency resonance technique for bearing fault diagnosis. Measurement
**2021**, 178, 109318. [Google Scholar] [CrossRef] - Lampinen, J. Cam shape optimisation by genetic algorithm. Comput.-Aided Des.
**2003**, 35, 727–737. [Google Scholar] [CrossRef] - Li, X.; Wang, H.; Li, G. Reanalysis assisted metaheuristic optimization for free vibration problems of composite laminates. Compos. Struct.
**2018**, 206, 380–391. [Google Scholar] [CrossRef] - Pereira, J.; Oliver, G.; Francisco, M.; Cunha, S., Jr.; Gomes, G. A Review of Multi-objective Optimization: Methods and Algorithms in Mechanical Engineering Problems. Arch. Comput. Methods Eng.
**2021**, 1–24. [Google Scholar] [CrossRef] - Abellan-Nebot, J.; Subirón, F. A review of machining monitoring systems based on artificial intelligence process models. Int. J. Adv. Manuf. Technol.
**2010**, 47, 237–257. [Google Scholar] [CrossRef] - Dokeroglu, T.; Sevinc, E.; Kucukyilmaz, T.; Cosar, A. A survey on new generation metaheuristic algorithms. Comput. Ind. Eng.
**2019**, 137, 106040. [Google Scholar] [CrossRef] - Faris, H.; Aljarah, I.; Al-Betar, M.A.; Mirjalili, S.M. Grey wolf optimizer: A review of recent variants and applications. Neural Comput. Appl.
**2017**, 30, 413–435. [Google Scholar] [CrossRef] - Goel, L. An extensive review of computational intelligence-based optimization algorithms: Trends and applications. Soft Comput.
**2020**, 24, 16519–16549. [Google Scholar] [CrossRef] - Mirjalili, S.; Mirjalili, S.M.; Lewis, A. Grey Wolf Optimizer. Adv. Eng. Softw.
**2014**, 69, 46–61. [Google Scholar] [CrossRef] [Green Version] - Tandon, N.; Parey, A. Condition Monitoring of Rotary Machines. In Condition Monitoring and Control for Intelligent Manufacturing; Springer: London, UK, 2006; pp. 109–136. [Google Scholar] [CrossRef]
- Abd Elaziz, M.; Elsheikh, A.H.; Oliva, D.; Abualigah, L.; Lu, S.; Ewees, A.A. Advanced Metaheuristic Techniques for Mechanical Design Problems: Review. Arch. Comput. Methods Eng.
**2021**, 1–22. [Google Scholar] [CrossRef] - G Nath, A.; Udmale, S.; Singh, S. Role of artificial intelligence in rotor fault diagnosis: A comprehensive review. Artif. Intell. Rev.
**2021**, 54, 1–60. [Google Scholar] [CrossRef] - Kumbhar, S.; Sudhagar, E.; Desavale, R. Theoretical and Experimental Studies to Predict Vibration Responses of Defects in Spherical Roller Bearings using Dimension Theory. Measurement
**2020**, 107846. [Google Scholar] [CrossRef] - Montoya-Santiyanes, L.A.; Domínguez-López, I.; Rodríguez, E.E. Análisis Experimental de la Frecuencia y Amplitud de Vibración en una Microturbina de Gas. Acad. J.
**2021**, 13, 282–286. [Google Scholar] - Orosz, T.; Rassõlkin, A.; Kallaste, A.; Arsénio, P.; Pánek, D.; Kaska, J.; Karban, P. Robust Design Optimization and Emerging Technologies for Electrical Machines: Challenges and Open Problems. Appl. Sci.
**2020**, 10, 6653. [Google Scholar] [CrossRef] - Wang, N.; Jiang, D. Vibration response characteristics of a dual-rotor with unbalance-misalignment coupling faults: Theoretical analysis and experimental study. Mech. Mach. Theory
**2018**, 125, 207–219. [Google Scholar] [CrossRef] - Sivasakthivel, P.S.; Velmurugan, V.; Sudhakaran, R. Prediction of vibration amplitude from machining parameters by response surface methodology in end milling. Int. J. Adv. Manuf. Technol.
**2011**, 53, 453–461. [Google Scholar] [CrossRef] - Liu, C.; Jiang, D. Torsional vibration characteristics and experimental study of cracked rotor system with torsional oscillation. Eng. Fail. Anal.
**2020**, 116, 104737. [Google Scholar] [CrossRef]

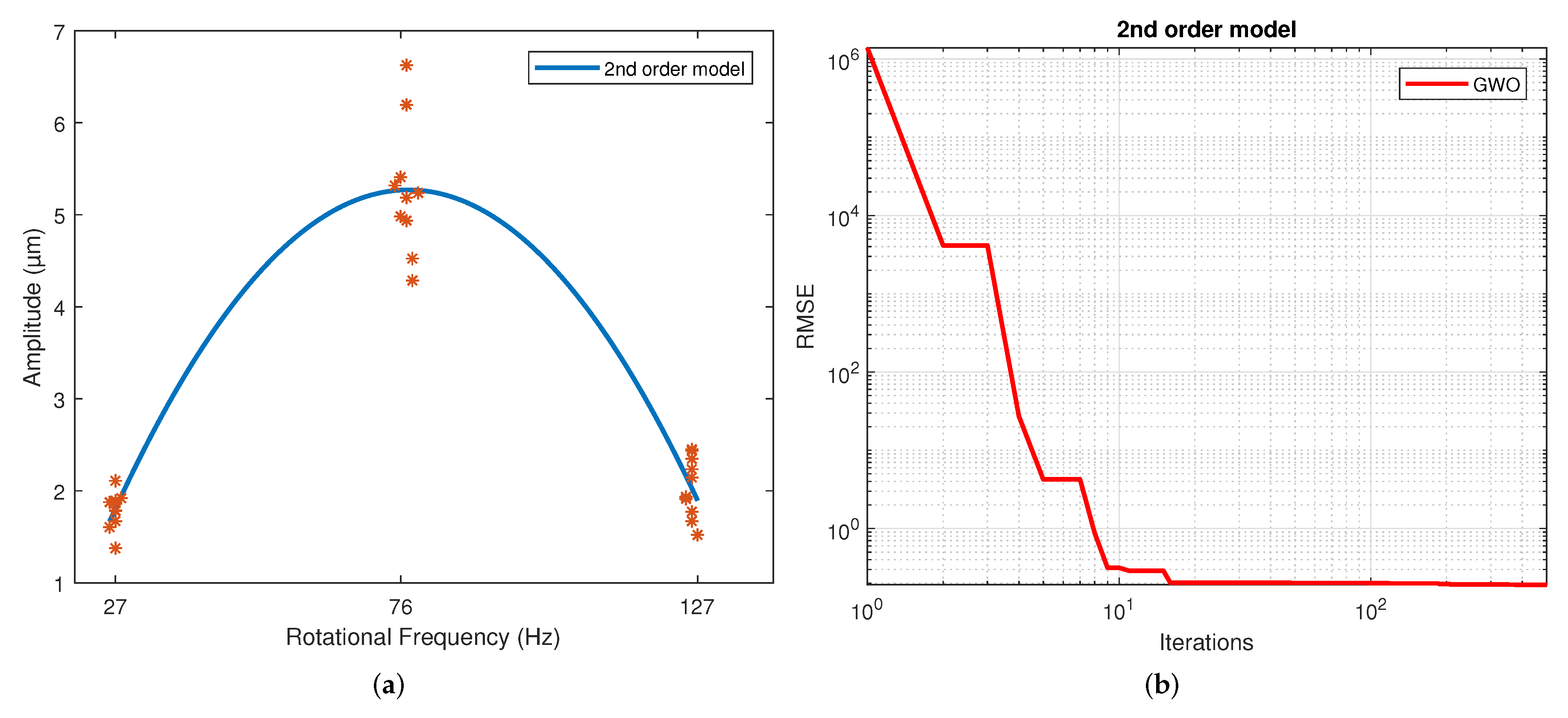

**Figure 4.**Results from the GWO using a 2nd-order model: (

**a**) Regression of the 2nd-order model. (

**b**) Number of iterations in which the RMSE converged with the 2nd-order model.

**Figure 5.**Results from the GWO using a 3rd-order model: (

**a**) Regression of the 3rd-order model. (

**b**) Number of iterations in which the RMSE converged with the 3rd-order model.

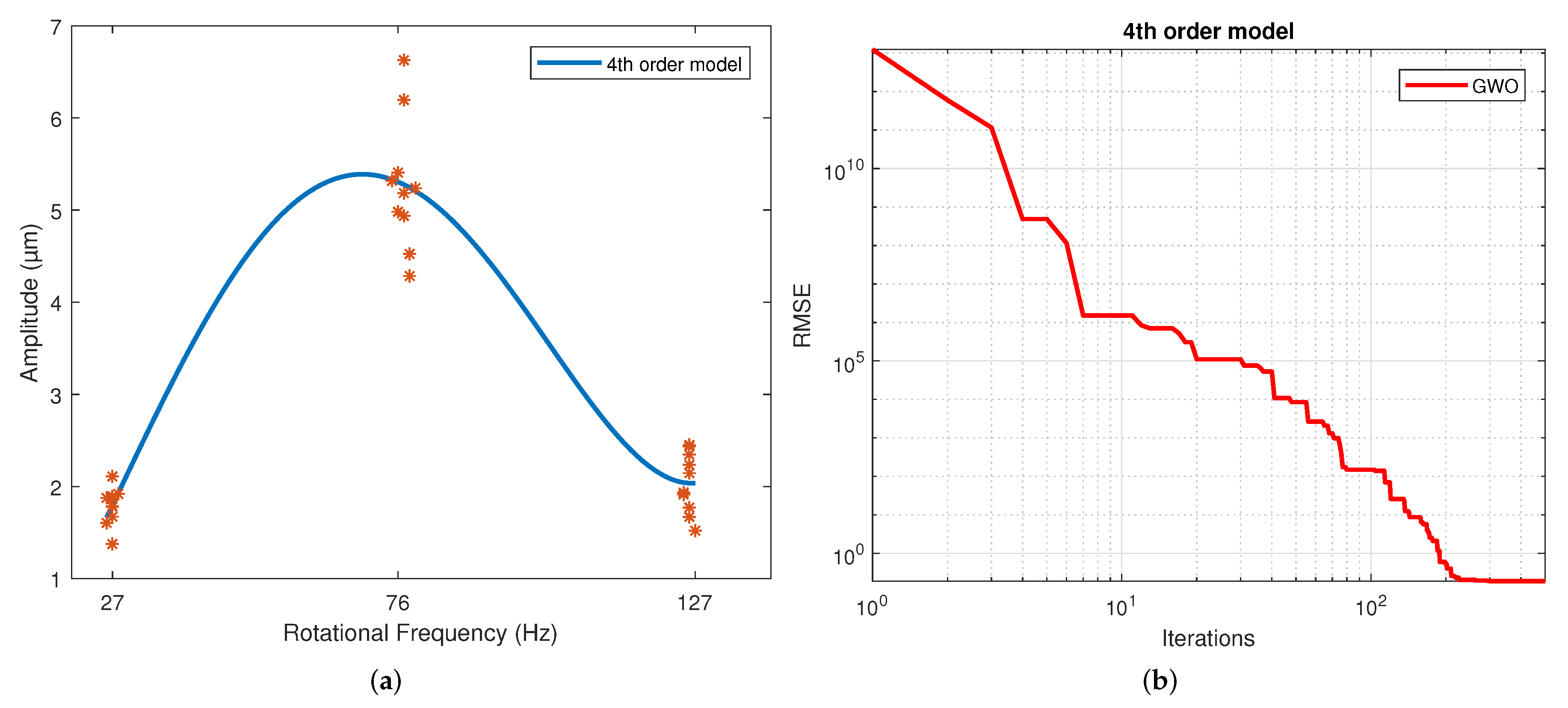

**Figure 6.**Results from the GWO using a 4th-order model: (

**a**) Regression of the 4th-order model. (

**b**) Number of iterations in which the RMSE converged with the 4th-order model.

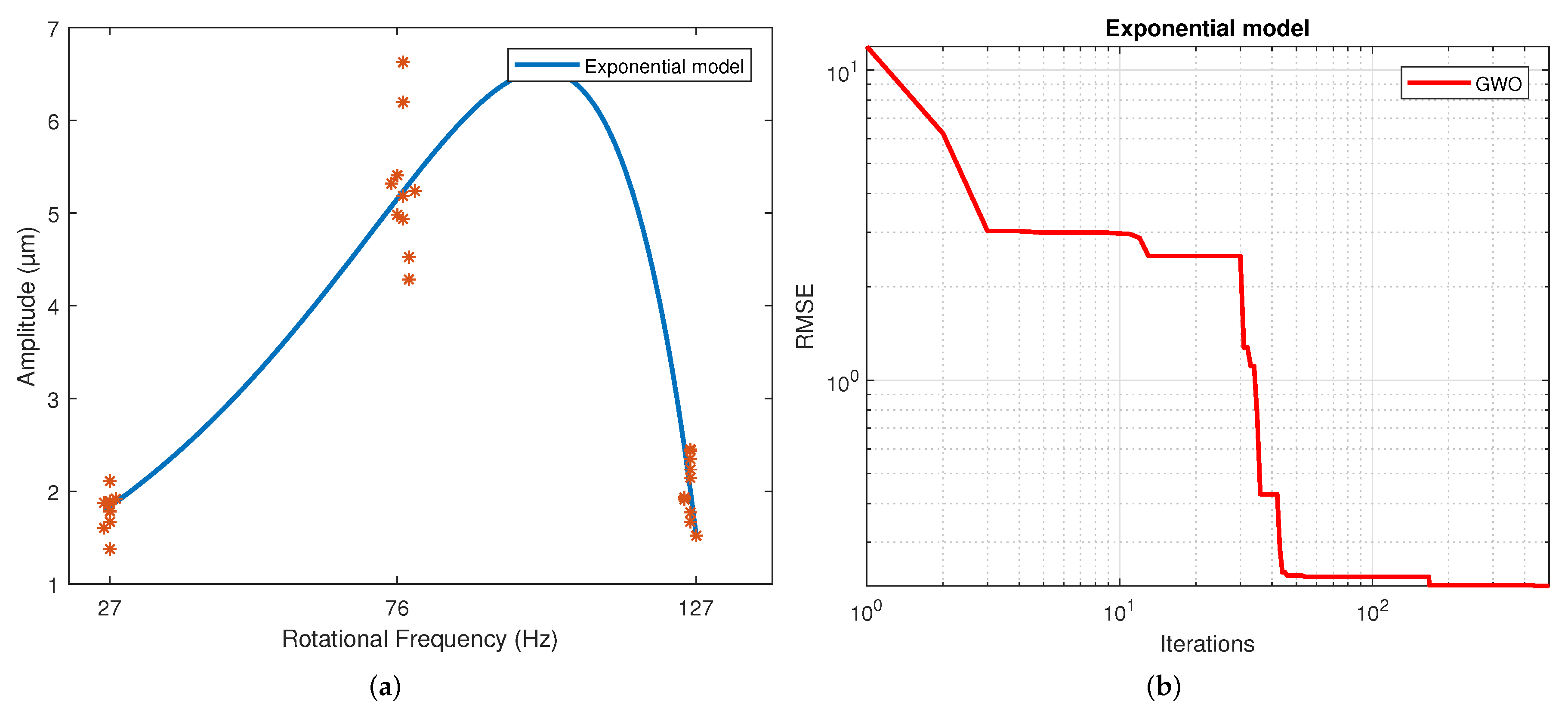

**Figure 7.**Results from the GWO using an exponential model: (

**a**) Regression of the exponential model. (

**b**) Number of iterations in which the RMSE converged with the exponential model.

**Figure 8.**Results from the GWO using an gaussian model: (

**a**) Regression of the gaussian model. (

**b**) Number of iterations in which the RMSE converged with the gaussian model.

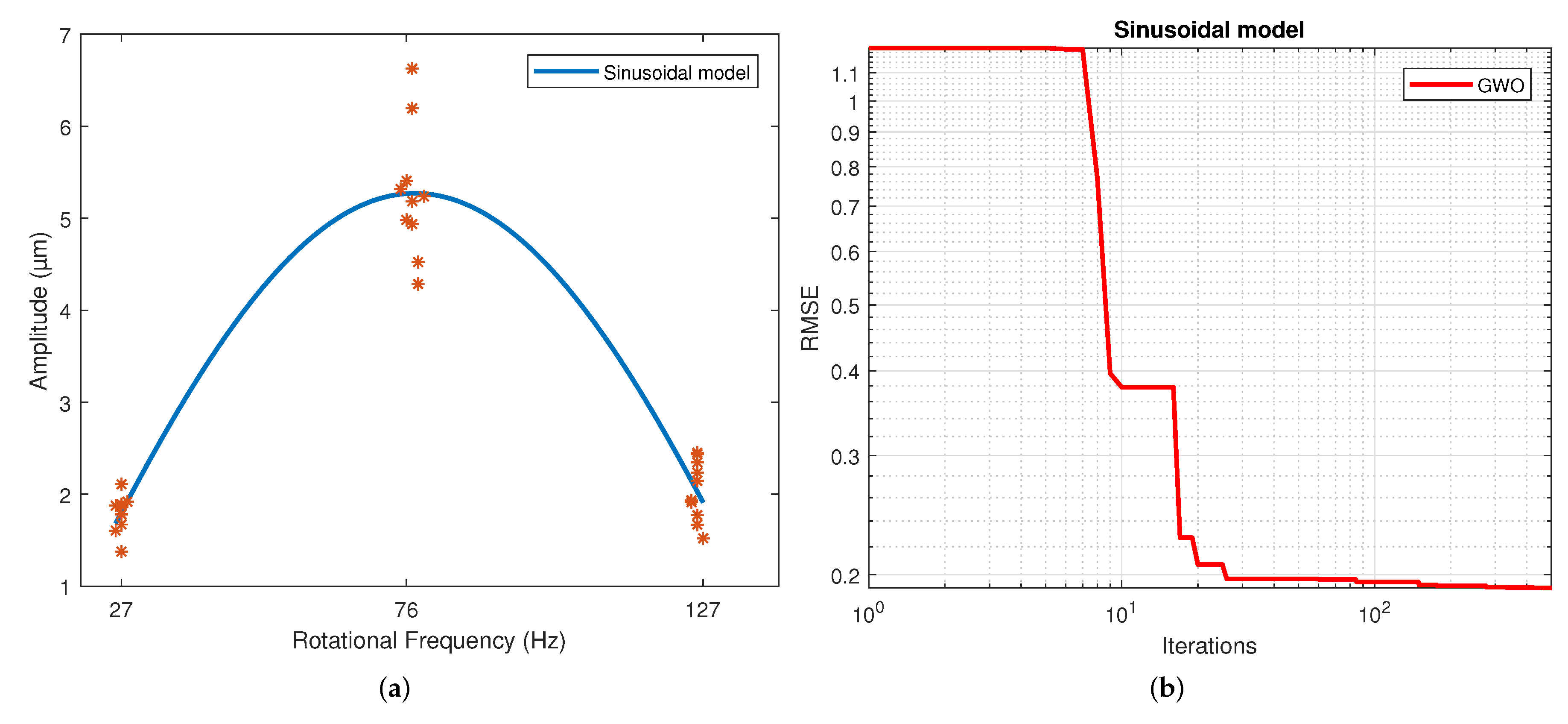

**Figure 9.**Results from the GWO using a sinusoidal model: (

**a**) Regression of the sinusoidal model. (

**b**) Number of iterations in which the RMSE converged with the sinusoidal model.

Parameter | Description |
---|---|

Fuel | Butane/propane gas with maximum pressure of 3.5 kg/cm ^{2} |

Turbine blades outer/inner diameter | 68.6/40.5 mm |

Compressor wheel outer/inner diameter | 64.5/32.8 mm |

Turbine wheel diameter | 70 mm |

Burner hole spacing | 10 mm |

Number of gas outlet holes | 16 |

Avg. Frequency (Hz) | Standrad Deviations | Avg. Amplitude (µm) | Standard Deviations |
---|---|---|---|

26.9 | 0.5676 | 1.7891 | 0.2009 |

77 | 1.1547 | 5.2697 | 0.7028 |

125.9 | 0.5676 | 2.0426 | 0.3287 |

Parameter | 2nd Order | 3rd Order | 4th Order | Exponential | Gaussian | Sinusoidal |
---|---|---|---|---|---|---|

SearchAgent | 300 | 300 | 300 | 300 | 300 | 300 |

Iterations | 500 | 500 | 500 | 500 | 500 | 500 |

Dimension | 3 | 4 | 5 | 4 | 3 | 3 |

LowerBoundary | [−5 −5 −5] | [−5 −5 −5 −5] | [−5 −5 −5 −5 −5] | [−2 −5 −2 −5] | [0 0 0] | [−10 −5 −5] |

UpperBoundary | [5 5 5] | [5 5 5 5] | [5 5 5 5 5] | [2 5 2 5] | [10 100 100] | [10 5 5] |

Model | Coefficients | ||||
---|---|---|---|---|---|

a | b | c | d | e | |

2nd order | −0.00136 | 0.21149 | −2.90663 | · | · |

3rd order | 8.01950$\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}$ | −0.00321 | 0.33308 | −5 | · |

4th order | 2.85$\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ | −7.46$\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-05}$ | 0.00502 | 0.00150 | −0.58955 |

Exponential | −0.37629 | 0.03966 | 1.30276 | 0.03008 | · |

Gaussian | 5.27487 | 77.94529 | 34.75833 | · | · |

Sinusoidal | 5.27116 | 0.02421 | 0.30448 | · | · |

Model | RMSE | ${\mathit{R}}^{2}$ | Model | RMSE | ${\mathit{R}}^{2}$ |
---|---|---|---|---|---|

2nd order | $0.19155\pm 8.0\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ | $0.92913\pm 2.9\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ | Exponential | $0.21936\pm 0.00343$ | $0.91884\pm 0.00126$ |

3rd order | $0.19175\pm 0.00206$ | $0.85524\pm 0.23333$ | Gaussian | $0.19153\pm 8.1\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ | $0.92914\pm 3.0\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ |

4th order | $0.19129\pm 0.00272$ | $0.92922\pm 0.00100$ | Sinusoidal | $0.19137\pm 2.3\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}$ | $0.92919\pm 8.5\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-07}$ |

Model | Time (s) | MBE |
---|---|---|

2nd order | $0.86225\pm 0.01958$ | $1.99\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}\pm 0.00045$ |

3rd order | $1.69912\pm 0.04212$ | $7.84\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}\pm 0.00085$ |

4th order | $2.61961\pm 0.13905$ | $0.00016\pm 0.00361$ |

Exponential | $1.27736\pm 0.44059$ | $0.00059\pm 0.00334$ |

Gaussian | $0.95463\pm 0.02762$ | $4.35\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}\pm 0.00059$ |

Sinusoidal | $0.97166\pm 0.03725$ | $7.20\phantom{\rule{0.166667em}{0ex}}\times \phantom{\rule{0.166667em}{0ex}}{10}^{-06}\pm 0.00085$ |

Model | 26.9 Hz | 77 Hz | 125.9 |
---|---|---|---|

2nd order [27] | −0.53% | 0.03% | −12.88% |

2nd order | 0.163% | 0.010% | −0.059% |

3rd order | 0.204% | 0.004% | −0.012% |

4th order | 0.539% | 0.010% | −0.078% |

Exponential | 2.774% | −0.675% | 0.633% |

Gaussian | 0.271% | 0.060% | −0.263% |

Sinusoidal | 0.125% | 0.035% | −0.127% |
