Communication

Decoration of CuO NWs Gas Sensor with ZnO NPs for Improving NO2 Sensing Characteristics

by
Tae-Hee Han
1,
So-Young Bak
2,
Sangwoo Kim
1,
Se Hyeong Lee
2,
Ye-Ji Han
1 and
Moonsuk Yi
2,*
1
Department of Smart Interdisciplinary Engineering, Pusan National University, Busan 46241, Korea
2
Department of Electronics Engineering, Pusan National University, Busan 46241, Korea
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(6), 2103; https://doi.org/10.3390/s21062103
Submission received: 9 February 2021 / Revised: 5 March 2021 / Accepted: 12 March 2021 / Published: 17 March 2021
(This article belongs to the Section Chemical Sensors)
Browse Figures
Review Reports Versions Notes

Abstract

This paper introduces a method for improving the sensitivity to NO2 gas of a p-type metal oxide semiconductor gas sensor. The gas sensor was fabricated using CuO nanowires (NWs) grown through thermal oxidation and decorated with ZnO nanoparticles (NPs) using a sol-gel method. The CuO gas sensor with a ZnO heterojunction exhibited better sensitivity to NO2 gas than the pristine CuO gas sensor. The heterojunction in CuO/ZnO gas sensors caused a decrease in the width of the hole accumulation layer (HAL) and an increase in the initial resistance. The possibility to influence the width of the HAL helped improve the NO2 sensing characteristics of the gas sensor. The growth morphology, atomic composition, and crystal structure of the gas sensors were analyzed using field-emission scanning electron microscopy (FE-SEM), energy-dispersive X-ray spectroscopy, and X-ray diffraction, respectively.

1. Introduction

Metal oxide semiconductor (MOS) gas sensors have been studied owing to their semi-permanent performance, low price, easy manufacturing process, and high reactivity to gases [1,2,3]. MOS materials generally form adsorbed oxygen ions on nonstoichiometric surfaces at high temperatures (200–400 °C) and also a superficial conductive layer or a depletion layer depending on the type of MOS material. In MOS gas sensors, a chemical reaction between the adsorbed oxygen ions and the target gas causes a change in the thickness of the surface layer, thereby changing the resistance [4]. MOS gas sensors can comprise n-type and p-type materials that generate an electrical core-shell by adsorbing oxygen [5,6]. When oxygen ions are adsorbed on the surface of a p-type oxide semiconductor at 200–400 °C, a hole accumulation layer (HAL) and a high-resistance core are formed above and within the surface, respectively [7]. In general, when a p-type oxide semiconductor reacts to an oxidizing gas, the concentration of the surface holes increases and the resistance decreases [8]. Although the p-type MOS materials, such as CuO, Cr2O3, and NiO, show a high sensitivity to specific gases [7,9], they react less to oxidizing gases, compared to the n-type materials [10,11]. Therefore, there are less experimental results on p-type semiconductor materials than on n-type materials. However, the p-type materials are as important as n-type materials when used in gas sensors, such as complex gas sensor modules and electronic noses [7,12,13].
CuO is a p-type MOS material with a narrow band of 1.2−1.8 eV [14] and has excellent physical and electrical properties. CuO has been used in various applications, such as in solar cells [15], light emitting diodes (LEDs) [16], photocatalysts [17], and sensing materials [18,19]. However, CuO demonstrates a low sensitivity to oxidizing gases [7,20]. To improve its performance in gas reactions, various methods, such as doping and heterojunctions, have been studied [21,22].
In this work, we investigated the CuO/ZnO heterojunction. ZnO is an n-type material that improves the sensitivity of gas sensors in the form of core-shell [23] and decoration particles [24]. In addition, a high-efficiency gas sensor was realized through thermal oxidation in a tube furnace. This process is not as complex as atomic layer deposition (ALD) [25] and hydrothermal synthesis [26].
In this study, a heterojunction was realized by decorating CuO nanowires (NWs) with ZnO nanoparticles (NPs) to improve the NO2 gas detection characteristics. The CuO NWs were grown through thermal oxidation [27], and the ZnO NPs were used to form a CuO/ZnO heterojunction by employing a sol-gel method [28]. The sol-gel method is a simple yet highly efficient oxidization process that uses a sol-gel solution. The p-n heterojunction of the CuO and ZnO interfaces successfully improved the sensitivity of the gas sensors to NO2 gas, as well as their response and recovery time, selective properties.

2. Materials and Methods

2.1. Growth of the CuO NWs

The CuO NWs were grown through thermal oxidation of a Cu foil (99.98%, 0.25 mm thickness, Sigma-Aldrich) in a tube furnace. The Cu foil had a surface of 2 cm × 1 cm and, before undergoing thermal oxidation, it was cleaned in an aqueous solution of 1.5 M HCl for 1 min. Subsequently, it was cleaned with an ultrasonicator in acetone and deionized (DI) water for 10 min. The cleaned Cu foil was then placed on an alumina boat located in the middle of the tube furnace. The sample was heated to 600 °C (30 °C/min) for 3 h at atmospheric pressure. Once the thermal oxidation process was completed, the sample was cooled down in the tube furnace.
A CuO NW suspension was prepared by ultrasonic dispersion of the thermally oxidized Cu foil in a DI water (2 mL) and isopropyl alcohol (1 mL) solution. The CuO gas sensor was realized by dropping the CuO NW suspension onto an Au electrode, and then dried on a hotplate at 120 °C. After drying the solvent in the CuO NW slurry, the gas sensor was annealed at 400 °C for 1 h in the tube furnace.

2.2. ZnO NPs Decoration on the CuO NWs Gas Sensor

In this study, the concentrations of the ZnO sol-gel solutions in the CuO NWs were 0.025, 0.05, and 0.075 M. Zinc acetate dihydrate (Zn(CH3COO)2∙2H2O, 99.999%, Sigma-Aldrich) was dissolved in 2-methoxyethanol. The amount of stabilizer (Ethanolamine) added was four times the concentration of the solute. The sol-gel solution was stirred at 75 °C and 500 rpm for 1 h on a hot plate, and the impurities were removed using a 0.2 μm syringe filter. The sol-gel solution was aged at 25 °C for 24 h and then coated with a spin coater at 1000 rpm for 30 s to form a CuO/ZnO heterojunction on the gas sensor. The CuO NWs coated with the ZnO sol-gel solution were dried for 10 min on a hot plate at 300 °C and then annealed for 1 h in the tube furnace at 500 °C.

3. Results and Discussion

3.1. Material Analysis

3.1.1. Field-Emission Scanning Electron Microscopy (FE-SEM) and Energy-Dispersive X-ray Spectroscopy (EDS) Analyses

Figure 1a shows the surface of a pristine CuO NW. The surface appears smooth, without any particles. The NWs had a length of 10–25 μm and a width of 300–600 nm. Figure 1b shows the surface of the 0.025 M ZnO/CuO NWs, in which small NPs were observed.
However, many NPs were observed on the surface of the CuO NWs decorated with 0.05 M ZnO NPs and 0.075 M ZnO NPs (Figure 1c,d respectively). These images show how many particles adhere to the surface of the NWs at different sol-gel concentration. Figure 1d shows that an excessive concentration of sol-gel solution can destroy the structure of the nanowires.
Figure 2 presents the results of the EDS analysis on the pristine CuO and the 0.05 M CuO/ZnO gas sensors. The Zn K peak was not detected in the pristine CuO sample, as depicted in Figure 2a. Figure 2b shows that the Zn K peak was detected at 3.78% in the 0.05 M CuO/ZnO gas sensor. As the concentration of the sol-gel solution increases, the weight of the detected Zn K peak increases (Table 1).
The EDS mapping images are demonstrated in Figure 3. It was observed that the NWs primarily comprised Cu and O. The Zn NPs were uniformly distributed over the entire area.

3.1.2. X-ray Diffraction (XRD) Analysis

As shown in Figure 4, the crystal structures of the 0.05 M CuO/ZnO gas sensor were analyzed using XRD. The XRD patterns were indexed to CuO (ICSD number 87125) and to the hexagonal structure of ZnO (ICSD number 162843). This confirmed that the crystalline ZnO NPs synthesized through the sol-gel method were formed on the CuO NWs. The CuO NWs exhibited a high peak in the (11 1 ¯ ) and (111) directions at 35.558° and 38.748°, respectively. The ZnO nanoparticles exhibited a high peak in the (010), (002), and (011) directions at 31.777°, 34.426°, and 36.262°, respectively.

3.2. Effect of the CuO/ZnO Heterojunction on Gas Sensing

CuO and ZnO have band gaps of 1.8 eV and 3.2 eV, respectively. As shown in Figure 5a, when p-CuO and n-ZnO form a p-n heterojunction, the band curves towards the Fermi level, and a depletion layer is formed due to an electron and hole transfer process. Consequently, the HAL is partially suppressed, thereby increasing the resistance [29,30].
As shown in Figure 5b, the pristine CuO NW formed a HAL below the surface and a depletion layer inside. This is because of the oxygen ions adsorbed on the surface that was exposed to air at 200–400 °C. When the gas sensor was exposed to NO2, the oxidizing gas received electrons from the CuO NW and was adsorbed in the form of NO2- ions on the surface. The corresponding loss of electrons in the CuO NW increased the concentration of holes and decreased the resistance. The radial HAL width modulation of the CuO NW heterojunction is shown in Figure 5c. The CuO/ZnO NW has a higher resistance than the pristine CuO NW owing to a partial carrier suppression along the radial direction of the ZnO NPs. Therefore, the oxidizing gas improved the gas response as it causes a significant change in the width of the conductive HAL [31].

3.3. Gas Sensing Performance

The gas sensing characteristics were evaluated in a cleanroom where the temperature and relative humidity were maintained at 20–25 °C and at 40%–50%, respectively. The gas measurement system consisted of 100 ppm cylinders of NO2, NH3, and CO; N2 (99.99%); a mass flow controller (MFC); and a pump (Figure 6). The gas sensor was located in the center of a 10 cm × 10 cm × 3 cm chamber. The MFC controlled the concentration of each gas by analyzing their flow rate. The pump discharged the gas to the outside and stabilized the pressure inside the chamber. The gas sensor, which was connected to electrodes that allowed current flow in the chamber, monitored the resistance. A change in the resistance indicated a reaction with the target gas. Before the reaction, the gas sensor was stabilized in an N2 atmosphere for 300 s and then exposed to NO2 gas for 300 s. After the reaction, the gas sensor was stabilized in an only N2 atmosphere for 300 s. The response of the CuO NW gas sensor to an oxidizing gas and a reducing gas was defined as Ra/Rg and Rg/Ra, respectively, where Ra is the resistance of the gas sensor before the reaction and Rg is the resistance after the exposure to NO2 gas [32]. The sensitivity responses of CuO, 0.025 M CuO/ZnO, 0.05 M CuO/ZnO, and 0.075 M CuO/ZnO to 100 ppm NO2 gas were measured at 250 °C (Figure 7).
The experimental results listed in Table 2 show that the CuO/ZnO gas sensors have a better response, response time, and recovery time to 100 ppm NO2 gas at 250 °C, than the pristine CuO gas sensor. In particular, with the CuO/ZnO gas sensors, the response and recovery times were reduced from 60 s to 25 s and from 225 s to 150 s, respectively. The best response to NO2 was observed in the 0.05 M CuO/ZnO sensor. In fact, in this case the response was 4.1, which is 2.6 times higher than the response of the pristine CuO (1.58). The response to NO2 gas is worse in the 0.075 M CuO/ZnO. This is because, as shown in Figure 1d, an excessive concentration of ZnO covers most of the CuO, thus causing a competitive reaction (with CuO), affecting the sensitivity of the sensor.
The response and recovery times were defined as the time required to reach 90% of the saturation and the time-limited response of the sensor, respectively [33]. The ZnO NPs improved the recovery and response times of the CuO gas sensors because they caused an increase in the surface of the gas sensor, and therefore in the surface reacting to the target gas [34]. Consequently, the adsorption and desorption of gas molecules on the surface of the gas sensor are accelerated (spillover effect) [35].
Figure 8 illustrates that as the ZnO sol-gel concentration increases, the resistance of the gas sensor (Ra) increases owing to a reduction in the width of the HAL. This demonstrates that different heterojunctions were formed depending on the concentration of ZnO.
To determine the optimal operating temperatures of the CuO and 0.05 M CuO/ZnO gas sensors, their performance was evaluated using 100 ppm NO2 at various temperatures. Figure 9a shows the resistance curves of the CuO and 0.05 M CuO/ZnO at 200–300 °C. The CuO decorated with ZnO NPs exhibited a significant change in the resistance; in fact, CuO/ZnO gas sensors have a higher Ra than the pristine CuO gas sensor. As the operating temperature increased, the resistance of both sensors decreased, which is a characteristic of a typical MOS device at high temperatures. As shown in Figure 9b, both the CuO and 0.05 M CuO/ZnO sensors exhibited the best response at 250 °C. In general, the CuO/ZnO heterojunction gas sensor exhibited a better response at all temperatures than the CuO gas sensor.
Table 3 and Figure 10 summarize the response to 100 ppm NO2, NH3, and CO gases at 250 °C. As mentioned before, the CuO NWs gas sensors are p-type semiconductor material. When they react to an oxidizing gas, such as NO2, their resistance decreases; thus, their sensitivity is expressed as Ra/Rg. However, when CuO NWs gas sensors react with reducing gases, such as NH3 and CO, their resistance increases; thus, their sensitivity is expressed as Rg/Ra. While the responses to NH3 and CO gases were similar, regardless of the type of heterojunction, a higher sensitivity to NO2 gas was observed in the same measurement conditions.
The response of the 0.05 M CuO/ZnO gas sensor to NO2 gas was measured at different NO2 concentrations (1−100 ppm) at 250 °C. Figure 11a shows that the response increased linearly (coefficient of determination, R2 = 0.99) as the NO2 gas concentration increased.
Table 4 briefly summarizes the response of the CuO-based gas sensors obtained in previous works. The response of the CuO NWs without the heterojunction is similar to what we obtained [36,37,38]. Moreover, our study shows better results on the response of CuO/ZnO heterojunction sensors to NO2 gas, compared to the results of [29] with the same NO2 concentrations.

4. Conclusions

We fabricated CuO NWs decorated with ZnO through thermal oxidation and a sol-gel method. The response, response time, and recovery time of the CuO-based sensors to NO2 gas exposure were significantly improved using a p-n heterojunction to control the width of the HAL. The sensitivity of the pristine CuO gas sensor improved by a factor of 2.6 using a 0.05 M ZnO heterojunction. In addition, the response and recovery times were reduced from 60 s to 25 s and from 225 s to 150 s, respectively. The CuO/ZnO heterojunction gas sensor possessed a higher sensitivity to NO2, which is an oxidizing gas, than NH3 and CO, which are reducing gases.

Author Contributions

Experiments and writing, T.-H.H., S.-Y.B., S.K., S.H.L. and Y.-J.H.; supervision, M.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Energy Cloud R&D Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT (NRF-2019M3F2A1073385).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yamazoe, N. Toward innovations of gas sensor technology. Sens. Actuators B Chem. 2005, 108, 2–14. [Google Scholar] [CrossRef]
  2. Kaushik, A.; Kumar, R.; Jayant, R.D.; Nair, M. Nanostructures gas sensors for health care: An Overview. J. Pers. Nanomed. 2015, 1, 10–23. [Google Scholar] [PubMed]
  3. Miller, D.R.; Akbar, S.A.; Morris, P.A. Nanoscale metal oxide-based heterojunctions for gas sensing: A review. Sens. Actuators B Chem. 2014, 204, 250–272. [Google Scholar] [CrossRef]
  4. Dey, A. Semiconductor metal oxide gas sensors: A review. Sens. Actuators B Chem. 2018, 229, 206–217. [Google Scholar] [CrossRef]
  5. Barsan, N.; Simon, C.; Heine, T.; Pokhrel, S.; Weimar, U. Modeling of sensing and transduction for p-type semiconducting metal oxide based gas sensors. J. Electroceram. 2010, 25, 11–19. [Google Scholar] [CrossRef]
  6. Bejaoui, A.; Guerin, J.; Aguir, K. Modeling of a p-type resistive gas sensor in the presence of a reducing gas. Sens. Actuators B Chem. 2013, 181, 340–347. [Google Scholar] [CrossRef]
  7. Kim, H.J.; Lee, J.H. Highly sensitive and selective gas sensors using p-type oxide semiconductors: Overview. Sens. Actuators B Chem. 2014, 192, 607–627. [Google Scholar] [CrossRef]
  8. Li, Y.; Wlodarski, W.; Galatsis, K.; Moslih, S.h.; Cole, J.; Russo, S.; Rockelmann, N. Gas sensing properties of p-type semiconducting Cr-doped TiO2 thin films. Sens. Actuators B Chem. 2002, 83, 160–163. [Google Scholar] [CrossRef]
  9. Zhao, S.; Shen, Y.; Zhou, P.; Zhang, J.; Zhang, W.; Chen, X.; Wei, D.; Fang, P.; Shen, Y. Highly selective NO2 sensor based on p-type nanocrystalline NiO thin film prepared by sol-gel dip coating. Ceram. Int. 2018, 44, 753–759. [Google Scholar] [CrossRef]
  10. Wisitsoraat, A.; Tuantranont, A.; Comini, E.; Sberveglieri, G.; Wlodarski, W. Characterization of n-type and p-type semiconductor gas sensors based on NiOx doped TiO2 thin films. Thin Solid Films 2009, 517, 2775–2780. [Google Scholar] [CrossRef]
  11. Li, D.; Hu, J.; Wu, R.; Lu, J.G. Conductometric chemical sensor based on individual CuO nanowires. Nanotechnology 2010, 21, 485502. [Google Scholar] [CrossRef] [PubMed]
  12. Eranna, G.; Joshi, B.C.; Runthala, D.P.; Gupta, R.P. Oxide Materials for Development of Integrated Gas Sensors-A Comprehensive Review. Crit. Rev. Solid State Mater. Sci. 2004, 29, 111–188. [Google Scholar] [CrossRef]
  13. Arshak, K.; Moore, E.; Lyons, G.M.; Harris, J.; Clifford, S. A review of gas sensors employed in electronic nose applications. Sens. Rev. 2004, 24 No.2, 181–198. [Google Scholar] [CrossRef]
  14. Wu, D.; Zhang, Q. LSDA+U study of cupric oxide: Electronic structure and native point defects. Phys. Rev. B 2006, 73, 235206. [Google Scholar] [CrossRef]
  15. Kidowaki, H.; Oku, T.; Akiyama, T.; Suzuki, A.; Jeyadevan, B.; Cuya, J. Fabrication and Characterization of CuO-based Solar Cells. J. Mater. Sci. Res. 2012, 1, 138–143. [Google Scholar] [CrossRef]
  16. Barzegar, M.H.; Ghaedi, M.; Avargani, V.M.; Sabzehmeidani, M.M.; Sadeghfar, F.; Jannesar, R. Electrochemical synthesis and efficient photocatalytic degradation of azo dye alizarin yellow R by Cu/CuO nanorods under visible LED light irradiation using experimental design methodology. Polyhedron 2019, 158, 506–514. [Google Scholar] [CrossRef]
  17. Jin, Z.; Zhang, X.; Li, Y.; Li, S.; Lu, G. 5.1% Apparent quantum efficiency for stable hydrogen generation over eosin-sensitized CuO/TiO2 photocatalyst under visible light irradiation. Catal. Commun. 2007, 8, 1267–1273. [Google Scholar] [CrossRef]
  18. Hoa, N.D.; Quy, N.V.; Tuan, M.A.; Hieu, N.V. Facile synthesis of p-type semiconducting cupric oxide nanowires and their gas-sensing properties. Phys. E 2009, 42, 146–149. [Google Scholar] [CrossRef]
  19. Lupan, O.; Postica, V.; Cretu, V.; Wolff, N.; Duppel, V.; Kienle, L.; Adelung, R. Single and networked CuO nanowires for highly sensitive p-type semiconductor gas sensor applications. Phys. Status Solidi RRL 2016, 10, 260–266. [Google Scholar] [CrossRef]
  20. Hansen, B.J.; Kouklin, N.; Lu, G.; Lin, I.; Chen, J.; Zhang, X. Transport, Analyte Detection, and Opto-Electronic Response of p-Type CuO Nanowires. J. Phys. Chem. C 2010, 114, 2440–2447. [Google Scholar] [CrossRef]
  21. Kim, K.M.; Jeong, H.M.; Kim, H.R.; Choi, K.I.; Kim, H.J.; Lee, J.H. Selective Detection of NO2 Using Cr-doped CuO Nanorods. Sensors 2012, 12, 8013–8025. [Google Scholar] [CrossRef]
  22. Na, C.W.; Woo, H.S.; Lee, J.H. Design of highly sensitive volatile organic compound sensors by controlling NiO loading on ZnO nanowire networks. RSC Adv. 2012, 2, 414–417. [Google Scholar] [CrossRef]
  23. Choi, S.W.; Park, J.Y.; Kim, S.S. Synthesis of SnO2-ZnO core-shell nanofibers via a novel two-step process and their gas sensing properties. Nanotechnology 2009, 20, 465603. [Google Scholar] [CrossRef] [PubMed]
  24. Kaneti, Y.V.; Zakaria, Q.M.D.; Zhang, Z.; Chen, C.; Yue, J.; Liu, M.; Jiang, X.; Yu, A. Solvothermal synthesis of ZnO-decorated α-Fe2O3 nanorods with highly enhanced gas-sensing performance toward n-butanol. J. Mater. Chem. A 2014, 2, 13283–13292. [Google Scholar] [CrossRef]
  25. Boyadjiev, S.I.; Georgieva, V.; Yordanov, R.; Raicheva, Z.; Szilagyi, I.M. Preparation and characterization of ALD deposited ZnO thin films studied for gas sensors. Appl. Surf. Sci. 2016, 387, 1230–1235. [Google Scholar] [CrossRef]
  26. Ruiz, A.M.; Sakai, G.; Cornet, A.; Shimanoe, K.; Morante, J.R.; Yamazoe, N. Microstructure control of thermally stable TiO2 obtained by hydrothermal process for gas sensors. Sens. Actuators B Chem. 2004, 103, 312–317. [Google Scholar] [CrossRef]
  27. Xu, C.H.; Woo, C.H.; Shi, S.Q. The effects of oxidative environments on the synthesis of CuO nanowires on Cu substrates. Superlattices Microstruct. 2004, 36, 31–38. [Google Scholar] [CrossRef]
  28. Bak, S.-Y.; Lee, J.; Kim, Y.; Lee, S.-H.; Woo, K.; Lee, S.; Yi, M. Sensitivity Improvement of Urchin-Like ZnO Nanostructures Using Two-Dimensional Electron Gas in MgZnO/ZnO. Sensors 2019, 19, 5195. [Google Scholar] [CrossRef]
  29. Mali, S.M.; Narwade, S.S.; Navale, Y.H.; Yayade, S.B.; Digraskar, R.V.; Patil, V.B.; Kumbhar, A.S.; Sathe, B.R. Heterostructural CuO-ZnO Nanocomposites: A Highly Selective Chemical and Electrochemical NO2 Sensor. ACS Omega 2019, 4, 20129–20141. [Google Scholar] [CrossRef]
  30. Wang, L.; Kang, Y.; Wang, Y.; Zhu, B.; Zhang, S.; Huang, W.; Wang, S. CuO nanoparticle decorated ZnO nanorod sensor for low-temperature H2S detection. Mater. Sci. Eng. C 2012, 32, 2079–2085. [Google Scholar] [CrossRef]
  31. Choi, S.W.; Katoch, A.; Kim, J.H.; Kim, S.S. A novel approach to improving oxidizing-gas sensing ability of p-CuO nanowires using biased radial modulation of a hole-accumulation layer. J. Mater. Chem. C 2014, 2, 8911–8917. [Google Scholar] [CrossRef]
  32. Matsunaga, N.; Sakai, G.; Shimanoe, K.; Yamazoe, N. Diffusion equation-based study of thin film semiconductor gas sensor-response transient. Sens. Actuators B Chem. 2002, 83, 216–221. [Google Scholar] [CrossRef]
  33. Mishra, V.N.; Agarwal, R.P. Sensitivity, response and recovery time of SnO2 based thick-film sensor array for H2, CO, CH4 and LPG. Microelectron. J. 1998, 29, 861–874. [Google Scholar] [CrossRef]
  34. Lee, J.H. Gas sensors using hierarchical and hollow oxide nanostructures: Overview. Sens. Actuators B Chem. 2009, 140, 319–336. [Google Scholar] [CrossRef]
  35. Kwon, Y.J.; Mirzaei, A.; Kang, S.Y.; Choi, M.S.; Bang, J.H.; Kim, S.S.; Kim, H.W. Synthesis, characterization and gas sensing properties of ZnO-decorated MWCNTs. Appl. Surf. Sci. 2017, 413, 242–252. [Google Scholar] [CrossRef]
  36. Li, Y.; Liang, J.; Tao, Z.; Chen, J. CuO particles and plates: Synthesis and gas-sensor application. Mater. Res. Bull. 2008, 43, 2380–2385. [Google Scholar] [CrossRef]
  37. Kim, Y.S.; Hwang, I.S.; Kim, S.J.; Lee, C.Y.; Lee, J.H. CuO nanowire gas sensors for air quality control in automotive cabin. Sens. Actuators B Chem. 2008, 135, 298–303. [Google Scholar] [CrossRef]
  38. Park, H.J.; Choi, N.J.; Kang, H.; Jung, M.Y.; Park, J.W.; Park, K.H.; Lee, D.S. A ppb-level formaldehyde gas sensor based on CuO nanocubes prepared using a polyol process. Sens. Actuators B Chem. 2014, 203, 282–288. [Google Scholar] [CrossRef]
  39. Yin, M.; Wang, F.; Fan, H.; Xu, L.; Liu, S. Heterojunction CuO@ZnO microcubes for superior p-type gas sensor application. J. Alloys Compd. 2016, 672, 374–379. [Google Scholar] [CrossRef]
Sensors 21 02103 g001
Figure 1. FE-SEM image of (a) pristine CuO, (b) CuO NWs decorated with 0.025 M ZnO NPs, (c) CuO NWs decorated with 0.05 M ZnO NPs, and (d) CuO NWs decorated with 0.075 M ZnO NPs.
Figure 1. FE-SEM image of (a) pristine CuO, (b) CuO NWs decorated with 0.025 M ZnO NPs, (c) CuO NWs decorated with 0.05 M ZnO NPs, and (d) CuO NWs decorated with 0.075 M ZnO NPs.
Sensors 21 02103 g001
Sensors 21 02103 g002

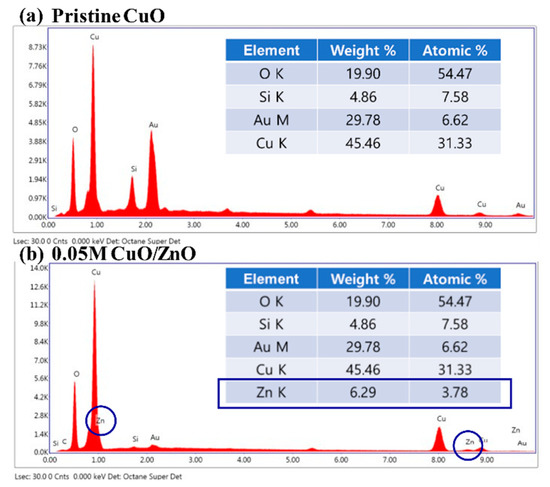

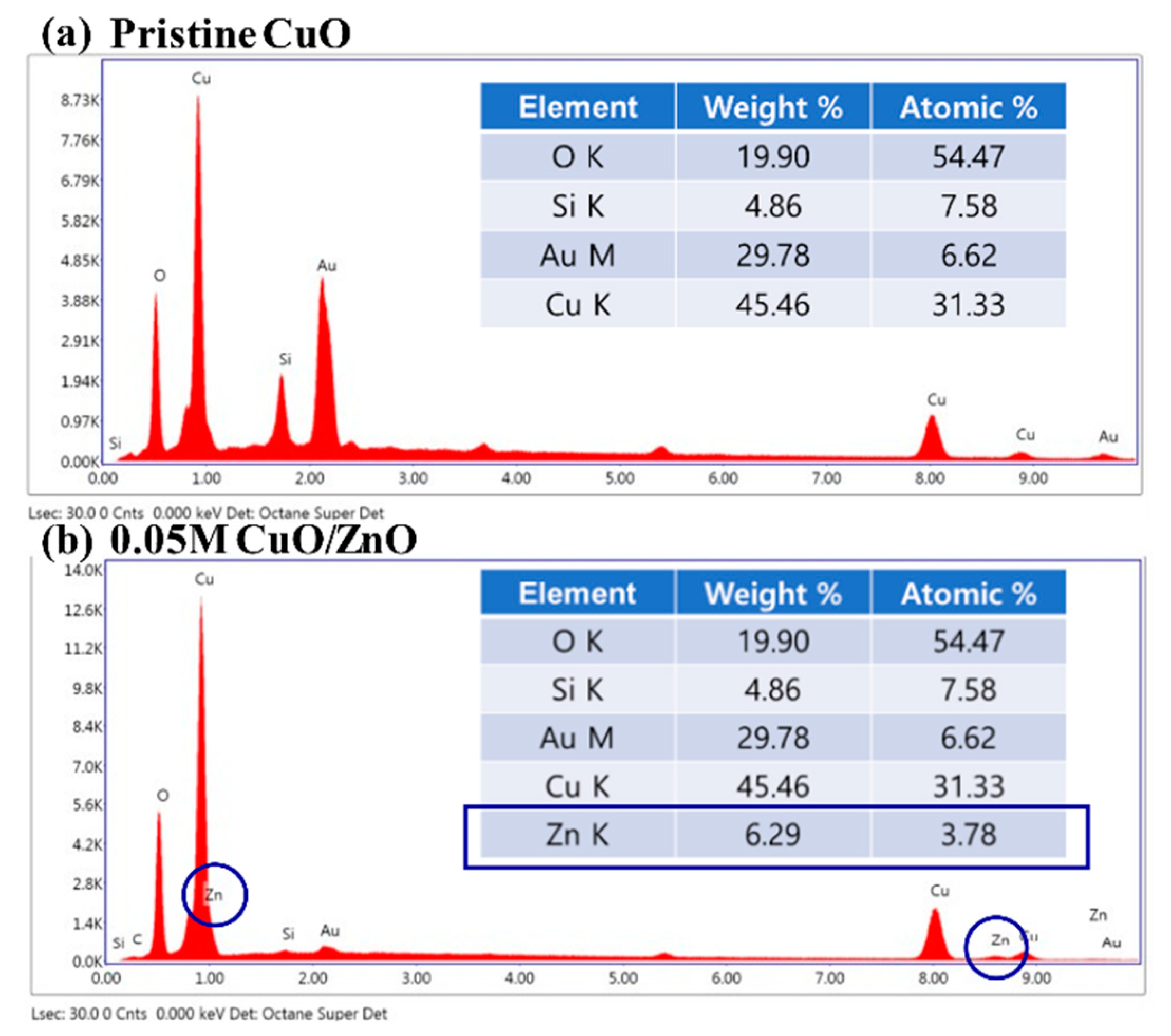

Figure 2. EDS analysis of (a) the pristine CuO, and (b) the 0.05 M CuO/ZnO.
Figure 2. EDS analysis of (a) the pristine CuO, and (b) the 0.05 M CuO/ZnO.
Sensors 21 02103 g002
Sensors 21 02103 g003
Figure 3. EDS mapping images of the 0.05 M CuO/ZnO gas sensor.
Figure 3. EDS mapping images of the 0.05 M CuO/ZnO gas sensor.
Sensors 21 02103 g003
Sensors 21 02103 g004

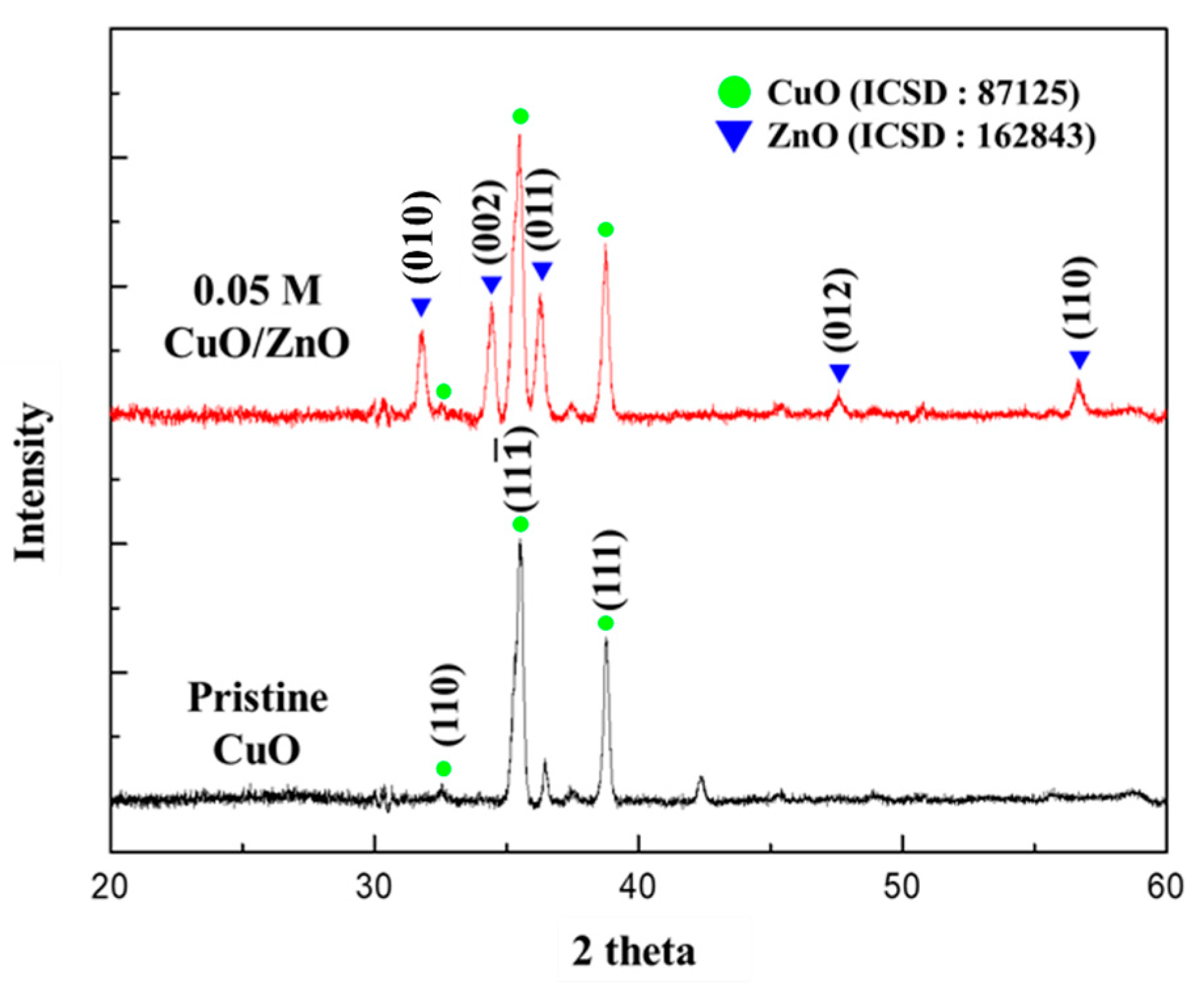

Figure 4. XRD analysis of the pristine CuO and the 0.05 M CuO/ZnO gas sensor.
Figure 4. XRD analysis of the pristine CuO and the 0.05 M CuO/ZnO gas sensor.
Sensors 21 02103 g004
Sensors 21 02103 g005

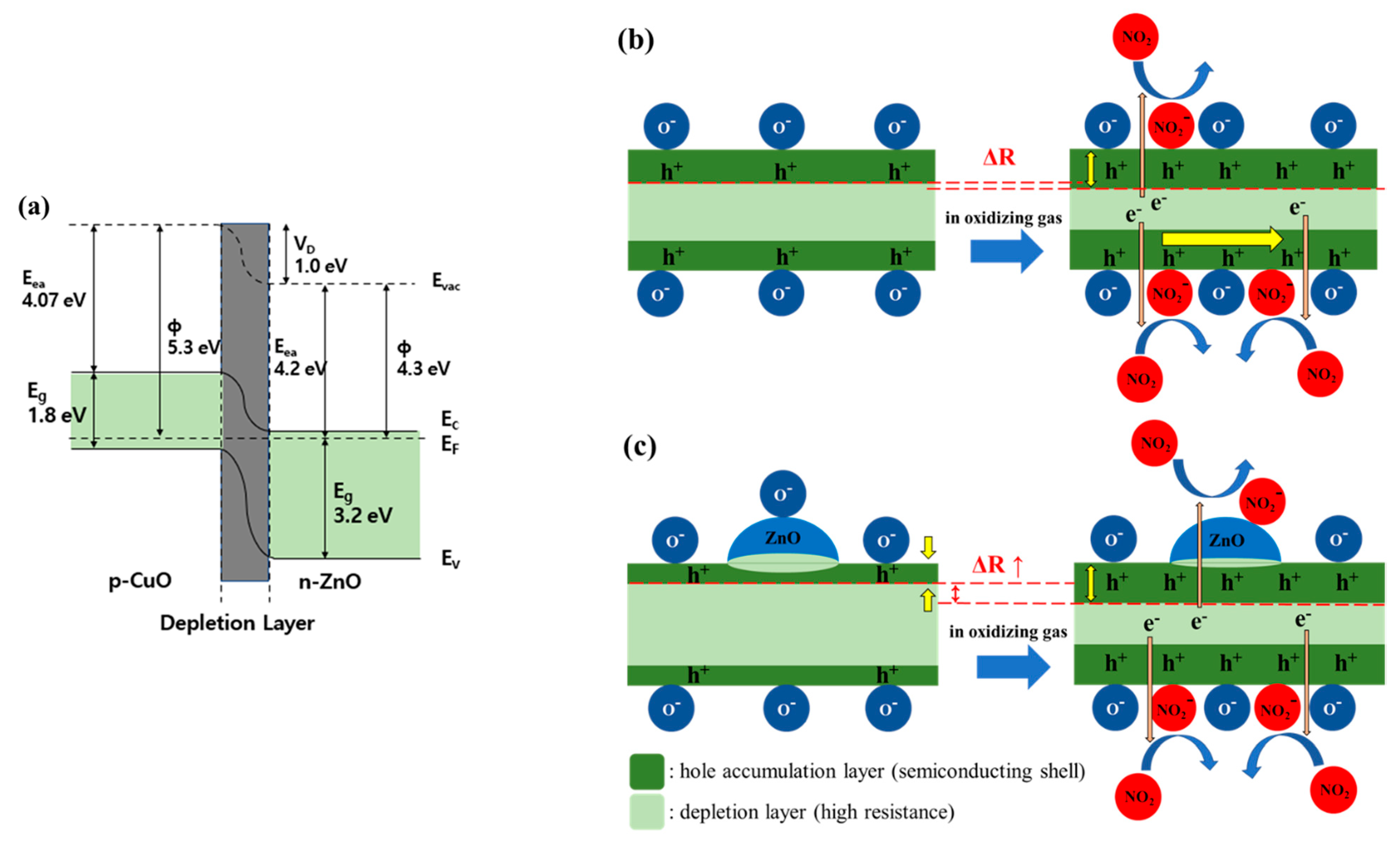

Figure 5. Schematic view of the effects caused by the CuO/ZnO heterojunction. (a) Diagram of the p-CuO and n-ZnO heterojunction band; (b) Reaction of a CuO NW to NO2 gas; (c) Reaction of a CuO NW with ZnO heterojunction to NO2 gas.
Figure 5. Schematic view of the effects caused by the CuO/ZnO heterojunction. (a) Diagram of the p-CuO and n-ZnO heterojunction band; (b) Reaction of a CuO NW to NO2 gas; (c) Reaction of a CuO NW with ZnO heterojunction to NO2 gas.
Sensors 21 02103 g005
Sensors 21 02103 g006

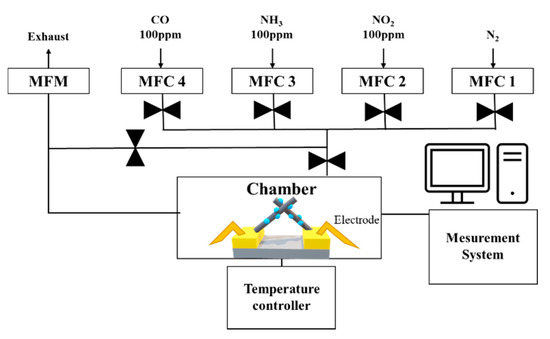

Figure 6. Architecture of the gas measurement system.
Figure 6. Architecture of the gas measurement system.
Sensors 21 02103 g006
Sensors 21 02103 g007

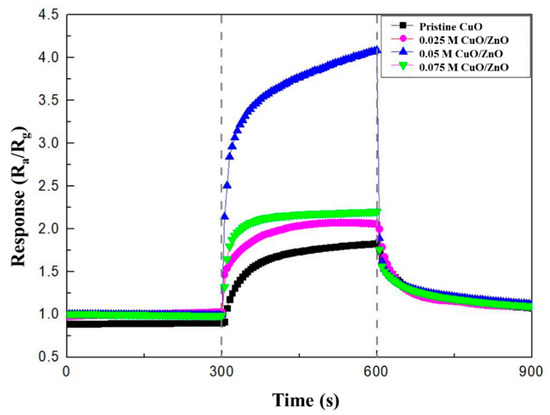

Figure 7. Response curves of the pristine CuO, 0.025 M CuO/ZnO, 0.05 M CuO/ZnO, and 0.075 M CuO/ZnO to 100 ppm NO2.
Figure 7. Response curves of the pristine CuO, 0.025 M CuO/ZnO, 0.05 M CuO/ZnO, and 0.075 M CuO/ZnO to 100 ppm NO2.
Sensors 21 02103 g007
Sensors 21 02103 g008

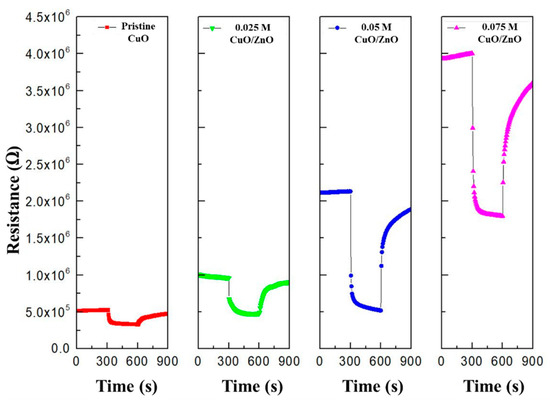

Figure 8. Resistance of the pristine CuO, 0.025 M CuO/ZnO, 0.05 M CuO/ZnO, and 0.075 M CuO/ZnO to 100 ppm NO2.
Figure 8. Resistance of the pristine CuO, 0.025 M CuO/ZnO, 0.05 M CuO/ZnO, and 0.075 M CuO/ZnO to 100 ppm NO2.
Sensors 21 02103 g008
Sensors 21 02103 g009

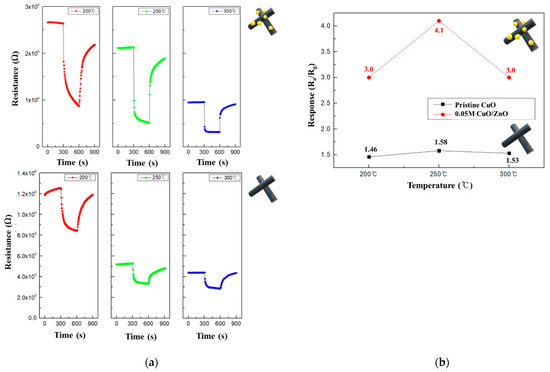

Figure 9. (a) Summary of the pristine CuO and 0.05 M CuO/ZnO responses to 100 ppm NO2 at 200-300 °C; (b) Response curves of the pristine CuO and 0.05 M CuO/ZnO to 100 ppm NO2 at 200–300 °C.
Figure 9. (a) Summary of the pristine CuO and 0.05 M CuO/ZnO responses to 100 ppm NO2 at 200-300 °C; (b) Response curves of the pristine CuO and 0.05 M CuO/ZnO to 100 ppm NO2 at 200–300 °C.
Sensors 21 02103 g009
Sensors 21 02103 g010

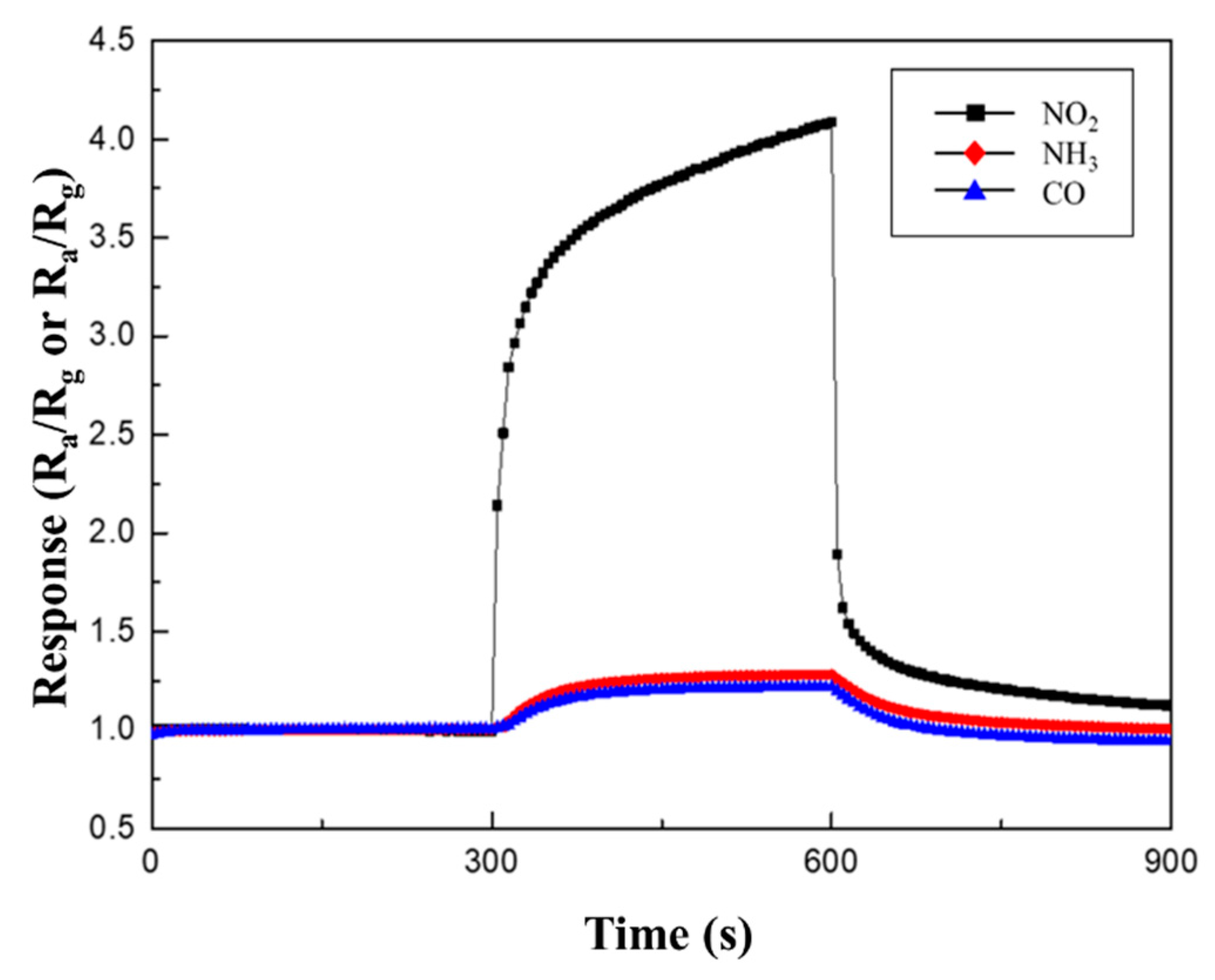

Figure 10. Response curves of 0.05 M CuO/ZnO to 100 ppm NO2, NH3, and CO gases at 250 °C.
Figure 10. Response curves of 0.05 M CuO/ZnO to 100 ppm NO2, NH3, and CO gases at 250 °C.
Sensors 21 02103 g010
Sensors 21 02103 g011

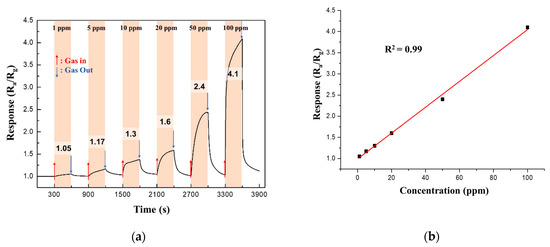

Figure 11. (a) Continuous response curves; (b) Response of the 0.05 M CuO/ZnO gas sensor to NO2 at different concentrations of NO2 (1−100 ppm) at 250 °C.
Figure 11. (a) Continuous response curves; (b) Response of the 0.05 M CuO/ZnO gas sensor to NO2 at different concentrations of NO2 (1−100 ppm) at 250 °C.
Sensors 21 02103 g011
Table 1. EDS analysis of the Zn K peak for different concentrations.
Table 1. EDS analysis of the Zn K peak for different concentrations.
Pristine
CuO		0.025 M
CuO/ZnO		0.05 M
CuO/ZnO		0.075 M
CuO/ZnO
Zn K Weight %
(wt.%)		-1.176.298.66
Zn K Atomic %
(at%)		-0.753.785.66
Table 2. Response, response time, and recovery time of CuO-based gas sensors (with different sol-gel concentration) to 100 ppm NO2 gas at 250 °C.
Table 2. Response, response time, and recovery time of CuO-based gas sensors (with different sol-gel concentration) to 100 ppm NO2 gas at 250 °C.
SampleResponse
(Ra/Rg)		Response
Time(s)		Recovery
Time(s)
Pristine CuO1.5860225
0.025 M
CuO/ZnO		2.065180
0.05 M
CuO/ZnO		4.125150
0.075 M
CuO/ZnO		2.2220180
Table 3. Response of the pristine CuO and 0.05 M CuO/ZnO to 100 ppm NO2, NH3, and CO gas at 250 °C.
Table 3. Response of the pristine CuO and 0.05 M CuO/ZnO to 100 ppm NO2, NH3, and CO gas at 250 °C.
Pristine
CuO		0.05 M
CuO/ZnO
NO21.584.1
NH31.211.28
CO1.191.18
Table 4. Brief summary of the response of CuO-based gas sensors.
Table 4. Brief summary of the response of CuO-based gas sensors.
MaterialStructureMethodTarget Gas,
Concentration
(ppm)		Operating
Temperature
(°C)		Gas ResponseRef.
CuOparticlesThermal
decomposition		NO2, 1002001.5[36]
CuOnanowiresThermal
oxidation		NO2, 43701.18[37]
CuOnanocubesPolyol
process		NO2, 33000.4[38]
CuO@ZnOCore-shellTwo-step
solution route		C2H5OH, 502403.6[39]
CuO-ZnONanocompositesChemical
method		NO2, 10020073 %[29]
CuO/ZnOnanowiresThermal
oxidation		NO2, 1002504.1This work
