Internet of Things: Evolution, Concerns and Security Challenges

Department of Computer Science and Information Technology, Central University of Jammu, Bagla J&K 181143, India
Department of Higher Education, J&K Govt., Jammu 180001, India
ABES Engineering College, Ghaziabad 201309, India
Department of Information Management, Oriental Institute of Technology, New Taipei City 22064, Taiwan
Authors to whom correspondence should be addressed.
Sensors 2021, 21(5), 1809;
Received: 19 January 2021 / Revised: 24 February 2021 / Accepted: 24 February 2021 / Published: 5 March 2021


The escalated growth of the Internet of Things (IoT) has started to reform and reshape our lives. The deployment of a large number of objects adhered to the internet has unlocked the vision of the smart world around us, thereby paving a road towards automation and humongous data generation and collection. This automation and continuous explosion of personal and professional information to the digital world provides a potent ground to the adversaries to perform numerous cyber-attacks, thus making security in IoT a sizeable concern. Hence, timely detection and prevention of such threats are pre-requisites to prevent serious consequences. The survey conducted provides a brief insight into the technology with prime attention towards the various attacks and anomalies and their detection based on the intelligent intrusion detection system (IDS). The comprehensive look-over presented in this paper provides an in-depth analysis and assessment of diverse machine learning and deep learning-based network intrusion detection system (NIDS). Additionally, a case study of healthcare in IoT is presented. The study depicts the architecture, security, and privacy issues and application of learning paradigms in this sector. The research assessment is finally concluded by listing the results derived from the literature. Additionally, the paper discusses numerous research challenges to allow further rectifications in the approaches to deal with unusual complications.

1. Introduction

The rapid escalation in numerous technological aspects of wireless sensor networks (WSN), mobile communication, radio-frequency identification (RFID), and various lightweight protocols have endorsed the concept of the Internet of Things. The core conviction of IoT revolves around the dynamic interconnection of billions of different units or entities in an ecosystem driving either in a wired or a wireless fashion via the assistance of intelligent sensors, actuators, and other components. These components mesh with each other to yield the state of things and thus, providing extensive benefits and comforts to humans. Numbers stipulate that the IoT market has reached a mark of approximately 200 billion in 2020, starting with just 2 billion in 2006 [1]. The result of this automation has manifested the presence of smarter and intelligent objects, thus paving a way in all spheres: smart cities, healthcare, finance, manufacturing, academia, etc. The application of IoT with percentage implementation in diverse fields is depicted in Figure 1 [1]. IoT is, therefore, an amalgamation of diverse technologies at various layers coming up together to bestow the best of ubiquitous and pervasive computing to provide numerous benefits in different application areas.
Smart services have become an integral part of today’s lifestyle. For example, disabled people could manage things with IoT assistance, specially-abled children could interact using the Autism Glass, and remote health tracking aids in curing. Moreover, IoT sensors working with warning system alerts about environmental disasters. Even the usefulness of IoT in managing natural resources could be realized from the number of use-cases discussed in the literature [2]. With smart grids and smart meters, the daily power-consumption could be optimized and the supply–demand ratio could be efficiently maintained to meet the growing demands. Likewise, intelligent transportation systems provide valuable insights into different services. For example, based on real-time traffic conditions traffic signals consequentially set their timer to avoid traffic congestion and thus, environmental pollution [3]. With smart agriculture, the crop yield could be predicted, fertilizers needed, disease-prone crop areas could be identified and isolated. Alongside these services, it brings deep-rooted security challenges as these IoT nodes are flooded to market with inherent vulnerabilities.
The exponential growth and integration of IoT with other technologies have provided a bigger attack surface to play with [4,5]. Moreover, it is challenging to maintain the security requirements of an IoT system due to the very nature of IoT nodes in terms of scarce resources and unattended environments [6]. Employing existing security mechanisms such as encryption, authentication, and access control is also not a feasible solution for systems with a large no. of connected devices entertaining inherent vulnerabilities. Additionally, the end-users and developers are ignorant about the security risks complimenting the extensive smart applications. These loopholes in IoT devices are exploited to launch cyber-attacks like Mirai [7]. Furthermore, this negligence in securing IoT devices has been proven to be life-threatening. For example, the compromised sensors in self-driving cars could cause human calamity and damage to public properties as well. Now, these cyber-attacks turned out to be another way of declining the economy of the developed countries. Thus, the security challenges being an integral part of these useful IoT services must not be overlooked and should be handled as a priority.
The learning methods are the appropriate tools for differentiating the “usual” and “unusual” behavior of IoT components and the way they interact with each other to provide services. The input to different components of an IoT system is analyzed to find the regular patterns of interaction, to recognize the malicious behavior in a system in the early stages. With learning methods [8] (machine learning and deep learning) nascent zero-day attacks could also be predicted, as these are generally the mutations of foregoing attacks. Moreover, the unique features of deep learning such as automatic feature extraction, compression competencies, etc., make it more feasible for resource-constrained IoT systems. The wide acceptance of deep learning is all due to its ability to self-learning, faster processing, and accuracy. Consequently, IoT systems must have a transition from merely facilitating secure communication amongst devices to security-based intelligence enabled by DL/ML methods for effective and secure systems.

1.1. Scope of the Survey

IoT plays a significant role in our lives by enabling the digitization of the physical world around us. A large number of surveys were conducted to review and analyze the multiple IoT facets. Table 1 surmises the relative comparison of the proposed work with the considered state-of-the-art works. However, the study conducted in this paper provides a detailed, in-depth review of those facets/dimensions in an appropriate order. An exhaustive analysis of various research surveys is compiled together to convey an overall assessment, which has not taken place in the past. For example, Neshenko et al. [9] provide a unique taxonomy of numerous attacks and vulnerabilities occurring in IoT devices along with methodologies and security capabilities to counter those flaws. Additionally, architectural vulnerabilities occurring in each respective layer are represented diagrammatically. Furthermore, an appropriate assessment is provided in multiple sections to deliver the essence of the problems occurring due to the coupled nature of IoT devices. Additionally, Butun et al. [10] has shed light on the integration of WSN with IoT and laid stress on the possible attack avenues available generated.
Divyakmika et al. [11] analyzed the application of ML in IoT security by proposing two-tier NIDS. The approach is based on TCP/IP data packet features obtained from NSL-KDD DATASET. It clustered the data into two (normal and new patterns). The classification was done using KNN, MLP, and reinforcement learning. A similar approach is presented by Pajouh et al. [12] to develop an intrusion detection model by collaborating Naïve Bayes and KNN. The challenge of upgrading the mechanism to extend the model to the higher layers is also highlighted. To overcome the problem of availability of the dataset Canedo et al. [13] constructed a testbed to monitor the application of artificial neural networks in attack detection in the IoT sites. However, to generate better analysis, an upgraded testbed with a large number of sensors and devices is required. To construct a real-world attack scenario, Anthi et al. [14] proposed a novel real-time IDS named pulse, which deploys supervised ML for the identification of maleficent activities like scanning, probing, and other elementary forms of DOS attacks with promising results using the Naïve Bayes technique. However, it was executed for the limited number of attacks only. Further, Hasan et al. [15] compared and contrasted the application of multiple ML algorithms in a real-time virtual IoT scenario to further substantiate the research.
Contemporary improvisation includes the application of deep models in IoT. Rahul et al. [16] analyzed the application of various deep models to detect multiple network attacks. KDD cup 99 was used to train the network. However, a lack of real-time IoT datasets and evaluation of deeper networks still posed a challenge. To overcome this, Roopak et al. [17] explored the capabilities of the deeper networks by training models like 1D-CNN, RNN, LSTM, and a hybrid model of CNN + LSTM on the CICIDS2017 dataset. Furthermore, from the considered start-of-the-art, we found that only a few works have explicitly focused on both machine learning and deep learning-based solutions for securing IoT in an elaborated manner. Thus, in this manuscript, we aimed the same. The inherent vulnerabilities in IoT devices and IoT environments (communication protocols) have also been explored as being the root cause of these emerging attacks in smart applications.
Table 1. A relative comparison of the proposed work with state-of-the-art works.
Table 1. A relative comparison of the proposed work with state-of-the-art works.
Ahlmeyer et al. [18]2016The different frameworks for securing IoT are discussed and have given their own IoT security framework. There is no standardization in terms of securing IoT.
Nia et al. [19]2016The vulnerabilities in the edge layer of IoT are extensively discussed with mitigation approaches. The usage of data collected by IoT nodes in unexpected ways.
Alaba et al. [20]2017Discussed multiple security scenarios, and possible countermeasures.To develop lightweight authentication schemes for IoT environments.
Makhdoom et al. [21]2018Different malware attacks targeting IoT systems are discussed in an elaborated way. The challenges IoT will face with FoG computing.
Rahul et al. [16]2018Discussed the application of deep models as IDS to detect attacks of varying complexity.Lack of real-time IoT dataset, evaluation of deeper networks.
Samaila et al. [22]2018IoT threat model is given with multiple threat mitigation approaches.Nano-electronic-based security mechanisms to be explored by IoT.
Butun et al. [10]2019Analyzed the application of WSN in IoT. Moreover, an in-depth review of various attacks constituting WSN in IoT.A better Approach/standard for the routing, trust management, and schemes for data collection for the multiple IoT layers.
Neshenko et al. [9]2019Provides a detailed analysis of IoT along with its various facets. Additionally, a taxonomy constituting various attacks, vulnerabilities, and methodologies to monitor them are discussed.More detailed investigation to provide prompt remediation for detecting malicious IoT devices.
Hasan et al. [15]2019Provides a detailed framework for attack and anomaly detection in IoT using machine learning.More robust algorithms are required; more attention is required for real-time detection.
Roopak et al. [17]2019Focussed on the detection of DDoS attacks using deep models along with numerous other challenges in their application.Lack of Deep learning models that can work with highly unbalanced datasets.
Hussain et al. [6]2020IoT security with learning-based solutions is talked over.The IoT data-based challenges to be explored.
Anand et al. [5]2020IoT vulnerabilities and their assessment techniques, with a case study on Sustainable Smart Agriculture.Lack of intelligent vulnerability assessment technique.
Yazdinejad et al. [23]2020Applying blockchain in IoT for secure data transmission and access control.Comparative analysis with other such architectures.
Rachit et al. [24]2021IoT threats, security models, and standardization practices are discussed.Learning-based solutions will be explored further.
Rasheed et al. [25] 2021A systematic survey of recent learning-based solutions for securing IoT.Growing vulnerabilities are not discussed.
The Proposed one2021Machine learning and deep learning-based IoT security mechanisms with comparative analysis.Hybrid learning-based techniques will be explored.
Notes: 1: Architecture; 2: Dataset; 3: Attacks; 4: Vulnerabilities; 5: Machine learning-based IoT; 6: Deep learning-based IoT; 7: Emerging Challenges; 8: Testbed. Notations: ✓: considered; ✕: not considered.

1.2. Contributions

The key contributions of this paper are as follows:
  • A taxonomy that focuses on attacks, vulnerabilities, and anomalies in IoT is given.
  • The benefits of the growing usage of machine learning and deep learning techniques for securing IoT are highlighted. Critical analysis of different learning techniques has also been presented.
  • The case studies on the usage of IoT, learning methods, and security challenges in Smart Healthcare System, Smart Vehicular system, and Smart Manufacturing is presented.
  • Finally, research challenges and future recommendations for the end-users were given to ensure secure IoT infrastructure.

1.3. Methods and Materials

The methodical approach is adopted to conduct this study in a proper way to provide in-depth analysis of different learning methods used to secure the IoT system in one way or the other, as security in IoT questions its sustenance. The related research articles, blogs, use-cases, tutorial papers, reports, and white papers were discovered to conduct this review. This work primarily focused on the state-of-the-art research on IoT attacks, threats, anomalies, vulnerabilities, and learning-based approaches to handle them in general and concerning smart healthcare specifically. Additionally, to emphasize the current research challenges, open issues, and future scope related to the same. The screening of the identified articles is done based on the relevance and other factors as depicted in Figure 2. The quality checks are applied to the extracted data to get reliable material for the proposed survey. The ones from the SCI journals and with a good number of citations are commonly chosen. The peer-reviewed and high-quality database journals and reputed conferences like IEEEXplore, Springer, MDPI, Wiley, ACM, Elsevier, and Google Scholar, are investigated to get the relevant research articles. For searching, vital keywords like IoT, security, attacks, vulnerabilities, threats, machine learning, deep learning, smart healthcare, etc., were benefitted.

1.4. Organization

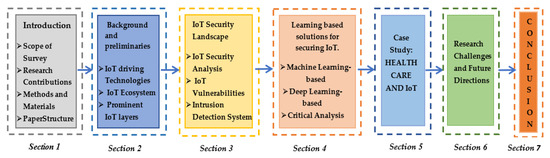

Figure 3 demonstrates the organization of the proposed article. In Section 1 we present an introduction to IoT and its services, several security issues and attacks, and how ML/DL methods can be the conceivable solution. Section 2 provides a general perspective to the technology and its applications followed by background information, which prominently includes its prime driving technologies, architectural view, and protocol suite. Section 3 introduces security-related concepts by highlighting imminent attacks, anomalies, and vulnerabilities in this area with a brief introduction to the IDS mechanism. The next section presents ML and DL-based IDS solutions to deal with the security intricacies mentioned in the previous section, followed by case studies to understand the practical implementation of IoT in the healthcare sector, vehicular systems, and manufacturing along with research challenges, open issues, and future scope.

2. Background and Preliminaries

This section focuses on the background and importance of security in IoT. This section is bifurcated into three subsections. Firstly, we cover IoT driving technologies which include RFID, sensors, wireless sensor networks, communication, cloud computing, and embedded systems. Secondly, we briefly discuss the IoT ecosystem, followed by the IoT architecture with protocol suite in the subsequent subsections.

2.1. IoT Driving Technologies

IoT systems consist of various technological/functional components to lubricate the task of sensing, identification, communication, analysis, and management. Colakovic et al. [4] detailed the vision towards IoT along with various technologies used at different levels. Moreover, the survey conducted in [1,5] also introduces these technologies.
  • RFID (radio-frequency identification) Technology: It is a technology used for the identification of a person or any other object by exercising the wireless radio frequency technology in the network. It utilizes the labels/tags on the objects for identification. It is a combination of e-labels, an integrated circuit for processing information by modulating and demodulating the signals along with a reader–writer system [26]. Jia et al. [27] presented detailed interpretation and applications of RFID in IoT.
  • Sensor Technology: It is responsible for interacting with the physical environment and subsequently detecting, observing, storing, and providing the necessary information by converting it into a human-readable form. The primary purpose is to interpret the real-world conditions by monitoring the documentation collected in the form of sound, light, humidity, pressure, and many other values for analysis of various surrounding scenarios [28]. These, therefore, bridge the gap between the physical and the digital world.
  • Wireless Sensor Network Technology: It is an integration of numerous self- configurable devices with embedded sensors for scanning and documenting the conditions of the physical environment and subsequently forwarding them to the appropriate sink node for analysis [29]. Actuators can also be a part of WSN in certain conditions; hence they are often referred to as wireless sensor and actuator networks. The various applications of WSN include weather monitoring systems in which nodes collect temperature, humidity, and other data, soil moisture monitoring system, health monitoring system, etc. For the communication between various sensor technologies, numerous short-distance communication strategies are available like Bluetooth, RFID, Zigbee, Wifi. These are termed network communication technologies. Each one has its pros and cons, and further subsequent selection depends on the application scenario.
  • Embedded System Technology: This is a blend of numerous peripheral hardware (Sensors, Actuators) combined with software running or embedded OS (Real-time operating system) to accomplish some specific tasks. Principal components include microcontrollers, memory, network units, ic running on an embedded operating system such as (RTOS) with critical features like real-time computing, low maintenance, and low power consumption [30].
  • Cloud Computing: It is an essential IoT component provisioning the users with processing and storage capabilities on demand. It is used as a powerful tool in IoT to handle the big-data and, in turn, rendering intelligent monitoring and decision making in various applications, thus turning them smart. The prime benefits are elasticity, agility with less deployment time [31].

2.2. IoT Ecosystem

The technologies mentioned above provide a hazy overview of the IoT. To get a crisp and unclouded perspective, understanding IoT architecture is extremely vital before proceeding into the intricate details of the various facets of it. It is hugely challenging to standardize one architecture for IoT due to its inability to capture a particular image characterizing it due to vast expansion and variation in this sector. There are miscellaneous three, four, five, and seven-layer architecture, which are accepted by various professionals to have a visual sculpture of this technology. Table 2 describes some of the prominent IoT architectures. Figure 4 depicts the general three-layer architecture [12,13] with its extension into five layers [14,15].

2.3. The Prominent IoT Layers

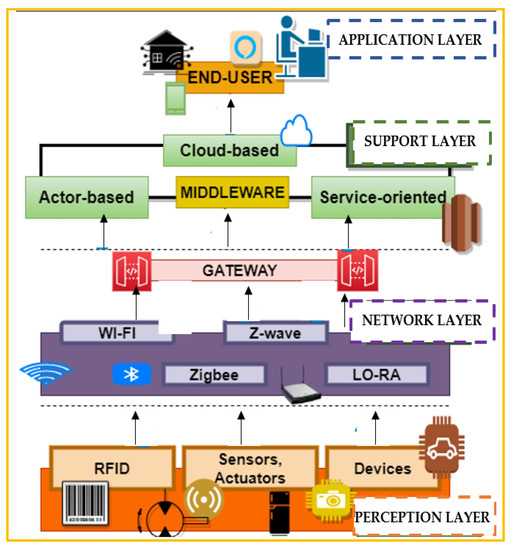

The two most prevalent architectures IoT-A (internet of things-Architecture) and IIRA (industrial internet reference architecture) synchronized with the IoT community and incorporating multiple views are given in [40]. In concern to IoT, many different wired and wireless protocols are introduced despite the similarity towards the general TCP/IP stack, primarily because of the differences in the characteristics of IoT devices concerning memory and computational power. Priyadarshi et al. [41] and Sahrawi et al. [42] provides a detailed analysis of various IoT protocols. The prominent IoT layers with working protocols are briefly described subsequently.
Perception Layer: It is also referred to as the physical layer in IoT. It is an amalgamation of a wide variety of sensors, actuators, and devices mainly for data accumulation from the surroundings [43]. The primary objective is to acquire all the essential insights for more in-depth analysis in the succeeding. The connected objects should not only establish communication with their respective gateways but also must be able to recognize and talk to each other to merge in real-time to leverage the benefits of the technology. Lightweight M2M (machine to machine) has become a standard for low memory, lightweight devices that typically find an application in IoT [44]. However, such a dynamic approach is disrupted by some of the significant threats by the intruder [3,9,21].
  • Node Capture and Cloning: It is one of the most detrimental attacks faced by this layer. In this attack, the intruder gains full control over the IoT nodes. Such IoT nodes can be cloned to launch new attacks.
  • Eavesdropping: In this attack, the intruder intercepts the personnel user data. The attacker takes advantage of the insecure communication mode to gain access to such sensitive information.
  • Jamming attack: This includes scrambling a particular communication channel by the emission of the radio signals. This attack disrupts the node signals by efficiently bypassing the physical layer protocols.
  • Resource depletion attack: This includes multiple retransmissions and collisions of the nodes to deplete it completely.
  • Relay attack: This involves the relocation of the IoT nodes with the relay node. The transmitted information passes through the relay node and thus can be exploited by the intruder.
Network Layer: The main goal of the network layer is to establish communication amongst smart devices via the assistance of appropriate IoT protocols. The prime purpose is to transfer data to proper edge infrastructures or cloud-based platforms through intermediaries like gateways or any other data collection systems. Another important aspect here is security. Appropriate security tools like NIDS or any other form of encryption can be applied to reduce the risks of threats and attacks. However, such transmission can be exploited to launch various attacks like a man-in-the-middle attack, routing attack, DDoS attack, Sybil attack.
Support Layer: It consists of cloud-based applications with prime tasks of storing, processing, and analyzing the data. It is mainly referred to as the brain in the IoT body. The main challenges faced here are restricted access and slow data transfer rate, which ultimately leads to late response. These challenges necessitate the need for appropriate edge analytics for quicker replies [44]. DoS and malicious insider attacks are some of the common attacks performed in this layer.
Application Layer: The last layer is the application layer, which ensures data integrity, confidentiality, and authenticity by enabling process-to-process communication via the use of suitable ports. It is responsible for the dispatching of the required services to the end-users via the assistance of appropriate audio and video interfaces. However, several security disputes prevent its proper functioning.
  • DoS attack: In this attack, the intruder pretends to be an authenticated user to disrupt the normal functioning of the network. It is accomplished by flooding the authenticated user to trigger a crash [5].
  • Phishing attack: It is a sensitive social engineering attack to gain access to the user credentials like passwords, credit card details by masquerading oneself as a trusted body [8].
  • Malicious code injection: In this attack, the intruder injects a malicious code to manipulate the authentic data of the authorized user [21,45].
  • Session hijacking attack: This attack consists of exploiting the web session by the intruder to gain access to the sensitive data of the user [9].

3. IoT Security Landscape

Security is a crucial zone of this technology, as recent trends and surveys have captured numerous changes in this sector, which in turn, indicates the evolution of the attacking mechanism leading to the generation of several zero-day attacks [46]. This behavior is mainly because most vendors are only concerned about dealing with some aspects of the IoT ecosystem. Those involve mostly providing new functionality to get their products into the market and thereby ignoring the privacy and security risks associated, thus making them easy targets of the hackers. The past few years have already recorded some damaging effects of lack of security in IoT in the form of attacks like Mirai botnet attack, Bashlite attack, and many more. Attackers are not only inaugurating numerous scanning, probing, and flooding attacks but are also escalating malware in the form of worms, viruses, and spams to exploit the weaknesses of the existing software, thereby causing severe damage to the sensitive information of the users. Therefore proper detection and prevention of such threats are very vital. IDS provides a platform to deal with such issues. Table 3 and Table 4 provide a brief insight into various such attacks and anomalies at different IoT levels and layers [30,31,32]. Adversaries primarily try to detour the security framework with subsequent launching of zero-day attacks, which in turn reduce the network throughput and produce huge discomforts to the legitimate users [47].

3.1. IoT Security Analysis

The listing of various attacks and anomalies prescribes the difficulties in the construction of a secure smart network. The prime goal is to safeguard the security requirements (integrity, confidentiality, availability) of legitimate users. Various researchers have carried out a rigorous survey to list down all possible attacks, their nature, challenges, and countermeasures to deal with them.
Sadique et al. [53] highlighted the critical future security challenges in IoT and open issues w.r.t the various IoT layers. Additionally, Riahi et al. [54] presented a roadmap to IoT security by representing a systemic approach to it by discussing its every aspect, beginning from persons/nodes to the ecosystem to managing privacy, trust, responsibility in the technology via the assistance of a smart manufacturing case study. Mardiana Binti et al. [55] discussed all recent trends in IoT security from 2016 to 2018. Additionally, a layer-wise security approach in IoT with all possible attacks, tools, and simulators is discussed.
Gudymenko et al. [56] present a list of various critical challenges in IoT, required to be addressed to maintain security in this area. Whitter et al. [57] presented a research paper that primarily focuses on the various historical attacks and malevolent activities that happened against the IoT networks. Additionally, the solutions to deal with them and possible areas for future developments are mentioned.
Benzarti et al. [58] presented a taxonomy of attacks against IoT by categorizing them into six classes based on architecture, attributes of security (integrity, authentication, confidentiality), communication disturbance, faulty or corrupted packets, channel, device functionalities. Additionally, the solutions to various existing attacks in different IoT applications like smart grid, smart home, VANET (vehicular ad-hoc networks) are discussed. Additionally, the survey conducted in [44,45,46] provides different IoT attack taxonomies and countermeasures to deal with it.

3.2. IoT Vulnerabilities

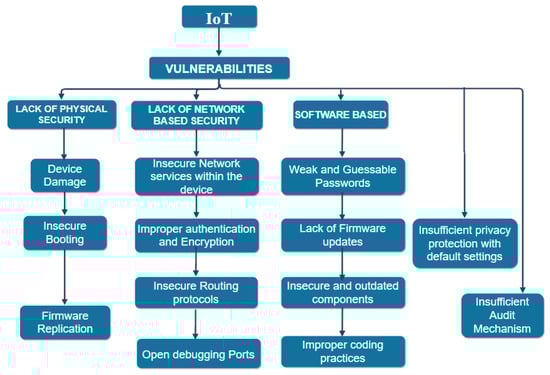

Vulnerabilities, in general, refer to the weaknesses of a system that can be overburdened by the adversaries to perform unintended activities. In IoT, hackers can exploit the integrity, confidentiality, availability of services to legitimate users by taking advantage of such teething problems [59]. Therefore an understanding of such delicacy in the system becomes mandatory before the development of appropriate defense mechanisms. The authors presented a multidimensional view of the IoT vulnerabilities with a detailed explanation of their effects on the diverse security paradigms [9]. OWASP (Open web application security project) has also listed the top ten IoT vulnerabilities [60]. Figure 5 explains the prime categorization of various IoT vulnerabilities.
  • Device Security: This aspect of security surface primarily includes physical damage to the IoT devices mainly caused by unauthorized access to them. The foremost reason is that these devices are in open territory, thus wholly left at the disposal of nature and adversaries. Therefore, they are easily getting damaged, or hackers can clone the firmware to produce their malicious counterpart and can also manipulate the data. Typical examples include the cloning of radio frequency signals in electric cars to unlock them or gaining access to the controller area network bus of the vehicle to execute any damaging activity.
  • Insecure Booting: Lack of proper verification before the implementation of the device refers to insecure booting. This aspect is an essential requirement in terms of maintaining security because it provides a comfortable surface for attackers to launch their malicious activities by injecting the devices before their launch [61]. The experiment conducted by researchers in [62] against the nest thermostat and Nike + Fuel band, a wearable device to depicts the detrimental effects of the booting process.
  • Network-Based Vulnerabilities: These typically target the connectivity of IoT devices, thus making them susceptible to a large number of attacks. These typically include the insecure services within the devices themselves, lack of proper authentication and encryption, i.e., using default or weak passwords, and deploying encryption techniques that do not match the standards of lightweight cryptography in IoT, thereby hampering the security. The intruder can perform attacks like DDoS, Sybil attack or could also steal valuable data via the network vulnerabilities. Further due to limited memory and resources in the IoT devices it lacks appropriate encryption to protect the data. In the medical field, attackers can gain control over external devices like insulin pumps or cardiovascular objects to play with the health of people [63].
Therefore, a deficit of a robust crypto-algorithm makes the devices further vulnerable. Research work related to authentication and encryption is provided in [64,65], respectively. The situation is further worsened via the presence of open ports. These are a significant threat to the IoT devices because they can expose the existence of smart devices in the surroundings, thus providing a platform to adversaries to conduct mischievous activities like modification of the firmware, injecting malicious code. The well-known Mirai botnet attack took the advantage of the open telnet ports to create an army of multiple compromised devices on the internet. To further fulfill its intentions Mirai used a brute force approach by attempting default factory credentials or the dictionary of attacks to generate the username and the password. Sivanathan et al. [66] explained the use of SYN and TCP scans to discover IoT devices at the disposal of open ports. Further, Markowsky et al. [67] described the usage of dark web SHODAN [68], Masscan, and NMAP to find and connect to vulnerable devices in the network.
Software-Based Vulnerabilities: These typically include the usage of readily available, guessable, and default passwords, also in addition to this, not performing suitable software updates/patch updates or using deprecated or outdated software libraries or components. All these factors together increase the vulnerability of the entire system [69] explains the attacks launched due to firmware modification. Further, deliberately following weak programming practices, i.e., launching firmware with well-known vulnerabilities, aids hackers to perform their dark activities.
Insufficient Privacy: This means compromising user’s personnel information without seeking their permission because of current default settings that often restrict users from altering the configurations. This can be life-threatening in the case of e-health services. A pacemaker with wireless capabilities was found vulnerable thereby exploiting the health of the user [70].
Insufficient Audit Mechanism: Lack of sufficient logging mechanism lead to such vulnerabilities. The research survey in [60,61] provides some insights towards audit mechanisms in IoT. Figure 6 depicts the most vulnerable IoT devices by 2020. The devices, mainly security cameras, virtual assistants, smart TVs, and smart lights, have proved to be the most vulnerable towards adversaries [71]. These devices can be easily hijacked to perform both active and passive attacks. In the case of security cameras, mainly, the fault lies at the purchase corner of these. Buying cheap models can open doors for hackers. Similarly, in the case of home assistants, eavesdropping may be a carrier of your activities to the adversary. Additionally, remote access to various devices can be undertaken to perform all kinds of mischief [72].

3.3. Intrusion Detection System

Several countermeasures are proposed to deal with the wide variety of attack scenarios in IoT. These vary from better authentication, device identification to introducing lightweight encryption to several others like adding risk assessment models, and intrusion detection at higher layers of IoT. In this survey, we particularly narrowed our research to IDS-based attack and anomaly detection. It is defined as an appropriate ensemble of various tools, techniques, and methods required to detect unintentional activities of the hackers.

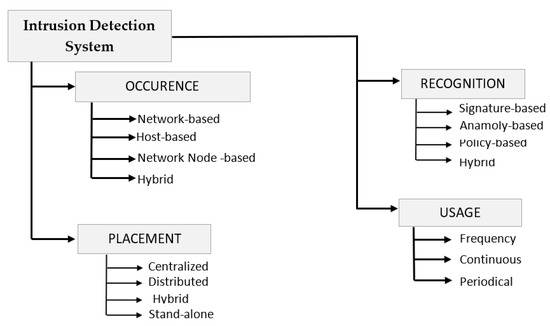

Figure 6 provides a view of the multiple properties of IDS like its occurrence, placement, recognition strategy, and usage frequency, the knowledge of which is essential for its proper implementation to achieve the desired results. The properties are described in terms of whether they are host-based or network-based, i.e., deals with attacks and anomalies launched against the entire network by analyzing all the incoming packets in the system. Snort, Suricata, Zeek are some of the examples of NIDS, or they can be hybrid, i.e., composed of both HIDS and NIDS. It is referred to as the network monitoring stage of IDS, which is followed by analysis. Finally, the detection stage, which is again categorized into misuse-based, anomaly-based, or can be policy-based [63,64]. There are several IDS techniques based on data mining, ML, statistical model, payload model, rule-based, but due to the massive data generation in IoT, ML can be thought of as a suitable paradigm to provide intelligence in this area. It can leverage the vast data generated by IoT devices for training to create patterns and behavior to make appropriate predictions and assessments. Thus IDS based on ML-based learning approaches can prove to be an excellent tool for attack detection in a smart IoT environment.

4. Learning-Based Solutions for Securing IoT

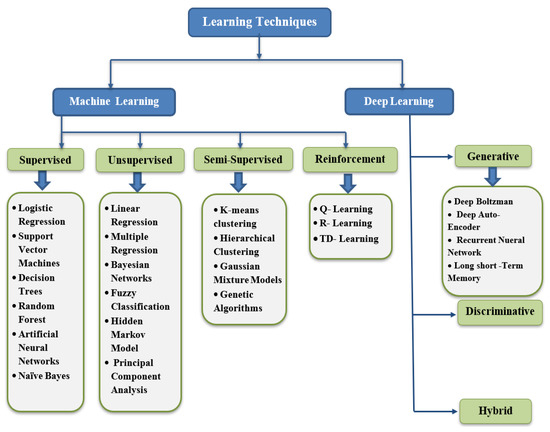

The vulnerabilities, attacks, and anomalies mentioned in the previous section focused on the broad range of concerns brought in our lives due to the expansion of IoT. Additionally, the advances in big data and computing power have further surfaced the platform for carrying out unintentional activities by the adversaries. However, ML-based specialists identify learning approaches as a productive tool to deal with IoT-based security issues, thereby leading to the amalgamation of ML and DL approaches with IDS technology. Figure 7 depicts a classification of existing learning techniques. In this section, we will mainly focus on various learning approaches, their types, and multiple solutions for IoT security based on these approaches. Existing methods can be classified based on the mode and the approach used. Figure 8 provides a visual sculpture of these.
  • Based on the mode: There are two modes: offline and online. In offline mode, the input is processed in batches and is known as lambda learning, whereas in online mode, the data are processed piece by piece serially and is known as kappa learning.

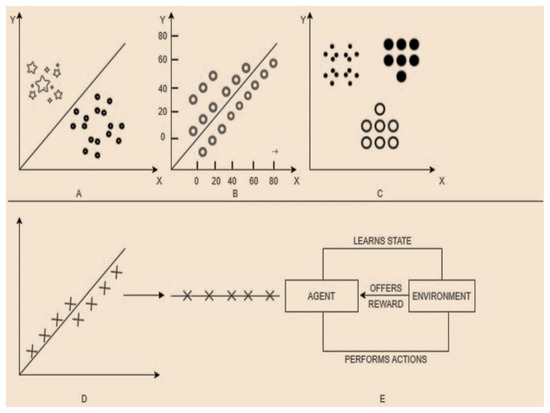

  • Based on the approach: There are three approaches: supervised, unsupervised, and reinforcement.
Supervised Learning: It is a procedure of learning the functionality from the training dataset. The prime goal is the estimation of the mapping function to predict the correct output labels for the prescribed new data. Based on the essence of target labels, it can be classified into classification and regression [73]. The technique is enormously useful in fault detection and misuse-based intrusion detection, quality of service, event detection, etc. The prime prerequisite in implementing supervised ML algorithms in IoT is the availability of the dataset with signatures for known attacks for learning purposes. There are various supervised learning approaches like Knn [74], Decision tree [75], SVM [76], Naïve Bayes [77], ANN [78] utilized for attack detection in IoT. Despite high detection statistics, lack of detection of different attack footprints, more resource consumption limits their usage in the era of numerous Zero-Day attacks.
Unsupervised Learning: It is very useful in modeling the elementary or the concealed structure of the data due to the non-availability of the labeled dataset. The unavailability of the labeled dataset differentiates it from the supervised approach, thus promotes a comprehensive evaluation of the data. It is majorly bifurcated into three sections, namely clustering [79], dimensionality reduction [80], and density estimation. Hence, these approaches are instrumental in detecting outliers and novel anomalies. Additionally, Dimensionality reduction techniques like PCA helps in eliminating the features which have no contribution to class separability.
Reinforcement Learning: The technique is concerned with the application of appropriate actions taken by the software agents in an environment to maximize the cumulative reward. More generally, it can be a catchphrase as learning from the environment. Two principal methods of reinforcement learning include policy search and value function approximation. The primary classification includes Q-learning, TD-learning, and R-learning. The mentioned ML classification techniques with their pros and cons indicate that there is no particular algorithm that is applicable in all the situations. Additionally, the increase in the number of IoT devices and the continuous evolution of zero-day attacks have urged the researchers to come up with Ensemble, hybrid, and other fused models to overcome the pros and cons of individual classifiers. Figure 8 depicts various learning models of machine learning.
Federated learning (FL): Another thriving machine learning paradigm that is capable of sorting the issues of security in IoT devices is federated learning (FL). This advanced machine learning technique is capable of training the machine learning models in a distributed manner. Traditionally, there was a significant communication overhead during the transmission of updates between the centrally managed server and the connected devices in the network. The network overhead leads to compromise the data rates, reliability, privacy, and resource management [81]. However, with the advent of FL methods, there is a significant improvement in the security aspect of smart systems. The learning models under FL takes the advantage of the distributed nature of learning and ensure the transmission of only learnable parameters instead of whole datasets. FL has been of immense use in intelligent transport systems thereby ensuring the security and privacy of data.

4.1. ML-Based Solutions for IoT Security

Arthur Samuel coined the term “Machine Learning“ in 1959 and defined it as a field of study that gives computers the ability to learn without being explicitly programmed [67]. It is used to comprehend a model defining the particular behavior or characteristic and then subsequently utilizing it to predict the traits in seen or unseen instances. The flexibility, adaptability, and low CPU load of ML algorithms can help us build numerous analytical models with better accuracy and reduced false alarm rates for attack and anomaly detection. Further, understanding various ML approaches is a prerequisite to understanding their suitability towards various attacks and anomalies. Table 5 summarizes the different machine learning-based solutions to secure IoT systems against the growing attacks.
Anthi et al. [14] proposed novel real-time IDS named pulse, which deploys supervised ML for the identification of maleficent activities like scanning, probing, and other elementary forms of DOS attacks. In this work, the authors developed a smart home testbed and with cross-validation concluded the better results by using the Naïve Bayes technique. In a similar work [11], a two-tier machine learning-based NIDS is proposed with preprocessing using wekas and the construction of an autonomous model based on hierarchical agglomerative clustering. Additionally, Pajouh et al. [12] introduced a state-of-the-art technique for subsequent detection and classification of malignant activities like the user to root and remote to local attacks by acquainting the readers with TDTC (two-layer dimension reduction and two-tier classification module) model. Both PCA and LDA are employed to reduce the computational complexity, then succeeding forward by the application of Naïve Bayes and CF-KNN along with the KD tree to present a more efficient classification.
Shahid et al. [82] presented a smart home monitoring system to generate legitimate traffic data with the malicious traffic created offline by deliberately attacking the device or by using IoT honey-pots. Six machine learning algorithms were deployed, followed by a comparison of their accuracies in which Random Forest outperformed. In another work, Srinivasan et al. [83] leveraged the power of machine learning techniques like random forest, support vector machine, MLP (multilayer perceptron) to ease the recognition and localization of link faults in the highly sophisticated network like IoT using a mininet platform.
Moustafa et al. [84] proposed an Adaboost ensemble model (Decision tree, Naïve Bayes, ANN) to detect malevolent activities, particularly attacks in the network by using features of DNS, HTTP protocols in TCP/IP models. It is a three-step framework initialized by feature extraction by using Tcpdump, Bro-ids, and other extractor modules followed by generation of data-sources from UNSW-NB15 and NIFS dataset and simulated IoT traffic. In [13], the authors conducted suitable experimentation to generate their own synthetic data to inspect and carefully scrutinize the usage of ANN (Artificial Neural Networks) in IoT gateway devices present in the transport layer to work at the security aspects of the technique. Further, Ioannou et al. [85] presented an ML approach known as a support vector machine for the detection of malicious activities within the IoT network exploiting actual IoT traffic with specific network layer attacks such as blackhole, selective forward, etc.
On similar lines, Zhao et al. [86] proposed a novel framework for real-time intrusion detection for numerous attacks and other suspicious activities occurring at the network layer using online machine learning with better time complexity using softmax regression. In [87] the authors presented an online sequential extreme learning machine model for intelligent detection of attacks at the fog nodes to provide a faster, scalable, and flexible interpretation of benign and adversarial traffic coming from the IoT application. In another notable work, Hasan et al. [15] compared the anomaly detection mechanism of various ML techniques (LR, SVM, DT, RF ANN) in a virtual environment producing synthetic data in which random forest outperformed with 99.4% accuracy.
Lee et al. [88] come up with profiling of abnormal activities of IoT devices via the support of a variety of machine learning algorithms. The approach considers signal injection as a threat to IoT and hence finds it as a principal attack in his research. In [89] the authors proposed a unique human in the cycle intrusion detection via ML to reduce the dependency on a large amount of labeled data for anomaly detection exploiting the query selection mechanism for unlabelled data. Further, Shafi et al. [90] presented a fog-aided SDN (software-defined networking) structure for anomaly detection and prevention for IoT networks, mainly to overcome the pitfalls of screening at the cloud and at the devices, evaluated by simulating an IoT network using the cooja simulation tool. However, due to certain limitations like processing power, scalability, manual feature selection, and heterogeneous data handling pushes us to come with better learning approaches. To deal with some aspects of limitations in ML, DL was implemented and analyzed in the security region of IoT [91].

4.2. Deep Learning-Based Solutions in IoT Security

Deep learning technology is considered to be a successor of ML with the capability of mimicking the human brain, thus falling under the categorization of AI. Deep networks have the potential of achieving better accuracy in terms of predictions and classifications because of the multilayered composition. This composition, when combined with IDS, can achieve performance at a superhuman level for the detection of new attacks and anomalies [16]. The principle benefit of the technology is the omission of manual feature selection and the capability to model non-linear relationships, thereby achieving an edge over ML. Moreover, the ability to handle Big Data, automatic feature extraction further backs the usage of technology in IoT. The essence of the technology revolves around cascading multiple layers for predicting the output. To accomplish the non-linearity activation function plays an important role. Table 6 lists the activation function for deeper networks [92]. Furthermore, Table 7 summarizes the different deep learning-based solutions used to secure IoT systems. Deep learning can be classified into three classes, known as discriminative, generative, and hybrid models.
Discriminative Models: These models belong to the class of supervised learning and thus are used for treating problems of classification and regression. If the input label is X and the corresponding output label is Y, then discriminative models require to learn the conditional probability of target label y, i.e., p(y|x) [93].
Convolutional Neural Network (CNN): It is a feed-forward deep artificial neural network that leverages the concept of convolution for predictions. The notion is to allocate importance to different parts of the image by connecting only a smaller region of a particular layer to the layer, succeeding it. The primary concept is to reduce the size of weights and the neurons. The functionality of CNN revolves around the four layers, namely the convolution layer, to reduce the size of weights followed by the Relu layer to introduce non-linearity into the network [94]. Then come the pooling and the fully connected layer, which subsequently perform the task of shrinking the stack size obtained from the previous layer and performing the actual classification, respectively. Nowadays, the technique is finding usage in the sector of anomaly detection [93,94], the approach is fused with other methods for anomaly detection, thus providing a profitable proposal in this sector.
Recurrent Neural Network (RNN): This type of feed-forward artificial neural network posses internal memory. The associations between the various units form a digraph, thereby allowing the structure to copy the output and propagating it back to RNN at every timestamp. These associations permit the composition to evince temporal dynamic behavior. The characteristics mentioned above make it appropriate for applications like speech recognition, time series prediction, and anomaly detection [95]. There are many variants to the basic RNN, namely hope field network, fully recurrent, Elman and Jordan networks, etc.
Long Short Term Memory (LSTM): It is a type of RNN with an ability to remember long-time dependencies, thus overcoming the limitations of RNN. The composition of LSTM includes memory cells for keeping back the information along with three gates, namely forget, input, and output for memory orchestration [96,97].
Generative Models: These models belong to the class of unsupervised learning. They are used when there is no presence of labeled data. The model requires calculating the joint probability p(x,y) where x and y are input and output variables, respectively.
Table 5. Tabular Representation of Machine Learning Approaches.
Table 5. Tabular Representation of Machine Learning Approaches.
AuthorAlgorithm with Implementation PlatformThreatsChallengesPerformance Evaluation
Anthi et al. [14]Naïve-Bayes
Platform: Weka
Network probing, scanning, Dos attacks-SYN, UDP flood attacks.No clustering of similar devices, limited attacks covered.scan attack: precision-97.7, recall-97.7, f-measure-97.7
SYN: precision-80.8, recall-68.8, f-measure-65.8
Divyatmika et al. [11]Clustering+ KNN(data classification) + MLP (misuse detection) + reinforcement(anomaly detetion)
Platform: Weka
Dos, probe, Remote-to-local(R2L), User-To-Root(U2R).-Accuracy: 99.95%(with reduced false alarms).
Pajouh et al. [12]PCA + LDA (Feature selection),naïve bayes + CF-KNN (classification)Dos, probe, Remote-to-local(R2L), User-To-Root(U2R)Anomaly and intrusion detection at the application and support layer, considering different protocols of the network layer.Accuracy:
Probe Attack: 87.32,
Dos Attack: 88.20,
Detection rate: 84.86,
False alarm rate-4.86
Shahid et al. [82]Random forest, Decision tree, ANN, KNN, GNB (Gaussian Naïve Bayes)-Integration of anomaly detection models with a software-defined networking environment.Accuracy:
RF-99.9%, DT-99.5%, SVM-99.3%,
KNN-98.9%, ANN-98.6%, GNB-91.6%
Srinivasan et al. [83]Random forest, MLP, SVM
Platform: mininet
Link fault identification.Testing different ML algorithms.Accuracy: 97%
[97]Ensemble model (Decision tree + Naïve Bayes + ANN)
Platforms and tools: NodeRed middleware, tcpdump, Bro-IDS,
Analysis, backdoor, dos, exploit, fuzzers, generic, Reconnaissance, worms.Considering other IoT protocols, concentrating on ore zero-day attacks.Accuracy with DNS data source: 99.54%,
Accuracy with HTTP data source: 98.97%
Canedo et al. [13]ANN
Platform: R(neural-net package).
Invalid data entries.Generating data entries by creating a testbed with more devices and sensors.N/A
Ioannou et al. [85]c-SVM
platform: RMT tool(Run time monitoring tool).
Routing layer attacks (sinkhole, blackhole, selective forward).Placement of IDS in high-energy gateway nodes.Accuracy: 100% (with the same topology)
Accuracy = 81%(when the topology is changed)
Zhao et al. [86]PCA (to reduce dimensions) + KNN (classification + Softmax regression (classification).Dos, probe, Remote-to-local (R2L), User-To-Root (U2R) Accuracy: 85.24% with 3 dimensions, 85.19% with 6 dimensions
84.406% with 10 dimensions.
Prabavathy et al. [87] OS-ELM (online sequential extreme machine learning)
Platform: MATLAB (R2013a).
Dos, probe, Remote-to-local (R2L), User-To-Root (U2R).More depth analysis of zero-day attacks is required.Accuracy: 97.16% (forbinary classification)
TPR (true positive rate):
U2R-53.81,R2L-71.87% (for multi class classification).
Hasan et al. [15]LR, SVM, ANN, RF, DT
Platform: python with Numpy, pandas, sci-kit learn.
Dos, data type probing, malicious control, malicious control, malicious operation, scan, spying, wrong setup.More robust algorithms are required, more attention is required for real-time detection.Accuracy:
Table 6. Activation Functions.
Table 6. Activation Functions.
Activation Function NatureRange ClassificationMathematical NotationUsage
SigmoidNon-linear0 or 1Binary classificationf(x) = 1/1 + e−xOutput layer
Tanh Non-linear−1 or 1Binary classificationTanh(x) = 2 × sigmoid(2x) − 1Output layer
Relu [98]Non-linear[0,inf]Multiple classificationf(x) = max(0, max)Hidden layer
SwishNon-linear-inf to infMultiple classificationf(x) = x × sigmoid(x)Hidden layer
Autoencoders: It is a class of deep learning model which relies on the concept of rebuilding the input after performing suitable compression via the application of an encoder followed by a decoder [99]. The prime task is to achieve dimensionality reduction to visualize the data and gather suitable projections from it provided input features are not independent and have some correlation. Vanilla, convolutional, multilayer, regularized are some variants of autoencoders. Meidan et al. [100] presented N-Balot (network-based detection of IoT botnet attacks using deep autoencoders) to detect botnet attacks using autoencoders.
Roopak et al. [17] presented a deep learning-based hybrid approach particularly for DDOS attack detection and comparisons were made with the standalone Machine learning techniques. In another work, McDermatt et al. [101] provided a novel bidirectional long short-term memory-based RNN for the sensing of botnet activities amongst the consumer IoT device. Packet level detection was performed along with word embedding for recognition of text and conversion of packets into integer format. Further, Rahul et al. [16] proposed a deep neural network-based approach to predict attacks on a NIDS.
On similar lines, Diro et al. [102] presented a deep learning model for the distributed detection of attacks to leverage the self-teaching and compression capabilities of DL to implement the network detection of attacks at fog nodes. The results showed that distributed attack detection provided better accuracy compared to the centralized schemes. Further, an attempt to collaborate DL technology with its shallow counterpart was made by Shone et al. [103]. They presented a novel unsupervised learning approach named NDAE (non-symmetric deep autoencoder) for feature engineering combined with random forest for classification.
Ullah et al. [104] proposed a tensor-flow-based Deep neural network approach to detect software piracy and other malware-based attacks in the industrial IoT network. This DNN is used for capturing pirated software from the source code of different programmers from google code jam followed by an application of CNN to detect footprints via binary visualization on colored images of malware files. Traffic classification plays a very vital role in ensuring security in IoT networks. Yao et al. [105] present an end-to-end deep learning-based capsule network approach for traffic classification and identification of malware, unlike the conventional DL methods.
In another work, Telikani et al. [106] proposed a CSSAE technique for intrusion detection, especially in IoT networks. The main focus of the paper is the class imbalance problem in the datasets, which tends to bias the results towards the majority class. Pajouh et al. [107] also deployed LSTM for malware detection in ARM rooted IoT applications. In [108] the authors exploited RNN, and network coding in amalgamation to prevent eavesdropping attacks in heterogeneous IoT environments with highly unreliable storage structures and proposed two algorithms FAGA() (failure-aware greedy allocation) and FLAGA() (failure-and-load aware greedy allocation) to test the failure condition of storage devices.
Table 7. Tabular Representation of Deep Learning Approaches.
Table 7. Tabular Representation of Deep Learning Approaches.
AuthorDataset UsedAlgorithm with Implementation PlatformThreats Challenges Performance Evaluation
Roopak et al. [17] CICIDS2017MLP,1-d CNN,LSTM, CNN + LSTM
Platform: Keras–Tensorflow, machine learning implementation MATLAB2017a.
DDOSLack of Deep learning models that can work with highly unbalanced datasets.Accuracy:
MLP-86.34%,LSTM-96.24%, CNN + LSTM-97.16%.
McDermatt et al. [101] Dataset generated by creating a testbed.BLSTMMirai(scan, infect, control, and attack), UDP.Lack of comprehensive dataset including more attack vectors.Accuracy: 99.99% (Mirai), 98.58% (UDP).
Rahul et al. [16] KDD cup 99DNN with three layers
Platform: Keras (Tensorflow).
Dos, probe, User-To-Root (U2R), Remote-to-local (R2L).Lack of real-time IoT dataset, evaluation of deeper networks.Accuracy: 93%.
Diro et al. [102] NSL-KDDDeep learning model with 150, 120, 50 neurons in first, second, and third layer respectively. Implementation of technique on different datasets.Accuracy: 96% to 99%
99% (for two class-normal and anomalous)
98.27% (for 4 class(normal, dos, probe, U2R and R2L)
Shone et al. [103] KDD cup 99, NSL-KDDNDAE (non-symmetric deep auto-encoders)
Platform: GPU enabled tensor-flow.
Dos, probe, User-To-Root (U2R), Remote-to-local (R2LLack of real-time traffic for appropriate analysis.Accuracy:
94.58% (Dos),
94.67% (probe),
3.82% (R2L),
2.70% (U2R).
Ullah et al. [104]Google code jam, Leopard Mobile dataset1Deep neural networks
Platform: Tensor-flow
Pirated software and malware threats(industrial IoT).-Accuracy: 96%
Yao et al. [105]UTSC-2016Capsuleapproach(1-D CNN + capsule networklayer + LSTM + output layer.
Platform:Python2.7, TensorFlow1.8.0
Malware threats.-Higher classification accuracy compared to traditional approaches.
The complete inspection and scrutinization of the prevailing ML and DL techniques concerning the survey conducted in this groundwork stipulate the following trends for anomaly detection in the IoT. As a matter of fact, concerning the non-availability of a particular IoT dataset has advocated researchers to orchestrate their experiments either by using some non-IoT series of data or come up with their data records [108,109]. Further, the survey conducted also helps us to reach some conclusions for the learning approaches which includes their advantages, disadvantages, and their suitability towards the various known attacks which is depicted in Table 8.
The table mentioned above will assist readers with the choice of learning approach they want to implement in their researches based on their advantages, disadvantages, and their suitability towards the various attacks.

5. Case Studies

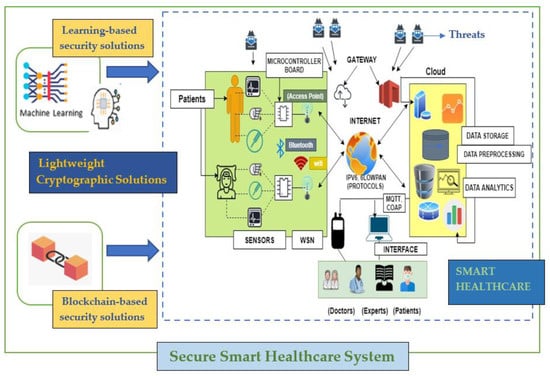

5.1. Healthcare and IoT

The innovation in numerous IoT technologies has led to the decentralization of healthcare mechanisms from being traditional to a customary localized forum via the assistance of IoT-authorized gadgets. These gadgets are based on the concept of a multisensor framework for recording various parameters. These include recording blood sugar, ECG (electrocardiogram), pulse, temperature, etc. of the patient. This customization supports the notion of remote health tracking, which in particular involves at-home medication, elderly care, or any fitness program [117,118,119]. Healthcare in IoT primarily involves four basic entities, which are actors, sensors, communication networks, and applications. The actors include the patients, clinical staff involving the doctors, nurses, experts. Sensors are used for illuminating the actors with paramount requirements and subsequently dispatching the information via a suitable communication network [120]. There are profuse devices prevalent for reading and tracking vital patient data and other medical statistics. These devices range from smart wearables like smart bands, watches, shoes to intelligent video cameras and meters. Applications assist with real-time notifications, thus aiding any emergency services.
The real-time monitoring of data generated by smart devices and their transmission in the ecosystem is very critical to intelligent decision-making. These intelligent systems work autonomously without human intervention and decision regarding mitigating a specific threat is taken in real-time after adapting to environmental changes. Figure 9 depicts secure smart healthcare management with the use of technologies like artificial intelligence, blockchain, machine learning, and deep learning providing autonomous working and decision making. Sensors are used for reading patient’s data and are connected to the microprocessors. These microprocessors are further connected to any wireless communication technology for routing and forwarding the data through the gateway. The data are stored in the virtual machines popular as clouds for preprocessing and analysis. These data can be accessed by doctors, experts, and even patients. However, a proper security mechanism is required to prevent any kind of damage by the adversaries.
Various IoT architectures have progressed over the past years. Some of the prominent architectures are given. For example, mHealth is a primary health care system with a three-layered structure. The layers include a data collection layer for apprehending and collecting the data followed by a data storage layer, which provides for stocking the data in the stack pile racks, and a data processing layer for a proper inspection and scanning of data [121]. Additionally, 6Lowpan consists of numerous access points with forwarding and routing capabilities. The deployed sensor nodes, along with the access points, lead to the formation of clusters. The connection is achieved via the assistance of IPV6. This approach is preferred over others due to its low energy requirements, which makes it suitable for the battery-powered sensor. Gao et al. [122] discuss a Zigbee-based structural health monitoring system. The revolution in WSN allows multiple sensor nodes to communicate wirelessly with the base station. To increase the lifetime of the network, a low-energy communication channel is necessary. This led to the injection of Zigbee for communication in the health monitoring system.
Despite many benefits, this sector of technology suffers from various loopholes, which are enumerated below. The massive growth in the deadly underlying medical conditions of the population requires well-organized, systematic, and efficient healthcare management. Despite the numerous benefits like better diagnosis, treatment, and other facilities, the smart and ubiquitous nature exposes it to multiple cyber threats. Cybersecurity in healthcare is at a nascent stage and thereby requires proactive and improved technologies to protect it from various attacks. Understanding different security challenges are necessary before dealing with other intricacies of it. There are numerous challenges and issues for contemporary health care applications. The broadcast nature of communication in healthcare leads to the exploitation of the privacy of the patients, thus launching platforms for serious threats like eavesdropping. This aspect, in turn, leads to the exploitation of the confidentiality of the data [123]. Furthermore, any change in the data received from the sensors can be life-threatening in the case of healthcare applications. Therefore, integrity and authentication are the two major concerns here. Moreover, the author in [124] depicts how emergency services can be disrupted and compromised because of a lack of a single cloud-based infrastructure where all e-health records can be accessed. Further security breaches in cloud storage can worsen the situation.
To address the above-mentioned flaws, better and improved security frameworks are required that necessitate the amalgamation of machine learning in this sector. Besides fixing critical medical conditions like the identification of tumors, bleeds, etc., this AI tool can solve many security-related affairs and issues by acting as an anomaly detector. Newaz et al. [125] suggested the application of health guard: an ML-based security application framework for healthcare systems. This framework leveraged multiple ML algorithms (KNN, Random Forest, DT, ANN) for detecting malicious activity and was able to achieve an accuracy of 91%. The framework can encapsulate and observe correlations amongst multiple body functionalities and other crucial signs. The structure was tested against threats that included tamped medical devices, DOS, and other false data. To further increase security, research is being carried out to combine ML with blockchain technology.
Tanwar et al. [126] suggested the use of ML in blockchain to improvise data security and privacy. The architecture was proposed by integrating the blockchain with ML. The learning potential of ML combined with blockchain technology that will not only make it smarter but also reduce many data-oriented issues in IoT could be seen in recent works [127,128,129,130]. Decentralization, transparency, and immutability are the primary objectives of blockchain technology, which help to improve the security of the system [131,132,133]. This combination will result in correct predictions and better security. Additionally, Nilima et al. [134] further backed that the usage of ML with blockchain to make the system smarter and deal with privacy, integrity, and authentication issues.

5.2. Smart Vehicular System

In addition to ensuring security in the healthcare sector using IoT, there are many scenarios where the application of the internet of things is being realized. Recently, the application of IoT in vehicular security systems has gained huge success and attention [135]. The progression in intelligent technologies has opened a wide array of opportunities for the ever-vulnerable smart vehicle systems. The availability of 4G LTE and 5G communication spectrum has unlocked many possibilities for cyber-attacks leading to compromise of security in smart vehicular systems (SVS) [136]. These connected vehicles are the source of generation to the enormous amount of data and therefore are vulnerable to many security attacks. Some of the popular security attacks on the SVS are Denial of Service(DoS), Blackhole, Replay, Sybil, Impersonation, Malware, Falsified information, and timing attack [137]. All these cyber-attacks attempt to destabilize the functioning and performance of the SVS. The application of intelligence on monitoring and controlling these sensors enabled smart vehicular systems to have made these systems more robust and secure. Deep learning techniques and machine learning-based algorithms like k-NN, SVM, decision trees, etc. are in use for developing a security solution in vehicular systems using IoT. An example of the Tyre Pressure Monitoring System (TPMS) [138] in the intelligent and connected system of vehicles ensures proper monitoring of tyre pressure in all the tyres of the vehicle including the spare wheel in the boot. The system was devised for ride comfort and robust handling of the vehicle on the road. The use of sensors for all the tyres ensures the collection of real-time data for the proper safety of the vehicle. A cyber-attack on this system may leak the collected data to the attacker, thereby compromising the valuable data such as the location of the vehicle, speed of the vehicle, and the braking behavior of the driver [139]. The prevention against such types of attacks using learning-based mechanisms has made this system more applicable in current scenarios [140].
The security challenges the smart vehicles face today could be realized from the severity of security incidents in smart vehicles [141,142]. The infotainment system vulnerabilities are being exploited to get into smart cars [143]. Tesla motors faced the causality in the smart car accident all due to the compromised sensors [144]. Anand et al. [3] discussed the use-case of smart transportation covering the common attack surfaces and inherent vulnerabilities.

5.3. Smart Manufacturing System

With the amalgamation of hardware, software, and the internet with IoT, another promising domain with immense potential to improve the global economy is smart manufacturing. The four vital components of any manufacturing unit or organization are processes, people, products, and infrastructure [145]. The application of sensors in any of these four components results in yielding an enormous amount of data which would be very critical for the overall monitoring and control of the manufacturing systems. The main advantage of having IoT in manufacturing is the optimum functioning of these four components. With the benefits of IoT in manufacturing, there are pitfalls too. These smart-systems are vulnerable to cyber threats leading to malfunction of the overall systems [146,147]. However, the ever-evolving use of machine learning and deep learning techniques in manufacturing helps to prevent and mitigate cyber threats. One of the security issues in manufacturing units is the prediction and management of vulnerabilities [148]. In these categories of security issues, the machine learning algorithms are applied to gather the data to identify the areas of the fault occurrences, i.e., to predict future issues from past issues [149,150,151].

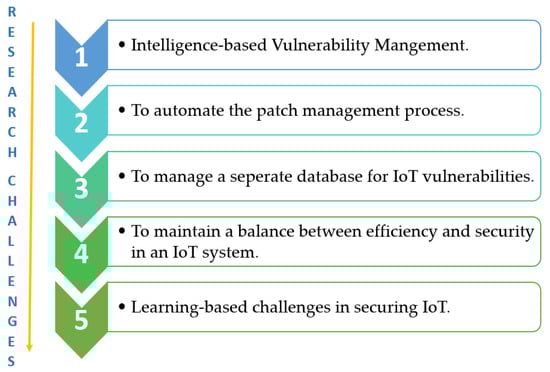

6. Research Challenges and Future Directions

The expeditious advancement of IoT usage in multiple sectors brings security complications to the forefront. The tremendous volumes of research conducted in the past years still limit IoT to its nascent stage. The prime reason for the multiple challenges IoT is facing that limit its expansion is in the security zone. In this section, the emerging challenges which halt the IoT growth are discussed and pinpointed in Figure 10.
Intelligence-based Vulnerability Management: Firstly, the heterogeneity of the devices in the smart digitized world limits the automated detection and discovery of the vulnerabilities. Further, adding to this is the lightweight security requirement for their protection. These factors culminate the need to restructure the security analysis platform. The survey conducted in this paper also backs this restructuring by merging AI with IoT and presenting various solutions offered in this context. However, to further improvise the attack discovery, detection, and mitigation, some problems need to be confronted. These include a lack of real-time datasets. The datasets available for the research purpose do not reflect real-world attack scenarios and are often unbalanced. Further, the continuously changing functionalities of the networking environment require retraining of the system, thereby adding to the overhead.
To Automate the Patch Management Process: The prime challenge to address the vulnerabilities in the smart devices is the lack of a single automated binary code patch generator that is functional across multiple platforms. The leading cause is the generation of devices by different manufacturers. Therefore, this prescribes their usability and prevents us from achieving an appropriate and feasible solution for the firmware patching. Further adding to this is the variable nature of the operating system and architectural patterns followed in the numerous devices. Thus, automatic patch generation requires a deep understanding of the entire mechanism, thereby making it a long-term security goal.
To manage a separate database for IoT vulnerabilities: From the studied literature and growing attacks, it is seen that the general IoT devices with inherent known vulnerabilities are flooded to the market. These IoT nodes, in turn, act as a stepping stone for the adversaries to launch various attacks like Mirai, Hajime. Thus, to handle the insecure IoT devices, maintaining structured information about the exploits and known vulnerabilities in the smart environment would be of immense use. VARIoT is one such project working exclusively to develop a separate database for managing IoT vulnerabilities.
To maintain a balance between Efficiency and Security in an IoT system: In addition, a balance needs to be achieved between efficiency and data security. Due to the inverse nature, one often gets compromised. Therefore, incorporating ML and DL to the fog nodes must be explored in depth to the intelligence near the data sources to reduce the latency and the bandwidth. Though ML and DL can detect multiple attacks, still the challenge for mitigating all possible attacks persists. Therefore, supplementing the research further is required by exploring the incremental machine learning near the sources.
Learning-based challenges in securing IoT: Machine Learning being known for extracting knowledge from the data were used for both malevolent and noble purposes. It is found that the potential adversaries make efficient use of these learning algorithms (machine learning and deep learning-based) to break the cryptographic secrets. For example, Recurrent Neural networks are being used by the authors for cryptanalysis. Furthermore, false data input feeds to the machine learning model result in improper functioning of the entire learning-based system. The problems of the oversampling, inadequate training dataset, and feature extraction are also a matter of concern in adding intelligence to smart environments.

7. Conclusions

The extensive study conducted in this research culminates in the various facets of IoT, beginning from the overview of the technology to the different architectural approaches. The outline is followed by an in-depth security analysis depicting a taxonomy of attacks, anomalies, and vulnerabilities. The technology has brought and will continue to bring numerous benefits to its pertinent implementation. However, the deep contemplation regarding the security aspects of it highlights the raising concerns in this sector. Thus, appropriate defense mechanisms like access control, IDS, and authentication are required to handle it. Due to the non-applicability of traditional security approaches (firewalls, antivirus) primarily because of low memory and computational constraints, other defense mechanisms like IDS have gained popularity. This paper highlights the numerous research efforts in the application of IDS based on the ML and DL algorithm as a security shield in this area. Additionally, the pros and cons of the various learning techniques are listed with their suitability towards different attacks conducted with critical analysis. Further, a case study highlighting the various facets of healthcare is also provided which further helps in understanding the practical implementation of IoT and learning-based security methods in real-world scenarios. The Smart Vehicular system and Smart Manufacturing systems are also explored in terms of their applications after being connected and the security challenges presented as a byproduct. Furthermore, after the extensive literature surveyed and presented, it is found that the critical issues namely automated patch management, intelligent vulnerability management system, and a separate depository for IoT vulnerabilities must be handled in hand for sustainable IoT. In the future, hybrid learning-based techniques will be explored to secure growing smart environments.

Author Contributions

Conceptualization, P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H.; methodology, P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H.; software, P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H.; validation P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H.; formal analysis, investigation, resources, data analysis, P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H.; writing—original draft preparation, writing—review and editing, P.M., Y.S., P.A., D.K.B., P.K.S. and W.-C.H. visualization, funding acquisition, W.-C.H. All authors have equal contribution during this research. All authors have read and agreed to the published version of the manuscript.


This research was funded by Ministry of Science and Technology, Taiwan (Grant No. MOST 108-2410-H-161-004).

Institutional Review Board Statement

The study was conducted as per the laid guidelines of the institute and there is no personal information which is disclosed in this manuscript. Studies based on humans or animals personal behavious or attributes are not the part of the study during the research work.

Informed Consent Statement

No consent is required from humans or animals.

Data Availability Statement

Data sharing not applicable. No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Al-Fuqaha, A.I.; Guizani, M.; Mohammadi, M.; Aledhari, M.; Ayyash, M. Internet of Things: A Survey on Enabling Technologies, Protocols, and Applications. IEEE Commun. Surv. Tutor. 2015, 17, 2347–2376. [Google Scholar] [CrossRef]
  2. Lee, S.K.; Kwon, H.R.; Cho, H.; Kim, J.; Lee, D. International Case Studies of Smart Cities; Inter-American Bank: Orlando, FL, USA, June 2016. [Google Scholar]
  3. Anand, P.; Singh, Y.; Selwal, A.; Singh, P.K.; Felseghi, R.A.; Raboaca, M.S. IoVT: Internet of Vulnerable Things? Threat Architecture, Attack Surfaces, and Vulnerabilities in Internet of Things and Its Applications towards Smart Grids. Energies 2020, 13, 4813. [Google Scholar] [CrossRef]
  4. Anand, P.; Singh, Y.; Selwal, A. Internet of Things (IoT): Vulnerabilities and Remediation Strategies. In Lecture Notes in Electrical Engineering; Springer: Singapore, 2021; pp. 265–273. [Google Scholar]
  5. Anand, P.; Singh, Y.; Selwal, A.; Alazab, M.; Tanwar, S.; Kumar, N. IoT Vulnerability Assessment for Sustainable Computing: Threats, Current Solutions, and Open Challenges. IEEE Access 2020, 8, 168825–168853. [Google Scholar] [CrossRef]
  6. Rana, B.; Singh, Y.; Singh, P.K. A systematic survey on internet of things: Energy efficiency and interoperability perspective. Trans. Emerg. Telecommun. Technol. 2020, 1–41. [Google Scholar] [CrossRef]
  7. Kolias, G.; Kambourakis, C.; Stavrou, A.; Voas, J. DDoS in the IoT: Mirai and Other Botnets. Computer 2017, 50, 80–84. [Google Scholar] [CrossRef]
  8. Gupta, R.; Tanwar, S.; Tyagi, S.; Kumar, N. Machine Learning Models for Secure Data Analytics: A taxonomy and threat model. Comput. Commun. 2020, 153, 406–440. [Google Scholar] [CrossRef]
  9. Neshenko, N.; Bou-Harb, E.; Crichigno, J.; Kaddoum, G.; Ghani, N. Demystifying IoT Security: An Exhaustive Survey on IoT Vulnerabilities and a First Empirical Look on Internet-Scale IoT Exploitations. IEEE Commun. Surv. Tutor. 2019, 21, 2702–2733. [Google Scholar] [CrossRef]
  10. Butun, I.; Osterberg, P.; Song, H. Security of the Internet of Things: Vulnerabilities, Attacks, and Countermeasures. IEEE Commun. Surv. Tutor. 2020, 22, 616–644. [Google Scholar] [CrossRef][Green Version]
  11. Divyatmika Sreekesh, M. A two-tier network based intrusion detection system architecture using machine learning approach. In Proceedings of the 2016 International Conference on Electrical, Electronics, and Optimization Techniques (ICEEOT), Chennai, India, 3–5 March 2016; pp. 42–47. [Google Scholar]
  12. Pajouh, H.H.; Javidan, R.; Khayami, R.; Dehghantanha, A.; Choo, K.-K.R. A Two-Layer Dimension Reduction and Two-Tier Classification Model for Anomaly-Based Intrusion Detection in IoT Backbone Networks. IEEE Trans. Emerg. Top. Comput. 2016, 7, 314–323. [Google Scholar] [CrossRef]
  13. Canedo, J.; Skjellum, A. Using machine learning to secure IoT systems. In Proceedings of the 2016 14th Annual Conference on Privacy, Security and Trust (PST), Auckland, New Zealand, 12–14 December 2016; pp. 219–222. [Google Scholar]
  14. Anthi, E.; Williams, L.; Burnap, P. Pulse: An adaptive intrusion detection for the internet of things. In Proceedings of the Living in the Internet of Things: Cybersecurity of the IoT-2018, London, UK, 28–29 March 2018; pp. 1–4. [Google Scholar]
  15. Hasan, M.; Islam, M.; Zarif, I.I.; Hashem, M. Attack and anomaly detection in IoT sensors in IoT sites using machine learning approaches. Internet Things 2019, 7, 100059. [Google Scholar] [CrossRef]
  16. Vigneswaran, R.K.; Vinayakumar, R.; Soman, K.; Poornachandran, P. Evaluating Shallow and Deep Neural Networks for Network Intrusion Detection Systems in Cyber Security. In Proceedings of the 2018 9th International Conference on Computing, Communication and Networking Technologies (ICCCNT), Bengaluru, India, 10–12 July 2018; pp. 1–6. [Google Scholar] [CrossRef]
  17. Roopak, M.; Tian, G.Y.; Chambers, J. Deep Learning Models for Cyber Security in IoT Networks. In Proceedings of the 2019 IEEE 9th Annual Computing and Communication Workshop and Conference (CCWC), Las Vegas, NV, USA, 7–9 January 2019; pp. 452–457. [Google Scholar]
  18. Ahlmeyer, M.; Chircu, A.M. Securing the Internet of Things: A Review. Issues Inform. Syst. 2016, 17, 21–28. [Google Scholar]
  19. Mosenia, A.; Jha, N.K. A Comprehensive Study of Security of Internet-of-Things. IEEE Trans. Emerg. Top. Comput. 2016, 5, 586–602. [Google Scholar] [CrossRef]
  20. Alaba, F.A.; Othman, M.; Hashem, I.A.T.; Alotaibi, F. Internet of Things security: A survey. J. Netw. Comput. Appl. 2017, 88, 10–28. [Google Scholar] [CrossRef]
  21. Makhdoom, I.; Abolhasan, M.; Lipman, J.; Liu, R.P.; Ni, W. Anatomy of Threats to the Internet of Things. IEEE Commun. Surv. Tutor. 2019, 21, 1636–1675. [Google Scholar] [CrossRef]
  22. Samaila, M.G.; Neto, M.; Fernandes, D.A.B.; Freire, M.M.; Inácio, P.R.M. Challenges of securing Internet of Things devices: A survey. Secur. Priv. 2018, e20. [Google Scholar] [CrossRef][Green Version]
  23. Yazdinejad, A.; Parizi, R.M.; Dehghantanha, A.; Zhang, Q.; Choo, K.-K.R. An Energy-Efficient SDN Controller Architecture for IoT Networks with Blockchain-Based Security. IEEE Trans. Serv. Comput. 2020, 13, 625–638. [Google Scholar] [CrossRef]
  24. Rachit Bhatt, S.; Ragiri, P.R. Security trends in Internet of Things: A survey. SN Appl. Sci. 2021, 3, 1–14. [Google Scholar] [CrossRef]
  25. Ahmad, R.; Alsmadi, I. Machine learning approaches to IoT security: A systematic literature review. Internet Things 2021, 14, 100365. [Google Scholar] [CrossRef]
  26. Xingmei, X.; Jing, Z.; He, W. Research on the basic characteristics, the key technologies, the network architecture and security problems of the Internet of things. In Proceedings of the 2013 3rd International Conference on Computer Science and Network Technology, Dalian, China, 12–13 October 2013; pp. 825–828. [Google Scholar] [CrossRef]
  27. Jia, X.; Feng, Q.; Fan, T.; Lei, Q. RFID Technology and Its Applications in Internet of Things (IOT). In Proceedings of the 2012 2nd International Conference on Consumer Electronics, Communications and Networks (CECNet), Yichang, China, 21–23 April 2012; pp. 1282–1285. [Google Scholar]
  28. Theo, S. Importance of Sensors in the Internet of Things. 2018. Available online: (accessed on 22 April 2020).
  29. Matin, A.M. Overview of Wireless Sensor Network. In Wireless Sensor Networks-Technology and Protocols; IntechOpen: Rijeka, Croatia, 2012. [Google Scholar]
  30. Embedded systems in the Internet of Things—Embedded system—IoT. Available online: (accessed on 22 April 2020).
  31. Cloud Computing. Available online: (accessed on 25 April 2020).
  32. Bauer, M. Internet-of-Things Architecture Project Deliverable D1 2—Initial Architectural Reference Model for IoT. Architecture 2011, 1–97. [Google Scholar]
  33. Atzori, L.; Iera, A.; Morabito, G.; Nitti, M. The Social Internet of Things (SIoT)—When social networks meet the Internet of Things: Concept, architecture and network characterization. Comput. Netw. 2012, 56, 3594–3608. [Google Scholar] [CrossRef]
  34. Qin, Z.; Denker, G.; Giannelli, C.; Bellavista, P.; Venkatasubramanian, N. A Software Defined Networking architecture for the Internet-of-Things. In Proceedings of the 2014 IEEE Network Operations and Management Symposium (NOMS), Krakow, Poland, 5–9 May 2014; pp. 1–9. [Google Scholar]
  35. Li, J.; Zhang, Y.; Chen, Y.-F.; Nagaraja, K.; Li, S.; Raychaudhuri, D. A Mobile Phone Based WSN Infrastructure for IoT over Future Internet Architecture. In Proceedings of the 2013 IEEE International Conference on Green Computing and Communications and IEEE Internet of Things and IEEE Cyber, Physical and Social Computing, Beijing, China, 20–23 August 2013; pp. 426–433. [Google Scholar]
  36. Singh, D.; Tripathi, G.; Jara, A.J. A survey of Internet-of-Things: Future vision, architecture, challenges and services. In Proceedings of the 2014 IEEE World Forum on Internet of Things (WF-IoT), Seoul, Korea, 6–8 March 2014; pp. 287–292. [Google Scholar]
  37. Cecchinel, C.; Jimenez, M.; Mosser, S.; Riveill, M. An Architecture to Support the Collection of Big Data in the Internet of Things. In Proceedings of the 2014 IEEE World Congress on Services, Anchorage, AK, USA, 27 June–2 July 2014; pp. 442–449. [Google Scholar]
  38. Kraijak, S.; Tuwanut, P. A survey on internet of things architecture, protocols, possible applications, security, privacy, real-world implementation and future trends. In Proceedings of the 2015 IEEE 16th International Conference on Communication Technology (ICCT), Hangzhou, China, 18–20 October 2015; pp. 26–31. [Google Scholar] [CrossRef]
  39. Ray, P. A survey on Internet of Things architectures. J. King Saud Univ. Comput. Inf. Sci. 2018, 30, 291–319. [Google Scholar] [CrossRef][Green Version]
  40. Weyrich, M.; Ebert, C. Reference Architectures for the Internet of Things. IEEE Softw. 2016, 33, 112–116. [Google Scholar] [CrossRef]
  41. Priyadarshi, D.; Behura, A. Analysis of Different IoT Protocols for Heterogeneous Devices and Cloud Platform. In Proceedings of the 2018 International Conference on Communication and Signal Processing (ICCSP), Chennai, India, 3–5 April 2018; pp. 868–872. [Google Scholar]
  42. Al-sarawi, S.; Anbar, M.; Alieyan, K.; Alzubaidi, M. Internet of Things (IoT) communicationprotocols: Review. In Proceedings of the 2017 8th International Conference on Information Technology (ICIT), Amman, Jordan, 17–18 May 2017; pp. 685–690. [Google Scholar]
  43. Sethi, P.; Sarangi, S.R. Internet of Things: Architectures, Protocols, and Applications. J. Electr. Comput. Eng. 2017, 2017, 1–25. [Google Scholar] [CrossRef][Green Version]
  44. Avsystem. What Is IoT Architecture? 2019. Available online: (accessed on 22 April 2020).
  45. Shaikh, F.; Bou-Harb, E.; Neshenko, N.; Wright, A.P.; Ghani, N. Internet of Malicious Things: Correlating Active and Passive Measurements for Inferring and Characterizing Internet-Scale Unsolicited IoT Devices. IEEE Commun. Mag. 2018, 56, 170–177. [Google Scholar] [CrossRef]
  46. Yu, T.; Sekar, V.; Seshan, S.; Agarwal, Y.; Xu, C. Handling a trillion (unfixable) flaws on a billion devices: Re-thinking network security for the Internet-of-Things. In Proceedings of the 14th ACM Workshop on Hot Topics in Networks, Philadelphia, PA, USA, 16–17 November 2015. [Google Scholar]
  47. Andrea, I.; Chrysostomou, C.; Hadjichristofi, G.C. Internet of Things: Security vulnerabilities and challenges. In Proceedings of the 2015 IEEE Symposium on Computers and Communication (ISCC), Larnaca, Cyprus, 6–9 July 2015; pp. 180–187. [Google Scholar]
  48. Meng, W. Intrusion Detection in the Era of IoT: Building Trust via Traffic Filtering and Sampling. Computer 2018, 51, 36–43. [Google Scholar] [CrossRef]
  49. Nawir, M.; Amir, A.; Yaakob, N.; Lynn, O.B. Internet of Things (IoT): Taxonomy of security attacks. In Proceedings of the 2016 3rd International Conference on Electronic Design (ICED), Phuket, Thailand, 11–12 August 2016; pp. 321–326. [Google Scholar] [CrossRef]
  50. Atlam, H.F.; Wills, G.B. IoT Security, Privacy, Safety and Ethics; Springer: Berlin/Heidelberg, Germany, 2020. [Google Scholar]
  51. Trend Micro. Into the Battlefield: A Security Guide to IoT Botnets. 2019. Available online: (accessed on 23 April 2020).
  52. Akram, H.; Konstantas, D.; Mahyoub, M. A Comprehensive IoT Attacks Survey based on a Building-blocked Reference Model. Int. J. Adv. Comput. Sci. Appl. 2018, 9, 355–373. [Google Scholar] [CrossRef]
  53. Sadique, K.M.; Rahmani, R.; Johannesson, P. Towards Security on Internet of Things: Applications and Challenges in Technology. Proced. Comput. Sci. 2018, 141, 199–206. [Google Scholar] [CrossRef]
  54. Sfar, A.R.; Natalizio, E.; Challal, Y.; Chtourou, Z. A roadmap for security challenges in the Internet of Things. Digit. Commun. Netw. 2018, 4, 118–137. [Google Scholar] [CrossRef]
  55. Noor, M.B.M.; Hassan, W.H. Current research on Internet of Things (IoT) security: A survey. Comput. Netw. 2019, 148, 283–294. [Google Scholar] [CrossRef]
  56. Gudymenko, I.; Hutter, M. Security in the Internet of Things Supervisor. Proc. Intensive Program Inform. Commun. Secur. 2011, 2011, 22–31. [Google Scholar]
  57. Whitter-Jones, J. Security review on the Internet of Things. In Proceedings of the 2018 3rd International Conference on Fog and Mobile Edge Computing (FMEC), Barcelona, Spain, 23–26 April 2018; pp. 163–168. [Google Scholar] [CrossRef]
  58. Benzarti, S.; Triki, B.; Korbaa, O. A survey on attacks in Internet of Things based networks. In Proceedings of the 2017 International Conference on Engineering & MIS (ICEMIS), Monastir, Tunisia, 8–10 May 2017; pp. 1–7. [Google Scholar]
  59. Deogirikar, J.; Vidhate, A. Security attacks in IoT: A survey. In Proceedings of the 2017 International Conference on I-SMAC (IoT in Social, Mobile, Analytics and Cloud) (I-SMAC), Palladam, India, 10–11 February 2017; pp. 32–37. [Google Scholar]
  60. Paul, F. Top 10 IoT Vulnerabilities. OWASP. 2019. Available online:,html (accessed on 21 January 2020).
  61. Rane, A. IoT Security Starts with Secure Boot. 2017. Available online: (accessed on 22 April 2020).
  62. Arias, O.; Wurm, J.; Hoang, K.; Jin, Y. Privacy and Security in Internet of Things and Wearable Devices. IEEE Trans. Multi-Scale Comput. Syst. 2015, 1, 99–109. [Google Scholar] [CrossRef]
  63. Bhardwaj, M. Security in Internet of Things Applications. 2017. Available online: (accessed on 3 January 2020).
  64. Porambage, P.; Schmitt, C.; Kumar, P.; Gurtov, A.; Ylianttila, M. PAuthKey: A Pervasive Authentication Protocol and Key Establishment Scheme for Wireless Sensor Networks in Distributed IoT Applications. Int. J. Distrib. Sens. Netw. 2014, 10. [Google Scholar] [CrossRef]
  65. Shafagh, H.; Hithnawi, A.; Duquennoy, S. Talos: Encrypted Query Processing for the Internet of Things. In Proceedings of the 13th ACM Conference on Embedded Network Sensor Systems, Seoul, Korea, 1–4 November 2015; pp. 197–210. [Google Scholar]
  66. Sivanathan, A.; Gharakheili, H.H.; Sivaraman, V. Can We Classify an IoT Device using TCP Port Scan? In Proceedings of the 2018 IEEE International Conference on Information and Automation for Sustainability (ICIAfS), Colombo, Sri Lanka, 21–22 December 2018; pp. 1–4. [Google Scholar]
  67. Markowsky, L.; Markowsky, G. Scanning for vulnerable devices in the Internet of Things. In Proceedings of the 2015 IEEE 8th International Conference on Intelligent Data Acquisition and Advanced Computing Systems: Technology and Applications (IDAACS), Warsaw, Poland, 24–26 September 2015; pp. 463–467. [Google Scholar]
  68. Ercolani, V.J.; Patton, M.W.; Chen, H. Shodan visualized. In Proceedings of the 2016 IEEE Conference on Intelligence and Security Informatics (ISI), Tucson, AZ, USA, 28–30 September 2016; pp. 193–195. [Google Scholar]
  69. Konstantinou, C.; Maniatakos, M. Impact of firmware modification attacks on power systems field devices. In Proceedings of the 2015 IEEE International Conference on Smart Grid Communications (SmartGridComm), Miami, FL, USA, 2–5 November 2015; pp. 283–288. [Google Scholar]
  70. Halperin, D.; Heydt-Benjamin, T.S.; Ransford, B.; Clark, S.S.; Defend, B.; Morgan, W.; Fu, K.; Kohno, T.; Maisel, W.H. Pacemakers and Implantable Cardiac Defibrillators: Software Radio Attacks and Zero-Power Defenses. In Proceedings of the 2007 IEEE Symposium on Security and Privacy, Oakland, CA, USA, 18–22 May 2008; pp. 129–142. [Google Scholar]
  71. Ur, B.; Jung, J.; Schechter, S. The Current State of Access Control for Smart Devices in Homes. Workshop Home Usable Priv. Secur. 2013, 29, 209–218. [Google Scholar]
  72. 5 Simple IoT Devices That Can Become Entry Points for Hackers—CPO Magazine. Available online: (accessed on 23 April 2020).
  73. Saiful, M.; Mamun, I.; Kabir, A.F.M.S.; Hossen, S.; Hayat, R. Policy based intrusion detection and response system in hierarchical WSN architecture. In Proceedings of the IEEE International Conference on Wireless Communication, Vehicular Technology, Information Theory and Aerospace & Electronic Systems Technology, Wireless Vitae’09, Aalborg, Denmark, 17–20 May 2009. [Google Scholar]
  74. Noor, U.; Anwar, Z.; Amjad, T.; Choo, K.-K.R. A machine Learning-Based FinTech cyber threat attribution framework using high-level indicators of compromise. Futur. Gener. Comput. Syst. 2019, 96, 227–242. [Google Scholar] [CrossRef]
  75. Quinlan, J.R. Induction of Decision Trees. In Machine Learning; Springer: Berlin/Heidelberg, Germany, 1986; pp. 81–106. [Google Scholar]
  76. Kaplantzis, S.; Shilton, A.; Mani, N.; Sekercioglu, Y.A. Detecting Selective Forwarding Attacks in Wireless Sensor Networks using Support Vector Machines. In Proceedings of the 2007 3rd International Conference on Intelligent Sensors, Sensor Networks and Information, Melbourne, Australia, 3–6 December 2007; pp. 335–340. [Google Scholar]
  77. Martínez-Arroyo, M.; Sucar, L.E. Learning an Optimal Naive Bayes Classifier. In Proceedings of the 18th International Conference on Pattern Recognition (ICPR’06), Hong Kong, China, 20–24 August 2006; Volume 3, pp. 1236–1239. [Google Scholar]
  78. Yegnanarayana, B. Introduction to Artificial Neural Networks (ANN); PHI Learning Pvt. Ltd.: Delhi, India, February 2009; pp. 1–5. [Google Scholar]
  79. Oyelade, J.; Isewon, I.; Oladipupo, O.; Emebo, O.; Omogbadegun, Z.; Aromolaran, O.; Uwoghiren, E.; Olaniyan, D.; Olawole, O. Data Clustering: Algorithms and Its Applications. In Proceedings of the 2019 19th International Conference on Computational Science and Its Applications (ICCSA), Sankt Petersburg, Russia, 1–4 July 2019; pp. 71–81. [Google Scholar] [CrossRef]
  80. Meyer-Baese, A.; Volker, J.S. Pattern Recognition and Signal Analysis in Medical Imaging; Elsevier: Amsterdam, The Netherlands, 2014. [Google Scholar]
  81. Elbir, A.M.; Coleri, S. Federated Learning for Vehicular Networks. arXiv 2020, arXiv:2006.01412. [Google Scholar]
  82. Shahid, M.R.; Blanc, G.; Zhang, Z.; Debar, H. Machine Learning for IoT Network Monitoring. In (Rendez-Vous la Rech. l’Enseignement la Sécurité des Systèmes d’Information); RESSI: Erquy, France, May 2019. [Google Scholar]
  83. Srinivasan, S.M.; Truong-Huu, T.; Gurusamy, M. Machine Learning-Based Link Fault Identification and Localization in Complex Networks. IEEE Internet Things J. 2019, 6, 6556–6566. [Google Scholar] [CrossRef][Green Version]
  84. Moustafa, N.; Slay, J. The evaluation of Network Anomaly Detection Systems: Statistical analysis of the UNSW-NB15 data set and the comparison with the KDD99 data set. Inf. Secur. J. Glob. Perspect. 2016, 25, 18–31. [Google Scholar] [CrossRef]
  85. Ioannou, C.; Vassiliou, V. Classifying Security Attacks in IoT Networks Using Supervised Learning. In Proceedings of the 2019 15th International Conference on Distributed Computing in Sensor Systems (DCOSS), Santorini Island, Greece, 29–31 May 2019; pp. 652–658. [Google Scholar]
  86. Zhao, S.; Li, W.; Zia, T.; Zomaya, A.Y. A Dimension Reduction Model and Classifier for Anomaly-Based Intrusion Detection in Internet of Things. In Proceedings of the 2017 IEEE 15th International Conference on Dependable, Autonomic and Secure Computing, 15th International Conference on Pervasive Intelligence and Computing, 3rd International Conference on Big Data Intelligence and Computing and Cyber Science and Technology Congress (DASC/PiCom/DataCom/CyberSciTech), Orlando, FL, USA, 6–10 November 2017; pp. 836–843. [Google Scholar]
  87. Prabavathy, S.; Sundarakantham, K.; Shalinie, S.M. Design of cognitive fog computing for intrusion detection in Internet of Things. J. Commun. Netw. 2018, 20, 291–298. [Google Scholar] [CrossRef]
  88. Lee, S.-Y.; Wi, S.-R.; Seo, E.; Jung, J.-K.; Chung, T.-M. ProFiOt: Abnormal Behavior Profiling (ABP) of IoT devices based on a machine learning approach. In Proceedings of the 2017 27th International Telecommunication Networks and Applications Conference (ITNAC), Melbourne, Australia, 22–24 November 2017; pp. 1–6. [Google Scholar] [CrossRef]
  89. Yang, K.; Ren, J.; Zhu, Y.; Zhang, W. Active Learning for Wireless IoT Intrusion Detection. IEEE Wirel. Commun. 2018, 25, 19–25. [Google Scholar] [CrossRef][Green Version]
  90. Shafi, Q.; Basit, A.; Qaisar, S.; Koay, A.; Welch, I. Fog-Assisted SDN Controlled Framework for Enduring Anomaly Detection in an IoT Network. IEEE Access 2018, 6, 73713–73723. [Google Scholar] [CrossRef]
  91. Hussain, F.; Hussain, R.; Hassan, S.A.; Hossain, E. Machine Learning in IoT Security: Current Solutions and Future Challenges. IEEE Commun. Surv. Tutor. 2020, 22, 1686–1721. [Google Scholar] [CrossRef][Green Version]
  92. Gupta, D.S. Fundamentals of Deep Learning—Activation Functions and When to Use Them? 2020. Available online: (accessed on 1 March 2021).
  93. Shrestha, A.; Mahmood, A. Review of Deep Learning Algorithms and Architectures. IEEE Access 2019, 7, 53040–53065. [Google Scholar] [CrossRef]
  94. Albawi, S.; Mohammed, T.A.M.; Alzawi, S. Understanding of a convolutional neural network. In Proceedings of the IEEE International Conference on Engineering and Technology (ICET), Antalya, Turkey, 21–23 August 2017; pp. 1–6. [Google Scholar] [CrossRef]
  95. Understanding RNN and LSTM-Towards Data Science. Available online: (accessed on 22 April 2020).
  96. Deep Learning|Introduction to Long Short Term Memory—GeeksforGeeks. Available online: (accessed on 22 April 2020).
  97. Moustafa, N.; Turnbull, B.; Choo, K.-K.R. An Ensemble Intrusion Detection Technique Based on Proposed Statistical Flow Features for Protecting Network Traffic of Internet of Things. IEEE Internet Things J. 2018, 6, 4815–4830. [Google Scholar] [CrossRef]
  98. A Practical Guide to ReLU-Danqing Liu—Medium. Available online: (accessed on 22 April 2020).
  99. Shahid, M.R.; Blanc, G.; Zhang, Z. Anomalous Communications Detection in IoT Networks Using Sparse Auto-encoders. In Proceedings of the 2019 IEEE 18th International Symposium on Network Computing and Applications (NCA), Cambridge, MA, USA, 26–28 September 2019. [Google Scholar]
  100. Meidan, Y.; Bohadana, M.; Mathov, Y.; Mirsky, Y.; Shabtai, A.; Breitenbacher, D.; Elovici, Y. N-Baiot—Network-based Detection of IoT Botnet Attacks Using Deep Autoencoders. IEEE Pervasive Comput. 2018, 13, 1–8. [Google Scholar] [CrossRef][Green Version]
  101. McDermott, C.D.; Majdani, F.; Petrovski, A.V. Botnet Detection in the Internet of Things using Deep Learning Approaches. In Proceedings of the 2018 International Joint Conference on Neural Networks (IJCNN), Rio de Janeiro, Brazil, 8–13 July 2018; pp. 1–8. [Google Scholar] [CrossRef]
  102. Diro, A.A.; Chilamkurti, N. Distributed attack detection scheme using deep learning approach for Internet of Things. Future Gener. Comput. Syst. 2018, 82, 761–768. [Google Scholar] [CrossRef]
  103. Shone, N.; Ngoc, T.N.; Phai, V.D.; Shi, Q. A Deep Learning Approach to Network Intrusion Detection. IEEE Trans. Emerg. Top. Comput. Intell. 2018, 2, 41–50. [Google Scholar] [CrossRef][Green Version]
  104. Ullah, F.; Naeem, H.; Jabbar, S.; Khalid, S.; Latif, M.A.; Al-Turjman, F.; Mostarda, L. Cyber Security Threats Detection in Internet of Things Using Deep Learning Approach. IEEE Access 2019, 7, 124379–124389. [Google Scholar] [CrossRef]
  105. Yao, H.; Gao, P.; Wang, J.; Zhang, P.; Jiang, C.; Han, Z. Capsule Network Assisted IoT Traffic Classification Mechanism for Smart Cities. IEEE Internet Things J. 2019, 6, 7515–7525. [Google Scholar] [CrossRef]
  106. Telikani, A.; Gandomi, A.H. Cost-sensitive stacked auto-encoders for intrusion detection in the Internet of Things. Internet Things 2019, 100122. [Google Scholar] [CrossRef]
  107. Haddad Pajouh, H.; Dehghantanha, A.; Khayami, R.; Choo, K.-K.R. A deep Recurrent Neural Network based approach for Internet of Things malware threat hunting. Futur. Gener. Comput. Syst. 2018, 85, 88–96. [Google Scholar] [CrossRef]
  108. Liao, C.-H.; Shuai, H.-H.; Wang, L.-C. RNN-Assisted Network Coding for Secure Heterogeneous Internet of Things with Unreliable Storage. IEEE Internet Things J. 2019, 6, 7608–7622. [Google Scholar] [CrossRef]
  109. Siboni, S.; Sachidananda, V.; Meidan, Y.; Bohadana, M.; Mathov, Y.; Bhairav, S.; Shabtai, A.; Elovici, Y. Security Testbed for Internet-of-Things Devices. IEEE Trans. Reliab. 2018, 68, 23–44. [Google Scholar] [CrossRef]
  110. Alam, F.; Mehmood, R.; Katib, I.; Albeshri, A. Analysis of Eight Data Mining Algorithms for Smarter Internet of Things (IoT). Proced. Comput. Sci. 2016, 98, 437–442. [Google Scholar] [CrossRef][Green Version]
  111. Robinson, R.R.R.; Thomas, C. Ranking of machine learning algorithms based on the performance in classifying DDoS attacks. In Proceedings of the 2015 IEEE Recent Advances in Intelligent Computational Systems (RAICS), Trivandrum, India, 10–12 December 2015; pp. 185–190. [Google Scholar] [CrossRef]
  112. Xiao, L.; Wan, X.; Lu, X.; Zhang, Y.; Wu, D. IoT Security Techniques Based on Machine Learning: How Do IoT Devices Use AI to Enhance Security? IEEE Signal Process. Mag. 2018, 35, 41–49. [Google Scholar] [CrossRef]
  113. Abu Alsheikh, M.; Lin, S.; Niyato, D.; Tan, H.-P. Machine Learning in Wireless Sensor Networks: Algorithms, Strategies, and Applications. IEEE Commun. Surv. Tutor. 2014, 16, 1996–2018. [Google Scholar] [CrossRef][Green Version]
  114. Deo, R.C.; Nallamothu, B.K. Learning About Machine Learning: The Promise and Pitfalls of Big Data and the Electronic Health Record. Circ. Cardiovasc. Qual. Outcomes 2016, 9, 618–620. [Google Scholar] [CrossRef] [PubMed][Green Version]
  115. Gudikandula, P. Recurrent Neural Networks and LSTM Explained-Medium. 2019. Available online: (accessed on 1 March 2021).
  116. Diro, A.; Chilamkurti, N. Leveraging LSTM Networks for Attack Detection in Fog-to-Things Communications. IEEE Commun. Mag. 2018, 56, 124–130. [Google Scholar] [CrossRef]
  117. Fazeldehkordi, E.; Owe, O.; Noll, J. Security and Privacy in IoT Systems: A Case Study of Healthcare Products. In Proceedings of the 2019 13th International Symposium on Medical Information and Communication Technology (ISMICT), Oslo, Norway, 8–10 May 2019. [Google Scholar] [CrossRef]
  118. Singh, I.; Kumar, D. Improving IOT Based Architecture of Healthcare System. In Proceedings of the 2019 4th International Conference on Information Systems and Computer Networks (ISCON), Mathura, India, 21–22 November 2019; pp. 113–117. [Google Scholar] [CrossRef]
  119. Lavanya, S.; Divyabharathi, J. Remote prescription and I-Home healthcare based on IoT. In Proceedings of the 2017 International Conference on Innovations in Green Energy and Healthcare Technologies (IGEHT), Coimbatore, India, 16–18 March 2017; pp. 1–3. [Google Scholar] [CrossRef]
  120. Bangotra, D.K.; Singh, Y.; Selwal, A.; Kumar, N.; Singh, P.K.; Hong, W.-C. An Intelligent Opportunistic Routing Algorithm for Wireless Sensor Networks and Its Application Towards e-Healthcare. Sensors 2020, 20, 3887. [Google Scholar] [CrossRef]
  121. Kumar, N. IoT architecture and system design for healthcare systems. In Proceedings of the 2017 International Conference on Smart Technologies for Smart Nation (SmartTechCon), Bengaluru, India, 17–19 August 2017; pp. 1118–1123. [Google Scholar] [CrossRef]
  122. Tokognon, C.A.; Gao, B.; Tian, G.Y.; Yan, Y. Structural Health Monitoring Framework Based on Internet of Things: A Survey. IEEE Internet Things J. 2017, 4, 619–635. [Google Scholar] [CrossRef]
  123. Alromaihi, S.; Elmedany, W.; Balakrishna, C. Cyber Security Challenges of Deploying IoT in Smart Cities for Healthcare Applications. In Proceedings of the 2018 6th International Conference on Future Internet of Things and Cloud Workshops (FiCloudW), Barcelona, Spain, 6–8 August 2018; pp. 140–145. [Google Scholar]
  124. Poorejbari, S.; Mansoor, W. Smart healthcare systems on improving the efficiency of healthcare services. In Proceedings of the 2019 2nd International Conference on Signal Processing and Information Security (ICSPIS), Dubai, United Arab Emirates, 30–31 October 2019; pp. 1–4. [Google Scholar]
  125. Newaz, A.I.; Sikder, A.K.; Rahman, M.A.; Uluagac, A.S. HealthGuard: A Machine Learning-Based Security Framework for Smart Healthcare Systems. In Proceedings of the 2019 6th International Conference on Social Networks Analysis, Management and Security (SNAMS), Granada, Spain, 22–25 October 2019; pp. 389–396. [Google Scholar] [CrossRef][Green Version]
  126. Tanwar, S.; Bhatia, Q.; Patel, P.; Kumari, A.; Singh, P.K.; Hong, W.-C. Machine Learning Adoption in Blockchain-Based Smart Applications: The Challenges, and a Way Forward. IEEE Access 2020, 8, 474–488. [Google Scholar] [CrossRef]
  127. Gupta, R.; Reebadiya, D.; Tanwar, S. 6G-enabled Edge Intelligence for Ultra -Reliable Low Latency Applications: Vision and Mission. Comput. Stand. Interfaces 2021, 77, 103521. [Google Scholar] [CrossRef]
  128. Gupta, R.; Nair, A.; Tanwar, S.; Kumar, N. Blockchain-assisted secure UAV communication in 6G environment: Architecture, opportunities, and challenges. IET Commun. 2021, 1–16. [Google Scholar] [CrossRef]
  129. Gupta, R.; Member, S.; Tanwar, S.; Tyagi, S.; Kumar, N. HaBiTs: Blockchain-based Telesurgery Framework. In Proceedings of the 2019 International Conference on Computer, Information and Telecommunication Systems (CITS), Beijing, China, 28–31 August 2019; pp. 1–5. [Google Scholar]
  130. Gupta, R.; Thakker, U.; Tanwar, S.; Obaidat, M.S.; Hsiao, K.-F. BITS: A Blockchain-driven Intelligent Scheme for Telesurgery System. In Proceedings of the 2020 International Conference on Computer, Information and Telecommunication Systems (CITS), Hangzhou, China, 5–7 October 2020; pp. 1–5. [Google Scholar] [CrossRef]
  131. Mehta, P.; Gupta, R.; Tanwar, S. Blockchain envisioned UAV networks: Challenges, solutions, and comparisons. Comput. Commun. 2020, 151, 518–538. [Google Scholar] [CrossRef]
  132. Kumari, A.; Gupta, R.; Tanwar, S.; Kumar, N. Blockchain and AI amalgamation for energy cloud management: Challenges, solutions, and future directions. J. Parallel Distrib. Comput. 2020, 143, 148–166. [Google Scholar] [CrossRef]
  133. Gupta, R.; Kumari, A.; Tanwar, S. A taxonomy of blockchain envisioned edge-as-a-connected autonomous vehicles. Trans. Emerg. Telecommun. Technol. 2020, 1–24. [Google Scholar] [CrossRef]
  134. Pardakhe, N.V.; Deshmukh, V.M. Machine Learning and Blockchain Techniques Used in Healthcare System. In Proceedings of the 2019 IEEE Pune Section International Conference (PuneCon), Pune, India, 18–20 December 2019; pp. 1–5. [Google Scholar] [CrossRef]
  135. Huang, S.-C.; Chen, B.-H.; Chou, S.-K.; Hwang, J.-N.; Lee, K.-H. Smart Car [Application Notes]. IEEE Comput. Intell. Mag. 2016, 11, 46–58. [Google Scholar] [CrossRef]
  136. Hahn, D.A.; Munir, A.; Behzadan, V. Security and Privacy Issues in Intelligent Transportation Systems: Classification and Challenges. IEEE Intell. Transp. Syst. Mag. 2021, 13, 181–196. [Google Scholar] [CrossRef][Green Version]
  137. Dibaei, M.; Zheng, X.; Jiang, K.; Abbas, R.; Liu, S.; Zhang, Y.; Xiang, Y.; Yu, S. Attacks and defences on intelligent connected vehicles: A survey. Digit. Commun. Netw. 2020, 6, 399–421. [Google Scholar] [CrossRef]
  138. Petit, J.; Shladover, S.E. Potential Cyberattacks on Automated Vehicles. IEEE Trans. Intell. Transp. Syst. 2014, 16, 1–11. [Google Scholar] [CrossRef]
  139. Liu, J.; Zhang, S.; Sun, W.; Shi, Y. In-Vehicle Network Attacks and Countermeasures: Challenges and Future Directions. IEEE Netw. 2017, 31, 50–58. [Google Scholar] [CrossRef]
  140. Aswath, G.; Vasudevan, S.K.; Sundaram, R. Emerging security concerns for smart vehicles and proposed IoT solutions. Int. J. Veh. Auton. Syst. 2018, 14, 107. [Google Scholar] [CrossRef]
  141. Miller, C.; Valasek, C. Remote Exploitation of an Unaltered Passenger Vehicle. Black Hat USA 2015, S91. [Google Scholar]
  142. Cerrudo, C. Hacking US Traffic Control System. Proc. DEFCON 2014, 22, 1–15. [Google Scholar]
  143. Fiat Chrysler Recalls 1.4 Million Cars after Jeep Hack—BBC News. Available online: (accessed on 21 February 2021).
  144. Tesla Driver Dies in First Fatal Crash While Using Autopilot Mode Technology the Guardian. Available online: (accessed on 21 February 2021).
  145. Santhosh, N.; Srinivsan, M.; Ragupathy, K. Internet of Things (IoT) in smart manufacturing. IOP Conf. Ser. Mater. Sci. Eng. 2020, 764. [Google Scholar] [CrossRef]
  146. Maggi, F.; Pogliani, M.; Milano, P. Attacks on Smart Manufacturing Systems; Trend Micro Research: Shibuya, Japan, 2020; pp. 1–60. [Google Scholar]
  147. Al Faruque, M.A.; Chhetri, S.R.; Canedo, A.; Wan, J. Acoustic Side-Channel Attacks on Additive Manufacturing Systems. In Proceedings of the 2016 ACM/IEEE 7th International Conference on Cyber-Physical Systems (ICCPS), Vienna, Austria, 11–14 April 2016; pp. 1–10. [Google Scholar]
  148. Sturm, L.D.; Williams, C.B.; Camelio, J.A.; White, J.; Parker, R. Cyber-physical vulnerabilities in additive manufacturing systems: A case study attack on the.STL file with human subjects. J. Manuf. Syst. 2017, 44, 154–164. [Google Scholar] [CrossRef]
  149. Wu, J.; Dong, M.; Ota, K.; Li, J.; Yang, W. Sustainable Secure Management Against APT Attacks for Intelligent Embedded-Enabled Smart Manufacturing. IEEE Trans. Sustain. Comput. 2019, 5, 341–352. [Google Scholar] [CrossRef]
  150. Tanwar, S.; Thakkar, K.; Thakor, R.; Singh, P.K. M-Tesla-Based Security Assessment in Wireless Sensor Network. Procedia Comput. Sci. 2018, 132, 1154–1162. [Google Scholar] [CrossRef]
  151. Singh, P.K.; Pawłowski, W.; Tanwar, S.; Kumar, N.; Rodrigues, J.J.; Obaidat, M.S. Proceedings of First International Conferenceon Computing, Communications,and Cyber-Security (IC4S 2019); Lecture Notes in Networks and Systems; Springer: Berlin/Heidelberg, Germany, 2020; Volume 121, pp. 3–905. [Google Scholar]

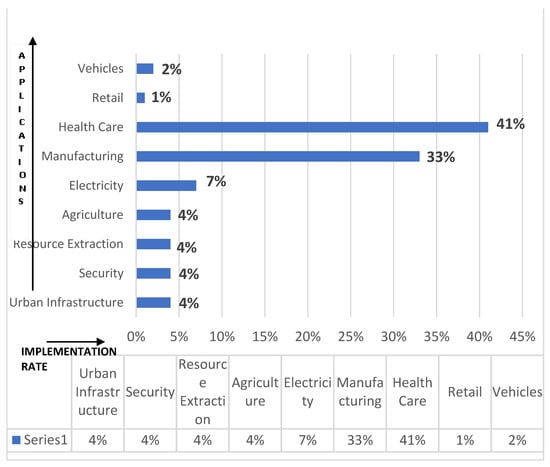

Figure 1. Applications of Internet of Things (IoT) with practical Implementations [1].
Figure 1. Applications of Internet of Things (IoT) with practical Implementations [1].
Sensors 21 01809 g001
Figure 2. Prisma Diagram of the proposed survey.
Figure 2. Prisma Diagram of the proposed survey.
Sensors 21 01809 g002
Figure 3. The workflow of the paper.
Figure 3. The workflow of the paper.
Sensors 21 01809 g003
Figure 4. IoT Architecture.
Figure 4. IoT Architecture.
Sensors 21 01809 g004
Figure 5. Vulnerabilities in IoT.
Figure 5. Vulnerabilities in IoT.
Sensors 21 01809 g005
Figure 6. Intrusion Detection System.
Figure 6. Intrusion Detection System.
Sensors 21 01809 g006
Figure 7. Various Learning approaches.
Figure 7. Various Learning approaches.
Sensors 21 01809 g007
Figure 8. (A) Classification. (B) Regression. (C) Clustering. (D) Dimensionality reduction. (E) Reinforcement.
Figure 8. (A) Classification. (B) Regression. (C) Clustering. (D) Dimensionality reduction. (E) Reinforcement.
Sensors 21 01809 g008
Figure 9. Secure Smart Healthcare System.
Figure 9. Secure Smart Healthcare System.
Sensors 21 01809 g009
Figure 10. Emerging Challenges and Open Issues.
Figure 10. Emerging Challenges and Open Issues.
Sensors 21 01809 g010
Table 2. Prominent IoT architectures.
Table 2. Prominent IoT architectures.
Bauer et al. [32] IoT-A. An amalgamation of different IoT perspectives.
Atzori et al. [33]The author has presented a SocialIoT-architecture based on the integration of IoT with the social networking concept.
Qin et al. [34]The author presents SDN-based architecture for provisioning IoT with better quality-of-service, deployment, scalability, and context awareness.
Li et al. [35]Mobility first (future internet architecture) mainly addresses the challenges concerning the usage of mobile phones as gateways and dealing with the security aspect of sensor data.
Singh et al. [36]JDL (joint director of labs) based model for IoT architecture with the combination of semantic layer.
Cecchinel et al. [37]Software architecture for collection of sensor-based data with cloud-based storage (sensor, sensor board, bridges, middleware)
Kraijak et al. [38]5-layer architecture (perception, network, middleware, application, business)
Ray et al. [39]It describes major IoT functional elements with multiple IoT architectures in different application areas.
Table 3. Attacks in IoT.
Table 3. Attacks in IoT.
Nature of AttackDescriptionClassification
Active attacksThese are performed mainly to carry out malicious acts against the system, thus affecting or disrupting the services for legitimate users. They hamper both the confidentiality and integrity of the system.Dos (denial-of-service), DDOS (distributed denial of service),
MITH (man-in-the-middle), Interruption, Alteration [48].
Passive attacksThese are performed mainly for gathering useful information without getting sensed, i.e., they do not disturb the communication.Monitoring, Traffic Analysis, Eavesdropping, Node destruction/malfunction [49].
Physical layer attacksThese attacks try to tamper and exploit the devices making them the most vulnerable terminal of IoT.Node tampering, Jamming, Replication [10].
Datalink layer attacksThese undertake the advantage of mac schemes to launch different attacks.Collision, Dos, ARP spoofing, unfairness.
Network layer attacksThese attacks try to disrupt the communication between the source and the destination by playing with the packets.Dos, Routing Attack, Sybil Attack, blackhole, spoofing, alteration.
Privacy threatsThe capabilities of IoT allow it to launch acute attacks targetting the privacy of users. Identification, profiling, tracking, linkage, inventory [50].
Software-based attacksThese attacks make use of third-party software to gain access to the system and cause destruction.Virus, Trojan horse, Worms.
Side-channel attacksThese are hardware-based attack that uncovers the secret information like cryptographic keys to exploit the device.Timing Analysis, Power Analysis.
Botnet attacksThese are a collection of infected devices (zombies) like printers, cameras, sensors, and similar smart devices, which launch large-scale DDOS attacks to compromise other intelligent devices. The principal components are command and control servers, along with the bots.Mirai, Hydra, Bashlite, lua-bot, Aidra [51].
Protocol-based attacksThe attacks work against the connectivity protocols of IoT.RFID-based (replay, tracking, killing tag)
Bluetooth based (bluesnarfing, bluejacking, Dos),
Zigbee Based (sniffing, replay, ZED sabotage attack) [52].
Table 4. Anomalies in IoT.
Table 4. Anomalies in IoT.
Point AnomalyIt is the most basic type of anomaly. One data point is abnormal in comparison to the rest of the data points.
Contextual AnomalyIt is a sophisticated type anomaly type where a data point is considered unusual in a specific context. For example, if any system accesses services at a particular time and if there is a sudden change in the background, i.e., time changes, it is considered abnormal.
Collective anomalyData points are anomalous w.r.t to the whole dataset or the entire services but not by themselves individually.
Table 8. Conclusions about learning approaches.
Table 8. Conclusions about learning approaches.
Ml And Dl TechniquesAdvantagesDisadvantagesSuitability towards the Attacks
DTInherent feature selection, less preprocessing required, simple and easy to implement, can handle missing values, coupling with clustering decreases the processing time in misuse-based detection [29].Large training time, large complexity, small alterations cause significant changes.C4.0, C5.0 show very similar results to ANN in [110] with real IoT data.
J48 shows a high affinity towards the DOS attack [111].
SVMThe Huge success rate in IDS, best for binary classification, requires small datasets for training, enhanced SVM shows better results in novel and real attacks.Reveals its weakness in multiclass classification, massive consumption of memory, depends on the kernel function.It is used in [9] for attack detection.
Also useful in spoofing attacks, intrusions in access control [112], online outlier detection [113].
KNNIt has a Fast training phase and makes no assumptions about the data. It requires abundant storage, expensive, depends on the value of K, and suffers from the dimensionality curse.Mostly used in combination with other classifiers [48,107].
Useful for access control intrusion detection, malware.
RFNo feature selection, no overfitting problem, usually has the best accuracy.Time-consuming because of the development of decision trees.It has achieved 99% accuracy. for the DOS attack [106].
Useful for malware detection,link fault detection [83], access control.
NBRobust towards the noise, simple and easy to implementIt cannot capture useful information because of the assumption of independence amongst the features.Used in [49] for intrusion detection, access control.
ANNRobust model and can handle non-linear data.It suffers from overfitting, and the technique is time-consuming, selection of activation function is another overhead and estimating an appropriate number of units in each layer.Very useful DOS attack detection [83,114].
RNNEfficient modeling of time-series dataDifficulty in training, cannot remember very long sequences with Relu or tanh activation function [115].Eavesdropping [107].
LSTMReduces a load of feature engineering, effective for unstructured datasets, can remember long sequences of attack patterns.Difficult to train because of gigantic memory bandwidth requirements.IoT malware [108], botnet activities, used in [116] for attack detection in fog networks.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Malhotra, P.; Singh, Y.; Anand, P.; Bangotra, D.K.; Singh, P.K.; Hong, W.-C. Internet of Things: Evolution, Concerns and Security Challenges. Sensors 2021, 21, 1809.

AMA Style

Malhotra P, Singh Y, Anand P, Bangotra DK, Singh PK, Hong W-C. Internet of Things: Evolution, Concerns and Security Challenges. Sensors. 2021; 21(5):1809.

Chicago/Turabian Style

Malhotra, Parushi, Yashwant Singh, Pooja Anand, Deep Kumar Bangotra, Pradeep Kumar Singh, and Wei-Chiang Hong. 2021. "Internet of Things: Evolution, Concerns and Security Challenges" Sensors 21, no. 5: 1809.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
