# Machine Learning and Simulation-Optimization Coupling for Water Distribution Network Contamination Source Detection

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Water Distribution Network Benchmarks

#### 2.2. Machine Learning and Simulation-Optimization Coupling Framework 1

#### 2.3. Machine Learning and Simulation-Optimization Coupling Framework 2

#### 2.4. Random Forests

#### 2.5. Stochastic Optimization Algorithms

#### 2.5.1. Fireworks Algorithm

#### 2.5.2. Particle Swarm Optimization

#### 2.5.3. Genetic Algorithms

#### 2.5.4. Preliminary Analysis

#### 2.6. Deterministic Optimization Algorithm

#### Mesh Adaptive Direct Search

## 3. Results and Discussion

#### 3.1. Random Forest Classifier Prediction

#### 3.2. Algorithmic Framework 1 Results

#### 3.3. Algorithmic Framework 2 Results

#### 3.4. Framework Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

ANN | Artificial Neural Network |

CNN | Convolutional Neural Network |

DT | Decision Tree |

GA | Genetic Algorithms |

LVQNN | Learning Vector Quantization Neural Network |

MC | Monte Carlo |

ML | Machine Learning |

NM | Nelder-Mead |

NSGA-II | Non-dominated Sorting Genetic Algorithm-II |

PM | Powell’s method |

PNN | Probabilistic Neural Networks |

PSO | Particle Swam Optimization |

PSVM | Probabilistic Support Vector Machines |

RF | Random Forests |

## References

- Ng, D.Q.; Chen, C.Y.; Lin, Y.P. A new scenario of lead contamination in potable water distribution systems: Galvanic corrosion between lead and stainless steel. Sci. Total Environ.
**2018**, 637, 1423–1431. [Google Scholar] [CrossRef] - Inkinen, J.; Kaunisto, T.; Pursiainen, A.; Miettinen, I.T.; Kusnetsov, J.; Riihinen, K.; Keinänen-Toivola, M.M. Drinking water quality and formation of biofilms in an office building during its first year of operation, a full scale study. Water Res.
**2014**, 49, 83–91. [Google Scholar] [CrossRef] [PubMed] - Rossman, L.A. EPANET 2: Users Manual; US Environmental Protection Agency, Office of Research and Development: Washington, DC, USA, 2000. [Google Scholar]
- Ostfeld, A.; Uber, J.G.; Salomons, E.; Berry, J.W.; Hart, W.E.; Phillips, C.A.; Watson, J.P.; Dorini, G.; Jonkergouw, P.; Kapelan, Z.; et al. The battle of the water sensor networks (BWSN): A design challenge for engineers and algorithms. J. Water Resour. Plan. Manag.
**2008**, 134, 556–568. [Google Scholar] [CrossRef][Green Version] - Ung, H.; Piller, O.; Gilbert, D.; Mortazavi, I. Accurate and Optimal Sensor Placement for Source Identification of Water Distribution Networks. J. Water Resour. Plan. Manag.
**2017**, 143, 04017032. [Google Scholar] [CrossRef][Green Version] - Hooshmand, F.; Amerehi, F.; MirHassani, S. Risk-Based Models for Optimal Sensor Location Problems in Water Networks. J. Water Resour. Plan. Manag.
**2020**, 146, 04020086. [Google Scholar] [CrossRef] - Santonastaso, G.F.; Di Nardo, A.; Creaco, E.; Musmarra, D.; Greco, R. Comparison of topological, empirical and optimization-based approaches for locating quality detection points in water distribution networks. Environ. Sci. Pollut. Res.
**2020**, 1–10. [Google Scholar] [CrossRef] - Alfonso, L.; Jonoski, A.; Solomatine, D. Multiobjective optimization of operational responses for contaminant flushing in water distribution networks. J. Water Resour. Plan. Manag.
**2010**, 136, 48–58. [Google Scholar] [CrossRef] - Hu, C.; Yan, X.; Gong, W.; Liu, X.; Wang, L.; Gao, L. Multi-objective based scheduling algorithm for sudden drinking water contamination incident. Swarm Evol. Comput.
**2020**, 55, 100674. [Google Scholar] [CrossRef] - Khaksar Fasaee, M.A.; Nikoo, M.R.; Hashempour Bakhtiari, P.; Monghasemi, S.; Sadegh, M. A novel dynamic hydrant flushing framework facilitated by categorizing contamination events. Urban Water J.
**2020**, 1–13. [Google Scholar] [CrossRef] - Kranjčević, L.; Čavrak, M.; Šestan, M. Contamination source detection in water distribution networks. Eng. Rev.
**2010**, 30, 11–25. [Google Scholar] - Xuesong, Y.; Jie, S.; Chengyu, H. Research on contaminant sources identification of uncertainty water demand using genetic algorithm. Clust. Comput.
**2017**, 20, 1007–1016. [Google Scholar] [CrossRef] - Yan, X.; Zhu, Z.; Li, T. Pollution source localization in an urban water supply network based on dynamic water demand. Environ. Sci. Pollut. Res.
**2019**, 26, 17901–17910. [Google Scholar] [CrossRef] - Adedoja, O.; Hamam, Y.; Khalaf, B.; Sadiku, R. Towards development of an optimization model to identify contamination source in a water distribution network. Water
**2018**, 10, 579. [Google Scholar] [CrossRef][Green Version] - Berglund, E.Z.; Pesantez, J.E.; Rasekh, A.; Shafiee, M.E.; Sela, L.; Haxton, T. Review of Modeling Methodologies for Managing Water Distribution Security. J. Water Resour. Plan. Manag.
**2020**, 146, 03120001. [Google Scholar] [CrossRef] - Preis, A.; Ostfeld, A. Genetic algorithm for contaminant source characterization using imperfect sensors. Civ. Eng. Environ. Syst.
**2008**, 25, 29–39. [Google Scholar] [CrossRef] - Yan, X.; Zhao, J.; Hu, C.; Zeng, D. Multimodal optimization problem in contamination source determination of water supply networks. Swarm Evol. Comput.
**2019**, 47, 66–71. [Google Scholar] [CrossRef] - Hu, C.; Zhao, J.; Yan, X.; Zeng, D.; Guo, S. A MapReduce based Parallel Niche Genetic Algorithm for contaminant source identification in water distribution network. Ad Hoc Netw.
**2015**, 35, 116–126. [Google Scholar] [CrossRef] - Vankayala, P.; Sankarasubramanian, A.; Ranjithan, S.R.; Mahinthakumar, G. Contaminant source identification in water distribution networks under conditions of demand uncertainty. Environ. Forensics
**2009**, 10, 253–263. [Google Scholar] [CrossRef] - Yan, X.; Gong, J.; Wu, Q. Pollution source intelligent location algorithm in water quality sensor networks. Neural Comput. Appl.
**2020**, 33, 209–222. [Google Scholar] [CrossRef] - Liu, L.; Zechman, E.M.; Mahinthakumar, G.; Ranjithan, S.R. Coupling of logistic regression analysis and local search methods for characterization of water distribution system contaminant source. Eng. Appl. Artif. Intell.
**2012**, 25, 309–316. [Google Scholar] [CrossRef] - Lučin, I.; Grbčić, L.; Družeta, S.; Čarija, Z. Source Contamination Detection Using Novel Search Space Reduction Coupled with Optimization Technique. J. Water Resour. Plan. Manag.
**2020**, 147, 04020100. [Google Scholar] [CrossRef] - Yan, X.; Zhao, J.; Hu, C. Research on multimodal optimization algorithm for the contamination source identification of city water distribution networks. In International Conference on Bio-Inspired Computing: Theories and Applications; Springer: Berlin/Heidelberg, Germany, 2016; pp. 80–85. [Google Scholar]
- Yan, X.; Gong, W.; Wu, Q. Contaminant source identification of water distribution networks using cultural algorithm. Concurr. Comput. Pract. Exp.
**2017**, 29, e4230. [Google Scholar] [CrossRef] - Yan, X.; Zhao, J.; Hu, C.; Wu, Q. Contaminant source identification in water distribution network based on hybrid encoding. J. Comput. Methods Sci. Eng.
**2016**, 16, 379–390. [Google Scholar] [CrossRef] - Yan, X.; Hu, C.; Sheng, V.S. Data-driven pollution source location algorithm in water quality monitoring sensor networks. Int. J. Bio-Inspired Comput.
**2020**, 15, 171–180. [Google Scholar] [CrossRef] - Park, Y.J.; Tagade, P.M.; Choi, H.L. Deep gaussian process-based bayesian inference for contaminant source localization. IEEE Access
**2018**, 6, 49432–49449. [Google Scholar] [CrossRef] - Wang, C.; Zhou, S. Contamination source identification based on sequential Bayesian approach for water distribution network with stochastic demands. IISE Trans.
**2017**, 49, 899–910. [Google Scholar] [CrossRef] - Sankary, N.; Ostfeld, A. Bayesian localization of water distribution system contamination intrusion events using inline mobile sensor data. J. Water Resour. Plan. Manag.
**2019**, 145, 04019029. [Google Scholar] [CrossRef] - Gong, J.; Yan, X.; Chengyu, H.; Qinghua, W. Collaborative based pollution sources identification algorithm in water supply sensor networks. Desalination Water Treat.
**2019**, 168, 123–135. [Google Scholar] [CrossRef] - Le, X.H.; Ho, H.V.; Lee, G.; Jung, S. Application of long short-term memory (LSTM) neural network for flood forecasting. Water
**2019**, 11, 1387. [Google Scholar] [CrossRef][Green Version] - Cho, J.; Kim, H.; Gebreselassie, A.L.; Shin, D. Deep neural network and random forest classifier for source tracking of chemical leaks using fence monitoring data. J. Loss Prev. Process Ind.
**2018**, 56, 548–558. [Google Scholar] [CrossRef] - Zhou, Z.; Tartakovsky, D.M. Markov chain Monte Carlo with neural network surrogates: Application to contaminant source identification. Stoch. Environ. Res. Risk Assess.
**2020**, 1–13. [Google Scholar] [CrossRef] - Kim, M.; Choi, C.Y.; Gerba, C.P. Source tracking of microbial intrusion in water systems using artificial neural networks. Water Res.
**2008**, 42, 1308–1314. [Google Scholar] [CrossRef] [PubMed][Green Version] - Rutkowski, T.; Prokopiuk, F. Identification of the Contamination Source Location in the Drinking Water Distribution System Based on the Neural Network Classifier. IFAC-PapersOnLine
**2018**, 51, 15–22. [Google Scholar] [CrossRef] - Sun, L.; Yan, H.; Xin, K.; Tao, T. Contamination source identification in water distribution networks using convolutional neural network. Environ. Sci. Pollut. Res.
**2019**, 26, 36786–36797. [Google Scholar] [CrossRef] - Grbčić, L.; Lučin, I.; Kranjčević, L.; Družeta, S. A Machine Learning-based Algorithm for Water Network Contamination Source Localization. Sensors
**2020**, 20, 2613. [Google Scholar] [CrossRef] - Eliades, D.G.; Polycarpou, M.M. Water contamination impact evaluation and source-area isolation using decision trees. J. Water Resour. Plan. Manag.
**2011**, 138, 562–570. [Google Scholar] [CrossRef] - Grbčić, L.; Lučin, I.; Kranjčević, L.; Družeta, S. Water supply network pollution source identification by random forest algorithm. J. Hydroinform.
**2020**. [Google Scholar] [CrossRef] - Lučin, I.; Grbčić, L.; Čarija, Z.; Kranjčević, L. Machine-Learning Classification of a Number of Contaminant Sources in an Urban Water Network. Sensors
**2021**, 21, 245. [Google Scholar] [CrossRef] [PubMed] - Lee, Y.J.; Park, C.; Lee, M.L. Identification of a contaminant source location in a river system using random forest models. Water
**2018**, 10, 391. [Google Scholar] [CrossRef][Green Version] - Bashi-Azghadi, S.N.; Kerachian, R.; Bazargan-Lari, M.R.; Solouki, K. Characterizing an unknown pollution source in groundwater resources systems using PSVM and PNN. Expert Syst. Appl.
**2010**, 37, 7154–7161. [Google Scholar] [CrossRef] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V.; et al. Scikit-learn: Machine learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Družeta, S.; Ivić, S. Indago—Python Module for Numerical Optimization. Available online: https://pypi.org/project/Indago/ (accessed on 10 September 2020).
- Blank, J.; Deb, K. pymoo: Multi-objective Optimization in Python. IEEE Access
**2020**, 8, 89497–89509. [Google Scholar] [CrossRef] - Audet, C.; Le Digabel, S.; Tribes, C. NOMAD User Guide; Technical Report G-2009-37, Les cahiers du GERAD; Polytechnique Montreal: Montreal, QC, Canada , 2009. [Google Scholar]
- Piazza, S.; Blokker, E.M.; Freni, G.; Puleo, V.; Sambito, M. Impact of diffusion and dispersion of contaminants in water distribution networks modelling and monitoring. Water Supply
**2020**, 20, 46–58. [Google Scholar] [CrossRef] - Preis, A.; Ostfeld, A. A contamination source identification model for water distribution system security. Eng. Optim.
**2007**, 39, 941–947. [Google Scholar] [CrossRef] - Van Zyl, J.E. A Methodology for Improved Operational Optimization of Water Distribution Systems. Ph.D Thesis, University of Exeter UK, Exeter, UK, 2001. [Google Scholar]
- CWS, U.o.E. CWS Benchmarks. Available online: http://emps.exeter.ac.uk/engineering/research/cws/downloads/benchmarks/ (accessed on 6 November 2019).
- Ho, T.K. Random decision forests. In Proceedings of the 3rd International Conference on Document Analysis and Recognition, Montreal, QC, Canada, 14–16 August 1995; Volume 1, pp. 278–282. [Google Scholar]
- Breiman, L. Random forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef][Green Version] - Caruana, R.; Niculescu-Mizil, A. An empirical comparison of supervised learning algorithms. In Proceedings of the 23rd International Conference on Machine Learning, Pittsburgh, PA, USA, 25–29 June 2006; pp. 161–168. [Google Scholar]
- Hassan, C.A.U.; Khan, M.S.; Shah, M.A. Comparison of Machine Learning Algorithms in Data classification. In Proceedings of the 2018 24th International Conference on Automation and Computing (ICAC), Newcastle upon Tyne, UK, 6–7 September 2018; pp. 1–6. [Google Scholar]
- Tyralis, H.; Papacharalampous, G.; Langousis, A. A brief review of random forests for water scientists and practitioners and their recent history in water resources. Water
**2019**, 11, 910. [Google Scholar] [CrossRef][Green Version] - Zimmerman, N.; Presto, A.A.; Kumar, S.P.; Gu, J.; Hauryliuk, A.; Robinson, E.S.; Robinson, A.L.; Subramanian, R. A machine learning calibration model using random forests to improve sensor performance for lower-cost air quality monitoring. Atmos. Meas. Tech.
**2018**, 11, 291–313. [Google Scholar] [CrossRef][Green Version] - Boroughani, M.; Pourhashemi, S.; Hashemi, H.; Salehi, M.; Amirahmadi, A.; Asadi, M.A.Z.; Berndtsson, R. Application of remote sensing techniques and machine learning algorithms in dust source detection and dust source susceptibility mapping. Ecol. Inform.
**2020**, 56, 101059. [Google Scholar] [CrossRef] - Tan, Y.; Zhu, Y. Fireworks algorithm for optimization. In International Conference in Swarm Intelligence; Springer: Berlin/Heidelberg, Germany, 2010; pp. 355–364. [Google Scholar]
- El Majdouli, M.A.; Rbouh, I.; Bougrine, S.; El Benani, B.; El Imrani, A.A. Fireworks algorithm framework for Big Data optimization. Memetic Comput.
**2016**, 8, 333–347. [Google Scholar] [CrossRef] - Xue, Y.; Zhao, B.; Ma, T.; Liu, A.X. An evolutionary classification method based on fireworks algorithm. Int. J. Bio-Inspired Comput.
**2018**, 11, 149–158. [Google Scholar] [CrossRef] - Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the ICNN’95-International Conference on Neural Networks; IEEE: New York, NY, USA, 1995; Volume 4, pp. 1942–1948. [Google Scholar]
- Wang, D.; Tan, D.; Liu, L. Particle swarm optimization algorithm: An overview. Soft Comput.
**2018**, 22, 387–408. [Google Scholar] [CrossRef] - Guneshwor, L.; Eldho, T.; Kumar, A.V. Identification of groundwater contamination sources using meshfree RPCM simulation and particle swarm optimization. Water Resour. Manag.
**2018**, 32, 1517–1538. [Google Scholar] [CrossRef] - Ma, D.; Tan, W.; Wang, Q.; Zhang, Z.; Gao, J.; Zeng, Q.; Wang, X.; Xia, F.; Shi, X. Application and improvement of swarm intelligence optimization algorithm in gas emission source identification in atmosphere. J. Loss Prev. Process Ind.
**2018**, 56, 262–271. [Google Scholar] [CrossRef] - Letting, L.K.; Hamam, Y.; Abu-Mahfouz, A.M. Estimation of water demand in water distribution systems using particle swarm optimization. Water
**2017**, 9, 593. [Google Scholar] [CrossRef][Green Version] - Družeta, S.; Ivić, S. Examination of benefits of personal fitness improvement dependent inertia for Particle Swarm Optimization. Soft Comput.
**2017**, 21, 3387–3400. [Google Scholar] [CrossRef] - Družeta, S.; Ivić, S.; Grbčić, L.; Lučin, I. Introducing languid particle dynamics to a selection of PSO variants. Egypt. Inform. J.
**2020**, 21, 119–129. [Google Scholar] [CrossRef] - Holland, J.H. Genetic algorithms. Sci. Am.
**1992**, 267, 66–73. [Google Scholar] [CrossRef] - Hassanat, A.; Almohammadi, K.; Alkafaween, E.; Abunawas, E.; Hammouri, A.; Prasath, V. Choosing mutation and crossover ratios for genetic algorithms—A review with a new dynamic approach. Information
**2019**, 10, 390. [Google Scholar] [CrossRef][Green Version] - Mounce, S.; Shepherd, W.; Ostojin, S.; Abdel-Aal, M.; Schellart, A.; Shucksmith, J.; Tait, S. Optimisation of a fuzzy logic-based local real-time control system for mitigation of sewer flooding using genetic algorithms. J. Hydroinform.
**2020**, 22, 281–295. [Google Scholar] [CrossRef] - Attwa, M.; Zamzam, S. An integrated approach of GIS and geoelectrical techniques for wastewater leakage investigations: Active constraint balancing and genetic algorithms application. J. Appl. Geophys.
**2020**, 175, 103992. [Google Scholar] [CrossRef] - Naranjo, J.E.; Serradilla, F.; Nashashibi, F. Speed Control Optimization for Autonomous Vehicles with Metaheuristics. Electronics
**2020**, 9, 551. [Google Scholar] [CrossRef][Green Version] - Khoshkbarchi, M.; Rahmanian, M.; Cordazzo, J.; Nghiem, L. Application of Mesh Adaptive Derivative-Free Optimization Technique for Gas-Lift Optimization in an Integrated Reservoirs, Wells, and Facilities Modeling Environment. In Proceedings of the Society of Petroleum Engineers SPE/Canada Heavy Oil Conference, Virtual Conference. 28 September–2 October 2020. [Google Scholar]
- Audet, C.; Dennis, J.E., Jr. Mesh adaptive direct search algorithms for constrained optimization. SIAM J. Optim.
**2006**, 17, 188–217. [Google Scholar] [CrossRef][Green Version]

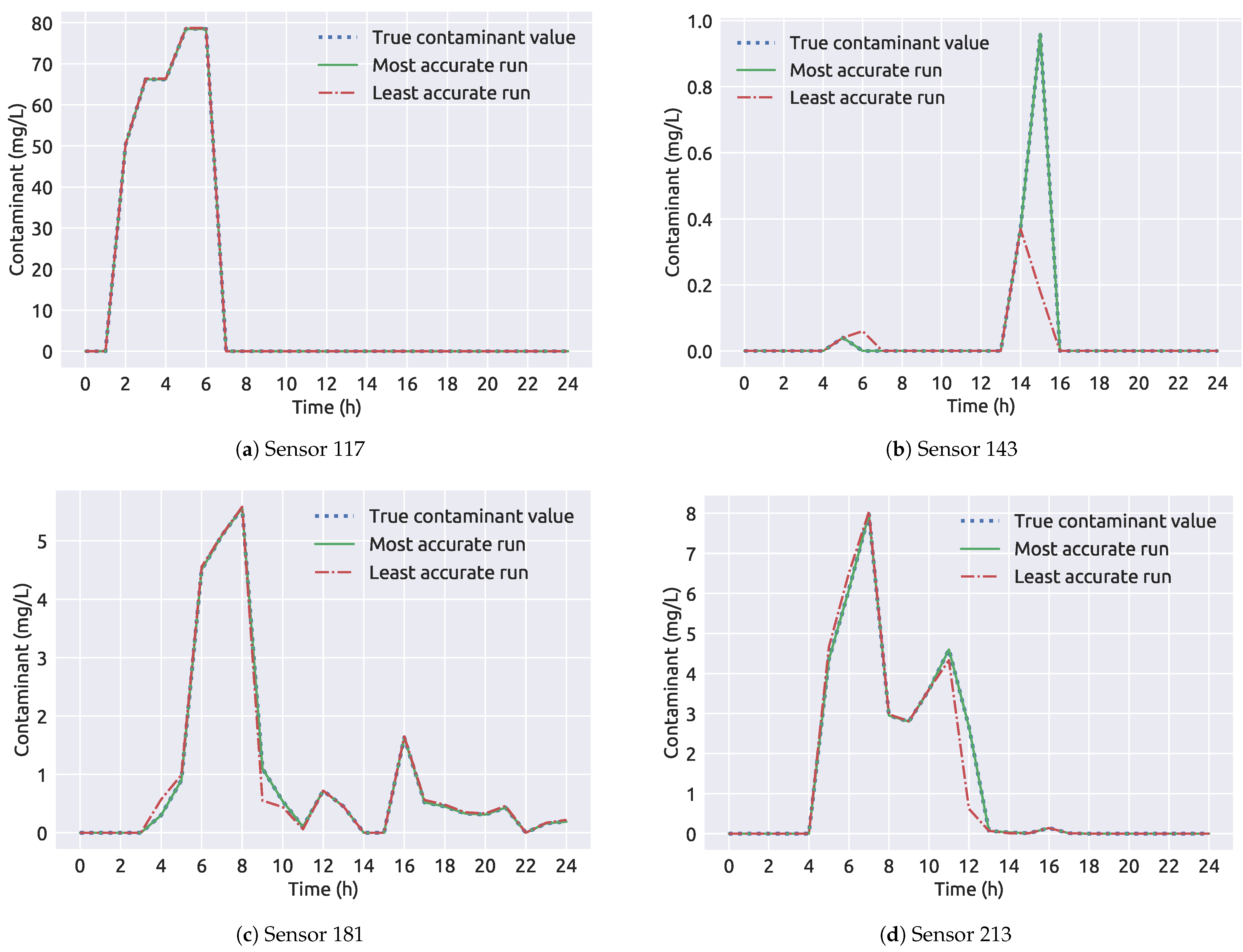

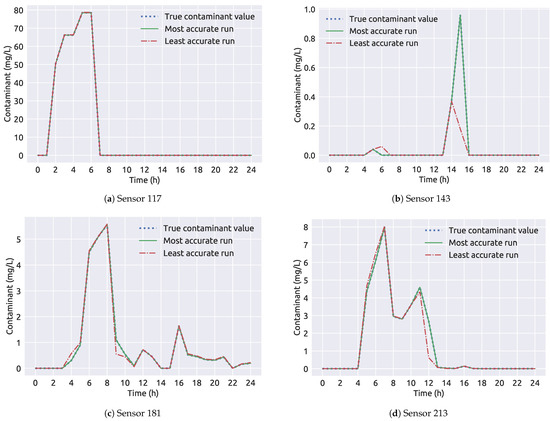

**Figure 9.**A comparison of sensor measurements through time for the NET3 benchmark network (framework 1).

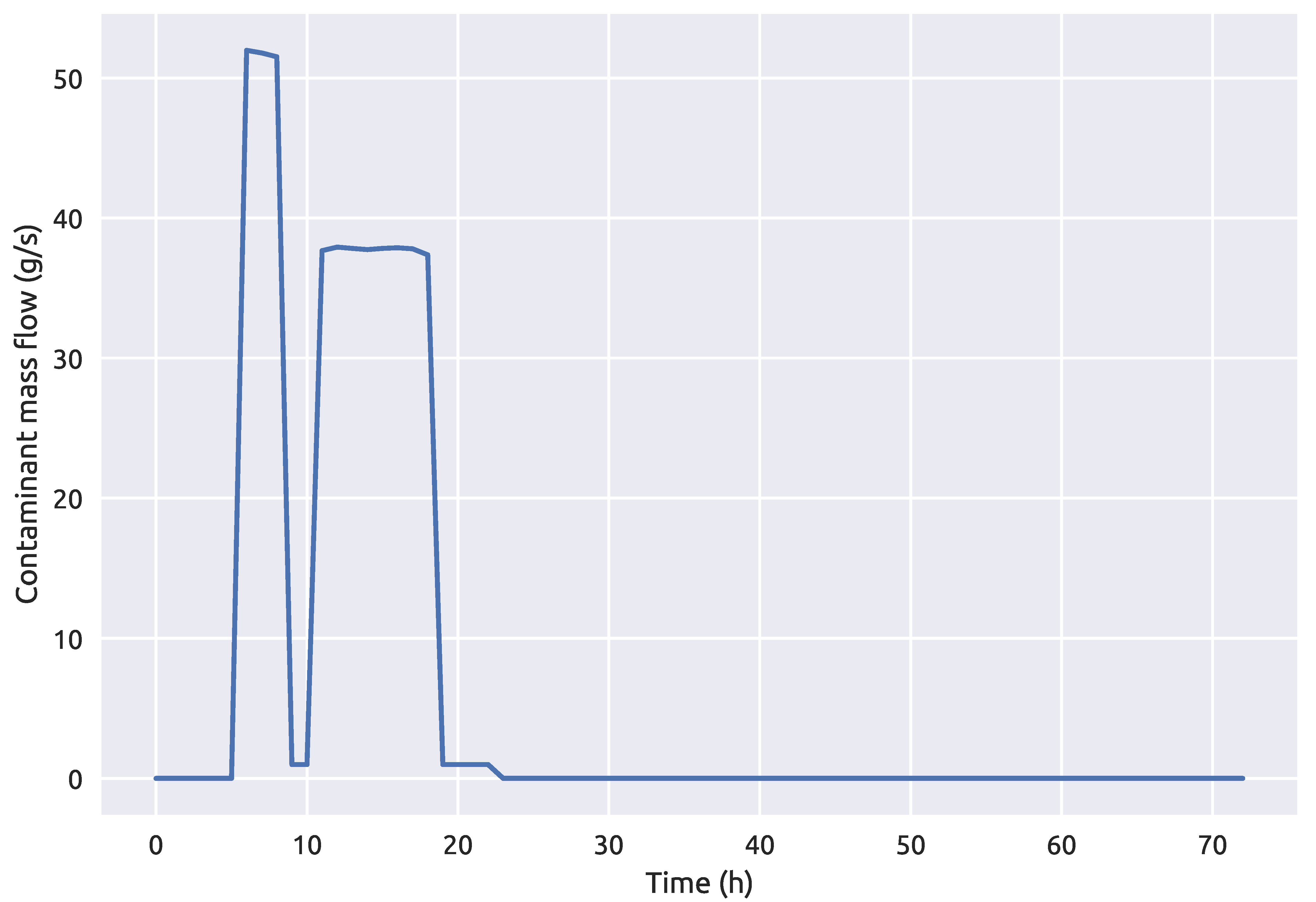

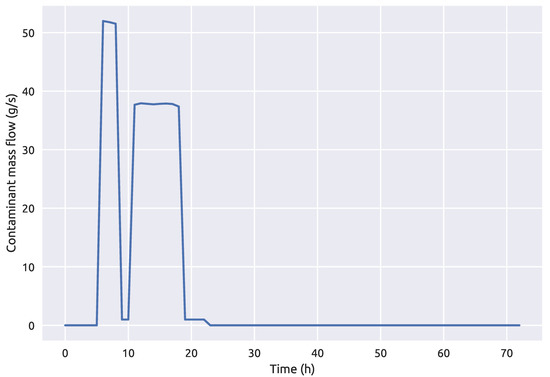

**Figure 10.**Average contaminant mass flow at the source node 251 for the Richmond network over a 72 h period.

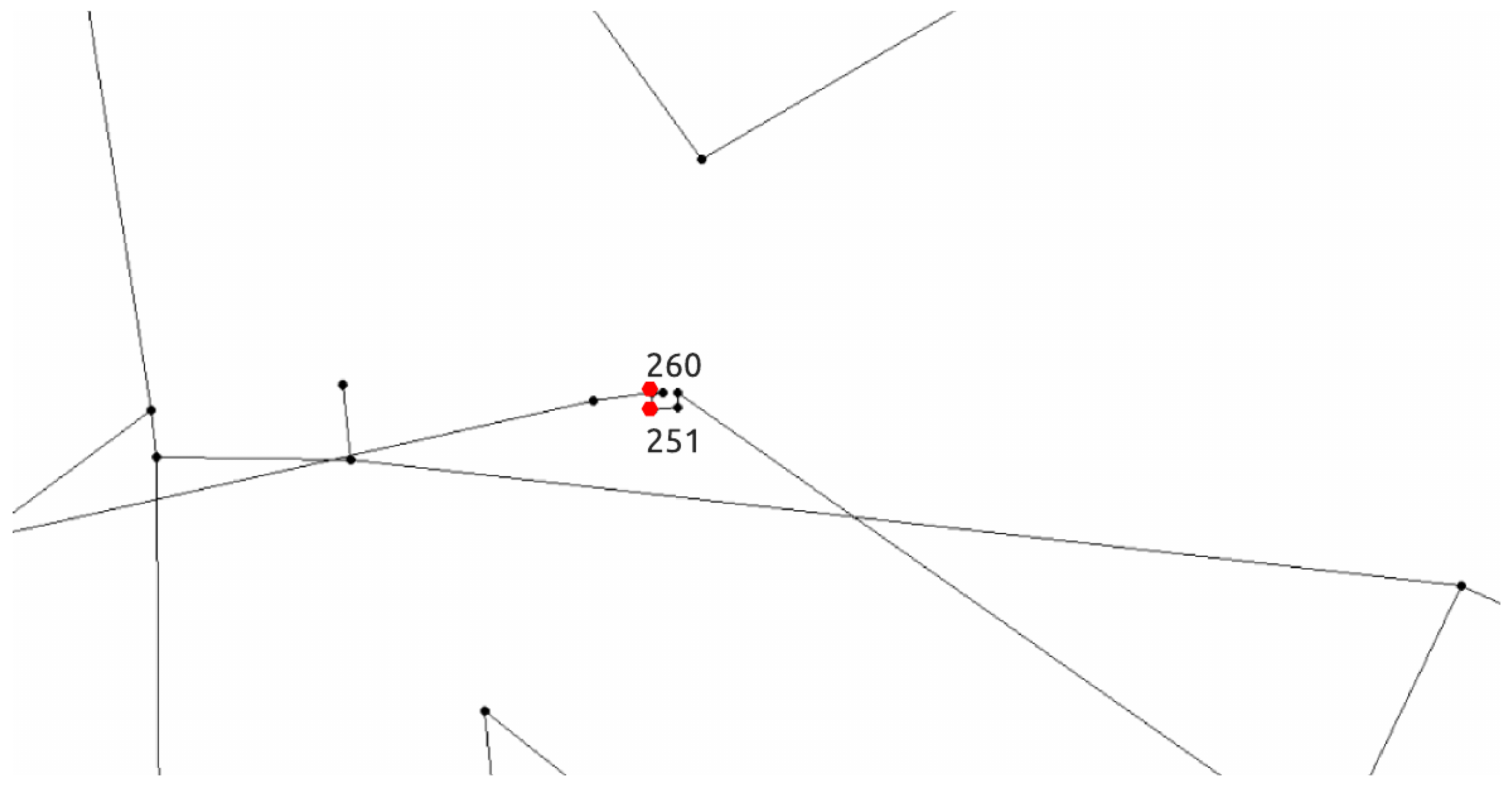

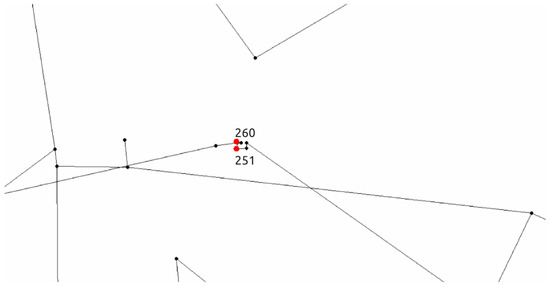

**Figure 11.**Network node locations of the two top candidate source nodes 251 and 260 (zoomed in part of the network).

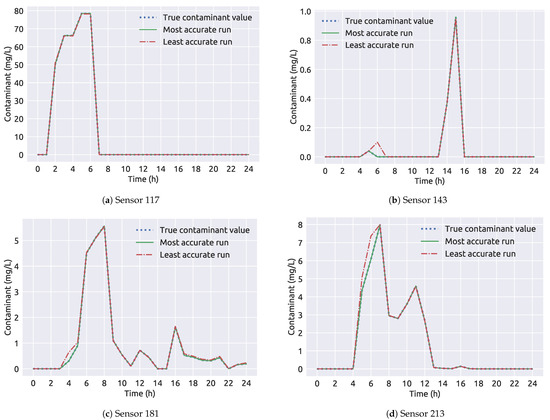

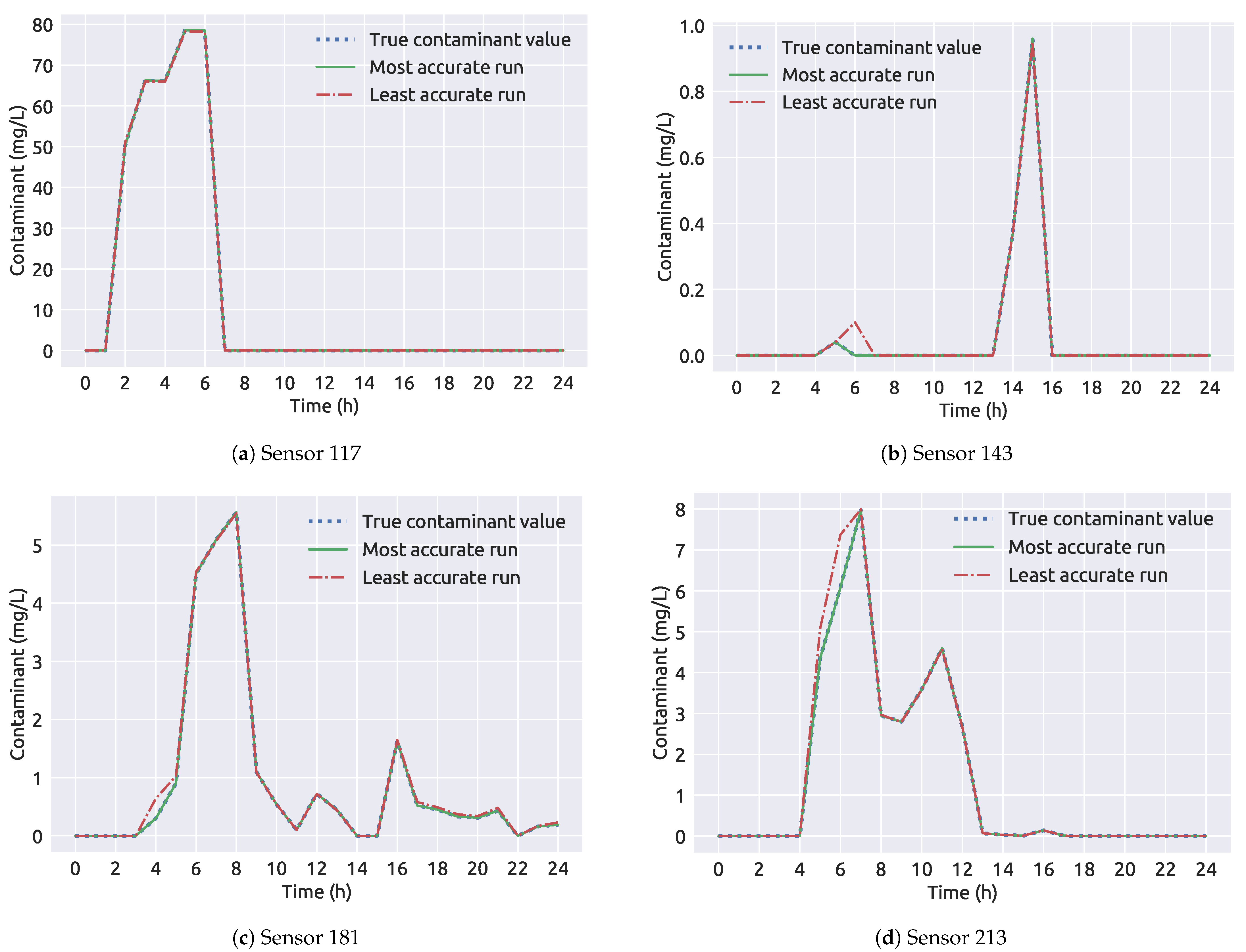

**Figure 12.**A comparison of sensor measurements through time for the NET3 benchmark network (framework 2).

Source Node | Start Time | End Time | Contaminant Concentration |
---|---|---|---|

261 | 00:40 h | 06:30 h | 78.5 mg/L |

Algorithm | Successful Runs | Average Time per Run | Average f | Parameters |
---|---|---|---|---|

GA | 100/100 | 121.5 s | 0.015 | g: 100, p: 80, ${c}_{r}$: 0.8, m: 0.1 |

PSO | 98/100 | 178.6 s | 0.003 | i: 50, s: 100, ${c}_{1}$: 1, ${c}_{2}$: 1 |

FWA | 100/100 | 64.13 s | 0.009 | i: 80, n: 5, ${m}_{1}$: 5, ${m}_{2}$: 10 |

Network | Sensors | Inputs | Top Nodes | Accuracy | Time |
---|---|---|---|---|---|

NET3 | Perfect | 70,000 | 10 | 99% | 37 s |

Richmond | Fuzzy | 105,000 | 60 | 99% | 955 s |

Run | Source Node | Start Time | End Time | Contaminant Concentration | f | Time |
---|---|---|---|---|---|---|

Average | 261 | 0:39 h | 6:29 h | 78.49 mg/L | 0.024 | 142 s |

Most accurate | 261 | 0:40 h | 6:30 h | 78.5 mg/L | 0.002 | 133 s |

Least accurate | 263 | 0:20 h | 6:20 h | 78.7 mg/L | 0.436 | 117 s |

Source Node | Start Time | End Time | Contaminant Concentration |
---|---|---|---|

251 | 06:30 h | 21:30 h | 939.37 mg/L |

Run | Start Time | End Time | Contaminant Toncentration | f | Time |
---|---|---|---|---|---|

Average | 6:30 h | 21:00 h | 940.6 mg/L | 0.0 | 882 s |

Most accurate | 6:30 h | 21:30 h | 939.6 mg/L | 0.0 | 852 s |

Least accurate | 6.30 h | 11:40 h | 943.9 mg/L | 0.0 | 860 s |

Run | Start Time | End Time | Contaminant Concentration | f | Time |
---|---|---|---|---|---|

Average | 6:30 h | 20:09 h | 915.6 mg/L | 0.0 | 882 s |

Most accurate | 6:30 h | 21:30 h | 924.1 mg/L | 0.0 | 843 s |

Least accurate | 6.30 h | 14:50 h | 908.4 mg/L | 0.0 | 1002 s |

**Table 8.**NET3 RF regression average values and standard deviations for 100 runs with absolute error.

Average Prediction | Standard Deviation | Absolute Error | |
---|---|---|---|

Start time | 1:58 h | 0:079 h | 1:18 h |

End time | 6:56 h | 0:15 h | 0:16 h |

Contaminant concentration | 108.87 mg/L | 5.17 mg/L | 30.38 mg/L |

Run | Source Node | Start Time | End Time | Contaminant Concentration | f | Time |
---|---|---|---|---|---|---|

Average | 261 | 0:31 h | 6:30 h | 78.48 mg/L | 0.033 | 126 s |

Most accurate | 261 | 0:40 h | 6:30 h | 78.5 mg/L | 0.002 | 124 s |

Least accurate | 261 | 0:00 h | 6:30 h | 78.2 mg/L | 0.19 | 109 s |

**Table 10.**Richmond RF regression average values and standard deviations for 100 runs with an absolute error.

Average Prediction | Standard Deviation | Absolute Error | |
---|---|---|---|

Start time | 6:53 h | 0:015 h | 0:28 h |

End time | 17:57 h | 0:049 h | 3:73 h |

Contaminant concentration | 933.97 mg/L | 0.96 mg/L | 5.4 mg/L |

Run | Start Time | End Time | Contaminant Concentration | f | Time |
---|---|---|---|---|---|

Average | 6:30 h | 22:22 h | 942.2 mg/L | 0.0 | 632.7 s |

Most accurate | 6:30 h | 21:30 h | 939.7 mg/L | 0.0 | 602 s |

Least accurate | 6.30 h | 22:20 h | 944.3 mg/L | 0.0 | 591 s |

Run | Start Time | End Time | Contaminant Concentration | f | Time |
---|---|---|---|---|---|

Average | 6:30 h | 15:73 h | 917.8 mg/L | 0.0 | 632.7 s |

Most accurate | 6:30 h | 17:40 h | 924.3 mg/L | 0.0 | 570 s |

Least accurate | 6.30 h | 15:40 h | 908.5 mg/L | 0.0 | 596 s |

**Table 13.**A comparison of frameworks 1 and 2 in determining the true source node for both network benchmarks.

Framework | Network | Runs | True Source | False Source | Tie |
---|---|---|---|---|---|

1 | NET3 | 100 | 99 | 1 | 0 |

2 | NET3 | 100 | 100 | 0 | 0 |

1 | Richmond | 100 | 4 | 7 | 89 |

2 | Richmond | 100 | 63 | 0 | 37 |
