# Cluster-Based Relocation of Stations for Efficient Forest Fire Management in the Province of Valencia (Spain)

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Land Mapping

#### 2.2. Management of Fire Data

#### 2.3. Data Clustering Algorithms

#### 2.3.1. Partition-Based Clustering: k-Means

#### 2.3.2. Density-Based Spatial Clustering: DBSCAN

#### 2.4. Floyd–Warshall Algorithm

## 3. Proposed Approach

- Location information about existing forest fire stations. This information was obtained from public records published by the Valencian Agency for Safety and Emergency Response.
- Historical data about forest fires in the Valencia province. This information was also obtained from public records, more specifically from the integrated forest fire management system developed by the fire prevention service of the GVA.
- Distances between all pairs of adjacent municipalities measured in travel time. This information was collected from publicly available online map applications. In particular, Google Maps has been used.

#### 3.1. Fire Station Relocation

#### 3.2. Shortest Path Calculation

## 4. Results

#### 4.1. Time to Reach a Fire

#### 4.2. Optimized Location of Forest Fire Stations

#### 4.3. Optimized Forest Fire Station Planning

#### 4.4. Discussion of Results

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Hashemzadeh, M.; Zademehdi, A. Fire detection for video surveillance applications using ICA K-medoids-based color model and efficient spatio-temporal visual features. Expert Syst. Appl.
**2019**, 130, 60–78. [Google Scholar] [CrossRef] - Hasan, M.M.; Razzak, M.A. An automatic fire detection and warning system under home video surveillance. In Proceedings of the 2016 IEEE 12th International Colloquium on Signal Processing & Its Applications (CSPA), IEEE, Malacca City, Malaysia, 4–6 March 2016. [Google Scholar] [CrossRef]
- Onal, A.F.; Ulver, B.; Durusoy, A.; Erkmen, B. Intelligent Wireless Sensor Networks for Early Fire Warning System. Electrica
**2020**, 20, 1–9. [Google Scholar] [CrossRef] - Vikram, R.; Sinha, D.; De, D.; Das, A.K. EEFFL: Energy efficient data forwarding for forest fire detection using localization technique in wireless sensor network. Wirel. Netw.
**2020**, 26, 5177–5205. [Google Scholar] [CrossRef] - Alkhatib, A.A.A. A Review on Forest Fire Detection Techniques. Int. J. Distrib. Sens. Netw.
**2014**, 10, 597368. [Google Scholar] [CrossRef][Green Version] - Dogra, R.; Rani, S.; Sharma, B. A Review to Forest Fires and Its Detection Techniques Using Wireless Sensor Network. In Lecture Notes in Electrical Engineering; Springer: Singapore, 2020; pp. 1339–1350. [Google Scholar] [CrossRef]
- AL-Dhief, F.T.; Sabri, N.; Fouad, S.; Latiff, N.A.; Albader, M.A.A. A review of forest fire surveillance technologies: Mobile ad-hoc network routing protocols perspective. J. King Saud Univ. Comput. Inf. Sci.
**2019**, 31, 135–146. [Google Scholar] [CrossRef] - Roldán-Gómez, J.J.; González-Gironda, E.; Barrientos, A. A Survey on Robotic Technologies for Forest Firefighting: Applying Drone Swarms to Improve Firefighters’ Efficiency and Safety. Appl. Sci.
**2021**, 11, 363. [Google Scholar] [CrossRef] - Barmpoutis, P.; Papaioannou, P.; Dimitropoulos, K.; Grammalidis, N. A Review on Early Forest Fire Detection Systems Using Optical Remote Sensing. Sensors
**2020**, 20, 6442. [Google Scholar] [CrossRef] - Guldåker, N. Geovisualization and Geographical Analysis for Fire Prevention. ISPRS Int. J. Geo-Inf.
**2020**, 9, 355. [Google Scholar] [CrossRef] - Sakr, G.E.; Elhajj, I.H.; Mitri, G.; Wejinya, U.C. Artificial intelligence for forest fire prediction. In Proceedings of the 2010 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Montreal, QC, Canada, 6–9 July 2010. [Google Scholar] [CrossRef]
- Sakr, G.E.; Elhajj, I.H.; Mitri, G. Efficient forest fire occurrence prediction for developing countries using two weather parameters. Eng. Appl. Artif. Intell.
**2011**, 24, 888–894. [Google Scholar] [CrossRef] - Chas-Amil, M.L.; Touza, J.; Prestemon, J.P. Spatial distribution of human-caused forest fires in Galicia (NW Spain). In Modelling, Monitoring and Management of Forest Fires II; WIT Press: Southampton, UK, 2010. [Google Scholar] [CrossRef][Green Version]
- Kalabokidis, K.; Xanthopoulos, G.; Moore, P.; Caballero, D.; Kallos, G.; Llorens, J.; Roussou, O.; Vasilakos, C. Decision support system for forest fire protection in the Euro-Mediterranean region. Eur. J. For. Res.
**2011**, 131, 597–608. [Google Scholar] [CrossRef] - Losso, A.; Corgnati, L.; Perona, G. Innovative image geo-referencing tool for decision support in wildfire fighting. In Modelling, Monitoring and Management of Forest Fires II; WIT Press: Southampton, UK, 2010. [Google Scholar] [CrossRef][Green Version]
- Johnson, J.L. A Procedure for Evaluation of Fire Station Locations and Deployment; Technical Report; National Fire Academy: Emmitsburg, MD, USA, 1999.
- Sanli, I.; Al-Tamimi, F. The Spatial Distribution and Resource Allocation of Fire Safety Service Systems. J. King Saud Univ.
**1990**, 2, 23–41. [Google Scholar] - Liu, D.; Xu, Z.; WangWan, Z.; Fan, C. Regional evaluation of fire apparatus requirements for petrol stations based on travel times. Process Saf. Environ.
**2020**, 135, 350–363. [Google Scholar] [CrossRef] - KC, K.; Corcoran, J.; Chhetri, P. Spatial optimisation of fire service coverage: A case study of Brisbane, Australia. Geogr. Res.
**2018**, 56, 270–284. [Google Scholar] [CrossRef] - Zhang, X.; Yao, J.; Sila-Nowicka, K.; Jin, Y. Urban Fire Dynamics and Its Association with Urban Growth: Evidence from Nanjing, China. ISPRS Int. J. Geo-Inf.
**2020**, 9, 218. [Google Scholar] [CrossRef][Green Version] - ESRI. GIS Technology and Applications for the Fire Service; Technical Report; ESRI: Redlands, CA, USA, 2006. [Google Scholar]
- Forkuo, E.K.; Quaye-Ballard, J.A. GIS Based Fire Emergency Response System. Int. J. Remote Sens. GIS
**2013**, 2, 32–40. [Google Scholar] - Lai, W.E.I.; Han-Lun, L.I.; Qi, L.I.U.; Jing-Yi, C.H.E.N.; Yi-jiao, C.U.I. Study and implementation of fire sites planning based on GIS and AHP. Procedia Eng.
**2011**, 11, 486–495. [Google Scholar] [CrossRef][Green Version] - Şen, A.; Önden, İ.; ökgöz, T.G.; Şen, C. A GIS approach to fire station location selection. GI4DM 2011 GeoInf. Disaster Manag.
**2011**. [Google Scholar] [CrossRef] - Kim, Y.H.; Bettinger, P.; Finney, M. Spatial optimization of the pattern of fuel management activities and subsequent effects on simulated wildfires. Eur. J. Oper. Res.
**2009**, 197, 253–265. [Google Scholar] [CrossRef] - Yao, J.; Zhang, X.; Murray, A.T. Location optimization of urban fire stations: Access and service coverage. Comput. Environ. Urban Syst.
**2019**, 73, 184–190. [Google Scholar] [CrossRef] - Yu, W.; Chen, Y.; Guan, M. Hierarchical siting of macro fire station and micro fire station. Environ. Plan. B Urban Anal. City Sci.
**2020**, 2399808320958424. [Google Scholar] [CrossRef] - Rodriguez, S.A.; la Fuente, R.A.D.; Aguayo, M.M. A facility location and equipment emplacement technique model with expected coverage for the location of fire stations in the Concepción province, Chile. Comput. Ind. Eng.
**2020**, 147, 106522. [Google Scholar] [CrossRef] - Aldabbas, M.; Venteicher, F.; Gerber, L.; Widmer, M. Finding the Adequate Location Scenario After the Merger of Fire Brigades Thanks to Multiple Criteria Decision Analysis Methods. Found. Comput. Decis. Sci.
**2018**, 43, 69–88. [Google Scholar] [CrossRef] - Pausas, J.G.; Vallejo, V.R. The role of fire in European Mediterranean ecosystems. In Remote Sensing of Large Wildfires; Springer: Berlin/Heidelberg, Germany, 1999; pp. 3–16. [Google Scholar] [CrossRef]
- Mitri, G.H.; Gitas, I.Z. A semi-automated object-oriented model for burned area mapping in the Mediterranean region using Landsat-TM imagery. Int. J. Wildland Fire
**2004**, 13, 367. [Google Scholar] [CrossRef] - Català-Gorgues, J.I. Wildfires, social breakdowns: After a summer of ashes. Mètode
**2013**, 76. [Google Scholar] - Gómez-Amo, J.L.; Estellés, V.; Segura, S.; Marcos, C.; Esteve, A.R.; Pedrós, R.; Utrillas, M.P.; Martínez-Lozano, J.A. Analysis of a strong wildfire event over Valencia (Spain) during Summer 2012—Part 1: Aerosol microphysics and optical properties. Atmos. Chem. Phys. Discuss.
**2013**, 13, 22639–22685. [Google Scholar] [CrossRef][Green Version] - De Vicente López, F.; Poyatos-Hernández, C. IDE y Geoportales Aplicados a los Incendios Forestales: SIGIF, el caso de la Comunidad Valenciana; Wildfire2007: Seville, Spain, 2007. [Google Scholar]
- Jain, A.K.; Murty, M.N.; Flynn, P.J. Data Clustering: A Review. ACM Comput. Surv. (CSUR)
**1999**, 31, 264–323. [Google Scholar] [CrossRef] - Rodriguez, M.Z.; Comin, C.H.; Casanova, D.; Bruno, O.M.; Amancio, D.R.; da Costa, F.L.; Rodrigues, F.A. Clustering algorithms: A comparative approach. PLoS ONE
**2019**, 14, e0210236. [Google Scholar] [CrossRef] - MacQueen, J.B. Some Methods for Classification and Analysis of MultiVariate Observations. In Proceedings of the Fifth Berkeley Symposium on Mathematical Statistics and Probability; University of California Press: Berkeley, CA, USA, 1967; pp. 281–297. [Google Scholar]
- Jain, A.K. Data clustering: 50 years beyond K-means. Pattern Recognit. Lett.
**2010**, 31, 651–666. [Google Scholar] [CrossRef] - Lloyd, S. Least squares quantization in PCM. IEEE Trans. Inf. Theory
**1982**, 28, 129–137. [Google Scholar] [CrossRef] - Ester, M.; Kriegel, H.P.; Sander, J.; Xu, X. A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases with Noise. In Proceedings of the Second International Conference on Knowledge Discovery and Data Mining; KDD’96. AAAI Press: Palo Alto, CA, USA, 1996; pp. 226–231. [Google Scholar]
- Schubert, E.; Sander, J.; Ester, M.; Kriegel, H.P.; Xu, X. DBSCAN Revisited, Revisited. ACM Trans. Database Syst.
**2017**, 42, 1–21. [Google Scholar] [CrossRef] - Cormen, T.H.; Leiserson, C.E.; Rivest, R.L.; Stein, C. Introduction to Algorithms; MIT Press: Cambridge, MA, USA, 1990. [Google Scholar]
- Scikit-Learn Library for Machine Learning in Python. Available online: https://scikit-learn.org/stable/ (accessed on 25 November 2020).
- Sokolova, M.; Lapalme, G. A systematic analysis of performance measures for classification tasks. Inf. Process. Manag.
**2009**, 45, 427–437. [Google Scholar] [CrossRef]

**Figure 3.**Small part of the province divided as the matrix $\mathbf{P}$ would do. The numbers at the bottom indicate the column numbers and those on the right the row numbers. Painted in red, there is the road linking two villages: Ayora and Teresa de Cofrentes.

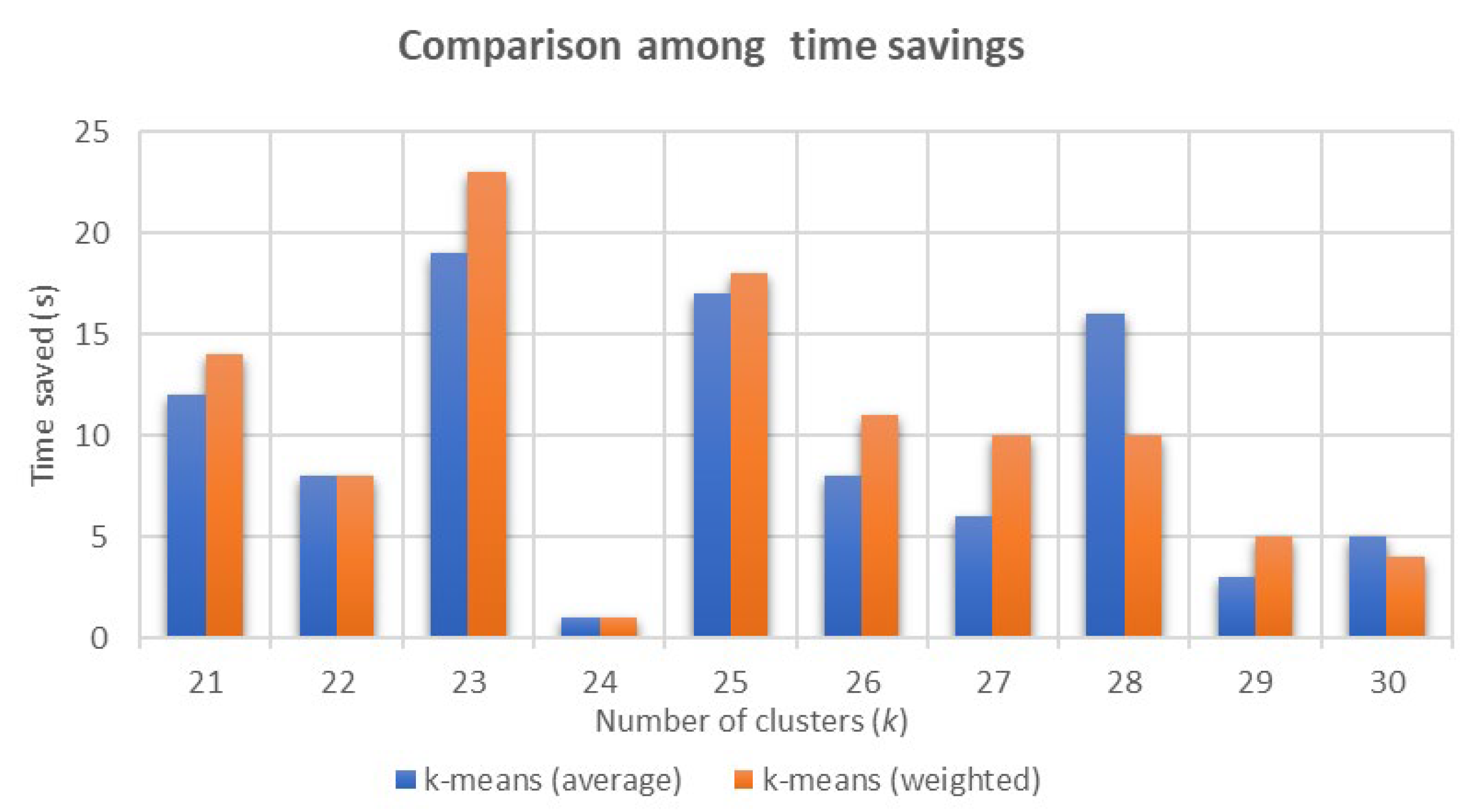

**Figure 6.**Evolution of time saved with respect to having one cluster less for different numbers of clusters.

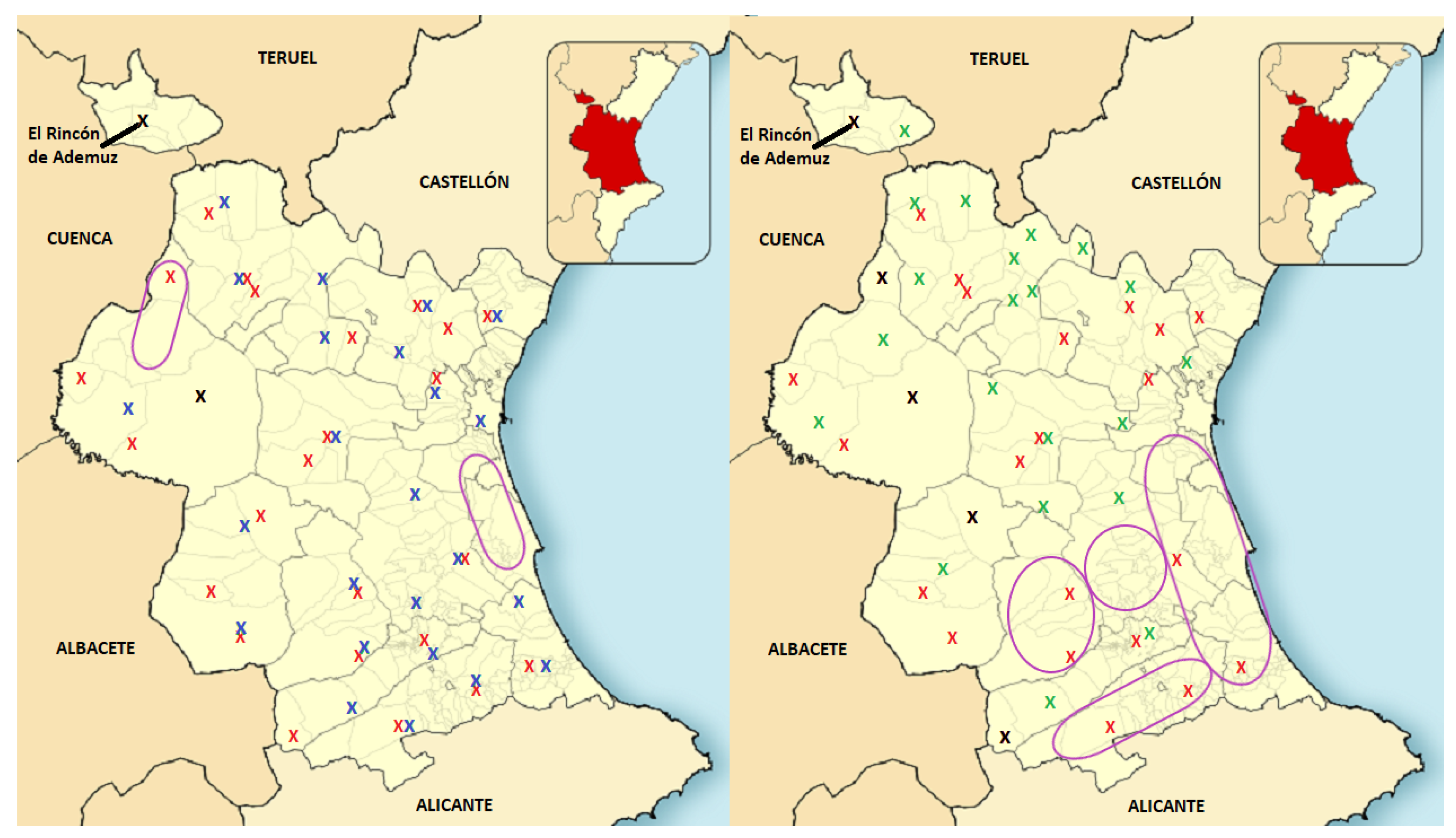

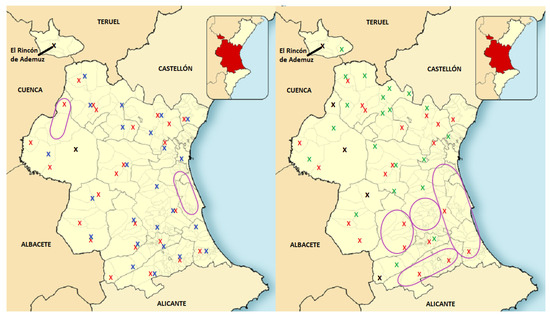

**Figure 7.**In the left image, the real stations (red Xs) are compared with those calculated by k-means (blue Xs), and in the right image, the same comparison is made with the results of running DBSCAN (green Xs).

**Figure 8.**Small part of the province divided as the matrix $\mathbf{P}$ would do. The numbers at the bottom imply the column numbers and those on the left border the row numbers. The red Xs are placed where the current forest fire stations are, and the blue Xs represent the same stations in their optimized locations.

**Table 1.**Average and weighted times to reach a fire obtained with k-means and DBSCAN for different numbers of clusters between 20 and 30. Missing values for DBSCAN indicate that any optimized distribution was found with said number of clusters. Results with 26 clusters are highlighted in bold font to be compared with the existing distribution of stations (nowadays ${t}_{avg}$ = 12${}^{\prime}$37${}^{\prime}$${}^{\prime}$ and ${t}_{w}$ = 10${}^{\prime}$05${}^{\prime}$${}^{\prime}$).

Distribution | Time | Number of Fire Stations | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | ||

k-means | ${t}_{avg}$ | 11${}^{\prime}$22${}^{\prime}$${}^{\prime}$ | 11${}^{\prime}$10${}^{\prime}$${}^{\prime}$ | 11${}^{\prime}$02${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$43${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$42${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$25${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$17${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$11${}^{\prime}$${}^{\prime}$ | 9${}^{\prime}$55${}^{\prime}$${}^{\prime}$ | 9${}^{\prime}$52${}^{\prime}$${}^{\prime}$ | 9${}^{\prime}$47${}^{\prime}$${}^{\prime}$ |

${t}_{w}$ | 9${}^{\prime}$33${}^{\prime}$${}^{\prime}$ | 9${}^{\prime}$19${}^{\prime}$${}^{\prime}$ | 9${}^{\prime}$11${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$48${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$47${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$29${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$18${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$08${}^{\prime}$${}^{\prime}$ | 7${}^{\prime}$58${}^{\prime}$${}^{\prime}$ | 7${}^{\prime}$53${}^{\prime}$${}^{\prime}$ | 7${}^{\prime}$49${}^{\prime}$${}^{\prime}$ | |

DBSCAN | ${t}_{avg}$ | 20${}^{\prime}$44${}^{\prime}$${}^{\prime}$ | - | 20${}^{\prime}$08${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$52${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$30${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$26${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$21${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$12${}^{\prime}$${}^{\prime}$ | 19${}^{\prime}$07${}^{\prime}$${}^{\prime}$ | - | - |

${t}_{w}$ | 19${}^{\prime}$13${}^{\prime}$${}^{\prime}$ | - | 18${}^{\prime}$07${}^{\prime}$${}^{\prime}$ | 18${}^{\prime}$02${}^{\prime}$${}^{\prime}$ | 17${}^{\prime}$40${}^{\prime}$${}^{\prime}$ | 17${}^{\prime}$38${}^{\prime}$${}^{\prime}$ | 17${}^{\prime}$35${}^{\prime}$${}^{\prime}$ | 17${}^{\prime}$34${}^{\prime}$${}^{\prime}$ | 17${}^{\prime}$33${}^{\prime}$${}^{\prime}$ | - | - |

**Table 2.**Comparison of current fire station coordinates in the province with the centroid positions obtained through k-means.

Fire Station Name | Position in P $\left(\mathit{Row},\mathit{Column}\right)$ | ||
---|---|---|---|

Current | k-Means | Comparison | |

La Font de la Figuera | (53,18) | (49,22) | Too different |

Ontinyent | (52,26) | (52,27) | Almost equal |

Castelló de Rugat | (49,33) | (48,32) | Similar |

Ròtova | (47,37) | (47,39) | Similar |

Enguera | (46,23) | (45,24) | Similar |

Xàtiva | (45,29) | (46,30) | Similar |

Ayora | (43,12) | (42,12) | Almost equal |

Zarra | (41,11) | (41,28) | Too different |

Navarrés | (41,23) | (40,22) | Similar |

Alzira | (38,32) | (38,31) | Almost equal |

Cortes de Pallás | (35,15) | (36,12) | Too different |

Yátova | (29,19) | (41,36) | Too different |

Los Isidros | (28,4) | (26,2) | Similar |

Buñol | (28,20) | (28,21) | Almost equal |

Requena | (25,10) | (25,10) | Equal |

Villargordo del Cabriel | (24,0) | (33,27) | Too different |

La Vallesa | (23,29) | (24,29) | Almost equal |

Bétera | (21,30) | (21,26) | Too different |

Pedralba | (20,22) | (20,19) | Similar |

Gilet | (17,34) | (17,35) | Almost equal |

Calles | (16,14) | (15,19) | Too different |

Olocau | (16,28) | (16,29) | Almost equal |

Sinarcas | (15,6) | (27,33) | Too different |

Chelva | (15,13) | (14,12) | Similar |

Titaguas | (10,10) | (9,12) | Similar |

Ademuz | (2,4) | (2,4) | Equal |

**Table 3.**Average and weighted times for the current distribution, the k-means distribution with two different numbers of stations and the proposal. The number of fire stations for each distribution is shown in parentheses.

Distribution | Current (26) | k-Means (26) | k-Means (23) | Proposal (23) |
---|---|---|---|---|

${t}_{avg}$ | 12${}^{\prime}$37${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$17${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$43${}^{\prime}$${}^{\prime}$ | 10${}^{\prime}$46${}^{\prime}$${}^{\prime}$ |

${t}_{w}$ | 10${}^{\prime}$05${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$18${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$48${}^{\prime}$${}^{\prime}$ | 8${}^{\prime}$31${}^{\prime}$${}^{\prime}$ |
