# Comparative Analytical Study of SCMA Detection Methods for PA Nonlinearity Mitigation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Model

## 3. Bussgang Decomposition-Based MPA

- Notably, (12) quantifies the gap between the BER of the proposed approach and that of a universally optimal MPA (the RFF-based MPA in [12]). As mentioned before, this quantification helps when trading off computational complexity with BER performance subject to achieving a given BER-based level of QoS.
- It is further noted that the above deviation is independent of the fading distribution. In this context, it is indeed worth mentioning that the ideal BER, ${\psi}_{p\left(h\right)}\left({\mathrm{SNR}}^{*}\right)$, is mostly an integral of a Q-function over the concerned PDF $p\left(h\right)$ [2]. However, when ${\psi}_{p\left(h\right)}\left({\mathrm{SNR}}^{*}\right)$ (and hence its derivative ${\psi}_{p\left(h\right)}^{\prime}$) are known, the optimality gap is found to be independent of the underlying distribution.
- It is possible to further improve the error approximation in (12) as follows:$${\mathrm{BER}}_{\mathrm{Bussgang}}={\displaystyle \sum _{l=0}^{\infty}}\frac{{\psi}_{p\left(h\right)}^{\left(l\right)}\left({\mathrm{SNR}}^{*}\right)}{l!}\mathbb{E}\left[\Delta {m}_{jk}^{l}\right],$$$$\mathbb{E}\left[\Delta {m}_{jk}^{l}\right]={\displaystyle \sum _{s=0}^{l}}\left(\genfrac{}{}{0pt}{}{l}{s}\right)\mathbb{E}\left[{\mathcal{P}}^{s}{\mathcal{Q}}^{l-s}\right].$$From ([22] p. 546), this is simplified as:$$\mathbb{E}\left[\Delta {m}_{jk}^{l}\right]={\displaystyle \sum _{s=0}^{l}}{\displaystyle \sum _{u=0}^{\mathrm{min}\left[s,(l-s)\right]}}\left(\genfrac{}{}{0pt}{}{l}{s}\right)\frac{2s!\left[2\left(l-s\right)!\right]{\left(\alpha {\sigma}_{h}^{2}{\sigma}_{x}^{2}\right)}^{2u}}{{2}^{l}\left[(s-u)!\right]\left[(l-s-u)!\right]2u!},$$$${\mathrm{BER}}_{\mathrm{Bussgang}}={\displaystyle \sum _{l=0}^{\infty}}\frac{{\psi}_{p\left(h\right)}^{\left(l\right)}\left({\mathrm{SNR}}^{*}\right)}{l!}\mathbb{E}\left[\Delta {m}_{jk}^{l}\right].$$

Algorithm 1 Bussgang based MPA. |

1: Initialization: ${I}_{kj}=p\left({\mathbf{x}}_{j}\right)$ according to a uniform distribution. 2: Initialization: ${I}_{jk}:=\frac{1}{2\pi {\sigma}_{n}^{2}}exp\left[-\frac{{\left|y\left[k\right]-\alpha h\left[k\right]{\displaystyle \sum _{\forall j\in {B}_{k}}}x\left[k\right]\right|}^{2}}{{\sigma}_{v}^{2}+{\sigma}_{n}^{2}}\right]$ $\alpha =\frac{\mathbb{E}\left[{\mathbf{y}}^{T}\mathrm{diag}\left(\mathbf{h}\right)\mathbf{x}\right]}{\mathbb{E}\left[{\u2225\mathrm{diag}\left(\mathbf{h}\right)\mathbf{x}\u2225}^{2}\right]}$, ${\sigma}_{v}^{2}={(1-\alpha )}^{2}\mathbb{E}\left[{\u2225\mathrm{diag}\left(\mathbf{h}\right)\mathbf{x}\u2225}^{2}\right]$. 3: Initialize the maximum number of iterations, $\mathit{ITER}$. 4: while c < ITER do ${I}_{jk}:=\mathrm{log}\left(p\left({\mathbf{x}}_{j}\right)\right)+{\displaystyle \sum _{j\in {\mathcal{B}}_{k}}}{I}_{kj}.$ ${I}_{kj}:=\underset{\forall {\mathbf{x}}_{j}\in {\mathcal{C}}_{j},k\in {\mathcal{B}}_{j}}{max}log\left(p\left(y\left[k\right]\right|\mathbf{x})\right)+{\displaystyle \sum _{k\in {\mathcal{B}}_{j}}}{I}_{jk}$ $c:=c+1$ end while5: Detect user-symbols as per ([2] Equation (12.12)) using the steady-state message-values ${I}_{jk}$ and codebook ${\mathcal{C}}_{j}$ |

## 4. Simulations

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

NOMA | Non-orthogonal multiple access |

SCMA | Sparse code multiple access |

MPA | Message passing algorithm |

BER | Bit error rate |

RKHS | Reproducing kernel Hilbert space |

RFF | Random Fourier features |

IIoT | Industrial internet of things |

PD-NOMA | Power domain NOMA |

SIC | Successive interference cancellation |

PA | Power amplifier |

QoS | Quality of service |

Probability density function | |

AWGN | Additive white Gaussian noise |

GSNR | Generalized signal-to-noise ratio |

## References

- Dai, L.; Wang, B.; Ding, Z.; Wang, Z.; Chen, S.; Hanzo, L. A survey of non-orthogonal multiple access for 5G. IEEE Commun. Surv. Tuts.
**2018**, 20, 2294–2323. [Google Scholar] [CrossRef] [Green Version] - Vaezi, M.; Ding, Z.; Poor, H.V. Multiple Access Techniques for 5G Wireless Networks and Beyond; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar] [CrossRef]
- Bhatia, V.; Swami, P.; Sharma, S.; Mitra, R. Non-orthogonal multiple access: An enabler for massive connectivity. J. Indian Inst. Sci.
**2020**, 100, 337–348. [Google Scholar] [CrossRef] - Mitra, R.; Bhatia, V. Precoded Chebyshev-NLMS-based pre-distorter for nonlinear LED compensation in NOMA-VLC. IEEE Trans. Commun.
**2017**, 65, 4845–4856. [Google Scholar] [CrossRef] [Green Version] - Mitra, R.; Bhatia, V. Precoding technique for ill-conditioned massive MIMO-VLC system. In Proceedings of the 2018 IEEE 87th Vehicular Technology Conference (VTC Spring), Porto, Portugal, 3–6 June 2018; pp. 1–5. [Google Scholar] [CrossRef]
- Nikopour, H.; Baligh, H. Sparse code multiple access. In Proceedings of the 2013 IEEE 24th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC), London, UK, 8–11 September 2013; pp. 332–336. [Google Scholar] [CrossRef]
- Moltafet, M.; Yamchi, N.M.; Javan, M.R.; Azmi, P. Comparison study between PD-NOMA and SCMA. IEEE Trans. Veh. Technol.
**2017**, 67, 1830–1834. [Google Scholar] [CrossRef] [Green Version] - Sharma, S.; Deka, K.; Bhatia, V.; Gupta, A. Joint power-domain and SCMA-based NOMA system for downlink in 5G and beyond. IEEE Commun. Lett.
**2019**, 23, 971–974. [Google Scholar] [CrossRef] - Sergienko, A.B.; Klimentyev, V.P. Spectral efficiency of uplink SCMA system with CSI estimation. In Proceedings of the 2017 20th Conference of Open Innovations Association (FRUCT), St. Petersburg, Russia, 3–7 April 2017; pp. 391–397. [Google Scholar] [CrossRef]
- Price, R. A useful theorem for nonlinear devices having Gaussian inputs. IRE Trans. Inf. Theory
**1958**, 4, 69–72. [Google Scholar] [CrossRef] - Yang, L.; Lin, X.; Ma, X.; Li, S. Iterative clipping noise elimination of clipped and filtered SCMA-OFDM system. IEEE Access
**2018**, 6, 54427–54434. [Google Scholar] [CrossRef] - Sfeir, E.; Mitra, R.; Kaddoum, G.; Bhatia, V. RFF based detection for SCMA in presence of PA nonlinearity. IEEE Commun. Lett.
**2020**, 24, 2604–2608. [Google Scholar] [CrossRef] - Samie, F.; Tsoutsouras, V.; Xydis, S.; Bauer, L.; Soudris, D.; Henkel, J. Distributed QoS management for Internet of Things under resource constraints. In Proceedings of the Eleventh IEEE/ACM/IFIP International Conference on Hardware/Software Codesign and System Synthesis, Pittsburgh, PV, USA, 1–7 October 2016; pp. 1–10. [Google Scholar] [CrossRef] [Green Version]
- Baek, J.; Kaddoum, G. Heterogeneous task offloading and resource allocations via deep recurrent reinforcement learning in partial observable multifog networks. IEEE Internet Things J.
**2020**, 8, 1041–1056. [Google Scholar] [CrossRef] - Evangelista, J.V.; Sattar, Z.; Kaddoum, G.; Chaaban, A. Fairness and sum-rate maximization via joint subcarrier and power allocation in uplink SCMA transmission. IEEE Trans. Wireless Commun.
**2019**, 18, 5855–5867. [Google Scholar] [CrossRef] - Guerreiro, J.; Dinis, R.; Montezuma, P.; Campos, M. On the Receiver Design for Nonlinear NOMA-OFDM Systems. In Proceedings of the 2020 IEEE 91st Vehicular Technology Conference (VTC2020-Spring), Antwerp, Belgium, 25–28 May 2020; pp. 1–6. [Google Scholar]
- Anand, P.K.; Jain, S.; Mitra, R.; Bhatia, V. Random Fourier Features based Post-Distortion for Massive-MIMO Visible Light Communication. In Proceedings of the 2020 International Conference on Communications, Signal Processing, and Their Applications (ICCSPA), Sharjah, United Arab Emirates, 16–18 March 2021; pp. 1–6. [Google Scholar]
- Gharaibeh, K.M. Nonlinear Distortion in Wireless Systems: Modeling and Simulation with MATLAB; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar] [CrossRef]
- Cover, T.M. Elements of Information Theory; John Wiley & Sons: Hoboken, NJ, USA, 1999. [Google Scholar] [CrossRef]
- Sfeir, E.; Mitra, R.; Kaddoum, G.; Bhatia, V. Performance analysis of maximum-correntropy based detection for SCMA. IEEE Commun. Lett.
**2020**, 25, 1114–1118. [Google Scholar] [CrossRef] - Polcari, J. An informative interpretation of decision theory: The information theoretic basis for signal-to-noise ratio and log likelihood ratio. IEEE Access
**2013**, 1, 509–522. [Google Scholar] [CrossRef] - Kan, R. From moments of sum to moments of product. J. Multivar. Anal.
**2008**, 99, 542–554. [Google Scholar] [CrossRef] [Green Version] - Klimentyev, V.P.; Sergienko, A.B. Detection of SCMA signal with channel estimation error. In Proceedings of the 2016 18th Conference of Open Innovations Association and Seminar on Information Security and Protection of Information Technology (FRUCT-ISPIT), St. Petersburg, Russia, 18–22 April 2016; pp. 106–112. [Google Scholar] [CrossRef]
- Silverman, B.W. Density Estimation for Statistics and Data Analysis; Routledge: Abingdon, UK, 2018. [Google Scholar] [CrossRef]

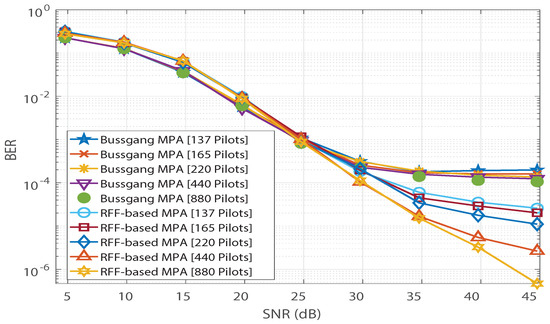

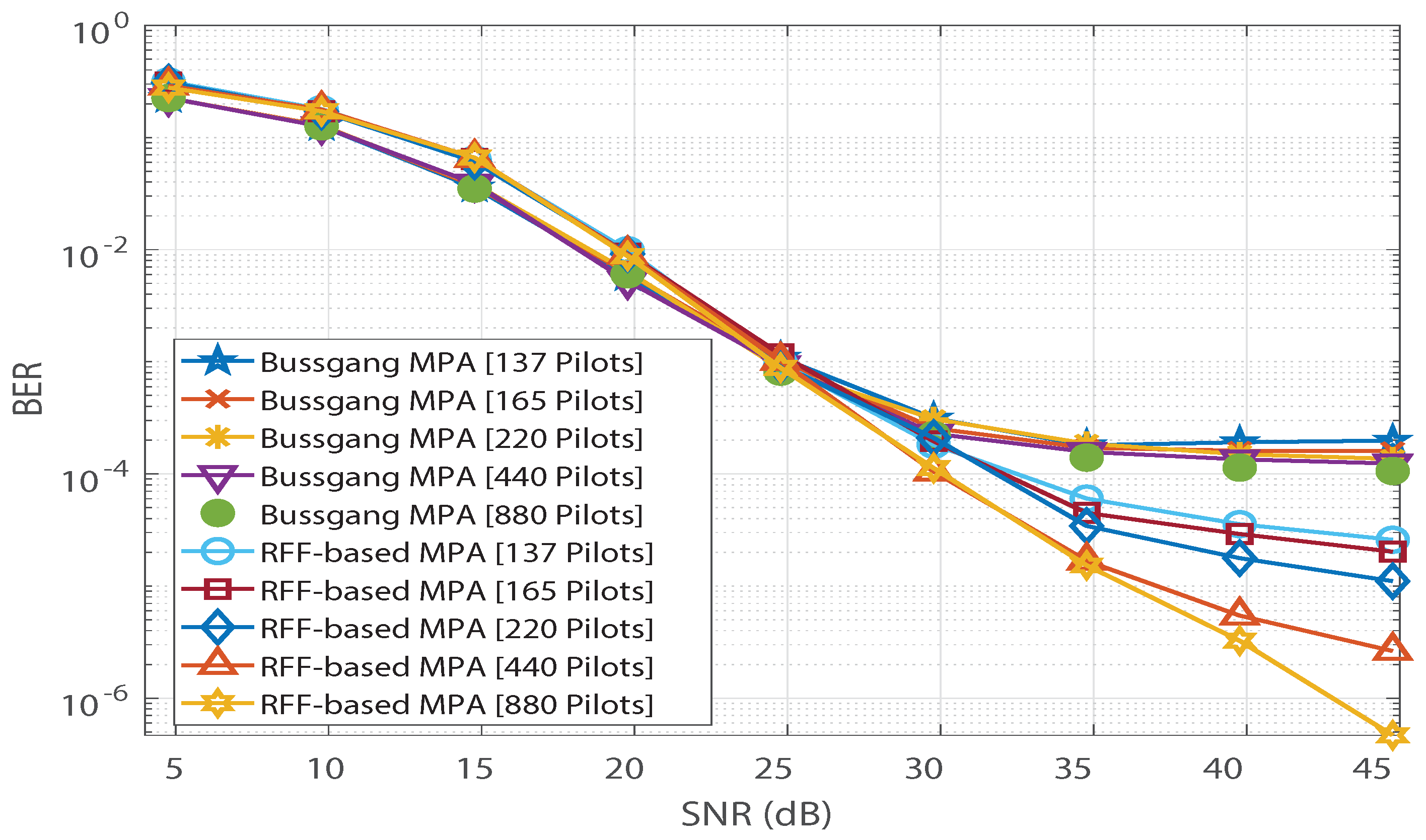

**Figure 4.**BER vs. SNR comparison of the Bussgang-based detector with RFF-based detector for a Rayleigh Channel by varying the number of pilots.

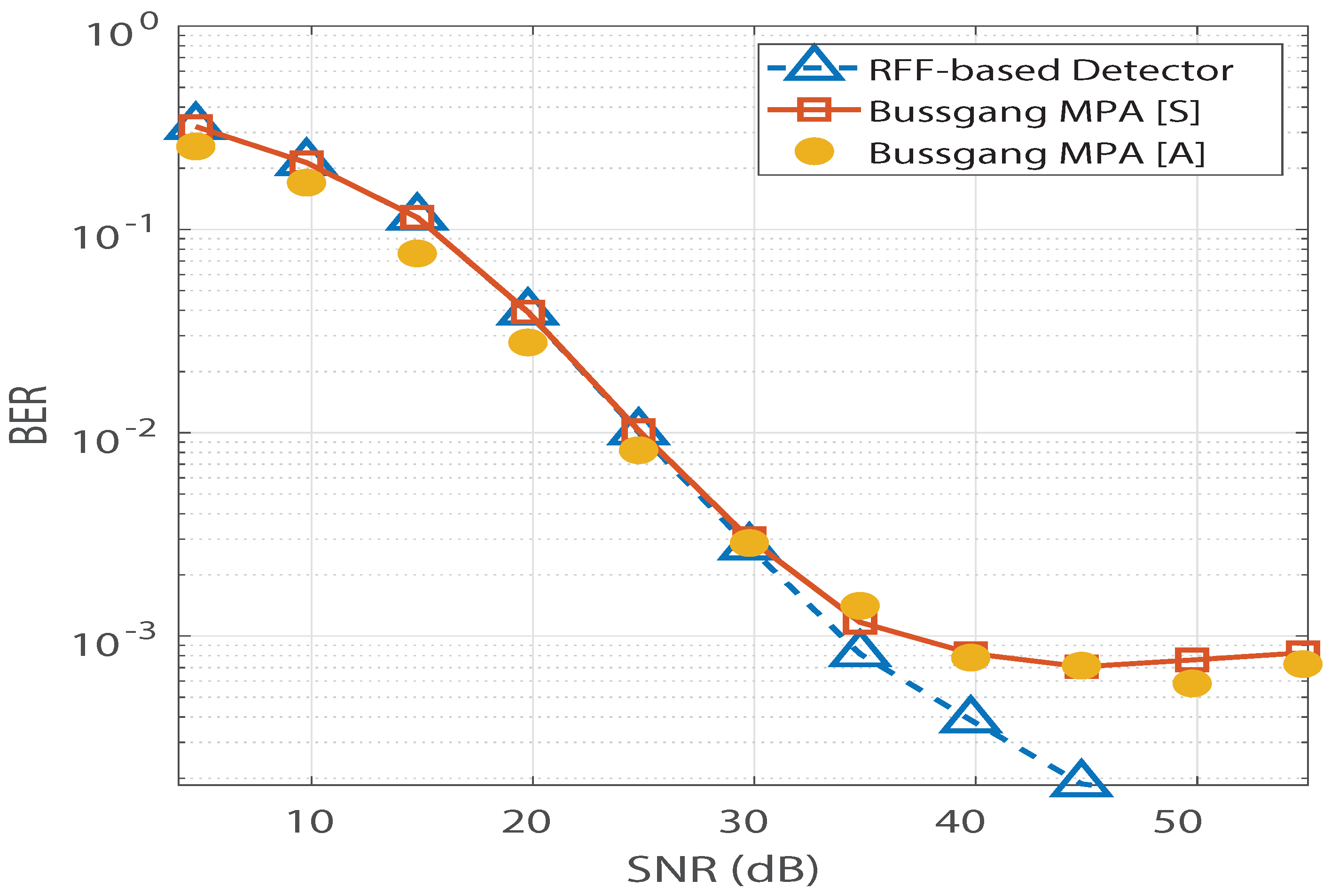

**Figure 6.**BER vs. SNR validation for the Bussgang-based detector for a Nakagami-m channel with $m=0.5$.

Codebook | Section II.A [23] |

Modulation | OOK |

Value of p | 1 |

Kernel-width assignment | Silverman’s rule [24] |

Number of MPA iterations | 15 |

Number of transmitted bits | ${10}^{7}$ |

Parameter values for Rayleigh distribution | ${\sigma}_{h}^{2}=1$ |

Parameter values for the Nakagami-m distribution | Shape: $m=0.5$, |

Spread parameter: 1 | |

${n}_{G}$ | 110 |
