# Experimental Validation of Real-Time Ski Jumping Tracking System Based on Wearable Sensors

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Measurement Systems

#### 2.1.1. Wearable Real-Time Tracking System (WRRTS)

#### 2.1.2. Official Distance Measurements

#### 2.1.3. Camera Measurements (ccc Software GmbH)

#### 2.1.4. Total Station Tracking (QDaedalus System)

#### 2.2. Venue

#### 2.3. Evaluation

#### 2.3.1. Synchronization

#### 2.3.2. Statistical Analysis

## 3. Results

#### 3.1. Official Video Distance

#### 3.2. Camera Measurements (ccc Software GmbH)

#### 3.2.1. Projection of 3D WRRTS Measurements into the 2D Image Plane

#### 3.2.2. Comparison of 3D WRRTS Position Measurements with 3D Camera Vectors

#### 3.2.3. Comparison of 3D WRRTS Position Measurements with 3D QDaedalus Measurements

#### 3.2.4. Comparison of 3D WRRTS Angle Measurements with 3D Camera Vectors

## 4. Discussion

#### 4.1. Jumping Distance

#### 4.2. Projection of 3D WRRTS Measurements into the 2D Image Plane

#### 4.3. Comparison of 3D WRRTS Position Measurements with 3D Camera Vectors

#### 4.4. Comparison of 3D WRRTS Angle Measurements with 3D Camera Vectors

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

dGNSS | differential Global Navigation Satellite System |

FIS | Fédération Internationale de Ski |

IMU | inertial measurement unit |

LoA | limit of agreement |

MAE | mean absolute error |

PTZ | pan–tilt–zoom |

SEM | standard error of the mean |

UWB | ultra-wideband |

WRTTS | wearable real-time tracking system |

## References

- History of Ski Jumping. Available online: https://olympics.com/en/sports/ski-jumping/ (accessed on 11 June 2021).
- Maryniak, J.; Ładyżyńska-Kozdraś, E.; Tomczak, S. Configurations of the Graf-Boklev (V-style) ski jumper model and aerodynamic parameters in a wind tunnel. Human
**2009**, 10, 130–136. [Google Scholar] [CrossRef] - Jung, A.; Staat, M.; Müller, W. Flight style optimization in ski jumping on normal, large, and ski flying hills. J. Biomech.
**2014**, 47, 716–722. [Google Scholar] [CrossRef] [PubMed] - Müller, E.; Schwameder, H. Biomechanical aspects of new techniques in alpine skiing and ski-jumping. J. Sport. Sci.
**2003**, 21, 679–692. [Google Scholar] [CrossRef] [PubMed] - Virmavirta, M.; Isolehto, J.; Komi, P.; Schwameder, H.; Pigozzi, F.; Massazza, G. Take-off analysis of the Olympic ski jumping competition (HS-106 m). J. Biomech.
**2009**, 42, 1095–1101. [Google Scholar] [CrossRef] [PubMed] - Vodičar, J.; Čoh, M.; Jošt, B. Kinematic structure at the early flight position in ski jumping. J. Hum. Kinet.
**2012**, 35, 35. [Google Scholar] [CrossRef] [Green Version] - Schmölzer, B.; Müller, W. Individual flight styles in ski jumping: Results obtained during Olympic Games competitions. J. Biomech.
**2005**, 38, 1055–1065. [Google Scholar] [CrossRef] [PubMed] - Schwameder, H. Biomechanics research in ski jumping, 1991–2006. Sports Biomech.
**2008**, 7, 114–136. [Google Scholar] [CrossRef] - Groh, B.H.; Warschun, F.; Deininger, M.; Kautz, T.; Martindale, C.; Eskofier, B.M. Automated Ski Velocity and Jump Length Determination in Ski Jumping Based on Unobtrusive and Wearable Sensors. Proc. ACM Interact. Mob. Wearable Ubiquitous Technol.
**2017**, 1, 1–17. [Google Scholar] [CrossRef] - Groh, B.H.; Fritz, J.; Deininger, M.; Schwameder, H.; Eskofier, B.M. Unobtrusive and wearable landing momentum estimation in Ski jumping with inertial-magnetic sensors. In Proceedings of the 2018 IEEE 15th International Conference on Wearable and Implantable Body Sensor Networks, BSN 2018, Las Vegas, NV, USA, 4–7 March 2018; pp. 102–105. [Google Scholar] [CrossRef]
- Bessone, V.; Petrat, J.; Schwirtz, A. Ground Reaction Forces and Kinematics of Ski Jump Landing Using Wearable Sensors. Sensors
**2019**, 19, 2011. [Google Scholar] [CrossRef] [Green Version] - Bessone, V.; Petrat, J.; Schwirtz, A. Ski position during the flight and landing preparation phases in ski jumping detected with inertial sensors. Sensors
**2019**, 19, 2575. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chardonnens, J.; Favre, J.; Cuendet, F.; Gremion, G.; Aminian, K. A system to measure the kinematics during the entire ski jump sequence using inertial sensors. J. Biomech.
**2013**, 46, 56–62. [Google Scholar] [CrossRef] - Chardonnens, J.; Favre, J.; Cuendet, F.; Gremion, G.; Aminian, K. Measurement of the dynamics in ski jumping using a wearable inertial sensor-based system. J. Sports Sci.
**2014**, 32, 591–600. [Google Scholar] [CrossRef] [PubMed] - Elfmark, O.; Ettema, G.; Groos, D.; Ihlen, E.A.F.; Velta, R.; Haugen, P.; Braaten, S.; Gilgien, M. Performance Analysis in Ski Jumping with a Differential Global Navigation Satellite System and Video-Based Pose Estimation. Sensors
**2021**, 21, 5318. [Google Scholar] [CrossRef] [PubMed] - Chardonnens, J.; Favre, J.; Le Callennec, B.; Cuendet, F.; Gremion, G.; Aminian, K. Automatic measurement of key ski jumping phases and temporal events with a wearable system. J. Sports Sci.
**2012**, 30, 53–61. [Google Scholar] [CrossRef] - Arndt, A.; Brüggemann, G.P.; Virmavirta, M.; Komi, P. Techniques used by Olympic ski jumpers in the transition from takeoff to early flight. J. Appl. Biomech.
**1995**, 11, 224–237. [Google Scholar] [CrossRef] - Müller, W.; Platzer, D.; Schmölzer, B. Dynamics of human flight on skis: Improvements in safety and fairness in ski jumping. J. Biomech.
**1996**, 29, 1061–1068. [Google Scholar] [CrossRef] - Schmölzer, B.; Müller, W. The importance of being light: Aerodynamic forces and weight in ski jumping. J. Biomech.
**2002**, 35, 1059–1069. [Google Scholar] [CrossRef] - Schwameder, H.; Müller, E.; Lindenhofer, E.; DeMonte, G.; Potthast, W.; Brüggemann, P.; Virmavirta, M.; Isolehto, J.; Komi, P. Kinematic characteristics of the early flight phase in ski-jumping. In Science and Skiing III; Meyer & Meyer: Aachen, Germany, 2005; pp. 381–391. [Google Scholar]
- Virmavirta, M.; Isolehto, J.; Komi, P.; Brüggemann, G.P.; Müller, E.; Schwameder, H. Characteristics of the early flight phase in the Olympic ski jumping competition. J. Biomech.
**2005**, 38, 2157–2163. [Google Scholar] [CrossRef] [PubMed] - Vleugels, R.; Van Herbruggen, B.; Fontaine, J.; De Poorter, E. Ultra-Wideband Indoor Positioning and IMU-Based Activity Recognition for Ice Hockey Analytics. Sensors
**2021**, 21, 4650. [Google Scholar] [CrossRef] - Fleureau, A.; Lacome, M.; Buchheit, M.; Couturier, A.; Rabita, G. Validity of an ultra-wideband local positioning system to assess specific movements in handball. Biol. Sport
**2020**, 37, 351. [Google Scholar] [CrossRef] [PubMed] - Bastida-Castillo, A.; Gómez-Carmona, C.D.; De La Cruz Sánchez, E.; Pino-Ortega, J. Comparing accuracy between global positioning systems and ultra-wideband-based position tracking systems used for tactical analyses in soccer. Eur. J. Sport Sci.
**2019**, 19, 1157–1165. [Google Scholar] [CrossRef] [PubMed] - Guillaume, S.; Bürki, B.; Griffet, S.; Durand, H.M. QDaedalus: Augmentation of total stations by CCD sensor for automated contactless high-precision metrology. In Proceedings of the FIG Working Week 2012, Rome, Italy, 6–10 May 2012; pp. 1–15. [Google Scholar]
- Charalampous, E.; Psimoulis, P.; Guillaume, S.; Spiridonakos, M.; Klis, R.; Bürki, B.; Rothacher, M.; Chatzi, E.; Luchsinger, R.; Feltrin, G. Measuring sub-mm structural displacements using QDaedalus: A digital clip-on measuring system developed for total stations. Appl. Geomat.
**2015**, 7, 91–101. [Google Scholar] [CrossRef] [Green Version] - ccc Software GmbH: Sport Software Projects. Available online: https://ccc-sportsoftware.de/en/solutions/ (accessed on 10 November 2021).
- Bland, J.M.; Altman, D. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet
**1986**, 327, 307–310. [Google Scholar] [CrossRef] - Massey, F.J., Jr. The Kolmogorov–Smirnov test for goodness of fit. J. Am. Stat. Assoc.
**1951**, 46, 68–78. [Google Scholar] [CrossRef]

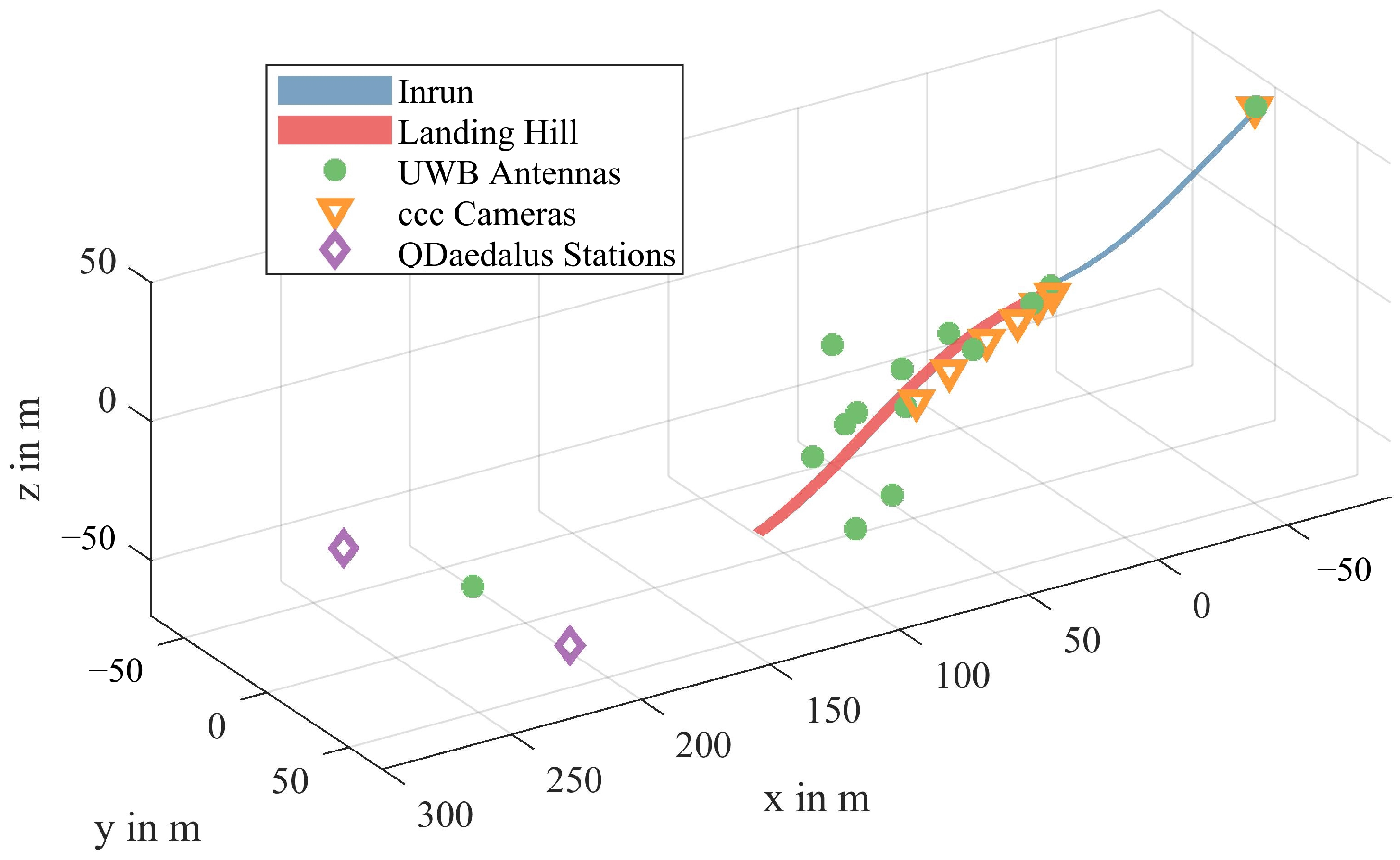

**Figure 1.**Definition of the local coordinate system with respect to the ski jumping hill. The origin of the coordinate system is the middle of the edge of the jump-off platform. With respect to the jumping direction, the axes are defined as: X-axis: horizontal, forward, Y-axis: horizontal, left, Z-axis: vertical, upward. Additionally, the setup at the ski jumping hill is presented. This includes the positions of the antennas of the WRRTS, the total stations of the QDaedalus system, the cameras, and the 3D models of the ski jumping in-run and landing hill.

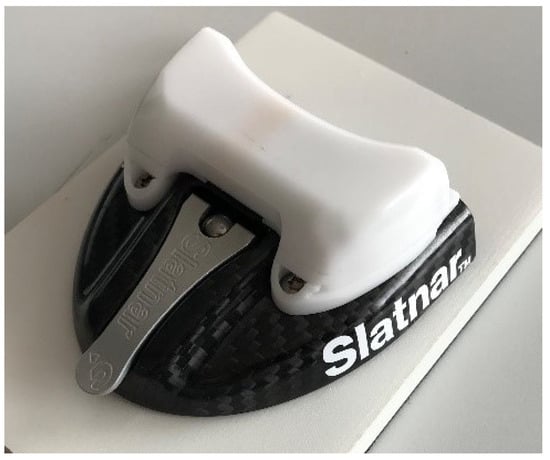

**Figure 2.**Attachment of the wearable tracker on top of the binding of the skis. The tracker is mounted on top of the regular ski jumping binding in front of the foot (tracker in white).

**Figure 3.**Example for the manual determination of the official video-based jumping distance. The red lines are the calibrated projection of the official jumping distance (to the jump-off platform). The blue line corresponds to the determined jumping distance.

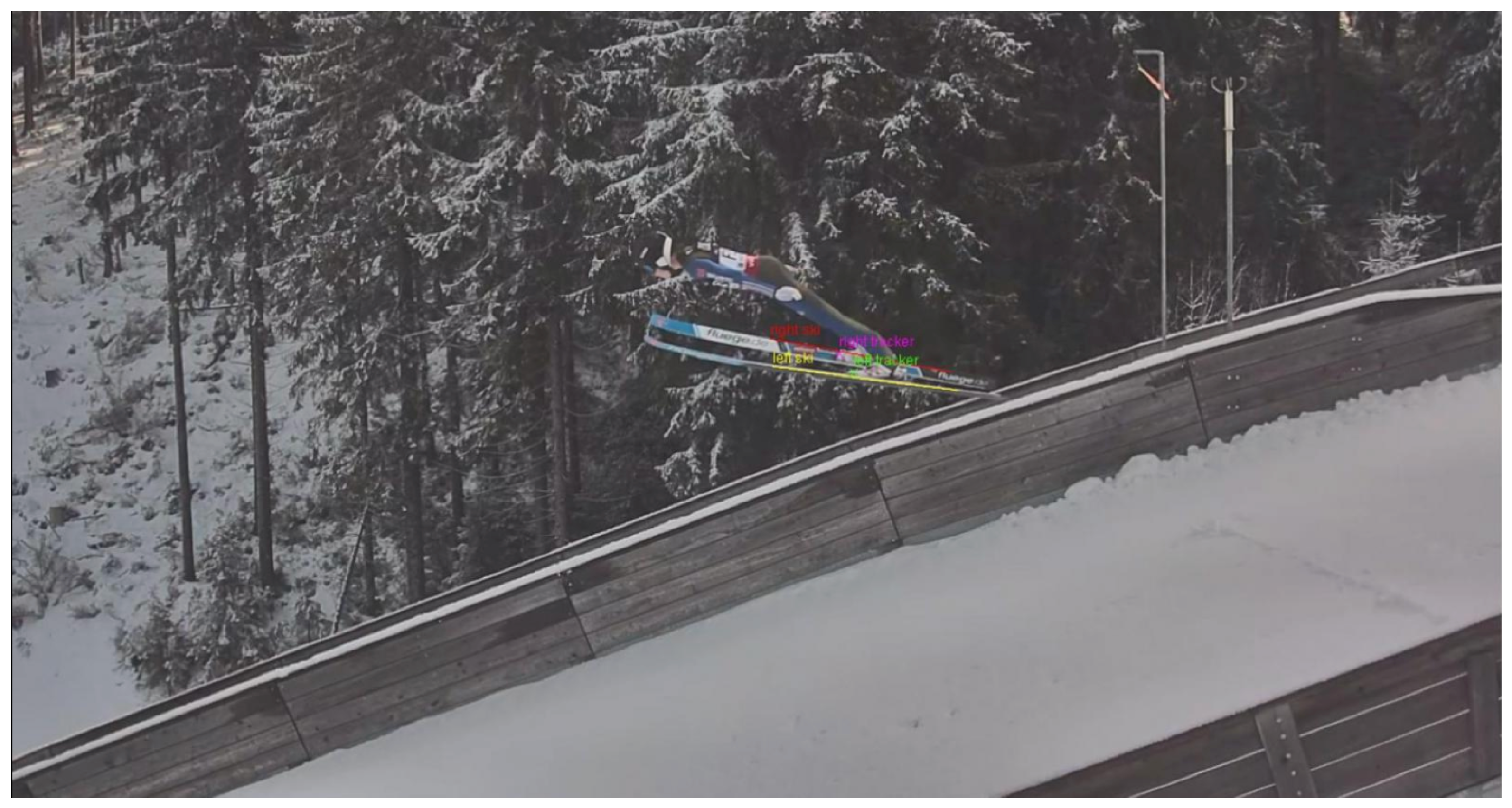

**Figure 4.**Example for the manual labeling of the tracker positions and skis for the cameras next to the jumping hill.

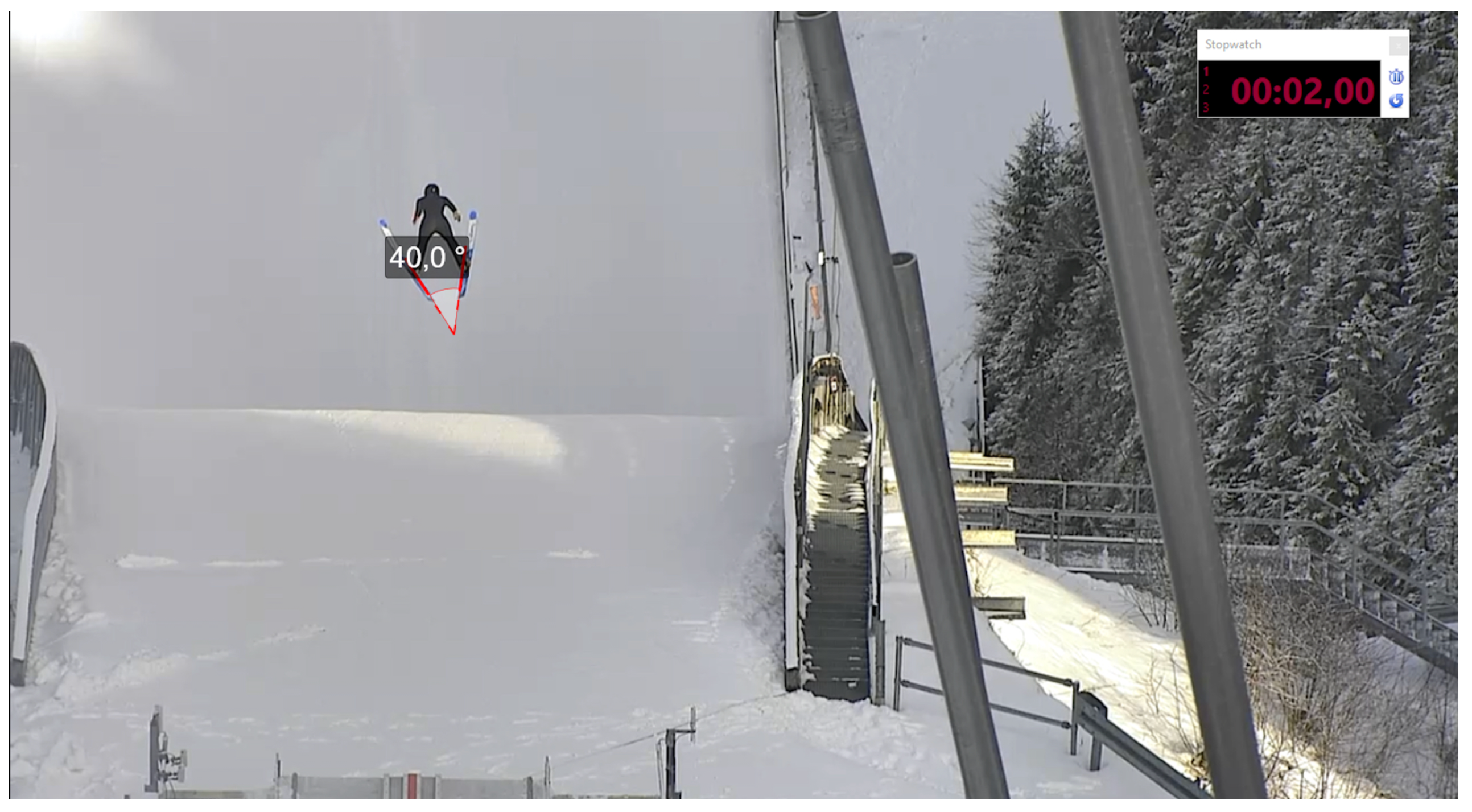

**Figure 5.**Example of the manual labeling of the V-angle 2 s after the crossing of the jump-off platform. The PTZ camera is mounted at the top of the in-run.

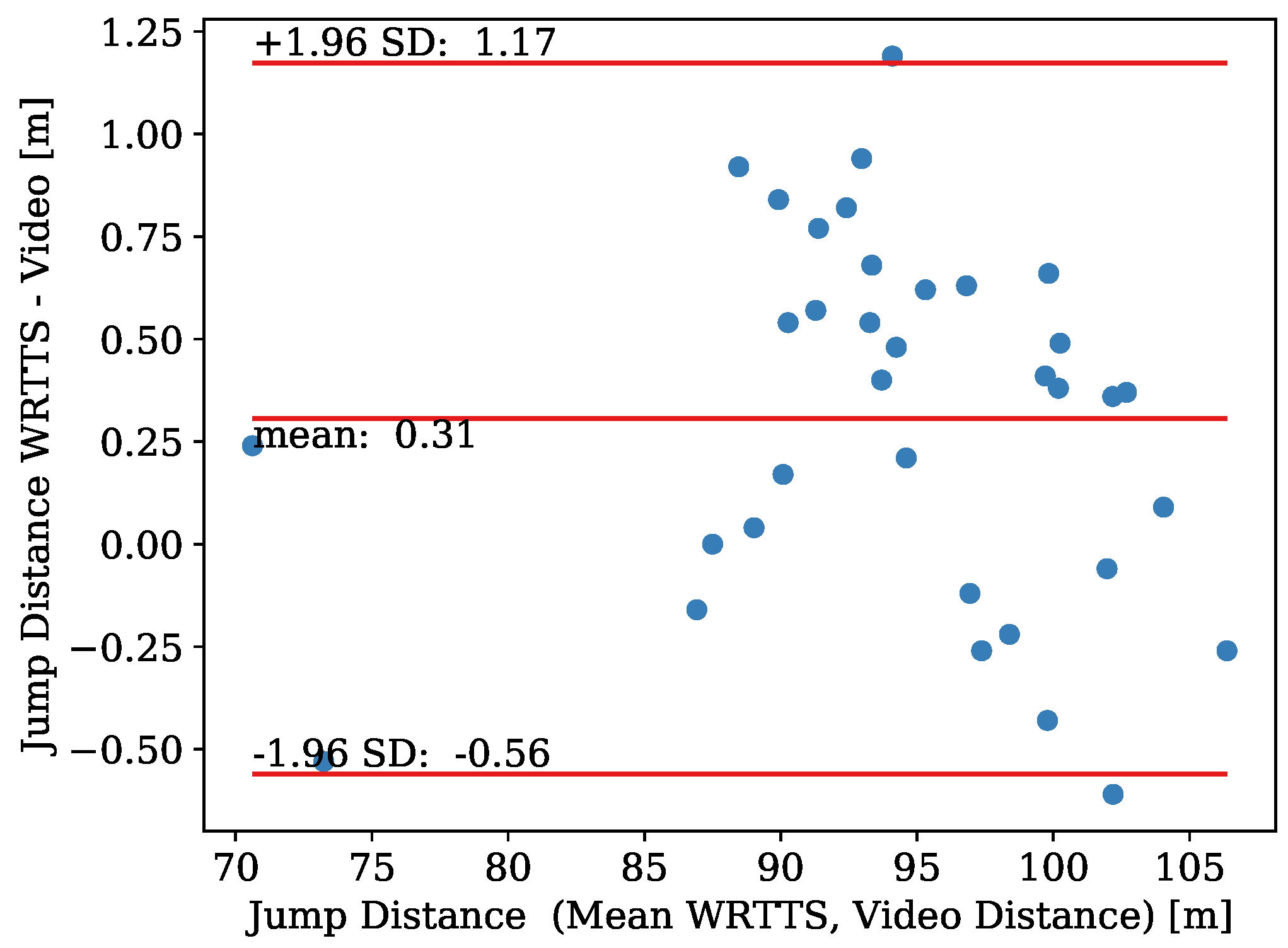

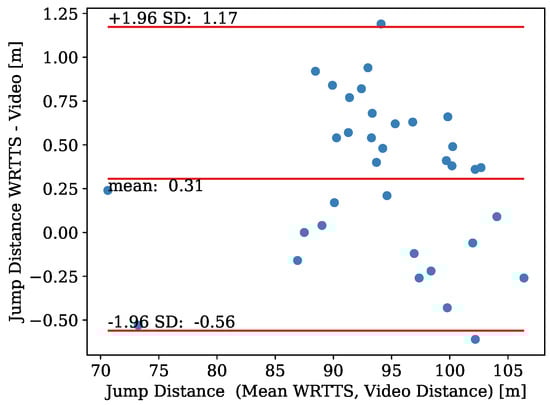

**Figure 6.**Bland–Altman plot for the comparison jumping distance determined with the WRRTS and the official video distance.

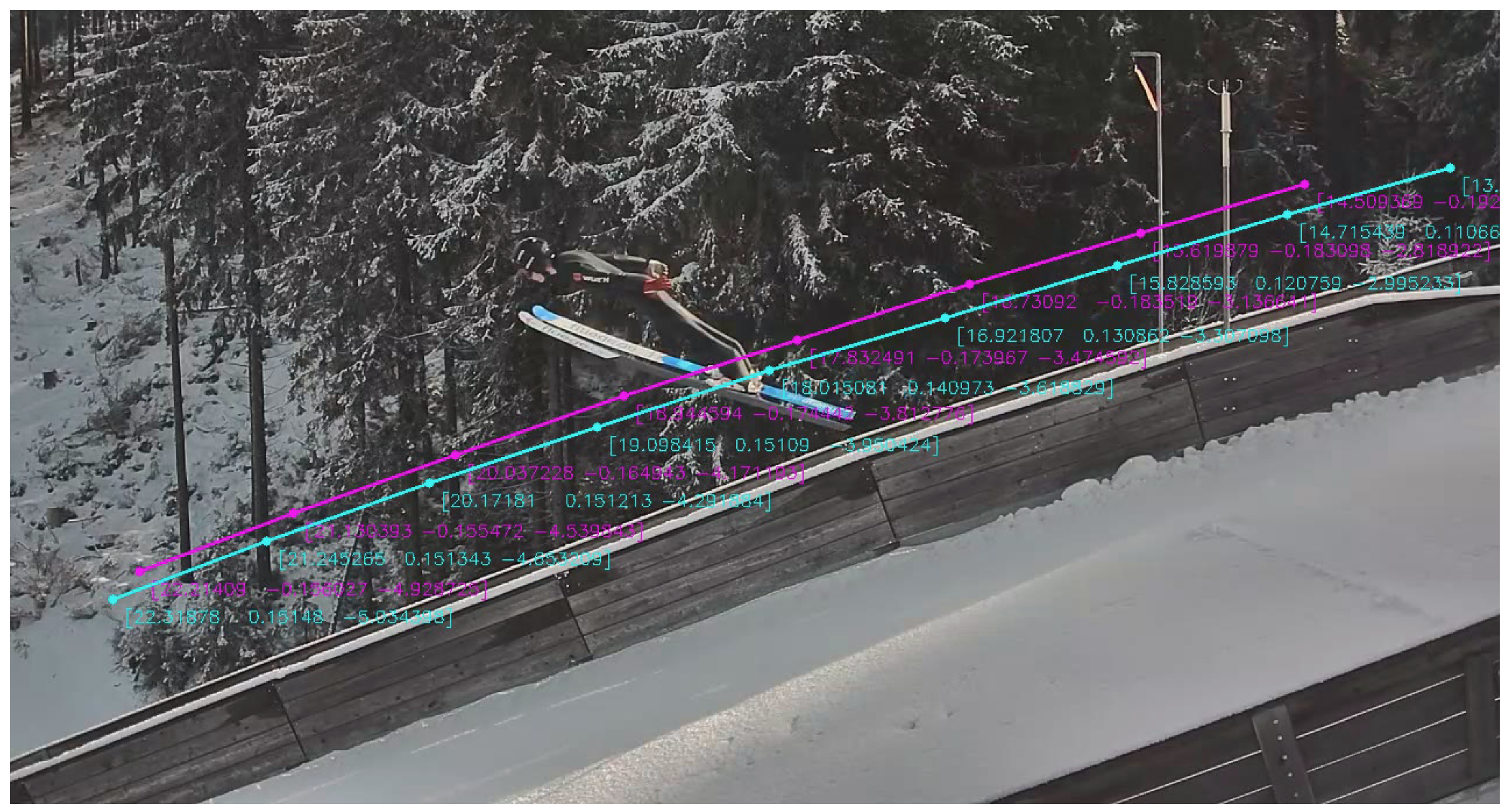

**Figure 7.**Projection of the WRRTS position data onto the video of the camera at 18 m after take-off. The cyan curve shows the trajectory of the WRRTS tracker placed on the binding of the left foot. The magenta curve shows the trajectory of the right tracker. The numbers indicate the corresponding 3D coordinates in meters. Coordinates as depicted in Figure 1.

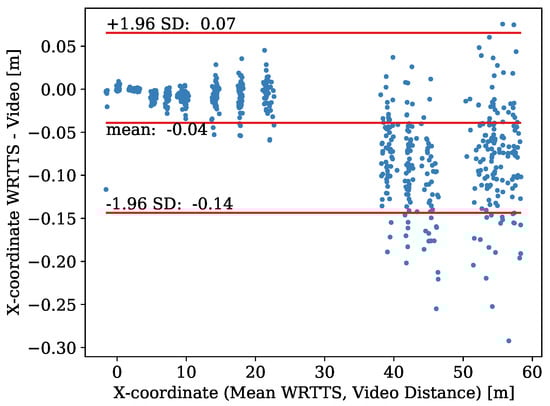

**Figure 8.**Bland–Altman plot for the comparison of the X-coordinate determined with the WRRTS and camera vectors.

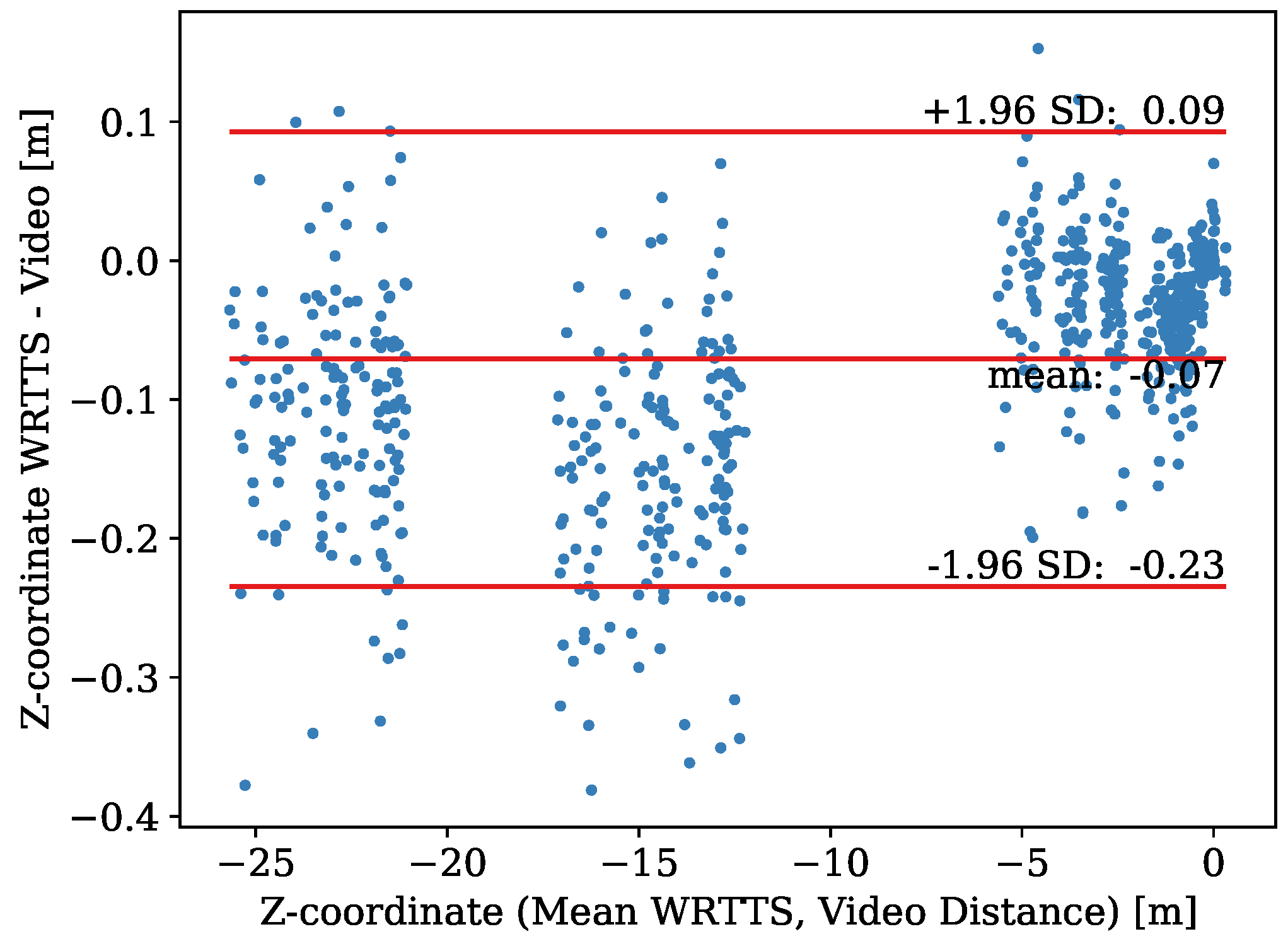

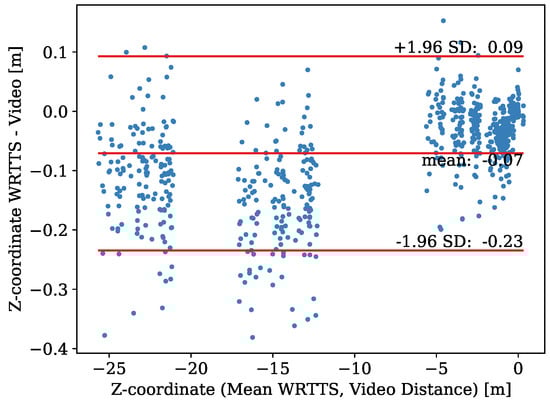

**Figure 9.**Bland–Altman plot for the comparison of the Z-coordinate determined with the WRRTS and camera vectors.

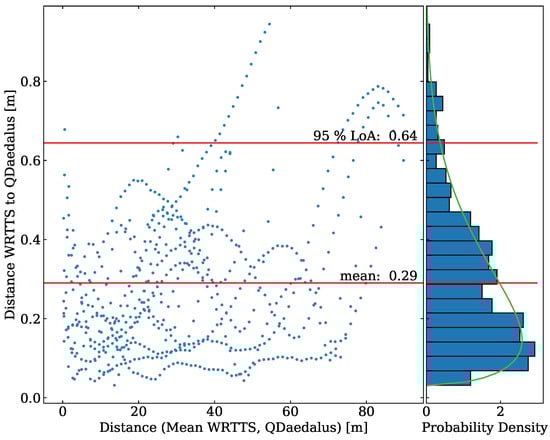

**Figure 10.**The left part shows a scatter plot for the comparison of the three-dimensional position measured with the WRRTS and QDaedalus tracking. The distance on the X-axis is the mean distance of WRRTS and QDaedalus to the jump-off platform. The histogram of the projection of the distance between both measurement methods is visualized in the right part. The fitted beta distribution is also plotted in the projection.

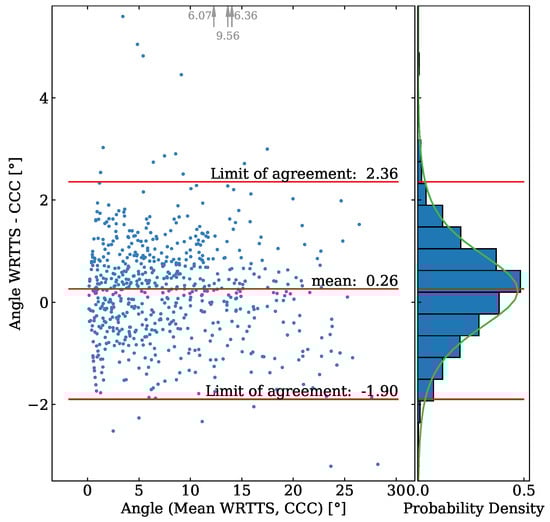

**Figure 11.**The left part shows the Bland–Altman plot for the comparison of the angle measured with the WRRTS and the angle determined in the camera images from the side along the jumping hill. The right part shows the projected histogram of the difference as well as the fitted Student’s t-distribution. The gray arrows and numbers at the top of the plot indicate three measured angles out of the plot’s range.

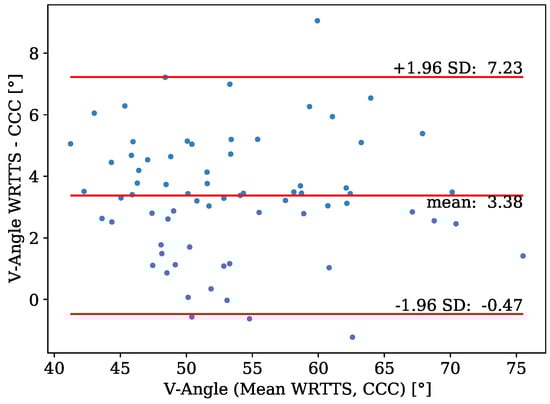

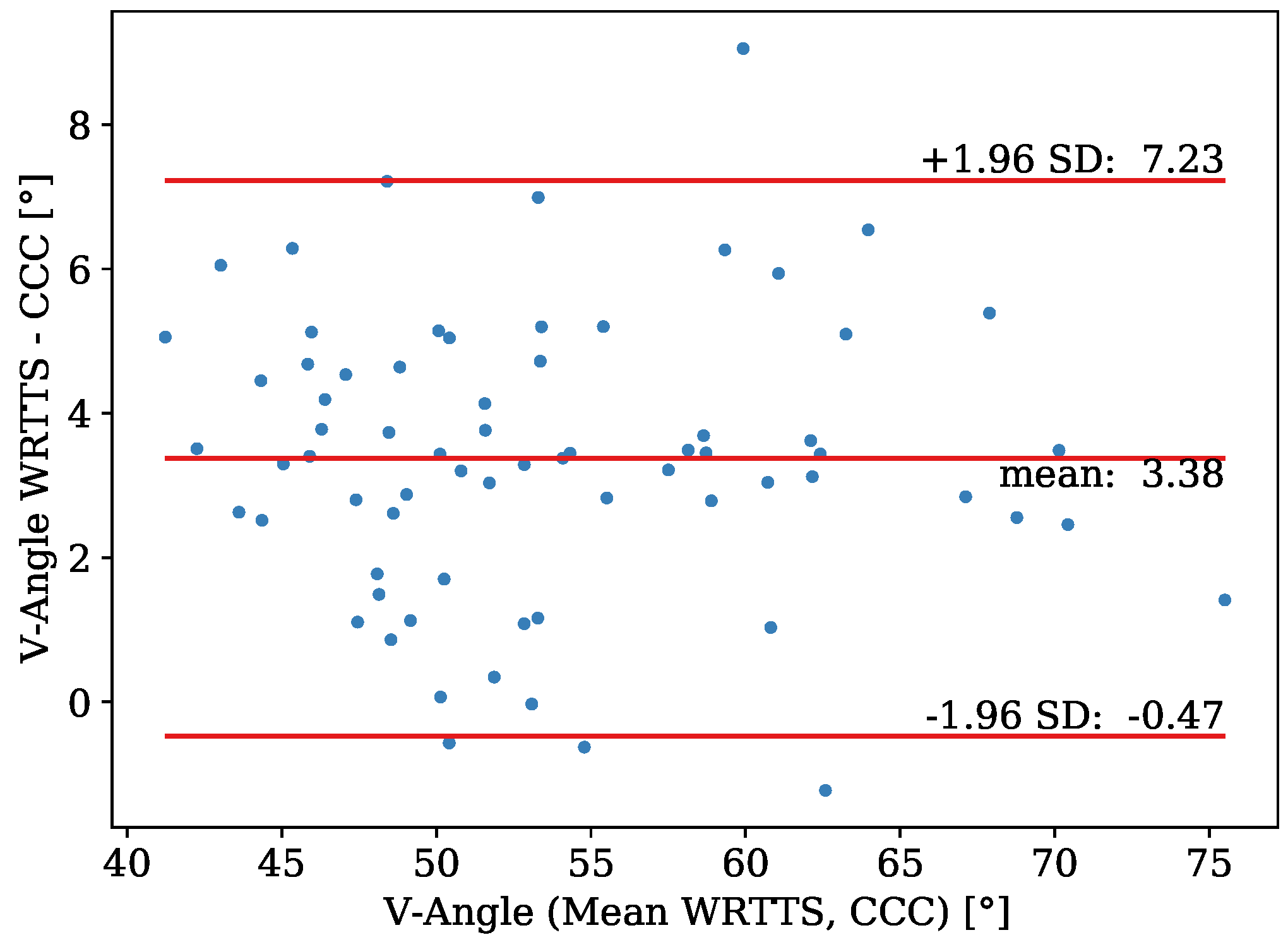

**Figure 12.**Bland–Altman plot for the comparison of the projected V-angle measured with the WRRTS and the PTZ camera.

**Table 1.**Bias, SEM, and precision of the X- and Z-coordinate determined with the WRRTS and camera vectors for every camera individually.

Coordinate | Metric | Camera Position | ||||
---|---|---|---|---|---|---|

0 m | 8 m | 18 m | 45 m | 60 m | ||

X | bias [m] | −0.001 | −0.0086 | −0.008 | −0.088 | −0.077 |

SEM [m] | 0.001 | 0.0005 | 0.001 | 0.004 | 0.005 | |

precision [m] | 0.01 | 0.007 | 0.02 | 0.05 | 0.06 | |

Z | bias [m] | −0.001 | −0.048 | −0.026 | −0.151 | −0.108 |

SEM [m] | 0.002 | 0.003 | 0.004 | 0.007 | 0.007 | |

precision [m] | 0.02 | 0.03 | 0.06 | 0.08 | 0.08 |

**Table 2.**MAE between the WRRTS and the respective reference system for all parameters investigated in this study.

Parameter | Accuracy (MAE) |
---|---|

jumping distance | $0.46\text{}\mathrm{m}$ |

3D position | $0.12\text{}\mathrm{m}$ |

lateral angle | $0.8{}^{\xb0}$ |

V-angle | $3.4{}^{\xb0}$ |
