Predictive Intelligent Transportation: Alleviating Traffic Congestion in the Internet of Vehicles
Abstract
:1. Introduction
- Compared with the isolated-dimensional TSC strategy, we formulate a PTSC model based on the feedback regulation from VRG whose decisions are considered by introducing a medium variable—predictive traffic flow (determined by the changes in vehicular path plans);
- Compared with the isolated-dimensional VRG strategy, we formulate a PVRG model based on the feedback regulation from TSC whose schemes are considered by introducing a medium variable—predictive vehicular waiting time (determined by different traffic signal schemes);

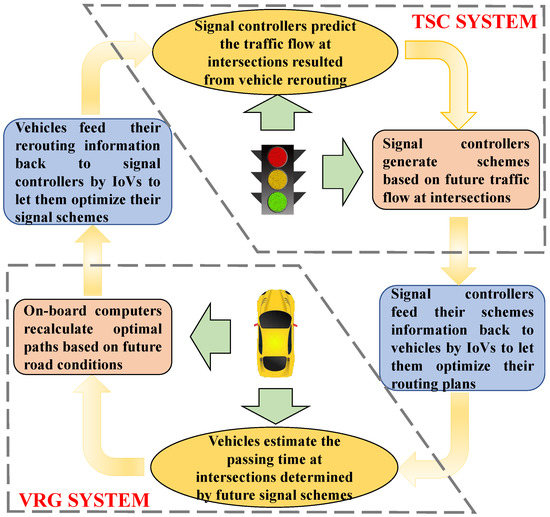

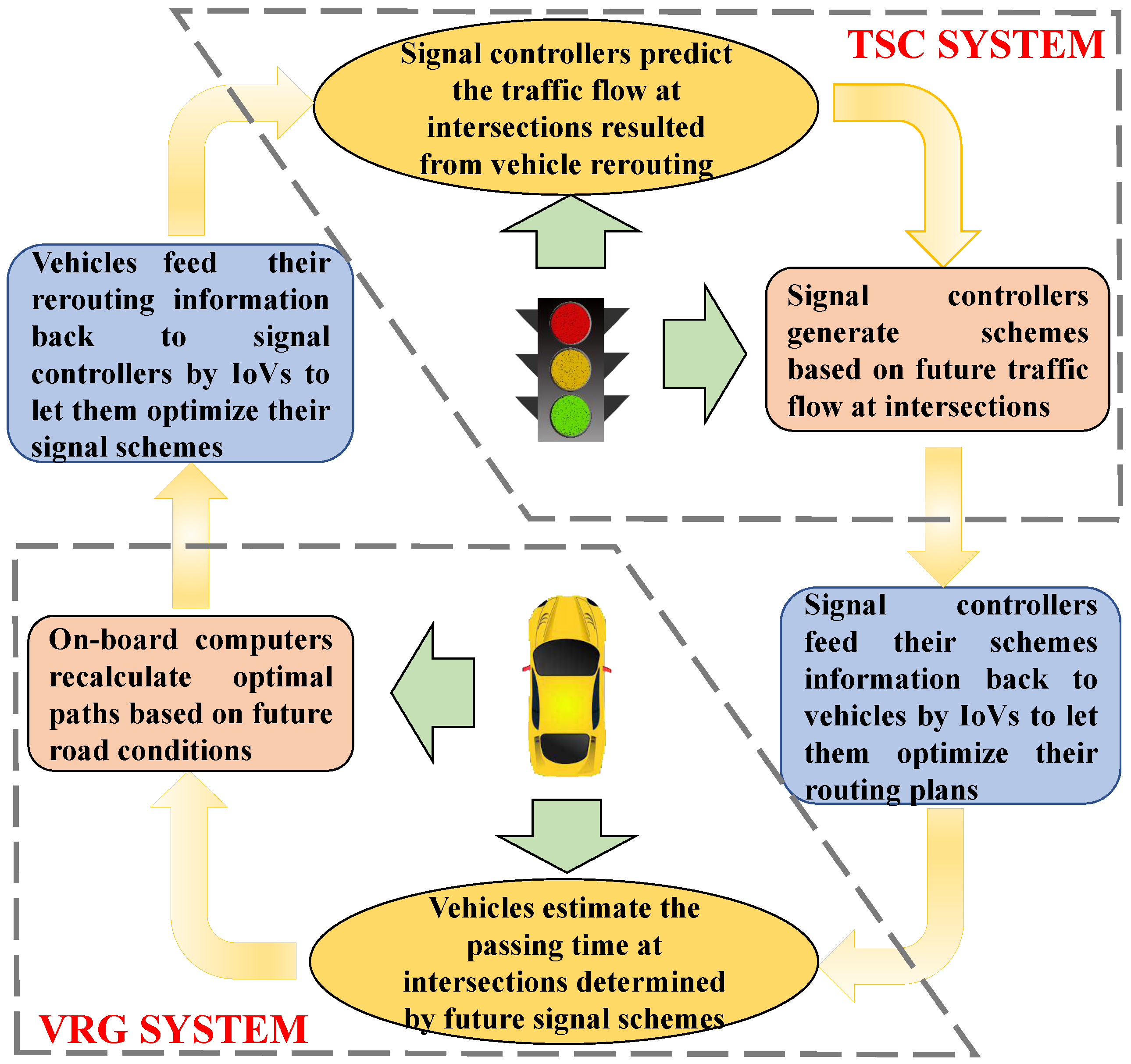

- We propose a novel “coordinated control” model—PIT for a whole traffic management system based on the two-way feedback regulation between PTSC and PVRG to acquire the coordinated schemes, and design an asymmetric information-based updating distributed algorithm to solve it.
2. Formalization for This Art

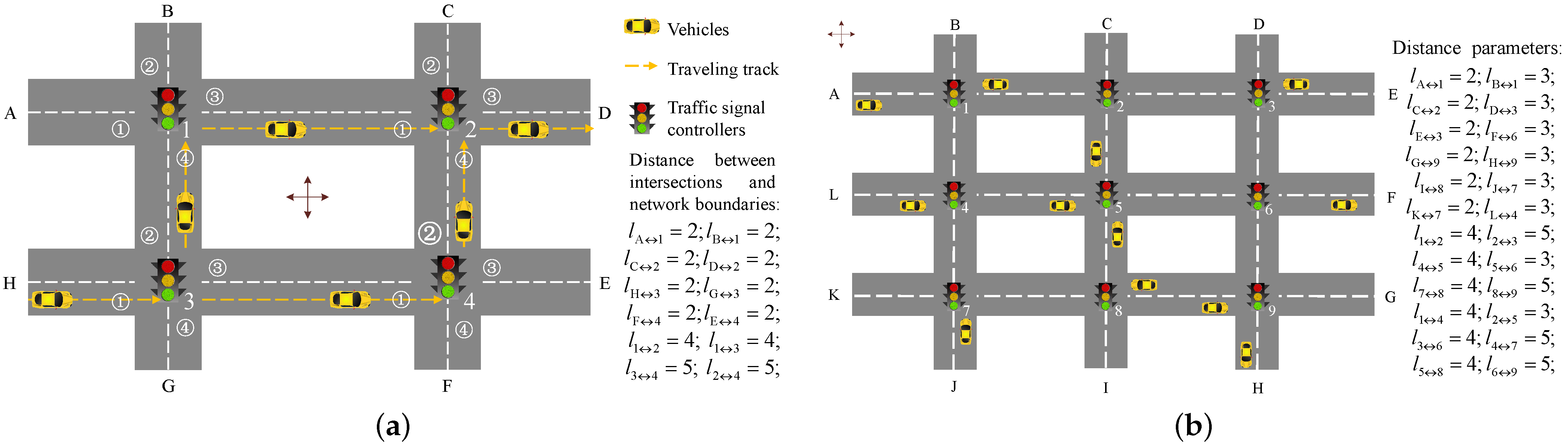

2.1. Formalization of Traffic Network

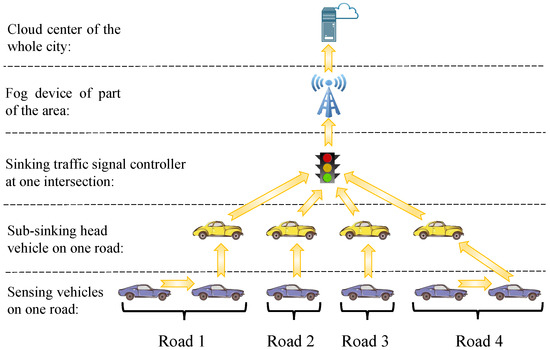

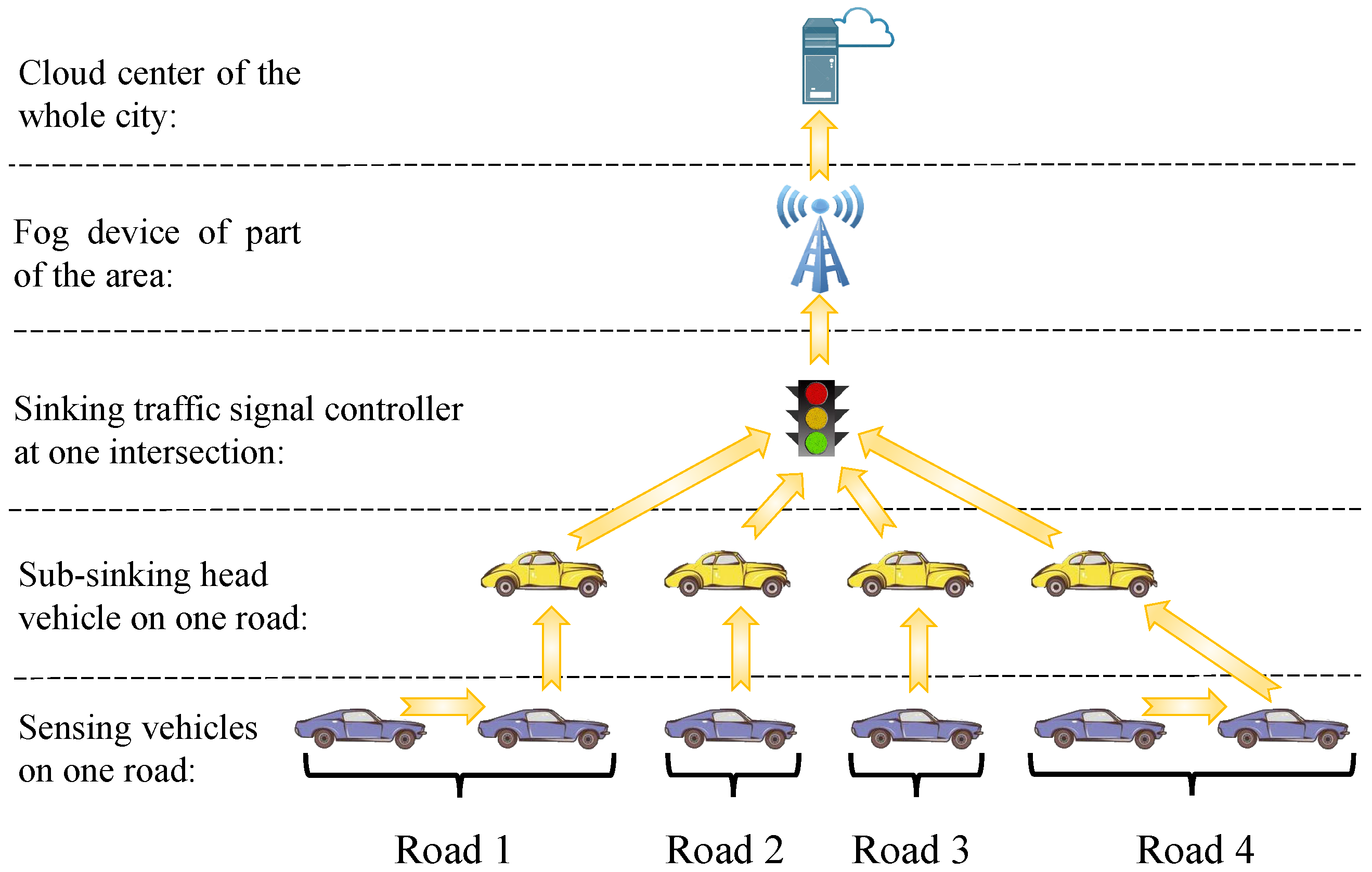

- Step 1. Based on the V2V technique, all non-head vehicles as sensor nodes send their route plans to the vehicles in front of them until all route information is gathered into the head vehicles (sub-sink nodes) on each road;
- Step 2. Based on the V2I technique, All head vehicles transmit these gathered route plans to the signal controller (sink devices) at intersection;
- Step 3. The sets of route plans and signal schemes are delivered to the cloud center from all signal controllers via the fog devices.

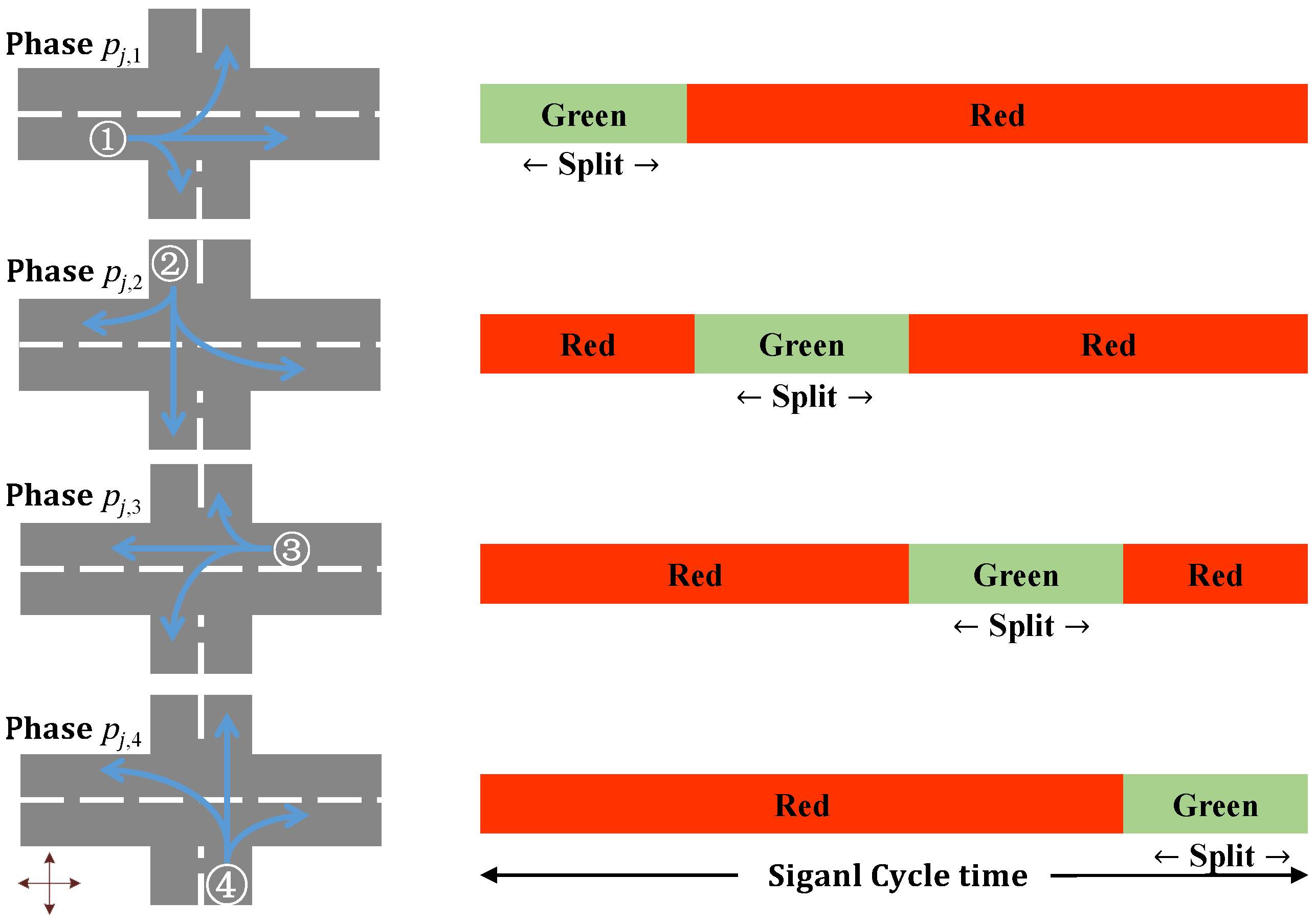

2.2. Formalization of Traffic Signal at Intersections
2.3. Formalization of Vehicle Driving
3. Contributions for Alleviating Traffic Congestion
3.1. Motivation
3.2. Contribution of PTSC and PVRG
3.2.1. Contribution of PTSC
Algorithm 1 Short-term flow prediction for intersections. |
Input: Set of current route directions and set of vehicular estimated arriving time Output: Set of predictive short-term flow
|
3.2.2. Contribution of PVRG
3.3. Contribution of PIT
3.3.1. Model of PIT

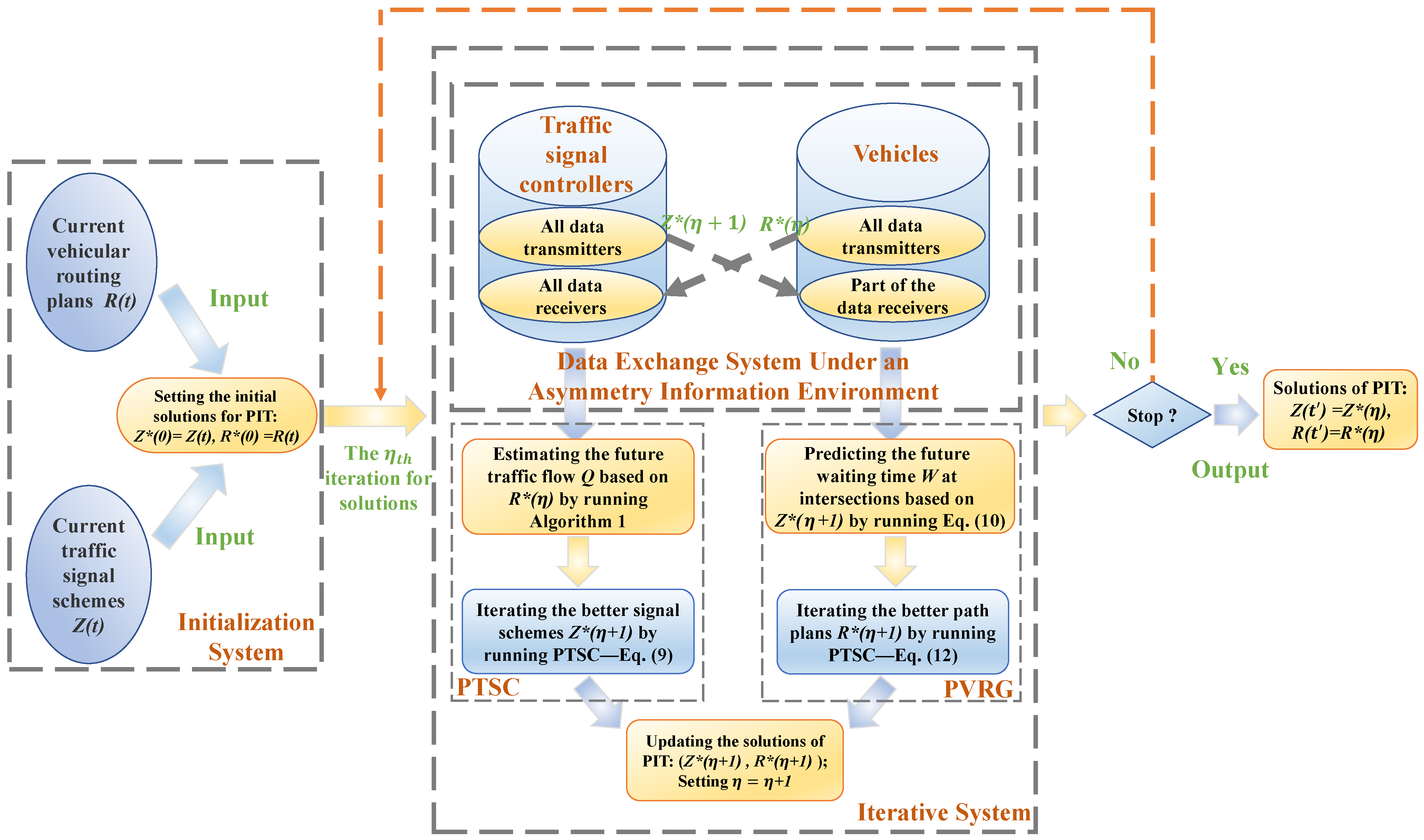

3.3.2. Solving Algorithm for PIT
Algorithm 2 Pseudo-code of our updating distributed algorithm for solving proposed PIT model. |
Input: Sets of current signal control schemes and current vehicular route plans Output: Sets of next signal control schemes of PTSC and next vehicle route plans of PVRG
|
3.4. Discussion
4. Simulation Experiments
Algorithm 3 Pseudo-code for vehicles driving in the experiments. |
Input: Set of initial configuration schemes of signal control and the set of initial configuration plans of vehicle route Output: Set of intersections’ delay time and the set of vehicular driving time
|
4.1. Preparation
4.2. Validity Test and Sensitivity Analysis
4.2.1. Validity Test
4.2.2. Sensitivity Analysis
- (1)

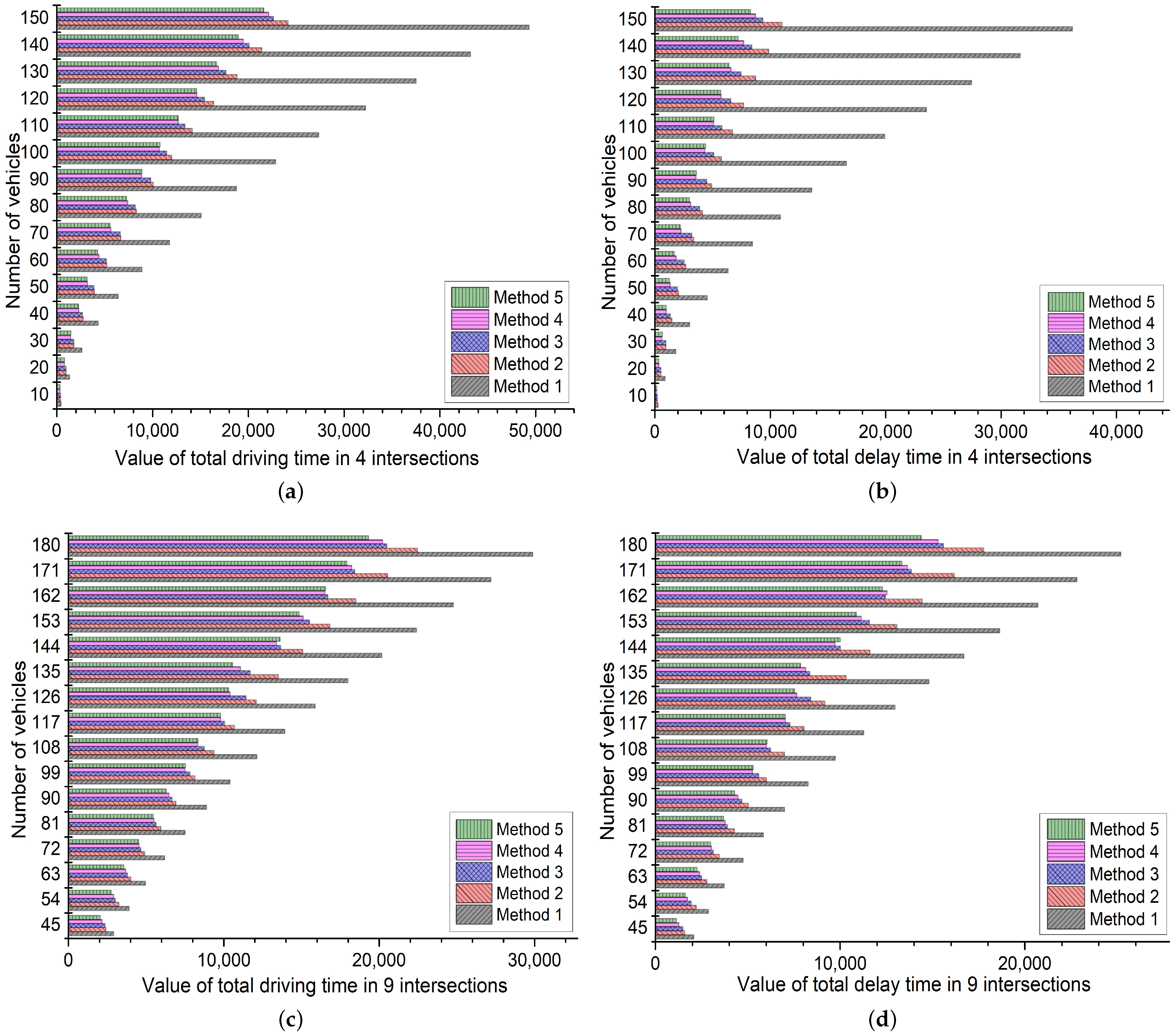

- In Figure 6a,b, for the robustness of the non-predictive dynamic TSC model, method 2 still performs better than method 1 with the increased vehicle number in Scenario 1. The average improvement efficiency is 47.85% and 65.81% in driving time and delay time, respectively. For the robustness of PVRG, all experiments in method 3 perform better than method 2 due to the working of predictive rerouting. The average improvement efficiency is 4.69% and 11.82% in driving time and delay time, respectively. For the robustness of PTSC, all experiments in method 4 achieve better results than method 3 due to the prediction of future traffic flow in TSC. The average improvement efficiency is 6.63% and 15.21% in driving time and delay time, respectively. For the robustness of PIT, the overall performance of method 5 remains better than the isolated improvements in PTSC and PVRG due to the function of our coordinated mechanism. Compared with method 4, 73.33% of the experiments obtain better results. The average improvement efficiency is 1.18% and 2.70% in driving time and delay time, respectively.
- (2)
- In Figure 6b,c, similarly, the functions of non-predictive dynamic TSC model, PVRG, PTSC and PIT are still conspicuous with the increased number of intersections in Scenario 2. Specifically, the average improvement efficiencies in driving time and delay time are 23.75% and 29.04% (comparing method 2 with 1), 8.00% and 11.97% (comparing method 3 with 2) 2.99% and 3.30% (comparing method 4 with 3), and 1.56% and 2.20% (comparing method 5 with 4), respectively. The efficiency of all methods is consistent with the conclusions in Section 4.2.1.
4.3. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
PIT | Predictive intelligent transportation |
IoVs | Internet of Vehicles |
(P)TSC | (Predictive) Traffic signal control |
(P)VRG | (Predictive) Vehicle routing guidance |
I | Set of vehicles |
J | Set of intersections |
Distance between two different intersections j and | |
Optional route node of vehicle i at the entrance of intersection j | |
Set of optional route nodes of vehicle i, | |
H | Set of optional route nodes of all vehicles, |
Path weight from route node to a different route node , | |
Estimated waiting time of vehicles at route node | |
W | Set of estimated waiting time, |
Route plan of vehicle i | |
R | Set of vehicle route plans, |
Driving time of vehicle i | |
phase of intersection j, in this paper | |
P | Set of phases, |
Estimated traffic flow at the entrances of phase | |
Q | Set of estimated traffic flow, |
Traffic signal cycle of intersection j, | |
Green traffic signal of phase , | |
Red traffic signal of phase , | |
Traffic signal scheme of intersection j | |
Z | Set of traffic signal schemes, |
Delay time of vehicle i at the green signal entrances of phase | |
Total vehicular delay time of intersection j | |
Set of virtual schemes of traffic signal | |
Set of virtual plans of vehicle route |
