Predictive Management Algorithm for Controlling PV-Battery Off-Grid Energy System
Abstract
:1. Introduction
2. Materials and Methods

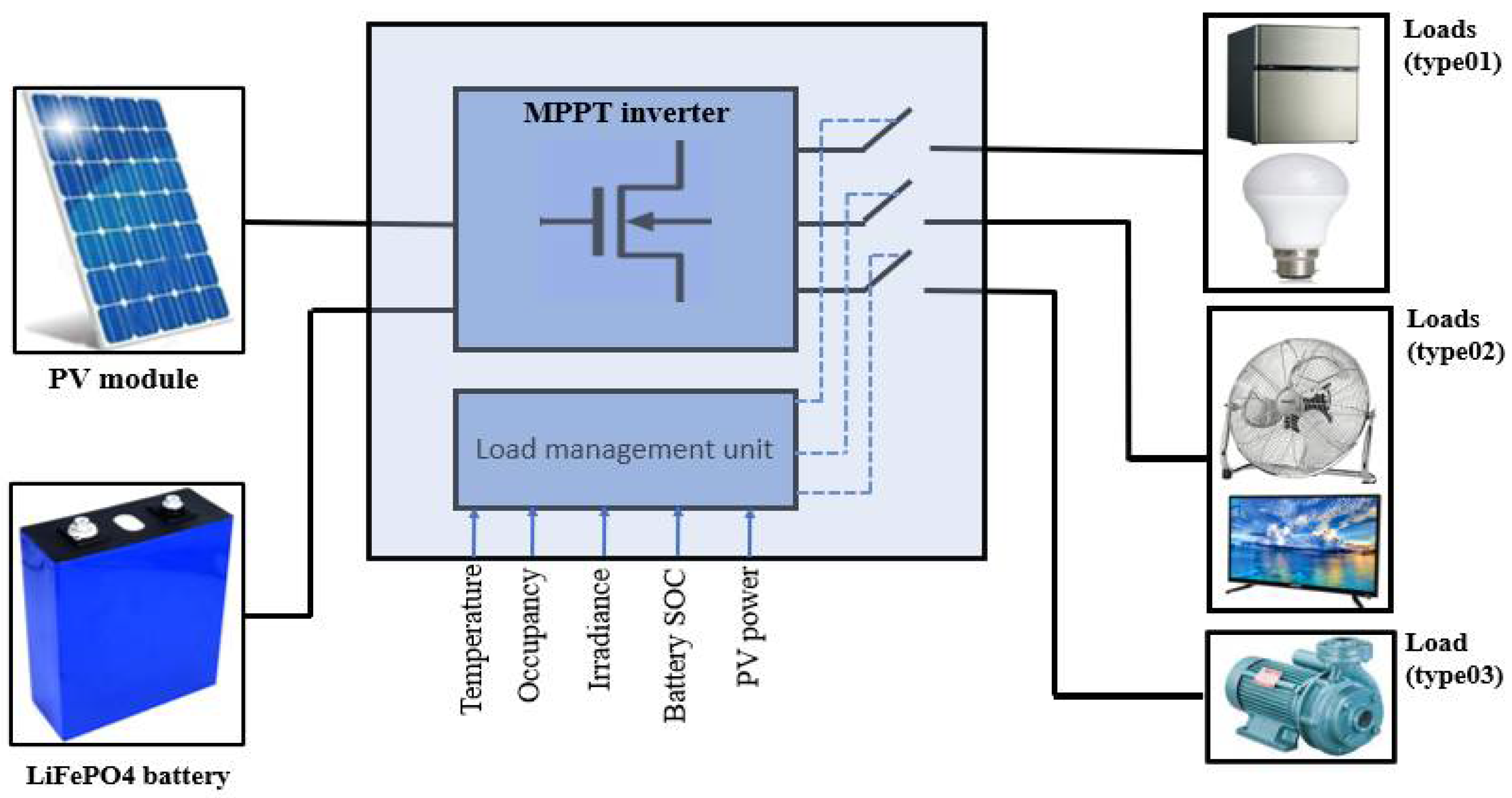

2.1. System Description
2.2. Modeling
2.2.1. Modeling of the Photovoltaic Generator
2.2.2. Inverter Modeling
2.2.3. Battery Energy Modeling
2.3. Power Flow Control and Management

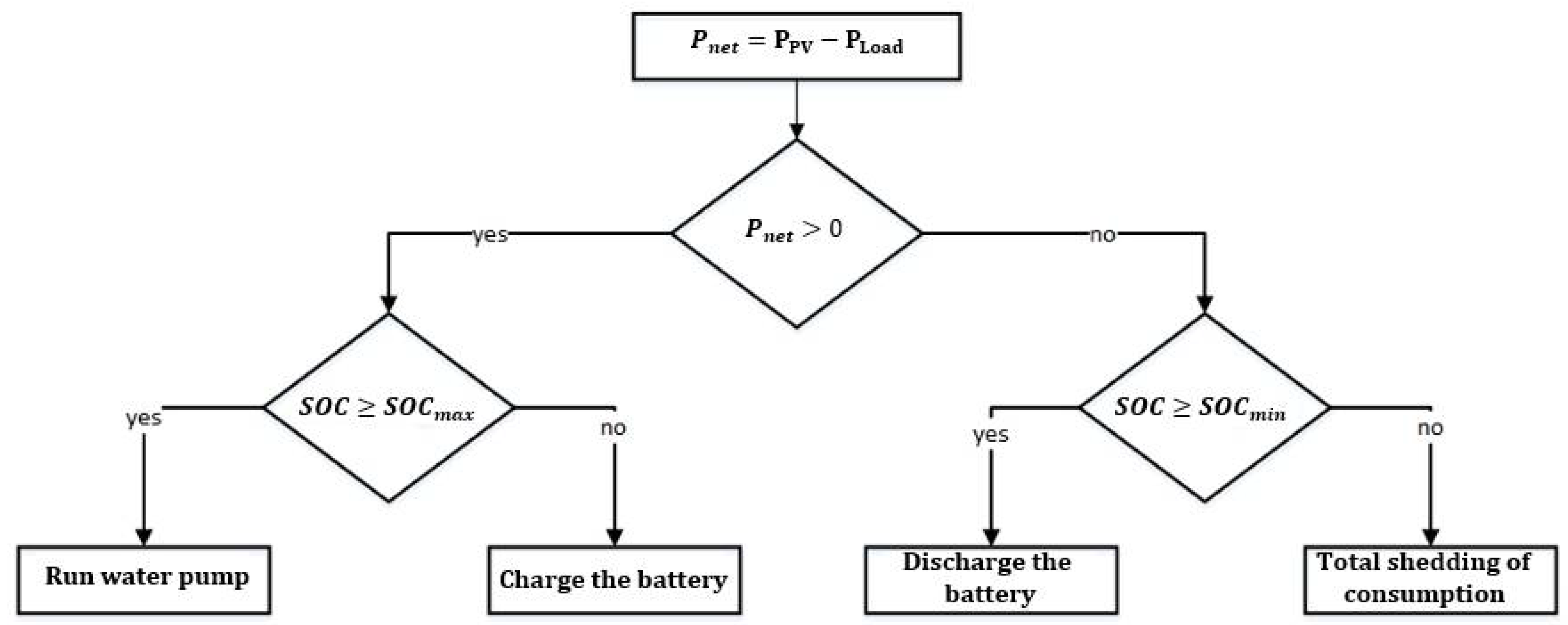

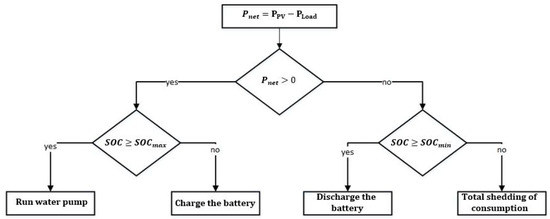

2.3.1. Power Control

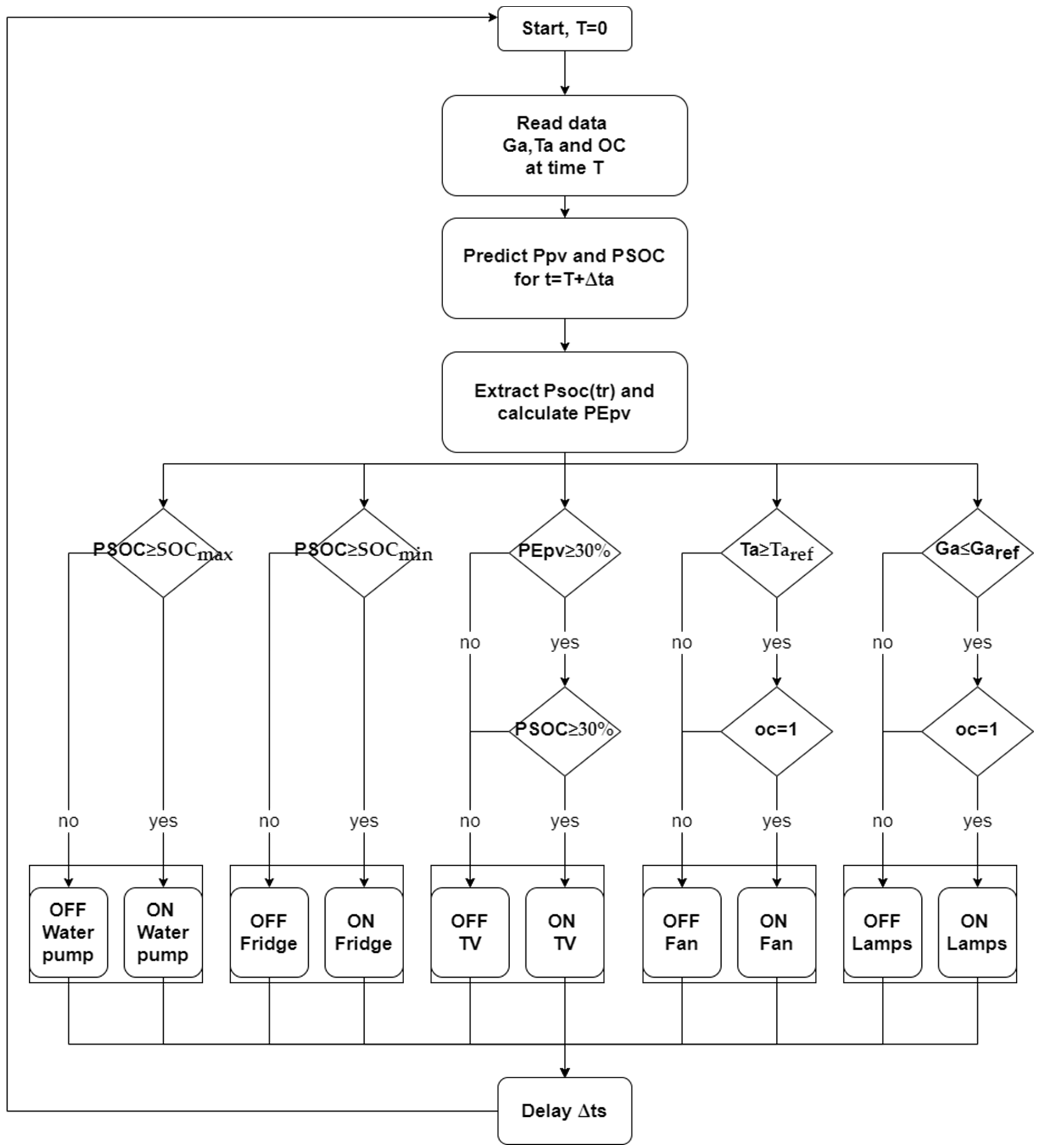

2.3.2. Load Management Strategy
- Loads type 01: These are the loads that have priority over the other load types. They include the different lamps and the refrigerator.
- Loads type 02: These loads are less important than the load type 01 and include fans and TV.
- Loads type 03: This load is mainly a water pump that will be used to redirect any energy excess, which increases the energy efficiency of the system.
- The ambient temperature (Ta);
- The natural irradiance (Ga);
- The occupancy— if the house is occupied and if not;
- The predicted battery state of charge (PSOC) at time t + Δta;
- The predicted PV generated energy PEpv at time t + Δta.
- ≥
- = 1) & ( ≤ )
- ≥ & Oc = 1
- ≥

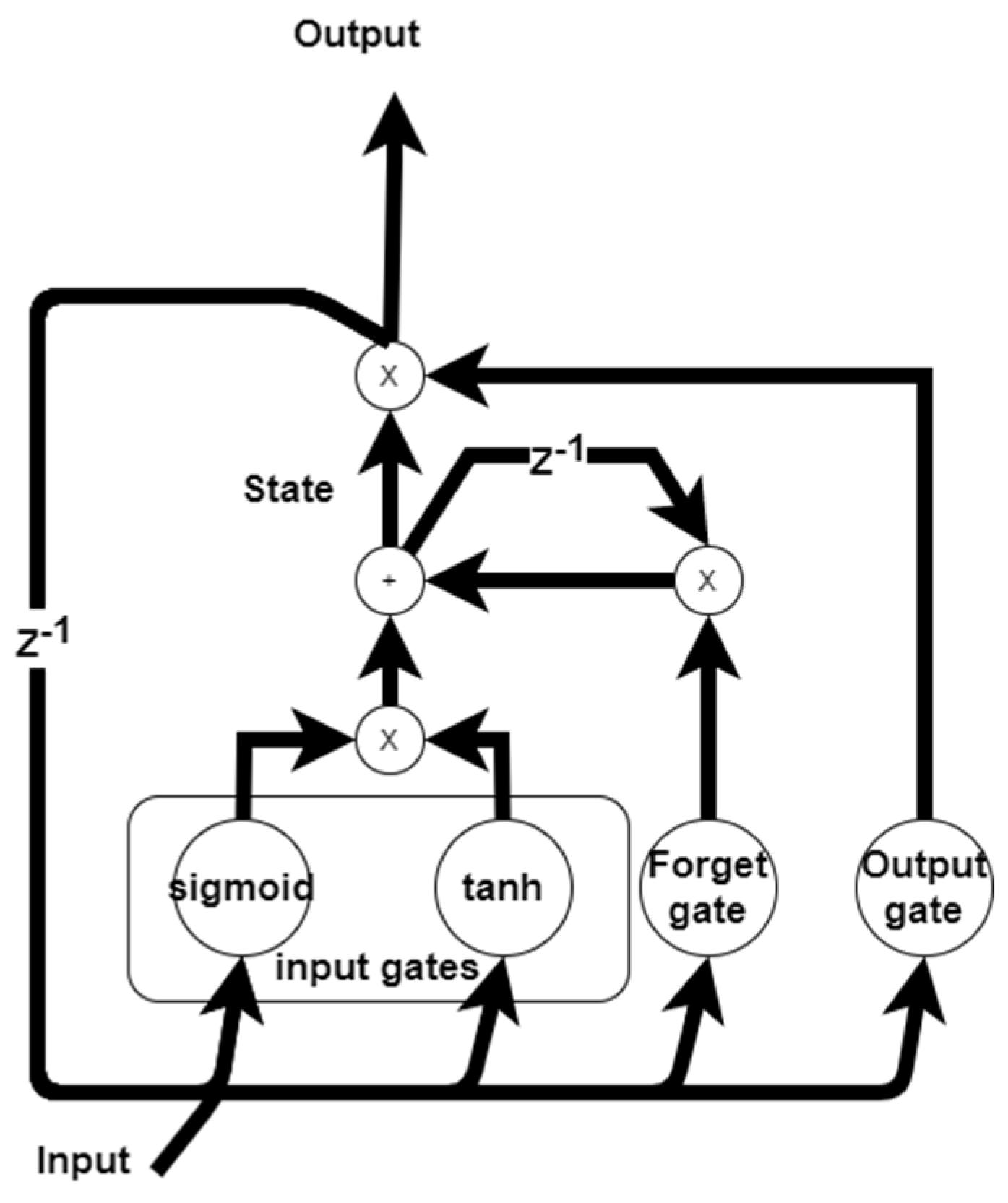

2.3.3. LSTM and Forecasting Algorithm
3. Simulation Results

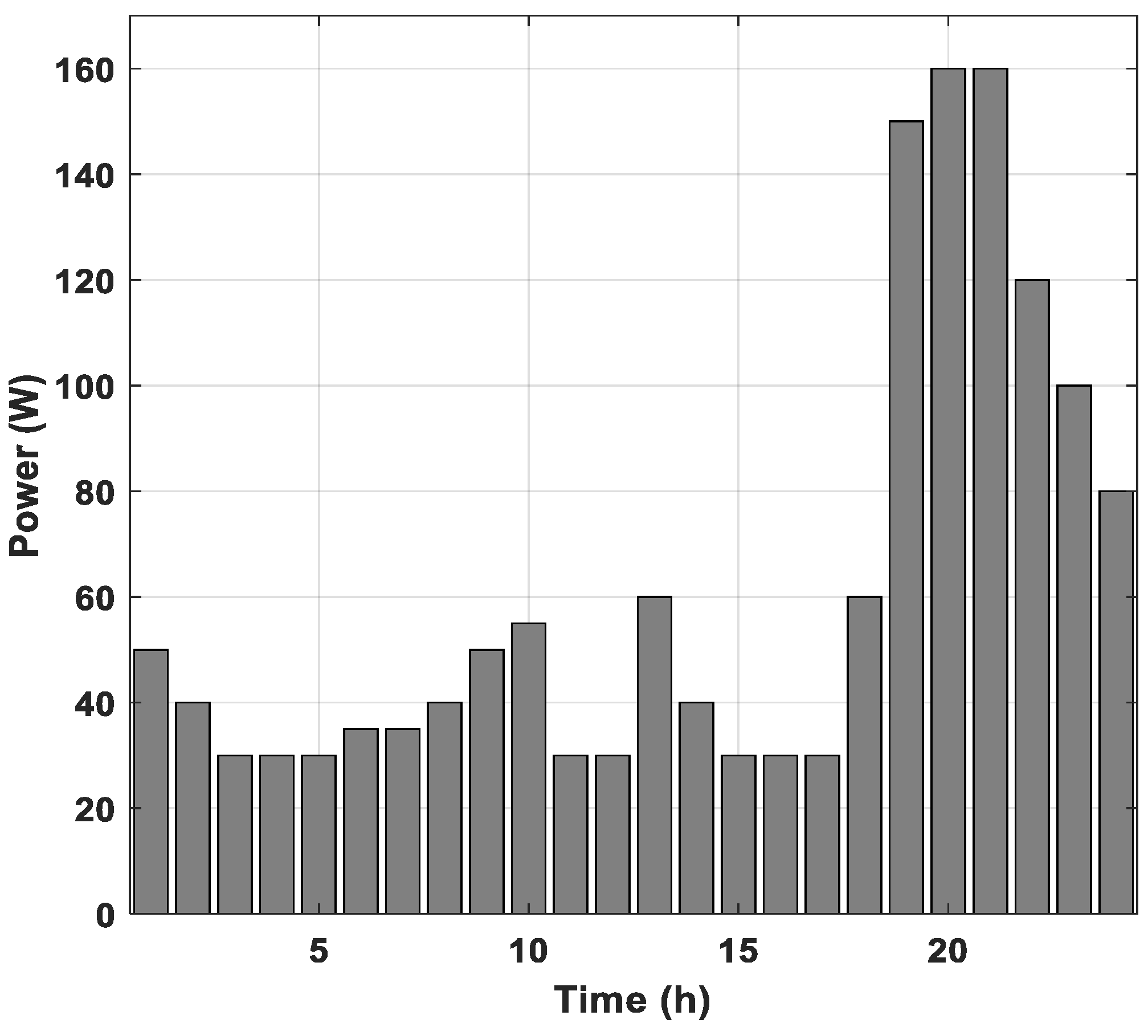

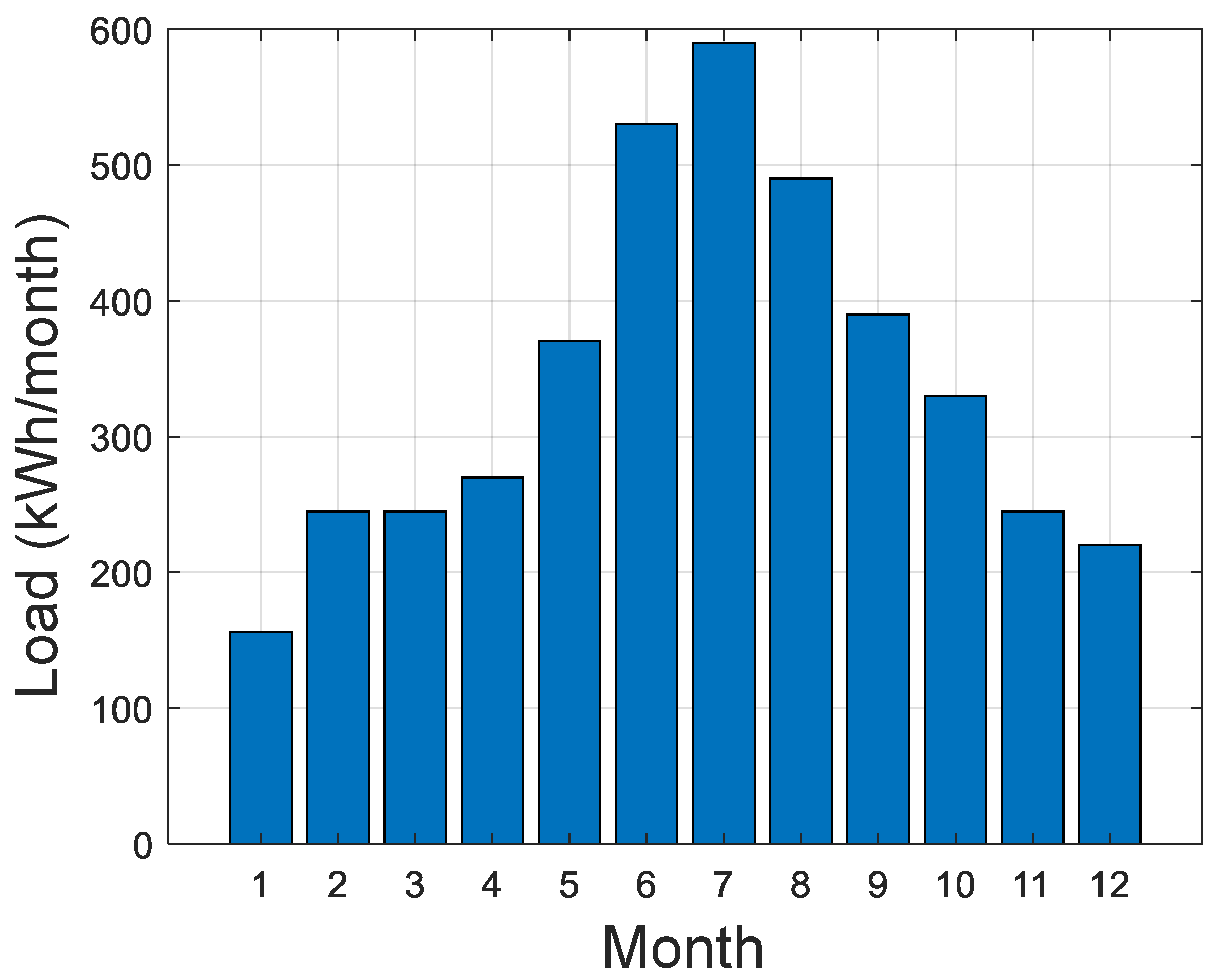

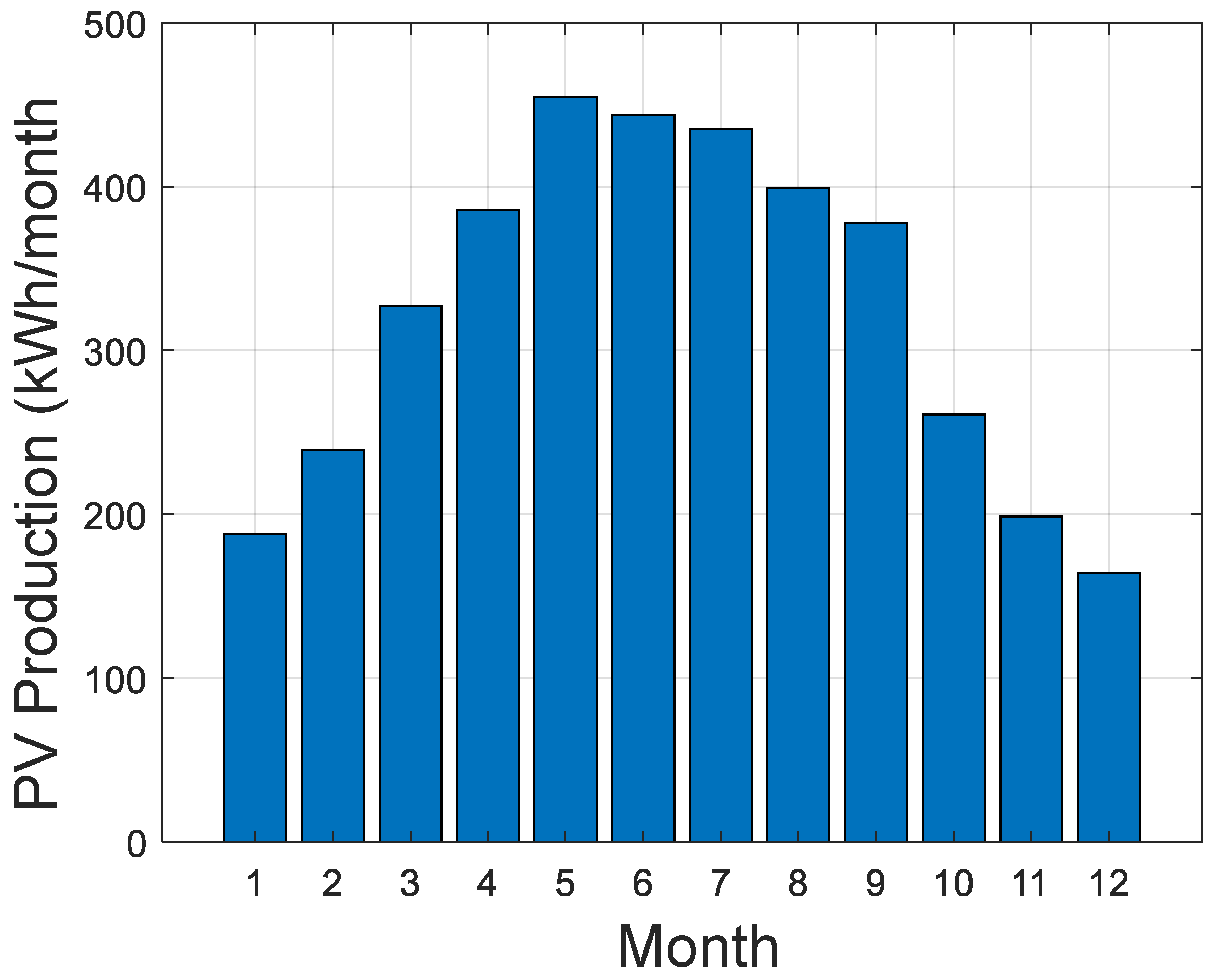

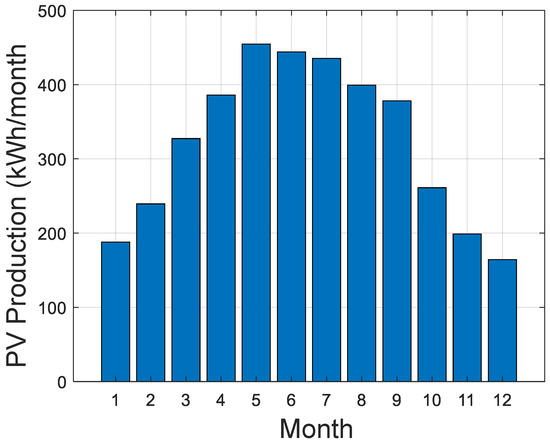

3.1. Application Site and Load Profile

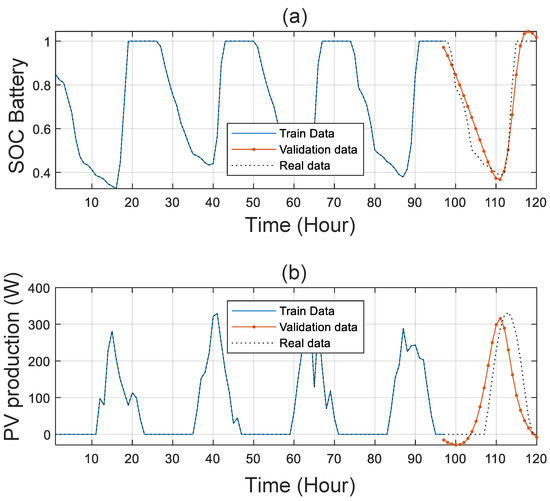

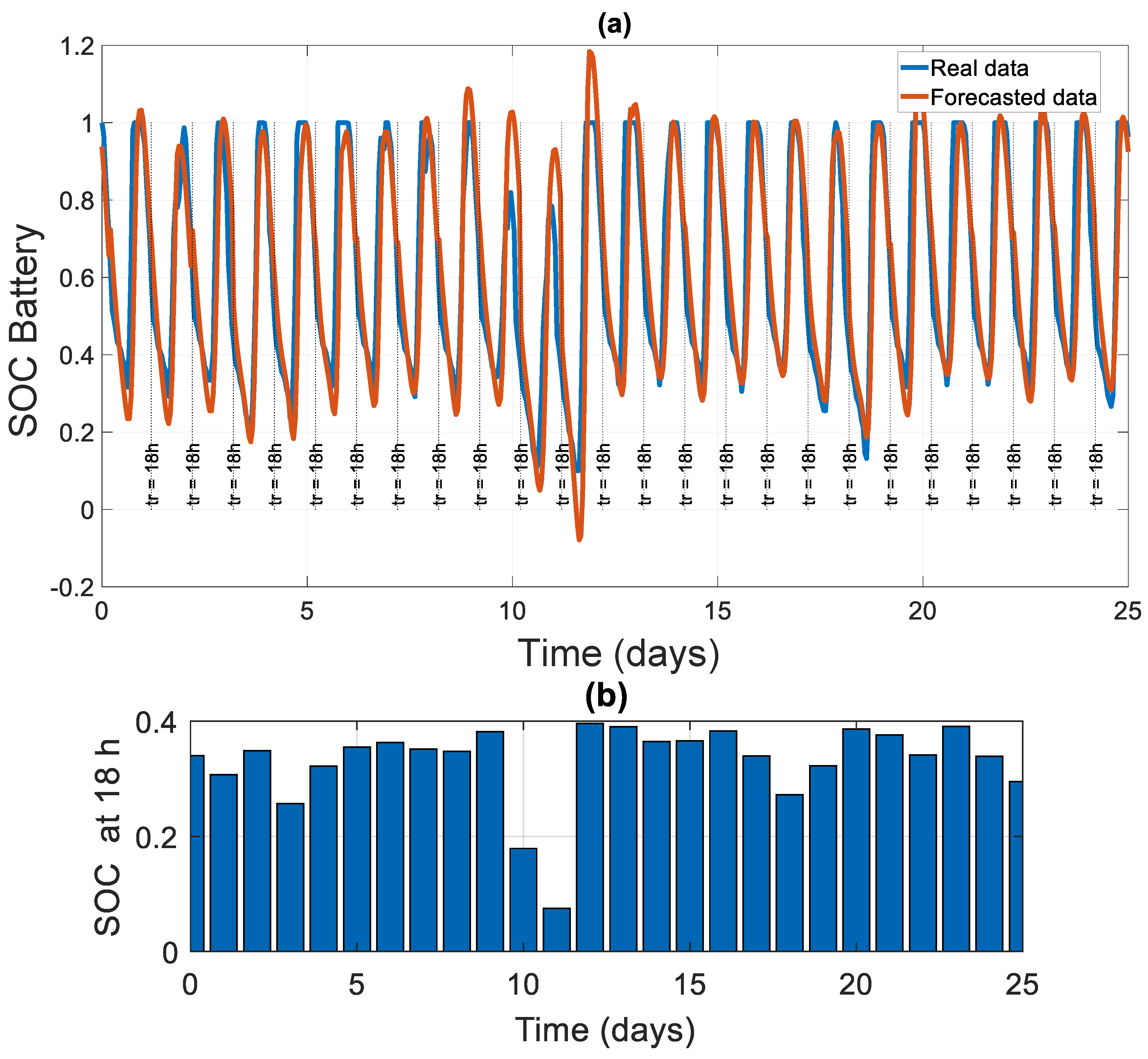

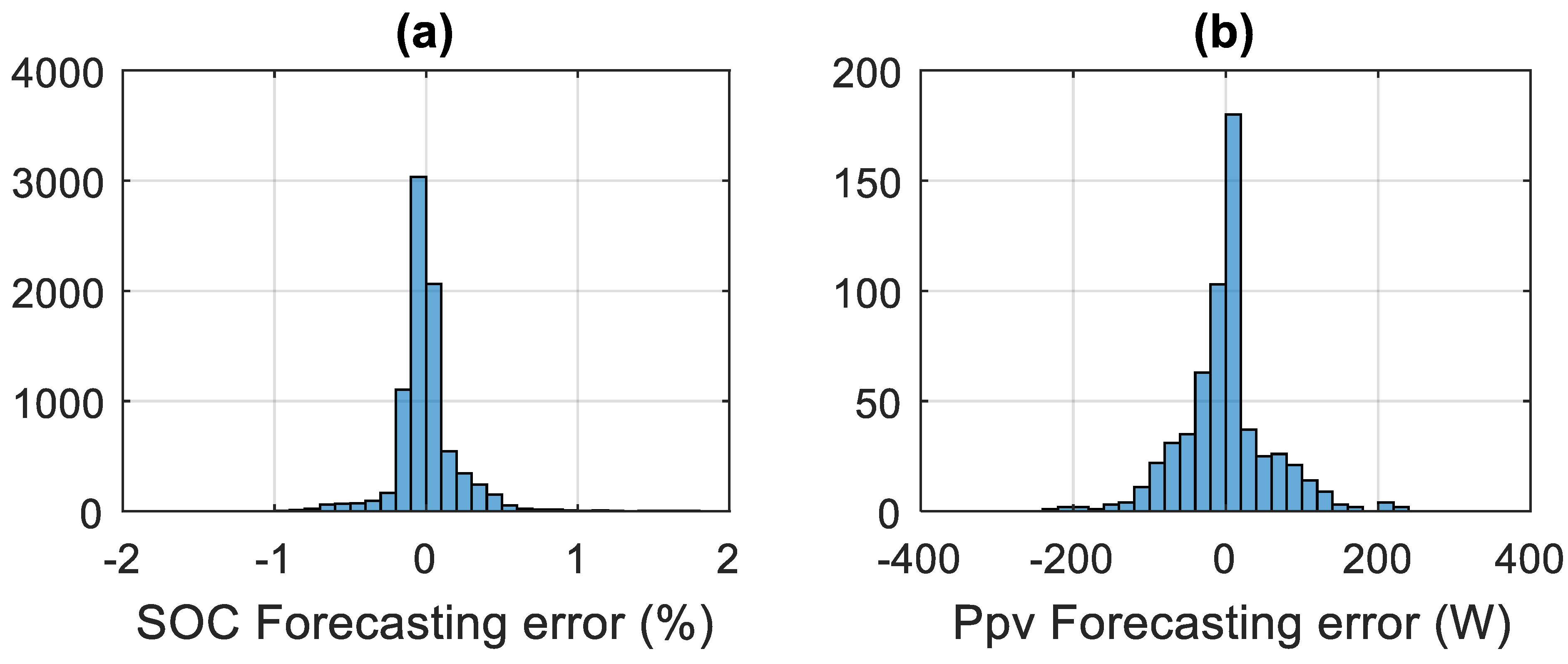

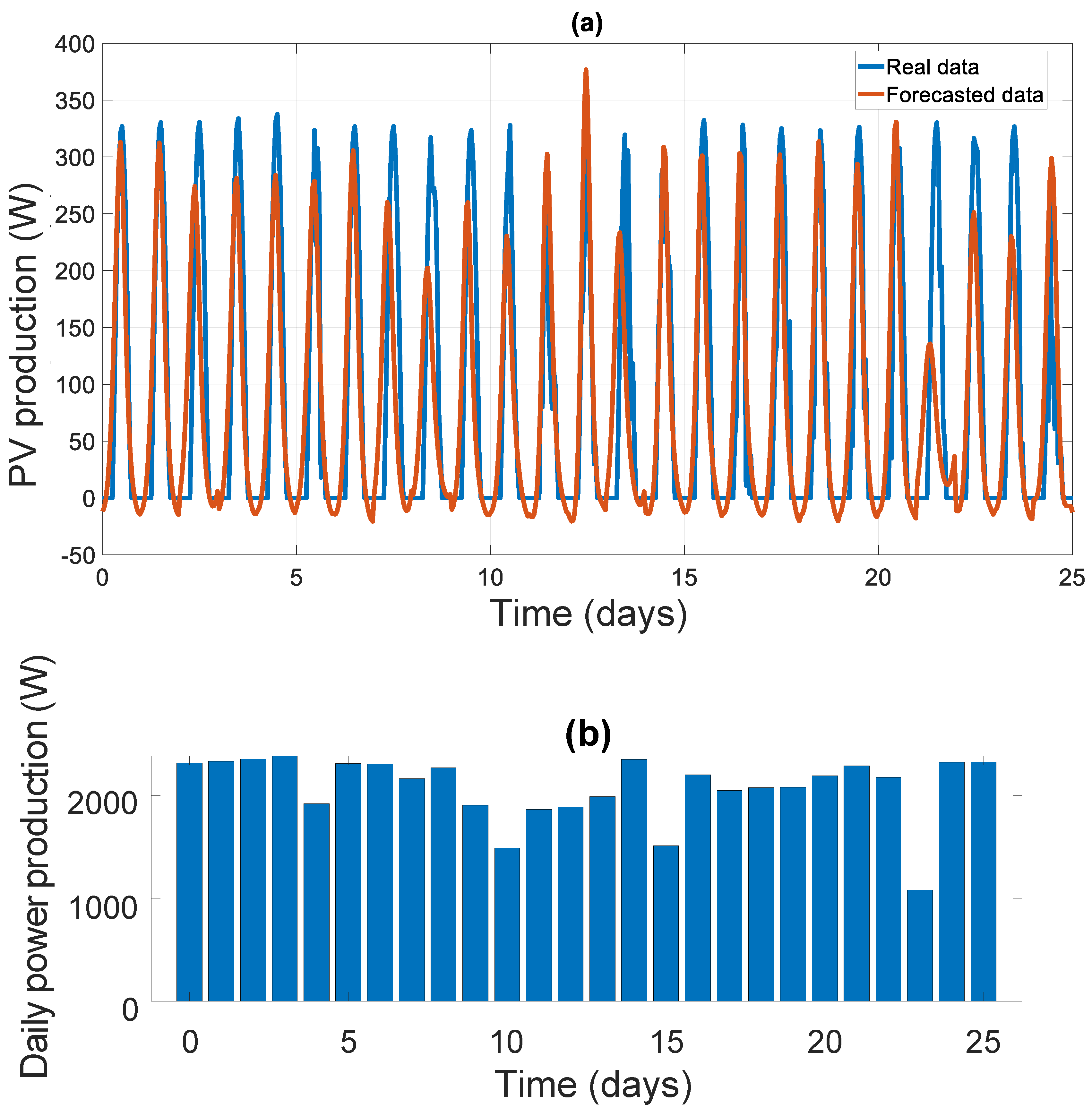

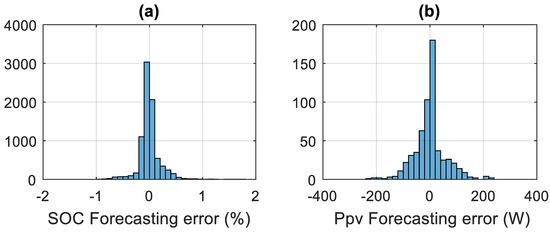

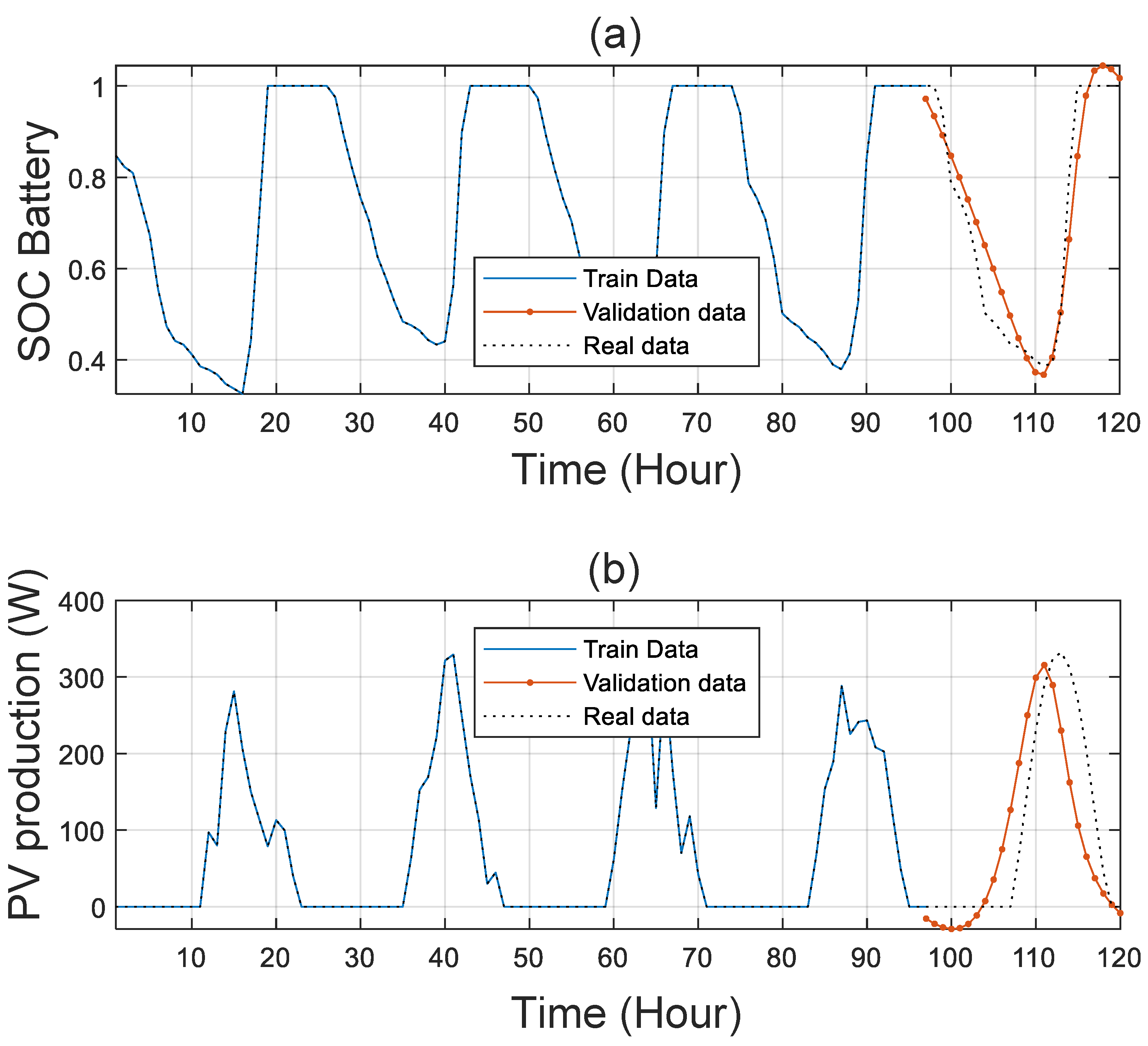

3.2. Forecasting Results

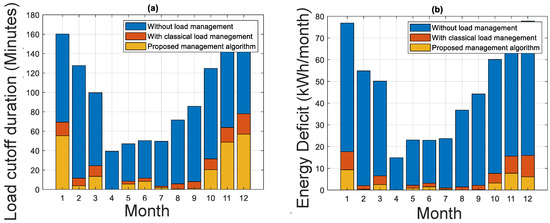

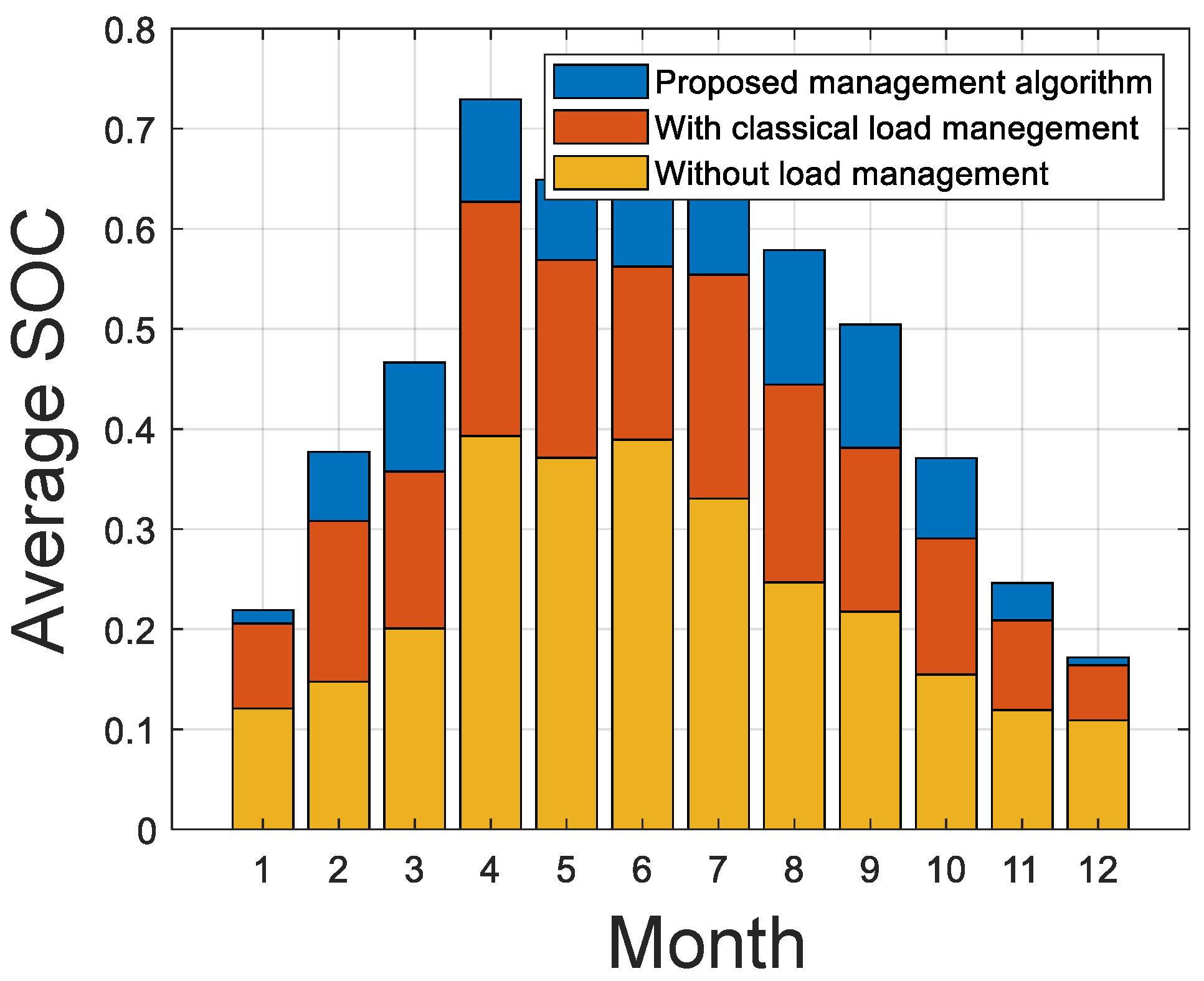

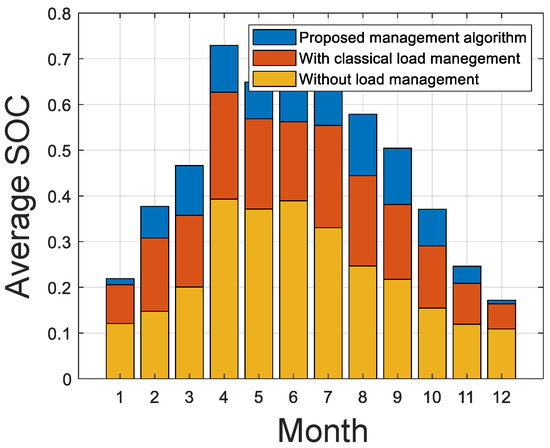

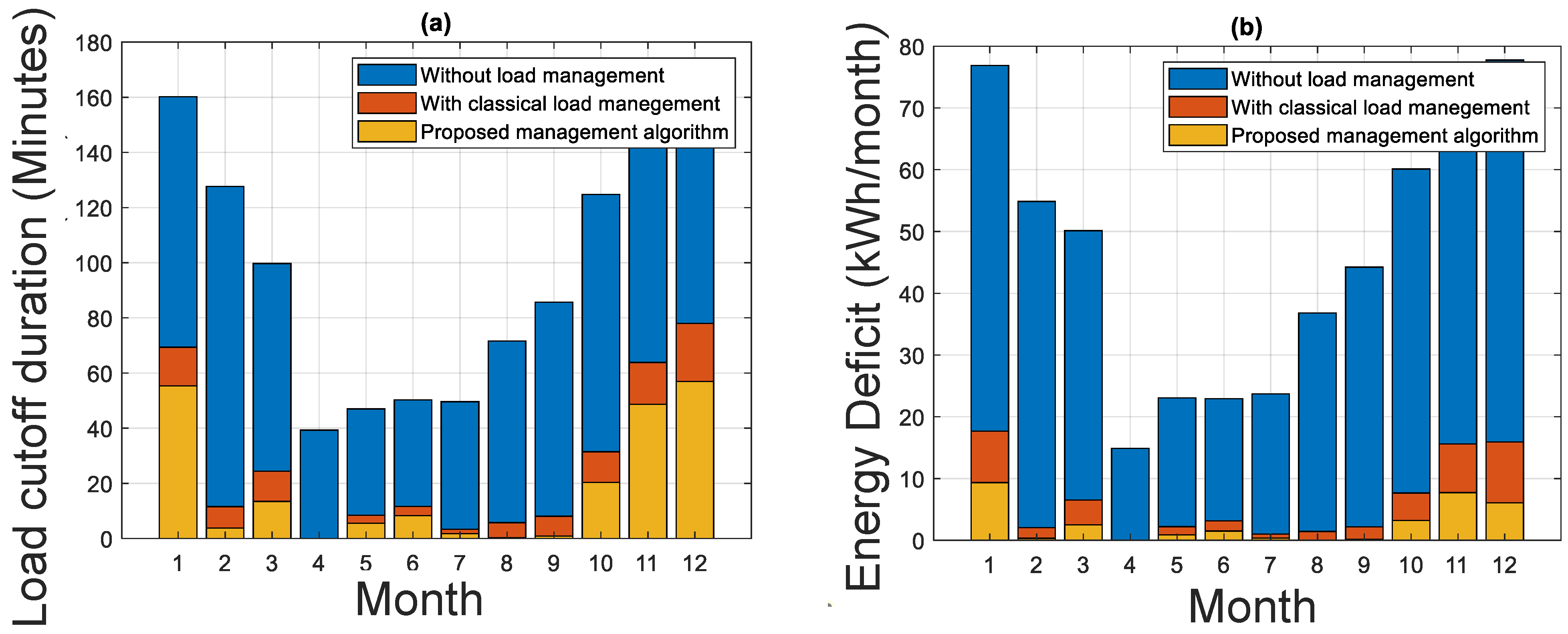

3.3. Management Algorithm Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Description | Symbol | Unit |
Photovoltaic | PV | - |
State of charge | SOC | - |
Loss of power supply probability | LPSP | - |
Battery management system | BMS | - |
Alternative current | AC | - |
Maximum power point tracking | MPPT | - |
PV power | W | |
PV efficiency | % | |
Irradiance | ||
Surface | ||
Efficiency of the module at the reference temperature | % | |
Power tracking efficiency | % | |
Thermal efficiency coefficient | %/°C | |
The temperature of the cell | °C | |
The ambient air temperature | °C | |
Nominal operating cell temperature | °C | |
Inverter output power | W | |
Inverter efficiency | % | |
Inverter input power | W | |
Inverter maximum input power | W | |
No load losses coefficient | - | |
The instant power of the battery | ,Pnet | W |
The instant load power | W | |
The nominal capacity of the battery | Wh | |
The battery state of charge | % | |
The predicted SOC | PSOC | % |
The predicted energy of the PV | Pepv | W |
The nominal irradiance | ||
The nominal temperature | °C |
References
- Daniluk, P. Strategic Analysis of Energy Security. Methodological Aspects of the Scenario Approach. Energies 2021, 14, 4639. [Google Scholar] [CrossRef]
- Asif, A.A.; Singh, R. Further Cost Reduction of Battery Manufacturing. Batteries 2017, 3, 17. [Google Scholar] [CrossRef]
- Attya, A.B.; Vickers, A. Operation and Control of a Hybrid Power Plant with the Capability of Grid Services Provision. Energies 2021, 14, 3928. [Google Scholar] [CrossRef]
- Kartite, J.; Cherkaoui, M. Study of the different structures of hybrid systems in renewable energies: A review. Energy Procedia 2019, 157, 323–330. [Google Scholar] [CrossRef]
- Murugaperumal, K.; Srinivasn, S.; Prasad, S. Optimum design of hybrid renewable energy system through load forecasting and different operating strategies for rural electrification. Sustain. Energy Technol. Assess. 2020, 37, 100613. [Google Scholar] [CrossRef]
- Khan, M.J.; Iqbal, M.T. Analysis of a small wind-hydrogen stand-alone hybrid energy system. Appl. Energy 2009, 86, 2429–2442. [Google Scholar] [CrossRef]
- Cau, G.; Cocco, D.; Petrollese, M.; Kær, S.; Milan, C. Energy management strategy based on short-term generation scheduling for a renewable microgrid using a hydrogen storage system. Energy Convers. Manag. 2014, 87, 820–831. [Google Scholar] [CrossRef]
- Alnejaili, T.; Drid, S.; Chrifi-Alaoui, L. An advanced energy management system with an economical optimization for a multi-sources stand-alone Home. In Proceedings of the 7th International Conference on Systems and Control, Valencia, Spain, 24–26 October 2018. [Google Scholar]
- Nayeripour, M.; Hoseintabar, M.; Niknam, T.; Adabi, J. Power management, dynamic modeling and control of wind/FC/battery-bank based hybrid power generation system for stand-alone application. Eur. Trans. Electr. Power 2012, 22, 271–293. [Google Scholar] [CrossRef]
- Alnejaili, T.; Drid, S.; Chrifi-Alaoui, L. Control and optimal management of a multi-source energy system. In Proceedings of the 7th International Conference on Systems and Control, Valencia, Spain, 24–26 October 2018. [Google Scholar]
- Alnejaili, T.; Drid, S.; Mehdi, D.; Chrifi-Alaoui, L. Dynamic control and advanced load management of a stand-alone hybrid renewable power system for remote housing. Energy Convers. Manag. 2015, 105, 377–392. [Google Scholar] [CrossRef]
- Alnejaili, T.; Drid, S.; Mehdi, D.; Chrifi-Alaoui, L. A developed energy management strategy for a stand-alone hybrid power system for medium rural health building. Int. Trans. Electr. Energy Syst. 2015, 25, 713–729. [Google Scholar] [CrossRef]
- Liu, C.; Wang, Y.; Wang, L.; Chen, Z. Load-adaptive real-time energy management strategy for battery/ultracapacitor hybrid energy storage system using dynamic programming optimization. J. Power Sources 2019, 438, 227024. [Google Scholar] [CrossRef]
- Alnejaili, T.; Drid, S.; Mehdi, D.; Chrifi-Alaoui, L. Advanced strategy of demand-side management for photovoltaic-wind energy system. In Proceedings of the 15th International Conference on Sciences and Techniques of Automatic Control & Computer Engineering, Hammamet, Tunisia, 21–23 December 2014; pp. 797–802. [Google Scholar]
- Javeed, I.; Khezri, R.; Mahmoudi, A.; Yazdani, A.; Shafiullah, G.M. Optimal Sizing of Rooftop PV and Battery Storage for Grid-Connected Houses Considering Flat and Time-of-Use Electricity Rates. Energies 2021, 14, 3520. [Google Scholar] [CrossRef]
- Uddin, M.; Romlie, M.F.; Abdullah, M.F.; Tan, C.; Shafiullah, G.M.; Bakar, A.H.A. A novel peak shaving algorithm for islanded microgrid using battery energy storage system. Energy 2020, 196, 117084. [Google Scholar] [CrossRef]
- Lee, D. Low-cost and simple short-term load forecasting for energy management systems in small and middle-sized office buildings. Energy Explor. Exploit. 2021, 39, 637–656. [Google Scholar] [CrossRef] [Green Version]
- Fallah, S.N.; Deo, R.C.; Shojafar, M.; Conti, M.; Shamshirband, S. Computational intelligence approaches for energy load forecasting in smart energy management grids: State of the art, future challenges, and research directions. Energies 2018, 11, 596. [Google Scholar] [CrossRef] [Green Version]
- Panapongpakorn, T.; Banjerdpongchai, D. Short-Term Load Forecast for Energy Management Systems Using Time Series Analysis and Neural Network Method with Average True Range. In Proceedings of the First International Symposium on Instrumentation, Control, Artificial Intelligence, and Robotics (ICA-SYMP), Bangkok, Thailand, 16–18 January 2019; pp. 86–89. [Google Scholar]
- Cárdenas, J.J.; Romeral, L.; Garcia, A.; Andrade, F. Load forecasting framework of electricity consumptions for an Intelligent Energy Management System in the user-side. Expert Syst. Appl. 2012, 39, 5557–5565. [Google Scholar] [CrossRef]
- Boicea, V.A. Energy Management: Big Data in Power Load Forecasting; CRC Press: Boca Raton, FL, USA, 2021. [Google Scholar]
- Velasco, G.; Piqué, R.; Guinjoan, F.; Casellas, F.; delaHoz, J. Power sizing factor design of central inverter PV grid connected systems: A simulation approach. In Proceedings of the 14th International Power Electronics and Motion Control Conference, EPE-PEMC Ohrid, Ohrid, Macedonia, 6–8 September 2010; pp. 32–36. [Google Scholar]
- Fathoni, G.; Widayat, S.; Topan, P.; Cahyadi, A.; Wahyunggoro, O. Comparison of State-of-Charge (SOC) Estimation Performance Based on three Popular Methods: Coulomb Counting, Open Circuit Voltage, and Kalman Filter. In Proceedings of the 2nd International Conference on Automation, Cognitive Science, Optics, Micro Electro-Mechanical System, and Information Technology (ICACOMIT), Jakarta, Indonesia, 23 October 2017. [Google Scholar]
- Gismero, A.; Schaltz, E.; Stroe, D.I. Recursive State of Charge and State of Health Estimation Method for Lithium-Ion Batteries Based on Coulomb Counting and Open Circuit Voltage. Energies 2020, 13, 1811. [Google Scholar] [CrossRef] [Green Version]
- Bento, P.; Pombo, J.; Mariano, S.; do Rosário Calado, M. Short-term load forecasting using optimized LSTM networks via improved bat algorithm. In Proceedings of the 2018 International Conference on Intelligent Systems (IS), Funchal, Madeira Island, Portugal, 25–27 September 2018; pp. 351–357. [Google Scholar]
Component | Characteristics |
---|---|
Battery | 1300 Whr |
PV | 400 Wc |
Inverter | 1 kW |
Symbol | Value |
---|---|
2.3 m2 | |
16% | |
0.98 | |
0.5%/°C | |
25 °C |
Symbol | Value |
---|---|
95% | |
1 kW | |
0.005 | |
0.005 | |
0.06 |
Constant | Value |
---|---|
10% | |
30% | |
30% | |
95% | |
20 °C | |
100 W/m2 |
