Accurate Reference Gas Mixtures Containing Tritiated Molecules: Their Production and Raman-Based Analysis

1
Tritium Laboratory Karlsruhe (TLK), Institute for Astroparticle Physics (IAP), Karlsruhe Institute of Technology (KIT), Hermann-von-Helmholtz-Platz 1, 76021 Karlsruhe, Germany
2
Departamento de Química Física Aplicada, Campus de Cantoblanco, Universidad Autónoma de Madrid, 28049 Madrid, Spain
3
Institut für Physik, Humboldt-Universität zu Berlin, Unter den Linden 6, 10099 Berlin, Germany
*
Authors to whom correspondence should be addressed.
Sensors 2021, 21(18), 6170; https://doi.org/10.3390/s21186170
Received: 16 July 2021 / Revised: 1 September 2021 / Accepted: 10 September 2021 / Published: 14 September 2021
(This article belongs to the Section Chemical Sensors)

Abstract

:
Highly accurate, quantitative analyses of mixtures of hydrogen isotopologues—both the stable species, H2, D2, and HD, and the radioactive species, T2, HT, and DT—are of great importance in fields as diverse as deuterium–tritium fusion, neutrino mass measurements using tritium β-decay, or for photonuclear experiments in which hydrogen–deuterium targets are used. In this publication we describe a production, handling, and analysis facility capable of fabricating well-defined gas samples, which may contain any of the stable and radioactive hydrogen isotopologues, with sub-percent accuracy for the relative species concentrations. The production is based on precise manometric gas mixing of H2, D2, and T2. The heteronuclear isotopologues HD, HT, and DT are generated via controlled, in-line catalytic reaction or by β-induced self-equilibration, respectively. The analysis was carried out using an in-line intensity- and wavelength-calibrated Raman spectroscopy system. This allows for continuous monitoring of the composition of the circulating gas during the self-equilibration or catalytic evolution phases. During all procedures, effects, such as exchange reactions with wall materials, were considered with care. Together with measurement statistics, these and other systematic effects were included in the determination of composition uncertainties of the generated reference gas samples. Measurement and calibration accuracy at the level of 1% was achieved.

1. Introduction

Quantitative, compositional analysis of gas mixtures, which contain hydrogen (H2), is frequently required in the characterization and monitoring of, for example, combustion gases. Much less common are mixtures that contain any of the other hydrogen isotopologues (D2, T2, HD, HT, and DT, in addition to H2). However, there are a number of research fields and practical applications requiring highly accurate analysis of such mixtures, specifically those which contain tritium-substituted species. This need for tritium analysis and monitoring is encountered in the following three topical applications.
Firstly, analysis of tritium purity and of operational mixture preparation is key in tritium production and processing installations, such as, for example, our own Tritium Laboratory Karlsruhe (TLK) [1].
Secondly, tritium/deuterium mixtures will be used as the fuel in future fusion reactors, such as ITER (the International Thermonuclear Experimental Reactor) and DEMO (the future Demonstration Power Plant), see Ref. [2]. The accurate analysis of the isotopic composition within the closed fuel cycle is of utmost importance for obvious operational and safety reasons.
Thirdly, high-purity T2 is used in the gaseous tritium β-source in the Karlsruhe Tritium Neutrino Experiment (KATRIN) [3]. The other isotopologues are present as low-level impurities but, nevertheless, have to be monitored accurately in order to minimize systematic effects on the measurement of the electron-neutrino mass (aiming at 0.2 eV/c2 sensitivity) [4].
Finally, it is noteworthy that tritium analysis and monitoring also is relevant in various biomedical (e.g., monitoring of tritium in bio-fluids), environmental (e.g., monitoring of tritium in river water and sediments), and industrial (e.g., detritiation of coolants in heavy water reactors) applications. However, by and large, the materials and samples encountered there are mostly in liquid or solid form, and tritium concentrations are normally at trace levels; both are therefore outside the scope of this publication.
While quite a few analytical methods have been, and are, used routinely in these applications—including ionization chambers, β-induced X-ray spectroscopy, gas chromatography, and mass spectrometry, amongst others (see Ref. [5])—it is Raman spectroscopy that has emerged as a method of choice for in-line gas analysis, being a non-contact, multi-species analysis technique with high sensitivity [6]. For example, KATRIN successfully employs Raman spectroscopy monitoring for continuous, in-line compositional analysis of its circulating source gas [7]. For the accountancy of tritium in the fusion fuel cycle of ITER/DEMO, Raman spectroscopy has been evaluated as one possible analytical tool [8,9,10], which is still partially under procurement [11], or is under development but has not been tested with tritium yet [12].
Regardless of the state of development and actual use, any Raman analysis system needs to be carefully calibrated to yield reliable compositional measurement results, with adequate accuracy (note that throughout this publication we will use the terminology of “precision”, “trueness”, and “accuracy” as defined in Ref. [13]).
As will be discussed in more detail in Section 2, in order to verify and calibrate the measurement results it is paramount to have standard samples available and/or measurement equipment whose method and performance can be linked to accepted standards or certification procedures. In general, accurate homogeneous calibration gas mixtures can be produced according to ISO standards 6142/6145 [14,15]. However, the two methods described therein cannot be used for species that are “potentially interactive substances” and “can decompose” [14]; hydrogen isotopologues belong to these categories. Already, samples containing only H2 and D2 will undergo (mostly surface-mediated) exchange reactions, and ultimately the sample will find its chemical equilibrium between H2, D2, and HD; but these exchange reactions are normally extremely slow at ambient temperatures (of the order of many weeks). In this context, it should be noted that exchange reactions in tritiated mixtures, which are linked to β-induced reaction-chain processes, lead toward chemical equilibrium on the time scale of only hours to a few days; during these periods, non-equilibrium between constituents is encountered, changing the gas composition significantly early on in any mixing process.
A few years ago, we developed a hydrogen–deuterium mixing (HYDE) loop to generate accurate reference mixture samples of H2/HD/D2 in chemical equilibrium, for a range of specified ratios [16]. Using these, we cross-validated the initial quantitative calibration of our laser Raman system used in the KATRIN gas analysis [17]. However, it should be noted that HYDE could only provide mixture calibration values for the stable isotopologues, but not the radioactive species, T2, DT, and HT. Based on the good agreement between measurements using well-defined HYDE gas mixtures for H2, HD, and D2, and experimentally confirmed theoretical Raman transition strengths [18], it was only conjured that the values for T2, DT, and HT would be equally reliable.
Thus, the concept for a tritium–hydrogen–deuterium (TRIHYDE) facility was developed, with the aim of generating gas mixtures containing defined concentrations of H2, HD, D2, T2, DT, and HT. The original intent was to independently confirm the crucial calibration factors for KATRIN, using said accurately mixed gas samples, now including the radioactive isotopologues. The setup and use of this system are described in this publication.
The primary goals of the studies described here were threefold, namely (i) to enable gas sample production of any combination of all six hydrogen isotopologues in chemical equilibrium and, as an application of these, (ii) to verify/cross-calibrate the theoretical Raman intensities versus accurate gas mixtures of tritiated hydrogen isotopologues. In addition, (iii) the overall measurement and calibration uncertainties were to be reduced, with respect to the predecessor experiment HYDE. Throughout this work, we have attempted to follow, as closely as possible, accepted calibration procedures and link our measurements to established methodologies and standards. Beyond the discussion of the achievements to date, future uses of TRIHYDE are briefly addressed.

2. Monitoring and Quantifying Gas Mixtures: Concepts and Calibration Strategies

Probably one of the most difficult and complex issues to resolve in quantitative analysis is that of validating measurement data, through absolute calibration of sample properties. In general, one may follow one of two main lines of action, namely
(A)
To measure and compare the results from the sample under analysis to the data from known reference materials (standards); or
(B)
To analyze the sample using equipment, which is based on a metrological (certified) method.
Whilst analytical measurements correlated to certified reference materials (CRM) are preferred, in general, those are only available for a limited number of materials. In this context, note that reference materials that do not meet all the criteria to count as a CRM require additional evidence of metrological traceability (procedural routes are defined in Ref. [19]).
For mixtures of gases, which are the topic of this publication, various types of reference materials might be considered. These include (i) pure gases, characterized for chemical purity and/or trace impurities—evidenced normally by the purity labelling on the supplied gas bottle(s); (ii) standard gas mixtures, by and large prepared gravimetrically from pure substances—provided routinely by suppliers of specialty gases; or (iii) so-called matrix reference mixtures—characterized for the composition of specified major (matrix), minor and trace chemical constituents. Guidance on the terminology and definitions associated with such standards can be found in Ref. [20]
For the hydrogen isotopologues discussed in this work, only H2 and D2 are widely available with very high purity and certification; the heteronuclear species, HD, is less easy to source, but some specialty gas vendors offer it with about 96 mol%. Also, some recipes for the generation of reasonably pure HD have been published (see [21,22,23]).
When it comes to tritium, reference standards are not at all available at present; indeed, it was one of the purposes of this work to develop methodologies to do just that. The initial goal of the program was to achieve quantitative (cross) calibration of the composition of the tritium gas injected into the source of the KATRIN experiment, which then can be applied in the continuous monitoring of relative component concentrations. For this, in association with the calibration approach (B) defined above, a method suitable and proven for continuous in-line analysis and monitoring of tritiated gas samples was needed to characterize and quantify TLK-prepared samples to be used as reference standards. Raman spectroscopy was selected as the method of choice because of its universality, non-contact capabilities, and its proven track record for in-line gas composition monitoring in the KATRIN experiment [7].
The composition of any gas mixture can be extracted from Raman spectra using the relation between the (measured) signal of the Raman transition and the number of interacting molecules. The full expression for this relation is given by
S Δ υ , Δ J J = k ν ˜ · ν ˜ L · ν ˜ Δ υ , Δ J 3 J · Φ Δ υ , Δ J J · I L · η λ Raman R Δ υ , Δ J J · N J , T .
Here, S Δ υ , Δ J J stands for the Raman signal for a transition from an initial vibrational | rotational state υ″ = 0|J″ to a final state υ′ = υ″ + 1| J′ = J″ − 2, J″, J″ + 2; these correspond to the O1(J″), Q1(J″) and S1(J″) Raman lines (note that in this work we only include the vibrational Δυ = 1 transition in the evaluation). All dimensional proportionalities and numerical constants are collated into a single factor, k ν ˜ . The terms ν ˜ L and ν ˜ Δ υ , Δ J 3 J , as common in Raman spectroscopy in cm−1, are associated with the energy of the laser photon and the Raman-scattered photon. Note, the separation into laser and Raman transition energies is a consequence of our detection method in which photons are counted. The line strength function Φ Δ υ , Δ J J incorporates the theoretical transition matrix elements for Raman scattering. I L is the intensity of the Raman excitation laser and η λ Raman is a function associated with the wavelength-dependent response and sensitivity of the detection instrumentation. Finally, N J , T is the number density of the molecule under investigation in its initial state(s) J”; the partitioning into individual quantum states depends on the temperature T. As indicated in Equation (1), it is convenient to lump all parameters together into a response function, R Δ υ , Δ J J .
Note that the molecular parameters in Expression (1) are all different for any species, here the six hydrogen isotopologues XY with X,Y ∈ {H,D,T}.
In general, several rotational states are thermally populated at room temperature. This means that in order to arrive at the actual concentration of a species XY, the number densities for the full rotational level population (Boltzmann distribution) need to be summed, i.e., N XY = J N J , T . Note that for all measurements described in this work, the temperature was kept constant at T = 25 ± 1 °C. As a consequence of the J”-distribution the Raman line signals also need to be summed. One can approximate the total Q1-branch Raman signal as
S XY = J S 1 , Δ J = 0 J = J   R 1 , Δ J = 0 J · N J , T R XY · J N J , T = R XY · N XY ,
Note that the approximation using a nearly constant “global” response factor R XY in the right-hand part of Equation (2) is only valid for the Q1-branches (with ΔJ = 0). This is because those lines are closely packed and none of the parameter values ν ˜ 1 , Δ J = 0 3 J , Φ 1 , Δ J = 0 J and η λ Raman change significantly, mostly less than 1% over the measurement interval. Note, also, that such global response factors are also assumed in the related Raman cross-sections, reported in the literature (see Ref. [24]). Finally, the R XY values are different for each individual isotopologue and the associated Raman transition moments and are specific to the actual measurement instrumentation.
The absolute quantities in Equations (1) and (2) can be transposed into relative entities by normalizing the respective (relative) Raman signal intensities to the integral signal intensities of all components present in the mixture, i.e.,
S XY , rel = S XY / X , Y S XY R XY · N XY / X , Y S XY ,
with the summation over all isotopologues XY with X,Y ∈ {H,D,T}; note that not all may be present in particular samples. The relative-value representation in Equation (3) has the advantage that inevitable fluctuations in laser intensity I L cancel out in the ratios.

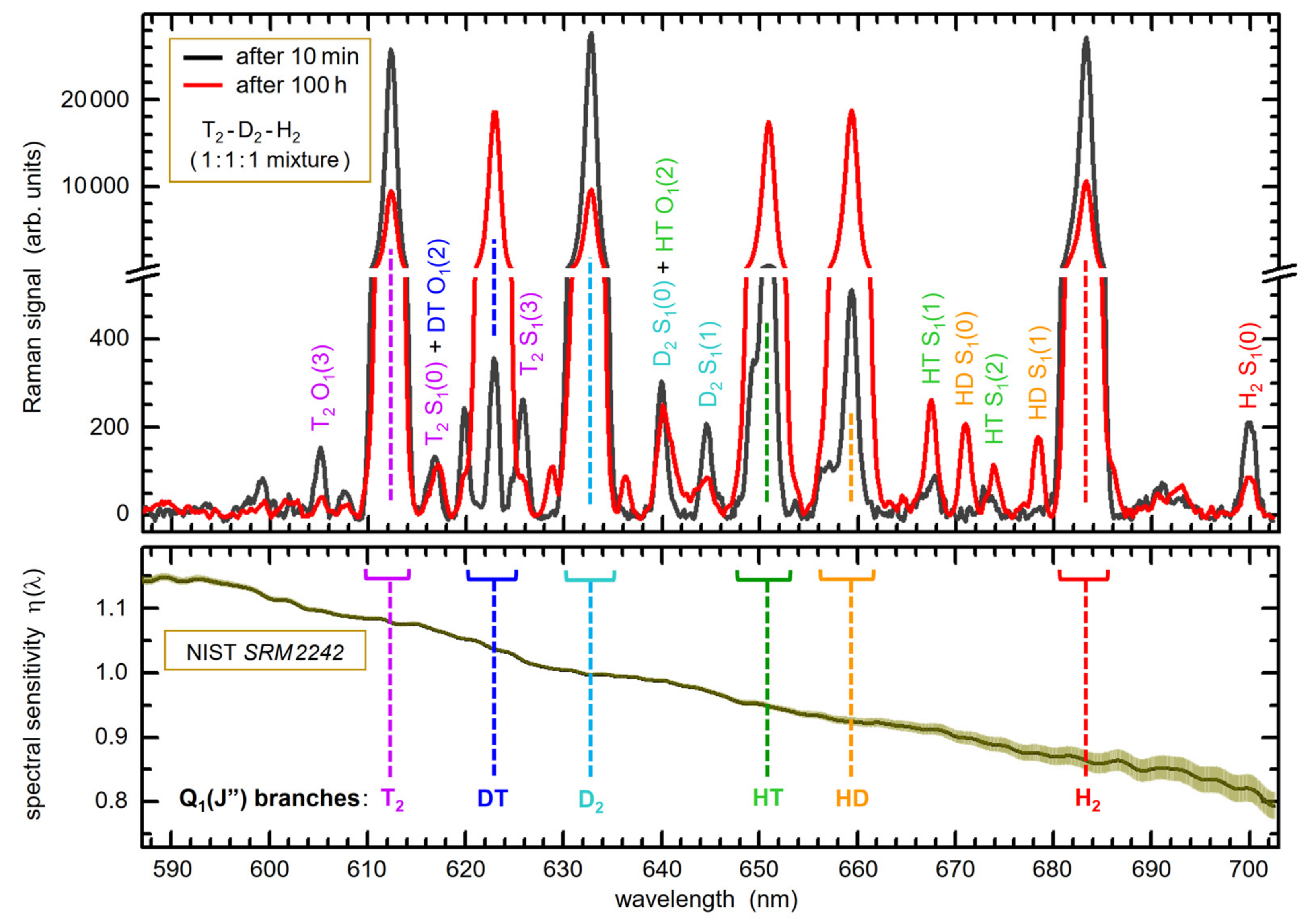

An example for spectral Raman data utilized in the application of Equations (1)–(3) for compositional analysis is shown in Figure 1 for a mixture of T2-D2-H2, initially in the nominal equi-volumetric ratio 1:1:1.
The individual response factors R XY may be decomposed into two contributions, namely R XY , exp C · η λ Q 1 XY with C = k ν ˜ · ν ˜ L · I L (constant during a spectral acquisition)—the average spectral sensitivity of the Raman system over the Q1-branch wavelength interval (note that for the related spectral intervals of ~4 nm the sensitivity only varies by 1.2–2.2% and, thus, may be approximated by its mean value); and R XY , theory —the theoretical Raman intensity for the Q1-branch of the isotopologue XY, including the quantum state-dependent terms for the transition energies ν ˜ Δ υ , Δ J 3 J and the transition probabilities Φ 1 , Δ J = 0 J . This yields.
R XY = R XY , exp · R XY , theory .
This procedure will be discussed in more depth in Section 4.1. The main inference from Equation (4) is that one is now able to follow two complementary signal calibration strategies:
(I)
Use accurate mixed gas samples of hydrogen isotopologues to determine the individual global response factors R XY ; essentially, this is equivalent to the procedure defined in the calibration method (A) at the beginning of this section; and
(II)
Measure the instrumentation-specific spectral sensitivities and combine that with the theoretical Q1-branch intensities for the isotopologues; essentially, this constitutes calibration method (B) at the beginning of this section.
Note that in all analytical measurements discussed here, only the Q1-branch summation/integral are utilized, and not individual rotational Raman lines, as is common in compositional analysis based on Raman spectra. A few remarks should be made in respect to the use of the two methodologies and cross-validation based upon them.
Firstly, in approach (I), and the underlying relations in Equations (3) and (4), the essential point is that multiple-component gas samples need to be used so that the numerator and denominator in Equation (3) are different.
Secondly, the use of relative (Equation (3)) rather than absolute (Equation (2)) values for the Raman signal response guarantees that the method is, by and large, insensitive to (unavoidable) fluctuations and drifts in the excitation laser intensity I L .
Thirdly, in approach (II), one relies on the availability of (or access to) spectral sensitivity data η λ Raman of the measurement setup and the theoretical Raman transition line strengths Φ 1 , Δ J = 0 J . In our work, the spectral sensitivity function was obtained by using a NIST-certified luminous standard, placed for calibration at the exact location of the Raman excitation (see Ref. [25] and Section 3.3 for details). The theoretical line strengths depend on the molecule specific polarization tensor invariants; these were calculated specifically for the excitation wavelength λ = 532 nm [26]. Note that this calibration strategy was verified using accurate gas samples prepared in the predecessor HYDE experiment, albeit only for the stable isotopologues H2, HD, and D2 [16,27].
Thus, based on this discussion of measurement and calibration methodologies, the key objectives of the TRIHYDE gas mixing experiment may be summarized as follows:
  • Enable reference gas sample production of up to all six hydrogen isotopologues, in chemical equilibrium;
  • Achieve improved manometric accuracy for the sample mixtures, in comparison to the predecessor HYDE;
  • Verify the theoretical intensities for tritiated hydrogen isotopologues; and
  • Reduce the calibration uncertainties relevant for precise compositional analysis of gas mixtures with tritium content, based on laser Raman spectroscopy.
These key aspects are outlined in the sections below, together with relevant technical details and selected application examples of the procedure in quantitative analysis and calibration.

3. System Setup

The manufacture of non-hazardous reference gas samples and provision of gas mixtures for specialist applications are straightforward, in principle, and are provided as a service by most suppliers of specialty gases. This is rather more complicated in the case that hazardous, toxic, or radioactive species are involved, which requires rare specialist facilities.

3.1. Experimental Challenges

For the technical realization of a H2-D2-T2 loop, the many challenges for tritium operation, as identified in Ref. [16], were addressed during the conception, construction, and operation of the TRIHYDE facility. These include
The possibility to study and exploit radio-chemical reactions, such as β-induced self-equilibration;
The ability to concurrently use several analytical methods to characterize and/or monitor the gas mixture, as well as to verify—in situ—the initial T2 purity;
The ability or necessity to remove non-hydrogen contaminants (such as 3He, the byproduct of the tritium decay) from the T2 gas sample; and
The need to comply with all statuary safety requirements for tritium operation.
Therefore, much more stringent design guidelines had to be followed, as was done for the predecessor experiment, HYDE [16], which was set up for the mixing of non-radioactive hydrogen isotopologues.
In order to meet all requirements of the regulatory framework, and to allow for efficient gas processing and sample analysis, the TRIHYDE experimental setup comprises two main functional subsystems. These are (i) the processing loop (P-Loop) for gas handling and interface to the gas processing infrastructure of TLK and (ii) the analysis loop (A-Loop), which is used to prepare and analyze the gas samples.

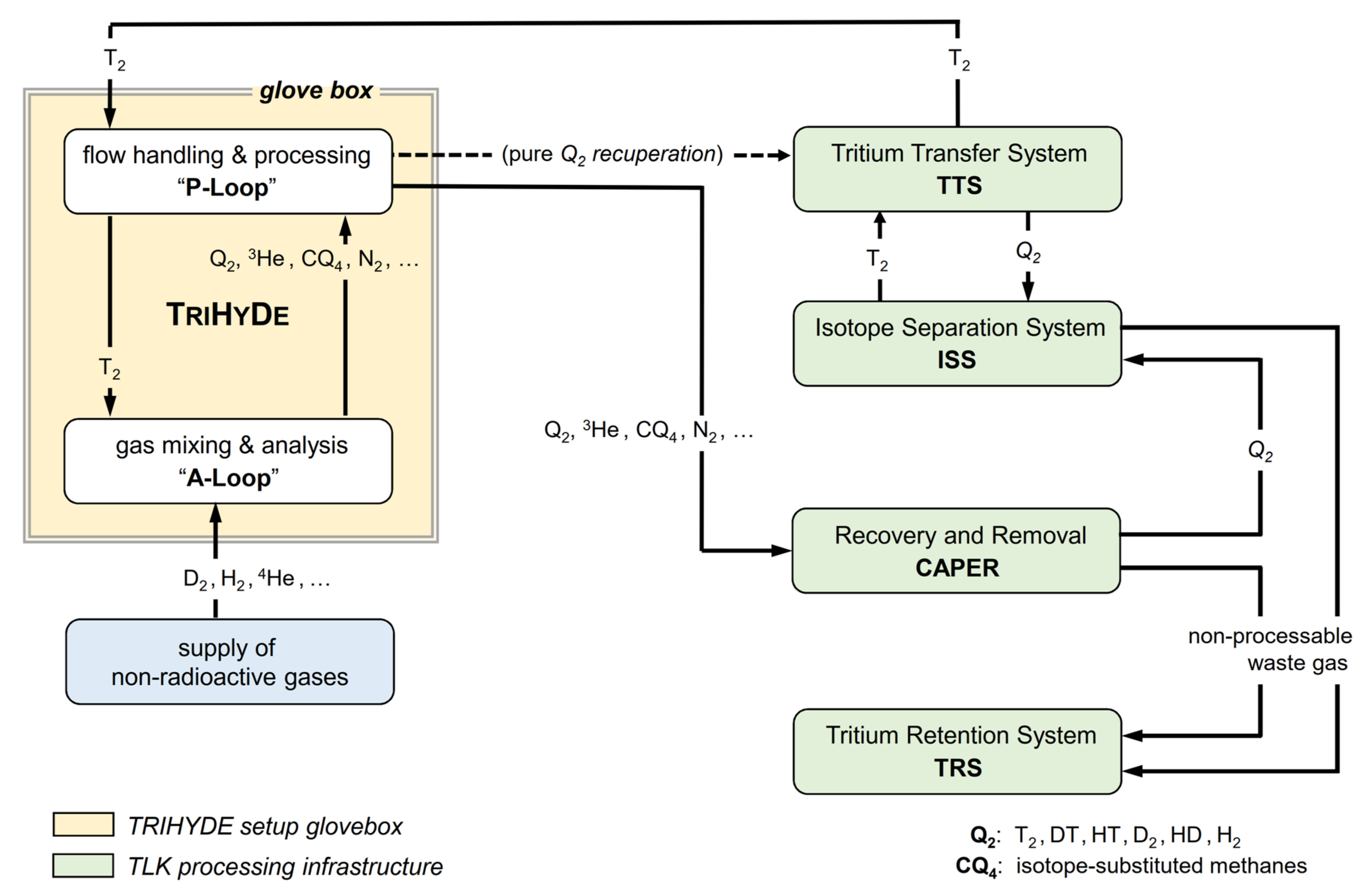

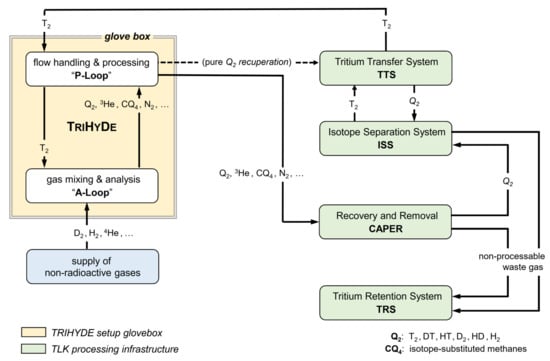

The integration of TRIHYDE into the gas processing infrastructure of TLK is illustrated schematically in Figure 2. For a T2 mixing run, the P-Loop is supplied with a high-purity T2 sample (normally > 98%) from the tritium transfer system (TTS), which is the central distribution and accountancy system of TLK. This gas is then transferred to the A-Loop, where it is mixed with other gases to produce the desired gas mixtures. After analysis, the gas is pumped back into the P-Loop, from where it is passed on to either (i) the so-called CAPER facility, in which any gas sample arising from experiments using tritium is detritiated [28,29], or (ii) to the isotope separation system (ISS) [30], depending on composition and activity level.
In order to ensure that no hazardous atmosphere forms, and to provide a secondary enclosure to the primary tritium system, TRIHYDE is constructed within a dedicated glovebox environment, providing an inert N2 atmosphere. Unavoidable tritium contamination of the glovebox atmosphere, due to permeation through the stainless steel and during (dis)connecting sample cylinders, is continuously removed to the tritium retention system (TRS).
For all operational components—like valves, pumps, sensors, etc.—the wetted materials are made from stainless steel and, in rare cases, from halogen-free polymers. Connections between components use stainless steel piping and VCR fittings; this ensures single-connection He leak rates below 10−9 mbar··s−1 and an integral leak rate smaller than 10−8 mbar··s−1.

3.2. The Analysis/Measurement Sub-System of TRIHYDE—The A-Loop

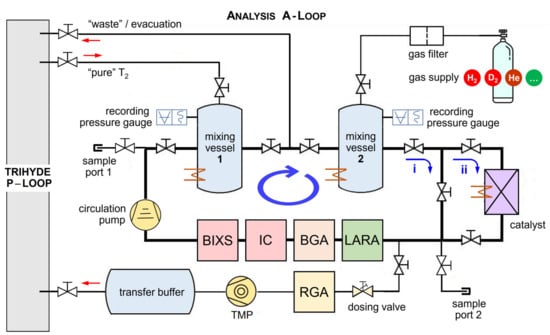

A detailed schematic of the A-Loop is shown in Figure 3. The molar fractions of the gas samples are determined using a manometric method, based on accurate measurements of the mixing vessel volumes and gas pressure (see Ref. [31]). For the pressures typically used for sample production (10−3 mbar to 800 mbar), the ideal gas law is applicable. Both identical mixing vessels are built from standard CF vacuum components and they have an inner volume of V = 810 (± 2) cm3.
In order to provide accurate and species-independent pressure readings, each mixing vessel is equipped with two capacitive pressure gauges, with full scales of 1000 mbar and 2.6 mbar, respectively, and accuracy of 0.15% of the pressure reading. Note that in comparison to the mixing vessels and connecting tubing of HYDE, TRIHYDE is designed to minimize “dead volumes” with no gas mixing and to provide a straight flow geometry through the vessels.
Both mixing vessels can be filled either with T2, supplied via the P-Loop, or non-radioactive gases introduced from gas bottles through a dedicated filter and pressure regulation stage.
For the measurements presented in this work, H2 and D2 were used for mixed-sample production, as well as 4He for purging of the loop system. For future campaigns, it is possible to expand the gas supply capabilities, to allow for admixture of other gas species of interest, e.g., Ar and/or N2.
In general, for sample production, the mixing vessels are filled with the homonuclear hydrogen isotopologues (H2, D2, or T2). In order to form the heteronuclear isotopologues (HD, HT, or DT) on a reasonable timescale (i.e., minutes to hours, instead of many weeks), the mixed gases can be circulated through a catalyst bed (e.g., Pt−Al2O3). If necessary, the catalyst and the mixing vessels can be heated up to 200 °C for catalysis acceleration or improved outgassing. Note that, for gas mixtures containing T2, the process of β-induced self-equilibration, as described in Section 4.1, leads to self-equilibration of the gas samples, but without the need for a catalyst. Thus, a potential shift in the isotopic ratio—introduced by the catalyst material—can be avoided.
For the most part, the general concept of the A-Loop is based on its predecessor experiment HYDE [16], incorporating the following improvements: (i) pressure diagnostic over a wider pressure regime in the mixing vessels, with increased accuracy; (ii) reduced mixing vessel volume for more economical gas usage; and (iii) additional temperature and pressure sensors within the loop. In addition, the component placement and routing have been optimized to minimize piping lengths and to avoid the aforementioned dead volumes, while at the same time offering easy access for maintenance and operation inside the glovebox environment. Along the loop, several sampling ports are installed, which allow one (i) to fill gas samples into sample cylinders, to be used in other experiments, or (ii) to accept gas samples from other experiments, to make use of the broad range of analysis tools installed in the A-Loop. Key parameters for the TRIHYDE facility are collated in Table 1.

3.3. The Raman Analysis Instrumentation

The central analysis instrumentation of the TRIHYDE facility is a laser Raman (LARA) system; it is one of several setups in use at TLK, whose general layout and performance are described in detail in Ref. [7].
After passage through a range of steering and polarization-cleaning optics, the excitation laser beam is focused into the in-line LARA gas cell, which is located within the A-loop glove box (see the previous Section 3.2). The Raman scattered light is collected using a standard collection geometry of 90° to the laser excitation direction, and is then guided to the spectrometer, with CCD array detector, via optical fiber coupling. A few details about the equipment are summarized below; key properties of the LARA monitoring system are collated in Table 2.
  • The laser excitation source. Due to the direct proportionality of laser power and scattered Raman light intensity (see Equation (1) in Section 2), and further response reduction due to below-atmospheric pressures inside the LARA cell, high laser power is required to obtain Raman signals with good signal-to-noise ratio. Thus, a high power, temperature-stabilized DPSS laser (λL = 532 nm) is used, with power fluctuations and drifts at the level of ~10−3.
  • The Raman cell. The Raman cell is of the same type as that used in the KATRIN experiment [7], based on the original design concept described in Ref. [32]; it is mounted inline within the second-containment glove box.
  • The light collection optics and fiber bundle. An assembly of two achromatic doublets is used to image the observable Raman excitation volume onto a matched “slit-to-slit” fiber bundle. A steep-edge long-pass filter is used to suppress light originating from Rayleigh scattering, and from laser light reflections within the Raman gas cell.
  • The spectrometer. A common combination of a standard Czerny–Turner spectrograph and a back-illuminated CCD array detector is used for recording the Raman spectra. The spectrograph is set to comfortably cover the all-important Raman bands of all six hydrogen isotopologues, maintaining sufficient spectral resolution to separate the individual Q1-branch signals, which are later integrated for the evaluation of relative molecular concentrations (for the procedure, see Section 4.3).
Note that for absolute, quantitative light intensity calibration of the complete Raman system a NIST SRM2242 Raman standard [33] can be inserted, at the exact location of the Raman gas cell; for a description of the calibration procedure, the reader is referred to References [7,25]. In brief, the actually measured SRM2242 fluorescence spectrum is normalized to the certified spectrum provided by NIST (the spectrum is parameterized by a polynomial). Note that the increase in uncertainty beyond ~660 nm, observed for the η λ data shown in Figure 1, is associated with the diminishing accuracy of the certified spectral luminescence data, provided by NIST, towards the largest Raman shift values [33]. Wavelength calibration is carried out as is common, i.e., using a Ne hollow-cathode lamp.

3.4. Ancillary Analysis Equipment

When circulating gases in the A-loop, their composition and activity are continuously monitored using a chain of in-line tools (see Figure 4). In addition to the laser Raman spectroscopy (LARA) system (for composition monitoring, as described in Section 3.3 above), these comprise: (i) a binary gas analyzer (BGA) for composition monitoring (see e.g., [34]), (ii) a beta-induced X-ray spectrometry device (BIXS) for activity monitoring (see e.g., [35]), and (iii) an ionization chamber (IC) for activity monitoring (see [36]). These three additional in-line methods have the common task to improve real-time composition monitoring of the samples and radiation safety aspects; they complement the data measured by the main Raman (LARA) spectral analysis system. All measurements are synchronized using NTP-derived time stamps (network time protocol). Below, we briefly summarize the key aspects of these ancillary analysis methods, as utilized in TRIHYDE.
  • Binary Gas Analyzer. A BGA can be used to determine the concentration of a gas component in a binary mixture by measuring the speed of sound and the temperature. Using known (tabulated) speed-of-sound data, the composition of (binary) gas mixtures can be determined with an accuracy of the order of 10−3 [37,38]. BGAs are less suitable in situations when more than two gas components are encountered or if the gas properties required in the evaluation equations are not known a priori (as can be the case for tritium-substituted species). In our TRIHYDE loop, a BGA is installed in-line. The device can detect differences in relative concentration shift of the order 0.1%, but needs >350 mbar to operate reliably. Thus, it is predominately used to confirm initial gas purities and to verify the homogenization time constants of the calibration gas sample.
  • Beta-induced X-ray spectrometry. The activity of the circulated gas is continuously monitored using a BIXS measurement cell, based on the design described in Ref. [35]. The bremsstrahlung X-ray spectrum, produced by tritium β-electrons stopped in a thin gold (Au) layer, is a direct indicator for the gas activity level (for quantification, known pressure correction need to be applied). Besides applications for in-line process control [39], this sampling technique is successfully deployed for activity monitoring of the tritium source (WGTS) of the KATRIN experiment [40].
  • Ionization chamber. At the TLK, ionization chambers—based on stainless steel cross-pieces—have been used for more than 20 years to monitor the activity of tritiated gases [41,42]; their design and performance have been optimized over the years (see Ref. [36]). Such a second-generation ionization chamber has been incorporated into the TRIHYDE analysis loop, continuously monitoring the activity of the circulating gas.
  • Rest gas analysis by mass spectrometry. For the identification of trace amounts of non-hydrogen components in the loop, a quadrupole mass spectrometer is used as a residual gas analyzer (RGA). Due to its maximum operating pressure of ~1 × 10−3 mbar, which is substantially lower than the typical mixing pressures and thus requires active pumping, the RGA is placed off-line to the main mixing loop. Since the limited mass resolution of our current device does not allow for the separation of sub-amu fractions, unambiguous separate quantification of hydrogen isotopologues is not possible. Therefore, at present, the RGA is mainly used to ascertain the presence of gas species above 9 amu, in order to evaluate the formation of impurities during gas circulation.

3.5. The Processing Sub-System of TRIHYDE—The P-Loop

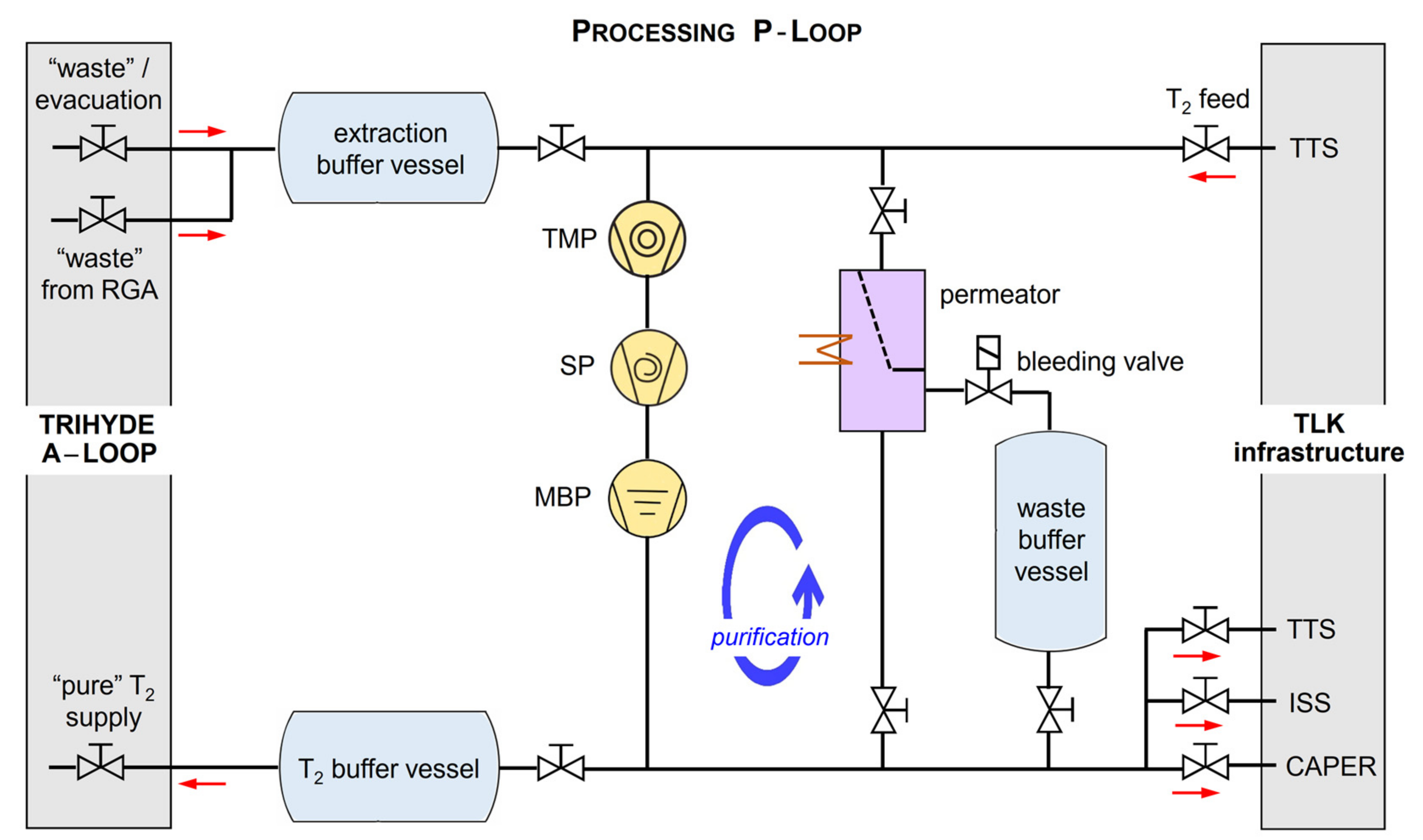

The main task of the P-Loop (its schematic structure is shown in Figure 4) is to supply highly pure tritium gas to the A-Loop for sample production and to process the mixed gas samples after use. In this way, sample production and operation of the A-Loop can be realized without the need for continuous gas transfers to and from the tritium processing infrastructure of TLK.
Its operation principle is as follows. For each measurement campaign, the tritium gas batch from the TTS is transferred into a T2-buffer vessel. In order to ensure high T2 purity, the initial TTS gas sample can be stripped of 3He, which is naturally present due to tritium β-decay. For this, a palladium-silver (PdAg) filter is used (for details on operation, see Refs. [43,44]). From the T2-buffer vessel, the gas is expanded into one of the mixing vessels of the A-Loop for analysis and the subsequent experiment.
After each sample is prepared and analyzed, and an actual experiment has been completed, the used “waste” gas is collected from the A-Loop into an extraction buffer vessel. In order to sufficiently remove residual gas from the A-Loop, which might taint subsequent gas samples, the P-Loop includes three pumps in series (see Figure 4). With this pump combination, pressures of the order <10−5 mbar can be reached in the complete TRIHYDE system.
Once the waste buffer vessel pressure limit is reached, its content is transferred to the TLK gas processing infrastructure. In the case that only hydrogen isotopes are present, the gas is transferred to the ISS [30] for immediate isotope separation. In the case that tritiated mixtures with unknown composition (including reaction products generated during circulation) need to be treated, the gas is passed to the CAPER cleanup facility [28]. If low activity mixtures with trace amounts of tritium are present, these are transferred to the TRS for processing [45]. Note that the same permeator that was used for cleaning of the initial gas(es) can also be utilized to pre-process the waste gases from the A-Loop, allowing for a reduction in workload for the TLK processing infrastructure.
It is noteworthy that the separation of sample production/analysis (A-Loop) and gas processing (P-Loop) is beneficial. Future system expansions can conveniently be installed in the same secondary enclose as the current TRIHYDE mixing experiment, using the P-Loop as the interface to the TLK infrastructure.

4. Measurement Concepts

In contrast to calibration samples containing only stable hydrogen molecules—in our case that would be the isotopologues H2, HD and D2—the preparation procedure and analysis for tritiated mixtures must consider additional effects. These include variable T2 supply gas composition (differences in batch purity), self-equilibration, and unavoidable formation of impurities as a consequence of tritium β-decay (3 He decay product and induced chemical reaction chains). This means that a rigorous procedure for sample preparation and handling is required to ensure consistent and reproducible sample composition. Below, we outline how such samples are prepared, how they are characterized, and how data are recorded and evaluated to quantify their composition.

4.1. Methodology

The general strategy of TRIHYDE comprises two key aspects, namely (i) to produce gas samples, which may contain any combination of all six hydrogen isotopologues, with well-defined composition, and (ii) to extract calibration factors from appropriate measurement series for future characterization and analysis by comparing measured LARA signal intensity to “actual” gas compositions (see Equation (3) above). This then gives access to both absolute calibration factors, R XY , and theoretical intensities, deduced from R XY , theory , depending on whether the spectral sensitivity correction is applied to the measured Raman signals (see Section 2 and Section 4.3).
During sample production, two stages in the evolution of the gas composition are distinguished. The “binary” sample at the beginning of the process, which predominantly consists of two homonuclear isotopologues, such as e.g., H2 and T2, with only trace impurities of other isotopologues. The “tertiary” sample at the end of the preparation/equilibration process is made up from two homonuclear and the associated heteronuclear isotopologues. Analyzing both binary and tertiary stages of a sample in conjunction has multiple advantages:
The binary sample can be produced with high accuracy and its actual composition is not influenced yet by chemical equilibrium constants.
The extraction of the calibration factors from a two-component mixture is simpler in comparison to a three-component mixture and, thus, carries less measurement uncertainty.
The tertiary sample gives access to the heteronuclear isotopologues HT and D, which normally cannot be produced in ultra-pure form and are difficult to store in isolation for practical periods of time. This is due to the inevitable self-equilibration described by Equation (5).
In order to analyze well-defined binary/tertiary mixtures (e.g., H2-T2 and H2-HT-T2), the initial binary calibration sample needs to proceed towards chemical equilibrium concentrations, according to
X2 + Y2 ⇌ 2·XY with X, Y ∈ {H, D, T}.
These isotope exchange reactions (in the gas phase) have been studied extensively for H2 and D2; however, for the cases where radioactive isotopologues are involved, only a small number of experimental results have been published (see references [46,47,48,49]). Said exchange reactions in the gas phase can be organized into distinct groups [50].
The first group of reactions is that of “direct saturated molecule interactions”. For a mixture of inactive molecules—here H2 and D2—this is the only possible exchange reaction. Due to the high activation energy and low probability, these direct reactions exhibit inherently long evolution times to the final, chemical equilibrium [51]. These can be shortened by use of a catalyst environment which, however, may introduce additional uncertainties and potential, undesired effects on sample composition.
In tritiated mixtures, the tritium β-decay generates various ion radicals, which bring about subsequent radiochemical reaction chains; these greatly accelerate the self-equilibration process [52]. In principle, it is possible to exclusively rely on these reactions to guide the gas sample into chemical equilibrium within a practical timescale. Thus, this approach avoids any uncertainties introduced through the reaction sequences associated with a catalyst material. In order to illustrate this type of self-equilibration process, the measured evolution of isotopologue concentrations for a gas sample of D2-T2 (with an initial ratio of 40:60) is shown in Figure 5, while the mixture is circulating in the A-Loop. The progress of equilibration reaction for the main constituents is clearly visible.
Note that for the unavoidable HT and HD impurities, additional, superimposed equilibration processes are observed (due to gas–wall reactions), however on a much longer time scale (of the order ~10−5 h−1).
The molar fractions of a tertiary sample in chemical equilibrium evolving from T2 plus X2, with X ∈ {H, D}, are given by
k eq T = XT 2 X 2 · T 2 .
The (temperature-dependent) chemical equilibrium constants, k eq T , for each combination of T and X used in this work were derived from the ro-vibrational energy levels reported in [53], which agree with older published values [46] to within 0.5% (at room temperature). For a detailed description of how the equilibrated molar fractions—based on the initial, binary fractions—were calculated, see references [16,54].

4.2. Sample Preparation and Handling

For all calibration campaigns presented here, which used either H2-T2 or D2-T2 starting mixtures, a single batch of T2 was transferred from the TTS to the P-Loop. From there, each individual sample preparation process consisted of three main steps:
(1)
The verification of initial gas purity;
(2)
The production of a binary sample; and
(3)
The production of the tertiary (equilibrated) sample.
At the beginning of each sample preparation sequence, the complete A-Loop was evacuated to pressures <1 × 10−3 mbar. For typical gas samples with partial pressures of normally >50 mbar, this ensures that background impurities are reduced to negligibly low levels. In addition, the composition of the background gas is checked each time using the RGA.
Due to possible leakage through safety valves and long connection pipes from the gas cabinet, which supplies the inactive gases (here, H2 or D2) to the system, the respective gas filters were flushed with a flowrate >200 sccm for about 10 min. This procedure proved to be very effective to eliminate trace amounts of N2 and other impurities to below the detection level of the RGA (of the order 10−9 mbar) and LARA. Subsequent to the flushing, the desired gas was injected and its purity verified, using LARA, BGA, and RGA measurements in combination. If any noticeable impurities were detected, the sample was discarded and the filters flushed repeatedly until acceptable gas purity was reached. Finally, one of the mixing vessels was filled (in general to values in the range 50–450 mbar), and the whole loop—apart from the just filled mixing vessel—was again evacuated to <1 × 10−3 mbar.
The filling procedure for tritium was analogous to that just described for the stable isotopologues, with the difference that the T2 gas was expanded from the P-Loop and, thus, filter flushing was not applicable. Again, the initial gas purity was recorded using LARA, BGA, and RGA (see Section 5.1), and after termination of the filling process, the remaining loop tubing was evacuated to <1 × 10−3 mbar.
For the subsequent mixing process, all valves along the mixing loop were opened and the gas sample continuously circulated using a metal bellows pump. On average, it took about 5 min for the sample to fully homogenize, verifiable by the fact that the maxima of both the T2- and Q2-signals had stabilized.
It has to be noted that, upon gas contact after starting the mixing circulation, the β-induced self-equilibration process commences immediately. Detailed studies of the impact of process parameters on the self-equilibration reaction kinetics and their temporal evolution are ongoing; however, for the scope of this work, it was shown that, for a combined pressure in the mixing vessels of the order of 500 mbar, the chemical equilibrium state was normally reached within ~72 h. Throughout the gas circulation period up to equilibration, LARA spectra were continuously recorded with an acquisition time of 60 s.
In order to avoid gas extraction during circulation, a single, final RGA analysis was performed after termination of the mixing/equilibration process. Thereafter, the sample was discarded and pumped to the P-Loop for further processing in the TLK infrastructure.
Overall, the complete sample preparation process took about half a day; thereafter, the time needed to reach chemical equilibrium via self-equilibration was about three days, in general.

4.3. Data Evaluation

An in-depth description of the spectrum processing can be found in references [7,55]; thus, only a brief summary of the major processing steps is given here. In general, prior to the extraction of the concentration data, the following procedures were applied to each individual LARA acquisition:
On-chip binning of the 400 lines of the Pixis-detector into 20 bins of 20 lines each;
Dead pixel and cosmic ray removal;
Baseline correction using the Savitzky–Golay Coupled Advanced Rolling-Circle Filter (SCARF) method; and
Correction for the spectral response of the LARA system (based on calibration with the SRM2242 Raman standard).
All these form part of our bespoke, LabVIEW-based analysis software suite for the evaluation of Raman spectra, LARAsoft ([55] and references therein)
In order to derive the concentration data from the measured Raman spectra, the signal intensity Sx for each isotopologue is integrated over the respective Q1-branch wavelength interval.
These intervals were determined using the function signal.peak_prominences of the Python library SciPy [56], applied to Raman spectra of an equilibrated tertiary test gas sample, with equal component content at the start of the equilibration process. This resulted in similarly intense Q1-branch signals for any of the six hydrogen isotopologues.
The “prominence of a peak”, P, describes how much a peak stands out from the baseline within a specified interval; it is defined as the vertical distance between the peak maximum and its lowest contour line. Here, this particular procedure was selected as it is suitable to derive the overall peak width at the baseline. This results in reproducible intervals and is not affected by the actual shape of individual Q1-branches. After initial trials, a value of p = 0.98 was chosen; this constitutes a trade-off between maximum signal strength and robustness against baseline noise, and independence of the initial search intervals. Note that this p-value is consistent with the notion that all levels with a relative thermal population and associated relative line strength larger than about 1% are included in the integration (see Figure 6), reflecting the full thermal population distribution.
At the bottom of Figure 6, another aspect relevant for the evaluation of isotopologue concentrations is highlighted, namely the overlap between the Q1-branch of one isotopologue with S1- and/or O1-lines of another one. In this context, note that the line strengths of S1- and/or O1-branch lines are at least 20-fold weaker than those for the Q1-branch lines.
While such overlaps may not constitute a major problem in the case that the concentrations of the involved isotopologues are similar, such overlaps need to be disentangled in mixtures with very different concentrations of the contributing isotopologues. For example, in the gas mixtures used in the KATRIN experiment, with a T2 content of normally ≥ 98%, the overlap T2 S1(3) ↔ DT Q1(J″) would yield a concentration erroneous by up to 30% if not treated appropriately, as outlined in Ref. [7]. In the evaluation of the spectra from our gas mixtures, with widely varying concentration ratios, this separation procedure was applied as soon as the expected contribution surpassed the 1–2% level.
Similar to the observations presented in Ref. [52], and demonstrated in our own preliminary studies [54], the temporal evolution of the molar fraction, y XY , for each isotopologue XY in a mixture of only two hydrogen isotopes can be described by
y XY t = A XY · exp t / τ XY + C XY ,
with characteristic time constant, τ XY , and equilibrium concentration ratio, C XY . This function is fitted individually for each isotopologue in the actual calibration sample. The resulting fitting parameters are used to derive the relative signal strengths for the binary ( t = 0 ) and tertiary ( t ) samples.
For extracting the relative LARA calibration factors, R XY , Equation (2) must be solved simultaneously for all constituent isotopologues. The molar fractions, y XY , are derived from the filling parameter of the mixing vessels and the relative signal strengths, S XY , from the aforementioned integration. The resulting calibration curves (see Section 5) are then derived by simultaneously minimizing the residuals for the two (binary) or all three (tertiary) isotopologues, using the Levenberg–Marquardt algorithm implemented in the Python package lmfit [57]. The advantage of using both the binary and tertiary sample data is that it greatly reduces the fitting complexity and minimizes the final uncertainty.

5. Analytical Measurements

In order to successfully prepare and use any precision gas mixture for a particular application, several analysis/verification steps are required: (1) verification of the nominal initial gas composition, (2) verification of all calibration procedures using only the stable isotopologues, and (3) deriving calibration factors from mixtures containing tritiated isotopologues. Only then is it possible to provide reproducible, well-characterized samples reference gas mixtures. All aspects are outlined in the sections below for a selected range of sample mixtures.

5.1. Verification of Initial Component Purities

All samples were prepared according to the procedure and parameters as described in Section 4.2. During all processing steps, the gas was fully thermalized at ambient temperature (25 ± 1 °C). Within these limits, the respective chemical equilibrium constants keq(T) (see Equation (6)) only vary by <0.05% and, thus, have only a negligible effect on the equilibrium molar fractions.
When dealing with tritiated samples, the key difference is the variable initial batch purity due to (i) unavoidable presence of HT and DT in the initial T2 “feed” gas and (ii) formation of impurities, e.g., tritiated methane, associated with β-induced reaction chains. Both issues were addressed and were well controlled for subsequent preparation of mixed samples.
For each tritium campaign, a single batch of T2 was stored in the P-Loop buffer vessel, and its actual gas composition was measured prior to use. It was shown that each batch contained mainly T2 (>97%), with varying amounts of DT and HT (0.5–2.5%) as impurities. Although each initial batch showed a slightly different HT to DT ratio, the gas composition used within each campaign remained constant for all practical purposes (changes over campaign time < 0.1%). A detailed description of the composition measurement of the tritium samples is given in Ref. [49].
The composition values for the tritium batches and the stable isotopologues are collated in Table 3. The values for the latter were based on the gas purities stated by the supplier, which were verified using LARA and RGA.
The formation of impurities in gas samples with T2 content is a well-documented, albeit not fully understood, phenomenon. In order to assess its impact on the composition on the later gas mixtures, the system was filled with a “pure” T2 sample (loop pressure ~30 mbar), and the gas composition was continuously monitored. During >1500 h of gas circulation (bypassing the PdAg-filter) at ambient temperature, the following observations were made:
(1)
In the measurement data obtained with LARA and RGA, an increase in signals associated with tritium-substituted methane was detectable, with an approximate relative formation rate of ~5 × 10−6 h−1. No formation of CO and CO2 was observed.
(2)
A constant decrease in T2 content and increase in HT concentration was detected, at a rate of ~7 × 10−6 h−1, which can be attributed to β-induced reactions with the available hydrogen reservoir in/at the stainless steel walls, similar to the effects described in Ref. [58].
As a consequence, the observed low rates were of no concern for the typical time scale of ~72 h to reach chemical equilibrium. For verification of this, all gas mixtures were checked for impurities at the beginning and end of each individual preparation and mixing run, using RGA analysis.

5.2. Measurement Results Obtained for Inactive Isotope Mixtures

In order to evaluate the system’s performance and to understand the impact T2 might have on the sample preparation procedure, ten H2−D2 samples with initial molar fractions from 5:95 to 95:5 were prepared, according to the procedure outlined in Section 4.1. For each calibration sample, the initial molar fraction of a particular isotopologue was calculated from the inlet pressure, vessel volume, and gas purities. The Raman spectra were treated following the procedure outlined in Section 4.3. However, the exponential fit for data from gas mixtures with tritium content (see Equation (7)) is not applicable for a mixture only consisting of stable isotopologues. Thus, the Raman signal strength was obtained by averaging the signals over the total circulation time of ~20 min for each sample.
The analysis principle to extract the calibration factors RXY has been introduced in Section 4.3, which is based on the procedure described in detail in Ref. [16]. Note that the absolute value of an individual calibration factor R XY is not of physical importance for relative quantification, but the ratio between two calibration factors is, i.e.,
R VW / R XY R VW , XY ,
with V, W, X, Y ∈ {H, D, T}; here VW indicates the isotopologue against which the component XY is referenced. Ratios as in Equation (8) are used in the cross-calibration application discussed in Section 5.5.

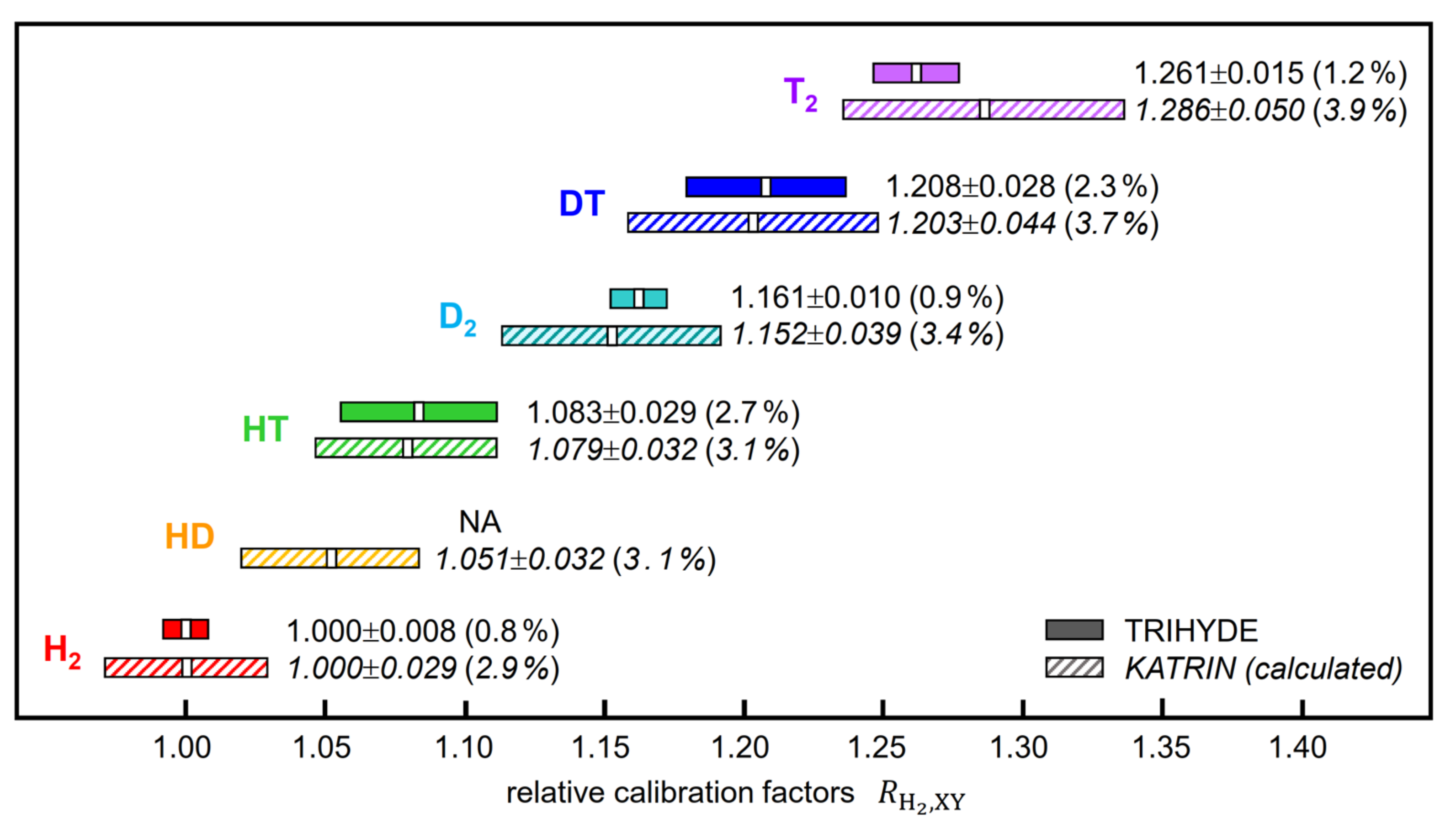

For the H2-D2 campaign described here, the ratio R H 2 , D 2 = 1.2063(80) was derived. Note that this particular result is only valid for the setup configuration used during this measurement campaign, and not globally. However, the low uncertainty value of ~0.7% gives an indication about the relative composition accuracy, which can be achieved in TRIHYDE.
Note also that, in principle, the heteronuclear isotopologue HD can be generated in H2-D2 mixtures when circulating the mixture via the catalyst pathway (see Figure 3). However, such measurements were not included here. This is because the catalytic reaction environment introduces difficult-to-handle effects, associated with the temperature-dependent catalytic exchange reaction rates and isotope-specific adsorption probabilities on the catalyst surface. While these effects can be taken into account (see Ref. [16]), a link to the campaigns with T2 and the associated β-induced equilibration is rather difficult to establish.

5.3. Measurement Results Obtained for Tritiated Isotopologue Mixtures

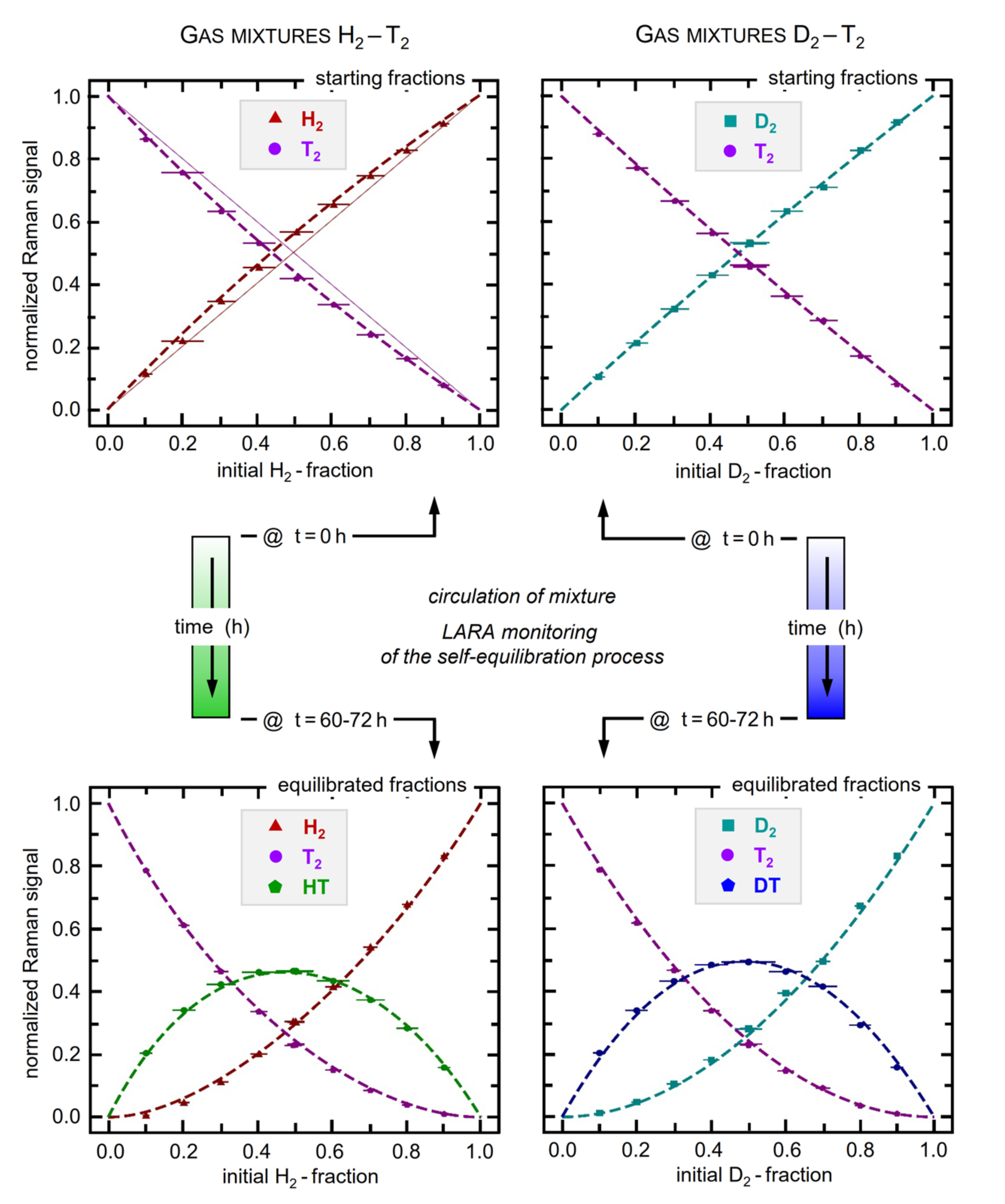

For mixtures starting with T2 gas in the mixture, three measurement campaigns were performed: (I) H2-T2 at 100 mbar; (II) H2-T2 at 500 mbar, and (III) D2-T2 at 500 mbar. Note that the designated pressure values represent the combined pressure in both mixing vessels before mixing; hence, the resulting circulation pressure is lower. For each of the three campaigns, sets of samples were prepared and analyzed, with initial molar fractions ranging from 10:90 to 90:10. Samples with initial molar fractions of 50:50 were prepared multiple times (they exhibited the largest overall uncertainty) and, thus, give insight on the reproducibility of the procedure to generate equilibrated samples. The calibration curves derived from the sample sets (II) and (III) are shown in Figure 7.
For every sample, the initial relative isotopologue fractions for the “binary” sample were derived—based on the ideal gas law—using the initial filling pressure, mixing vessel volumes and gas purity. In order to acquire the molar fractions of the “tertiary” samples, Equation (7) was used with the initial molar fractions and a fixed value for the equilibrium constant of keq(T = 298 K) = 2.574 and keq(T = 298 K) = 3.811 for HT and DT, respectively. The relative Raman signals for “binary” and “tertiary” sample composition, i.e., at the beginning of the mixing process and after equilibration, respectively, were derived using the model function given in Equation (7); the related exponential fit incorporated all data values over the full equilibration circulation period of ~72 h, as illustrated in Figure 5 above.
The shown calibration curves were derived by simultaneously solving Equation (3) for the binary/tertiary combinations XX-YY and XX-XY-YY, respectively. Note that the non-trivial calibration factor introduces a detectable shift from the R XY = 1 relation between initial molar fractions and the measured (normalized) Raman signals. The deviation of the data point sequence from this form is largely associated with the difference in the spectral sensitivity for the various isotopologues (see spectral calibration graph in Figure 1). Inspection of the H2-T2 and D2-T2 data plots reveals distinct curvatures, but because of the narrower spectral separation of the latter two isotopologues it is less pronounced in the D2-T2 graph. As an example, the straight-line case R XY = 1 is illustrated for the binary mixture of H2-T2 (top-left panel in Figure 7). As mentioned in the previous section, the conversion from the binary into the tertiary sample by circulating the gas sample over a catalytic material may induce shifts in the relative atomic isotope ratio. By solely relying on the process of self-equilibration, this difficult-to-control catalyst influence is eliminated; no change in the relative atomic ratio in any of our equilibrated sample mixtures was observed. Thus, the initial fractions from the binary sample can be used to derive the composition in chemical equilibrium. An overview of extracted relative calibration factors can be found in Ref. [54].
It should be noted that during campaign (I), which was performed at 100 mbar, no fully equilibrated tertiary sample was produced. Due to the fact that the equilibration time constants are strongly dependent on pressure, the 72 h of circulation were insufficient to reach chemical equilibrium. On the upside, the evolution towards chemical equilibrium was slow enough to assume a constant gas composition during the data averaging time interval of 10–20 min. This yielded lower uncertainties compared to the samples from campaign (II). In particular, this proved to be beneficial at the beginning of the mixing process when the rate of change was largest.
The higher pressure of 500 mbar used in the campaigns (II) and (III) provided a higher signal-to-noise-ratio in the Raman signals. However, the progressing self-equilibration and the need to describe the process via a model-function offset this advantage and may have even led to slight alterations in the calibration fits. Nevertheless, the calibration factors derived from the two different pressure campaigns (I) and (II) differed by less than 3.5% and agree within their uncertainty.
It also should be noted that the repeat measurements of samples with 50:50 initial fractions, mentioned at the beginning of this Section 5.3, yielded excellent agreement between samples of about 0.6–0.7%. Note that these repeat data points were included in the plots of Figure 7, but, because of their scatter of less than 1%, were hardly distinguishable on the scale of the graphs in the figure.

5.4. Uncertainties in the Measurements and Derived Parameters

For the measurements and derived calibration factors, based on the data shown in Figure 7, three main contributors to the uncertainty can be identified, namely (i) the initial molar fractions of the mixing samples, (ii) the measured Raman signals (integrated Q1-bands), and (iii) the calibration curve regression. These are collated in Table 4.
Using only the stable isotopologues H2 and D2, the uncertainty of the initial molar fractions derived from the mixing vessels pressure reading, total inner volume, and gas purities is ~0.4%. For mixtures containing T2, the achievable accuracy of the initial molar ratio is slightly less, with about 0.8–1.0%, due to the lower accuracy in the initial T2 gas composition. Note that this is based on a conservative accuracy estimate for the initial T2 content.
In order to obtain the normalized Raman band signals for each binary and tertiary sample, one must consider the uncertainty of the measured Raman signals, as well as the influence of the exponential regression described in Equation (7). Therefore, first, the inherent shot-noise of the individual peak intensities must be taken into account; and second, the spectral sensitivity correction as outlined in [25] must be applied. It should be noted that the second contribution is the dominant uncertainty of the integrated Raman band signals (see the spectral intensity calibration data in Figure 1). Both are factored into the subsequent (exponential) regression, as illustrated in Figure 5 above, which is used to derive the Raman band data for the binary and tertiary gas samples.
Note that due to the correlation between the simultaneously fitted calibration curves and the small sample size, a bootstrap resampling method is used [59] to estimate the statistical uncertainty in the calibration curve regression, analogous to the data analysis applied in Ref. [16].
Assessing any systematic uncertainty contributions is rather more involved. By and large, the dominant systematic contribution in TRIHYDE stems from the initial gas purities. In particular, this is true for the T2 samples, whose initial concentration value—together with those for the impurities DT and HT—can be sizably different from batch to batch. These then propagate as a systematic variation through a full campaign (each is carried out using just a single T2-batch). Varying all initial batch concentration values by their average sample characterization uncertainties, and then applying bootstrapping to the equilibration data again, one can use the difference between deviated and non-deviated results to estimate the systematic uncertainty.
This procedure has been applied to obtain the statistical and systematic uncertainties shown for the calibration factors listed in Table 5.

5.5. Application Example: Cross-Calibration for the LARA System Used in KATRIN

It was pointed out earlier (Section 5.2) that the calibration factors R XY are not of immediate physical or measurement importance; rather it is the ratio between calibration factor R VW , XY (with VW indicating the isotopologue against which the others are referenced) that becomes useful.
One particularly useful application of these ratio values is the transferability of calibration from one LARA monitoring system to another, provided that the LARA systems have been calibrated for spectral intensity response. Combining the raw calibration factors R XY obtained in our series of measurement campaigns (Section 5.3 and Section 5.4), we were able to generate a full set of relative isotopologue calibration factors, with the exception of HD; these are collated in Table 5.
Note that all entries are calibration factor ratios, referenced against R H 2 . In order to compare the ratios from all campaigns, all factors were scaled to the reference ratio R H 2 , T 2 obtained in campaign (I), using H2-T2 mixtures of 100 mbar. Such reference scaling is always useful (recall the arguments presented in Section 5.3); at times referencing is even necessary, since otherwise it would not be possible to compare data from mixtures without H2 content—like campaign (III)—with those from any campaign with H2-content—like campaign (II).
The relative calibration factors for all hydrogen isotopologues (with the exception of HD)—as listed in Table 5—may be used in high-precision calibration for a LARA system monitoring of the composition of gas mixtures with tritium content, as , in the case of the KATRIN neutrino mass experiment [3,6].
At present, the LARA monitoring for the T2 gas circulating through the KATRIN β-electron source is based on theoretically derived calibration factors, which incorporate the necessary transition probabilities Φ 1 , Δ J J (see Equation (1)), calculated from the transition matrix data of LeRoy [23]. However, in general, it is often difficult to ascertain the absolute calculation accuracy of such transition matrix elements. In the KATRIN experiment the reliability, or “trueness”, of the gas composition is of utmost importance for the evaluation of the neutrino mass. Said transition probabilities were cross-checked in Raman depolarization measurements [54], yielding an agreement of the order 3–4%.
In Figure 8, we compare the theoretical calibration factors R H 2 , XY used in KATRIN with the experimentally derived TRIHYDE values. It is interesting to note that (i) both series of values are in excellent agreement with each other and (ii) the uncertainties for most of the relative calibration factors are substantially lower than those based on theoretically derived quantities (using Equation (4)). This should not be too surprising since one does not have to rely any longer on the published theoretical Raman transition matrix elements (with relatively large uncertainties [18]) but can exploit our highly accurate gas mixtures for cross-calibration.

6. Summary and Conclusions

The aim of the TRIHYDE project has been to set up a facility capable (i) of producing accurate gas mixtures containing tritiated molecules and (ii) of precisely characterizing such mixtures, using a range of mostly in-line gas analysis instrumentation but predominantly exploiting molecule-specific Raman spectroscopy. In this context, at present, TRIHYDE at the Tritium Laboratory Karlsruhe (TLK) constitutes a unique facility, because few—if any—other laboratories have the necessary tritium infrastructure required for tritium handling and sample preparation at their disposal.
In this paper, we have described the setup and operation of TRIHYDE and elucidated the mixing procedures and protocols required to generate precise gas mixtures at chemical equilibrium and to analyze/monitor these samples continuously over extended periods of time.
One particular feature of TRIHYDE is that we have exploited β-induced self-equilibration in tritium-containing mixtures (due to the radioactive decay of tritium) to reach chemical equilibrium on acceptably short time scales (in general <72 h). This is in contrast to the predecessor experiment HYDE for non-radioactive gas mixtures, in which catalytic reactions were required to reach chemical equilibrium in reactive mixtures, such as H2-HD-D2 evolving from initial H2-D2 mixtures. It should be noted that TRIHYDE also incorporates a catalytic path for gas circulation; however, for the studies reported here this was not required.
Starting samples for the mixing process could be prepared routinely with a volumetric reproducibility of <0.25%; this was afforded by a combination of reduced volume uncertainty, a streamlined mixing vessel design, and improved pressure diagnostics (in comparison to HYDE). It is worth noting that we used stable isotopologue mixtures of H2-D2 to confirm our enhanced precision. In addition, the TRIHYDE-integrated mass-spectrometer and binary gas analyzer were used to verify initial gas purities.
The uncertainties contributing to the measurement results with mixtures containing unstable tritium have been addressed in conjunction with the various procedural steps. It is, therefore, worthwhile to summarize these here in order to assess the precision and accuracy of TRIHYDE. As pointed out in Section 5.4, the generation of an individual mixing sample and the determination of its final equilibrated composition incorporates (i) the actual mixing step and (ii) the Raman measurement of the isotopologue fractions in the mixture. Performance data for the TRIHYDE mixing and Raman measurement steps are collated in Table 1, Table 2, and Table 4, and are briefly discussed in the supporting text.
Taking into account only the uncertainties associated with the two “physical” processes of mixing and measuring, one finds, for the former, an uncertainty of 0.50% (for a combined pressure of 500 mbar for the two mixing vessels and excluding the uncertainty related to gas purity) and 0.32% for the determination of individual, integral Raman Q1-branch signals. Combined, this yields a potential precision for an individual gas mixture of ~0.60%. In addition, one has to take into account the uncertainty of the T2 batch composition, which is dominated by the uncertainty in determining the relative concentration of DT. With this, one expects for the two campaigns’ (T2-H2 and T2-D2) values to fall in the range of 0.62–0.83%; indeed, our repeat measurements for 50:50 mixture samples yielded ~0.6–0.8% reproducibility, in line with expectations.
It is worth noting that slight improvement in the precision of the Raman data is possible. At present, it is limited by the accuracy of the Raman intensity calibration with the NIST Raman standard SRM2242, which suffers from a substantial uncertainty at the wavelength of the Q1-branch of H2 (~1.7%). A work-around for this deficiency would be to add intensity calibration with a second (longer-wavelength) NIST Raman standard SRM2245. Merging the calibrations from these two standards would potentially lower the uncertainties for HD and H2 well below the 1% level. However, for excitation, laser radiation at 633 nm is required for the SRM2245 standard. At present, we have explored whether such a dual calibration procedure can be applied without introducing other sources of uncertainty.
As a useful application of TRIHYDE’s accurate mixing and Raman measurement capabilities, we generated a set of Raman analysis calibration factors for all hydrogen isotopologues, which will allow one to verify TRIHYDE mixing samples in other Raman systems and to analyze unknown samples with tritium content with increased confidence. These may serve for cross-validation of calibrated measurement (Raman) instrumentation versus calibrated reference samples. In this context, it is noteworthy that we experimentally confirmed the calibration factors that are used in the gas monitoring of the KATRIN experiment at present (see Section 5.5 above); thus far, for the isotopologues T2, DT, and HT these had been based on theoretically calculated factors.
Note that the uncertainties for these derived global calibration quantities (0.8–2.7%—see Table 5 and Figure 8) are larger than the uncertainties for the composition for an individual gas mixture (0.6–0.8%—as noted earlier in this section). This is mainly due to the simultaneous fit to all individual mixture data, as shown in Figure 7, which is needed to derive the calibration factor ratios R H 2 , XY .
Besides the initial task of producing accurate mixing samples with tritium content, and characterizing them, the exploitation of the β-induced self-equilibration process can be further utilized to explore reaction chains and the associated pressure-/temperature-dependent rates. In part, these were explored and validated during this work; however, a full description of the physical and chemical details is well beyond the scope of this paper. For example, the observed equilibrium concentrations agreed rather well with the calculated values, although the concentration dependence of reaction speed showed some unexpected behavior; however, this did not affect final sample quality. These and other topics will be discussed in a forthcoming scientific publication.
Beyond the use of TRIHYDE in producing and characterizing well-defined mixtures of tritiated hydrogen isotopologues from initial dual gas samples, one can envisage a wealth of further applications by expanding the mixing in TRIHYDE to other, non-hydrogen gas components.
For example, we have just commenced experiments in which high-purity CT4 is mixed (and equilibrated) with precise molar fractions of H2 and D2. This should shed light onto the largely unknown spectroscopy of tritium-substituted methanes and provide insight into reaction paths and production rates of these species. These aspects are thought to be of great importance, for example, in tritium–steel surface interactions.
The gas samples that can be prepared in TRIHYDE are not limited to in situ applications. For instance, mixtures of various hydrogen isotopologues were processed using a copper oxide reduction process to generate tritiated water vapor samples. These were then used in high-resolution FTIR studies of HTO [60,61].
Furthermore, precise reference samples, which may include specific “contaminants” (e.g., N2) in known quantities might be used to benchmark different methods and perform a cross-calibration of tritium accountancy methods, such as gas chromatography (GC) or beta-induced X-ray spectroscopy (BIXS). Note that the latter technique forms part of the actual TRIHYDE installation.
Finally, one may also consider mixtures with atomic rare gases (not Raman active), such as T2 in He, which could be of interest to serve as references in optimizing breeding blanket design for fusion research [62], or T2 in Ar, similar to the purge gas in the cryogenic pumping section (CPS) of the KATRIN setup [4].

Author Contributions

Conceptualization, B.B.; methodology, R.G., S.N., and M.S. (Magnus Schlosser); software, L.F., S.N., and G.Z.; formal analysis, L.F., S.N., and H.H.T.; investigation, L.F. and S.N.; resources, F.P., M.S. (Michael Sturm), and S.W.; writing—original draft preparation, S.N. and H.H.T.; supervision, M.S. (Magnus Schlosser) and H.H.T.; project administration, B.B. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge the support of the Helmholtz Association (HGF), the German Ministry for Education and Research BMBF (05A17VK2), and the DFG graduate school KSETA (GSC 1085).

Data Availability Statement

Selected data available on request from the authors.

Acknowledgments

We thank our colleagues, P. Schäfer and his team, as well as the group “TVT”, especially T. Falke, for their contributions and support throughout the conception and construction of TRIHYDE. Our appreciation also extends to S. Ebenhöch, A. Rein, J.R. Braun, C. Goffing, I. Müller, S. Schäfer, and P. Strack for their respective essential work during the early stages of the experiment and assistance with later sample preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dörr, L.; Besserer, U.; Bekris, N.; Bornschein, B.; Caldwell-Nichols, C.; Demange, D.; Cristescu, I.; Cristescu, I.R.; Glugla, M.; Hellriegel, G.; et al. A decade of tritium technology development and operation at the Tritium Laboratory Karlsruhe. Fusion Sci. Technol. 2008, 54, 143–148. [Google Scholar] [CrossRef]
  2. EUROfusion. European Research Roadmap to the Realisation of Fusion Energy; EUROfusion: Garching, Germany, 2018; Available online: https://www.euro-fusion.org/fileadmin/user_upload/EUROfusion/Documents/2018_Research_roadmap_long_version_01.pdf (accessed on 14 July 2021).
  3. Aker, M.; Altenmüller, K.; Amsbaugh, J.F.; Arenz, M.; Babutzka, M.; Bast, J.; Bauer, S.; Bechtler, H.; Beck, M.; Beglarian, A.; et al. (KATRIN Collaboration). The design, construction, and commissioning of the KATRIN experiment. J. Instrum. 2021, 16, T08015. [Google Scholar] [CrossRef]
  4. Aker, M.; Altenmüller, K.; Beglarian, A.; Behrens, J.; Berlev, A.; Besserer, U.; Bieringer, B.; Blaum, K.; Block, F.; Bornschein, B.; et al. (KATRIN Collaboration). Analysis methods for the first KATRIN neutrino-mass measurement. Phys. Rev. D 2021, 104, 012005. [Google Scholar] [CrossRef]
  5. Fichet, P.; Bultel, A.; Markelj, S.; Moreno, C. Review of the Different Techniques to Analyse Tritium; EU Horizon 2020 Research and Innovation Programme, TRANSversal Actions for Tritium; Contract # 754586; Report D2.1. 2018. Available online: https://transat-h2020.eu/wp-content/uploads/2020/04/TRANSAT_D2_1.pdf (accessed on 7 June 2021).
  6. Schlösser, M.; Fischer, S.; Sturm, M.; Bornschein, B.; Lewis, R.J.; Telle, H.H. Design implications for Laser Raman measurement systems for tritium sample analysis, accountancy or process-control applications. Fusion Sci. Technol. 2011, 60, 976–981. [Google Scholar] [CrossRef]
  7. Aker, M.; Altenmüller, K.; Beglarian, A.; Behrens, J.; Berlev, A.; Besserer, U.; Bieringer, B.; Blaum, K.; Block, F.; Bornschein, B.; et al. Quantitative long-term monitoring of the circulating gases in the KATRIN experiment using Raman spectroscopy. Sensors 2020, 20, 4827. [Google Scholar] [CrossRef]
  8. O’hira, S.; Hayashi, T.; Nakamura, H.; Kobayashi, K.; Tadokoro, T.; Nakamura, H.; Itoh, T.; Yamanishi, T.; Kawamura, Y.; Iwai, Y.; et al. Improvement of tritium accountancy technology for ITER fuel cycle safety enhancement. Nucl. Fusion 2000, 40, 519–526. [Google Scholar] [CrossRef][Green Version]
  9. Godot, A.; Coindet, G.; Hubinois, J.C. Analysis of gases by Raman spectroscopy: Determination of isotopic composition of hydrogen mixtures (H2, D2 and T2). Fusion Sci. Technol. 2011, 60, 998–1001. [Google Scholar] [CrossRef]
  10. Willms, S. Tritium Technology for ITER. In Proceedings of the 4th IAEA DEMO Workshop, Karlsruhe, Germany, 15–18 November 2016; Available online: https://nucleus.iaea.org/sites/fusionportal/Technical%20Meeting%20Proceedings/4th%20DEMO/website/talks/November%2015%20Sessions/Willms.pdf (accessed on 14 July 2021).
  11. Fusion for Energy. Framework Service Contract Engineering Support to the ITER Organization for the ITER Fuel Cycle; REF 674: IO/20/CFT/7-0563/JPK, Fusion for Energy; The European Joint Undertaking for ITER and the Development of Fusion Energy: Barcelona, Spain, 2020; Available online: https://industryportal.f4e.europa.eu/IP_PROCUREMENT_INFO/674/Technical_Summary_-_Framework_Service_Co_36ASCJ_v1_0IO20CFT70563.pdf (accessed on 14 July 2021).
  12. O’hira, S.; Edao, Y.; Isobe, K.; Iwai, Y. Development of a compact real-time process gas analysis system for tritium accountancy for a DEMO fusion reactor by an application of laser Raman spectroscopy. Fusion Eng. Des. 2021, 170, 112502. [Google Scholar] [CrossRef]
  13. Joint Committee for Guides in Metrology. International Vocabulary of Metrology—Basic and General Concepts and Associated Terms (VIM), 3rd ed.; 200:2012; Bureau International des Poids et Mesures (BIPM): Sèvres, France, 2012; Available online: https://www.bipm.org/en/publications/guides (accessed on 7 June 2021).
  14. International Organization for Standardization. Gas Analysis—Preparation of Calibration Gas Mixtures—Part 1: Gravimetric Method for Class I Mixtures; ISO 6142-1:2015; International Organization for Standardization: Vernier, Geneva, Switzerland, 2015. [Google Scholar]
  15. International Organization for Standardization. Gas Analysis—Preparation of Calibration Gas Mixtures Using Dynamic Methods—Part 7: Thermal Mass-Flow Controllers; ISO 6145-7:2018; International Organization for Standardization: Vernier, Geneva, Switzerland, 2018. [Google Scholar]
  16. Schlösser, M.; Seitz, H.; Rupp, S.; Herwig, P.; Alecu, C.G.; Sturm, M.; Bornschein, B. In-line calibration of Raman systems for analysis of gas mixtures of hydrogen isotopologues with sub-percent accuracy. Anal. Chem. 2013, 85, 2739–2745. [Google Scholar] [CrossRef] [PubMed]
  17. Schlösser, M.; Rupp, S.; Seitz, H.; Fischer, S.; Bornschein, B.; James, T.M.; Telle, H.H. Accurate calibration of the laser Raman system for the Karlsruhe Tritium Neutrino experiment. J. Mol. Struct. 2013, 1044, 61–66. [Google Scholar] [CrossRef][Green Version]
  18. James, T.M.; Schlösser, M.; Fischer, S.; Sturm, M.; Bornschein, B.; Lewis, R.J.; Telle, H.H. Accurate depolarization ratio measurements for all diatomic hydrogen isotopologues. J. Raman Spectrosc. 2013, 44, 857–865. [Google Scholar] [CrossRef]
  19. International Laboratory Accreditation Cooperation. ILAC Policy on Metrological Traceability of Measurement Results; (v. ILAC-P10:07/2020); International Laboratory Accreditation Cooperation: Silverwater, NSW, Australia, 2020; Available online: https://ilac.org/publications-and-resources/ilac-policy-series/ (accessed on 14 July 2021).
  20. International Organization for Standardization. Reference Materials: Selected Terms and Definitions; (ISO Guide 30:2015); International Organization for Standardization: Vernier, Geneva, Switzerland, 2015; Available online: https://www.iso.org/standard/46209.html (accessed on 14 July 2021).
  21. Wender, I.; Friedel, R.A.; Orchin, M. Preparation of high-purity hydrogen deuteride from lithium aluminium hydride. J. Am. Chem. Soc. 1949, 71, 1140. [Google Scholar] [CrossRef]
  22. Fooksen, A.; Pomerantz, P.; Rich, E.H. Preparation and purification of hydrogen deuteride. J. Res. Natl. Bur. Stand. 1951, 47, 31–34. [Google Scholar] [CrossRef][Green Version]
  23. Mirz, S.; Brunst, T.; Größle, R.; Krasch, B. Concentrated non-equilibrium HD for the cross calibration of hydrogen isotopologue analytics. Fusion Sci. Technol. 2020, 76, 284–290. [Google Scholar] [CrossRef]
  24. Fenner, W.R.; Hyatt, H.A.; Kellam, J.M.; Porto, S.P.S. Raman cross section of some simple gases. J. Opt. Soc. Am. 1973, 63, 73–77. [Google Scholar] [CrossRef]
  25. Schlösser, M.; Rupp, S.; Brunst, T.; James, T.M. Relative intensity correction of Raman systems with National Institute of Standards and Technology Standard Reference Material 2242 in 90°-scattering geometry. Appl. Spectrosc. 2015, 69, 597–607. [Google Scholar] [CrossRef]
  26. LeRoy, R.J.; Department of Chemistry, University of Waterloo, ON, Canada. Recalculation of Raman Transition Matrix Elements of All Hydrogen Isotopologues for 532 nm Laser Excitation. Sensors Personal communication. 2011, 20, 4827. [Google Scholar]
  27. Schlösser, M. Accurate Calibration of Raman Systems: At the Karlsruhe Tritium Neutrino Experiment; Springer: Cham, Switzerland, 2014. [Google Scholar] [CrossRef]
  28. Glugla, M.; Murdoch, D.K.; Geißler, H.; Herrmann, P.; Kraemer, R.; Le, T.L. Design of a catalytic exhaust clean-up unit for ITER. Fusion Eng. Des. 1998, 39–40, 893–899. [Google Scholar] [CrossRef]
  29. Bornschein, B.; Glugla, M.; Günther, K.; Le, T.L.; Simon, H.; Welte, S. Successful experimental verification of the Tokamak exhaust processing concept of ITER with the CAPER facility. Fusion Sci. Technol. 2005, 48, 11–16. [Google Scholar] [CrossRef]
  30. Dörr, L.; Dehne, J.; Glugla, M.; Penzhorn, R.D.; Welte, S.; Hemmrich, J.L. Upgrade of the Isotope Separation System at the Tritium Laboratory Karlsruhe. Fusion Sci. Technol. 2002, 41, 1155–1159. [Google Scholar] [CrossRef]
  31. Köllo, Z.; Alecu, C.G.; Moosmann, H. A new method to measure small volumes in tritium handling facilities, using p-V measurements. Fusion Sci. Technol. 2011, 60, 972–975. [Google Scholar] [CrossRef]
  32. Taylor, D.J.; Glugla, M.; Penzhorn, R.D. Enhanced Raman sensitivity using an actively stabilized external resonator. Rev. Sci. Instrum. 2001, 72, 1970–1976. [Google Scholar] [CrossRef]
  33. Choquette, S.J.; Etz, E.S.; Hurst, W.S.; Blackburn, D.H.; Leigh, S.D. Relative Intensity Correction of Raman Spectrometers: NIST SRMs 2241 through 2243 for 785 nm, 532 nm, and 488 nm/514.5 nm Excitation. Appl. Spectrosc. 2007, 61, 117–129. [Google Scholar] [CrossRef] [PubMed]
  34. Löfqvist, T.; Delsing, J.; Sokas, K. Speed of sound measurements in gas-mixtures at varying composition using an ultrasonic gasflow meter with silicon based transducers. In Proceedings of the 11th IMEKO TC9 Conference on Flow Measurement (FLOMEKO 2003), Groningen, The Netherlands, 12–14 May 2003; Available online: https://www.diva-portal.org/smash/get/diva2:1003574/FULLTEXT01.pdf (accessed on 14 July 2021).
  35. Röllig, M.; Priester, F.; Babutzka, M.; Bonn, J.; Bornschein, B.; Drexlin, G.; Ebenhöch, S.; Otten, E.W.; Steidl, M.; Sturm, M. Activity monitoring of a gaseous tritium source by beta-induced X-ray spectrometry. Fusion Eng. Des. 2013, 88, 1263–1266. [Google Scholar] [CrossRef]
  36. Wagner, R.; Besserer, U.; Demange, D.; Dittrich, H.; Le, T.L.; Simon, K.H.; Gunether, K. Improvement and characterization of small cross-piece ionization chambers at the Tritium Laboratory Karlsruhe. Fusion Sci. Technol. 2011, 60, 968–971. [Google Scholar] [CrossRef]
  37. Brooks, J.S.; Hallock, R.B. Simple apparatus for concentration determinations in binary-gas mixtures. Rev. Sci. Instrum. 1983, 54, 1199–1201. [Google Scholar] [CrossRef]
  38. Bates, R.; Battistin, M.; Berry, S.; Bitadze, A.; Bonneau, P.; Bousson, N.; Boyd, G.; Bozza, G.; Crespo-Lopez, O.; Da Riva, E.; et al. Implementation of ultrasonic sensing for high resolution measurement of binary gas mixture fractions. Sensors 2014, 14, 11260–11267. [Google Scholar] [CrossRef][Green Version]
  39. Röllig, M.; Ebenhöch, S.; Niemes, S.; Priester, F.; Sturm, M. Development of a compact tritium activity monitor and first tritium measurements. Fusion Eng. Des. 2015, 100, 177–180. [Google Scholar] [CrossRef]
  40. Babutzka, M.; Bahr, M.; Bonn, J.; Bornschein, B.; Dieter, A.; Drexlin, G.; Eitel, K.; Fischer, S.; Glück, F.; Grohmann, S.; et al. Monitoring of the operating parameters of the KATRIN Windowless Gaseous Tritium Source. New J. Phys. 2012, 14, 103046. [Google Scholar] [CrossRef]
  41. Munakata, K.; Berndt, U.; Kirste, E.; Nishikawa, M.; Penzhorn, R.D. Experimental and computational determination of deuterium–tritium mixtures with a small volume ionization chamber. Fusion Eng. Des. 1998, 39–40, 937–948. [Google Scholar] [CrossRef]
  42. Demange, D.; Alecu, C.C.; Bekris, N.; Borisevich, O.; Bornschein, B.; Fischer, S.; Gramlich, N.; Köllö, Z.; Le, T.L.; Michling, R.; et al. Overview of R&D at TLK for process and analytical issues on tritium management in breeder blankets of ITER and DEMO. Fusion Eng. Des. 2012, 87, 1206–1213. [Google Scholar] [CrossRef]
  43. Penzhorn, P.D.; Berndt, U.; Kirste, E.; Chabot, J. Performance tests of Palladium/Silver permeators with tritium at the Tritium Laboratory Karlsruhe. Fusion Sci. Technol. 1997, 32, 232–245. [Google Scholar] [CrossRef]
  44. Welte, S.; Demange, D.; Wagner, R. Mechanical design and first experimental results of an upgraded technical PERMCAT reactor for tritium recovery in the fuel cycle of a fusion machine. Fusion Eng. Des. 2010, 85, 1320–1325. [Google Scholar] [CrossRef]
  45. Besserer, U.; Dörr, L.; Glugla, M. Tritium confinement, retention, and releases at the Tritium Laboratory Karlsruhe. Fusion Sci. Technol. 2008, 54, 160–163. [Google Scholar] [CrossRef]
  46. Jones, W.M. Thermodynamic functions for tritium and tritium hydride. The equilibrium of tritium and hydrogen with tritium hydride. The dissociation of tritium and tritium hydride. J. Chem. Phys. 1948, 16, 1077–1081. [Google Scholar] [CrossRef]
  47. Mattraw, H.C.; Pachucki, C.F.; Dorfman, L.M. Mass spectrometric determination of the hydrogen-tritium equilibrium. J. Chem. Phys. 1952, 20, 926. [Google Scholar] [CrossRef]
  48. Terao, T.; Back, R.S. Radiation-induced isotopic exchange in gaseous hydrogen-deuterium mixtures. J. Phys. Chem. 1969, 73, 3884–3890. [Google Scholar] [CrossRef]
  49. Souers, P.C. Hydrogen Properties for Fusion Energy; University of California Press: Berkeley, CA, USA, 1986. [Google Scholar]
  50. Ganchuk, N.S.; Golubkov, A.N.; Kreknin, D.A.; Ponomarev, L.I.; Selezenev, A.A.; Yukhimchuk, A.A. Calculation of equilibrium composition and establishing time in a mixture of three hydrogen isotopes. Hyperfine Interact. 1999, 119, 357–360. [Google Scholar] [CrossRef]
  51. Bauer, S.H.; Ossa, E. Isotope exchange rates. III: The homogeneous four-center reaction H2 + D2. J. Chem. Phys. 1966, 45, 434–443. [Google Scholar] [CrossRef]
  52. Uda, T.; Okuno, K.; Naruse, Y. Hydrogen isotope exchange reaction rates in tritium, hydrogen and deuterium mixed gases. Radiochim. Acta 1992, 56, 209–214. [Google Scholar] [CrossRef]
  53. Pachucki, K.; Komasa, J. Accurate adiabatic correction in the hydrogen molecule. J. Chem. Phys. 2014, 141, 224103. [Google Scholar] [CrossRef] [PubMed]
  54. Niemes, S. Calibration of a Laser-Raman-System Using Gas Samples of All Hydrogen Isotopologues for KATRIN; Karlsruhe Institute of Technology: Karlsruhe, Germany, 2021. [Google Scholar] [CrossRef]
  55. James, T.M.; Schlösser, M.; Lewis, R.J.; Fischer, S.; Bornschein, B.; Telle, H.H. Automated quantitative spectroscopic analysis combining background subtraction, cosmic ray removal, and peak fitting. Appl. Spectrosc. 2013, 67, 949–959. [Google Scholar] [CrossRef]
  56. Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. SciPy 1.0: Fundamental Algorithms for Scientific Computing in Python. Nat. Meth. 2020, 17, 261–272. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Newville, M.; Otten, R.; Nelson, A.; Ingargiola, A.; Stensitzki, T.; Allan, D.; Fox, A.; Carter, F.; Rawlik, M.; Pustakhod, D.; et al. Lmfit/Lmfit-Py 1.0.2; Version 1.0.2; Zenodo; European Organization for Nuclear Research: Meyrin, Switzerland, 2021. [Google Scholar] [CrossRef]
  58. Fischer, S.; Sturm, M.; Schlösser, M.; Bornschein, B.; Drexlin, G.; Priester, F.; Lewis, R.J.; Telle, H.H. Monitoring of tritium purity during long-term circulation in the KATRIN test experiment LOOPINO using Laser Raman spectroscopy. Fusion Sci. Technol. 2011, 60, 925–930. [Google Scholar] [CrossRef]
  59. Efron, B.; Gong, G. A leisurely look at the bootstrap, the jackknife, and cross-validation. Am. Stat. 1983, 37, 36–48. [Google Scholar] [CrossRef]
  60. Müller, J.; Schlösser, M.; Hase, F.; Ziegler, N.; Grössle, R.; Hillesheimer, D.; Orphal, J. Custom-built light-pipe cell for high-resolution infrared absorption spectroscopy of tritiated water vapor and other hazardous gases. Opt. Express 2019, 27, 17251. [Google Scholar] [CrossRef]
  61. Reinking, J.; Schlösser, M.; Hase, F.; Orphal, J. First high-resolution spectrum and line-by-line analysis of the 2ν2 band of HTO around 3.8 microns. J. Quant. Spectrosc. Radiat. Transf. 2019, 230, 61–64. [Google Scholar] [CrossRef]
  62. Bornschein, B.; Day, C.; Demange, D.; Pinna, T. Tritium management and safety issues in ITER and DEMO breeding blankets. Fusion Eng. Des. 2013, 88, 466–471. [Google Scholar] [CrossRef]
Figure 1. Example Raman spectra of a H2-D2-T2 mixture (ratio 1:1:1) circulating in TRIHYDE, recorded at the beginning (black data trace) and after 100 h of circulation (red data trace); note that the Raman signal data shown here represent averages over 10 Raman measurement cycles of 1 min each. The Q1-branches of the six isotopologues, used in the evaluation of concentrations, are annotated (the peak positions by the dashed lines and the band integration intervals by associated brackets). The other features are S1- and O1-branch lines (to maintain clarity, only a few selected lines are annotated). In the lower panel, the spectral sensitivity calibration for LARA TRIHYDE is shown (normalization at λ = 633 nm); the “raw” Raman spectra were corrected using this response function, resulting in the displayed spectra. For full details, see Section 4.3.
Figure 1. Example Raman spectra of a H2-D2-T2 mixture (ratio 1:1:1) circulating in TRIHYDE, recorded at the beginning (black data trace) and after 100 h of circulation (red data trace); note that the Raman signal data shown here represent averages over 10 Raman measurement cycles of 1 min each. The Q1-branches of the six isotopologues, used in the evaluation of concentrations, are annotated (the peak positions by the dashed lines and the band integration intervals by associated brackets). The other features are S1- and O1-branch lines (to maintain clarity, only a few selected lines are annotated). In the lower panel, the spectral sensitivity calibration for LARA TRIHYDE is shown (normalization at λ = 633 nm); the “raw” Raman spectra were corrected using this response function, resulting in the displayed spectra. For full details, see Section 4.3.
Sensors 21 06170 g001
Figure 2. Schematic overview of TRIHYDE and its integration into the TLK infrastructure. TRIHYDE consists of two linked loops for gas mixing and analysis (the A-Loop) and for flow handling/processing of gas mixtures (the P-Loop). Note that CQ4 stands for all isotope-substituted methanes, with Q = H, D, T. For details, see text.
Figure 2. Schematic overview of TRIHYDE and its integration into the TLK infrastructure. TRIHYDE consists of two linked loops for gas mixing and analysis (the A-Loop) and for flow handling/processing of gas mixtures (the P-Loop). Note that CQ4 stands for all isotope-substituted methanes, with Q = H, D, T. For details, see text.
Sensors 21 06170 g002
Figure 3. Schematic of the analysis segment of TRIHYDE—the A-Loop. It comprises two volume-calibrated buffer vessels and a series of in-line measurement instruments; optionally, the circulating gas can be directed to pass through a catalyst (to speed up equilibrating/exchange reactions). For compositional analysis: LARA = laser Raman spectroscopy cell, BGA = binary gas analyzer; for activity monitoring: IC = ionization chamber, BIXS = beta-induced X-ray spectrometry unit. In addition, off-line compositional rest gas analysis (RGA) via mass spectrometry is incorporated. Gases can be admitted from the tritium transfer system, from external gas supplied, or via two sample ports. For details, see text.
Figure 3. Schematic of the analysis segment of TRIHYDE—the A-Loop. It comprises two volume-calibrated buffer vessels and a series of in-line measurement instruments; optionally, the circulating gas can be directed to pass through a catalyst (to speed up equilibrating/exchange reactions). For compositional analysis: LARA = laser Raman spectroscopy cell, BGA = binary gas analyzer; for activity monitoring: IC = ionization chamber, BIXS = beta-induced X-ray spectrometry unit. In addition, off-line compositional rest gas analysis (RGA) via mass spectrometry is incorporated. Gases can be admitted from the tritium transfer system, from external gas supplied, or via two sample ports. For details, see text.
Sensors 21 06170 g003
Figure 4. Schematic of the processing segment of TRIHYDE—the P-Loop. Gases enter the loop either from the TTS tritium gas supply or are “waste” gases from the A-loop and exit the loop either to the A-loop or the TLK infrastructure units. The gas (mixtures) are moved and/or compressed by a series of pumps; TMP = turbomolecular pump; SP = scroll pump; MBP = metal bellows pump. Optional to simple gas distribution, the P-loop incorporates the capability of gas cleaning by circulation through a permeator. For details, see text.
Figure 4. Schematic of the processing segment of TRIHYDE—the P-Loop. Gases enter the loop either from the TTS tritium gas supply or are “waste” gases from the A-loop and exit the loop either to the A-loop or the TLK infrastructure units. The gas (mixtures) are moved and/or compressed by a series of pumps; TMP = turbomolecular pump; SP = scroll pump; MBP = metal bellows pump. Optional to simple gas distribution, the P-loop incorporates the capability of gas cleaning by circulation through a permeator. For details, see text.
Sensors 21 06170 g004
Figure 5. Evolution of the composition of a D2-T2 sample (nominal starting mixture 40:60), associated with β-induced self-equilibration processes. Note that the T2 batch purity in the data shown here was only 97.5%, with most of the remainder being DT. The isotopologue concentrations shown here were extracted from the Raman spectra (signal intensity integrals of the Q1-branches); data points represent averages over time intervals of 20 min (corresponding to 20 individual LARA acquisitions). For further details, see text.
Figure 5. Evolution of the composition of a D2-T2 sample (nominal starting mixture 40:60), associated with β-induced self-equilibration processes. Note that the T2 batch purity in the data shown here was only 97.5%, with most of the remainder being DT. The isotopologue concentrations shown here were extracted from the Raman spectra (signal intensity integrals of the Q1-branches); data points represent averages over time intervals of 20 min (corresponding to 20 individual LARA acquisitions). For further details, see text.
Sensors 21 06170 g005

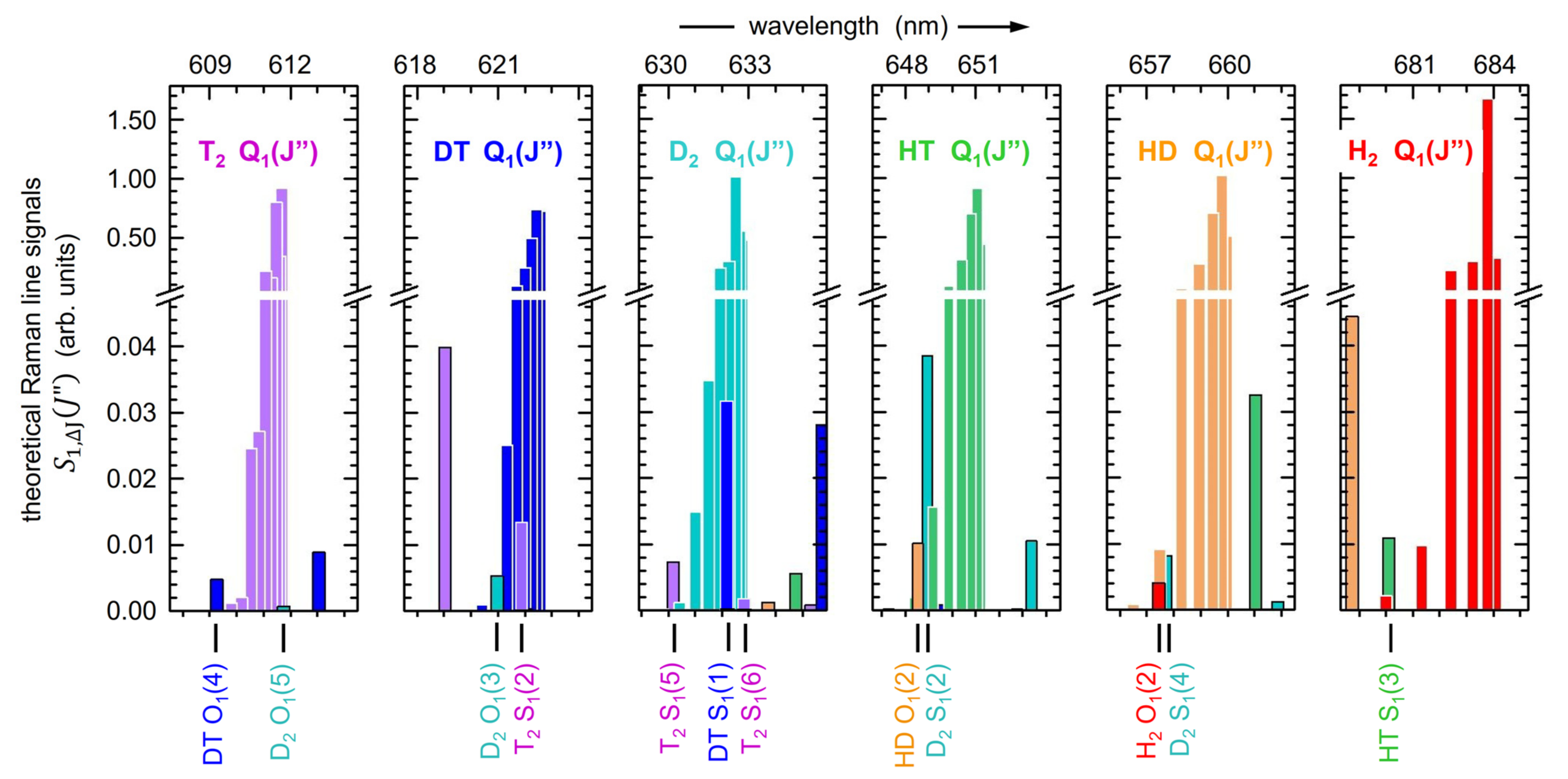

Figure 6. Theoretical Raman signals S 1 , Δ J J Φ 1 , Δ J J · N J , T for all six hydrogen isotopologues, with the transition probabilities Φ 1 , Δ J J based on data provided in Ref. [26]. At the bottom, individual S1(J″) and O1(J″) lines are indicated, which might require deconvolution efforts during quantitative evaluation of the Q1(J″)-branch intensity integrals.
Figure 6. Theoretical Raman signals S 1 , Δ J J Φ 1 , Δ J J · N J , T for all six hydrogen isotopologues, with the transition probabilities Φ 1 , Δ J J based on data provided in Ref. [26]. At the bottom, individual S1(J″) and O1(J″) lines are indicated, which might require deconvolution efforts during quantitative evaluation of the Q1(J″)-branch intensity integrals.
Sensors 21 06170 g006
Figure 7. Calibration curves for gas mixtures of H2-T2 and D2-T2 (spectral sensitivity corrections and transition probability factors are incorporated in the relative Raman signals). All error bars (1σ) are expanded by a factor of ×5 in the display, for better visibility. Note that the top and bottom panels relate to the data of the initial mixture at t = 0 h and after full equilibration at t > 60 h, respectively. As an example, the straight-line curves for a hypothetical, theoretical intensity relation of R XY = 1 were added for the initial H2-T2 mixtures (top left panel). For further details, see text.
Figure 7. Calibration curves for gas mixtures of H2-T2 and D2-T2 (spectral sensitivity corrections and transition probability factors are incorporated in the relative Raman signals). All error bars (1σ) are expanded by a factor of ×5 in the display, for better visibility. Note that the top and bottom panels relate to the data of the initial mixture at t = 0 h and after full equilibration at t > 60 h, respectively. As an example, the straight-line curves for a hypothetical, theoretical intensity relation of R XY = 1 were added for the initial H2-T2 mixtures (top left panel). For further details, see text.
Sensors 21 06170 g007
Figure 8. Calibration factor ratios, R H 2 , XY , with X, Y ∈ [H, D, T]; comparison between the experimental values derived in this TRIHYDE work and the calculated (theoretical) values used in the KATRIN experiment, based on the data given in Refs. [16,23].
Figure 8. Calibration factor ratios, R H 2 , XY , with X, Y ∈ [H, D, T]; comparison between the experimental values derived in this TRIHYDE work and the calculated (theoretical) values used in the KATRIN experiment, based on the data given in Refs. [16,23].
Sensors 21 06170 g008
Table 1. Key operating parameters and performance of TRIHYDE and HYDE [16,27].
Table 1. Key operating parameters and performance of TRIHYDE and HYDE [16,27].
TRIHYDE ApparatusHYDE Apparatus
ParameterCapabilityUncertaintyCapability Uncertainty
Molecular SpeciesH2, D2, T2, He (1) H2, D2
Pressure Range1 × 10−3–900 mbar<0.15%5 × 10−2–1000 mbar0.25%
Temperature Range20–200 °C<0.2%20–300 °CNA
Mixing Vessel Volumemax. 1600 cm3<0.25%max. 3320 cm30.56%
(1) Gases used in this study; range can be extended to other species.
Table 2. Summary of key operating parameters and performance data for the LARA monitoring instrumentation.
Table 2. Summary of key operating parameters and performance data for the LARA monitoring instrumentation.
ParameterValueUncertainty
Operating Laser Power, IL1.5–2.0 W<5 mW
Laser RMS Noise, Inoise <2 mW
Spectral Range, λ (1)540–720 nm
Spectral Calibration, λ 0.07 nm
Spectral Resolution, Δλ ( ν ˜ )1.05 nm (≅27 cm−1)0.08 nm
Molecular Speciesall (2)
Pressure Range, p1 × 10−3–900 mbarGauge Reading: 0.12%
Partial Pressure Detection Limit, δp (3)0.18 mbar0.08 mbar
(1) Wavelength range governed by spectrometer dispersion and CCD detector size; lower limit dictated by the transmission edge of the Raman edge filter. (2) In principle, all Raman-active molecular vibrational bands are detectable; their detection limit depends on partial pressure and on Raman transition probability. (3) For 60 s data accumulation, at 250 mbar loop pressure.
Table 3. Purities of the primary gases H2, D2, and T2 used in the various mixing campaigns. Note that the T2 batch composition, provided by the ISS of TLK, differed from campaign to campaign, but was nearly stable (change < 0.1%) for the duration of any individual campaign.
Table 3. Purities of the primary gases H2, D2, and T2 used in the various mixing campaigns. Note that the T2 batch composition, provided by the ISS of TLK, differed from campaign to campaign, but was nearly stable (change < 0.1%) for the duration of any individual campaign.
T2DTD2HTHDH2
H2 (Linde Hydrogen N6.0)--------------->0.9999
D2 (Linde Deuterium N5.0; D2.75)------>0.9950---<0.0050<0.0001
T2 (for H2 Campaign)0.9940.003<0.0010.002<0.001<0.001
T2 (for D2 Campaign)0.9750.022<0.0010.002<0.001<0.001
Table 4. Overview of typical uncertainty contributions during extraction of the calibration factors, as applicable to the data sets shown in Figure 7.
Table 4. Overview of typical uncertainty contributions during extraction of the calibration factors, as applicable to the data sets shown in Figure 7.
ProcessParameterUncertainty Contribution
Initial Isotopologue ComponentsMixing Vessel Volume0.25%·VMV
Mixing Vessel Pressure0.15%·pMV
Mixing Vessel and Loop Temperature~0.75 °C
Initial Gas Purity<0.1% (1)/1.0–2.5% (2)
Raman MeasurementsIntegrated Q1 Bands During Equilibration Process<0.3%
Regression Of Equilibration Process (Equation (7))<0.1%
Calibration Curve RegressionBootstrap Re-Sampling for Isotopologue Compositions~0.8% (3)/~2.7% (4)
(1) For inactive gases, H2 and D2; gas purities listed in Table 3. (2) Estimate for tritiated mixtures based on initial T2 batch measurement. (3) For “binary” samples with only two isotopologues included. (4) For “tertiary” samples with three isotopologues included, using fixed chemical equilibrium constants.
Table 5. Calibration factor ratios R H 2 , XY , obtained from the TRIHYDE H2-T2 and D2-T2 mixing campaigns (II) and (III), respectively, with spectral sensitivity corrections applied; X, Y ∈ [H, D, T].
Table 5. Calibration factor ratios R H 2 , XY , obtained from the TRIHYDE H2-T2 and D2-T2 mixing campaigns (II) and (III), respectively, with spectral sensitivity corrections applied; X, Y ∈ [H, D, T].
Isotopologue
R H 2 , X Y
σtotalσsysσstat
H21.0000.0080.0030.007
HD (1)------------
HT (2)1.0830.0290.0150.024
D2 (3)1.1610.0100.0050.009
DT (3)1.2080.0280.0120.026
T2 (2), (3), (4)1.2610.0150.0080.012
(1) Not accessible using only H2-T2 and D2-T2 starting mixtures. (2) Derived from campaign (II). (3) Derived from campaign (III). (4) Normalized to R H 2 , T 2 from campaign (I).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Niemes, S.; Telle, H.H.; Bornschein, B.; Fasselt, L.; Größle, R.; Priester, F.; Schlösser, M.; Sturm, M.; Welte, S.; Zeller, G. Accurate Reference Gas Mixtures Containing Tritiated Molecules: Their Production and Raman-Based Analysis. Sensors 2021, 21, 6170. https://doi.org/10.3390/s21186170

AMA Style

Niemes S, Telle HH, Bornschein B, Fasselt L, Größle R, Priester F, Schlösser M, Sturm M, Welte S, Zeller G. Accurate Reference Gas Mixtures Containing Tritiated Molecules: Their Production and Raman-Based Analysis. Sensors. 2021; 21(18):6170. https://doi.org/10.3390/s21186170

Chicago/Turabian Style

Niemes, Simon, Helmut H. Telle, Beate Bornschein, Lucian Fasselt, Robin Größle, Florian Priester, Magnus Schlösser, Michael Sturm, Stefan Welte, and Genrich Zeller. 2021. "Accurate Reference Gas Mixtures Containing Tritiated Molecules: Their Production and Raman-Based Analysis" Sensors 21, no. 18: 6170. https://doi.org/10.3390/s21186170

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
