# A Redundant Configuration of Four Low-Cost GNSS-RTK Receivers for Reliable Estimation of Vehicular Position and Posture

^{*}

## Abstract

**:**

## 1. Introduction

- The best geometrical configuration for three and four antennas to minimize position and posture uncertainty of a vehicle is deduced.
- A redundant setup with four antennas is analyzed, so when the precision of one receiver degrades, reliable 3D coordinates can be still calculated in real-time.
- A decentralized node architecture using the Robot Operating System (ROS) that integrates all the available measurements from the receivers is presented.

## 2. Spatial Configurations for the Antennas of the GNSS-RTK Receivers

- The mean errors of the receivers along time are null, i.e., $E[\Delta {v}_{i}\left(t\right)]=0\phantom{\rule{0.166667em}{0ex}}\forall i$.
- The errors of different receivers are independent, i.e., $E[\Delta {v}_{i}\left(t\right)\Delta {v}_{j}^{T}\left(t\right)]=0$ for $i\ne j$.
- All the receivers share the same covariance matrix, i.e., $C={C}_{1}={C}_{2}={C}_{3}={C}_{4}$.

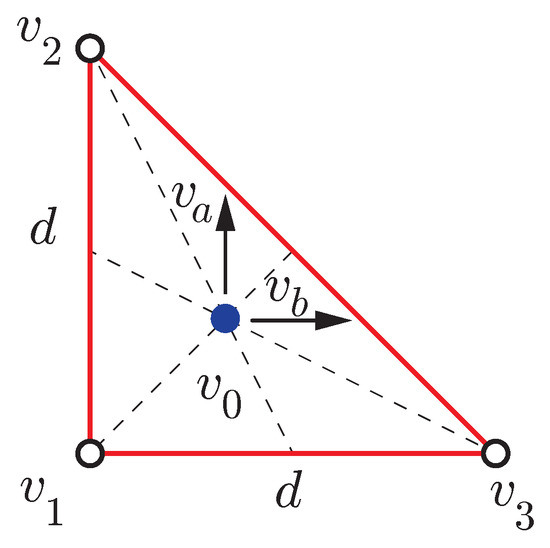

#### 2.1. Three Receivers Optimal Configuration

- The distances ${d}_{a}$ and ${d}_{b}$ of the second and third antenna with respect to the first antenna, respectively, are constant values determined without uncertainty.
- The angle $\theta $ between the directions given by ${d}_{a}$ and ${d}_{b}$ is also known certainly on the plane that contains the three antennas.

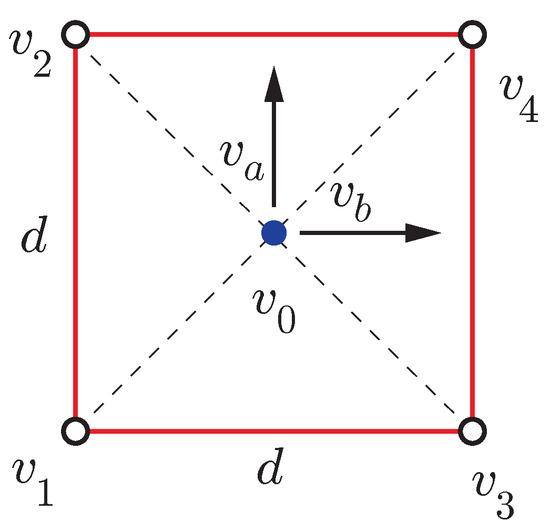

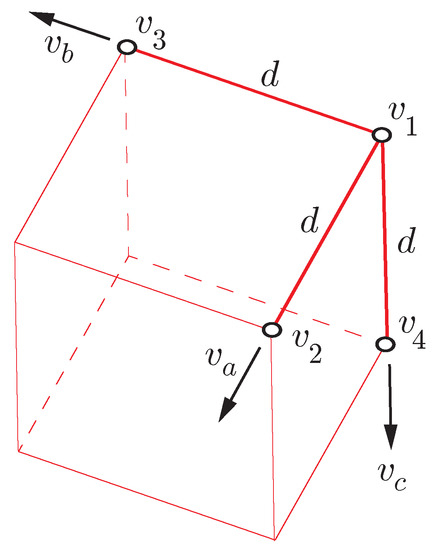

#### 2.2. Four Receivers Optimal Layout

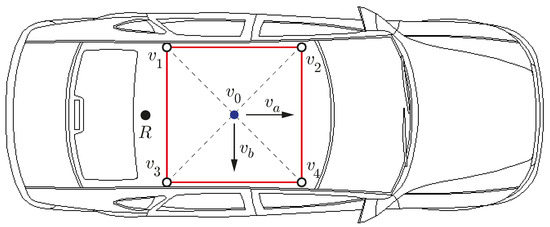

#### 2.3. Four Receivers Redundant Configuration

## 3. Sensor System

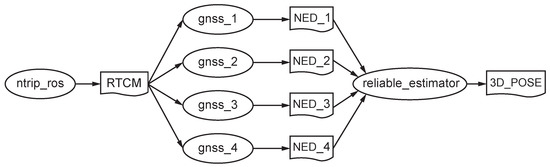

#### ROS Programming

`ntrip_ros`(https://github.com/ros-agriculture/ntrip_ros, accessed on 28 July 2021) node connects to a nearby CORS to get RTCM streams through internet and to publish them into the topic

`RTCM`. Each receiver i has associated a driver node (https://github.com/KumarRobotics/ublox, accessed on 28 July 2021) named

`gnss_i`that is subscribed to this topic to receive differential corrections via callbacks. These nodes publish NED coordinates on its own topic

`NED_i`along with a time stamp and three accuracy estimates (each one $\ge 10\mathrm{m}\mathrm{m}$).

`reliable_estimator`node receives all the messages from the four

`NED_i`topics and computes the six 3D coordinates with three or four synchronized measurements. Finally, it publishes the current pose into the

`3D_POSE`topic, making this data available for any navigation node on the ROS system.

## 4. Experiments with the Rover Argo XTR

^{−1}and zero turning radius. The robotic rover can be controlled via a follow-me system with a 2D laser scanner or via remote teleoperation with a joystick and a line-of-sight wireless link.

#### 4.1. Calibration Test

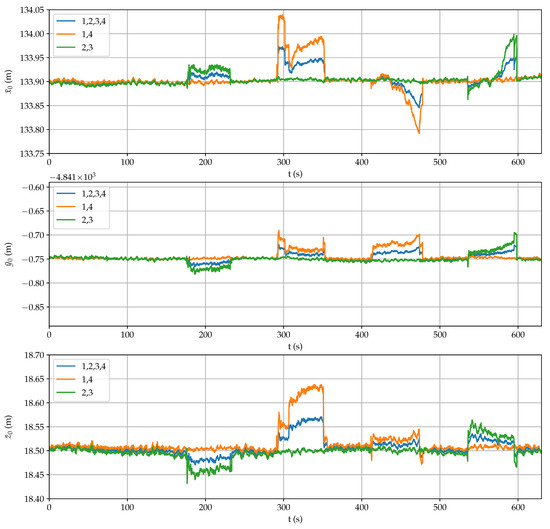

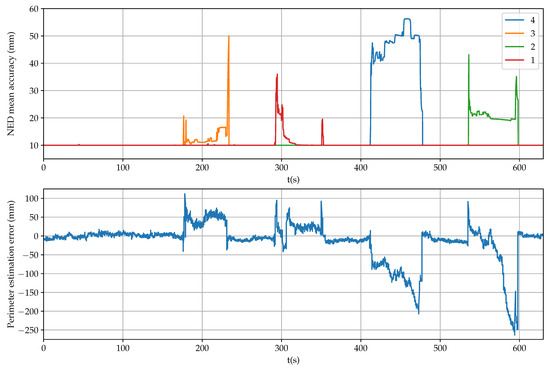

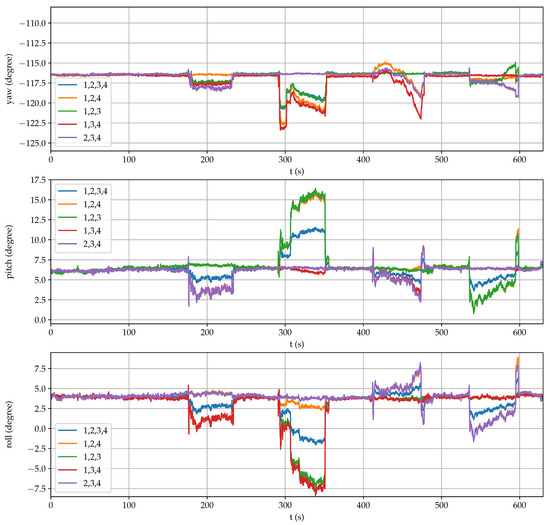

#### 4.2. Reliability Test

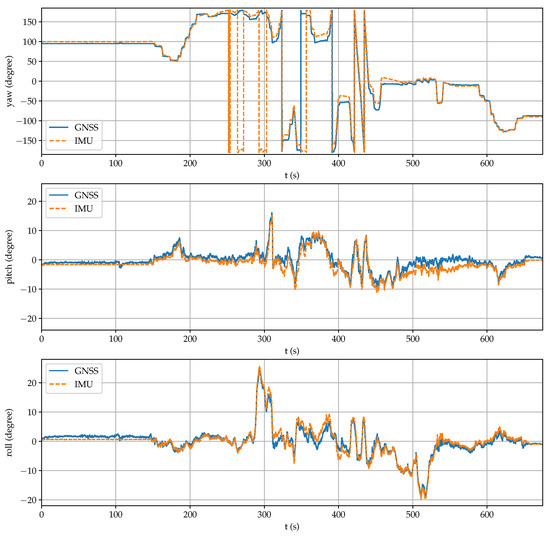

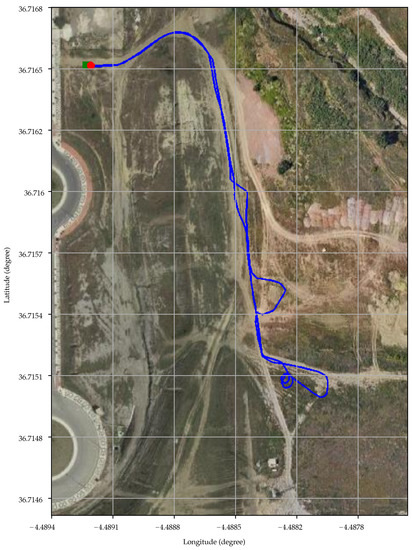

#### 4.3. Dynamic Test

^{−1}.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

3D | Three-Dimensional |

CORS | Continuously Operating Reference Station |

ECEF | Earth-Centered, Earth-Fixed |

GPS | Global Positioning System |

GNSS | Global Navigation Satellite System |

IMU | Inertial Measurement Unit |

MEMS | Micro Electro Mechanical Systems |

NTRIP | Networked Transport of RTCM via Internet Protocol |

ROS | Robot Operating System |

RTCM | Radio Technical Commission for Maritime Services |

SBAS | Satellite Based Augmentation Systems |

USB | Universal Serial Bus |

## References

- Henkel, P. Calibration of magnetometers with GNSS receivers and magnetometer-aided GNSS ambiguity fixing. Sensors
**2017**, 17, 1324. [Google Scholar] [CrossRef] [Green Version] - Ahmad, N.; Ariffin, R.; Ghazilla, R.; Khairi, N.M.; Kasi, V. Reviews on various Inertial Measurement Unit (IMU) sensor applications. Int. J. Signal Proc. Syst.
**2013**, 1, 256–262. [Google Scholar] [CrossRef] [Green Version] - Borenstein, J.; Everett, H.R.; Feng, L.; Wehe, D. Mobile robot positioning: Sensors and techniques. J. Robot. Syst.
**1997**, 14, 231–249. [Google Scholar] [CrossRef] - Hein, G.W. Status, perspectives and trends of satellite navigation. Satell. Navig.
**2020**, 1, 1–12. [Google Scholar] [CrossRef] - Ciecko, A.; Bakula, M.; Grunwald, G.; Cwiklak, J. Examination of multi-receiver GPS/EGNOS positioning with Kalman filtering and validation based on CORS stations. Sensors
**2020**, 20, 2732. [Google Scholar] [CrossRef] [PubMed] - Olivart-Llop, J.M.; Moreno-Salinas, D.; Sánchez, J. Full real-time positioning and attitude system based on GNSS-RTK technology. Sustainability
**2020**, 12, 9796. [Google Scholar] [CrossRef] - Fastellini, G.; Radicioni, F.; Schiavoni, A.; Stoppini, A. Comparison of kinematic parameters of a moving vehicle by GNSS measurements and inertial/GPS navigation system. In Proceedings of the 5th International Symposium on Mobile Mapping Technology (MMT), Padua, Italy, 29–31 May 2007; pp. 28–31. [Google Scholar]
- Consoli, A.; Ayadi, J.; Bianchi, G.; Pluchino, S.; Piazza, F.; Baddour, R.; Pares, M.E.; Navarro, J.; Colomina, I.; Gameiro, A.; et al. A multi-antenna approach for UAV’s attitude determination. In Proceedings of the 2nd International Workshop on IEEE Metrology for Aerospace (MetroAeroSpace), Benevento, Italy, 3–5 June 2015; pp. 401–405. [Google Scholar] [CrossRef]
- Liu, S.; Zhang, L.; Li, J. A dual frequency carrier phase error difference checking algorithm for the GNSS compass. Sensors
**2016**, 16, 1988. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ding, W.; Wang, J. Precise velocity estimation with a stand-alone GPS receiver. J. Nav.
**2011**, 64, 311–325. [Google Scholar] [CrossRef] [Green Version] - Sun, R.; Cheng, Q.; Wang, J. Precise vehicle dynamic heading and pitch angle estimation using time-differenced measurements from a single GNSS antenna. GPS Solut.
**2020**, 24, 1–9. [Google Scholar] [CrossRef] - Sukkarieh, S.; Nebot, E.M.; Durrant-Whyte, H.F. A high integrity IMU/GPS navigation loop for autonomous land vehicle applications. IEEE Trans. Robot. Autom.
**1999**, 15, 572–578. [Google Scholar] [CrossRef] [Green Version] - Blanco, J.L.; Moreno, F.A.; González, J. A collection of outdoor robotic datasets with centimeter-accuracy ground truth. Auton. Robot.
**2009**, 27, 327–351. [Google Scholar] [CrossRef] - Maddern, W.; Pascoe, G.; Gadd, M.; Barnes, D.; Yeomans, B.; Newman, P. Real-time kinematic ground truth for the Oxford robotcar dataset. arXiv
**2020**, arXiv:2002.10152. [Google Scholar] - Lourakis, M.; Pateraki, M.; Karolos, I.A.; Pikridas, C.; Patias, P. Pose estimation of a moving camera with low-cost, multi-GNSS devices. In Proceedings of the International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, XXIV ISPRS Congress, Nice, France, 31 August–2 September 2020; pp. 55–62. [Google Scholar] [CrossRef]
- Zhg, R. Entanglement difference of GNSS carrier phase for vehicle attitude determination. Int. J. Transp. Sci. Tech.
**2021**, 10, 69–82. [Google Scholar] [CrossRef] - Cai, X.; Hsu, H.; Chai, H.; Ding, L.; Wang, Y. Multi-antenna GNSS and INS integrated position and attitude determination without base station for land vehicles. J. Nav.
**2019**, 72, 342–358. [Google Scholar] [CrossRef] - Henkel, P.; Sperl, A.; Mittmann, U.; Fritzel, T.; Strauss, R.; Steiner, H. Precise 6D RTK positioning system for UAV-based near-field antenna measurements. In Proceedings of the 14th European Conference on Antennas and Propagation (EuCAP), Copenhagen, Denmark, 15–20 March 2020; pp. 1–5. [Google Scholar] [CrossRef]
- Smith, R.C.; Cheeseman, P. On the representation and estimation of spatial uncertainty. Int. J. Robot. Res.
**1986**, 5, 56–67. [Google Scholar] [CrossRef] - Quigley, M.; Gerkey, B.; Conley, K.; Faust, J.; Foote, T.; Leibs, J.; Berger, E.; Wheeler, R.; Ng, A. ROS: An open-source robot operating system. In Proceedings of the IEEE International Conference on Robotics and Automation: Workshop on Open Source Software (ICRA), Kobe, Japan, 12–17 May 2009. [Google Scholar]
- Berrocoso, M.; Páez, R.; Jijena, B.; Caturla, C. The RAP net: A geodetic positioning network for Andalusia (south Spain). In Proceedings of the EUREF Symposium, Riga, Latvia, 14–16 June 2006; pp. 364–368. [Google Scholar]
- Horn, B.K.P. Closed-form solution of absolute orientation using unit quaternions. J. Opt. Soc. Am.
**1987**, 4, 629–642. [Google Scholar] [CrossRef] - Bandari, E.; Goldstein, N.; Nesnas, I.; Bajracharya, M. Realtime Absolute Orientation with Outlier Rejection for Visual Odometry and Mesh Merging; Technical Report 20040084602; National Aeronautics and Space Administration (NASA): Washington, DC, USA, 2004.
- Niu, X.; Goodall, C.; Nassar, S.; El-Sheimy, N. An efficient method for evaluating the performance of MEMS IMUs. In Proceedings of the IEEE/ION Position, Location, And Navigation Symposium, San Diego, CA, USA, 25–27 April 2006; pp. 766–771. [Google Scholar]

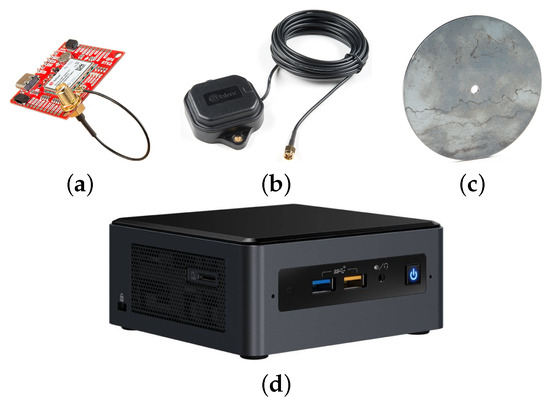

**Figure 5.**Hardware components of the sensor system: a GNSS-RTK board (

**a**), an antenna (

**b**), a ground plate (

**c**) and the mini computer (

**d**).

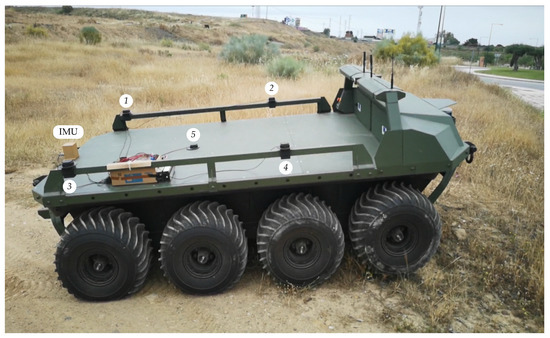

**Figure 7.**The rover Argo XTR with the sensor system mounted on the rear deck. GNSS antennas are numbered from 1 to 5.

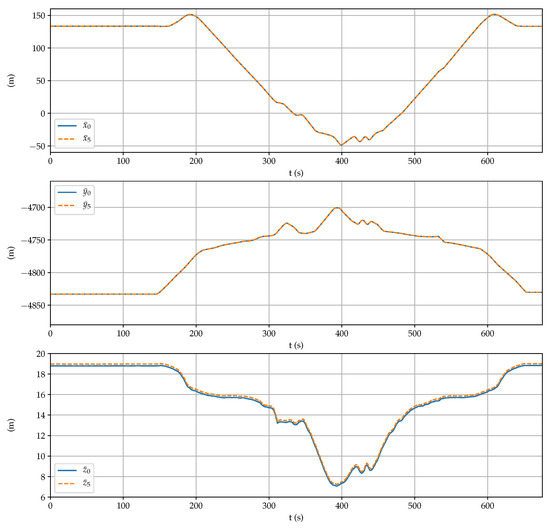

**Figure 12.**Comparison between the position coordinates obtained by the fifth receiver and the proposed sensor.

a (m) | b (m) | c (m) | |
---|---|---|---|

${v}_{1}^{*}$ | −0.672 | −0.675 | −0.004 |

${v}_{2}^{*}$ | 0.673 | −0.676 | −0.004 |

${v}_{3}^{*}$ | −0.672 | 0.672 | −0.004 |

${v}_{4}^{*}$ | 0.671 | 0.678 | 0.011 |

${v}_{5}^{*}$ | −0.004 | 0.005 | 0.166 |

${v}_{0}^{*}$ (21) | 0 | 0 | 0 |

${v}_{0}^{*}$ (28) | 0.001 | −0.002 | −0.004 |

${v}_{0}^{*}$ (29) | 0 | 0.002 | 0.004 |
