Development of Response Surface Model of Endurance Time and Structural Parameter Optimization for a Tailsitter UAV

1
College of Mechanical and Electronic Engineering, Northwest A & F University, Yangling 712100, China
2
Institute of Soil and Water Conservation, Northwest A & F University, Yangling 712100, China
3
Institute of Soil and Water Conservation, CAS&MWR, Yangling 712100, China
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(6), 1766; https://doi.org/10.3390/s20061766
Received: 6 January 2020 / Revised: 8 March 2020 / Accepted: 19 March 2020 / Published: 22 March 2020
(This article belongs to the Section Remote Sensors, Control, and Telemetry)

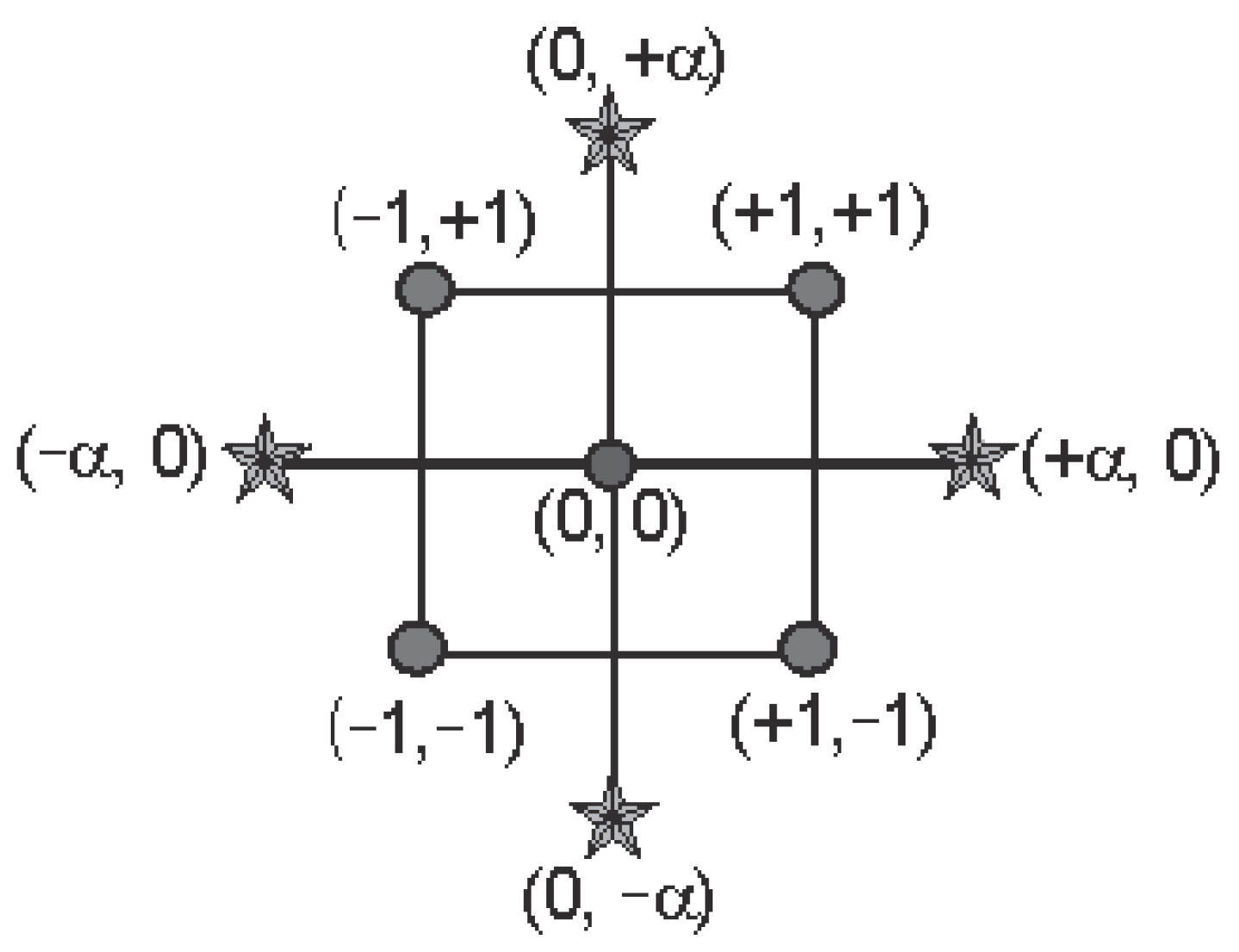

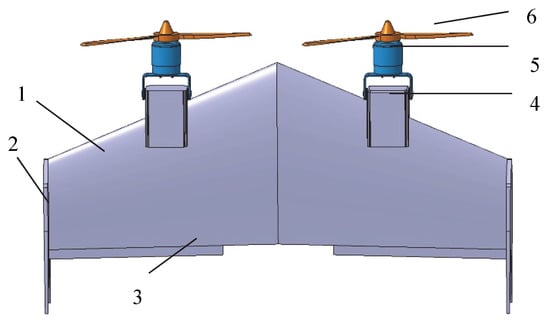

This study designed a vertical take-off and landing tailsitter unmanned aerial vehicle (UAV) with a long endurance time. Nine parameters of the tailsitter UAV were investigated. Using a 2k full factorial test, 512 experiments on the nine parameters were conducted at their maximum and minimum values. The time coefficient and air resistance were calculated using the computational fluid dynamics (CFD) method under different parameter combinations. The analysis of variance determined that the specific factors influencing the time coefficient and air resistance were the root chord, wingtip chord, wingspan, and sweep angle. By carrying out a central composite design (CCD) test, 25 sample points of the four particular factors were constructed. The time coefficient and air resistance were simulated under different structural parameter combinations using the CFD method. CFD simulation was verified by carrying out a wind tunnel test, and the results revealed that the aerodynamic coefficient error was less than 5%, while the air resistance error was less than 6%. The response surface methodology (RSM) for the time coefficient and air resistance was established using a genetic aggregation method. A multi-objective genetic algorithm (MOGA) was used to optimize the parameters with regard to the maximum time coefficient and minimum air resistance. The optimal structural parameters were wing root chord length at 315 mm, wingtip chord length at 182 mm, wingspan length at 1198 mm, and sweep angle at 16°. Compared with the original layout and size, the time coefficient of the new design of the tailsitter UAV improved by 19.5%, while the air resistance reduced by 34.78%. The results obtained by this study are significant for the design of tailsitter UAVs. View Full-Text
Keywords: tailsitter; structural optimization; MOGA; RSM tailsitter; structural optimization; MOGA; RSM
