Magnetic Microwires with Unique Combination of Magnetic Properties Suitable for Various Magnetic Sensor Applications

by
Paula Corte-Leon
1,2,
Valentina Zhukova
1,2,
Alexandr Chizhik
1,2,
Juan Maria Blanco
2,
Mihail Ipatov
1,2,
Lorena Gonzalez-Legarreta
1,3 and
Arcady Zhukov
1,2,4,*
1
Department Advanced Polymers and Materials: Physics, Chemistry and Technology, Faculty of Chemistry, University of Basque Country, UPV/EHU, 20018 San Sebastian, Spain
2
Departamento de Física Aplicada, EIG, Basque Country University, Universidad del País Vasco/Euskal Herriko Unibersitatea, UPV/EHU, 20018 San Sebastian, Spain
3
Departamento QUIPRE, Inorganic Chemistry-University of Cantabria, Nanomedice-IDIVAL, Avda. de Los Castros 46, 39005 Santander, Spain
4
IKERBASQUE, Basque Foundation for Science, 48011 Bilbao, Spain
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(24), 7203; https://doi.org/10.3390/s20247203
Submission received: 17 November 2020 / Revised: 5 December 2020 / Accepted: 11 December 2020 / Published: 16 December 2020
(This article belongs to the Special Issue Feature Papers in Physical Sensors Section 2020)
Browse Figures
Versions Notes

Abstract

:
There is a pressing demand to improve the performance of cost-effective soft magnetic materials for use in high performance sensors and devices. Giant Magneto-impedance effect (GMI), or fast single domain wall (DW) propagation can be observed in properly processed magnetic microwires. In this paper we have identified the routes to obtain microwires with unique combination of magnetic properties allowing observation of fast and single DW propagation and GMI effect in the same microwire. By modifying the annealing conditions, we have found the appropriate regimes allowing achievement of the highest GMI ratio and the fastest DW dynamics. The observed experimental results are discussed considering the radial distribution of magnetic anisotropy and the correlation of GMI effect, and DW dynamics with bulk and surface magnetization processes. Studies of both Fe- and Co-rich microwires, using the magneto-optical Kerr effect, MOKE, provide information on the magnetic structure in the outer shell of microwires. We have demonstrated the existence of the spiral helical structure in both studied microwires. At the same time, torsion mechanical stresses induce helical bistability in the same microwires, which allow us to consider these microwires as materials suitable for sensors based on the large Barkhausen jump.

Graphical Abstract

1. Introduction

Recent advances in physical sensors have been greatly influenced by the development of novel functional materials with advanced physical properties. Among physical sensors, magnetic sensors play a relevant role due to the increasing demand and important applications in various industrial sectors such as microelectronics, security and electronic surveillance, automobile, aerospace and aircraft industries, energy-efficient refrigerators, medicine, home entertainment, energy harvesting and conversion, informatics, electrical engineering, magnetic recording, among others [1,2]. An essential part of magnetic sensors is a suitable magnetic material [1]. The performance of magnetic sensors is greatly influenced by the combination of physical properties of magnetic materials [2,3,4].
Among various families of magnetic materials, a family of soft magnetic materials with amorphous structure presents several important advantages [1,2,3,4,5]. As a rule, amorphous materials present superior excellent magnetic softness, such as low coercivity, high magnetic permeability and low core losses [1,5,6,7,8]. Such excellent magnetic softness of amorphous materials is commonly attributed to the glassy-like structure characterized by the absence of atomic long-range order and hence lack of defects typical for crystalline materials, i.e., grain boundaries, dislocations, twins, etc [5,6,7,8]. It is worth mentioning that similar magnetic softness can be also achieved in nanocrystalline materials [6,7]. However, amorphous magnetic materials additionally present superior mechanical properties [9,10,11,12,13]. A clear correlation of crystallization of amorphous materials and mechanical properties (i.e., tensile yield) shows the deterioration of mechanical properties upon the devitrification of amorphous microwires [13]. Consequently, the use of amorphous materials allows the development of robust magnetic devices and even magnetoelastic sensors [14,15,16,17,18,19,20,21].
Additionally, the common feature of different families of amorphous materials is that the fabrication process involves rapid melt quenching and hence, is fast and inexpensive [5,6,7,8,9,10,11,12,13].
The cylindrical geometry of amorphous wires is the most suitable for realization of either the Giant magnetoimpedance (GMI) effect [14,17,18,19,22,23,24,25] or magnetic bistability, associated with a single and large Barkhausen jump [5,26,27,28].
The origin of the GMI effect is satisfactorily explained from the viewpoint of classical electrodynamics, considering the influence of the applied magnetic field on the penetration depth, δ, of the AC current flowing through a soft magnetic conductor [22,23,24,25]. The DC applied magnetic field affects δ through the circular permeability, μφ, which leads to a change in the impedance, Z [22,23,24,25,29]. Accordingly, a high circumferential magnetic permeability is essentially relevant for the GMI effect observation [22,23,24,25]. The highest GMI effect is observed in Co-based amorphous magnetic wires with low magnetostriction coefficient, λs, and specific domain structure [26,30,31].
On the other hand, the first observations of the domain walls (DWs) propagation were also realized in magnetic wires [32]. The aforementioned magnetic bistability associated with the remagnetization process through a single and large Barkhausen jump can be realized in various families of amorphous wires [6,26,27,28]. This peculiar remagnetization process, in which a demagnetized state cannot be achieved, has been reported for magnetostrictive amorphous wires (i.e., for wires with either positive or negative, λs) [26,27,28,33,34,35]. The magnetization switching between the two remanent states runs by ultra-fast DW propagation, and therefore such wires exhibit perfectly squared hysteresis loops. The DW velocity, usually evaluated by a system of several pick-up coils placed along the wire, usually exceeds 1 km/s [33,35,36,37].
There are several exciting applications of magnetically bistable wires, like magnetic tags, racetrack memories, magnetic logics, magnetic and magnetoelastic sensors [26,38,39,40].
Amorphous wires can be produced by various methods involving rapid melt quenching if the quenching rate for a given chemical composition of the alloys is above critical [7,41].
Different magnetic wires fabrication technologies involving melt quenching provide a vast variety of geometries. The following techniques allow the preparation of amorphous magnetic wires:
-
the so called “in-rotating water” method, consisting of the rapid quenching of the molten metallic alloy into the rotating water layer, basically allows amorphous wires to be prepared with diameters typically of 80–200 μm up to 100 m long [12,17,27].
-
the so called “melt extraction” technique, allows fabrication of amorphous wires with diameters of 30–60 μm and a typical length of about 10 m [42,43]. One of the disadvantages of melt extracted wires is the imperfect cylindrical shape.
-
the so called Taylor-Ulitovsky technique (also referred in several publications as quenching-and-drawing method) prepares the amorphous glass-coated wires with metallic nucleus diameters ranging from 200 nm [44] up to 100 μm [45], a glass-coating with a thickness of 0.5–20 μm and up to 10 km long [41,44,45,46].
The preparation method consists in the simultaneous rapid solidification of a metallic alloy coated by an insulating and flexible glass-coating [41,46]. The main advantages of this preparation method are a wide range of metallic nucleus diameters, as well as the presence of glass- coating. The use of magnetic materials with improved mechanical and corrosive properties and biocompatibility allows the development of reliable, inexpensive and durable sensors and devices. Although the glass-coating is a source of increased internal stresses, mainly arising from the difference in the thermal expansion coefficients of the metallic alloy and the glass [46,47,48], flexible, insulating, and biocompatible glass-coating is useful for novel applications, including biomedicine or smart composites with microwire inclusions for non-destructive monitoring of external stimuli (stresses, temperature) [49,50,51,52,53,54]. Additionally, Taylor-Ulitovsky technique is the unique method for preparation of submicrometric amorphous wires, potentially suitable for magnetic logic and memory applications involving controllable DW propagation [38,39].
Arrays of cylindrical nanowires with diameters between 15 and 200 nm and length up to 50 mm can be prepared also by electrodeposition into self-assembled pores in alumina membranes as templates [55]. Individual cylindrical magnetic nanowires can be obtained after released from inside the template where they are electrolytically grown [56]. However, such nanowires are crystalline, and thus, magnetocrystalline anisotropy considerably affects their magnetic properties.
It is worth mentioning that crystalline Wiegand wires from Vicalloy (vanadium-iron-cobalt) can be also prepared by a complex technique, including cold-working the wire through a combination of stretching and twisting followed by heat treating [57].
In terms of properties (GMI effect and DW propagation), there are specific requirements for optimizing each of them. Therefore, for the GMI effect, magnetic softness (high magnetic permeability) and sufficiently “thick” diameters (above minimum penetration depth, estimated as about 0.3 μm [58]) are required. To observe fast magnetization switching, the hysteresis loops must present a rectangular shape. Additionally, to achieve a high DW velocity, the damping coefficient must be as small as possible, that can be achieved by minimizing the magnetic anisotropy constant that can be realized in amorphous or nanocrystalline wires [35,36,37]. For magnetic tag applications, the magnetic response must be as high as possible [40].
Most of the aforementioned properties can be obtained in glass-coated amorphous microwires. Thus, typically spontaneous magnetic bistability is observed in Fe-based microwires, which have low circumferential magnetic permeability owing to specific domain structure consisting of an inner axially magnetized single domain and an outer shell with radial magnetization direction [35]. Such Fe-based microwires, thus, usually present low GMI effect. In contrast, the highest GMI effect is observed in Co-rich microwires which present linear hysteresis loops, and hence, single DW propagation in such microwires cannot be observed [30,31].
The development of novel glass-coated microwires, which can present a unique combination of properties: High GMI effect as well as fast DW propagation is therefore challenging and relevant topic of application oriented research.
Several post-processing techniques have been reported recently for tailoring magnetic properties of magnetic microwires. In particular, various routes have been proposed to improve the GMI effect in Fe-rich microwires, exhibiting rectangular hysteresis loops and a rather low GMI effect in as-prepared state on one side, and allowing one to observe fast DW propagation in Co-rich microwires on the other side [35,59,60,61,62,63,64].
In this paper we overview the routes allowing to realize the GMI effect and fast DW propagation in the same microwire, and present new insights on magnetization reversal mechanism in microwires exhibiting both GMI effect and fast DW propagation.

2. Materials and Methods

2.1. Preparation, Structure and Morhpology Control

Fe- and Co- rich glass-coated amorphous microwires have been prepared by Taylor-Ulitovsky preparation method, described in details elsewhere (the compositions and diameters of microwires are provided in Table 1) [41,46].
The crystallization temperatures, Tcr, have been evaluated by the Differential Scanning Calorimetry (DSC) method using a 204 F1 Netzsch calorimeter (Netzsch Co, Selb, Germany) at a heating rate of 10 K/min. The amorphous structure of the samples has been confirmed by the X-ray Diffraction (XRD) using the Bruker (D8 Advance) X-ray diffractometer with Cu Kα (λ = 1.54 Å) radiation. A broad halo typical for amorphous materials is observed in all as-prepared or annealed microwires.
The morphology of the samples has been evaluated using Carl Zeiss -Axio Scope A1 microscope. As can be observed from Figure 1, all the studied microwires present perfectly cylindrical geometries of the metallic nucleus and rather uniform glass-coating.
We studied as-prepared and annealed microwires. Annealing was carried out in a conventional furnace at a temperature, Tann, typically below Tcr (between 200 °C and 550 °C) for an annealing time, tann, typically of 60 min. These annealing conditions preserve the good mechanical properties, typical of amorphous materials. In the case of stress-annealing, tensile stress was applied during annealing and slow cooling of the microwire inside the furnace. The stress value, σm, was estimated considering different Young′s modulus of metal and glass as described elsewhere [61,62,63]. The σm -value was below 500 MPa.

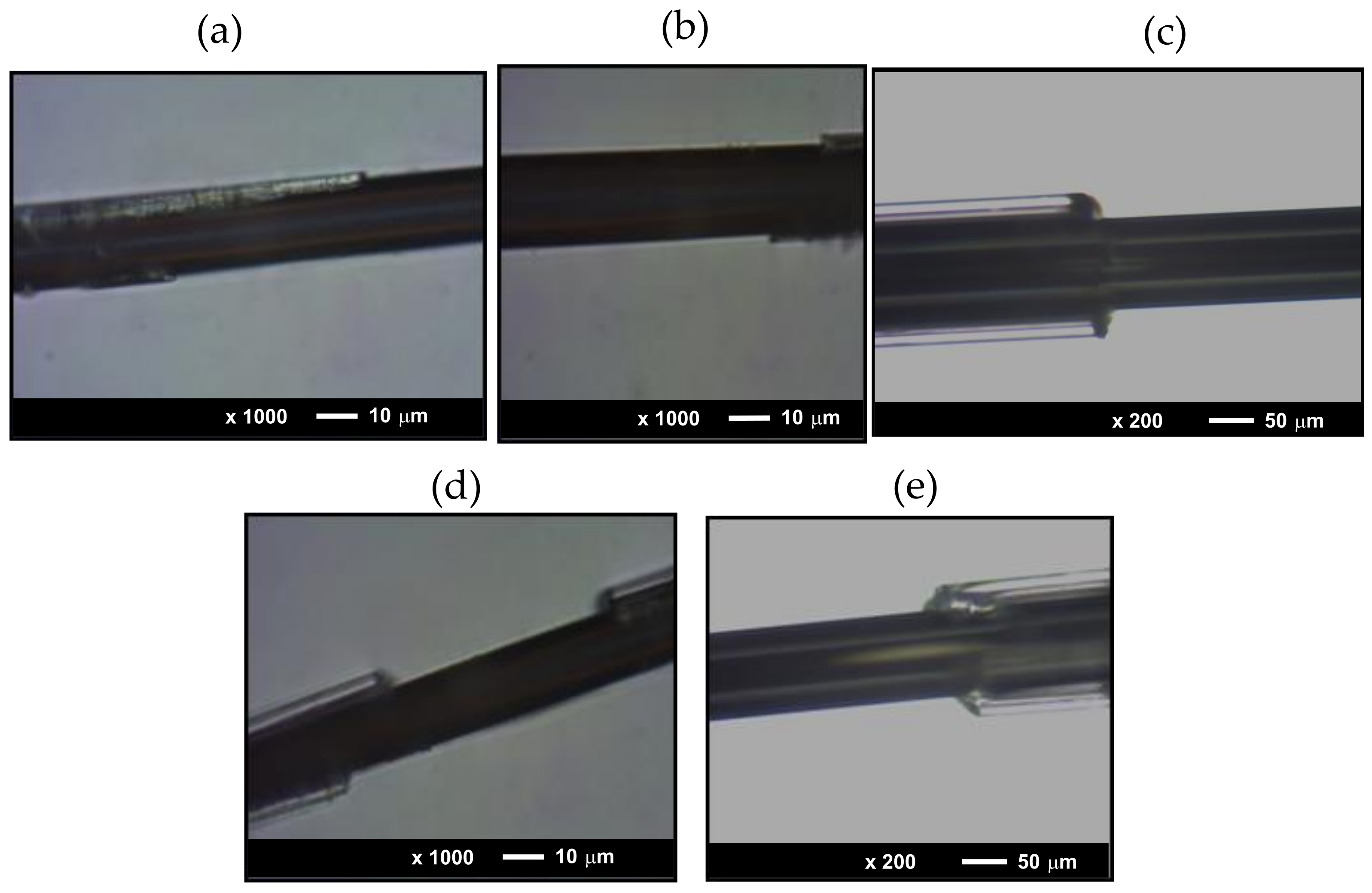

Considering the possible influence of surface defects and inhomogeneities, spontaneously distributed along microwires [36], we measured all properties in the same samples. Therefore, all measurements have been performed on the as-prepared sample, and then the same samples have been post-processed.

2.2. Magnetic and GMI Characterization

The hysteresis loops were measured using the fluxmetric method described in details earlier [65]. To compare samples of different chemical compositions (and, hence, different saturation magnetization) and annealed under different conditions, hysteresis loops were plotted as the dependence of the normalized magnetization, M/M0, on the magnetic field H, where M is the magnetic moment at a given magnetic field, and M0 is the magnetic moment at the maximum magnetic field amplitude Hm.
The impedance, Z, was evaluated from the reflection coefficient, S11, using a vector network analyzer and a micro-strip sample holder, as described elsewhere [66].
We evaluated the magnetic field dependencies of the GMI ratio, ΔZ/Z, defined as [22,23,24,25],
ΔZ/Z = [Z(H) − Z(Hmax)]/Z(Hmax)
where Hmax is the maximum applied DC magnetic field. A uniform magnetic field, H, was created by a sufficiently long solenoid.
Maximum GMI ratio, ΔZ/Zmax, obtained from ΔZ/Z(H) dependencies as a maximum ΔZ/Z –value can be useful for comparison of the samples, either of different chemical compositions or subjected to different post-processing (annealing) [62,63,64,65,66].
The DW velocity was evaluated using a modified Sixtus-Tonks set-up in which three pick-up coils are placed coaxially inside a long solenoid magnetizing 10 cm long microwire, as described elsewhere [35,36,37]. One of the microwire ends is placed outside the solenoid, which activates the DW propagation from the opposite microwire end. The DW velocity, v, can be evaluated as [35,36,37],
v   =   l Δ t
where l is the distance between the pick-up coils and Δt is the time between the voltage peaks measured by the oscilloscope. The above-described modified setup with three pick–up coils elucidates the contribution of multiple DW nucleation at defects, evidenced by deviations from the linear v(H) dependencies in the high-field region [35,36,67].
The study of the magnetization reversal in the surface of microwires was performed by means of a high-resolution, wide-field, optical polarizing microscope based on commercial one (Carl Zeiss) working in reflective mode using the longitudinal magneto-optical Kerr effect (MOKE) configuration [68,69]. The hysteresis loops were obtained from the MOKE intensity for different values of the external magnetic field applied in the axial direction (HAX) as a result of the MOKE image processing. A mechanical torsion was applied to the studied microwire, where one of the wire edges was fixed mechanically and the other was stressed. Surface treatment and contrast enhancement with anti-reflective coatings have not been used because modern polarizing microscopy, used in the MOKE technique and digital image processing provides sufficient contrast of magnetic domains.

3. Results and Discussion

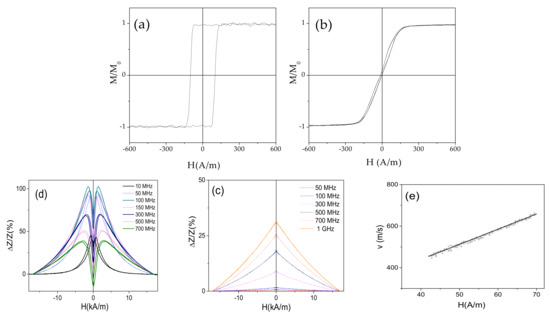

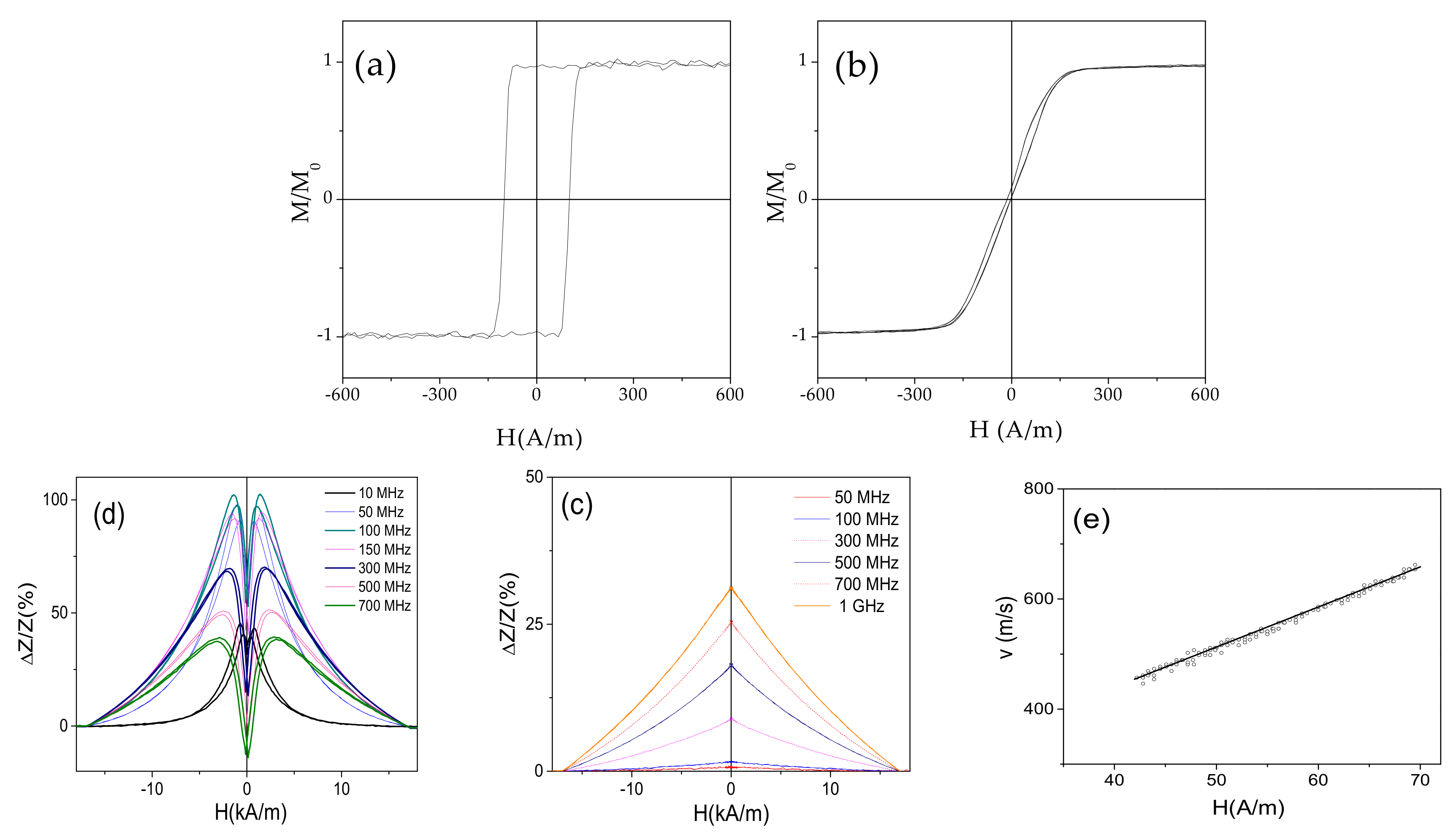

The starting point for our studies are as-prepared Co-rich (Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5) and Fe-rich (Fe75B9Si12C4) microwires. As shown in Figure 2a, Fe75B9Si12C4 microwire has perfectly rectangular hysteresis loop. Accordingly, GMI ratio of Fe75B9Si12C4 microwire is rather low (Figure 2c). Although, a single DW propagation with v ≈ 650 m/s is observed in Fe75B9Si12C4 microwire (Figure 2e). In contrast, linear hysteresis loop with low coercivity, Hc ≈5 A/m (Figure 2b) and an order of magnitude larger maximum GMI ratio, ΔZ/Zmax ≈100% (see Figure 2c) are observed in as-prepared Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires. It is not possible to observe single DW propagation in as-prepared Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwire, owing to inclined shape of hysteresis loop typical for magnetization rotation remagetization mechanism.
Below we will focus on the description of the post-processing of Co- and Fe-rich microwires allowing to observe the GMI effect and fast DW propagation in the same microwire.

3.1. Tailoring of GMI Effect and DW Dynamics in Co-Rich Microwires

Similarly, to recently reported elsewhere for Co-rich microwires, annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwire exhibits perfectly rectangular hysteresis loops (see Figure 3a). Observed magnetic hardening is previously explained, considering either internal stresses relaxation and related modification of domain structure (inner axially magnetized core volume rising) [58] or dependence of magnetostriction coefficient on internal stresses [60]. Although, usually GMI ratio in magnetic microwires with rectangular hysteresis loops is low [58,62], in the present case, a remarkable GMI ratio improvement is observed upon annealing (see Figure 3b). All Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires (as-prepared and annealed) present double-peak ΔZ/Z(H) dependencies (see Figure 3b). However, the field values, corresponding to the maximum on ΔZ/Z(H) dependencies, Hm, in both annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires are lower than that for as-prepared microwire. As discussed elsewhere, the GMI ratio value as well as the peculiarities of ΔZ/Z(H) dependence are determined by the type of magnetic anisotropy [70,71].

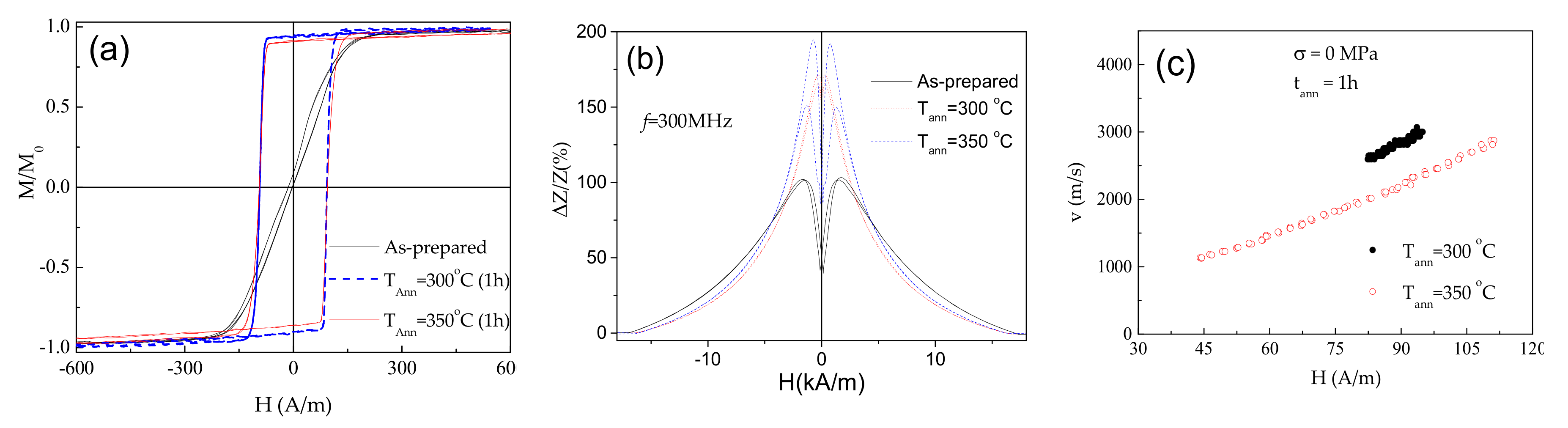

Accordingly, from Figure 3a,b we can assume that annealing allows modification of magnetic anisotropy in studied Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwire.
Additionally, single DW propagation with DW velocity up to 3 km/s is observed in annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires (see Figure 3c).
The observed v(H) dependencies can be described as linear, which were previously attributed to the viscous DW propagation regime given as [62,67],
ν = S (H − H0)
where S is the DW mobility and H0-critical propagation field, below which the DW propagation is not observed.
Both, GMI effect and DW mobility are affected by various factors. Thus, maximum GMI ratio, is affected by frequency, f, radial distribution of magnetic anisotropy (and hence, by the annealing conditions) and wire diameter, among others [62,63,64,65,71,72,73]. Accordingly, ΔZ/Zmax (f) dependencies for as-prepared and annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires are provided in Figure 4a. As can be observed, both annealed microwires exhibit higher ΔZ/Zmax –values in a whole frequency range. Additionally, the optimum f-value (at which the highest ΔZ/Zmax -values are achieved) in both annealed microwires is shifted toward higher frequencies (from 100 MHz to 200 MHz).

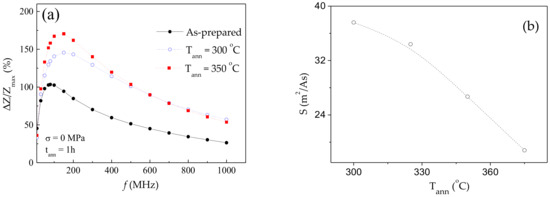

As observed from Figure 4b, annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires exhibit rather high S-values (up to about 37 m2/As), however a decrease in S-values rising the Tann is observed.
As recently reported elsewhere [61,62,63,64,65], stress-annealing is an effective tool allowing tuning of the magnetic anisotropy and, under appropriate conditions, to improve further the GMI effect. Accordingly, as can be observed from Figure 5a,b, stress-annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires exhibit even higher GMI ratio.

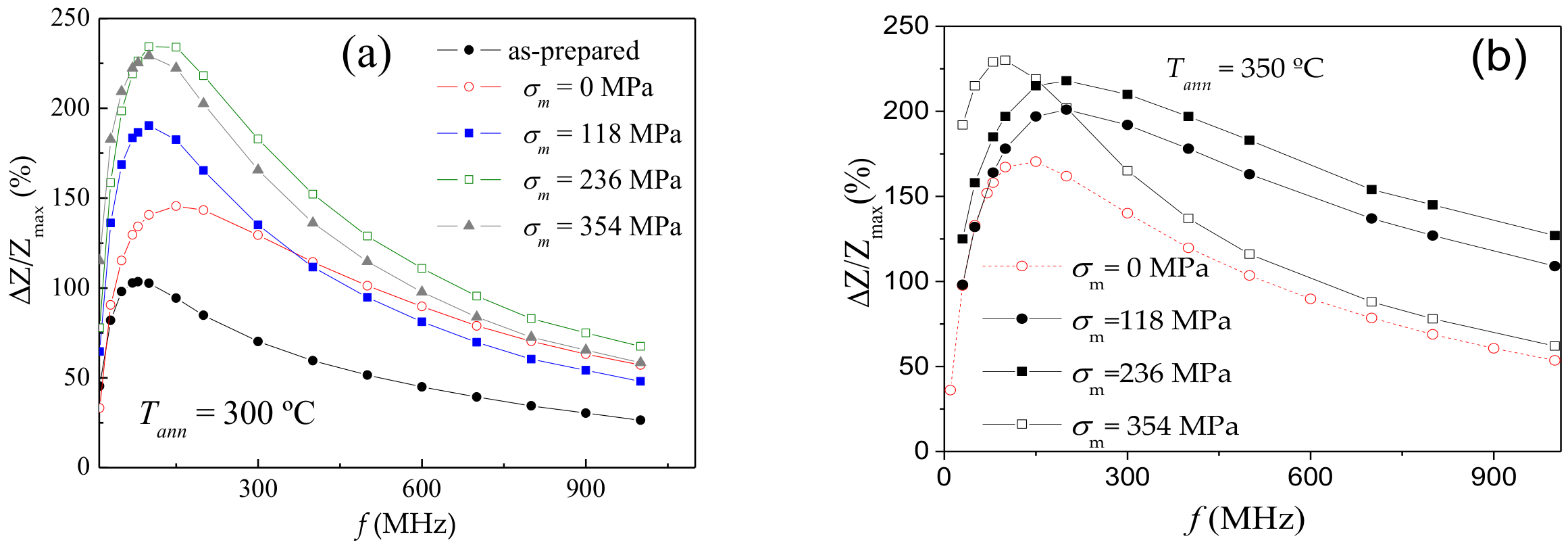

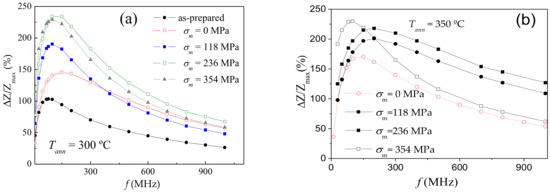

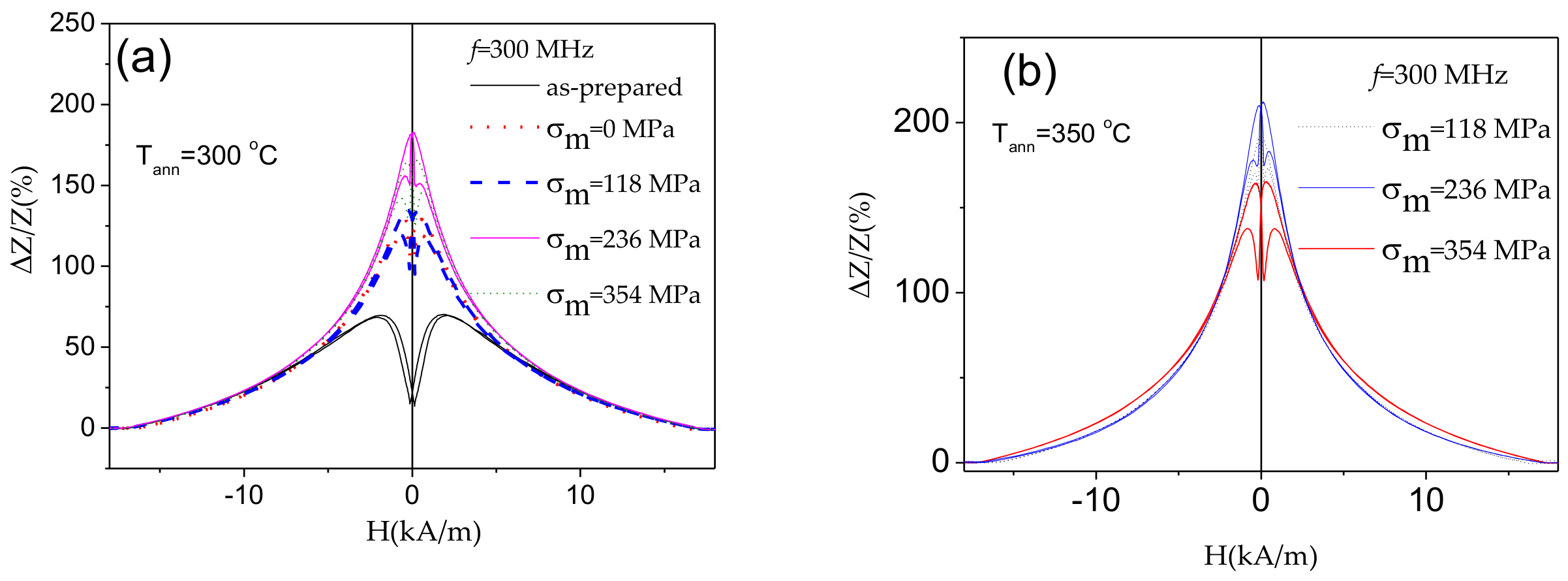

As expected from Figure 4a, further optimization of GMI performance of Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires can be achieved upon selection of proper frequency. Frequency dependencies of ΔZ/Zmax for the microwires annealed at Tann = 300 and Tann = 350 °C are shown in Figure 6a,b, respectively. For both Tann, the highest ΔZ/Zmax are observed for intermediate (236 MPa) σm-values. The optimal frequency for all stress-annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires is shifted to higher f-range. Indeed, the highest ΔZ/Zmax –values of as-prepared Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwire are observed for f = 100 MHz, while for stress-annealed Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires the highest ΔZ/Zmax –values are observed at 150–200 MHz (see Figure 6). The obtained frequency range (100–200 MHz) in which the highest ΔZ/Zmax –values are observed in studied microwires are within the preferred range for sensors applications: a better signal to noise features are observed for 10–200 MHz [74].
Additionally, appropriate post-processing (stress-annealing at Tann = 300 °C and σm = 236 MPa or at Tann = 350 °C σm = 354 MPa) allows remarkable GMI ratio improvement (from about 100% up to about 240%).

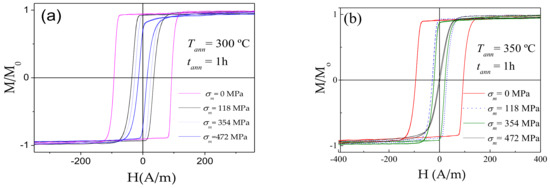

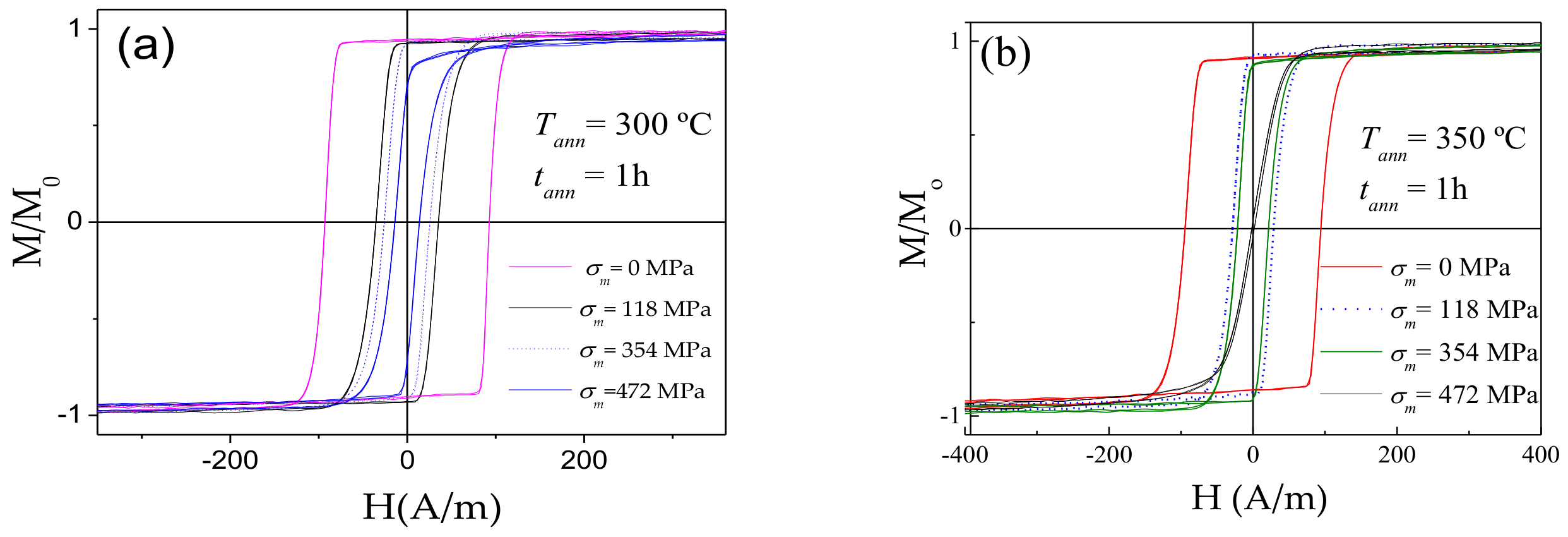

As can be appreciated from Figure 7, the hysteresis loops remain rectangular shape after stress-annealing at given annealing temperatures (300 °C and 350 °C) if σm < 472 MPa. The common feature of all stress-annealed samples is lower coercivity, Hc. For both selected Tann, the hysteresis loops became inclined at σm = 472 MPa.

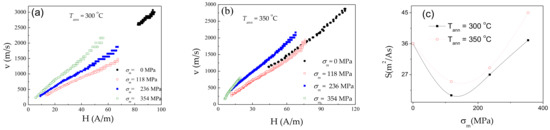

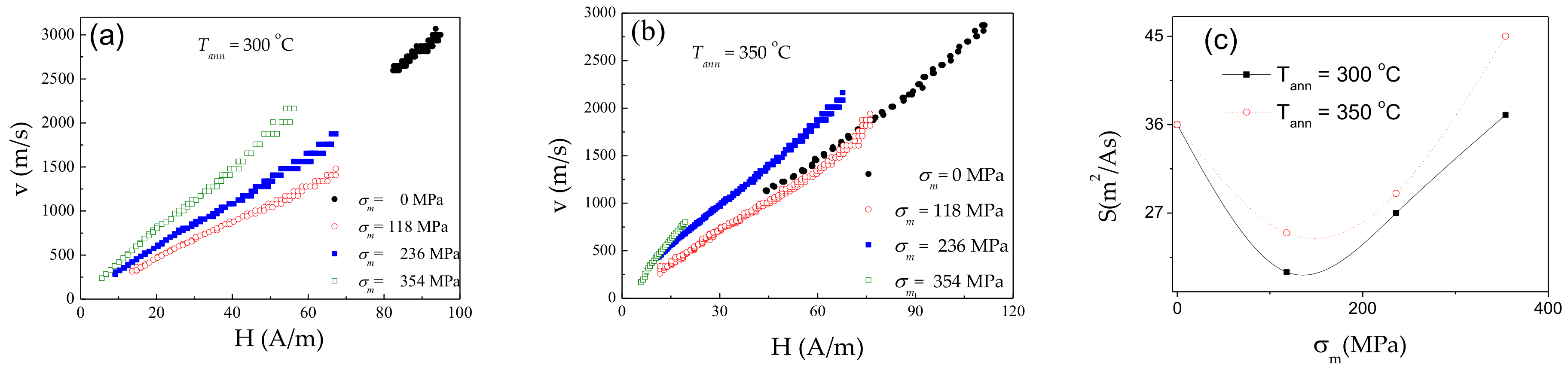

Accordingly, the DW dynamics has been studied in Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires annealed at 300 °C and 350 °C for σm < 472 MPa (see Figure 8a,b). The difference in v(H) dependencies is that the magnetic field range of single DW propagation is shifted to low–field region (see Figure 8a,b). Therefore, maximum DW velocity values are generally below 2.5 km/s. However, DW mobility remarkably depends on σm: for the highest σm the highest S-values are achieved (see Figure 8c).
Accordingly, aforementioned results on effect of post-processing on magnetic properties of Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires provide a route allowing to obtain a unique combination of magnetic properties (fast single DW dynamics and high GMI ratio) in the studied microwire. In fact, the transformation of linear hysteresis loop into a rectangle, and hence, the coexistence of fast DW propagation and GMI effect has been reported in various Co-rich microwires [75,76,77]. Evidently, post-processing (annealing) conditions for Co-rich microwires with different compositions can be distinct. Thus, annealed and stress-annealed Co69.2Fe4.1B11.8Si13.8C1.1 or Co50.69Fe8.13Ni17.55B13.29Si10.34 glass-coated microwires can also present both high GMI ratio and fast propagation of single DW [75,76,77]. However, the annealing conditions for Co69.2Fe4.1B11.8Si13.8C1.1 and Co50.69Fe8.13Ni17.55B13.29Si10.34 glass-coated microwires are different.
Although Co-rich microwires generally present best magnetic softness, Co belongs to critical raw materials [78]. Accordingly, Co-rich microwires are more expensive and the insecure Co supply might be critical for the development of new technologies. Therefore, less expensive Fe-based microwires are preferable for massive applications. However, as-prepared Fe-rich microwires present poor GMI effect [58,59,61]. Accordingly, recently certain attention has been paid to optimization of GMI effect in Fe-rich microwires [59,61].

3.2. Tuning of GMI Effect and DW Dynamics in Fe-Rich Microwires

Magnetic softening and enhanced GMI effect have been observed in nanocrystalline Fe-rich magnetic microwires prepared by devitrification of amorphous FeSiBCuNb precursor [13,58,79]. However, devitrification is usually accompanied by the brittleness of microwires, which severely limits the applications possibility. Accordingly, alternative post-processing approaches enabling to enhance the GMI effect retaining the amorphous structure have been explored [58,61,62,63].

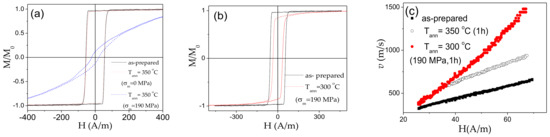

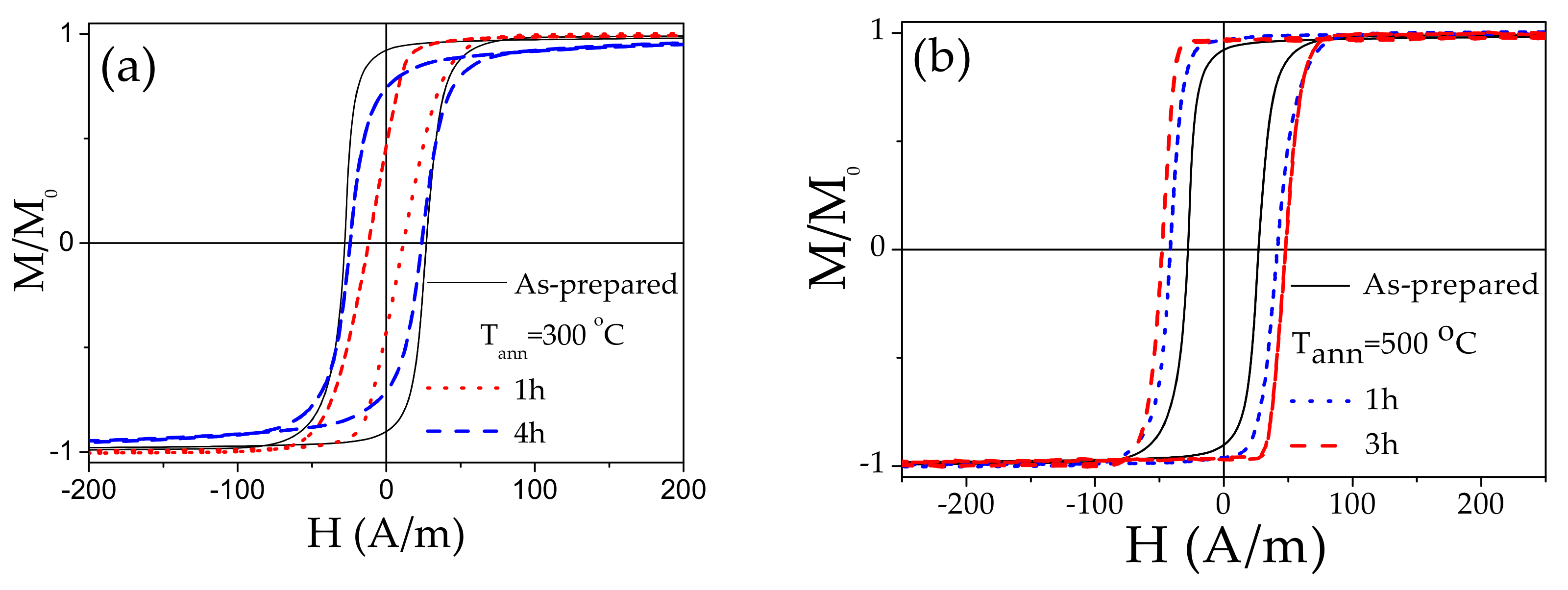

In contrast to Co-rich microwires, hysteresis loops of stress-annealed (even for low σm = 190 MPa) Fe75B9Si12C4 microwires rapidly transform into inclined (see Figure 9a). However, the hysteresis loop of Fe75B9Si12C4 microwire annealed at the same Tann (without stress) retains its rectangular shape (see Figure 9a). The rectangular hysteresis loop has been retained only after stress-annealing at Tann = 300 °C (190 MPa, 1 h) (see Figure 9b). Accordingly, single DW propagation is observed in both as-prepared, annealed (Tann = 350 °C) and stress-annealed (Tann = 300 °C, σm = 190 MPa) microwires (see Figure 9c). In spite of almost the same hysteresis loops and similarly to other Fe-rich microwires [36,59,62], a remarkable increase in DW velocity (from 0.65 up to almost 1 km/s at H = 68 A/m) and DW mobility (from 7.3 up to 11.2 m2/As) is observed upon annealing. More remarkable increase in DW velocity (up to almost 1.5 km/s at H = 68 A/m) and DW mobility (up to 27 m2/As) is observed in stress-annealed Fe75B9Si12C4 microwire.

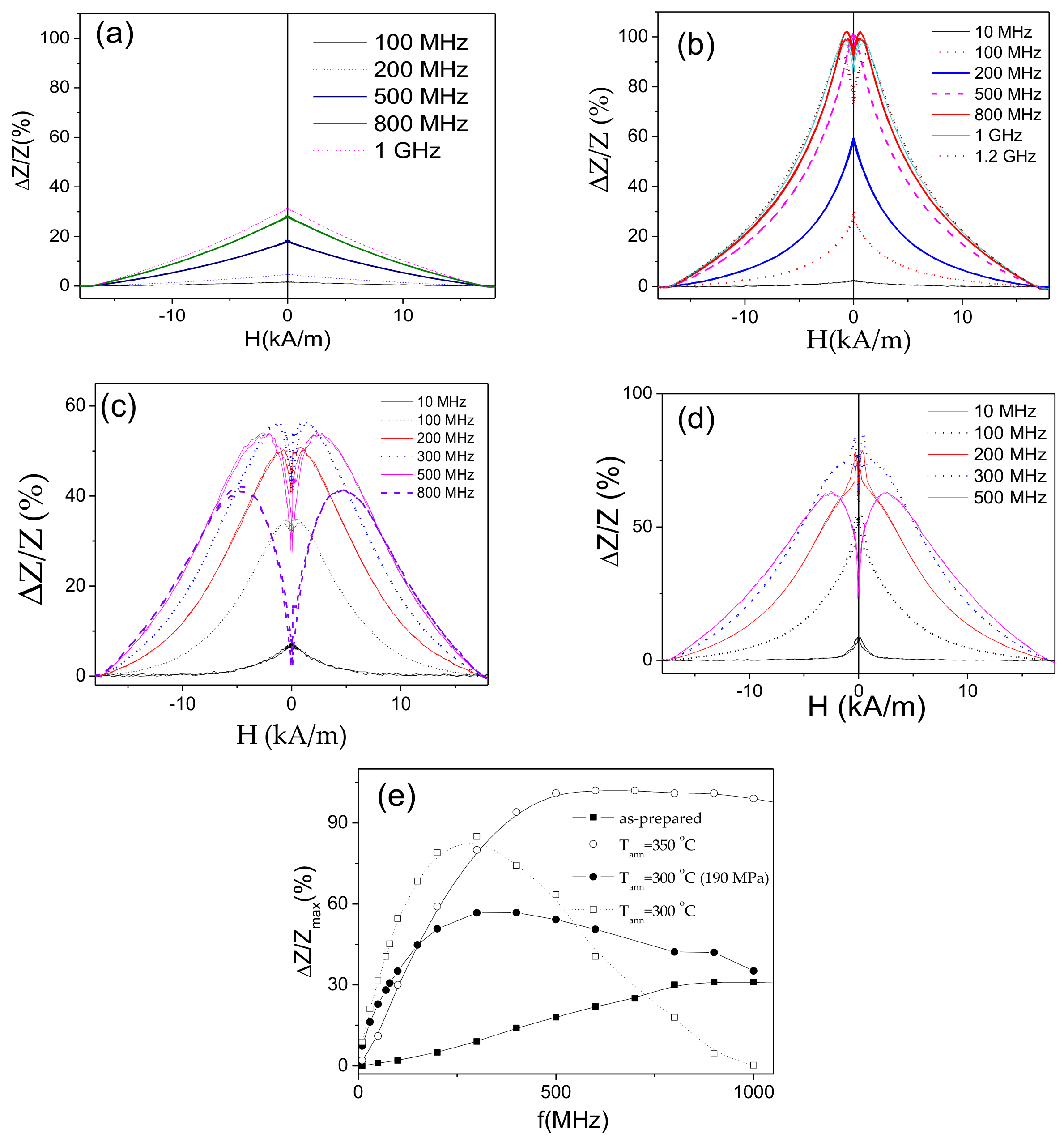

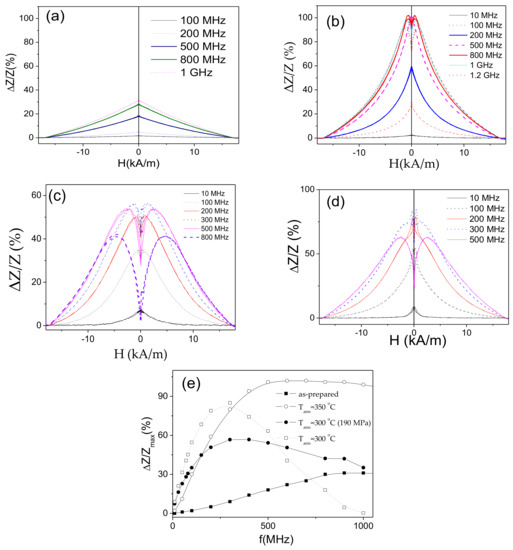

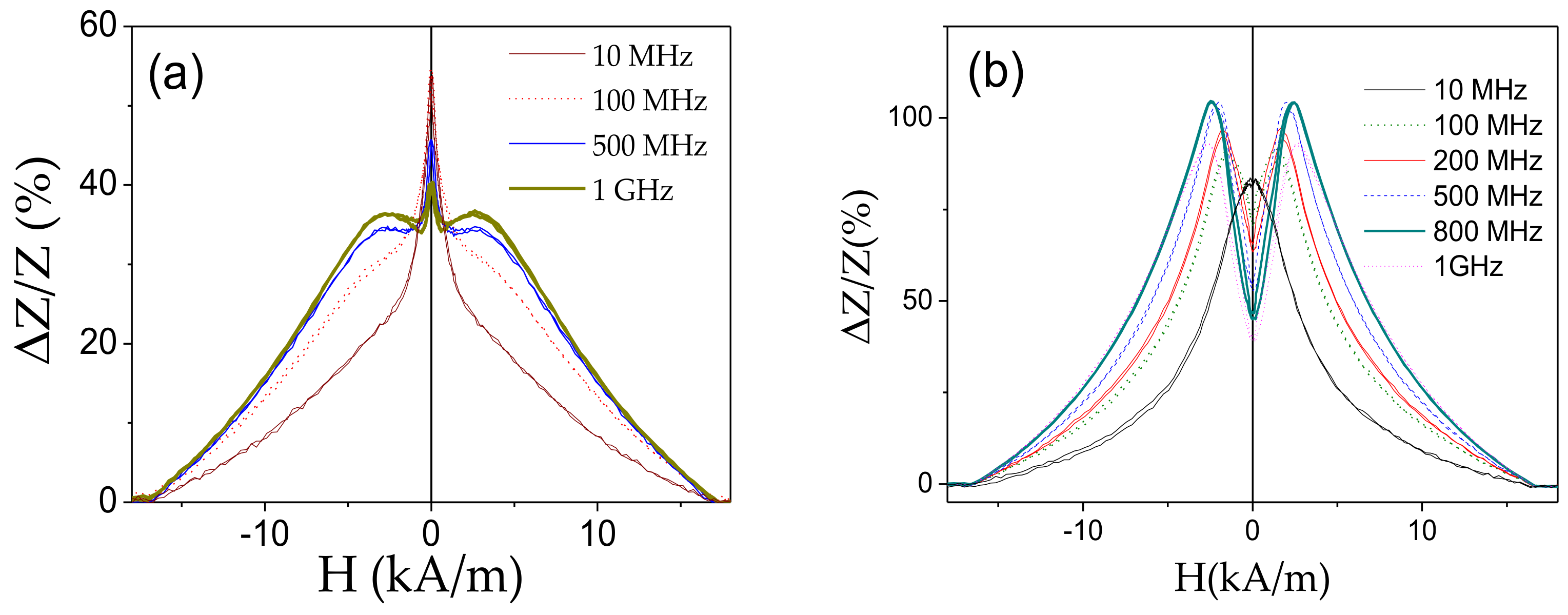

The influence of annealing on ΔZ/Z (H) dependencies and ΔZ/Zmax –values is shown in Figure 10. As can be observed, annealing allows considerable increase in ΔZ/Zmax –values in the whole f-range (see Figure 10e). Some increase in ΔZ/Zmax –values is also observed for stress-annealed sample. However, in the present case (when the hysteresis loops are still rectangular), annealing is more efficient, in terms of optimizing the GMI effect. Additionally, for f ≥ 500 MHz and f ≥ 100 MHz ΔZ/Z(H) dependencies of annealed and stress-annealed Fe75B9Si12C4 samples, respectively, exhibit double-peak shape typical for weak transverse magnetic anisotropy (see Figure 10b–d). Such frequency effect on ΔZ/Z(H) dependence shape was recently discussed, considering dependence of skin depth, δ, on frequency as well as radial distribution of magnetic anisotropy that can be related either to transverse magnetic anisotropy in the surface layer or the interfacial layer between the metallic nucleus and the glass-coating [62,80].
In the case of other Fe-rich microwire (Fe71.7B13.4Si11Nb3Ni0.9) with thicker diameter the rectangular hysteresis loops are observed in as-prepared and annealed at 550 °C samples (see Figure 11). However, the hysteresis loops of Fe71.7B13.4Si11Nb3Ni0.9 microwires annealed at intermediate temperature (300 °C) are not perfectly rectangular (see Figure 11a).
As observed, beginning of crystallization process is observed after annealing at 550 °C for 3 h [45]. Therefore, Fe71.7B13.4Si11Nb3Ni0.9 microwires annealed at Tann = 550 °C (1 h) are still amorphous and hence present good mechanical properties. Accordingly, single DW dynamics has been observed in as-prepared and annealed at Tann = 550 °C (1 h) Fe71.7B13.4Si11Nb3Ni0.9 microwires (see Figure 12).

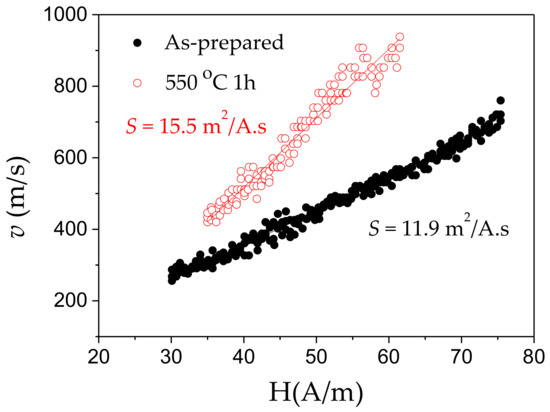

As can be appreciated from Figure 12, even as-prepared microwire presents relatively high DW velocity with maximum DW velocity of about 700 m/s.
S-values, experimentally evaluated from the v(H) dependence using the expression (3) provide S≈11.9 m2/As, being higher than that usually observed for as-prepared Fe-rich microwires (compare with S≈7.3 m2/As evaluated from Figure 9). As can be observed from Figure 12, annealing allows further improvement of DW velocity (up to 1 km/s) and mobility (up to S≈15.5 m2/As).
Annealing of Fe71.7B13.4Si11Nb3Ni0.9 microwire also allows increasing in ΔZ/Zmax –values from 55% up to 105% (see Figure 13). Additionally, ΔZ/Z(H) dependence of as-prepared Fe71.7B13.4Si11Nb3Ni0.9 microwire has irregular shape that recently has been attributed to the superposition of the double-peak ΔZ/Z(H) dependence from the region with transverse magnetic anisotropy and the single-peak dependence from the wire portion with axial magnetic anisotropy [62]. After annealing, ΔZ/Z(H) dependence presents more regular double-peak shape for f ≥100 MHz (see Figure 13b).

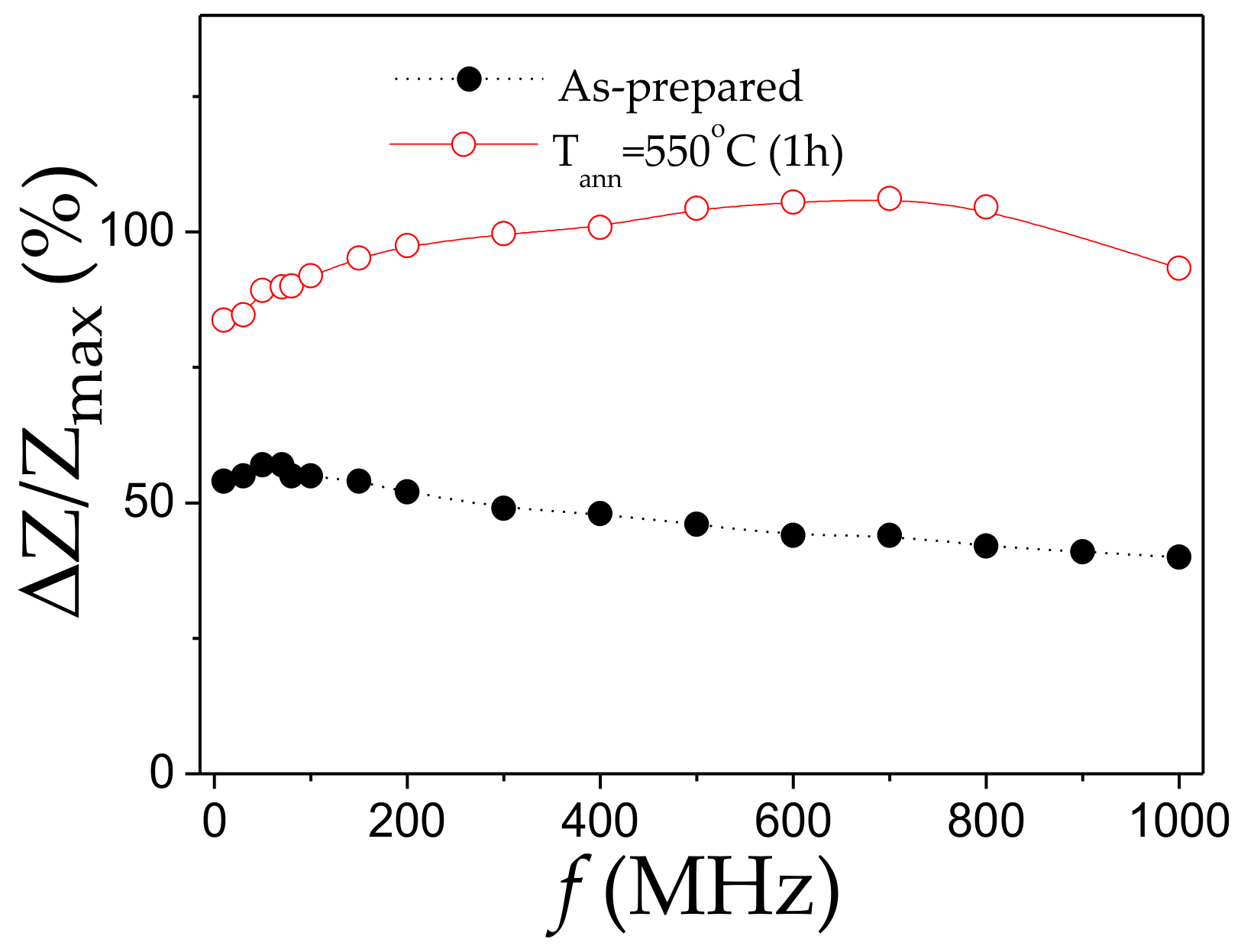

As can be observed from ΔZ/Zmax (f) dependence (see Figure 14), superior ΔZ/Zmax -values are observed in annealed Fe71.7B13.4Si11Nb3Ni0.9 microwires in the whole frequency range.
The relatively high GMI ratio of annealed Fe-rich microwires, with rectangular hysteresis loops, appears unexpected. Although it is generally believed that high circumferential permeability is the most relevant parameter for achieving high GMI effect, several publications indicate the importance of the damping parameter [70,80]. Consequently, the increase in the GMI ratio observed in annealed Fe-rich microwires (see Figure 10, Figure 13 and Figure 14) may be due to the impact of annealing on the damping parameter, evidenced by the significant increase in DW mobility after annealing (see Figure 9 and Figure 12).
Among the factors that can affect the GMI performance are the surface conditions that can affect the surface domain structure [81]. Such domain structures is affected by the surface roughness [81]. On the other hand, the surface irregularities and the magnetoelastic contribution in DW pinning are identified among the factors affecting magnetic softness of amorphous materials [82]. In the present case, the magnetoelastic contribution related to strong internal stresses originated by the presence of glass-coating is even more relevant than for conventional amorphous materials [46,47,48].
On the other hand, the microwires inhomogeneities can substantially affect the DW dynamics, as observed by comparing the local nucleation field distribution and the defects distribution along the microwires [83]. The origin of the defects has been discussed elsewhere [36,83], considering the inhomogeneous stresses distribution, shape irregularities, oxides, etc.
Considering that all the properties have been measured on the same samples (i.e., all the measurements have been performed in as-prepared sample and then, the same samples have been post-processed) we consider the magnetoelastic contribution, as well as induced magnetic anisotropy are the most relevant.
The above-described post-processing is essentially relevant for obtaining the unique combination of fast and single DW propagation and GMI effect in the same microwire. Such combination of properties has been obtained in annealed or stress-annealed microwires. The main role of annealing is usually associated to internal stresses relaxation. However, in amorphous alloys containing two or more ferromagnetic elements, the DW stabilization due to directional atomic pairs ordering can be relevant [84,85,86]. This is not the case for studied Fe-rich microwires (Fe75B9Si12C4). However, such induced magnetic anisotropy, originated by a preferred magnetization direction during the annealing, can be considered for Co-rich (Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5) microwire.
The mechanisms involved in stress-annealing induced anisotropy of amorphous microwires have been discussed considering either back stresses or short range ordering [80,87,88,89,90]. The back stresses give rise to the internal stresses redistribution during the stress-annealing [80,87,90]. Such mechanism can be dominant for microwires with only one ferromagnetic element (Fe75B9Si12C4). The short range ordering can be originated either by atomic directional pair ordering (commonly considered for amorphous alloys with two or more ferromagnetic elements, i.e., relevant for Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5) or by topological short range ordering [80,87,88,89]. The latter can be, in principle, observed in both kinds of studied microwires (Fe and Co-rich). The contribution of topological short range ordering (also known as structural anisotropy) was recently linked to partially irreversible stress-annealing induced anisotropy in Fe-rich microwires [80].
As observed above (see Figure 7 and Figure 9), transverse magnetic anisotropy can be induced in both Fe-rich and Co-rich microwires. However, for Co-rich microwires annealed at the same Tann higher applied stresses are required to observe substantial transverse magnetic anisotropy.
It is worth mentioning, that the atomic directional pair ordering and related DW stabilization can be relevant if the annealing is performed at temperatures below Curie temperature (between 370 and 415 °C for the studied compositions) [63,64].
The latter Fe-rich (Fe71.7B13.4Si11Nb3Ni0.9) microwires with the thickest diameter are the most appropriate for the MOKE studies (usually used for studies of planar samples) because of the lowest curvature.

3.3. MOKE Experiments and Results

The MOKE experiments were motivated by the importance of the surface area of the microwire in the GMI effect. At the same time, the shape of the surface hysteresis curves and the images of the surface domain structures are the key aspects for the understanding of the origin of large Barkhausen jump.
First, we have studied the Fe71.7B13.4Si11Nb3Ni0.9 microwires (stress-annealed sample № 3 (curve with black points) and stress-annealed sample № 3 in the presence of torsion stress (curve with white points), see Table 1). Figure 15 presents two MOKE hysteresis loops and the series of the characteristic images of the surface domain structure.

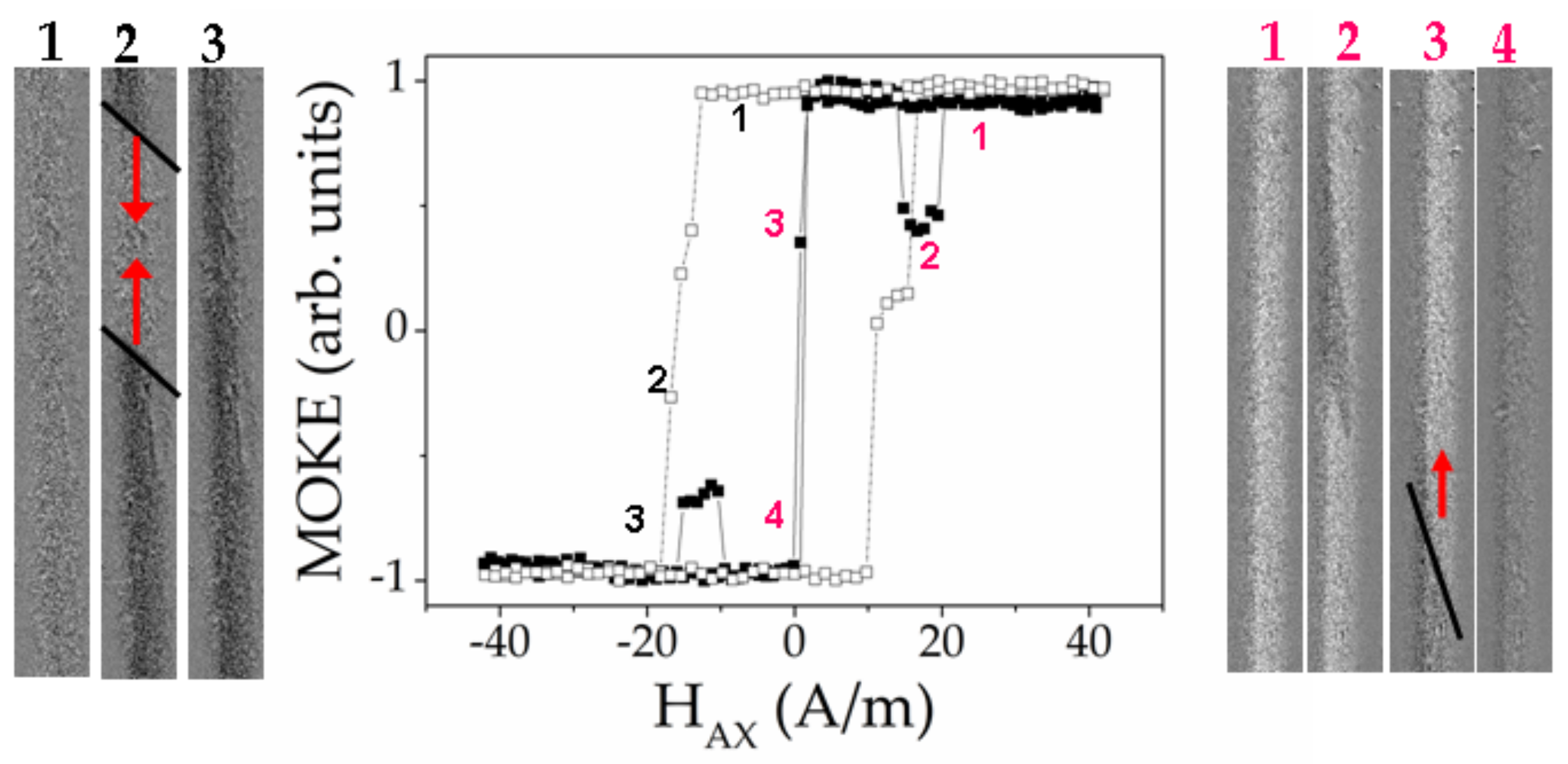

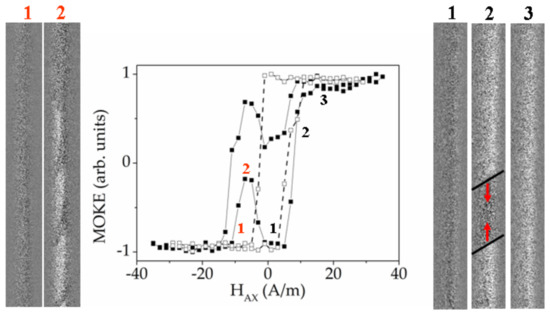

For the stress-annealed sample № 3, the hysteresis loop contains two characteristic local dips of the MOKE signal. Furthermore, the sharp jump of the signal is observed. Images marked in red numbers №1 and №4, show two mono-domains corresponding to two saturation states. The image №2 is the inclined wedged-like domain, demonstrating the formation of the spiral domain structure [69]. In the image № 3 the moment was fixed when the inclined solitary DW moved quickly along the microwire.
Therefore, we could select two separate processes during the magnetization reversal: Formation of the spiral domain and the quick motion of the elliptic DW. As it is known [91], the formation and transformation of the surface domain structure plays the essential role in the microwire susceptibility, which in turn is the key parameter of the GMI effect. In particular, the DW length is directly related with the susceptibility. Earlier [91,92] we have demonstrated the influence of the spiral domain structure on the dynamic properties of the magnetic microwire. The matter is that the length of the spiral DW is very long and it is limited only by the microwire length. It permits us to consider the spiral domain structure observed in the microwires as a potential candidate for the GMI based sensors.
The second process is the quick inclined elliptic DW running through the surface of the microwire. The black line in the image №3 marks the position of the solitary inclined elliptic DW. The red arrow shows the direction of the DW displacement. This process has a direct relation with the magnetic bistability, precisely “helical” bistability, which is realized in the large Barkhausen jump between two helical magnetic structures [93]. Thus, demonstrating the two mentioned effects, the studied Fe71.7B13.4Si11Nb3Ni0.9 microwire could be simultaneously used in magnetic sensors based on both GMI and large Barkhausen jump effects.
The application of torsion stress during the MOKE experiment drastically changes the shape of the hysteresis loop and images of the domain structure. The process of the surface magnetization reversal becomes simpler. The torsion stress suppresses the formation of the spiral structure, while supporting the elliptic domain structure [91]. The curve with white points in the Figure 15 presents the MOKE hysteresis loop obtained in the sample № 3 in the presence of torsion stress of 2 π rad m−1. The images of the domain structures marked by the black numbers correspond to this hysteresis loop. In this case the shape of the MOKE hysteresis loop is almost rectangular. It is not the clear Barkhausen Jump, but the DW motion could be recognized.
Two inclined domain walls marked by the black lines, get into the field of view from “up” and “down”. The DW motion is not very regular that is reflected in the hysteresis loop. This can be attributed to the distribution of the defects affecting the DW motion. The observed domain structure was qualified as elliptic type of magnetic structure.
At the second stage of the MOKE study we have investigated Co-rich microwires № 5 with the same purpose of determination of the coexistence of different types of the domain structure.

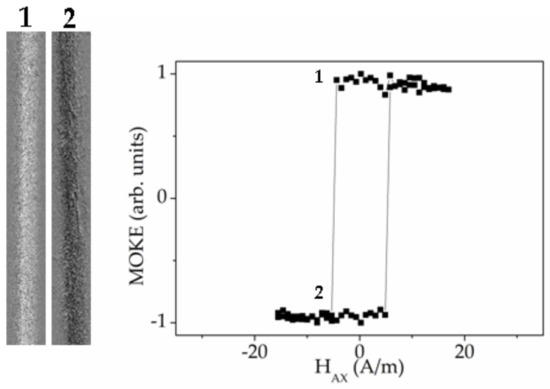

Figure 16 presents the MOKE hysteresis loops and the images of the domain structures obtained in annealed sample №5 (black points) and as-prepared sample №5 in the presence of torsion stress of 1 π rad m−1 (white points). The MOKE hysteresis loop obtained in annealed sample contains the specific local dips partially similar to the dips observed in the Figure 15 and related to the formation of spiral magnetic structure. Here, we also observe the formation of this type of domain structure, which is really realized in a different scenario. Although, it looks like the multi-domain structure, in reality we observe the solitary spiral domain which moves along the microwire enfolding it around (left image 2 marked in red). Generally, this type of the dips is related to the irregular process of the change of the period of the spiral domain structure. We note that the fast DW motion, related to Barkhausen jump, was not observed during this experiment.
As in the case of Fe-rich microwire presented above, the application of torsion stress suppresses the spiral magnetic structure and supports the elliptic domain structure. The basic difference in these types of domain structure is the length of the DW [92]. The length of the elliptic DW is much shorter than that of the spiral DW and it is determined by the length of the inclined ellipse.
For the case of the as-prepared sample №5 in the presence of torsion stress of 1 π rad m−1 (white points and right images marked in black), the image №3 demonstrates the moment of the oppositely directed motion of two elliptic DW. The possibility of identifying the DW motion during the sharp jump of the magnetization indicates that the single Barkhausen jump has not yet reached. The further increase of the torsion stress leads to the realization of single Barkhausen jump (Figure 17). According to the nature of the single Barkhausen jump only the images of the domain structures corresponding to the mono-domain states before and after the jump could be fixed. Namely these images 1 and 2 are demonstrated in the Figure 17.
Here, we present the video (Video 1, reproduced from Ref. [92] with permission) demonstrating the magnetization reversal process corresponding to the as-prepared sample №5 in the presence of torsion stress of 1 π rad m−1. The time duration of the video is about 11 sec. The linearly changed magnetic field directed along the wire axis was applied. It was ranged from −2 A/m to −5 A/m during the experiment. Black and grey colours of the domains correspond to axial directions of the magnetization. The black domain enters to the field of microscopy view at the moment, corresponding to the sixth second from the beginning. It means that the elliptic inclined DW separates to oppositely magnetized domains. The second inclined DW appears at the bottom of the video frame at the moment corresponding to the eighth second. Two walls move towards each other until the gray domain disappears completely.

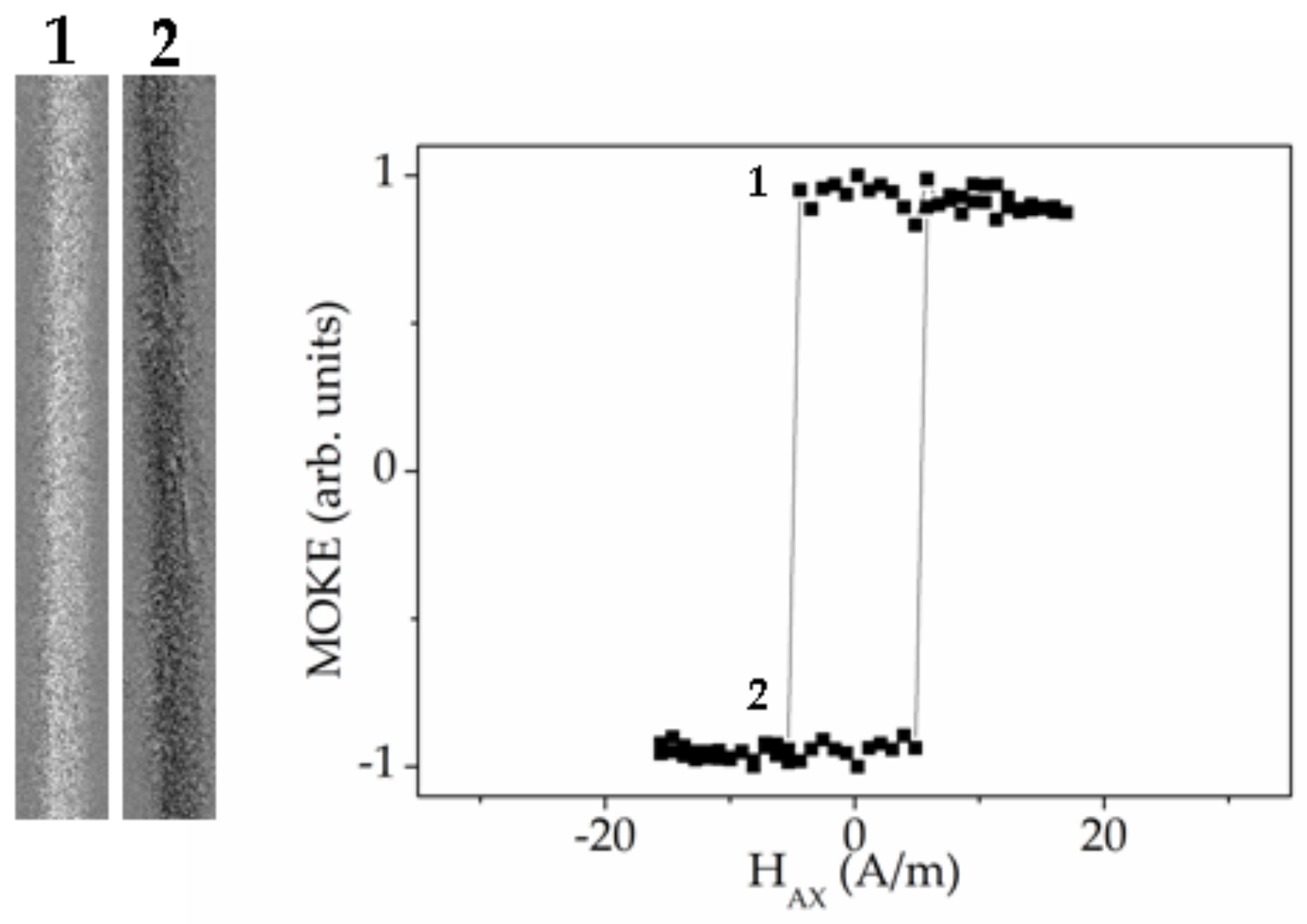

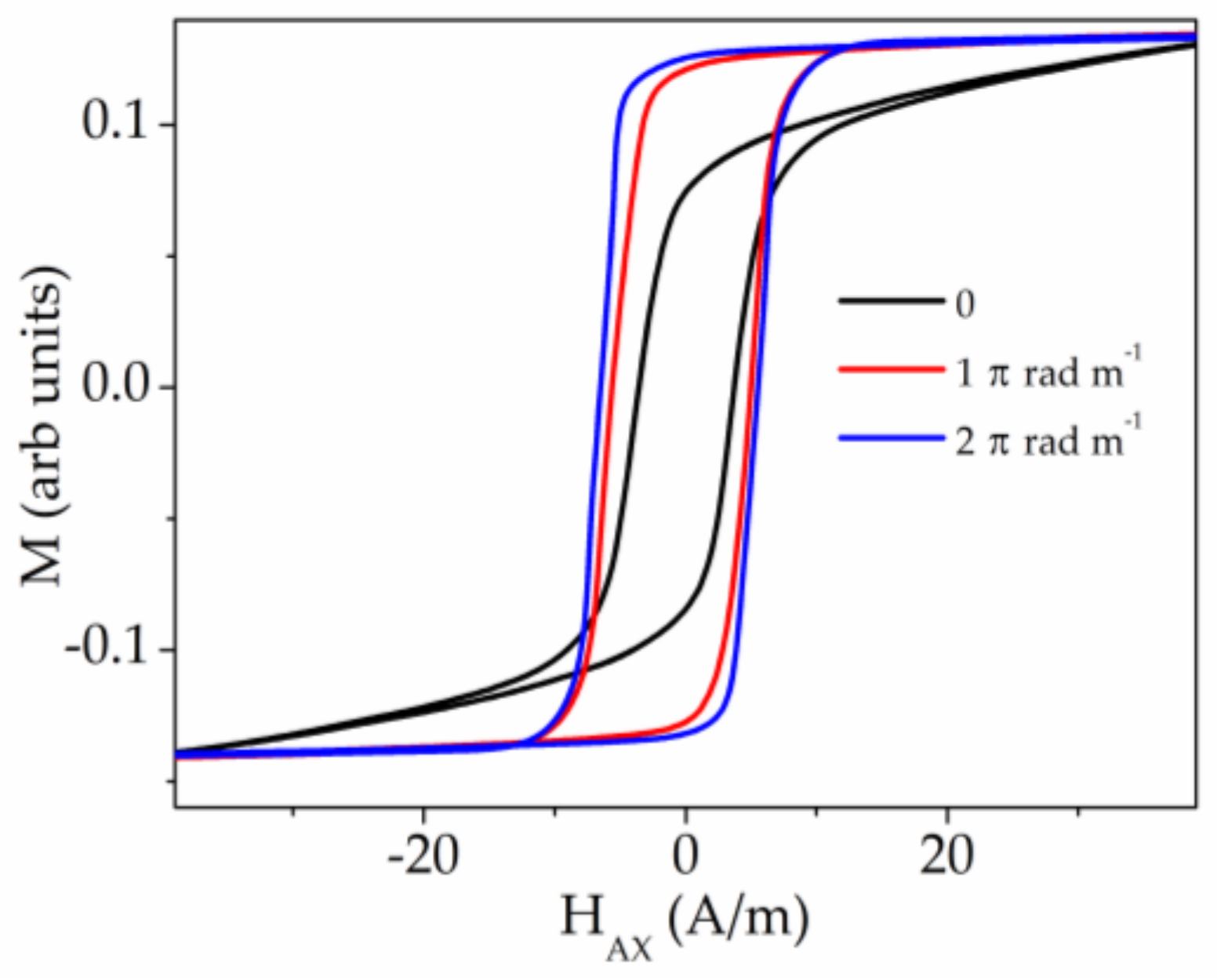

The additional confirmation of our concept is the magnetic hysteresis loops presented in the Figure 18. These hysteresis loops, unlike MOKE, contain the information about the magnetization reversal in the whole sample, not just in its surface. According with the conclusions from our MOKE experiment, the torsion stress induces the Barkhausen jump. At the same time, the process of the hysteresis loop transformation passes through the stage when, becoming more rectangular, the curve has not yet reached the bistability (red line in Figure 18). This phase of the stress induced transformation corresponds to the MOKE hysteresis loop presented in the Figure 16 (white points).
A comparative analysis of MOKE and bulk hysteresis loops allows us to consider the studied Co-rich and Fe-rich microwires as very promising candidates for a basic element in various types of magnetic sensors. We were able to control reversible transitions between different types of magnetic structures that exist both on the surface and inside the microwire. A predictable selection of magnetic structure can serve as a good basis for real-time switching between different types of magnetic sensors operating on the same microwires.

4. Conclusions

We studied the influence of various post-processing on the magnetic properties, DW dynamics and GMI effect of Fe- and Co-rich microwires with aim to identify the routes to obtain microwires with unique combination of magnetic properties allowing fast and single DW propagation and GMI effect to be observed in the same microwire.
In several Co-and Fe-rich microwires with rectangular hysteresis loops, we observed a high GMI effect. For optimization of DW dynamics and GMI effect we used conventional furnace annealing and stress-annealing. By modifying the annealing conditions, we have identified the appropriate regimes allowing achievement of the highest GMI ratio in microwires with rectangular hysteresis loops. Irregular magnetic-field-dependence of GMI ratio, observed in stress-annealed Fe-rich microwires, were discussed, in terms of the contribution of both inner axially magnetized core and outer shell with transverse magnetic anisotropy. The observed experimental dependencies are discussed considering radial distribution of magnetic anisotropy and the correlation of the GMI effect and DW dynamics, and with bulk and surface magnetization processes.
The MOKE experiments performed in both Fe- and Co-rich microwires provide the information about magnetic structure in the surface area of the microwires that allowed us to focus mainly on the magnetic behaviour in the outer shell of the microwires. We have demonstrated the existence of the spiral helical structure in two studied types of microwires. The presence of such a structure is a favourable feature for use these microwires in GMI based sensors. At the same time, torsion mechanical stress induces helical bistability in the same microwires, making them suitable for sensors based on the large Barkhausen jump.

Author Contributions

A.Z. designed the concept of the project. V.Z., L.G.-L. and P.C.-L. prepared and annealed the samples, M.I., V.Z., J.M.B., L.G.-L. and P.C.-L. performed the magnetic, magneto-optical and GMI measurements. A.Z., V.Z., A.C. conceptualization, analysis, investigation, and M.I. participated in the result analysis, discussion and manuscript preparation. All the authors reviewed and finalized the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Spanish MCIU under PGC2018-099530-B-C31 (MCIU/AEI/FEDER, UE) by the Government of the Basque Country under PIBA 2018-44 project and Elkartek (CEMAP and AVANSITE) projects and by the University of Basque Country under the scheme of “Ayuda a Grupos Consolidados” (Ref.: GIU18/192).

Acknowledgments

The authors thank for technical and human support provided by SGIker of UPV/EHU (Medidas Magnéticas Gipuzkoa) and European funding (ERDF and ESF).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhukov, A. (Ed.) Novel Functional Magnetic Materials, Fundamentals and Applications; Springer Series in Materials Science; Springer International Publishing: New York, NY, USA, 2016; Volume 231, ISBN 978-3-319-26106-5. [Google Scholar] [CrossRef] [Green Version]
  2. Lenz, J.; Edelstein, A.S. Magnetic sensors and their applications. IEEE Sens. J. 2006, 6, 631–649. [Google Scholar] [CrossRef]
  3. Díaz-Michelena, M. Small Magnetic Sensors for Space Applications. Sensors 2009, 9, 2271–2283. [Google Scholar] [CrossRef] [PubMed]
  4. Ripka, P.; Vertesy, G. Sensors based on soft magnetic materials Panel discussion. J. Magn. Magn. Mater. 2000, 215, 795–799. [Google Scholar] [CrossRef]
  5. Fiorillo, F.; Bertotti, G.; Appino, C.; Pasquale, M. Soft Magnetic Materials. In Wiley Encyclopedia of Electrical and Electronics Engineering; Webster, J., Ed.; John Wiley & Sons, Inc.: Torino, Italy, 1999; p. 42. [Google Scholar] [CrossRef]
  6. Zhukov, A. (Ed.) High Performance Soft Magnetic Materials; Springer Series in Materials Science; Springer International Publishing: New York, NY, USA, 2017; Volume 252, ISBN 978-3-319-49707-5. [Google Scholar] [CrossRef]
  7. McHenry, M.E.; Willard, M.A.; Laughlin, D.E. Amorphous and nanocrystalline materials for applications as soft magnets. Prog. Mater. Sci. 1999, 44, 291–433. [Google Scholar] [CrossRef]
  8. Herzer, G. Modern soft magnets: Amorphous and nanocrystalline materials. Acta Mater. 2013, 61, 718–734. [Google Scholar] [CrossRef]
  9. Kronmüller, H.; Gröger, B. Domains, domain walls and the coercive field of amorphous ferromagnets. J. Phys. 1981, 42, 1285–1292. [Google Scholar] [CrossRef] [Green Version]
  10. Schuh, C.A.; Hufnagel, T.C.; Ramamurty, U. Mechanical behavior of amorphous alloys. Acta Mater. 2007, 55, 4067–4109. [Google Scholar] [CrossRef]
  11. Goto, T.; Nagano, M.; Wehara, N. Mechanical properties of amorphous Fe80P16C3B1 filament produced by glass-coated melt spinning. Trans. JIM 1977, 18, 759–764. [Google Scholar] [CrossRef] [Green Version]
  12. Hagiwara, M.; Inoue, A.; Masumoto, T. Mechanical properties of Fe–Si–B amorphous wires produced by in-rotating-water spinning method. Metall. Trans. A 1982, 13, 373–382. [Google Scholar] [CrossRef]
  13. Zhukova, V.; Cobeño, A.F.; Zhukov, A.; de Arellano Lopez, A.R.; López-Pombero, S.; Blanco, J.M.; Larin, V.; Gonzalez, J. Correlation between magnetic and mechanical properties of devitrified glass-coated Fe71.8Cu1Nb3.1Si15B9.1 microwires. J. Magn. Magn. Mater. 2002, 249, 79–84. [Google Scholar] [CrossRef]
  14. Nabias, J.; Asfour, A.; Yonnet, J.-P. Effect of Torsion Stress on the Offset and Sensitivity of Diagonal and Off-Diagonal GMI in Amorphous Wires. Sensors 2018, 18, 4121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Morón, C.; Cabrera, C.; Morón, A.; García, A.; González, M. Magnetic Sensors Based on Amorphous Ferromagnetic Materials: A Review. Sensors 2015, 15, 28340–28366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hasegawa, R. Applications of Amorphous Magnetic Alloys. In Properties and Applications of Nanocrystalline Alloys from Amorphous Precursors; NATO Science Series (Series II: Mathematics, Physics and Chemistry); Idzikowski, B., Švec, P., Miglierini, M., Eds.; Springer: Dordrecht, The Netherlands, 2005; Volume 184, pp. 189–198. [Google Scholar]
  17. Mohri, K.; Uchiyama, T.; Panina, L.V.; Yamamoto, M.; Bushida, K. Recent Advances of Amorphous Wire CMOS IC Magneto-Impedance Sensors: Innovative High-Performance Micromagnetic Sensor Chip. J. Sens. 2015. [Google Scholar] [CrossRef] [Green Version]
  18. Honkura, Y.; Honkura, S. The Development of ASIC Type GSR Sensor Driven by GHz Pulse Current. Sensors 2020, 20, 1023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Cobeño, A.F.; Zhukov, A.; Blanco, J.M.; Larin, V.; Gonzalez, J. Magnetoelastic sensor based on GMI of amorphous microwire. Sens. Actuat. A Phys. 2001, 91, 95–98. [Google Scholar] [CrossRef]
  20. Zhukov, A.; Cobeño, A.F.; Gonzalez, J.; Blanco, J.M.; Aragoneses, P.; Dominguez, L. Magnetoelastic sensor of level of the liquid based on magnetoelastic properties of Co-rich microwires. Sens. Actuat. A Phys. 2000, 81, 129–133. [Google Scholar] [CrossRef]
  21. Zhukov, A.; Garcia-Beneytez, J.M.; Vázquez, M. Magnetoelastic sensor for signature identification based on mechanomagnetic effect in amorphous wires. J. Phys. IV 1998, 8, Pr2-763–Pr2-766. [Google Scholar] [CrossRef]
  22. Panina, L.V.; Mohri, K. Magneto-impedance effect in amorphous wires. Appl. Phys. Lett. 1994, 65, 1189–1191. [Google Scholar] [CrossRef]
  23. Beach, R.; Berkowitz, A. Giant magnetic field dependent impedance of amorphous FeCoSiB wire. Appl. Phys. Lett. 1994, 64, 3652–3654. [Google Scholar] [CrossRef]
  24. Zhukov, A.; Ipatov, M.; Zhukova, V. Advances in Giant Magnetoimpedance of Materials. In Handbook of Magnetic Materials; Buschow, K.H.J., Ed.; Elsevier: Amsterdam, The Netherlands, 2015; Chapter 2; p. 139. [Google Scholar]
  25. Knobel, M.; Vazquez, M.; Kraus, L. Giant Magnetoimpedance. In Handbook of Magnetic Materials; Bruck, E., Ed.; Elsevier: Amsterdam, The Netherlands, 2003; pp. 497–563. [Google Scholar]
  26. Mohri, K.; Humphrey, F.B.; Kawashima, K.; Kimura, K.; Muzutani, M. Large Barkhausen and Matteucci Effects in FeCoSiB, FeCrSiB, and FeNiSiB Amorphous Wires. IEEE Trans. Magn. 1990, 26, 1781–1789. [Google Scholar] [CrossRef]
  27. Ogasawara, I.; Ueno, S. Preparation and properties of amorphous wires. IEEE Trans. Magn. 1995, 31, 1219–1223. [Google Scholar] [CrossRef]
  28. Zhukova, V.; Zhukov, A.; Blanco, J.M.; Gonzalez, J.; Ponomarev, B.K. Switching field fluctuations in a glass coated Fe-rich amorphous microwire. J. Magn. Magn. Mater. 2002, 249, 131–135. [Google Scholar] [CrossRef]
  29. Harrison, E.P.; Turney, G.L.; Rowe, H. Electrical Properties of Wires of High Permeability. Nature 1935, 135, 961. [Google Scholar] [CrossRef]
  30. Pirota, K.R.; Kraus, L.; Chiriac, H.; Knobel, M. Magnetic properties and GMI in a CoFeSiB glass-covered microwire. J. Magn. Magn. Mater. 2000, 21, L243–L247. [Google Scholar] [CrossRef]
  31. Corte-León, P.; Zhukova, V.; Ipatov, M.; Blanco, J.M.; Gonzalez, J.; Zhukov, A. Engineering of magnetic properties of Co-rich microwires by joule heating. Intermetallics 2019, 105, 92–98. [Google Scholar] [CrossRef]
  32. Sixtus, K.J.; Tonks, L. Propagation of large Barkhausen discontinuities II. Phys. Rev. 1932, 42, 419–435. [Google Scholar] [CrossRef]
  33. Chen, D.-X.; Dempsey, N.M.; Vázquez, M.; Hernando, A. Propagating domain wall shape and dynamics in iron-rich amorphous wires. IEEE Trans. Magn. 1995, 31, 781–790. [Google Scholar] [CrossRef]
  34. Vazquez, M.; Chen, D.-X. The magnetization reversal process in amorphous wires. IEEE Trans. Magn. 1995, 31, 1229–1238. [Google Scholar] [CrossRef]
  35. Zhukova, V.; Blanco, J.M.; Chizhik, A.; Ipatov, M.; Zhukov, A. AC-current-induced magnetization switching in amorphous microwires. Front. Phys. 2018, 13, 137501. [Google Scholar] [CrossRef]
  36. Zhukova, V.; Blanco, J.M.; Rodionova, V.; Ipatov, M.; Zhukov, A. Fast magnetization switching in Fe-rich amorphous microwires: Effect of magnetoelastic anisotropy and role of defects. J. Alloys Compd. 2014, 586, S287–S290. [Google Scholar] [CrossRef]
  37. Varga, R.; Richter, K.; Zhukov, A.; Larin, V. Domain Wall Propagation in Thin Magnetic Wires. IEEE Trans. Magn. 2008, 44, 3925–3930. [Google Scholar] [CrossRef]
  38. Allwood, D.A.; Xiong, G.; Faulkner, C.C.; Atkinson, D.; Petit, D.; Cowburn, R.P. Magnetic domain-wall logic. Science 2005, 309, 1688–1692. [Google Scholar] [CrossRef] [PubMed]
  39. Parkin, S.; Yang, S.-H. Memory on the racetrack. Nat. Nanotechnol. 2015, 10, 195–198. [Google Scholar] [CrossRef]
  40. Gudoshnikov, S.; Usov, N.; Zhukov, A.; Zhukova, V.; Palvanov, P.; Ljubimov, B.; Serebryakova, O.; Gorbunov, S. Evaluation of use of magnetically bistable microwires for magnetic labels. Phys. Status Solidi A 2011, 208, 526–529. [Google Scholar] [CrossRef]
  41. Zhukov, A.; Ipatov, M.; Talaat, A.; Blanco, J.M.; Hernando, B.; Gonzalez-Legarreta, L.; Suñol, J.J.; Zhukova, V. Correlation of Crystalline Structure with Magnetic and Transport Properties of Glass-Coated Microwires. Crystals 2017, 7, 41. [Google Scholar] [CrossRef]
  42. Rudkowski, P.; Rudkowska, G.; Strom-Olsen, J.O. The fabrication of fine metallic fibers by continuous melt extraction and their magnetic and mechanical properties. Mater. Sci. Eng. A 1991, 133, 158–161. [Google Scholar] [CrossRef]
  43. Zhukova, V.; Zhukov, A.; Kraposhin, V.; Prokoshin, A.; Gonzalez, J. Magnetic properties and GMI of soft magnetic amorphous fibers. Sens. Actuat. A Phys. 2003, 106, 225–229. [Google Scholar] [CrossRef]
  44. Chiriac, H.; Lupu, N.; Stoian, G.; Ababei, G.; Corodeanu, S.; Óvári, T.-A. Ultrathin nanocrystalline magnetic wires. Crystals 2017, 7, 48. [Google Scholar] [CrossRef] [Green Version]
  45. Corte-Leon, P.; Zhukova, V.; Ipatov, M.; Blanco, J.M.; González, J.; Churyukanova, M.; Taskaev, S.; Zhukov, A. The effect of annealing on magnetic properties of “Thick” microwires. J. Alloys Compd. 2020, 831, 150992. [Google Scholar] [CrossRef]
  46. Baranov, S.A.; Larin, V.S.; Torcunov, A.V. Technology, Preparation and Properties of the Cast Glass-Coated Magnetic Microwires. Crystals 2017, 7, 136. [Google Scholar] [CrossRef]
  47. Astefanoaei, I.; Radu, D.; Chiriac, H. Internal stress distribution in DC joule-heated amorphous glass-covered microwires. J. Condens. Matter. Phys. 2006, 18, 2689–2716. [Google Scholar] [CrossRef]
  48. Zhukov, A.; Gonzalez, J.; Torcunov, A.; Pina, E.; Prieto, M.J.; Cobeño, A.F.; Blanco, J.M.; Larin, S.; Baranov, V. Ferromagnetic resonance and structure of Fe-based glass-coated microwires. J. Magn. Magn. Mater. 1999, 203, 238–240. [Google Scholar] [CrossRef]
  49. Kozejova, D.; Fecova, L.; Klein, P.; Sabol, R.; Hudak, R.; Sulla, I.; Mudronova, D.; Galik, J.; Varga, R. Biomedical applications of glass-coated microwires. J. Magn. Magn. Mater. 2019, 470, 2–5. [Google Scholar] [CrossRef]
  50. Praslička, D.; Blažek, J.; Šmelko, M.; Hudák, J.; Čverha, A.; Mikita, I.; Varga, R.; Zhukov, A. Possibilities of Measuring Stress and Health Monitoring in Materials Using Contact-Less Sensor Based on Magnetic Microwires. IEEE Trans. Magn. 2013, 49, 128–131. [Google Scholar] [CrossRef]
  51. Allue, A.; Corte-León, P.; Gondra, K.; Zhukova, V.; Ipatov, M.; Blanco, J.M.; Gonzalez, J.; Churyukanova, M.; Taskaev, S.; Zhukov, A. Smart composites with embedded magnetic microwire inclusions allowing non-contact stresses and temperature monitoring. Compos. Part. A Appl. Sci. Manuf. 2019, 120, 12–20. [Google Scholar] [CrossRef]
  52. Talaat, A.; Alonso, J.; Zhukova, V.; Garaio, E.; García, J.A.; Srikanth, H.; Phan, M.H.; Zhukov, A. Ferromagnetic glass-coated microwires with good heating properties for magnetic hyperthermia. Sci. Rep. 2016, 6, 39300. [Google Scholar] [CrossRef]
  53. Mitxelena-Iribarren, O.; Campisi, J.; de Apellániz, I.M.; Lizarbe-Sancha, S.; Arana, S.; Zhukova, V.; Mujika, M.; Zhukov, A. Glass-coated ferromagnetic microwire-induced magnetic hyperthermia for in vitro cancer cell treatment. Mater. Sci. Eng. C 2020, 106, 110261. [Google Scholar] [CrossRef]
  54. Qin, F.X.; Peng, H.X.; Phan, M.H.; Panina, L.V.; Ipatov, M.; Zhukov, A. Effects of wire properties on the field-tunable behaviour of continuous-microwire composites. Sens. Actuator A Phys. 2012, 178, 118–125. [Google Scholar] [CrossRef]
  55. Ramos, C.A.; Vazquez, M.; Nielsch, K.; Pirota, K.; Rivas, J.; Wehrspohn, R.B.; Tovar, M.; Sanchez, R.D.; Gösele, U. FMR characterization of hexagonal arrays of Ni nanowires. J. Magn. Magn. Mater. 2004, 272–276, 1652–1653. [Google Scholar] [CrossRef]
  56. Berganza, E.; Bran, C.; Jaafar, M.; Vazquez, M.; Asenjo, A. Domain wall pinning in FeCoCu bamboo-like nanowires. Sci. Rep. 2016, 6, 29702. [Google Scholar] [CrossRef]
  57. Marks, J.; Sinko, M. The Wiegand Effect and Its Automotive Applications. SAE Tech. Paper 1978, 780208, 19–20. [Google Scholar] [CrossRef]
  58. Zhukov, A.; Ipatov, M.; Corte-León, P.; Gonzalez-Legarreta, L.; Churyukanova, M.; Blanco, J.M.; Gonzalez, J.; Taskaev, S.; Hernando, B.; Zhukova, V. Giant magnetoimpedance in rapidly quenched materials. J. Alloys Compd. 2020, 814, 152225. [Google Scholar] [CrossRef]
  59. Zhukov, A.; Ipatov, M.; Corte-León, P.; Gonzalez-Legarreta, L.; Blanco, J.M.; Zhukova, V. Soft magnetic microwires for sensor applications. J. Magn. Magn. Mater. 2020, 498, 166180. [Google Scholar] [CrossRef]
  60. Zhukov, A.; Chichay, K.; Talaat, A.; Rodionova, V.; Blanco, J.M.; Ipatov, M.; Zhukova, V. Manipulation of magnetic properties of glass-coated microwires by annealing. J. Magn. Magn. Mater. 2015, 383, 232–236. [Google Scholar] [CrossRef]
  61. Zhukova, V.; Blanco, J.M.; Ipatov, M.; Gonzalez, J.; Churyukanova, M.; Zhukov, A. Engineering of magnetic softness and giant magnetoimpedance effect in Fe-rich microwires by stress-annealing. Scr. Mater. 2018, 142, 10–14. [Google Scholar] [CrossRef]
  62. Zhukova, V.; Corte-Leon, P.; Ipatov, M.; Blanco, J.M.; Gonzalez-Legarreta, L.; Zhukov, A. Development of Magnetic Microwires for Magnetic Sensor Applications. Sensors 2019, 19, 4767. [Google Scholar] [CrossRef] [Green Version]
  63. Zhukova, V.; Blanco, J.M.; Ipatov, M.; Churyukanova, M.; Taskaev, S.; Zhukov, A. Tailoring of magnetoimpedance effect and magnetic softness of Fe-rich glass-coated microwires by stress-annealing. Sci. Rep. 2018, 8, 3202. [Google Scholar] [CrossRef] [Green Version]
  64. Gonzalez-Legarreta, L.; Corte-León, P.; Zhukova, V.; Ipatov, M.; Blanco, J.M.; Churyukanova, M.; Taskaev, S.; Zhukov, A. Route of magnetoimpedance and domain walls dynamics optimization in Co-based microwires. J. Alloys Compd. 2020, 830, 154576. [Google Scholar] [CrossRef]
  65. Gonzalez-Legarreta, L.; Corte-Leon, P.; Zhukova, V.; Ipatov, M.; Blanco, J.M.; Gonzalez, J.; Zhukov, A. Optimization of magnetic properties and GMI effect of Thin Co-rich Microwires for GMI Microsensors. Sensors 2020, 20, 1558. [Google Scholar] [CrossRef] [Green Version]
  66. Zhukov, A.; Talaat, A.; Ipatov, M.; Zhukova, V. Tailoring of High Frequency Giant Magnetoimpedance Effect of amorphous Co-rich microwires. IEEE Magn. Lett. 2015, 6, 2500104. [Google Scholar] [CrossRef]
  67. Zhukova, V.; Blanco, J.M.; Rodionova, V.; Ipatov, M.; Zhukov, A. Domain wall propagation in micrometric wires: Limits of single domain wall regime. J. Appl. Phys. 2012, 111, 07E311. [Google Scholar] [CrossRef]
  68. Stupakiewicz, A.; Chizhik, A.; Tekielak, M.; Zhukov, A.; Gonzalez, J.; Maziewski, A. Direct imaging of the magnetization reversal in microiwres using all-MOKE microscopy. Rev. Sci. Instrum. 2014, 85, 103702. [Google Scholar] [CrossRef] [PubMed]
  69. Chizhik, A.; Zhukov, A.; Gonzalez, J.; Gawroński, P.; Kułakowski, K.; Stupakiewicz, A. Spiral magnetic domain structure in cylindrically-shaped microwires. Sci. Rep. 2018, 8, 15090. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Usov, N.A.; Antonov, A.S.; Lagar’kov, A.N. Theory of giant magneto-impedance effect in amorphous wires with different types of magnetic anisotropy. J. Magn. Magn. Mater. 1998, 185, 159–173. [Google Scholar] [CrossRef]
  71. Aragoneses, P.; Zhukov, A.; Gonzalez, J.; Blanco, J.M.; Dominguez, L. Effect of AC driving current on Magneto-Impedance effect. Sens. Actuator A Phys. 2000, 81, 86–90. [Google Scholar] [CrossRef]
  72. Ménard, D.; Britel, M.; Ciureanu, P.; Yelon, A. Giant magnetoimpedance in a cylindrical conductor. J. Appl. Phys. 1998, 84, 2805–2814. [Google Scholar] [CrossRef]
  73. Zhukov, A.; Shuvaeva, E.; Kaloshkin, S.; Churyukanova, M.; Kostitcyna, E.; Zhdanova, M.; Talaat, A.; Ipatov, M.; Zhukova, V. Studies of interfacial layer and its effect on magnetic properties of glass-coated microwires. J. Electr. Mater. 2016, 45, 2381–2387. [Google Scholar] [CrossRef]
  74. Dufay, B.; Saez, S.; Dolabdjian, C.; Melo, L.G.C.; Yelon, A.; Ménard, D. Development of a high sensitivity Giant Magneto-Impedance magnetometer: Comparison with a commercial Flux-Gate. IEEE Trans. Magn. 2013, 49, 85. [Google Scholar] [CrossRef]
  75. Zhukov, A.; Talaat, A.; Blanco, J.M.; Ipatov, M.; Zhukova, V. Tuning of magnetic properties and GMI effect of Co-based amorphous microwires by annealing. J. Electr. Mater. 2014, 43, 4532–4539. [Google Scholar] [CrossRef]
  76. Zhukov, A.; Talaat, A.; Churyukanova, M.; Kaloshkin, S.; Semenkova, V.; Ipatov, M.; Blanco, J.M.; Zhukova, V. Engineering of magnetic properties and GMI effect in Co-rich amorphous microwires. J. Alloys Compd. 2016, 664, 235–241. [Google Scholar] [CrossRef]
  77. Talaat, A.; Churyukanova, M.; Blanco, J.M.; Ipatov, M.; Zhukova, V.; Zhukov, A. Simultaneous Detection of Giant Magnetoimpedance and Fast Domain Wall Propagation in Co-Based Glass-Coated Microwires. IEEE Magn. Lett. 2016, 7, 5200604. [Google Scholar] [CrossRef]
  78. Eggert, R.G. Minerals go critical. Nat. Chem. 2011, 3, 688–691. [Google Scholar] [CrossRef] [PubMed]
  79. Talaat, A.; Zhukova, V.; Ipatov, M.; del Val, J.J.; Blanco, J.M.; Gonzalez-Legarreta, L.; Hernando, B.; Churyukanova, M.; Zhukov, A. Engineering of magnetic softness and magnetoimpedance in Fe-Rich microwires by nanocrystallization. JOM 2016, 68, 1563–1571. [Google Scholar] [CrossRef]
  80. Corte-Leon, P.; Zhukova, V.; Blanco, J.M.; Ipatov, M.; Taskaev, S.; Churyukanova, M.; Gonzalez, J.; Zhukov, A. Engineering of magnetic properties and magnetoimpedance effect in Fe-rich microwires by reversible and irreversible stress-annealing anisotropy. J. Alloys Compd. 2021, 855, 157460. [Google Scholar] [CrossRef]
  81. Jiang, S.D.; Eggers, T.; Thiabgoh, O.; Xing, D.W.; Fei, W.D.; Shen, H.X.; Liu, J.S.; Zhang, J.R.; Fang, W.B.; Sun, J.F.; et al. Relating surface roughness and magnetic domain structure to giant magneto-impedance of Co-rich melt-extracted microwires. Sci. Rep. 2017, 7, 46253. [Google Scholar] [CrossRef] [Green Version]
  82. Kronmüller, H.; Fähnle, M.; Domann, M.; Grimm, H.; Grimm, R.; Gröger, B. Magnetic properties of amorphous ferromagnetic alloys. J. Magn. Magn. Mater. 1979, 13, 53–70. [Google Scholar]
  83. Zhukov, A.; Shuvaeva, E.; Kaloshkin, S.; Churyukanova, M.; Kostitcyna, E.; Sudarchikova, V.; Talaat, A.; Ipatov, M.; Zhukova, V. Influence of the defects on magnetic properties of glass-coated microwires. J. Appl. Phys. 2014, 115, 17A305. [Google Scholar] [CrossRef]
  84. Yamasaki, J.; Mohri, K.; Watari, K.; Narita, K. Domain wall induced anisotropy during annealing in amorphous ribbons. IEEE Trans. Magn. 1984, 20, 1855–1857. [Google Scholar] [CrossRef]
  85. Kohmoto, O.; Ohya, K. Amorphous FeCo-SiB alloys with zero magnetostriction. J. Appl. Phys. 1981, 52, 928–932. [Google Scholar] [CrossRef]
  86. Herzer, G. Amorphous and Nanocrystalline Soft Magnets. In Proceedings of the NATO Advanced Study Insititute on Magnetic Hysteresis in Novel Materials, Mykonos, Greece, 1–12 July 1996; Hadjipanayis, G.C., Ed.; NATO ASI Series (Series E: Applied Sciences); Kluwer Academic Publishers: Dordrecht, The Netherlands, 1997; Volume 338, pp. 711–730. [Google Scholar]
  87. Corte-Leon, P.; Blanco, J.M.; Zhukova, V.; Gonzalez, J.I.M.; Churyukanova, M.; Taskaev, S.; Zhukov, A. Engineering of Magnetic Softness and Domain Wall Dynamics of Fe-rich Amorphous Microwires by Stress-induced Magnetic Anisotropy. Sci. Rep. 2019, 9, 12427. [Google Scholar] [CrossRef]
  88. Haimovich, J.; Jagielinski, T.; Egami, T. Magnetic and structural effects of anelastic deformation of an amorphous alloy. J. Appl. Phys. 1985, 57, 3581–3583. [Google Scholar] [CrossRef]
  89. Luborsky, F.; Walter, J. Magnetic anneal anisotropy in amorphous alloys. IEEE Trans. Magn. 1977, 13, 953–956. [Google Scholar] [CrossRef]
  90. Zhukov, A.; Zhukova, V.; Larin, V.; Gonzalez, J. Tailoring of magnetic anisotropy of Fe-rich microwires by stress induced anisotropy. Phys. B Condens. Matter. 2006, 384, 1–4. [Google Scholar] [CrossRef]
  91. Chizhik, A.; Zhukova, A.; Corte-León, P.; Blanco, J.M.; Gonzalez, J.; Gawroński, P. Torsion induced acceleration of domain wall motion in magnetic microwires. J. Magn. Magn. Mater. 2019, 489, 165420. [Google Scholar] [CrossRef]
  92. Chizhik, A.; Gonzalez, J.; Zhukov, A.; Gawronski, P. Study of length of domain walls in cylindrical magnetic microwires. J. Magn. Magn. Mater. 2020, 512, 167060. [Google Scholar] [CrossRef]
  93. Chizhik, A.; Gonzalez, J.; Zhukov, A.; Blanco, J.M. Circular magnetic bistability induced by tensile stress in glass covered amorphous microwires. Appl. Phys. Lett. 2003, 82, 610–612. [Google Scholar] [CrossRef]
Sensors 20 07203 g001 550
Figure 1. Images of studied samples 1–5 (a–e) respectively. The glass coating has been removed intentionally.
Figure 1. Images of studied samples 1–5 (a–e) respectively. The glass coating has been removed intentionally.
Sensors 20 07203 g001
Sensors 20 07203 g002 550
Figure 2. Hysteresis loops of magnetic microwires Fe75B9Si12C4 with positive (a) and Fe3.6Co69.2Ni1B12.5Si11Mo1.5C1.2 with nearly-zero (b) λs values, ΔZ/Z(H) dependencies of as-prepared Fe75B9Si12C4 (c) and Fe3.6Co69.2Ni1B12.5Si11Mo1.5C1.2 (d) microwires and v(H) dependence of Fe75B9Si12C4 microwire (e).
Figure 2. Hysteresis loops of magnetic microwires Fe75B9Si12C4 with positive (a) and Fe3.6Co69.2Ni1B12.5Si11Mo1.5C1.2 with nearly-zero (b) λs values, ΔZ/Z(H) dependencies of as-prepared Fe75B9Si12C4 (c) and Fe3.6Co69.2Ni1B12.5Si11Mo1.5C1.2 (d) microwires and v(H) dependence of Fe75B9Si12C4 microwire (e).
Sensors 20 07203 g002
Sensors 20 07203 g003 550
Figure 3. Effect of annealing on hysteresis loops (a), ΔZ/Z(H) dependencies measured at 300 MHz (b) and on v(H) dependencies (c) of annealed at Tann = 300 °C and 350 °C Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires.
Figure 3. Effect of annealing on hysteresis loops (a), ΔZ/Z(H) dependencies measured at 300 MHz (b) and on v(H) dependencies (c) of annealed at Tann = 300 °C and 350 °C Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires.
Sensors 20 07203 g003
Sensors 20 07203 g004 550
Figure 4. ΔZ/Zmax(f) dependence of as-prepared and annealed at Tann = 300 °C and Tann = 350 °C Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires (a) and dependence of DW mobility, S, on annealing temperature, Tann (b).
Figure 4. ΔZ/Zmax(f) dependence of as-prepared and annealed at Tann = 300 °C and Tann = 350 °C Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires (a) and dependence of DW mobility, S, on annealing temperature, Tann (b).
Sensors 20 07203 g004
Sensors 20 07203 g005 550
Figure 5. ΔZ/Z(H) dependencies of as-prepared and stress-annealed at different σm at Tann = 300 °C (a) and Tann = 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires measured at 300 MHz.
Figure 5. ΔZ/Z(H) dependencies of as-prepared and stress-annealed at different σm at Tann = 300 °C (a) and Tann = 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires measured at 300 MHz.
Sensors 20 07203 g005
Sensors 20 07203 g006 550
Figure 6. Frequency dependence of maximum GMI ratio, ΔZ/Zmax, in as-prepared and stress-annealed at Tann = 300 °C (a) and Tann = 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires.
Figure 6. Frequency dependence of maximum GMI ratio, ΔZ/Zmax, in as-prepared and stress-annealed at Tann = 300 °C (a) and Tann = 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires.
Sensors 20 07203 g006
Sensors 20 07203 g007 550
Figure 7. Hysteresis loops of Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires annealed at Tann = 300 °C (a) and Tann = 350 °C (b) for different σm.
Figure 7. Hysteresis loops of Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires annealed at Tann = 300 °C (a) and Tann = 350 °C (b) for different σm.
Sensors 20 07203 g007
Sensors 20 07203 g008 550
Figure 8. v(H) dependencies of annealed at Tann = 300 °C (a) and 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires and S(σm) dependencies for the same microwires (c).
Figure 8. v(H) dependencies of annealed at Tann = 300 °C (a) and 350 °C (b) Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.5 microwires and S(σm) dependencies for the same microwires (c).
Sensors 20 07203 g008
Sensors 20 07203 g009 550
Figure 9. Hysteresis loops of as-prepared, annealed and stress- annealed at Tann = 350 °C Fe75B9Si12C4 microwires (a), hysteresis loops of as-prepared and stress-annealed at 300 °C Fe75B9Si12C4 microwires (b) and v(H) dependencies of as-prepared, annealed at Tann = 350 °C and stress-annealed at Tann = 300 °C Fe75B9Si12C4 microwires (c).
Figure 9. Hysteresis loops of as-prepared, annealed and stress- annealed at Tann = 350 °C Fe75B9Si12C4 microwires (a), hysteresis loops of as-prepared and stress-annealed at 300 °C Fe75B9Si12C4 microwires (b) and v(H) dependencies of as-prepared, annealed at Tann = 350 °C and stress-annealed at Tann = 300 °C Fe75B9Si12C4 microwires (c).
Sensors 20 07203 g009
Sensors 20 07203 g010 550
Figure 10. ΔZ/Z(H) dependencies of as-prepared (a); annealed (b) and stress-annealed at σm = 190 MPa (c) at Tann = 350 °C; annealed at Tann = 300 °C for σm = 0 MPa (d) and ΔZ/Zm(f) dependencies of as-prepared, annealed at Tann = 350 °C and stress- annealed at Tann = 300 °C (190 MPa) (e) Fe75B9Si12C4 microwires.
Figure 10. ΔZ/Z(H) dependencies of as-prepared (a); annealed (b) and stress-annealed at σm = 190 MPa (c) at Tann = 350 °C; annealed at Tann = 300 °C for σm = 0 MPa (d) and ΔZ/Zm(f) dependencies of as-prepared, annealed at Tann = 350 °C and stress- annealed at Tann = 300 °C (190 MPa) (e) Fe75B9Si12C4 microwires.
Sensors 20 07203 g010
Sensors 20 07203 g011 550
Figure 11. Hysteresis loops of as-prepared and annealed at 300 °C (a) and 550 °C (b) Fe71.7B13.4Si11Nb3Ni0.9 glass-coated microwires. Adapted from ref. [45].
Figure 11. Hysteresis loops of as-prepared and annealed at 300 °C (a) and 550 °C (b) Fe71.7B13.4Si11Nb3Ni0.9 glass-coated microwires. Adapted from ref. [45].
Sensors 20 07203 g011
Sensors 20 07203 g012 550
Figure 12. v(H) dependencies of as-prepared and annealed (550 °C 1 h) Fe71.7B13.4Si11Nb3Ni0.9 microwires. Reproduced from Ref. [45] with permission.
Figure 12. v(H) dependencies of as-prepared and annealed (550 °C 1 h) Fe71.7B13.4Si11Nb3Ni0.9 microwires. Reproduced from Ref. [45] with permission.
Sensors 20 07203 g012
Sensors 20 07203 g013 550
Figure 13. ΔZ/Z(H) dependencies of as-prepared; and (a) annealed at 550 °C (1 h) (b) Fe71.7B13.4Si11Nb3Ni0.9 microwires measured at different frequencies. Figure 12a is adapted from ref. [62].
Figure 13. ΔZ/Z(H) dependencies of as-prepared; and (a) annealed at 550 °C (1 h) (b) Fe71.7B13.4Si11Nb3Ni0.9 microwires measured at different frequencies. Figure 12a is adapted from ref. [62].
Sensors 20 07203 g013
Sensors 20 07203 g014 550
Figure 14. Frequency dependence of maximum GMI ratio of as-prepared and annealed at 550 °C (1 h) Fe71.7B13.4Si11Nb3Ni0.9 microwires.
Figure 14. Frequency dependence of maximum GMI ratio of as-prepared and annealed at 550 °C (1 h) Fe71.7B13.4Si11Nb3Ni0.9 microwires.
Sensors 20 07203 g014
Sensors 20 07203 g015 550
Figure 15. MOKE hysteresis loop (black points) and images of surface domain structure (marked by red numbers) obtained in sample №3 annealed with tension stress. MOKE hysteresis loop (white points) and images of surface domain structure (marked by black numbers) obtained in sample 3 annealed with tension stress in the presence of the torsion of 2 π rad m−1.
Figure 15. MOKE hysteresis loop (black points) and images of surface domain structure (marked by red numbers) obtained in sample №3 annealed with tension stress. MOKE hysteresis loop (white points) and images of surface domain structure (marked by black numbers) obtained in sample 3 annealed with tension stress in the presence of the torsion of 2 π rad m−1.
Sensors 20 07203 g015
Sensors 20 07203 g016 550
Figure 16. MOKE hysteresis loops and images of surface domain structure obtained in annealed sample №5 (black points) and as-prepared sample №5 in the presence of torsion stress of 1 π rad m−1 (white points).
Figure 16. MOKE hysteresis loops and images of surface domain structure obtained in annealed sample №5 (black points) and as-prepared sample №5 in the presence of torsion stress of 1 π rad m−1 (white points).
Sensors 20 07203 g016
Sensors 20 07203 g017 550
Figure 17. MOKE hysteresis loop and images of surface domain structure obtained in as-prepared sample №5 in the presence of torsion stress of 2 π rad m−1.
Figure 17. MOKE hysteresis loop and images of surface domain structure obtained in as-prepared sample №5 in the presence of torsion stress of 2 π rad m−1.
Sensors 20 07203 g017
Sensors 20 07203 g018 550
Figure 18. Magnetic hysteresis loops obtained in as-prepared sample №5 in the presence of torsion stress.
Figure 18. Magnetic hysteresis loops obtained in as-prepared sample №5 in the presence of torsion stress.
Sensors 20 07203 g018
Table
Table 1. Compositions and geometry of studied glass-coated microwires.
Table 1. Compositions and geometry of studied glass-coated microwires.
Sample
№		CompositionMetallic Nucleus Diameter,
d (μm)		Total Diameter,
D (μm)		Ratio
ρ = d/D		Magnetostriction Coefficient,
λs × 10−6		Crystallization Temperature, Tc (°C)
1Fe75B9Si12C415.217.20.8838522
2Co69.2Fe3.6Ni1B12.5Si11C1.2Mo1.522.823.20.98−1553
3Fe71.7B13.4Si11Nb3Ni0.91031580.6535570
4Co69.2Fe4.1B11.8Si13.8C1.125.630.20.85−0.03507
5Co64,04Fe5,71B15,88Si10,94Cr3.4Ni0,3941260.752562
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Corte-Leon, P.; Zhukova, V.; Chizhik, A.; Blanco, J.M.; Ipatov, M.; Gonzalez-Legarreta, L.; Zhukov, A. Magnetic Microwires with Unique Combination of Magnetic Properties Suitable for Various Magnetic Sensor Applications. Sensors 2020, 20, 7203. https://doi.org/10.3390/s20247203

AMA Style

Corte-Leon P, Zhukova V, Chizhik A, Blanco JM, Ipatov M, Gonzalez-Legarreta L, Zhukov A. Magnetic Microwires with Unique Combination of Magnetic Properties Suitable for Various Magnetic Sensor Applications. Sensors. 2020; 20(24):7203. https://doi.org/10.3390/s20247203

Chicago/Turabian Style

Corte-Leon, Paula, Valentina Zhukova, Alexandr Chizhik, Juan Maria Blanco, Mihail Ipatov, Lorena Gonzalez-Legarreta, and Arcady Zhukov. 2020. "Magnetic Microwires with Unique Combination of Magnetic Properties Suitable for Various Magnetic Sensor Applications" Sensors 20, no. 24: 7203. https://doi.org/10.3390/s20247203

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
