Article

Self-Biased Bidomain LiNbO3/Ni/Metglas Magnetoelectric Current Sensor

1
Department of Design and Technology of Radioequipment, Yaroslav-the-Wise Novgorod State University, ul. B. St. Petersburgskaya, 41, 173003 Veliky Novgorod, Russia
2
Department of Materials Science of Semiconductors and Dielectrics, National University of Science and Technology MISiS, Leninskiy Prospekt 4, 119049 Moscow, Russia
3
Department of Physics and I3N, University of Aveiro, 3810-193 Aveiro, Portugal
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(24), 7142; https://doi.org/10.3390/s20247142
Received: 8 November 2020 / Revised: 9 December 2020 / Accepted: 9 December 2020 / Published: 13 December 2020
(This article belongs to the Special Issue Magnetoelectric Sensors: Theory, Design and Application)

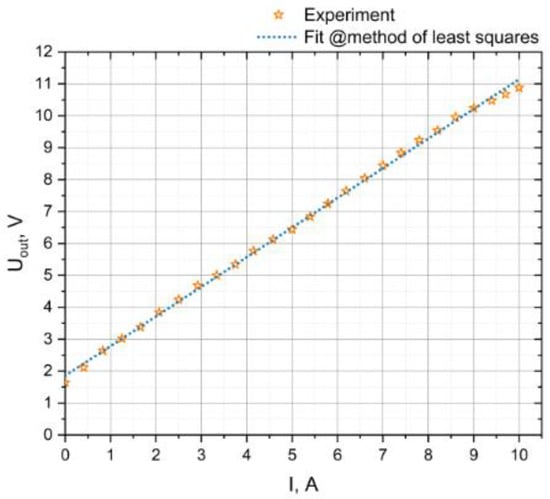

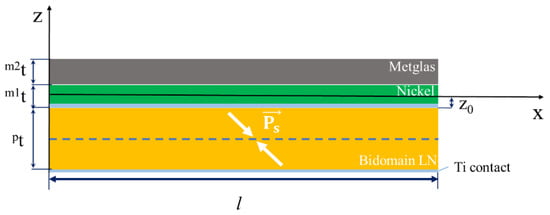

The article is devoted to the theoretical and experimental study of a magnetoelectric (ME) current sensor based on a gradient structure. It is known that the use of gradient structures in magnetostrictive-piezoelectric composites makes it possible to create a self-biased structure by replacing an external magnetic field with an internal one, which significantly reduces the weight, power consumption and dimensions of the device. Current sensors based on a gradient bidomain structure LiNbO3 (LN)/Ni/Metglas with the following layer thicknesses: lithium niobate—500 μm, nickel—10 μm, Metglas—29 μm, operate on a linear section of the working characteristic and do not require the bias magnetic field. The main characteristics of a contactless ME current sensor: its current range measures up to 10 A, it has a sensitivity of 0.9 V/A, its current consumption is not more than 2.5 mA, and its linearity is maintained to an accuracy of 99.8%. Some additional advantages of a bidomain lithium niobate-based current sensor are the increased sensitivity of the device due to the use of the bending mode in the electromechanical resonance region and the absence of a lead component in the device. View Full-Text
Keywords: magnetoelectric effect; magnetoelectric gradient structure; bidomain lithium niobate; magnetoelectric sensor; current sensor magnetoelectric effect; magnetoelectric gradient structure; bidomain lithium niobate; magnetoelectric sensor; current sensor
