New Insights towards High-Temperature Ethanol-Sensing Mechanism of ZnO-Based Chemiresistors

1
Department of Surface and Plasma Science, Faculty of Mathematics and Physics, Charles University, V Holešovičkách 2, 180 00 Prague 8, Czech Republic
2
Department of Physics and Measurements, University of Chemistry and Technology Prague, Technická 5, 166 28 Prague 6, Czech Republic
3
Institute of Photonics and Electronics, Czech Academy of Sciences, Chaberská 1014/57, 182 51 Prague 8, Czech Republic
*
Authors to whom correspondence should be addressed.
Sensors 2020, 20(19), 5602; https://doi.org/10.3390/s20195602
Received: 31 August 2020 / Revised: 22 September 2020 / Accepted: 23 September 2020 / Published: 30 September 2020
(This article belongs to the Special Issue Application of Thin Film Materials in Sensors)

Abstract

:
In this work, we investigate ethanol (EtOH)-sensing mechanisms of a ZnO nanorod (NRs)-based chemiresistor using a near-ambient-pressure X-ray photoelectron spectroscopy (NAP-XPS). First, the ZnO NRs-based sensor was constructed, showing good performance on interaction with 100 ppm of EtOH in the ambient air at 327 °C. Then, the same ZnO NRs film was investigated by NAP-XPS in the presence of 1 mbar oxygen, simulating the ambient air atmosphere and O2/EtOH mixture at the same temperature. The partial pressure of EtOH was 0.1 mbar, which corresponded to the partial pressure of 100 ppm of analytes in the ambient air. To better understand the EtOH-sensing mechanism, the NAP-XPS spectra were also studied on exposure to O2/EtOH/H2O and O2/MeCHO (MeCHO = acetaldehyde) mixtures. Our results revealed that the reaction of EtOH with chemisorbed oxygen on the surface of ZnO NRs follows the acetaldehyde pathway. It was also demonstrated that, during the sensing process, the surface becomes contaminated by different products of MeCHO decomposition, which decreases dc-sensor performance. However, the ac performance does not seem to be affected by this phenomenon.

1. Introduction

ZnO is an intrinsic n-type semiconductor with a wide band gap (Eg = 3.37 eV) and an exciton binding energy of 60 meV [1]. These properties, together with good chemical and thermal stability and low cost, make ZnO widely used in various fields and applications, including heterogeneous catalysis, photovoltaics and optoelectronics, and solar cells [2,3,4]. However, the most important application of ZnO is in chemiresistive gas sensors [5,6,7,8]. It was one of the first metal oxides reported as a promising material for the first gas sensor applications in the early 1960s [9]. Despite the fact that the ZnO-based gas sensors have been commercially used for the last three decades, the research on them is still far from being completed [10,11,12]. The research was particularly accelerated after the development of nanomaterials and nanotechnologies which demonstrated that the reduction in the grain size to nanometre dimensions significantly increases sensor sensitivity [13]. To date, the gas-sensing mechanism has not been fully explained. However, it is usually assumed that the change in sensor conductivity is connected with the chemisorption of atmospheric oxygen on the surface of the sensing layer [14]. Depending on the temperature, the oxygen extracts one or two free electrons from the surface, forming an electron depletion region there which reduces the total conductivity in the case of n-type semiconductors and increases it for p-type ones. Exposing the sensor to a reducing analyte (like ethanol) lowers the concentration of chemisorbed oxygen species (O2, O, and O2) which return the electrons back to the surface and increase the conductivity [15]. In some cases, especially at a low temperature, the sensor conductivity may be related to the presence of molecular water or OH groups on the surface of the gas-sensitive material [16]. Sensor sensitivity is further related to many other parameters, including layer composition, morphology or the presence of dopants and catalysts. It has been demonstrated that nanostructuring can influence the thickness of the depleted region (Debye length), to be in tens of nanometers order for such metal oxides as SnO2 or ZnO [17].
A wide range of nanostructured ZnO films containing objects of different dimensions have been synthesized and tested as gas-sensing layers for gas sensors. Together with nanostructured ZnO films containing nanosized grains and nanocrystals, 1D and 2D nanostructured materials like nanorods (NRs), nanowires, nanosheets or nanobelts were reported to be effective for the detection of volatile organic compounds including ethanol (EtOH) and acetaldehyde (MeCHO). This broad topic is reviewed, e.g., in [18,19,20]. Partial studies dedicated to the detection of EtOH on ZnO NRs can be found in [21] or [22]. In the former case, the dc-response SDC to 50 ppm of EtOH was 22 at 320 °C. In the latter case, the dc-responce SDC to 1000 ppm of EtOH was 1.5 at 300 °C (for the definition of SDC, see Section 2.4). It is apparent that these results are significantly different. The detection of MeCHO exclusively on ZnO NRs is reported only in [23]. The authors achieved SDC = 2.9 to 10 ppm of MeCHO at room temperature. Reports dedicated to the detection of EtOH or MeCHO on chemiresistors operating in ac-mode are rare. Certain conceptual approaches to the impedance measurement of sensors are discussed in [24]. In [25], the authors report the detection of ethanol vapours at a concentration of 0.7–5.0 ppm on ZnO nanorods at a working temperature of approximately 400 °C. The nanorods were grown via a hydrothermal route directly on a multielectrode chip. By employing impedance measurements in tandem with signal processing by linear discriminant analysis, it is possible to distinguish vapours of various alcohols even in the sub-ppm range.
As mentioned above, the sensing mechanism of EtOH by ZnO remains partially unclear. One problem is that there are no direct experimental results evidencing the oxygen chemisorption in situ on the ZnO (or other metal oxide) surface at the sensor working conditions [26]. Furthermore, the ethanol reaction pathway with the oxygen species on the ZnO at the usual sensor working temperature of 300–400 °C is frequently a matter of discussion. Based on the results from the reaction products’ observation (by gas chromatography and temperature-programmed desorption techniques), two competitive pathways were proposed. The first one assumes the reaction of EtOH with chemisorbed oxygen producing MeCHO and water [10,27]:
EtOH(ad) + O (ad) → CH3CHO + H2O + e
EtOH(ad) + O2− (ad) → CH3CHO + H2O + 2e
The second pathway supposes C-O bond scission leading to EtOH dehydration and ethylene formation, which then interacts with the oxygen ions, generating water and carbon dioxide [28,29]:
EtOH(ad) → C2H4(ad) + H2O
C2H4(ad) + 3O22−(ad) → 2CO2 + 2H2O + 6e
However, neither of these mechanisms account for the possible change in the sensing layer stoichiometry during interaction with EtOH, or its deactivation by different strongly bonded carbonaceous species (coke, acetates) that may be formed as a result of the ethanol decomposition. Therefore, to resolve the mechanism, the utilization of an in situ/operando technique that provides information about and the sensing layer stoichiometry and various intermediate species on the surface under operational conditions is essential.
Near-ambient-pressure X-ray photoelectron Spectroscopy (NAP-XPS) is a technique that allows chemical investigation of solid surfaces in the presence of gases and vapours and provides important information on the reaction intermediate species appearing on the surface during different chemical reactions [30,31,32]. We recently utilized NAP-XPS for in situ investigation of the gas-sensing mechanism of nanostructured SnO2- and CuOx-based gas sensors [33,34]. In this work, we applied NAP-XPS for the investigation of the EtOH- and MeCHO-sensing mechanisms of a ZnO NRs-based chemiresistor. First, sensing performance towards 100 ppm of EtOH and MeCHO in the ambient air at 327 °C was evaluated using a gas sensor with the ZnO NRs-sensing layer. Then, a ZnO NR film on a silica substrate (fabricated in the same way) was investigated by NAP-XPS in various gas/vapour mixtures, simulating its normal operating conditions. The partial pressure of the analytes was 0.1 mbar, as it corresponds to the concentration of 100 ppm under ambient pressure. To improve the understanding of the mechanism, the influence of water vapour was also investigated.

2. Materials and Methods

2.1. Synthesis of ZnO NRs and Fabrication of Sensors

The ZnO NRs were grown on seeding layers by chemical bath deposition (CBD) from equimolar aqueous solutions consisting of 50 mM zinc nitrate hexahydrate and hexamethylentetramine at 95 °C for 2 h [35]. The NRs were prepared on a silicon substrate for the NAP-XPS measurements, while for the investigation of the sensing properties, alumina substrates with Pt electrodes were used (Figure 1). The seed layer was deposited by pulsed laser deposition. Deposition was carried out by a laser Quantel Brilliant (wavelenght 266 nm, pulse duration 4 ns, repetition rate 10 Hz). The energy of laser pulses was 45 mJ. The target was made from ZnO with 5N purity (pressed and then sintered in a furnace). The system was evacuated to high vacuum conditions and the deposition was carried out in 20 Pa of oxygen at room temperature. The target substrate distance was 5 cm. The total number of laser pulses was 300. The AFM image of the seed layer on the silicon substrate is presented in Figure S1 of the Supporting Information.

2.2. Morphological and Structural Characterizations

The morphology and structure of the ZnO NRs were examined by scanning electron microscopy (SEM) using a Tescan MIRA 3 microscope operating at 30 keV electron beam energy and by high-resolution transmission microscopy (HRTEM) using a 200 kV JEOL 2100FEG UHR microscope with a Scherzer resolution of 0.19 nm. The TEM images were recorded by a charge-coupled device camera and analyses of the results were performed using the Digital Micro-graph software.

2.3. In Situ NAP-XPS Characterizations

The NAP-XPS measurements were performed using a lab-based NAP-XPS system (SPECS Surface Nano Analysis, GmbH Germany) equipped with the monochromatized Al Kα X-ray source, hemispherical electron energy analyser and specially designed NAP cell. A detailed description of this system can be found in [33]. Investigations into the sensor interaction with a low concentration of ethanol were performed as follows: first, the XPS spectra were acquired at 327 °C in 1 mbar of oxygen, mimicking the ambient atmosphere without a reducing agent; then, the same sets of spectra were measured in the O2/EtOH mixture, prepared by increasing the total gas pressure in the NAP cell to 1.1 mbar by adding ethanol vapour. The O2/EtOH/H2O mixture was created by adding 0.1 mbar of water vapour to the EtOH/O2 mixture. Finally, the same set of spectra was measured in the presence of the O2/MeCHO atmosphere prepared inside the NAP cell in a similar way (by the increase in the total gas pressure to 1.1 mbar and by the addition of 0.1 mbar of acetaldehyde vapour). During all NAP-XPS measurements, the Zn 2p, Zn LMM, O 1s and C 1s spectra were recorded at a constant pass energy of 20 eV and a photoelectron emission angle of 0°, with respect to the sample normal. The spectral components in the core-level spectra were fitted with a Voigt profile after subtracting the Shirley background using the KolXPD-fitting software.

2.4. Instrumentation and Evaluation of Sensor Measurement in Dc- and Ac- Mode

DC measurements were conducted with an Agilent 34410A in a sensor evaluation system described in [36]. The AC ones (impedance measurements) were performed with an Agilent 4294A impedance analyzer in a system depicted in Figure S2 of SI. The impedance measurements were carried out in two-wire connection in the frequency range of 40 Hz–100 MHz (at 800 frequency points in logarithmic scale). The amplitude of a testing signal was set to 10 mV with no bias voltage. Both DC and AC measurements were done for four distinct analyte mixtures (EtOH; MeCHO; EtOH + H2O; MeCHO + H2O) with the concentration of 100 ppm for each component (the rest of the mixture was synthetic air at 1 bar pressure). The gas flow was set to 25 mL/min and sensor temperature to 327 °C. The block diagram of the station for measuring the chemiresistor response in the DC and AC modes is presented in Figure 2.
First, the sensors were stabilized at their operating temperature for 2 h. Then, they were alternately exposed to analyte and reference mixtures at 1 bar pressure. The reference mixture was pure synthetic air without any analyte. The exposure to analyte mixtures lasted 10 min. The exposure to the reference mixture took 30–60 min depending on the speed of sensor recovery.
Sensor responses were evaluated using the following quantities: SDC, SAC40Hz and SPA-MAX. SDC was defined as a ratio of corresponding pre-exposure and post-exposure resistances (SDC = Rair/Ranalyte). The impedance data were processed as follows: (i) Nyquist plots (i.e., imaginary part of complex impedance Im (Z) vs. real part complex impedance Re (Z) with the frequency of measuring signal as a parameter) were constructed. (ii) The phase angles Θ of complex impedance of the sensor in “pure” synthetic air (Θair = arccos [Re(Zair)/|Zair|]) and complex impedance of the same sensor in analyte (Θanalyte = arccos [Re(Zanalyte)/|Zanalyte|]) were calculated. The symbol |Z|denotes impedance modulus, which means |Z|= [Re2(Z) + Im2(Z)]1/2. (iii) Phase-angle sensitivity SPA was defined as a difference in the phase angles in synthetic air and in analyte, respectively, i.e., SPA = ΘairΘanalyte. It is clear that Z, Θ and SPA are frequency-dependent quantities. (iv) The parameter SPA-MAX is the maximum value of SPA achieved for a sensor. (v) The parameter SAC40Hz is a ratio of the real parts of the corresponding impedances in air and in analyte at 40 Hz, i.e., SAC40Hz = Re (Zair)/Re (Zanalyte). Further information concerning AC measurements is available in [37,38].

3. Results and Discussion

3.1. Structural and Morphological Analysis

Figure 3a presents the SEM micrograph of the ZnO NRs grown on the silicon substrate for the NAP-XPS measurements. The image shows a compact array of vertically aligned, single-crystalline ZnO NRs with a diameter varying within the 50−150 nm range. The TEM image of the top part of a single ZnO NR is presented in Figure 3b. It confirms the crystallinity of ZnO NRs with a hexagonal wurtzite structure. The NRs prepared on the alumina sensor substrates for investigation of the EtOH-sensing properties (depicted in Figure 3c) had the same size, but more random orientation due to the greater substrate roughness.

3.2. NAP-XPS Analysis

The XPS measurements of the as-prepared ZnO NRs done in the presence of 1 mbar of oxygen at room temperature showed a relatively high amount of carbon contamination on the surface (Figure 4). After heating the sample to a sensor working temperature of 327 °C in 5 mbar of oxygen, the amount of surface carbon decreased by only about 30%. Thus, prior to the measurements, a special sample cleaning protocol was applied, which included the sample annealing at 500 °C for about 60 min in 5 mbar of O2 with a further decrease in the oxygen pressure and sample temperature to 1 mbar and 327 °C, respectively. After this, the carbon contamination decreased to about 5% of the initial amount and the sensor was considered to be cleaned. However, this indicates that the carbon contamination must also be present on the surface of a real working sensor and should be taken into account when considering the sensing mechanism and sensor performance. The cleaned sensor was then exposed to the O2/EtOH, O2/EtOH/H2O and O2/MeCHO gas atmospheres at 327 °C in order to understand the processes taking place on the surface of the ZnO NRs-based sensor while sensing EtOH or MeCHO molecules. Before each exposure, the sample was also cleaned, but it was enough to anneal it at only 327 °C in the presence of 5 mbar O2 to remove all carbon.
The C 1s spectra measured in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO are presented in Figure 5. The C 1s spectrum acquired from the cleaned ZnO NRs in the presence of oxygen (the bottom spectrum) showed some small amount of carbon contamination, with the main peak at about 285.2 eV (black peak). This peak can be assigned to amorphous carbon and different CHx species adsorbed on the surface of ZnO [39]. The two peaks at 286.5 and 289.4 eV (pink color peaks) most probably belong to the methyl and carboxylate groups of surface acetates [40], which appeared on the surface during NRs synthesis. The peak at 289.4 eV could also originate from carbonates that may be formed after high-temperature annealing of the contaminated ZnO surface in oxygen. Sample exposure to the O2/EtOH mixture led to significant changes in the C 1s spectrum (second spectrum from the bottom in Figure 5). The peaks assigned to the surface acetates doubled, and position of the methyl peak shifted to a lower binding energy (BE) by 0.3 eV. The peak assigned to amorphous carbon and CHx groups at 285.2 eV also increased. In addition, two equal peaks at about 285.6 and 287 eV (blue peaks), assigned to the methyl and alxoxy groups of ethoxy (the intermediate product of ethanol dehydrogenation), respectively, and two small peaks at about 287.6 and 286.1 eV of gas phase EtOH (green peaks) appeared in the spectrum. The intensity and shape of the EtOH gas peaks, as well as the distance between them, were determined on the basis of a reference measurement of an O2/EtOH mixture with no sample inside the NAP cell (see Figure S3 of SI). It is worth noting that the increase in the peaks’ intensity at 289.4 and 286.5 eV, together with the shift of the last by 0.3 eV to lower BE (from 286.5 eV to 286.2 eV), is most probably related to the presence of MeCHO on the surface. Indeed, MeCHO contains a formyl (aldehyde) group with a double C = O bond, giving rise to an XPS peak at about 289–290 eV and a methyl group producing an XPS peak at a slightly lower BE of 285–286 eV compared to the surface acetates [41]. Adding water to the O2/EtOH mixture (second spectrum from the top in Figure 5), resulted in a slight increase in the MeCHO signals and a decrease in the ethoxy and amorphous carbon peaks. The C 1s spectrum measured in the presence of the O2/MeCHO mixture (the top spectrum in Figure 5) consisted of the already-observed peaks of adsorbed MeCHO and amorphous carbon, and two new peaks at about 289 and 286.4 eV (dark blue), which are the formyl and methyl features of gas-phase MeCHO. The intensity and shape of these gas-phase peaks, as well as the distance between them, were found from the reference NAP-XPS measurement of O2/MeCHO gas mixture (Figure S3 of SI).
The corresponding O 1s, Zn 2p and Zn LMM spectra acquired in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO are presented in Figure 6 and Figure S4 of SI. The O 1s spectra showed slight changes depending on the exposing atmosphere. This is mainly because of the strong oxygen signal originating from bulk ZnO, with the main state at about 531 eV. This peak is so intense that the low oxygen signal originating from the adsorbate is almost undetectable by XPS. The inset in Figure 6a, demonstrating the difference between O 1s spectra taken in O2 and O2/EtOH atmospheres, shows an increase in oxygen signal in the 531.5–533 eV region. In this region, the oxygen signals from different hydrocarbons containing oxygen, H2O and OH usually appear [42]. Similar signal increases can be observed in the case of O2/EtOH/H2O and O2/MeCHO atmospheres. However, these contributions are so small that it is impossible to make any quantitative analysis or to fit them. Compared to the oxygen spectra, the corresponding Zn 2p spectra contained even smaller changes (Figure 6b). In all cases, there was a doublet, with the position of the main peak at about 1022 eV corresponding to the Zn2+ ions of bulk ZnO [43]. Comparison of the spectra after their normalization to the same height did not show any difference in their shape, except for a shift of about 0.15 eV to higher binding energy for the spectrum acquired in the pure oxygen atmosphere. As this shift was noticed for the whole set of spectra (Zn 2p, Zn LMM, O 1s and C 1s spectra) collected in oxygen, we attributed it to the band-bending effect raised by oxygen chemisorption that occurs at 327 °C [44]. For easier comparison, the effect of band bending was eliminated by shifting the whole set of spectra measured in oxygen by 0.15 eV to a higher BE prior to the spectra processing. The Zn LMM Auger spectra were acquired together with the Zn 2p spectra and presented in Figure S4 of SI. These spectra resembled typical Auger spectra of ZnO with the main peak at about 988 eV [43], regardless of the exposing atmosphere.
The NAP-XPS results presented above supported the theory of an MeCHO reaction pathway for the EtOH reaction with the chemisorbed oxygen species described in the introduction. We could not detect any signal related to ethylene with a double C = C bond usually appearing at 284–284.2 eV [45], which rules out the ethylene pathway at this temperature. It is apparent that the EtOH gas-sensing mechanism includes the formation of the ethoxy group that is an intermediate product of MeCHO formation via two-step EtOH dehydrogenation. (The process includes an O-H bond scission forming the ethoxy group in the first step. The second hydrogen detaches in the second step, and the carbon skeleton forms MeCHO). The detached hydrogens interact with the chemisorbed oxygen species, forming H2O. However, the more intense peak in amorphous carbon at 285.2 eV in case of the O2/MeCHO measurements points to further decomposition of the MeCHO molecules that, in turn, could decrease sensor performance. This may explain the lower response of the ZnO sensor to MeCHO, as discussed in the next section. Moreover, it looks as if water on the surface of ZnO NRs partially blocks the MeCHO decomposition, leading to the increase in its concentration on the surface and a slight decrease in amorphous carbon formed as a result of MeCHO decomposition. However, as shown below, this has a very low influence on sensor performance.

3.3. Response of Sensor in Dc- and Ac-Modes

To investigate the sensing properties of ZnO-nanorods in macroscale, the prepared sensor devices (chemiresistors) were measured in both dc- and in ac-mode. Figure 7 depicts a dc-response to EtOH and EtOH/H2O, while Figure 8 depicts the dc-response to MeCHO and MeCHO/H2O. Figure 9 and Figure 10 present certain results extracted from ac-responses, i.e., the dependence of phase-angle responses on the frequency of a measuring signal for EtOH and EtOH/H2O (Figure 9) or MeCHO and MeCHO/H2O (Figure 10). Table 1 summarizes the important sensor parameters evaluated from Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10, namely, dc-responses, ac-responses at 40 Hz and maximum phase-angle responses SPA-MAX. Both instrumentation of the measurement and sensor parameters evaluation were carried out according to the procedures described in the experimental part.
In the following text, sensor responses are analyzed first, and, secondly, they are correlated with the phenomena revealed by the NAP-XPS spectroscopy of corresponding systems. Analysis of the sensor responses resulted in the following observations:
(i) ZnO behaves like an n-type semiconductor—both reducing analytes (EtOH and MeCHO) decrease either its resistance or its impedance modulus (see Figure 7 and Figure 8);
(ii) The responses to EtOH and EtOH/H2O are more stable than the responses to MeCHO and MeCHO/H2O. This is especially apparent when comparing the stability of the sensor baseline during the dc-measurement (cf. Figure 7 and Figure 8). Within the ac-measurements, this fact is manifested by a significant drift in SPA in time for MeCHO (cf. Figure 9 and Figure 10);
(iii) While the SDC values are higher for EtOH and EtOH/H2O, SAC40Hz and SPA-MAX are greater for MeCHO and MeCHO/H2O, i.e., EtOH is easily detectable by a dc-measurement and MeCHO by an ac-measurement;
(iv) The effect of water on chemiresistor responses is relatively weak at 327 °C;
(v) The magnitude of the dc-response is somewhat decreased in each subsequent step (see Figure 7 and Figure 8).
The observation (i) is “trivial”, as ZnO has been many times reported to exhibit n-type conductivity. The observations (ii), (iii) and (v) are apparently connected with the amount of MeCHO and amorphous carbon on the surface of ZnO NRs. As shown from the NAP-XPS measurements, the MeCHO molecules are formed as a result of the EtOH dehydrogenation and obviously undergo further decomposition. The NAP-XPS spectra confirm that the amount of amorphous carbon and CHx species on the ZnO surface gradually increases during the measurement. It also shows that this increase is significantly higher in the case of MeCHO. As a result, we can formulate the following hypothesis: When detecting EtOH or EtOH/H2O, the surface of ZnO is only slightly decorated with amorphous carbon, oxygen species chemisorbed on the ZnO surface react with hydrogen atoms from EtOH, ethoxy and MeCHO dehydrogenations and the sensor response is primarily determined by the exchange of electrons between chemisorbed oxygen and zinc oxide nanorod. Thus, the drift component of the current is affected, which results in a higher response when measuring in dc-mode. In this case, the concentration of produced MeCHO molecules probably remains below some critical amount, as it has enough time to desorb from the surface and only a very slow accumulation of the surface carbon contamination takes place. On the other hand, when detecting MeCHO, the amount of the carbon species on ZnO surface is higher and the concentration of the active sites for oxygen species chemisorption is smaller. Instead, organic molecules containing dipoles are present: acetaldehyde and intermediates of the acetaldehyde oxidation. Consequently, the displacement component of the current is affected, which implies a higher response of the sensor in ac-mode. Finally, a certain decrease in the dc-response magnitude stems from the gradually increasing surface contamination.
Our results concerning the detection of EtOH and MeCHO can be compared to observations published in [46]. In that study, the nanoparticles of ZnO were synthesized by a hydrothermal process from zinc hydroxide and trisodium citrate, i.e., the preparation method was similar. The dc-sensitivity SDC achieved for 100 ppm of ethanol at 300 °C was 7.5 and 5.0 to 100 ppm of MeCHO. The magnitude of dc-responses was higher than that of our sensors (SDC = 3.6 to 100 ppm of EtOH at 327 °C and SDC = 1.5 to 100 ppm of MeCHO at 327 °C—see Table 1), but the trend was the same. In both cases, the dc-responses to EtOH were greater than the responses to MeCHO. It is notable that the authors explain the response of ZnO to EtOH and MeCHO only by their interaction with chemisorbed oxygen species, resulting in the total oxidation of these analytes to CO2 and H2O. However, they neither carriedac-measurement nor analyzed surface deposits on the ZnO nanoparticles. Contrary to their conclusion, we proved that surface species play an important role in influencing the detection mechanism.
The influence of water on the sensitivity of ZnO nanoparticles to ethanol at a high temperature was published in [47]. It was shown that the response to 300 ppm ethanol (measured at 400 °C) was slightly decreased (by 3−14%) in the atmosphere containing 56% relative humidity, which is consistent with our observation (iv). The low influence of water on the sensitivity of ZnO-based chemiresistors at high temperatures is most probably related to the rapid desorption of water molecules from ZnO surface. It was shown that the adsorption probability of 0.1 ML of water on ZnO surface at 330 °C approaches zero [48], which means a weak blocking of adsorption sites for oxygen and ethanol molecules.

4. Conclusions

This work presents the results of the in situ NAP-XPS investigation of the EtOH- and MeCHO-sensing properties of ZnO nanorods at high temperature. We demonstrated that the EtOH-sensing mechanism at high temperature (327 °C) is based on the dehydrogenation of EtOH molecules, leading to ethoxy and MeCHO, where the detached hydrogens interact with the chemisorbed oxygen, causing a sensor response. It was also shown that MeCHO further decomposes on the surface producing amorphous carbon and various CHx species, which seemed to be responsible for the decay in dc-sensor detection performance. When detecting EtOH, the concentration of generated MeCHO molecules remained relatively low, so that it had enough time do desorb or to completely oxidize causing a relatively slow accumulation of the surface carbon contamination on the surface of ZnO, so the chemisorbed oxygen species could react with the detached hydrogen atoms, preserving the sensitivity. On the other hand, in the case of MeCHO-sensing, the carbon contamination on the surface is substantially higher and partially blocks the oxygen chemisorption on it. This phenomenon leads to the decrease in the dc-response magnitude and affection of the displacement component of the current, causing higher sensor responses in ac-mode.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/20/19/5602/s1, Figure S1: AFM image of the ZnO seed layer on silicon wafer by PLD, Figure S2: Photo of measurement apparatus used for the sensor response measurements in AC mode, Figures S3 and S4: Supplementary NAP-XPS spectra.

Author Contributions

Conceptualization, M.V. (Mykhailo Vorokhta) and M.V. (Martin Vrňata); methodology, M.V. (Mykhailo Vorokhta); software, L.P., D.T., M.H.; validation, P.F. and R.Y.; formal analysis, P.F.; investigation, L.P., D.T., M.H., I.K., J.N., R.Y. and J.G.; resources, I.M. and M.V. (Martin Vrňata); data curation, P.F.; writing—original draft preparation, M.V. (Mykhailo Vorokhta) and M.V. (Martin Vrňata); writing—review and editing, L.P., D.T., M.H., I.K., P.F., R.Y., J.G., I.M.; visualization, L.P. and M.H.; supervision, I.M.; project administration, M.V. (Mykhailo Vorokhta); funding acquisition, I.M and M.V. (Martin Vrňata). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Czech Science Foundation, grant number 19-02804S.

Acknowledgments

We would like to thank the Central European Research Infrastructure Consortium (CERIC) for access to experimental facilities. This work was supported by the grant of Specific university research—grant No. A2_FCHI_2020_013.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Norton, D.P.; Heo, Y.W.; Ivill, M.P.; Ip, K.; Pearton, S.J.; Chisholm, M.F.; Steiner, T. ZnO: Growth, doping and processing. Mater. Today 2008, 7, 34–40. [Google Scholar] [CrossRef]
  2. Kuld, S.; Thorhauge, M.; Falsig, H.; Elkjær, C.F.; Helveg, S.; Chorkendorff, I.; Sehested, J. Quantifying the promotion of Cu catalysts by ZnO for methanol synthesis. Science 2016, 352, 969–974. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Leschkies, K.S.; Divakar, R.; Basu, J.; Enache-Pommer, E.; Boercker, J.E.; Carter, C.B.; Kortshagen, U.R.; Norris, D.J.; Aydil, E.S. Photosensitization of ZnO nanowires with CdSe quantum dots for photovoltaic devices. Nano Lett. 2007, 7, 1793–1798. [Google Scholar] [CrossRef]
  4. Vittal, R.; Ho, K.C. Zinc oxide based dye-sensitized solar cells: A review. Renew. Sustain. Energy Rev. 2017, 70, 920–935. [Google Scholar] [CrossRef]
  5. Guo, J.; Zhang, J.; Zhu, M.; Ju, D.; Xu, H.; Cao, B. High-performance gas sensor based on ZnO nanowires functionalized by Au nanoparticles. Sens. Actuators B Chem. 2014, 199, 339–345. [Google Scholar] [CrossRef]
  6. Kumar, R.; Al-Dossary, O.; Kumar, G.; Umar, A. Zinc oxide nanostructures for NO2 gas–sensor applications: A review. NanoMicro Lett. 2015, 7, 97–120. [Google Scholar] [CrossRef][Green Version]
  7. Maziarz, W.; Rydosz, A.; Pisarkiewicz, T.; Domański, K.; Grabiec, P. Gas-sensitive properties of Zno nanorods/nanowires obtained by electrodeposition and electrospinning methods. Procedia Eng. 2012, 47, 841–844. [Google Scholar] [CrossRef][Green Version]
  8. Batzill, M.; Diebold, U. The surface and materials science of tin oxide. Prog. Surf. Sci. 2005, 79, 47–154. [Google Scholar] [CrossRef]
  9. Seiyama, T.; Kato, A.; Fujiishi, K.; Nagatani, M. A New Detector for Gaseous Components Using Semiconductive Thin Films. Anal. Chem. 1962, 34, 1502–1503. [Google Scholar] [CrossRef]
  10. Suzuki, T.T.; Ohgaki, T.; Adachi, Y.; Sakaguchi, I.; Nakamura, M.; Ohashi, H.; Aimi, A.; Fujimoto, K. Ethanol Gas Sensing by a Zn-Terminated ZnO(0001) Bulk Single- Crystalline Substrate. ACS Omega 2020. [Google Scholar] [CrossRef] [PubMed]
  11. Tharsika, T.; Thanihaichelvan, M.; Haseeb, A.S.M.A.; Akbar, S.A. Highly sensitive and selective ethanol sensor based on zno nanorod on SnO2 thin film fabricated by spray pyrolysis. Front. Mater. 2019, 6, 1–9. [Google Scholar] [CrossRef]
  12. Kaur, N.; Singh, M.; Comini, E. One-Dimensional Nanostructured Oxide Chemoresistive Sensors. Langmuir 2020, 36, 6326–6344. [Google Scholar] [CrossRef] [PubMed]
  13. Yamazoe, N. New approaches for improving semiconductor gas sensors. Sens. Actuators B Chem. 1991, 5, 7–19. [Google Scholar] [CrossRef]
  14. Gurlo, A. Interplay between O2 and SnO2: Oxygen ionosorption and spectroscopic evidence for adsorbed oxygen. ChemPhysChem 2006, 7, 2041–2052. [Google Scholar] [CrossRef] [PubMed]
  15. Abokifa, A.A.; Haddad, K.; Fortner, J.; Lo, C.S.; Biswas, P. Sensing mechanism of ethanol and acetone at room temperature by SnO2 nano-columns synthesized by aerosol routes: Theoretical calculations compared to experimental results. J. Mater. Chem. A 2018, 6, 2053–2066. [Google Scholar] [CrossRef]
  16. Shankar, P.; Rayappan, J.B.B. Room temperature ethanol sensing properties of ZnO nanorods prepared using an electrospinning technique. J. Mater. Chem. C 2017, 5, 10869–10880. [Google Scholar] [CrossRef]
  17. Chen, Y.; Zhu, C.L.; Xiao, G. Reduced-temperature ethanol sensing characteristics of flower-like ZnO nanorods synthesized by a sonochemical method. Nanotechnology 2006, 17, 4537–4541. [Google Scholar] [CrossRef]
  18. Bhati, V.S.; Hojamberdiev, M.; Kumar, M. Enhanced sensing performance of ZnO nanostructures-based gas sensors: A review. Energy Rep. 2020, 6, 46–62. [Google Scholar] [CrossRef]
  19. Leonardi, S.G. Two-dimensional zinc oxide nanostructures for gas sensor applications. Chemosensors 2017, 5, 17. [Google Scholar] [CrossRef][Green Version]
  20. Zhu, L.; Zeng, W. Room-temperature gas sensing of ZnO-based gas sensor: A review. Sens. Actuators A Phys. 2017, 267, 242–261. [Google Scholar] [CrossRef]
  21. Wang, L.; Kang, Y.; Liu, X.; Zhang, S.; Huang, W.; Wang, S. ZnO nanorod gas sensor for ethanol detection. Sens. Actuators B Chem. 2012, 162, 237–243. [Google Scholar] [CrossRef]
  22. Roy, S.; Banerjee, N.; Sarkar, C.K.; Bhattacharyya, P. Development of an ethanol sensor based on CBD grown ZnO nanorods. Solid State Electron. 2013, 87, 43–50. [Google Scholar] [CrossRef]
  23. Mani, G.K.; Rayappan, J.B.B. ZnO nanoarchitectures: Ultrahigh sensitive room temperature acetaldehyde sensor. Sens. Actuators B Chem. 2016, 223, 343–351. [Google Scholar] [CrossRef]
  24. Nowicki, M. A modified impedance-frequency converter for inexpensive inductive and resistive sensor applications. Sensors 2019, 19, 121. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Bobkov, A.; Varezhnikov, A.; Plugin, I.; Fedorov, F.S.; Trouillet, V.; Geckle, U.; Sommer, M.; Goffman, V.; Moshnikov, V.; Sysoev, V. The multisensor array based on grown-on-chip zinc oxide nanorod network for selective discrimination of alcohol vapors at sub-ppm range. Sensors 2019, 19, 4265. [Google Scholar] [CrossRef][Green Version]
  26. Gurlo, A.; Riedel, R. In situ and operando spectroscopy for assessing mechanisms of gas sensing. Angew. Chem. Int. Ed. 2007, 46, 3826–3848. [Google Scholar] [CrossRef] [PubMed]
  27. Hongsith, N.; Wongrat, E.; Kerdcharoen, T.; Choopun, S. Sensor response formula for sensor based on ZnO nanostructures. Sens. Actuators B Chem. 2010, 144, 67–72. [Google Scholar] [CrossRef]
  28. Geunjae, K.; Kijung, Y. Adsorption and reaction of ethanol on ZnO nanowires. J. Phys. Chem. C 2008, 112, 3036–3041. [Google Scholar]
  29. Xu, J.; Han, J.; Zhang, Y.; Sun, Y.; Xie, B. Studies on alcohol sensing mechanism of ZnO based gas sensors. Sens. Actuators B Chem. 2008, 132, 334–339. [Google Scholar] [CrossRef]
  30. Baikie, I.D.; Grain, A.; Sutherland, J.; Law, J. Near ambient pressure photoemission spectroscopy of metal and semiconductor surfaces. Phys. Status Solidi 2015, 12, 259–262. [Google Scholar] [CrossRef]
  31. Prosvirin, I.P.; Bukhtiyarov, A.V.; Bluhm, H.; Bukhtiyarov, V.I. Application of near ambient pressure gas-phase X-ray photoelectron spectroscopy to the investigation of catalytic properties of copper in methanol oxidation. Appl. Surf. Sci. 2016, 363, 303–309. [Google Scholar] [CrossRef]
  32. Wolfbeisser, A.; Kovács, G.; Kozlov, S.M.; Föttinger, K.; Bernardi, J.; Klötzer, B.; Neyman, K.M.; Rupprechter, G. Surface composition changes of CuNi-ZrO2 during methane decomposition: An operando NAP-XPS and density functional study. Catal. Today 2017, 283, 134–143. [Google Scholar] [CrossRef]
  33. Vorokhta, M.; Khalakhan, I.; Vondráček, M.; Tomeček, D.; Vorokhta, M.; Marešová, E.; Nováková, J.; Vlček, J.; Fitl, P.; Novotný, M.; et al. Investigation of gas sensing mechanism of SnO2 based chemiresistor using near ambient pressure XPS. Surf. Sci. 2018, 687, 284–290. [Google Scholar] [CrossRef]
  34. Hozák, P.; Vorokhta, M.; Khalakhan, I.; Jarkovská, K.; Cibulková, J.; Fitl, P.; Vlček, J.; Fara, J.; Tomeček, D.; Novotný, M.; et al. New Insight into the Gas-Sensing Properties of CuOx Nanowires by Near-Ambient Pressure XPS. J. Phys. Chem. C 2019, 123, 29739–29749. [Google Scholar] [CrossRef]
  35. Yatskiv, R.; Tiagulskyi, S.; Grym, J.; Vaniš, J.; Bašinová, N.; Horak, P.; Torrisi, A.; Ceccio, G.; Vacik, J.; Vrňata, M. Optical and electrical characterization of CuO/ZnO heterojunctions. Thin Solid Films 2020, 693, 137656. [Google Scholar] [CrossRef]
  36. Tomecek, D.; Hruska, M.; Fitl, P.; Vlcek, J.; Maresova, E.; Havlova, S.; Patrone, L.; Vrnata, M. Phthalocyanine Photoregeneration for Low Power Consumption Chemiresistors. ACS Sens. 2018, 3, 2558–2565. [Google Scholar] [CrossRef]
  37. Myslík, V.; Vysloužil, F.; Vrňata, M.; Rozehnal, Z.; Jelíinek, M.; Fryček, R.; Kovanda, M. Phase ac-sensitivity of oxidic and acetylacetonic gas sensors. Sens. Actuators B Chem. 2003, 89, 205–211. [Google Scholar] [CrossRef]
  38. Fitl, P.; Vrnata, M.; Kopecky, D.; Vlcek, J.; Skodova, J.; Bulir, J.; Novotny, M.; Pokorny, P. Laser deposition of sulfonated phthalocyanines for gas sensors. Appl. Surf. Sci. 2014, 302, 37–41. [Google Scholar] [CrossRef]
  39. Mudiyanselage, K.; Burrell, A.K.; Senanayake, S.D.; Idriss, H. XPS and NEXAFS study of the reactions of acetic acid and acetaldehyde over UO2(100) thin film. Surf. Sci. 2019, 680, 107–112. [Google Scholar] [CrossRef]
  40. Jacobs, G.; Keogh, R.A.; Davis, B.H. Steam reforming of ethanol over Pt/ceria with co-fed hydrogen. J. Catal. 2007, 245, 326–337. [Google Scholar] [CrossRef]
  41. Vohs, J.M.; Barteau, M.A. Formation of Stable Alkyl and Carboxylate Intermediates in the Reactions of Aldehydes on the ZnO(0001) Surface. Langmuir 1989, 5, 965–972. [Google Scholar] [CrossRef]
  42. Singh, M.; Kaur, N.; Drera, G.; Casotto, A.; Ermenegildo, L.S.; Comini, E. SAM Functionalized ZnO Nanowires for Selective Acetone Detection: Optimized Surface Specific Interaction Using APTMS and GLYMO Monolayers. Adv. Funct. Mater. 2020, 2003217, 1–12. [Google Scholar] [CrossRef]
  43. Zuo, J.; Erbe, A. Optical and electronic properties of native zinc oxide films on polycrystalline Zn. Phys. Chem. Chem. Phys. 2010, 12, 11467–11476. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, C.; Yin, L.; Zhang, L.; Xiang, D.; Gao, R. Metal oxide gas sensors: Sensitivity and influencing factors. Sensors 2010, 10, 2088–2106. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Zimmermann, P.; Sobotík, P.; Kocán, P.; Ošt’Ádal, I.; Vorokhta, M.; Acres, R.G.; Matolín, V. Adsorption of ethylene on Sn and in terminated Si(001) surface studied by photoelectron spectroscopy and scanning tunneling microscopy. J. Chem. Phys. 2016, 145, 094701. [Google Scholar] [CrossRef]
  46. Rai, P.; Yu, Y.T. Citrate-assisted hydrothermal synthesis of single crystalline ZnO nanoparticles for gas sensor application. Sens. Actuators B Chem. 2012, 173, 58–65. [Google Scholar] [CrossRef]
  47. Saboor, F.H.; Khodadadi, A.A.; Mortazavi, Y.; Asgari, M. Microemulsion synthesized silica/ZnO stable core/shell sensors highly selective to ethanol with minimum sensitivity to humidity. Sens. Actuators B Chem. 2017, 238, 1070–1083. [Google Scholar] [CrossRef]
  48. Kunat, M.; Girol, S.G.; Burghaus, U.; Wöll, C. The Interaction of Water with the Oxygen-Terminated, Polar Surface of ZnO. J. Phys. Chem. B 2003, 107, 14350–14356. [Google Scholar] [CrossRef]

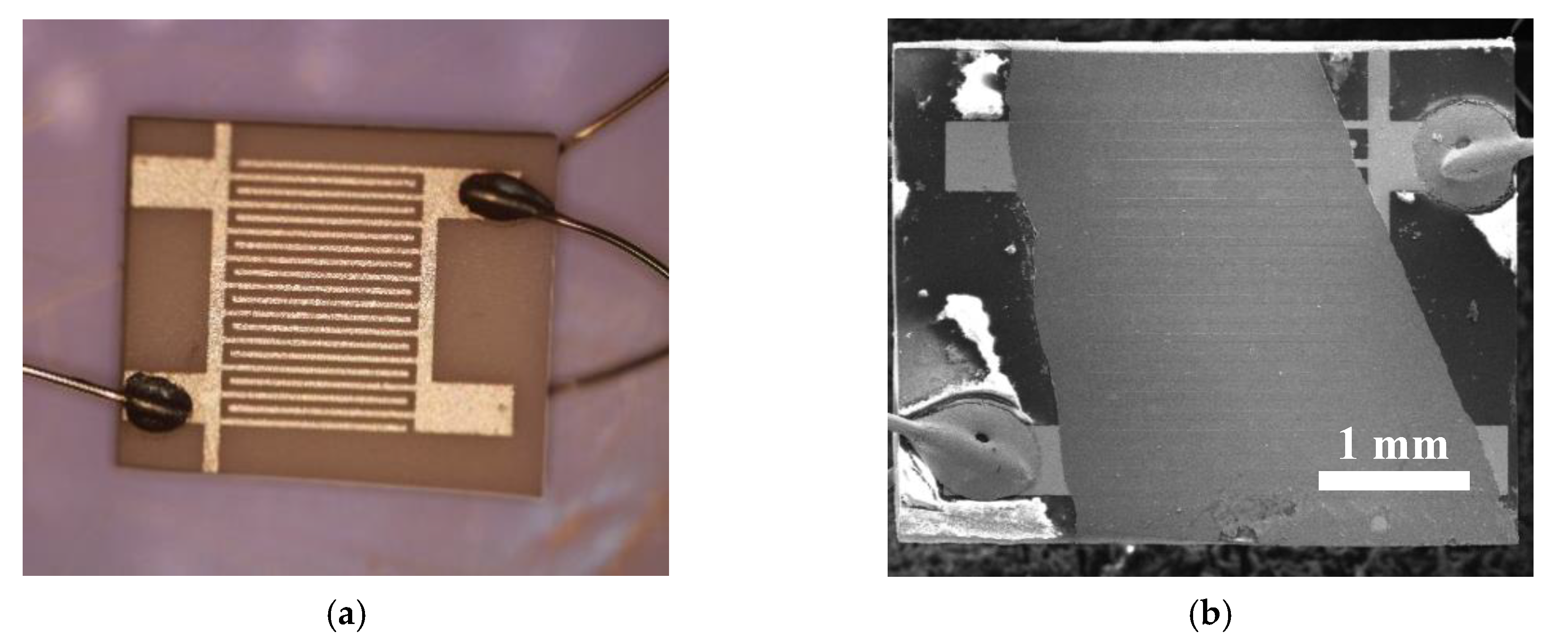

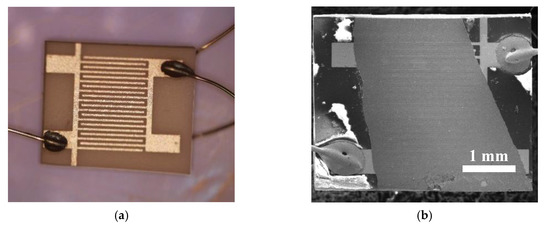

Figure 1. Optical microscope image of the alumina-sensing platform with Pt electrodes (a) and SEM image of the ZnO NRs prepared on it (b).
Figure 1. Optical microscope image of the alumina-sensing platform with Pt electrodes (a) and SEM image of the ZnO NRs prepared on it (b).
Sensors 20 05602 g001

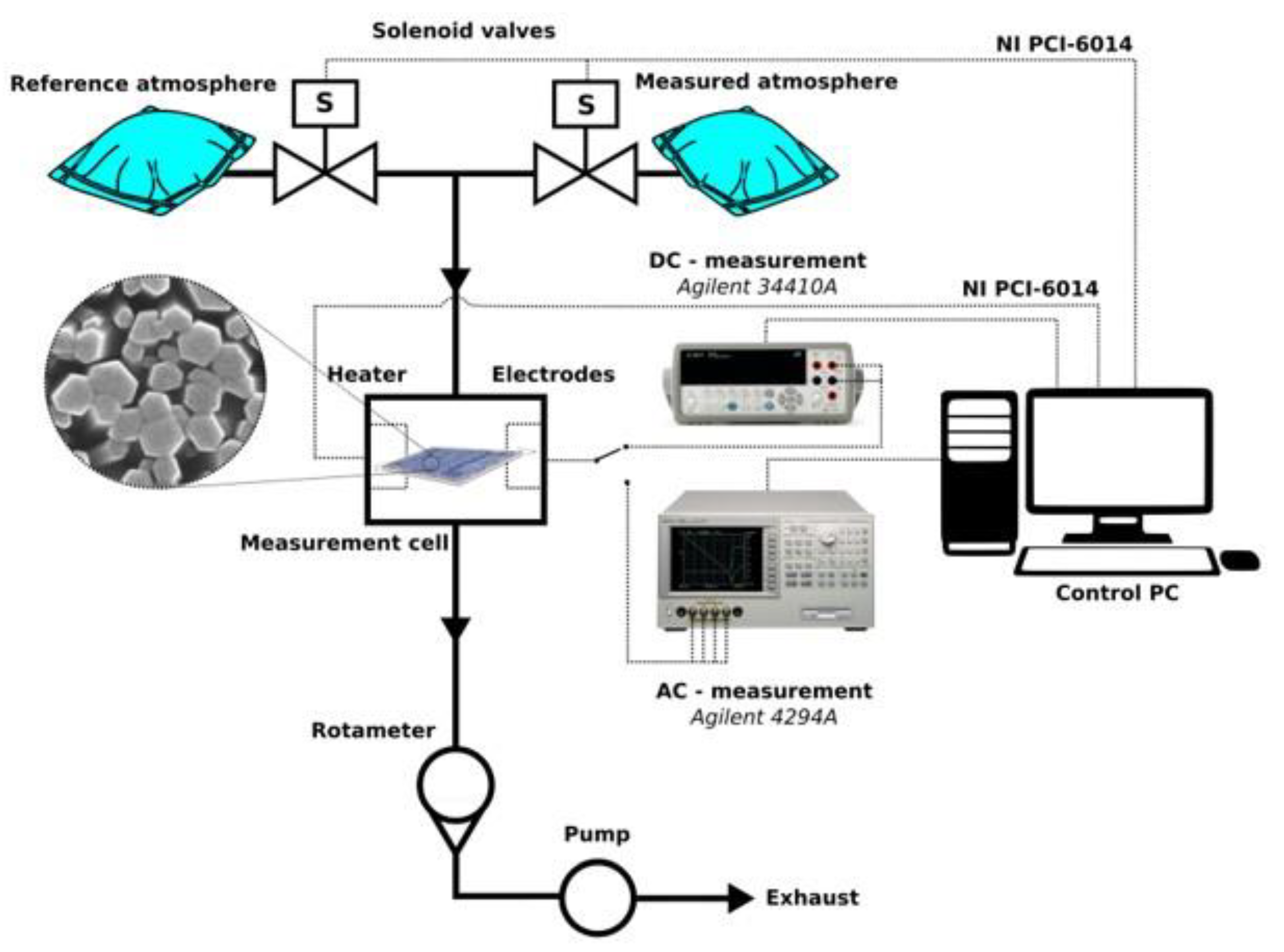

Figure 2. Block diagram of the station for measuring the chemiresistor response.
Figure 2. Block diagram of the station for measuring the chemiresistor response.
Sensors 20 05602 g002
Figure 3. SEM (a) and TEM (b) images of the ZnO NRs grown on the silicon substrate and (c) SEM image of the ZnO NRs prepared on the sensing platform.
Figure 3. SEM (a) and TEM (b) images of the ZnO NRs grown on the silicon substrate and (c) SEM image of the ZnO NRs prepared on the sensing platform.
Sensors 20 05602 g003

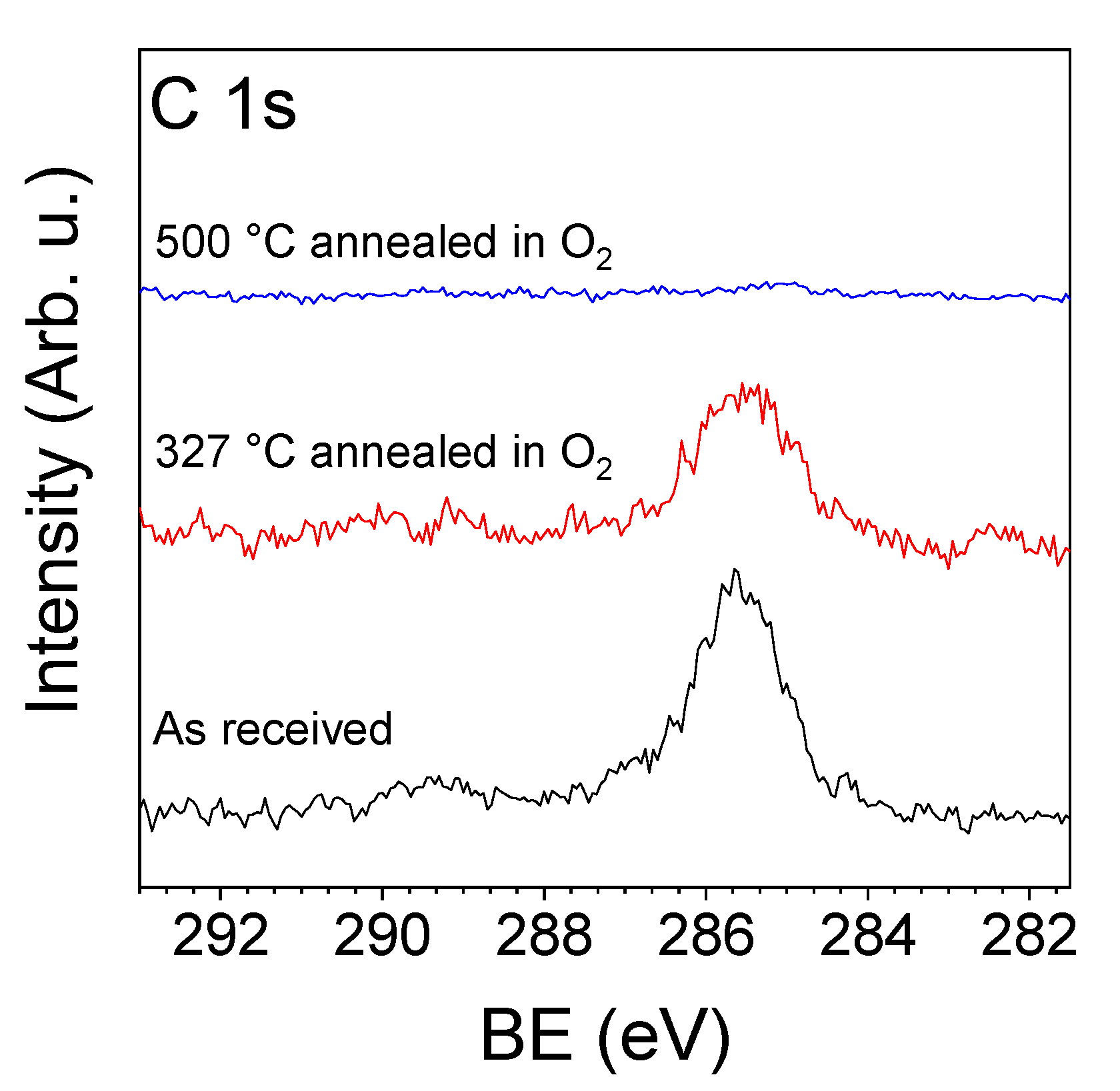

Figure 4. NAP-XPS spectra of the C 1s core-level acquired from the as-received ZnO NRs, after annealing in 5 mbar O2 at 327 °C and after annealing in 5 mbar O2 at 500 °C.
Figure 4. NAP-XPS spectra of the C 1s core-level acquired from the as-received ZnO NRs, after annealing in 5 mbar O2 at 327 °C and after annealing in 5 mbar O2 at 500 °C.
Sensors 20 05602 g004

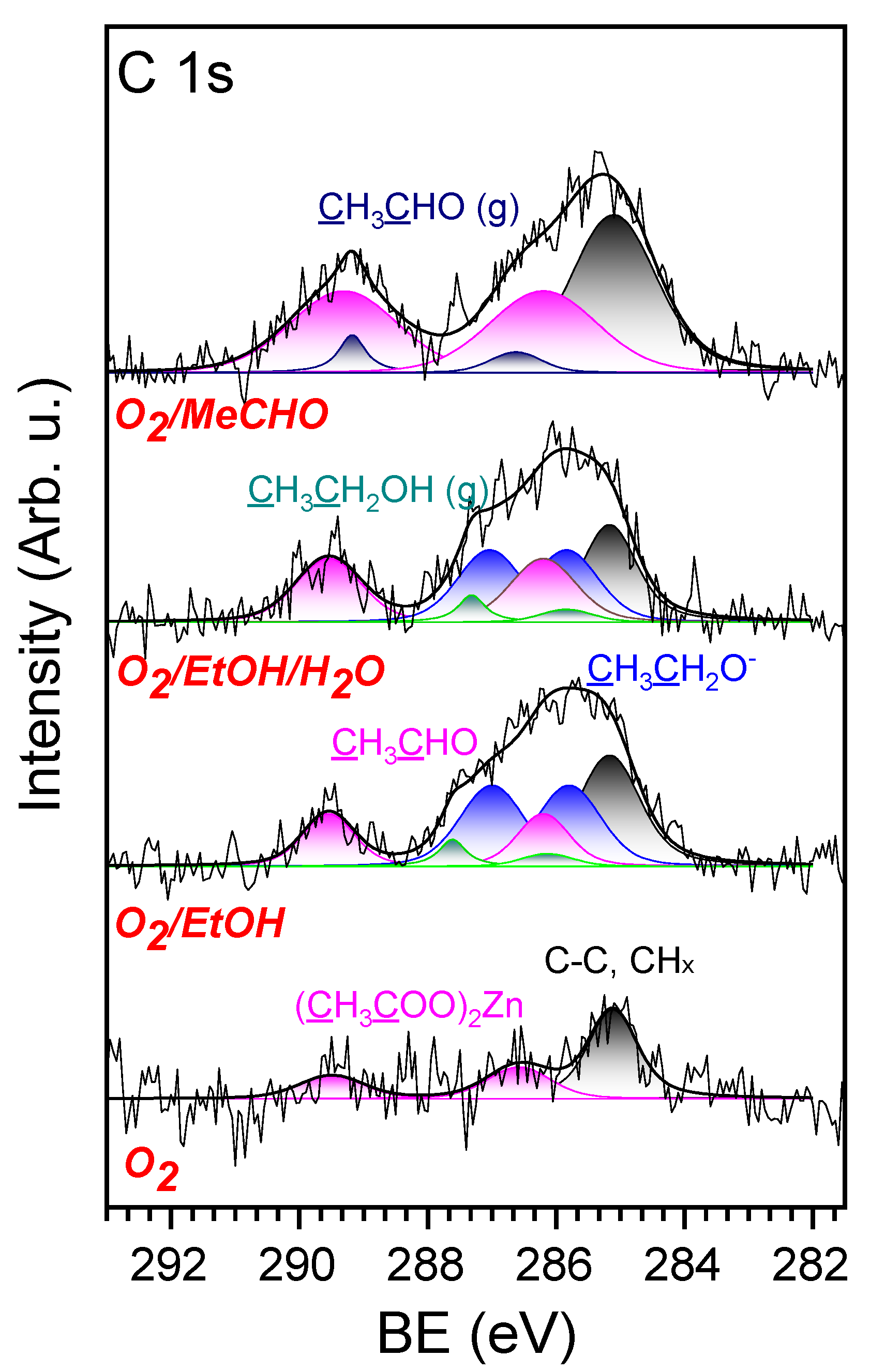

Figure 5. NAP-XPS spectra of the C 1s core-level acquired on the ZnO NRs-based sensor in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO at 327 °C.
Figure 5. NAP-XPS spectra of the C 1s core-level acquired on the ZnO NRs-based sensor in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO at 327 °C.
Sensors 20 05602 g005

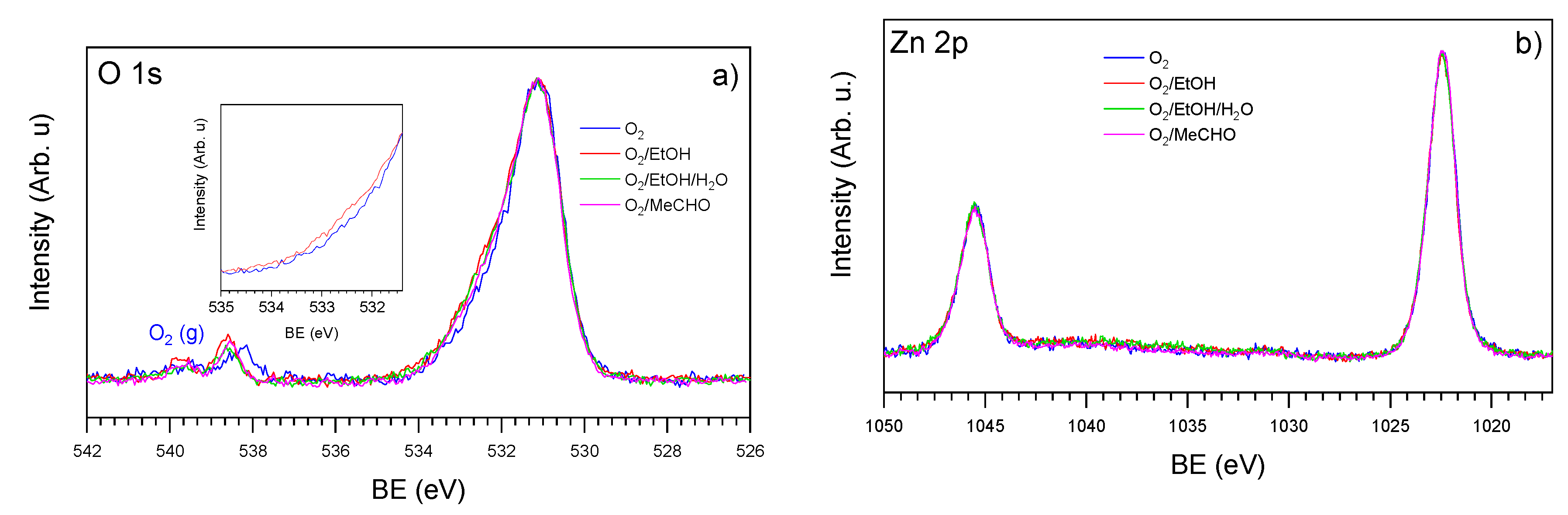

Figure 6. NAP-XPS spectra of O 1s (a) and Zn 2p (b) acquired from the ZnO NRs-based sensor in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO at 327 °C.
Figure 6. NAP-XPS spectra of O 1s (a) and Zn 2p (b) acquired from the ZnO NRs-based sensor in the presence of O2, O2/EtOH, O2/EtOH/H2O and O2/MeCHO at 327 °C.
Sensors 20 05602 g006

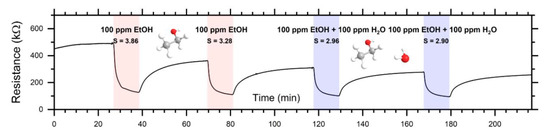

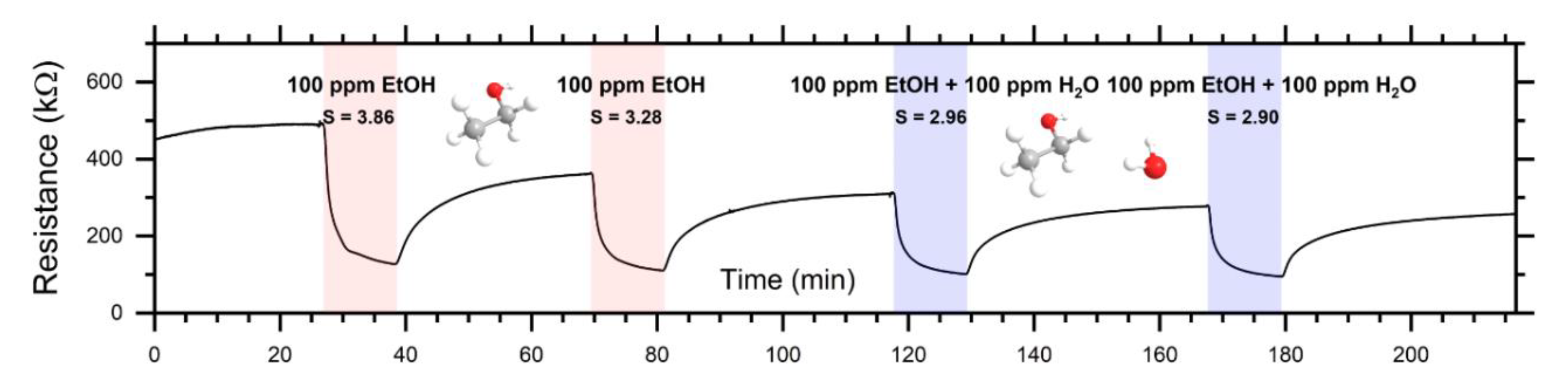

Figure 7. Responses of the ZnO-nanorod-based chemiresistor to EtOH and EtOH/H2O vapours. The sequence of atmospheres was as follows: reference air → 100 ppm EtOH → reference air → 100 ppm EtOH → reference air → 100 ppm EtOH + 100 ppm H2O → reference air → 100 ppm EtOH + 100 ppm H2O → reference air.
Figure 7. Responses of the ZnO-nanorod-based chemiresistor to EtOH and EtOH/H2O vapours. The sequence of atmospheres was as follows: reference air → 100 ppm EtOH → reference air → 100 ppm EtOH → reference air → 100 ppm EtOH + 100 ppm H2O → reference air → 100 ppm EtOH + 100 ppm H2O → reference air.
Sensors 20 05602 g007

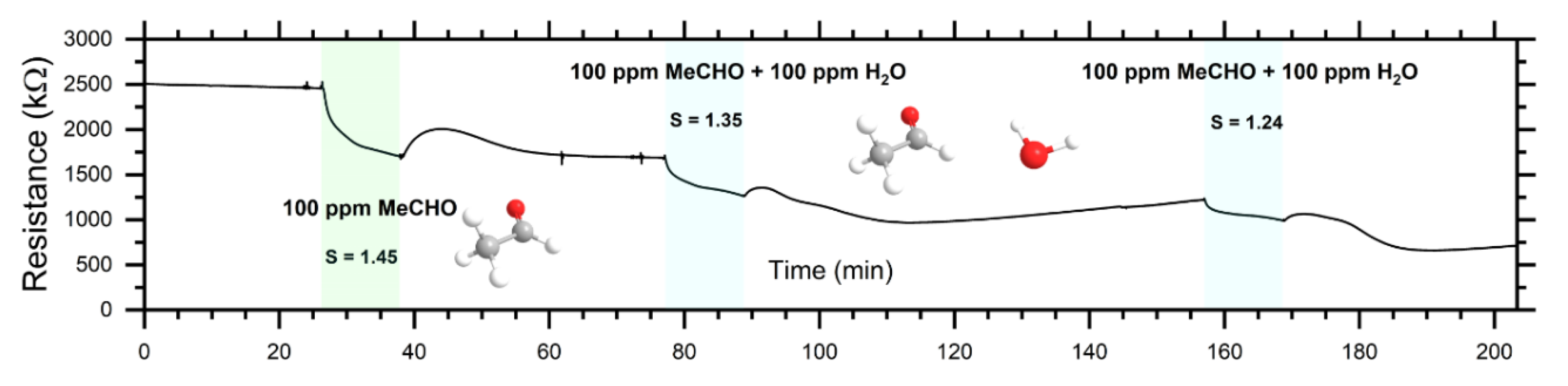

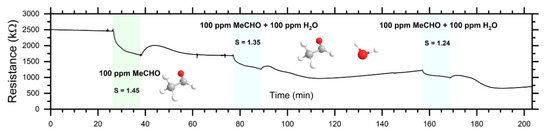

Figure 8. Responses of the ZnO-nanorods based chemiresistor to MeCHO and MeCHO/H2O vapours. The sequence of atmospheres was: reference air → 100 ppm MeCHO → reference air → 100 ppm MeCHO + 100 ppm H2O → reference air → 100 ppm MeCHO + 100 ppm H2O → reference air.
Figure 8. Responses of the ZnO-nanorods based chemiresistor to MeCHO and MeCHO/H2O vapours. The sequence of atmospheres was: reference air → 100 ppm MeCHO → reference air → 100 ppm MeCHO + 100 ppm H2O → reference air → 100 ppm MeCHO + 100 ppm H2O → reference air.
Sensors 20 05602 g008

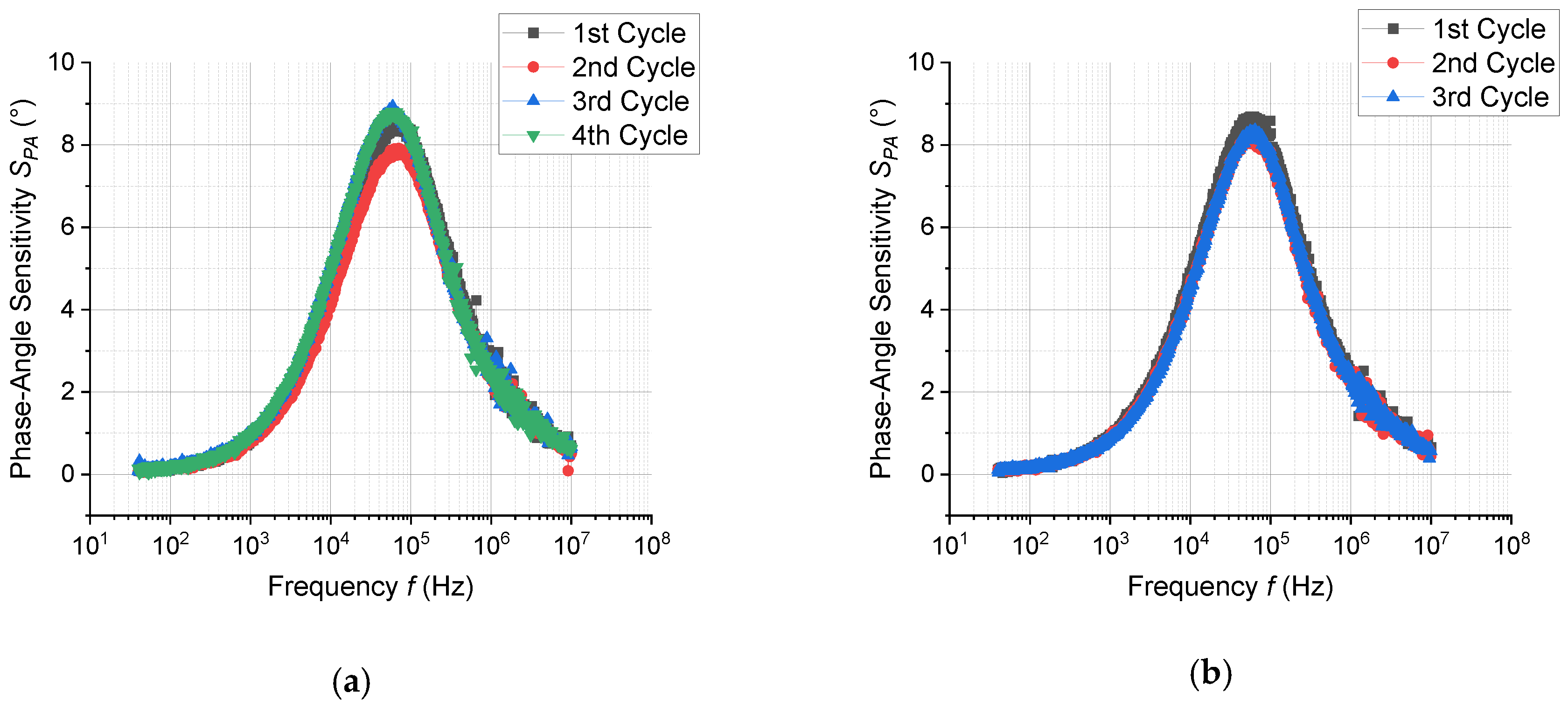

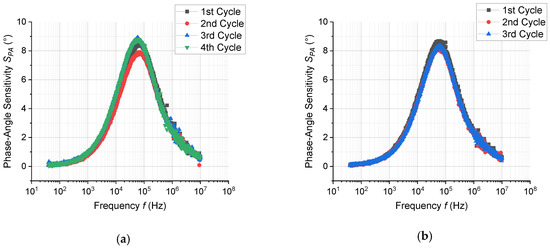

Figure 9. The dependence of phase-angle response vs. frequency for 100 ppm EtOH (a); 100 ppm EtOH + 100 ppm H2O (b). The reference atmosphere was synthetic air.
Figure 9. The dependence of phase-angle response vs. frequency for 100 ppm EtOH (a); 100 ppm EtOH + 100 ppm H2O (b). The reference atmosphere was synthetic air.
Sensors 20 05602 g009

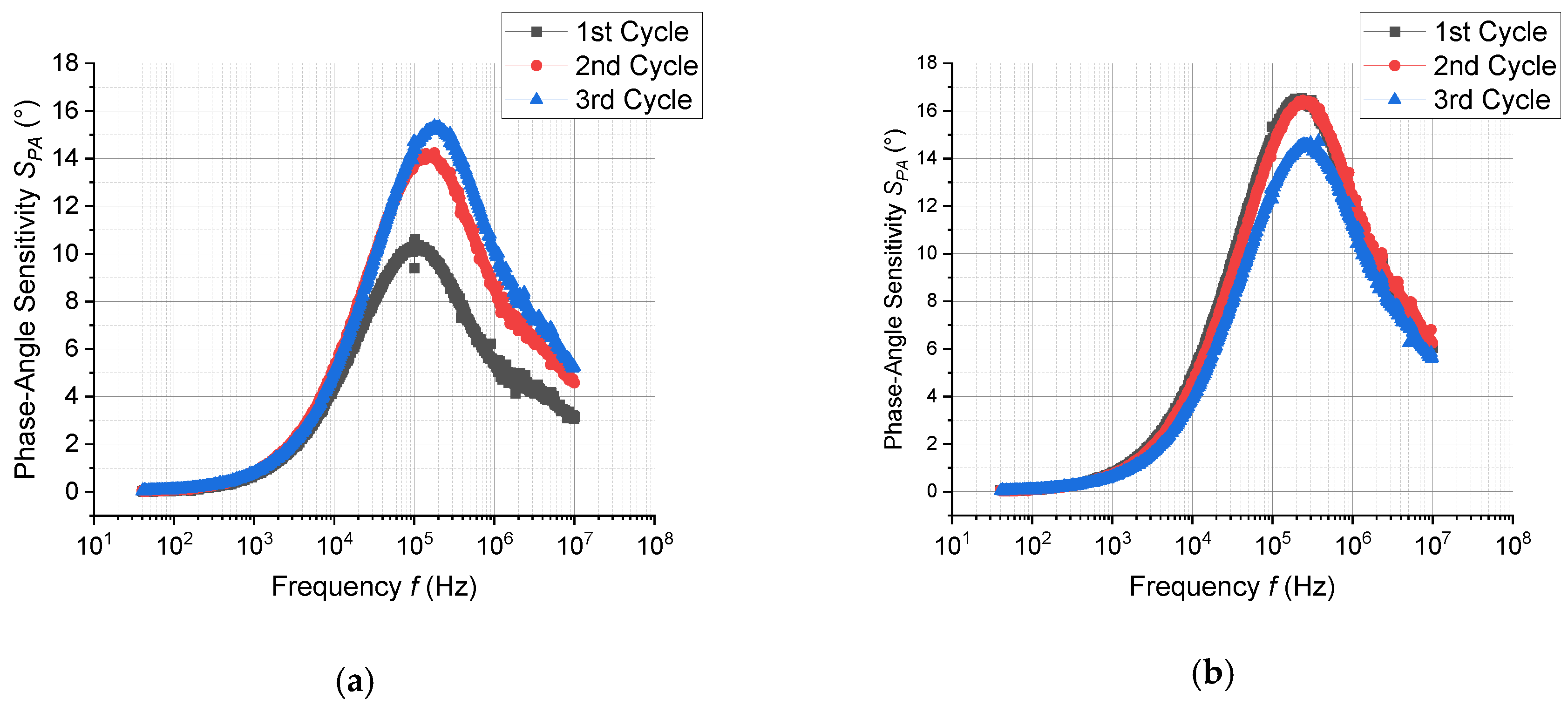

Figure 10. The dependence of phase-angle response vs. frequency for 100 ppm MeCHO (a); 100 ppm MeCHO + 100 ppm H2O (b). The reference atmosphere was synthetic air.
Figure 10. The dependence of phase-angle response vs. frequency for 100 ppm MeCHO (a); 100 ppm MeCHO + 100 ppm H2O (b). The reference atmosphere was synthetic air.
Sensors 20 05602 g010
Table 1. Detection parameters of ZnO-nanorod based chemiresistors: dc-response (SDC); ac-response at 40 Hz (SAC40Hz); maximum phase-angle response SPA-MAX and the corresponding frequency of the measuring signal. The reference atmosphere was synthetic air in all cases.
Table 1. Detection parameters of ZnO-nanorod based chemiresistors: dc-response (SDC); ac-response at 40 Hz (SAC40Hz); maximum phase-angle response SPA-MAX and the corresponding frequency of the measuring signal. The reference atmosphere was synthetic air in all cases.
Dc-ParameterAc-Parameter
AnalyteSDCSAC40HzSPA-MAX [deg] at frequency [Hz]
EtOH (100 ppm)3.61.58.3 at 6 × 104 Hz
EtOH (100 ppm) + H2O (100 ppm)2.91.58.5 at 6 × 104 Hz
MeCHO (100 ppm)1.52.212.5 at 2 × 105 Hz
MeCHO (100 ppm) + H2O (100 ppm)1.32.615.5 at 2 × 105 Hz
