In-Ear SpO₂: A Tool for Wearable, Unobtrusive Monitoring of Core Blood Oxygen Saturation

Abstract

The non-invasive estimation of blood oxygen saturation (SpO₂) by pulse oximetry is of vital importance clinically, from the detection of sleep apnea to the recent ambulatory monitoring of hypoxemia in the delayed post-infective phase of COVID-19. In this proof of concept study, we set out to establish the feasibility of SpO₂ measurement from the ear canal as a convenient site for long term monitoring, and perform a comprehensive comparison with the right index finger—the conventional clinical measurement site. During resting blood oxygen saturation estimation, we found a root mean square difference of 1.47% between the two measurement sites, with a mean difference of 0.23% higher SpO₂ in the right ear canal. Using breath holds, we observe the known phenomena of time delay between central circulation and peripheral circulation with a mean delay between the ear and finger of 12.4 s across all subjects. Furthermore, we document the lower photoplethysmogram amplitude from the ear canal and suggest ways to mitigate this issue. In conjunction with the well-known robustness to temperature induced vasoconstriction, this makes conclusive evidence for in-ear SpO₂ monitoring being both convenient and superior to conventional finger measurement for continuous non-intrusive monitoring in both clinical and everyday-life settings.

1. Introduction

One of the major roles of blood is to supply oxygen to tissues throughout the body. This is achieved through the protein haemoglobin within red blood cells, which has a high affinity to oxygen. Thus, as blood passes through capillaries in the lungs, the haemoglobin in red blood cells binds to oxygen which is subsequently pumped through arteries via the heart and transported to various tissues. The maintenance of a high arterial blood oxygen saturation is therefore extremely important, as otherwise tissues cease to be adequately supplied. The term blood oxygen saturation specifically refers to the proportion of haemoglobin in the blood that is carrying oxygen [1], and is given by

$$OxygenSaturation=\frac{Hb{O}_2}{Hb{O}_2+Hb},$$

(1)

where $Hb$ refers to haemoglobin not bound with oxygen and $Hb{O}_2$ refers to haemoglobin bound to oxygen.

Arterial blood oxygen saturation is typically measured using pulse oximetry which gives a percentage estimate (SpO₂). It has been established that those with a healthy respiratory system typically exhibit SpO₂ values of 96–98% at sea level [2]. According to the World Health Organisation, hypoxia is defined as a blood oxygen saturation level of less than 94%, while a blood oxygen level of less than 90% may indicate the need for clinical action [3]. Hypoxic SpO₂ readings are a sign of hypoxia without breathlessness in COVID-19 patients [4,5] where the major respiratory failure peaks 10 days after initial infection [6]. Indeed, in the case of COVID-19 it is strongly recommended that patients receive supplemental oxygen if their SpO₂ reading falls below 90% [7]. Hypoxic SpO₂ levels may also occur in other examples of respiratory failure [8] and during breathing obstruction which is common in sleep apnea [9].

In practice, the SpO₂ levels are calculated indirectly, through photoplethysmography (PPG), the non-invasive measurement of light absorption (usually red and infrared) through the blood. In short, when more blood is present, less light is reflected, so given a pulsatile increase in blood volume with each heart beat, PPG effectively measures the pulse. Depending on the level of blood oxygen saturation, the PPG measurements also experience a change in the ratio of light absorbance between the red and infrared light. Namely, the extinction coefficient of oxygenated haemoglobin with red light (≈ 660 nm) is lower than it is for deoxygenated haemoglobin, and the reverse is true for infrared light (≈ 880–940 nm) [10]. Thus, a simultaneous measurement of the absorbance of both infrared and red light allows for an estimation of blood oxygen saturation. Calculation of blood oxygen saturation, referred to as the ’ratio of ratios’ method, will be fully explained in the Methods section.

Reflective PPG can be measured from any site with skin that has vasculature [11], but is, for convenience, commonly measured from the fingers (usually the index finger), wrist and earlobe. This convenience comes with some disadvantages pertaining to 24/7 continuous measurements, which include the intrusive nature of measurements given that living life with a finger or earlobe clip is problematic, and also poor sensor skin contact and motion artefacts in the case of the wrist.

Other devices such as wearing a helmet for behind the ear [12] or a headband for the forehead [13], whilst providing good quality signal, giving a proxy for core blood oxygen rather than peripheral and being less obstructive to daily life, are less suitable for 24/7 use as they can be perceived as stigmatising which decreases adherence to wearing the device in the patient and consumer populations.

On the other hand, the recent interest in the development of Hearables [14], has promoted the ear canal as a preferred site for the measurement of vital signs in eHealth technology. Indeed, the ear canal represents a unique opportunity for physiological measurements, due to its proximity to the brain (ear-EEG [15]), the property of the ear canal to act as a shield from external electrical noise (nature-built Faraday cage [14]), and the general fixed position of the head wrt. vital signs and neural function, as the head does not move much in daily life unlike sites such as the wrist. Owing to these desirable properties, the ear-canal has been established as a feasible wearable site by Ear-EEG [15,16] and Ear-ECG [14].

When it comes to ear-PPG, unlike the finger PPG signal and the earlobe signal, it has been shown that the ear canal offers a photoplethysmogram which is stable and resistant to changes in blood volume which occur during hypothermia [17]. This is because peripheral areas of the body experience restricted blood flow during the cold, whereas the ear canal, being a narrow cavity surrounded by skin, maintains internal blood flow levels. Additionally, this makes the ear canal a preferred site for accurate core body temperature measurement. The PPG from the ear canal has also been shown to be far more sensitive than earlobe and finger PPG to amplitude variations that arise from respiration, thus allowing for a better measurement of respiration rate [18]. Furthermore, a significant delay has been observed between earlobe/behind-the-ear pulse oximetry, and pulse oximetry on the hand or the foot for detection of hypoxemia (low levels of blood oxygen) [12,19], which is primarily caused by the distance from the core blood supply. Although never previously shown, a similar fast response time was hypothesised from the ear canal given that its vasculature is supplied by the carotid artery, as is the brain. The robustness of the PPG signal from the ear canal, the faster expected SpO₂ response time to changes in blood oxygen levels, the opportunity for a proxy to brain oxygen saturation levels and the potential for relatively non-intrusive 24/7 ambulatory monitoring of patients with breathing disorders form the motivation for our research into ear canal pulse oximetry. The aim of this study is therefore to investigate the feasibility, establish technical characteristics, and identify advantages in the recording of SpO₂ from the ear canal, compared with the most commonly used site, the right index finger.

2. Materials and Methods

2.1. Hardware

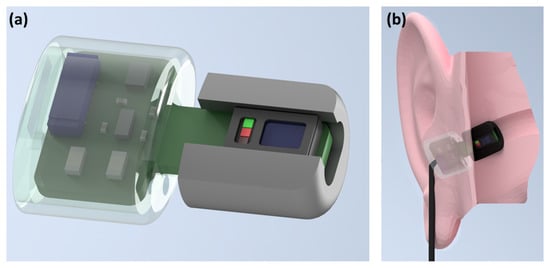

The photoplethysmography sensor used was the MAX30101 digital PPG chip by Maxim Integrated (San Jose, CA, USA), consisting of green (537 nm), red (660 nm) and infrared (880 nm) light emitting diodes as well as a photo-diode to measure the reflected light. In our study, the PPG sensor was embedded in a cut out rectangular section of a viscoelastic foam earbud [20], allowing for comfortable insertion. The three light wavelengths (at 537 nm, 660 nm, 880 nm) gave three measures of pulse, and also the signals required to estimate blood oxygen saturation and respiration rate. The PPG circuitry, including the MAX30101 chip, decoupling capacitors and level shifting circuitry that enable digital communication between 1.8 V and 3 V domains, was packaged in a small 3D printed case which was positioned just outside the ear canal, as shown in Figure 1. This same sensor was secured to the right index finger with medical tape for the simultaneous finger PPG measurement. The PPG chip has dimensions of 5.6 mm × 3.3 mm × 1.55 mm, with the entire in-ear “Hearables” sensor having dimensions of 19 mm × 10 mm × 7 mm. The width and depth of 10 mm × 7 mm correspond to the viscoelastic foam earbud, which is capable of compressing to fit the ear canal.

2.2. Experimental Protocol

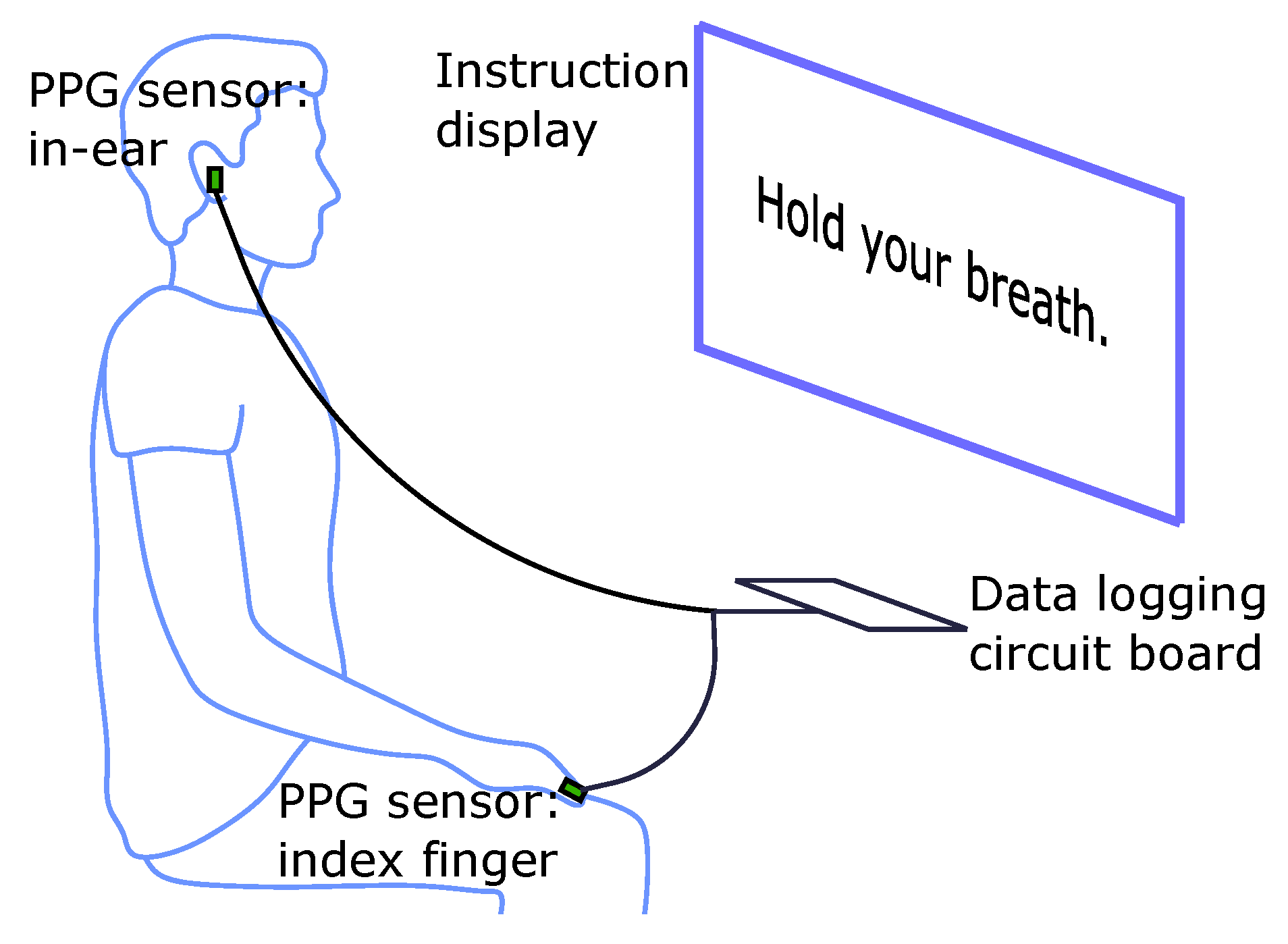

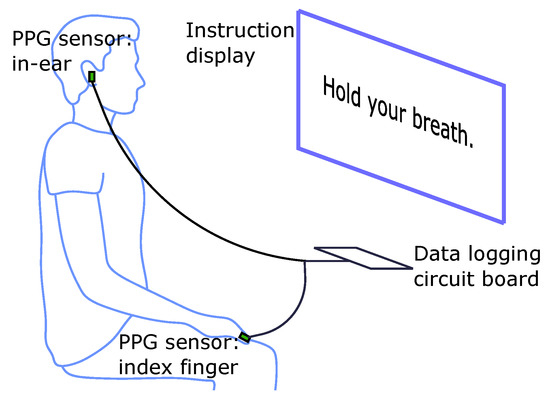

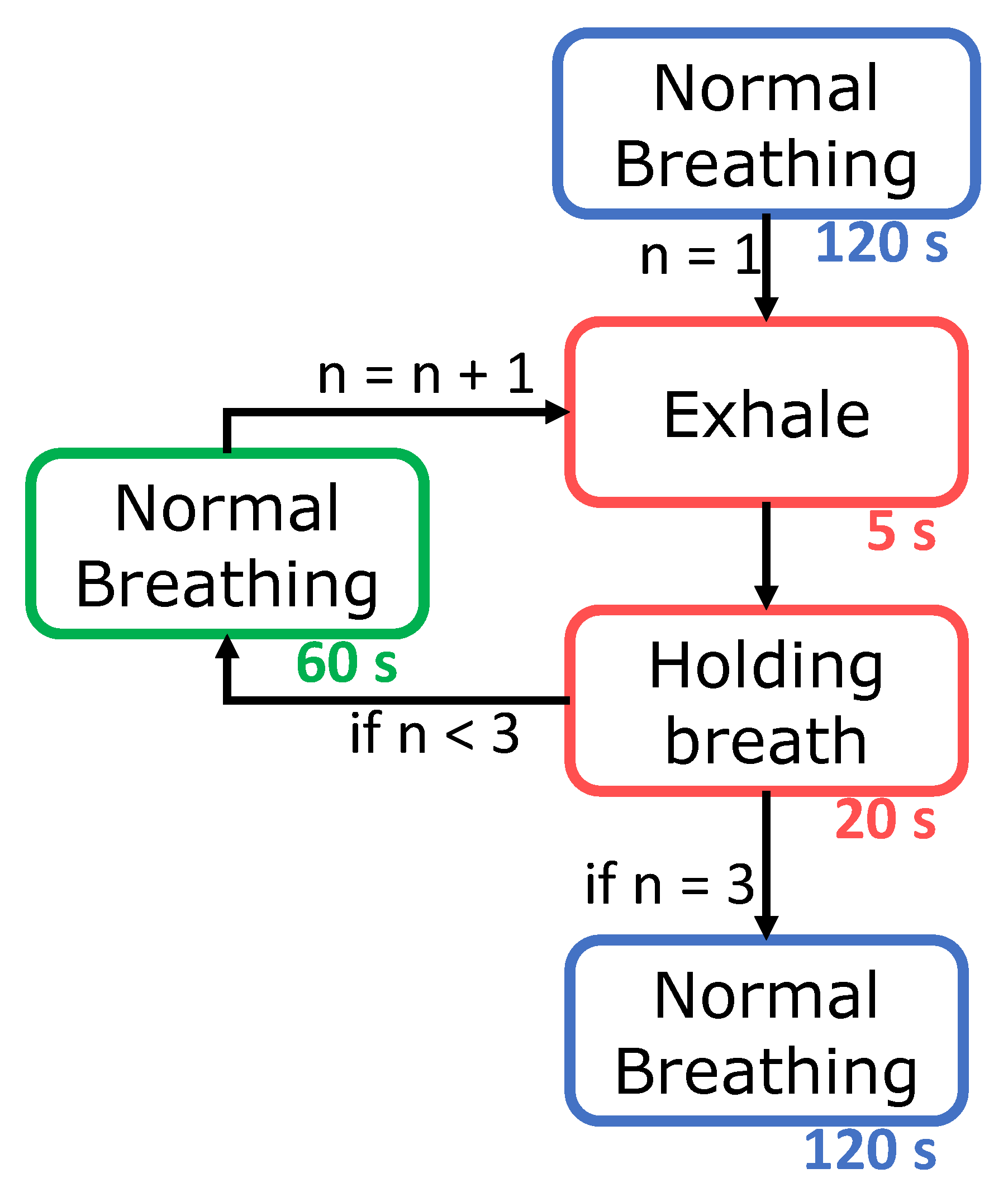

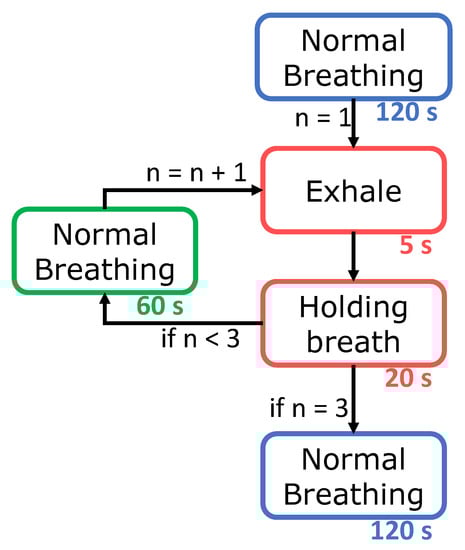

The participants in the recordings were 14 healthy subjects (7 males, 7 females) aged 19–38 years. Two PPG sensors were used per subject, one secured within the right ear canal and the other to the right index finger; both sensors recorded simultaneously. The subjects were seated in front of a monitor during the recording where a video guided them on when to breathe normally, as well as when to exhale and hold their breath. The position of the sensors, monitor and recording device relative to the subject is shown in Figure 2. This video included a built in countdown, so that at every stage of the protocol, depicted in Figure 3, the subject knew the amount of time left. The experiment lasted for 435 s, consisting of 120 s of normal breathing, 3 repeats of 5 s of exhaling and 20 s of breath holding with 60 s of normal breathing between, and a final 120 s of normal breathing, as depicted in Figure 3. The exhale before the breath hold was included because if the oxygen from the lungs is expelled before holding one’s breath, there is a sharper desaturation in blood oxygen than if a subject did not exhale first, thus allowing for clearer comparisons of sensitivity between the different measurement sites. Furthermore, in a real world scenario, such as obstructive sleep apnea, the lungs would not be filled with oxygen before the obstruction to inspiration occurred, making the conventional breath hold, where a subject inhales before holding their breath, less realistic. Subjects were also told to hold down a button, connected to the circuit board, from the moment they started exhaling until they stopped the breath hold. This was necessary, in order to know precisely when the subject was holding their breath, as reaction times would add uncertainty if the instructional display was used as the ground truth. The recordings were performed under the 881/MODREC/18 ethics approval, and all subjects gave full informed consent.

2.3. Extraction of the SpO₂ Signal

The ratio of absorbance of infra-red to red light within the PPG sensor changes depending on the proportion of haemoglobin that is oxygenated in the blood. This change can be quantified through the so called ratio of ratios metric [21], given by

$$R=\frac{\frac{A{C}_{red}}{D{C}_{red}}}{\frac{A{C}_{infrared}}{D{C}_{infrared}}}.$$

(2)

An empirically derived linear approximation can then be used to calculate an SpO₂ value as a proxy to oxygen saturation. Using the manufacturer’s suggested calibration [22], the SpO₂ value was calculated as

$$Sp{O}_2=104-17R.$$

(3)

To obtain the alternating current (AC) components within the PPG measurements, the raw signals were firstly band-pass filtered between 1 Hz and 30 Hz. Peak detection was then performed on the infrared and red AC filtered signals to find their peaks and troughs; this was achieved using the inbuilt MATLAB by MathWorks (Natick, MA, USA) function findpeaks, with a minimum peak prominence of 150 arbitrary units for the infrared signal and 30 arbitrary units for the red signal. The same procedure repeated on the same signals, but scaled by −1, to find the troughs. Next, the peak values and trough values were separated and interpolated, before their absolute values were added together to give a constant estimate of the AC amplitude. The direct current (DC) components were obtained by low-pass filtering the raw signals at 0.01 Hz. These waveforms are shown in Figure 4.

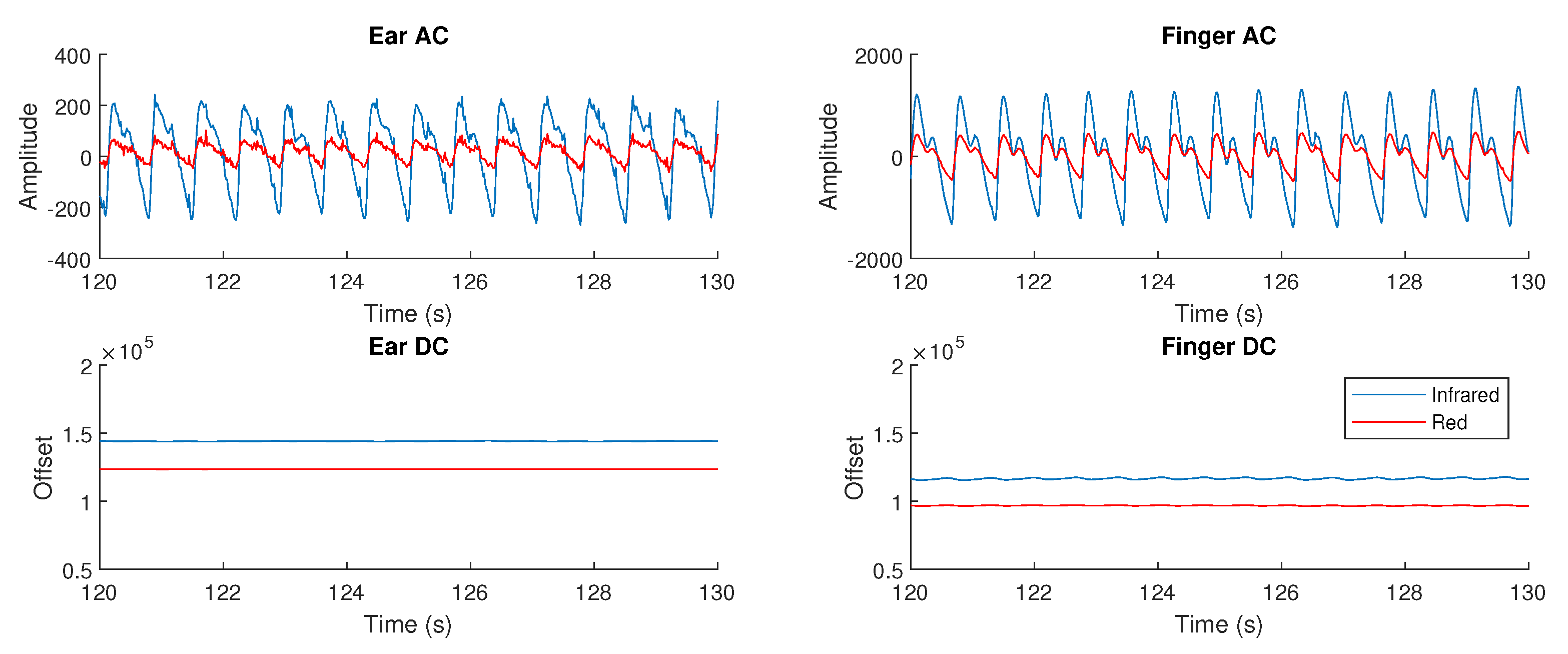

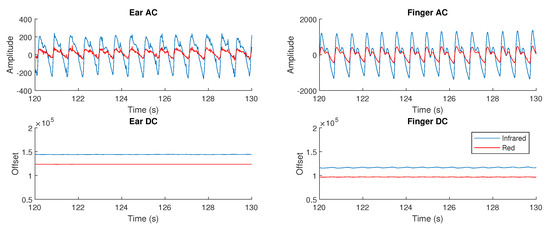

2.4. Data Analysis

2.4.1. Resting SpO₂ Comparison

The resting SpO₂ was calculated over the 60 s section of normal breathing before the first exhale began. This time was ascertained from the timing of the first button press, explained in the Experimental Protocol subsection. The SpO₂ signal from the finger and ear were averaged individually over this 60 s window to give a resting blood oxygen comparison for each of the measuring sites for every subject. The root mean square difference in average resting SpO₂ was then calculated across all subjects, as well as the mean difference across all subjects.

2.4.2. SpO₂ Delay

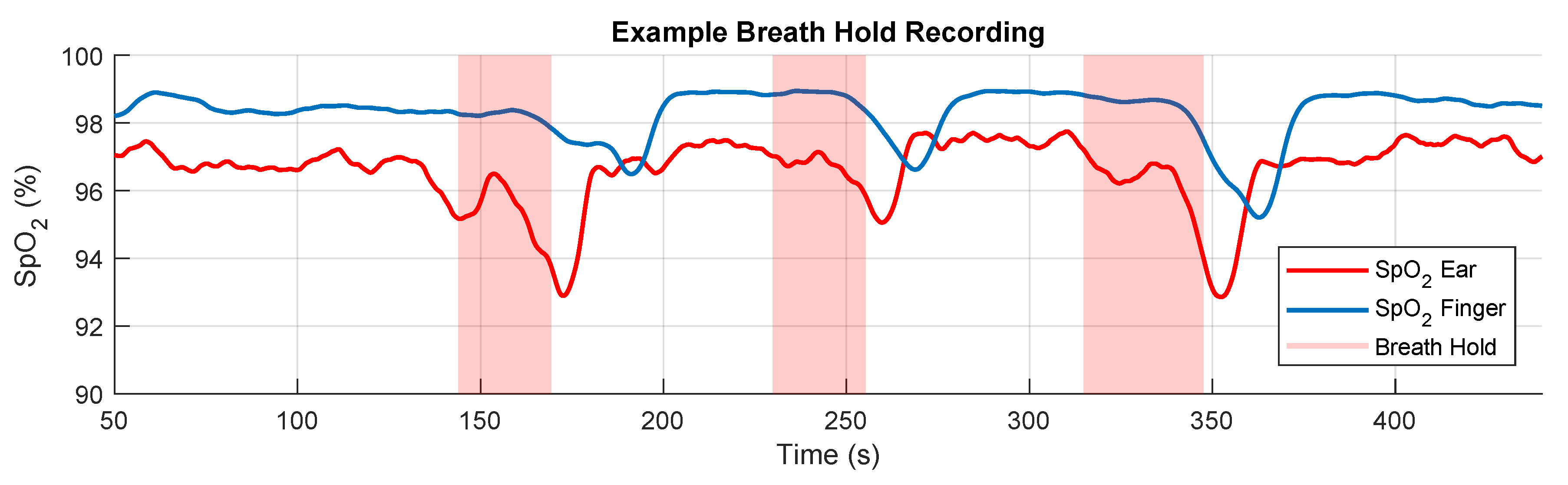

The blood oxygen estimation delay was calculated using the button release point as the marker for minimal blood oxygen, corresponding to the point at which the breath hold ends. The time between this point of minimal blood oxygen and the first trough of the SpO₂ waveform for the ear and the finger was then used to calculate the SpO₂ delay for the ear, the finger and then the relative delay between the ear and the finger. Three measurements for delay were taken for each measuring site, one for every consecutive breath hold as shown in Figure 5. The mean of these three recorded delays was taken to give an average delay for each measurement site for each subject. The range, on a per subject basis, was taken as a measure of variability within the recordings for each subject. The distribution of mean delays was analysed against age and sex, whereby a paired sample t-test was employed to compare male and female delays while Pearson’s correlation coefficient was utilised to determine if subject age was correlated to delay.

3. Results

For rigour, and to demonstrate non-inferiority of in-ear pulse oximetry to finger pulse oximetry, the experimental results span three major aspects related to the feasibility of in-ear PPG; these are the comparison of resting oxygen levels against standard finger PPG, the respective delays in detection of hypoxic events and the corresponding PPG signal amplitudes.

3.1. Resting Oxygen Comparison

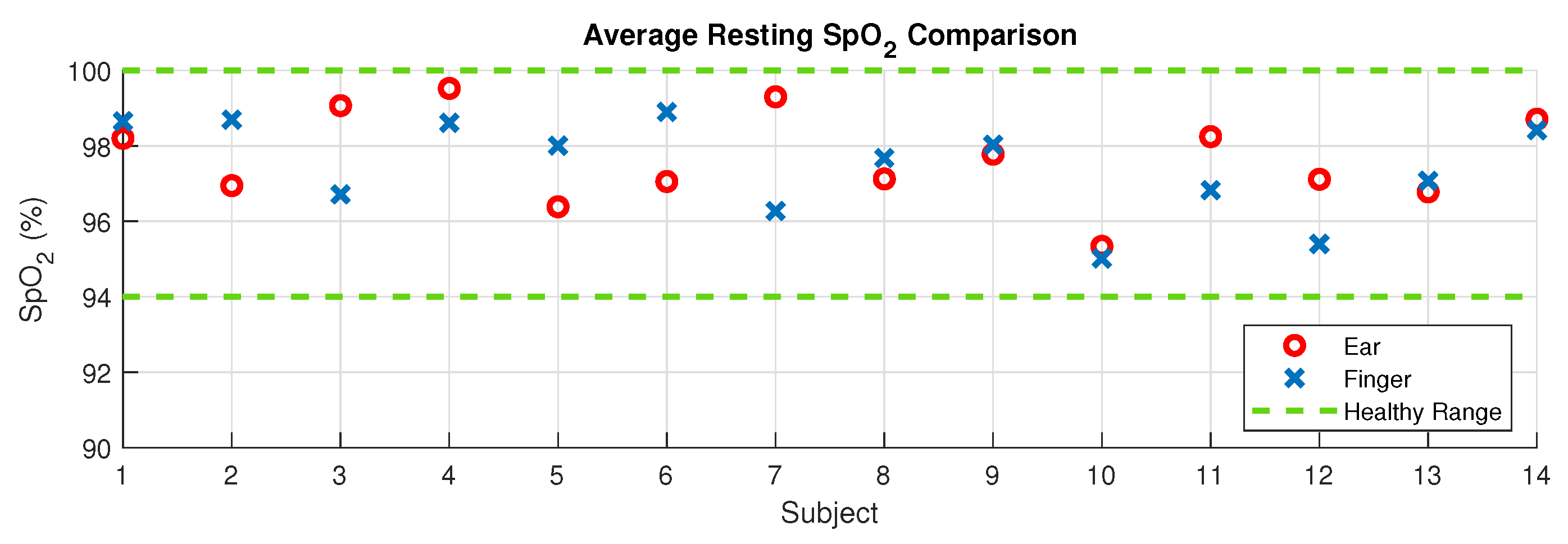

The difference in resting SpO₂ between the right ear canal and the right index finger across all subjects had a root mean square value of 1.47% with a mean difference of 0.23% higher saturation in the ear. The distribution of resting values across subjects is provided in Figure 6, and shows that all resting SpO₂ values were within the physiologically healthy range of 94–100%, and therefore there was a complete agreement between the ear canal and finger as measuring sites on whether or not a subject had ‘healthy’ blood oxygen levels.

3.2. Blood Oxygen Delay

The mean relative time delay per subject between the ear and finger pulse oximetry, in other words the time it took from detecting minimal blood oxygen in the ear to detecting minimal blood oxygen in the finger, ranged from 4.18 s to 24.2 s. The mean relative delay across all 14 subjects was 12.4 s, with a mean relative delay of 9.67 seconds for the female subjects and a mean relative delay of 15.13 s for the male subjects. The mean female relative delay was significantly lower than the mean male relative delay (P = 0.03). The SpO₂ delay values for all subjects are shown in Figure 7, highlighting the large inter-subject variability in SpO₂ delay and moreover the large inter-trial variability in the ear canal vs finger delay for many individual subjects.

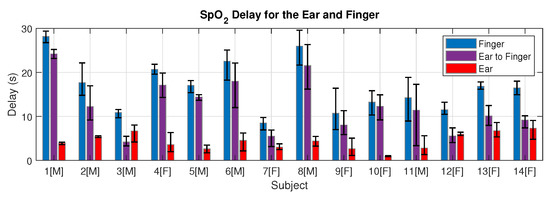

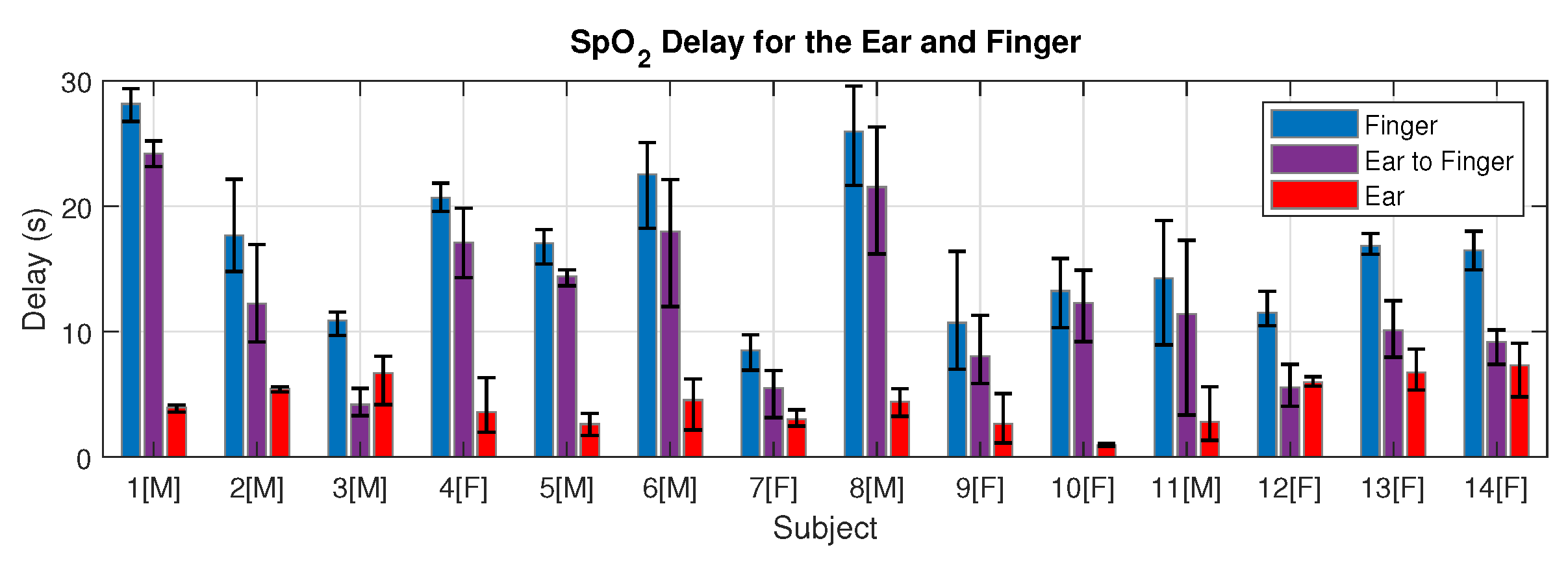

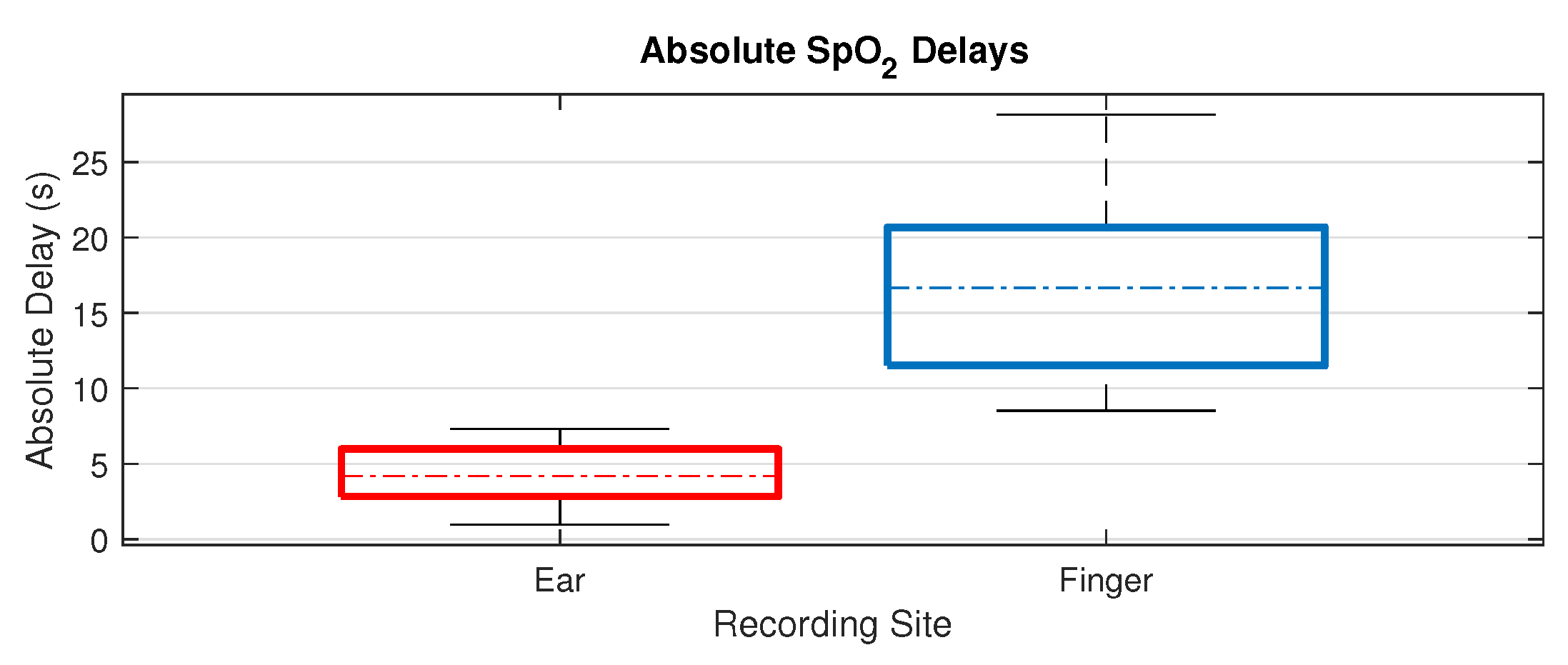

Across our 14 subjects there was no overlap between the absolute SpO₂ delay from the right ear canal and the right index finger, as shown in Figure 8. The absolute delay from the right ear canal had a mean of 4.35 s, with a range of 0.97–7.31 s. The absolute delay from the right index finger had a mean of 16.75 s, with a range of 8.52–28.14 s. When separated by sex, the mean absolute delay from the finger was 14.0 s for the female subjects and 19.5 s for the male subjects (P = 0.03). The mean absolute delay from the ear canal was 4.3 s for females and 4.4 s for males, as summarised in

Table 1. Summary of mean (±standard deviation) SpO₂ delay values (seconds).

	Relative	Finger	Ear Canal
Female	9.70 ± 4.07	14.00 ± 4.25	4.33 ± 2.37
Male	15.13 ± 6.76	19.49 ± 6.28	4.36 ± 1.42
Total	12.40 ± 6.06	16.75 ± 5.88	4.35 ± 1.88

. Furthermore, there was no correlation found between age and oxygen delay across the participants.

For rigour, the SpO₂ delay between the left and right ear canal was also examined for a single subject, giving a mean delay of 0.46 s from the left ear canal to the right ear canal across the three breath holds, suggesting that measuring SpO₂ from the left ear would yield a similar response time to the right ear, if not slightly faster.

3.3. Photoplethysmogram Amplitude

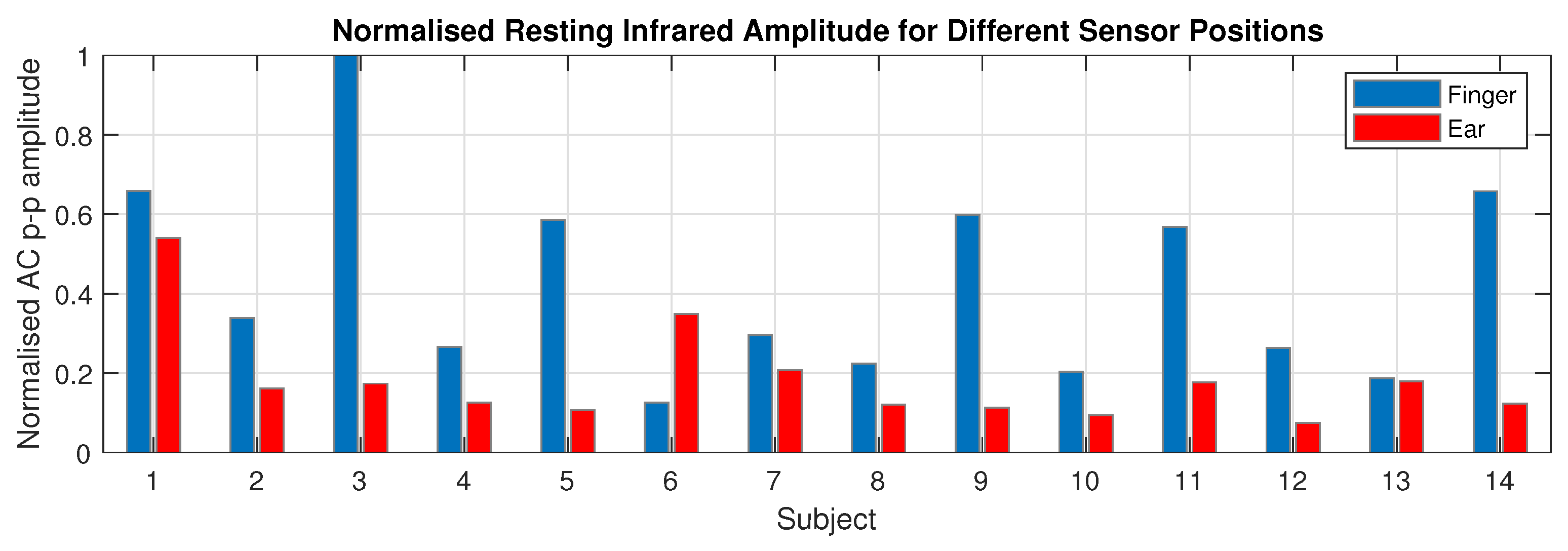

It was observed that 13 out of 14 subjects had a higher AC PPG amplitude from the right index finger than the right ear canal with the mean finger PPG amplitude 2.35 times higher than for the ear canal. Figure 9 presents the individual normalised resting infrared PPG amplitude for the finger and ear canal results for all 14 subjects. In the case of finger amplitude, males had a mean finger amplitude of $1.28\times {10}^3$ with a standard deviation of $0.76\times {10}^3$, compared with females who had a mean finger amplitude of $0.90\times {10}^3$ and a standard deviation of $0.49\times {10}^3$. In the case of ear amplitude, males had a mean ear amplitude of $0.59\times {10}^3$ with a standard deviation of $0.40\times {10}^3$, compared with females that had a mean finger amplitude of $0.33\times {10}^3$ and a standard deviation of $0.12\times {10}^3$. Neither sex difference between finger amplitudes and ear amplitudes was statistically significant, with P = 0.14 and P = 0.05 respectively. Importantly, even in the lowest amplitude cases, the in-ear PPG signals were effective for peak detection and thus usable for the calculation of SpO₂.

4. Discussion

4.1. Resting SpO₂

Blood oxygen saturation measurements from the right ear canal and the right index finger were comparable at rest, with a minimal systematic offset between the two, indicated by the mean difference of 0.23% higher resting SpO₂ in the right ear canal, as shown in Figure 6. The variability between the two measurement sites, indicated by the root mean square difference of 1.47%, is to be expected, given that mean SpO₂ values were shown to vary as much as 0.9% even across fingers on the same hand [23]. The blood oxygen saturation delay between the ear and the finger may also be a source of error when using the same absolute 60 s time window for comparison, although given that the window was long in comparison with the SpO₂ delay and the fact that resting values stay fairly constant, this source of error should be minimal. Both sensor positions were in 100% agreement concerning the patients having healthy SpO₂ levels of 94 to 100%. The established similarity in the resting oxygen saturation values with the commonly used right index finger location are a first step towards validating the ear canal as an alternative measurement site for pulse oximetry.

4.2. SpO₂ Delay

Our results indicate a mean oxygen saturation delay between the right ear canal and the right index finger of 12.4 s. In other words, a steep drop in SpO₂ is detected on average 12.4 s faster from the right ear canal than it is from the right index finger, with two subjects exhibiting over 20 s faster detection from the right ear canal. The faster response from the ear-canal strongly recommends the incorporation of in-ear SpO₂ measurements into so-called Hearables, as there are many situations where fast SpO₂ response time is critical, such as improving outcomes during neonatal resuscitation [24] and closed loop automatic oxygen therapy [25]. Moreover, this opens the avenue to aid comparison of sleep stage scoring and sleep apnea events by aligning changes in SpO₂ to the correct 30 s sleep epoch [26].

We found a large inter-subject variability in both the absolute oxygen delay to the right ear canal and the absolute oxygen delay to the right index finger. On average, the female subjects had lower relative oxygen delay between the ear and the finger, caused by the much smaller absolute delay to the right index finger in combination with an almost identical absolute delay to the right ear canal. We hypothesise that this could be related to males being taller on average and therefore having longer arms, which would give oxygenated blood further to travel from the heart to the fingers. Variations in height and arm length may also explain some of the large inter-subject variability in absolute SpO₂ delays. With a taller subject we would expect on average a longer distance for blood to travel to both the ear canal and the fingers, but we found no correlation between the absolute delay to the ear and absolute delay to the finger. One relevant factor was average heart rate across the trials, which we found to have a significant moderate positive correlation with absolute delay to the ear (R = 0.56, P = 0.03), but was not correlated with absolute delay to the finger. Importantly, age was not found to be a correlating factor to oxygen delay in our subjects. Future work must consist of investigating the efficacy of in-ear SpO₂ as well as the SpO₂ delay in older cohorts that may have underlying respiratory conditions, and not just young healthy subjects. The natural question arises, could SpO₂ delay be an indicator of the health of a patients circulatory system?

Whilst not as precise as arterial blood gas analysis, this is the first attempt to measure the blood oxygen delay to the ear itself. Importantly it should be noted that although the ear canal responds faster to changes in blood oxygen and much more closely resembles core blood oxygen than peripheral sites such as the finger, it is still not instantaneous, with our results showing a mean blood oxygen delay to the ear of 4.35 s.

4.3. Photoplethysmogram Amplitude

The in-ear PPG in this study was found to have consistently smaller amplitudes from the ear canal when compared with the finger. The three reasons for a lower PPG amplitude are: (1) less vascular density of the tissue (2) poorer sensor contact with the skin and (3) arterial pulse pressure amplitude. Considering that the ear and fingers are both common PPG placement sites, given the high density of arterioles and capillaries [27,28], the most likely explanations for a lower PPG amplitude are therefore sensor placement issues within the ear canal and a lower carotid arterial pulse amplitude compared to the radial artery in the arm.

The large variability in ear canal sizes was somewhat mitigated by different available earbud sizes, but even with the smallest earbud some subjects found it difficult to insert the sensor fully into the ear canal. Some subjects with wider ear canals also noted that the sensor became looser during the trial. These issues did not affect the conclusive nature of this feasibility study and will be addressed in future with an improved sensor design, such as by employing ear-hooks, commonly used with sports headphones, to stabilise the position of sensor within the ear.

Even disregarding placement issues, a lower PPG pulse magnitude may be expected from the ear canal given a higher pressure wave amplitude in the radial artery of the wrist leading to the fingers, compared to the carotid artery leading to the ear canal [29]. This is also evidenced by the broader peak from the ear canal, shown in Figure 4, which is a characteristic of the pressure wave found in the carotid artery.

Importantly, despite a lower signal amplitude, all data recorded from the ear canal was functional for peak detection of the AC PPG signal and therefore the SpO₂ calculation.

5. Conclusions

There is a growing need for improved non-intrusive wearable SpO₂ recording across many different scenarios, from the monitoring of sleep apnea to the tracking of vital signs of outpatients with a threat of respiratory deterioration, such as those with general breathing disorders or those recovering from COVID-19. To this end, we have investigated the possibility of estimating blood oxygen saturation from the ear canal in healthy subjects and have comprehensively demonstrated its non-inferiority compared with conventionally used finger pulse oximetry, with a significantly faster response time averaging 12.4 s. The results have indicated that the favourable speed of in-ear pulse oximetry, in conjunction with the previously documented advantage of resilience to changes in circulation associated with environmental temperature changes (summarised in

Table 2. Summary of different SpO₂ sensor positions.

Placement	Fast Response	Robust to Temperature
Finger	No	No
Earlobe	Yes [19]	No
Ear canal	Yes	Yes [17]

), may offer significant clinical advantages and a proxy to brain oxygen levels. Given its privileged position on the human body and a fixed distance to vital signs during most daily activities and while sleeping, the ear canal may even be a superior site for measurement of SpO₂ in the scenario of 24/7 continuous monitoring. In an era of urgency for enhanced tracking of hypoxia and increasing use of smart devices for health monitoring, this proof of concept study provides a compelling argument for the integration of ear canal pulse oximetry into current state-of-the-art Hearables [14].
