Ethanol Sensors Based on Porous In2O3 Nanosheet-Assembled Micro-Flowers

by
Wenbo Qin
†,
Zhenyu Yuan
†,
Hongliang Gao
and
Fanli Meng
*
College of Information Science and Engineering, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Sensors 2020, 20(12), 3353; https://doi.org/10.3390/s20123353
Submission received: 7 May 2020 / Revised: 9 June 2020 / Accepted: 10 June 2020 / Published: 12 June 2020
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
By controlling the hydrothermal time, porous In2O3 nanosheet-assembled micro-flowers were successfully synthesized by a one-step method. The crystal structure, microstructure, and internal structure of the prepared samples were represented by an x-ray structure diffractometry, scanning electron microscopy, and transmission electron microscopy, respectively. The characterization results showed that when the hydrothermal time was 8 h, the In2O3 nano materials presented a flower-like structure assembled by In2O3 porous nanosheets. After successfully preparing the In2O3 gas sensor, the gas sensing was fully studied. The results show that the In2O3 gas sensor had an excellent gas sensing response to ethanol, and the material prepared under 8 h hydrothermal conditions had the best gas sensing property. At the optimum working temperature of 270 °C, the highest response value could reach 66, with a response time of 12.4 s and recovery time of 10.4 s, respectively. In addition, the prepared In2O3 gas sensor had a wide detection range for ethanol concentration, and still had obvious response for 500 ppb ethanol. Furthermore, the gas sensing mechanism of In2O3 micro-flowers was also studied in detail.

Graphical Abstract

1. Introduction

With the rapid development of social industry, the problem of gas pollution has become more and more serious. Pollution gases from all sides such as car exhausts of toxic and harmful gas, methane gas in mine methane gas leaks, formaldehyde from interior decorations and new car interiors, and toxic gas from industrial emissions not only seriously affect the quality of the environment, but also cause great harm to the human body. Therefore, fast and exact detection of poisonous and harmful gases has become very urgent [1,2]. Sensors, just like human organs, can sense changes in the outside world and transmit the obtained information [3,4]. Gas sensors like electronic noses can detect and monitor gas to prevent safety accidents [5]. In recent decades, in order to obtain better gas sensitivity, researchers have made a variety of gas sensors such as semiconductor sensors [6,7], infrared sensors [8], electrochemical sensors [9], thermal conductivity sensors [10], solid electrolyte sensors [11], and so on. Among them, gas sensors made by semiconductors, especially metal oxide semiconductors (MOS), have attracted extensive attention due to their advantages of environmental protection, simple preparation, low cost, and good stability [12,13,14]. Among a large number of MOS materials, In2O3, as a typical n-type semiconductor material, has become a hot research topic due to its wide bandgap width and low resistivity, and has been widely used in liquid crystal devices, solar cells, and gas sensors [15,16,17]. By referring to the previous research results, it has been found that In2O3 nanomaterials show good gas sensing response to both oxidation and reductive gases, so In2O3 is a gas-sensitive material with great research potential.
The research objects of gas sensors are mostly toxic and harmful gases such as volatile organic compound (VOC) gases, which is very harmful to human health [18,19]. In severe cases, people will suffer from convulsions and coma, which will harm the liver, kidney, brain, and nervous system, causing serious consequences such as memory loss [20]. Ethanol, commonly known as alcohol, is the most common VOC gas and an important material in national defense, agriculture, industry, and other fields. In addition, ethanol is also an important detection object for traffic police in the process of law enforcement, so the preparation of high-performing ethanol gas sensors is also a key part of preventing social hazards [21]. Therefore, quickly and precisely detecting ethanol is very important [22,23]. In recent years, researchers have prepared a large number of MOS gas sensors around ethanol gas including ZnO gas sensors [24], Fe2O3 gas sensors [25], In2O3 gas sensors [26], SnO2 gas sensors [27], and so on. However, a traditional single MOS gas sensor has certain limitations such as high detection threshold, poor selectivity, low response value, high operating temperature, etc., which limit the application of a MOS gas sensor in a real environment [28,29]. Therefore, a variety of research schemes for improving MOS gas sensors have been proposed including noble metal modification [30], construction of heterojunction [31], optimizing microstructure [32], etc. In these schemes, optimizing microstructure does not need the addition of other materials, and porous nanomaterials with high specific surface area are only prepared by changing the reaction conditions or precursors, which is currently a hot research topic. Among them, three-dimensional (3D) layered structures have attracted extensive attention from scholars due to their novel physical properties, porous nanostructures, and large surface area [33,34]. Therefore, porous In2O3 nanosheet-assembled micro-flowers with high specific surface area are helpful to obtain high performance ethanol gas sensors.
Here, we synthesized the 3D porous flower-like structure assembled by In2O3 nanosheets by the one-step hydrothermal method. By controlling the time of the hydrothermal reaction (0.5 h, 2 h, 4 h, 6 h, 8 h, 10 h), the formation mechanism was studied. After representing the microstructure of the prepared samples by various characterization methods, the results showed that the perfect In2O3 flower-like porous structure was successfully obtained under the condition of a 8 h reaction. Then, we prepared a gas sensor and its gas sensitive properties were studied. The results showed that the gas sensor for ethanol had excellent gas-sensing properties, in particular, the 3D In2O3 flower porous material prepared under 8 h hydrothermal conditions had the best responses of ethanol and good selectivity, stability, and fast response and recovery time. In addition, the gas-sensitive mechanism of 3D In2O3 flower-like porous material to ethanol was studied in detail.

2. Materials and Methods

2.1. Materials

All the reagents including indium nitrate (In(NO3)3·5H2O), urea (CN2H4O), polyvinyl piroxanone (PVP), and anhydrous ethanol (C2H6O) came from Shandong Xiya reagent company. All reagents were analytically pure and needed no further treatment. Distilled water was used in the whole experiment.

2.2. Synthesis of Porous In2O3 Nanosheet-Assembled Micro-Flowers

Porous In2O3 nanosheet-assembled micro-flowers were synthesized by a one-step hydrothermal process followed by heat treatment. A total of 1.2 g of indium nitrate and 0.72 g of urea were dissolved in 40 mL of deionized water and stirred for 30 min until fully dissolved. Then, 0.8 g PVP was added to the mixture solution and stirred vigorously until the mixture solution was clear and free of suspension. The obtained clarified precursor solution was transferred to two 30 mL reactors and placed in the oven for hydrothermal reaction at 120 °C for 8 h. After the hydrothermal reaction was completed and the reactor was naturally cooled to room temperature, the reactants obtained were centrifuged with anhydrous ethanol and deionized water several times to remove impurities. The solid precipitate was placed in an oven at 60 °C for drying for 12 h. Finally, the dried product was ground into powder with an abrasive body and transferred to the magnetic boat. Then, the product was placed in a muffle furnace at 600 °C for 2 h with the heating rate of 2 °C/min. The obtained porous In2O3 nanosheet-assembled micro-flowers were stored in a dry place for preservation. Although the other conditions were unchanged, we changed the hydrothermal reaction times (0.5 h, 2 h, 4 h, 6 h, 10 h) to obtain the comparison test materials, which were recorded as In2O3-x h (x = 0.5, 2, 4, 6, 8, 10).

2.3. Characterization

The microstructure of the obtained In2O3-x h samples materials were observed by scanning electron microscopy (SEM), and the element content of the material was analyzed by an energy dispersive spectrometer (EDS), model JSM-7001, with a resolution of 1.2 nm, produced by Nippon electronics Co. Ltd in Guangzhou, China. The crystal structure of In2O3-x h was undertaken with x-ray diffraction (XRD) using the model X’pert pro MRD, manufactured by PANalytical B.V. The internal structure of the obtained sample was observed by transmission electron microscopy (TEM) with model JEM2100PLUS, which was manufactured by JEOL (BEIJING) Co., Ltd. in Beijing, China. The point resolution was 0.23 nm and the line resolution was 0.14 nm.

2.4. Gas Test System

The construction of the gas detection system and the preparation of the gas sensor have been described in detail in our previous work [35], as shown in Figure 1. First, to prepare the In2O3-x h gas sensor, a small amount of the In2O3-x h sample material needs to be dispersed in a certain amount of anhydrous ethanol. In order to ensure the uniform dispersion of the In2O3-x h material, ultrasonic treatment can be carried out in the ultrasonic dispersion instrument for several seconds. Then, the In2O3-x h suspension is absorbed with a micro pipette and daubed on the surface of the prepared ceramic tube. The In2O3-x h gas sensor can be obtained by rotating the ceramic tube until the surface material is even by using the rotating smear technology. The prepared In2O3-x h gas sensor is placed in a 1L closed air chamber with a data receiving base, and the picoammeter, adjustable power supply, and computer terminal are connected. During the gas test, the loading voltage at both ends of the gas sensor can be adjusted by the adjustable power supply. Different voltages can make the nickel complex gold wire in the ceramic tube produce different temperatures, ensuring the control of the working temperature of the gas sensor. The picoammeter is the data receiving end of the gas sensor, and the receiving current can reach the picoammeter level, which can detect extremely small changes in the current. In the LABVIEW program, a virtual voltage source (1 V) is used to calculate the resistance change and save the data. There are two air holes in the airtight chamber. One is the air inlet, which is responsible for the input of target gas. The other is the vent hole, which can discharge the detected gas and make the sensor reach the initial stable state again. According to the saturated vapor pressure of the gas, the specific volume value of the corresponding test gas was calculated and absorbed through the syringe in the laboratory. The injector, containing a certain amount of test gas, will slowly inject the gas into the air chamber through the injection hole. Due to the strong volatilization of VOC gas, the test gas can quickly fill the air chamber. When the change of sensor resistance is completely stable, it means that the sensor test is over. By opening the air cylinder valve, the synthetic air will quickly pass through the chamber and carry away the test gas. The sensor in the air environment will be stabilized again and used for the next measurement. The response value (S) of the n-type gas sensor can be expressed by the change of resistance:
S = R a R g
where R a is the resistance value when the gas sensor is stabilized in the air and R g is the resistance value when the gas sensor is stabilized in the target gas. In addition, the response time is generally defined as the time required from the beginning of the reaction to the resistance reaching 90% stable resistance, and correspondingly, the recovery time is the time when the sensor resistance value changes to 90% stable state from the beginning of blowing.

3. Results and Discussions

3.1. Characterization

The In2O3-x h nanomaterial was synthesized by the simple one-step hydrothermal method, and its crystal structure was characterized by an x-ray diffractometer. The XRD results of the In2O3-0.5 h, In2O3-2 h, In2O3-4 h, In2O3-6 h, In2O3-8 h, and In2O3-10 h materials are shown in Figure 2a. The results show that all samples had similar diffraction peaks. Compared with the standard JCPDS (Joint Committee on Powder Diffraction Standards) card, it was found that all the diffraction peaks (211), (222), (321), (400), (411), (420), (302), (431), (521), (440), (611), (622), (631), (444), (633), and (800) could correspond to the diffraction peaks of No. 71-2195 cubic indium oxide. The absence of other impurity characteristic peaks indicates that the purity of the synthesized indium oxide was very high. In addition, the Scherrer formula can be used to estimate the grain size [36]:
D = K λ / B cos θ
where K is the Scherrer constant ( K = 0.943 for cubic particles); B can be the half height and width of the diffraction peak; ( λ = 0.154056 nm) is the x-ray wavelength; and θ is the Bragg diffraction angle. According to the XRD diffraction data, the grain size of the In2O3-8 h sample can be estimated as 17.5 nm. In order to further study the element composition of the composite material, EDS was used to conduct qualitative and quantitative analysis of the elements contained in the material. The results are shown in Figure 2b. It is easy to see that regardless of the hydrothermal time, all synthetic materials only contained In and O elements, and the ratio of their contents was about 2:3, which also indicates the successful preparation of the In2O3 material. As for the high content of element N, it may be attributed to the inadequate decomposition of excessive urea.
A typical low-power SEM image of the In2O3-x h nanomaterials is shown in Figure 3, where the length and diameter of the In2O3-0.5 h nanorods were about 500 nm and 100 nm, respectively. When the hydrothermal time increased to 2 h, the porous In2O3 nanometer chip began to appear. The thickness of the nanometer chip was about 3 nm. At this time, In2O3-2 h is the coexistent state of nanorods and nanosheets. With the increase in hydrothermal time, In2O3-4 h, In2O3-6 h, and In2O3-8 h also presented the co-existence of nanorods and nanosheets. When the hydrothermal time increased to 10 h, the In2O3 nanosheets and nanorods gradually disappeared, and the block structure occupied the main position. Interestingly, when the hydrothermal time was 8 h, the nanorods were assembled into flower-like structures, while the nanorods acted as bridges to connect the scattered petals. Therefore, the formation mechanism of flower-shaped In2O3 nanomaterials can be visualized in Figure 4.
In order to further study the internal structure of In2O3 micro-flowers, high-resolution transmission electron microscopy was used to characterize the In2O3-8 h materials, as shown in Figure 5. The In2O3 nanosheets presented an irregular shape, with diameter of about 0.99 µm and the pieces stacked together. It can be easily seen in Figure 5c that In2O3-8 h presented a 360-degree radial shape, and the nanosheets assembled together, finally forming a flower-like structure. Figure 5d shows the high-resolution transmission characterization diagram of the In2O3-8 h micro-flowers. It can be found that the In2O3-8 h micro-flowers presented a good crystalline state, with the crystal plane spacing of about 0.4 nm, which was attributed to the (211) crystal plane of the In2O3 cubic phase. All these characterization results of the In2O3-8 h samples indicate the successful synthesis of the three-dimensional structure of In2O3 micro-flowers.

3.2. Gas Sensitivity Test of the In2O3 Gas Sensor

Based on the importance and urgency of ethanol gas detection, we systematically studied the gas sensing characteristics of the In2O3-x h (x = 0.5, 2, 4, 6, 8, 10) gas sensors with ethanol as the main research object. As is widely known, for gas sensors, the determination of the optimal operating temperature is the basis of the gas sensor for gas sensing research. When the operating temperature is low, the activity of gas molecules is low, and less gas is adsorbed on the surface of the sensitive material, resulting in a low response value of the gas sensor. As the working temperature gradually increases, a large number of gas molecules gain enough energy to stimulate the activity, and the number of gas molecules adsorbed on the surface of the sensitive material increases, resulting in improved response. However, when the temperature continues to increase and exceeds a certain value, the gas molecules will be overactive and it will be difficult to adsorb on the adsorption site of the material surface, which will lead to the performance decline of the gas sensor. This critical temperature value is generally defined as the best operating temperature of the gas sensor.
In order to determine the optimal operating temperature of the In2O3-x h gas sensor, we set the operating temperature range of 200–300 °C to conduct the gas sensing test on the prepared sensor. Ethanol was the only target gas, and the results are shown in Figure 6a. It is easy to observe that the In2O3-x h gas sensor presented a typical volcanic variation trend, and the optimum operating temperature of the In2O3-x h gas sensor could be determined as 270 °C. All subsequent gas sensing tests were performed at 270 °C. In addition, it was also easy to see that the In2O3-8 h sensor had the best response to 100 ppm ethanol gas at the optimal operating temperature, which can be attributed to the excellent flower-like porous structure of In2O3-8 h, causing absorption of more ethanol molecules compared with other materials. The resistance values of the In2O3 gas sensors prepared under different hydrothermal conditions in air are shown in Figure 6b, where the voltage source was fixed at 1 V. It is obvious that the resistance value of the gas sensor varies greatly with the difference in the hydrothermal time, and it generally tends to increase first and then decrease, which can be explained by the microstructure of the material. When the hydrothermal reaction time is short, In2O3 presents a rod-like structure, which is densely packed together and in full contact, so the resistance of the materials is low. With the increase in hydrothermal time, a porous lamellar structure appears, which leads to the increase in the oxygen adsorption potential, the increase in electron transfer, and the increase in material resistance. Second, the incomplete contact accumulation of the sheet structure will also increase the resistance value. When the hydrothermal time continued to increase and exceeded 10 h, the material began to present a blocky structure, with a decrease in oxygen adsorption potential and electron transfer, leading to a decrease in resistance value. Throughout the whole process, it can be found that when the hydrothermal time was 8 h, In2O3 had the most oxygen adsorption potential, the largest electron transfer, the largest electrical resistance, and the best gas-sensitive characteristics. On this basis, we selected the In2O3-8 h gas sensor as the optimal gas sensor, and first studied its response time and recovery time, which is shown in Figure 6c. The results showed that the response time of the In2O3-8 h sensor was 12.4 s and the recovery time was 10.4 s for 100 ppm ethanol. We compared the ethanol gas sensitivity of the prepared In2O3-8 h gas sensor with previous studies, and the results are shown in Table 1. In contrast, the In2O3-8 h gas sensor prepared by us still had excellent gas sensing.
Figure 7 shows the gas sensing response of the In2O3-8 h gas sensor to ethanol of different concentrations at the optimal operating temperature of 270 °C. Obviously, as the concentration of ethanol increased, the response of In2O3-8 h gas sensor also increased, and when ethanol gas was released, the In2O3-8 h gas sensor could return to the initial equilibrium state, which indicates that the In2O3-8 h gas sensor has excellent continuity and recovery performance. In addition, from Figure 7a, we can easily observe that the In2O3-8 h gas sensor still had significant response changes for the ethanol gas of 500 ppb, and that the same stable state could be maintained for two consecutive measurements, indicating that the detection limit of the In2O3-8 h gas sensor could reach the level of ppb. Figure 7b shows the fitting curve between the response value of the In2O3-8 h gas sensor and the concentration of ethanol gas, where is easy to see that there is a good linear relationship between the response value and concentration, indicating that the In2O3-8 h gas sensor has a wide detection range.
Selectivity is an important property of gas sensors. To study the gas sensing characteristics of the In2O3-8 h gas sensor to different gases, we particularly selected 100 ppm of methanol, formaldehyde, acetone, benzene, and ammonia as the comparison, and tested the response value of the In2O3-8 h gas sensor to different gases at different working temperatures up to 270 °C, as shown in Figure 8a. Obviously, at the 270 °C operating temperature, the In2O3-8 h sensor had the best gas sensitivity to different gases. Therefore, 270 °C was selected as the optimal operating temperature and the selectivity of the sensor to different gases was studied. The results are shown in Figure 8b where the response value of the In2O3-8 h gas sensor to the other five gases was very low, and its response to ethanol gas was at least twice that of the other five gases, indicating that the In2O3-8 h gas sensor has good selectivity.
The continuity of the gas sensor is also an important research index, which is an important standard to detect whether the gas sensor can measure continuously. In Figure 9, we used the In2O3-8 h gas sensor to make five consecutive measurements of 100 ppm ethanol gas at the operating temperature of 270 °C. The results show that after each inlet and outlet cycle, the In2O3-8 h gas sensor could return to the initial equilibrium state, similar to the previous one. By comparing the measured values of the five cycles, the error range of the sensor was found to be between 2.9% and 5%, which shows that the sensor maintained robust response performance. In addition, we also tested the In2O3-8 h gas sensor repeatedly for a month under the same conditions. Figure 10 shows the In2O3-8 h gas sensor with six tests of 100 ppm ethanol gas in one month. The results showed that the response value did not change significantly, and the average value remained around 65, indicating its excellent stability.

3.3. Gas Sensing Mechanism of the In2O3-8 h Gas Sensor

The gas sensing mechanism of the In2O3-8 h gas sensor is mainly due to the redox reaction of ethanol molecules and adsorbed oxygen on its surface [47,48]. When metal oxide semiconductor sensors work, oxygen molecules in the air are adsorbed on the surface of sensitive materials and produce adsorbed oxygen. At this point, the sensitive material will release electrons to the adsorbed oxygen, which will form oxygen anions to attach to the surface of the sensitive material and form an ion layer, namely an electron depletion layer. When the ethanol molecules come into contact with the sensitive material, the ethanol molecules react with the oxygen anions in a redox reaction, releasing electrons back to the sensitive material at the same time, which results in a decrease in the thickness of the electron depletion layer and a sharp decrease in the resistance value of the gas sensor, as shown in Figure 11. When ethanol gas is released, the In2O3-8 h gas sensor will exchange electrons with the adsorbed oxygen again, and the thickness of the electron depletion layer will increase accordingly, and the resistance value of the sensor will return to its initial state. The oxygen anion has three forms, namely O2−, O−, and O2−, whose state is determined by the operating temperature. Generally, when the operating temperature is lower than 150 °C, the surface of MOS is mainly O2−. When the temperature rises but not above 200 °C, O2− will gradually change to O−; when the operating temperature is above 200 °C, O2− is the main constituent. Therefore, the sensitivity mechanism of the In2O3-8 h gas sensor to ethanol gas is as follows:
O 2 ( g ) = O 2 ( ad )
O 2 ( ad ) + 2 e − = O 2 − ( ad )
7 O 2 − ( ad ) + C 2 H 6 O = 2 H 2 O + 3 CO 2 + 14 e −
The excellent gas sensing of the sensor can be attributed to two aspects: The surface effect brought by the small size of nanomaterials and the unique 3D microstructure, as we know that the surface effects of small nanomaterials include an increase in surface area and an increase in the number of atoms on the surface. This results in a very high surface energy and atomic coordination deficit, which makes the surface atoms very reactive and easy to combine with other atoms. The thickness of the prepared nanosheet is about 3 nm, and its small size effect will lead to a large surface area and promote the combination of ethanol molecules and sensitive materials to obtain high gas sensing. In addition, the excellent gas sensing of the In2O3-8 h gas sensor is mainly attributed to its unique nanostructure, namely porous In2O3 nanosheet-assembled micro-flowers [49,50], as shown in Figure 11. On one hand, the flower-like structure of In2O3-8 h can provide more oxygen molecular adsorption sites to produce more adsorbed oxygen, and the large amount of oxygen negative ions generated at the same time can thicken the electron depletion layer, resulting in an increase in the resistance of the gas sensor. Therefore, when the ethanol molecule is in contact with the electron depletion layer on the surface of the sensitive material and the redox reaction occurs, a larger change in the resistance value can be generated, and a larger response value can be generated when the reaction occurs in the sensor’s gas sensing. On the other hand, the existence of a porous structure can facilitate the gas molecules to enter the inside of the sensitive material, which is conducive to the dispersion of the gas molecules in the sensitive material. Gas molecules can redox with more adsorbed oxygen quickly, and when the reaction is finished, gas molecules can also leave quickly, which ensures that the In2O3-8 h gas sensor has the characteristics of rapid response and recovery. In conclusion, the micro-flower structure of In2O3-8 h promotes its rapid and efficient detection of ethanol gas.

4. Conclusions

In this paper, we successfully synthesized porous In2O3 nanosheets through the one-step hydrothermal method. The porous In2O3 nanosheet-assembled micro-flowers were prepared by controlling the hydrothermal reaction time, and the synthesis mechanism was also studied. In2O3 material was characterized by various characterization methods, and the successful synthesis of the In2O3 cubic phase and micro-flower structure was proven. We successfully prepared the In2O3 gas sensor and studied its ethanol detection performance. The results show that the In2O3-8 h gas sensor can detect ethanol gas quickly and efficiently, and the highest response to 100 ppm ethanol could reach 66 at 270 °C. The response time and recovery time were only 12.4 s and 10.4 s. In addition, the In2O3-8 h gas sensor also has excellent continuity, stability, and selectivity, and the detection limit reached the level of hundreds of ppb, which is a potential material for the detection of ethanol gas.

Author Contributions

Conceptualization, W.Q. and F.M.; Formal analysis, W.Q. and Z.Y.; Investigation, W.Q. and H.G.; Writing—Original draft preparation, W.Q.; Writing—Review and editing, Z.Y., H.G., and F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (2019YFB2006001), the National Natural Science Foundation of China (61833006, 61673367, and 61973058), the Fundamental Research Funds for the Central Universities in China (N180408018, N2004019, and N2004028), and the Liao Ning Revitalization Talents Program (XLYC1807198).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meng, F.-L.; Li, H.-H.; Kong, L.-T.; Liu, J.-Y.; Jin, Z.; Li, W.; Jia, Y.; Liu, J.-H.; Huang, X.-J. Parts per billion-level detection of benzene using SnO2/graphene nanocomposite composed of sub-6 nm SnO2 nanoparticles. Anal. Chim. Acta 2012, 736, 100–107. [Google Scholar] [CrossRef] [PubMed]
  2. Yuan, Z.; Zhao, J.; Meng, F.; Qin, W.; Chen, Y.; Yang, M.; Ibrahim, M.; Zhao, Y. Sandwich-like composites of double-layer Co3O4 and reduced graphene oxide and their sensing properties to volatile organic compounds. J. Alloy Compd. 2019, 793, 24–30. [Google Scholar] [CrossRef]
  3. Li, X.; Nguyen, L.V.; Becker, M.; Ebendorff-Heidepriem, H.; Pham, D.; Warren-Smith, S.C. Simultaneous Measurement of Temperature and Refractive Index Using an Exposed Core Microstructured Optical Fiber. IEEE J. Sel. Top. Quantum Electron. 2020, 26, 1–7. [Google Scholar] [CrossRef] [Green Version]
  4. Yu, M.; Cui, H.; Ai, F.; Jiang, L.; Kong, J.; Zhu, X. Terminated nanotubes: Evidence against the dissolution equilibrium theory. Electrochem. Commun. 2018, 86, 80–84. [Google Scholar] [CrossRef]
  5. Yuan, Z.; Li, R.; Meng, F.; Zhang, J.; Zuo, K.; Han, E. Approaches to Enhancing Gas Sensing Properties: A Review. Sensors 2019, 19, 1495. [Google Scholar] [CrossRef] [Green Version]
  6. Yuan, Z.; Zhang, J.; Meng, F.; Li, Y.; Li, R.; Chang, Y.; Zhao, J.; Han, E.; Wang, S.; Wang, S. Highly Sensitive Ammonia Sensors Based on Ag-Decorated WO3 Nanorods. IEEE Trans. Nanotechnol. 2018, 17, 1252–1258. [Google Scholar] [CrossRef]
  7. Li, B.; Li, M.; Meng, F.; Liu, J. Highly sensitive ethylene sensors using Pd nanoparticles and rGO modified flower-like hierarchical porous α-Fe2O3. Sens. Actuators B Chem. 2019, 290, 396–405. [Google Scholar] [CrossRef]
  8. Li, J.; Zhang, C.; Wei, Y.; Du, Z.; Sun, F.; Ji, Y.; Yang, X.; Liu, C. In situ, portable and robust laser sensor for simultaneous measurement of ammonia, water vapor and temperature in denitrification processes of coal fired power plants. Sens. Actuators B Chem. 2020, 305, 127533. [Google Scholar] [CrossRef]
  9. Han, Y.; Li, H.; Zhang, M.; Fu, Y.; Liu, Y.; Yang, Y.; Xu, J.; Geng, Y.; Wang, L. Self-supported Co(CO3)0.5(OH)·0.11H2O nanoneedles coated with CoSe2-Ni3Se2 nanoparticles as highly active bifunctional electrocatalyst for overall water splitting. Appl. Surf. Sci. 2019, 495, 495. [Google Scholar] [CrossRef]
  10. Papamatthaiou, S.; Argyropoulos, D.-P.; Farmakis, F.; Georgoulas, N. Investigation of the H2O Sensing Mechanism of DC-Operated Chemiresistors Based on Graphene Oxide and Thermally Reduced Graphene Oxide. IEEE Sens. J. 2019, 19, 7841–7848. [Google Scholar] [CrossRef]
  11. Cong, J.; Duan, P.; Zhong, F.; Luo, Y.; Zheng, Y.; Cai, G.; Xiao, Y.; Jiang, L. Gas sensing properties of amperometric NH3 sensors based on Sm2Zr2O7 solid electrolyte and SrM2O4 (M = Sm, La, Gd, Y) sensing electrodes. Sens. Actuators B Chem. 2020, 303, 127220. [Google Scholar] [CrossRef]
  12. Meng, F.; Zheng, H.; Sun, Y.; Li, M.; Liu, J. Trimethylamine Sensors Based on Au-Modified Hierarchical Porous Single-Crystalline ZnO Nanosheets. Sensors 2017, 17, 1478. [Google Scholar] [CrossRef] [PubMed]
  13. Yuan, Z.; Han, E.; Meng, F.; Zuo, K. Detection and Identification of Volatile Organic Compounds based on Temperature-Modulated ZnO Sensors. IEEE Trans. Instrum. Meas. 2019, 69, 4533–4544. [Google Scholar] [CrossRef]
  14. Meng, F.; Chang, Y.; Qin, W.; Yuan, Z.; Zhao, J.; Zhang, J.; Han, E.; Wang, S.; Yang, M.; Shen, Y.; et al. ZnO-Reduced Graphene Oxide Composites Sensitized with Graphitic Carbon Nitride Nanosheets for Ethanol Sensing. ACS Appl. Nano Mater. 2019, 2, 2734–2742. [Google Scholar] [CrossRef]
  15. Cui, J.; Zhu, N.; Luo, D.; Li, Y.; Wu, P.; Dang, Z.; Hu, X. The Role of Oxalic Acid in the Leaching System for Recovering Indium from Waste Liquid Crystal Display Panels. ACS Sustain. Chem. Eng. 2019, 7, 3849–3857. [Google Scholar] [CrossRef]
  16. Sun, X.; Yang, Z.; Hwang, H.-L. Short-circuit current density and fill factor improvement by optimizing In2O3:H and metal back reflector layers for p-i-n a-SiGe: H thin film solar cells. J. Mater. Sci. Mater. Electron. 2019, 30, 17759–17764. [Google Scholar] [CrossRef]
  17. Li, Z.; Yan, S.; Sun, M.; Li, H.; Wu, Z.; Wang, J.; Shen, W.; Fu, Y.Q. Significantly enhanced temperature-dependent selectivity for NO2 and H2S detection based on In2O3 nano-cubes prepared by CTAB assisted solvothermal process. J. Alloy Compd. 2020, 816, 152518. [Google Scholar] [CrossRef]
  18. Cui, P.; Schito, G.; Cui, Q. VOC emissions from asphalt pavement and health risks to construction workers. J. Clean. Prod. 2020, 244, 118757. [Google Scholar] [CrossRef]
  19. Çelebi, U.B.; Vardar, N. Investigation of VOC emissions from indoor and outdoor painting processes in shipyards. Atmos. Environ. 2008, 42, 5685–5695. [Google Scholar] [CrossRef]
  20. Lerner, J.C.; Sanchez, E.; Sambeth, J.; Porta, A. Characterization and health risk assessment of VOCs in occupational environments in Buenos Aires, Argentina. Atmos. Environ. 2012, 55, 440–447. [Google Scholar] [CrossRef]
  21. Jamt, R.E.G.; Gjerde, H.; Romeo, G.; Bogstrand, S.T. Association between alcohol and drug use and arrest for driving under the influence after crash involvement in a rural area of Norway: A case–control study. BMJ Open 2019, 9, e023563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kuchi, P.S.; Roshan, H.; Sheikhi, M. A novel room temperature ethanol sensor based on PbS:SnS2 nanocomposite with enhanced ethanol sensing properties. J. Alloy Compd. 2020, 816, 152666. [Google Scholar] [CrossRef]
  23. Xu, K.; Zhao, W.; Yu, X.; Duan, S.; Zen, W. Enhanced ethanol sensing performance using Co3O4–ZnSnO3 arrays prepared on alumina substrates. Phys. E Low Dimens. Syst. Nanostruct. 2020, 117, 113825. [Google Scholar] [CrossRef]
  24. Rahman, M.M. Efficient formaldehyde sensor development based on Cu-codoped ZnO nanomaterial by an electrochemical approach. Sens. Actuators B Chem. 2020, 305, 127541. [Google Scholar] [CrossRef]
  25. Li, M.; Li, B.; Meng, F.; Liu, J.; Yuan, Z.; Wang, C.; Liu, J. Highly sensitive and selective butanol sensors using the intermediate state nanocomposites converted from beta-FeOOH to alpha-Fe2O3. Sens. Actuators B Chem. 2018, 273, 543–551. [Google Scholar] [CrossRef]
  26. Wang, H.; Zhou, L.; Liu, Y.; Liu, F.; Liang, X.; Liu, F.; Gao, Y.; Yan, X.; Lu, G. UV-activated ultrasensitive and fast reversible ppb NO2 sensing based on ZnO nanorod modified by constructing interfacial electric field with In2O3 nanoparticles. Sens. Actuators B Chem. 2020, 305, 127498. [Google Scholar] [CrossRef]
  27. Cho, H.-J.; Choi, S.-J.; Kim, N.-H.; Kim, I.-D. Porosity controlled 3D SnO2 spheres via electrostatic spray: Selective acetone sensors. Sens. Actuators B Chem. 2020, 304, 127350. [Google Scholar] [CrossRef]
  28. Chang, X.; Li, X.; Qiao, X.; Li, K.; Xiong, Y.; Li, X.; Guo, T.; Zhu, L.; Xue, Q. Metal-organic frameworks derived ZnO@MoS2 nanosheets core/shell heterojunctions for ppb-level acetone detection: Ultra-fast response and recovery. Sens. Actuators B Chem. 2020, 304, 127430. [Google Scholar] [CrossRef]
  29. Bagolini, A.; Gaiardo, A.; Crivellari, M.; Demenev, E.; Bartali, R.; Picciotto, A.; Valt, M.; Ficorella, F.; Guidi, V.; Bellutti, P. Development of MEMS MOS gas sensors with CMOS compatible PECVD inter-metal passivation. Sens. Actuators B Chem. 2019, 292, 225–232. [Google Scholar] [CrossRef]
  30. Peng, R.; Li, Y.; Liu, T.; Si, P.; Feng, J.; Suhr, J.; Ci, L. Boron-doped graphene coated Au@SnO2 for high-performance triethylamine gas detection. Mater. Chem. Phys. 2020, 239, 239. [Google Scholar] [CrossRef]
  31. Meng, D.; Liu, D.; Wang, G.; Shen, Y.; San, X.; Li, M.; Meng, F. Low-temperature formaldehyde gas sensors based on NiO-SnO2 heterojunction microflowers assembled by thin porous nanosheets. Sens. Actuators B Chem. 2018, 273, 418–428. [Google Scholar] [CrossRef]
  32. Cao, P.-J.; Li, M.; Rao, C.N.; Han, S.; Xu, W.-Y.; Fang, M.; Liu, X.-K.; Zeng, Y.-X.; Liu, W.-J.; Zhu, D.-L.; et al. High Sensitivity NO₂ Gas Sensor Based on 3D WO₃ Microflowers Assembled by Numerous Nanoplates. J. Nanosci. Nanotechnol. 2020, 20, 1790–1798. [Google Scholar] [CrossRef] [PubMed]
  33. Kim, S.; Jung, H.S.; Kim, D.-H.; Kim, S.-H.; Park, S.-G. 3D nanoporous plasmonic chips for extremely sensitive NO2 detection. Analyst 2019, 144, 7162–7167. [Google Scholar] [CrossRef] [PubMed]
  34. Long, H.; Turner, S.; Yan, A.; Xu, H.; Jang, M.; Carraro, C.; Maboudiancd, R.; Zettl, A. Plasma assisted formation of 3D highly porous nanostructured metal oxide network on microheater platform for Low power gas sensing. Sens. Actuators B Chem. 2019, 301, 127067. [Google Scholar] [CrossRef]
  35. Meng, F.; Qin, W.; Li, B.; Zhang, H.; Wang, S.; Chang, Y.; Li, M.; Yuan, Z. Synthesis of Au Nanoparticle-Modified Spindle Shaped α-Fe2O3 Nanorods and Their Gas Sensing Properties to N-Butanol. IEEE Trans. Nanotechnol. 2019, 18, 911–920. [Google Scholar] [CrossRef]
  36. Xiao, H.; Xue, C.; Song, P.; Li, J.; Wang, Q. Preparation of porous LaFeO3 microspheres and their gas-sensing property. Appl. Surf. Sci. 2015, 337, 65–71. [Google Scholar] [CrossRef]
  37. Chen, X.; Deng, N.; Zhang, X.; Yang, Y.; Li, J.; Hong, B.; Fang, J.; Xu, J.; Jin, D.; Peng, X.; et al. Preparation of Fe-doped In2O3 gas sensing semiconductor by one-step impregnation with enhanced ethanol sensing. Chem. Phys. Lett. 2019, 722, 96–103. [Google Scholar] [CrossRef]
  38. Ko, H.; Park, S.; An, S.; Lee, C. Enhanced ethanol sensing properties of TeO2/In2O3 core-shell nanorod sensors. Curr. Appl. Phys. 2013, 13, 919–924. [Google Scholar] [CrossRef]
  39. Zheng, W.; Lu, X.; Wang, W.; Li, Z.; Zhang, H.; Wang, Y.; Wang, Z.; Wang, C. A highly sensitive and fast-responding sensor based on electrospun In2O3 nanofibers. Sens. Actuators B Chem. 2009, 142, 61–65. [Google Scholar] [CrossRef]
  40. Zhang, S.; Song, P.; Yan, H.; Yang, Z.; Wang, Q. A simple large-scale synthesis of mesoporous In2O3 for gas sensing applications. Appl. Surf. Sci. 2016, 378, 443–450. [Google Scholar] [CrossRef]
  41. Sun, G.-J.; Kheel, H.; Ko, T.-G.; Kim, H.W.; Lee, C. Prominent ethanol sensing with Cr2O3 nanoparticle-decorated ZnS nanorods sensors. J. Korean Phys. Soc. 2016, 69, 390–397. [Google Scholar] [CrossRef] [Green Version]
  42. Chen, Q.; Ma, S.Y.; Xu, X.L.; Jiao, H.Y.; Zhang, G.H.; Liu, L.W.; Wang, P.Y.; Gengzang, D.J.; Yao, H.H. Optimization ethanol detection performance manifested by gas sensor based on In2O3/ZnS rough microspheres. Sens. Actuators B Chem. 2018, 264, 263–278. [Google Scholar] [CrossRef]
  43. Tao, K.; Han, X.; Yin, Q.; Wang, X.; Han, L.; Chen, L. Metal-Organic Frameworks-Derived Porous In2O3 Hollow Nanorod for High-Performance Ethanol Gas Sensor. Chemistryselect 2017, 2, 10918–10925. [Google Scholar] [CrossRef]
  44. Han, D.; Song, P.; Zhang, H.; Yan, H.; Xu, Q.; Yang, Z.; Wang, Q. Flower-like In2O3 hierarchical nanostructures: Synthesis, characterization, and gas sensing properties. RSC Adv. 2014, 4, 50241–50248. [Google Scholar] [CrossRef]
  45. Tang, W.; Liu, H.; Li, C.; Zhang, Y.; Sun, H.; Peng, T.; Huo, J.; Li, C. Facile synthesis of LaNi1−xTixO3 nanoparticles and enhanced ethanol-sensing characteristics. J. Phys. Chem. Solids 2019, 134, 5–13. [Google Scholar] [CrossRef]
  46. Cao, P.; Yang, Z.; Navale, S.; Han, S.; Liu, X.; Liu, W.; Lu, Y.; Stadler, F.J.; Zhu, D. Ethanol sensing behavior of Pd-nanoparticles decorated ZnO-nanorod based chemiresistive gas sensors. Sens. Actuators B Chem. 2019, 298, 126850. [Google Scholar] [CrossRef]
  47. Meng, F.; Zheng, H.; Chang, Y.; Zhao, Y.; Li, M.H.; Wang, C.; Sun, Y.; Liu, J. One-Step Synthesis of Au/SnO2/RGO Nanocomposites and Their VOC Sensing Properties. IEEE Trans. Nanotechnol. 2018, 17, 212–219. [Google Scholar] [CrossRef]
  48. Bao, H.-F.; Yue, T.-T.; Zhang, X.-X.; Dong, Z.; Yan, Y.; Feng, W. Enhanced Ethanol-Sensing Properties Based on Modified NiO-ZnO p-n Heterojunction Nanotubes. J. Nanosci. Nanotechnol. 2020, 20, 731–740. [Google Scholar] [CrossRef]
  49. Cao, P.; Gui, X.; Navale, S.; Han, S.; Xu, W.; Fang, M.; Liu, X.; Zeng, Y.; Liu, W.; Zhu, D.; et al. Design of flower-like V2O5 hierarchical nanostructures by hydrothermal strategy for the selective and sensitive detection of xylene. J. Alloy Compd. 2020, 815, 152378. [Google Scholar] [CrossRef]
  50. Jia, X.H.; Cheng, C.D.; Yu, S.W.; Yang, J.; Li, Y.; Song, H.J. Preparation and enhanced acetone sensing properties of flower-like alpha-Fe2O3/multi-walled carbon nanotube nanocomposites. Sens. Actuators B Chem. 2019, 300, 127012. [Google Scholar] [CrossRef]
Sensors 20 03353 g001 550

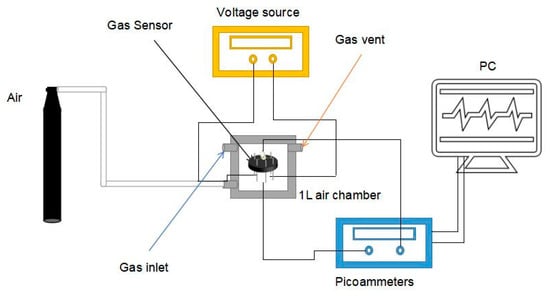

Figure 1. Gas testing unit.
Figure 1. Gas testing unit.
Sensors 20 03353 g001
Sensors 20 03353 g002 550

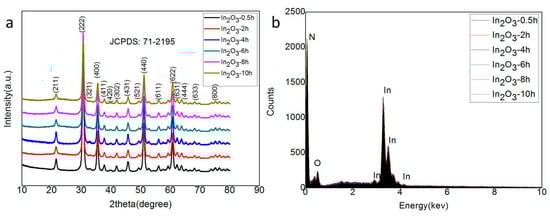

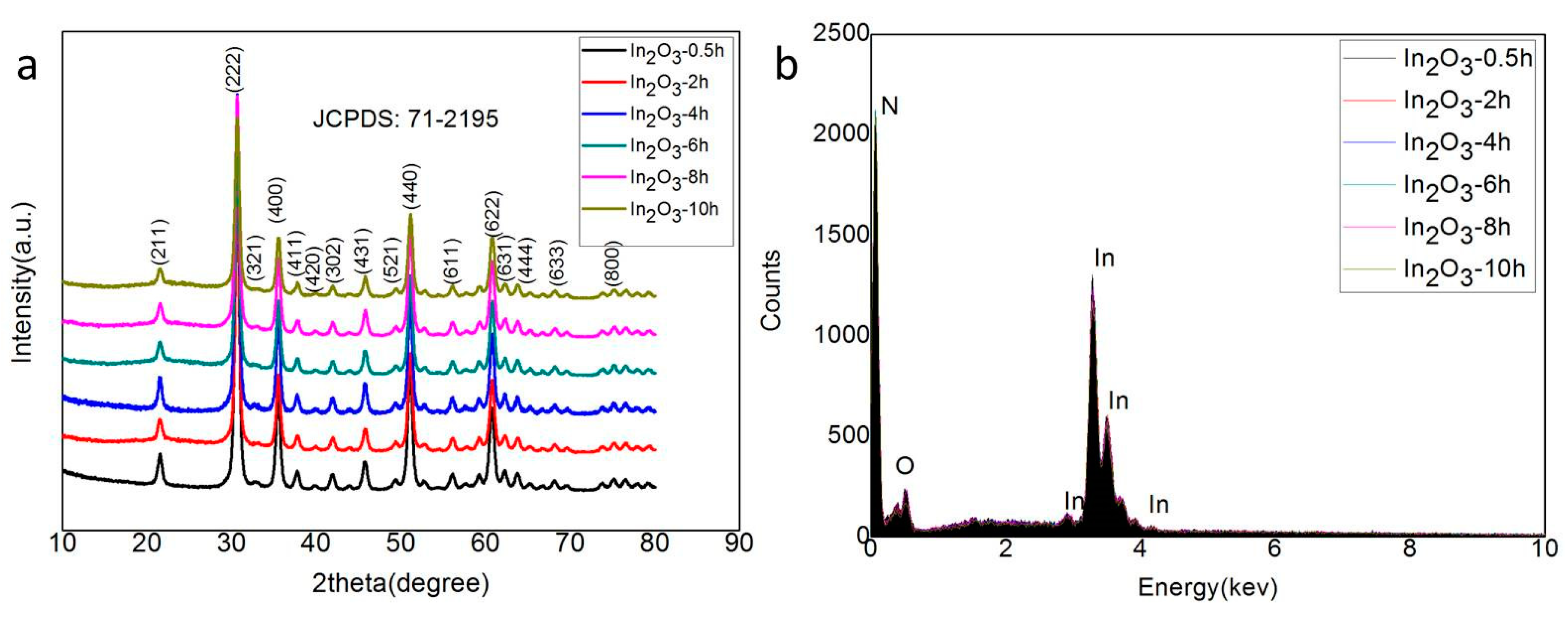

Figure 2. (a) X-ray diffraction (XRD) pattern of the samples; (b) Energy dispersive (EDS) spectrum analysis of the samples.
Figure 2. (a) X-ray diffraction (XRD) pattern of the samples; (b) Energy dispersive (EDS) spectrum analysis of the samples.
Sensors 20 03353 g002
Sensors 20 03353 g003 550
Figure 3. Scanning electron microscopy (SEM) microstructure diagram of the sample: (a) In2O3-0.5 h; (b) In2O3-2 h; (c) In2O3-4 h; (d) In2O3-6 h; (e) In2O3-8 h; (f) In2O3-10 h.
Figure 3. Scanning electron microscopy (SEM) microstructure diagram of the sample: (a) In2O3-0.5 h; (b) In2O3-2 h; (c) In2O3-4 h; (d) In2O3-6 h; (e) In2O3-8 h; (f) In2O3-10 h.
Sensors 20 03353 g003
Sensors 20 03353 g004 550

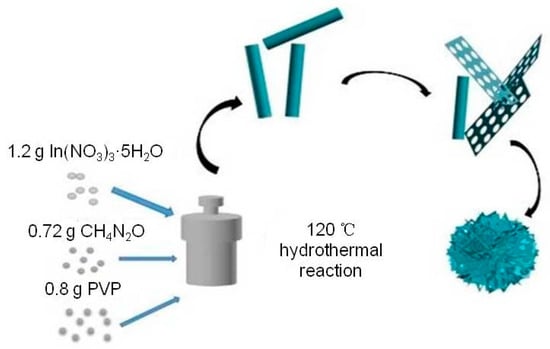

Figure 4. In2O3 flower structure formation mechanism diagram.
Figure 4. In2O3 flower structure formation mechanism diagram.
Sensors 20 03353 g004
Sensors 20 03353 g005 550
Figure 5. (a) High resolution SEM and (b–d) transmission electron microscopy (TEM) images of In2O3-8 h.
Figure 5. (a) High resolution SEM and (b–d) transmission electron microscopy (TEM) images of In2O3-8 h.
Sensors 20 03353 g005
Sensors 20 03353 g006 550

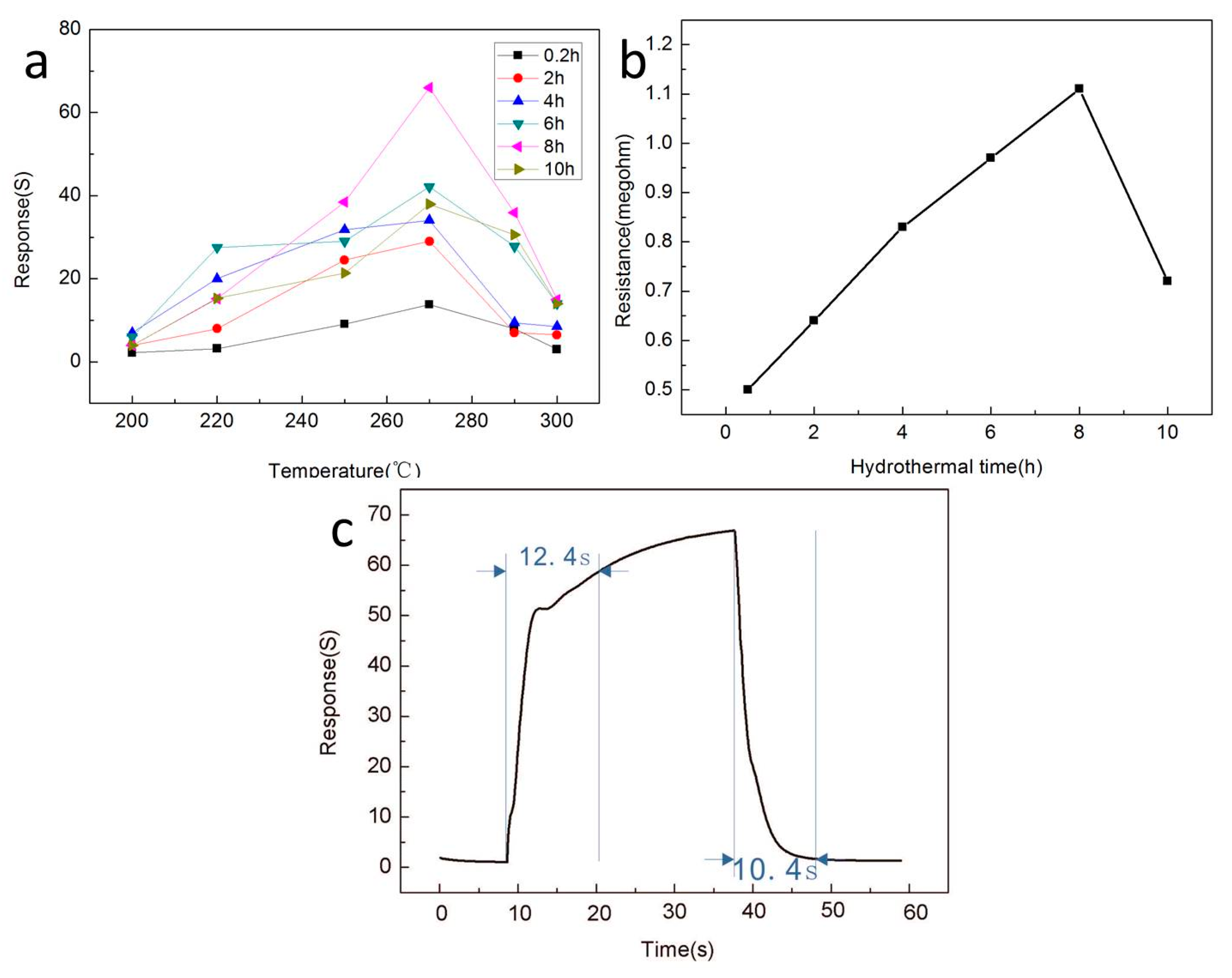

Figure 6. (a) The response curves of different sensors to 100 ppm ethanol gas at different operating temperatures; (b) Resistance values in air of the nanostructured sensors prepared under different hydrothermal action times; (c) Response curve of the In2O3-8 h sensor to 100 ppm ethanol at the optimum operating temperature of 270 °C.
Figure 6. (a) The response curves of different sensors to 100 ppm ethanol gas at different operating temperatures; (b) Resistance values in air of the nanostructured sensors prepared under different hydrothermal action times; (c) Response curve of the In2O3-8 h sensor to 100 ppm ethanol at the optimum operating temperature of 270 °C.
Sensors 20 03353 g006
Sensors 20 03353 g007 550

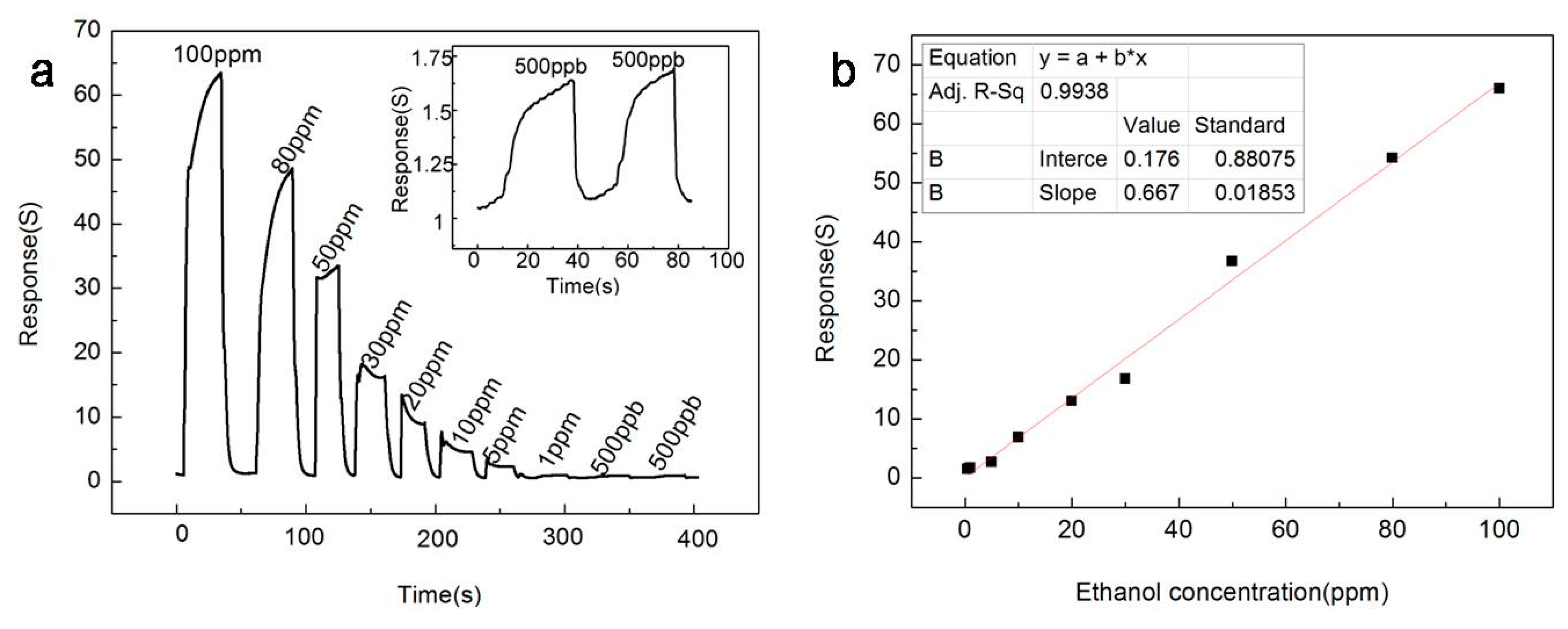

Figure 7. At the optimum operating temperature of 270 °C, (a) the response curve of the In2O3-8 h sensor to ethanol gas at different concentrations; (b) The relationship between the In2O3-8 h sensor response value and ethanol concentration.
Figure 7. At the optimum operating temperature of 270 °C, (a) the response curve of the In2O3-8 h sensor to ethanol gas at different concentrations; (b) The relationship between the In2O3-8 h sensor response value and ethanol concentration.
Sensors 20 03353 g007
Sensors 20 03353 g008 550

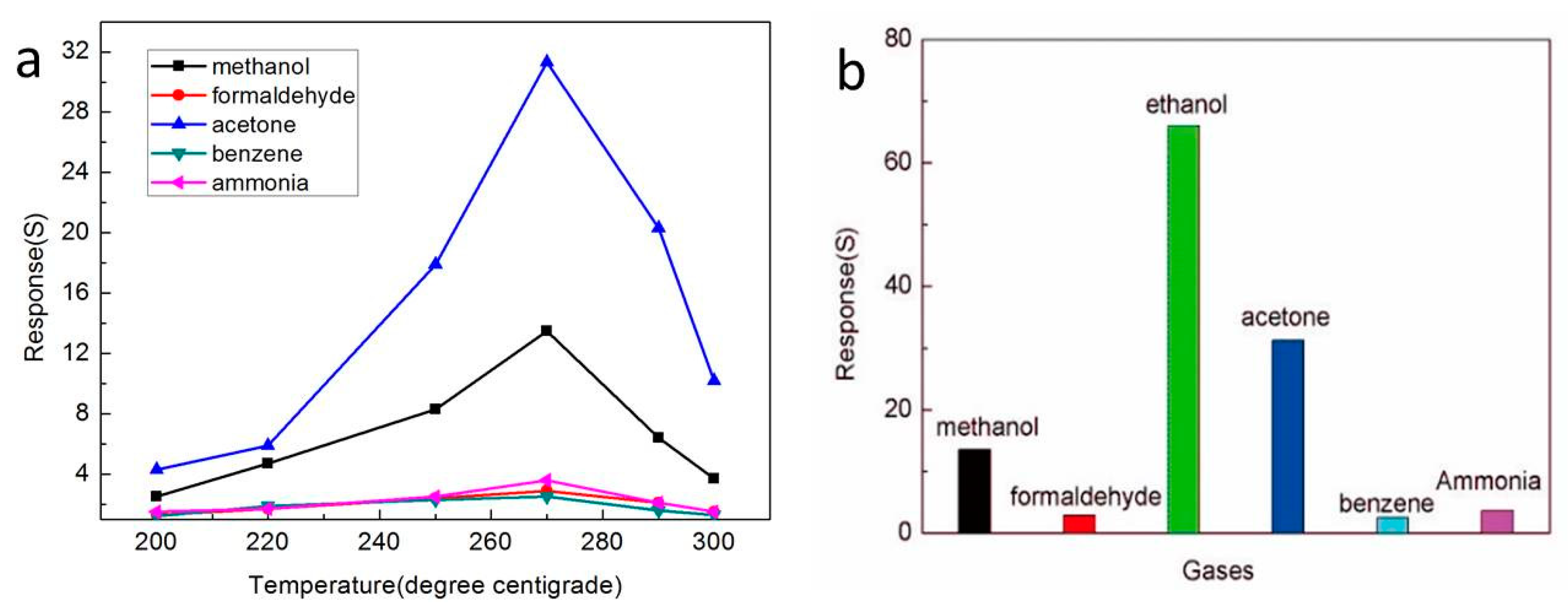

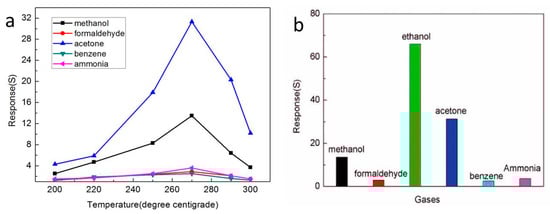

Figure 8. (a) The gas-sensitive characteristics of different sensors for different gases; (b) The gas sensing response of the In2O3-8 h sensor to different gases.
Figure 8. (a) The gas-sensitive characteristics of different sensors for different gases; (b) The gas sensing response of the In2O3-8 h sensor to different gases.
Sensors 20 03353 g008
Sensors 20 03353 g009 550

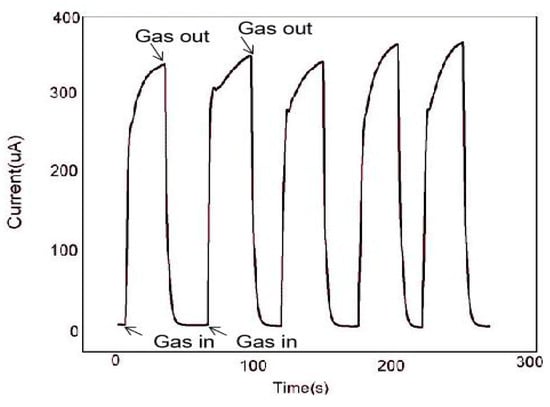

Figure 9. At 270 °C, five consecutive measurements of the In2O3-8 h sensor for 100 ppm ethanol.
Figure 9. At 270 °C, five consecutive measurements of the In2O3-8 h sensor for 100 ppm ethanol.
Sensors 20 03353 g009
Sensors 20 03353 g010 550

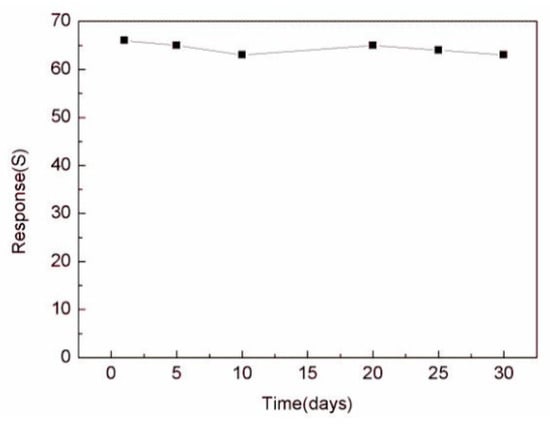

Figure 10. The stability of the In2O3-8 h sensor was tested for the duration of one month.
Figure 10. The stability of the In2O3-8 h sensor was tested for the duration of one month.
Sensors 20 03353 g010
Sensors 20 03353 g011 550

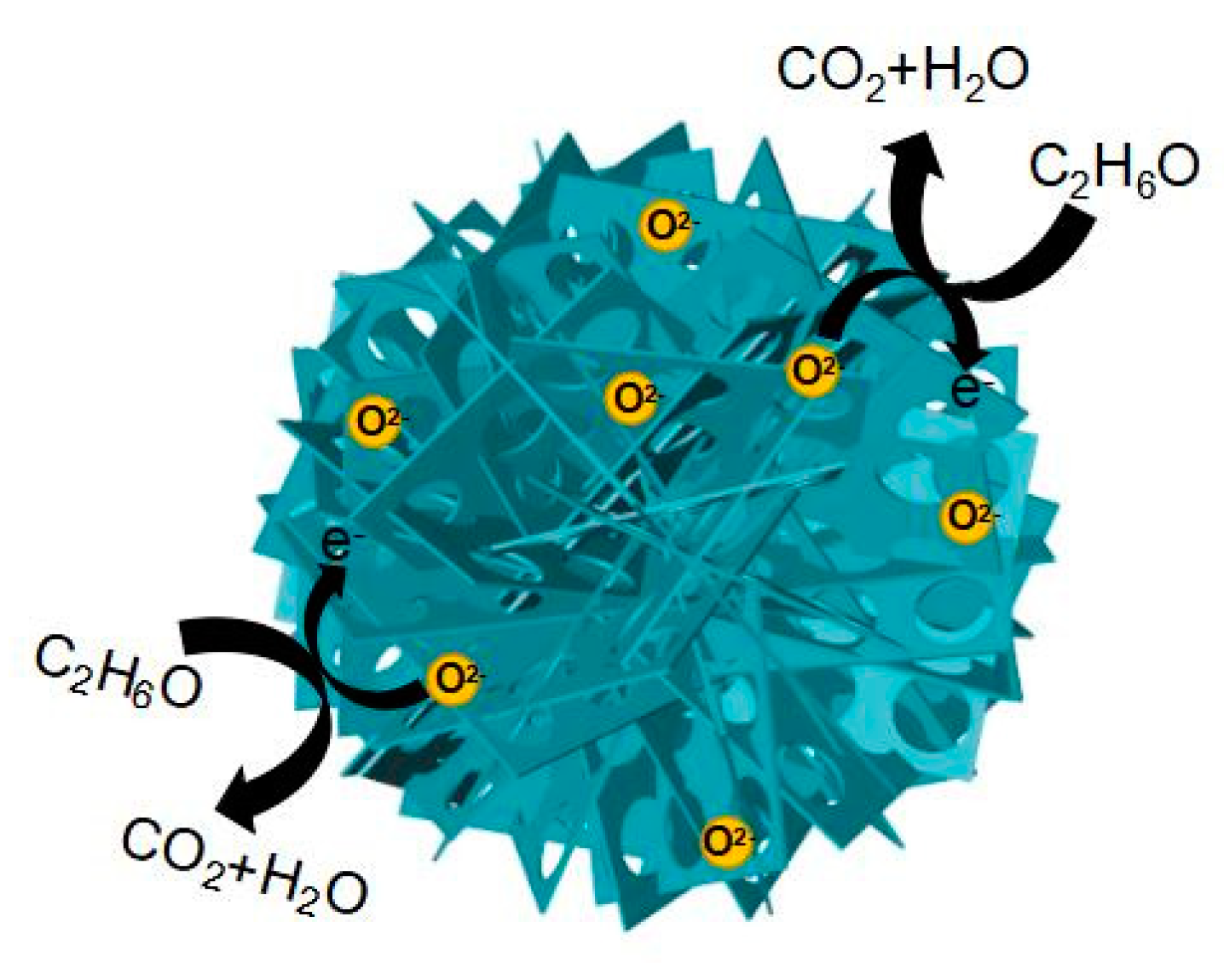

Figure 11. The mechanism of ethanol gas sensing of the In2O3-8 h micro-flowers.
Figure 11. The mechanism of ethanol gas sensing of the In2O3-8 h micro-flowers.
Sensors 20 03353 g011
Table
Table 1. The gas sensitivity of various ethanol sensing materials to ethanol in current studies.
Table 1. The gas sensitivity of various ethanol sensing materials to ethanol in current studies.
Sensing MaterialConcentration (ppm)Temperature (°C)Response (Ra/Rg)Response Time (s)/Recovery Time (s)Detection LimitsRef.
Fe-doped In2O3 nanospheres10035013315/555 ppm[37]
TeO2/In2O3 nanorods503002.28160/20050 ppm[38]
In2O3 nanofibers10030014.32/51 ppm[39]
In2O3 nanostructures1003202011/420 ppm[40]
Cr2O3/ZnS nanorods20030013.8423/205 ppm[41]
In2O3/ZnS rough microspheres10026011.721/3410 ppm[42]
In2O3 hollow nanorod10020038.68/65 ppm[43]
Flower-like In2O310032027.618/92 ppm[44]
LaNi1-xTixO3 nanoparticles2003000.524/4450 ppm[45]
Pd-nanoparticles decorated ZnO-nanorod5002605.126/95100 ppm[46]
In2O3 nanoflower1002706612.4/10.40.5 ppmThis work
