A High Sensitivity Temperature Sensing Probe Based on Microfiber Fabry-Perot Interference

1
College of Information Science and Engineering, Northeastern University, Shenyang 110819, China
2
State Key Laboratory of Synthetical Automation for Process Industries, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Received: 27 March 2019 / Revised: 14 April 2019 / Accepted: 15 April 2019 / Published: 16 April 2019
(This article belongs to the Special Issue Fiber Optic Sensors and Applications)
  |
PDF [5784 KB, uploaded 19 April 2019]
  |     |

Abstract

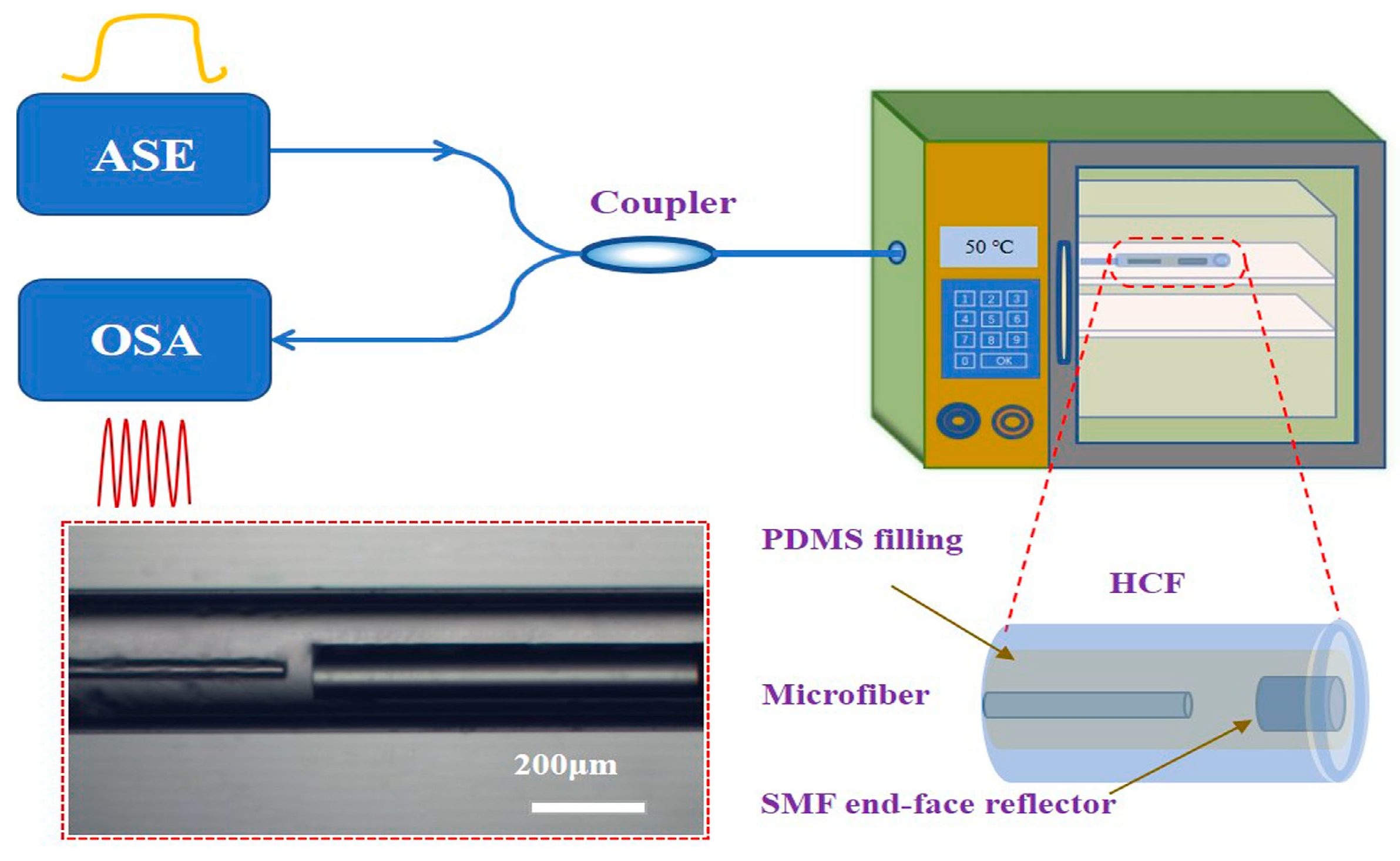

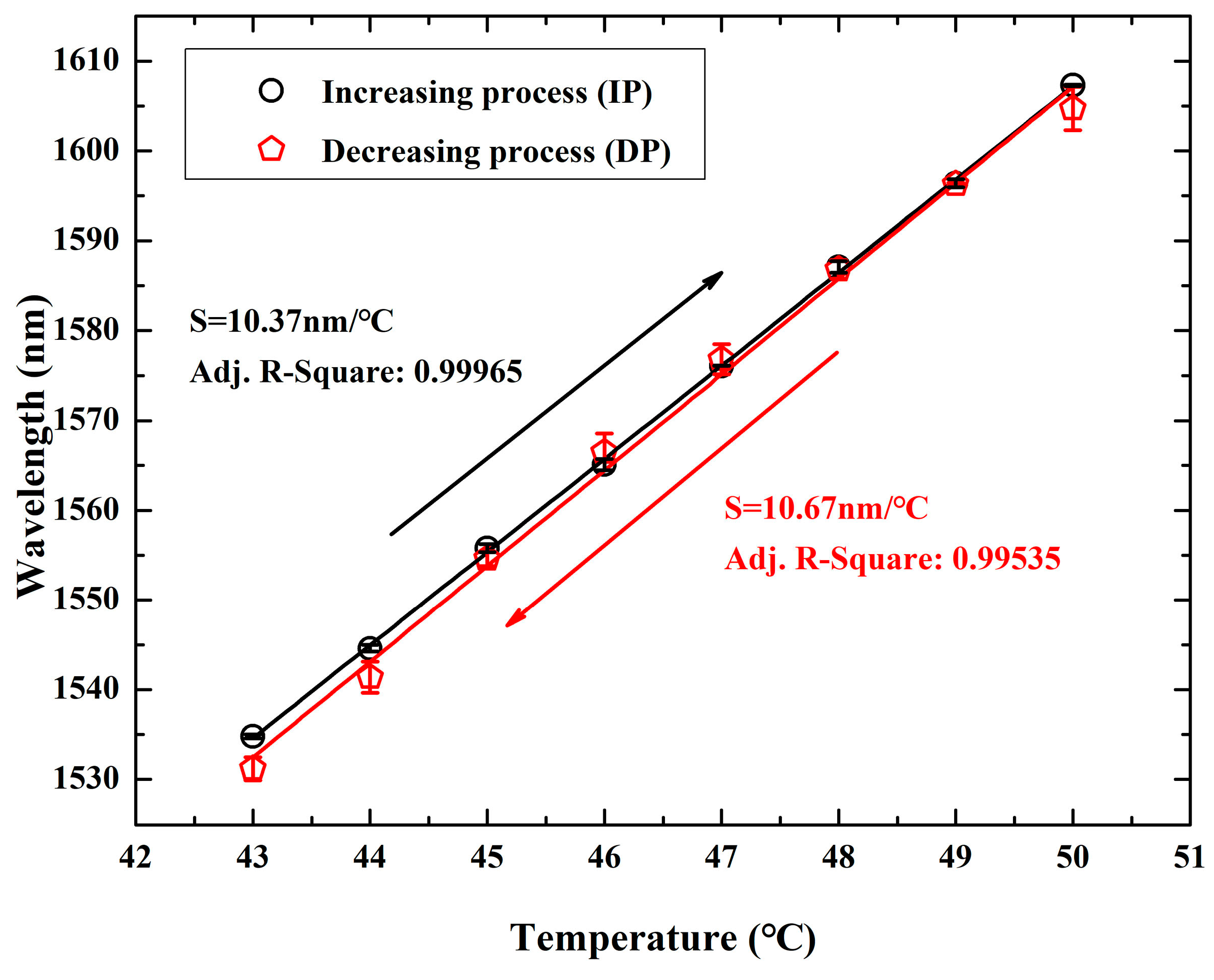

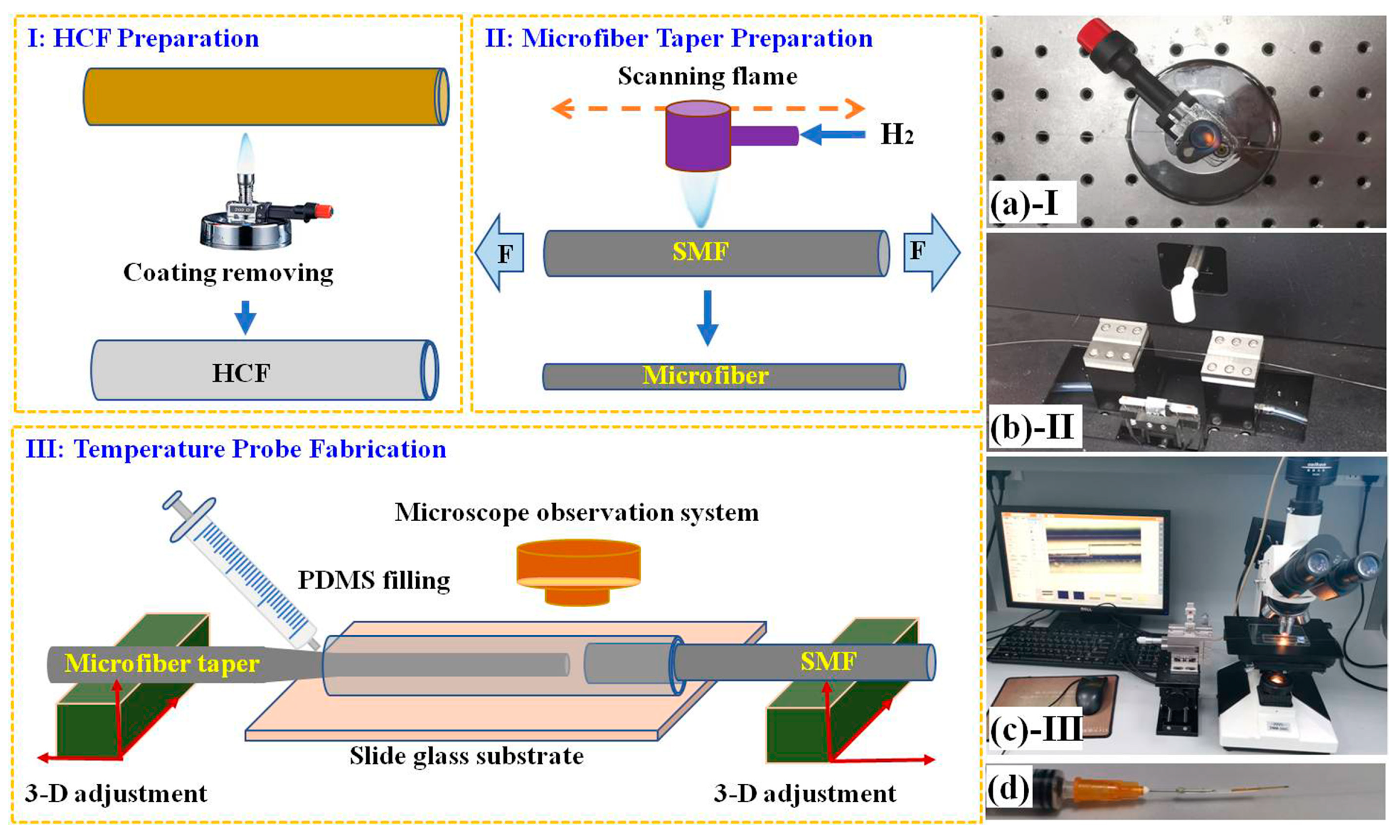

In this paper, a miniature Fabry-Perot temperature probe was designed by using polydimethylsiloxane (PDMS) to encapsulate a microfiber in one cut of hollow core fiber (HCF). The microfiber tip and a common single mode fiber (SMF) end were used as the two reflectors of the Fabry-Perot interferometer. The temperature sensing performance was experimentally demonstrated with a sensitivity of 11.86 nm/°C and an excellent linear fitting in the range of 43–50 °C. This high sensitivity depends on the large thermal-expansion coefficient of PDMS. This temperature sensor can operate no higher than 200 °C limiting by the physicochemical properties of PDMS. The low cost, fast fabrication process, compact structure and outstanding resolution of less than 10−4 °C enable it being as a promising candidate for exploring the temperature monitor or controller with ultra-high sensitivity and precision. View Full-Text
Keywords: fiber sensors; temperature sensors; Fabry-Perot interferometer; microfiber; PDMS; integrated optics fiber sensors; temperature sensors; Fabry-Perot interferometer; microfiber; PDMS; integrated optics
Figures

Figure 1
