New Approach to Analysis of Selected Measurement and Monitoring Systems Solutions in Ship Technology

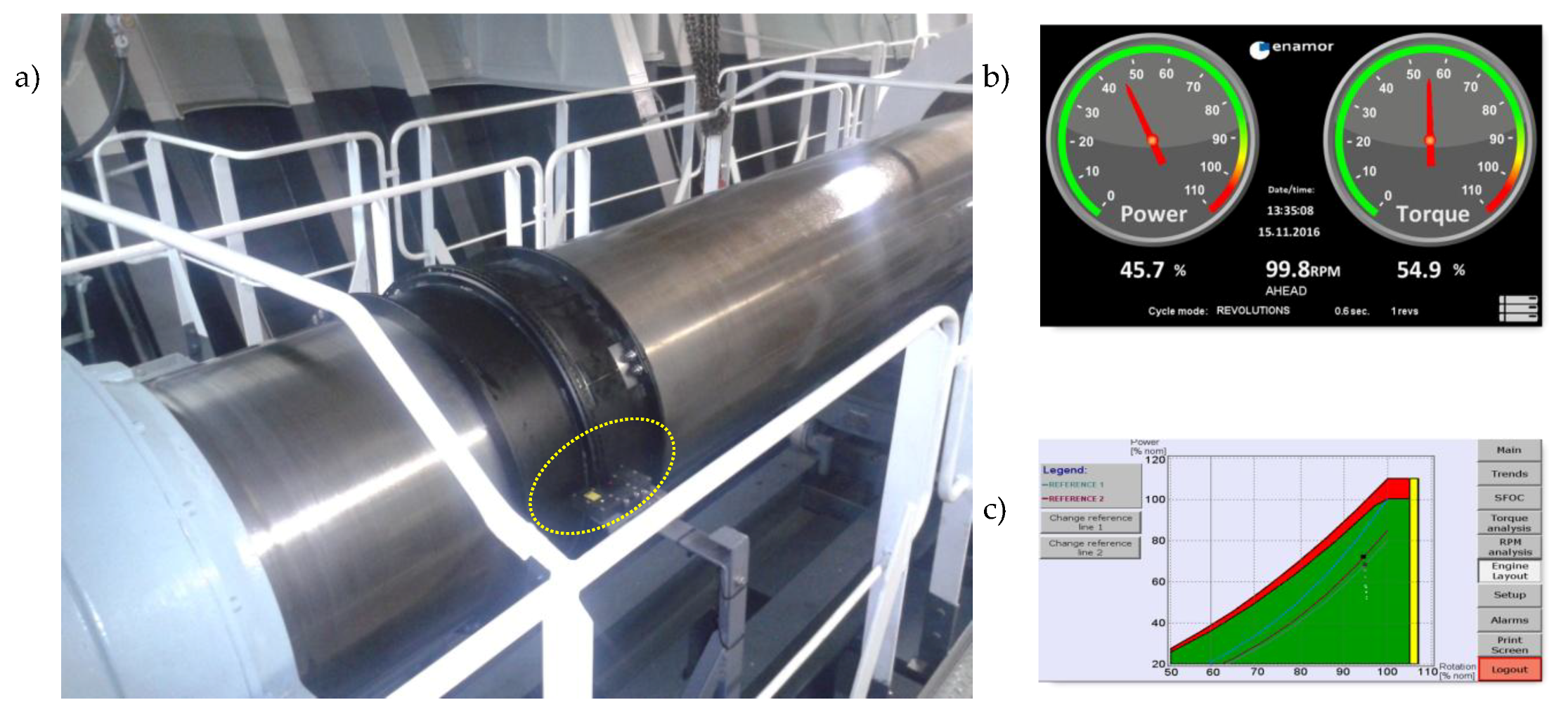

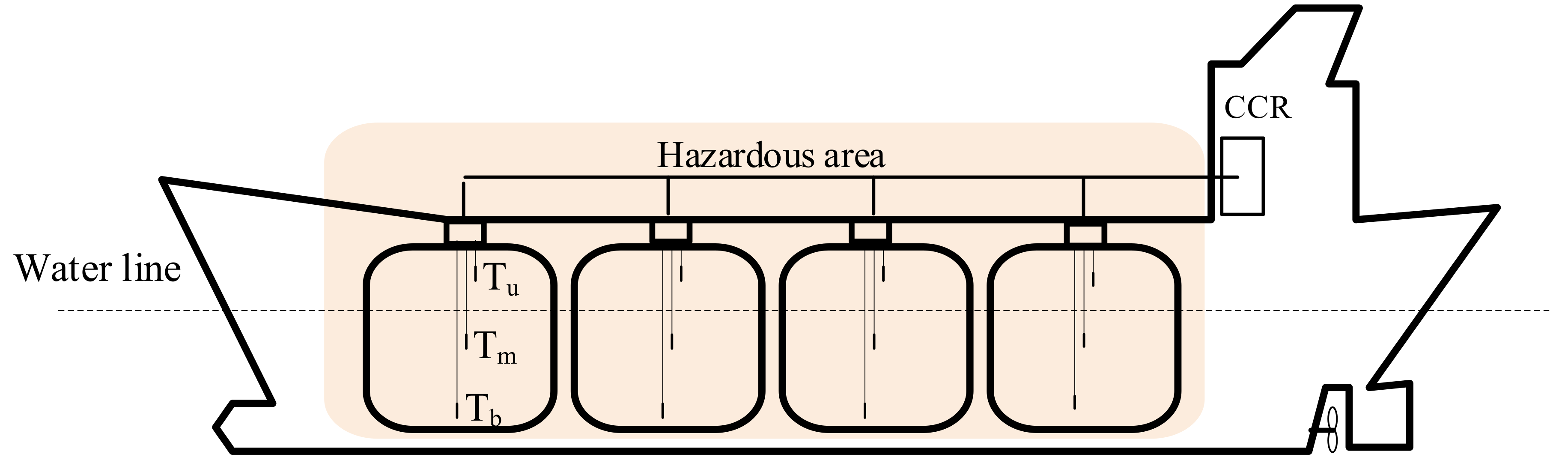

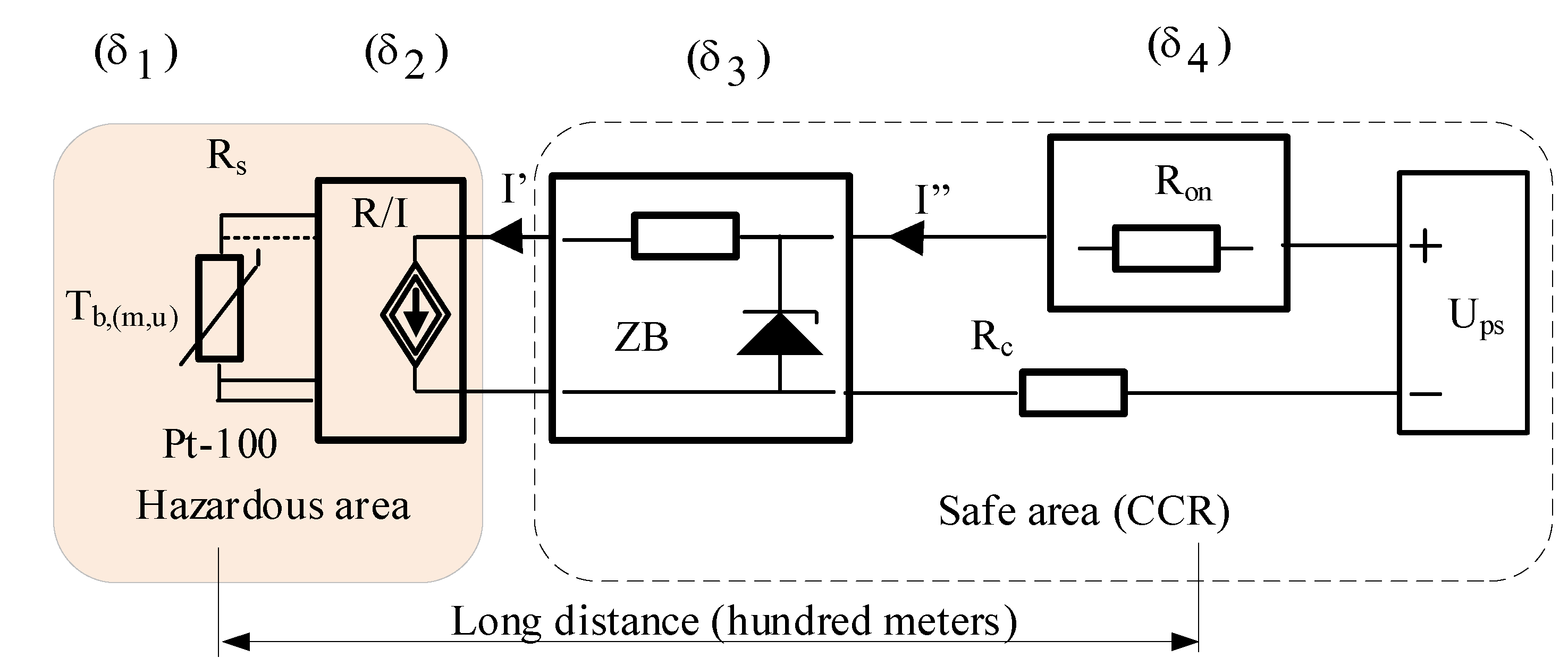

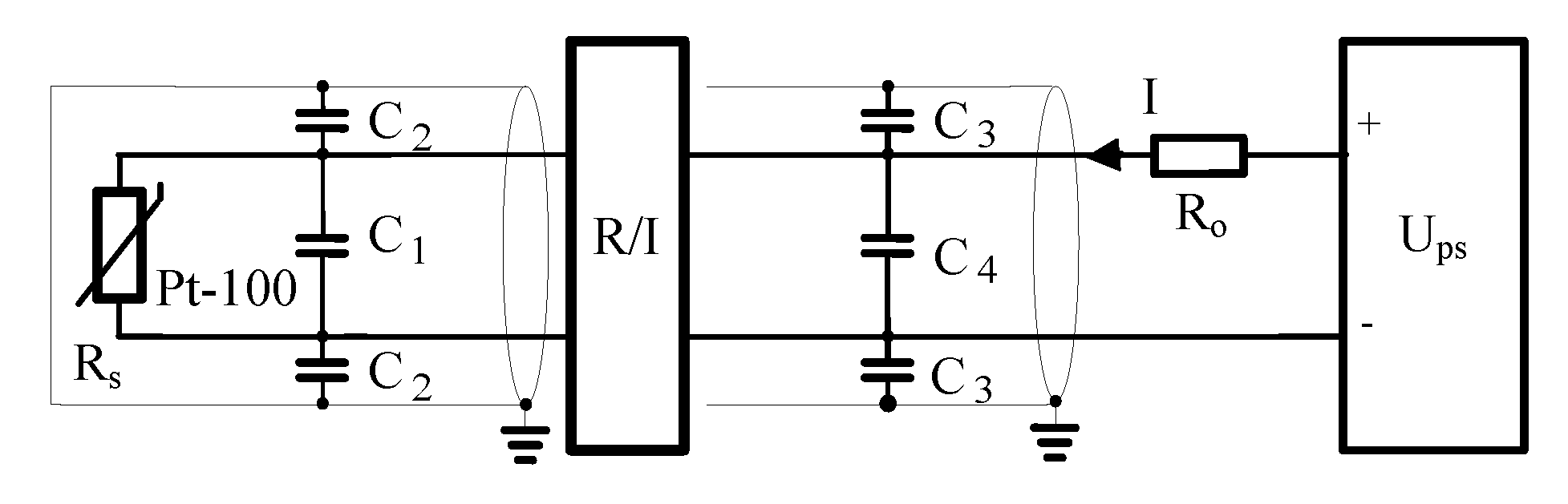

AbstractThis paper is dedicated to certain types of measurement in ship systems, analyzed based on selected case studies. In the introductory part, a simplified structure of a modern cargo ship as an object of measurement and control is presented. Next, the role of measurement in the ship’s operation process is described and commented on, with focus on specifics of local and remote control, both manual and automatic. The key part of the paper is dedicated to a short overview of selected examples of measuring and monitoring systems. The basic criteria for the aforementioned selection are the vital role of the considered systems for safe and effective ship operation as well as documented innovative contribution of Gdynia Maritime University (GMU) in development of the state-of-the-art in the analysed area of measurement. Based on these criteria, the monitoring of operational parameters of main engine and temperature measurement in the ships hazardous areas have been chosen. The aforementioned measurement and monitoring systems are analysed, taking into account both innovation of technical solutions together with their ship technology environment conditions and related legal requirements. Finally, some concluding remarks are formulated. View Full-Text
Share & Cite This Article
Dudojc, B.; Mindykowski, J. New Approach to Analysis of Selected Measurement and Monitoring Systems Solutions in Ship Technology. Sensors 2019, 19, 1775.
Dudojc B, Mindykowski J. New Approach to Analysis of Selected Measurement and Monitoring Systems Solutions in Ship Technology. Sensors. 2019; 19(8):1775.Chicago/Turabian Style
Dudojc, Boleslaw; Mindykowski, Janusz. 2019. "New Approach to Analysis of Selected Measurement and Monitoring Systems Solutions in Ship Technology." Sensors 19, no. 8: 1775.
