Development of a 3-PRR Precision Tracking System with Full Closed-Loop Measurement and Control
Previous Article in Journal
Small-Area Radiofrequency-Energy-Harvesting Integrated Circuits for Powering Wireless Sensor Networks
Article Menu

Export Article

Open AccessArticle
Sensors 2019, 19(8), 1755; https://doi.org/10.3390/s19081755

A Sensitivity-enhanced Fiber Grating Current Sensor Based on Giant Magnetostrictive Material for Large-Current Measurement

1
State Key Laboratory of Transmission & Distribution Equipment and Power System Safety and New Technology (Ministry of Education), School of Electrical Engineering, Chongqing University, Chongqing 400044, China
2
State Key Laboratory of Engineering Dielectrics and Their Applications, School of Electrical and Electronic Engineering, Harbin University of Science and Technology, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Received: 4 March 2019 / Revised: 9 April 2019 / Accepted: 10 April 2019 / Published: 12 April 2019
(This article belongs to the Section Physical Sensors)
  |
PDF [3347 KB, uploaded 12 April 2019]
  |

Abstract

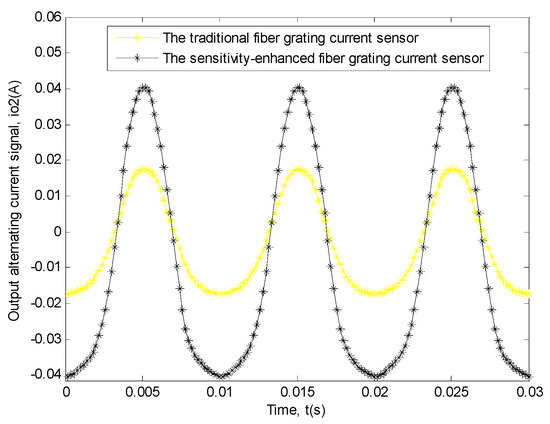

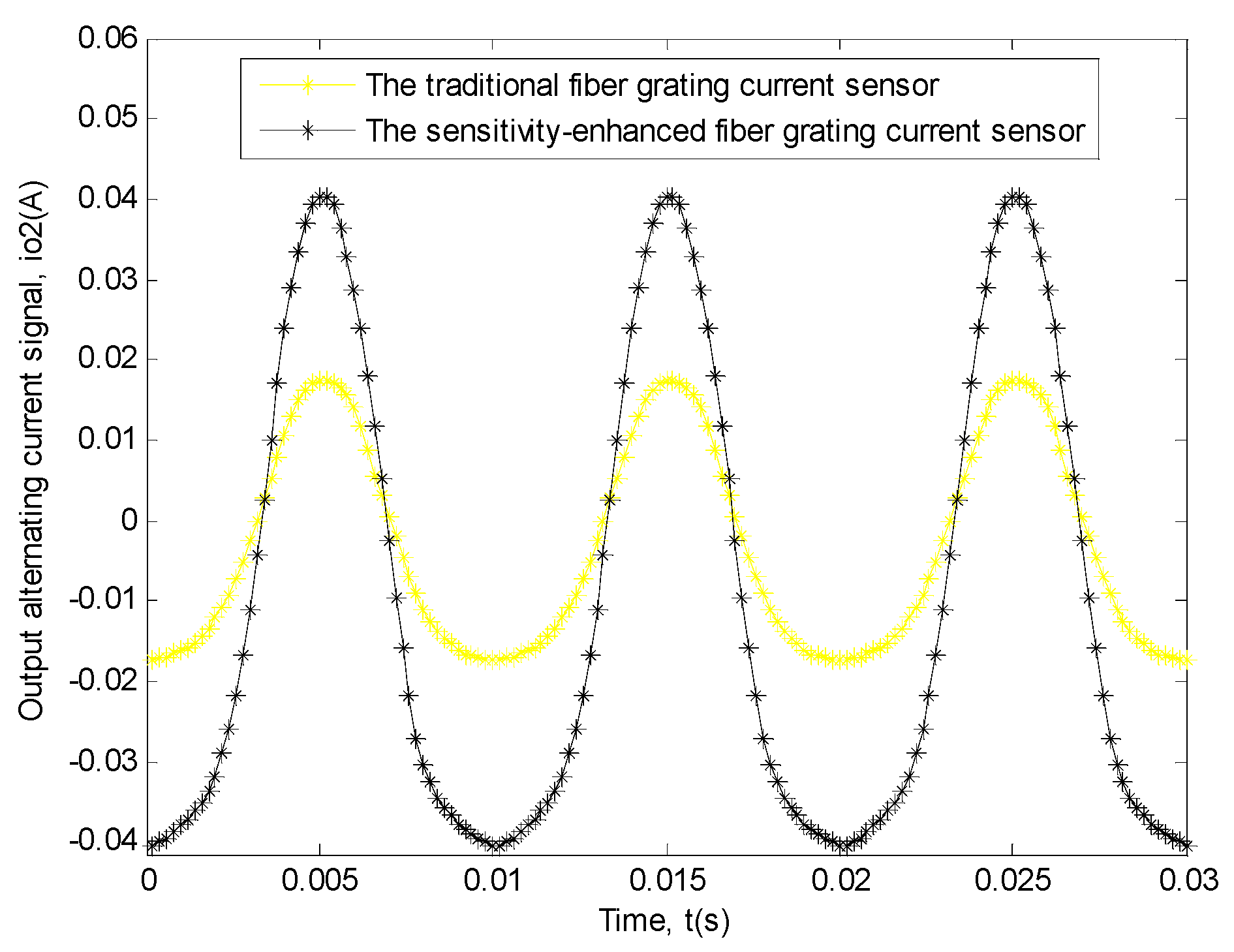

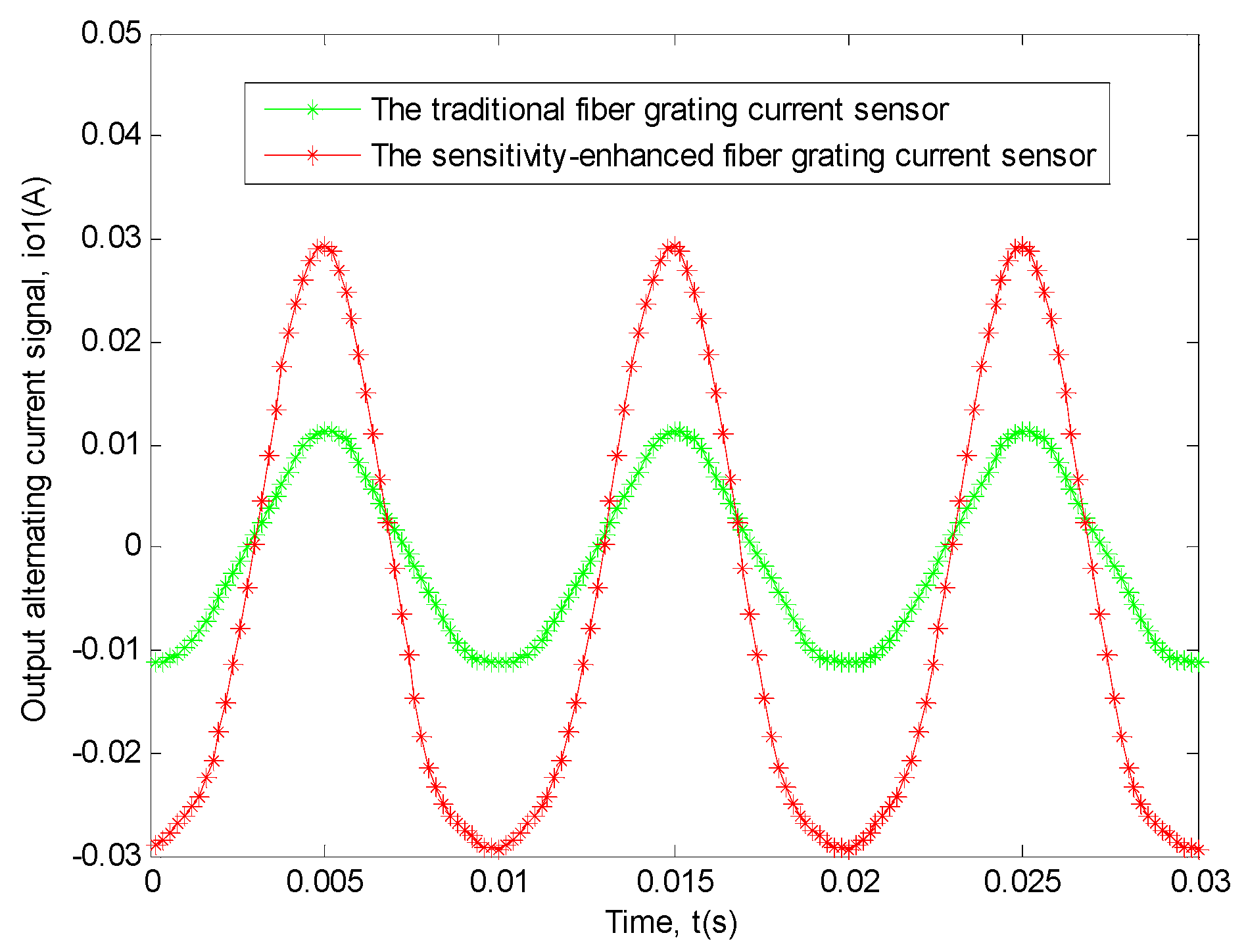

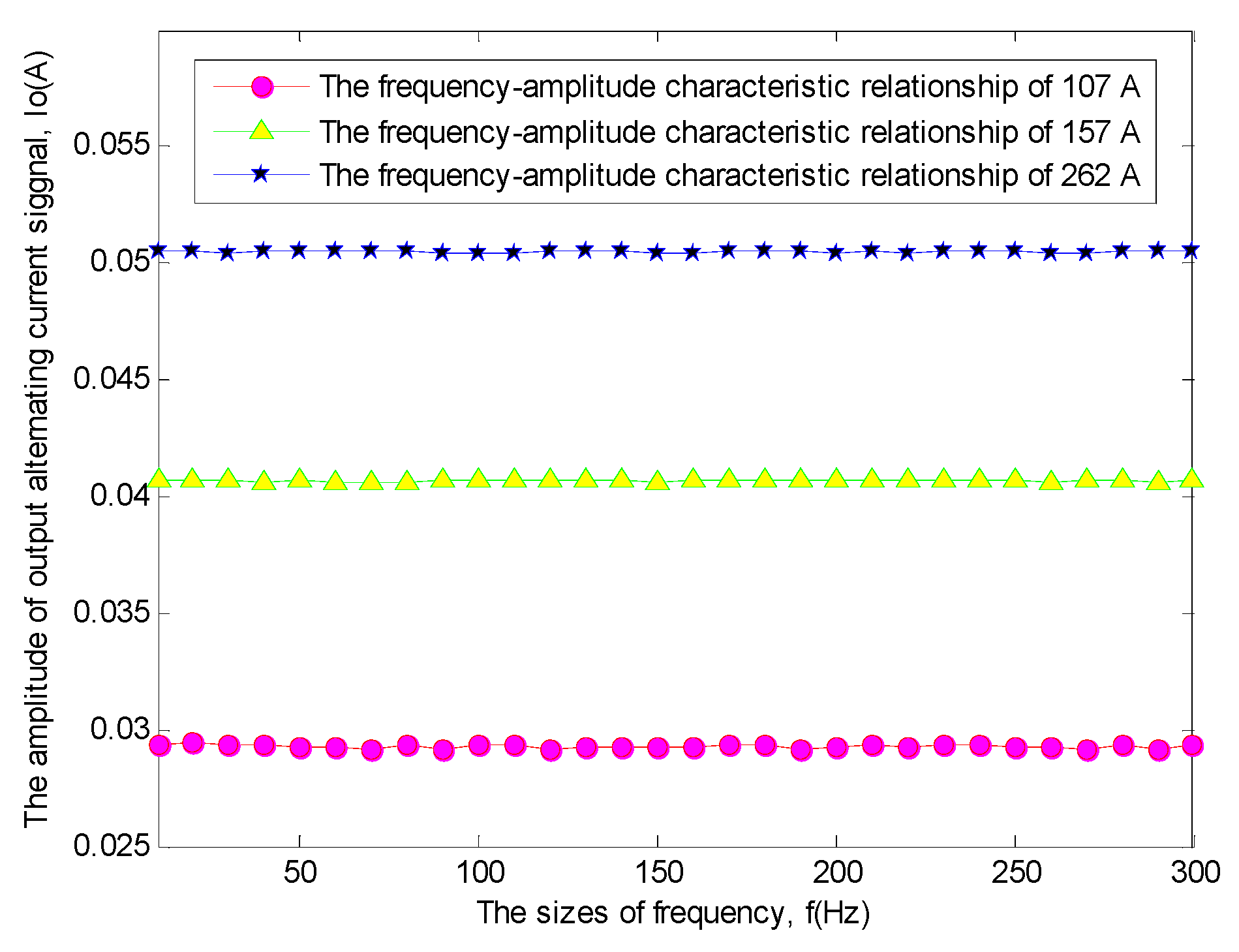

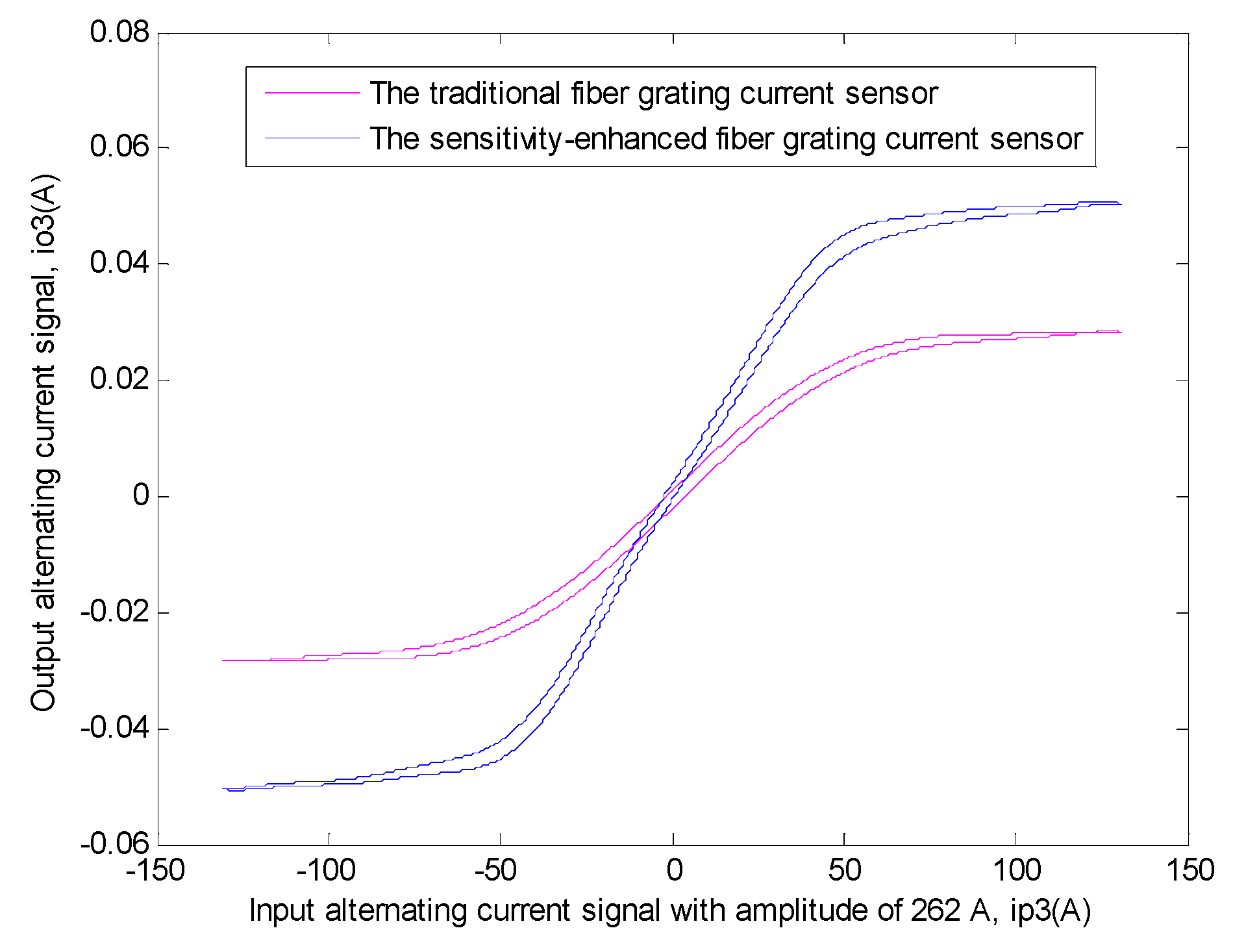

Currently, in the modern power industry, it is still a great challenge to achieve high sensitivity and uninterrupted-online measurement of large current on the high voltage gridlines. At present, the fiber grating current sensors based on giant magnetostrictive material used in the modern power industry to achieve uninterrupted-online measurement of large currents on high voltage grid lines is a better method, but the sensitivity of this current sensor is relatively low, therefore, it is key to improve the sensitivity of this current sensor. Here we show a sensitivity-enhanced fiber grating current sensor based on giant magnetostrictive material (in the following, simply referred to as the sensitivity-enhanced fiber grating current sensor) that is able to achieve high sensitivity and uninterrupted-online measurement of large currents by means of pressurizing the giant magnetostrictive material. Sampling the power frequency sinusoidal alternating current signals with the amplitudes of 107, 157 and 262 A respectively, based on realistic factors, for the sensitivity-enhanced current sensor, the sensitivities, compared with that of the traditional fiber grating current sensor based on giant magnetostrictive material (in the following, simply referred to as the traditional fiber grating current sensor), were respectively enhanced by 268.96%, 135.72% and 71.57%. Thus the sensitivity-enhanced fiber grating current sensor allows us to solve the issue of high sensitivity and uninterrupted-online measurement of large currents that have been plaguing the power industry in a very simple and low-cost way. View Full-Text
Keywords: current sensor; fiber grating; finite element analysis; pressurization characteristics current sensor; fiber grating; finite element analysis; pressurization characteristics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, S.; Wan, F.; Zhao, H.; Chen, W.; Zhang, W.; Zhou, Q. A Sensitivity-enhanced Fiber Grating Current Sensor Based on Giant Magnetostrictive Material for Large-Current Measurement. Sensors 2019, 19, 1755.
