Vibration-Based In-Situ Detection and Quantification of Delamination in Composite Plates

by
Hanfei Mei
1,*,
Asaad Migot
1,2,
Mohammad Faisal Haider
1,
Roshan Joseph
1,
Md Yeasin Bhuiyan
3 and
Victor Giurgiutiu
1
1
Department of Mechanical Engineering, University of South Carolina, 300 Main Street, Columbia, SC 29208, USA
2
Department of Mechanical Engineering, College of Engineering, Thi-Qar University, Nasiriyah 64001, Iraq
3
Collins Aerospace (A United Technologies Company), 100 Panton Rd, Vergennes, VT 05491, USA
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(7), 1734; https://doi.org/10.3390/s19071734
Submission received: 18 February 2019 / Revised: 1 April 2019 / Accepted: 8 April 2019 / Published: 11 April 2019
(This article belongs to the Special Issue Sensors and Sensing Networks Based on Smart Materials)
Browse Figures
Versions Notes

Abstract

:
This paper presents a new methodology for detecting and quantifying delamination in composite plates based on the high-frequency local vibration under the excitation of piezoelectric wafer active sensors. Finite-element-method-based numerical simulations and experimental measurements were performed to quantify the size, shape, and depth of the delaminations. Two composite plates with purpose-built delaminations of different sizes and depths were analyzed. In the experiments, ultrasonic C-scan was applied to visualize the simulated delaminations. In this methodology, piezoelectric wafer active sensors were used for the high-frequency excitation with a linear sine wave chirp from 1 to 500 kHz and a scanning laser Doppler vibrometer was used to measure the local vibration response of the composite plates. The local defect resonance frequencies of delaminations were determined from scanning laser Doppler vibrometer measurements and the corresponding operational vibration shapes were measured and utilized to quantify the delaminations. Harmonic analysis of local finite element model at the local defect resonance frequencies demonstrated that the strong vibrations only occurred in the delamination region. It is shown that the effect of delamination depth on the detectability of the delamination was more significant than the size of the delamination. The experimental and finite element modeling results demonstrate a good capability for the assessment of delamination with different sizes and depths in composite structures.

1. Introduction

Composite materials have been extensively used in aerospace structures due to their high specific strength and stiffness, resistance to corrosion, light weight, and design flexibility [1]. However, damage of composite materials are more critical than those in metallic materials. Various damage modes exist (e.g., delamination, fiber fracture, and matrix cracking) and their detection and characterization are rather difficult. Delamination is the most common and dangerous failure mode for composites, because it takes place and grows in the absence of any visible surface damage, making it difficult to detect by visual inspection [2,3,4]. Due to the general anisotropic behavior [5] and complex damage scenarios, the successful implementation of delamination detection in aerospace composite structures is always challenging.
Various non-destructive testing (NDT) techniques have been developed for delamination detection in composite structures, including thermography, X-ray, and ultrasound methods [6,7]. However, these conventional methods are often costly, labor-intensive, and depend heavily on the skill and experience of the operator. Structural health monitoring (SHM) technologies offer a promising alternative and involve the continuous monitoring of a structure using integrated sensors [8,9,10,11,12]. In recent decades, many SHM techniques have been developed for delamination detection, such as electromechanical impedance (EMI) [13,14], acoustic emission (AE) [15,16], and guided-wave-based methods [17,18,19,20,21,22,23,24,25,26,27,28].
Although numerous research work have been dedicated to the above-mentioned SHM methods, the focus of this paper is on a vibration-based method for delamination detection. The idea behind vibration-based damage detection is that damage causes a change in the local stiffness, mass, and structural damping, which results in recognizable changes in vibration characteristics such as natural frequencies, mode shapes, and modal damping. A comprehensive literature review on vibration-based damage detection methods was implemented in reference [29]. Various vibration-based delamination detection approaches have been developed in the literature by many authors [30,31,32,33,34,35]. Shang et al. [30] proposed a model-based method in the delamination detection of composite plates using modal testing and a subset selection technique. Klepka et al. [31] used the nonlinear vibro-acoustic responses of a composite plate for impact-induced delamination detection through a scanning laser Doppler vibrometer (SLDV) measurement. Ooijevaar et al. [32] used the modal curvature for delamination detection in composite skin-stiffener structures using SLDV measurement. Garcia et al. [33] investigated a delamination detection method based on a multivariate statistical procedure and the time domain structural vibration response. Delamination detection based on the wavelet packet transform of vibration responses using sparse sensing piezoelectric transducers was experimentally investigated by Gaudenzi et al. [34]. Recently, Yang and Oyadiji [35] numerically investigated the delamination detection in composite laminates using a modal frequency surface by attaching a point mass at different locations.
Vibration-based methods using mode shapes to detect damage require the accurate measurement of displacement responses. The scanning laser Doppler vibrometer has been widely used for vibration response measurements [30,31,32]. For the actuators, various methods of exciting the monitored structures can be found in the literature, such as shakers [36,37,38], hammers [39], and speakers [40]. Moreover, several researchers have explored the capability of piezoelectric wafer active sensors (PWAS) transducers for vibration-based delamination detection [30,41,42,43]. The main advantage of PWAS transducers over conventional ultrasonic probes is their low cost and light weight [17]. They can be permanently bonded on the host structures in large quantities and achieve the real-time monitoring of the structural health status. However, only low-frequency (modal) excitation using PWAS transducers has been conducted in the above-mentioned literature. To overcome this issue, the concept of local defect resonance, as first described by Solodov in [44], has recently gained considerable attention for the detection of delamination in composites [45,46,47,48,49,50]. High-frequency excitations were used to obtain a localized resonant activation of the defected zones [45]. The local defect resonance is the interaction of ultrasonic waves with the damaged region at a frequency that matches the local defect resonance, which results in a significant increase of the vibration amplitude only in the localized damaged region [46]. These studies facilitate the understanding of local vibration-based SHM applications.
In this paper, a new methodology is presented to detect and quantify the size, shape, and depth of delamination in composite structures based on the high-frequency local vibration under PWAS transducer excitation, as exemplified in Figure 1. In this method, a PWAS transducer is used for the high-frequency excitation through a linear sine wave chirp. Measured operational vibration shapes of the composite plate at the resonance frequencies of delaminations are extracted and utilized to detect and quantify the delamination. The effects of size and depth of delamination on the measured operational vibration shapes are investigated. First, ultrasonic C-scan is used to detect and visualize the purpose-built delaminations in two composite plates. Then, the local defect resonance frequency corresponding to the resonance frequency of delamination is determined using the SLDV measurements on a cross-ply composite plate with delaminations of various sizes and a unidirectional composite plate with delaminations of various depths. Next, multi-physics three-dimensional (3D) finite element (FE) modeling is used to find the operational vibration shapes at resonance frequencies. Finally, the measured operational vibration shapes extracted from the SLDV measurements are used to detect and quantify the delaminations in composite plates.

2. Composite Specimens

We manufactured two in-house composite plates with different delaminations and stacking sequences. In the present study, six cases of delaminations of different sizes and depths were investigated.

2.1. Cross-Ply Composite Plate

The first specimen was a 1.6 mm thick in-house cross-ply carbon fiber-reinforced polymer (CFRP) composite plate with a stacking sequence of [0/90]2s. Three simulated delaminations were generated by inserting Teflon films of different sizes between the first ply and second ply before curing in the autoclave. The sizes of simulated circular delaminations were 25, 50, and 75 in diameter, respectively. Figure 2 shows a schematic of the composite plate with simulated delaminations. The dimensions of the specimen were 700 mm × 700 mm × 1.6 mm. The material properties were measured experimentally using the ultrasonic immersion technique as described in [5], given in Table 1.

2.2. Unidirectional Composite Plate

The second specimen was a 5.5-mm-thick in-house unidirectional CFRP composite plate with a stacking sequence of [0]30. The configuration of the unidirectional composite plate is given in Figure 3. The dimensions of the specimen were 700 mm × 700 mm × 5.5 mm. The unidirectional prepreg was the same as the first specimen. This specimen had three simulated delaminations at different depths across the plate thickness, which were created by inserting three circular Teflon films of the same size (75 mm in diameter). Delamination A (near the top surface) was created between plies 7 and 8. Similarly, delamination B (near the mid-plane) was generated between plies 18 and 19, and delamination C (near the bottom surface) was made between plies 28 and 29, as shown in Figure 3.

3. Ultrasonic Non-Destructive Testing (NDT) of the Composite Specimens

In this section, ultrasonic non-destructive testing (NDT) was performed on the cross-ply and unidirectional composite plates. The purpose of the NDT was to detect and verify the simulated delaminations. The Olympus RollerFORM [51], a new phased array wheel probe, was used to inspect the specimen. In the experiment, a 3.5 MHz phased array probe was used to detect the delaminations. The coverage width of the probe was approximately 49 mm. Therefore, a large inspection area could be divided into several area scans. The width of each area scan was 49 mm. The experimental setup of the NDT detection on the composite plates is shown in the Figure 4. The water spray was the couplant facilitating the transmission of ultrasonic energy from the RollerFORM into the test specimen. The OmniScan collected and processed the received signals from the RollerFORM. It could create A-scan plot, B-scan, and C-scan images of the inspected area.

3.1. NDT Detection on the Cross-Ply Composite Plate

Two inspection areas were conducted on the cross-ply CFRP composite plate to cover all the three delaminations, as shown in Figure 5. The first inspection area (550 mm × 49 mm) had the pristine area and a 25 mm delamination area. It only required one area scan because its width was equal to the width of the phase array beam (49 mm). The second inspection area was 550 mm × 98 mm, covering the 50 mm delamination and the 75 mm delamination. This area was divided into two area scans.
Figure 6 shows the NDT results of the first inspection area, including the A-scan plot, B-scan image, and C-scan image. The C-scan image shows the presence of small circular delamination (25 mm in diameter). The location of the delamination across the thickness could be determined based on the color map. The section view of Zone I (25 mm delamination) shows that the delamination was close to the top surface. The vertical red lines in the A-scan plots represent the gate width that must cover the back-wall signals. The A-scan plot shows that the reflected signal of delamination had a strong amplitude, whereas the back-wall signal was very weak because the delamination blocked the phase array beam to hit the bottom surface of the plate. However, no strong reflected signal between the top and bottom surfaces could be observed from the section view of the pristine area (Zone II).
The NDT results of the second inspection area are shown in Figure 7. From the C-scan result, two delaminations of different sizes (50 mm and 75 mm in diameter) could be clearly observed. These delaminations had the same depths across the thickness because they had the same color map. The section views of Zone I and Zone II show the strong delamination effects, where the weak back-wall signals could be also observed.

3.2. NDT Detection on the Unidirectional Composite Plate

For the 5.5-mm-thick unidirectional [0]30 CFRP composite plate, two inspection areas of the same size (550 mm × 98 mm) were conducted. The first inspection area had delamination A (near the top surface) and delamination B (near the mid-plane), while the second inspection area only included the delamination C (near the bottom surface). The NDT results of the first inspection area are shown in Figure 8. From the C-scan image, two circular delaminations of the same size with different color maps can be observed, which means that they had different depths. The B-scan image of the top and middle delaminations indicates the depths across the plate thickness. The A-scan plot shows that the reflected signals of the delaminations had a strong amplitude while the back-wall signal was weak because it was under the delamination.
The NDT results of the second inspection area on the unidirectional [0]30 CFRP composite plate are shown in Figure 9. The C-scan image shows that the circular delamination C had a light blue color map, which means that the delamination was close to the bottom surface. The section view of Zone I demonstrates that the delamination C was close to the bottom surface. Therefore, the sizes and depths of these delaminations could be quantified from the NDT detection, which is consistent with the design.

4. Scanning Laser Doppler Vibrometer (SLDV) Measurements on the Composite Specimens

4.1. SLDV Measurement on the Cross-Ply Composite Plate

In this experiment, scanning laser Doppler vibrometer measurement was implemented to study the local vibration of four areas (one pristine and three damaged areas), as shown in Figure 10. The size of each scanning area was 110 mm × 125 mm. At the center of each inspection area, a circular PWAS transducer (APC 850, 7 mm diameter and 0.2 mm thick) was bonded on the bottom surface as the excitation source.
A function generator was used to generate a linear sine wave chirp from 1 to 500 kHz, with a duration of 1 ms. This chirp excitation signal was amplified to 140 Vpp by the power amplifier and applied to the PWAS transducers for the high-frequency excitation. The wavefield data were recorded by a Polytec PSV-400-M2 scanning laser Doppler vibrometer (SLDV) on the top surface of the plate. To avoid aliasing, a high sampling rate of 50 MHz was used to collect the response signals, which is 100 times the highest frequency (500 kHz) in the response signal. The out-of-plane velocity and the local vibration of the specimen were measured and visualized by the SLDV. Reflective tapes were used to improve the signal quality on the scanning area. To ensure the accuracy of the experimental results, multiple trials were conducted before recording the final data. The response signals were insensitive to experiments performed on different days and good repeatability of experimental data was achieved by comparing the response signals of different days at the same measurement point.
A fast Fourier transform (FFT) of the response signals was performed to determine the local defect resonance frequencies. The zero-padding response signal in the FFT analysis was used to reduce the leakage phenomenon. Figure 11 shows the frequency spectrum of measured response signals at the center point of the four scanning areas. Figure 11a shows the FFT result of the pristine area. Figure 11b–d show the FFT results of the response signals at the center point of the 25, 50, and 75 mm delaminations, respectively. The delamination significantly modified the frequency response compared with the results of the pristine area.
The local defect resonance frequencies could be obtained by peak picking from the delaminations’ FFT results. More specifically, some resonance peaks in the frequency range from 80 to 350 kHz were found for the 25 mm delamination. However, the resonance peaks of the 50 mm and 75 mm delaminations were below 100 kHz. The delamination size had a significant effect on the local defect resonance frequency. These resonance frequencies of the different delamination sizes are summarized in Table 2. The measured operational vibration shapes at these local defect resonance frequencies were extracted from the SLDV area measurement, which is used to quantify the delaminations of different sizes in Section 6.

4.2. SLDV Measurement on the Unidirectional Composite Plate

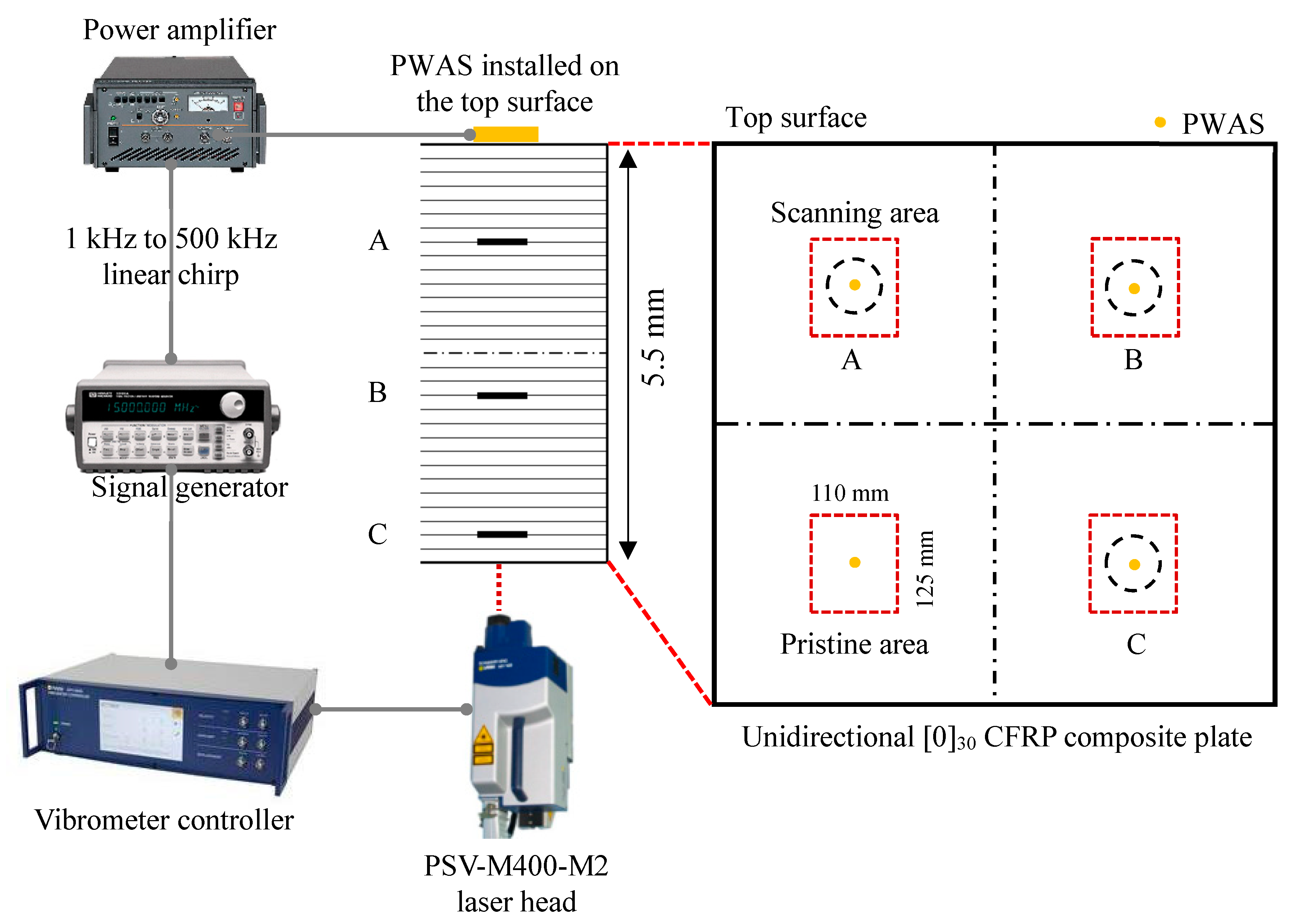

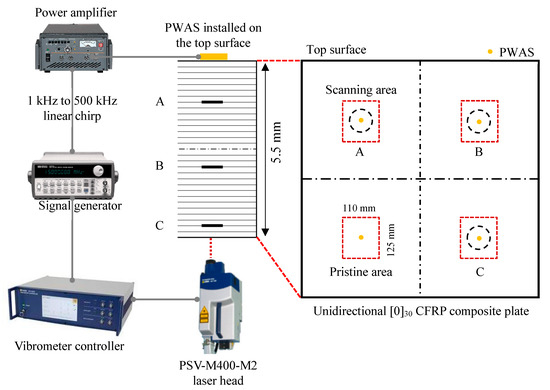

The experimental setup of the SLDV measurements on the unidirectional [0]30 CFRP composite plate was similar to the first specimen in Section 4.1. Four areas (one pristine and three damaged areas) were inspected to investigate the local vibration, as shown in Figure 12. The size of each scanning area was 110 mm × 125 mm. In this experiment, at the center of each inspection area, a circular PWAS transducer (APC 850, 7 mm diameter and 0.2 mm thick) was bonded on the top surface as the excitation source. The same linear sine wave chirp from 1 to 500 kHz was applied to the PWAS transducers for the high-frequency excitation. The wavefield data were recorded by the SLDV on the bottom surface of the plate.

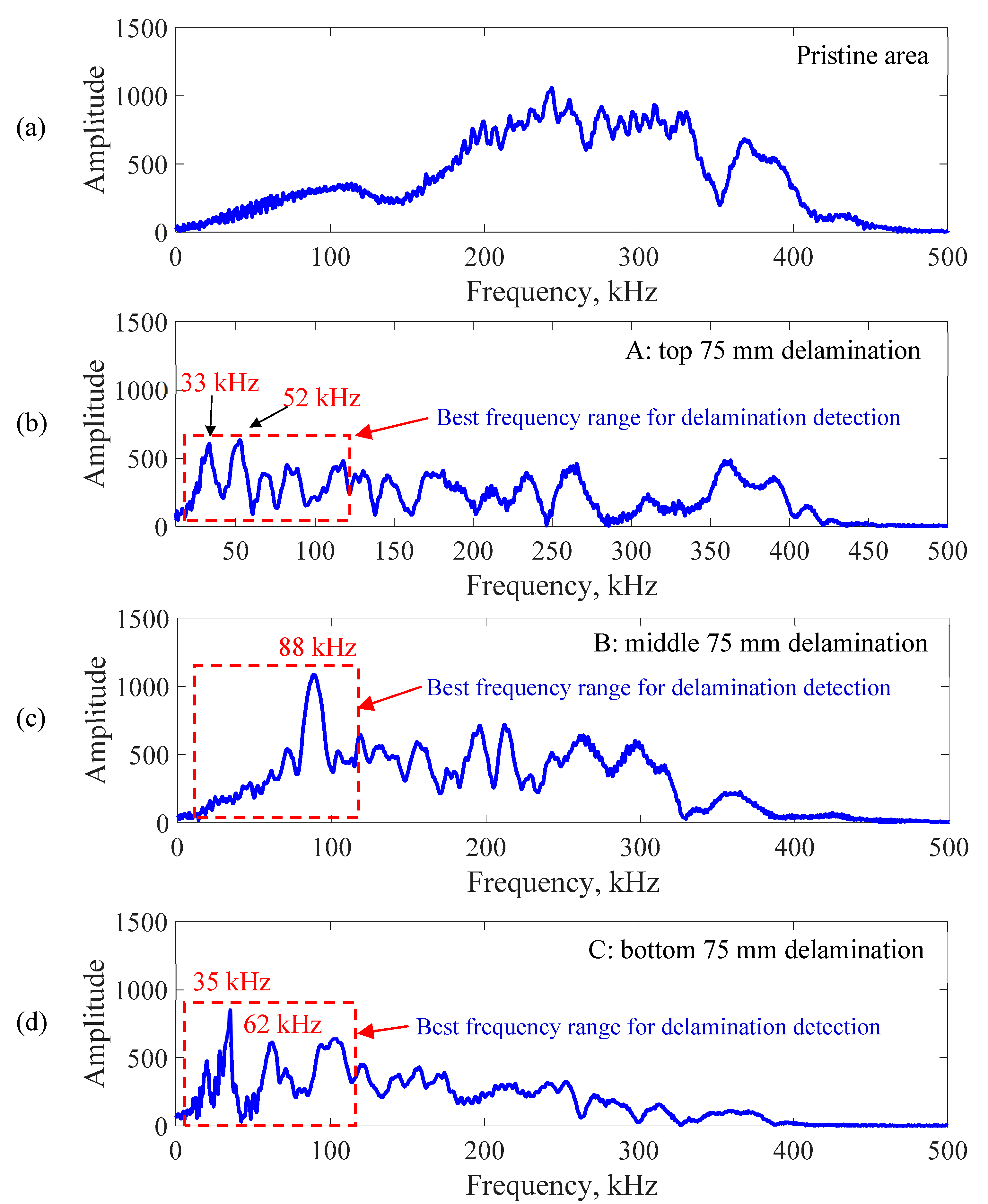

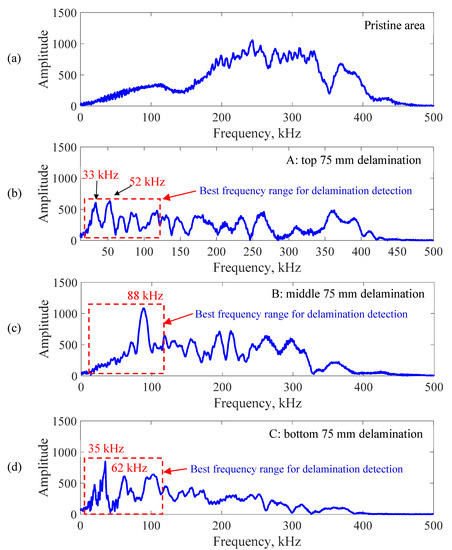

A fast Fourier transform (FFT) of the response signals was performed to find the local defect resonance frequencies of the delaminations at different depths. Figure 13 shows the frequency spectrum of measured response signals at the center point of the four scanning areas. Figure 13a shows the FFT of the response signal for the pristine area. Figure 13b–d show the FFT results of the response signals at the center point of the top, middle, and bottom 75 mm delaminations, respectively. The delaminations at various depths strongly changed the frequency response compared with the result of the pristine area. The local defect resonance frequencies could be obtained by peak picking from the FFT results. The resonance frequencies of the delaminations at different depths are given in Table 3. The corresponding measured operational vibration shapes at these local defect resonance frequencies are extracted from the SLDV area measurement for the quantification of the delaminations at different depths in Section 6.

5. Multi-Physics Finite Element Modeling

In this section, the multi-physics finite element (FE) modeling of the two composite plates was conducted to extract the measured operational vibration shapes of the local vibration.

5.1. Finite Element Model for the Cross-Ply Composite Plate

Three-dimensional (3D) finite element models were utilized to simulate the 1.6-mm-thick eight-ply [0/90]2s CFRP composite plate with delaminations of different sizes. Four different local FE models were implemented to simulate the local vibrations of the pristine area: 25 mm, 50 mm, and 75 mm delaminations, respectively. The dimensions of each FE model were 200 mm × 200 mm × 1.6 mm. Non-reflective boundary (NRB) developed by Shen and Giurgiutiu [52] can eliminate boundary reflections, and thus allow for the simulation in an infinite medium with small-size models. This NRB was implemented around the FE models to calculate the steady-state response under PWAS transducer excitation with sinusoidal waves. This analysis can be performed for any specific frequency of interest.

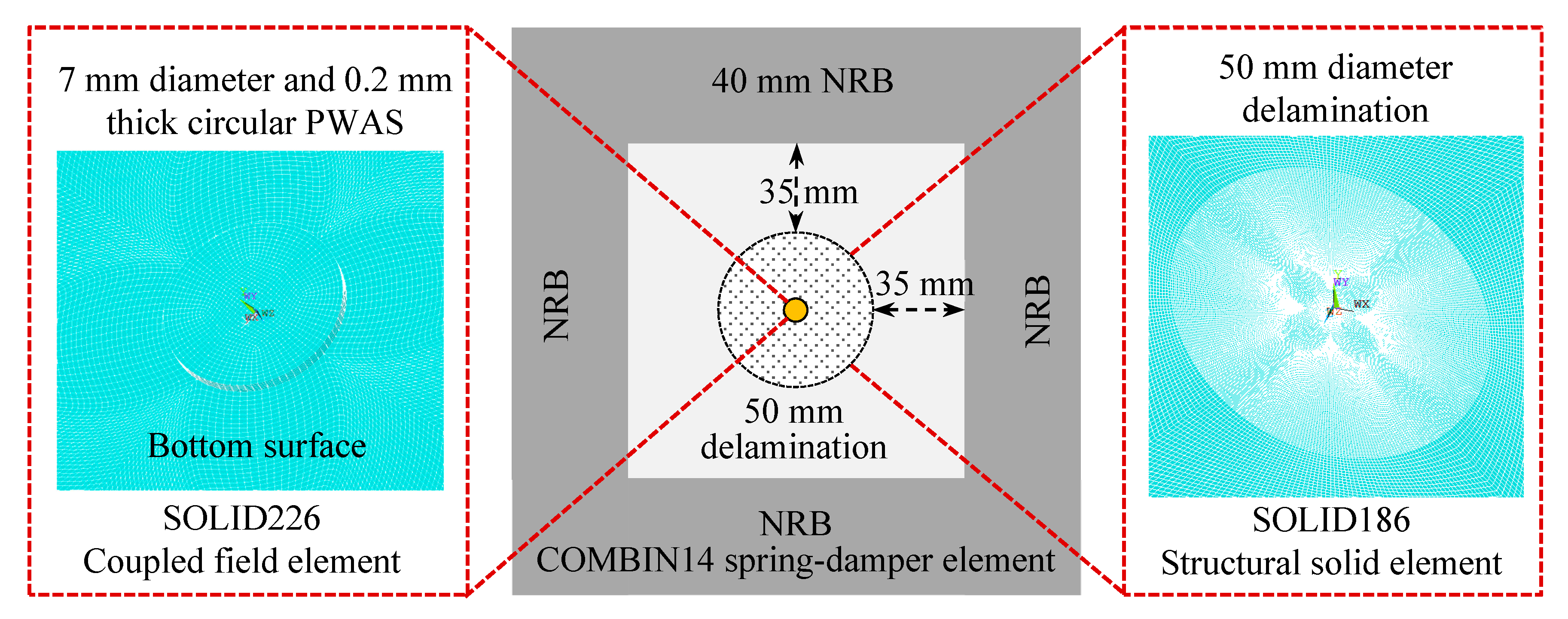

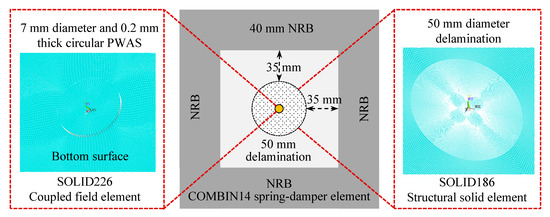

Figure 14 shows the FE model of the cross-ply composite plate with 50 mm delamination as a representative. The delamination was created between plies 1 and 2 by specifying the delamination as two planes, defined by the same coordinates but not tied together. The PWAS transducer was modeled with coupled field hexahedral elements (SOLID226) in the commercial finite element package ANSYS 17.0, which couple the electrical and mechanical variables. 3D structural solid hexahedral elements (SOLID186) with quadratic shape function interpolation were used to mesh the composite plate. COMBIN14 spring-damper elements were used to construct the 40-mm NRB around the model. A Rayleigh damping (β = 3 × 10−8) was considered to simulate the damping effect of the composite material. The damping value was determined by iterative calibration to match the experimentally measured attenuation coefficient. A comparable value was used in References [53,54]. The stiffness proportional damping coefficient β introduces damping proportional to the strain rate, which can be thought of as damping associated with the material itself. The material properties of the composite plate are given in Table 1. The APC-850 material properties were assigned to the PWAS transducer as described in Gresil and Giurgiutiu [53].
[ C p ] = [ 97 49 44 0 0 0 49 97 44 0 0 0 44 44 84 0 0 0 0 0 0 22 0 0 0 0 0 0 22 0 0 0 0 0 0 24 ] G P a ,
[ ε p ] = [ 947 0 0 0 947 0 0 0 605 ] × 10 − 8 F / m ,
[ e p ] = [ 0 0 0 0 12.84 0 0 0 0 12.84 0 0 − 8.02 − 8.02 18.31 0 0 0 ] C / m 2 ,
where [ C p ] is the stiffness matrix, [ ε p ] is the dielectric matrix, and [ep] is the piezoelectric matrix. The density of the PWAS material was 7600 kg/m3.
The maximum acceptable element size to ensure convergence is λmin/le ≥ 20 [55], where λmin is the minimum wavelength and le is the element size. In this study, the A0 mode had the minimum wavelength, which was around 10 mm. Therefore, the mesh size adopted was 0.5 mm for the in-plane direction and 0.2 mm for the thickness direction. The PWAS transducer and delamination regions were meshed with even smaller elements to guarantee that more than 30 elements existed per wavelength, which is substantially more than the minimum requirement of 20 elements. A total of 582,640 elements were used in this local FE model.

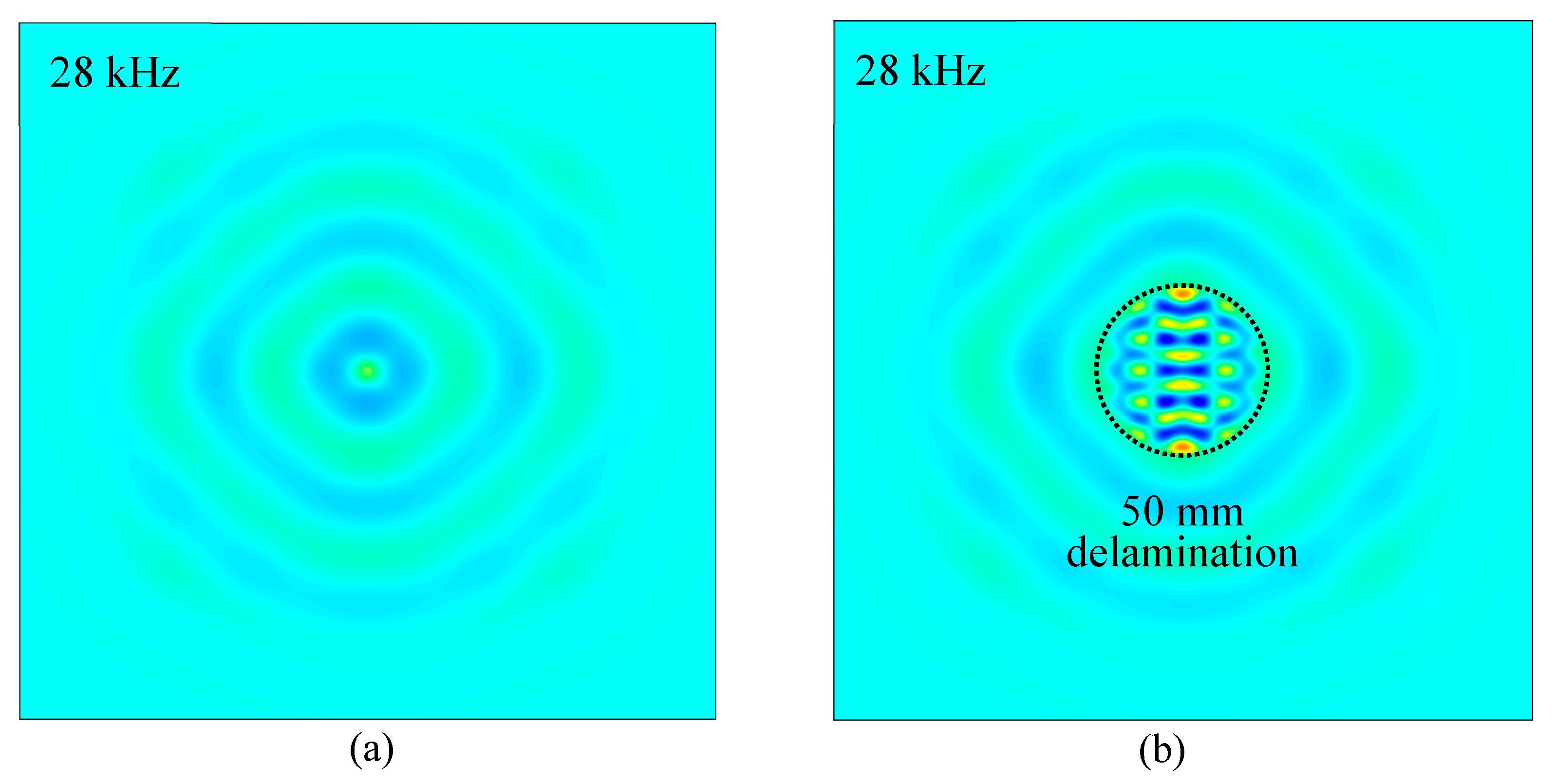

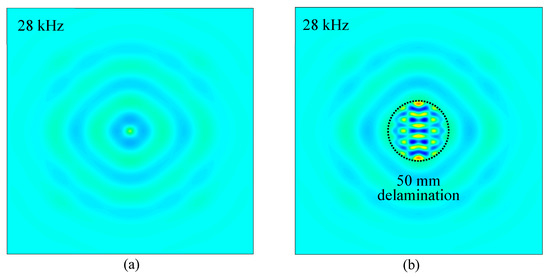

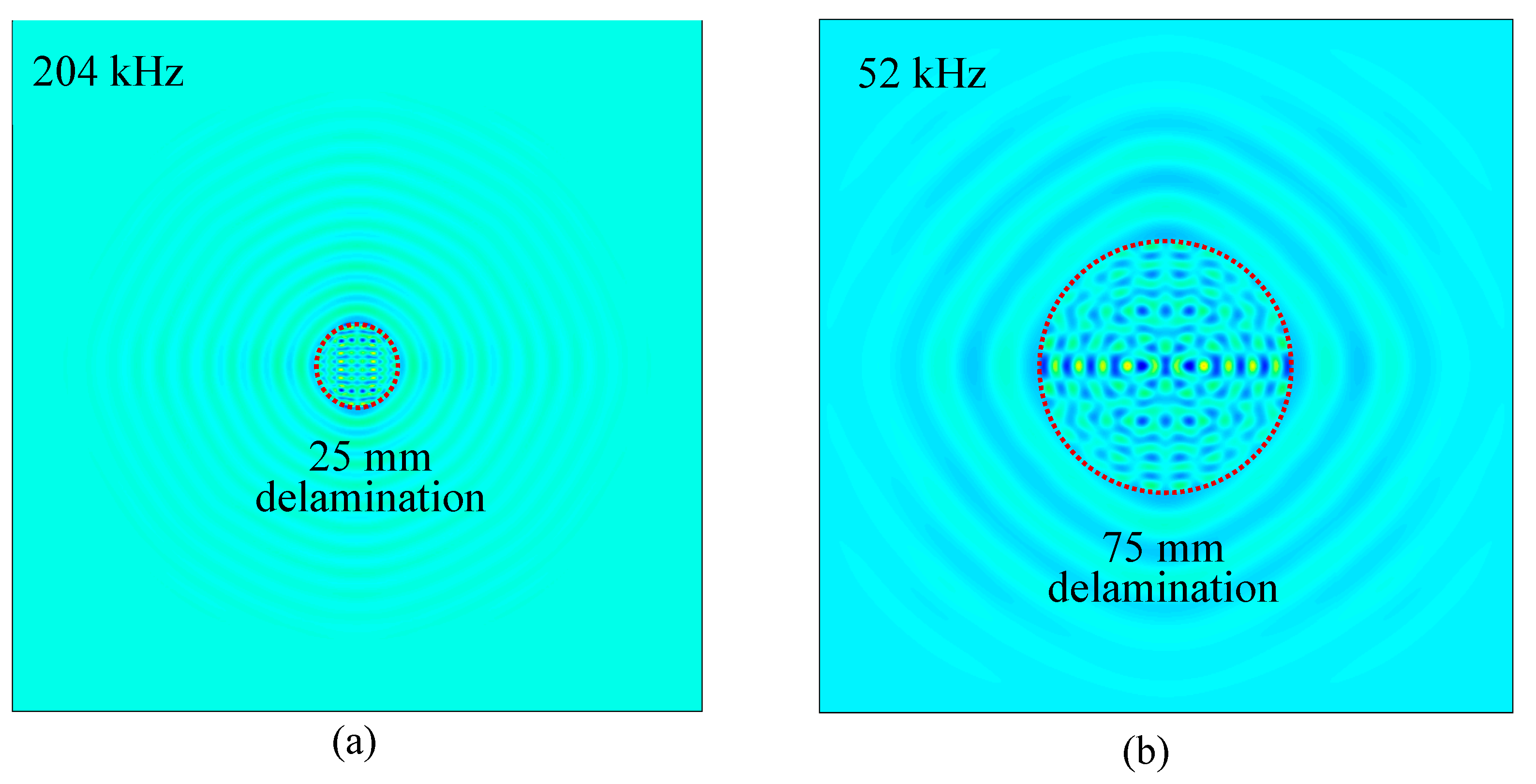

The measured operational vibration shapes at the local defect resonance frequencies obtained in Section 4.1 were extracted from the FEM harmonic analysis. Figure 15 shows the comparison of out-of-plane measured operational vibration shape between the pristine area and 50 mm delamination at the resonance frequency of 28 kHz. A strong local vibration only in the delamination region under the PWAS transducer excitation could be clearly observed. The shape and size of the delamination could be determined from the measured operational vibration shape. Similarly, the FEM-measured operational vibration shapes of 25 mm and 75 mm delaminations at the corresponding resonance frequencies are given in Figure 16. Clear local vibration shapes indicating the shape and size of the delamination were noted. Therefore, the measured operational vibration shapes could be used to quantify the shape and size of the delaminations.

5.2. Finite Element Model for the Unidirectional Composite Plate

In this section, 3D finite element models were utilized to simulate the 5.5-mm-thick thirty-ply [0]30 CFRP composite plate with delaminations at various depths. Four different local FE models were conducted to simulate the local vibrations of the pristine area and top, middle, and bottom delaminations, respectively. The dimensions of the FE models were 200 mm × 200 mm × 5.5 mm. A NRB was implemented around the FE models to analyze harmonic responses under PWAS transducer excitation with sinusoidal waves. The material properties of the PWAS transducer were the same as in Section 5.1.

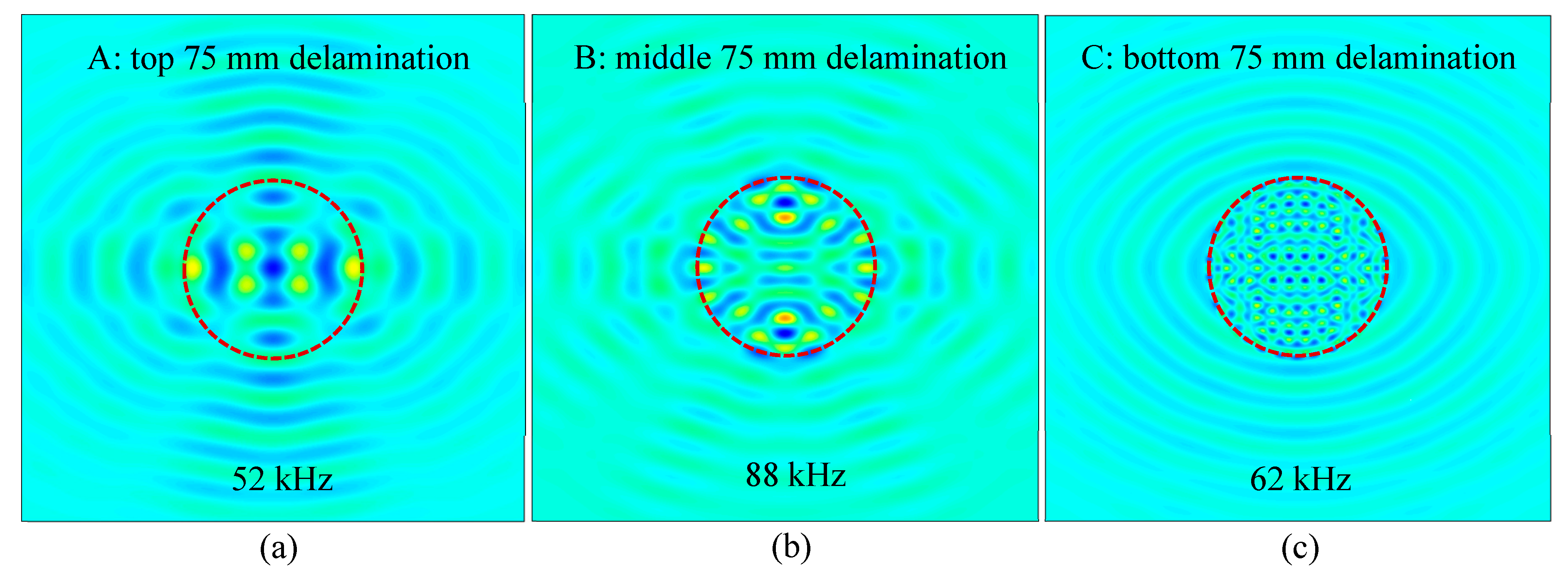

Figure 17 shows the measured operational vibration shapes of delaminations at different depths in the unidirectional CFRP composite plate. In this FEM simulation the PWAS transducer was installed on the top surface to be consistent with the experimental setup in Section 4.2. The measured operational vibration shapes at different resonance frequencies were extracted at the bottom surface. A denser vibration pattern was observed when the delamination was close to the bottom surface, as shown in Figure 17. The depth of the delamination had a significant effect on pattern of the measured operational vibration shapes.

6. Vibration-Based Delamination Detection of Composite Plates

Previous studies have confirmed the multiple reflections within the delamination area under the PWAS transducer excitation and that a considerable amount of ultrasonic energy is trapped in the delaminated region to generate a strong local vibration [46]. Therefore, the delamination can be quantified by analyzing the measured operational vibration shape of the local vibration. The measured operational vibration shapes could be visualized at the resonance frequencies from the SLDV area scanning data in Section 4. First, fast Fourier transform (FFT) of all the response signals obtained in the SLDV measurements was implemented. Then, the measured operational vibration shape was generated using the FFT amplitudes at a certain resonance frequency of all the measurement points.

6.1. Delamination Detection on the Cross-Ply Composite Plate

In this section, the effect of delamination size on the measured operational vibration shape of the local vibration was investigated. The Fourier transform of all the response signals was implemented and the measured operational vibration shape was visualized using the FFT amplitudes of a certain frequency at all the measurement points. Figure 18 shows the comparison of measured operational vibration shapes between the pristine area and 25 mm delamination at the resonance frequency of 204 kHz. There was no clear local vibration on the pristine area, whereas a strong local vibration in a small area was observed for the 25 mm delamination. This is because a considerable amount of ultrasonic energy was trapped in the delaminated area. In addition, the measured operational vibration shape can indicate the size and shape of the delamination. Therefore, the shape and size of the delamination could be easily determined.

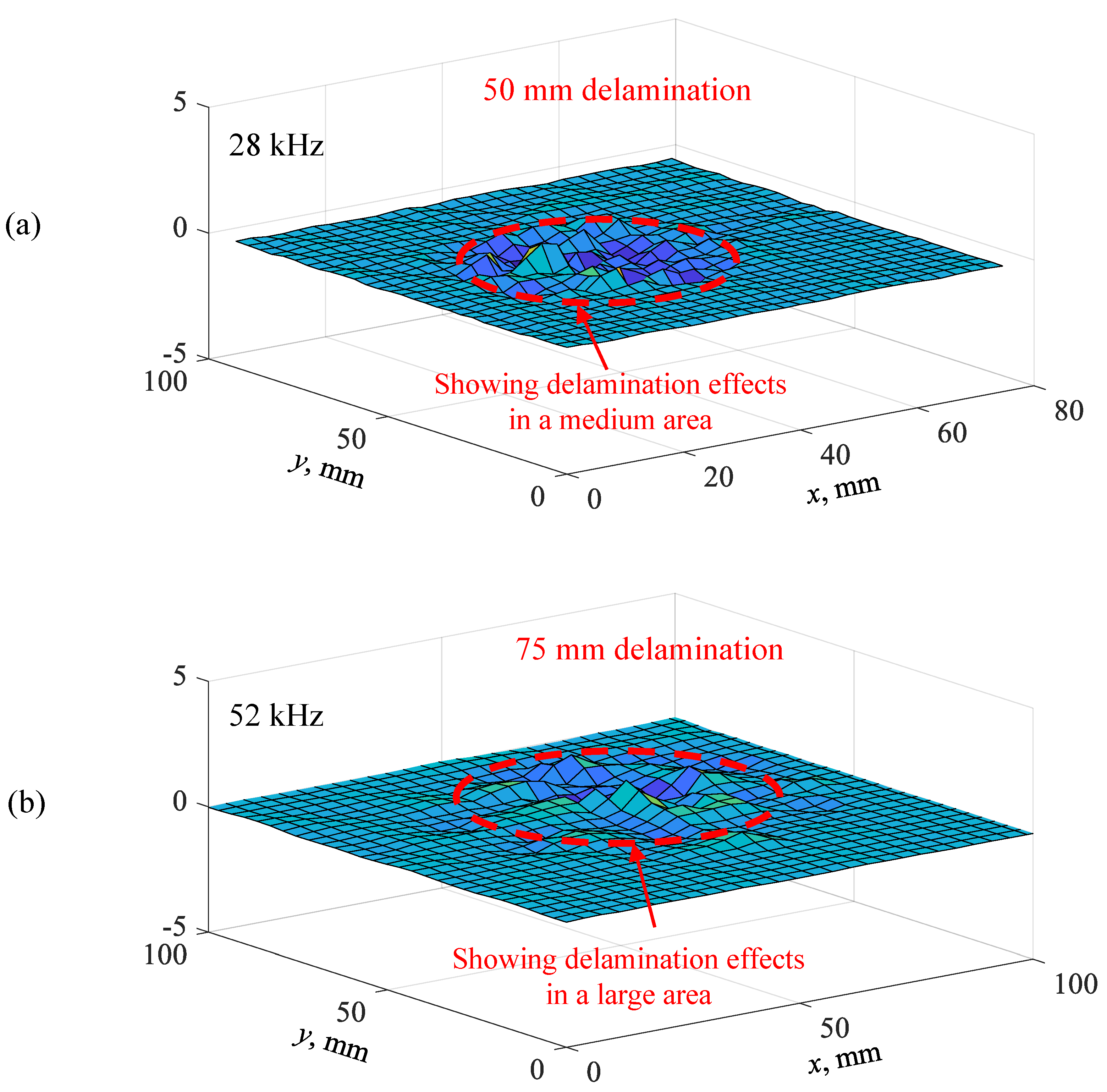

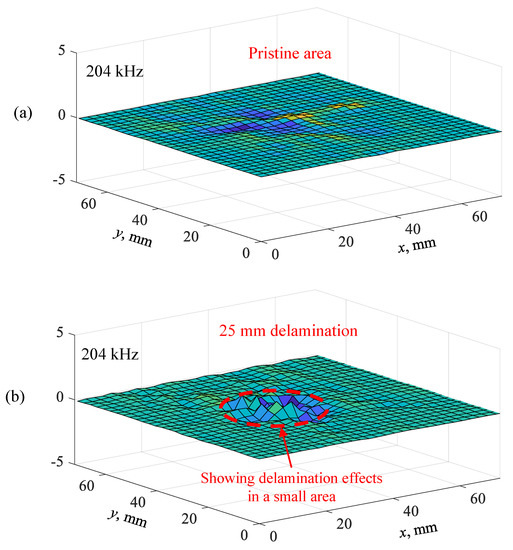

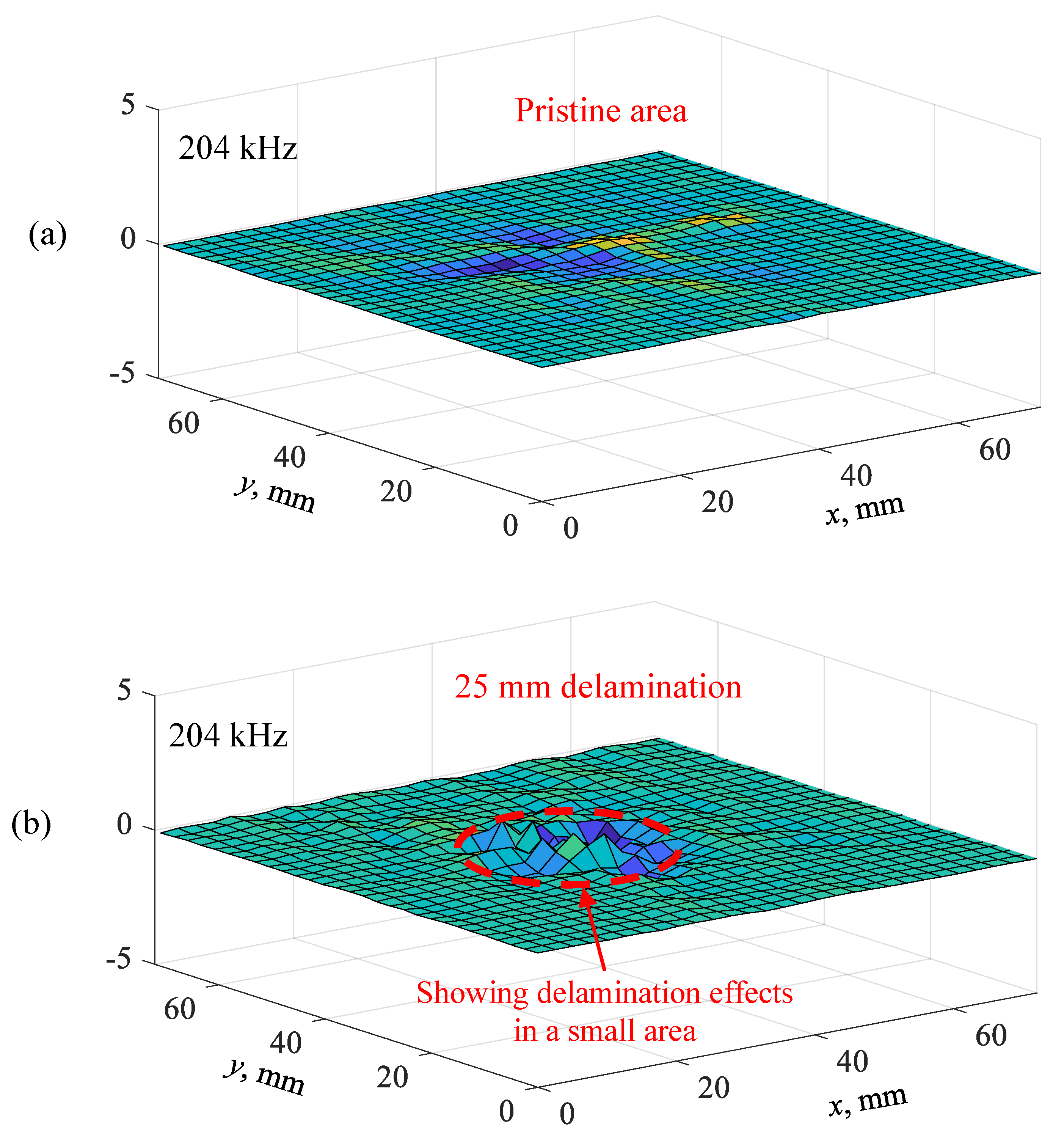

Figure 19a,b show the measured operational vibration shapes of the 50 mm delamination at 28 kHz resonance frequency and the 75 mm delamination at 52 kHz resonance frequency, respectively. Clear local vibrations with high amplitudes in the delamination areas were observed. For the 50 mm delamination, local vibrations in a medium area were observed, whereas large-area local vibrations were noted when the delamination size was 75 mm. These measured operational vibration shapes at resonance frequencies could be used directly to quantify the shape and size of the 50 mm and 75 mm delaminations. Therefore, the local vibration technique was successfully utilized to detect and quantify the delaminations of different sizes in the cross-ply CFRP composite plate.

6.2. Delamination Detection on the Unidirectional Composite Plate

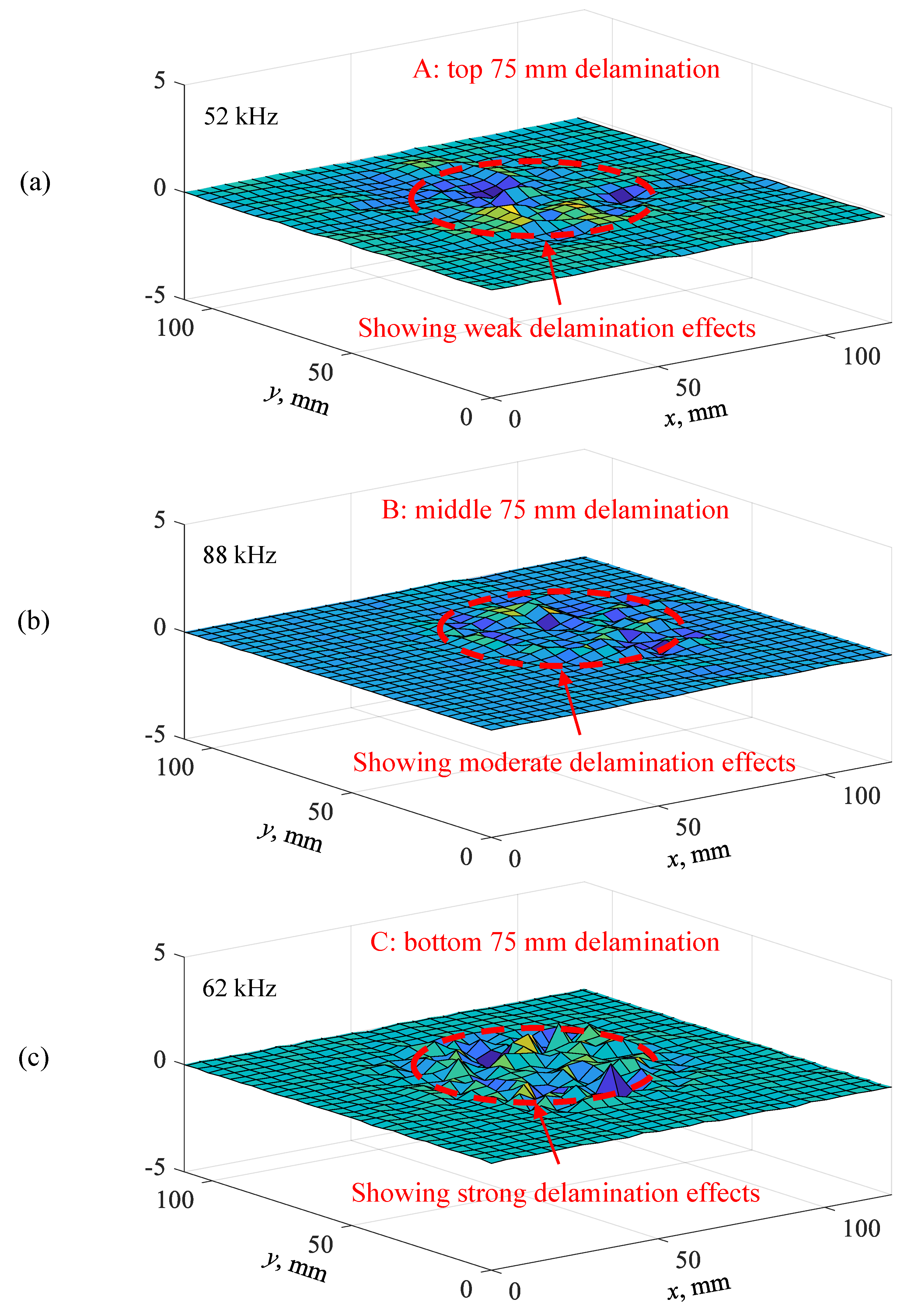

In this section, the effect of delamination depth on the measured operational vibration shape of local vibrations was studied. Figure 20 shows the measured operational vibration shape of delaminations at three different depths (top, middle, and bottom) in the unidirectional composite plate. For the top 75 mm delamination shown in Figure 20a, a weak delamination effect was observed when the delamination was away from the measuring surface. As shown in Figure 20b, a moderate delamination effect was found for the middle 75 mm delamination. In addition, the bottom 75 mm delamination showed a strong delamination effect and had the highest vibration amplitude, as shown in Figure 20c. The vibration amplitude was higher and the vibration pattern was clearer when the delamination was close to the measuring surface (bottom surface). In this case, the size and shape of the delamination could be reliably detected and quantified. Therefore, the experimental results indicate that the depth of the delamination had a more significant effect on the detectability of the delamination than the size of the delamination.

7. Conclusions

In this paper, two composite specimens with different delamination sizes and depths were implemented using NDT and SHM techniques. First, the NDT inspection was used to detect the simulated delaminations in the specimens. The shape, size, and depth of the delaminations could be successfully detected and visualized from the ultrasonic C-scan results. Then, the local defect resonance frequencies of the delaminations were determined from the FFT results of SLDV measurements. The delaminations of different sizes and depths significantly modified the local defect resonance frequency. Finally, the measured operational vibration shapes at the local defect resonance frequencies were extracted from the FEM simulations and experimental measurements. The strong local vibrations only occurred in the delamination regions and the delaminations could be successfully detected and quantified from the measured operational vibration shapes. Moreover, experimental results indicated that the effect of delamination depth on the detectability of the delamination was more significant than the size of the delamination. The experimental and FEM results demonstrated a good capability for the assessment of delaminations with different sizes and depths in composite structures.
The presented methodology is a baseline-free damage detection technique, as opposed to the conventional Lamb wave SHM methods that involve the comparison of structural response data to a prerecorded baseline taken while the structure is in pristine condition. This methodology can be used for the in-situ detection and quantification of fatigue cracks in metallic plates and debonding in honeycomb sandwich composite structures. In applications, the PWAS transducer needs to be installed close to the damage so that a strong local vibration due to the damage can be excited and detected. For future work, it is desirable that the methodology should be extended to detect and quantify the low-velocity impact-induced delamination in complex composite structures, which is a commonly observed damage in engineering applications. Impact delamination typically occurs with other types of failures, such as matrix cracking and fiber fracture, which makes it difficult to detect.

Author Contributions

In this article, the experiments, calculations, and analysis were done by H.M., A.M. with advice and inspiration from V.G. The detailed methodology was provided by H.M., A.M., M.F.H., R.J., Y.B., and V.G. The original draft was prepared by H.M. The review and editing were done by H.M., A.M., M.F.H., R.J., Y.B., and V.G.

Funding

This work was supported by Air Force Office of Scientific Research (AFOSR) grant number FA9550-16-1-0401, Office of Naval Research (ONR) grant number N00014-17-1-2829, and Iraqi Ministry of Higher Education.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giurgiutiu, V. Structural Health Monitoring of Aerospace Composites; Elsevier Academic Press, 2016; Available online: https://www.sciencedirect.com/book/9780124096059/structural-health-monitoring-of-aerospace-composites (accessed on 11 April 2019).
  2. Zou, Y.; Tong, L.P.S.G.; Steven, G.P. Vibration-based model-dependent damage (delamination) identification and health monitoring for composite structures—A review. J. Sound Vib. 2000, 230, 357–378. [Google Scholar] [CrossRef]
  3. Flores, M.; Mollenhauer, D.; Runatunga, V.; Beberniss, T.; Rapking, D.; Pankow, M. High-speed 3D digital image correlation of low-velocity impacts on composite plates. Compos. Part Eng. 2017, 131, 153–164. [Google Scholar] [CrossRef]
  4. Gomes, G.F.; Mendéz, Y.A.D.; Alexandrino, P.D.S.L.; da Cunha, S.S.; Ancelotti, A.C. The use of intelligent computational tools for damage detection and identification with an emphasis on composites—A review. Compos. Struct. 2018, 196, 44–54. [Google Scholar] [CrossRef]
  5. Mei, H.; Giurgiutiu, V. Guided wave excitation and propagation in damped composite plates. Struct. Health Monit. 2018. [Google Scholar] [CrossRef]
  6. Cheng, L.; Tian, G.Y. Comparison of nondestructive testing methods on detection of delaminations in composites. J. Sens. 2012. [Google Scholar] [CrossRef]
  7. Wallentine, S.M.; Uchic, M.D. A study on ground truth data for impact damaged polymer matrix composites. AIP Conf. Proc. 2018, 1949, 120002. [Google Scholar]
  8. Farrar, C.R.; Worden, K. An introduction to structural health monitoring. Philos. Trans. R. Soc. Math. Phys. Eng. Sci. 2006, 365, 303–315. [Google Scholar] [CrossRef]
  9. Su, Z.; Ye, L.; Lu, Y. Guided Lamb waves for identification of damage in composite structures: A review. J. Sound Vib. 2006, 295, 753–780. [Google Scholar] [CrossRef]
  10. Mei, H.; Yuan, S.; Qiu, L.; Zhang, J. Damage evaluation by a guided wave-hidden Markov model based method. Smart Mater. Struct. 2016, 25, 025021. [Google Scholar] [CrossRef]
  11. Mitra, M.; Gopalakrishnan, S. Guided wave based structural health monitoring: A review. Smart Mater. Struct. 2016, 25, 053001. [Google Scholar] [CrossRef]
  12. Giurgiutiu, V. Structural Health Monitoring with Piezoelectric Wafer Active Sensors, 2nd ed.; Elsevier Academic Press, 2014; Available online: https://www.sciencedirect.com/book/9780124186910/structural-health-monitoring-with-piezoelectric-wafer-active-sensors (accessed on 11 April 2019).
  13. Bois, C.; Hochard, C. Monitoring of laminated composites delamination based on electro-mechanical impedance measurement. J. Intell. Mater. Syst. Struct. 2014, 15, 59–67. [Google Scholar] [CrossRef]
  14. Gresil, M.; Yu, L.; Giurgiutiu, V.; Sutton, M. Predictive modeling of electromechanical impedance spectroscopy for composite materials. Struct. Health Monit. 2012, 11, 671–683. [Google Scholar] [CrossRef]
  15. Scholey, J.J.; Wilcox, P.D.; Wisnom, M.R.; Friswell, M.I. Quantitative experimental measurements of matrix cracking and delamination using acoustic emission. Compos. Part Appl. Sci. Manuf. 2010, 41, 612–623. [Google Scholar] [CrossRef]
  16. Nikbakht, M.; Yousefi, J.; Hosseini-Toudeshky, H.; Minak, G. Delamination evaluation of composite laminates with different interface fiber orientations using acoustic emission features and micro visualization. Compos. Part Eng. 2017, 113, 185–196. [Google Scholar] [CrossRef]
  17. Mei, H.; Haider, M.F.; Joseph, R.; Migot, A.; Giurgiutiu, V. Recent Advances in Piezoelectric Wafer Active Sensors for Structural Health Monitoring Applications. Sensors 2019, 19, 383. [Google Scholar] [CrossRef]
  18. Shen, Y.; Cesnik, C.E. Hybrid local FEM/global LISA modeling of damped guided wave propagation in complex composite structures. Smart Mater. Struct. 2016, 25, 095021. [Google Scholar] [CrossRef]
  19. Sohn, H.; Dutta, D.; Yang, J.Y.; Park, H.J.; DeSimio, M.; Olson, S.; Swenson, E. Delamination detection in composites through guided wave field image processing. Compos. Sci. Technol. 2011, 71, 1250–1256. [Google Scholar] [CrossRef]
  20. Park, B.; An, Y.K.; Sohn, H. Visualization of hidden delamination and debonding in composites through noncontact laser ultrasonic scanning. Compos. Sci. Technol. 2014, 100, 10–18. [Google Scholar] [CrossRef]
  21. Girolamo, D.; Chang, H.Y.; Yuan, F.G. Impact damage visualization in a honeycomb composite panel through laser inspection using zero-lag cross-correlation imaging condition. Ultrasonics 2018, 87, 152–165. [Google Scholar] [CrossRef] [PubMed]
  22. Rogge, M.D.; Leckey, C.A. Characterization of impact damage in composite laminates using guided wavefield imaging and local wavenumber domain analysis. Ultrasonics 2013, 53, 1217–1226. [Google Scholar] [CrossRef]
  23. Tian, Z.; Yu, L.; Leckey, C. Delamination detection and quantification on laminated composite structures with Lamb waves and wavenumber analysis. J. Intell. Mater. Syst. Struct. 2015, 26, 1723–1738. [Google Scholar] [CrossRef]
  24. Kudela, P.; Radzienski, M.; Ostachowicz, W. Impact induced damage assessment by means of Lamb wave image processing. Mech. Syst. Signal Process. 2018, 102, 23–36. [Google Scholar] [CrossRef]
  25. Sikdar, S.; Fiborek, P.; Kudela, P.; Banerjee, S.; Ostachowicz, W. Effects of debonding on Lamb wave propagation in a bonded composite structure under variable temperature conditions. Smart Mater. Struct. 2018, 28, 015021. [Google Scholar] [CrossRef]
  26. Sikdar, S.; Ostachowicz, W. Nondestructive analysis of core-junction and joint-debond effects in advanced composite structure. Polym. Test. 2019, 73, 31–38. [Google Scholar] [CrossRef]
  27. Sikdar, S.; Ostachowicz, W. Ultrasonic Lamb wavebased debonding monitoring of advanced honeycomb sandwich composite structures. Strain 2019, 55, e12302. [Google Scholar] [CrossRef]
  28. Sikdar, S.; Banerjee, S. Structural Health Monitoring of Advanced Composites Using Guided Waves; Lap Lambert Academic Publisher: Beau-Bassin, Mauritius, 2017. [Google Scholar]
  29. Fan, W.; Qiao, P. Vibration-based damage identification methods: A review and comparative study. Struct. Health Monit. 2011, 10, 83–111. [Google Scholar] [CrossRef]
  30. Shang, S.; Yun, G.J.; Qiao, P. Delamination identification of laminated composite plates using a continuum damage mechanics model and subset selection technique. Smart Mater. Struct. 2010, 19, 055024. [Google Scholar] [CrossRef]
  31. Klepka, A.; Pieczonka, L.; Staszewski, W.J.; Aymerich, F. Impact damage detection in laminated composites by non-linear vibro-acoustic wave modulations. Compos. Part Eng. 2014, 65, 99–108. [Google Scholar] [CrossRef]
  32. Ooijevaar, T.H.; Warnet, L.L.; Loendersloot, R.; Akkerman, R.; Tinga, T. Impact damage identification in composite skin-stiffener structures based on modal curvatures. Struct. Control Health Monit. 2016, 23, 198–217. [Google Scholar]
  33. Garcia, D.; Palazzetti, R.; Trendafilova, I.; Fiorini, C.; Zucchelli, A. Vibration-based delamination diagnosis and modelling for composite laminate plates. Compos. Struct. 2015, 130, 155–162. [Google Scholar] [CrossRef] [Green Version]
  34. Gaudenzi, P.; Nardi, D.; Chiappetta, I.; Atek, S.; Lampani, L.; Pasquali, M.; Valente, T. Sparse sensing detection of impact-induced delaminations in composite laminates. Compos. Struct. 2015, 133, 1209–1219. [Google Scholar] [CrossRef]
  35. Yang, C.; Oyadiji, S.O. Delamination detection in composite laminate plates using 2D wavelet analysis of modal frequency surface. Comput. Struct. 2017, 179, 109–126. [Google Scholar] [CrossRef]
  36. Katunin, A. Vibration-based spatial damage identification in honeycomb-core sandwich composite structures using wavelet analysis. Compos. Struct. 2014, 118, 385–391. [Google Scholar] [CrossRef]
  37. Li, B.; Li, Z.; Zhou, J.; Ye, L.; Li, E. Damage localization in composite lattice truss core sandwich structures based on vibration characteristics. Compos. Struct. 2015, 126, 34–51. [Google Scholar] [CrossRef]
  38. Zhang, Z.; He, M.; Liu, A.; Singh, H.K.; Ramakrishnan, K.R.; Hui, D.; Shankar, K.; Morozov, E.V. Vibration-based assessment of delaminations in FRP composite plates. Compos. Part Eng. 2018, 144, 254–266. [Google Scholar] [CrossRef]
  39. Perez, M.A.; Gil, L.; Oller, S. Impact damage identification in composite laminates using vibration testing. Compos. Struct. 2014, 108, 267–276. [Google Scholar] [CrossRef]
  40. Chen, D.M.; Xu, Y.F.; Zhu, W.D. Non-Model-Based Identification of Delamination in Laminated Composite Plates Using a Continuously Scanning Laser Doppler Vibrometer System. J. Vib. Acoust. 2018, 140, 041001. [Google Scholar] [CrossRef]
  41. Qiao, P.; Lu, K.; Lestari, W.; Wang, J. Curvature mode shape-based damage detection in composite laminated plates. Compos. Struct. 2007, 80, 409–428. [Google Scholar] [CrossRef]
  42. Xu, W.; Cao, M.; Li, X.; Radzieński, M.; Ostachowicz, W.; Bai, R. Delamination monitoring in CFRP laminated plates under noisy conditions using complex-wavelet 2D curvature mode shapes. Smart Mater. Struct. 2017, 26, 104008. [Google Scholar] [CrossRef] [Green Version]
  43. Xu, W.; Fang, H.; Cao, M.; Zhou, L.; Wang, Q.; Ostachowicz, W. A noise-robust damage indicator for characterizing singularity of mode shapes for incipient delamination identification in CFRP laminates. Mech. Syst. Signal Process. 2019, 121, 183–200. [Google Scholar] [CrossRef]
  44. Solodov, I.; Bai, J.; Bekgulyan, S.; Busse, G. A local defect resonance to enhance acoustic wave-defect interaction in ultrasonic nondestructive evaluation. Appl. Phys. Lett. 2011, 99, 211911. [Google Scholar] [CrossRef]
  45. Solodov, I.; Rahammer, M.; Derusova, D.; Busse, G. Highly-efficient and noncontact vibro-thermography via local defect resonance. Quant. InfraRed Thermogr. J. 2015, 12, 98–111. [Google Scholar] [CrossRef]
  46. Rahammer, M.; Kreutzbruck, M. Fourier-transform vibrothermography with frequency sweep excitation utilizing local defect resonances. NDT Int. 2017, 86, 83–88. [Google Scholar] [CrossRef]
  47. Hettler, J.; Tabatabaeipour, M.; Delrue, S.; Van Den Abeele, K. Detection and characterization of local defect resonances arising from delaminations and flat bottom holes. J. Nondestruct. Eval. 2017, 36, 2. [Google Scholar] [CrossRef]
  48. Segers, J.; Kersemans, M.; Hedayatrasa, S.; Calderon, J.; Van Paepegem, W. Towards in-plane local defect resonance for non-destructive testing of polymers and composites. NDT Int. 2018, 98, 130–133. [Google Scholar] [CrossRef]
  49. Segers, J.; Hedayatrasa, S.; Verboven, E.; Poelman, G.; Van Paepegem, W.; Kersemans, M. In-plane local defect resonances for efficient vibrothermography of impacted carbon fiber-reinforced polymers (CFRP). NDT Int. 2019, 102, 218–225. [Google Scholar] [CrossRef]
  50. Roy, S.; Bose, T.; Debnath, K. Detection of local defect resonance frequencies using bicoherence analysis. J. Sound Vib. 2019, 443, 703–716. [Google Scholar] [CrossRef]
  51. RollerFORM Specifications. Available online: https://www.olympus-ims.com/en/rollerform/ (accessed on 15 December 2018).
  52. Shen, Y.; Giurgiutiu, V. Effective non-reflective boundary for Lamb waves: Theory, finite element implementation, and applications. Wave Motion 2015, 58, 22–41. [Google Scholar] [CrossRef] [Green Version]
  53. Gresil, M.; Giurgiutiu, V. Prediction of attenuated guided waves propagation in carbon fiber composites using Rayleigh damping model. J. Intell. Mater. Syst. Struct. 2015, 26, 2151–2169. [Google Scholar] [CrossRef]
  54. Murat, B.I.; Khalili, P.; Fromme, P. Scattering of guided waves at delaminations in composite plates. J. Acoust. Soc. Am. 2016, 139, 3044–3052. [Google Scholar] [CrossRef] [Green Version]
  55. Moser, F.; Jacobs, L.J.; Qu, J. Modeling elastic wave propagation in waveguides with the finite element method. NDT Int. 1999, 32, 225–234. [Google Scholar] [CrossRef]
Sensors 19 01734 g001 550

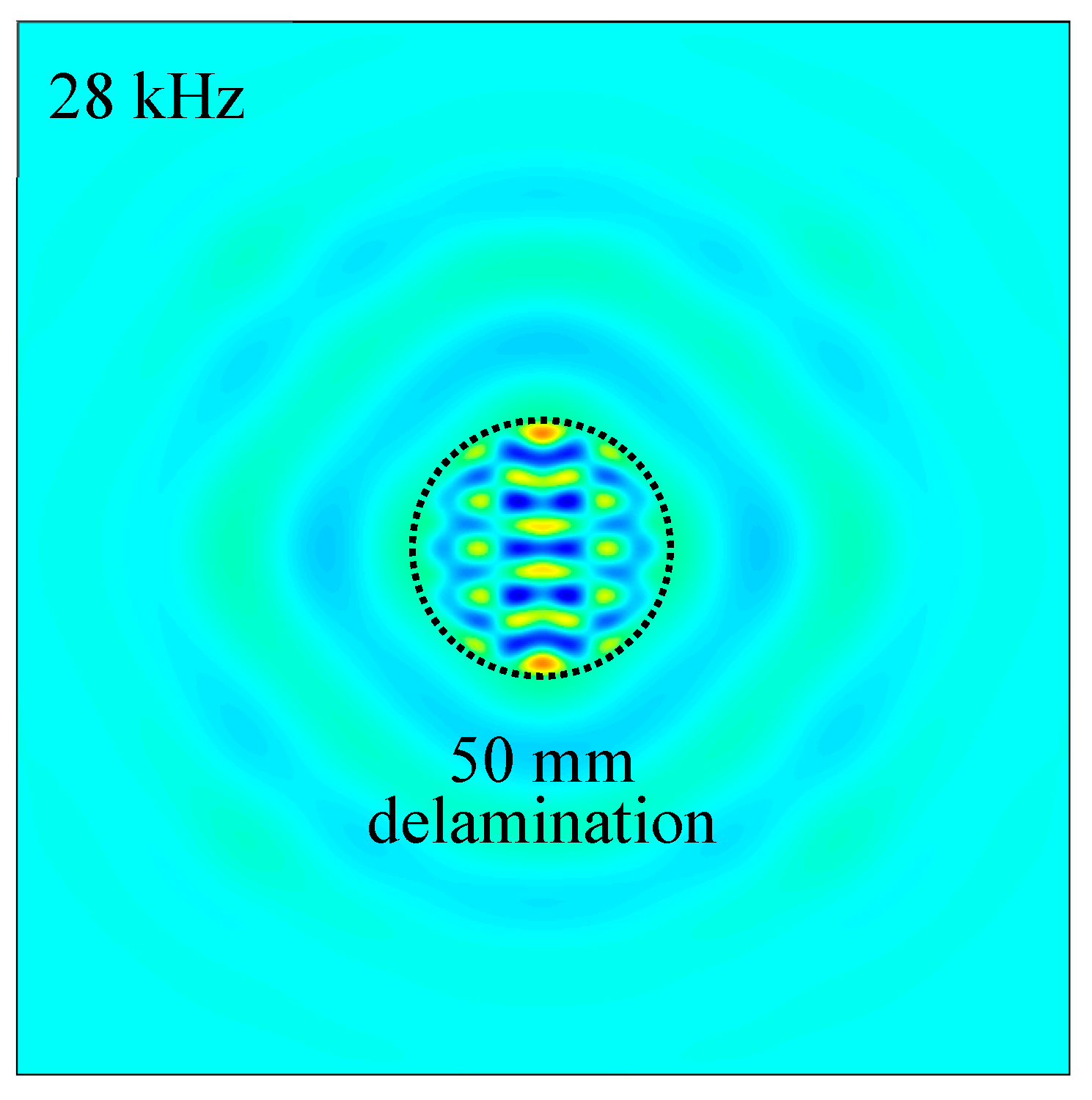

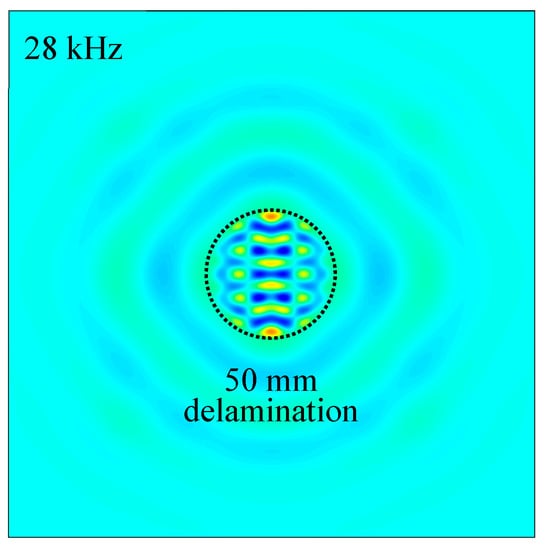

Figure 1. Example of using high-frequency local vibration to detect internal delamination in a laminated composite: 50 mm delamination excited at 28 kHz displays a clear local vibration mode that indicates the delamination size.
Figure 1. Example of using high-frequency local vibration to detect internal delamination in a laminated composite: 50 mm delamination excited at 28 kHz displays a clear local vibration mode that indicates the delamination size.
Sensors 19 01734 g001
Sensors 19 01734 g002 550

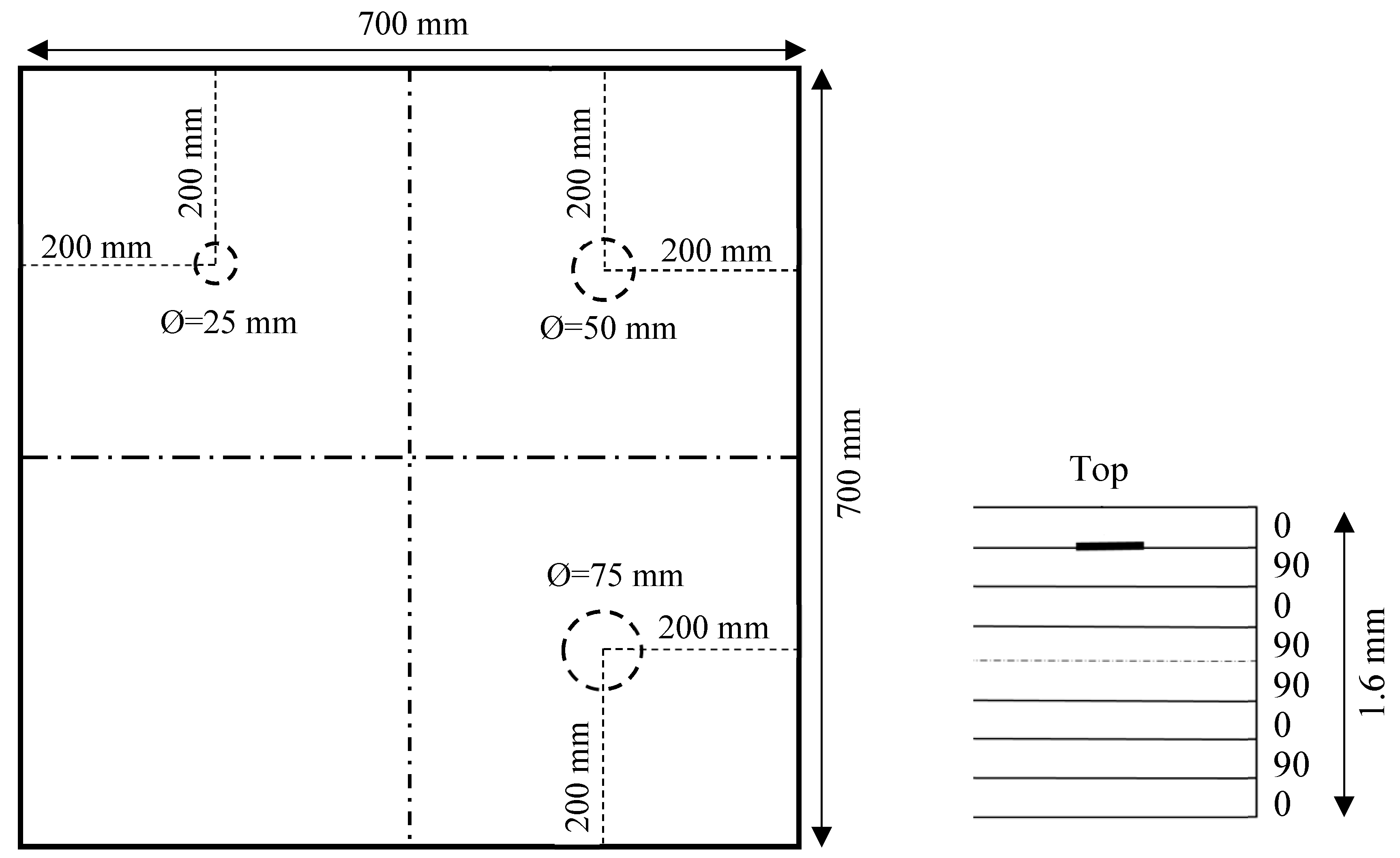

Figure 2. Schematic of a 1.6 mm cross-ply [0/90]2s carbon fiber-reinforced polymer (CFRP) composite plate with three simulated delaminations of various sizes at the same depth.
Figure 2. Schematic of a 1.6 mm cross-ply [0/90]2s carbon fiber-reinforced polymer (CFRP) composite plate with three simulated delaminations of various sizes at the same depth.
Sensors 19 01734 g002
Sensors 19 01734 g003 550

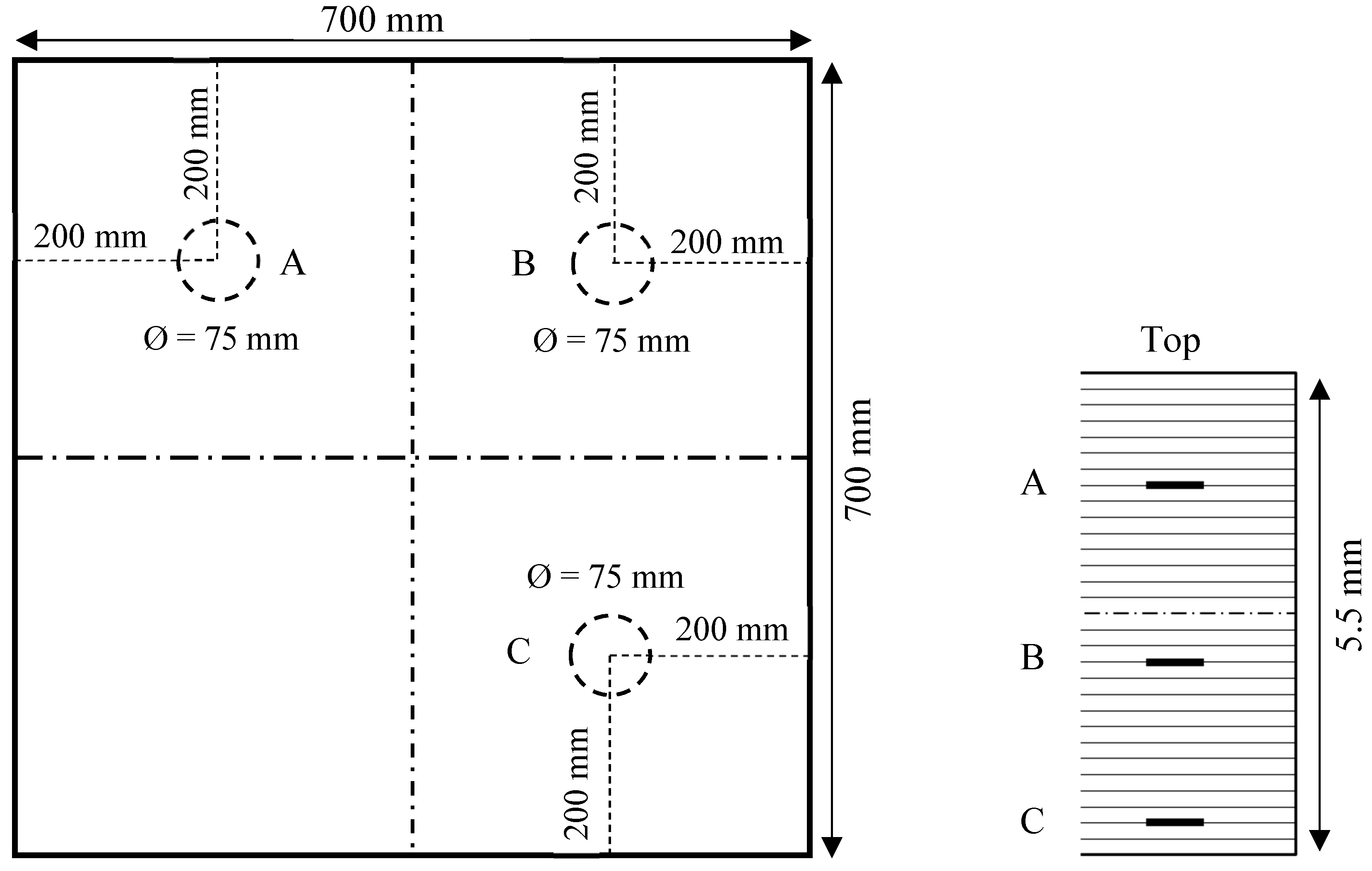

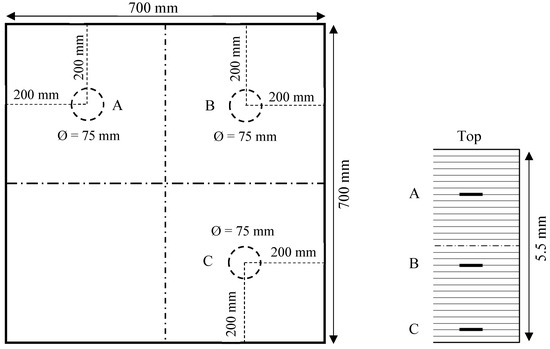

Figure 3. Schematic of the 5.5 mm unidirectional [0]30 CFRP composite plate with three equally sized delaminations at various depths.
Figure 3. Schematic of the 5.5 mm unidirectional [0]30 CFRP composite plate with three equally sized delaminations at various depths.
Sensors 19 01734 g003
Sensors 19 01734 g004 550

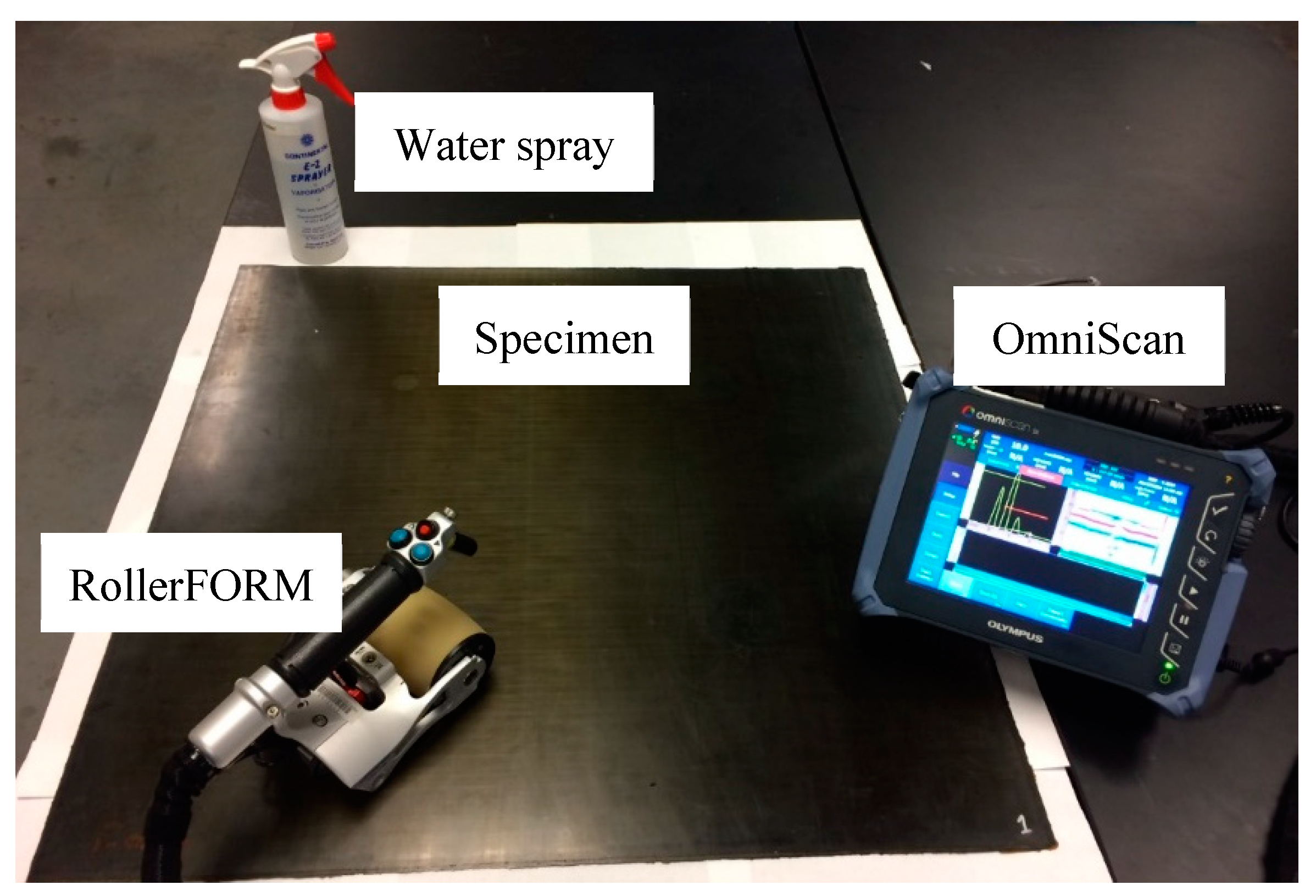

Figure 4. Experimental setup of the ultrasonic detection of the composite specimens.
Figure 4. Experimental setup of the ultrasonic detection of the composite specimens.
Sensors 19 01734 g004
Sensors 19 01734 g005 550

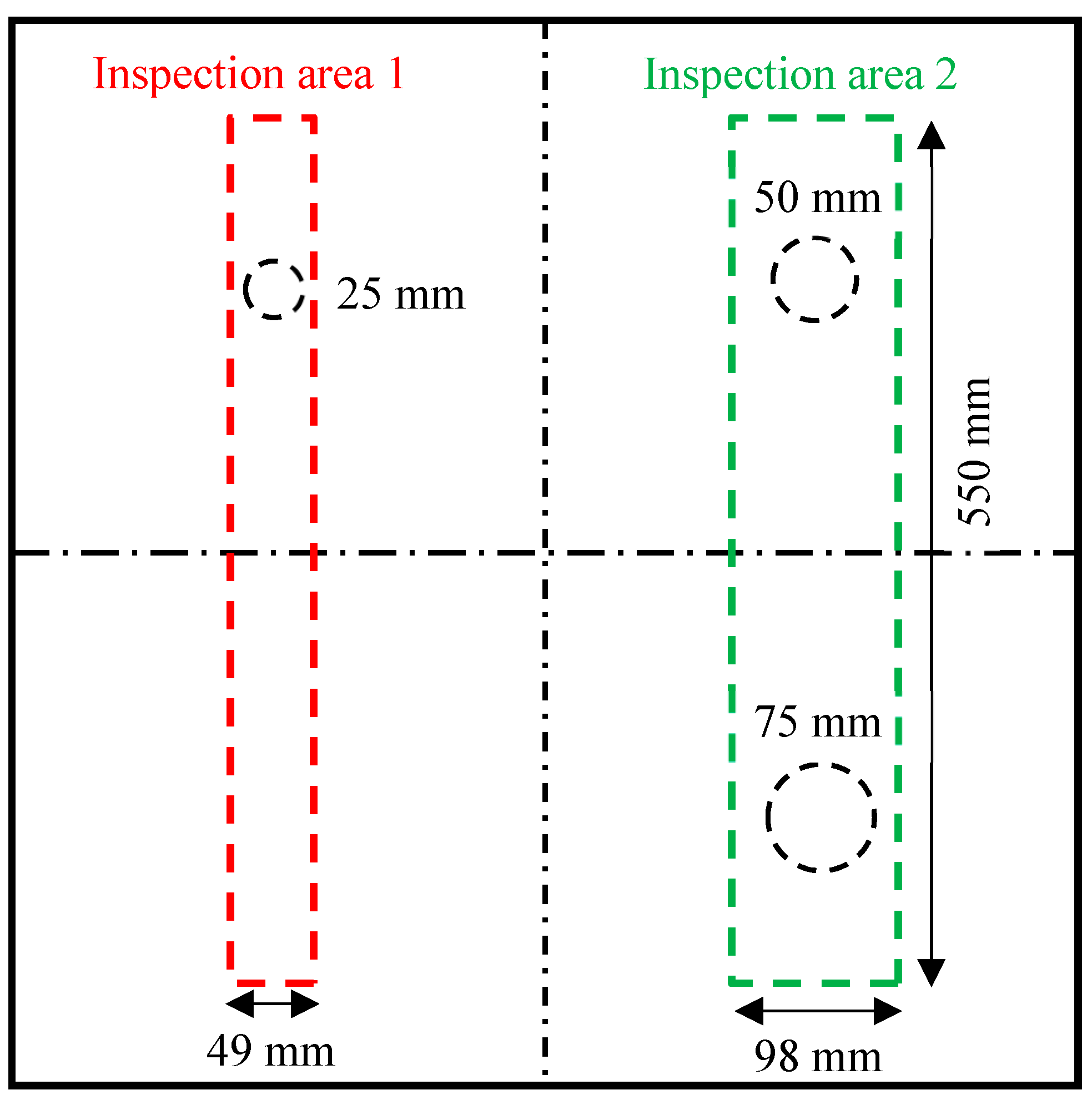

Figure 5. Schematic of non-destructive testing (NDT) inspection areas on the cross-ply [0/90]2s CFRP composite plate.
Figure 5. Schematic of non-destructive testing (NDT) inspection areas on the cross-ply [0/90]2s CFRP composite plate.
Sensors 19 01734 g005
Sensors 19 01734 g006 550

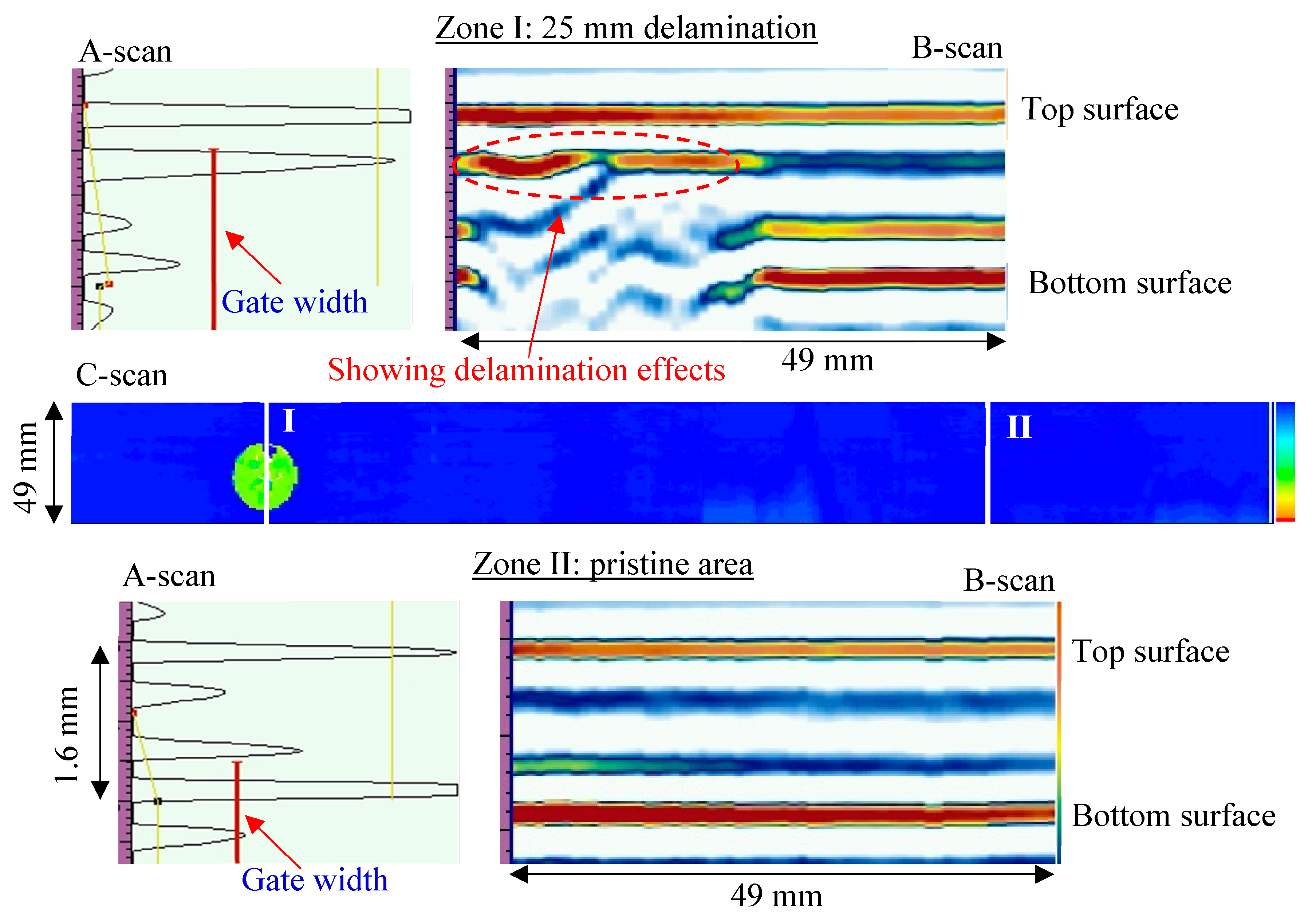

Figure 6. NDT results of the first inspection area on the cross-ply [0/90]2s CFRP composite plate: pristine area and 25 mm delamination.
Figure 6. NDT results of the first inspection area on the cross-ply [0/90]2s CFRP composite plate: pristine area and 25 mm delamination.
Sensors 19 01734 g006
Sensors 19 01734 g007 550

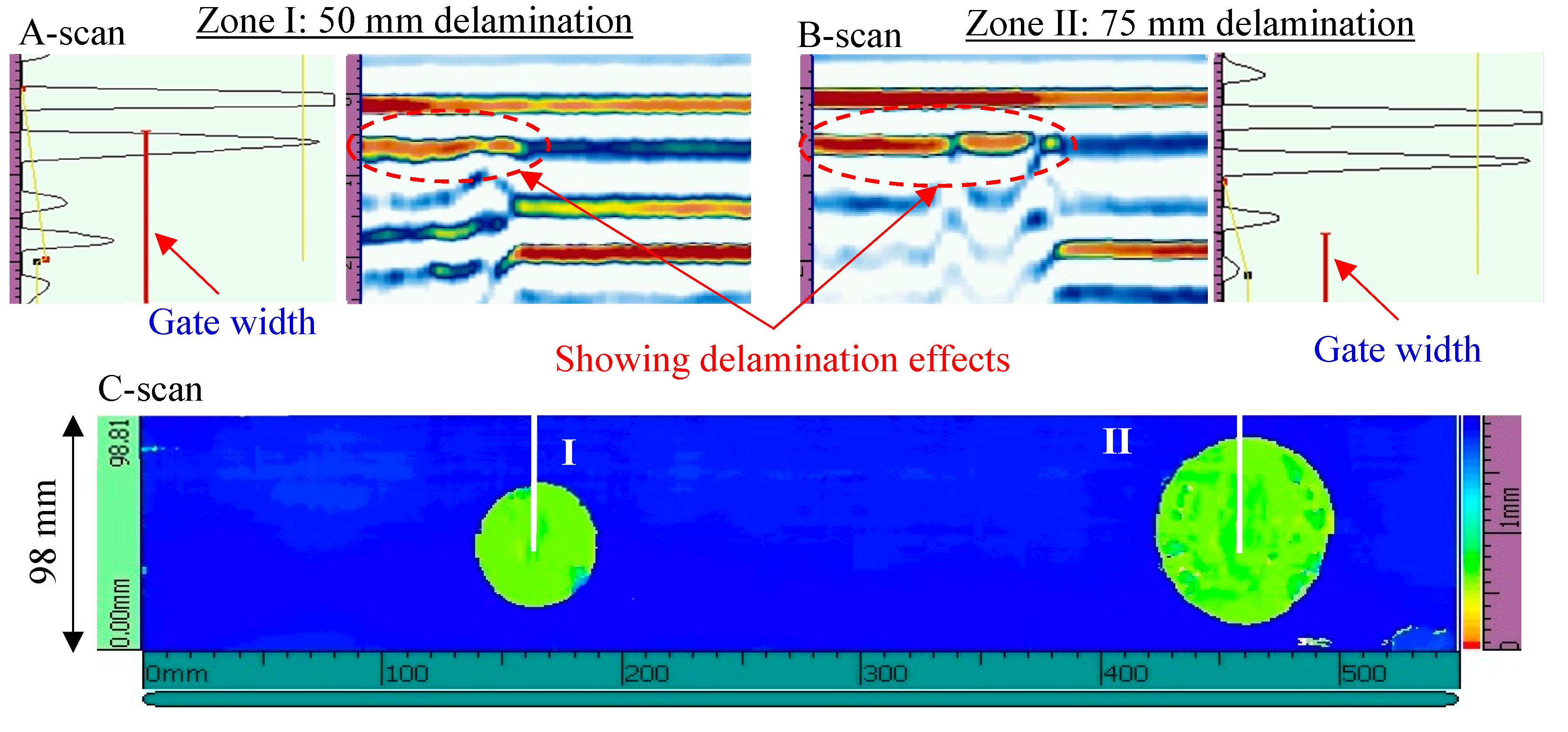

Figure 7. NDT results of the second inspection area on the cross-ply [0/90]2s CFRP composite plate: 50 mm delamination and 75 mm delamination.
Figure 7. NDT results of the second inspection area on the cross-ply [0/90]2s CFRP composite plate: 50 mm delamination and 75 mm delamination.
Sensors 19 01734 g007
Sensors 19 01734 g008 550

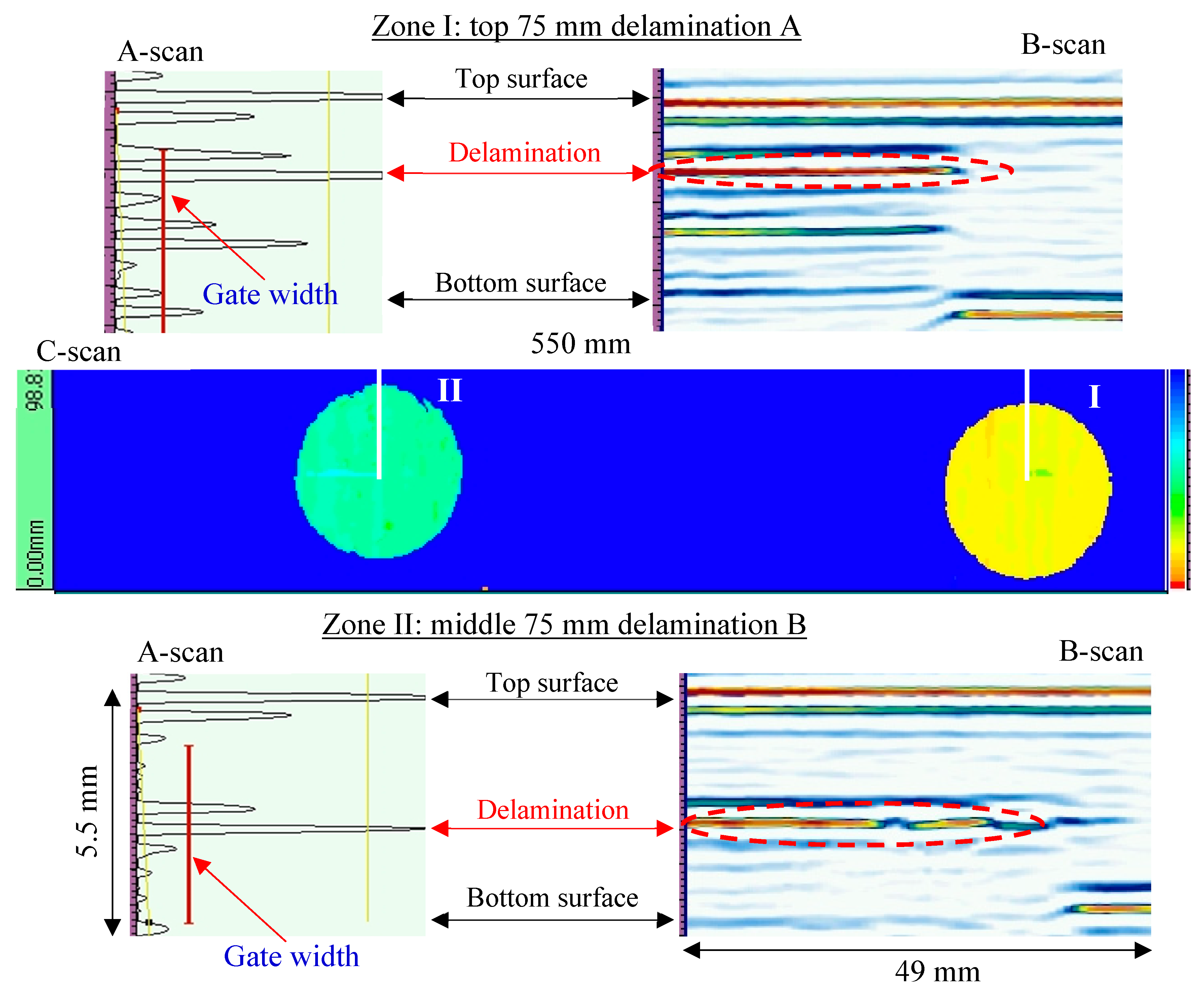

Figure 8. NDT results of the first inspection area on the unidirectional [0]30 CFRP composite plate: top and middle 75 mm delaminations.
Figure 8. NDT results of the first inspection area on the unidirectional [0]30 CFRP composite plate: top and middle 75 mm delaminations.
Sensors 19 01734 g008
Sensors 19 01734 g009 550

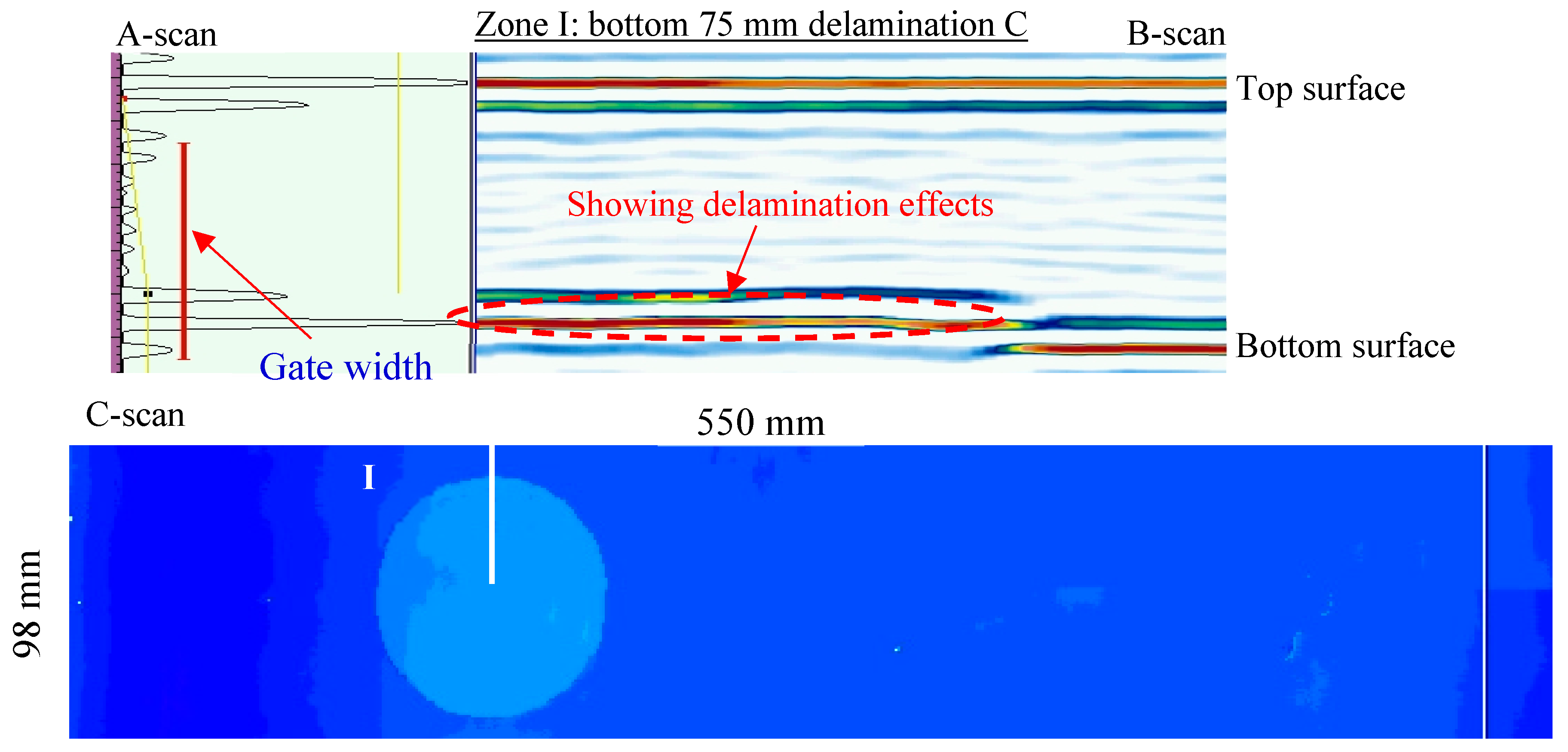

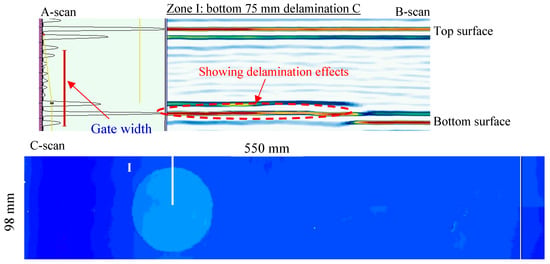

Figure 9. NDT results of the second inspection area on the unidirectional [0]30 CFRP composite plate: bottom 75 mm delamination.
Figure 9. NDT results of the second inspection area on the unidirectional [0]30 CFRP composite plate: bottom 75 mm delamination.
Sensors 19 01734 g009
Sensors 19 01734 g010 550

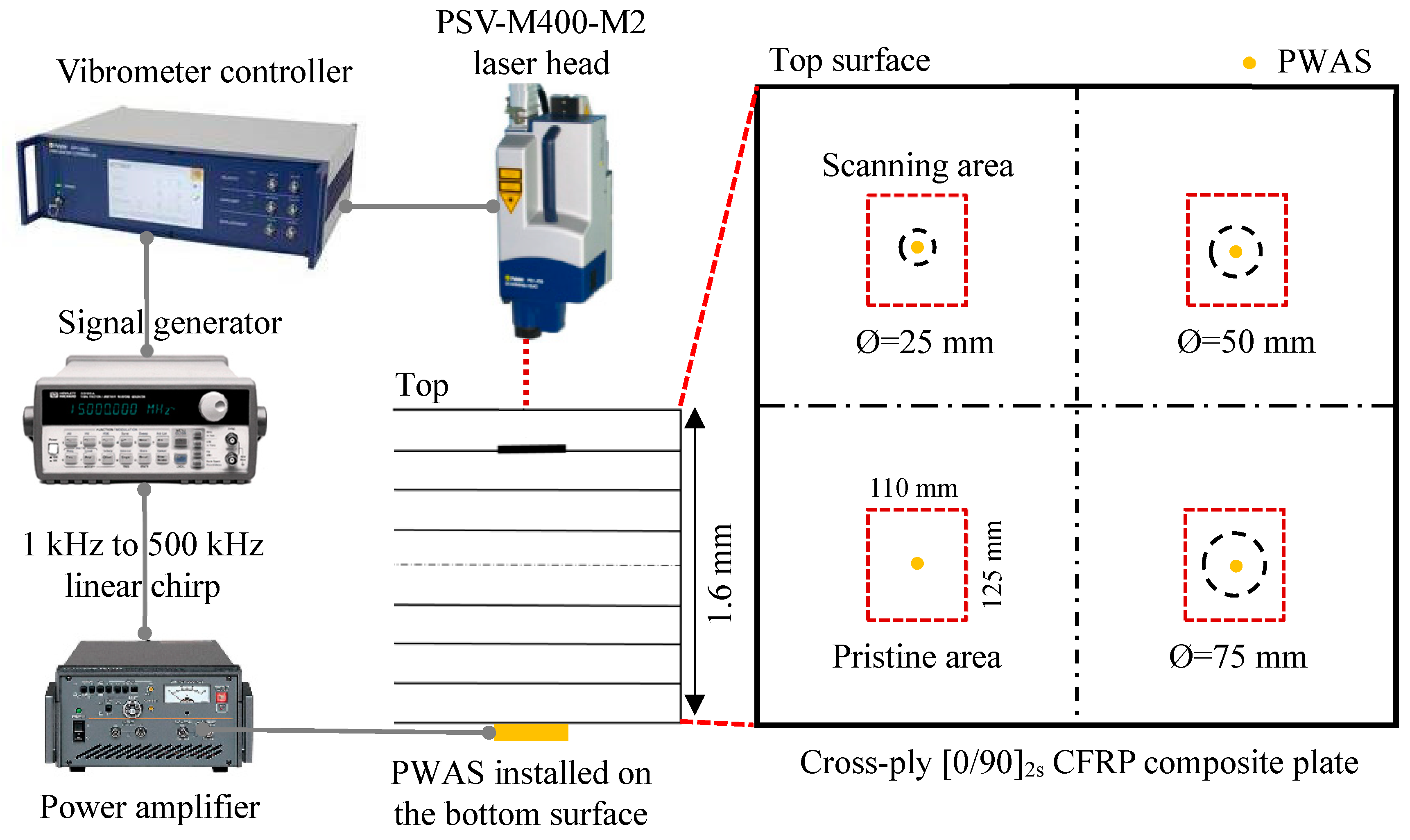

Figure 10. Experimental setup on the cross-ply [0/90]2s CFRP composite plate using the scanning laser Doppler vibrometer (SLDV) measurement. PWAS: piezoelectric wafer active sensors.
Figure 10. Experimental setup on the cross-ply [0/90]2s CFRP composite plate using the scanning laser Doppler vibrometer (SLDV) measurement. PWAS: piezoelectric wafer active sensors.
Sensors 19 01734 g010
Sensors 19 01734 g011 550

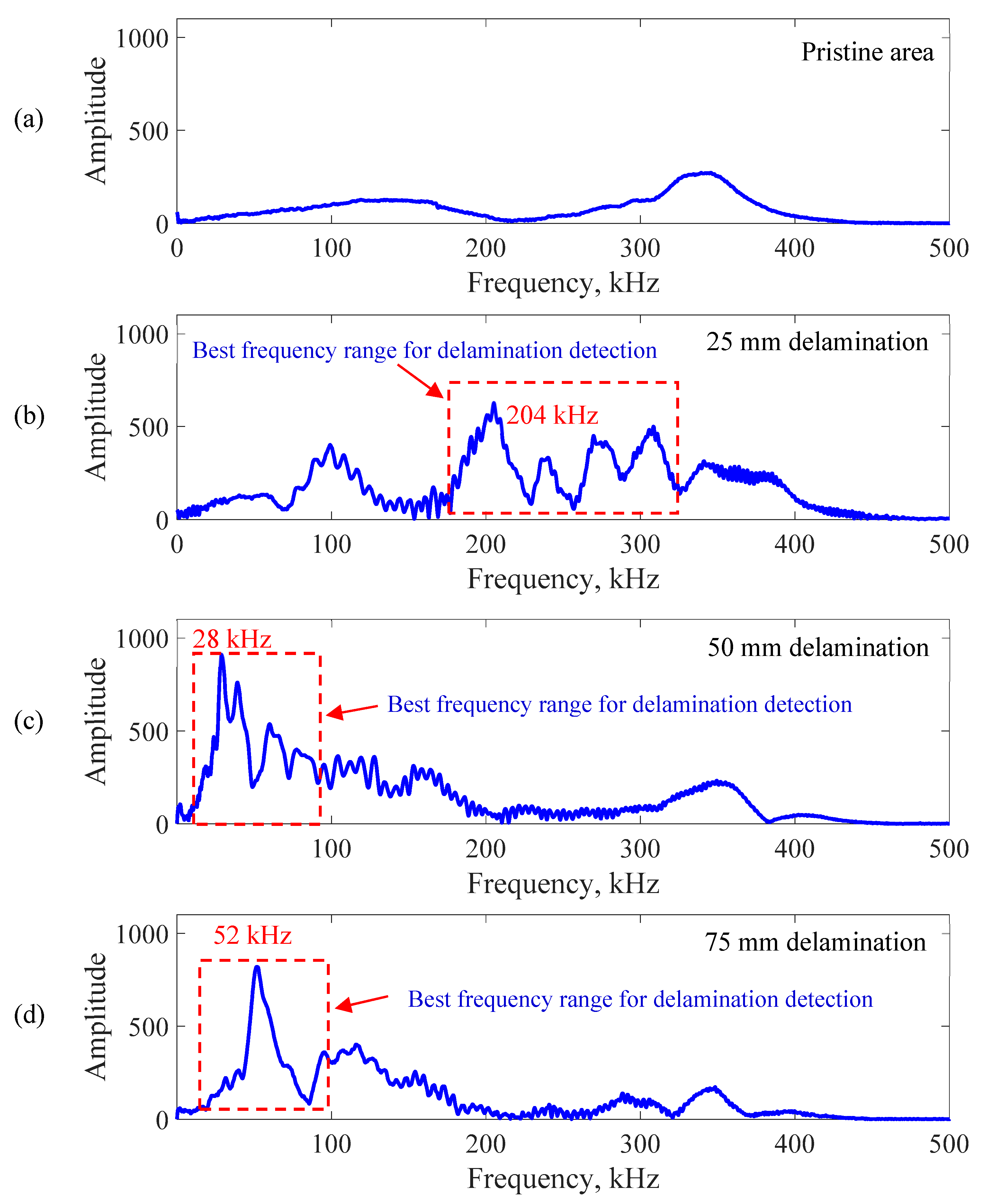

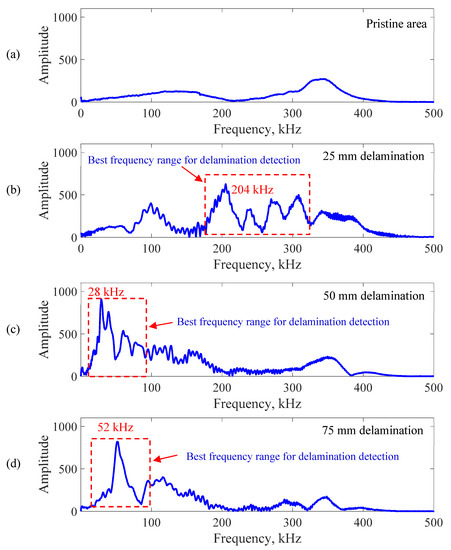

Figure 11. Frequency spectrum of the response signals at the center point of different scanning areas: (a) pristine area; (b) 25 mm delamination; (c) 50 mm delamination; (d) 75 mm delamination.
Figure 11. Frequency spectrum of the response signals at the center point of different scanning areas: (a) pristine area; (b) 25 mm delamination; (c) 50 mm delamination; (d) 75 mm delamination.
Sensors 19 01734 g011
Sensors 19 01734 g012 550
Figure 12. Experimental setup on the unidirectional [0]30 CFRP composite plate using the scanning laser Doppler vibrometer (SLDV) measurement.
Figure 12. Experimental setup on the unidirectional [0]30 CFRP composite plate using the scanning laser Doppler vibrometer (SLDV) measurement.
Sensors 19 01734 g012
Sensors 19 01734 g013 550
Figure 13. Frequency spectrum of the response signals at the center point of different scanning areas: (a) pristine area; (b) top 75 mm delamination A; (c) middle 75 mm delamination B; (d) bottom 75 mm delamination C.
Figure 13. Frequency spectrum of the response signals at the center point of different scanning areas: (a) pristine area; (b) top 75 mm delamination A; (c) middle 75 mm delamination B; (d) bottom 75 mm delamination C.
Sensors 19 01734 g013
Sensors 19 01734 g014 550
Figure 14. Multi-physics local finite element model of the cross-ply [0/90]2s CFRP composite plate with 50 mm delamination. NRB: non-reflective boundary.
Figure 14. Multi-physics local finite element model of the cross-ply [0/90]2s CFRP composite plate with 50 mm delamination. NRB: non-reflective boundary.
Sensors 19 01734 g014
Sensors 19 01734 g015 550
Figure 15. FEM-measured operational vibration shape comparison of the cross-ply composite plate between pristine area and 50 mm delamination at 28 kHz: (a) pristine area; (b) 50 mm delamination.
Figure 15. FEM-measured operational vibration shape comparison of the cross-ply composite plate between pristine area and 50 mm delamination at 28 kHz: (a) pristine area; (b) 50 mm delamination.
Sensors 19 01734 g015
Sensors 19 01734 g016 550
Figure 16. FEM-measured operational vibration shapes of the cross-ply composite plate at the resonance frequencies: (a) 25 mm delamination at 204 kHz; (b) 75 mm delamination at 52 kHz.
Figure 16. FEM-measured operational vibration shapes of the cross-ply composite plate at the resonance frequencies: (a) 25 mm delamination at 204 kHz; (b) 75 mm delamination at 52 kHz.
Sensors 19 01734 g016
Sensors 19 01734 g017 550
Figure 17. FEM-measured operational vibration shapes of delaminations at different depths in the unidirectional CFRP composite plate: (a) top 75 mm delamination at 52 kHz; (b) middle 75 mm delamination at 88 kHz; (c) bottom 75 mm delamination at 62 kHz.
Figure 17. FEM-measured operational vibration shapes of delaminations at different depths in the unidirectional CFRP composite plate: (a) top 75 mm delamination at 52 kHz; (b) middle 75 mm delamination at 88 kHz; (c) bottom 75 mm delamination at 62 kHz.
Sensors 19 01734 g017
Sensors 19 01734 g018 550
Figure 18. Comparison of measured operational vibration shapes on the cross-ply CFRP composite plate: (a) pristine area at 204 kHz; (b) 25 mm delamination at resonance frequency of 204 kHz.
Figure 18. Comparison of measured operational vibration shapes on the cross-ply CFRP composite plate: (a) pristine area at 204 kHz; (b) 25 mm delamination at resonance frequency of 204 kHz.
Sensors 19 01734 g018
Sensors 19 01734 g019 550
Figure 19. Measured operational vibration shapes on the cross-ply CFRP composite plate: (a) 50 mm delamination at 28 kHz; (b) 75 mm delamination at 52 kHz.
Figure 19. Measured operational vibration shapes on the cross-ply CFRP composite plate: (a) 50 mm delamination at 28 kHz; (b) 75 mm delamination at 52 kHz.
Sensors 19 01734 g019
Sensors 19 01734 g020 550
Figure 20. Measured operational vibration shapes of delaminations at different depths in the unidirectional CFRP composite plate: (a) top 75 mm delamination at 52 kHz; (b) middle 75 mm delamination at 88 kHz; (c) bottom 75 mm delamination at 62 kHz.
Figure 20. Measured operational vibration shapes of delaminations at different depths in the unidirectional CFRP composite plate: (a) top 75 mm delamination at 52 kHz; (b) middle 75 mm delamination at 88 kHz; (c) bottom 75 mm delamination at 62 kHz.
Sensors 19 01734 g020
Table
Table 1. Engineering constants of the unidirectional prepreg [5].
Table 1. Engineering constants of the unidirectional prepreg [5].
E11E22E33ν12ν13ν23G12G13G23ρ
140.8 GPa11.3 GPa11.3 GPa0.310.310.55.7 GPa5.7 GPa3.4 GPa1640 kg/m3
Table
Table 2. Resonance frequencies of different size delaminations in the cross-ply composite plate.
Table 2. Resonance frequencies of different size delaminations in the cross-ply composite plate.
Delaminations25 mm50 mm75 mm
Resonance Frequency (kHz)99, 2042852
Table
Table 3. Resonance frequencies of the delaminations at different depths in the unidirectional [0]30 CFRP composite plate.
Table 3. Resonance frequencies of the delaminations at different depths in the unidirectional [0]30 CFRP composite plate.
DelaminationsTopMiddleBottom
Resonance Frequency (kHz)33, 528835, 62

Share and Cite

MDPI and ACS Style

Mei, H.; Migot, A.; Haider, M.F.; Joseph, R.; Bhuiyan, M.Y.; Giurgiutiu, V. Vibration-Based In-Situ Detection and Quantification of Delamination in Composite Plates. Sensors 2019, 19, 1734. https://doi.org/10.3390/s19071734

AMA Style

Mei H, Migot A, Haider MF, Joseph R, Bhuiyan MY, Giurgiutiu V. Vibration-Based In-Situ Detection and Quantification of Delamination in Composite Plates. Sensors. 2019; 19(7):1734. https://doi.org/10.3390/s19071734

Chicago/Turabian Style

Mei, Hanfei, Asaad Migot, Mohammad Faisal Haider, Roshan Joseph, Md Yeasin Bhuiyan, and Victor Giurgiutiu. 2019. "Vibration-Based In-Situ Detection and Quantification of Delamination in Composite Plates" Sensors 19, no. 7: 1734. https://doi.org/10.3390/s19071734

APA Style

Mei, H., Migot, A., Haider, M. F., Joseph, R., Bhuiyan, M. Y., & Giurgiutiu, V. (2019). Vibration-Based In-Situ Detection and Quantification of Delamination in Composite Plates. Sensors, 19(7), 1734. https://doi.org/10.3390/s19071734

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
