A Screening Method Based on Headspace-Ion Mobility Spectrometry to Identify Adulterated Honey

by
María José Aliaño-González
,
Marta Ferreiro-González
*,
Estrella Espada-Bellido
,
Miguel Palma
and
Gerardo F. Barbero
Department of Analytical Chemistry, Faculty of Sciences, University of Cadiz, Agrifood Campus of International Excellence (ceiA3), IVAGRO, P.O. Box 40, 11510 Puerto Real, Cadiz, Spain
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(7), 1621; https://doi.org/10.3390/s19071621
Submission received: 15 February 2019 / Revised: 26 March 2019 / Accepted: 2 April 2019 / Published: 4 April 2019
(This article belongs to the Collection Electronic Noses)
Browse Figures
Versions Notes

Abstract

:
Nowadays, adulteration of honey is a frequent fraud that is sometimes motivated by the high price of this product in comparison with other sweeteners. Food adulteration is considered a deception to consumers that may have an important impact on people’s health. For this reason, it is important to develop fast, cheap, reliable and easy to use analytical methods for food control. In the present research, a novel method based on headspace-ion mobility spectrometry (HS-IMS) for the detection of adulterated honey by adding high fructose corn syrup (HFCS) has been developed. A Box–Behnken design combined with a response surface method have been used to optimize a procedure to detect adulterated honey. Intermediate precision and repeatability studies have been carried out and coefficients of variance of 4.90% and 4.27%, respectively, have been obtained. The developed method was then tested to detect adulterated honey. For that purpose, pure honey samples were adulterated with HFCS at different percentages (10–50%). Hierarchical cluster analysis (HCA) and principal component analysis (PCA) showed a tendency of the honey samples to be classified according to the level of adulteration. Nevertheless, a perfect classification was not achieved. On the contrary, a full classification (100%) of all the honey samples was performed by linear discriminant analysis (LDA). This is the first time the technique of HS-IMS has been applied for the determination of adulterated honey with HFCS in an automatic way.

Graphical Abstract

1. Introduction

Motivated by the high demand for premium products and the elevated prices associated with them, food fraud is a common practice in the market [1]. The Food Standards Agency (FSA, UK), has defined this action as “deliberately placing food on the market, for financial gain, with the intention of deceiving the consumer” [2].
For this reason, it is of paramount importance to develop a rapid and reliable analytical method that allows us to identify adulterated food by routine control analysis, as it is the case for adulterated honey.
Honey is a natural food produced by bees. According to European Union Regulations (Codex Alimentarius Commission and Council Directive 2001/110/EC of 20 December 2001 relating to honey) honey is a pure product. Therefore, the addition or removal of any kind of substance is considered illegal [3]. Honey is a highly appreciated product for its superior nutritional properties and its numerous beneficial properties as an antioxidant [4,5] and anti-inflammatory [4,6]. Furthermore, it decreases cardiovascular risks [7] and presents prebiotic properties. Therefore, these well-known beneficial properties associated with honey are the reason why honey consumption has significantly increased in recent years [8]. In fact, imports from countries outside the European Union have been required due to the high demand. As a consequence of this, the price of high-quality honey has raised in the last few years [9]. Besides, some companies have started to adulterate honey by adding other products with a greater margin. Honey is most commonly adulterated by adding a cheaper sweetener (approximately 90%) [10]. High fructose corn syrup (HFCS) is one of the most commonly used adulterants because of its similar fructose content. Fructose is the main sugar found in honey, which makes it more difficult to detect it in adulterated honey [11].
Over the last years, Protected Designation of Origin (PDO) has been granted to honey to protect both, their geographical and their botanical origin [12]. PDOs are legal organizations of the European Union (EU) created in order to ensure compliance with EU Regulation No. 1151/2012. They guarantee that the products comply with the various geographical and quality criteria used by the protected designation.
Although a PDO should imply tighter control on honey quality, it also makes honey price rise according to other sweeteners [13]. Thus, honey adulteration is a fraud that still occurs in our society. This illegal activity is not only an economic fraud for companies and consumers, but also a hazard to people’s health because of the lack of control on allergenic products [14].
Different techniques have been used to identify adulterated honey [15,16] such as Nuclear Magnetic Resonance (NMR) spectroscopy [17], enzymatic activity [18], Raman spectroscopy [19], High-Performance Liquid Chromatography (HPLC) [20] or other DNA-based methods [21]. The methods based on those techniques have focused on determining specific compounds, which makes them easier to elude. In addition, their high cost and time requirements make them difficult to use as routine methods for food quality control. For this reason, in the last years, new methods based on the study of general profile signals avoiding identification of individual compounds have been developed. These types of methods are based on differences in the total signal from the volatile compounds, the total absorbance values of the compounds, etc. Thus, no individual quantification is needed. Methods in combination with multivariate analysis allow for a fast detection and discrimination of adulterated honey by performing characteristic fingerprints for each type of sample. General profile methods allow a fast and reliable characterization, do not require expert analysts, and allow for automatization. Some of the techniques applied for this purpose are the electronic tongue (e-tongue) [22] and electronic nose (e-nose) [23,24,25,26].
E-tongue and e-nose are analytical techniques for several compounds with a low limit of detection, low cost and based on fast methods. Due to their several advantages, both of them have been successfully applied for the detection of honey adulteration, for the characterization of botanical and geographical origin and even for different types of monofloral honey. However, these techniques present low selectivity and, therefore, they do not usually deal with the level of adulterants in the samples.
Ion Mobility Spectrometry (IMS) is an analytical technique for the analysis of volatile compounds (VOCs). Headspace above the sample is injected in the system, and then ionized at atmospheric pressure. The ionization can be carried out using an ultraviolet lamp, electrospray, a laser or by chemical ionization. Chemical ionization is one of the most commonly ionization used because of radioactive sources provide a stable and reliable operation. In addition, they do not require an external power source and have no maintenance requirements. 3H Tritium is one of the most applied isotopes for the chemical ionization [27].
The ionized analytes are separated inside a drift tube under the influence of a constant electric field. The time spent by each ion to cross the drift tube is known as drift time and it is characteristic of each analyte, since it varies depending on the size and geometric shape of analytes [28,29,30,31]. Once the ions reach the detector, the number of ions is translated in voltage units (intensity signal).
Each drift time in the detector acts as a “sensor” and the total volatile compounds intensity collected at each drift time is equivalent to a multiple sensor signal.
IMS can be used in two different ways on the determination of volatile compounds. On one hand, IMS can provide quantitative information about specific compounds. On the other hand, it can be also used as a fingerprint generator, it means, IMS can provide the spectra based on the volatile compounds allowing for the discrimination among different samples. IMS presents different advantages; it does not require solvents and the gas consumption is very low. For this reason, it is considered that methods developed based on this technique correspond to green analytical chemistry. Furthermore, IMS has a low limit of detection (ppb range), a fast response and a real-time monitoring. These features make of IMS a feasible technique for on-site analysis, since portable equipment can be used.
The possibility of real-time monitoring and the low limit of detection, accompanied by the feasibility of developing green methods, has increased the interest of analysts for this technique [27]. IMS may be coupled to other analytical techniques such as Headspace (HS) in order to concentrate VOCs, and/or to other separation techniques, such as Gas Chromatography (GC) or MS to operate in parallel. IMS has been successfully used in many different fields like drug or explosive detection [32,33,34] or for fire debris analysis [35]. It has also been used in several agro-food researches [36,37,38] and even for the detection of food fraud associated with oil [28,39], ham [28] or peanuts [40]. Despite the advantages of IMS and its successful application in food fraud and in other food-stuffs, to the best of the authors’ knowledge, there are no reports in the literature based on the use of IMS to identify adulterated honey.
Therefore, the aim of this study is to evaluate the feasibility of HS-IMS in combination with chemometric tools to detect HFCS added to honey samples at different percentages of adulterations.

2. Materials and Methods

2.1. Samples

The Regulation Council for Granada Protected Designation of Origin (PDO) (Lanjarón, Granada, Spain) provided the pure honey samples for this study. Thirty-three pure multi-floral honey samples (n = 33) harvested in 2016 were selected for the study.
High fructose corn syrup (HFCS) was selected as the adulterant for this research, since it is one of the most commonly used products for this purpose. HFCS was purchased from a Spanish regular market (Cargill S.L.U., Martorell, Barcelona, Spain).
The pure honey, the adulterant, and the adulterated samples were stored in absence of light at a room temperature of 25 °C in a store (4.05 m × 2.87 m × 2.28 m) prior to analysis.

2.2. Adulteration

Multi-floral honey, since it is the most common type of honey, was selected as pure honey and to produce the adulterated samples [41]. To guarantee maximum heterogeneity, a 2 kg mixture made up of equal amounts from each of the 33 pure honey samples was prepared. This mixture was used as the unadulterated honey specimen and also to prepare the adulterated samples by adding the HFCS.
In general, adulterated honey in the market contains between 10% and 50% of adulterant, usually using HFCS, to be economically profitable but not easy to be detected. For this reason, mixtures of pure honey with added HFCS were prepared at the following ratios: 10%, 20%, 25%, 30%, 40%, and 50%. A total of 8 grams for each level of adulteration were prepared.
Samples of unadulterated honey (0%) and pure adulterant (100%) were also analysed. Two replicas of each level of adulteration were prepared. A total set of 16 samples: two pure honey samples, two adulterant samples, and 12 samples corresponding to the six adulterant-content levels. Furthermore, each analysis was carried out by duplicate.
In this way, samples were labelled as follows: firstly, adulterant content percentage; followed by the replica of the adulterations, i.e., 1 or 2; and finally, by the replica analysis for that sample, i.e., A or B. For instance, the first analysis of the first replica of adulterated honey sample with 10% adulterant content would be labelled as 10%_1_A and the second analysis of the second replica of adulterated honey samples with 25% adulterant content would be labelled as 25%_2_B.

2.3. HS-GC-IMS Analysis Acquisition

The samples were analysed by Headspace-Gas Chromatography-Ion Mobility Spectrometry (HS-GC-IMS) Flavour Spec (G.A.S., Dortmund, Germany). The samples did not undergo any pre-treatments. The vials containing pure honey, HFCS or adulterated honey samples (0.1–0.9 g) were directly placed in the autosampler oven to be heated (30–50 °C) and agitated (500 rpm (5 s on and 2 s off)) in order to generate the headspace (HS). The GC column used was a multicapillary MCC OV-5 (5%-diphenyl, 95%-dimethylpolysiloxane) with dimensions of 20 cm × 0.2 µm) (G.A.S., Dortmund, Germany). The drift gas and the carrier gas selected were nitrogen with a purity of 99.999% obtained by means of a nitrogen generator (G.A.S., Dortmund, Germany). The ionization method used was 3H Tritium beta radiation.
The conditions related to HS were optimized by a Box–Behnken design. The conditions directly related to the GC-IMS analysis were as follows: EPC1 (Electronic Pressure Control of drift gas) was selected at its maximum level (250 mL/min) in order to avoid non-ionized compounds that might cause noises to interfere with the analysis. EPC2 (Electronic Pressure Control of carried gas) was selected as a ramp of 5 mL/min (t = 0 min), 10 mL/min (t = 5 min), and 25 mL/min (t = 10 min). The total analysis time was 15 min. The system temperature was set at T1: 45 °C; T2: 50 °C for HS conditions; T3 = T4: 80 °C.
HS-GC-IMS provided 2-dimensional data matrices (retention time vs. drift times). The IMS Sum Spectrum (IMSSS) was obtained by adding the total intensities of all volatile compounds at the different drift times regardless of the GC. Differences between the intensities of the IMS spectra from HFCS and pure honey could be used with the purpose of detecting any addition of HFCS to honeys. Nowadays, most of the devices where IMS technique is included are combined with GC. This combination ensures the ionization of all the analytes present in the sample and the correct identification of all of them avoiding competitive reactions which typically occur in IMS.
Each compound’s drift time was normalized to the signal of the Reaction Ion Peak (RIP). RIP was used as a reference signal, so that it is the signal of the water in the air ionized by tritium beta radiation and it represents the total of all the ions available for the ionization. IMSSS included the total intensity data from 4500 drift times, from 0.000 ms to 4.283 ms. Laboratory Analytical Viewer software (LAV) (G.A.S., Dortmund, Germany) was used to obtain the IMSSS for each sample. Once the IMSSS for each analysis was obtained, the area where all volatile compounds appeared was selected. The area was obtained by reducing the number of drift times to a total of 578 drift times (from 1.050 ms to 1.600 ms). Each range was normalized by assigning one unit to the maximum intensity (Figure 1).
The variables that affect the generation of the HS of the volatile compounds to be injected in the GC-IMS system were optimized. According to the literature, such influential variables are mainly incubation temperature, incubation time, injection volume and amount of sample [42]. Additionally, the pre-heating time for the honey to reach a regular temperature (30 °C) before the analysis was also studied. Thus, a total of five variables were selected for the optimization: incubation time, incubation temperature, injection volume, amount of sample and pre-heating time. For each variable, three levels were selected as shown in Table 1, coded as (−1) for the low level, (0) for the central point, and (1) for the high level.
The ranges that have been evaluated for each variable were established according to the aim of this study, i.e., to develop a rapid analytical method to identify adulterated honey. For this reason, the incubation time and pre-heating time were limited to a maximum of 15 and 25 min, respectively.
The incubation temperature range was selected between 30 °C, since it was the minimum temperature allowed by the equipment, and 50 °C, since some honey components could suffer degradation at higher temperatures [43]. The injection volume was selected according to the instrument´s options. Small samples were selected based on the experience of the research group in the use of IMS with other food products.
Agitation was not selected as a variable to optimize. It was decided to fix it at 500 rpm in a period of 5 s of agitations and 2 s of stopping.
Box–Behnken design (BBD) in conjunction with response surface methodology (RSM) was applied to the optimization of the conditions to detect honey adulteration. The design consisted on 46 experiments with 6 repetitions in the central point (Table S1). All the trials were performed in random order.
In this case, the purpose was to maximize the differences between unadulterated honey and pure adulterant. Thus, only these two types of samples were used for the 46 experiences in the BBD. The total area of the IMSSS obtained for each sample under the specific conditions were analysed by the BBD (46 different conditions). The differences between the pure honey sample and the pure adulterant sample were calculated for any working condition. The optimization procedure tried to reach the conditions that showed the largest differences between the pure honey and the pure adulterant samples.

2.4. Data Analysis

For the analysis of the optimum conditions, Statgraphic Centurion XVI.I (Statgraphics Technologies Inc., The Plains, VA, USA) was used.
Once the optimum conditions were determined, the samples that had been adulterated at different levels were analysed. Their IMSSS were combined with different chemometrics to study the suitability of this technique for the detection of adulterated honey. Hierarchical Cluster Analysis (HCA), Principal Component Analysis (PCA) and Linear Discriminant Analysis (LDA) were performed by using the statistical computer packages Statgraphic Centurion XVI.I and IBM SPSS Statistics 22 (Armonk, NY, USA).

3. Results and Discussion

First of all, optimal conditions for the analysis of honey were determined. The use of IMS Sum Spectrum (IMSSS), which it is the sum of intensities of all volatile compounds across the chromatographic profile, was studied. This resulted in a spectrum with a total intensity for the different drift times. Once this method was optimized, IMSSS in combination with chemometrics, it was used to discriminate the different levels of honey adulteration by HFCS.

3.1. Optimization of the Method

One sample of unadulterated honey and one sample of pure HFCS under the different variable values were analysed. Their IMSSS were obtained and their spectra were reduced to the specific zone where the compounds associated with unadulterated honey and adulterant appeared. A spectrum from 1.050 ms to 1.600 ms with a total of 578 drift times was obtained. Each range was normalized by assigning one unit to the maximum intensity. The sum of the differences in intensities between the IMSSS from unadulterated honey and from HFCS in these 578 drift times was used as response variable for the BBD.
An Analysis of Variance (ANOVA) was carried out to evaluate the effects of the factors and the possible interactions between them. The results from the experiments with regards to intensity differences between pure honey and HFCS were correlated with those predicted by Equation (1).
Y = β0 + β1X1 + β2X2 + β3X3 + β4X4 + β5X5 + β12X1X2 + β13X1X3 + β14X1X4 + β15X1X5+ β23X2X3 + β24X2X4 + β25X2X5 + β34X3X4 + β35X3X5 + β45X4X5 + β11X12 + β22X22 + β33X32 + β44X42 + β55X52
Equation (1) corresponds to a quadratic model where Y is the predicted response (predicted difference between unadulterated honey and adulterant at the different drift times); β0 is the model constant; X1 (time for headspace generation), X2 (temperature of the headspace), X3 (injection volume), X4 (amount of sample), and X5 (pre-heating time) are the independent variables; βi are the linear coefficients; βij are the cross-product coefficients, and βii are the quadratic coefficients.
The results from the analysis are shown in Table 2. The coefficients for the different parameters of the quadratic polynomial equation and their significance (p-values) are presented. The factors that showed a p-value lower than 0.05 were considered to be significant factors that influenced the response at the selected level of significance (95%).
As can be observed, incubation time, incubation temperature, injection volume, amount of sample and quadratic interaction of the injection volume are influential variables (p-values < 0.05). Incubation temperature and injection volume showed positive coefficients (b2 = 0.0370 and b3 = 4.5332) which means that the discrimination between the two groups was more efficient when the incubation temperature and the volume of the injection were increased.
For a visual representation of the effects and their combinations, a standardized Pareto Chart is depicted in Figure 2.
The correlation was evaluated by means of the squared correlation coefficient (R2). In this case a value of R2 = 87.95% was obtained, which indicates a statistically significant agreement between the measured and the estimated responses.
The trends outlined above were recorded in a three-dimensional surface plot obtained by applying the polynomial equation. Figure 3 illustrates the combined effects of temperature and injected volume on the differences between unadulterated honey samples and HFCS samples.
It can be observed that both, incubation temperature and injection volume at the highest levels of the evaluated ranges show the maximum intensity differences between the two groups of samples.
Based on previous bibliography and the experience of the research group, it was expected that the maximum discrimination was achieved with the maximum injection volume. However, in the case of IMS competitive ionization reactions can occur, so an increment of the volume does not always ensure larger differences among the samples. In addition, too much sample volume can break the RIP in the IMS. Additionally, it is also important to study the linearity of the influence of the volume. Therefore, it was important to optimize this variable. As it can be observed in low terms the effect of the injection volume on the discrimination is linear but at high levels, the effect starts to be curved.
The final optimum conditions to discriminate between unadulterated honey samples and HFCS samples were as follows: 0.15 g of sample analysed, 15 min incubation at 50 °C with 22 min of pre-heating time and an injection volume of 0.91 mL.

3.2. Repeatability and Intermediate Precision of the Method

The analytical properties of the new method were established, specifically, repeatability and intermediate precision. Repeatability was calculated as closeness between the results of the experiments completed on the same day under the same conditions. Intermediate precision was calculated as the closeness between results on different days. A total of 12 analyses were carried out under optimum conditions, for each of the two samples (unadulterated honey and HFCS). Repeatability was studied by performing six analyses on the same day. Intermediate precision was evaluated by performing other three analyses during the following two days. A total of 24 samples were analysed (12 samples of unadulterated honey and 12 samples of HFCS).
The sum of the intensity differences between samples of unadulterated honey and HFCS in repeatability and intermediate precision experiences was calculated. The Coefficient of Variation (CV) between the sum of the intensity differences was used as the variable to measure their similarity.
The repeatability was 4.90%, and the intermediate precision 4.27%. Since both values were within the acceptable limits (5%), the developed method proved to be repeatable and with an adequate intermediate precision.

3.3. Analysis of the Adulterated Honey Samples

Once the method had been optimized, it was applied to determine the level of HFCS on a set of adulterated honey samples. Two replicas of each of the 16 samples (two unadulterated honey, 2 HFCS and two samples at each percentage of adulteration; i.e., 10%, 20%, 25%, 30%, 40%, and 50%) were analysed by HS-IMS under the previously determined optimum conditions.
Normalized spectra from 1.050 to 1.600 ms were obtained for each sample in order to study the spectra profile of each group. Differences in total intensities for each drift time were detected at the different percentages of adulteration (information not included). The next step was the evaluation of the possibility of using these differences to discriminate between adulterated honey levels and unadulterated honey without identifying individual compounds.
In order to study the trends of the honey samples to get grouped according to their level of adulteration by HFCS, a non-supervised method was selected. HCA and a Nearest neighbour method with square Euclidian distance was applied. For this analysis, the IMSSS of the two replicas from each of the 14 samples (two unadulterated honey and two samples of adulterated honey at each one of the different percentages) were analysed by HCA. The results were graphically represented in a dendrogram (Figure 4).
It can be seen that samples tended to group depending on their adulterant content and percentage. Unadulterated honey samples formed a separate cluster at a considerable distance from the rest of the adulterated samples, which also formed different groups. It could be seen that the adulterated samples also had a tendency to form groups depending on their percentage of adulterant. Nevertheless, and despite this tendency, there were also some misclassifications with regards to the percentage of adulterant content. These misclassifications were more noticeable in samples with an adulterant content over 25%
These results suggest that IMSSS differences are related to some of the compounds that can be found in adulterated honey and also to their percentage in the sample. However, a successful and complete classification of the samples was not achieved. Therefore, another non-supervised technique namely PCA was applied to the same data matrix D28X578. Principal components (PCs) with eigenvalues greater than 1 were extracted, obtaining a total of 8 PCs. PC1 accounts for 60.11% of the variance of the IMSSS data. The first two factors account for more than 83.95% of the total variance and the first three more than 96%. The score plot for group centroids according to the first two PCs is shown in Figure 5.
As can be observed, PC1 seems to be most related to the level of adulteration. A percentage of 10% and 20% of adulteration centroids presented negative values for PC1. In general, centroids for the highest level of adulteration groups also present the highest values for PC1. On the other hand, PC2 is mainly related to the presence/absence of adulteration but it is also necessary for the classification regarding the level of adulteration. As Figure 5 illustrates, pure honey centroid presented the highest negative value for PC2. Centroids of low levels (10%, 20%, and 30%) also present negative values for PC2, whilst centroids of adulterated samples at higher levels have positive values on this PC. These results suggest that there is a tendency of the centroids to be classified on the space according to the level of adulteration based on the PC1 and PC2. As in the case of HCA, a perfect classification based on the presence of adulteration but not on the level of adulteration was achieved. The misclassification is again in the case of centroids above 25% of adulteration). As a full classification of the samples was not achieved by using unsupervised techniques, it was proceeded with a supervised technique, in particular, LDA.
As PC1 and PC2 showed high loading values (higher than 0.8) for almost all of the drift times (data not shown), a specific region for the LDA was not selected for this analysis but the whole data matrix D28X578. All of the 28 IMSSS were subjected to LDA using a cross-validation and stepwise method. Six groups were established a priori according to their adulterant content percentage (0–50%); 100% discrimination was obtained for all the groups. Discriminant scores for all samples according to the first three discriminant functions (F1, F2 and F3) were represented in Figure 6. As it could be observed, F1 is the main responsible for the discrimination between unadulterated and adulterated honey samples. However, F2 and F3 are necessary for the discrimination between the different percentages of adulteration. Based on the LDA results, adulterated honey samples can be identified, and their percentage of adulteration can be discriminated based on their IMSSSs.

5. Conclusions

This study has optimized, for the first time, a method based on analytical ion mobility spectrometry coupled to headspace for the identification of adulterated honey. Five relevant variables: incubation temperature, incubation time, injection volume, amount of sample and pre-heating time, have been optimized. IMSSS, as a novel data treatment, has been proposed to optimize the analysis of adulterated samples. IMSSS would allow the comparison of data between laboratories in a rapid and reliable way.
Incubation time, incubation temperature, injection volume, amount of sample and the quadratic interaction of the volume of the injection with itself were the most influential variables. The optimum conditions were determined as follows: 0.15 g of sample, 22 min pre-heating time, analysed at 50 °C, for 15 min and with 0.91 mL injection volume. The method evidenced high repeatability and intermediate precision with RSDs below 5% in both cases.
The optimum conditions for the developed method have been applied to adulterated samples of multi-floral honey adulterated with HFCS at different percentages (10%, 20%, 25%, 30%, 40%, and 50%).
IMSSS combined with chemometrics, such as HCA, PCA and LDA has demonstrated to be a suitable tool for the identification of multi-floral honey adulterated by adding HFCS and even to discriminate different adulteration levels depending on the adulterant content. A full classification was achieved for all samples in the LDA.
Based on these satisfactory results, further research studies should study the applicability of this method to other honey adulterants and to other honey varieties.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/19/7/1621/s1, Table S1: Box–Behnken design experiments.

Author Contributions

M.J.A.-G., M.F.-G. and M.P. conceived and designed the experiments; M.J.A.-G. and G.F.B. performed the experiments; M.J.A.-G. and E.E.-B. analyzed the data; M.J.A.-G. and E.E.-B. wrote the draft version; M.F.-G., G.F.B. and M.P. were responsible for writing-review & editing.

Funding

This research received no external funding.

Acknowledgments

The authors would like to thank Granada Protected Designation of Origin (PDO) for providing the honey samples especially to Francisco José Orantes Bermejo (Director of Apinevada Laboratories). The authors would like to express also their gratitude to the University of Cadiz and V. la Andaluza (OT2017/032) for supporting this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Reinholds, I.; Bartkevics, V.; Silvis, I.C.J.; van Ruth, S.M.; Esslinger, S. Analytical techniques combined with chemometrics for authentication and determination of contaminants in condiments: A review. J. Food Compos. Anal. 2015, 44, 56–72. [Google Scholar] [CrossRef]
  2. HM Government Elliott Review into the Integrity and Assurance of Food Supply Networks; The National Archives: London, UK, 2014.
  3. Food, C.A.S. Standard for Honey. Codex Stan 12-1981; Food and Agriculture Organization of the United Nations: Rome, Italy, 2001. [Google Scholar]
  4. Półtorak, A.; Marcinkowska-Lesiak, M.; Lendzion, K.; Moczkowska, M.; Onopiuk, A.; Wojtasik-Kalinowska, I.; Wierzbicka, A. Evaluation of the antioxidant, anti-inflammatory and antimicrobial effects of catuaba, galangal, roseroot, maca root, guarana and polyfloral honey in sausages during storage. LWT Food Sci. Technol. 2018, 96, 364–370. [Google Scholar] [CrossRef]
  5. Deng, J.; Liu, R.; Lu, Q.; Hao, P.; Xu, A.; Zhang, J.; Tan, J. Biochemical properties, antibacterial and cellular antioxidant activities of buckwheat honey in comparison to manuka honey. Food Chem. 2018, 252, 243–249. [Google Scholar] [CrossRef] [PubMed]
  6. Abdelrahman, M.T.; Maina, E.N.; Elshemy, H.A. Clove (Syzygium aromaticum) and honey extracts significantly reduce inflammatory cytokines and liver function enzymes in experimental rats fed on carbon tetrachloride (CCl4). J. Radiat. Res. Appl. Sci. 2018, 11, 416–422. [Google Scholar] [CrossRef]
  7. Yaghoobi, N.; Al-Waili, N.; Ghayour-Mobarhan, M.; Parizadeh, S.M.R.; Abasalti, Z.; Yaghoobi, Z.; Yaghoobi, F.; Esmaeili, H.; Kazemi-Bajestani, S.M.R.; Aghasizadeh, R.; et al. Natural honey and cardiovascular risk factors; effects on blood glucose, cholesterol, triacylglycerole, CRP, and body weight compared with sucrose. Sci. World J. 2008, 8, 463–469. [Google Scholar] [CrossRef] [PubMed]
  8. Meo, S.A.; Al-Asiri, S.A.; Mahesar, A.L.; Ansari, M.J. Role of honey in modern medicine. Saudi J. Biol. Sci. 2017, 24, 975–978. [Google Scholar] [CrossRef] [PubMed]
  9. The Common Market Organisation (CMO). Honey Market-Agricultura Market. European Commission, 2017. Available online: https://ec.europa.eu/agriculture/markets_en (accessed on 12 February 2019).
  10. Sobrino-Gregorio, L.; Vargas, M.; Chiralt, A.; Escriche, I. Thermal properties of honey as affected by the addition of sugar syrup. J. Food Eng. 2017, 213, 69–75. [Google Scholar] [CrossRef]
  11. Ferreiro-González, M.; Espada-Bellido, E.; Guillén-Cueto, L.; Palma, M.; Barroso, C.G.; Barbero, G.F. Rapid quantification of honey adulteration by visible-near infrared spectroscopy combined with chemometrics. Talanta 2018, 188, 288–292. [Google Scholar] [CrossRef] [PubMed]
  12. 510/2006, C.R. (EC) N. Protection of Geographical Indications and Designations of Origin for Agricultural Products and Foodstuffs; Official Journal of the European Union: Madrid, Spain, 2006. [Google Scholar]
  13. Qu, J.-H.; Liu, D.; Cheng, J.-H.; Sun, D.-W.; Ma, J.; Pu, H.; Zeng, X.-A. Applications of near-infrared spectroscopy in food safety evaluation and control: A review of recent research advances. Crit. Rev. Food Sci. Nutr. 2015, 55, 1939–1954. [Google Scholar] [CrossRef]
  14. Tosun, M. Detection of adulteration in honey samples added various sugar syrups with 13C/12C isotope ratio analysis method. Food Chem. 2013, 138, 1629–1632. [Google Scholar] [CrossRef] [PubMed]
  15. Zakaria, A.; Shakaff, A.Y.M.; Masnan, M.J.; Ahmad, M.N.; Adom, A.H.; Jaafar, M.N.; Ghani, S.A.; Abdullah, A.H.; Aziz, A.H.A.; Kamarudin, L.M.; et al. A biomimetic sensor for the classification of honeys of different floral origin and the detection of adulteration. Sensors 2011, 11. [Google Scholar] [CrossRef]
  16. Subari, N.; Mohamad Saleh, J.; Md Shakaff, Y.A.; Zakaria, A. A hybrid sensing approach for pure and adulterated honey classification. Sensors 2012, 12, 14022–14040. [Google Scholar] [CrossRef] [PubMed]
  17. Bertelli, D.; Lolli, M.; Papotti, G.; Bortolotti, L.; Serra, G.; Plessi, M. Detection of honey adulteration by sugar syrups using one-dimensional and two-dimensional high-resolution nuclear magnetic resonance. J. Agric. Food Chem. 2010, 58, 8495–8501. [Google Scholar] [CrossRef]
  18. Serra Bonvehí, J.; Soliva Torrentó, M.; Muntané Raich, J. Invertase activity in fresh and processed honeys. J. Sci. Food Agric. 2000, 80, 507–512. [Google Scholar] [CrossRef]
  19. Oroian, M.; Ropciuc, S. Botanical authentication of honeys based on Raman spectra. J. Food Meas. Charact. 2017, 12, 545–554. [Google Scholar] [CrossRef]
  20. Wang, S.; Guo, Q.; Wang, L.; Lin, L.; Shi, H.; Cao, H.; Cao, B. Detection of honey adulteration with starch syrup by high performance liquid chromatography. Food Chem. 2015, 172, 669–674. [Google Scholar] [CrossRef] [PubMed]
  21. Lo, Y.-T.; Shaw, P.-C. DNA-based techniques for authentication of processed food and food supplements. Food Chem. 2018, 240, 767–774. [Google Scholar] [CrossRef] [PubMed]
  22. Sobrino-Gregorio, L.; Bataller, R.; Soto, J.; Escriche, I. Monitoring honey adulteration with sugar syrups using an automatic pulse voltammetric electronic tongue. Food Control 2018, 91, 254–260. [Google Scholar] [CrossRef]
  23. Čačić Kenjerić, F.; Primorac, L.; Kenjeric, D.; Benedetti, S.; Mandić, M. Application of electronic nose in honey geographical origin characterisation. J. Cent. Eur. Agric. 2009, 10, 19–26. [Google Scholar] [CrossRef]
  24. Ampuero, S.; Bogdanov, S.; Bosset, J.-O. Classification of unifloral honeys with an MS-based electronic nose using different sampling modes: SHS, SPME and INDEX. Eur. Food Res. Technol. 2004, 218, 198–207. [Google Scholar] [CrossRef]
  25. Dymerski, T.; Gębicki, J.; Wardencki, W.; Namieśnik, J. Application of an electronic nose instrument to fast classification of Polish honey types. Sensors 2014, 14, 10709–10724. [Google Scholar] [CrossRef]
  26. Ulloa, P.A.; Guerra, R.; Cavaco, A.M.; Rosa da Costa, A.M.; Figueira, A.C.; Brigas, A.F. Determination of the botanical origin of honey by sensor fusion of impedance e-tongue and optical spectroscopy. Comput. Electron. Agric. 2013, 94, 1–11. [Google Scholar] [CrossRef]
  27. Eiceman, G.A.; Lee, G.; Menlyadiev, M.; Fowler, P.E.; Pasupuleti, D.; Holopainen, S.; Chiluwal, U.; Shokri, H. Tandem mobility spectrometry at ambient pressure. Compr. Anal. Chem. 2019, 140, 2052–2061. [Google Scholar] [CrossRef]
  28. Del Mar Contreras, M.; Arroyo-Manzanares, N.; Arce, C.; Arce, M.; Contreras, L. HS-GC-IMS and chemometric data treatment for food authenticity assessment: Olive oil mapping and classification through two different devices as an example. Food Control 2019, 98, 82–93. [Google Scholar] [CrossRef]
  29. Vautz, W.; Franzke, J.; Zampolli, S.; Elmi, I.; Liedtke, S. On the potential of ion mobility spectrometry coupled to GC pre-separation—A tutorial. Anal. Chim. Acta 2018, 1024, 52–64. [Google Scholar] [CrossRef] [PubMed]
  30. Cavanna, D.; Zanardi, S.; Dall’Asta, C.; Suman, M. Ion mobility spectrometry coupled to gas chromatography: A rapid tool to assess eggs freshness. Food Chem. 2019, 271, 691–696. [Google Scholar] [CrossRef]
  31. Gabelica, V.; Marklund, E. Fundamentals of ion mobility spectrometry. Curr. Opin. Chem. Biol. 2018, 42, 51–59. [Google Scholar] [CrossRef] [PubMed]
  32. Du, Z.; Sun, T.; Zhao, J.; Wang, D.; Zhang, Z.; Yu, W. Development of a plug-type IMS-MS instrument and its applications in resolving problems existing in in-situ detection of illicit drugs and explosives by IMS. Talanta 2018, 184, 65–72. [Google Scholar] [CrossRef] [PubMed]
  33. Zalewska, A.; Pawłowski, W.; Tomaszewski, W. Limits of detection of explosives as determined with IMS and field asymmetric IMS vapour detectors. Forensic Sci. Int. 2013, 226, 168–172. [Google Scholar] [CrossRef]
  34. Yang, L.; Han, Q.; Cao, S.; Yang, J.; Yang, J.; Ding, M. Portable solid phase micro-extraction coupled with ion mobility spectrometry system for on-site analysis of chemical warfare agents and simulants in water samples. Sensors 2014, 14, 20963–20974. [Google Scholar] [CrossRef]
  35. Aliaño-González, M.; Ferreiro-González, M.; Barbero, G.; Palma, M.; Barroso, C. Application of headspace gas chromatography-ion mobility spectrometry for the determination of ignitable liquids from fire debris. Separations 2018, 5, 41. [Google Scholar] [CrossRef]
  36. Hernández-Mesa, M.; Escourrou, A.; Monteau, F.; Le Bizec, B.; Dervilly-Pinel, G. Current applications and perspectives of ion mobility spectrometry to answer chemical food safety issues. TrAC Trends Anal. Chem. 2017, 94, 39–53. [Google Scholar] [CrossRef]
  37. Zhang, L.; Shuai, Q.; Li, P.; Zhang, Q.; Ma, F.; Zhang, W.; Ding, X. Ion mobility spectrometry fingerprints: A rapid detection technology for adulteration of sesame oil. Food Chem. 2016, 192, 60–66. [Google Scholar] [CrossRef] [PubMed]
  38. Rutolo, M.; Covington, A.J.; Clarkson, J.; Iliescu, D. Detection of potato storage disease via gas analysis: A pilot study using field asymmetric ion mobility spectrometry. Sensors 2014, 14, 20963–20974. [Google Scholar] [CrossRef] [PubMed]
  39. Garrido-Delgado, R.; Mercader-Trejo, F.; Sielemann, S.; de Bruyn, W.; Arce, L.; Valcárcel, M. Direct classification of olive oils by using two types of ion mobility spectrometers. Anal. Chim. Acta 2011, 696, 108–115. [Google Scholar] [CrossRef] [PubMed]
  40. Tzschoppe, M.; Haase, H.; Höhnisch, M.; Jaros, D.; Rohm, H. Using ion mobility spectrometry for screening the autoxidation of peanuts. Food Control 2016, 64, 17–21. [Google Scholar] [CrossRef]
  41. Long, L. Honey: A Global History; Series, T.E., Ed.; Reaktion Books: London, UK, 2017. [Google Scholar]
  42. Snow, N.H.; Slack, G.C. Head-space analysis in modern gas chromatography. TrAC Trends Anal. Chem. 2002, 21, 608–617. [Google Scholar] [CrossRef]
  43. Naila, A.; Flint, S.H.; Sulaiman, A.Z.; Ajit, A.; Weeds, Z. Classical and novel approaches to the analysis of honey and detection of adulterants. Food Control 2018, 90, 152–165. [Google Scholar] [CrossRef]
Sensors 19 01621 g001 550

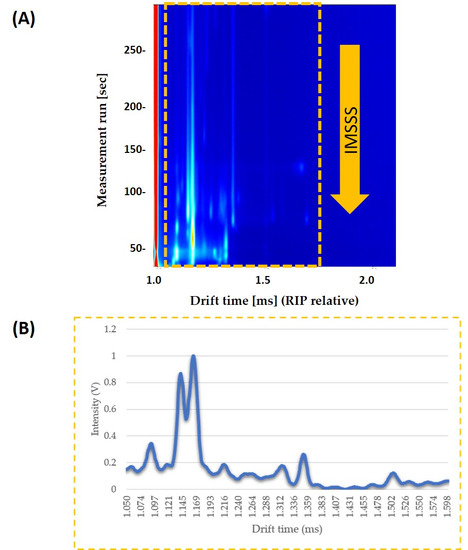

Figure 1. (a) Topographic plot of GC–IMS spectra obtained from pure honey sample under optimized conditions. The interested zone of each topographic plot is selected with a yellow rectangle; (b) The resulting IMSSS corresponding to the selected zone (intensity vs. drift time) displayed after summing the intensities across the chromatographic profile and so annulling the information about GC separation.
Figure 1. (a) Topographic plot of GC–IMS spectra obtained from pure honey sample under optimized conditions. The interested zone of each topographic plot is selected with a yellow rectangle; (b) The resulting IMSSS corresponding to the selected zone (intensity vs. drift time) displayed after summing the intensities across the chromatographic profile and so annulling the information about GC separation.
Sensors 19 01621 g001
Sensors 19 01621 g002 550

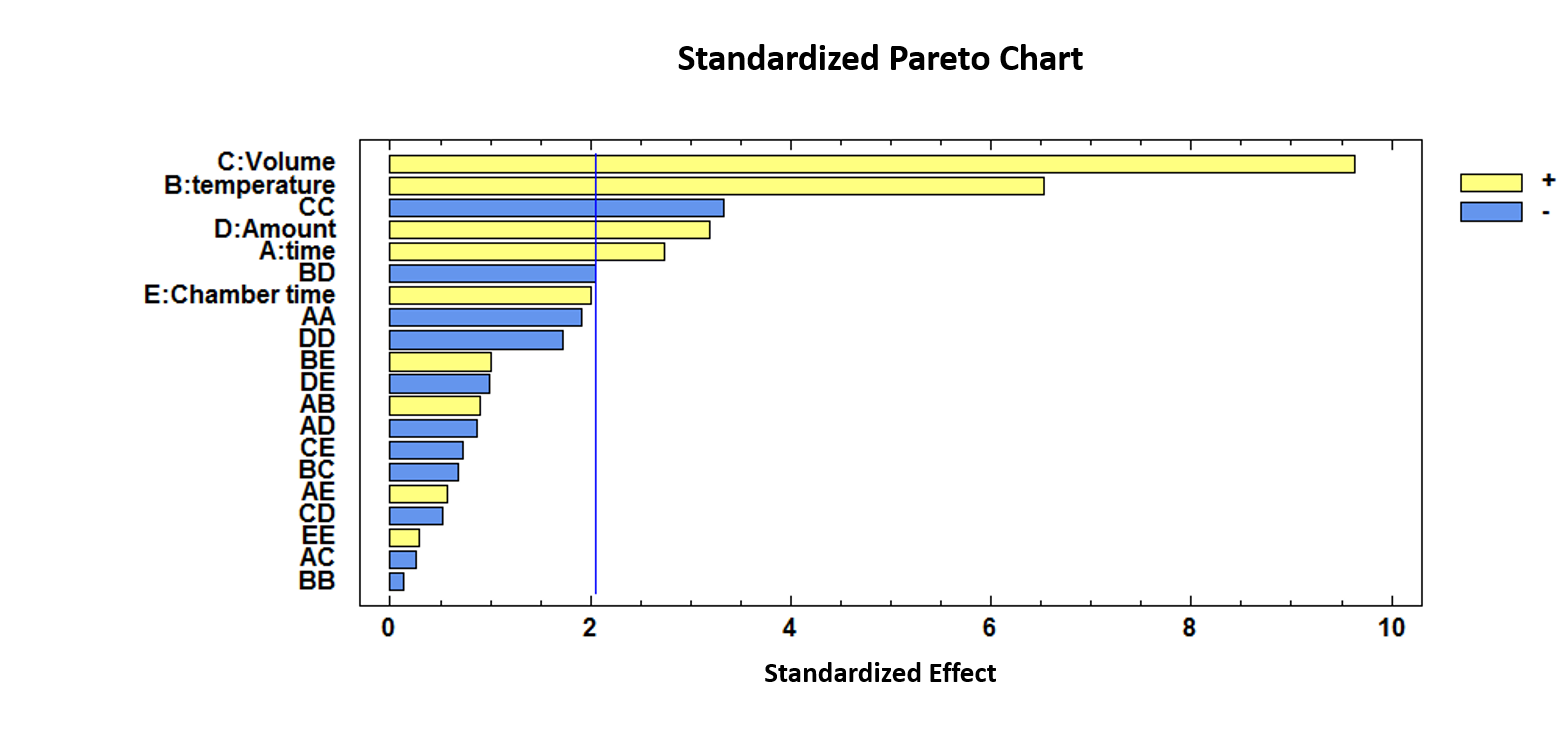

Figure 2. Standardized Pareto Chart representing the five variables optimized for the discrimination between unadulterated honey and HFCS (high fructose corn syrup) samples.
Figure 2. Standardized Pareto Chart representing the five variables optimized for the discrimination between unadulterated honey and HFCS (high fructose corn syrup) samples.
Sensors 19 01621 g002
Sensors 19 01621 g003 550

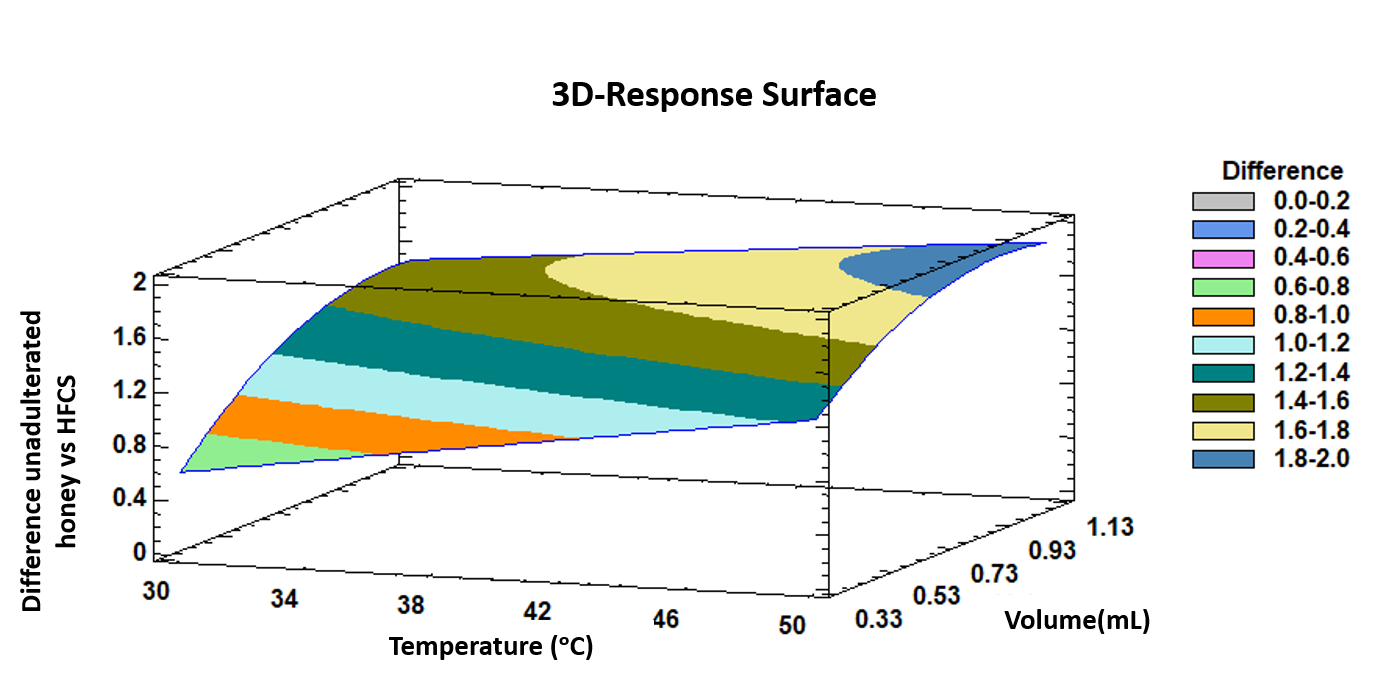

Figure 3. 3D surface plot of the Box–Behnken design that represents graphically, according to the polygonal equation, the influence of temperature and injection volume on the intensity differences between unadulterated honey samples and HFCS samples.
Figure 3. 3D surface plot of the Box–Behnken design that represents graphically, according to the polygonal equation, the influence of temperature and injection volume on the intensity differences between unadulterated honey samples and HFCS samples.
Sensors 19 01621 g003
Sensors 19 01621 g004 550

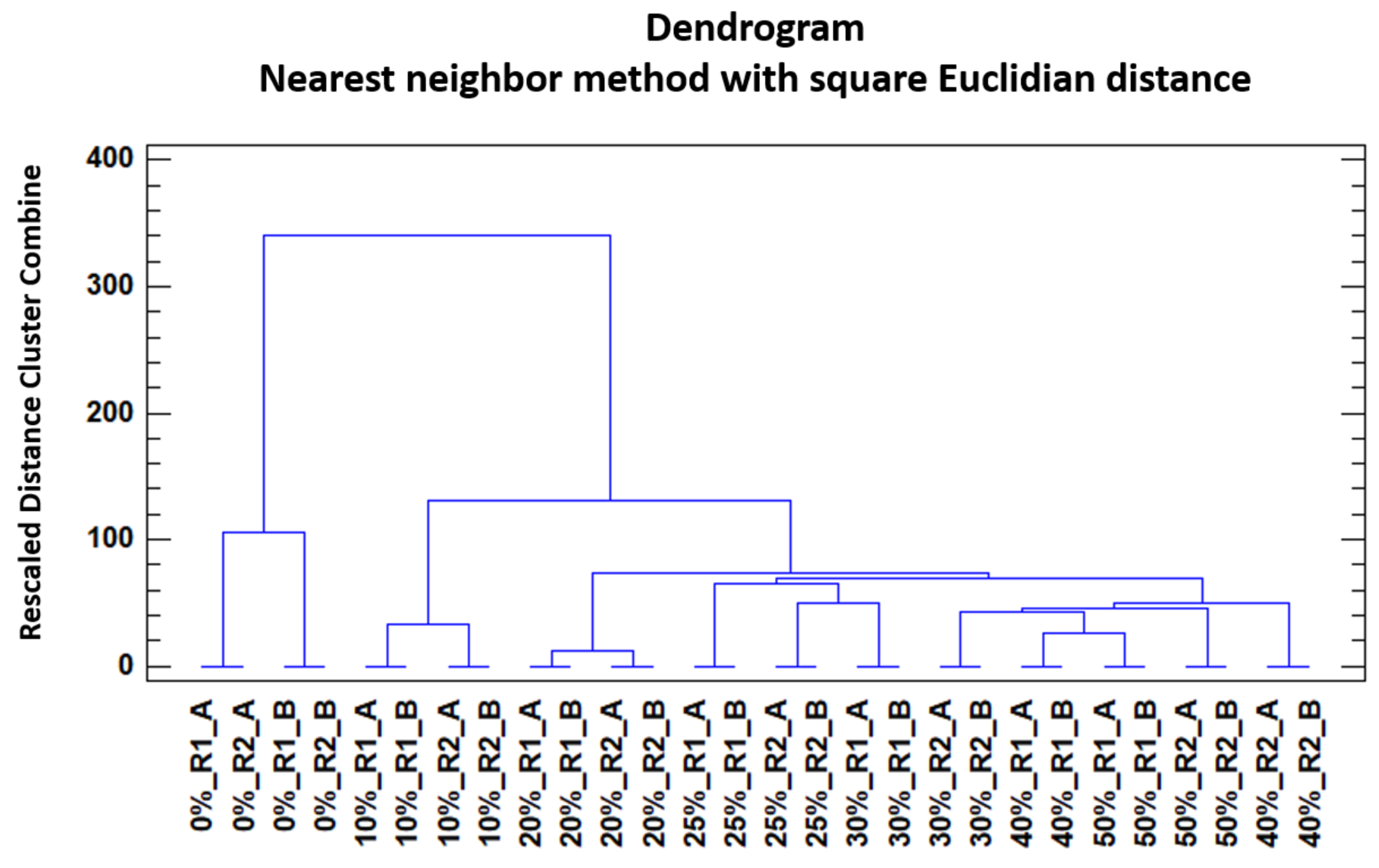

Figure 4. Dendrogram obtained by means of HCA of the unadulterated honey and the adulterated honey samples (D28X578).
Figure 4. Dendrogram obtained by means of HCA of the unadulterated honey and the adulterated honey samples (D28X578).
Sensors 19 01621 g004
Sensors 19 01621 g005 550

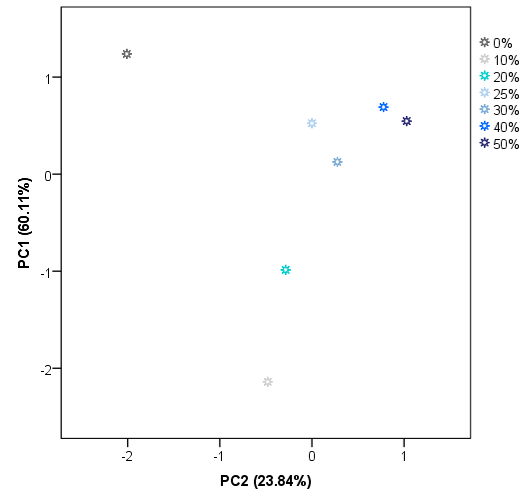

Figure 5. Two-dimensional PCA centroids plot (scores average for PC1 vs PC2).
Figure 5. Two-dimensional PCA centroids plot (scores average for PC1 vs PC2).
Sensors 19 01621 g005
Sensors 19 01621 g006 550

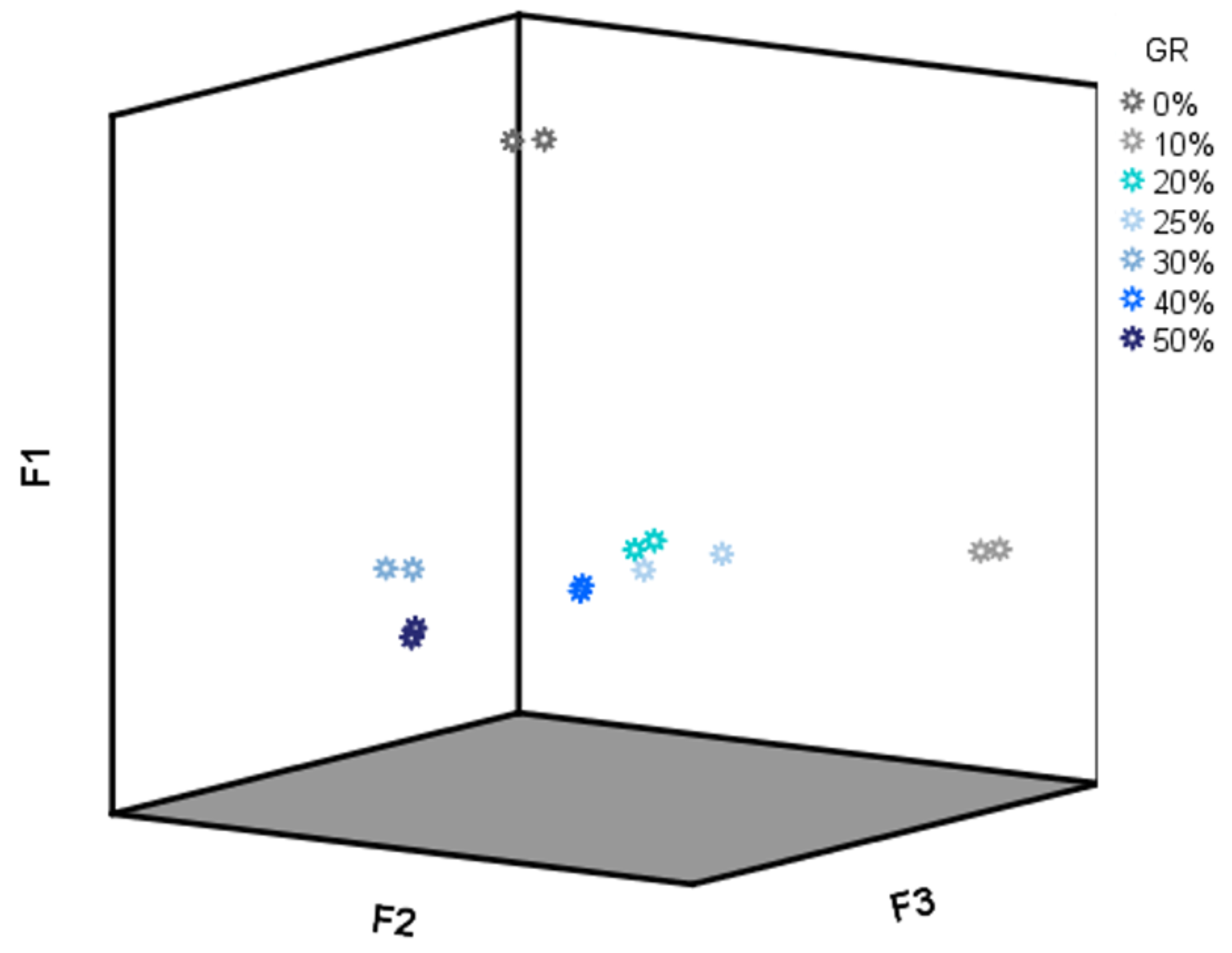

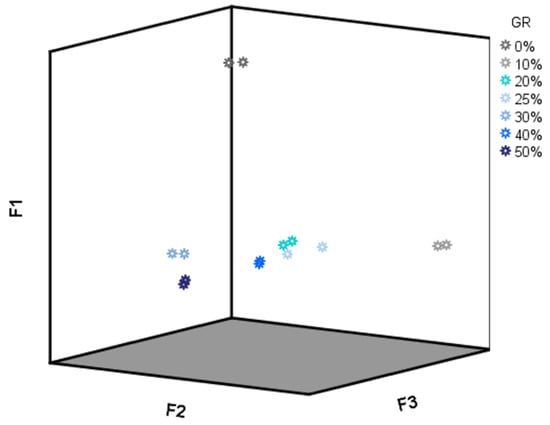

Figure 6. F1, F2 vs F3 score plot (D28X578).
Figure 6. F1, F2 vs F3 score plot (D28X578).
Sensors 19 01621 g006
Table
Table 1. Selected variables, their values and coded and un-coded levels used for the BBD.
Table 1. Selected variables, their values and coded and un-coded levels used for the BBD.
Variable−101
Incubation time (min)51015
Incubation temperature (°C)304050
Injection volume (mL)0.330.661.00
Amount of sample (g)0.10.50.9
Pre-heating time (min)51525
Table
Table 2. Analysis of variance of the quadratic model adjusted to the discrimination of pure honey and HFCS samples.
Table 2. Analysis of variance of the quadratic model adjusted to the discrimination of pure honey and HFCS samples.
VariableFactorCoefficientSum of SquaresDegrees of FreedomMean SquareF-Valuep-Value
TimeX10.06010.197510.19757.510.0111
TemperatureX20.03701.121611.121642.670.0000
Injection volumeX34.53322.436312.436392.690.0000
Amount of sampleX43.44070.268410.268410.210.0038
Pre-heating timeX5−0.01670.105710.10574.020.0558
Time: TimeX12−0.00420.095510.09553.630.0682
Time: TemperatureX1X20.00140.020910.02090.800.3800
Time: Injection volumeX1X3−0.01280.001810.00180.070.7931
Time: Amount of sampleX1X4−0.03480.019410.01940.740.3985
Time: Pre-heating timeX1X50.00090.008510.00850.320.5746
Temperature: TemperatureX22−0.00010.000410.00040.020.9002
Temperature: Injection volumeX2X3−0.01630.011810.01180.450.5076
Temperature: Amount of sampleX2X4−0.04160.110910.11094.220.0505
Temperature: Pre-heating timeX2X50.00080.026410.02641.000.3263
Injection volume: Injection volumeX32−1.63030.291910.291911.110.0027
Injection volume: Amount of sampleX3X4−0.31610.007210.00720.270.6059
Injection volume: Pre-heating timeX3X5−0.01750.013810.01380.530.4752
Amount of sample: Amount of sampleX42−0.59300.078610.07862.990.0962
Amount of sample: Pre-heating timeX4X5−0.02000.025610.02560.980.3329
Pre-heating time: Pre-heating timeX520.00020.002210.00220.090.7724
Pure error −2.96220.657125
Total 0.06015.451845

Share and Cite

MDPI and ACS Style

Aliaño-González, M.J.; Ferreiro-González, M.; Espada-Bellido, E.; Palma, M.; Barbero, G.F. A Screening Method Based on Headspace-Ion Mobility Spectrometry to Identify Adulterated Honey. Sensors 2019, 19, 1621. https://doi.org/10.3390/s19071621

AMA Style

Aliaño-González MJ, Ferreiro-González M, Espada-Bellido E, Palma M, Barbero GF. A Screening Method Based on Headspace-Ion Mobility Spectrometry to Identify Adulterated Honey. Sensors. 2019; 19(7):1621. https://doi.org/10.3390/s19071621

Chicago/Turabian Style

Aliaño-González, María José, Marta Ferreiro-González, Estrella Espada-Bellido, Miguel Palma, and Gerardo F. Barbero. 2019. "A Screening Method Based on Headspace-Ion Mobility Spectrometry to Identify Adulterated Honey" Sensors 19, no. 7: 1621. https://doi.org/10.3390/s19071621

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
