Continuous Analysis of Running Mechanics by Means of an Integrated INS/GPS Device

1
Faculty of Information Technology and Communication Sciences, Tampere University, 33720 Tampere, Finland
2
Neuromuscular Research Centre, Faculty of Sport and Health Sciences, University of Jyväskylä, 40014 Jyväskylä, Finland
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(6), 1480; https://doi.org/10.3390/s19061480
Received: 12 February 2019 / Revised: 11 March 2019 / Accepted: 21 March 2019 / Published: 26 March 2019
(This article belongs to the Special Issue Wearable Sensors for Gait and Motion Analysis 2018)
  |
PDF [2344 KB, uploaded 27 March 2019]
  |

Abstract

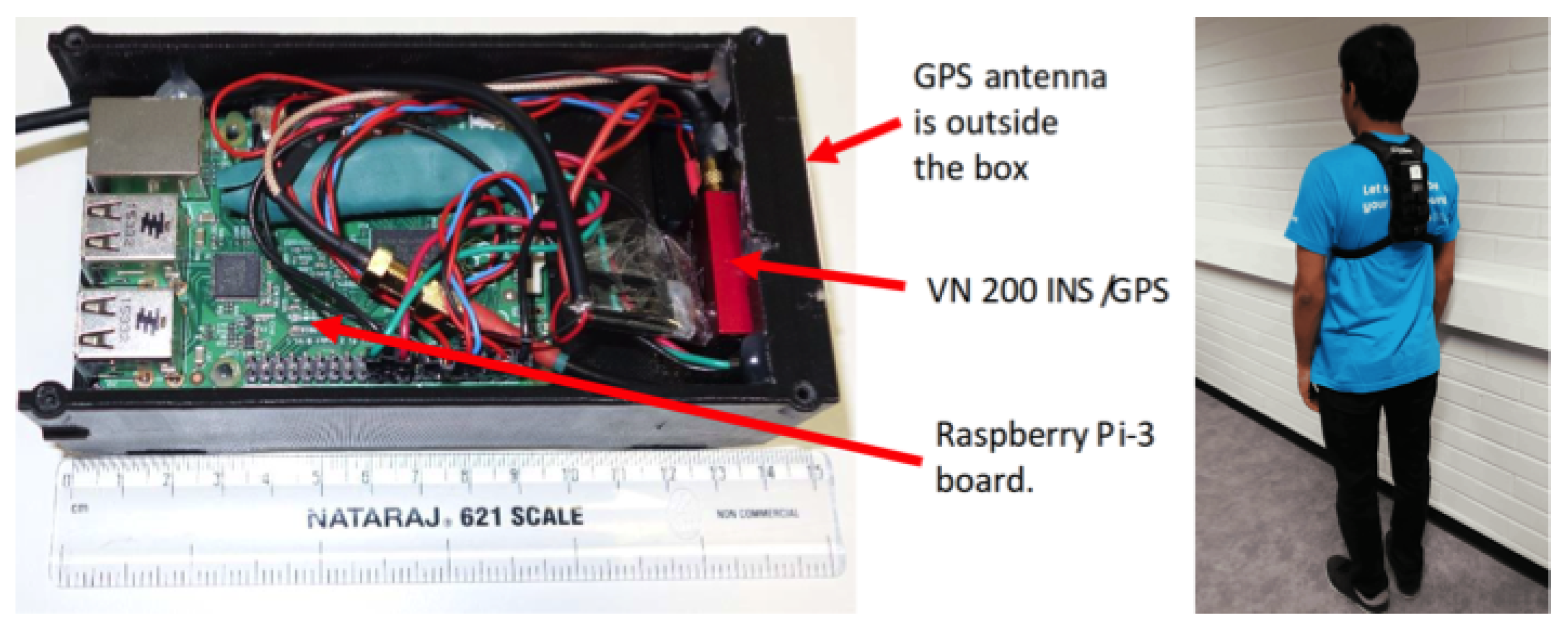

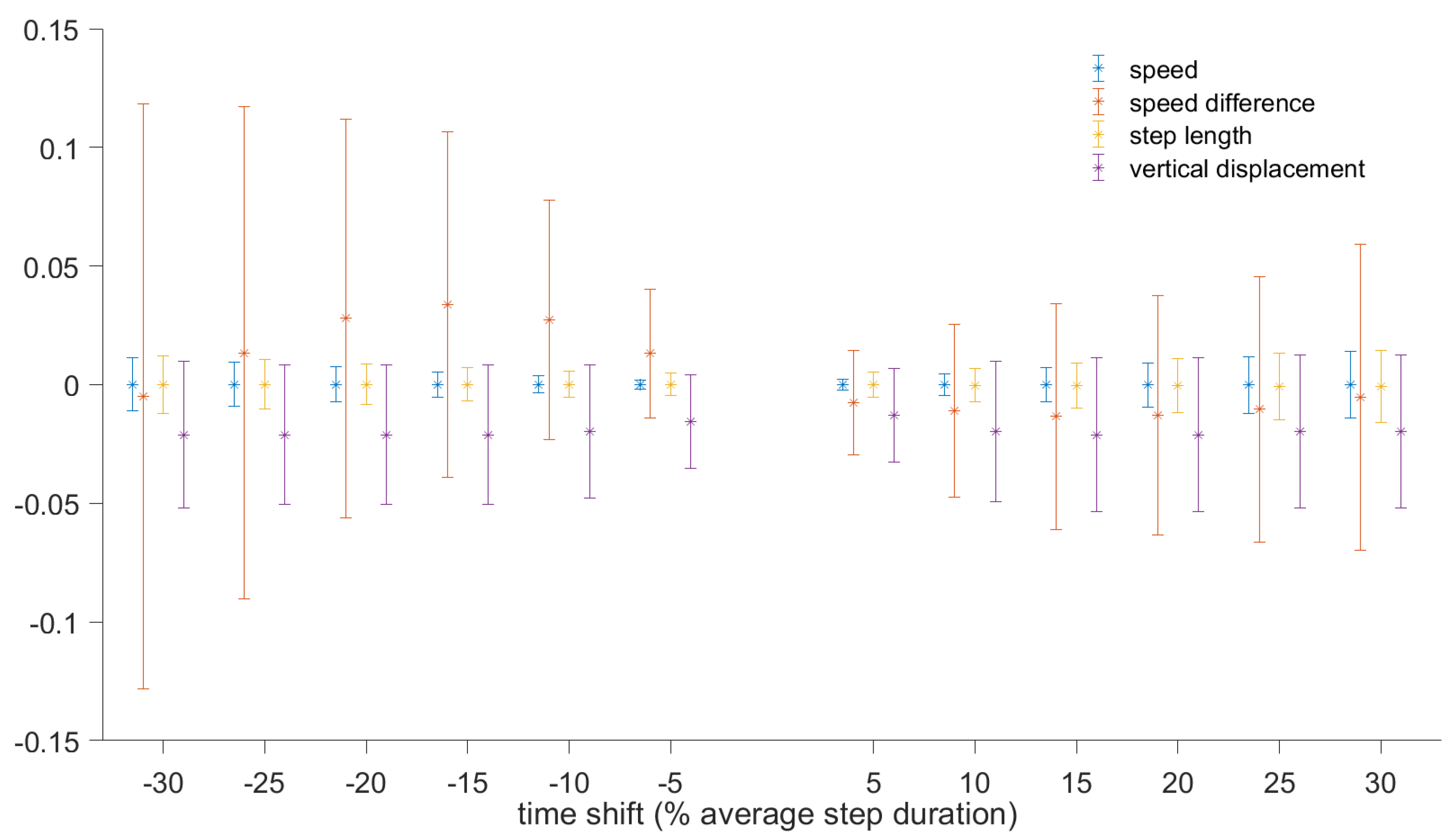

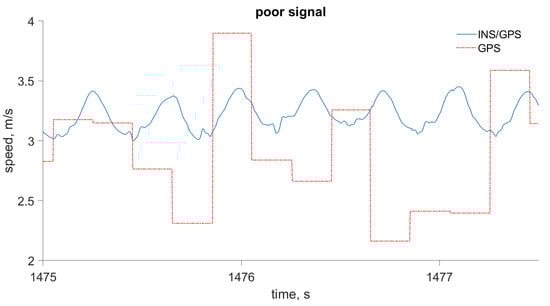

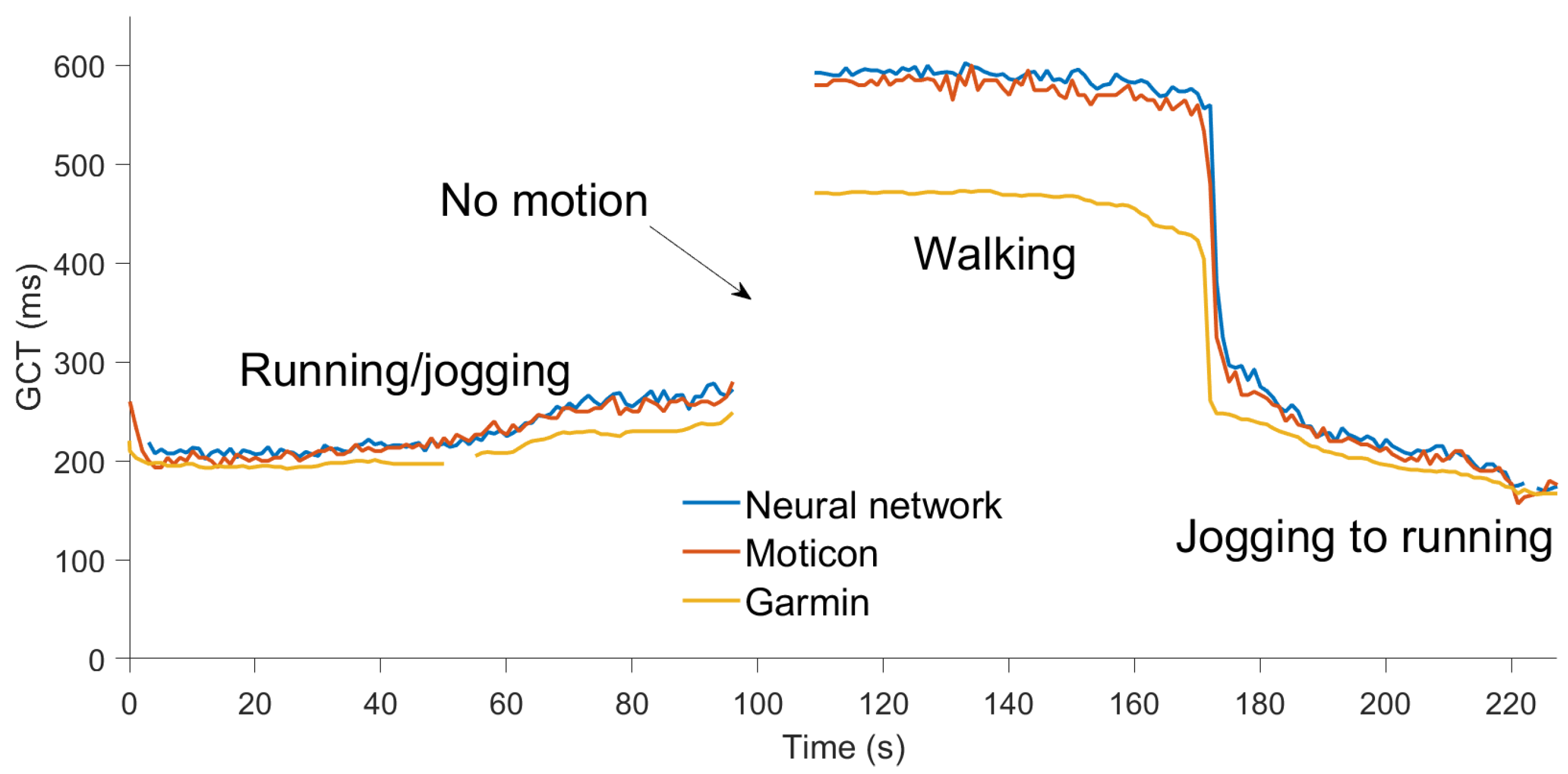

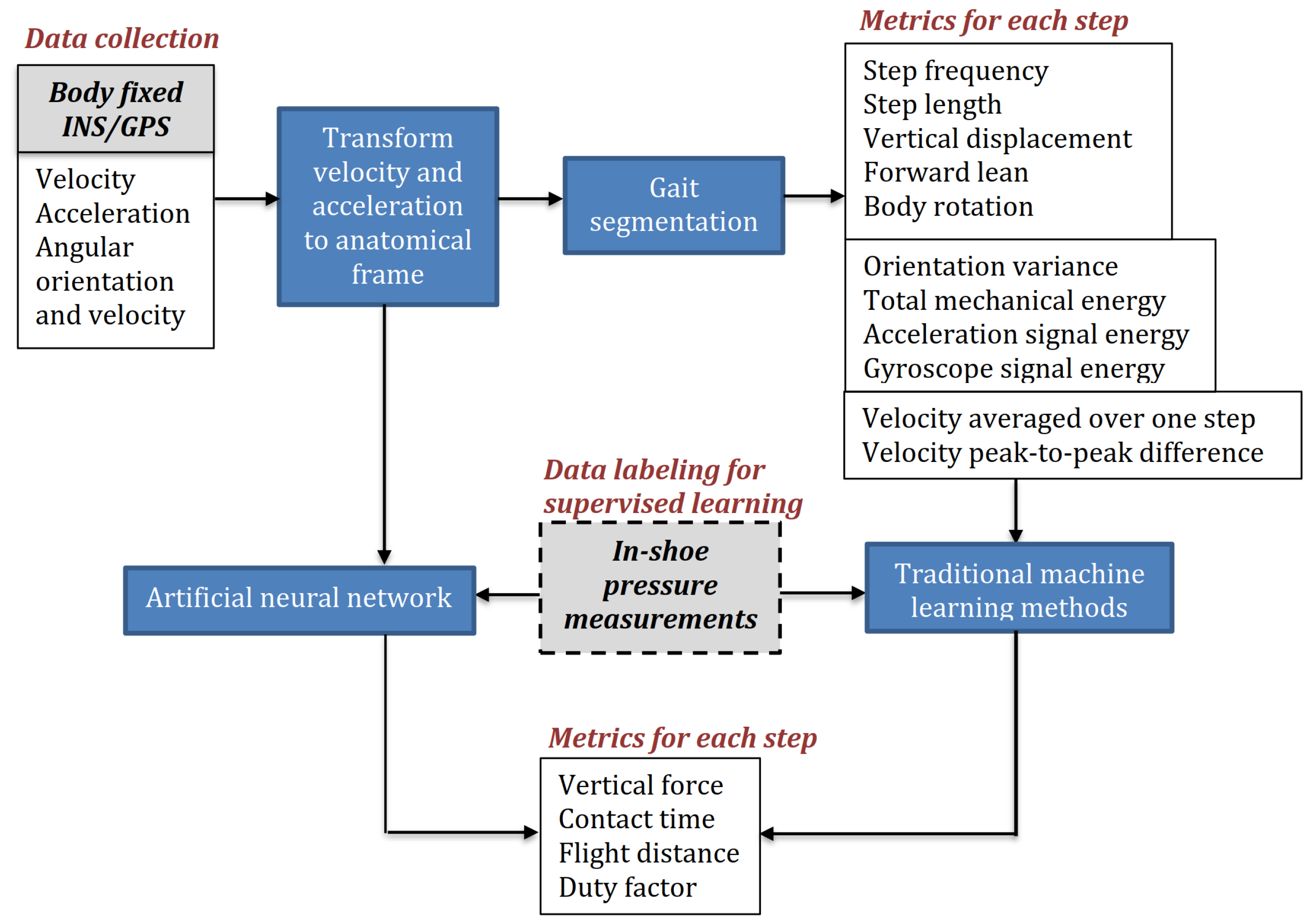

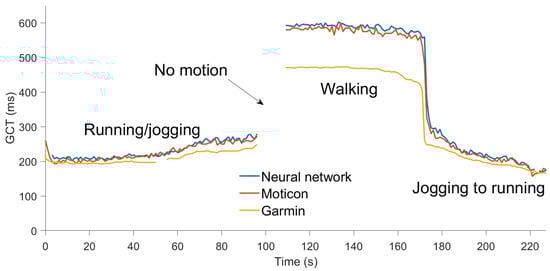

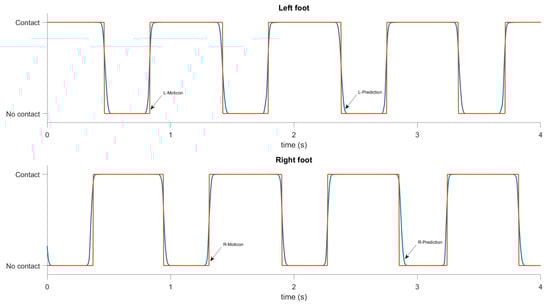

This paper describes a single body-mounted sensor that integrates accelerometers, gyroscopes, compasses, barometers, a GPS receiver, and a methodology to process the data for biomechanical studies. The sensor and its data processing system can accurately compute the speed, acceleration, angular velocity, and angular orientation at an output rate of 400 Hz and has the ability to collect large volumes of ecologically-valid data. The system also segments steps and computes metrics for each step. We analyzed the sensitivity of these metrics to changing the start time of the gait cycle. Along with traditional metrics, such as cadence, speed, step length, and vertical oscillation, this system estimates ground contact time and ground reaction forces using machine learning techniques. This equipment is less expensive and cumbersome than the currently used alternatives: Optical tracking systems, in-shoe pressure measurement systems, and force plates. Another advantage, compared to existing methods, is that natural movement is not impeded at the expense of measurement accuracy. The proposed technology could be applied to different sports and activities, including walking, running, motion disorder diagnosis, and geriatric studies. In this paper, we present the results of tests in which the system performed real-time estimation of some parameters of walking and running which are relevant to biomechanical research. Contact time and ground reaction forces computed by the neural network were found to be as accurate as those obtained by an in-shoe pressure measurement system. View Full-Text

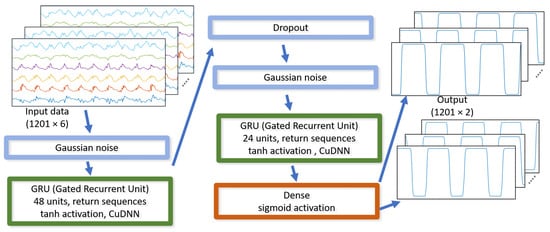

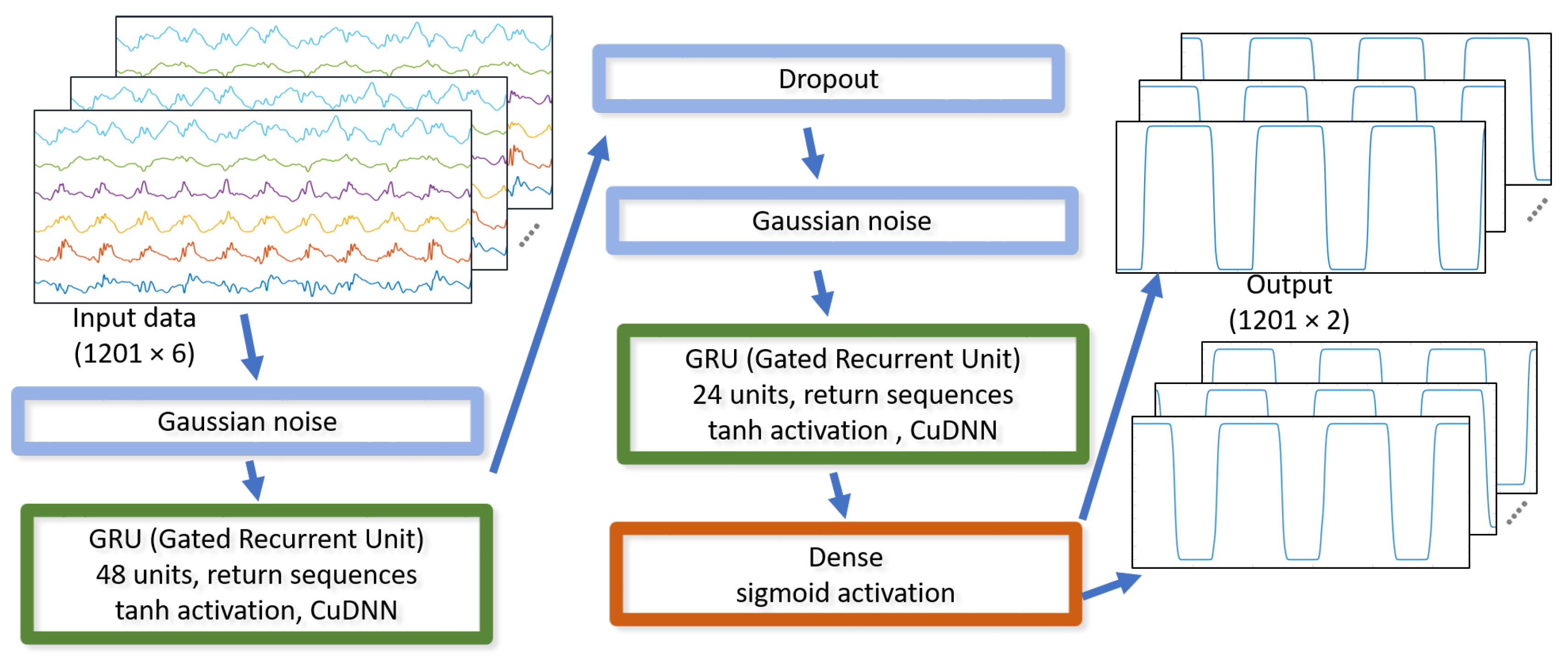

Keywords: gait analysis; INS/GPS; machine learning; neural networks; sports equipment; velocity measurement gait analysis; INS/GPS; machine learning; neural networks; sports equipment; velocity measurement
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
