# How to Efficiently Determine the Range Precision of 3D Terrestrial Laser Scanners

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Motivation

- An efficient approach will be presented which allows qualified users to determine the range precision of their terrestrial laser scanners from 3D points. The setup should be cheap and easy to replicate. So, it can be easily performed for several scanner settings (Section 5).
- As not every manufacturer provides raw intensity values, the second goal of this study is to find out whether raw as well as scaled intensity values, such as those from Leica Cyclone, can be utilized for determining the range precision of the given examples (Section 6).

## 2. Previous Work

## 3. Methodology to Model the Range Precision with 3D Points

#### 3.1. Determination of the Range Precision of 3D TLS

#### 3.2. Modeling the Intensity-Based Range Precision

**l**. The residuals of the observations are described by the variable

**v**.

## 4. Experiments

#### 4.1. Data Collection with Spectralon Targets

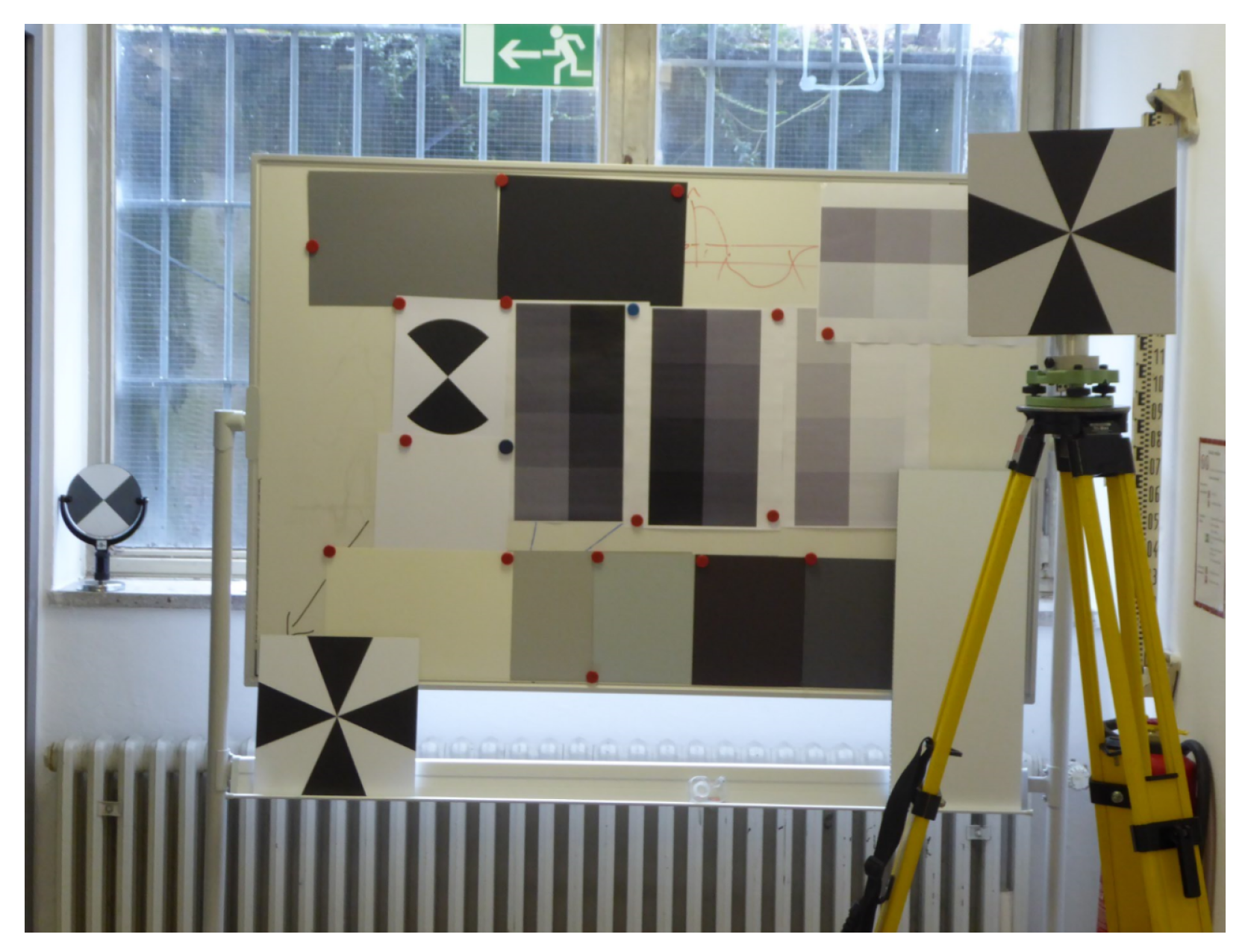

#### 4.2. Data Collection with Paperboards

- Firstly, it needs to be built with little effort and it should be cheap.
- Secondly, the precision still has to be determinable.
- Lastly, a wide range of intensity values needs to be obtainable.

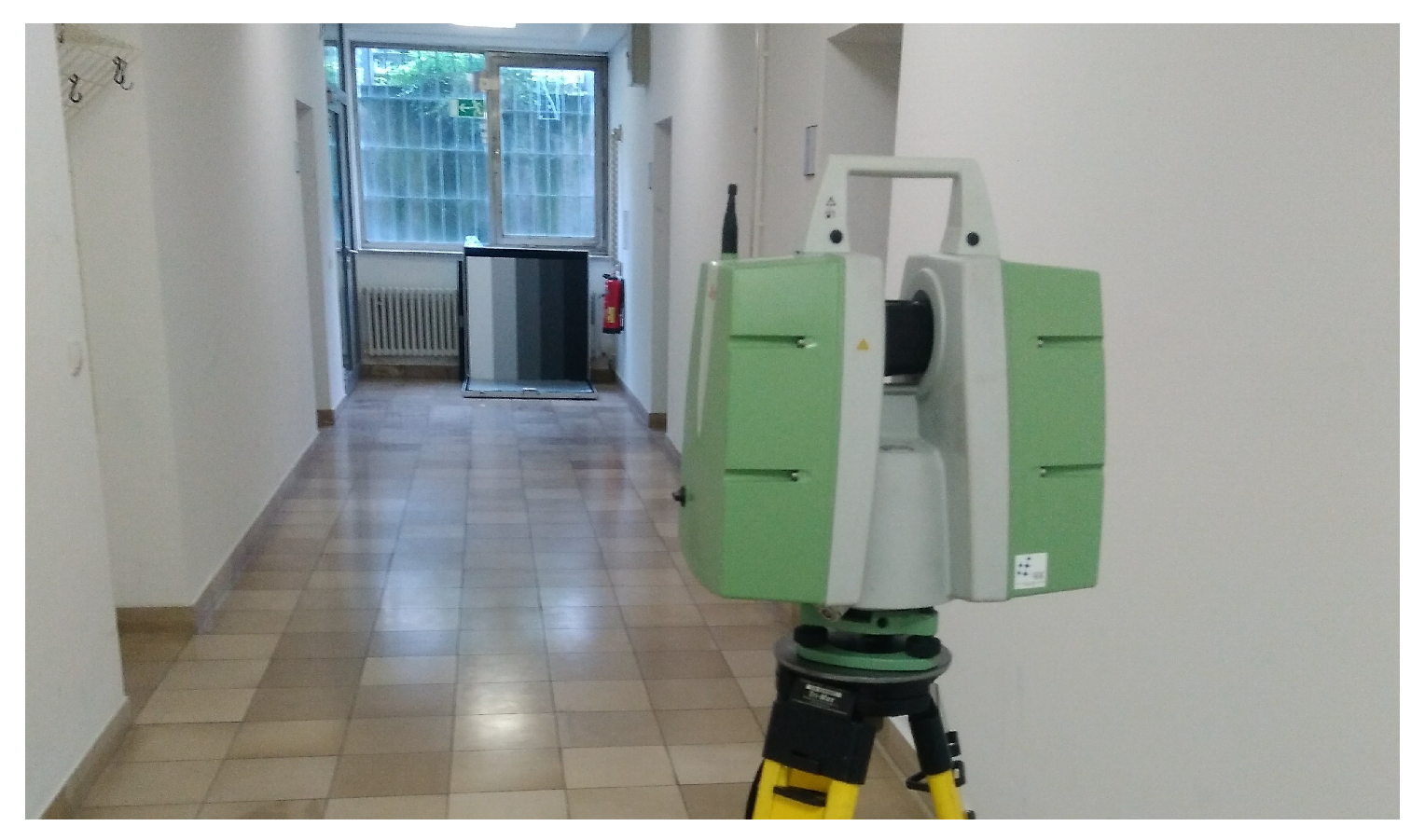

#### 4.3. Data Collection to Analyze Scaled Intensities

## 5. Efficient Modeling of the Range Precision with 3D Points

#### 5.1. Determination of Intensity-Based Range Precision with Sepctralon Targets

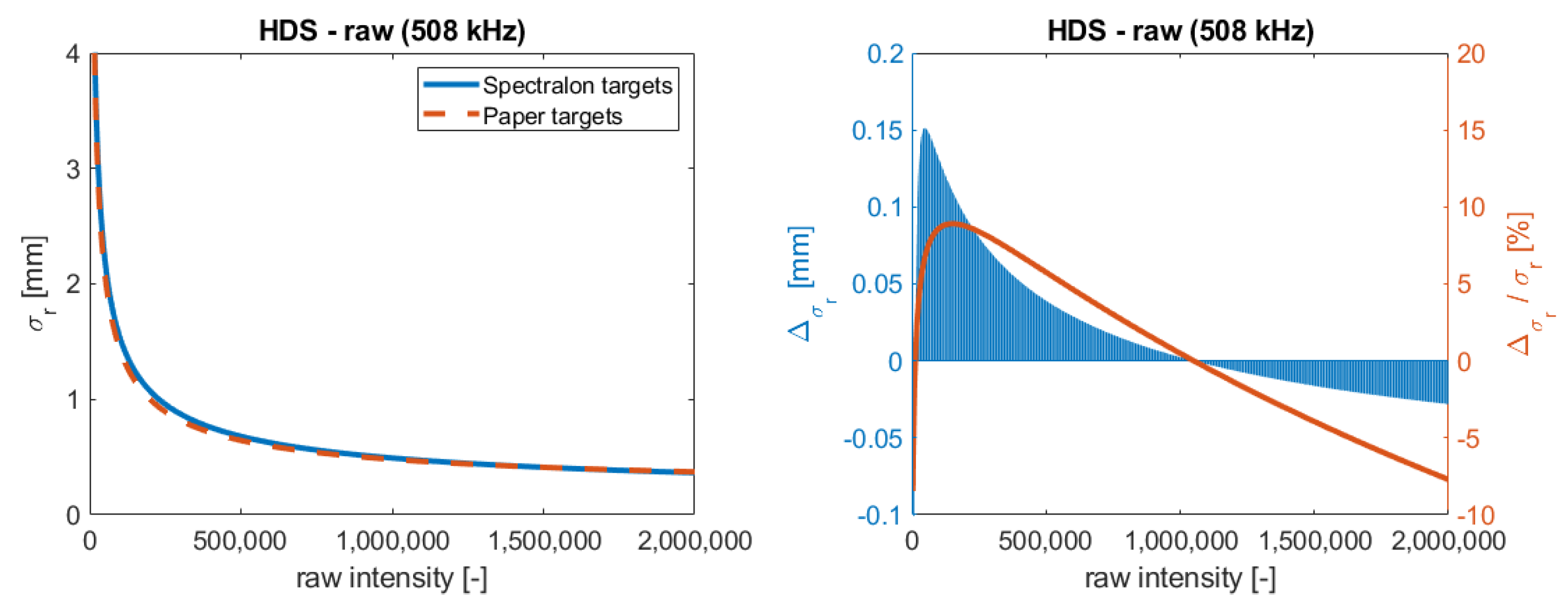

#### 5.2. Determination of Intensity-Based Range Precision from Paperboards

## 6. Investigations of Raw and Scaled Intensities

#### 6.1. Relation between Intensity, Distance and Incidence Angle

#### 6.2. Estimated Function with Scaled Intensities

#### 6.3. Reproducibility of Intensity Values

#### 6.4. Influence of the Distance on Scaled Intensities

## 7. Discussion

## 8. Conclusions and Outlook

- This study introduced the estimation of the range precision by considering the range residuals of a plane adjustment and their standard deviation. As different observation groups are not weighted equally, the function can be properly estimated from samples with higher incidence angles. Thus, it is easier to get a wider range of intensity values and hence, this leads to a much quicker determination of the function. Furthermore, the proposed setup uses cheap cardboards, which are easy to install. Consequently, this simplifies the determination of the range precision of terrestrial laser scanners and makes it more efficient.
- It is demonstrated that the function, which models the relation between range precision and intensity, is applicable with raw intensity values, and likewise with scaled intensity values from Cyclone. However, this is only valid for shorter distances up to about 20 m. As the manufacturers modify the scaled intensities, this also influences the relation between range precision and intensity.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Alba, M.; Fregonese, L.; Prandi, F.; Scaioni, M.; Valgoi, P. Structural monitoring of a large dam by terrestrial laser scanning. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2006**, 36, 6. [Google Scholar] - Wang, J.; Kutterer, H.; Fang, X. External error modelling with combined model in terrestrial laser scanning. Surv. Rev.
**2015**, 48, 40–50. [Google Scholar] [CrossRef] - Holst, C.; Schmitz, B.; Kuhlmann, H. Investigating the applicability of standard software packages for laser scanner based deformation analyses. In Proceedings of the FIG Working Week 2017, Helsinki, Finland, 29 May–2 June 2017. [Google Scholar]
- Chmelina, K.; Jansa, J.; Hesina, G.; Traxler, C. A 3-d laser scanning system and scan data processing method for the monitoring of tunnel deformations. J. Appl. Geod.
**2012**, 6, 177–185. [Google Scholar] [CrossRef] - Holst, C.; Nothnagel, A.; Blome, M.; Becker, P.; Eichborn, M.; Kuhlmann, H. Improved area-based deformation analysis of a radio telescope’s main reflector based on terrestrial laser scanning. J. Appl. Geod.
**2015**, 9, 1–14. [Google Scholar] [CrossRef] - Wunderlich, T.; Niemeier, W.; Wujanz, D.; Holst, C.; Neitzel, F.; Kuhlmann, H. Areal deformation analysis from TLS point clouds—The challenge. Allg. Vermess. Nachr.
**2016**, 123, 340–351. [Google Scholar] - Holst, C.; Kuhlmann, H. Challenges and present fields of action at laser scanner based deformation analyses. J. Appl. Geod.
**2016**, 10, 17–25. [Google Scholar] [CrossRef] - Niemeier, W. Ausgleichungsrechnung: Statistische Auswertemethoden; Walter de Gruyter: Berlin, Germany, 2008. [Google Scholar]
- Wujanz, D.; Burger, M.; Mettenleiter, M.; Neitzel, F. An intensity-based stochastic model for terrestrial laser scanners. ISPRS J. Photogramm. Remote Sens.
**2017**, 125, 146–155. [Google Scholar] [CrossRef] - Lambertus, T.; Belton, D.; Helmholz, P. Empirical Investigation of a Stochastic Model Based on Intensity Values for Terrestrial Laser Scanning. Allg. Vermess. Nachr. (AVN)
**2018**, 3, 43–52. [Google Scholar] - Wujanz, D.; Burger, M.; Tschirschwitz, F.; Nietzschmann, T.; Neitzel, F.; Kersten, T. Determination of intensity-based stochastic models for terrestrial laser scanners utilising 3D-point clouds. Sensors
**2018**, 18, 2187. [Google Scholar] [CrossRef] - Kaasalainen, S.; Krooks, A.; Kukko, A.; Kaartinen, H. Radiometric calibration of terrestrial laser scanners with external reference targets. Remote Sens.
**2009**, 1, 144–158. [Google Scholar] [CrossRef] - Voegtle, T.; Wakaluk, S. Effects on the measurements of the terrestrial laser scanner HDS 6000 (Leica) caused by different object materials. Proc. ISPRS Work
**2009**, 38, 68–74. [Google Scholar] - Kaasalainen, S.; Jaakkola, A.; Kaasalainen, M.; Krooks, A.; Kukko, A. Analysis of incidence angle and distance effects on terrestrial laser scanner intensity: Search for correction methods. Remote Sens.
**2011**, 3, 2207–2221. [Google Scholar] [CrossRef] - Eitel, J.U.; Vierling, L.A.; Long, D.S. Simultaneous measurements of plant structure and chlorophyll content in broadleaf saplings with a terrestrial laser scanner. Remote Sens. Environ.
**2010**, 114, 2229–2237. [Google Scholar] [CrossRef] - Soudarissanane, S.; Lindenbergh, R.; Menenti, M.; Teunissen, P. Scanning geometry: Influencing factor on the quality of terrestrial laser scanning points. ISPRS J. Photogramm. Remote Sens.
**2011**, 66, 389–399. [Google Scholar] [CrossRef] - Lichti, D.D.; Gordon, S.J. Error propagation in directly georeferenced terrestrial laser scanner point clouds for cultural heritage recording. In Proceedings of the FIG Working Week, Athens, Greece, 22–27 May 2004. [Google Scholar]
- Kersten, T.; Sternberg, H.; Stiemer, E. First experiences with terrestrial laser scanning for indoor cultural heritage applications using two different scanning systems. In Proceedings of the ISPRS Working Group, Berlin, Germany, 24–25 February 2005. [Google Scholar]
- Pfeifer, N.; Dorninger, P.; Haring, A.; Fan, H. Investigating Terrestrial Laser Scanning Intensity Data: Quality and Functional Relations. In Proceedings of the 8th International Conference on Optical 3-D Measurement Techniques, Zurich, Switzerland, 9–12 July 2007; pp. 328–337. [Google Scholar]
- Zámečníková, M.; Wieser, A.; Woschitz, H.; Ressl, C. Influence of surface reflectivity on reflectorless electronic distance measurement and terrestrial laser scanning. J. Appl. Geod.
**2014**, 8, 311–326. [Google Scholar] [CrossRef] - Zámečníková, M.; Neuner, H. Untersuchung des gemeinsamen Einflusses des Auftreffwinkels und der Oberflächenrauheit auf die reflektorlose Distanzmessung beim Scanning. In Ingenieurvermessung 17, Beiträge zum 18. Internationalen Ingenieurvermessungskurs Graz; Wichmann Verlag: Berlin, Germany, 2017. [Google Scholar]
- Boehler, W.; Vicent, M.B.; Marbs, A. Investigating laser scanner accuracy. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2003**, 34, 696–701. [Google Scholar] - Wunderlich, T.; Wasmeier, P.; Ohlmann-Lauber, J.; Schäfer, T.; Reidl, F. Objective Specifications of Terrestrial Laserscanners—A Contribution of the Geodetic Laboratory at the Technische Universität München; Technical Report; Blue Series Books at the Chair of Geodesy; Technische Universität München: München, Germany, 2013; Volume 21. [Google Scholar]
- Lindstaedt, M.; Kersten, T.; Meschelke, K.; Graeger, T. Prüfverfahren für terrestrische Laserscanner—Gemeinsame geometrische Genauigkeitsuntersuchungen verschiedener Laserscanner an der HCU Hamburg. In Photogrammetrie Laserscanning Optische 3D-Messtechnik-Beiträge der Oldenburger 3D-Tage; Luhmann, T., Schumacher, C., Eds.; Wichmann Verlag: Berlin, Germany, 2012; pp. 264–275. [Google Scholar]
- Bolkas, D.; Martinez, A. Effect of target color and scanning geometry on terrestrial LiDAR point-cloud noise and plane fitting. J. Appl. Geod.
**2018**, 12, 109–127. [Google Scholar] [CrossRef] - Heinz, E.; Mettenleiter, M.; Kuhlmann, H.; Holst, C. Strategy for Determining the Stochastic Distance Characteristics of the 2D Laser Scannner Z+F Profiler 9012A with Special Focus on the Close Range. Sensors
**2018**, 18, 2253. [Google Scholar] [CrossRef] - Jelalian, A.V. Laser Radar Systems; Artech House: Boston, MA, USA; London, UK, 1992. [Google Scholar]
- Kaasalainen, S.; Kukko, A.; Lindroos, T.; Litkey, P.; Kaartinen, H.; Hyyppa, J.; Ahokas, E. Brightness measurements and calibration with airborne and terrestrial laser scanners. IEEE Trans. Geosci. Remote Sens.
**2008**, 46, 528–534. [Google Scholar] [CrossRef] - Blaskow, R.; Schneider, D. Analysis and correction of the dependency between laser scanner intensity values and range. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2014**, 40, 107–112. [Google Scholar] [CrossRef] - Tan, K.; Cheng, X. Correction of incidence angle and distance effects on TLS intensity data based on reference targets. Remote Sens.
**2016**, 8, 251. [Google Scholar] [CrossRef] - Holst, C.; Artz, T.; Kuhlmann, H. Biased and unbiased estimates based on laser scans of surfaces with unknown deformations. J. Appl. Geod.
**2014**, 8, 169–184. [Google Scholar] [CrossRef] - Jurek, T.; Kuhlmann, H.; Holst, C. Impact of spatial correlations on the surface estimation based on terrestrial laser scanning. J. Appl. Geod.
**2017**, 11, 143–155. [Google Scholar] [CrossRef] - Schwintzer, P. Zur Bestimmung der Signifikanten Parameter in Approximationsfunktionen; Institut für Geodäsie der UniBW München: München, Germany, 1984; Volume 10, pp. 71–91. [Google Scholar]
- Leica. Leica HDS6100, Latest Generation of Ultra-High Speed Laser Scanner, Datasheet. 2009. Available online: https://w3.leica-geosystems.com/downloads123/hds/hds/hds6100/brochures/leica_hds6100_brochure_us.pdf (accessed on 15 November 2018).
- Maar, H.; Zogg, H.M. WFD—Wave Form Digitizer Technology; White Paper; Leica Geosystems AG: Heerbrugg, Switzerland, 2014. [Google Scholar]

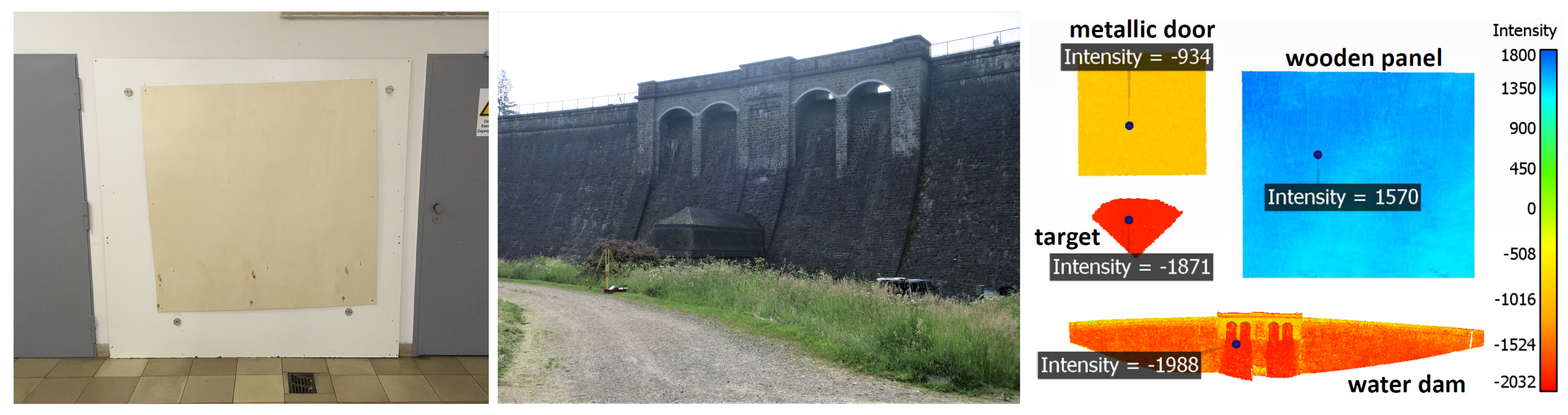

**Figure 1.**Two examples from practice [3].

**Left**: Wooden Panel;

**Middle**: water dam;

**Right**: Point clouds with intensity values.

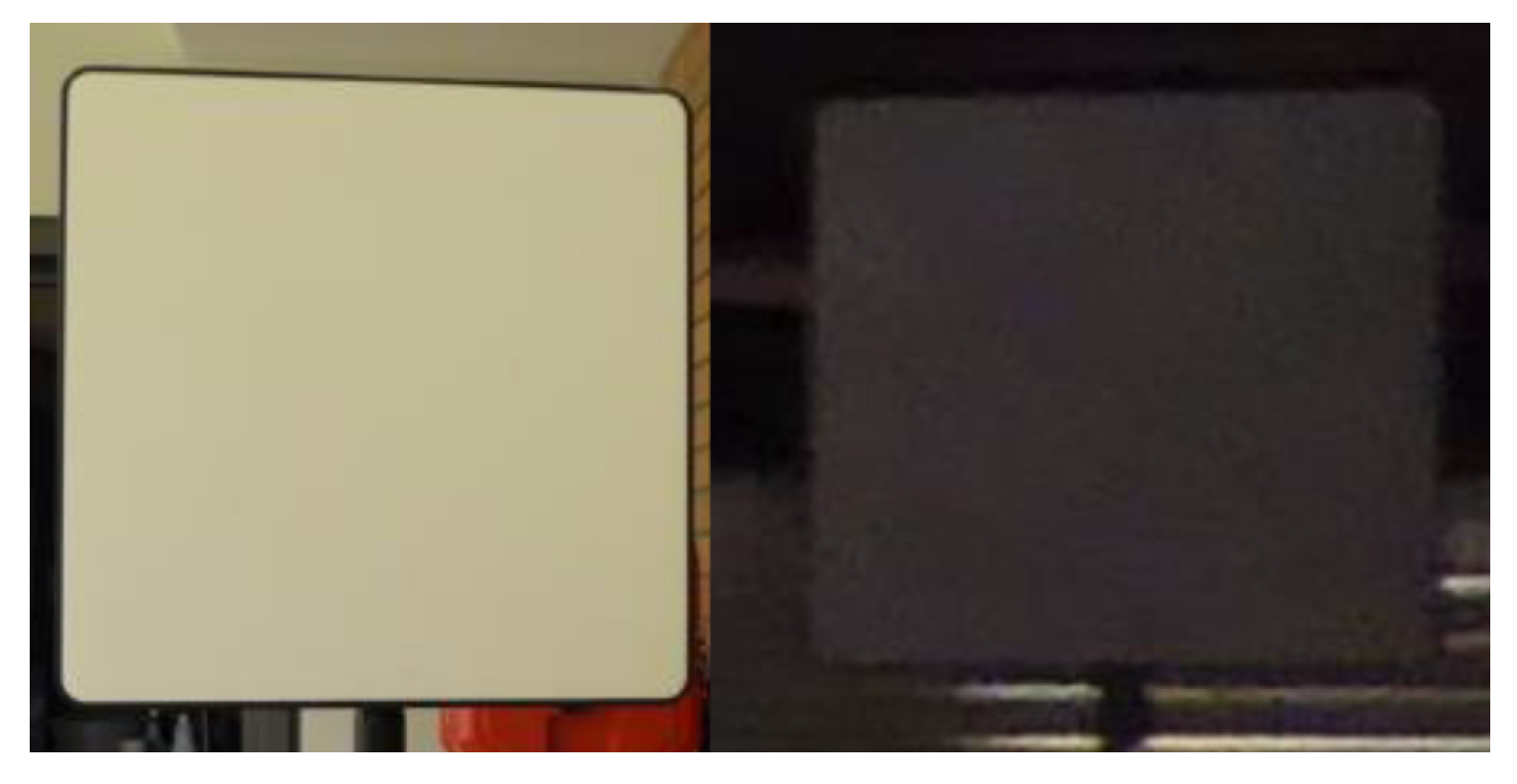

**Figure 2.**Spectralon targets (26 cm × 26 cm) with high reflectivity (

**left**) and low reflectivity (

**right**).

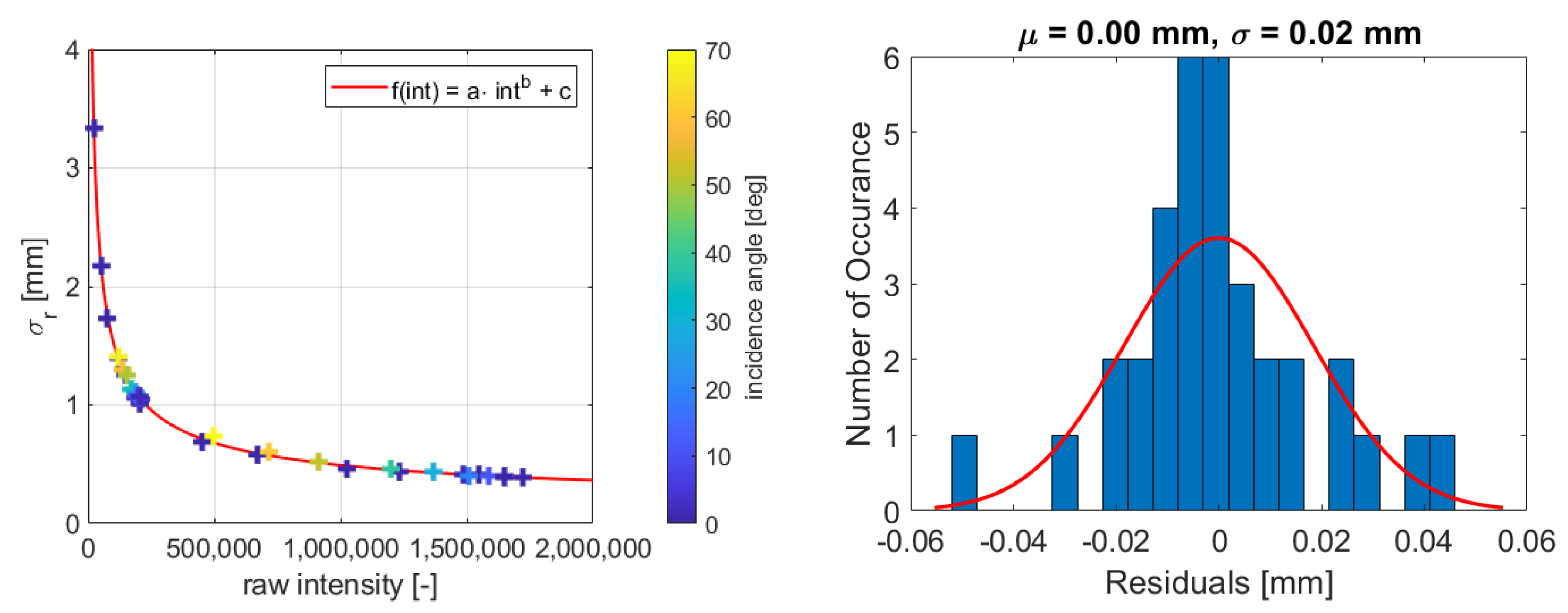

**Figure 5.**

**Left**: Estimated function for HDS6100 and scan rate of 508 kHz;

**Right**: Corresponding histogram of the residuals of the function.

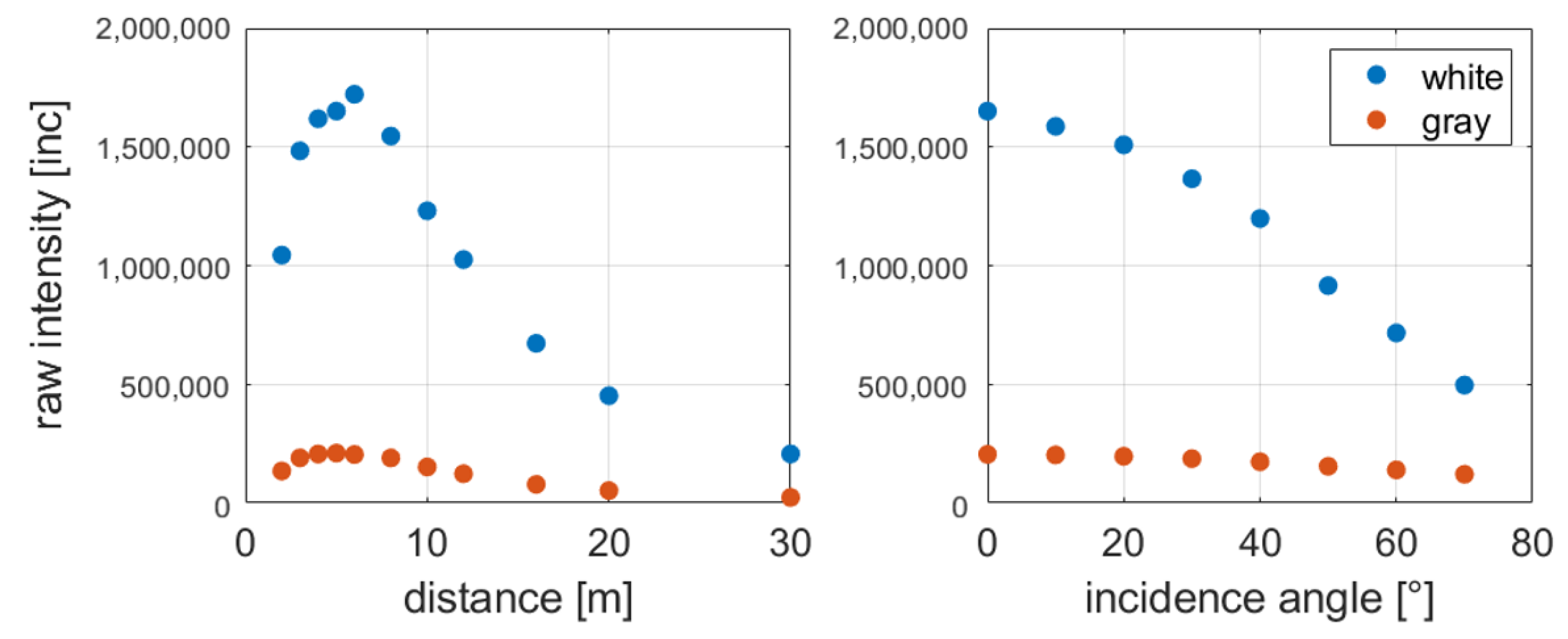

**Figure 7.**

**Left**: Relation between raw intensity and range;

**Right**: Relation between raw intensity and incidence angle for the Leica HDS6100.

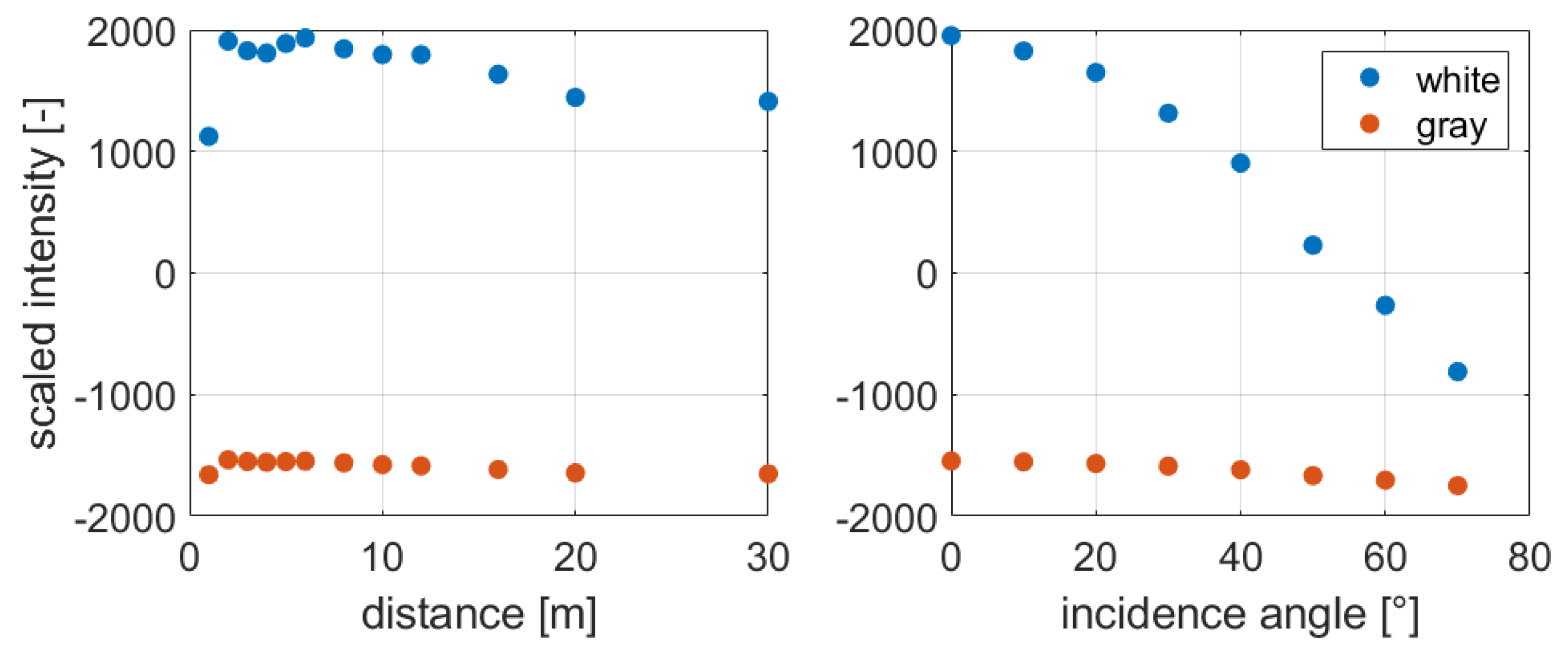

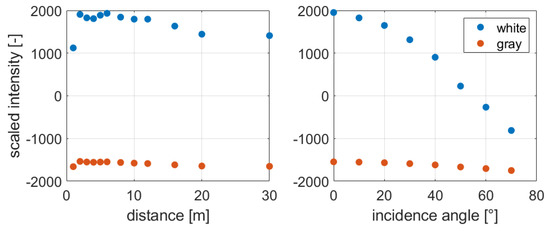

**Figure 8.**

**Left**: Relation between scaled intensity and range;

**Right**: Relation between scaled intensity and incidence angle for the Leica HDS6100.

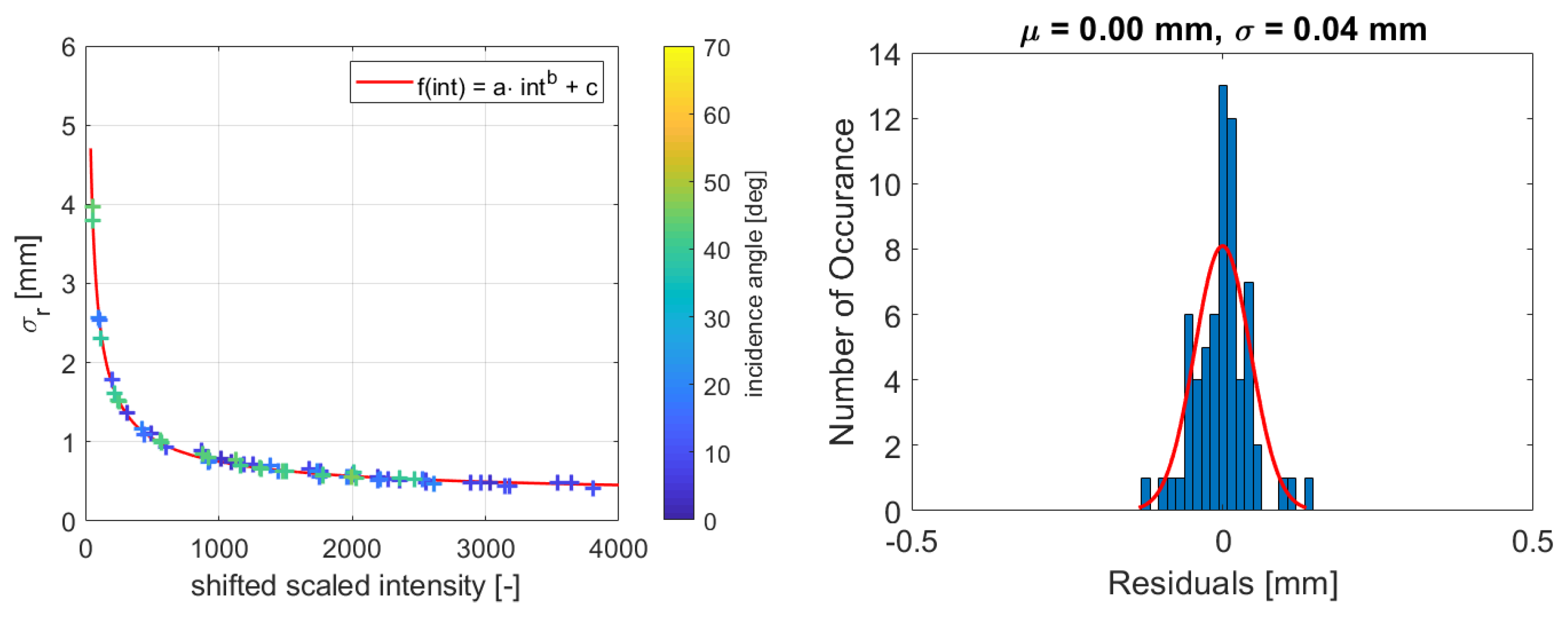

**Figure 9.**

**Left**: Estimated function for Leica HDS6100 with a scan rate of 508 kHz;

**Right**: Corresponding histogram of the residuals of the function.

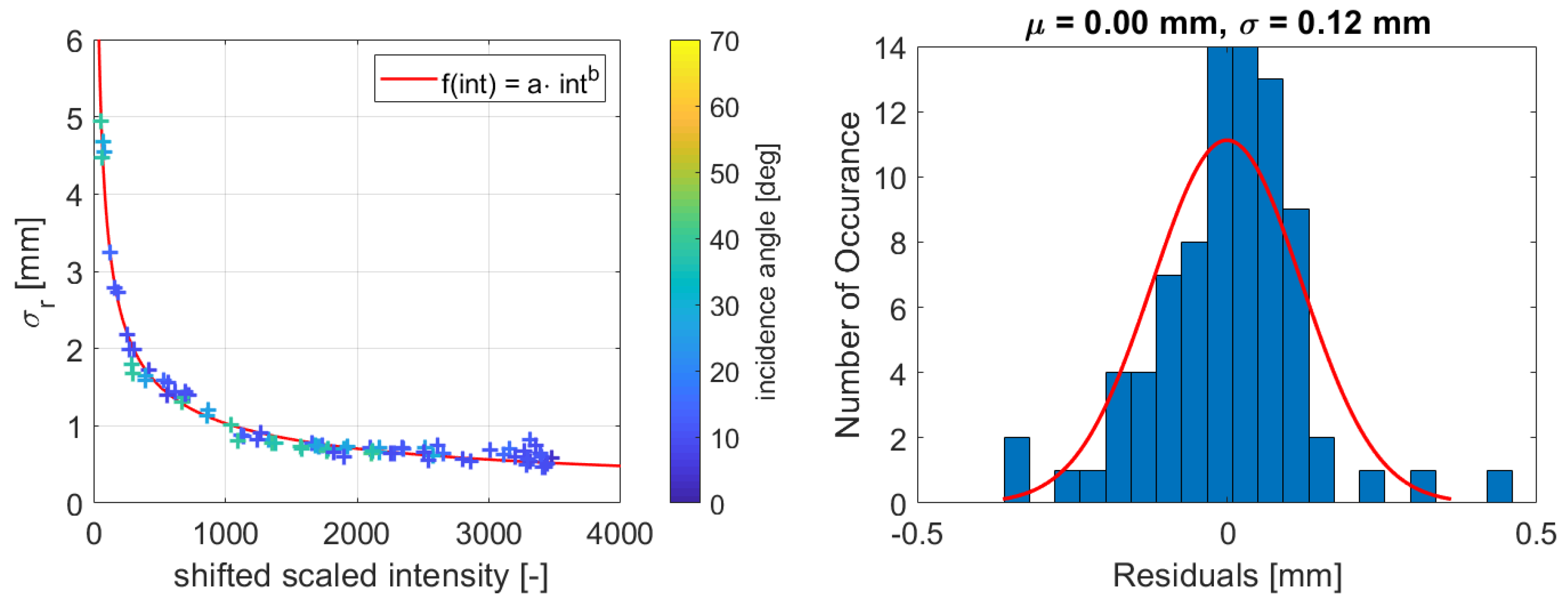

**Figure 10.**

**Left**: Estimated function for Leica ScanStation P20 and resolution of 0.8 mm @ 10 m;

**Right**: Corresponding histogram of the residuals of the function.

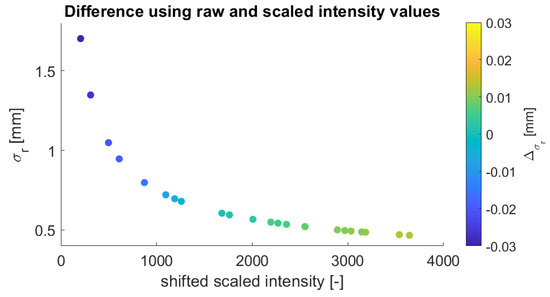

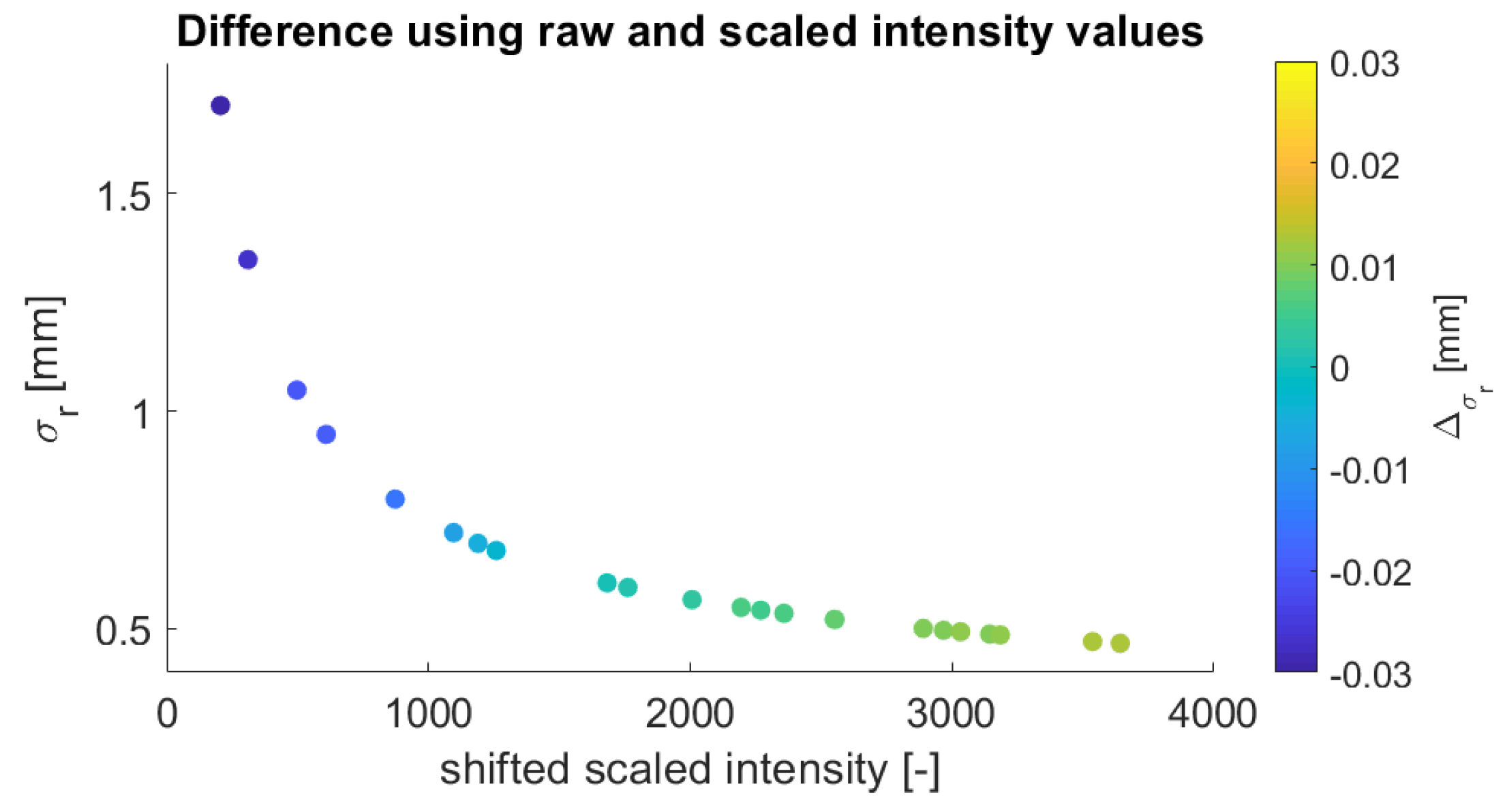

**Figure 11.**Comparison of the range precision calculated with the raw and scaled intensity values by inserting these values in the estimated function.

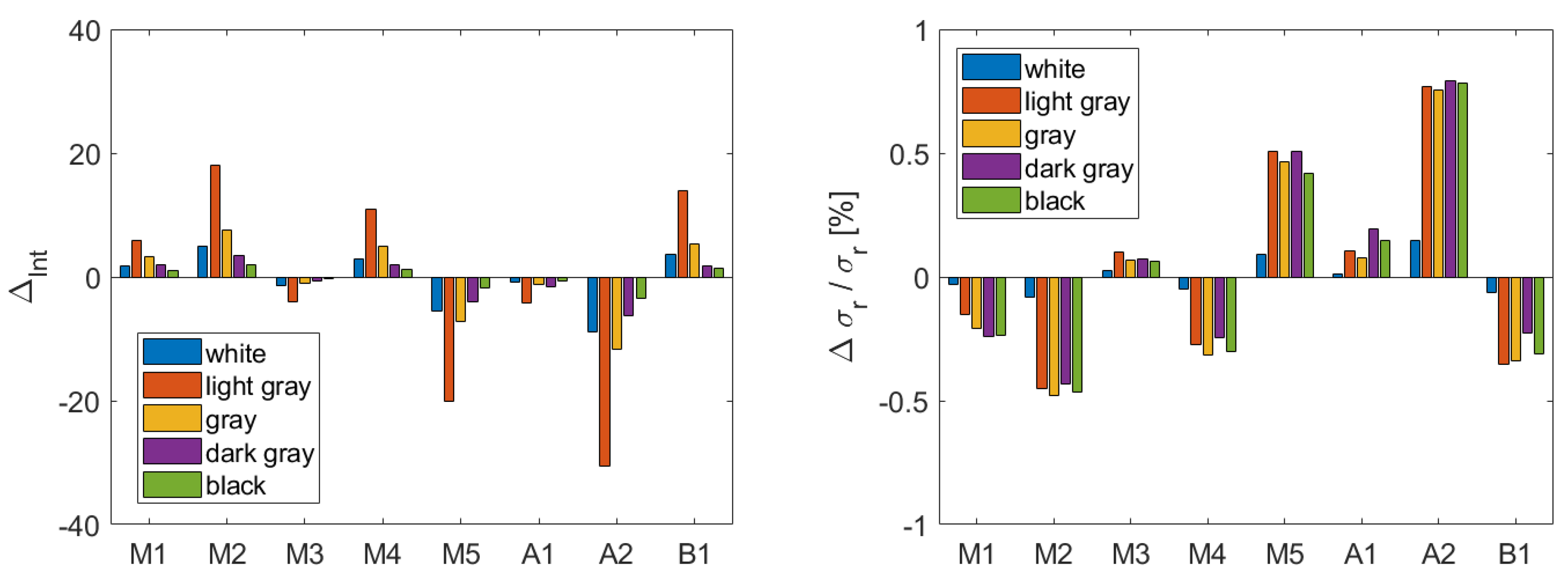

**Figure 12.**

**Left**: Difference between intensity values of measurement one and those from the other measurements at a distance of 15 m;

**Right**: Percentage of the corresponding differences of the range precision. M1-M5: Measurements, that were taken one by one; A1, A2: Measurements after restarting the instrument; B1: Measurement after changing the battery.

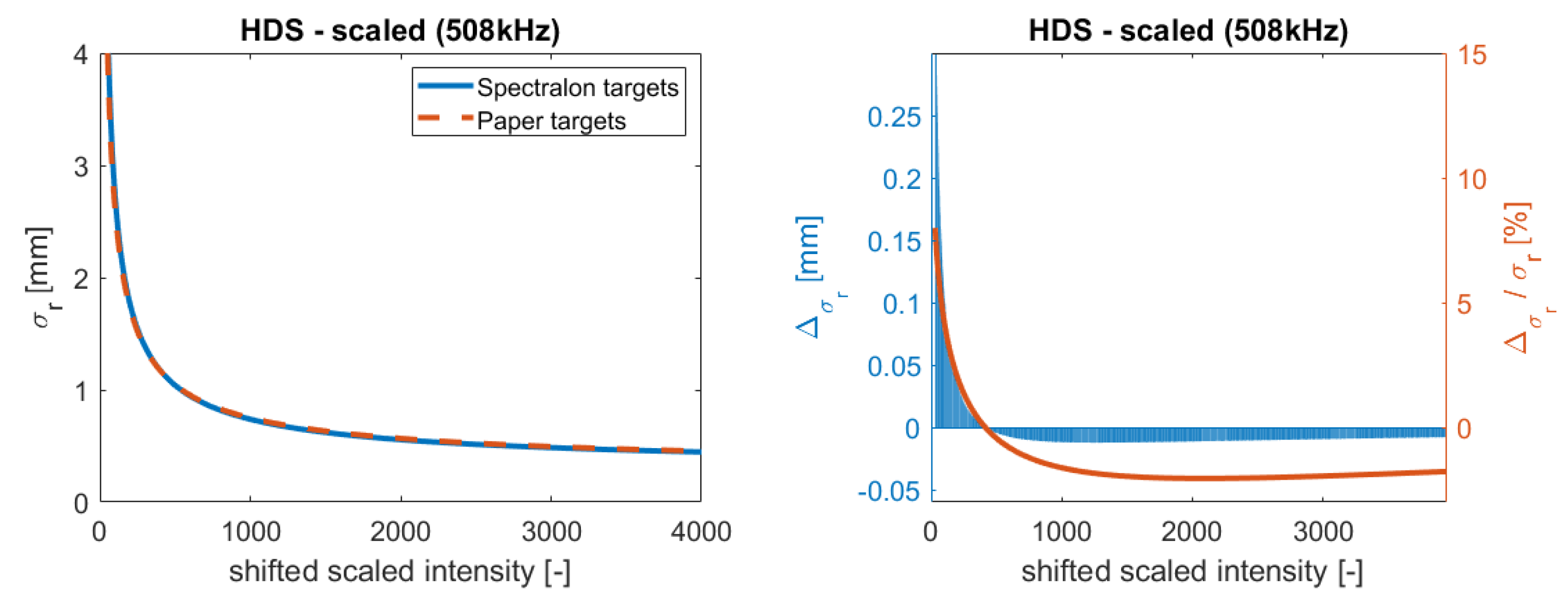

**Figure 13.**Comparison of functions estimated with Spectralon targets and with the paperboard setup using scaled intensity values.

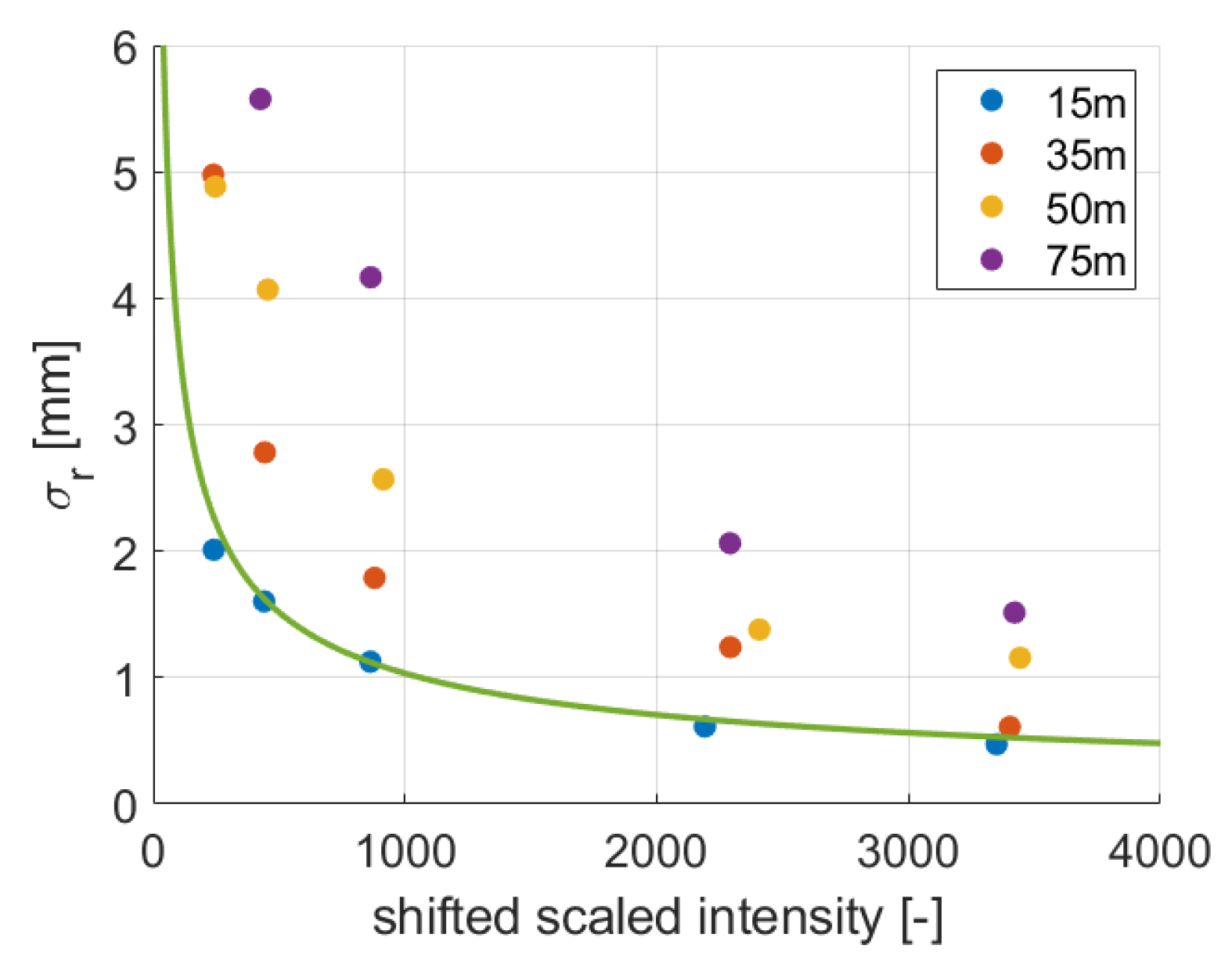

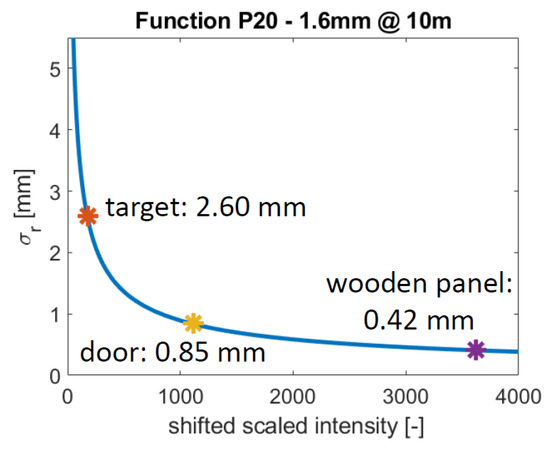

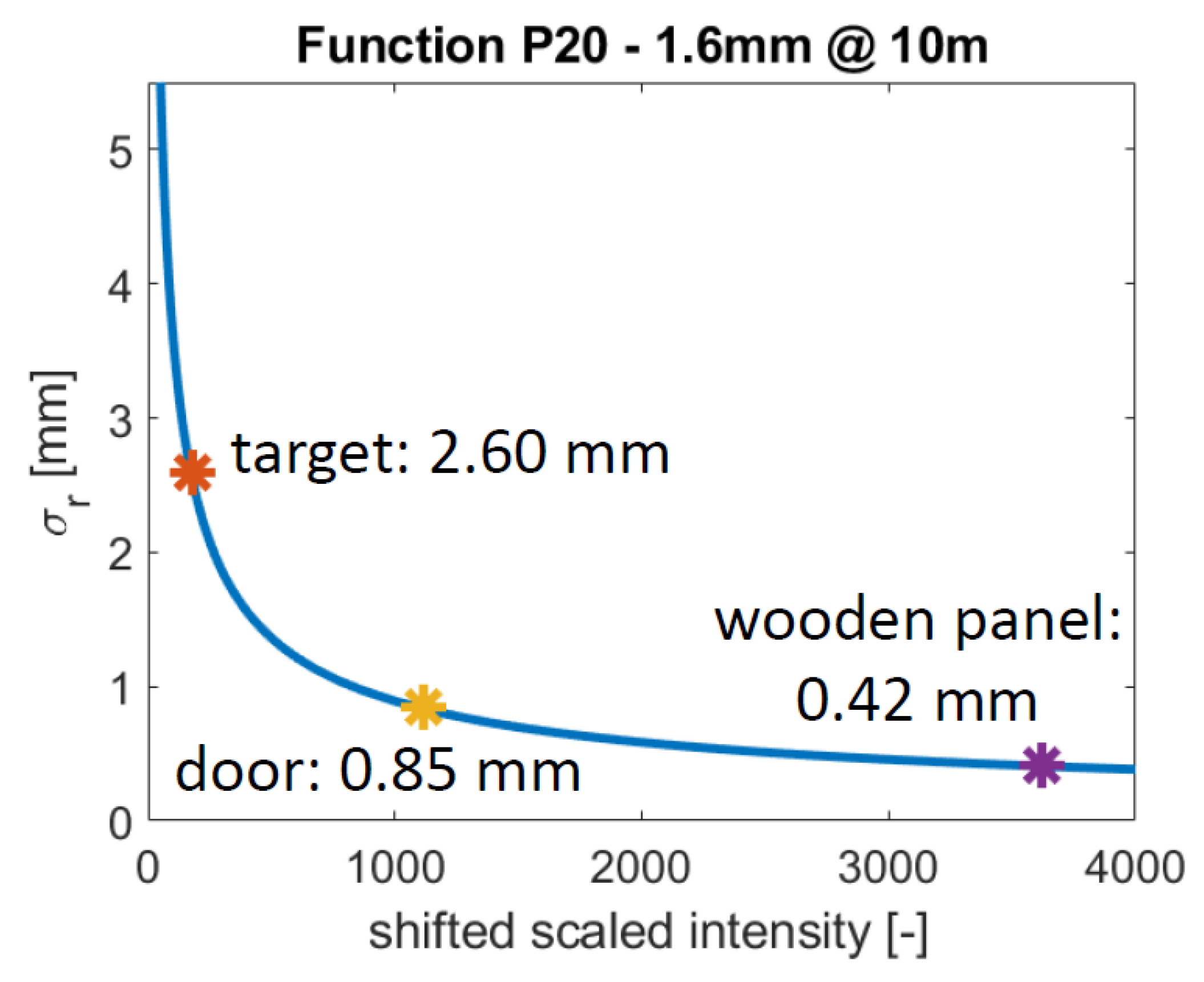

**Figure 15.**Corresponding range precision of the examples of Figure 1.
