Fall Detection Using Multiple Bioradars and Convolutional Neural Networks
Abstract
:1. Introduction
2. Materials and Methods
2.1. Experimental Setup
2.2. Description of the Experimental Procedure
2.3. Signal Processing Technique
2.3.1. Preliminary Data Processing
2.3.2. Learning and Inference
3. Results
4. Discussion
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- United Nations, Department of Economic and Social Affairs, Population Division. World Population Prospects 2019: Highlights; United Nations, Department of Economic and Social Affairs, Population Division: New York, NY, USA, 2019. [Google Scholar]
- World Health Organization. WHO Global Report on Falls Prevention in Older Age. 2007; World Health Organization: Geneva, Switzerland, 2015; pp. 1–7. [Google Scholar]
- The All-New Mobile Medical Alert Service Is the Most Affordable. Available online: https://www.greatcall.com/landing/lively/medical-alert-v3/ (accessed on 30 October 2019).
- Medical Alert. Available online: https://www.medicalalert.com/medical-select-product.html (accessed on 30 October 2019).
- Active Guardian. Available online: https://www.medicalguardian.com/products/active-guardian (accessed on 30 October 2019).
- Lee, S.; Le, H.X.; Ngo, H.Q.; Kim, H.I.; Han, M.; Lee, Y.K. Semi-Markov conditional random fields for accelerometer-based activity recognition. Appl. Intell. 2011, 35, 226–241. [Google Scholar]
- Pierleoni, P.; Belli, A.; Palma, L.; Pellegrini, M.; Pernini, L.; Valenti, S. A highreliability wearable device for elderly fall detection. IEEE Sens. J. 2015, 15, 4544–4553. [Google Scholar] [CrossRef]
- Debes, C.; Merentitis, A.; Sukhanov, S.; Niessen, M.; Frangiadakis, N.; Bauer, A. Monitoring activities of daily living in smart homes: Understanding human behavior. IEEE Signal Process. Mag. 2016, 33, 81–94. [Google Scholar] [CrossRef]
- Zhang, Z.; Conly, C.; Athitsos, V. A survey on vision-based fall detection. In Proceedings of the 8th ACM International Conference on Pervasive Technologies Related to Assistive Environments, Corfu, Greece, 1–3 July 2015. [Google Scholar]
- Bian, Z.P.; Hou, J.; Chau, L.P.; Magnenat-Thalmann, N. Fall detection basedon body part tracking using a depth camera. IEEE J. Biomed. Health Inform. 2015, 19, 430–439. [Google Scholar] [CrossRef]
- Zhang, Z.; Conly, C.; Athitsos, V. Evaluating Depth-Based Computer Vision Methods for Fall Detection under Occlusions. In International Symposium on Visual Computing; Springer: Cham, Switzerland, 2014; pp. 196–207. [Google Scholar]
- Pham, V.T.; Qiu, Q.; Wai, A.A.P.; Biswas, J. Application of ultrasonic sensors in a smart environment. Pervasive Mob. Comput. 2007, 3, 180–207. [Google Scholar] [CrossRef]
- Lim, J.H.; Jang, H.; Jang, J.; Soo-Jun, P. Daily activity recognition system for the elderly using pressure sensors. In Proceedings of the 2008 30th Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Vancouver, BC, Canada, 20–25 August 2008; pp. 5188–5191. [Google Scholar]
- Zigel, Y.; Litvak, D.; Gannot, I. A method for automatic fall detection of elderly people using floor vibrations and sound—Proof of concept on human mimicking doll falls. IEEE Trans. Biomed. Eng. 2009, 56, 2858–2867. [Google Scholar] [CrossRef]
- Popescu, M.; Li, Y.; Skubic, M.; Rantz, M. An acoustic fall detector system that uses sound height information to reduce the false alarm rate. In Proceedings of the 2008 30th Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Vancouver, BC, Canada, 20–25 August 2008; pp. 4628–4631. [Google Scholar]
- Wang, H.; Zhang, D.; Wang, Y.; Ma, J.; Wang, Y.; Li, S. Rt-fall: A real-time and contactless fall detection system with commodity wifi devices. IEEE Trans. Mob. Comput. 2017, 16, 511–526. [Google Scholar] [CrossRef]
- Nadeem, A.; Mehmood, A.; Rizwan, K. A dataset build using wearable inertial measurement and ECG sensors for activity recognition, fall detection and basic heart anomaly detection system. Data Brief 2019, 27, 104717. [Google Scholar] [CrossRef]
- Martínez-Villaseñor, L.; Ponce, H.; Brieva, J.; Moya-Albor, E.; Núñez-Martínez, J.; Peñafort-Asturiano, C. UP-fall detection dataset: A multimodal approach. Sensors 2019, 9, 1988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Anishchenko, L.; Bechtel, T.; Ivashov, S.; Alekhin, M.; Tataraidze, A.; Vasiliev, I. Bioradiolocation as a Technique for Remote Monitoring of Vital Signs. In Advanced Ultrawideband Radar, 1st ed.; CRC Press: Boca Raton, FL, USA, 2017; pp. 315–340. [Google Scholar]
- Lin, J.C. Non-invasive microwave measurement of respiration. Proc. IEEE 1975, 63, 557–565. [Google Scholar] [CrossRef]
- Lin, J.C. Microwave apexcardiography. IEEE Trans. Microw. Theory Tech. 1979, 27, 618–620. [Google Scholar] [CrossRef]
- Wu, Q.; Zhang, Y.D.; Tao, W.; Amin, M.G. Radar-based fall detection based on Doppler time-frequency signatures for assisted living. IET Radar Sonar Navig. 2015, 9, 164–172. [Google Scholar] [CrossRef] [Green Version]
- Amin, M.G.; Zhang, Y.D.; Ahmad, F.; Ho, K.C.D. Radar Signal Processing for Elderly Fall Detection: The future for in-home monitoring. IEEE Signal Process. Mag. 2016, 33, 71–80. [Google Scholar] [CrossRef]
- Dremina, M.K.; Anishchenko, L.N. Contactless fall detection by means of CW bioradar. In Proceedings of the 2016 Progress in Electromagnetic Research Symposium (PIERS), Shanghai, China, 8–11 August 2016; pp. 2912–2915. [Google Scholar]
- Anishchenko, L.N.; Zhuravlev, A.V.; Razevig, V.V.; Chizh, M.A. Low-Cost Portable Bioradar System for Fall Detection. In Proceedings of the Progress in Electromagnetic Research Symposium (PIERS), Rome, Italy, 17 June 2019. in press. [Google Scholar]
- K-LC5 High Sensitivity Dual Channel Transceiver. Available online: https://www.rfbeam.ch/product?id=9 (accessed on 30 October 2019).
- Li, C.; Lin, J. Microwave Noncontact Motion Sensing and Analysis, 1st ed.; Wiley: Hoboken, NJ, USA, 2014. [Google Scholar]
- Park, B.K.; Boric-Lubecke, O.; Lubecke, V.M. Arctangent demodulation with DC offset compensation in quadrature Doppler radar receiver systems. IEEE Trans. Microw. Theory Tech. 2007, 55, 1073–1079. [Google Scholar] [CrossRef]
- Pittella, E.; Bottiglieri, A.; Pisa, S.; Cavagnaro, M. Cardiorespiratory Frequency Monitoring Using the Principal Component Analysis Technique on UWB Radar Signal. Int. J. Antennas Propag. 2017, 2017, 4803752. [Google Scholar] [CrossRef] [Green Version]
- sklearn.decomposition.PCA. Available online: https://scikit-learn.org/stable/modules/generated/sklearn.decomposition.PCA (accessed on 28 November 2019).
- Anishchenko, L.N.; Ivashov, S.I.; Vasiliev, I.A. A novel approach in automatic estimation of rats’ loco-motor activity. In Proceedings of the Radar Sensor Technology XVIII, Baltimore, MD, USA, 5–9 May 2014; pp. 1–8. [Google Scholar]
- Liu, L.; Popescu, M.; Skubic, M.; Rantz, M.; Yardibi, T.; Cuddihy, P. Automatic fall detection based on Doppler radar motion signature. In Proceedings of the 2011 5th International Conference on Pervasive Computing Technologies for Healthcare (PervasiveHealth) and Workshops, Dublin, Ireland, 23–26 May 2011; pp. 222–225. [Google Scholar]
- Khalid, S.; Khalil, T.; Nasreen, S. A survey of feature selection and feature extraction techniques in machine learning. In Proceedings of the 2014 Science and Information Conference, London, UK, 27–29 August 2014; pp. 372–378. [Google Scholar]
- Torrey, L.; Shavlik, J. Transfer learning. In Handbook of Research on Machine Learning Applications and Trends: Algorithms, Methods, and Techniques, 1st ed.; Soria Olivas, E., Ed.; IGI Global: New York, NY, USA, 2010; pp. 242–264. [Google Scholar]
- Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. In Advances in Neural Information Processing Systems; Curran Associates, Inc.: New York, NY, USA, 2012; pp. 1097–1105. [Google Scholar]
- Kwolek, B.; Kepski, M. Improving fall detection by the use of depth sensor and accelerometer. Neurocomputing 2015, 168, 637–645. [Google Scholar] [CrossRef]
- Erol, B.; Francisco, M.; Ravisankar, A.; Amin, M. Realization of radar-based fall detection using spectrograms. In Proceedings of the Compressive Sensing VII: From Diverse Modalities to Big Data Analytics, Orlando, FL, USA, 15–19 April 2018; p. 10658. [Google Scholar]
- Jokanović, B.; Amin, M. Fall detection using deep learning in range-Doppler radars. IEEE Trans. Aerosp. Electron. Syst. 2017, 54, 180–189. [Google Scholar] [CrossRef]
- Anishchenko, L. Machine learning in video surveillance for fall detection. In Proceedings of the 2018 Ural Symposium on Biomedical Engineering, Radioelectronics and Information Technology (USBEREIT), Yekaterinburg, Russia, 7–8 May 2018; pp. 99–102. [Google Scholar]
- Kepski, M.; Kwolek, B. Fall detection using ceiling-mounted 3d depth camera. In Proceedings of the 2014 International Conference on Computer Vision Theory and Applications (VISAPP), Lisbon, Portugal, 5–8 January 2014; pp. 640–647. [Google Scholar]
- Mastorakis, G.; Makris, D. Fall detection system using Kinect’s infrared sensor. J. Real-Time Image Process. 2014, 9, 635–646. [Google Scholar] [CrossRef]
- Sucerquia, A.; López, J.; Vargas-Bonilla, J. Real-life/real-time elderly fall detection with a triaxial accelerometer. Sensors 2018, 18, 1101. [Google Scholar] [CrossRef] [PubMed] [Green Version]

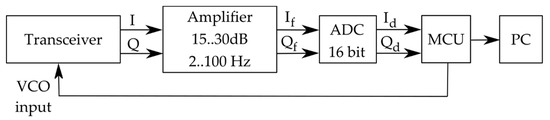

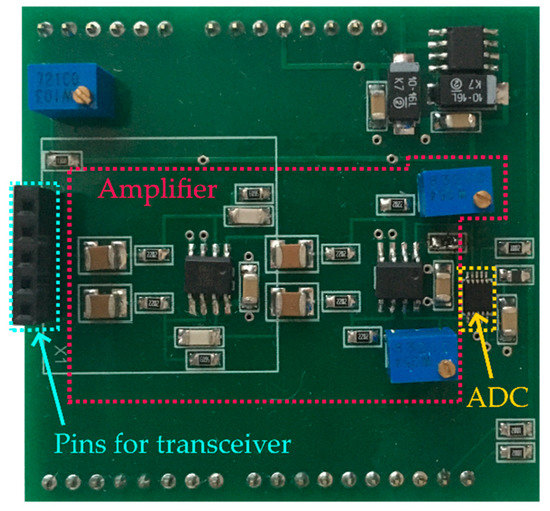

Parameter | Bioradar No. 1 | Bioradar No. 2 |
---|---|---|
Probing frequency | 24.107 GHz | 24.065 GHz |
VCO input | 0 V | 1.8 V |
Detecting signal band | 1–100 Hz | |
Gain | 15–30 dB | |
Radiated power density | <3 µW/cm2 | |
Beam aperture | 80°/34° | |
Size | 95 × 75 × 45 mm |
Male:Female | 2:3 |
---|---|
Age (Years) | 22–41 |
Height (cm) | 164–185 |
Body Mass Index (kg/m2) | 17.4–22.1 |
Movement Type | Number | ||
---|---|---|---|
Entering–exiting the premises | 175 | 25 | |
Whole body turning | 25 | ||
Arm movements | 25 | ||
Not fall activities | Sitting on the chair and standing from it | 25 | |
leaning | 25 | ||
squats | 25 | ||
lying down on the mat | 25 | ||
Falls | 175 | ||
All types of movements | 350 |
CNN Name | Test Dataset | Accuracy, % | Sensitivity, % | Specificity, % | Precision, % | F1-score, % |
---|---|---|---|---|---|---|
CNN1 | Bioradar 1 | 98.57 | 97.14 | 100 | 100 | 98.55 |
CNN2 | Bioradar 2 | 87.86 | 85.71 | 90.00 | 89.55 | 87.59 |
CNN2 | Bioradar 1 | 95.71 | 92.86 | 98.57 | 98.49 | 95.59 |
CNN1 | Bioradar 2 | 77.14 | 58.57 | 95.71 | 93.18 | 71.93 |
CNN12 | Bioradars 1&2 | 99.29 | 98.57 | 100 | 100 | 99.28 |
Ref. | Type of Sensors | Classifier | Amount of Channels | Number of Examinees | Accuracy, % |
---|---|---|---|---|---|
Martínez-Villaseñor (2019), [18] | Wearable, infrared sensors, cameras | RF, SVM, MLP, kNN | 14 | 17 | 95.0 |
Martínez-Villaseñor (2019), [18] | cameras | CNN | 2 | 17 | 95.1 |
Kwolek (2015), [36] | Kinect and Accelerometer | KNN and SVM | 2 | 5 | 95.8 |
Erol (2018), [37] | Radar | STFT, GPCA and KNN | 1 | 14 | 97.0 |
Jokanović (2017), [38] | Radar | Spectrogram and neural network | 1 | 3 | 97.1 |
Anishchenko (2018) [39] | Camera | CNN | 1 | 4 | 98.9 |
This work | Radars | CWT and CNN | 2 | 5 | 99.3 |
Kwolek (2014), [40] | Kinect | KNN | 1 | 30 | 100 |
Mastorakis (2014), [41] | Kinect | Threshold and Shape Features | 1 | 2 | 100 |
