Nanoparticles as Emerging Labels in Electrochemical Immunosensors

NanoBioAnalysis Group-Department of Physical and Analytical Chemistry, University of Oviedo, 33006 Oviedo, Spain
*
Author to whom correspondence should be addressed.
In Memoriam to Prof. Agustín Costa-García.
Sensors 2019, 19(23), 5137; https://doi.org/10.3390/s19235137
Submission received: 28 October 2019 / Revised: 19 November 2019 / Accepted: 21 November 2019 / Published: 23 November 2019
(This article belongs to the Special Issue Electrochemical Nanobiosensors)

Abstract

:
This review shows recent trends in the use of nanoparticles as labels for electrochemical immunosensing applications. Some general considerations on the principles of both the direct detection based on redox properties and indirect detection through electrocatalytic properties, before focusing on the applications for mainly proteins detection, are given. Emerging use as blocking tags in nanochannels-based immunosensing systems is also covered in this review. Finally, aspects related to the analytical performance of the developed devices together with prospects for future improvements and applications are discussed.

Graphical Abstract

1. Introduction

Among electrochemical biosensors, immunosensors, based on the principle of high biospecific affinity interactions between antigens and the corresponding antibodies, have attracted considerable attention in many fields, such as clinical diagnosis or environmental monitoring. Electrochemical immunosensors are easy to use, but usually the affinity interaction generates a small current response that is not adequate to satisfy the desired sensitivity, being essential the development of efficient signal amplification strategies. Although enzyme-based labels are the most common, there are critical problems in the construction of enzymatic-based immunosensors such as the need for harsh conditions to keep the enzymatic activity. Additionally, natural enzymes have some intrinsic drawbacks, such as low thermal and environmental stability due to denaturation, sensitivity of catalytic activity to environmental conditions, non-conductivity and difficult and expensive synthesis and purification. The shortcomings associated with the use of enzymes as labels have promoted their substitution by nanomaterials that do not present these deficiencies and have many advantages over them.
Nanoparticles (NPs) have been extensively studied compared to bulk materials due to their unique features, including their catalytic, electric, optical and magnetic properties, being electrochemical analysis one of the fields with higher potential application [1]. Thanks to their excellent stability against denaturation, ease of mass production, ease of bioconjugation, and lower cost, many NP-based biosensors, mainly DNA sensors [2,3] and immunosensors, have drawn widespread attention in bio nanotechnology, offering benefits compared to traditional methods in terms of time of analysis, sensitivity and simplicity [4,5,6,7,8].
From the variety of immunosensors, those based on electrochemical detection are of special relevance, thanks to the inherent advantages of the electrochemistry in terms of sensitivity, simplicity, low cost of analysis and miniaturization possibilities, among others [9,10].
NPs have been extensively applied in electrochemical immunosensors as modifiers of electrode surfaces for improving both the electronic transference and the ability for antibody immobilization. Metallic NPs are the most widely used here, with carbon nanomaterials being also recently proposed for such purposes [11,12,13]. NPs also appear as emerging outstanding labels in electrochemical immunosensors, as alternative to classical enzymatic tags [14]. Most metallic NPs have redox properties allowing their direct sensitive detection. Moreover, many such NPs exhibit electrocatalytic activity towards different reactions, which has been approached for the development of ultrasensitive immunosensors. Finally, NPs can also be used as physical blocking agents in i.e. nanochannel-based electrochemical immunosensing systems.
Despite the increasing interest and number of published works on NPs as labels in electrochemical biosensing, there is a lack of recent reviews covering this field, mainly focusing on immunosensing. In this context, the aim of this review is to present a general overview about the most representative and recent applications of NPs as labels in electrochemical immunosensors, based on the aforementioned properties. Such immunosensors have been mostly applied for the detection of biomolecules with clinical interest, such as cancer biomarkers or tumour cells. The obtained results show that the developed technologies can be valid alternatives to the traditional methods and are currently the objective of extensive research.

2. Nanoparticles as Electroactive Labels

Some NPs possess redox properties that make them easy to be directly detected with electrochemical techniques, without the need for additional steps/reactions after the immunoreaction in which they act as labels. The most representative examples are detailed below.

2.1. Gold Nanoparticles (AuNPs)

Gold nanoparticles (AuNPs) stand out from the variety of NPs used as labels in immunosensing due to their simple synthesis, narrow size distribution, optical and electrochemical properties and easy bioconjugation alternatives. The advantageous properties of AuNP-based immuno and DNA electrochemical assays have been extensively exploited in the last few years [15,16]. The first works here were based on the NPs dissolving/destruction in aggressive acidic reagents, followed by the detection of the resulting Au (III) ions by anodic stripping voltammetry (ASV). One of the pioneer works following such strategy was reported by Limoges’s group, who also used the AuNPs as tags in an immunoassay for immunoglobulin G (IgG) detection at µg/mL levels [17].
After that, Liu and Lin [18] introduced the advantage of using magnetic particles as platforms of the immunoreaction for the same analyte determination, lowering the detection limits at ng/mL levels. In addition to the direct determination of IgG proteins, immunoassays for other analytes determination based on the ASV of AuNP tags have also been reported. For example, a disposable microfluidic device for the detection of Salmonella typhimurium through a magneto-immunoassay using both magnetic particles and AuNPs linked to specific antibodies (Figure 1A) was reported by de Oliveira et al. [19], reaching a limit of detection as low as 7 cells/mL. It also deserves to be highlighted the possibility of tagging AuNPs labels with different metal ions, for the multiplexing of different tumour markers [20].
Despite the high sensitivity of the ASV detection of the Au (III) resulting of the NP dissolving/destruction, the need of hazardous reagents in this process has limited its practical application in immunosensors as a reliable alternative to traditional immunoassays based on enzymatic labels. In this sense, Costa-García’s group was the pioneer in the development and application of an alternative methodology based on the direct detection of AuNPs without the need for previously dissolving them in highly acidic media [21]. The strategy is based on the electrochemical oxidation of the NPs surface by applying a low oxidative potential in diluted hydrochloric acid, followed by the electrochemical voltammetric reduction back of the Au (III) to Au (0). Later on, Merkoçi’s group combined this strategy with the labelling of antibodies with AuNPs and the advantages of using magnetic particle platforms, for the detection of IgG protein at pg/mL levels [22]. In 2011, de la Escosura-Muñiz et al. studied for the first time the effect of the size of AuNPs on the aforementioned direct electrochemical detection when used as electroactive labels in an immunoassay for IgG determination on magnetic particle platforms [23]. Their findings suggest a better performance for small NPs (5 nm AuNPs) instead of the standard Turkevich’s ones (20 nm AuNPs) due to their higher surface area, as illustrated in Figure 1B.

2.2. Silver Nanoparticles (AgNPs)

The excellent electroactivity of silver metal together with the well-defined sharp voltammetric peaks associated to the process of oxidation of Ag (0) to Ag (I) make silver nanoparticles (AgNPs) to be of great potential for analytical applications, as reviewed by Compton’s group [24]. Here, the presence of chloride ions in the electrolyte solution is of key relevance for forming the AgCl specie that facilitates the voltammetric oxidation.
Based on that principle, Ting et al. proposed the use of Ag tags in the development of an immunosensor for prostate specific antigen (PSA) detection at fg/mL levels [25]. In the same vein, an electrochemical biosensor for clenbuterol using melamine functionalized AgNPs was reported by Miao and co-workers [26] (Figure 2A), reaching limits of detection at pg/mL levels. Similarly, antibodies to tick-borne encephalitis virus (TBEV), one endemic flavivirus that can cause serious infections in humans, were detected at 50 IU/mL using this methodology [27].
The high susceptibility of Ag to oxidation makes easy its combination with Au to obtain bimetallic AuAgNPs [28] with such NPs having the benefits of both metals. In this sense, Merkoçi’s group reported first the synthesis and electrochemical characterization of AuAgNPs [29] (Figure 2B) and then, applied them for the quantification of Escherichia coli and Salmonella typhimurium bacteria, taking advantage of the affinity of Ag for cell surface macromolecules [30] (Figure 2C). These findings opened the way for the development of low-cost and quickly electrochemical detection of bacteria as alternatives to traditional culture-based methods.

2.3. Quantum Dots (QDs)

Quantum dots (QDs) are semiconductor NPs with spherical shape and a diameter between 1–12 nm. Nowadays, they are one of the most studied nanomaterials, mainly because of their unique optical and semiconductive properties. They were discovered in the early 1980s by Alexey Ekimov during his research on semiconductor nanocrystals [31,32]. Some of the novel characteristics of QDs are their narrow spectral bands, high photoluminescence emission quantum yields and size-tunable emission profiles. This, altogether, make them as excellent potential labels to be used in bioassays [33]. Apart from their optical properties, valuable information can be provided by their electrochemical behaviour, broadly studied by Bard’s group in 2005 [34]. QDs have normally a core@shell structure made of semiconductors. The one in the outer layer is used to protect the core against possible oxidation reactions that could release the inner ions. Different organic capping ligands are also used to control the solubility of QDs and their functionalization, [35] with the aim of using them in bioassays, especially in optical biosensing, because of their size-controlled luminescence [36].
In addition to their well-established optical properties/applications, QDs have also inherent electroactivity coming from their metallic components that make them easy to detect with electrochemical techniques. The typical strategy consists in the QDs dissolution in highly acidic/oxidative media followed by the ASV detection of the metal ions released. Moreover, the use of QDs made of different metals allows to do the simultaneous detection of different targets through the specific potential of re-oxidation of each metal. In this sense, Wang and co-workers were pioneers in the use of QDs of different metals (Pb, Zn, Cd) as labels for the simultaneous detection of different analytes through ASV analysis [37].
ASV detection after QDs labels acidic dissolving has also extensively used in immunosensing in the last decade. As example, PSA, a biomarker for prostate cancer, has been detected using CdS QDs as labels in a sandwich-type immunoassay at clinically relevant levels of pg/mL [38].
Other QDs, CdSe QDs, have been combined with zirconia NPs (ZrO2) by Lu et al. [39] in the development of a highly selective electrochemical immunosensor for the detection of organophosphorylated butyrylcholinesterase (OP-BChE), a biomarker of the exposure to toxic organophosphorus agents, at environmental relevant levels of ng/mL. Core@shell CdSe@ZnS QDs, with ASV detection of released Cd, have also been highly used in electrochemical immunosensing. For example, Martín-Yerga et al. proposed the ASV detection of CdSe@ZnS QDs tags in electrode arrays [40], later applied for the detection of celiac disease biomarkers at clinical relevant levels (around 2 U/mL) [41,42] (Figure 3A). In the same vein, Pinwattana et al. used CdSe@ZnS QDs for the quantification of phosphorylated bovine serum albumin (BSA-OP) at the ng/mL scale [43].
As in the case of the AuNPs, the QDs detection by stripping after dissolving is practically limited by the need of hazardous reagents for the NP dissolution and the metal ions release. In this context, Merkoçi’s group was the first in proposing the direct detection of CdS QDs, based on the reduction/re-oxidation of Cd (II) in the surface of the NP, without the need of decompose the QDs [44]. This methodology was later applied in an immunosensor using CdSe@ZnS QDs tags for the detection of apolipoprotein E (ApoE), an Alzheimer’s disease biomarker, at clinical relevant levels of ng/mL [45] (Figure 3B). The same authors proposed later a signal amplification strategy based on the use of bismuth-modified electrodes for improving the Cd detection (Figure 3C), which was applied for the determination of human IgG (HIgG) at ng/mL levels in a model immunoassay [46].

2.4. Other Nanoparticles (NPs)

Some other nanoparticles with outstanding electrochemical properties, but not yet been used as labels in biosensors, deserve to be briefly included in this review due to their great potential for such application. That is the case of cerium oxide nanoparticles (CeO2 NPs) and mercury selenide nanoparticles (HgSe NPs). Copper-based metal nanoparticles (CuNPs), that have been proposed only for DNA hybridization biosensing, are also listed in this section.

2.4.1. Cerium Oxide Nanoparticles (CeO2 NPs)

Among all the metal oxide-based nanoparticles, cerium oxide nanoparticles or nanoceria have attracted significant attention owing to their singular properties, especially as catalysts. Their crystal structure have lots of oxygen vacancy defects, and because of that, they exhibit a very important oxygen storage capacity [47]. For this reason, the oxidation state of cerium at the NP surface can vary easily between +3 and +4, so they can both act as oxidizing and reducing agents [48]. This allows them, apart from acting as catalysts, to mimic the activity of enzymes in biosensors [49]. CeO2 NPs have been widely used in biosensing based on such mimetic properties. Ispas and colleagues have investigated the electrochemical behaviour of nanoceria towards the oxidation and reduction of hydrogen peroxide, resulting in a highly sensitive H2O2 detection technique with very low response times [50] opening the pathway to CeO2 NPs for their use in biosensing applications. On this basis, Chaturvedi et al. have developed a CeO2 NPs-Pt-graphene nanocomposite for the detection of glucose and xanthine, adding peroxide-producing oxidase or superoxide-producing oxidase, respectively [51].
With the aim of avoiding the use of enzymes, this peroxidase mimetic activity of CeO2 NPs has been combined with the catalytic properties of AuNPs to oxidize glucose into gluconate and hydrogen peroxide [52] which was applied for developing a non-enzymatic glucose biosensor with good analytical characteristics [53].
Recently, it has also been developed a novel method for the quantification of CeO2 NPs based on their oxidative effect towards ferrocyanide redox system, with great potential for its further application in biosensors [54].

2.4.2. Mercury Selenide Nanoparticles (HgSe NPs)

Mercury selenide (HgSe) is a very interesting material characterized by its high electron mobility and large electron concentration, extensively investigated in the area of optoelectronics [55]. The electrochemical behaviour of HgSe has been studied in mercury electrodes since the early 1960s, concluding that selenious acid is irreversibly reduced to HgSe in an acidic media. The cathodic stripping of HgSe film has been later used in the quantification of selenium [56]. After that, different studies on the optimization of HgSe thin films by electrochemical atomic layer epitaxy have been reported, with the different films being grown layer by layer making use of surface limited reactions such as under potential deposition (UPD). UPD is a highly interesting process consisting on the deposition of atomic layers on another element at a different potential of the one needed for the deposition on the element on itself [57].
More recently, it has been demonstrated that selenium and mercury have a toxicological antagonism in animals, occurring normally bioaccumulation of both elements [58]. Such co-accumulation may be due to the existence of HgSe NPs in the liver of cetaceans, assuming that they are the final metabolic product of the lifesaving mechanism in different biological systems [59]. In this context, engineered water-stabilized HgSe NPs have been synthesized and characterized by Bouzas-Ramos and co-workers [60]. Using these NPs and exploiting the ability that electrochemical techniques have to pre-concentrate different metals on the surface of the electrode, a rapid, simple and sensitive quantification of HgSe NPs has been carried out for the first time by Iglesias-Mayor et al. [61] In this work, HgSe NPs were quantified within two orders of magnitude, obtaining good reproducibility, repeatability and limit of detection, showing great potential for further application as tags in electrochemical immunosensors.

2.4.3. Copper-Based Nanoparticles (CuNPs)

Copper-based metal nanoparticles are attracting attention in bioanalysis due to their biocompatibility, low toxicity and outstanding optical properties. Some recent approaches have taken advantage of the in situ generation of CuNPs after DNA amplification, followed by NP dissolving and Cu ions detection by stripping voltammetry. This strategy has been combined with the use of aptamers for the detection of PSA biomarker at fg/mL levels [62]. The strong interaction between glutathione (GSH) and copper ions [63] has also been approached for the detection of GSH after formation of DNA-templated CuNPs and later voltammetric detection, as described above [64]. This analytical signal readout has also been used in the development of a method for quantifying endonuclease activity [65].
On the other hand, DNA-templated copper NPs are also considered as functional probes in bioanalysis [66]. They are synthesized due to the clustering of Cu onto DNA scaffolds [67] in a fast and efficient way [68]. Aptasensors for the detection of microRNA have also been reported using CuNPs, for example, Wang et al. built a biosensor for microRNA 21 based on the combination of the electroactivity of CuNPs and different amplification strategies [69], with an ultra-low limit of detection at levels of ag/mL, and having reliable results in the analysis of real blood samples. A simpler biosensor for microRNA which only uses exonuclease and copper nanoparticles has been reported by Miao and co-workers [70], with high potential for clinical diagnosis.

3. Nanoparticles as Electrocatalytic Labels

Catalysis is one of the main fields of nanoscience and nanotechnology, with the development of highly catalytic and electrochemically stable catalysts being a crucial goal in electrochemical applications. The special surface characteristics of the NPs make them ideal candidates for their use in electrocatalytic processes, mainly due to the higher proportion of atoms at the NP surface than in bulk state, that results in a high surface to volume ratio.
Silver electrodeposition, hydrogen evolution reaction (HER), water oxidation reaction (WOR) and oxygen reduction reaction (ORR) are simple reactions on which the electrocatalytic activity of some NPs has been approached for electroanalytical applications.
Moreover, various nanomaterials have been found to mimic the activities of natural enzymes such as peroxidase, superoxide dismutase, catalase and oxidase, being thus termed as nanozymes [71,72]. Particularly, nanomaterials with peroxidase-like activity have been extensively used as alternatives to the enzyme horseradish peroxidase (HRP), the most popular label in enzyme-based immunosensors.
The most representative/relevant works on the immunosensing application of the above mentioned electrocatalytic properties of NPs used as labels are described in this section.

3.1. Gold Nanoparticles (AuNPs)

Gold nanoparticles have grabbed considerable attention in last years because of their unique catalytic properties. Although bulk gold is an inert material towards redox processes, AuNPs have shown a different behaviour due to the quantum effects related with shape and size of the NPs. AuNPs have been found to exert an excellent electrocatalytic activity towards a variety of chemical reactions, and their ease of conjugation with different biomolecules make them ideal candidates for using as labels in the electrochemical detection of different proteins [73].

3.1.1. Silver Electrodeposition

AuNPs have shown catalytic properties towards the electroreduction (advantageous alternative to chemical reduction) of Ag (I) to Ag (0), since the presence of NPs shifts the Ag reduction potential to less negative values. A selective electrodeposition of silver only onto the AuNPs surface was achieved by applying an adequate electrodeposition potential, being then the silver re-oxidized scanning to positive potentials, generating a voltammetric peak of currents proportional to the amount of AuNPs [74]. This sensitive AuNPs induced-electrocatalytic silver reduction in combination with the use of magnetic particle platforms was exploited for the development of an immunoassay for the quantification of HIgG as model protein at ultralow levels (fg/mL) (Figure 4A). A similar strategy was later reported for the detection of carcinoembryonic antigen (CEA) and alpha-fetoprotein (AFP) at pg/mL levels [75] (Figure 4B). The same analytes were further quantified at fg/mL by Yan et al., using streptavidin/nanogold/carbon nanohorn (SA/Au/CNH) as a novel signal tag to induce silver enhancement for signal amplification [76].
However, the practical implementation of this strategy is limited because of its incompatibility with screen-printed electrodes (SPEs), probably the most popular electrodes for point-of-care (POC) electrochemical immunosensing. The presence of silver in the Ag/AgCl printed pseudoreference electrode interferes in the detection of the selectively electrodeposited silver, making its discrimination difficult. Alternative methodologies compatible with SPEs, mainly the one based on the electrocatalytic hydrogen evolution, were later proposed.

3.1.2. Hydrogen Evolution Reaction (HER)

The electrocatalytic effect of AuNPs towards the hydrogen evolution reaction (HER), that is the hydrogen ions (H+) reduction from a slightly acidic medium to form hydrogen (H2), has also been proposed as an outstanding methodology for the sensitive AuNPs detection on SPEs [77]. The electrocatalytic detection relies on the shift of the H+ ions reduction potential to less negative values in the presence of AuNPs.
De la Escosura-Muñiz et al. studied and optimized an AuNPs quantification methodology based on chronoamperometric measurements. By applying a constant voltage (typically −1V) the H+ ions reduction selectively occurs only in presence of AuNPs, so the cathodic current recorded at a fixed time is related to the amount of AuNPs. This methodology was first proposed for the detection of tumour cells cultured on SPEs through specific antibodies labelled with AuNPs, determining 4000 tumour cells per 700 µL of suspension [78] (Figure 5A). Later on, a similar methodology was applied for the detection of circulating tumour cells (CTCs) [79] also taking advantage of the use of magnetic particle platforms for capturing/pre-concentrate the CTCs on the SPE surface, allowing to determine around 5 × 103 cells/mL [80] (Figure 5B).
The use of magnetic particle platforms in combination with AuNPs tags and the electrocatalyic HER-based reaction was extensively exploited by the same group for the immunodetection of different analytes. As examples of protein biomarkers, they proposed the detection of HIgG at ng/mL levels [81] (Figure 5C), anti-hepatitis B antibodies at levels low enough for assuring the efficiency of vaccination (3 mIU/mL) [82] (Figure 5D) and Alzheimer’s disease biomarkers (ApoE and beta amyloid) at diagnostically relevant levels [83]. Furthermore, the same principles were approached for the quick detection and quantification of Escherichia coli O157:H7 in meat (minced beef) and water samples, without the need of broth enrichment, achieving detection limits in the order of 300–500 CFU/mL [84]. The method was also extended to DNA quantification, being applied for the isothermal amplification of Leishmania DNA using primers labelled with AuNPs [85].

3.1.3. H2O2 Reduction

The peroxidase-like activity of various nanomaterials, including AuNPs [86], has attracted great attention in the last years. As an example, Jia et al. developed a sandwich-type immunosensor for the detection of squamous cell carcinoma antigen (SCC-Ag), a biomarker of cervical cancer, at fg/mL levels using Na-montmorillonite-polyaniline-AuNPs (Na-Mont-PANI-AuNPs) nanocomposites that exhibit excellent catalytic performance towards H2O2 reduction [87] (Figure 6A). In the same line, a competitive amperometric immunosensor was recently proposed for the sensitive detection of tetrabromobisphenol A bis(2-hydroxyethyl) ether (TBBPA-DHEE), a potential neurotoxin in environmental waters, using catalase functionalized AuNPs-loaded self-assembled polymer nanospheres (PS@PEI@CAT@AuNPs) nanocomposite. A low detection limit in the pg/mL scale (7 times lower than that obtained by enzyme-linked immunosorbent assay (ELISA)) was achieved due to the synergistic effect of AuNPs and catalase on the electrocatalytic H2O2 reduction [88].

3.2. Silver-Based Nanoparticles (AgNPs)

Silver nanomaterials, particularly AgNPs, have also attracted increasing attention from the electrocatalytic perspective, due to their quantum characteristics including large specific surface area and small granule diameter, showing also catalytic activity towards the reduction of H2O2. An immunosensor based on such electrocatalytic property was developed by Zhang et al. for the ultrasensitive detection of CEA, a broad spectrum tumour marker, at very low levels (fg/mL) [89]. The chronoamperometric detection of H2O2 reduction relied on the synergistic effect towards that reaction of Hemin and AgNPs from AgNPs@CS-Hemin/rGO nanocomposite (microporous carbon spheres loading silver nanoparticles-spaced Hemin/reduced graphene oxide porous nanocomposite) used as label (see Figure 6B). A hybrid nanocomposite made of Fe3O4 nanospheres and Ag@Au nanorods (Ag@Au-Fe3O4) was also proposed as electrocatalysts of H2O2 reduction for the detection of HIgG at fg/mL levels [92].

3.3. Platinum-Based Nanoparticles (PtNPs)

Noble metal nanoparticles, especially platinum (PtNPs) and palladium (PdNPs), have attracted extensive attention thanks to their superior biocompatibility, favouring the immobilization of antibodies, and their remarkable electrocatalytic activity towards H2O2 reduction [93,94]. Various sandwich-type electrochemical immunosensors based on the electrocatalytic performance of PtNPs towards H2O2 reduction have been reported for the quantitative determination of different biomarkers. Li et al. achieved the detection of hepatitis B surface antigen (HBsAg) at fg/mL levels by using a molybdenum disulphide@cuprous oxide–platinum (MoS2@Cu2O-PtNPs) nanocomposite as signal amplification label [90] (Figure 6C). Alternatively, Pei et al. also accomplished the sensitive detection of HBsAg at the same levels by using a composite based on Rh core and Pt shell nanodendrites loaded onto functionalized graphene nanosheets (Rh@Pt NDs/NH2-GS) as label [95]. Both immunosensors provided good potential for HBsAg detection in clinical diagnosis, with their detection limits being below the threshold value of serum HBsAg.
A chronoamperometric immunosensor for PSA determination was developed by Feng et al. [91] using PtCu@rGO/g-C3N4 nanocomposite (PtCu bimetallic hybrid loaded on 2D/2D reduced graphene oxide/graphitic carbon nitride) as label through the enhanced catalysis of H2O2 reduction (Figure 6D). The fg/mL levels detected evidence its potential application in clinical monitoring of such prostate cancer biomarker. Based on the same principles, the quantitative monitoring of another clinically relevant protein tumour biomarker, AFP, at fg/mL levels was also proposed using PtNPs anchored on cobalt oxide/graphene nanosheets (PtNPs/Co3O4/graphene) as electrocatalytic labels [96].

3.4. Palladium-Based Nanoparticles (PdNPs)

Pd-based nanocomposites have also been proposed as excellent labels for immunosensing, thanks to their electrocatalytic properties towards the H2O2 reduction. The most representative examples found in the bibliography are detailed in this section.
As example, an ultrasensitive immunosensor for the quantitative detection of AFP cancer biomarker (fg/mL levels) using a nanocomposite made of graphene oxide and CeO2 mesoporous nanocomposite functionalized by 3-aminopropyltriethoxysilane supported Pd octahedral NPs (Pd/APTES-M-CeO2-GS), that exhibits an important electrocatalytic activity towards H2O2 reduction, was reported by Wei et al. [97]. Another protein of clinical relevance for cancer screening, PSA, was sensitively quantified at the same levels using Pd NPs loaded electroactive amino-zeolitic imidazolate framework-67 (Pd/NH2-ZIF-67) nanocomposite, taking advantage of the synergistic catalytic effect of PdNPs and the electroactive NH2-ZIF-67 to decompose H2O2 [98] (Figure 7A).
Palladium-doped graphitic carbon nitride nanosheets (g-C3N4-PdNPs) were also found to have outstanding intrinsic peroxidase-like activity [99]. This nanocomposite was used as label for the detection of saxitoxin (STX), a relevant paralytic shellfish toxin at pg/mL levels [100] (Figure 7B).

3.5. Multimetallic NPs

Multimetallic nanomaterials have raised considerable concern in worldwide research because of their novel chemical and physical properties derived from the synergistic and electronic effects between the metals, coupled with the specific nanostructures, making them promising for catalytic applications [101]. These features are due to the change of atomistic arrangement and electronic states of the different metals in the nanomaterial due to the differences of electronegativity and electron configurations compared to single metals [102]. Additionally, in the case of noble metals NPs, their alloying with less-expensive non-noble metals (Cu, Fe, Co, Ni etc.) forming multimetallic NPs is interesting not only for being an effective approach to promote catalytic activity, but also from an economic perspective [103].
In general, bimetallic or multimetallic nanomaterials display highly enhanced electrocatalytic performance as compared to single metal catalysts for electrochemical applications. In the case of their use as labels in electrochemical immunosensors, the most exploited electrocatalytic property relies in their peroxidase-like activity towards the H2O2 reduction. Representative examples of such application are commented on below.

3.5.1. Gold-Based Multimetallic Nanoparticles

SCC-Ag cancer biomarker has been detected at clinically relevant levels of fg/mL through immunoassays, using different multimetallic NPs with catalytic activity towards the H2O2 reduction. As representative examples, Au@Ag/Au NPs core@double shell NPs [104] and amino functionalized cobaltosic oxide@ceric dioxide nanocubes combined with gold@platinum NPs (Co3O4@CeO2-Au@Pt) [105] have been proposed with such a purpose.
Gold@silver core@shell nanoparticles and disordered cuprous oxide nanocomposites (Au@Ag-Cu2O), with an excellent catalytic activity due to the synergy between Au and Ag and Cu were successfully prepared and used as label for amplified PSA detection at fg/mL levels [106]. Also based on core@shell gold@silver NPs, in this case loaded by polydopamine functionalized phenolic resin microporous carbon spheres (Au@Ag/PDA-PR-MCS), an electrochemical immunosensor was devised for the detection of AFP at the same levels [107]. The high electrocatalytic activity of Au@Ag/PDA-PR-MCS towards the H2O2 reduction (Figure 8A) relied on the synergistic effect of Au@Ag NPs in combination with the relatively large surface area of PDA-PR-MCS that leads to a larger electrochemically active surface area.
Gold@platinum core@shell NPs modified with neutral red functionalized reduced graphene oxide (rGO-NR Au@Pt) nanocomposite also exhibited high electrocatalytic activity that was applied for the immunoelectrochemical determination of Escherichia coli O157:H7 at 90 CFU/mL levels [108].
A nanocomposite made of cubic Au@Pt NPs dendritic nanomaterial functionalized with nitrogen-doped graphene loaded with copper ions (Au@Pt DNs/NG/ Cu2+) was used as label for the early detection of CEA at levels low enough for diagnostic applications (fg/mL) [109] (Figure 8B).
The combination of Au with other noble metal such as Pd has also been used in nanocomposites for its peroxidase-like activity in immunosensing. As example, gold@palladium nanoparticles loaded with molybdenum disulfide functionalized multiwalled carbon nanotubes (Au@Pd/MoS2@MWCNTs) have been proposed by Gao et al. for the detection of hepatitis B e antigen (HBeAg) at levels of clinical interest (fg/mL) [110]. A particular case is the one reported by Pei et al. in which the signal amplification label, gold@palladium nanodendrites loaded on ferrous-chitosan functionalized polypyrrole nanotubes (Au@Pd NDs/Fe2+-CS/PPy NTs) not only showed electrocatalytic activity towards H2O2 reduction, but also was used as electroactive compound to directly amplify the current signal of Fe2+, without need of any additional substance [111]. Benefitting from both possibilities, amperometry and square wave voltammetry (SWV) were used, respectively, for the electrochemical detection of CEA at fg/mL levels (Figure 8C).

3.5.2. Palladium–Platinum-Based Bimetallic Nanoparticles

In a lower extent, bimetallic Pd–Pt NPs have also been used as electrocatalytic labels in immunosensors, based on the above detailed principles. As representative example, Wang’s group reported two novel signal amplification strategies based on Pd–Pt NPs for the quantitative monitoring of PSA. In their first work a novel mesoporous core@shell palladium@platinum NP loaded by amino group functionalized graphene (M-Pd@Pt/NH2-GS) nanocomposite was used as label [112]. Later on, they reported the use of trimetallic PdPtCu nanospheres (m-PdPtCu) for the same purpose [113]. In both cases they detected PSA at fg/mL levels, having promising potential for clinical diagnosis.

3.6. Iridium-Based Nanoparticles (IrNPs)

Iridium nanoparticles (IrNPs) have been considered as an excellent catalyst towards H2O2 reduction due to their selectivity and stability, large surface area and high density of active sites. That electrocatalytic property of IrNPs has been approached in a immunosensor for CEA detection at diagnostic threshold levels of fg/mL [114].
Even more interesting is the fact that the oxide form of the IrNPs exhibits catalytic ability towards the water oxidation reaction, as has been demonstrated under photochemical conditions [115]. Iridium oxide nanoparticles (IrO2 NPs) are interesting for biosensing thanks to their biocompatibility, catalytic activity and outstanding stability. A benefit towards other NPs is their ease of being electrocatalytically detected at neutral pH through the water oxidation reaction (WOR), which favours their direct detection in the same medium where immunoreactions usually occurs, avoiding the use of additional reagents.
A representative work of such application is the one reported by Merkoçi’s group, in which the electrocatalytic activity of IrO2 NPs towards the WOR in neutral media was studied by cyclic voltammetry and chronoamperometry [116]. Fixing an adequate oxidative potential, the intensity of the current recorded in chronoamperometric mode is related with the amount of IrO2 NPs on the SPE transducer (Figure 9A). Combining the use of magnetic bead platforms and IrO2 NPs as labels of antibodies, they applied this catalytic method for the detection of ApoE, an Alzheimer’s disease biomarker at ng/mL levels (Figure 9B).
Based on the same principles, an immunoassay for the detection of a flame retardant compound (BDE-47, a polybrominated diphenyl ether (PBDE)), was carried out by the same group, [117] reaching detection limits of ppb, that fulfil environmental control requirements (Figure 9C).

3.7. Ferromagnetic Nanoparticles

Ferromagnetic nanoparticles, mainly made of magnetite (Fe3O4 NPs) are quite popular in biological analysis due to their peroxidase-mimic activity, having advantages such as easier production, lower cost of synthesis, higher stability in harsh conditions and flexible storage conditions [118,119].
Li et al. [120] took advantage of Fe3O4 NPs for the development of a photoelectrochemical immunoassay for detecting PSA. Histidine-modified Fe3O4 (his-Fe3O4) was linked with the corresponding secondary antibody to form his-Fe3O4@Ab2. This conjugate acted as peroxidase-like reagent, catalysing the H2O2 reduction and therefore the simultaneous oxidation of 4-chloro-1-naphthol (4-CN) present in the media to benzo-4-chlorohexadienone, that precipitates on the sensor surface causing the blocking of the electron transfer. Hereby the target antigen was quantitatively detected via the decrease in the photocurrent signal, produced by the induced catalytic precipitation (Figure 10A). With such photoelectrochemical immunoassay, low detection limits in the fg/mL scale were obtained for the PSA biomarker.

3.8. Molybdenum Disulphide Nanoparticles (MoS2 NPs)

Molybdenum disulphide nanoparticles (MoS2 NPs) have been found to display electrocatalytic activity towards the hydrogen evolution reaction (HER) and towards the oxygen reduction reaction (ORR) [121].
In spite of their potential, as far as we know, only one example of application in immunoelectroanalysis is found in the bibliography. That is the work of Bouša et al. [122] who described the use of MoS2 NP conjugated with antibodies as signal-enhancing labels based on the chronoamperometric HER monitoring for rabbit IgG quantification at pg/mL levels (Figure 10B).

4. Nanoparticles as Blocking Agents in Nanochannels-Based Immunosensors

Nanoparticles size in the nanometric scale has also been approached for their use as physical elements for blocking/closing nanostructures, which was applied for immunoelectroanalysis when used as labels of antibodies. In this context, novel methodologies based on the blocking effect of AuNPs on the diffusion of electroactive species inside nanochannels-based platforms have been recently reported for biomolecules detection.
Nanoporous alumina membranes stand out from the variety of nanoporous materials used for immunosensing [123,124]. Their high pore density and small pore diameter result in an easily functionalized substrate with high surface area. In this context, the capability of current tuning of such nanopore/nanochannel-based platform upon bioblocking using SPEs transducers and simple voltammetric detection mode has been proposed for the detection of proteins and DNA. The formation of the DNA duplex or the immunocomplex partially blocks the diffusion of electroactive species through the nanochannels, allowing researchers to detect and quantify the bioanalyte (Figure 11).
Such a methodology was approached for the label-free electrochemical detection of HIgG at µg/mL levels [126,127] and parathyroid hormone-related protein (PTHrP) cancer biomarker at clinical interest levels (ng/mL) [128], representing a simple biodetection alternative that was then extended to other immuno and DNA detection systems [129].
The sensitivity of the label-free assay was greatly improved later using AuNP tags as blocking agents in sandwich immunoassays. The presence of the AuNPs inside the nanochannels attached through the specific immunoreactions increases the blockage in the nanochannels, with this effect being strongly dependent on the NPs size. The nanochannels blockage was also enhanced by silver catalytic deposition, forming big silver shells that further decrease the diffusion of the redox indicator through the nanochannel, allowing to improve the detection limits up to ng/mL levels of HIgG [125]. In the same work, the ability of the nanochannels to act also as filters of big molecules was approached for the detection of a cancer biomarker in whole human blood samples. The micrometric components of the blood (red and white blood cells, platelets, and crystal salts) remain out of the membrane, while the cancer biomarker enters through the channels and is captured by the specific antibody. The further nanochannel blocking using AuNP tags and silver deposition allows to detect CA15-3 glycoprotein, a breast cancer biomarker at clinical relevant levels of 50 U/mL directly in human blood. A similar methodology was also applied for the detection of thrombin in whole blood at very low levels in of few ng/mL, which are within the range of clinical interest for the diagnostic of coagulation abnormalities as well as pulmonary metastasis [130] (Figure 12).
It is also worth highlighting the potential of these sensing systems for the in-situ monitoring of cell/bacteria secreted proteins, of high interest for the screening of anti-cancer drugs as well as for testing of novel antimicrobial/antivirulence agents [131,132].

5. Conclusions and Perspectives

Nanoparticles are emerging materials with outstanding potential for their use as labels in electrical immunosensing. Gold, silver, palladium and platinum are the main components of such particles, thanks to their direct electroactivity (redox properties) and/or their electrocatalytic activity towards secondary reactions. While the direct detection is faster and simpler, the electrocatalytic strategies are generally more sensitive, so the choice of nanoparticle and detection route is strongly dependent on the requirements of the concrete application. Attending to the electrocatalytic routes, those based on the hydrogen evolution reaction (HER) and the H2O2 reduction are most widely exploited, thanks to the variety of nanoparticles and nanocomposites able to electrocatalyse such reactions. However, of special relevance are recent works exploiting the ability of nanoparticles to electrocatalyse simple reactions such as the water oxidation reaction (WOR) and the oxygen reduction reaction (ORR), which occur at neutral pH without the need of additional reagents after the immunoassay. This is of special relevance for the building of highly integrated biosensing systems.
It is also worth highlighting the recent use of nanoparticles in combination with nanochannels for immunosensing approaches, with this being especially advantageous for real sample analysis, thanks to the filtering abilities of the nanoporous-based platforms.
Protein biomarkers of a variety of diseases, including tumour cells, are the target analytes on which such electrochemical immunosensors have been mostly applied. In most cases, pg/mL levels of interest for diagnostic applications are detected, being thus the sensitivity a challenge that has been overcome. Table 1 summarizes the NPs, strategies, analytes and main results reported over the last five years.
However, some important issues need to be solved for the definitive implantation of such sensing systems for routine analysis. Efficiency and long-term stability of the nanoparticle-antibody conjugates is a crucial issue that is not usually addressed in most of the reviewed works. Moreover, looking at the application as an alternative to well-established ELISA assays, multidetection abilities, either through electrode arrays or by simultaneously using nanoparticles with different properties should be strongly required. Efforts in this sense should be the next at the current state of the art.
Nevertheless, nanoparticle-based electrochemical immunosensors have the greatest potential in the field of the point-of-care (POC) analysis, in our opinion. The combination of the miniaturized electrochemical transducers, the cheap and portable electrochemical instruments and the well-studied properties of the nanoparticles make altogether ideal for POC applications. In this case, the most challenging and less reported issue is related to the sampling/introduction of the analytes in the immunosensor as well as the washing, etc. steps required, which difficult to have highly integrated real POC systems. Here the combination with microfluidics seems to be crucial. Considerable effort in this sense is expected in the next few years.

Author Contributions

A.I.-M.; writing-review and editing, O.A.-G.; writing-review and editing, A.C.-G.; writing—review and editing and funding acquisition, A.d.l.E.-M.; writing—review and editing and funding acquisition.

Funding

This research was funded by the FC-GRUPIN-ID/2018/000166 project from the Asturias Regional Government and the CTQ2017-86994-R project from the Spanish Ministry Economy and Competitiveness (MINECO). A. Iglesias-Mayor thanks the MECD (Spain) for the award of a FPU Grant (FPU2014/04686). O. Amor-Gutiérrez thanks the University of Oviedo for the award of a grant “Ayudas para la realización de tesis doctorales” (PAPI-18-PF-13). A. de la Escosura-Muñiz acknowledges the MICINN (Spain) for the “Ramón y Cajal” Research Fellow (RyC-2016-20299).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

4-CN4-chloro-1-naphthol
AFPAlpha-fetoprotein
AgNPsSilver nanoparticles
anti-tTG IgAAnti-tissue transglutaminase immunoglobulin A antibodies
anti-tTG IgGAnti-tissue transglutaminase immunoglobulin G antibodies
ApoEApolipoprotein E
ASVAnodic stripping voltammetry
AuNPsGold nanoparticles
BSA-OPPhosphorylated bovine serum albumin
CEACarcinoembryonic antigen
CeO2 NPsCerium oxide nanoparticles
CuNPsCopper nanoparticles
CTCsCirculating tumour cells
CVCyclic voltammetry
CVsCyclic voltammograms
DPVDifferential pulse voltammetry
E. coliEscherichia coli
Fe3O4 NPsFerromagnetic nanoparticles
GCEGlassy carbon electrode
GSHGlutathione
HBeAgHepatitis B e antigen
HBsAgHepatitis B surface antigen
HERHydrogen evolution reaction
HgSe NPsMercury selenide nanoparticles
HIgGHuman Immunoglobulin G
HRPHorseradish peroxidase
IgGImmunoglobulin G
IrNPsIridium nanoparticles
IrO2 NPsIridium oxide nanoparticles
LSVLinear sweep voltammetry
MBsMagnetic beads
MoS2 NPsMolybdenum disulphide nanoparticles
NP(s)Nanoparticle(s)
OP-BChEOrganophosphorylated butyrylcholinesterase
ORROxygen reduction reaction
PBDEPolybrominated diphenyl ether
PBSSodium phosphate buffer
PdNPsPalladium nanoparticles
POCPoint-of-care
PVPPolyvinyl pyrrolidone
PTHrPParathyroid hormone-related protein
PtNPsPlatinum nanoparticles
PSAProstate specific antigen
QDsQuantum Dots
SCSodium citrate
SCC-AgSquamous cell carcinoma antigen
SPEsScreen-printed electrodes
ssDNASingle strand DNA
STXSaxitoxin
STEMScanning transmission electron microscope
SWVSquare wave voltammetry
TBBPA-DHEETetrabromobisphenol A bis(2-hydroxyethyl) ether
TMB3,3’,5,5’-Tetramethylbenzidine
UPDUnder potential deposition
WORWater oxidation reaction

References

  1. De la Escosura-Muñiz, A.; Ambrosi, A.; Merkoçi, A. Electrochemical analysis with nanoparticle-based biosystems. TrAC Trends Anal. Chem. 2008, 27, 568–584. [Google Scholar] [CrossRef]
  2. Zhou, F.; Yao, Y.; Luo, J.; Zhang, X.; Zhang, Y.; Yin, D.; Gao, F.; Wang, P. Proximity hybridization-regulated catalytic DNA hairpin assembly for electrochemical immunoassay based on in situ DNA template-synthesized Pd nanoparticles. Anal. Chim. Acta 2017, 969, 8–17. [Google Scholar] [CrossRef] [PubMed]
  3. Fojta, M.; Daňhel, A.; Havran, L.; Vyskočil, V. Recent progress in electrochemical sensors and assays for DNA damage and repair. TrAC Trends Anal. Chem. 2016, 79, 160–167. [Google Scholar] [CrossRef]
  4. Wu, J.; Wang, X.; Wang, Q.; Lou, Z.; Li, S.; Zhu, Y.; Qin, L.; Wei, H. Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes (II). Chem. Soc. Rev. 2019, 48, 1004–1076. [Google Scholar] [CrossRef] [PubMed]
  5. Lin, Y.; Ren, J.; Qu, X. Catalytically active nanomaterials: A promising candidate for artificial enzymes. Acc. Chem. Res. 2014, 47, 1097–1105. [Google Scholar] [CrossRef] [PubMed]
  6. Zhou, Y.; Liu, B.; Yang, R.; Liu, J. Filling in the Gaps between Nanozymes and Enzymes: Challenges and Opportunities. Bioconj. Chem. 2017, 28, 2903–2909. [Google Scholar] [CrossRef]
  7. Singh, S. Cerium oxide based nanozymes: Redox phenomenon at biointerfaces. Biointerphases 2016, 11, 04B202. [Google Scholar] [CrossRef]
  8. Wang, G.; Zhang, J.; He, X.; Zhang, Z.; Zhao, Y. Ceria Nanoparticles as Enzyme Mimetics. Chin. J. Chem. 2017, 35, 791–800. [Google Scholar] [CrossRef]
  9. De La Escosura-Muñiz, A.; Parolo, C.; Merkoi, A. Immunosensing using nanoparticles. Mater. Today 2010, 13, 24–34. [Google Scholar] [CrossRef]
  10. Zhang, Z.; Cong, Y.; Huang, Y.; Du, X. Nanomaterials-based electrochemical immunosensors. Micromachines 2019, 10, 397. [Google Scholar] [CrossRef]
  11. Pirsaheb, M.; Mohammadi, S.; Salimi, A. Current advances of carbon dots based biosensors for tumor marker detection, cancer cells analysis and bioimaging. TrAC Trends Anal. Chem. 2019, 115, 83–99. [Google Scholar] [CrossRef]
  12. Asadian, E.; Ghalkhani, M.; Shahrokhian, S. Electrochemical sensing based on carbon nanoparticles: A review. Sens. Actuators B Chem. 2019, 293, 183–209. [Google Scholar] [CrossRef]
  13. Campuzano, S.; Yáñez-Sedeño, P.; Pingarrón, J.M. Carbon dots and graphene quantum dots in electrochemical biosensing. Nanomaterials 2019, 9, 634. [Google Scholar] [CrossRef]
  14. Liu, G.; Lin, Y. Nanomaterial Labels in Electrochemical Immunosensors and Immunoassays. Talanta 2007, 74, 308–317. [Google Scholar] [CrossRef] [PubMed]
  15. Ambrosi, A.; Castañeda, M.T.; de la Escosura-Muñiz, A.; Mekoçi, A. Gold nanoparticles a powerful label for affinity electrochemical biosensors. Biosens. Using Nanomater. 2009, 6, 177–197. [Google Scholar]
  16. Maduraiveeran, G.; Sasidharan, M.; Ganesan, V. Electrochemical sensor and biosensor platforms based on advanced nanomaterials for biological and biomedical applications. Biosens. Bioelectron. 2018, 103, 113–129. [Google Scholar] [CrossRef] [PubMed]
  17. Dequaire, M.; Degrand, C.; Limoges, B. An electrochemical metalloimmunoassay based on a colloidal gold label. Anal. Chem. 2000, 72, 5521–5528. [Google Scholar] [CrossRef]
  18. Liu, G.; Lin, Y. A renewable electrochemical magnetic immunosensor based on gold nanoparticle labels. J. Nanosci. Nanotechnol. 2005, 5, 1060–1065. [Google Scholar] [CrossRef]
  19. De Oliveira, T.R.; Martucci, D.H.; Faria, R.C. Simple disposable microfluidic device for Salmonella typhimurium detection by magneto-immunoassay. Sens. Actuators B Chem. 2018, 255, 684–691. [Google Scholar] [CrossRef]
  20. Xu, T.; Jia, X.; Chen, X.; Ma, Z. Simultaneous electrochemical detection of multiple tumor markers using metal ions tagged immunocolloidal gold. Biosens. Bioelectron. 2014, 56, 174–179. [Google Scholar] [CrossRef]
  21. González García, M.B.; Costa García, A. Adsorptive stripping voltammetric behaviour of colloidal gold and immunogold on carbon paste electrode. Bioelectrochem. Bioenergy 1995, 38, 389–395. [Google Scholar] [CrossRef]
  22. Ambrosi, A.; Castañeda, M.T.; Killard, A.J.; Smyth, M.R.; Alegret, S.; Merkoçi, A. Double-codified gold nanolabels for enhanced immunoanalysis. Anal. Chem. 2007, 79, 5232–5240. [Google Scholar] [CrossRef] [PubMed]
  23. De La Escosura-Muñiz, A.; Parolo, C.; Maran, F.; Merkoçi, A. Size-dependent direct electrochemical detection of gold nanoparticles: Application in magnetoimmunoassays. Nanoscale 2011, 3, 3350–3356. [Google Scholar] [CrossRef] [PubMed]
  24. Tschulik, K.; Batchelor-Mcauley, C.; Toh, H.-S.; Stuart, E.J.E.; Compton, R.G. Electrochemical studies of silver nanoparticles: A guide for experimentalists and a perspective. Phys. Chem. Chem. Phys. 2014, 16, 616–623. [Google Scholar] [CrossRef]
  25. Ting, B.P.; Zhang, J.; Khan, M.; Yang, Y.Y.; Ying, J.Y. The solid-state Ag/AgCl process as a highly sensitive detection mechanism for an electrochemical immunosensor. Chem. Commun. 2009, 6231–6233. [Google Scholar] [CrossRef] [PubMed]
  26. Miao, P.; Han, K.; Sun, H.; Yin, J.; Zhao, J.; Wang, B.; Tang, Y. Melamine functionalized silver nanoparticles as the probe for electrochemical sensing of clenbuterol. ACS Appl. Mater. Interfaces 2014, 6, 8667–8672. [Google Scholar] [CrossRef]
  27. Khristunova, Y.; Korotkova, E.; Kratochvil, B.; Barek, J.; Dorozhko, E.; Vyskocil, V.; Plotnikov, E.; Voronova, O.; Sidelnikov, V. Preparation and Investigation of Silver Nanoparticle—Antibody Bioconjugates for Electrochemical Immunoassay of Tick-Borne Encephalitis. Sensors 2019, 19, 2103. [Google Scholar] [CrossRef]
  28. Zheng, Y.; Zeng, J.; Ruditskiy, A.; Liu, M.; Xia, Y. Oxidative etching and its role in manipulating the nucleation and growth of noble-metal nanocrystals. Chem. Mater. 2014, 26, 22–33. [Google Scholar] [CrossRef]
  29. Russo, L.; Puntes, V.; Merkoçi, A. Tunable electrochemistry of gold-silver alloy nanoshells. Nano Res. 2018, 11, 6336–6345. [Google Scholar] [CrossRef]
  30. Russo, L.; Leva Bueno, J.; Bergua, J.F.; Costantini, M.; Giannetto, M.; Puntes, V.; de La Escosura-Muñiz, A.; Merkoçi, A. Low-Cost Strategy for the Development of a Rapid Electrochemical Assay for Bacteria Detection Based on AuAg Nanoshells. ACS Omega 2018, 3, 18849–18856. [Google Scholar] [CrossRef]
  31. Ekimov, A.I.; Onushchenko, A.A. Quantum size effect in 3D microscopic semiconductor crystals. Jept Lett. 1982, 34, 345–348. [Google Scholar]
  32. Nanocrystals in their prime. Nat. Nanotechnol. 2014, 9, 325. [CrossRef] [PubMed]
  33. Alivisatos, A.P. Semiconductor clusters, nanocrystals, and Quantum Dots. Science 1996, 271, 933–937. [Google Scholar] [CrossRef] [Green Version]
  34. Bard, A.J.; Ding, Z.; Myung, N. Electrochemistry and electrogenerated chemiluminescence of semiconductor nanocrystals in solutions and in films. Struct. Bond 2005, 118, 1–57. [Google Scholar]
  35. Grabolle, M.; Ziegler, J.; Merkulov, A.; Nann, T.; Resch-Genger, U. Stability and fluorescence quantum yield of CdSe-ZnS quantum dots—Influence of the thickness of the ZnS shell. Ann. N. Y. Acad. Sci. 2008, 1130, 235–241. [Google Scholar] [CrossRef] [PubMed]
  36. Montoro Bustos, A.R.; Trapiella-Alfonso, L.; Encinar, J.R.; Costa-Fernández, J.M.; Pereiro, R.; Sanz-Medel, A. Elemental and molecular detection for Quantum Dots-based immunoassays: A critical appraisal. Biosens. Bioelectron. 2012, 33, 165–171. [Google Scholar] [CrossRef]
  37. Wang, J.; Liu, G.; Polsky, R.; Merkoçi, A. Electrochemical stripping detection of DNA hybridization based on cadmium sulfide nanoparticle tags. Electrochem. Commun. 2002, 4, 722–726. [Google Scholar] [CrossRef]
  38. Yang, M.; Javadi, A.; Gong, S. Sensitive electrochemical immunosensor for the detection of cancer biomarker using quantum dot functionalized graphene sheets as labels. Sens. Actuators B Chem. 2011, 155, 357–360. [Google Scholar] [CrossRef]
  39. Lu, D.; Wang, J.; Wang, L.; Du, D.; Timchalk, C.; Barry, R.; Lin, Y. A novel nanoparticle-based disposable electrochemical immunosensor for diagnosis of exposure to toxic organophosphorus agents. Adv. Funct. Mater. 2011, 21, 4371–4378. [Google Scholar] [CrossRef]
  40. Martín-Yerga, D.; González-García, M.B.; Costa-García, A. Biosensor array based on the in situ detection of quantum dots as electrochemical label. Sens. Actuators B Chem. 2013, 182, 184–189. [Google Scholar] [CrossRef]
  41. Martín-Yerga, D.; González-García, M.B.; Costa-García, A. Electrochemical immunosensor for anti-tissue transglutaminase antibodies based on the in situ detection of quantum dots. Talanta 2014, 130, 598–602. [Google Scholar] [CrossRef] [PubMed]
  42. Martín-Yerga, D.; Costa-García, A. Towards a blocking-free electrochemical immunosensing strategy for anti-transglutaminase antibodies using screen-printed electrodes. Bioelectrochemistry 2015, 105, 88–94. [Google Scholar] [CrossRef] [PubMed]
  43. Pinwattana, K.; Wang, J.; Lin, C.T.; Wu, H.; Du, D.; Lin, Y.; Chailapakul, O. CdSe/ZnS quantum dots based electrochemical immunoassay for the detection of phosphorylated bovine serum albumin. Biosens. Bioelectron. 2010, 26, 1109–1113. [Google Scholar] [CrossRef] [PubMed]
  44. Merkoçi, A.; Marcolino-Junior, L.H.; Marín, S.; Fatibello-Filho, O.; Alegret, S. Detection of cadmium sulphide nanoparticles by using screen-printed electrodes and a handheld device. Nanotechnology 2007, 18, 035502–035507. [Google Scholar] [CrossRef]
  45. Medina-Sánchez, M.; Miserere, S.; Morales-Narváez, E.; Merkoçi, A. On-chip magneto-immunoassay for Alzheimer’s biomarker electrochemical detection by using quantum dots as labels. Biosens. Bioelectron. 2014, 54, 279–284. [Google Scholar] [CrossRef]
  46. Medina-Sánchez, M.; Miserere, S.; Cadevall, M.; Merkoçi, A. Enhanced detection of quantum dots labeled protein by simultaneous bismuth electrodeposition into microfluidic channel. Electrophoresis 2016, 37, 432–437. [Google Scholar] [CrossRef]
  47. Campbell, C.T.; Peden, C.H.F. Oxygen vacancies and catalysis on ceria surfaces. Science 2005, 309, 713–714. [Google Scholar] [CrossRef]
  48. Andreescu, D.; Bulbul, G.; Özel, R.E.; Hayat, A.; Sardesai, N.; Andreescu, S. Applications and implications of nanoceria reactivity: Measurement tools and environmental impact. Environ. Sci. Nano 2014, 1, 445–458. [Google Scholar] [CrossRef]
  49. Celardo, I.; Pedersen, J.Z.; Traversa, E.; Ghibelli, L. Pharmacological potential of cerium oxide nanoparticles. Nanoscale 2011, 3, 1411–1420. [Google Scholar] [CrossRef]
  50. Ispas, C.; Njagi, J.; Cates, M.; Andreescu, S. Electrochemical Studies of Ceria as Electrode Material for Sensing and Biosensing Applications. J. Electrochem. Soc. 2008, 155, F169. [Google Scholar] [CrossRef]
  51. Chaturvedi, P.; Vanegas, D.C.; Taguchi, M.; Burrs, S.L.; Sharma, P.; McLamore, E.S. A nanoceria-platinum-graphene nanocomposite for electrochemical biosensing. Biosens. Bioelectron. 2014, 58, 179–185. [Google Scholar] [CrossRef] [PubMed]
  52. Luo, W.; Zhu, C.; Su, S.; Li, D.; He, Y.; Huang, Q.; Fan, C. Self-Catalyzed, Self-Limiting Growth of Glucose Oxidase-Mimicking Gold Nanoparticles. ACS Nano 2010, 4, 7451–7458. [Google Scholar] [CrossRef] [PubMed]
  53. Jiang, L.; Xue, Q.; Jiao, C.; Liu, H.; Zhou, Y.; Ma, H.; Yang, Q. A non-enzymatic nanoceria electrode for non-invasive glucose monitoring. Anal. Methods 2018, 10, 2151–2159. [Google Scholar] [CrossRef]
  54. Iglesias-Mayor, A.; Fernández-Murillo, L.; García-Alonso, F.J.; de la Escosura-Muñiz, A.; Costa-García, A. Nanoceria quantification based on its oxidative effect towards the ferrocyanide/ferricyanide system. J. Electroanal. Chem. 2019, 840, 338–342. [Google Scholar] [CrossRef]
  55. Mathe, M.K.; Cox, S.M.; Venkatasamy, V.; Happek, U.; Stickney, J.L. Formation of HgSe Thin Films Using Electrochemical Atomic Layer Epitaxy. J. Electrochem. Soc. 2005, 152, C751–C755. [Google Scholar] [CrossRef]
  56. Mattson, G.; Nyholm, L.; Olin, A. Cathodic stripping voltammetry of HgSe. J. Electroanal. Chem. 1994, 377, 149–162. [Google Scholar] [CrossRef]
  57. Venkatasamy, V.; Mathe, M.K.; Cox, S.M.; Happek, U.; Stickney, J.L. Optimization studies of HgSe thin film deposition by electrochemical atomic layer epitaxy (EC-ALE). Electrochim. Acta 2006, 51, 4347–4351. [Google Scholar] [CrossRef]
  58. Khan, M.A.K.; Wang, F. Mercury-selenium compounds and their toxicological significance: Toward a molecular understanding of the mercury-selenium antagonism. Environ. Toxicol. Chem. 2009, 28, 1567–1577. [Google Scholar] [CrossRef]
  59. Khan, M.A.K.; Wang, F. Reversible dissolution of glutathione-mediated HgSexS 1-x nanoparticles and possible significance in Hg-Se antagonism. Chem. Res. Toxicol. 2009, 22, 1827–1832. [Google Scholar] [CrossRef]
  60. Bouzas-Ramos, D.; Menéndez-Miranda, M.; Costa-Fernández, J.M.; Encinar, J.R.; Sanz-Medel, A. Precise determination of the nanoparticle concentration and ligand density of engineered water-soluble HgSe fluorescent nanoparticles. RSC Adv. 2016, 6, 19964–19972. [Google Scholar] [CrossRef] [Green Version]
  61. Iglesias-Mayor, A.; Amor-Gutiérrez, O.; Bouzas-Ramos, D.; Encinar, J.R.; Costa-Fernández, J.M.; de la Escosura-Muñiz, A.; Costa-García, A. Simple and rapid electrochemical quantification of water-stabilized HgSe nanoparticles of great concern in environmental studies. Talanta 2019, 200, 72–77. [Google Scholar] [CrossRef] [PubMed]
  62. Zhu, Y.; Wang, H.; Wang, L.; Zhu, J.; Jiang, W. Cascade Signal Amplification Based on Copper Nanoparticle-Reported Rolling Circle Amplification for Ultrasensitive Electrochemical Detection of the Prostate Cancer Biomarker. ACS Appl. Mater. Interfaces 2016, 8, 2573–2581. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, Z.; Wang, Z.; Chen, J.; Chen, X. Alizarin red S/copper ion-based ensemble for fluorescence turn on detection of glutathione with tunable dynamic range. Biosens. Bioelectron. 2012, 38, 202–208. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, Z.; Han, P.; Mao, X.; Yin, Y.; Cao, Y. Sensitive detection of glutathione by using DNA-templated copper nanoparticles as electrochemical reporters. Sens. Actuators B Chem. 2017, 238, 325–330. [Google Scholar] [CrossRef]
  65. Chen, X.; Yang, D.; Tang, Y.; Miao, P. DNA-templated copper nanoparticles for voltammetric analysis of endonuclease activity. Analyst 2018, 143, 1685–1690. [Google Scholar] [CrossRef]
  66. Qing, Z.; Bai, A.; Xing, S.; Zou, Z.; He, X.; Wang, K.; Yang, R. Progress in biosensor based on DNA-templated copper nanoparticles. Biosens. Bioelectron. 2019, 137, 96–109. [Google Scholar] [CrossRef]
  67. Rotaru, A.; Dutta, S.; Jentzsch, E.; Gothelf, K.; Mokhir, A. Selective dsDNA-templated formation of copper nanoparticles in solution. Angew. Chem. Int. Ed. 2010, 49, 5665–5667. [Google Scholar] [CrossRef]
  68. Xu, F.; Shi, H.; He, X.; Wang, K.; He, D.; Guo, Q.; Qing, Z.; Yan, L.; Ye, X.; Li, D.; et al. Concatemeric dsDNA-templated copper nanoparticles strategy with improved sensitivity and stability based on rolling circle replication and its application in microRNA detection. Anal. Chem. 2014, 86, 6976–6982. [Google Scholar] [CrossRef]
  69. Wang, Y.; Zhang, X.; Zhao, L.; Bao, T.; Wen, W.; Zhang, X.; Wang, S. Integrated amplified aptasensor with in-situ precise preparation of copper nanoclusters for ultrasensitive electrochemical detection of microRNA 21. Biosens. Bioelectron. 2017, 98, 386–391. [Google Scholar] [CrossRef]
  70. Miao, P.; Zhang, T.; Xu, J.; Tang, Y. Electrochemical Detection of miRNA Combining T7 Exonuclease-Assisted Cascade Signal Amplification and DNA-Templated Copper Nanoparticles. Anal. Chem. 2018, 90, 11154–11160. [Google Scholar] [CrossRef]
  71. Cormode, D.P.; Gao, L.; Koo, H. Emerging Biomedical Applications of Enzyme-Like Catalytic Nanomaterials. Trends Biotechnol. 2018, 36, 15–29. [Google Scholar] [CrossRef] [PubMed]
  72. Huang, Y.; Ren, J.; Qu, X. Nanozymes: Classification, Catalytic Mechanisms, Activity Regulation, and Applications. Chem. Rev. 2019, 119, 4357–4412. [Google Scholar] [CrossRef] [PubMed]
  73. Cao, X.; Ye, Y.; Liu, S. Gold nanoparticle-based signal amplification for biosensing. Anal. Biochem. 2011, 417, 1–16. [Google Scholar] [CrossRef] [PubMed]
  74. De la Escosura-Muñiz, A.; Maltez-da Costa, M.; Merkoçi, A. Controlling the electrochemical deposition of silver onto gold nanoparticles: Reducing interferences and increasing the sensitivity of magnetoimmuno assays. Biosens. Bioelectron. 2009, 24, 2475–2482. [Google Scholar] [CrossRef]
  75. Lai, G.; Wang, L.; Wu, J.; Ju, H.; Yan, F. Electrochemical stripping analysis of nanogold label-induced silver deposition for ultrasensitive multiplexed detection of tumor markers. Anal. Chim. Acta 2012, 721, 1–6. [Google Scholar] [CrossRef]
  76. Zhao, C.; Wu, J.; Ju, H.; Yan, F. Multiplexed electrochemical immunoassay using streptavidin/nanogold/carbon nanohorn as a signal tag to induce silver deposition. Anal. Chim. Acta 2014, 847, 37–43. [Google Scholar] [CrossRef]
  77. Chikae, M.; Idegami, K.; Kerman, K.; Nagatani, N.; Ishikawa, M.; Takamura, Y.; Tamiya, E. Direct fabrication of catalytic metal nanoparticles onto the surface of a screen-printed carbon electrode. Electrochem. Commun. 2006, 8, 1375–1380. [Google Scholar] [CrossRef]
  78. de la Escosura-Muñiz, A.; Sánchez-Espinel, C.; Díaz-Freitas, B.; González-Fernández, Á.; Maltez-Da Costa, M.; Merkoçi, A. Rapid identification and quantification of tumor cells using an electrocatalytic method based on gold nanoparticles. Anal. Chem. 2009, 81, 10268–10274. [Google Scholar] [CrossRef]
  79. Maltez-da Costa, M.; de la Escosura-Muñiz, A.; Nogués, C.; Barrios, L.; Ibáñez, E.; Merkoçi, A. Detection of circulating cancer cells using electrocatalytic gold nanoparticles. Small 2012, 8, 3605–3612. [Google Scholar] [CrossRef]
  80. Maltez-da Costa, M.; de la Escosura-Muñiz, A.; Nogués, C.; Barrios, L. Simple Monitoring of Cancer Cells Using Nanoparticles. Nano Lett. 2012, 12, 4164–4171. [Google Scholar] [CrossRef]
  81. Maltez-da Costa, M.; de la Escosura-Muñiz, A.; Merkoçi, A. Electrochemical quantification of gold nanoparticles based on their catalytic properties toward hydrogen formation: Application in magnetoimmunoassays. Electrochem. Commun. 2010, 12, 1501–1504. [Google Scholar] [CrossRef]
  82. De la Escosura-Muñiz, A.; Maltez-Da Costa, M.; Sánchez-Espinel, C.; Díaz-Freitas, B.; Fernández-Suarez, J.; González-Fernández, Á.; Merkoçi, A. Gold nanoparticle-based electrochemical magnetoimmunosensor for rapid detection of anti-hepatitis B virus antibodies in human serum. Biosens. Bioelectron. 2010, 26, 1710–1714. [Google Scholar] [CrossRef] [PubMed]
  83. De la Escosura-Muñiz, A.; Plichta, Z.; Horák, D.; Merkoçi, A. Alzheimer’s disease biomarkers detection in human samples by efficient capturing through porous magnetic microspheres and labelling with electrocatalytic gold nanoparticles. Biosens. Bioelectron. 2015, 67, 162–169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Hassan, A.-R.H.A.-A.; de la Escosura-Muñiz, A.; Merkoçi, A. Highly sensitive and rapid determination of Escherichia coli O157:H7 in minced beef and water using electrocatalytic gold nanoparticle tags. Biosens. Bioelectron. 2015, 67, 511–515. [Google Scholar] [CrossRef]
  85. De la Escosura-Muñiz, A.; Baptista-Pires, L.; Serrano, L.; Altet, L.; Francino, O.; Sánchez, A.; Merkoçi, A. Magnetic Bead/Gold Nanoparticle Double-Labeled Primers for Electrochemical Detection of Isothermal Amplified Leishmania DNA. Small 2015, 12, 205–213. [Google Scholar] [CrossRef] [Green Version]
  86. Jirkovský, J.S.; Halasa, M.; Schiffrin, D.J. Kinetics of electrocatalytic reduction of oxygen and hydrogen peroxide on dispersed gold nanoparticles. Phys. Chem. Chem. Phys. 2010, 12, 8042–8052. [Google Scholar] [CrossRef]
  87. Jia, H.; Gao, P.; Ma, H.; Li, Y.; Gao, J.; Du, B.; Wei, Q. Ultrasensitive electrochemical immunosensor for squamous cell carcinoma antigen detection using lamellar montmorillonite-gold nanostructures as signal amplification. Talanta 2015, 132, 803–808. [Google Scholar] [CrossRef]
  88. Dong, S.; Wang, S.; Gyimah, E.; Zhu, N.; Wang, K.; Wu, X.; Zhang, Z. A novel electrochemical immunosensor based on catalase functionalized AuNPs-loaded self-assembled polymer nanospheres for ultrasensitive detection of tetrabromobisphenol A bis(2-hydroxyethyl) ether. Anal. Chim. Acta 2019, 1048, 50–57. [Google Scholar] [CrossRef]
  89. Zhang, C.; Zhang, S.; Jia, Y.; Li, Y.; Wang, P.; Liu, Q.; Xu, Z.; Li, X. Sandwich-type electrochemical immunosensor for sensitive detection of CEA based on the enhanced effects of Ag NPs@CS spaced Hemin/rGO. Biosens. Bioelectron. 2019, 126, 785–791. [Google Scholar] [CrossRef]
  90. Li, F.; Li, Y.; Feng, J.; Gao, Z.; Lv, H.; Ren, X.; Wei, Q. Facile synthesis of MoS2@Cu2O-Pt nanohybrid as enzyme-mimetic label for the detection of the Hepatitis B surface antigen. Biosens. Bioelectron. 2018, 100, 512–518. [Google Scholar] [CrossRef]
  91. Feng, J.; Li, Y.; Li, M.; Li, F.; Han, J.; Dong, Y.; Chen, Z. A novel sandwich-type electrochemical immunosensor for PSA detection based on PtCu bimetallic hybrid (2D/2D) rGO/ g-C3N4. Biosens. Bioelectron. 2017, 91, 441–448. [Google Scholar] [CrossRef]
  92. Zhang, H.; Ma, L.; Li, P.; Zheng, J. A novel electrochemical immunosensor based on nonenzymatic Ag@Au-Fe3O4 nanoelectrocatalyst for protein biomarker detection. Biosens. Bioelectron. 2016, 85, 343–350. [Google Scholar] [CrossRef] [Green Version]
  93. Polsky, R.; Gill, R.; Kaganovsky, L.; Willner, I. Nucleic Acid-Functionalized Pt Nanoparticles: Catalytic Labels for the Amplified Electrochemical Detection of Biomolecules. Anal. Chem. 2006, 78, 2268–2271. [Google Scholar] [CrossRef] [PubMed]
  94. Chen, S.; Yuan, R.; Chai, Y.; Hu, F. Electrochemical sensing of hydrogen peroxide using metal nanoparticles: A review. Microchim. Acta 2013, 180, 15–32. [Google Scholar] [CrossRef]
  95. Pei, F.; Wang, P.; Ma, E.; Yang, Q.; Yu, H.; Gao, C.; Li, Y.; Liu, Q.; Dong, Y. A sandwich-type electrochemical immunosensor based on RhPt NDs/NH2-GS and Au NPs/PPy NS for quantitative detection hepatitis B surface antigen. Bioelectrochemistry 2019, 126, 92–98. [Google Scholar] [CrossRef] [PubMed]
  96. Liu, L.; Tian, L.; Zhao, G.; Huang, Y.; Wei, Q.; Cao, W. Ultrasensitive electrochemical immunosensor for alpha fetoprotein detection based on platinum nanoparticles anchored on cobalt oxide/graphene nanosheets for signal amplification. Anal. Chim. Acta 2017, 986, 138–144. [Google Scholar] [CrossRef]
  97. Wei, Y.; Li, Y.; Li, N.; Zhang, Y.; Yan, T.; Ma, H.; Wei, Q. Sandwich-type electrochemical immunosensor for the detection of AFP based on Pd octahedral and APTES-M-CeO2-GS as signal labels. Biosens. Bioelectron. 2016, 79, 482–487. [Google Scholar] [CrossRef]
  98. Dai, L.; Li, Y.; Wang, Y.; Luo, X.; Wei, D.; Feng, R.; Yan, T. A prostate-specific antigen electrochemical immunosensor based on Pd NPs functionalized electroactive Co-MOF signal amplification strategy. Biosens. Bioelectron. 2019, 132, 97–104. [Google Scholar] [CrossRef]
  99. Jin, X.; Zhong, Y.; Chen, L.; Xu, L.; Wu, Y.; Fu, F.F. A Palladium-Doped Graphitic Carbon Nitride Nanosheet with High Peroxidase-Like Activity: Preparation, Characterization, and Application in Glucose Detection. Part. Part. Syst. Charact. 2018, 35, 1700359. [Google Scholar] [CrossRef]
  100. Jin, X.; Chen, J.; Zeng, X.; Xu, L.; Wu, Y.; Fu, F. A signal-on magnetic electrochemical immunosensor for ultra-sensitive detection of saxitoxin using palladium-doped graphitic carbon nitride-based non-competitive strategy. Biosens. Bioelectron. 2019, 128, 45–51. [Google Scholar] [CrossRef]
  101. Liu, X.; Wang, D.; Li, Y. Synthesis and catalytic properties of bimetallic nanomaterials with various architectures. Nano Today 2012, 7, 448–466. [Google Scholar] [CrossRef]
  102. Ferrando, R.; Jellinek, J.; Johnston, R.L. Nanoalloys: From Theory to Applications of Alloy Clusters and Nanoparticles. Chem. Rev. 2008, 108, 845–910. [Google Scholar] [CrossRef] [PubMed]
  103. Kim, M.; Lee, C.; Ko, S.M.; Nam, J.M. Metal alloy hybrid nanoparticles with enhanced catalytic activities in fuel cell applications. J. Solid State Chem. 2019, 270, 295–303. [Google Scholar] [CrossRef]
  104. Wang, Y.; Zhang, Y.; Su, Y.; Li, F.; Ma, H.; Li, H.; Du, B.; Wei, Q. Ultrasensitive non-mediator electrochemical immunosensors using Au/Ag/Au core/double shell nanoparticles as enzyme-mimetic labels. Talanta 2014, 124, 60–66. [Google Scholar] [CrossRef] [PubMed]
  105. Li, Y.; Zhang, Y.; Li, F.; Feng, J.; Li, M.; Chen, L.; Dong, Y. Ultrasensitive electrochemical immunosensor for quantitative detection of SCCA using Co3O4@CeO2-Au@Pt nanocomposite as enzyme-mimetic labels. Biosens. Bioelectron. 2017, 92, 33–39. [Google Scholar] [CrossRef]
  106. Yang, Y.; Yan, Q.; Liu, Q.; Li, Y.; Liu, H.; Wang, P.; Chen, L.; Zhang, D.; Li, Y.; Dong, Y. An ultrasensitive sandwich-type electrochemical immunosensor based on the signal amplification strategy of echinoidea-shaped Au@Ag-Cu2O nanoparticles for prostate specific antigen detection. Biosens. Bioelectron. 2018, 99, 450–457. [Google Scholar] [CrossRef]
  107. Zhang, X.; Li, Y.; Lv, H.; Feng, J.; Gao, Z.; Wang, P.; Dong, Y. Sandwich-type electrochemical immunosensor based on Au@Ag supported on functionalized phenolic resin microporous carbon spheres for ultrasensitive analysis of α-fetoprotein. Biosens. Bioelectron. 2018, 106, 142–148. [Google Scholar] [CrossRef]
  108. Zhu, F.; Zhao, G.; Dou, W. Electrochemical sandwich immunoassay for Escherichia coli O157:H7 based on the use of magnetic nanoparticles and graphene functionalized with electrocatalytically active Au@ Pt core/shell nanoparticles. Microchim. Acta 2018, 185, 455. [Google Scholar] [CrossRef]
  109. Lv, H.; Li, Y.; Zhang, X.; Gao, Z.; Zhang, C.; Zhang, S.; Dong, Y. Enhanced peroxidase-like properties of Au@Pt DNs/NG/Cu2+ and application of sandwich-type electrochemical immunosensor for highly sensitive detection of CEA. Biosens. Bioelectron. 2018, 112, 1–7. [Google Scholar] [CrossRef]
  110. Gao, Z.; Li, Y.; Zhang, X.; Feng, J.; Kong, L.; Wang, P.; Chen, Z.; Dong, Y.; Wei, Q. Ultrasensitive electrochemical immunosensor for quantitative detection of HBeAg using Au@Pd/MoS2@MWCNTs nanocomposite as enzyme-mimetic labels. Biosens. Bioelectron. 2018, 102, 189–195. [Google Scholar] [CrossRef]
  111. Pei, F.; Wang, P.; Ma, E.; Yu, H.; Gao, C.; Yin, H.; Li, Y. A sandwich-type amperometric immunosensor fabricated by Au@Pd NDs/Fe2+-CS/PPy NTs and Au NPs/NH2-GS to detect CEA sensitively via two detection methods. Biosens. Bioelectron. 2018, 122, 231–238. [Google Scholar] [CrossRef] [PubMed]
  112. Li, M.; Wang, P.; Li, F.; Chu, Q.; Li, Y.; Dong, Y. An ultrasensitive sandwich-type electrochemical immunosensor based on the signal amplification strategy of mesoporous core–shell Pd@Pt crossmark nanoparticles/amino group functionalized graphene nanocomposite. Biosens. Bioelectron. 2017, 87, 752–759. [Google Scholar] [CrossRef] [PubMed]
  113. Li, M.; Wang, P.; Pei, F.; Yu, H.; Dong, Y.; Li, Y.; Liu, Q.; Chen, P. A novel signal amplification system fabricated immunosensor based on Au nanoparticles and mesoporous trimetallic PdPtCu nanospheres for sensitive detection of prostate specific antigen. Sens. Actuators B Chem. 2018, 261, 22–30. [Google Scholar] [CrossRef]
  114. Miao, L.; Jiao, L.; Zhang, J.; Li, H. Amperometric sandwich immunoassay for the carcinoembryonic antigen using a glassy carbon electrode modified with iridium nanoparticles, polydopamine and reduced graphene oxide. Microchim. Acta 2017, 184, 169–175. [Google Scholar] [CrossRef]
  115. Hara, M.; Mallouk, T.E. Photocatalytic water oxidation by Nafion-stabilized iridium oxide colloids. Chem. Commun. 2000, 1903–1904. [Google Scholar] [CrossRef]
  116. Rivas, L.; de la Escosura-Muñiz, A.; Pons, J.; Merkoçi, A. Alzheimer Disease Biomarker Detection Through Electrocatalytic Water Oxidation Induced by Iridium Oxide Nanoparticles. Electroanalysis 2014, 26, 1287–1294. [Google Scholar] [CrossRef] [Green Version]
  117. Quesada-González, D.; Baiocco, A.; Martos, A.A.; de la Escosura-Muñiz, A.; Merkoçi, A. Iridium oxide (IV) nanoparticle-based electrocatalytic detection of PBDE. Biosens. Bioelectron. 2019, 127, 150–154. [Google Scholar] [CrossRef] [Green Version]
  118. Gao, L.; Zhuang, J.; Nie, L.; Zhang, J.; Zhang, Y.; Gu, N.; Wang, T.; Feng, J.; Yang, D.; Perrett, S.; et al. Intrinsic peroxidase-like activity of ferromagnetic nanoparticles. Nat. Nanotechnol. 2007, 2, 577–583. [Google Scholar] [CrossRef]
  119. Wei, H.; Wang, E. Fe3O4 magnetic nanoparticles as peroxidase mimetics and their applications in H2O2 and glucose detection. Anal. Chem. 2008, 80, 2250–2254. [Google Scholar] [CrossRef]
  120. Li, W.; Fan, G.-C.; Gao, F.; Cui, Y.; Wang, W.; Luo, X. High-activity Fe3O4 nanozyme as signal amplifier: A simple, low-cost but efficient strategy for ultrasensitive photoelectrochemical immunoassay. Biosens. Bioelectron. 2019, 127, 64–71. [Google Scholar] [CrossRef]
  121. Benck, J.D.; Hellstern, T.R.; Kibsgaard, J.; Chakthranont, P.; Jaramillo, T.F. Catalyzing the hydrogen evolution reaction (HER) with molybdenum sulfide nanomaterials. ACS Catal. 2014, 4, 3957–3971. [Google Scholar] [CrossRef]
  122. Bouša, D.; Mayorga-Martinez, C.C.; Mazánek, V.; Sofer, Z.; Boušova, K.; Pumera, M. MoS2 Nanoparticles as Electrocatalytic Labels in Magneto-Immunoassays. ACS Appl. Mater. Interfaces 2018, 10, 16861–16866. [Google Scholar] [CrossRef] [PubMed]
  123. De la Escosura-Muñiz, A.; Merkoçi, A. Nanochannels preparation and application in biosensing. ACS Nano 2012, 6, 7556–7583. [Google Scholar] [CrossRef] [PubMed]
  124. De la Escosura-Muñiz, A.; Merkoçi, A. Nanochannels for electrical biosensing. Trends Anal. Chem. 2016, 79, 134–150. [Google Scholar] [CrossRef] [Green Version]
  125. De la Escosura-Muñiz, A.; Merkoçi, A. A nanochannel/nanoparticle-based filtering and sensing platform for direct detection of a cancer biomarker in blood. Small 2011, 7, 675–682. [Google Scholar] [CrossRef]
  126. De la Escosura-Muñiz, A.; Merkoçi, A. Label-free voltammetric immunosensor using a nanoporous membrane based platform. Electrochem. Commun. 2010, 12, 859–863. [Google Scholar] [CrossRef]
  127. De la Escosura-Muñiz, A.; Espinoza-Castañeda, M.; Hasegawa, M.; Philippe, L.; Merkoçi, A. Nanoparticles-based nanochannels assembled on a plastic flexible substrate for label-free immunosensing. Nano Res. 2015, 8, 1180–1188. [Google Scholar] [CrossRef] [Green Version]
  128. Espinoza-Castañeda, M.; de la Escosura-Muñiz, A.; Chamorro, A.; de Torres, C.; Merkoçi, A. Nanochannel array device operating through Prussian blue nanoparticles for sensitive label-free immunodetection of a cancer biomarker. Biosens. Bioelectron. 2015, 67, 107–114. [Google Scholar] [CrossRef]
  129. De la Escosura-Muñiz, A.; Merkoçi, A. Nanoparticle based enhancement of electrochemical DNA hybridization signal using nanoporous electrodes. Chem. Commun. 2010, 46, 9007–9009. [Google Scholar] [CrossRef] [Green Version]
  130. De la Escosura-Muñiz, A.; Chunglok, W.; Surareungchai, W.; Merkoçi, A. Nanochannels for diagnostic of thrombin-related diseases in human blood. Biosens. Bioelectron. 2013, 40, 24–31. [Google Scholar] [CrossRef] [Green Version]
  131. De la Escosura-Muñiz, A.; Espinoza-Castañeda, M.; Chamorro-García, A.; Rodríguez-Hernández, C.J.; de Torres, C.; Merkoçi, A. In situ monitoring of PTHLH secretion in neuroblastoma cells cultured onto nanoporous membranes. Biosens. Bioelectron. 2018, 107, 62–68. [Google Scholar] [CrossRef] [PubMed]
  132. De la Escosura-Muñiz, A.; Ivanova, K.; Tzanov, T. Electrical Evaluation of Bacterial Virulence Factors Using Nanopores. ACS Appl. Mater. Interfaces 2019, 11, 13140–13146. [Google Scholar] [CrossRef] [PubMed]

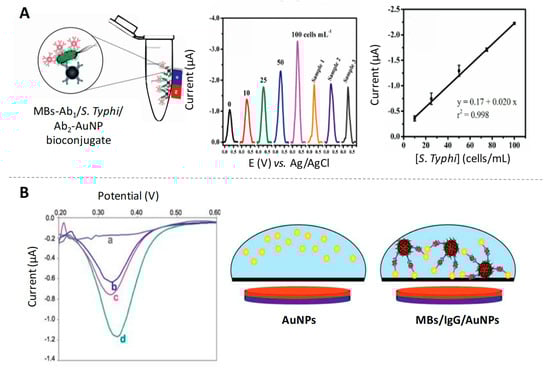

Figure 1. Gold nanoparticles (AuNPs) as electroactive labels. (A) Scheme of the magneto-immunoconjugate for the detection of Salmonella typhimurium using AuNP tags, together with differential pulse voltammetry (DPV) responses and calibration curve. Adapted from [19] with permission; (B) DPV curves obtained for the magnetosandwich immunoassay using AuNPs of different sizes: (a) blank, (b) 80 nm, (c) 20 nm and (d) 5 nm; and scheme of the process occurring on the electrode surface. Adapted from [23] with permission.
Figure 1. Gold nanoparticles (AuNPs) as electroactive labels. (A) Scheme of the magneto-immunoconjugate for the detection of Salmonella typhimurium using AuNP tags, together with differential pulse voltammetry (DPV) responses and calibration curve. Adapted from [19] with permission; (B) DPV curves obtained for the magnetosandwich immunoassay using AuNPs of different sizes: (a) blank, (b) 80 nm, (c) 20 nm and (d) 5 nm; and scheme of the process occurring on the electrode surface. Adapted from [23] with permission.
Sensors 19 05137 g001

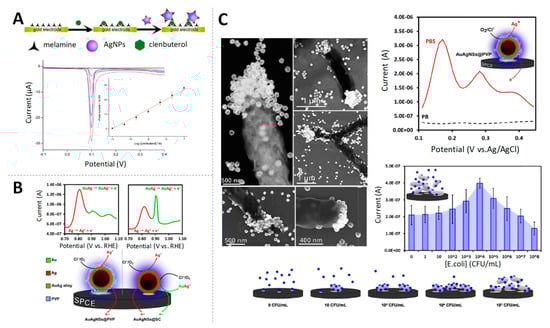

Figure 2. Silver nanoparticles (AgNPs) as electroactive labels (A) Schematic representation of the melanine functionalized AgNP-based electrochemical biosensor for the quantification of clenbuterol, linear sweep voltammetry (LSV) responses for increasing concentrations of clenbuterol and, inset, calibration curve of peak current values vs. the logarithm of clenbuterol concentration. Adapted from [26] with permission; (B) DPVs of AuAg NPs coated with polyvinyl pyrrolidone (PVP, left) and sodium citrate (SC, right). The analytical peak at +0.8 V corresponds to the stripping oxidation of metallic silver, while the peak at +0.9 V corresponds to the oxidation of the alloyed silver. In the bottom, proposed electrochemical mechanism for the AuAg NPs voltammetric profile. Adapted from [29] with permission; (C) Scanning transmission electron microscope (STEM) images of E. coli cells with AuAg NPs specifically linked; comparison of DPV curves of AuAgNPs in different buffers and E. coli detection through incubation with AuAg NPs and DPV measurements, with bacteria concentration ranging from 101 to 108 CFU/mL. Adapted from [30] with permission.
Figure 2. Silver nanoparticles (AgNPs) as electroactive labels (A) Schematic representation of the melanine functionalized AgNP-based electrochemical biosensor for the quantification of clenbuterol, linear sweep voltammetry (LSV) responses for increasing concentrations of clenbuterol and, inset, calibration curve of peak current values vs. the logarithm of clenbuterol concentration. Adapted from [26] with permission; (B) DPVs of AuAg NPs coated with polyvinyl pyrrolidone (PVP, left) and sodium citrate (SC, right). The analytical peak at +0.8 V corresponds to the stripping oxidation of metallic silver, while the peak at +0.9 V corresponds to the oxidation of the alloyed silver. In the bottom, proposed electrochemical mechanism for the AuAg NPs voltammetric profile. Adapted from [29] with permission; (C) Scanning transmission electron microscope (STEM) images of E. coli cells with AuAg NPs specifically linked; comparison of DPV curves of AuAgNPs in different buffers and E. coli detection through incubation with AuAg NPs and DPV measurements, with bacteria concentration ranging from 101 to 108 CFU/mL. Adapted from [30] with permission.
Sensors 19 05137 g002

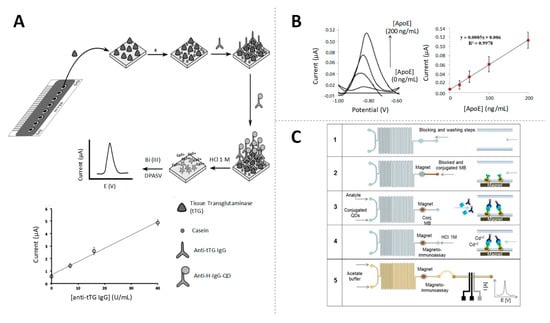

Figure 3. Quantum dots (QDs) as electroactive labels. (A) Schematic diagram of the electrochemical biosensor array for the quantification of anti-tissue transglutaminase (anti-tTG immunoglobulin G (IgG)) antibodies, based on the detection of QDs and linear response of the sensor for different concentrations of anti-tTG IgG antibody. Adapted from [41] with permission; (B) Performance of an ApoE-magnetoimmunoassay using QDs and calibration curve of ApoE between 0 and 200 ng/mL. Adapted from [45] with permission; (C) Scheme of an in-chip magnetoimmunoassay for human IgG (HIgG) detection using QDs tags. Adapted from [46] with permission.
Figure 3. Quantum dots (QDs) as electroactive labels. (A) Schematic diagram of the electrochemical biosensor array for the quantification of anti-tissue transglutaminase (anti-tTG immunoglobulin G (IgG)) antibodies, based on the detection of QDs and linear response of the sensor for different concentrations of anti-tTG IgG antibody. Adapted from [41] with permission; (B) Performance of an ApoE-magnetoimmunoassay using QDs and calibration curve of ApoE between 0 and 200 ng/mL. Adapted from [45] with permission; (C) Scheme of an in-chip magnetoimmunoassay for human IgG (HIgG) detection using QDs tags. Adapted from [46] with permission.
Sensors 19 05137 g003

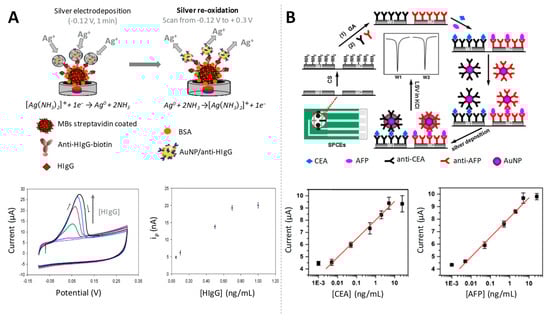

Figure 4. Gold nanoparticles as electrocatalysts of silver electrodeposition. (A) (up) Scheme of the electrochemical detection of AuNPs labels in a magnetosandwich assay for HIgG quantification based on the silver electrocatalytic deposition; (down) cyclic voltammograms (CVs) recorded in aqueous 1.0 M NH3 – 2.0 × 10−4 M AgNO3, from −0.12 to +0.30 V, for increasing HIgG concentrations, and relationship between the different concentrations of HIgG and the obtained peak currents used as analytical signals. Adapted from [74] with permission; (B) Schematic representation of the preparation of an immunosensor array and detection strategy for the detection of carcinoembryonic antigen (CEA) and alpha-fetoprotein (AFP) by LSV analysis of silver electrodeposited on AuNP tags and calibration curves for simultaneous multiplexed detection of CEA (left) and AFP (right) using the proposed strategy. Adapted from [75] with permission.
Figure 4. Gold nanoparticles as electrocatalysts of silver electrodeposition. (A) (up) Scheme of the electrochemical detection of AuNPs labels in a magnetosandwich assay for HIgG quantification based on the silver electrocatalytic deposition; (down) cyclic voltammograms (CVs) recorded in aqueous 1.0 M NH3 – 2.0 × 10−4 M AgNO3, from −0.12 to +0.30 V, for increasing HIgG concentrations, and relationship between the different concentrations of HIgG and the obtained peak currents used as analytical signals. Adapted from [74] with permission; (B) Schematic representation of the preparation of an immunosensor array and detection strategy for the detection of carcinoembryonic antigen (CEA) and alpha-fetoprotein (AFP) by LSV analysis of silver electrodeposited on AuNP tags and calibration curves for simultaneous multiplexed detection of CEA (left) and AFP (right) using the proposed strategy. Adapted from [75] with permission.
Sensors 19 05137 g004

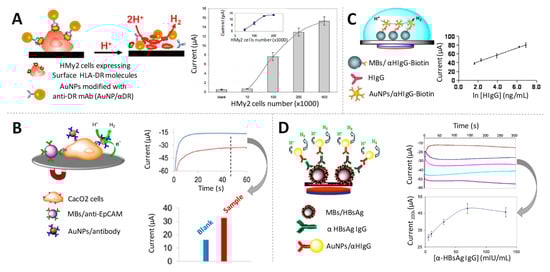

Figure 5. Gold nanoparticles as electrocatalysts of the hydrogen evolution reaction (HER). (A) (left) Scheme of an immunoassay to specifically identify HMy2 tumoral cells based on the HER electrocatalytic detection; (right) Effect of the number of HMy2 cells on the electrocatalytic signals. Adapted from [78] with permission; (B) (left) Scheme of the detection of Caco2 cells through the HER electrocatalysed by the AuNPs labels; (right) Chronoamperograms registered in 1 M HCl, during the HER applying a constant voltage of −1.0 V. The comparison of the corresponding analytical signals is also shown. Adapted from [80] with permission; (C) (left) Scheme of a magnetosandwich assay for HIgG quantification; (right) Relationship between the analytical signal and the logarithm of HIgG concentration. Adapted from [81] with permission; (D) (left) Scheme of the a magnetoimmunoassay for the detection of anti-hepatitis B antibodies; (right) Chronoamperograms recorded in 1M HCl for sera containing increasing concentrations of anti-hepatitis B antibodies, and effect of their concentration on the analytical signal. Adapted from [82] with permission.
Figure 5. Gold nanoparticles as electrocatalysts of the hydrogen evolution reaction (HER). (A) (left) Scheme of an immunoassay to specifically identify HMy2 tumoral cells based on the HER electrocatalytic detection; (right) Effect of the number of HMy2 cells on the electrocatalytic signals. Adapted from [78] with permission; (B) (left) Scheme of the detection of Caco2 cells through the HER electrocatalysed by the AuNPs labels; (right) Chronoamperograms registered in 1 M HCl, during the HER applying a constant voltage of −1.0 V. The comparison of the corresponding analytical signals is also shown. Adapted from [80] with permission; (C) (left) Scheme of a magnetosandwich assay for HIgG quantification; (right) Relationship between the analytical signal and the logarithm of HIgG concentration. Adapted from [81] with permission; (D) (left) Scheme of the a magnetoimmunoassay for the detection of anti-hepatitis B antibodies; (right) Chronoamperograms recorded in 1M HCl for sera containing increasing concentrations of anti-hepatitis B antibodies, and effect of their concentration on the analytical signal. Adapted from [82] with permission.
Sensors 19 05137 g005

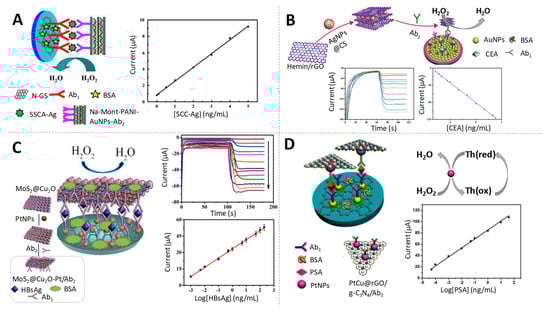

Figure 6. Gold, silver and platinum-based nanoparticles as electrocatalysts of H2O2 reduction. (A) Scheme of the immunosensor used to quantify SCC-Ag based on AuNPs and the corresponding calibration curve. Adapted from [87] with permission; (B) Scheme of the immunosensor used to quantify CEA based on AgNPs and the calibration curve. Adapted from [89] with permission. (C) Preparation procedure of MoS2@Cu2O-Pt/Ab2 nanocomposite and schematic representation of the immunosensor for HBsAg detection using such nanocomposite as an electrocatalytic label, together with the amperometric response of the immunosensor to different concentrations of HBsAg and the calibration curve. Adapted from [90] with permission. (D) Schematic representation of the immunosensor for prostate specific antigen (PSA) detection using tPtCu@rGO/g-C3N4 electrocatalytic label and calibration curve. Adapted from [91] with permission.
Figure 6. Gold, silver and platinum-based nanoparticles as electrocatalysts of H2O2 reduction. (A) Scheme of the immunosensor used to quantify SCC-Ag based on AuNPs and the corresponding calibration curve. Adapted from [87] with permission; (B) Scheme of the immunosensor used to quantify CEA based on AgNPs and the calibration curve. Adapted from [89] with permission. (C) Preparation procedure of MoS2@Cu2O-Pt/Ab2 nanocomposite and schematic representation of the immunosensor for HBsAg detection using such nanocomposite as an electrocatalytic label, together with the amperometric response of the immunosensor to different concentrations of HBsAg and the calibration curve. Adapted from [90] with permission. (D) Schematic representation of the immunosensor for prostate specific antigen (PSA) detection using tPtCu@rGO/g-C3N4 electrocatalytic label and calibration curve. Adapted from [91] with permission.
Sensors 19 05137 g006

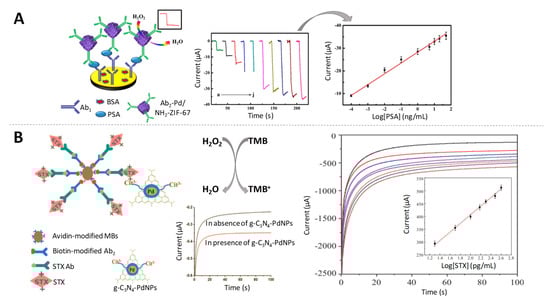

Figure 7. Palladium-based nanoparticles as electrocatalysts of H2O2 reduction. (A) Schematic representation of the immunosensor for PSA detection using Pd/NH2-ZIF-67 as electrocatalytic label, together with the amperometric response of the immunosensor to different concentrations of PSA and the calibration curve. Adapted from [98] with permission; (B) (left) Scheme of a non-competitive magnetic electrochemical immunosensor for STX quantification based on the H2O2 mediated oxidation of 3,3’,5,5’-Tetramethylbenzidine (TMB) and the current-time curves for detecting different concentration of STX, with the calibration curve as inset. Adapted from [100] with permission.
Figure 7. Palladium-based nanoparticles as electrocatalysts of H2O2 reduction. (A) Schematic representation of the immunosensor for PSA detection using Pd/NH2-ZIF-67 as electrocatalytic label, together with the amperometric response of the immunosensor to different concentrations of PSA and the calibration curve. Adapted from [98] with permission; (B) (left) Scheme of a non-competitive magnetic electrochemical immunosensor for STX quantification based on the H2O2 mediated oxidation of 3,3’,5,5’-Tetramethylbenzidine (TMB) and the current-time curves for detecting different concentration of STX, with the calibration curve as inset. Adapted from [100] with permission.
Sensors 19 05137 g007

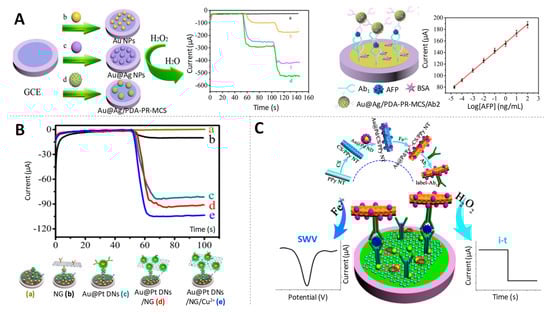

Figure 8. Gold-based multimetallic nanoparticles as electrocatalysts. (A) (left) Amperometric responses of different signal labels: bare glassy carbon electrode (GCE) (a), AuNPs (b) Au@Ag NPs (c) and core@shell gold@silver NPs loaded by polydopamine functionalized phenolic resin microporous carbon spheres (Au@Ag/PDA-PR-MCS) (d) modified GCE; (right) Schematic representation of the sandwich-type electrochemical immunosensor for AFP detection using Au@Ag/PDA-PR-MCS as electrocatalytic label. Adapted from [107] with permission; (B) Current responses of immunosensor for detecting 1 ng/mL CEA with different signal labels including without label (a), NG (b), Au@Pt DNs (c), Au@Pt DNs/NG (d), Au@Pt DNs/NG/Cu2+ (e). Adapted from [109] with permission. (C) Scheme of the electrochemical immunosensor for CEA quantification based on the direct and catalytic detection of Au@Pd NDs/Fe 2+-CS/PPy NTs. Adapted from [111] with permission.
Figure 8. Gold-based multimetallic nanoparticles as electrocatalysts. (A) (left) Amperometric responses of different signal labels: bare glassy carbon electrode (GCE) (a), AuNPs (b) Au@Ag NPs (c) and core@shell gold@silver NPs loaded by polydopamine functionalized phenolic resin microporous carbon spheres (Au@Ag/PDA-PR-MCS) (d) modified GCE; (right) Schematic representation of the sandwich-type electrochemical immunosensor for AFP detection using Au@Ag/PDA-PR-MCS as electrocatalytic label. Adapted from [107] with permission; (B) Current responses of immunosensor for detecting 1 ng/mL CEA with different signal labels including without label (a), NG (b), Au@Pt DNs (c), Au@Pt DNs/NG (d), Au@Pt DNs/NG/Cu2+ (e). Adapted from [109] with permission. (C) Scheme of the electrochemical immunosensor for CEA quantification based on the direct and catalytic detection of Au@Pd NDs/Fe 2+-CS/PPy NTs. Adapted from [111] with permission.
Sensors 19 05137 g008

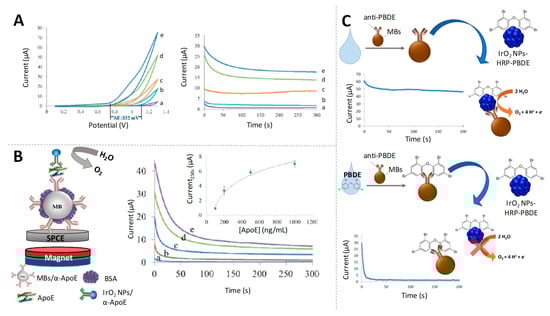

Figure 9. Iridium oxide nanoparticles as electrocatalysts of water oxidation reaction (WOR). (A) Cyclic voltammograms (left) and chronoamperograms (recorded at +1.3 V) (right) for increasing concentrations of IrO2 NPs in 0.1 M phosphate-buffered saline (PBS) pH 7.4. Adapted from [116] with permission; (B) Scheme of a magnetosandwich immunoassay using IrO2 NPs tags for ApoE detection based on the electrocatalysed WOR, together with chronoamperograms for samples containing different concentrations of ApoE. Calibration curve appears as inset. Adapted from [116] with permission; (C) Schematic representation of the competitive electrocatalytic assay for polybrominated diphenyl ether (PBDE) detection using IrO2 NPs as tags. Adapted from [117] with permission.
Figure 9. Iridium oxide nanoparticles as electrocatalysts of water oxidation reaction (WOR). (A) Cyclic voltammograms (left) and chronoamperograms (recorded at +1.3 V) (right) for increasing concentrations of IrO2 NPs in 0.1 M phosphate-buffered saline (PBS) pH 7.4. Adapted from [116] with permission; (B) Scheme of a magnetosandwich immunoassay using IrO2 NPs tags for ApoE detection based on the electrocatalysed WOR, together with chronoamperograms for samples containing different concentrations of ApoE. Calibration curve appears as inset. Adapted from [116] with permission; (C) Schematic representation of the competitive electrocatalytic assay for polybrominated diphenyl ether (PBDE) detection using IrO2 NPs as tags. Adapted from [117] with permission.
Sensors 19 05137 g009

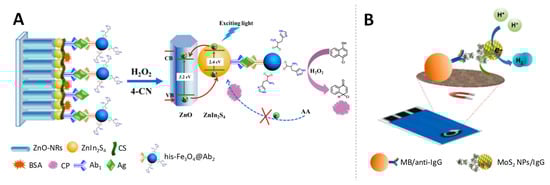

Figure 10. Ferromagnetic and molybdenum disulphide nanoparticles as electrocatalysts. (A) Development of a photoelectrochemical immunoassay using high-activity Fe3O4 nanozyme as signal amplifier and photogenerated electron-hole transfer mechanism for the detection of target antigen. Adapted from [120] with permission; (B) Magnetoimmunosandwich assay based on rabbit IgG-MoS2 NP detection through the HER mediated by the MoS2 label. Adapted from [122] with permission.
Figure 10. Ferromagnetic and molybdenum disulphide nanoparticles as electrocatalysts. (A) Development of a photoelectrochemical immunoassay using high-activity Fe3O4 nanozyme as signal amplifier and photogenerated electron-hole transfer mechanism for the detection of target antigen. Adapted from [120] with permission; (B) Magnetoimmunosandwich assay based on rabbit IgG-MoS2 NP detection through the HER mediated by the MoS2 label. Adapted from [122] with permission.
Sensors 19 05137 g010

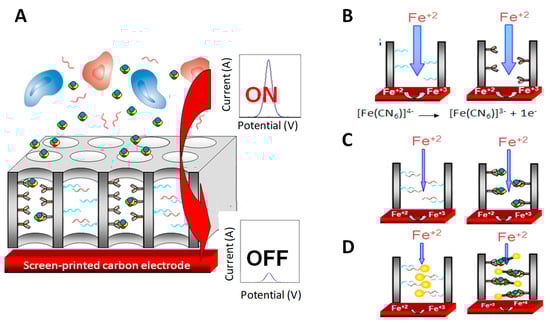

Figure 11. Scheme of the electrochemical sensing based on the nanoporous membranes-based platforms immunoblocking on screen-printed electrodes (SPEs). (A) Big molecules in the sample (i.e. blood cells) are filtered while the proteins enter inside and are captured by specific antibodies; (B) Sensing principle in the absence and (C) in the presence of the specific protein (or target single strand DNA (ssDNA)) in the sample, and (D) in the case of the assay performed using AuNP tags as blocking agents. Adapted from [125] with permission.
Figure 11. Scheme of the electrochemical sensing based on the nanoporous membranes-based platforms immunoblocking on screen-printed electrodes (SPEs). (A) Big molecules in the sample (i.e. blood cells) are filtered while the proteins enter inside and are captured by specific antibodies; (B) Sensing principle in the absence and (C) in the presence of the specific protein (or target single strand DNA (ssDNA)) in the sample, and (D) in the case of the assay performed using AuNP tags as blocking agents. Adapted from [125] with permission.
Sensors 19 05137 g011

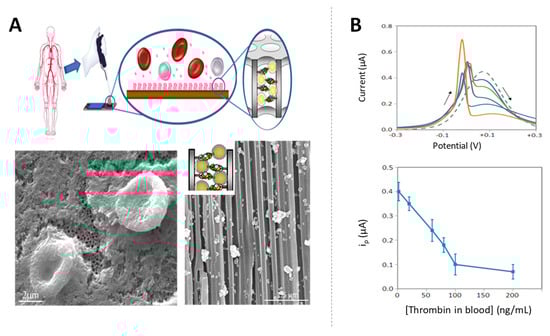

Figure 12. Signal enhancement in nanochannels by AuNP tags and silver deposition: application to biomarkers detection in blood. (A) Scheme of the sensing strategy together with scanning electron microscope (SEM) images of the alumina nanoporous membrane corresponding to (left) a top view of a membrane on which a drop of blood was deposited (red blood cells remain out of the membrane); (right) a cross-sectional view of a membrane with immobilized anti-thrombin antibodies, left to react with a blood sample containing thrombin biomarker and completing the sandwich using AuNP tags and silver enhancement (silver crystals blocking the nanochannels are observed); (B) DPV responses registered for blood samples containing different concentrations of thrombin and effect of the concentration of thrombin on the voltammetric peak current. Adapted from [130] with permission.
Figure 12. Signal enhancement in nanochannels by AuNP tags and silver deposition: application to biomarkers detection in blood. (A) Scheme of the sensing strategy together with scanning electron microscope (SEM) images of the alumina nanoporous membrane corresponding to (left) a top view of a membrane on which a drop of blood was deposited (red blood cells remain out of the membrane); (right) a cross-sectional view of a membrane with immobilized anti-thrombin antibodies, left to react with a blood sample containing thrombin biomarker and completing the sandwich using AuNP tags and silver enhancement (silver crystals blocking the nanochannels are observed); (B) DPV responses registered for blood samples containing different concentrations of thrombin and effect of the concentration of thrombin on the voltammetric peak current. Adapted from [130] with permission.
Sensors 19 05137 g012
Table 1. Electrochemical immunosensors reported over the last five years, involving the use of nanoparticles as labels in electrochemical immunosensing.
Table 1. Electrochemical immunosensors reported over the last five years, involving the use of nanoparticles as labels in electrochemical immunosensing.
NPsStrategyAnalyteLODReference
AuNPsDirect detectionSalmonella typhimurium7.7 cells/mL[19]
AuNPsDirect detectionCEA
AFP
4.6 pg/mL
3.1 pg/mL
[20]
AgNPsDirect detectionClenbuterol3.14 pg/mL[26]
AgNPsDirect detectionTBEV50 IU/mL[27]
AuAgNPsDirect detectionE. coli102 CFU/mL[30]
CdSe@ZnS QDsDirect detectionanti-tTG IgG2.2 U/mL[41]
CdSe@ZnS QDsDirect detectionanti-tTG IgA2.4 U/mL[42]
CdSe@ZnS QDsDirect detectionApoE12.5 ng/mL[45]
CdSe@ZnS QDsDirect detectionHIgG3.5 ng/mL[46]
SA/Au/CNHSilver electrodeposition-based detectionCEA
AFP
32 fg/mL
24 fg/mL
[76]
AuNPsHER-based detectionApoE
Beta amyloid
80 pg/mL
19 pg/mL
[83]
AuNPsHER-based detectionE. coli O157:H7457 CFU/mL (in minced beef)
309 CFU/mL (in tap water)
[84]
Na-Mont-PANI-AuNPsH2O2 reduction-based detectionSCC-Ag300 fg/mL[87]
PS@PEI@CAT@AuNPsH2O2 reduction-based detectionTBBPA-DHEE120 pg/mL[88]
AgNPs@CS-Hemin/rGOH2O2 reduction-based detectionCEA6.7 fg/mL[89]
MoS2@Cu2O-PtNPsH2O2 reduction-based detectionHBsAg150 fg/mL[90]
PtCu@rGO/g-C3N4H2O2 reduction-based detectionPSA16.6 fg/mL[91]
Ag@Au-Fe3O4H2O2 reduction-based detectionHIgG50 fg/mL[92]
Rh@Pt NDs/NH2-GSH2O2 reduction-based detectionHBsAg166 fg/mL[95]
PtNPs/Co3O4/grapheneH2O2 reduction-based detectionAFP29 fg/mL[96]
Pd/APTES-M-CeO2-GSH2O2 reduction-based detectionAFP33 fg/mL[97]
Pd/NH2-ZIF-67H2O2 reduction-based detectionPSA30 fg/mL[98]
g-C3N4-PdNPsH2O2 reduction-based detectionSTX1.2 pg/mL[100]
Au@Ag/Au core@double shell NPsH2O2 reduction-based detectionSCC-Ag180 fg/mL[104]
Co3O4@CeO2-Au@PtH2O2 reduction-based detectionSCC-Ag33 fg/mL[105]
Au@Ag-Cu2OH2O2 reduction-based detectionPSA3 fg/mL[106]
Au@Ag/PDA-PR-MCSH2O2 reduction-based detectionAFP6.7 fg/mL[107]
rGO-NR Au@PtH2O2 reduction-based detectionE. coli O157:H791 CFU/mL[108]
Au@Pt DNs/NG/ Cu2+H2O2 reduction-based detectionCEA167 fg/mL[109]
Au@Pd/MoS2@MWCNTsH2O2 reduction-based detectionHBeAg26 fg/mL[110]
Au@Pd NDs/Fe2+-CS/PPy NTsDirect detection
H2O2 reduction-based detection
CEA167 fg/mL
17 fg/mL
[111]
M-Pd@Pt/NH2-GSH2O2 reduction-based detectionPSA3.3 fg/mL[112]
m-PdPtCuH2O2 reduction-based detectionPSA3.3 fg/mL[113]
IrNPsH2O2 reduction-based detectionCEA230 fg/mL[114]
IrO2 NPsWater oxidation reaction-based detectionApoE68 ng/mL[116]
IrO2 NPsWater oxidation reaction-based detectionPBDE21.5 ppb[117]
his-Fe3O4H2O2 reduction-based detectionPSA18 fg/mL[120]
MoS2 NPsHydrogen evolution reaction-based detectionRabbit IgG1.94 pg/mL[122]
AuNPsNanochannel blocking agentHIgG580 ng/mL[127]
AuNPsNanochannel blocking agentPTHrP50 ng/mL[128]
AFP: Alpha-fetoprotein; Ag@Au-Fe3O4: Nanocomposite made of Fe3O4 nanospheres and Ag@Au nanorods; AgNPs: Silver nanoparticles; AgNPs@CS-Hemin/rGO: Microporous carbon spheres loading silver NPs spaced Hemin/reduced graphene oxide porous nanocomposite; anti-tTG IgA: Anti-tissue transglutaminase immunoglobulin A antibodies; anti-tTG IgG: Anti-tissue transglutaminase immunoglobulin G antibodies; ApoE: Apolipoprotein E; AuNPs: Gold nanoparticles; Au@Ag-Cu2O: Gold@silver core@shell NPs and disordered cuprous oxide nanocomposite; Au@Ag/PDA-PR-MCS: Core@shell gold@silver NPs loaded by polydopamine functionalized phenolic resin microporous carbon spheres nanocomposite; Au@Pd/MoS2@MWCNTs: Gold@palladium NPs loaded with molybdenum disulfide functionalized multiwalled carbon nanotubes nanocomposite; Au@Pd NDs/Fe2+-CS/PPy NTs: Gold@palladium nanodendrites loaded on ferrous-chitosan functionalized polypyrrole nanotubes nanocomposite; Au@Pt DNs/NG/ Cu2+: Au@Pt NPs dendritic nanomaterial functionalized with nitrogen-doped graphene loaded with copper ions nanocomposite; CdSe@ZnS QDs: CdSe@ZnS quantum dots; Co3O4@CeO2-Au@Pt: Amino functionalized cobaltosic oxide@ceric dioxide nanocubes combined with gold@platinum NPs; CEA: Carcinoembryonic antigen; E. coli: Escherichia coli; g-C3N4-PdNPs: Palladium-doped graphitic carbon nitride nanosheets; HBeAg: Hepatitis B e antigen; HBsAg: Hepatitis B surface antigen; HIgG: Human IgG; his-Fe3O4: Histidine-modified Fe3O4 NPs; IrNPs: Iridium nanoparticles; IrO2 NPs: Iridium oxide nanoparticles; M-Pd@Pt/NH2-GS: Mesoporous core@shell palladium@platinum NP loaded by amino group functionalized graphene nanocomposite; m-PdPtCu: Trimetallic PdPtCu nanospheres; MoS2 NPs: Molybdenum disulphide NPs; MoS2@Cu2O-PtNPs: Molybdenum disulphide@cuprous oxide–platinum nanocomposite; Na-Mont-PANI-AuNPs: Na-montmorillonite-polyaniline-AuNPs nanocomposite; PBDE: Polybrominated diphenyl ether; Pd/APTES-M-CeO2-GS: Graphene oxide and CeO2 mesoporous nanocomposite functionalized by 3-aminopropyltriethoxysilane supported Pd octahedral NPs; Pd/NH2-ZIF-67: Pd NPs loaded electroactive amino-zeolitic imidazolate framework-67 nanocomposite; PSA: Prostate specific antigen; PS@PEI@CAT@AuNPs: Catalase functionalized AuNPs-loaded self-assembled polymer nanospheres; PtCu@rGO/g-C3N4: PtCu bimetallic hybrid loaded on 2D/2D reduced graphene oxide/graphitic carbon nitride nanocomposite; PTHrP: Parathyroid hormone-related protein; PtNPs/Co3O4/graphene: PtNPs anchored on cobalt oxide/graphene nanosheets; rGO-NR Au@Pt: Gold@platinum core@shell NPs modified with neutral red functionalized reduced graphene oxide nanocomposite; Rh@Pt NDs/NH2-GS: Nanocomposite based on Rh core and Pt shell nanodendrites loaded onto functionalized graphene nanosheets; SA/Au/CNH: Streptavidin/nanogold/ carbon nanohorn; SCC-Ag: Squamous cell carcinoma antigen; STX: Saxitoxin; TBBPA-DHEE: Tetrabromobisphenol A bis(2-hydroxyethyl) ether; TBEV: Tick-borne encephalitis virus.

Share and Cite

MDPI and ACS Style

Iglesias-Mayor, A.; Amor-Gutiérrez, O.; Costa-García, A.; de la Escosura-Muñiz, A. Nanoparticles as Emerging Labels in Electrochemical Immunosensors. Sensors 2019, 19, 5137. https://doi.org/10.3390/s19235137

AMA Style

Iglesias-Mayor A, Amor-Gutiérrez O, Costa-García A, de la Escosura-Muñiz A. Nanoparticles as Emerging Labels in Electrochemical Immunosensors. Sensors. 2019; 19(23):5137. https://doi.org/10.3390/s19235137

Chicago/Turabian Style

Iglesias-Mayor, Alba, Olaya Amor-Gutiérrez, Agustín Costa-García, and Alfredo de la Escosura-Muñiz. 2019. "Nanoparticles as Emerging Labels in Electrochemical Immunosensors" Sensors 19, no. 23: 5137. https://doi.org/10.3390/s19235137

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
