A Multiple Target Positioning and Tracking System Behind BrickConcrete Walls Using Multiple Monostatic IRUWB Radars
Abstract
:1. Introduction
2. ThroughWall Radar System
2.1. Hardware Design

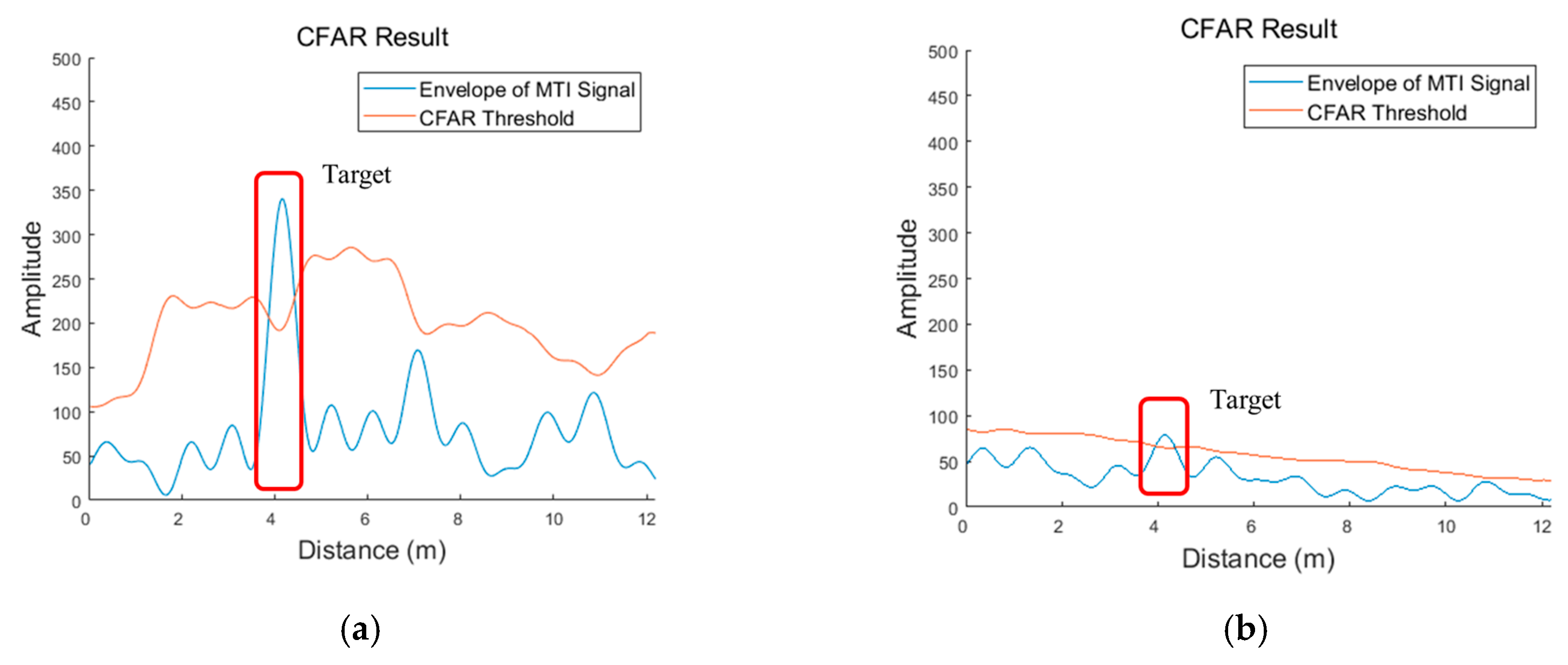

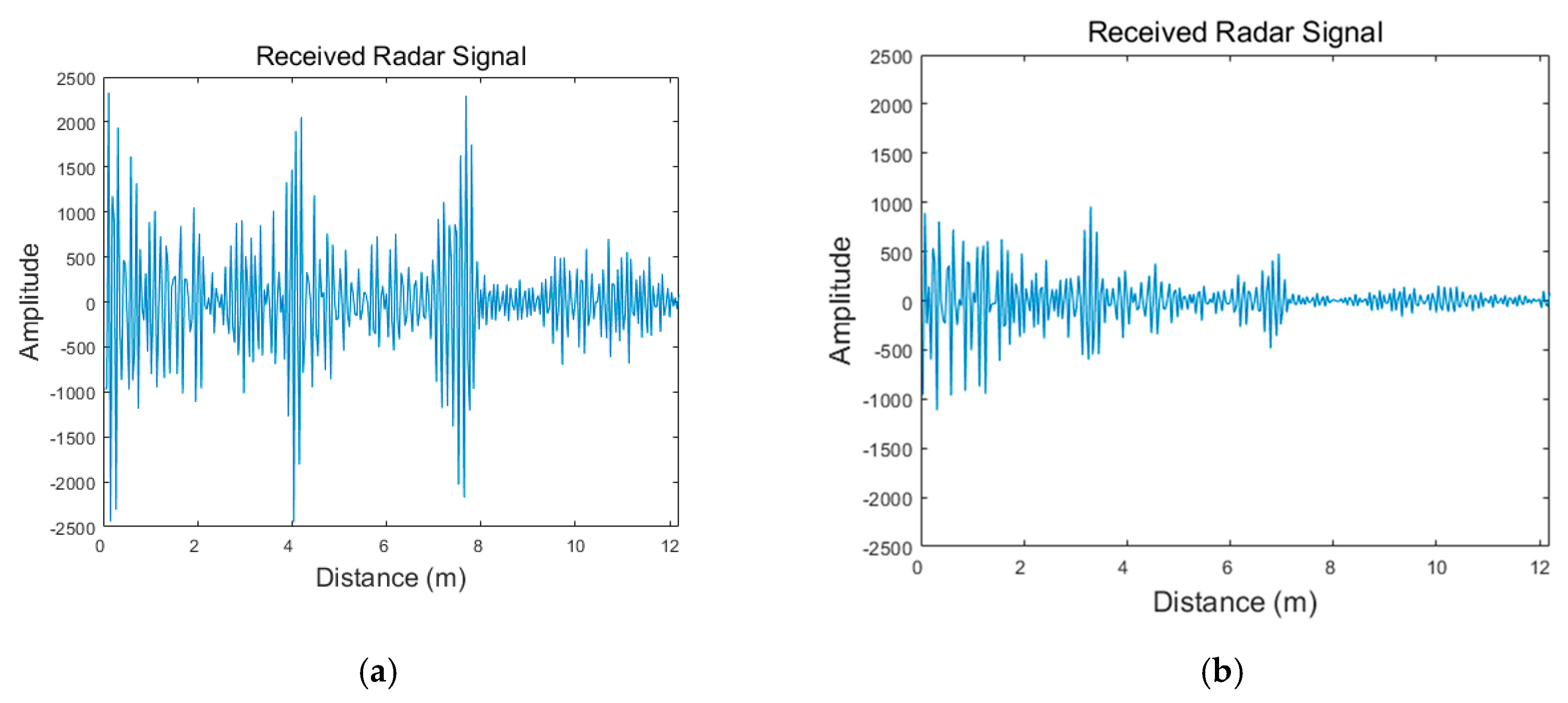

2.2. ThroughWall Radar System Process
3. Positioning Algorithm
3.1. Trilateration Algorithm
3.2. DelayandSum Algorithm
3.3. Proposed Algorithm
Algorithm 1 Position Estimation with the Proposed Algorithm
1. Initialization Generate grids ${{G}_{x,y}^{t}}_{t=0}$ for $x=1,\dots ,X$ and $y=1,\dots ,Y$, considering the coverage and performance of the radar system. For example, in our radar system, one grid is a square of 0.2${\mathrm{m}}^{2}$. 2. For $x=1,\dots ,X$ and $y=1,\dots ,Y$, calculate the cumulative likelihood as follows:
$${G}_{x,y}^{t}={G}_{x,y}^{t1}{\displaystyle \sum}_{i=1}^{N}{\displaystyle \sum}_{k=1}^{M}\mathcal{L}({p}_{x,y}{z}_{i,k}),$$
3. For $x=1,\dots ,X$ and $y=1,\dots ,Y$, normalize the cumulative likelihood for recursive operation as follows:
$${G}_{x,y}^{t}=\frac{{G}_{x,y}^{t}}{{{\displaystyle \sum}}_{x=1}^{X}{{\displaystyle \sum}}_{y=1}^{Y}{G}_{x,y}^{t}},$$
4. Find the coordinates over the threshold to estimate the location of multiple targets such that
$${G}_{x,y}^{t}>{G}_{thresh},$$
5. Calculate the effectivity of grids as follows:
$${N}_{eff}=\frac{1}{{{\displaystyle \sum}}_{x=1}^{X}{{\displaystyle \sum}}_{y=1}^{Y}{\left({G}_{x,y}^{t}\right)}^{2}},$$

3.4. Performance Comparison by Simulation

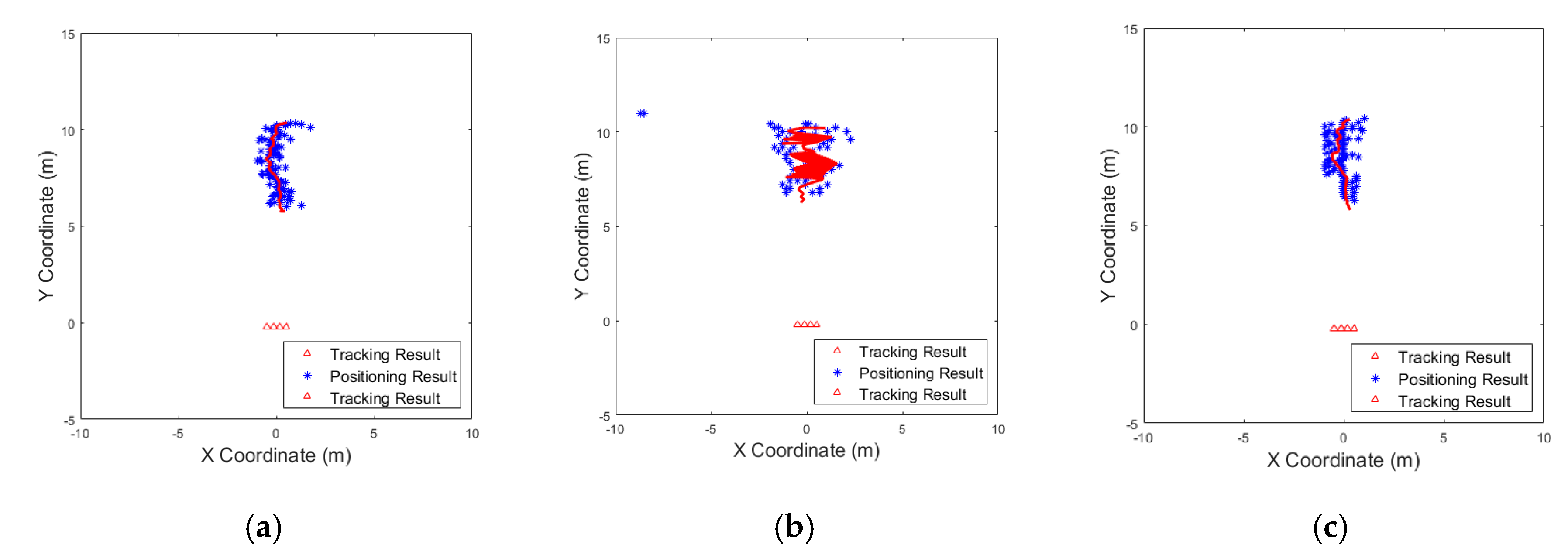

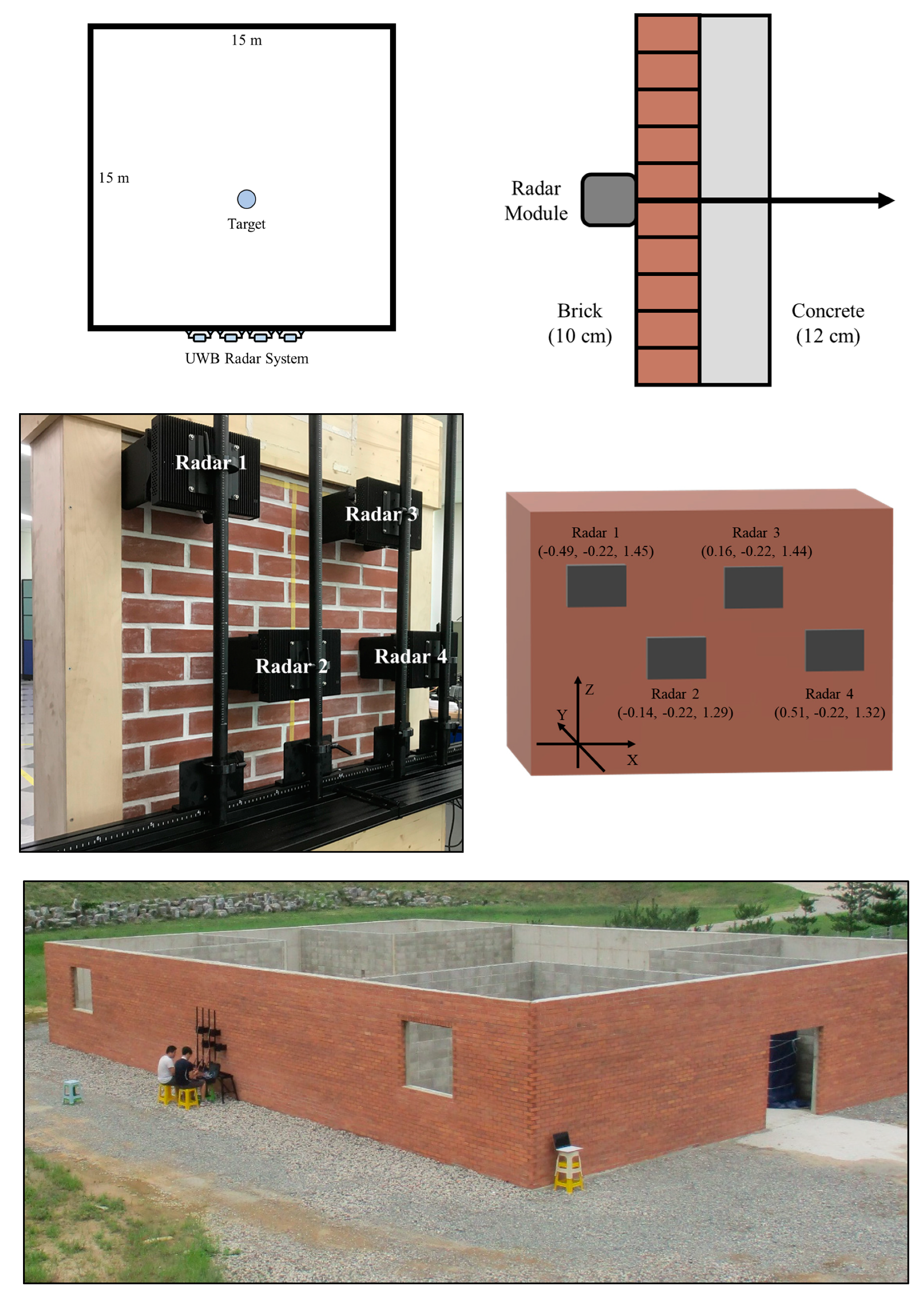

4. Experimental Results Based on the Designed Throughwall Radar Hardware
5. Conclusions
Author Contributions
Acknowledgments
Conflicts of Interest
References
 Choi, J.W.; Quan, X.J.; Cho, S.H. Bidirectional passing people counting system based on IRUWB radar sensors. IEEE Internet Things 2017, 5, 512–522. [Google Scholar] [CrossRef]
 Peabody, J.E.; Charvat, G.L.; Goodwin, J.; Tobias, M. ThroughWall Imaging Radar; Massachusetts Institute of TechnologyLincoln Laboratory: Lexington, KY, USA, 2012. [Google Scholar]
 Choi, J.W.; Yim, D.H.; Cho, S.H. People counting based on an IRUWB radar sensor. IEEE Sens. J. 2017, 17, 5717–5727. [Google Scholar] [CrossRef]
 Gulmezoglu, B.; Guldogan, M.B.; Gezici, S. Multiperson tracking with a network of ultrawideband radar sensors based on Gaussian mixture PHD filters. IEEE Sens. J. 2014, 15, 2227–2237. [Google Scholar] [CrossRef]
 Bartoletti, S.; Giorgetti, A.; Win, M.Z.; Conti, A. Blind selection of representative observations for sensor radar networks. IEEE Trans. Veh. Technol. 2015, 64, 1388–1400. [Google Scholar] [CrossRef]
 Sobhani, B.; Paolini, E.; Giorgetti, A.; Mazzotti, M. Target tracking for UWB multistatic radar sensor networks. IEEE J. Sel. Top. Signal Process. 2013, 8, 125–136. [Google Scholar] [CrossRef]
 Chiani, M.; Giorgetti, A.; Mazzotti, M.; Minutolo, R.; Paolini, E. Target detection metrics and tracking for UWB radar sensor networks. In Proceedings of the 2009 IEEE International Conference on UltraWideband, Vancouver, BC, Canada, 9–11 September 2009; pp. 469–474. [Google Scholar]
 Chiani, M.; Giorgetti, A.; Paolini, E. Sensor radar for object tracking. Proc. IEEE 2018, 106, 1022–1041. [Google Scholar] [CrossRef]
 Zhang, Z.; Zhang, X.; Lv, H.; Lu, G.H.; Jing, X.J.; Wang, J.Q. Humantarget detection and surrounding structure estimation under a simulated rubble via UWB radar. IEEE Geosci. Remote Sens. Lett. 2012, 10, 328–331. [Google Scholar] [CrossRef]
 Li, J.; Zeng, Z.F.; Sun, J.G.; Liu, F.S. Throughwall detection of human being’s movement by UWB radar. IEEE Geosci. Remote Sens. Lett. 2012, 9, 1079–1083. [Google Scholar] [CrossRef]
 Yan, J.M.; Hong, H.; Zhao, H.; Li, Y.S.; Gu, C.; Zhu, X.H. Throughwall multiple targets vital signs tracking based on VMD algorithm. Sensors 2016, 16, 1293. [Google Scholar] [CrossRef]
 Ritchie, M.; Ash, M.; Chen, Q.C.; Chetty, K. Through wall radar classification of human microDoppler using singular value decomposition analysis. Sensors 2016, 16, 1401. [Google Scholar] [CrossRef]
 Liang, X.L.; Zhang, H.; Ye, S.B.; Fang, G.Y.; Gulliver, T.A. Improved denoising method for throughwall vital sign detection using UWB impulse radar. Digital Signal Process. 2018, 74, 72–93. [Google Scholar] [CrossRef]
 Liang, S.D. Sensethroughwall human detection based on UWB radar sensors. Signal Process. 2016, 126, 117–124. [Google Scholar] [CrossRef]
 Withington, P.; Fluhler, H.; Nag, S. Enhancing homeland security with advanced UWB sensors. IEEE Microwave Mag. 2003, 4, 51–58. [Google Scholar] [CrossRef]
 Nezirovic, A.; Yarovoy, A.G.; Ligthart, L.P. Signal processing for improved detection of trapped victims using UWB radar. IEEE Trans. Geosci. Remote Sens. 2009, 48, 2005–2014. [Google Scholar] [CrossRef]
 Sun, X.; Lu, B.Y.; Liu, P.F.; Zhou, Z.M. A multiarray refocusing approach for throughthewall imaging. IEEE Geosci. Remote Sens. Lett. 2014, 12, 880–884. [Google Scholar] [CrossRef]
 Narayanan, R.M.; Gebhardt, E.T.; Broderick, S.P. ThroughWall Single and Multiple Target Imaging Using MIMO Radar. Electronics 2017, 6, 70. [Google Scholar] [CrossRef]
 Ma, Y.G.; Hong, H.; Zhu, X.H. Interaction multipath in throughthewall radar imaging based on compressive sensing. Sensors 2018, 18, 549. [Google Scholar]
 Rovnakova, J.; Koucur, D. TOA estimation and data association for throughwall tracking of moving targets. Eurasip J. Wirel. Comm. 2010, 2010, 420767. [Google Scholar] [CrossRef]
 Chen, X.; Leung, H.; Tian, M. Multitarget detection and tracking for throughthewall radars. IEEE Trans. Aerosp. Electron. Syst. 2014, 50, 1403–1415. [Google Scholar] [CrossRef]
 Stone, W.C. Electromagnetic Signal Attenuation in Construction Materials; 6055; National Institute of Standards and Technology: Gaithersburg, MD, USA, October 1997. [Google Scholar]
 Frazier, L.M. Radar surveillance through solid materials. SPIE 1997, 2938, 139–147. [Google Scholar]
 Aftanas, M.; Rovnakova, J.; Drutarovsky, M.; Kocur, D. Efficient method of TOA estimation for through wall imaging by UWB radar. In Proceedings of the 2008 IEEE International Conference on UltraWideband, Hannover, Germany, 10–12 September 2008; pp. 101–104. [Google Scholar]
 Cassioli, D.; Win, M.Z.; Molisch, A.F. The ultrawide bandwidth indoor channel: from statistical model to simulations. IEEE J. Sel. Areas Commun. 2002, 20, 1247–1257. [Google Scholar] [CrossRef]
 Mahafza, B.R. Radar Systems Analysis and Design Using MATLAB, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2013. [Google Scholar]
 Rohling, H. Radar CFAR thresholding in clutter and multiple target situations. IEEE Trans. Aerosp. Electron. Syst. 1983, 4, 608–621. [Google Scholar] [CrossRef]
 Olyazadeh, R. Least Square Approach on Indoor Positioning Measurement Techniques. In Proceedings of the 2012 Conference on Geosciences, Geoinformation and Environment, Lisbon, Portugal, 9–10 November 2012. [Google Scholar]
 He, Y.; Xiu, J.J.; Guan, X. Radar Data Processing with Applications; John Wiley & Sons, Inc.: Singapore, 2016. [Google Scholar]
 Welch, G.; Bishop, G. An Introduction to the Kalman Filter; University of North Carolina at Chapel Hill: Chapel Hill, NC, USA, 1995. [Google Scholar]
 Park, J.S.; Baek, I.S.; Cho, S.H. Localizations of multiple targets using multistatic UWB radar systems. In Proceedings of the 2012 3rd IEEE International Conference on Network Infrastructure and Digital Content, Beijing, China, 21–23 September 2012; pp. 586–590. [Google Scholar]
 Chen, L.; Shan, O. A timedomain beamformer for UWB throughwall imaging. In Proceedings of the TENCON 2007–2007 IEEE Region 10 Conference, Taipei, Taiwan, 30 October–2 November 2007; pp. 1–4. [Google Scholar]
 Schachter, B.J. Automatic Target Recognition; SPIE Press: Bellingham, WA, USA, 2017. [Google Scholar]
Parameter  Value

Central Frequency  1.8 GHz
Bandwidth  2.8 GHz
Average Transmission Power  −14 dBm
Parameter  Value

Position of Radar 1  (−0.49, −0.22) (m)
Position of Radar 2  (−0.14, −0.22) (m)
Position of Radar 3  (0.16, −0.22) (m)
Position of Radar 4  (0.51, −0.22) (m)
Detection rate of each radar  75%
False alarm rate of each radar  10%

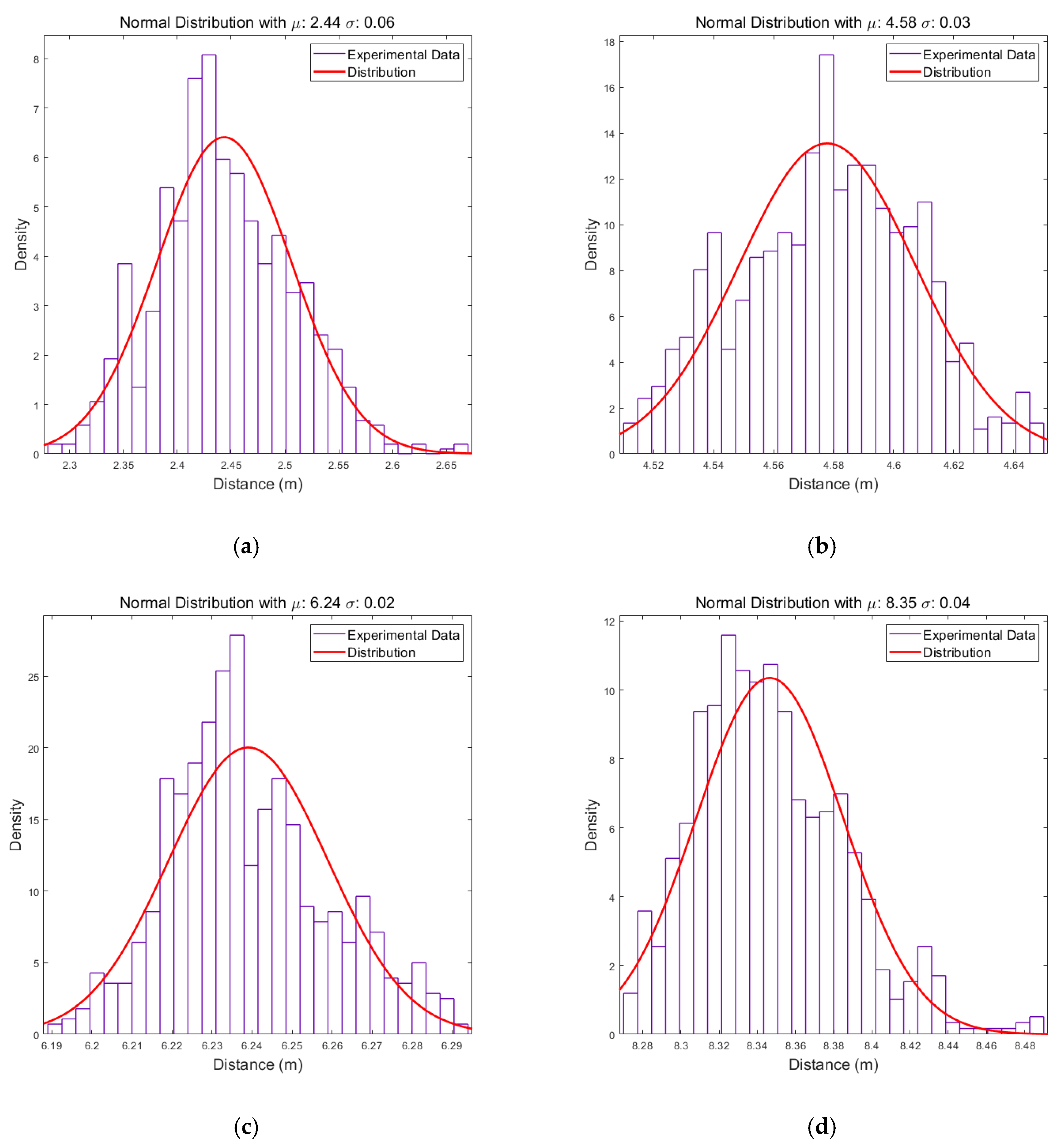

Distance error of detected targets  Normal distribution with $\mathsf{\sigma}=0.03$ (m)
Index  Number of Targets  Scenario

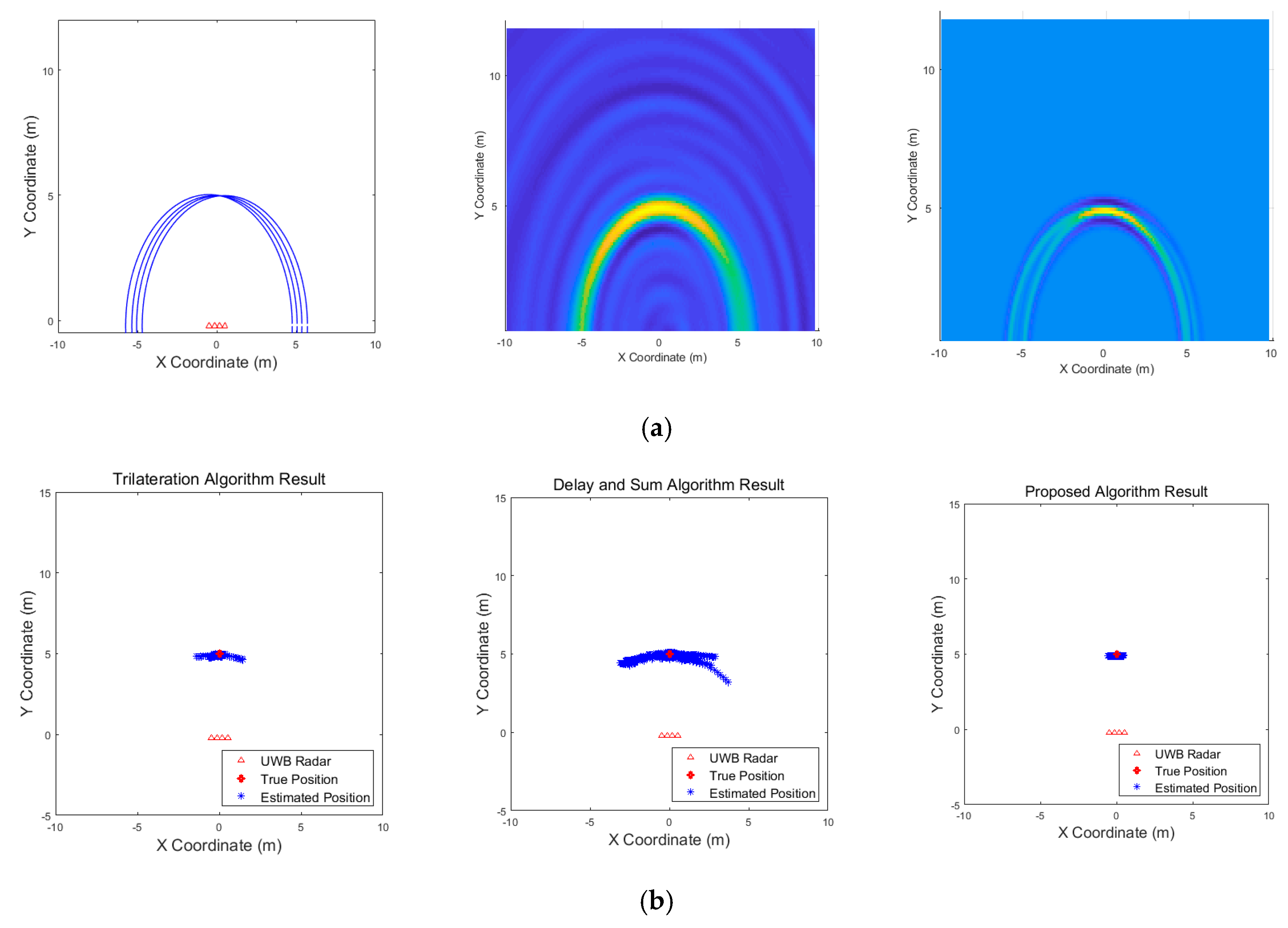

Scenario 1  1  One target standing at the coordinates (0, 6) (m)

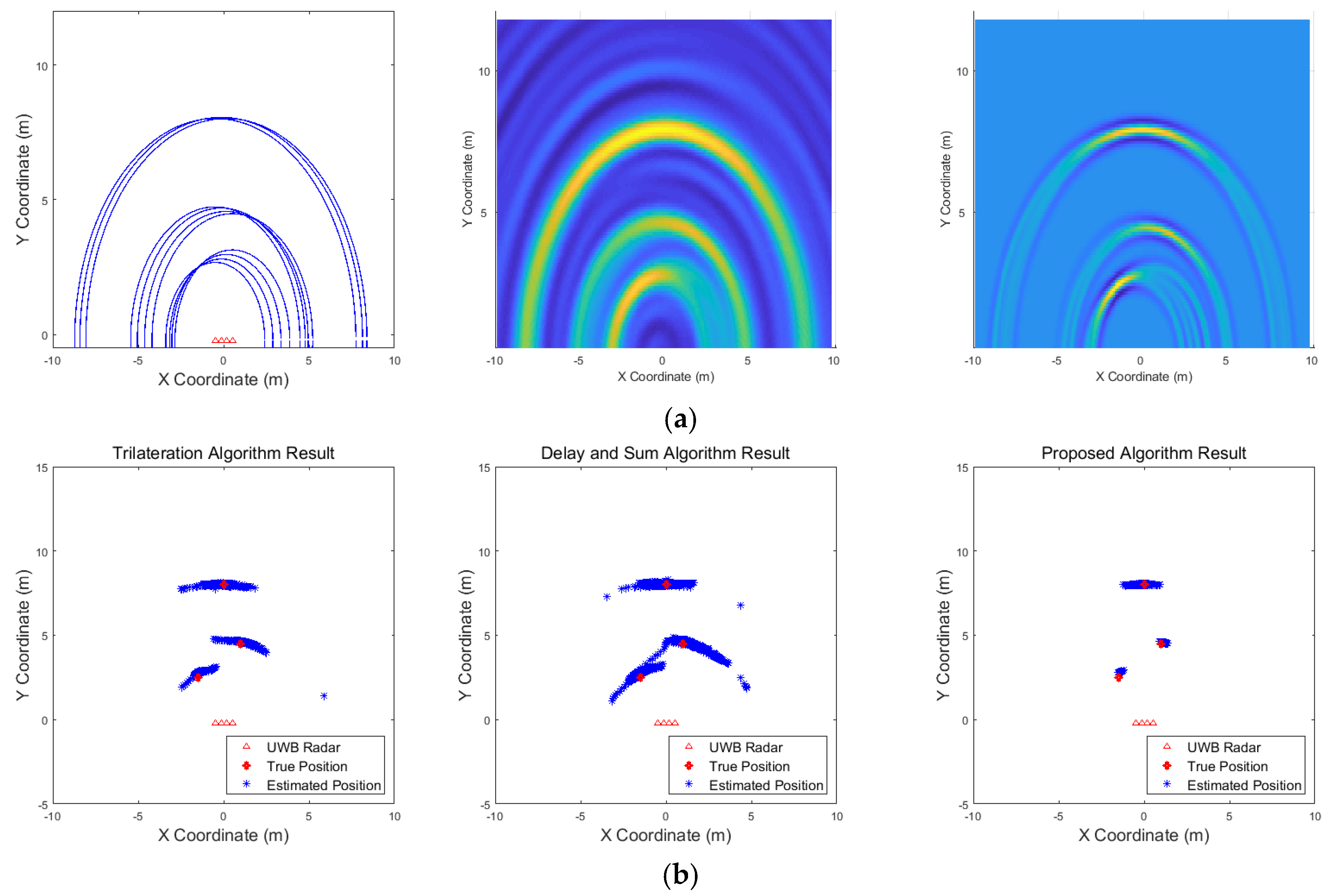

Scenario 2  3  Three targets standing at the coordinates (1, 4.5), (−1.5, 2.5) and (0, 8) (m)
Scenario 3  5  Five targets standing at the coordinates (−4, 2), (−2, 6), (0, 9), (3, 7) and (4, 3) (m)
Scenario 4  2  Two targets standing very close each other
Scenario 5  2  Two targets moving cross along parallel paths
Scenario 6  3  Three targets moving along their respective paths

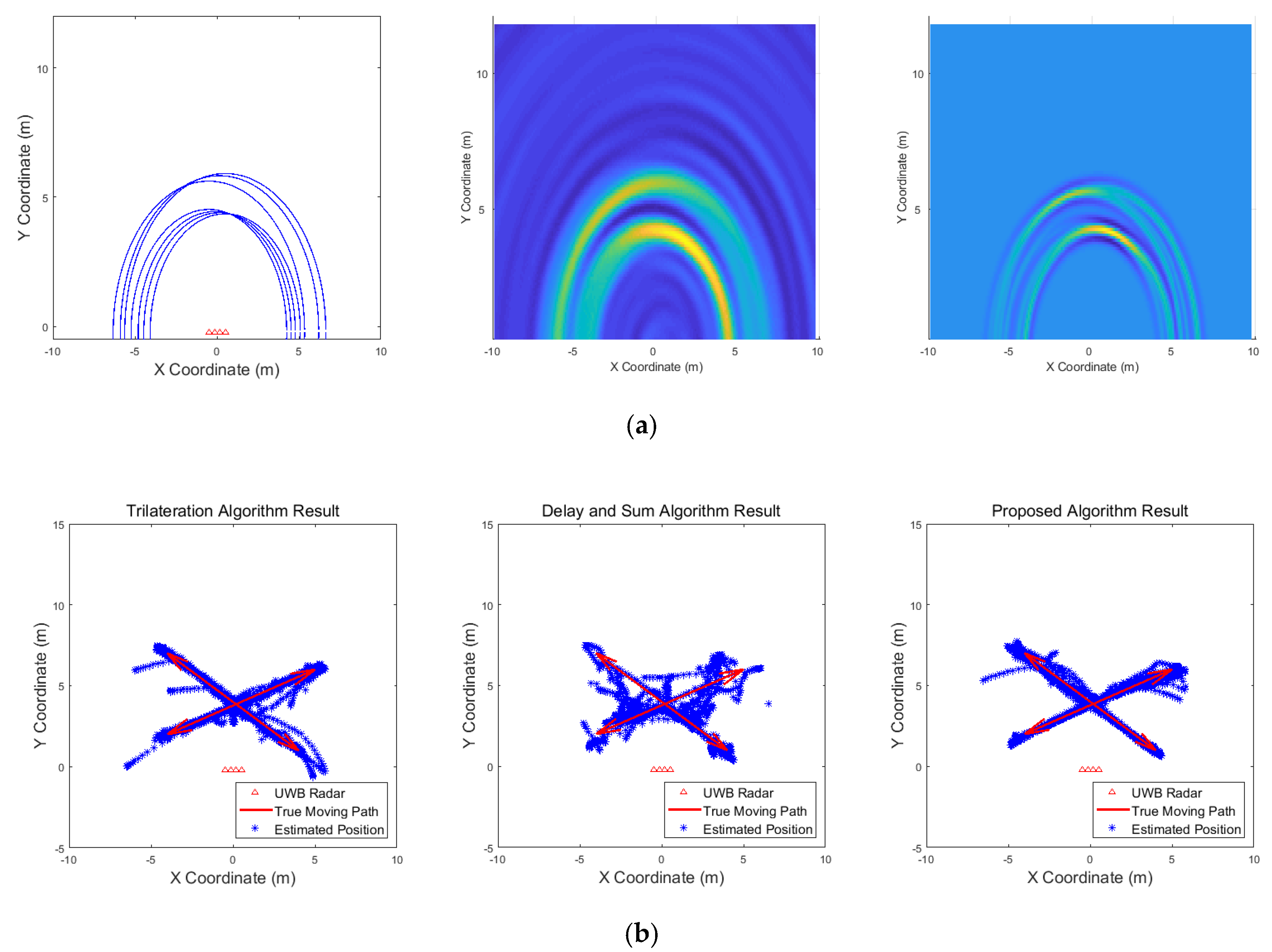

Scenario 7  2  Two targets moving cross over
Scenario 8  3  Two targets standing and one target moving

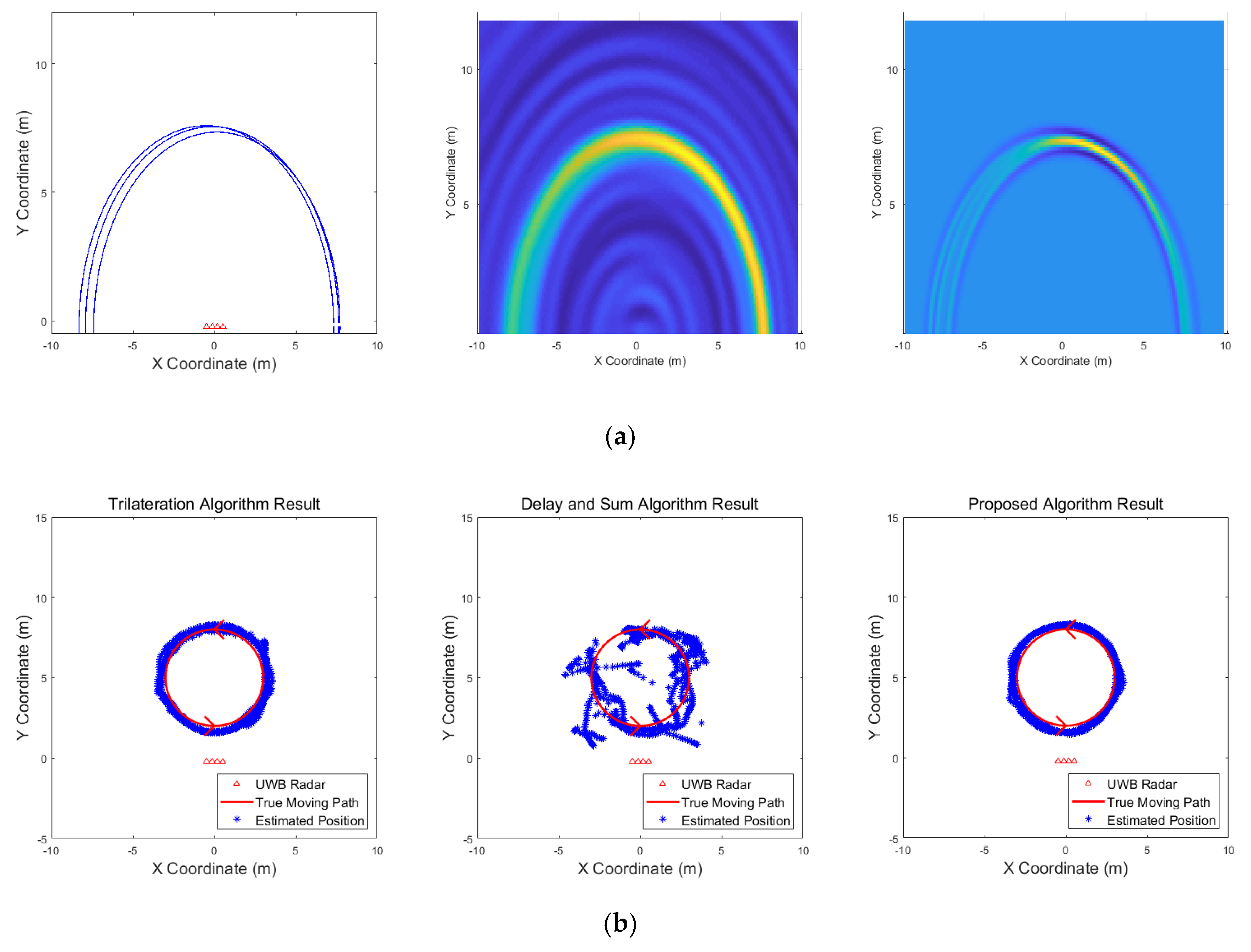

Scenario 9  1  One target moving in a circle
Scenario 10  2  One target moving in a circle and one target moving horizontally
Scenario  Algorithm  Detection Rate (%)  False Alarm Rate (%)  $\mathbf{Position}\mathbf{Error}\left({\mathit{m}}^{2}\right)$

1  Trilateration  100  2.43  0.05
Delay and Sum  99.86  33.95  1.22
Proposed Algorithm  100  0.71  0.06
2  Trilateration  99.76  3.99  0.20
Delay and Sum  98.95  44.37  2.13
Proposed Algorithm  100  0  0.06
3  Trilateration  75.29  0.86  0.93
Delay and Sum  94.41  57.49  7.02
Proposed Algorithm  77.49  1.14  0.29
4  Trilateration  98.93  21.26  0.86
Delay and Sum  54.99  0.57  6.08
Proposed Algorithm  99.50  0  0.08
5  Trilateration  98.29  2.14  0.47
Delay and Sum  93.15  25.11  1.24
Proposed Algorithm  99.14  1.43  0.09
6  Trilateration  90.35  7.56  0.59
Delay and Sum  78.22  8.70  1.00
Proposed Algorithm  95.91  1.43  0.24
7  Trilateration  92.15  0.71  0.42
Delay and Sum  80.39  8.27  1.05
Proposed Algorithm  92.94  0.43  0.13
8  Trilateration  99.52  12.27  0.68
Delay and Sum  79.89  8.56  1.22
Proposed Algorithm  98.48  1.71  0.13
9  Trilateration  99.29  1.14  0.14
Delay and Sum  98.43  12.13  0.59
Proposed Algorithm  100  0.29  0.13
10  Trilateration  96.36  1.43  0.29
Delay and Sum  93.22  25.82  1.62
Proposed Algorithm  96.93  1.14  0.11
Index  Scenario

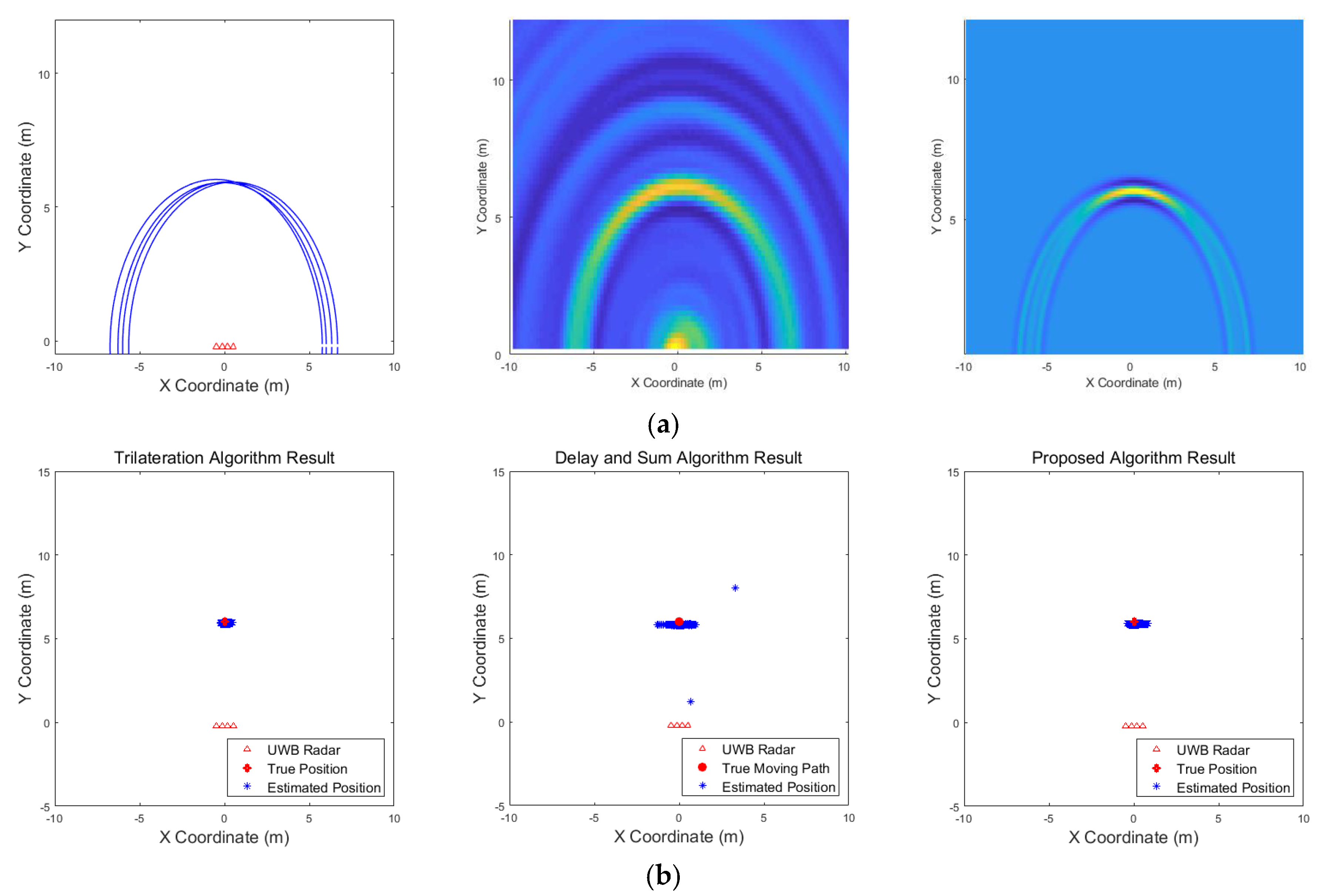

Scenario 1  One person standing with a natural position at the coordinates (0, 6) (m)

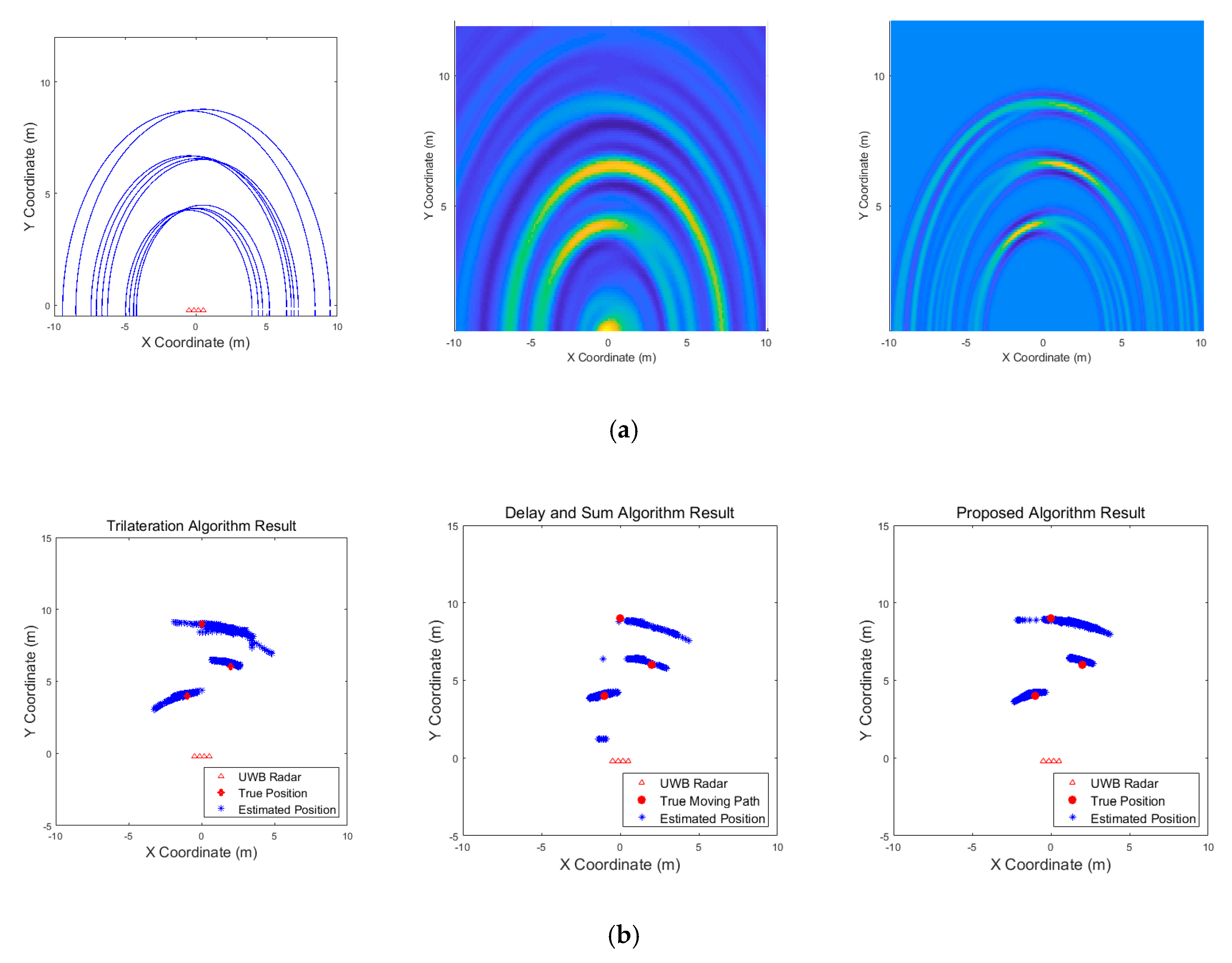

Scenario 2  Three persons standing with a natural position at (−1, 4), (2, 6) and (0, 9) (m)
Scenario 3  One person walking back and forth in the radar coverage area
Scenario  Algorithm  Detection Rate (%)  False Alarm Rate (%)  $\mathbf{Position}\mathbf{Error}\left({\mathbf{m}}^{2}\right)$

1  Trilateration  100  0  0.03
Delay and Sum  100  2.18  0.57
Proposed Algorithm  100  0  0.09
2  Trilateration  84.53  1.63  1.35
Delay and Sum  79.17  5.90  2.35
Proposed Algorithm  86.65  0.64  0.89
3  Trilateration  100  0  0.12
Delay and Sum  97.59  14.82  0.49
Proposed Algorithm  100  0  0.19
