Fingerprinting of Nitroaromatic Explosives Realized by Aphen-functionalized Titanium Dioxide

Abstract

Developing sensing materials for military explosives and improvised explosive precursors is of great significance to maintaining homeland security. 5-Nitro-1,10-phenanthroline (Aphen)-modified TiO₂ nanospheres are prepared though coordination interactions, which broaden the absorption band edge of TiO₂ and shift it to the visible region. A sensor array based on an individual TiO₂/Aphen sensor is constructed by regulating the excitation wavelength (365 nm, 450 nm, 550 nm). TiO₂/Aphen shows significant response to nitroaromatic explosives since the Aphen capped on the surface of TiO₂ can chemically recognize and absorb nitroaromatic explosives by the formation of the corresponding Meisenheimer complex. The photocatalytic mechanism is proved to be the primary sensing mechanism after anchoring nitroaromatic explosives to TiO₂. The fingerprint patterns obtained by combining kinetics and thermodynamics validated that the single TiO₂/Aphen sensor can identify at least six nitroaromatic explosives and improvised explosives within 8 s and the biggest response reaches 80%. Furthermore, the TiO₂/Aphen may allow the contactless detection of various explosives, which is of great significance to maintaining homeland security.

1. Introduction

Common explosives could be classified into military explosives (e.g., nitroaromatic explosives like 2,4,6-trinitrotoleune (TNT), 2,4-dinitrotoleune (DNT), 2,4,6-trinitrophenol (PA), etc.), and improvised explosives such as ammonium nitrate (NH₄NO₃), sulfur (S) and triacetone peroxide (TATP), etc. Developing sensors against military explosives or improvised explosive precursors has important significance for maintaining global security. At present, there are many methods for detecting these explosives, of which, the most traditional method is the use of sniffer dogs. However, sniffer dogs have lower working efficiency than sensors since they need a rest for half an hour after working for 20 min. In addition, existing explosive detection methods that are more mature include X-ray inspection technology, neutron analysis [1,2], fluorescence detection [3,4], electrochemical detection [5], mass spectrometry [6], ion migration method [7], and chromatography [8], etc. However, neutron analysis and X-ray detection instrument are cumbersome, expensive, and radiation hazard. Chromatographic methods are generally only suitable for laboratory sampling and testing and cannot meet the purpose of rapid detection on site. In addition, these methods are mostly contact-based detection methods. Furthermore, there are relatively few studies on detection of improvised explosives, limiting their application on the actual detection of explosives. Therefore, there is an urgent need for rapid vapor phase detection of conventional and improvised explosives with a small, low energy consumption, high sensitivity, rapid response, and contactless photoelectronic sensor.

Construction of a sensory array that is similar to an artificial olfactory system and utilizing the cross-sensitivity of different sensors towards complex component gases, and combining data analysis methods can achieve the identification of different explosive vapors [9,10]. However, the stability of the sensor array [11,12] is dependent on the synergistic effects of the different sensor units, and failure of a single unit can affect the performance of the sensor array. To this end, our previous work constructed a sensor array using a single sensor unit by illumination of different excitation wavelengths [13].

Titanium dioxide (TiO₂) is a photoelectronic sensor candidate due to its chemical stability, environment friendliness and excellent optical response [14,15,16]. However, pure TiO₂ can only absorb ultraviolet light due to its relatively wide band gap (3.2 eV) [17]. Moreover, the high recombination rate of photoinduced electron-hole pairs hinders the practical application of TiO₂ in the field of sensors. 5-Amino-1,10-phenanthroline (Aphen) [18,19,20] is an excellent electron acceptor that can chelate with most metal ions to form stable complexes via coordination interactions. In this study, Aphen is employed as a functional ligand to modify TiO₂ nanocrystals to promote the photoinduced charge carrier separation efficiency of the nanocrystals. Moreover, it is well known that the electron-rich amino group of Aphen can link with electron-deficient aromatic rings of nitroaromatic explosives to formation of Meisenheimer complexes. Thus, the Aphen-modified TiO₂ nanocrystal is promising for discrimination of nitroaromatic explosives.

2. Materials and Methods

2.1. Experiment Reagents and Equipment

Tetrabutyltitanate (99%, Aladdin, Shanghai, China), concentrated sulfuric acid (AR, Wokai, Shanghai, China), hydrofluoric acid (AR, Aladdin), anhydrous ethanol (99.5%, Hushi, Shanghai, China), phenanthroline monohydrate (99%, Aladdin), and deionized water were used.

Field emission scanning electron microscopy (SEM, JSM-6610LV, JEOL, Ltd, Tokyo, Japan) and transmission electron microscopy (TEM, JEM-2100F microscope, JEOL Ltd, Tokyo, Japan) experiments were performed to observe microstructure. X-ray diffraction (XRD) patterns were measured using a D8 Advance X-ray diffractometer (Bruker Ltd, Bremen, Germany) at a scanning rate of 6° min⁻¹ with 2θ ranging from 20° to 80°, using CuKα radiation (λ = 1.5418 Å). FTIR spectra were recorded on a Magna 560 FT-IR spectrometer (Nicolet Ltd, Green Bay, WI, USA). UV/Vis absorption spectra were recorded on a UV-2550 UV/Vis spectrometer (Shimadzu, Japan) in the range 200–800 nm. An X-ray photoelectron spectrometer (XPS, PHI5000 ESCA, Perkin Elmer, Waltham, MA, USA) equipped with an Al Kα source (1486.6 eV photons) was used to characterize the modifying of Aphen on TiO₂. A Keithley 4200A-SCS parameter analyzer (Tektronix Ltd, Beaverton, OR, USA) was used to record the photocurrent of sensor chip in different explosive vapors.

2.2. Preparation of Aphen-functionalized Titanium Dioxide Nanosphere

2.2.1. Preparation of 5-amino-1,10-phenanthroline (Aphen)

Phenanthroline monohydrate (50.4 mmol) was mixed with concentrated sulfuric acid (7.5 mL), and heated before a mixture of concentrated sulfuric acid and concentrated nitric acid (1:1, 30 mL) was slowly added drop by drop. The mixture was refluxed for 3 h under 160 °C to obtain 5-nitro-1,10-phenanthroline. The synthesized 5-nitro-1,10-phenanthroline is rapidly added to an ethanol solution containing 5% Pd/C catalyst (0.01 g) and hydrazine hydrate (45 mmol) at 70 °C and refluxed for 2 h. The solution was cooled, filtered, and crystalized for subsequent experiments to obtain 5-amino-1,10-phenanthroline [21].

2.2.2. Preparation of TiO₂ Nanocrastals

Tetrabutyltitanate (25 mL) and concentrated sulfuric acid (3 mL) were added to a reaction kettle and then hydrofluoric acid (0.17 mol) was added. The mixture was allowed to react at 180 °C for 24 h. After the reaction kettle has cooled to room temperature, then the product was washed by deionized water and ethanol repeatedly and dried in a vacuum drying oven.

2.2.3. Preparation of Aphen-functionalized TiO₂ Nanocrystals (TiO₂/Aphen)

A mass ratio of 1:50, 1:100, 1:200 of Aphen and TiO₂ nanocrystals was placed in a 1 mL round-bottomed flask and vigorously shaken for 10 h at 60 °C. Then the nanocrystals were repeatedly washed with deionized water and ethanol until the wash solution does not emit light under an UV lamp. The product was vacuum-dried.

2.3. Preparation of Sensor Chips

Electrochemical deposition was used to deposit a gold interdigitated electrode with a width and interval of 3 mm at the ceramic substrate (10 mm × 9.5 mm). The gold thickness of the surface layer of the electrode was 0.5 mm. The TiO₂/Aphen ethanol dispersion was spin coated on the interdigitated electrode and air-dried. The coating was aged for 12 h at a voltage of 4 V before use.

2.4. Gas Sensing Properties Testing

2,4,6-Trinitrotoluene (TNT), 2,4-dinitrotoluene (DNT), picric acid (PA), nitrate (NH₄NO₃), sulfur (S) and triacetone peroxide (TATP, diluted to 600 ppb by air) vapor were evaporated in advance to saturate. The photoelectric and gas sensitivity response performance of the TiO₂/Aphen sensor chip to these six conventional and improvised explosives were recorded by the Keithley 4200A-SCS parameter analyzer under 365 nm, 450 nm, 550 nm monochromatic light. After the gas sensor chip was stabilized for half an hour in air under a voltage of 4 V, it was placed into a test bottle that contained saturated explosive vapor. The chip was removed after the current was stable. This process was carried out three times.

3. Results and Discussion

3.1. TiO₂@Aphen Morphological and Structural Characterization

The TiO₂ prepared by hydrothermal method was first modified by F ions and then doped with Aphen since the Aphen has high affinity to Ti ions dangling on the surface of TiO₂ as depicted in Scheme 1. The TiO₂ morphology was adjusted by using F ions. The tetrabutyltitanate underwent hydrolysis under acidic conditions to grow different TiO₂ morphologies. As shown in Figure S1, when F ions were not present, the morphology of TiO₂ appeared as aggregated nanosheet structures. When 0.03 mol of HF was added, the schistose titanium dioxide began to appear flocculent. When 0.06 mol of HF was added, the microstructure of titanium dioxide is changed to a cluster of many nanosheets. When 0.12 mol of HF was added, the morphology of TiO₂ appeared as cubes with 1 µm sides.

Figure 1a shows that the litchi-like TiO₂ nanospheres with streaks on the surface was regulated by F ions with a diameter ranging from 12 to 18 μm when 0.09 mol of HF was added, and these nanospheres aggregate each other. Then Aphen chelates with TiO₂ nanospheres since the Aphen has high affinity to Ti ions overhung on the surface of TiO₂. Obviously, Aphen modified TiO₂ has favorable dispersibility as depicted in Figure 1b, which is roughly attributed to the steric effect of Aphen modified on the surface of TiO₂ nanospheres. The enlarged SEM image (Figure 1b inset) clearly shows that the surface of litchi TiO₂ nanosphere is a disordered TiO₂ nanosheet growing vertically in the sphere. Figure 1c,d are the HRTEM diagrame of the edge of a nanosheet on a spherical shell of TiO₂ and TiO₂/Aphen. According to the measurement, both the lattice fringe spacings are 0.35 nm, corresponding to (101) planes of TiO₂ nanocrystals. It is worth mentioning that the crystalline structure of the TiO₂ remained intact after Aphen functionalization.

The crystallinity of the TiO₂ nanospheres and TiO₂/Aphen were confirmed by XRD. As shown in Figure 2, the XRD pattern (Line a) of TiO₂ nanospheres shows sharp diffraction peaks at 25.0°, 38.2°, 47.9°, 55.1°, 62.8°, 70.2°, 75.6°, 82.9°, which are indicative of the (101), (112), (200), (211), (204), (220), (301), (224) characteristic planes of the anatase TiO₂ crystal [22,23,24].

Moreover, characteristic planes of TiOF₂ are also obtained at 23.6°, 48.1°, 54.2°, 70.5°, 75.2°, which are indicative planes of the (100), (200), (210), (220) and (215) [25,26,27] (PDF-2 Release 2015 RDB). It could be concluded that a small part of the precursor transformed into TiOF₂ crystals after F ion modifcation and these TiOF₂ dangling on the surface of TiO₂ nanospheres, which supplies an adequate number of Ti ions to anchor Aphen through coordination interactions (Scheme 1). However, there are only the characteristic diffraction peaks of TiO₂@TiOF₂ phase when TiO₂ was modified by Aphen at different ratios (Line b to d: 1:50, 1:100, 1:200), which is attributed to the very low content of the Aphen on the surface of TiO₂. This result also indicates that the modification of Aphen does not change the crystal structure of TiO₂@TiOF₂.

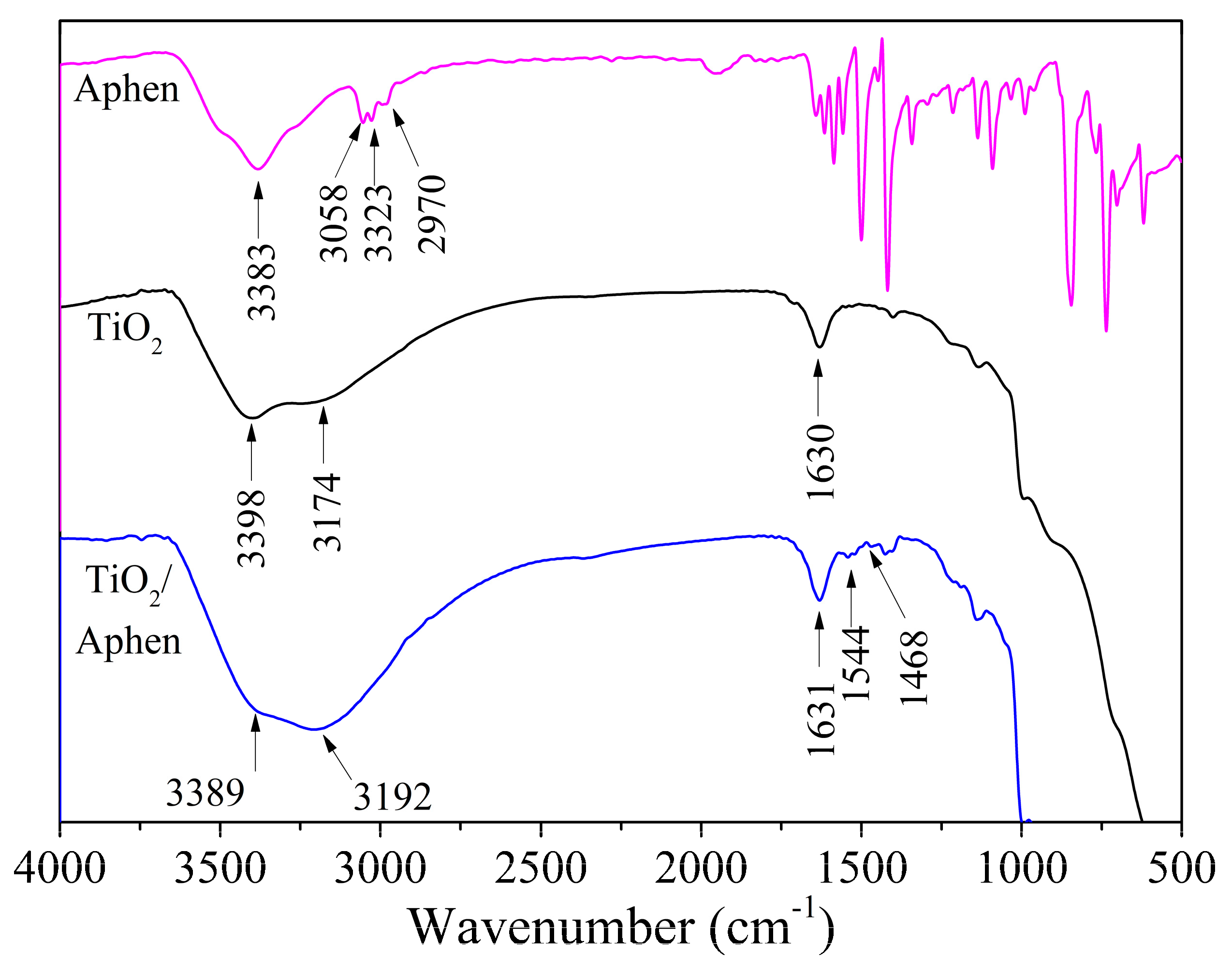

Figure 3 shows the Fourier Transform infrared spectra (FTIR) of Aphen, TiO₂, and TiO₂/Aphen. The characteristic bands observed in as-synthesized Aphen at 3383 cm⁻¹ are attributed to the stretching vibration peak of N=H, and 2970 cm⁻¹, 3323 cm⁻¹ and 3058 cm⁻¹ bands are attributed to the stretching vibration peak of the aromatic ring skeleton. The broad characteristic band of TiO₂ is observed at about 500 cm⁻¹. Peaks at 3398 cm⁻¹ and 3174 cm⁻¹ are the stretching vibration peaks of -OH moieties on the surface of TiO₂, which is attributed to the presence of water adsorbed on the surface of TiO₂ and dangling hydroxyls on the surface of TiO₂ [28,29,30,31]. When Aphen is anchored to the surface of TiO₂, the obvious stretching vibration peaks of C=N on Aphen can be observed at 1468 cm⁻¹ and 1544 cm⁻¹. The peak of 3192 cm⁻¹ is caused by the overlapping of the -OH vibration peak in TiO₂ and the C=C vibration peak of the benzene ring in Aphen. These results indicate that the surface of TiO₂ is is successfully modified with Aphen.

The Aphen-modified TiO₂ was also analyzed by X-ray photoelectron spectroscopy (XPS). As shown in Figure 4, the binding energy (BE) of Ti 2p from Ti 2p_1/2 and Ti 2p_2/3 can be detected at 458.72 eV and 464.45 eV. The XPS spectra of N 1s in Aphen shows the BE at 339.85 eV. This is further proof for the adsorption of Aphen onto surface of the TiO₂. Moreover, the XPS measurements were performed to reveal the atomic content. Based on the peak areas of Ti and N, it can be concluded that approximately 3.5% of the N on the surface of the TiO₂.

UV-visible absorption spectra of TiO₂/Aphen were recorded to prove the effect of Aphen on the photoelectric properties of TiO₂. As shown in Figure 5, the anatase TiO₂ naospheres shows a broad absorption wavelength in the ultraviolet region from 200 nm to 410 nm. Interestingly, the absorption of Aphen-modified TiO₂ broaden the absorption band edge into the visible region. Therefore, the results show that the ultraviolet absorption wavelength of Aphen-functionalized TiO₂ is greatly extended, which can avoid the risk of explosive explosions caused by high-energy electron beam as much as possible when detecting explosives by the photoelectric effect [32].

3.2. Gas Sensitivity Performance of TiO₂@Aphen

As mentioned above, Aphen functionalization is an effective strategy to enhance the light absorption range of TiO₂. Thus, the sensor array can be constructed by only one TiO₂/Aphen chip used under various illumination wavelengths. To demonstrate this concept, the sensing properties of the TiO₂/Aphen to TNT, DNT, PA, S, AN and TATP were evaluated under 365 nm, 450 nm and 550 nm as depicted in Figure 6. The response (defined as (I_t − I₀)/I₀) of TiO₂/Aphen to TNT, DNT, PA, S, AN and TATP vapor were 33.8%, 43.5%, 61.5%, 21.2%, 30.5% and 29% under 365 nm illumination, 6.5%, 27.4%, 8%, 21.1%, 17.1%, and 24.5% under 450 nm illumination, and 58.1%, 58.5%, 81.1%, 21.9%, 25.5% and 3.6% under 550 nm illumination, respectively.

Thus, the TiO₂/Aphen shows distinctive responses to the tested explosives indicating that tailoring the excitation wavelength has an obvious effect on the sensing performance of TiO₂/Aphen. For comparison, the sensing performance of the pure TiO₂ to explosives’ vapor was characterized under the same conditions. As shown in Figure S2, the response of pure TiO₂ to TNT, DNT, PA, S, AN and TATP vapor were 15%, 22.3%, 32.5%, 11.6%, 7.9% and 4% under 365 nm illumination. Interestingly, the pure TiO₂ has almost no sensitivity to these explosives under illuminations of 450 nm and 550 nm.

Therefore, by spinning coated TiO₂/Aphen on the interdigitated electrode, a sensory array can be realized by tailoring the illumination wavelength used (Figure 7a). To gain a comprehensive understanding of the overall sensing performance of the sensory array, the sensing responses, response times and recovery times are statistically analyzed in Figure 7b–d. As shown in Figure 7b, the responses of the TiO₂/Aphen to nitroaromatic explosives (TNT, DNT, PA) are 33.8%, 43.5%, and 69.5% under 365 nm illumination, and 58.1%, 58.5%, and 61.1% under 550 nm illumination, respectively. However, the responses of the TiO₂/Aphen to improvised explosives (S, AN and TATP) are 21.2%, 30.5%, and 29% under 365 nm illumination, and 23.9%, 25.5%, and 36% under 550 nm illumination, respectively. Additionally, as depicted in Figure 6c, the response times of TiO₂/Aphen to nitroaromatic explosives and improvised explosives are all within 10 s under the illuminations of 365 nm, 450 nm and 550 nm. The response time of TiO₂/Aphen to TNT, DNT, PA, S, AN and TATP vapor were 4.04 s, 2.8 s, 4.83 s, 4.83 s, 6.2 s and 4.5 s under 365 nm illumination, 7.4 s, 6 s, 5.1 s, 4.5 s, 4.8 s, and 3.8 s under 450 nm illumination, and 0.5 s, 2.1 s, 3 s, 0.7 s, 8.4 s and 0.9 s under 550 nm illumination, respectively. TNT requires the longest recovery time (about 22 s) under 450 nm illumination, while DNT shows the shortest recover time (about 1 s) under 550 nm illumination. However, as shown in Figure S3 the response time and recover time of pure TiO₂ to different explosives are more than 5 s under 365 nm illumination.

The above experiments reveal that TiO₂/Aphen has better sensing properties to nitroaromatic explosives than improvised explosives. This phenomenon may be attributed to the formation of a Meisenheimer complex between the electron-rich amino groups of Aphen and the electron-deficient aromatic rings of nitroaromatic explosives, coupled with strong charge transfer transitions. Thus, nitroaromatic explosives can anchor with TiO₂ via Aphen bridge bonds and affected markedly the photocurrent of TiO₂/Aphen. In addition, the photocatalytic mechanism may be the primary sensing mechanism after nitroaromatic explosives anchor to TiO₂. To verify this hypothesis, the catalytic activity measurements of the TiO₂/Aphen and pure TiO₂ were based on the catalytic reduction of 4-nitrophenol aqueous solution as a substitute for TNT, DNT and PA vapors. As shown in Figure 8a, the absorption peak at 400 nm of 4-nitrophenol immediately decreased in presence of TiO₂/Aphen under 550 nm illumination, owing to the photocatalytic reduction of 4-nitrophenolate to 4-aminophenol. The reduction reaction finished in 210 s with a reduction rate constant k = −0.004 s⁻¹ which is determined from the plot of C/C₀ vs. time. However, with addition of the pure TiO₂, the absorption peak at 400 nm of 4-nitrophenol remains undiminished under 550 nm illumination for 28 min, attributed to the lake of visible light absorption of unmodified catalyst TiO₂. Thus it can be seen that Aphen plays a key role in broadening the absorption band edge of TiO₂ to the visible light region.

Generally, with a single sensor it is difficult to meet the actual needs of qualitative identification of different explosives. In other words, a single sensor can respond to different explosive vapors but cannot discriminate them from each other. Stated thus, the TiO₂/Aphen shows a distinctive response, response time and recovery time to the tested explosives at different excitation wavelengths. Utilizing the cross-sensitivity and combining data analysis methods can imitate an artificial olfactory system and achieve the identification of different explosive vapors. Here, a sensor array based on the above single optoelectronic TiO₂/Aphen sensor was constructed by regulating the excitation wavelength used. The response value at different response time was chosen as the eigenvalue. The fingerprint patterns were constructed by extracting every 1 s and 16 eigenvalues within 16 s in total (method A), or every 1 s and 8 eigenvalues within 8 s in total (method B) or every 2 s and 8 eigenvalues within 16 s in total (method C). As a result, the response to each kind of explosive at three wavelengths is different by method A and method C. However, method A process more data than method C. Thus, the response of the sensor is sampled every 2 seconds. Then these eigenvalues were grouped together to construct fingerprint patterns (Figure 9) of each explosive. It is found that each explosive has a unique fingerprint pattern, just like the loops and whorls on a human’s finger. The fingerprint pattern of TNT, for example, shows three whorls which are obtained from the response value at 2 s to 16 s under 365 nm (black line), 450 nm (red line) and 550 nm (green line). The whorls group of TNT is quite different from the that of DNT, PA and other improvised explosives, and so are those of DNT, PA, AN, S and TATP. Thus, one can identify explosives through their fingerprint patterns. Based on the fingerprint patterns, it promises to be a simple method to quickly identify these explosives from each other by machine identification.

The role of the moisture is also addressed in Figure S4. The response ratios of TNT are almost unchanged at 40% and 60 % of relative humidity (RH) and under the illumination of 365 nm. However, the response ratio of TNT decreased at 80% RH due to competitive adsorption of TNT and moisture on the surface of TiO₂/Aphen. This result illustrates that the sensing response cannot be affected by ambient air below the 60% RH. These results have been added in the revised Supporting Information.

4. Conclusions

In conclusion, litchi-like TiO₂ nanospheres with streaks on the surface were prepared by modifying the F ion content. Then Aphen-functionalized TiO₂ nanospheres was successfully constructed by coordination interactions between Aphen and Ti ions on the surface of TiO₂. Aphen plays a key role in broadening the absorption band edge of TiO₂ into the visible light region. Thus a sensor array composed by only TiO₂/Aphen sensors can be constructed by regulating the excitation wavelength in the visible region, which is significant for a low energy consumption, high selectivity and rapid response photoelectronic sensor. Moreover, a photocatalytic mechanism was proved the primary sensing mechanism of nitroaromatic explosives after nitroaromatic explosives anchor onto TiO₂ by formation of a Meisenheimer complex. This work shines light on the realization of an artificial olfactory system to achieve the identification of different explosive vapors. The results demonstrate promising potential for low-cost practical applications as optoelectronic sensors for nitroaromatic explosive landmine detection and security checks. Undoubtedly, this approach also provide reference for the development of novel photocatalysts under visible light.
