# Have I Seen This Place Before? A Fast and Robust Loop Detection and Correction Method for 3D Lidar SLAM

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

## 3. Contributions

- We accelerated the computation of a global 3D descriptor to detect strong loop candidates in lidar data. Compared to many other 3D descriptors, ours does not depend on the estimation of surface normals in the point cloud. The main motivation for this is the high difficulty of estimating these normals accurately given the sparse and inhomogeneous point density of lidar point clouds. Our 3D descriptor thus leads to more robust loop detections. A compiled version of our algorithm has been made available to the community through a GitHub repository, allowing future use (https://github.com/Shaws/m2dp-gpu).
- We propose a global registration technique based on four-point congruent sets, inspired by the work of Mellado et al. [26]. We improved the efficiency significantly by omitting its randomized component, which leads to faster execution times. Moreover, our improvements make the registration technique more robust for sparse and inhomogeneous 3D data.
- We propose and evaluate a loop correction algorithm that omits the iteration between the SLAM front- and back-end, leading to very fast computations of the solution.

## 4. Approach

#### 4.1. Multiview 2D-Projection

#### 4.2. Four-Point Congruent Sets

#### 4.2.1. Selecting a Coplanar Base

#### 4.2.2. Finding Congruent Sets

#### 4.2.3. Test Rigid Transformation

#### 4.3. Verification through ICP and Geometrical Consistency

#### 4.4. Loop Correction

## 5. Evaluation

#### 5.1. Speed Analysis Global Descriptor Computation

#### 5.2. Speed Analysis Global Registration

#### 5.3. Loop Detection Accuracy

#### 5.4. Quality and Speed of the Loop Correction

#### 5.5. Speed Analysis Entire Loop Closure Process

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Steder, B.; Ruhnke, M.; Grzonka, S.; Burgard, W. Place recognition in 3D scans using a combination of bag of words and point feature based relative pose estimation. In Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, San Francisco, CA, USA, 25–30 September 2011; pp. 1249–1255. [Google Scholar]
- Zhong, Y. Intrinsic shape signatures: A shape descriptor for 3D object recognition. In Proceedings of the 2009 IEEE 12th International Conference on Computer Vision Workshops, ICCV Workshops, Kyoto, Japan, 27 September–4 October 2009; pp. 689–696. [Google Scholar] [CrossRef]
- Sipiran, I.; Bustos, B. A Robust 3D Interest Points Detector Based on Harris Operator; Eurographics Workshop on 3D Object Retrieval; Daoudi, M., Schreck, T., Eds.; The Eurographics Association: Norrköping, Sweden, 2010; pp. 7–14. [Google Scholar] [CrossRef]
- Scovanner, P.; Ali, S.; Shah, M. A 3-Dimensional Sift Descriptor and Its Application to Action Recognition. In Proceedings of the MULTIMEDIA ’07 15th International Conference on Multimedia, Augsburg, Germany, 25–29 September 2007; ACM: New York, NY, USA, 2007; pp. 357–360. [Google Scholar] [CrossRef]
- Steder, B.; Rusu, R.B.; Konolige, K.; Burgard, W. NARF: 3D Range Image Features for Object Recognition. In Proceedings of the Workshop on Defining and Solving Realistic Perception Problems in Personal Robotics at the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Taipei, Taiwan, 8 October 2010. [Google Scholar]
- Johnson, A. Spin-Images: A Representation for 3-D Surface Matching. Ph.D. Thesis, Carnegie Mellon University, Pittsburgh, PA, USA, 1997. [Google Scholar]
- Salti, S.; Tombari, F.; di Stefano, L. SHOT: Unique signatures of histograms for surface and texture description. Comput. Vis. Image Understand.
**2014**, 125, 251–264. [Google Scholar] [CrossRef] - Rusu, R.B.; Blodow, N.; Beetz, M. Fast Point Feature Histograms (FPFH) for 3D Registration. In Proceedings of the 2009 IEEE International Conference on Robotics and Automation, Kobe, Japan, 12–17 May 2009; IEEE Press: Piscataway, NJ, USA, 2009; pp. 1848–1853. [Google Scholar]
- Rusu, R.B.; Bradski, G.R.; Thibaux, R.; Hsu, J.M. Fast 3D recognition and pose using the Viewpoint Feature Histogram. In Proceedings of the 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems, Taipei, Taiwan, 18–22 October 2010; pp. 2155–2162. [Google Scholar]
- He, L.; Wang, X.; Zhang, H. M2DP: A novel 3D point cloud descriptor and its application in loop closure detection. In Proceedings of the 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Daejeon, Korea, 9–14 October 2016; pp. 231–237. [Google Scholar]
- Dewan, A.; Caselitz, T.; Burgard, W. Learning a Local Feature Descriptor for 3D LiDAR Scans. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Madrid, Spain, 1–5 October 2018. [Google Scholar]
- Zeng, A.; Song, S.; Nießner, M.; Fisher, M.; Xiao, J.; Funkhouser, T. 3DMatch: Learning Local Geometric Descriptors from RGB-D Reconstructions. In Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017. [Google Scholar]
- Yin, H.; Ding, X.; Tang, L.; Wang, Y.; Xiong, R. Efficient 3D LIDAR based loop closing using deep neural network. In Proceedings of the 2017 IEEE International Conference on Robotics and Biomimetics (ROBIO), Macau, China, 5–8 December 2017; pp. 481–486. [Google Scholar] [CrossRef]
- Yin, H.; Wang, Y.; Tang, L.; Ding, X.; Xiong, R. LocNet: Global localization in 3D point clouds for mobile robots. In Proceedings of the 2018 IEEE Intelligent Vehicles Symposium (IV), Changshu, China, 26–30 June 2018. [Google Scholar]
- Fernández-Moral, E.; Mayol-Cuevas, W.W.; Arévalo, V.; Jiménez, J.G. Fast place recognition with plane-based maps. In Proceedings of the 2013 IEEE International Conference on Robotics and Automation, Karlsruhe, Germany, 6–10 May 2013; pp. 2719–2724. [Google Scholar]
- Dubé, R.; Dugas, D.; Stumm, E.; Nieto, J.I.; Siegwart, R.; Cadena, C. SegMatch: Segment based loop-closure for 3D point clouds. arXiv, 2016; arXiv:1609.07720. [Google Scholar]
- Zhu, Z.; Yang, S.; Dai, H.; Li, F. Loop Detection and Correction of 3D Laser-Based SLAM with Visual Information. In Proceedings of the CASA 2018 31st International Conference on Computer Animation and Social Agents, Beijing, China, 21–23 May 2018; ACM: New York, NY, USA; pp. 53–58. [Google Scholar] [CrossRef]
- Kümmerle, R.; Grisetti, G.; Strasdat, H.; Konolige, K.; Burgard, W. G
^{2}o: A general framework for graph optimization. In Proceedings of the 2011 IEEE International Conference on Robotics and Automation, Shanghai, China, 9–13 May 2011; pp. 3607–3613. [Google Scholar] - Grisetti, G.; Stachniss, C.; Burgard, W. Non-linear Constraint Network Optimization for Efficient Map Learning. IEEE Tran. Intell. Transp. Syst.
**2009**, 10, 428–439. [Google Scholar] [CrossRef] - Lu, F.; Milios, E. Globally Consistent Range Scan Alignment for Environment Mapping. Auton. Robots
**1997**, 4, 333–349. [Google Scholar] [CrossRef] - Hess, W.; Kohler, D.; Rapp, H.; Andor, D. Real-Time Loop Closure in 2D LIDAR SLAM. In Proceedings of the 2016 IEEE International Conference on Robotics and Automation (ICRA), Stockholm, Sweden, 16–21 May 2016; pp. 1271–1278. [Google Scholar]
- Sprickerhof, J.; Nüchter, P.A.; Lingemann, K.; Hertzberg, P.J. A Heuristic Loop Closing Technique for Large-Scale 6D SLAM. Automatika
**2011**, 52, 199–222. [Google Scholar] [CrossRef] [Green Version] - Droeschel, D.; Behnke, S. Efficient Continuous-Time SLAM for 3D Lidar-Based Online Mapping. In Proceedings of the 2018 IEEE International Conference on Robotics and Automation (ICRA), Brisbane, QLD, Australia, 21–25 May 2018; pp. 1–9. [Google Scholar]
- Vlaminck, M.; Luong, H.; Goeman, W.; Philips, W. 3D Scene Reconstruction Using Omnidirectional Vision and LiDAR: A Hybrid Approach. Sensors
**2016**, 16, 1923. [Google Scholar] [CrossRef] - Vlaminck, M.; Luong, H.; Philips, W. Liborg: A lidar-based robot for efficient 3D mapping. In Proceedings of the Applications of Digital Image Processing XL, San Diego, CA, USA, 19 September 2017; Volume 10396. [Google Scholar]
- Mellado, N.; Aiger, D.; Mitra, N.J. SUPER 4PCS: Fast Global Pointcloud Registration via Smart Indexing. Comput. Graph. Forum
**2014**, 33, 205–215. [Google Scholar] [CrossRef] - Goossens, B.; De Vylder, J.; Philips, W. Quasar: A new heterogeneous programming framework for image and video processing algorithms on CPU and GPU. In Proceedings of the IEEE International Conference on Image Processing ICIP, Paris, France, 27–30 October 2014; pp. 2183–2185. [Google Scholar]
- Aiger, D.; Mitra, N.J.; Cohen-Or, D. 4pointss Congruent Sets for Robust Pairwise Surface Registration. In Proceedings of the SIGGRAPH ’08 ACM SIGGRAPH 2008 Papers, Los Angeles, CA, USA, 11–15 August 2018; ACM: New York, NY, USA; pp. 85:1–85:10. [Google Scholar] [CrossRef]
- Shoemake, K. Animating Rotation with Quaternion Curves. SIGGRAPH Comput. Graph.
**1985**, 19, 245–254. [Google Scholar] [CrossRef] - Geiger, A.; Lenz, P.; Urtasun, R. Are We Ready for Autonomous Driving? The KITTI Vision Benchmark Suite. In Proceedings of the 2012 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Providence, RI, USA, 16–21 June 2012; IEEE Computer Society: Washington, DC, USA, 2012; pp. 3354–3361. [Google Scholar]
- Wohlkinger, W.; Vincze, M. Ensemble of shape functions for 3D object classification. In Proceedings of the 2011 IEEE International Conference on Robotics and Biomimetics, Phuket, Thailand, 7–11 December 2011; pp. 2987–2992. [Google Scholar]

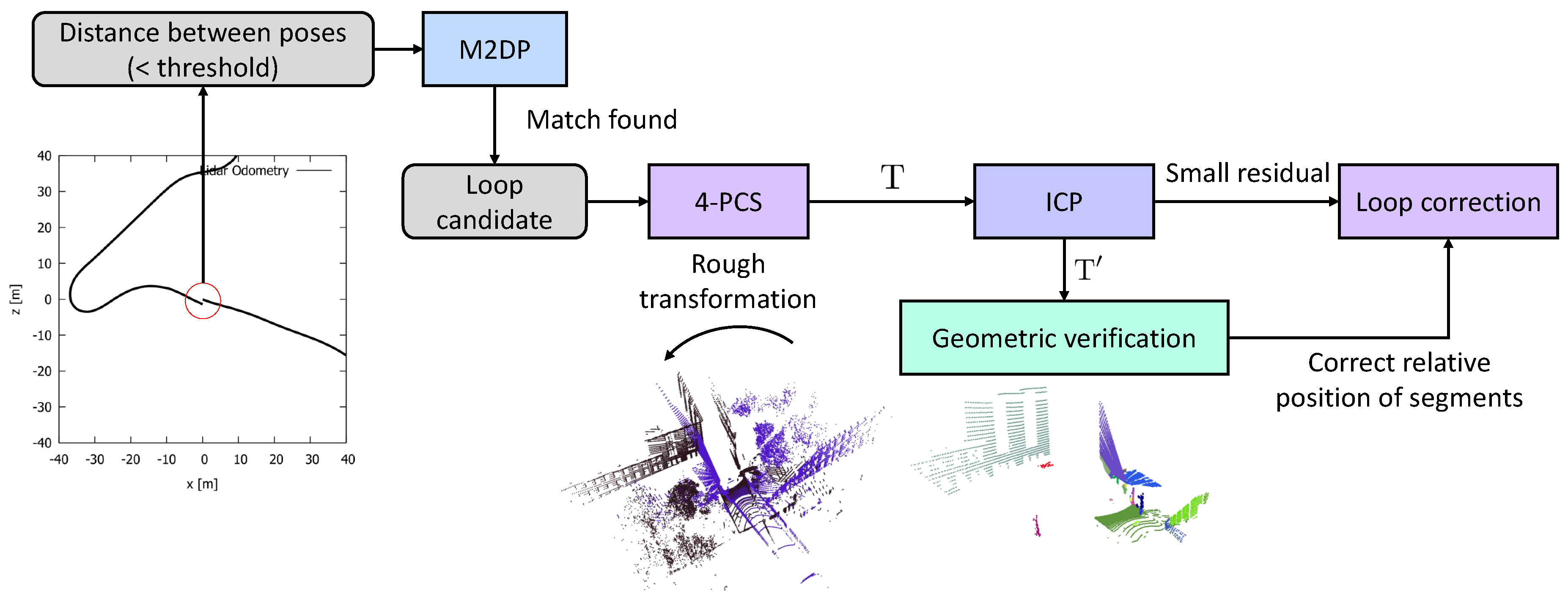

**Figure 1.**Our loop detection and correction pipeline, consisting of five main algorithms. The global descriptor MD2P detects loop candidates, after which the 4-PCS and ICP algorithm try to align both ends of the loop. Finally, the geometric verification step checks if the different segments in the scene are relatively still at the same position.

**Figure 2.**The generation of a 2D signature by projecting the 3D data onto a plane. The plane is divided into bins as follows: starting from the projected centroid, l concentric circles are generated and the maximum radius is set to the distance between the centroid and the furthest point. Each ring is subsequently subdivided into t bins, generating a $lt\times 1$ signature vector. Finally, the number of points lying in each bin are counted.

**Figure 3.**Two different examples of registered point clouds seen from a bird’s-eye view, originating from the KITTI ‘00’ sequence. The black and gray scans have been selected by the M2DP algorithm as the start and the end point of a potential loop. The two point clouds are, however, slightly rotated. Our registration technique aligns both (the green point cloud is the transformed version of the gray one) and determines their overlap. When the overlap is sufficiently high, the loop candidate is eventually selected as a true loop. Here, one can see that the green and black point cloud are sufficiently overlapping.

**Figure 4.**Two different examples showing how to select a coplanar base. First, several objects in the scene are clustered, after which they are subjected to a plane-fitting algorithm. In case a few planes have been detected, their convex hulls are computed. A coplanar base is then selected by picking four points close to the convex hull.

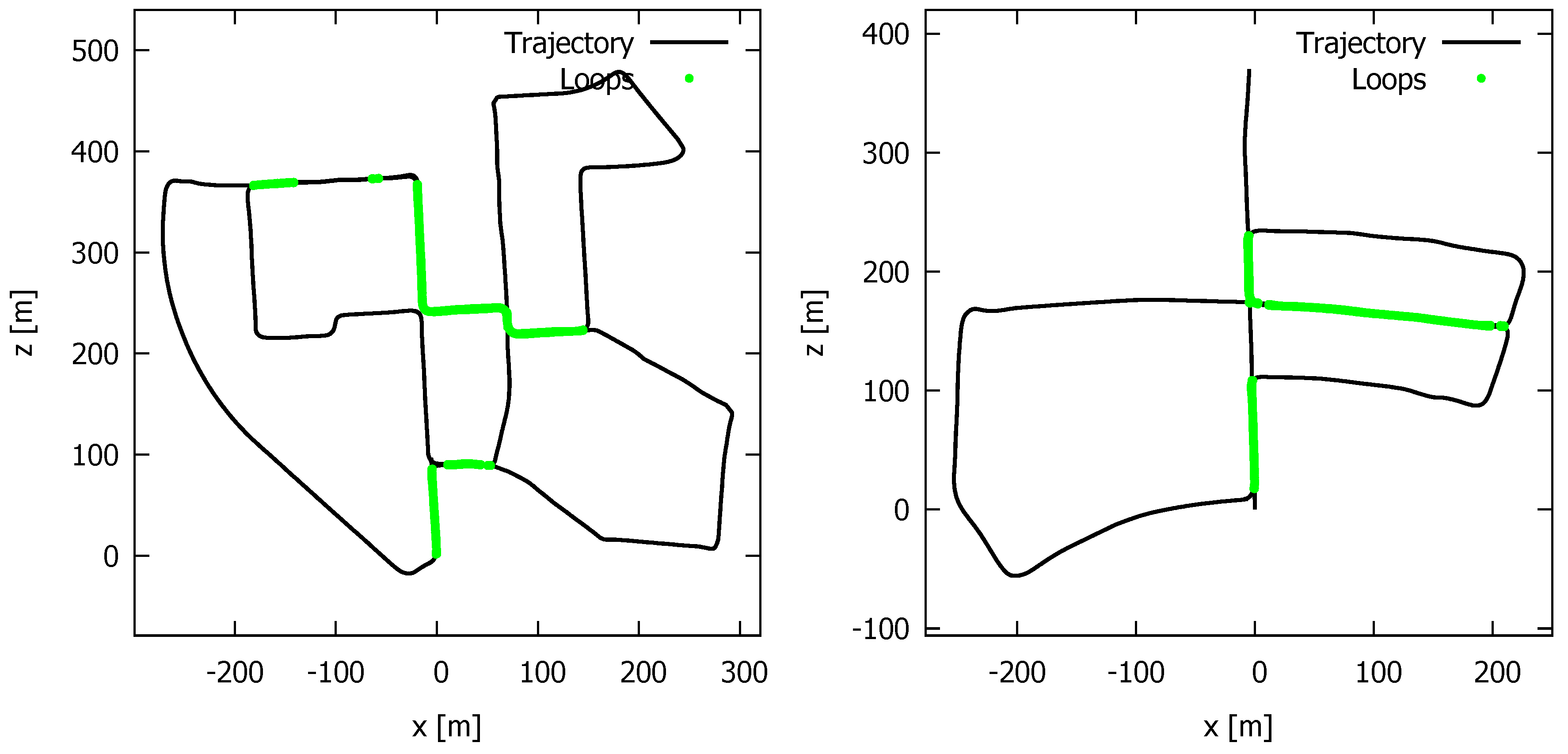

**Figure 5.**The ground truth loops in the “00” (

**left**) and “05” (

**right**) sequences of the Kitti benchmark [30]. We consider a loop to be present when the distance between two poses is less than 1 m.

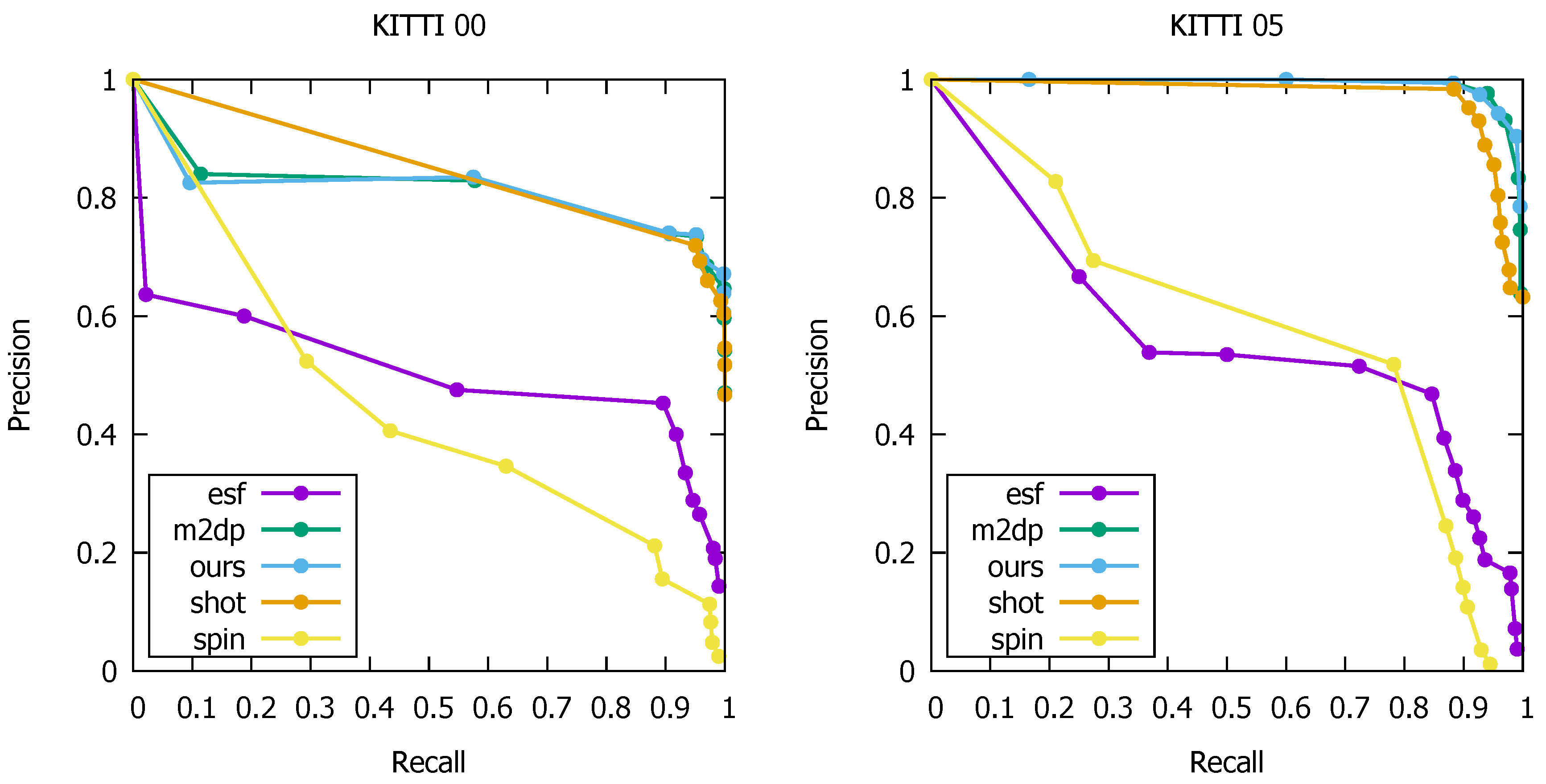

**Figure 6.**ROC curves for the several loop detection methods on the KITTI sequences “00” (

**left**) and “05” (

**right**). As can be seen, our method performs better than the original M2DP method, the second-best performer in our experiments. The SHOT detector also produces acceptable results, whereas the spin and ESF detectors are too unreliable to be used in practice.

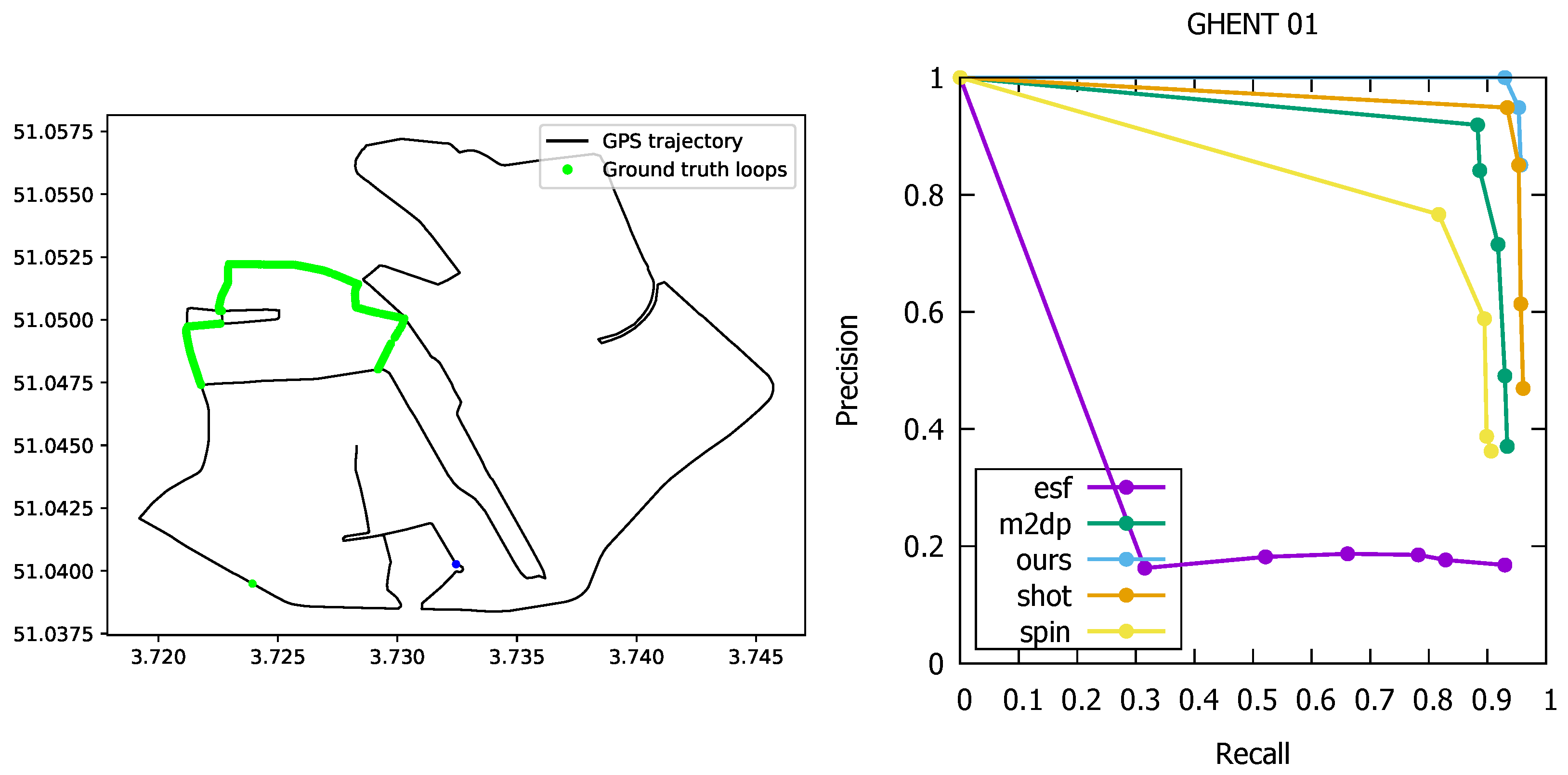

**Figure 7.**

**Left:**The ground truth and estimated loops of the sequences recorded in the city center of Ghent, Belgium. We consider a loop to be present when the distance between two poses is less than 3 m.

**Right:**The ROC curve for the sequence recorded in the city center of Ghent, Belgium. Our loop detector clearly outperformed the other methods. For a recall of 93%, we still obtained a precision of 100%, which is a $5.2\%$ gain compared to the SHOT descriptor. The latter along with the M2DP descriptor were the only two other point cloud matchers that produced acceptable results. The loop detection quality of the spin images descriptor and ESF are too limited.

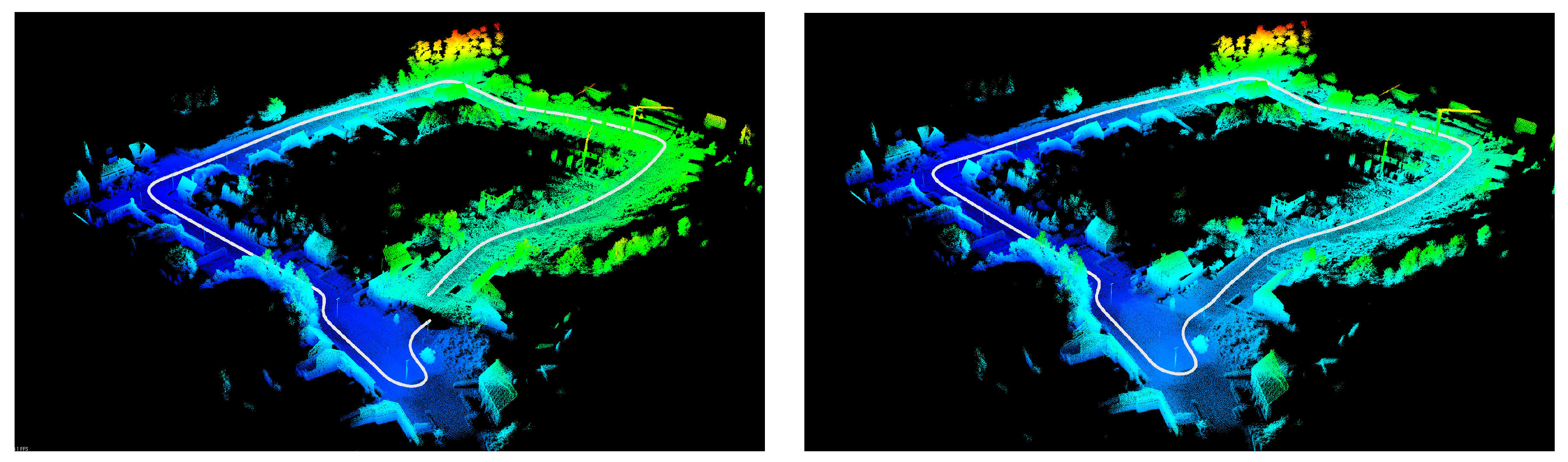

**Figure 8.**The two resulting reconstructions for the “Hasselt” dataset, before loop closure (

**left**) and after loop closure (

**right**). After loop correction, the two ends of the loops were attached, and the error was propagated back in the pose graph.

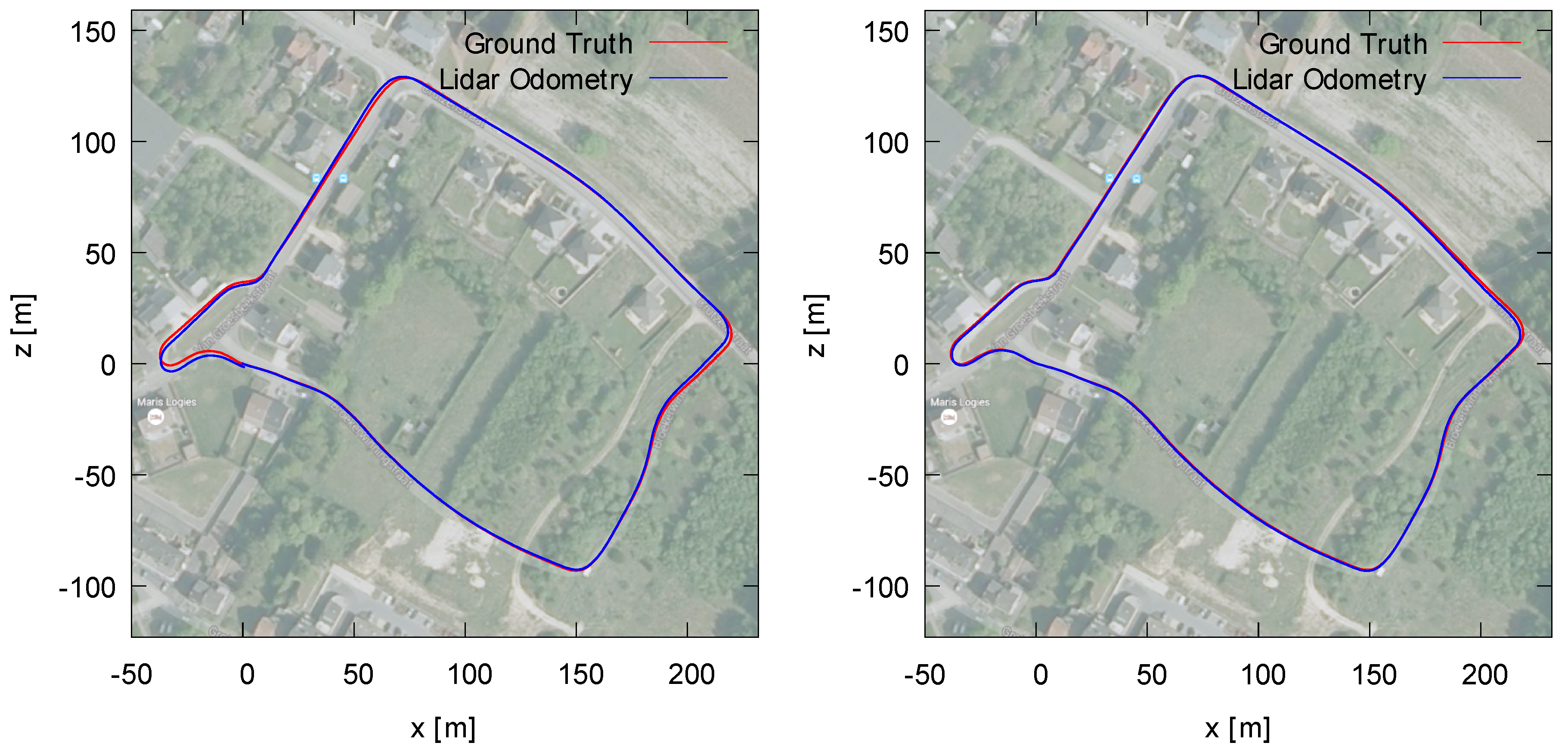

**Figure 9.**The two resulting trajectories for the “Hasselt” dataset corresponding to the reconstructions in Figure 8, before loop closure (

**left**) and after loop closure (

**right**). The estimated trajectory and the ground truth trajectory are almost entirely overlapping after loop closure. The pose error before and after loop correction is, respectively, 5.56 and 3.13 m, hence proving the effectiveness of the loop correction.

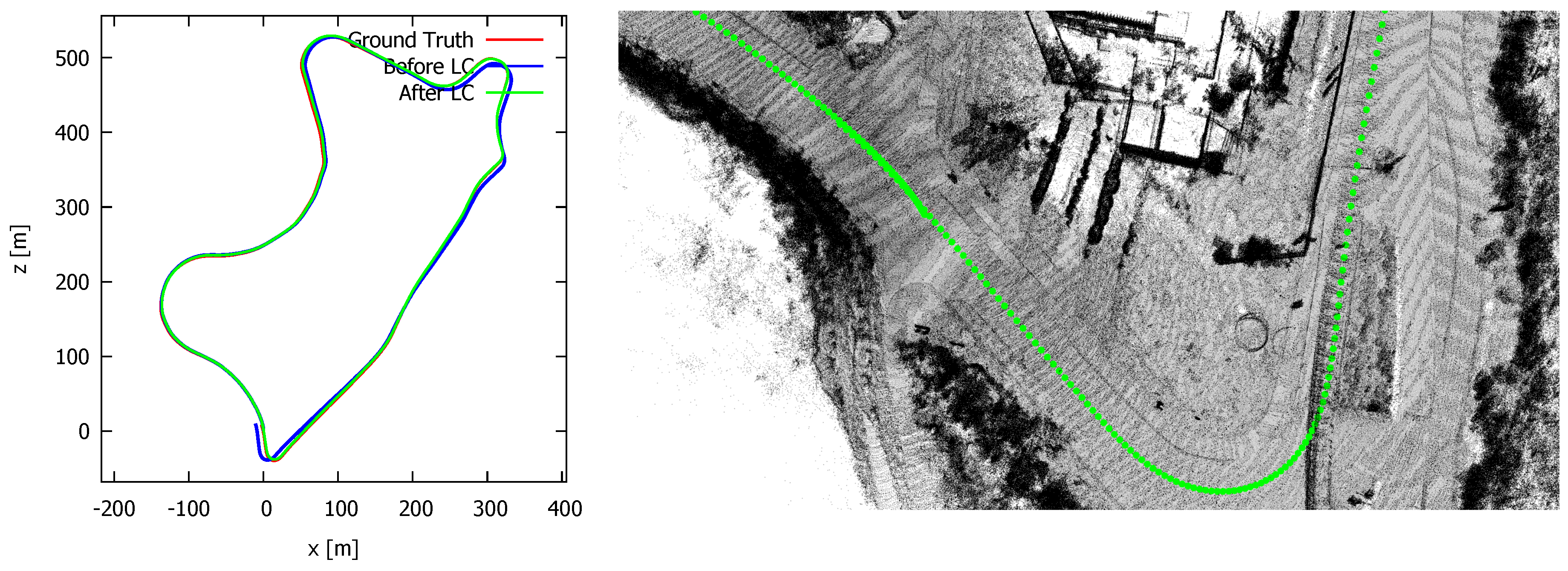

**Figure 10.**The resulting trajectory (

**left**) of sequence “09” of the Kitti benchmark, before loop closure (blue) and after loop closure (green). The estimated and the ground truth trajectory are almost entirely overlapping after loop correction. (

**right**) the corresponding reconstruction at the start- and end-point of the loop after correction. Little to no artefacts can be seen in the reconstruction. The pose error before and after loop correction is, respectively, 9.89 and 4.80 m, hence proving its effectiveness.

**Table 1.**Computation times of our GPU implementation of the M2DP descriptor compared to the CPU version implemented in Matlab by [10]. The speed-up factor for data originating from the HDL-64E is almost ×4, whereas for the VLP-16 and HDL-32E the speed-up factor is ×2.5.

Sensor | avg. $\left|\mathcal{P}\right|$ | Matlab ([10]) in ms | GPU (ours) in ms |
---|---|---|---|

VLP-16 | 25,446 | 250 | 110 |

HDL-32E | 51,687 | 273 | 121 |

HDL-64E | 62,594 | 476 | 127 |

**Table 2.**Processing times for our registration algorithm and the one of [26] on the KITTI dataset as well as on our own dataset recorded in Ghent.

Dataset | Sensor | $\mathbf{\delta}$ | Time (ms) Ours | Time (ms) [26] | Num. Samples in [26] |
---|---|---|---|---|---|

Kitti | Velodyne HDL-64E | 0.5 | 184 | 875 | 2000 |

Ghent | Velodyne VLP-16 | 0.5 | 159 | 415 | 2000 |

**Table 3.**Precision at 99.9% recall of the different loop detection methods for the KITTI dataset. Clearly, only the detectors SHOT and M2DP produce “acceptable” results. Our combined algorithm improves the original M2DP method by $0.8\%$ and $7\%$ for KITTI sequences “00” and “05”, leading to a precision of, respectively, $60.5\%$ and $90.4\%$.

Sequence | Spin Image | SHOT | ESF | M2DP | Ours |
---|---|---|---|---|---|

KITTI00 | 0.025 | 0.575 | 0.143 | 0.597 | 0.605 |

KITTI05 | <0.01 | 0.632 | 0.037 | 0.833 | 0.904 |

**Table 4.**The average and median pose error before and after loop closure for the Hasselt and Kitti “09” sequence. Our correction algorithm reduces the error by a factor of approximately × 2 after closing the loop.

Sequence | Total Length (m) | Average Error (m) | Median Error (m) | ||||
---|---|---|---|---|---|---|---|

before LC | after LC | gain | before LC | after LC | gain | ||

HASSELT | 715 | 5.65 | 3.13 | ×1.81 | 3.98 | 2.13 | ×1.87 |

KITTI09 | 1705 | 9.89 | 4.80 | ×2.06 | 7.85 | 3.53 | ×2.22 |
