Open AccessArticle

Bandwidth Enhancement and Frequency Scanning Array Antenna Using Novel UWB Filter Integration Technique for OFDM UWB Radar Applications in Wireless Vital Signs Monitoring

1
Department of Electrical Engineering, Polytechnique Montreal, Montreal, QC H3T1J4, Canada
2
Department of Electrical and Computer Engineering, McMaster University, Hamilton, ON L8S4L8, Canada
3
Health Technology Incubator, Jahrom University of Medical Sciences, 74148-46199 Jahrom, Iran
4
Department of Mechanical and Industrial Engineering, College of Engineering, Qatar University, Doha 2713, Qatar
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(9), 3155; https://doi.org/10.3390/s18093155
Received: 1 September 2018 / Revised: 12 September 2018 / Accepted: 14 September 2018 / Published: 19 September 2018
(This article belongs to the Special Issue Antenna Technologies for Microwave Sensors)
  |
PDF [6550 KB, uploaded 19 September 2018]
  |

Abstract

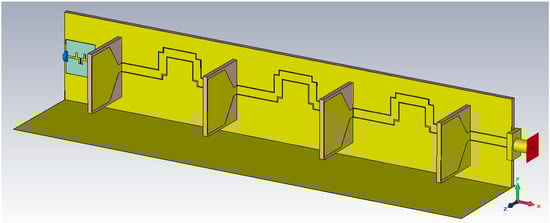

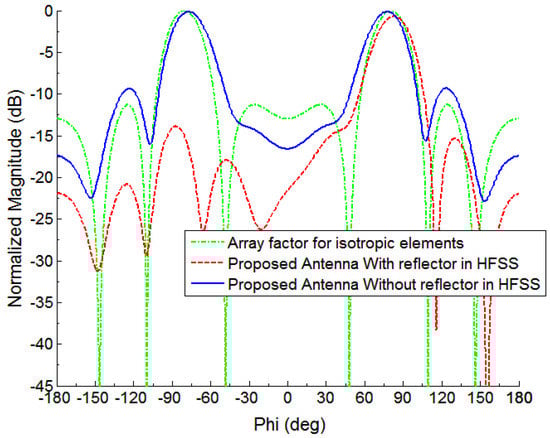

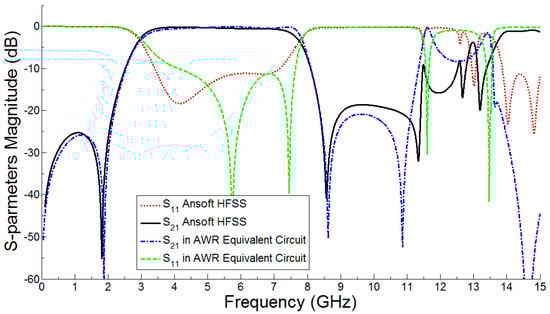

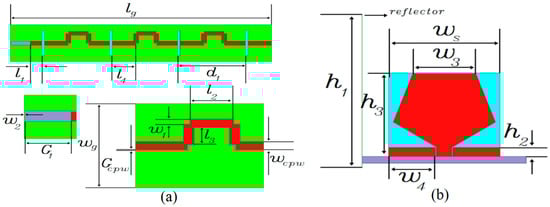

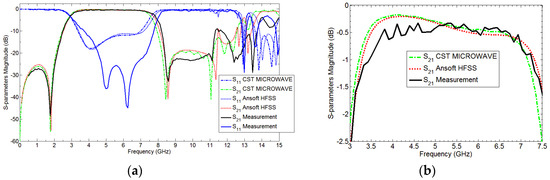

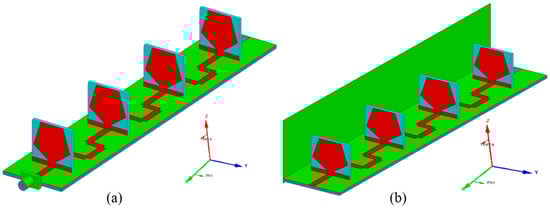

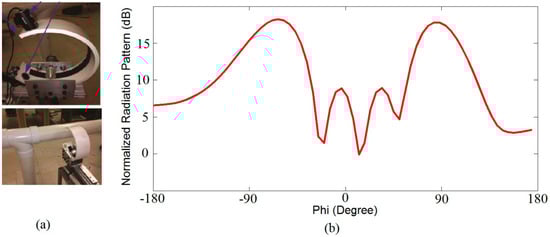

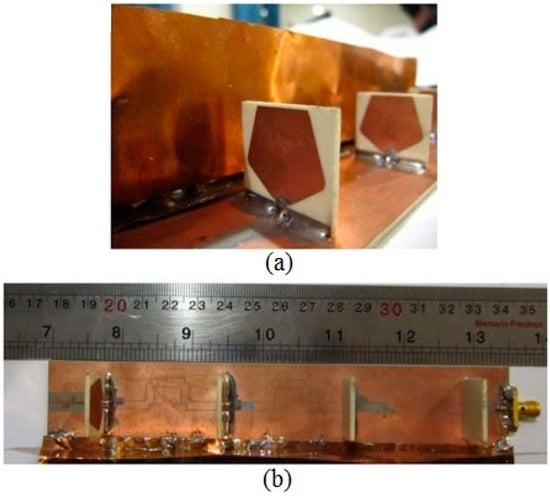

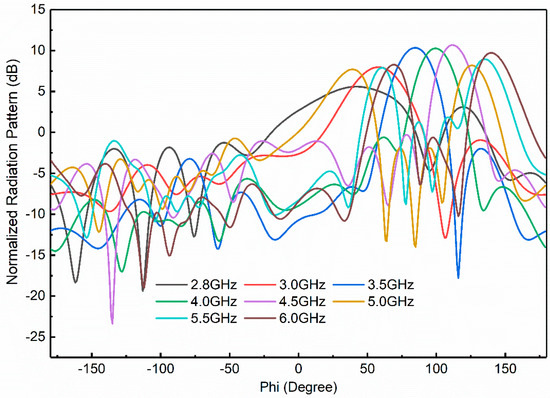

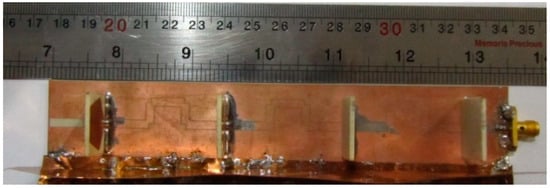

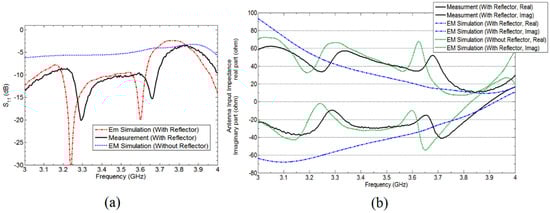

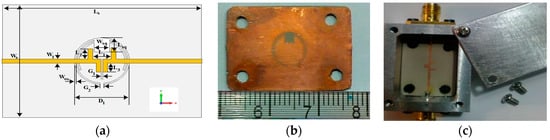

This paper presents the bandwidth enhancement and frequency scanning for fan beam array antenna utilizing novel technique of band-pass filter integration for wireless vital signs monitoring and vehicle navigation sensors. First, a fan beam array antenna comprising of a grounded coplanar waveguide (GCPW) radiating element, CPW fed line, and the grounded reflector is introduced which operate at a frequency band of 3.30 GHz and 3.50 GHz for WiMAX (World-wide Interoperability for Microwave Access) applications. An advantageous beam pattern is generated by the combination of a CPW feed network, non-parasitic grounded reflector, and non-planar GCPW array monopole antenna. Secondly, a miniaturized wide-band bandpass filter is developed using SCSRR (Semi-Complementary Split Ring Resonator) and DGS (Defective Ground Structures) operating at 3–8 GHz frequency band. Finally, the designed filter is integrated within the frequency scanning beam array antenna in a novel way to increase the impedance bandwidth as well as frequency scanning. The new frequency beam array antenna with integrated band-pass filter operate at 2.8 GHz to 6 GHz with a wide frequency scanning from the 50 to 125-degree range. View Full-Text
Keywords: frequency scanning fan beam array antenna; wide-band applications; miniaturized band-pass filter; DGS (Defective Ground Structures); grounded coplanar waveguide (GCPW); grounded reflector; SCSRR (Semi-Complementary Split Ring Resonator) frequency scanning fan beam array antenna; wide-band applications; miniaturized band-pass filter; DGS (Defective Ground Structures); grounded coplanar waveguide (GCPW); grounded reflector; SCSRR (Semi-Complementary Split Ring Resonator)
Figures

Figure 1
