# Recharging Schedule for Mitigating Data Loss in Wireless Rechargeable Sensor Network

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

- To the best of our knowledge, this is the first work to consider the node’s disjointed state in the mobile charger scheduling problem. Compared to the state-of-arts, we distinguish the inactive nodes into two groups, the sleep nodes whose energy is exhausted and the disjointed nodes which are active but can’t send data to the base station via any available routing path. Most existing works only consider how to decrease the sleep node’s nonfunctional time with the help of a mobile charger, but ignore the disjointed node’s data loss. In our work, to maintain network connectivity as long as possible and mitigate the data loss, we consider reducing the inactive time of both sleep nodes and disjointed nodes via the mobile charger with limited charging ability.
- We introduce a metric called the criticality index to quantify the node’s criticality, which indicates a node’s contribution to network connectivity. It measures the dissimilarity between the node’s neighboring set and its neighbors’ neighboring sets. A node has a higher index if it plays a more important role as a bridge between two or more node sets. In addition, energy criticality is also considered, which indicates a node’s consumed energy ratio and can be used to measure the node’s desire for charging. We use this ratio to weight the criticality index to reduce the possibility of charging the full energy nodes. Otherwise, some higher criticality nodes will always be selected to be charged even if they have a great amount of residual energy.
- We formulate the charging scheduling problem as a novel optimization problem, with an objective of maximizing the total criticality indexes of nodes selected in the charging tour and subject to the mobile charger’s traveling distance constraint. To solve this NP-hard problem, we propose a heuristic algorithm. The heuristic algorithm includes three steps, which are spanning tree growing, tour construction, and tour improvement.

## 2. Related Works

#### 2.1. Wireless Power Transfer Technology

#### 2.2. Mobile Charger Schedule

## 3. Network Model and Charging Scheme

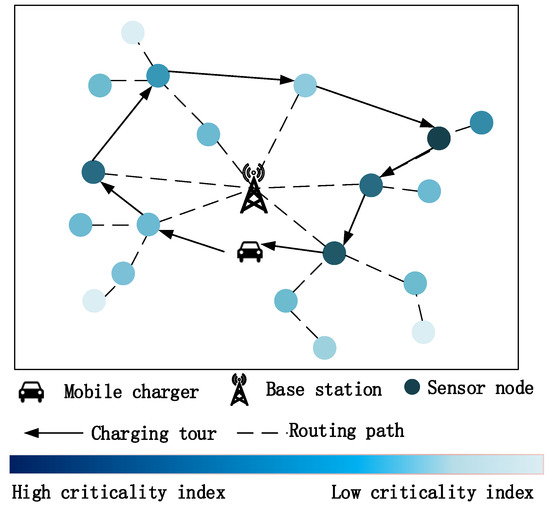

#### 3.1. Network Model

#### 3.2. Energy Consumption Model

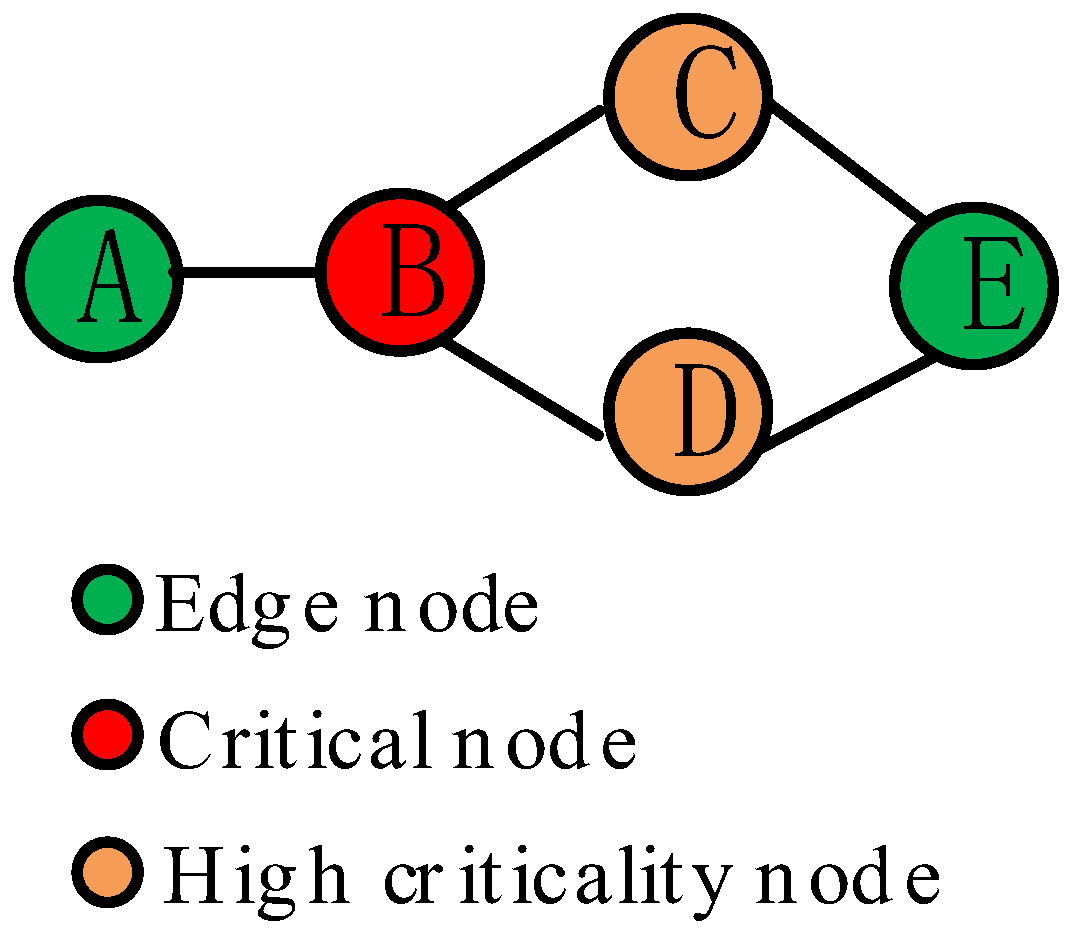

#### 3.3. Node’s Criticality Definition

#### 3.4. Problem Formulation

## 4. A Heuristic Algorithm

#### 4.1. Spanning Tree Growing

Algorithm 1. Tree growing. | |||

Input:$G=(V,E)$, traveling distance constraint $L$; | |||

Output: spanning tree $T$ | |||

1: | $T:=\left\{{v}_{0}\right\}$ | ||

2: | while$C(T)\le L$ and $V\backslash T\ne \varphi $ do | ||

3: | $R:=\varphi $ | ||

4: | for each ${v}_{i}\in V$ and ${v}_{i}\notin T$ do | ||

5: | ${c}_{i}:=\underset{{v}_{k}\in T}{\mathrm{min}}\text{}{c}_{ik}$ | ||

6: | ${c}_{i}^{\prime}:=\mathrm{min}\{{c}_{i},{c}_{i}+{c}_{p(k)i}-{c}_{p(k)k}\}$ | ||

7: | $R(i,T):={\widehat{r}}_{i}/{c}_{i}^{\prime}$ | ||

8: | $R:=R\cup \{R(i,T)\}$ | ||

9: | end for | ||

10: | find the biggest $R(i,T)$ in $R$ | ||

11: | ${v}_{i}:=\mathrm{arg}\text{}\underset{R(i,T)\in R}{\mathrm{max}}\text{}R(i,T)$ | ||

12: | $C(T\cup \{{v}_{i}\}):=2({c}_{p(i)i}+{\displaystyle {\sum}_{\begin{array}{l}{v}_{k}\in T,\\ k\ne 0\end{array}}{c}_{p(k)k}})$ | ||

13: | if $C(T\cup \{{v}_{i}\})\le L$ then | ||

14: | $C(T):=C(T\cup \{{v}_{i}\})$ | ||

15: | $T:=T\cup \left\{{v}_{i}\right\}$ | ||

16: | else | ||

17: | break | ||

18: | end if | ||

19: | end while | ||

20: | return$T$ |

#### 4.2. Tour Construction

Algorithm 2. Tour construction. | |||

Input: Spanning tree $T$, traveling distance constraint $L$; | |||

Output: A charging tour $P$ starts from and ends at ${v}_{0}$ | |||

1: | repeat | ||

2: | compute shortest path in the $T$,$P:=\mathrm{LKH}(T)$ | ||

3: | If ${C}_{\mathrm{LKH}}(P)\le L$ then | ||

4: | Declare $P$ is accepted | ||

5: | else | ||

6: | Delete the last added node from $T$ | ||

7: | end if | ||

8: | until$P$ is accepted | ||

9: | return$P$ |

#### 4.3. Tour Improvement

Algorithm 3. Tour improvement. | ||||

Input: $G=(V,E)$, initial charging tour $P$, traveling distance constraint $L$; | ||||

Output: An improved charging tour $P$ | ||||

1: | repeat | |||

2: | $R:=\varphi $ | |||

3: | for each vertex ${v}_{i}\in V$ and ${v}_{i}\notin P$ do | |||

4: | ${c}_{i}^{\u2033}:=\underset{{v}_{x},{v}_{y}\in P}{\mathrm{min}}\text{}{c}_{ix}+{c}_{iy}-{c}_{xy}$ | |||

5: | if ${c}_{i}^{\u2033}+{C}_{LKH}(P)\le L$ then | |||

6: | $R(i,P):={\widehat{r}}_{i}/{c}_{i}^{\u2033}$ | |||

7: | $R:=R\cup \{R(i,P)\}$ | |||

8: | else | |||

9: | continue | |||

10: | end if | |||

11: | end for | |||

12: | ${v}_{i}:=\mathrm{arg}\text{}\underset{R(i,P)\in R}{\mathrm{max}}\text{}R(i,P)$ | |||

13: | insert ${v}_{i}$ into $P$ at the location with minimum insertion cost | |||

14: | until no more feasible vertices in $V\backslash P$ | |||

15: | return$P$ |

#### 4.4. Time Complexity Analysis

## 5. Simulation Evaluations

#### 5.1. Simulation Environment

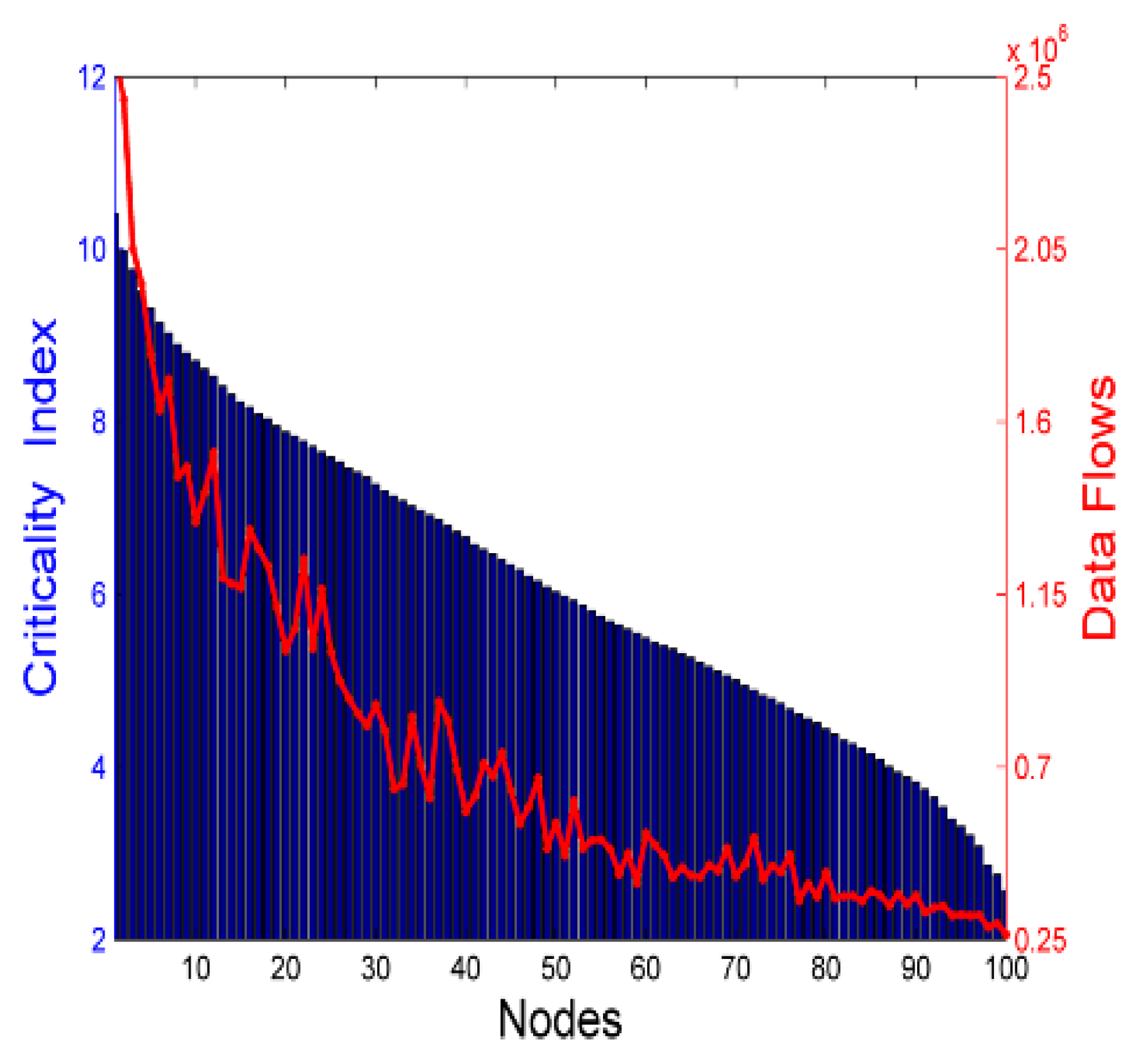

#### 5.2. Property Analysis

#### 5.3. Performance Comparison

#### 5.3.1. Impact of Network Scale

#### 5.3.2. Impact of Charger’s Traveling Distance Constraint

#### 5.3.3. Impact of Charger’s Traveling Speed

#### 5.3.4. Impact of Charging Power

## 6. Conclusions and Future Work

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Akyildiz, I.F.; Su, W.; Sankarasubramaniam, Y.; Cayirci, E. Wireless sensor networks: A survey. Comput. Netw.
**2002**, 38, 393–422. [Google Scholar] [CrossRef] - Anastasi, G.; Conti, M.; Di Francesco, M.; Passarella, A. Energy conservation in wireless sensor networks: A survey. Ad Hoc Netw.
**2009**, 7, 537–568. [Google Scholar] [CrossRef] [Green Version] - Kurs, A.; Karalis, A.; Moffatt, R.; Joannopoulos, J.D.; Fisher, P.; Soljačić, M. Wireless power transfer via strongly coupled magnetic resonances. Science
**2007**, 317, 83–86. [Google Scholar] [CrossRef] [PubMed] - Fu, L.; Cheng, P.; Gu, Y.; Chen, J.; He, T. Minimizing charging delay in wireless rechargeable sensor networks. In Proceedings of the 2013 IEEE INFOCOM, Turin, Italy, 14–19 April 2013; pp. 2922–2930. [Google Scholar]
- Zhao, M.; Li, J.; Yang, Y. A framework of joint mobile energy replenishment and data gathering in wireless rechargeable sensor networks. IEEE Trans. Mob. Comput.
**2014**, 13, 2689–2705. [Google Scholar] [CrossRef] - Wang, C.; Li, J.; Ye, F.; Yang, Y. A mobile data gathering framework for wireless rechargeable sensor networks with vehicle movement costs and capacity constraints. IEEE Trans. Comput.
**2016**, 65, 2411–2427. [Google Scholar] [CrossRef] - Najeeb, N.; Carrick, D. Extending wireless rechargeable sensor network life without full knowledge. Sensors
**2017**, 17, 1642. [Google Scholar] [CrossRef] [PubMed] - Tu, W.; Xu, X.; Ye, T.; Cheng, Z. A study on wireless charging for prolonging the lifetime of wireless sensor networks. Sensors
**2017**, 17, 1560. [Google Scholar] [CrossRef] [PubMed] - Pantazis, N.A.; Nikolidakis, S.A.; Vergados, D.D. Energy-efficient routing protocols in wireless sensor networks: A Survey. IEEE Commun. Surv. Tutor.
**2013**, 15, 551–591. [Google Scholar] [CrossRef] - Akkaya, K.; Younis, M. A survey on routing protocols for wireless sensor networks. Ad Hoc Netw.
**2005**, 3, 325–349. [Google Scholar] [CrossRef] [Green Version] - Radi, M.; Dezfouli, B.; Bakar, K.A.; Lee, M. Multipath routing in wireless sensor networks: Survey and research challenges. Sensors
**2012**, 12, 650–685. [Google Scholar] [CrossRef] [PubMed] - Freeman, L.C. A set of measures of centrality based on betweenness. Sociometry
**1977**, 40, 35. [Google Scholar] [CrossRef] - Wang, C.; Li, J.; Ye, F.; Yang, Y. Recharging schedules for wireless sensor networks with vehicle movement costs and capacity constraints. In Proceedings of the 2014 Eleventh Annual IEEE International Conference on Sensing, Communication, and Networking (SECON), Singapore, 30 June–3 July 2014; pp. 468–476. [Google Scholar]
- Lin, C.; Zhou, J.; Guo, C.; Song, H.; Wu, G.; Obaidat, M.S. TSCA: A temporal-spatial real-time charging scheduling algorithm for on-demand architecture in wireless rechargeable sensor networks. IEEE Trans. Mob. Comput.
**2018**, 17, 211–224. [Google Scholar] [CrossRef] - Xie, L.; Shi, Y.; Hou, Y.T.; Sherali, H.D. Making sensor networks immortal: An energy-renewal approach with wireless power transfer. IEEE/ACM Trans. Netw.
**2012**, 20, 1748–1761. [Google Scholar] [CrossRef] - Xie, L.; Shi, Y.; Hou, Y.T.; Lou, W.; Sherali, H.D.; Midkiff, S.F. Multi-node wireless energy charging in sensor networks. IEEE/ACM Trans. Netw.
**2015**, 23, 437–450. [Google Scholar] [CrossRef] - Zorbas, D.; Raveneau, P.; Ghamri-Doudane, Y.; Douligeris, C. The charger positioning problem in clustered RF-power harvesting wireless sensor networks. Ad Hoc Netw.
**2018**, 78, 42–53. [Google Scholar] [CrossRef] - Fu, L.; Cheng, P.; Gu, Y.; Chen, J.; He, T. Optimal charging in wireless rechargeable sensor networks. IEEE Trans. Veh. Technol.
**2016**, 65, 278–291. [Google Scholar] [CrossRef] - Fu, L.; He, L.; Cheng, P.; Gu, Y.; Pan, J.; Chen, J. ESync: Energy synchronized mobile charging in rechargeable wireless sensor networks. IEEE Trans. Veh. Technol.
**2016**, 65, 7415–7431. [Google Scholar] [CrossRef] - Guo, S.; Wang, C.; Yang, Y. Joint mobile data gathering and energy provisioning in wireless rechargeable sensor networks. IEEE Trans. Mob. Comput.
**2014**, 13, 2836–2852. [Google Scholar] [CrossRef] - Shu, Y.; Yousefi, H.; Cheng, P.; Chen, J.; Gu, Y.J.; He, T.; Shin, K.G. Near-optimal velocity control for mobile charging in wireless rechargeable sensor networks. IEEE Trans. Mob. Comput.
**2016**, 15, 1699–1713. [Google Scholar] [CrossRef] - Liang, W.; Xu, W.; Ren, X.; Jia, X.; Lin, X. Maintaining large-scale rechargeable sensor networks perpetually via multiple mobile charging vehicles. ACM Trans. Sens. Netw.
**2016**, 12, 1–26. [Google Scholar] [CrossRef] - He, L.; Kong, L.; Gu, Y.; Pan, J.; Zhu, T. Evaluating the on-demand mobile charging in wireless sensor networks. IEEE Trans. Mob. Comput.
**2015**, 14, 1861–1875. [Google Scholar] [CrossRef] - Lin, C.; Xue, B.; Wang, Z.; Han, D.; Deng, J.; Wu, G. DWDP: A double warning thresholds with double preemptive scheduling scheme for wireless rechargeable sensor networks. In Proceedings of the 2015 IEEE 17th International Conference on High Performance Computing and Communications, 2015 IEEE 7th International Symposium on Cyberspace Safety and Security, and 2015 IEEE 12th International Conference on Embedded Software and Systems, New York, NY, USA, 24–26 August 2015; pp. 503–508. [Google Scholar]
- Lin, C.; Wang, Z.; Han, D.; Wu, Y.; Yu, C.W.; Wu, G. TADP: Enabling temporal and distantial priority scheduling for on-demand charging architecture in wireless rechargeable sensor Networks. J. Syst. Archit.
**2016**, 70, 26–38. [Google Scholar] [CrossRef] - Lin, C.; Han, D.; Deng, J.; Wu, G. P2S: A primary and passer-by scheduling algorithm for on-demand charging architecture in wireless rechargeable sensor networks. IEEE Trans. Veh. Technol.
**2017**, 66, 8047–8058. [Google Scholar] [CrossRef] - Laporte, G.; Martello, S. The selective travelling salesman problem. Discret. Appl. Math.
**1990**, 26, 193–207. [Google Scholar] [CrossRef] - Feillet, D.; Dejax, P.; Gendreau, M. Traveling salesman problems with profits. Transp. Sci.
**2005**, 39, 188–205. [Google Scholar] [CrossRef] - Helsgaun, K. An effective implementation of the Lin–Kernighan traveling salesman heuristic. Eur. J. Oper. Res.
**2000**, 126, 106–130. [Google Scholar] [CrossRef] [Green Version] - OMNET++. The OMNET++ Discrete Event Simulation System. Available online: https://omnetpp.org/ (accessed on 10 July 2018).
- Farshchi, S.; Nuyujukian, P.H.; Pesterev, A.; Mody, I.; Judy, J.W. A TinyOS-Enabled MICA2-based wireless neural interface. IEEE Trans. Biomed. Eng.
**2006**, 53, 1416–1424. [Google Scholar] [CrossRef] [PubMed] - Qin, Y.; Boyle, D.; Yeatman, E. A novel protocol for data links between wireless sensors and UAV based sink nodes. In Proceedings of the 2018 IEEE 4th World Forum on Internet of Things (WF-IoT), Singapore, 5–8 February 2018; pp. 371–376. [Google Scholar]

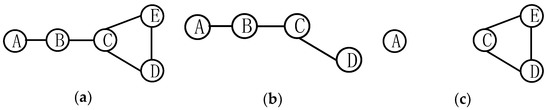

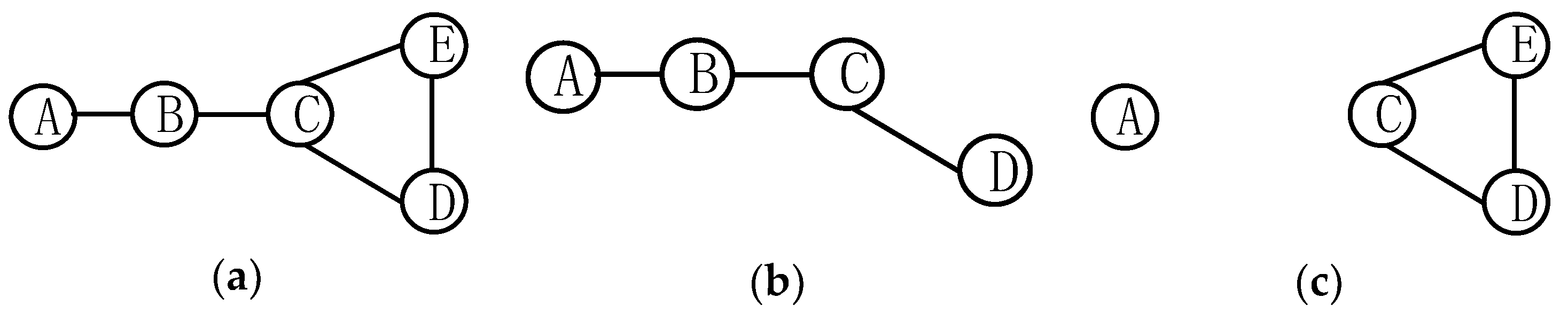

**Figure 3.**Example of network. (

**a**) The original network; (

**b**) The network of node E removed; (

**c**) The network of node B removed.

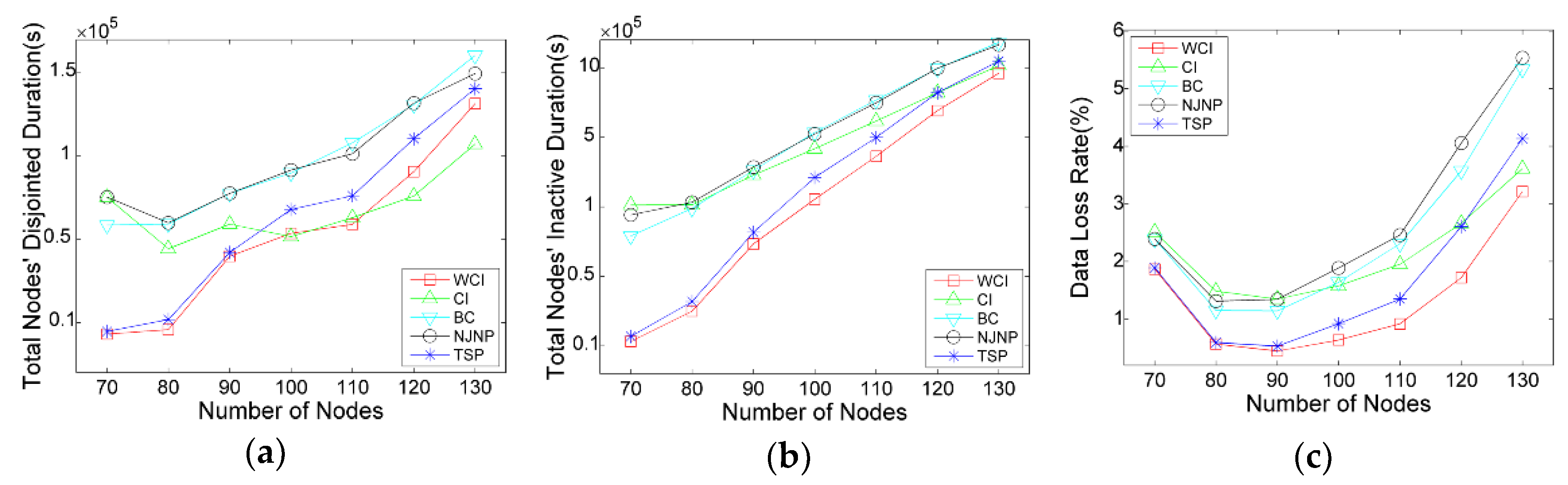

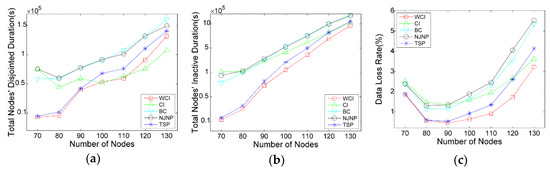

**Figure 5.**Impact of $\left|N\right|$ on the charging scheduling algorithms: (

**a**) Total nodes’ disjointed time; (

**b**) Total nodes’ inactive time; (

**c**) Network’s data loss rate.

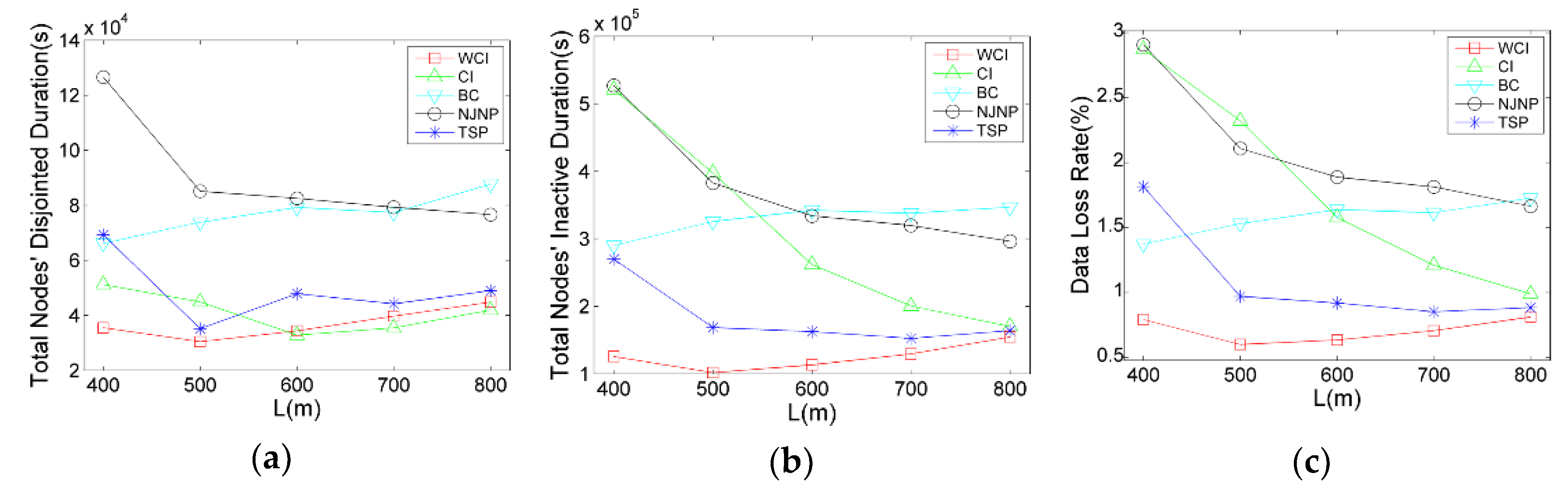

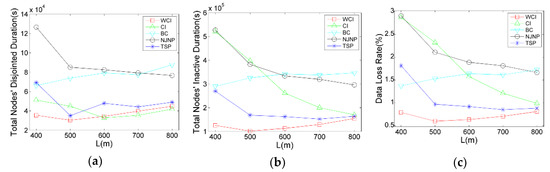

**Figure 6.**Impact of $L$ on the charging scheduling algorithms: (

**a**) Total nodes’ disjointed time; (

**b**) Total nodes’ inactive time; (

**c**) Network’s data loss rate.

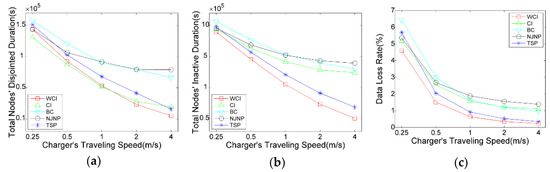

**Figure 7.**Impact of $v$ on the charging scheduling algorithms: (

**a**) Total nodes’ disjointed time; (

**b**) Total nodes’ inactive time; (

**c**) Network’s data loss rate.

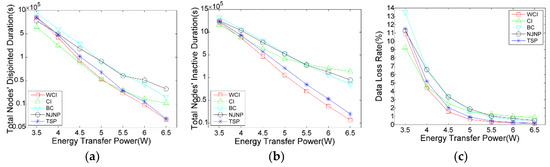

**Figure 8.**Impact of ${p}_{r}$ on the charging scheduling algorithms: (
