Sensors 2018, 18(5), 1402; doi:10.3390/s18051402

Article
New-Generation BeiDou (BDS-3) Experimental Satellite Precise Orbit Determination with an Improved Cycle-Slip Detection and Repair Algorithm
1
NASG Key Laboratory of Land Environment and Disaster Monitoring, China University of Mining and Technology, Xuzhou 221116, China
2
School of Environment Science and Spatial Informatics, China University of Mining and Technology, Xuzhou 221116, China
3
Satellite Positioning for Atmosphere, Climate and Environment (SPACE) Research Centre, School of Science, Mathematical and Geospatial Sciences, RMIT University, Melbourne, VIC 3001, Australia
*
Authors to whom correspondence should be addressed.
Received: 25 February 2018 / Accepted: 28 April 2018 / Published: 2 May 2018

Abstract

:
Currently, five new-generation BeiDou (BDS-3) experimental satellites are working in orbit and broadcast B1I, B3I, and other new signals. Precise satellite orbit determination of the BDS-3 is essential for the future global services of the BeiDou system. However, BDS-3 experimental satellites are mainly tracked by the international GNSS Monitoring and Assessment Service (iGMAS) network. Under the current constraints of the limited data sources and poor data quality of iGMAS, this study proposes an improved cycle-slip detection and repair algorithm, which is based on a polynomial prediction of ionospheric delays. The improved algorithm takes the correlation of ionospheric delays into consideration to accurately estimate and repair cycle slips in the iGMAS data. Moreover, two methods of BDS-3 experimental satellite orbit determination, namely, normal equation stacking (NES) and step-by-step (SS), are designed to strengthen orbit estimations and to make full use of the BeiDou observations in different tracking networks. In addition, a method to improve computational efficiency based on a matrix eigenvalue decomposition algorithm is derived in the NES. Then, one-year of BDS-3 experimental satellite precise orbit determinations were conducted based on iGMAS and Multi-GNSS Experiment (MGEX) networks. Furthermore, the orbit accuracies were analyzed from the discrepancy of overlapping arcs and satellite laser range (SLR) residuals. The results showed that the average three-dimensional root-mean-square error (3D RMS) of one-day overlapping arcs for BDS-3 experimental satellites (C31, C32, C33, and C34) acquired by NES and SS are 31.0, 36.0, 40.3, and 50.1 cm, and 34.6, 39.4, 43.4, and 55.5 cm, respectively; the RMS of SLR residuals are 55.1, 49.6, 61.5, and 70.9 cm and 60.5, 53.6, 65.8, and 73.9 cm, respectively. Finally, one month of observations were used in four schemes of BDS-3 experimental satellite orbit determination to further investigate the reliability and advantages of the improved methods. It was suggested that the scheme with improved cycle-slip detection and repair algorithm based on NES was optimal, which improved the accuracy of BDS-3 experimental satellite orbits by 34.07%, 41.05%, 72.29%, and 74.33%, respectively, compared with the widely-used strategy. Therefore, improved methods for the BDS-3 experimental satellites proposed in this study are very beneficial for the determination of new-generation BeiDou satellite precise orbits.
Keywords:
BDS-3 experimental satellites; precise orbit determination; improved cycle-slip detection and repair algorithm; improved methods; normal equation stacking; step-by-step

1. Introduction

The BeiDou demonstration system (BDS-1), the regional service system (BDS-2), and the global service system (BDS-3) have been developed by a “three-step” strategy [1]. BDS-1 consists of geosynchronous orbit (GEO) satellites launched from 2000 to 2003. On 27 December 2012, the BeiDou system, which has a space constellation of five GEO, five inclined geosynchronous orbit (IGSO) satellites, and four medium Earth orbit (MEO) satellites, began to provide services to the Asia Pacific region. BeiDou started to evolve from a regional service capability to a global service capability with the launch of the new-generation BeiDou experimental satellite (BeiDou, I1-S) into orbit in March 2015. Five BDS-3 experimental satellites (C31–C35) and two BDS-3 satellites (C19 and C20) were in orbit by the end of November 2017 [2]. Moreover, the new-generation BeiDou system plans to achieve a 30 satellites network by 2020 (three GEO, 24 MEO, and three IGSO) providing global navigation, positioning, and timing services [3].
However, the orbit accuracy of BeiDou is currently one of the major challenges with the expanding application of BeiDou in the field of navigation and positioning. Researchers have assessed the BDS-2 orbit [4,5,6] well to improve the accuracy and relevant algorithms of BeiDou orbit determination. The results showed that the three-dimensional root-mean-square error (3D RMS) of BDS-2 one-day overlapping arc for MEO (and IGSO) and GEO were improved from 0.5 m and 3.0 m to 0.2 m and 1.0 m, respectively. Furthermore, the orbit models of BDS-2 were refined in recent studies, which included the introduction of a radial constant acceleration of GEO [7,8], yaw attitude model [9,10], hardware delay [11], and inter-frequency bias (IFB) [12] to further improve the orbit accuracy. Recent assessment studies suggested that the satellite laser range (SLR) residuals from different data analysis centers for BDS-2 orbits are better than 0.2 m for MEO (and IGSO) and 0.5 m for GEO [11], respectively. In general, BDS-2 orbits have been improved and refined over the years. For the new-generation BeiDou experimental satellites (hereafter called BDS-3) orbits, in [13,14], four BDS-3 orbits (C31–C34) were estimated based on the international GNSS Monitoring and Assessment System (iGMAS) and the Multi-GNSS Experiment (MGEX) stations. Due to restrictions in the tracking networks, the results suggested that the radial and along-directions of one-day overlapping arc errors were between 0.10 m and 0.25 m. In addition, the RMS of the SLR residuals was at the 0.1–0.3 m level. However, the impacts of orbit models, such as solar radiation pressure and yaw model, were not analyzed in their studies. In [15], three-month BDS-3 orbits were acquired based on the same methods as BDS-2 orbit determination, which was analyzed in terms of yaw attitude and solar radiation pressure models. Moreover, to further improve BDS-3 orbit accuracy, inter-satellite link (ISL) and autonomous orbit determination were taken into account [16,17,18]. However, compared with the BDS-2 orbit, only preliminary studies on BDS-3 orbit determination, which should be focused on, were conducted.
To improve the accuracy of BDS-3 orbits, it should be noted that the data availability and the quality of tracking networks used are the two main factors that restrain the orbit accuracy in the BDS-3 orbit determination, which directly affect the accuracy of orbit determination [19]. Therefore, in [20,21,22], the BDS-3 signals and its quality were evaluated, and the results, compared to BDS-2, showed that the data quality of the BDS-3 improves significantly. In addition, the satellite-induced multipath effects along with the elevation in BDS-2 disappeared in the BDS-3 observations. However, because the new signals of BDS-3 satellites remain in the internal test stage, the BDS-3 signals are mainly tracked by the iGMAS network [13], the data quality of which was not involved in the related analysis. Meanwhile, from the experiments of data quality analysis (Section 2), it was found that the smaller cycle-slip ratio, especially for GPS, in the iGMAS tracking data was apparent. Thus, research on the optimal iGMAS observations is vital for the BDS-3 orbit determination.
To control the GNSS observation quality, the effective cycle-slip detection and repair algorithm plays a key role [23]. When triple-frequency observations of BDS and GPS are received, the linear combinations of triple-frequencies make it easy to realize cycle-slip detection and repair in each frequency [24]. However, most of stations for tracking BDS-3 signals are still double frequencies. In [25], the Turboedit algorithm was proposed, which has been widely used in the field of navigation and positioning. However, it should be noted that the observation noise and poor data quality might impose restrictions on this algorithm, especially for omitting the observations with several cycle slips that reduces the data availability of the network directly. Therefore, an accurate cycle-slip detection and repair algorithm in BDS-3 orbit determination should be proposed to improve data availability given the limited data sources and the poor quality of iGMAS data.
Furthermore, to increase the data availability, the estimation of parameters based on the normal equation stacking (NES) of several networks is another method, thereby improving the parameter’s strength in BDS-3 orbit determination. Since the iGMAS network can receive BDS-3 signals (B1 and B3) with a few stations but not consistent with BDS-2 signals (mainly B1 and B2) tracked by the MGEX network. The relevant studies about the NES were discussed based on the single-day into multi-day solutions [26,27,28]. These served as references for improving the parameter estimation in BDS-3 orbit determination in this study.
To determine four new-generation BeiDou (BDS-3) experimental satellites (C31, C32, C33, C34; C35 could not be tracked by iGMAS) orbits with the given limited data availability and poor data quality of iGMAS data, this study mainly proposes an improved cycle-slip detection and repair algorithm and two optimized methods based on iGMAS and MGEX networks. In Section 2, the quality of iGMAS observations is briefly analyzed. Then, an improved cycle-slip detection and repair algorithm for iGMAS is proposed to solve the poor data quality and low data availability. In Section 3, two orbit determination methods are discussed based on the combination of MGEX and iGMAS observations. In Section 4, orbit accuracy analysis is conducted by overlapping arc errors and SLR residuals, respectively.

2. Improved Cycle-Slip Detection and Repair Algorithm

In the analysis data of sixteen iGMAS stations could be obtained by the end of December 2016, among them, nine stations tracked BDS-3 signals. To understand the data quality of iGMAS, two stations (LHA1 and WHU1) were selected to conduct data quality analysis. Meanwhile, it should be noted that the corresponding MGEX stations (LHAZ and JFNG) were the same location stations and can be used for data quality comparison. In the experiments, the GPS data from day of year (DOY) 156 to 160 in 2017 were selected as examples. The observation effective rate, MP1 and MP2, and the average cycle-slip ratio (CSR) (the ratio between the number of observations and epochs with cycle slips) [29] are listed in Table 1 based on the Multi-GNSS data analysis software (MTEQC), which is developed and improved by the authors. Moreover, the effective rate and CSR of BDS-3 in iGMAS data are also listed in Table 1, while the BDS-2 of MGEX was taken as a reference to compare BeiDou data quality of both networks.
In Table 1, the cut-off of elevation angle was set as 5 degrees. Analyses of observations taken at the same sites revealed that the data quality of GPS observations is considerably poorer in iGMAS than for MGEX, especially focusing on cycle slips and multipath. In addition, investigating BDS-2 and BDS-3 observations, the cycle slips are much more numerous in MGEX. However, the full exploitation of observations is necessary due to limited data availability in BDS-3 orbit determination. Thus, the high-accuracy cycle-slip detection and repair algorithm for iGMAS and MGEX is a prerequisite of the BDS-3 orbit determination.
To optimize the observations quality in BDS-3 orbit determination, based on the traditional Turboedit algorithm [25], the following issues may occur when processing the cycle slips in iGMAS data: (1) the detection and repair of the small cycle-slips is inaccurate given the larger noise of iGMAS data (MP1 and MP2 are larger than for MGEX in Table 1); (2) the data piece with several cycle slips is eliminated directly, thereby reducing the data availability of the tracking observations; and (3) the algorithm is insensitive to some special combinations (such as the same cycle slips in each frequency), especially small cycle slips. Therefore, an improved cycle-slip detection and repair algorithm for iGMAS data is presented in the study that is based on the accurate prediction of the ionospheric delays. The corresponding algorithm is presented below.
The GNSS observation equation is [30]:
{ P i = ( ρ + c d T c d t + d t r o p ) + k i I ˜ + ε i L i = ( ρ + c d T c d t + d t r o p ) k i I ˜ + λ i N i + ξ i
Equation (1) shows the pseudo-range and phase observation equation; i denotes the carrier frequency; ρ is the geometric distance between the satellite and the station; c is the speed of light; d T , d t are the satellite and receiver clock offsets, respectively; d t r o p represents the troposphere delay; I ˜ is the ionospheric delay on L1 frequency; k i = f 1 2 / f i 2 is the ionospheric delay coefficient; ε i , ξ i are the corresponding observation noise; λ i is the wavelength; and N i is the integer ambiguity.
The ambiguity of Melborne-Wübbena (MW) combination reads:
N w = ( f 1 L 1 f 2 L 2 f 1 f 2 f 1 P 1 + f 2 P 2 f 1 + f 2 ) 1 λ w = N 1 N 2 + ε w
where λ w = c f 1 f 2 is the widelane wavelength, and ε w is the combined noise.
The cycle slips of L1 and L2 are assumed as Δ N 1 , Δ N 2 , respectively; thus, after determining the epoch difference of the MW combination, the combined ambiguity is:
Δ N w = Δ N 1 Δ N 2 + ε Δ w
where ε Δ w is the noise. Then, Equation (3) is inserted into the phase equation as epoch difference:
Δ L = [ Δ L 1 λ 1 Δ N w Δ L 2 ] = [ 1 λ 1 1 λ 2 ] [ Δ ( ρ + c d T c d t + d t r o p ) Δ N 2 ] [ k 1 k 2 ] Δ I ˜ + [ Δ ξ 1 Δ ξ 2 ] = A [ Δ ( ρ + c d T c d t + d t r o p ) Δ N 2 ] k Δ I ˜ + Δ ξ
In Equation (4), A = [ 1 λ 1 1 λ 2 ] , k = [ k 1 , k 2 ] T , Δ ξ = [ Δ ξ 1 , Δ ξ 2 ] T .
Assume ρ 0 = ρ + c d T c d t + d t r o p . According to Equation (4), the cycle slips on L2 observation can be expressed as:
[ Δ ρ ^ 0 Δ N ^ 2 ] = ( A T Q 1 A ) 1 A T Q 1 Δ L
and:
{ Q = cov [ k Δ I ˜ + Δ ξ ] = σ Δ I ˜ 2 k k T + Q Δ ξ Δ ξ k c T c k T c = cov [ Δ ξ , Δ I ˜ ]
It should be noted that the accurate estimation of the cycle-slip values on L2 requires further analysis of Q. The parameter Δ I ˜ in Equation (4) can be expressed as the difference between the estimation error of the former epoch d I ^ ( t 1 ) and the prediction error of the current epoch d I ¯ ( t ) :
Δ I ˜ = d I ¯ ( t ) d I ^ ( t 1 ) + e m
where e m is the prediction model error. However, for the epoch without cycle slips, the phase observation equation can be obtained as below:
L = [ L 1 λ 1 N 1 c d T + c d t d t r o p L 2 λ 2 N 2 c d T + c d t d t r o p ] = [ 1 k 1 1 k 2 ] [ ρ I ] + [ ξ 1 ξ 2 ] = B [ ρ I ] + ξ
where B = [ 1 k 1 1 k 2 ] and ξ = [ ξ 1 , ξ 2 ] T . The ionospheric delay can be expressed as follows:
[ ρ ^ I ^ ] = ( B T B ) 1 B T L
The coefficients of the ionospheric delays are assumed as b. Thus, the estimated ionospheric delays can be written as:
I ^ = b T L
However, the variations of the total electron content (TEC) could be assumed as a polynomial model during a short time (one hour) given an inactive ionosphere period, which can be concluded from the estimated errors of ionospheric delays (Figure 4). Therefore, this study takes a polynomial function to fit the ionospheric delays in short time (five epochs). Thus:
I ^ ( t ) = θ 0 + θ 1 t + θ 2 t 2 + e m '
where θ is the polynomial coefficients; t is the epoch point, and e m ' is the model fitting residual. The ionospheric delay is assumed to be fitted by five epochs. Then:
I = G θ + d I
where I = [ I ^ ( t 5 ) I ^ ( t 4 ) I ^ ( t 3 ) I ^ ( t 2 ) I ^ ( t 1 ) ] T , θ = [ θ 0 θ 1 θ 2 ] T , d I = [ ( e m ' ) 1 ( e m ' ) 5 ] T and G = [ 1 1 1 1 1 5 4 3 2 1 25 16 9 4 1 ] T
The coefficients of polynomial function are computed as follows:
θ ^ = ( G T G ) 1 G T I
Then, the current epoch is set as t = 0. Therefore, the prediction of ionospheric delay is:
I ¯ ( t ) = θ ^ 0 = g T I
where g = [ g 1 g 2 g 3 g 4 g 5 ] T represents the coefficients of five ionospheric delays. By inserting Equations (7) and (14) into Equation (6), we obtain:
σ Δ I ˜ 2 = var [ e m ] + var [ d θ ^ 0 ] + var [ d I ^ ( t 1 ) ] 2 cov [ d θ ^ 0 , d I ^ ( t 1 ) ] = σ m 2 + ( g T g ) ( b T b ) σ L 2 + b T b σ L 2 2 cov [ g 5 d I ^ ( t 1 ) , d I ^ ( t 1 ) ] = σ m 2 + [ ( g T g ) + 1 2 g 5 ] ( b T b ) σ L 2
c = cov [ Δ ξ Δ I ˜ ] = cov [ ξ ( t 1 ) d θ ^ 0 d I ^ ( t 1 ) ] = cov [ ξ ( t 1 ) ( g 5 1 ) b T ξ ( t 1 ) ] = ( 1 g 5 ) σ L 2 b
In Equation (6), Q can be simplified as:
Q = σ m 2 k k T + Q ¯
where Q ¯ = { ( b T b ) [ ( g T g ) + 1 2 g 5 ] k k T + E 2 ( 1 g 5 ) k b T ( 1 g 5 ) b k T } σ L 2 and E 2 is an identity matrix with two dimensions. Based on the matrix inversion lemma, Q can be expressed as:
Q 1 = Q ¯ 1 σ m 2 1 + σ m 2 k T Q ¯ 1 k Q ¯ 1 k k T Q ¯ 1 = Q ¯ 1 θ m M
where M = Q ¯ 1 k k T Q ¯ 1 , and θ m = σ m 2 1 + σ m 2 k T Q ¯ 1 k .
The model error from Equations (15) to (18) is:
σ m 2 ( t ) = ( 1 μ ) σ m 2 ( t 2 ) + μ ( [ I ^ ( t 1 ) I ¯ ( t 1 ) ] 2 σ I ¯ 2 ( t 1 ) )
where μ is the impact factor of the previous epoch, and σ I ¯ 2 = ( g T g ) ( b T b ) σ L 2 .
Therefore, in Equation (5), the solution of A T Q 1 A can be expressed as:
A T Q 1 A = A T Q ¯ 1 A θ m A T M A
According to the above equations, the cycle-slip values on L2 can be calculated accurately by inserting Equation (20) into Equation (5). Moreover, inserting the fractional parts on L2 adjusted to integer numbers into Equation (3), can solve the cycle slips on L1 observations. In the improved cycle-slip detection and repair algorithm, the estimated ionospheric delay in Equation (10) contains the constant biases, namely, integer ambiguity and hardware delay in adjacent epochs, which do not affect the cycle-slip detection at all.
In this study, an improved algorithm of double-frequencies’ cycle-slip detection and repair is proposed. The new algorithm considers the drawbacks of the inaccurate traditional Turboedit (see Table 4) to refine the data preprocessing based on a predicted ionospheric delay. A polynomial prediction model is used to acquire the ionospheric delays of the current epoch, which takes the correlation of adjacent epochs into consideration. Moreover, the cycle slips are detected and repaired epoch-wise to increase data availability. In general, compared with the traditional Turboedit, the advantages of the improved algorithm can be summarized as follows: (1) the algorithm, which is based on the predicted ionospheric delay information rather than a geometry-free (GF) combination, solves the problem of special cycle-slip combinations in two frequencies (such as 1:1 and 9:7 for L1:L2 in GPS observations); (2) the improved algorithm is more accurate than MW and GF combinations in Turboedit, which has to fit the GF and ignores the correlation of the ionospheric delays; (3) in the estimation of ionospheric delays, the pseudo-range observations, which have an impact on the detection and repair of the small cycle-slips as the larger noise than phase observations, are disregarded; and (4) the variations in the ionospheric delay estimation caused by constant biases in Equation (14) are zero when i = 1 5 g i = 1 ( δ Δ I t , t 1 = δ I ¯ ( t ) δ I ¯ ( t 1 ) = g T δ I δ I ^ ( t 1 ) = ( i = 1 5 g i 1 ) b T δ N = 0 ).
To illustrate the improved cycle-slip detection and repair algorithm, Figure 1 shows the flow chart of the above procedure. Moreover, the data from iGMAS and MGEX tracking networks are selected to verify the reliability and availability of the improved algorithm. The fractional part of the estimated L2 based on the improved algorithm is extracted by no cycle-slip observations of iGMAS (WHU1 and LHA1) and MGEX (LHAZ). Four days (DOY 183–186, 2017) of observations with a 30 s sampling interval were chosen to conduct the cycle-slip detection and repair experiments and then to fully explain the accuracy of the improved algorithm. Due to the fact that the experimental datasets were extremely large, the G01 and C01, C06, C14, and C32 were selected as the representative of GPS, and GEO, IGSO, MEO, and BDS-3 in BeiDou to analyze the results, respectively. Table 2 summarizes the maximum, average, and standard deviation (STD) of the fractional parts of the estimated cycle slips and the properness after rounding on G01. Similarly, results of BeiDou satellites (C06 missed on DOY 184) are listed in Table 3, in which only LHA1 is listed to conduct the corresponding analysis.
In Table 2, the average and STD of the fractional parts of the estimated L2 are less than 0.2 cycles, whereas some of the maximum values are beyond 0.5 cycles, especially for WHU1. Moreover, based on the improved algorithm, a few wrong cycle slips were found in this study. However, the properness is beyond 99% for all experiments, in which the incorrect estimation for iGMAS is slightly higher than for MGEX observations. It can be explained that the larger noise of iGMAS observations than for MGEX causes the inaccurate estimation of ionospheric delay from the analysis of Table 1.
In Table 3, the properness of four days for different BeiDou satellites on LHA1 reached upwards of 100%. Meanwhile, the maximum values are smaller than for G01 in Table 2, which can ensure the properness of rounding the fractional parts. However, it should be noted that the results of C32 seem to be better than for BDS-2. According to the experiments, it proved that the improved algorithm is reliable for BeiDou observations, especially for BDS-3 experimental satellites. Furthermore, the fractional parts of estimated cycle slips in all epochs are demonstrated in Figure 2 and Figure 3 to provide the details of the improved algorithm.

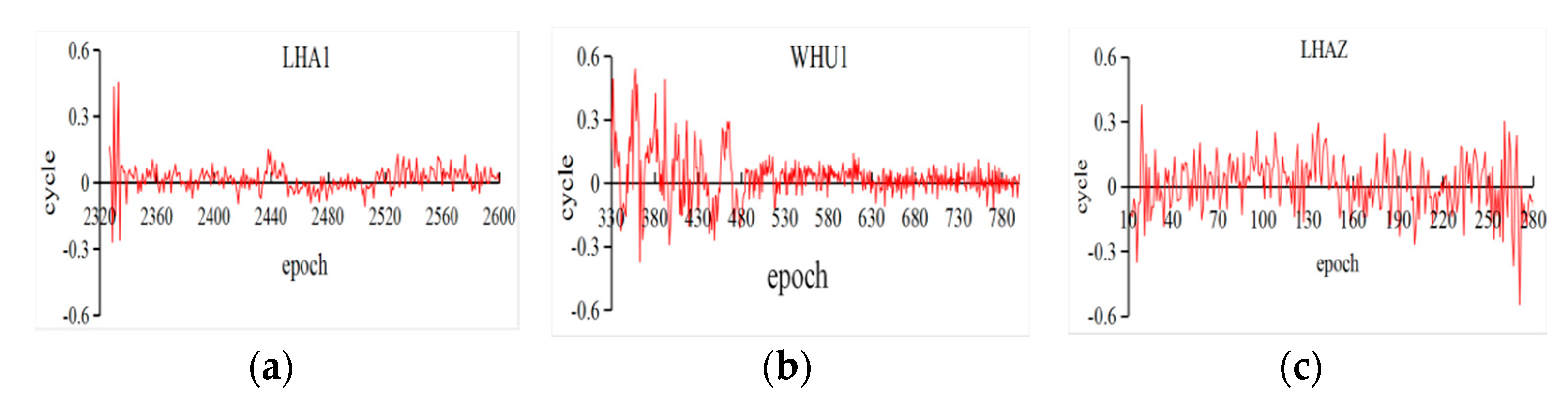

In Figure 2, the fractional parts of the G01 (DOY 183) at three stations are drawn; it could be found that the fractional parts of iGMAS observations are convergent as the epoch increases. Since the improved algorithm is epoch-wise processing, the results are influenced by the noise of observations at the beginning. In addition, the MGEX observations are almost less than 0.3 cycles. Similarly, Figure 3 shows the results of three types BeiDou satellites and BDS-3 experimental satellites, which are based on LHA1 observations on DOY 183. Simultaneously, the corresponding fractional parts are less than 0.2 cycles. However, the result was slightly worse for MEO than for IGSO and GEO satellites and its trend could be caused by the BeiDou satellite-induced biases [31]. The accuracy of the improved algorithm proposed in this study can meet the requirements of orbit determination by testing iGMAS and MGEX observations (without cycle slips). The properness of rounding reached 100%, except for a few errors.

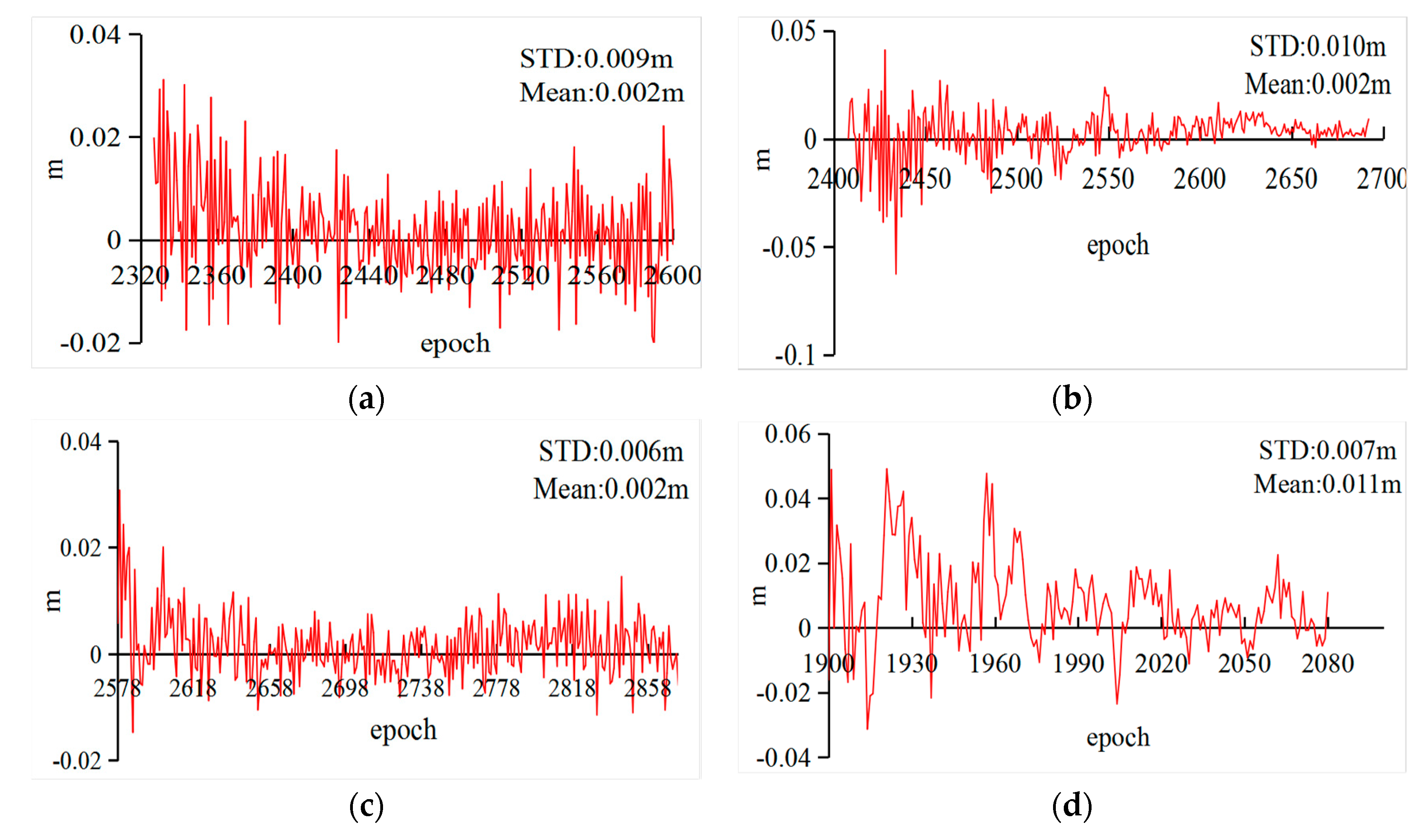

Then, a group of cycle slips was inserted into the observations to test the reliability of the improved algorithm. Due to the fact that the Turboedit could not solve the special combinations on different frequencies, such as 1:1 or 9:7 for cycle slips on L1 and L2 of GPS, the experiment selected six types of combinations ((0,1), (1,0), (1,1), (9,7), (100,1), and (790,563)) to analyze the improved algorithm [32]. The observations from the last experiment were inserted cycle slips, and the repaired results are based on rounding the float estimates. Table 4 only summarizes the results of G01, C01, C06, C14, and C32 based on LHA1 on DOY 183. In Table 4, the cycle slips in GPS or BeiDou observations, correspondingly, were completely corrected based on the improved algorithm. However, the estimated cycle slips at epoch 2600 were (0.525,0.698), which is difficult to fix as the real values in the ambiguity resolution. In this study, from the results of all experiments, this phenomenon need not be taken into consideration as the very few numbers did not impact the corresponding conclusions. Moreover, to further analyze the improved algorithm, the results of Turboedit were also listed in Table 4. The experimental results show that the ability of the improved algorithm to detect and repair cycle slips outperforms the Turboedit approach, especially for repairing values. Furthermore, the differences between the estimated and the predicted ionospheric delays are also calculated to test the accuracy of the predicted polynomial model. Figure 4 displays the ionospheric delay residuals for G01, C06, C14, and C32 (LHA1) calculated from the same data as Figure 2. In Figure 4, the errors of the predicted ionospheric delays are below 0.02 m as time increases, which can meet the requirements of the cycle-slip detection and repair.
The simulation experiments verified the accuracy of the improved cycle-slip detection and repair algorithm proposed in this study. The orbit determination should be further tested to demonstrate the reliability of the proposed algorithm. However, given the data quality and limited data sources, the observations from multiple tracking networks must be fully applied to improve the accuracy of the parameter estimation. In the following section, two methods were used to effectively utilize the observations from iGMAS and MGEX tracking networks.

3. Two Methods for BDS-3 Orbit Determination

Concerning observations two factors must be considered in BDS-3 orbit determination: (1) Due to the restriction of the number and distribution of BDS-3 tracking stations, it is insufficient for BDS-3 observations required in BDS-3 orbit determination. As visible in Figure 7, the number of BDS-3 tracking stations increased from 9 to 17 at the end of the experiment period. According to the station distribution theory [33], this number of stations was far from meeting the precise orbit determination requirements; (2) The observation types from different tracking networks were different from each other, especially for BeiDou. Based on the analysis of the observations from iGMAS and MGEX, BDS-2 (mainly B1 and B2) could be received by the MGEX and iGMAS, while BDS-3 was only acquired by iGMAS with B1 and B3. Therefore, the orbit determination suffered from the inconsistency between two tracking networks. However, in the study of multi-GNSS orbit determination [19], the full use of various observations improved the strength of the parameter estimation and indirectly enhanced the accuracy of the orbit parameters. Therefore, two methods, namely, NES and step-by-step (SS), for improving the accuracy of BDS-3 orbit estimations using the combination of different networks, were proposed.

3.1. BDS-3 Orbit Determination Based on NES

The parameters related to the BDS-3 experimental satellites orbits could be improved indirectly through the MGEX observations, which accurately obtains the relevant parameters (station coordinates, tropospheres, and clock offsets). This study improved the data availability based on the NES of two networks in BDS-3 orbit determination.
The normal equation stacking method has been well discussed [27,34]. In this study, based on the orbit determination, some more details about NES were given as follows:
The normal equations of BDS-3 orbit determination based on iGMAS observations can be assumed according to [27]:
[ N 11 N 12 N 21 N 22 ] [ X Y ] = [ W 1 W 2 ]
where X consists of the parameters of troposphere, station coordinates, and stations clocks; Y denotes the parameters related to the BDS-3, such as orbit parameters, satellites clock offsets; and N is the coefficient matrix corresponding to the normal equation.
Similarly, the normal equations of the combined GPS and BDS-2 orbit determination based on MGEX and iGMAS are set up as in [27]:
[ N 11 ' N 12 ' N 21 ' N 22 ' ] [ X Y ' ] = [ W 1 ' W 2 ' ]
where X represents the same parameters, such as iGMAS station coordinates, troposphere, and stations clocks, as in Equation (21). Y′ is the station-related MGEX as mentioned above (MGEX station coordinates, troposphere, and stations clocks), and GPS and BDS-2 satellite orbit parameters based on iGMAS and MGEX networks.
Thus, the estimation of X is obtained using Equations (21) and (22) [27]:
( N 11 N 12 N 22 1 N 21 ) X = W 1 N 12 N 22 1 W 2
[ N 11 ' N 12 ' ( N 22 ' ) 1 N 21 ' ] X = W 1 ' N 12 ' ( N 22 ' ) 1 W 2 '
Combining Equations (23) and (24), then, assuming Q = N 11 + N 11 ' , M = N 12 N 22 1 N 21 + N 12 ' ( N 22 ' ) 1 N 21 ' , W = W 1 ' + W 1 , and K = N 12 N 22 1 W 2 + N 12 ' ( N 22 ' ) 1 W 2 ' :
[ Q M ] X = W K
In Equation (25), X is based on the inversion of [Q–M]. This study proposes a simple method to improve computational efficiency and avoid program overflow caused by large matrix dimensions, as follows:
The symmetric matrix Q is decomposed by the Cholesky algorithm as Q = R T R . R is a low triangular matrix:
Q M = R T ( R T ( Q M ) R 1 ) R = R T [ E M ¯ ] R
where M ¯ = R T M R 1 . The eigenvalue decomposition of M ¯ is used to obtain:
M ¯ = V T D V
In Equation (27), V is the orthogonal matrix after decomposition, and D = d i a g ( d 1 d 2 d n ) . Thus:
Q M = R T V T ( E D ) V R = U T ( E D ) U
where U = R V . Set X as n dimensions. E is an identity matrix with n × n elements. Then, in Equation (28):
[ Q M ] 1 = U 1 [ 1 1 d 1 1 1 d 2 1 1 d n 1 1 1 d n ] U T
In Equation (29), set:
U 1 = [ u ¯ 11 u ¯ 12 u ¯ 1 n u ¯ 21 u ¯ 22 u ¯ 2 n u ¯ n 1 u ¯ n 2 u ¯ n n ]
Thus, Xi can be further simplified, if:
u m = [ u ¯ i 1 1 d 1 u ¯ i 2 1 d 2 u ¯ i i 1 d i u ¯ i n 1 d n ] T
then:
X ^ i = u m T U T ( W K )
The relevant parameters about the BDS-3 orbits can be solved by substituting Equation (32) into (21). Thus:
Y = N 22 1 ( W 2 N 21 X ^ )

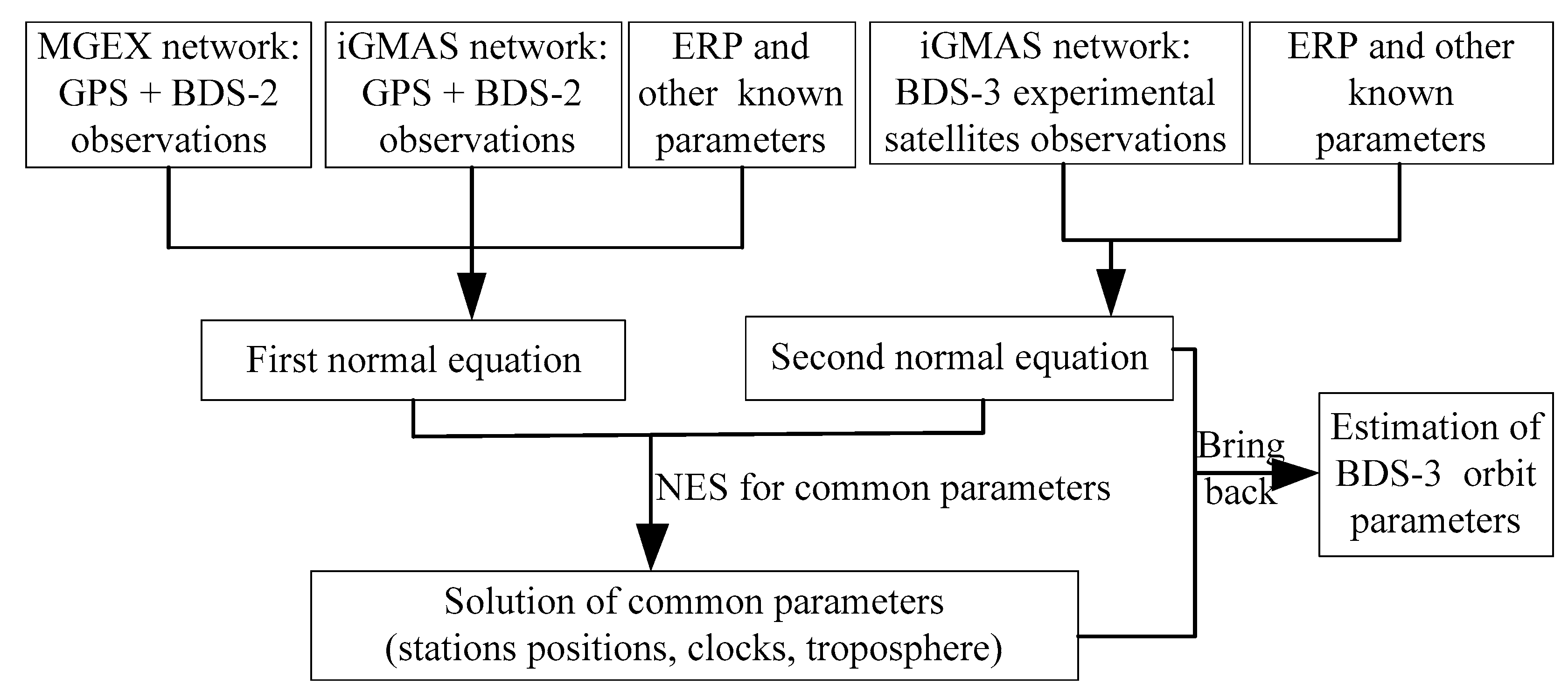

The BDS-3 orbit parameters can be determined by the same methods as mentioned above, and three-day arcs can be obtained by the corresponding state transformation matrix. Figure 5 illustrates the flowchart of NES to specifically describe the method of BDS-3 orbit determination.
Since the parameters of the ISBs and IFBs between GPS and BDS-2 in the combined orbit determination are highly correlated, the biases are introduced as one type of estimated parameter to avoid separating them from each other. However, as the characteristics of bias parameters for the BDS-3 system are not taken into consideration in the current research, the biases between the BDS-3 and GPS (BDS-2) are difficult to define in the combined orbit determination. Therefore, as shown in Figure 5, additional transformation parameters (spatial seven-parameter transformation) are set to adjust between two normal equation systems.

3.2. BDS-3 Orbit Determination Based on SS

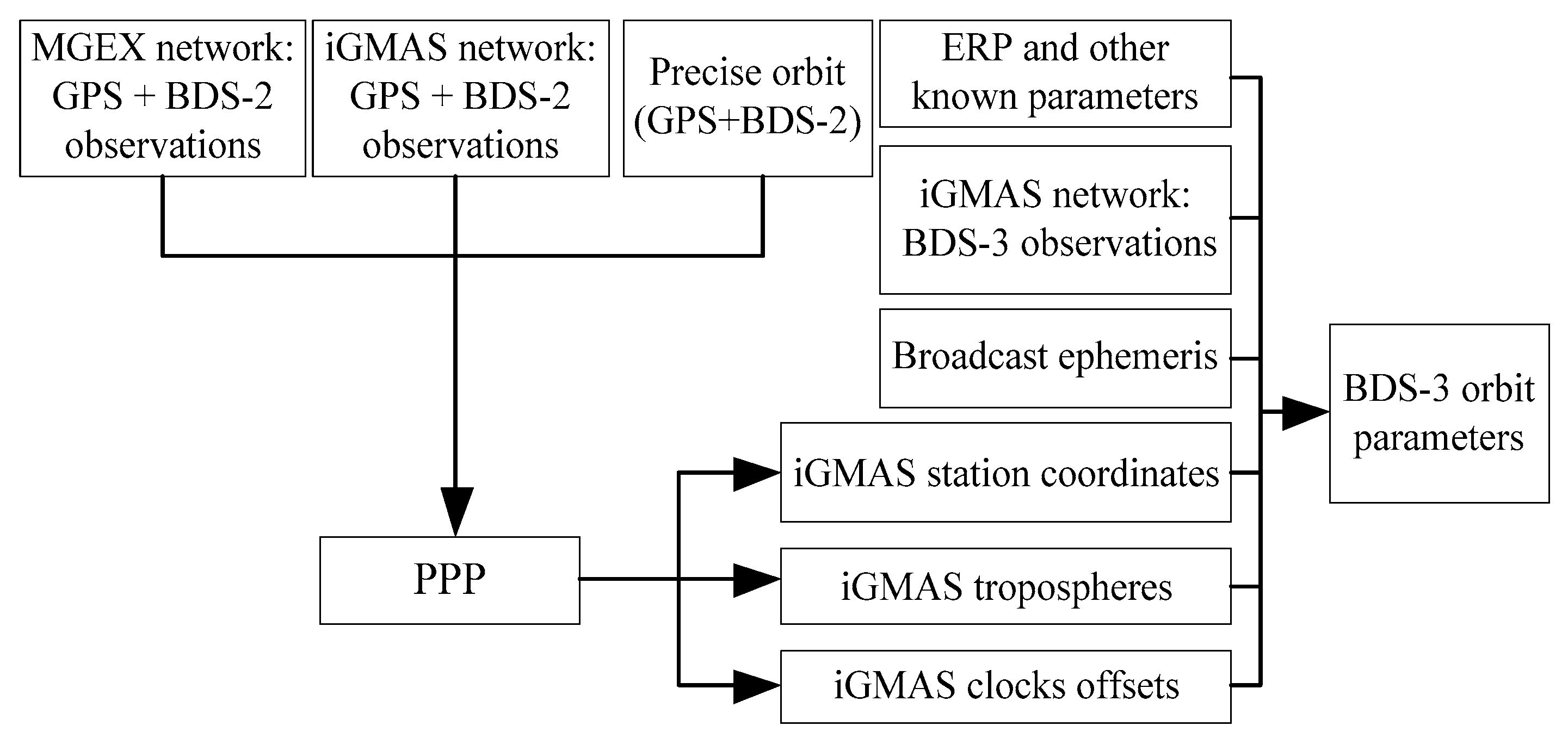

The BDS-3 experimental satellite orbit determination based on NES is an effective method to avoid the observation inconsistency of the different tracking networks caused by different tracking signals. Similarly, the fixed parameters, such as station coordinates, tropospheric delays, and clock offsets of the iGMAS stations, can be introduced into the BDS-3 orbit determination by precise point positioning (PPP). Therefore, the SS method is also adopted in this study. Figure 6 depicts the flowchart of BDS-3 experimental satellite orbit determination based on iGMAS and MGEX networks by SS.
Two methods for improving the accuracy of BDS-3 experimental satellites orbit estimations were provided by using different tracking networks. The NES contains more information on observations with the same data sources as the SS, which is more precise (in Section 4, as the perfect modeling of the stochastics, the orbit results estimated by the NES are more accurate and precise than the SS) in the parameter estimation. Based on the improved cycle-slip detection and repair algorithm and the two methods of orbit determination, data quality, and availability considerably improved given the limited number of observations. The precise orbit determination and the corresponding accuracy analysis are discussed in the next section.

4. BDS-3 Orbit Determination and Its Accuracy Analysis

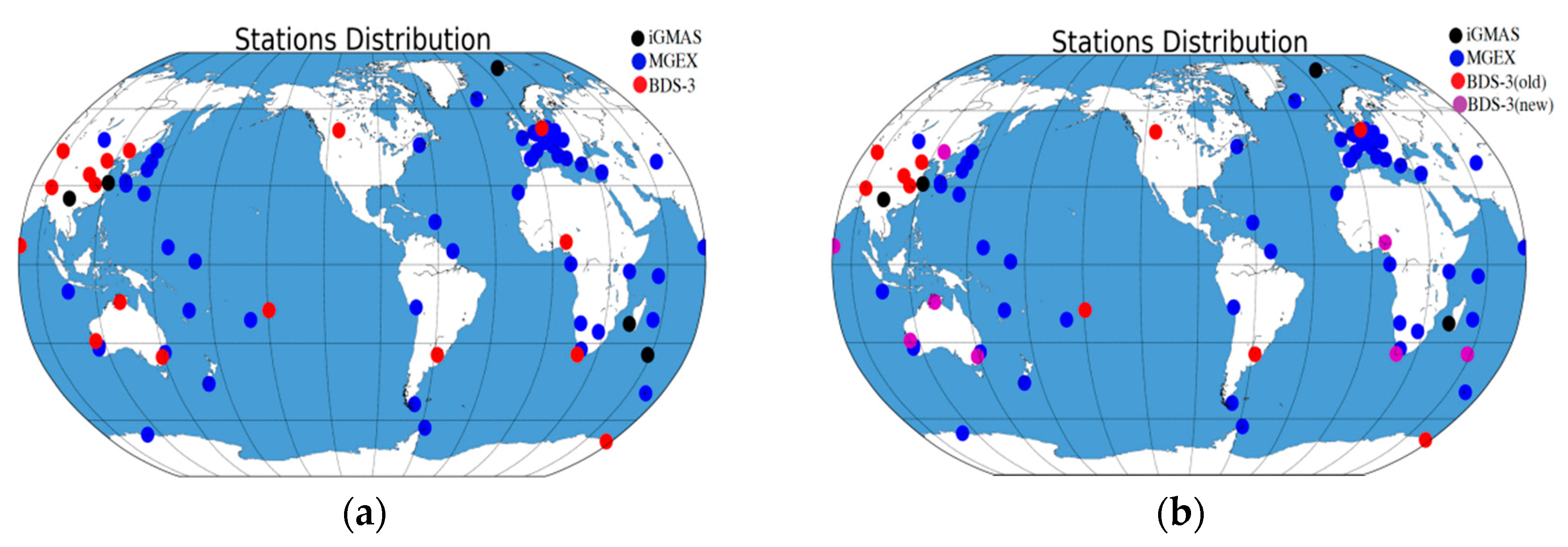

In this study, the BDS-3 experimental satellite orbit determination was conducted from DOY 154, 2016 to DOY 149, 2017 with iGMAS and MGEX observations. The distribution of tracking stations is presented in Figure 7a, where the types of stations are represented by different colors. A total of 16 iGMAS (nine of them contain BDS-3 observations) and 54 MGEX stations were used at the beginning of the orbit determination. However, numbers of stations containing BDS-3 observations increased to 17 at the end of the experiment given the equipment update and network extension of the iGMAS. Figure 7b shows the distribution of stations, where the BDS-3 tracking stations are presented with magenta. The parameter configurations and related models of orbit determination refer to [15], in which the main parameters are listed in Table 5. Moreover, the model used in used GPS orbit determination, e.g., for solar radiation pressure, were considered here as a reference.

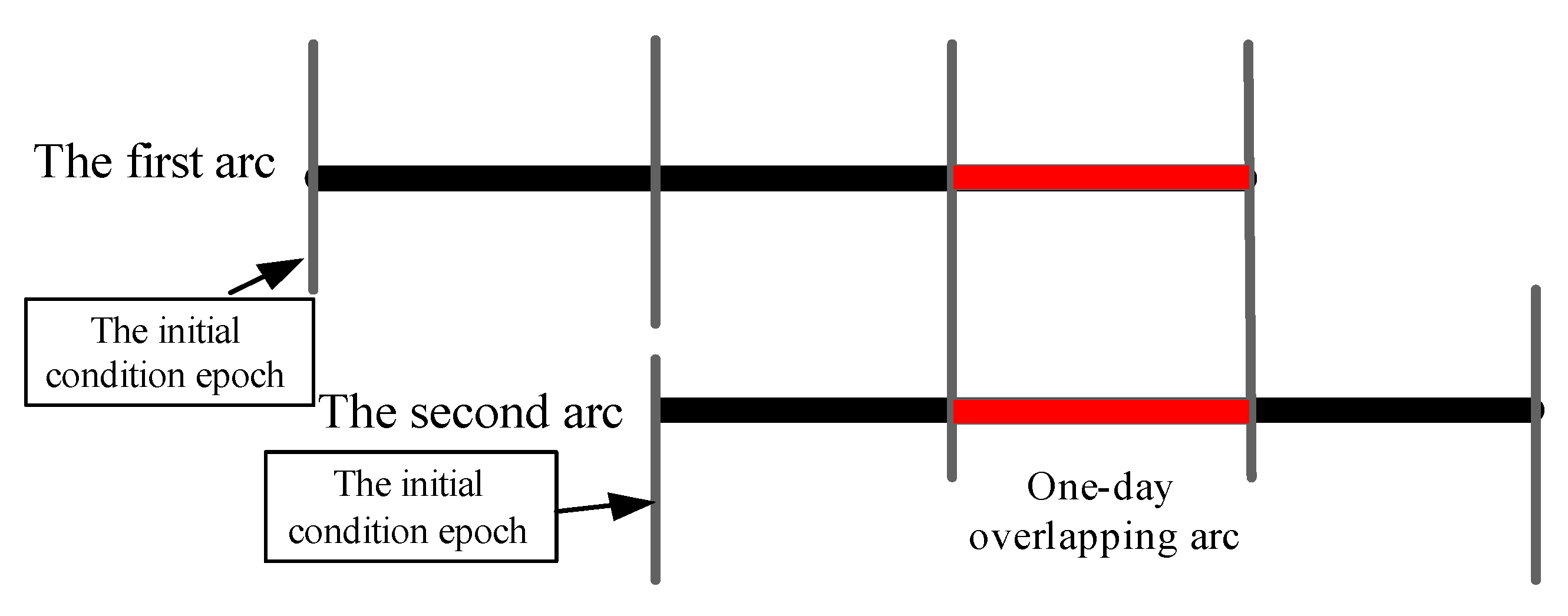

This study assessed the BDS-3 experimental satellite orbit based on the following experiments to adequately analyze its accuracy: (1) the 3D RMS of one-day overlapping arc errors based on two adjacent orbit determination processes, the scheme of which is displayed in Figure 8; and (2) BDS-3 is equipped with laser retroreflector array, which can be used to check the orbit accuracy by SLR residuals.
The overlapping arcs accuracy of two methods for BDS-3 (C31, C32, C33, and C34) orbit determinations are illustrated in Figure 9 and Figure 10 for the period DOY 155, 2016 until DOY 149 in 2017. The variations of the orbit accuracy were fitted by a trend line (dashed) in the results. In addition, the angles between orbital plane and Sun called β were also plotted in corresponding figures.

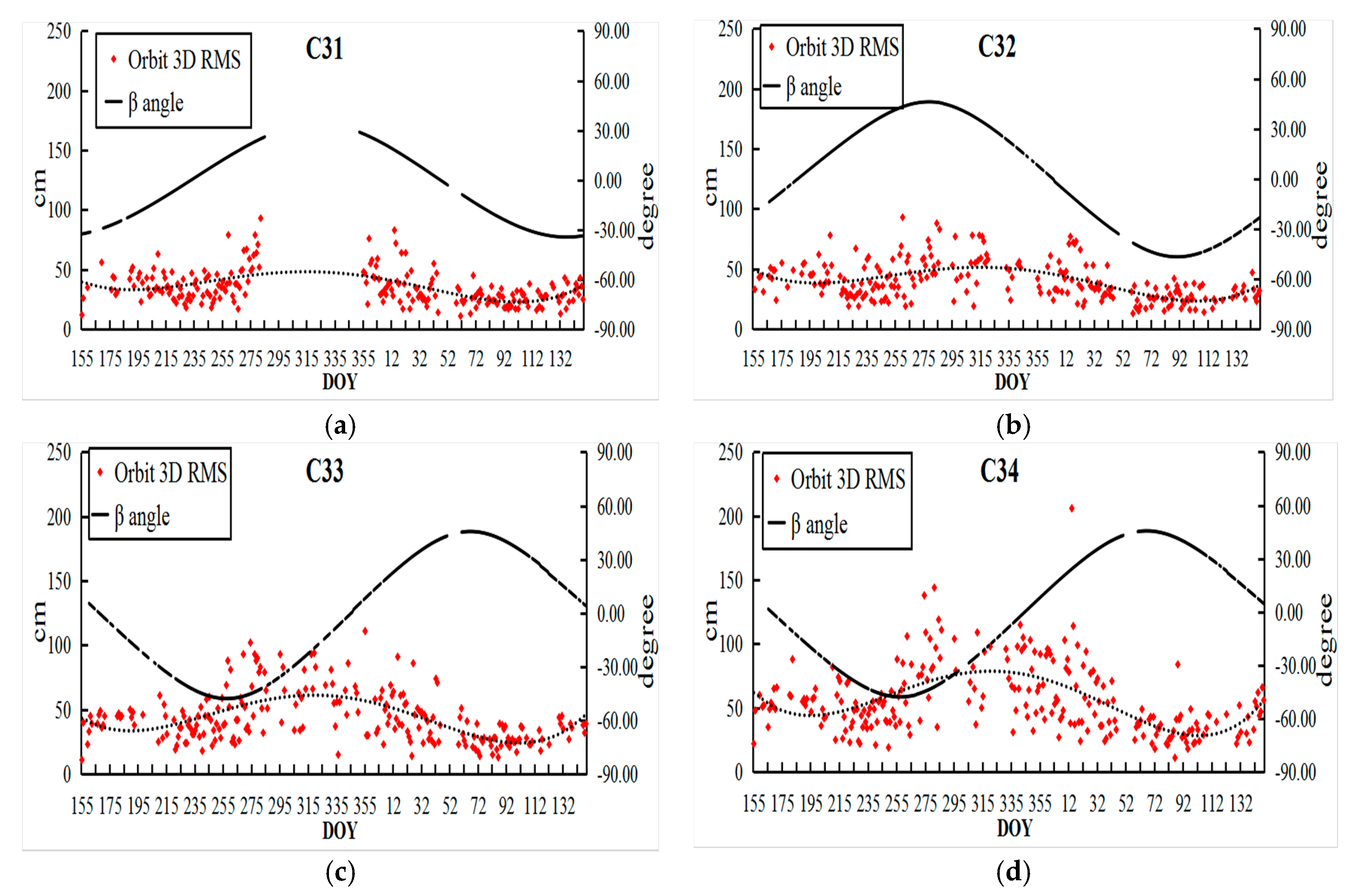

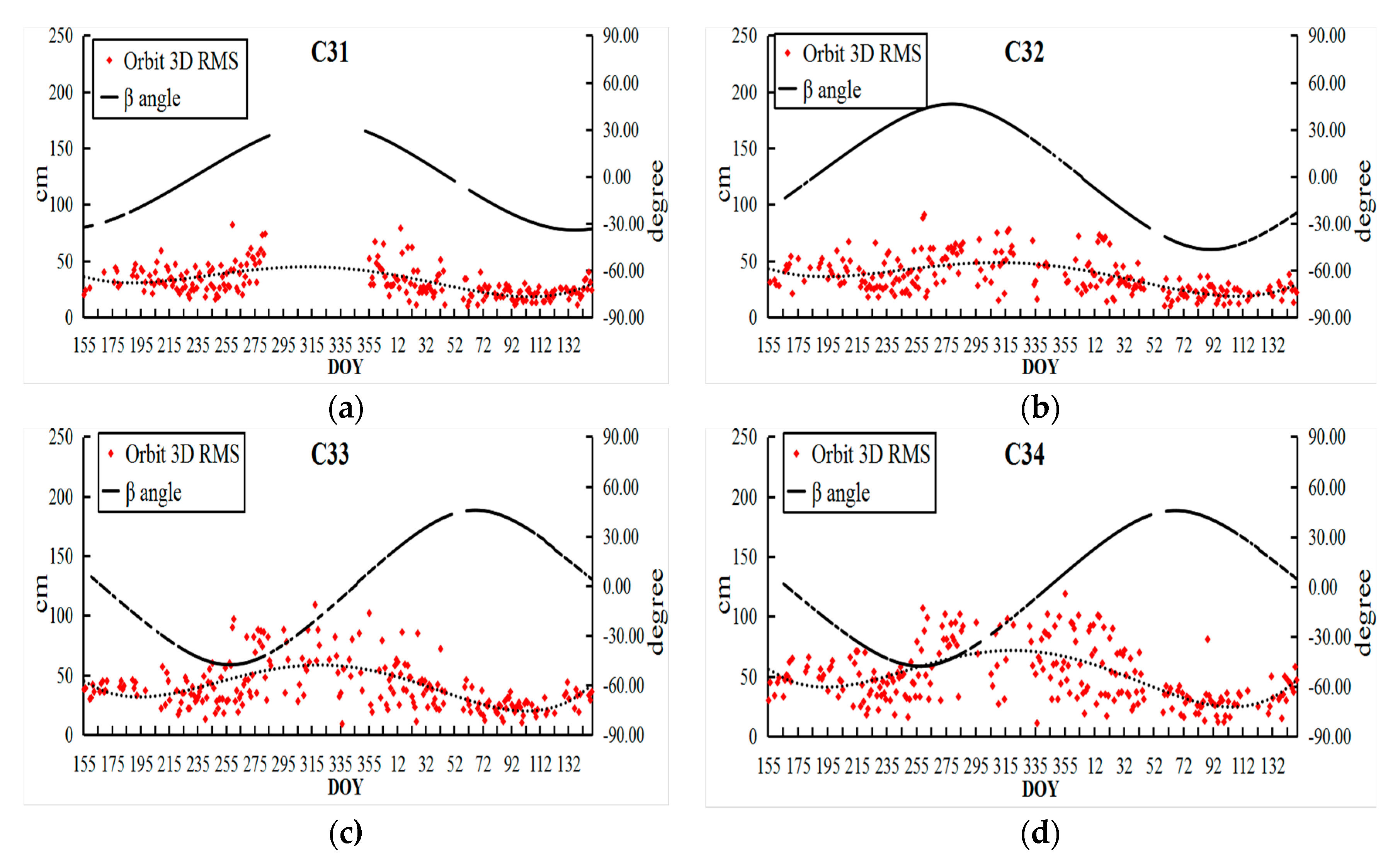

In Figure 9 and Figure 10, the accuracy of BDS-3 was worse at the end of 2016, while it became better in 2017 due to the update of the iGMAS tracking network. Moreover, it was found that the β angles were highly-correlated with the accuracy of the BDS-3, especially for IGSO (C31 and C32). Because the solar radiation pressure model of GPS was taken into the orbit determination, this is not suitable for the new-generation BeiDou satellites and should be refined in later studies.

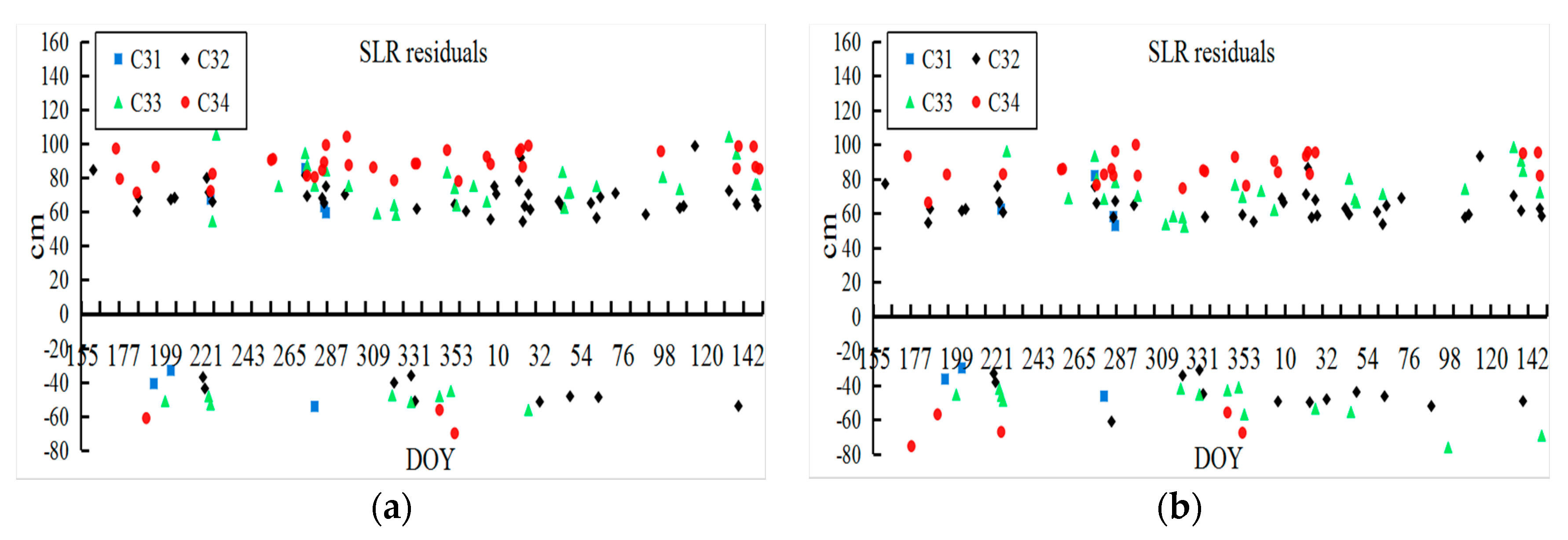

In addition, the SLR residuals of the two methods are shown in Figure 11. The corresponding mean and RMS values of SLR residuals are presented in Table 6 based on the one-year BDS-3 orbit determination to analyze the orbit accuracy by the NES and SS methods. Since the SLR data points of BDS-3 were insufficient, the trend of the SLR residuals could not be acquired accurately.
In the experiments, the 3D RMS of one-day overlapping arcs of BDS-3 (C31, C32, C33, and C34) based on the NES and SS are 31.0, 36.0, 40.3, and 50.1 cm and 34.6, 39.4, 43.4, and 55.5 cm, respectively. The RMS of SLR residuals of the NES and SS are 55.1, 49.6, 61.5, and 70.9 cm and 60.5, 53.6, 65.8, and 73.9 cm, respectively. In addition, the mean values of SLR residuals for the two methods are approximately equal, which could be caused by the different laser retroreflector arrays between BDS-2 and BDS-3. The experimental results showed that the NES is slightly better than the SS in BDS-3 orbit determination. Furthermore, the reason why the NES offers more accurate BDS-3 orbits can be explained as follows: (1) Due to the restriction of the number and distribution of BDS-3 tracking stations, the correlations between the BDS-3 orbit parameters and iGMAS stations related parameters are clearer. However, the SS method ignores the stochastic information of iGMAS parameters in the final parameter determination step; (2) The biases between different types satellites cannot be eliminated in SS, while the NES method takes the spatial seven-parameter transformation to reduce the difference of two normal equation. Moreover, the results in Table 6 show that the mean and RMS values of SLR residuals are larger than the initial assessment results conducted in [13]. It is suggested that a system error caused by the different SLR-related parameters (SLR retroreflectors) is included in the final results.
Then, one-month of observations (DOY 228–259, 2016) were selected to conduct the BDS-3 orbit determination with four schemes and further illustrate the reliability and advantages of the proposed methods. This study calculated the orbit accuracy of BDS-3 in four schemes according to orbit overlapping arc errors. The specific schemes are as follows:
Scheme 1:
Based on the BDS-3 orbit determination using iGMAS observations, the traditional Turboedit was used, and the BDS-3 orbits were determined by one step (compared with SS, one step is widely used by GNSS data analysis centers [35], which estimates all parameters in a single-step solution).
Scheme 2:
Based on iGMAS observations, the improved cycle-slip detection and repair algorithm was used, and the BDS-3 orbits were acquired through one step.
Scheme 3:
Based on iGMAS and MGEX observations, the improved cycle-slip detection and repair algorithm was used to determine the BDS-3 orbits through SS.
Scheme 4:
Based on iGMAS and MGEX observations, NES based on the improved cycle-slip detection and repair proposed in this study was used to determine the BDS-3 orbits.
The SLR residuals of the BDS-3 orbit cannot be accurately determined because the limited SLR data within the experimental period. Therefore, this study only counted the discrepancy of overlapping arcs as illustrated in Figure 8. Similarly, Table 7 lists the corresponding orbit 3D RMS and improvement (compared with Scheme 1), in which Scheme 4 was considered as the optimal strategy. Moreover, the accuracy of the BDS-3 orbits obtained by Scheme 4 improved by 34.07%, 41.05%, 72.29%, and 74.33% for C31, C32, C33, and C34, respectively. However, the improvement of orbit accuracy using Scheme 2 was less distinct than Scheme 3 and Scheme 4, which indicated that the contribution of the improved cycle-slip detection and repair algorithm to the parameter estimation was less than the combination of different observation networks, given the fact that the combination offers a more reasonable global network structure. The orbit accuracy obtained using Scheme 3 was slightly worse than that of Scheme 4; this result is consistent with the theory discussed earlier. Furthermore, to analyze the reliability of the improved cycle-slip detection and repair algorithm, the data availability was taken into consideration based on the residuals of every epoch in Scheme 2. In Table 8, the threshold was set as 4σ, where σ is the mean square error of observation residuals, to eliminate the observations with poor quality. From Table 8, the improved algorithm enhanced the data availability from 12.90% to 20.46% compared with the traditional Turboedit approach.

5. Conclusions and Prospects

In this study, the BDS-3 experimental satellite’s precise orbit determination and the corresponding analyses of the results were conducted based on the iGMAS and MGEX networks. In the data processing, an improved cycle-slip detection and repair algorithm was proposed to overcome the disadvantages of the traditional Turboedit in the iGMAS data. From the analysis of observations, it is suggested that the new algorithm is reliable and efficient in improving the data availability of iGMAS observations and accuracy of the parameters related to BDS-3, which considers the correlation of ionospheric delays between adjacent epochs based on the polynomial prediction. Moreover, the improved algorithm preprocesses observations epoch-wise and can optimize the observations in real-time.
The insufficient BDS-3 observations caused by the tracking stations were the major factor for limiting its orbit accuracy. In this study, the MGEX observations were used to enhance the estimation of the iGMAS station-related parameters, which indirectly improved the accuracy of the BDS-3 orbit parameters. However, the observation types from the iGMAS for BDS-3 were B1 and B3, while MGEX mainly tracked B1 and B2 for BDS-2. Therefore, this study designed two BDS-3 orbit determination methods, namely, NES and SS, to achieve the combination of different observations. In NES, the common parameters were obtained through the Gaussian elimination method based on the normal equation from the BDS-3 orbit determination with iGMAS, and that of GPS and BDS-2 orbit determination with iGMAS and MGEX. However, SS was utilized to fix the iGMAS station-related parameters by the PPP network solution with GPS and BDS-2 observations. Then, the fixed parameters were assumed as the known parts in the BDS-3 orbit determination. Moreover, a matrix decomposition method was proposed in this study to improve the efficiency of the parameter estimation in NES.
One-year BDS-3 (C31, C32, C33, and C34) orbit determination based on the MGEX and iGMAS observations were conducted, and the corresponding orbit accuracy of four satellites were analyzed. The accuracy of BDS-3 was calculated from the discrepancy of the overlapping arcs and SLR residuals. Results showed that BDS-3 orbit accuracy obtained through the NES and SS were 31.0, 36.0, 40.3, and 50.1 cm and 34.6, 39.4, 43.4, and 55.5 cm, respectively. Meanwhile, the RMSs of the SLR residuals were 55.1, 49.6, 61.5, and 70.9 cm and 60.5, 53.6, 65.8, and 73.9 cm, respectively. The accuracy of the BDS-3 orbit was gradually improved by fitting the trend of overlapping arcs, which was mainly related to the increased number of BDS-3 stations in the iGMAS network. In addition, it was found that the orbit accuracy was highly-correlated with the β angle, especially for IGSO (C31 and C32), during the experimental period.
Four schemes of BDS-3 orbit determination were designed by one-month observations to fully illustrate the reliability and advantages of the improved strategies proposed in this study. The orbit accuracy and improvement of each scheme were calculated. Results showed that the NES based on the improved cycle-slip detection and repair was optimal for BDS-3 orbit determination compared with other schemes. The accuracy of the BDS-3 orbit improved by 34.07%, 41.05%, 72.29%, and 74.33%, for C31, C32, C33, and C34, correspondingly.
However, the limited tracking observations and unknown satellite parameters resulted in low accuracy in BDS-3. Therefore, the ISL and low Earth orbit satellites will be considered in the orbit determination to further improve the accuracy of BDS-3 orbit in the follow-up research tasks. Moreover, the application of precise BDS-3 orbits based on the new signals will be discussed as given in [36,37].

Author Contributions

C.H. and Q.W. proposed research ideas; Z.W., Q.W., A.H.M., and C.H. conducted the theory studies; Z.W., Q.W., and C.H. designed the experiments and analyzed the results; C.H. and A.H.M. wrote the paper; and Z.W. and Q.W. offered guidance and supervision.

Funding

This research was funded by the National Science and Technology Basic Work of China grant number [2015FY310200], the National Natural Science Foundation of China grant number [41404033] and [51374209], the State Key Program of National Natural Science Foundation of China grant number [41730109], the Fundamental Research Funds for the Central University grant number [2018GF15] and Postgraduate Research & Practice Innovation Program of Jiangsu Province [KYLX16_0542].

Acknowledgments

The author appreciates “The Jiangsu Dual Creative Teams Program Project Awarded in 2017” and the International GNSS Monitoring and Assessment Service (iGMAS) and the International GNSS Service (IGS) for the data and products. Dr. Lihui Yao and two anonymous reviewers are acknowledged for their valuable suggestions.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yang, D.; Yang, J.; Li, G.; Zhou, Y.; Tang, C.P. Globalization highlight: Orbit determination using BeiDou inter-satellite ranging measurements. GPS Solut. 2017, 21, 1395–1404. [Google Scholar] [CrossRef]
  2. Available online: http://www.beidou.gov.cn/ (accessed on 1 May 2018).
  3. Yang, Y.X. Performance Analysis of BDS-3 Demonstration System. In Proceedings of the ISGNSS, Hong Kong, China, 10–13 December 2017. [Google Scholar]
  4. Ge, M.R.; Zhang, H.P.; Jia, X.L.; Song, S.L.; Wickert, J. What is achievable with the current compass constellation? In Proceedings of the 25th International Technical Meeting of The Satellite Division of the Institute of Navigation (ION GNSS 2012), Nashville, TN, USA, 17–21 September 2012; pp. 331–339. [Google Scholar]
  5. Montenbruck, O.; Hauschild, A.; Steigenberger, P.; Hugentobler, U.; Teunissen, P.; Nakamura, S. Initial assessment of the COMPASS/BeiDou-2 regional navigation satellite system. GPS Solut. 2013, 17, 211–222. [Google Scholar] [CrossRef]
  6. Steigenberger, P.; Hugentobler, U.; Hauschild, A.; Montenbruck, O. Orbit and clock analysis of Compass GEO and IGSO satellites. J. Geod. 2013, 87, 515–525. [Google Scholar] [CrossRef]
  7. Zhao, Q.L.; Guo, J.; Li, M.; Qu, L.; Hu, Z.; Shi, C.; Liu, J. Initial results of precise orbit and clock determination for COMPASS navigation satellite system. J. Geod. 2013, 87, 475–486. [Google Scholar] [CrossRef]
  8. Lou, Y.D.; Liu, Y.; Shi, C.; Yao, X.; Zheng, F. Precise orbit determination of BeiDou constellation based on BETS and MGEX network. Sci. Rep. 2014, 4, 4692. [Google Scholar] [CrossRef] [PubMed]
  9. Guo, J. The Impacts of Attitude, Solar Radiation and Function Model on Precise Orbit Determination for GNSS Satellites; Wuhan University: Wuhan, China, 2014. [Google Scholar]
  10. Dai, X.; Ge, M.; Lou, Y.; Shi, C.; Wickert, J.; Schuh, H. Estimating the yaw-attitude of BDS IGSO and MEO satellites. J. Geod. 2015, 89, 1005–1018. [Google Scholar] [CrossRef]
  11. Guo, F.; Li, X.; Zhang, X.H.; Wang, J.L. Assessment of precise orbit and clock products for Galileo, BeiDou, and QZSS from IGS Multi-GNSS Experiment (MGEX). GPS Solut. 2017, 21, 1–12. [Google Scholar] [CrossRef]
  12. Liu, Y.; Li, X.; Zhang, H.; Ren, Y. Calculation and accuracy evaluation of TGD from IFB for BDS. GPS Solut. 2016, 20, 461–471. [Google Scholar] [CrossRef]
  13. Tan, B.; Yuan, Y.; Wen, M.; Ning, Y.; Liu, X. Initial Results of the Precise Orbit Determination for the New-Generation BeiDou Satellites (BeiDou-3) Based on the iGMAS Network. ISPRS Int. J. Geo-Inf. 2016, 5, 196. [Google Scholar] [CrossRef]
  14. Xie, X.; Geng, T.; Zhao, Q.; Liu, J.; Wang, B. Performance of BDS-3: Measurement Quality Analysis, Precise Orbit and Clock Determination. Sensors 2017, 17, 1233. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, Q.; Wang, C.; Guo, J.; Wang, B.; Liu, J. Precise orbit and clock determination for BeiDou-3 experimental satellites with yaw attitude analysis. GPS Solut. 2017, 22, 4. [Google Scholar] [CrossRef]
  16. Chen, J.P.; Hu, X.G.; Tang, C.P.; Zhou, S.S.; Guo, R.; Pan, J.Y.; Li, R.; Zhu, L.F. Orbit determination and time synchronization for new-generation Beidou satellites: Preliminary results. Sci. Sin. Phys. Mech. Astron. 2016, 46, 119502. [Google Scholar] [CrossRef]
  17. Tang, C.P.; Hu, X.G.; Zhou, S.S.; Guo, R.; He, F.; Liu, L.; Zhu, L.F.; Li, X.J.; Wu, S.; Zhao, G. Improvement of orbit determination accuracy for Beidou Navigation Satellite System with Two-way Satellite Time Frequency Transfer. Adv. Space Res. 2016, 58, 1390–1400. [Google Scholar] [CrossRef]
  18. Yang, Y.X.; Li, J.L.; Xu, J.Y.; Tang, J.; Guo, H.R.; He, H.B. Contribution of the Compass satellite navigation system to global PNT users. Chin. Sci. Bull. 2011, 56, 2813. [Google Scholar] [CrossRef]
  19. Li, M. Research on Multi-GNSS Precise Orbit Determination Theory and Application; Wuhan University: Wuhan, China, 2011. [Google Scholar]
  20. Xiao, W.; Liu, W.X.; Sun, G.F. Modernization milestone: BeiDou M2-S initial signal analysis. GPS Solut. 2016, 20, 125–133. [Google Scholar] [CrossRef]
  21. Zhang, X.H.; Wu, M.K.; Liu, W.; Li, X.; Yu, S.; Lu, C.; Wickert, J. Initial assessment of the COMPASS/BeiDou-3: New-generation navigation signals. J. Geod. 2017, 1–16. [Google Scholar] [CrossRef]
  22. Li, X.X.; Ge, M.R.; Li, X.; Zhang, X.; Wu, M.; Wickert, J.; Schuh, H. Multi-GNSS real-time precise positioning service and Initial assessment of BDS-3 (G Division Outstanding ECS Award Lecture). In Proceedings of the EGU General Assembly Conference, Vienna, Austria, 23–28 April 2017; Volume 19. [Google Scholar]
  23. Liu, Z. A new automated cycle slip detection and repair method for a single dual-frequency GPS receiver. J. Geod. 2011, 85, 171–183. [Google Scholar] [CrossRef]
  24. Yao, Y.F.; Gao, J.X.; Wang, J.; Hu, H.; Li, Z.K. Real-time cycle-slip detection and repair for BeiDou triple-frequency undifferenced observations. Surv. Rev. 2016. [Google Scholar] [CrossRef]
  25. Blewitt, G. An Automatic Editing Algorithm for GPS data. Geophys. Res. Lett. 1990, 17, 199–202. [Google Scholar] [CrossRef]
  26. Beutler, G.; Brockmann, E.; Hugentobler, U.; Mervart, L.; Rothacher, M.; Weber, R. Combining consecutive short arcs into long arcs for precise and efficient GPS Orbit Determination. J. Geod. 1996, 70, 287–299. [Google Scholar] [CrossRef]
  27. Brockmann, E. Combination of Solutions for Geodetic and Geodynamic Applications of the Global Positioning System (GPS); Schweizerische Geodätische Kommission: Zürich, Switzerland, 1997; Volume 55. [Google Scholar]
  28. Dong, D.N.; Herring, T.A.; King, R.W. Estimating regional deformation from a combination of space and terrestrial geodetic data. J. Geod. 1998, 72, 200–214. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Ding, X.; Han, X.; Su, L. Evaluation and analysis on the data quality of GNSS continuously operating reference stations in Shanxi province. Plateau Earthq. Res. 2014, 26, 64–68. [Google Scholar]
  30. Ge, M.R. Study on Theory and Software of Precise Orbit Determination for GPS Satellite; Wuhan Technical University of Surveying and Mapping: Wuhan, China, 1995. [Google Scholar]
  31. Wanninger, L.; Beer, S. BeiDou satellite-induced code pseudorange variations: Diagnosis and therapy. GPS Solut. 2015, 19, 639–648. [Google Scholar] [CrossRef]
  32. Chang, G.; Xu, T.; Yao, Y.; Wang, Q. Adaptive Kalman filter based on variance component estimation for the prediction of ionospheric delay in aiding the cycle slip repair of GNSS triple-frequency signals. J. Geod. 2018, 1–13. [Google Scholar] [CrossRef]
  33. Hu, C.; Wang, Q.X.; Wang, Z.Y.; Peng, X.Q. An Optimal Stations Selected Model Based on the GDOP Value of Observation Equation. Geomat. Inf. Sci. Wuhan Univ. 2017, 42, 838–844. [Google Scholar] [CrossRef]
  34. Xu, G.C. GPS data processing with equivalent observation equations. GPS Solut. 2002, 6, 28–33. [Google Scholar] [CrossRef]
  35. Available online: http://www.nrcan.gc.ca (accessed on 1 May 2018).
  36. Odolinski, R.; Teunissen, P. Single-frequency, dual-GNSS versus dual-frequency, single-GNSS: A low-cost and high-grade receivers GPS-BDS RTK analysis. J. Geod. 2016, 90, 1–24. [Google Scholar] [CrossRef]
  37. Paziewski, J.; Sieradzki, R.; Baryla, R. Multi-GNSS high-rate RTK, PPP and novel direct phase observation processing method: Application to precise dynamic displacement detection. Meas. Sci. Technol. 2018, 29, 035002. [Google Scholar] [CrossRef]
Figure 1. Flowchart of the improved cycle-slip detection and repair algorithm.
Figure 1. Flowchart of the improved cycle-slip detection and repair algorithm.
Sensors 18 01402 g001
Figure 2. Time series of the fractional parts of L2 observations for G01 on DOY 183 ((a) LHA1; (b) WHU1; and (c) LHAZ).
Figure 2. Time series of the fractional parts of L2 observations for G01 on DOY 183 ((a) LHA1; (b) WHU1; and (c) LHAZ).
Sensors 18 01402 g002
Figure 3. Time series of the fractional parts of B2 (C01, C06, C14) and B3 (C32) observations on DOY 183 based on LHA1 ((a) C01 (BDS_GEO); (b) C06 (BDS_IGSO); (c) C14 (BDS_MEO); and (d) C32 (BDS-3)).
Figure 3. Time series of the fractional parts of B2 (C01, C06, C14) and B3 (C32) observations on DOY 183 based on LHA1 ((a) C01 (BDS_GEO); (b) C06 (BDS_IGSO); (c) C14 (BDS_MEO); and (d) C32 (BDS-3)).
Sensors 18 01402 g003
Figure 4. The differences between the estimated and predicted ionospheric delays ((a) G01; (b) C06; (c) C14; and (d) C32).
Figure 4. The differences between the estimated and predicted ionospheric delays ((a) G01; (b) C06; (c) C14; and (d) C32).
Sensors 18 01402 g004
Figure 5. Flowchart of BDS-3 orbit determination based on NES.
Figure 5. Flowchart of BDS-3 orbit determination based on NES.
Sensors 18 01402 g005
Figure 6. Flowchart of BDS-3 orbit determination based on SS.
Figure 6. Flowchart of BDS-3 orbit determination based on SS.
Sensors 18 01402 g006
Figure 7. Stations distribution of BDS-3 experimental satellites orbit determination (black: iGMAS stations without BDS-3 observations; red: iGMAS stations with BDS-3 observations; blue: MGEX stations; and magenta: increased iGMAS stations with BDS-3 observations). (a) Stations distribution at the beginning, (b) Stations distribution at the end.
Figure 7. Stations distribution of BDS-3 experimental satellites orbit determination (black: iGMAS stations without BDS-3 observations; red: iGMAS stations with BDS-3 observations; blue: MGEX stations; and magenta: increased iGMAS stations with BDS-3 observations). (a) Stations distribution at the beginning, (b) Stations distribution at the end.
Sensors 18 01402 g007
Figure 8. Sketch of the orbit overlapping arcs.
Figure 8. Sketch of the orbit overlapping arcs.
Sensors 18 01402 g008
Figure 9. The 3D RMS of BDS-3 one-day overlapping arcs errors based on NES ((a) C31; (b) C32; (c) C33; and (d) C34).
Figure 9. The 3D RMS of BDS-3 one-day overlapping arcs errors based on NES ((a) C31; (b) C32; (c) C33; and (d) C34).
Sensors 18 01402 g009
Figure 10. The 3D RMS of BDS-3 one-day overlapping arc errors based on SS ((a) C31; (b) C32; (c) C33; and (d) C34).
Figure 10. The 3D RMS of BDS-3 one-day overlapping arc errors based on SS ((a) C31; (b) C32; (c) C33; and (d) C34).
Sensors 18 01402 g010
Figure 11. The SLR residuals of BDS-3 orbits based on NES and SS methods. (a) NES method, (b) SS method.
Figure 11. The SLR residuals of BDS-3 orbits based on NES and SS methods. (a) NES method, (b) SS method.
Sensors 18 01402 g011
Table 1. Comparison of data quality between iGMAS and MGEX stations.
Table 1. Comparison of data quality between iGMAS and MGEX stations.
StationsGPSBDS-2BDS-3
Effective RateMP1 (m)MP2 (m)CSREffective RateCSREffective RateCSR
MGEXJFNG88.80%0.3480.424681.2099.66%118.0178.24%843.11
iGMASWHU181.60%0.3650.472133.8585.47%1160.2380.22%942.25
MGEXLHAZ90.61%0.4180.344239.4095.25%77.9494.51%334.23
iGMASLHA199.56%0.4730.370128.0684.99%4393.3899.61%439.50
Table 2. The fractional part of estimated L2 observations on G01 (cycle).
Table 2. The fractional part of estimated L2 observations on G01 (cycle).
StationsDOYMaximumAverageSTDProperness
LHA11830.4690.0130.114100%
1840.2420.0060.091100%
1850.3660.0060.113100%
1860.4220.0290.141100%
LHAZ1830.5460.0030.12599.92%
1840.2010.0450.064100%
1850.3070.0890.086100%
1860.3730.0330.072100%
WHU11830.5770.0130.13399.92%
1840.3220.0510.092100%
1850.5720.0050.13799.68%
1860.5050.0010.13399.84%
Table 3. The fractional parts of the estimated B2 observations for C01, C06, C14 (BDS-2), and B3 for C32 (BDS-3) on LHA1 (cycle).
Table 3. The fractional parts of the estimated B2 observations for C01, C06, C14 (BDS-2), and B3 for C32 (BDS-3) on LHA1 (cycle).
DOYSatellitesMaximumAverageSTDProperness
183C010.1780.0030.125100%
C060.1370.0010.051100%
C140.2590.0130.071100%
C320.1290.0140.094100%
184C010.2010.0450.064100%
C06----
C140.2590.0190.068100%
C320.1830.0560.106100%
185C010.0890.3070.087100%
C060.2120.0230.058100%
C140.2390.0830.066100%
C320.1660.0810.138100%
186C010.3730.0330.072100%
C060.1960.0350.045100%
C140.3860.0510.125100%
C320.1480.0330.137100%
Table 4. Results of GPS (G01), three types of BDS-2 (C01, C06, C14), and the BDS-3 experimental satellite (C32) based on the improved algorithm and Turboedit for DOY 183 in LHA1 (cycle).
Table 4. Results of GPS (G01), three types of BDS-2 (C01, C06, C14), and the BDS-3 experimental satellite (C32) based on the improved algorithm and Turboedit for DOY 183 in LHA1 (cycle).
SatelliteEpochCycle Slips (L1,L2), (B1,B2) or (B1,B3)Improved AlgorithmTurboedit
EstimatedΔN1ΔN2 (ΔN3)True or FalseEstimatedΔN1ΔN2 (ΔN3)True or False
G012400(0,1)(−0.037,1.113)01T(0.486,0.302)00F
2500(1,0)(0.908,0.031)10T(0.442,0.334)00F
2600(1,1)(0.525,0.698)11T(0.301,0.755)01F
2600(9,7)(8.977,6.969)97T(9.986,6.421)106F
2500(790,563)(789.972,563.108)790563T(763.865,588.601)764589F
2400(100,1)(99.989,1.012)1001T(99.856,0.581)1001T
C01100(0,1)(0.042,1.063)01T(0.014, 0.882)01T
150(1,0)(0.975,−0.006)10T(0.745,1.639)12F
210(1,1)(1.195,1.161)11T(1.802,1.930)22F
150(790,563)(789.975,563.205)790563T(765.338,589.172)765589F
150(100,1)(99.743,0.934)1001T(99.663,1.015)1001T
C062500(0,1)(0.083,1.071)01T(0.293,0.985)01T
2600(1,0)(1.029,0.017)10T(1.633,0.441)20F
2700(1,1)(1.047,0.975)11T(1.112,0.994)11T
2700(790,563)(790.221,562.909)790563T(788.920,568.202)789568F
2700(100,1)(100.023,0.805)1001T(101.043,0.189)1010F
C142500(0,1)(0.029,1.045)01T(0.254,0.935)01T
2600(1,0)(0.941,0.019)10T(1.338,0.014)10T
2700(1,1)(0.995,1.024)11T(1.733,0.696)21F
2700(790,563)(789.891,562.990)790563T(762.284,589.445)762589F
2700(100,1)(99.987,0.902)1001T(98.472,0.809)981F
C321950(0,1)(0.031, 0.992)01T(0.044,1.021)01T
2000(1,0)(1.043,−0.012)10T(0.994,0.852)11F
2050(1,1)(1.113,1.093)11T(1.442,0.843)11T
2050(790,563)(789.998,563.014)790563T(764.745,566.233)765566F
2050(100,1)(99.940,0.982)1001T(99.493,0.984)991F
Table 5. Parameter configurations for BDS-3 experimental satellite orbit determination.
Table 5. Parameter configurations for BDS-3 experimental satellite orbit determination.
Parameter NameConfiguration
ObservationUndifferenced ionosphere-free code and phase combination B1 and B2 (BDS-2); B1 and B3 (BDS-3); L1 and L2 (GPS)
Elevation cut-off
Weighing strategyElevation-dependent for the observation below 30° by 1/2sin (E)
Observation sample interval30 s
Arcs lengththree-days
Receiver ISB and IFBEstimation: BDS-2 and GPSBDS-3: without consideration
Satellite phase center offsetBeiDou [15]; GPS: igs_08.atx
Tide modelsInternational Earth Rotation and Reference Systems (IERS) 2010
RelativityIERS 2010
Gravity modelEGM 08 12 × 12
Satellite phase center variationBeiDou: without consideration; GPS: igs_08.atx
Satellite yaw modelsBDS-3 experimental satellites: Nominal model; BDS-2 and GPS: reference to [9]
Solar radiation pressure modelsECOM
Ground antenna PCO and PCVNot applied
Table 6. BDS-3 orbit accuracy of the two methods based on one-year observations (cm).
Table 6. BDS-3 orbit accuracy of the two methods based on one-year observations (cm).
Satellites3D RMS of One-Day Overlapping ArcsSLR Residuals
NESSSNESSS
MeanRMSMeanRMS
C3131.034.620.455.121.060.5
C3236.039.435.849.638.353.6
C3340.343.429.761.531.765.8
C3450.155.546.270.946.373.9
Table 7. Orbit 3D RMS (cm) of different schemes and its improvement.
Table 7. Orbit 3D RMS (cm) of different schemes and its improvement.
Scheme 1Scheme 2Scheme 3Scheme 4
Satellites3D RMS3D RMSImprovement3D RMSImprovement3D RMSImprovement
C3145.242.16.86%30.233.19%29.834.07%
C3253.149.56.79%34.135.78%31.341.05%
C33137.5134.22.40%41.669.74%38.172.29%
C34174.1149.014.42%53.169.50%44.774.33%
Table 8. The percentage of eliminated data based on BDS-3 orbit determination.
Table 8. The percentage of eliminated data based on BDS-3 orbit determination.
SatellitesTurboedit (Scheme 1)Improved Algorithm (Scheme 2)
C3122.14%8.48%
C3219.32%6.42%
C3343.10%24.49%
C3438.96%18.50%

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
