Open AccessArticle
Sensors 2018, 18(2), 524; https://doi.org/10.3390/s18020524

Fast Focal Point Correction in Prism-Coupled Total Internal Reflection Scanning Imager Using an Electronically Tunable Lens

1
Department of Optical Science and Engineering, Shanghai Engineering Research Center of Ultra-Precision Optical Manufacturing, Key Laboratory of Micro and Nano Photonic Structures (Ministry of Education), Fudan University, Shanghai 200433, China
2
Department of Physics, University of California, Davis, CA 95616, USA
3
Department of Fundamental Courses, Wuxi Institute of Technology, Wuxi 214121, China
4
Institutes of Biomedical Science, Fudan University, Shanghai 200032, China
*
Author to whom correspondence should be addressed.
Received: 2 January 2018 / Revised: 5 February 2018 / Accepted: 8 February 2018 / Published: 9 February 2018
(This article belongs to the Special Issue Biosensing for Interfacial Science)
Full-Text   |   PDF [3661 KB, uploaded 9 February 2018]   |

Abstract

Total internal reflection (TIR) is useful for interrogating physical and chemical processes that occur at the interface between two transparent media. Yet prism-coupled TIR imaging microscopes suffer from limited sensing areas due to the fact that the interface (the object plane) is not perpendicular to the optical axis of the microscope. In this paper, we show that an electrically tunable lens can be used to rapidly and reproducibly correct the focal length of an oblique-incidence scanning microscope (OI-RD) in a prism-coupled TIR geometry. We demonstrate the performance of such a correction by acquiring an image of a protein microarray over a scan area of 4 cm2 with an effective resolution of less than 20 microns. The electronic focal length tuning eliminates the mechanical movement of the illumination lens in the scanning microscope and in turn the noise and background drift associated with the motion. View Full-Text
Keywords: total internal reflection; focal point correction; electronically tunable lens; protein microarray; label-free optical biosensors total internal reflection; focal point correction; electronically tunable lens; protein microarray; label-free optical biosensors
Figures

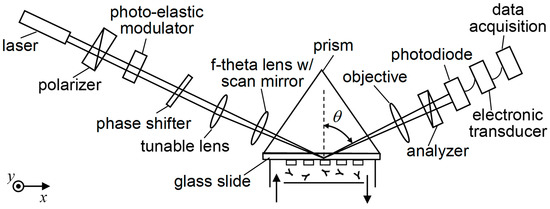

Figure 1
