Open AccessArticle
Sensors 2018, 18(2), 515;

Mutual-Information-Based Incremental Relaying Communications for Wireless Biomedical Implant Systems

School of Information Engineering, Wuhan University of Technology, Wuhan 430070, China
Key Laboratory of Fiber Optic Sensing Technology and Information Processing, Wuhan University of Technology, Ministry of Education, Wuhan 430070, China
School of Engineering, University of Warwick, Coventry CV4 7AL, UK
Author to whom correspondence should be addressed.
Received: 18 January 2018 / Revised: 2 February 2018 / Accepted: 7 February 2018 / Published: 8 February 2018
(This article belongs to the Special Issue Dependable Monitoring in Wireless Sensor Networks)
Full-Text   |   PDF [2862 KB, uploaded 8 February 2018]   |

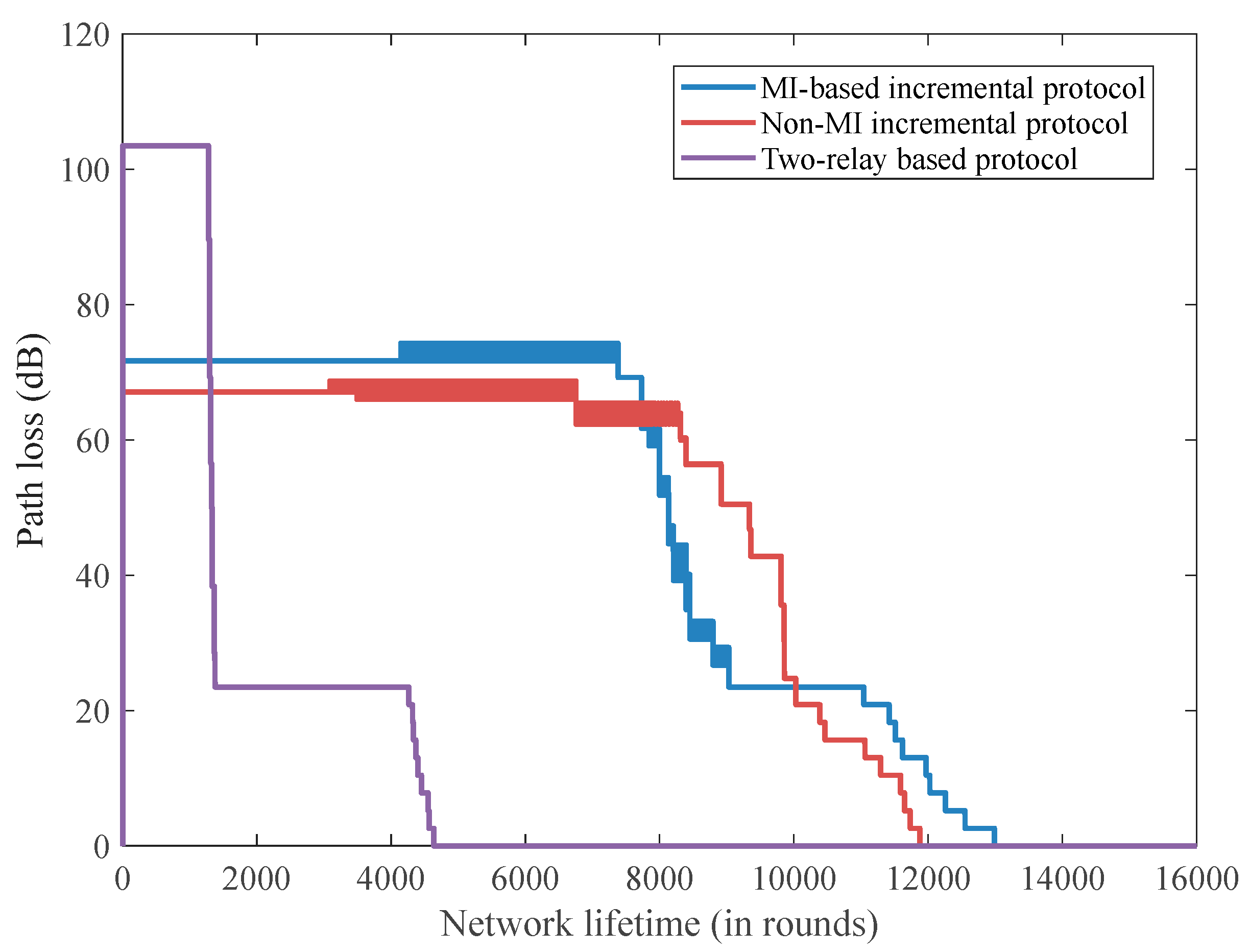

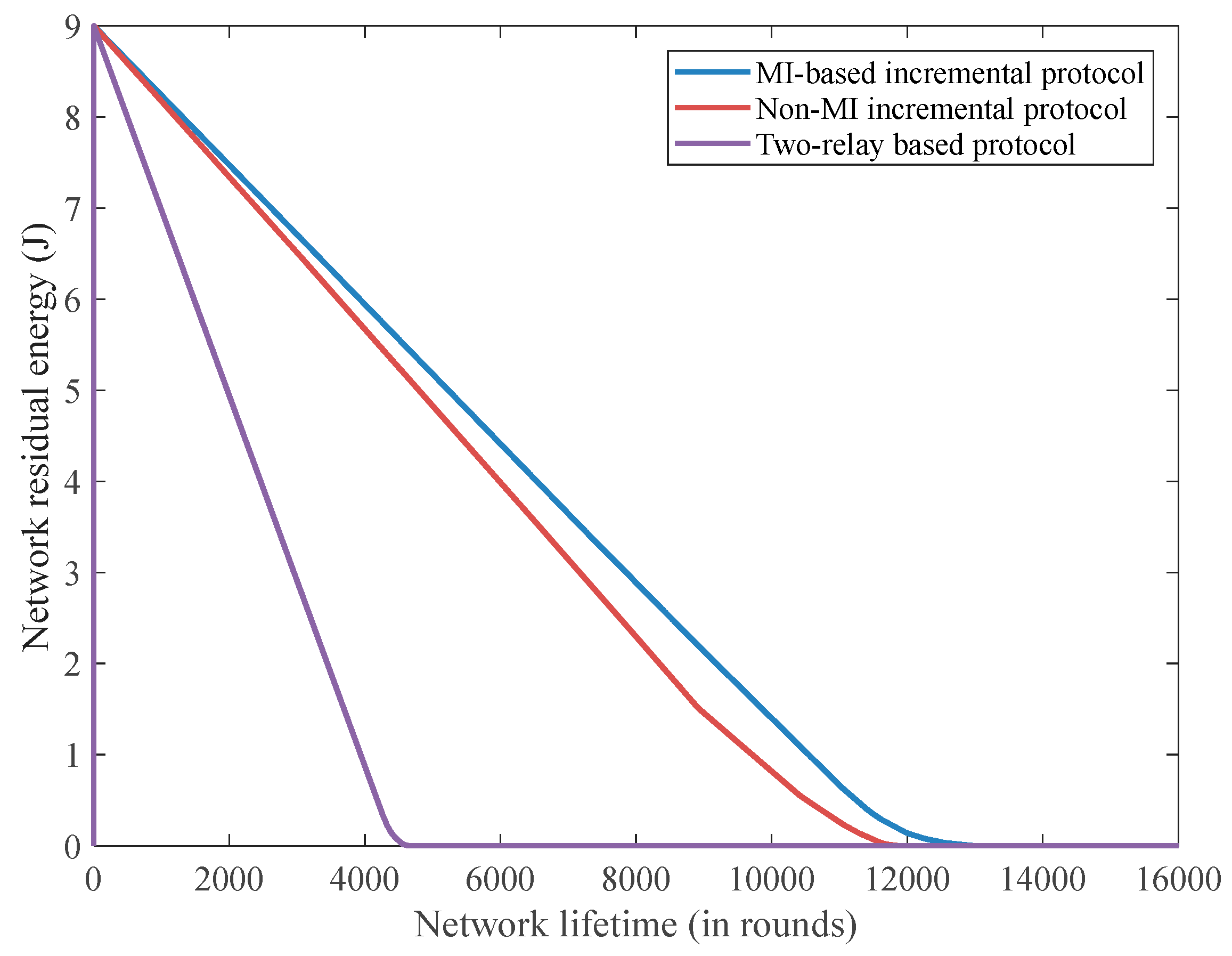

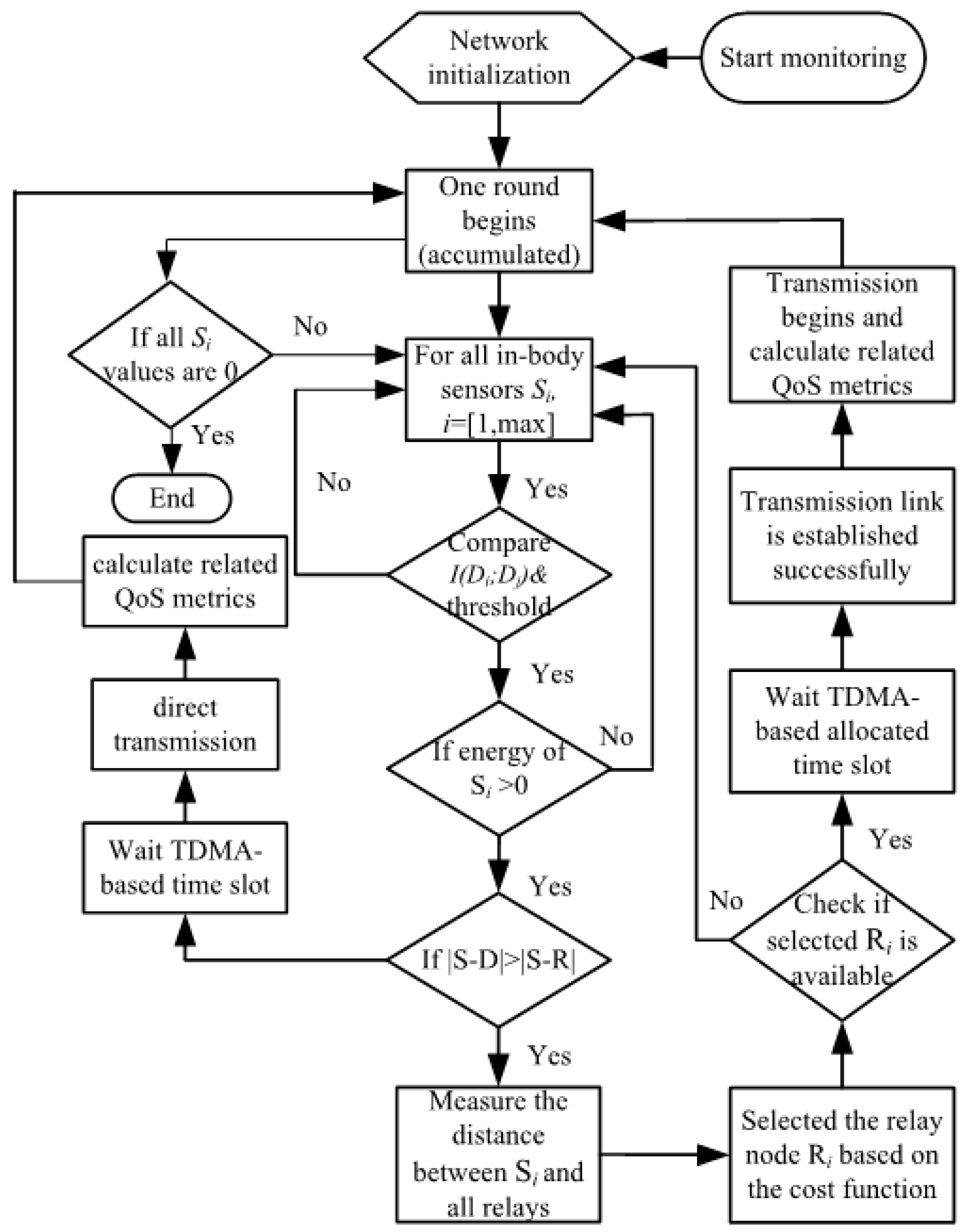

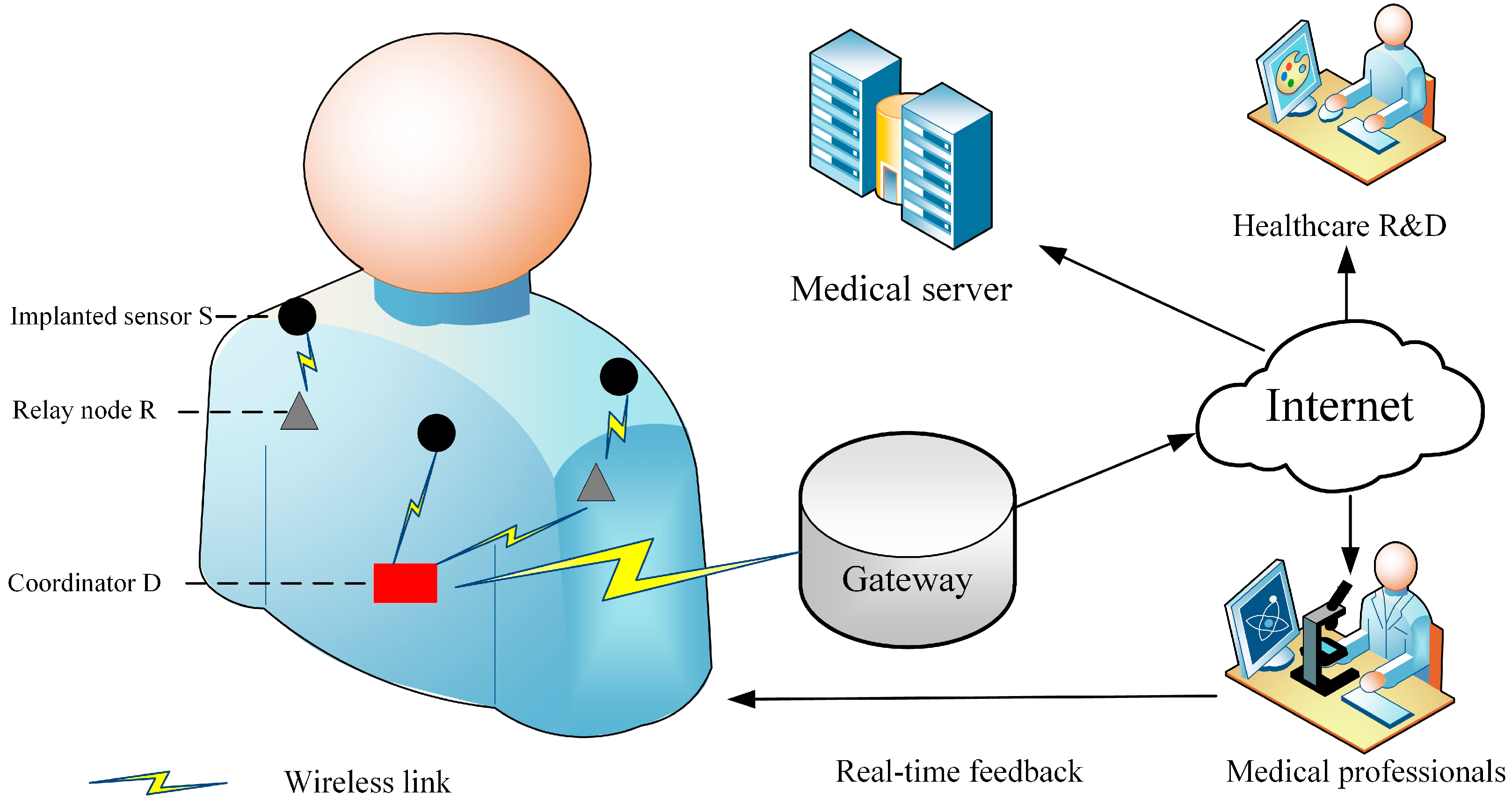

Network lifetime maximization of wireless biomedical implant systems is one of the major research challenges of wireless body area networks (WBANs). In this paper, a mutual information (MI)-based incremental relaying communication protocol is presented where several on-body relay nodes and one coordinator are attached to the clothes of a patient. Firstly, a comprehensive analysis of a system model is investigated in terms of channel path loss, energy consumption, and the outage probability from the network perspective. Secondly, only when the MI value becomes smaller than the predetermined threshold is data transmission allowed. The communication path selection can be either from the implanted sensor to the on-body relay then forwards to the coordinator or from the implanted sensor to the coordinator directly, depending on the communication distance. Moreover, mathematical models of quality of service (QoS) metrics are derived along with the related subjective functions. The results show that the MI-based incremental relaying technique achieves better performance in comparison to our previous proposed protocol techniques regarding several selected performance metrics. The outcome of this paper can be applied to intra-body continuous physiological signal monitoring, artificial biofeedback-oriented WBANs, and telemedicine system design. View Full-Text
Keywords: WBANs; communication protocol; QoS; network lifetime WBANs; communication protocol; QoS; network lifetime

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liao, Y.; Leeson, M.S.; Cai, Q.; Ai, Q.; Liu, Q. Mutual-Information-Based Incremental Relaying Communications for Wireless Biomedical Implant Systems. Sensors 2018, 18, 515.
