# A POSHE-Based Optimum Clip-Limit Contrast Enhancement Method for Ultrasonic Logging Images

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

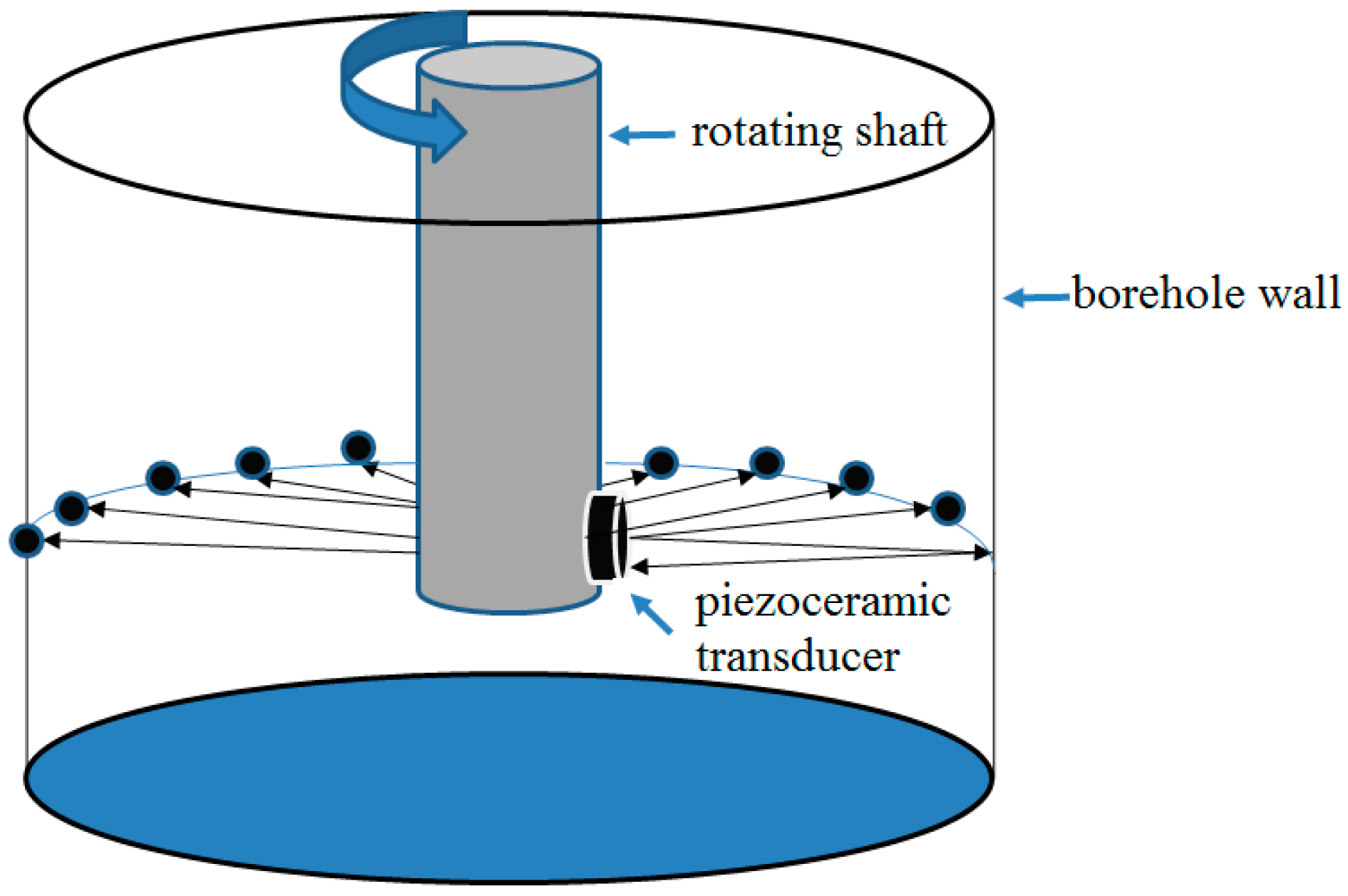

## 1. Introduction

## 2. Related Work

#### 2.1. Histogram Equalization

_{k}is used to represent the kth gray level, then the L gray levels can be described as {r

_{0}, r

_{1}, ..., r

_{L−}

_{1}}; the probability density function (PDF) corresponding to the gray level distribution of the original image, p(r

_{k}), is given by

_{k}and N represent the number of pixels with gray level r

_{k}and the total number of pixels of the input image X, respectively. Then, the cumulative distribution function (CDF), c(r

_{k}), is calculated from the original PDF as follows:

_{0}, r

_{L−}

_{1}) using the CDF as a transformation function. The formula of the transformation function f(r

_{k}) is given as:

#### 2.2. POSHE

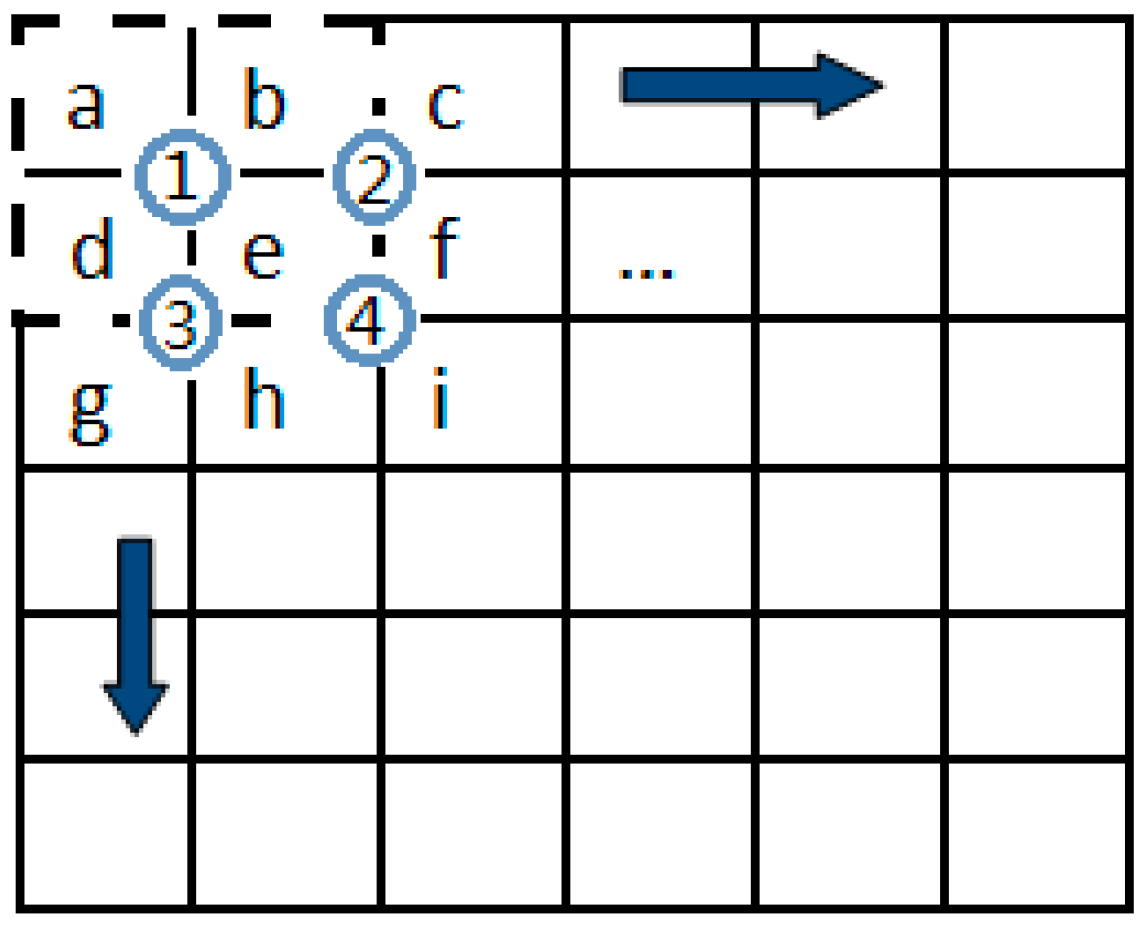

- Step 1:
- Let us define an image with size M × N.
- Step 2:
- Assign an m × n sub-block at the top left corner. For computational simplicity, the size of the sub-block is selected to be equal to the quotient of the input image size divided by a multiple of two.
- Step 3:
- Perform local histogram equalization for the current sub-block.
- Step 4:
- The sub-block moves from left to right and from top to bottom by the horizontal step size and the vertical step size. Repeat Step 3 until POSHE covers the entire input image plane.
- Step 5:
- After sub-block histogram equalization is completed, because each pixel is obviously histogram equalized more than once, accumulated equalization results on each pixel can be divided by its histogram equalization frequency and then produce each pixel value in the output image array.

## 3. The Proposed Contrast Enhancement Method

#### 3.1. Clipped Histogram Equalization

_{k}) (defined in Section 2.1). The slope of c(r

_{k}) is given by

_{k}). In order to limit the contrast to a desired level, a technique proposed in the CLAHE method [64,65] is restraining the slope of CDF for the original image, and it can be achieved by clipping the histogram with values over a predefined threshold, and the residual is redistributed uniformly to the histogram. The maximum slope is limited using a clip limit β to clip all histograms; β can be defined as follows [64,70]:

_{t}and L

_{t}are total numbers of pixels and gray-levels in each region, respectively, ${s}_{\mathrm{max}}$ is the maximum allowable slope, and a is the clip factor. If α = 0, the minimum clip limit β is equal to ($\frac{{N}_{t}}{{L}_{t}}$) which can reach the maximum value of (${s}_{\mathrm{max}}\cdot \frac{{N}_{t}}{{L}_{t}}$) for α = 100. It is clear that various ${s}_{\mathrm{max}}$ values will affect the processed results. Normally, ${s}_{\mathrm{max}}$ is set to four for the application of still X-ray images as reported in Ref. [64]. However, for other applications, it is recommended that a good selection for ${s}_{\mathrm{max}}$ is obtained by practical experiment.

_{t}− 1) and set the average number of pixels per grayscale as N

_{av}for any sub-block with size m × n. Then, ${N}_{t}=m\cdot n$, for an 8-bit grayscale image, L

_{t}= 256, and ${N}_{av}=\frac{{N}_{t}}{{L}_{t}}=\frac{m\times n}{256}$. The total number of pixels whose histogram values exceed the clip limit β is represented as Excess with the initial value being 0.

_{t}− 1, then, Excess = Excess – β + h(k), h(k) = β. This step modifies the histogram by preserving the histograms that are less than or equal to β, while clipping the ones that exceed β.

_{m}is used to represent the number of pixels that should be equally assigned to each gray-level, then N

_{m}= Excess/L

_{t}. The histogram h(k) after the redistribution is given by Equation (12), and Excess after the redistribution is generated as in Equation (13):

_{av}, respectively. The over-enhancement phenomenon is avoided to different degrees with different β values, as presented in Figure 3c,d. It is clear that the enhanced image quality highly depends on the selection of β value, whose value can be chosen empirically. The clipping and redistribution processes are depicted in Figure 4. Figure 4a is the corresponding histogram of Figure 3a, where the horizontal axis and vertical axis represent the intensity values and the probability of occurrence of intensity levels, respectively. Let us assume that the clip limit β be given by the horizontal dotted line. Figure 4b shows the histogram of the original input image in Figure 3a and the modified limited histogram after redistribution according to the clipping and redistribution procedure mentioned above. The comparison curves of the cumulative density function for the original and the modified limited histogram with β = 2.5 N

_{av}and β = 1.5 N

_{av}are illustrated in Figure 4c,d, respectively. It is obvious that the slope of the clip-limited CDF (dotted line) is less than the original CDF (solid line) in the range of the 20–100 gray-level, in which most pixels for the original image are concentrated. The input gray values in the range of 20–100 are extended to the full range by the original CDF and a narrower range of output values by the clip limited CDF, which is the reason for the excessive enhancement shown in Figure 3b but avoided in Figure 3c,d. Comparing CDF curves in Figure 4c,d, the smaller the clip limit value, the lower the slope of CDF, thus, the higher the ability to restrain the contrast, whereas, higher values of the clip limit result in more contrast enhancement. Figure 4d shows the higher limit ability with a smaller β. From the corresponding enhancement image in Figure 3d, it effectively overcomes the over-enhancement problem appeared in Figure 3b, while a very slight over-enhancement phenomenon still occurs with a bigger β in Figure 3c. Since this clipped histogram equalization is still a global approach that is useful to enhance the content of the entire input image, it fails to highlight details of the local regions.

#### 3.2. Optimum Clip-Limit Strategies

_{x}and μ

_{y}, are the mean intensity, σ

_{x}and σ

_{y}are the standard deviation and σ

_{xy}is the covariance of images x and y, respectively, and c

_{1}, c

_{2}are the constant values. The local parameters μ

_{x}, μ

_{y}, σ

_{x}, σ

_{y}and σ

_{xy}are calculated within a local 8 × 8 square window, and the square window slides from pixel to pixel over the whole image. At each step, the SSIM index together with the local parameters are computed within the local window. Based on the value of SSIM, MSSIM can be calculated by

_{i}, y

_{i}are used to describe the image contents for the ith local window; and N represents the total number of local windows of the image. In general, a high MSSIM value for an enhanced image represents a good similarity index.

_{av}before performing sub-block equalization in the proposed POSHEOC algorithm according to the analysis in Section 3.1 and the minimum value of n is one. It is obvious that the POSHEOC algorithm cannot enhance the image sufficiently if n is set to a small value whereas it may result in over-enhancement when n is too big; therefore, n is set to be in the range of [1, 10]. Figure 5 shows an example of the relationships between the two mentioned measures and n. Figure 5a,b plots the metrics MG and MMSIM of enhanced image with different n, respectively. Opposite varying tendencies of the two measures with the clip-limit value are observed. Considering the effects of the two factors, finally, we combine the two metrics, and a new index can be built by means of the product of the mean gradient and mean structural similarity (PMGSIM), which is defined by the following Equation (17). It is used to calculate the optimal n value. The optimal value of n in the range of [1, 10] can be obtained by Equation (18).

## 4. Experimental Results and Discussion

#### 4.1. Subjective Evaluation

#### 4.2. Objective Evaluation

_{max}is the maximum intensity of the input image, for the common 8-bit gray-level image with 256 possible gray level values, as it is known that f

_{max}= 255. Generally, PSNR is used to estimate the artifacts or noise produced in the process of contrast enhancement. It is expected that a good enhancement method will generate a high PSNR value. AMBE is the absolute mean brightness error between the input and output image, which is described as:

_{X}and μ

_{Y}are the mean intensity values of X and Y, respectively. The lower the value of AMBE, the better is the brightness preservation and vice versa. IE is an effective way to evaluate the amount of information content within an image; for the image with the gray level in the range [0, L − 1], the entropy of the image can be expressed as

_{i}) represents probability density function for a given image at gray level s

_{i}. In general, a larger value of the entropy indicates more richness of details is available in the image. The local contrast criterion is defined in Equation (22)

## 5. Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Lin, B.; Giurgiutiu, V. Modeling and testing of PZT and PVDF piezoelectric wafer active sensors. Smart Mater. Struct.
**2006**, 15, 1085. [Google Scholar] [CrossRef] - Lu, G.; Feng, Q.; Li, Y.; Wang, H.; Song, G. Characterization of ultrasound energy diffusion due to small-size damage on an aluminum plate using piezoceramic transducers. Sensors
**2017**, 17, 2796. [Google Scholar] [CrossRef] [PubMed] - Yin, H.; Wang, T.; Yang, D.; Liu, S.; Shao, J.; Li, Y. A smart washer for bolt looseness monitoring based on piezoelectric active sensing method. Appl. Sci.
**2016**, 6, 320. [Google Scholar] [CrossRef] - Xu, K.; Kong, Q.; Chen, S.; Song, G. Early Determination of the Presence of Low Strength Concrete in Reinforced Concrete Beam-Column Joints Using Piezoceramic-Based Transducers. IEEE Sens. J.
**2017**, 17, 3244–3250. [Google Scholar] [CrossRef] - Zhang, J.; Li, Y.; Du, G.; Song, G. Damage detection of l-shaped concrete filled steel tube (L-CFST) columns under cyclic loading using embedded piezoceramic transducers. Sensors
**2018**, 18, 2171. [Google Scholar] [CrossRef] [PubMed] - Lynch, J.P.; Loh, K.J. A summary review of wireless sensors and sensor networks for structural health monitoring. Shock Vib. Dig.
**2006**, 38, 91–130. [Google Scholar] [CrossRef] - Yang, Y.; Divsholi, B.S.; Soh, C.K. A reusable PZT transducer for monitoring initial hydration and structural health of concrete. Sensors
**2010**, 10, 5193–5208. [Google Scholar] [CrossRef] [PubMed] - Song, G.; Wang, C.; Wang, B. Structural Health Monitoring (SHM) of Civil Structures. Appl. Sci.
**2017**, 7, 789. [Google Scholar] [CrossRef] - Yang, Y.; Annamdas, V.G.M.; Wang, C.; Zhou, Y. Application of multiplexed FBG and PZT impedance sensors for health monitoring of rocks. Sensors
**2008**, 8, 271–289. [Google Scholar] [CrossRef] [PubMed] - Kim, S.D.; In, C.W.; Cronin, K.E.; Sohn, H.; Harries, K. Reference-free NDT technique for debonding detection in CFRP-strengthened RC structures. J. Struct. Div.
**2007**, 133, 1080–1091. [Google Scholar] [CrossRef] - Mańka, M.; Rosiek, M.; Martowicz, A.; Stepinski, T.; Uhl, T. PZT based tunable Interdigital Transducer for Lamb waves based NDT and SHM. Mech. Syst. Signal. Process.
**2016**, 78, 71–83. [Google Scholar] [CrossRef] - Gao, W.; Zhang, G.; Li, H.; Huo, L.; Song, G. A novel time reversal sub-group imaging method with noise suppression for damage detection of plate-like structures. Struct. Control Health Monit.
**2018**, 25, e2111. [Google Scholar] [CrossRef] - Luo, M.; Li, W.; Hei, C.; Song, G. Concrete infill monitoring in concrete-filled FRP tubes using a PZT-based ultrasonic time-of-flight method. Sensors
**2016**, 16, 2083. [Google Scholar] [CrossRef] [PubMed] - Song, G.; Gu, H.; Mo, Y.L.; Hsu, T.T.C.; Dhonde, H. Concrete structural health monitoring using embedded piezoceramic transducers. Smart Mater. Struct.
**2007**, 16, 959. [Google Scholar] [CrossRef] - Kong, Q.; Robert, R.H.; Silva, P.; Mo, Y.L. Cyclic crack monitoring of a reinforced concrete column under simulated pseudo-dynamic loading using piezoceramic-based smart aggregates. Appl. Sci.
**2016**, 6, 341. [Google Scholar] [CrossRef] - Xu, J.; Hao, J.; Li, H.; Luo, M.; Guo, W.; Li, W. Experimental Damage Identification of a Model Reticulated Shell. Appl. Sci.
**2017**, 7, 362. [Google Scholar] [CrossRef] - Sun, F.P.; Chaudhry, Z.; Liang, C.; Rogers, C.A. Truss structure integrity identification using PZT sensor-actuator. NDT E Int.
**1997**, 5, 321. [Google Scholar] [CrossRef] - Du, G.; Kong, Q.; Zhou, H.; Gu, H. Multiple cracks detection in pipeline using damage index matrix based on piezoceramic transducer-enabled stress wave propagation. Sensors
**2017**, 17, 1812. [Google Scholar] [CrossRef] [PubMed] - Zhu, J.; Ren, L.; Ho, S.C.; Jia, Z.; Song, G. Gas pipeline leakage detection based on PZT sensors. Smart Mater. Struct.
**2017**, 26, 025022. [Google Scholar] [CrossRef] - Du, G.; Kong, Q.; Wu, F.; Ruan, J.; Song, G. An experimental feasibility study of pipeline corrosion pit detection using a piezoceramic time reversal mirror. Smart Mater. Struct.
**2016**, 25, 037002. [Google Scholar] [CrossRef] - Venugopal, V.P.; Wang, G. Modeling and analysis of Lamb wave propagation in a beam under lead zirconate titanate actuation and sensing. J. Intell. Mater. Syst. Struct.
**2015**, 26, 1679–1698. [Google Scholar] [CrossRef] - Kong, Q.; Hou, S.; Ji, Q.; Mo, Y.L.; Song, G. Very early age concrete hydration characterization monitoring using piezoceramic based smart aggregates. Smart Mater. Struct.
**2013**, 22, 085025. [Google Scholar] [CrossRef] - Tian, Z.; Huo, L.; Gao, W.; Li, H.; Song, G. Modeling of the attenuation of stress waves in concrete based on the Rayleigh damping model using time-reversal and PZT transducers. Smart Mater. Struct.
**2017**, 26, 105030. [Google Scholar] [CrossRef] [Green Version] - Gao, W.; Huo, L.; Li, H.; Song, G. Smart concrete slabs with embedded tubular PZT transducers for damage detection. Smart Mater. Struct.
**2018**, 27, 025002. [Google Scholar] [CrossRef] - Lu, G.; Li, Y.; Wang, T.; Xiao, H.; Song, G. A multi-delay-and-sum imaging algorithm for damage detection using piezoceramic transducers. J. Intell. Mater. Syst. Struct.
**2017**, 28, 1150–1159. [Google Scholar] [CrossRef] - Lu, G.; Li, Y.; Zhou, M.; Feng, Q.; Song, G. Detecting Damage Size and Shape in a Plate Structure Using PZT Transducer Array. J. Aerosp. Eng.
**2018**, 31, 04018075. [Google Scholar] [CrossRef] - Zhang, G.; Gao, W.; Song, G.; Song, Y. An imaging algorithm for damage detection with dispersion compensation using piezoceramic induced lamb waves. Smart Mater. Struct.
**2016**, 26, 025017. [Google Scholar] [CrossRef] - Gao, W.; Huo, L.; Li, H.; Song, G. An Embedded Tubular PZT Transducer Based Damage Imaging Method for Two-Dimensional Concrete Structures. IEEE Access
**2018**, 6, 30100–30109. [Google Scholar] [CrossRef] - Valente, S.A.; Zibetti, M.V.W.; Pipa, D.R.; Maia, J.M.; Schneider, F.K. An Assessment of Iterative Reconstruction Methods for Sparse Ultrasound Imaging. Sensors
**2017**, 17, 533. [Google Scholar] [CrossRef] [PubMed] - Gang, T.; Hu, M.; Bai, X.; Rong, Q. Sensitivity-Improved Ultrasonic Sensor for 3D Imaging of Seismic Physical Model Using a Compact Microcavity. Sensors
**2018**, 18, 1–10. [Google Scholar] [CrossRef] [PubMed] - Birchak, J.R.; Linyaev, E.; Robbins, C.A.; Roessler, D.E.; Halliburton Co. Acoustic Transducer for LWD Tool. U.S. Patent 5,644,186, 1 July 1997. [Google Scholar]
- Aron, J.B.; Chang, S.K.; Klasel, D.A.; Lau, T.M.; Schlumberger Technology Corp. Transducer for Sonic Logging-While-Drilling. U.S. Patent 5,753,812, 19 May 1998. [Google Scholar]
- Yogeswaren, E.; PathFinder Energy Services Inc. Acoustic Sensor for Downhole Measurement Tool. U.S. Patent 7,036,363, 2 May 2006. [Google Scholar]
- Massiot, C.; Mcnamara, D.D.; Lewis, B. Processing and analysis of high temperature geothermal acoustic borehole image logs in the Taupo Volcanic zone, New Zealand. Geothermics
**2015**, 53, 190–201. [Google Scholar] [CrossRef] - Lai, J.; Wang, G.; Wang, S.; Cao, J.; Li, M.; Pang, X. A review on the applications of image logs in structural analysis and sedimentary characterization. Mar. Pet. Geol.
**2018**, 95, 139–166. [Google Scholar] [CrossRef] - Zohreh, M.; Junin, R.; Jeffreys, P. Evaluate the borehole condition to reduce drilling risk and avoid potential well bore damages by using image logs. J. Pet. Sci. Eng.
**2014**, 122, 318–330. [Google Scholar] [CrossRef] - Sun, Z.; Chen, H.; Liu, X. Case studies of casing inspection with multi-functional ultrasonic imaging logging tool. J. Acoust. Soc. Am.
**2013**, 133, 3545. [Google Scholar] [CrossRef] - Liang, M.; Peng, S.; Du, W.; Lu, Y. Tectonic stress estimation from ultrasonic borehole image logs in a coal bed methane well, northeastern Qinshui Basin, China. J. Nat. Gas Sci. Eng.
**2018**, 52, 44–58. [Google Scholar] [CrossRef] - Xiao, K.; Zou, C.; Xiang, B.; Yue, X.; Zhou, X.; Li, J.; Zhao, B. Log response of ultrasonic imaging and its significance for deep mineral prospecting of scientific drilling borehole-2 in Nanling district, China. J. Geophys. Eng.
**2014**, 11, 055003. [Google Scholar] [CrossRef] - Zhang, J.; Nie, X.; Xiao, S.; Zhang, C.; Zhang, C.; Zhang, Z. Generating porosity spectrum of carbonate reservoirs using ultrasonic imaging log. Acta Geophys.
**2018**, 66, 1–11. [Google Scholar] [CrossRef] - Fu, Q.; Celenk, M.; Wu, A. An improved algorithm based on CLAHE for ultrasonic well logging image enhancement. Clust. Comput.
**2018**, 1–10. [Google Scholar] [CrossRef] - Tu, J.; Yu, H.; Li, C.; Zou, W. Study of Histogram Equalization for Ultrasonic Logging Well Image. Video Eng.
**2011**, 35, 113–114. [Google Scholar] - Jeong, C.K.; Baek, C.; Kingon, A.I.; Park, K.I.; Kim, S.H. Lead-free perovskite nanowire-employed piezopolymer for highly efficient flexible nanocomposite energy harvester. Small
**2018**, 14, e1704022. [Google Scholar] [CrossRef] [PubMed] - Che, X.-H.; Qiao, W.-X.; Ju, X.-D.; Wang, R.-J. Azimuthal cement evaluation with an acoustic phased-arc array transmitter: Numerical simulations and field tests. Appl. Geophys.
**2016**, 13, 194–202. [Google Scholar] [CrossRef] - Liu, J.; Zhou, C.; Chen, P.; Kang, C. An Efficient Contrast Enhancement Method for Remote Sensing Images. IEEE Geosci. Remote Sens. Lett.
**2017**, 14, 1715–1719. [Google Scholar] [CrossRef] - Lai, Y.R.; Tsai, P.C.; Yao, C.Y.; Ruan, S.J. Improved local histogram equalization with gradient-based weighting process for edge preservation. Multimed. Tools Appl.
**2017**, 76, 1585–1613. [Google Scholar] [CrossRef] - Ibrahim, H.; Kong, N.S.P. Brightness Preserving Dynamic Histogram Equalization for Image Contrast Enhancement. IEEE Trans. Consum. Electron.
**2007**, 53, 1752–1758. [Google Scholar] [CrossRef] - Huang, L.; Zhao, W.; Wang, J.; Sun, Z. Combination of contrast limited adaptive histogram equalisation and discrete wavelet transform for image enhancement. IET Image Process.
**2015**, 9, 908–915. [Google Scholar] - Chiu, C.C.; Ting, C.C. Contrast Enhancement Algorithm Based on Gap Adjustment for Histogram Equalization. Sensors
**2016**, 16, 936. [Google Scholar] [CrossRef] [PubMed] - Kim, Y.T. Contrast enhancement using brightness preserving bi-histogram equalization. IEEE Trans. Consum. Electron.
**1997**, 43, 1–8. [Google Scholar] - Chen, S.D.; Ramli, A.R. Contrast enhancement using recursive mean-separate histogram equalization for scalable brightness preservation. IEEE Trans. Consum. Electron.
**2003**, 49, 1301–1309. [Google Scholar] [CrossRef] - Chen, S.D.; Ramli, A.R. Minimum mean brightness error bi-histogram equalization in contrast enhancement. IEEE Trans. Consum. Electron.
**2004**, 49, 1310–1319. [Google Scholar] [CrossRef] - Singh, K.; Kapoor, R. Image enhancement using exposure based sub image histogram equalization. Pattern Recognit. Lett.
**2014**, 36, 10–14. [Google Scholar] [CrossRef] - Singh, K.; Kapoor, R.; Sinha, S.K. Enhancement of low exposure images via recursive histogram equalization algorithms. Optik
**2015**, 126, 2619–2625. [Google Scholar] [CrossRef] - Parihar, A.S.; Verma, O.P. Contrast enhancement using entropy-based dynamic sub-histogram equalisation. IET Image Process.
**2017**, 10, 799–808. [Google Scholar] [CrossRef] - Abdullah-Al-Wadud, M.; Kabir, M.H.; Dewan, M.A.A.; Chae, O. A Dynamic Histogram Equalization for Image Contrast Enhancement. IEEE Trans. Consum. Electron.
**2007**, 53, 593–600. [Google Scholar] [CrossRef] - Huang, S.C.; Cheng, F.C.; Chiu, Y.S. Efficient contrast enhancement using adaptive gamma correction with weighting distribution. IEEE Trans. Image Process.
**2013**, 22, 1032–1041. [Google Scholar] [CrossRef] [PubMed] - Arici, T.; Dikbas, S.; Altunbasak, Y. A Histogram Modification Framework and Its Application for Image Contrast Enhancement. IEEE Trans. Image Process.
**2009**, 18, 1921–1935. [Google Scholar] [CrossRef] [PubMed] - Zhao, Q.; Huang, L. Brightness preserving image enhancement based on a gradient and intensity histogram. J. Electron. Imaging
**2015**, 24, 053006. [Google Scholar] - Kong, N.S.P.; Ibrahim, H. Multiple layers block overlapped histogram equalization for local content emphasis. Comput. Electr. Eng.
**2011**, 37, 631–643. [Google Scholar] [CrossRef] - Kim, T.K.; Paik, J.K.; Kang, B.S. Contrast enhancement system using spatially adaptive histogram equalization with temporal filtering. IEEE Trans. Consum. Electron.
**1998**, 44, 82–87. [Google Scholar] - Gonzalez, R.C.; Woods, R.E. Digital Image Processing, 2nd ed.; Publishing House of Electronics Industry: Beijing, China, 2007; pp. 88–108. [Google Scholar]
- Kim, J.Y.; Kim, L.S.; Hwang, S.H. An advanced contrast enhancement using partially overlapped sub-block histogram equalization. IEEE Trans. Circuits Syst. Video Technol.
**2001**, 11, 475–484. [Google Scholar] [Green Version] - Reza, A.M. Realization of the Contrast Limited Adaptive Histogram Equalization (CLAHE) for Real-Time Image Enhancement. J. VLSI Signal Process. Syst. Signal Image Video Technol.
**2004**, 38, 35–44. [Google Scholar] [CrossRef] - Zuiderveld, K. Contrast Limited Adaptive Histogram Equalization; Graphics Gems IV; Academic Press Professional Inc.: San Diego, CA, USA, 1994; pp. 474–485. [Google Scholar]
- Yan, J.P.; Shou, X.Y.; Shao, Z.P.; Yao, S.X.; Zhao, Z.M. The Method of Image Dynamic Intensify and Morphing in Imaging Log. Well Logging Technol.
**2006**, 30, 364–366. [Google Scholar] - Wang, X.; Peng, T.; Lei, G.; Zhang, J.; Zhao, X. On the Method of XRMI Dynamic Enhancement and Full Borehole Imaging and Its Application. Well Logging Technol.
**2015**, 39, 432–437. [Google Scholar] - Jenifer, S.; Parasuraman, S.; Kadirvelu, A. Contrast enhancement and brightness preserving of digital mammograms using fuzzy clipped contrast-limited adaptive histogram equalization algorithm. Appl. Soft Comput.
**2016**, 42, 167–177. [Google Scholar] [CrossRef] - Chen, H.O.; Kong, N.S.P.; Ibrahim, H. Bi-histogram equalization with a plateau limit for digital image enhancement. IEEE Trans. Consum. Electron.
**2010**, 55, 2072–2080. [Google Scholar] - Al-Ameen, Z.; Sulong, G.; Rehman, A.; Al-Dhelaan, A.; Saba, T.; Al-Rodhaan, M. An innovative technique for contrast enhancement of computed tomography images using normalized gamma-corrected contrast-limited adaptive histogram equalization. Eurasip J. Adv. Signal Process.
**2015**, 1, 1–12. [Google Scholar] [CrossRef] - Jiao, L.; Sun, Z.; Sha, A. Improvement of Image Contrast with Local Adaptation. In Proceedings of the 2010 Second International Conference on Multimedia and Information Technology, Kaifeng, China, 24–25 April 2010; pp. 51–54. [Google Scholar]
- Liu, Y.F.; Guo, J.M.; Lai, B.S. Parametric-Oriented Fitting for Local Contrast Enhancement. Inform. Sci.
**2016**, 370–371, 323–342. [Google Scholar] [CrossRef] - Gupta, B.; Agarwal, T.K. Linearly quantile separated weighted dynamic histogram equalization for contrast enhancement. Comput. Electr. Eng.
**2017**, 62, 360–374. [Google Scholar] [CrossRef] - Joseph, J.; Jayaraman, S.; Periyasamy, R.; Simi, V.R. An objective method to identify optimum clip-limit and histogram specification of contrast limited adaptive histogram equalization for MR images. Biocybern. Biomed. Eng.
**2017**, 37, 489–497. [Google Scholar] [CrossRef] - Wang, Y.; Pan, Z. Image contrast enhancement using adjacent-blocks-based modification for local histogram equalization. Infrared Phys. Technol.
**2017**, 86, 59–65. [Google Scholar] [CrossRef] - Wang, Z.; Bovik, A.C.; Sheikh, H.R.; Simoncelli, E.P. Image quality assessment: From error visibility to structural similarity. IEEE Trans. Image Process.
**2004**, 13, 600–612. [Google Scholar] [CrossRef] [PubMed]

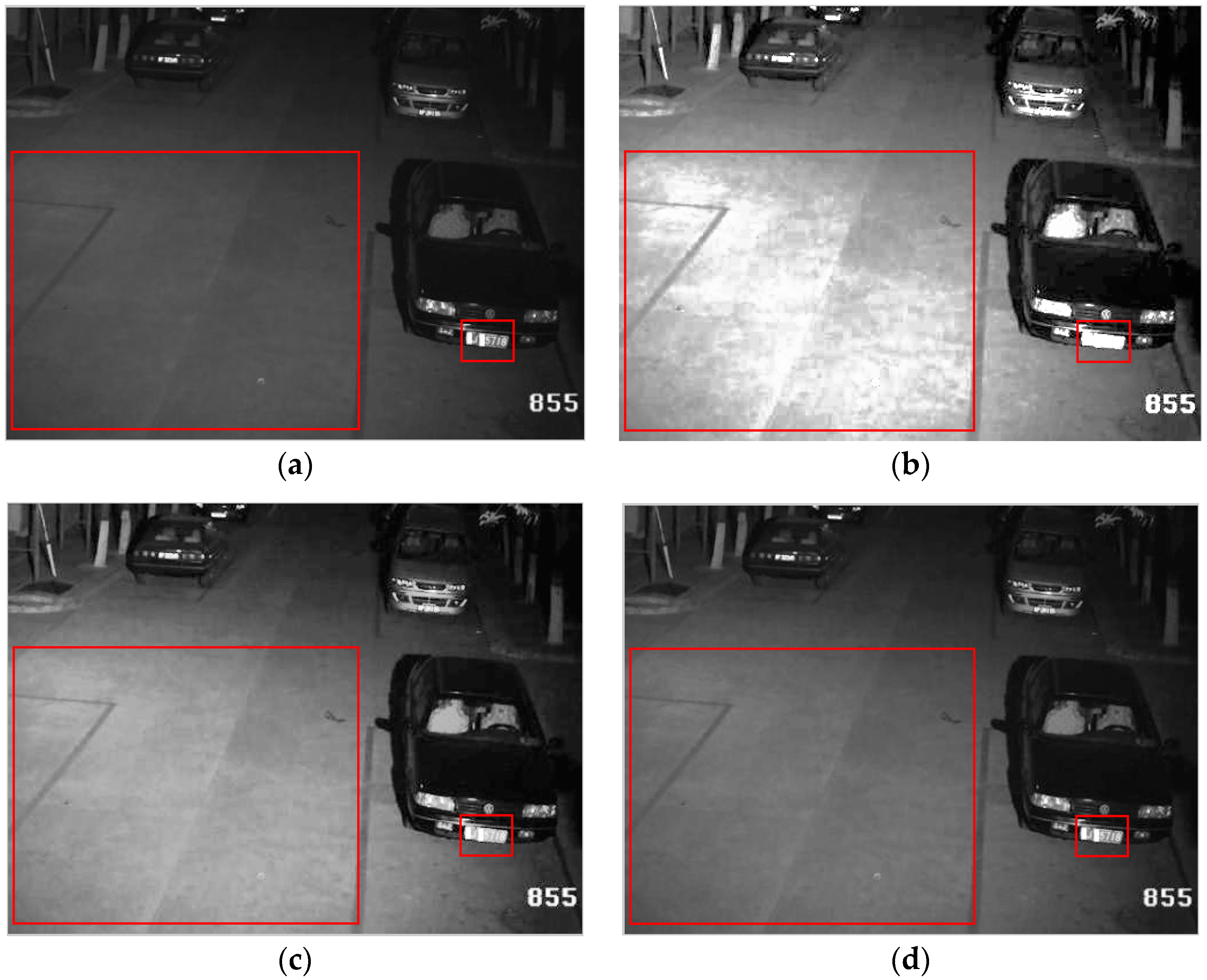

**Figure 3.**The example of enhanced results by the HE and the clipped HE method. (

**a**) Original input image; (

**b**) Image enhanced by HE; (

**c**) Image enhanced by clipped HE with β = 2.5 N

_{av}; (

**d**) Image enhanced by clipped HE with β = 1.5 N

_{av}.

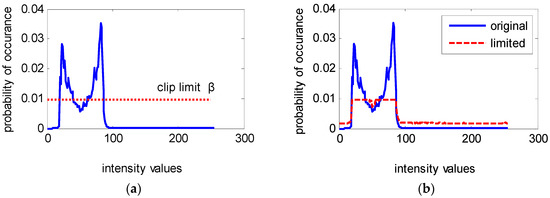

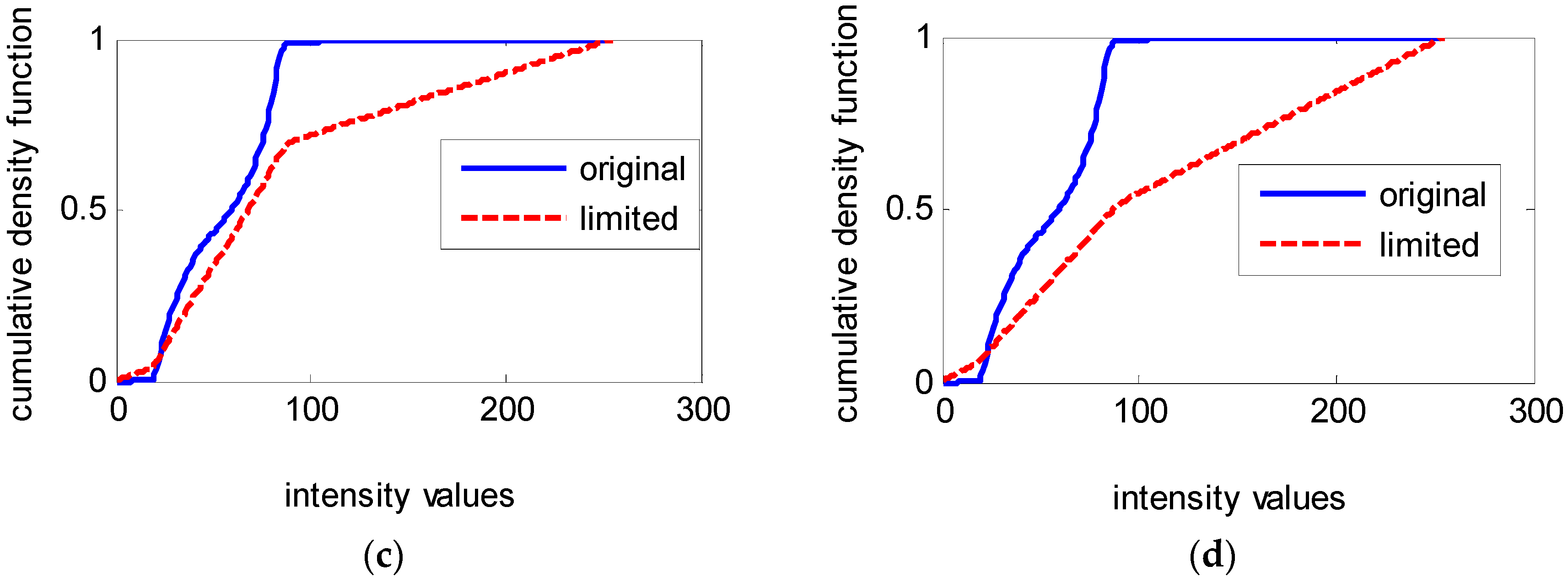

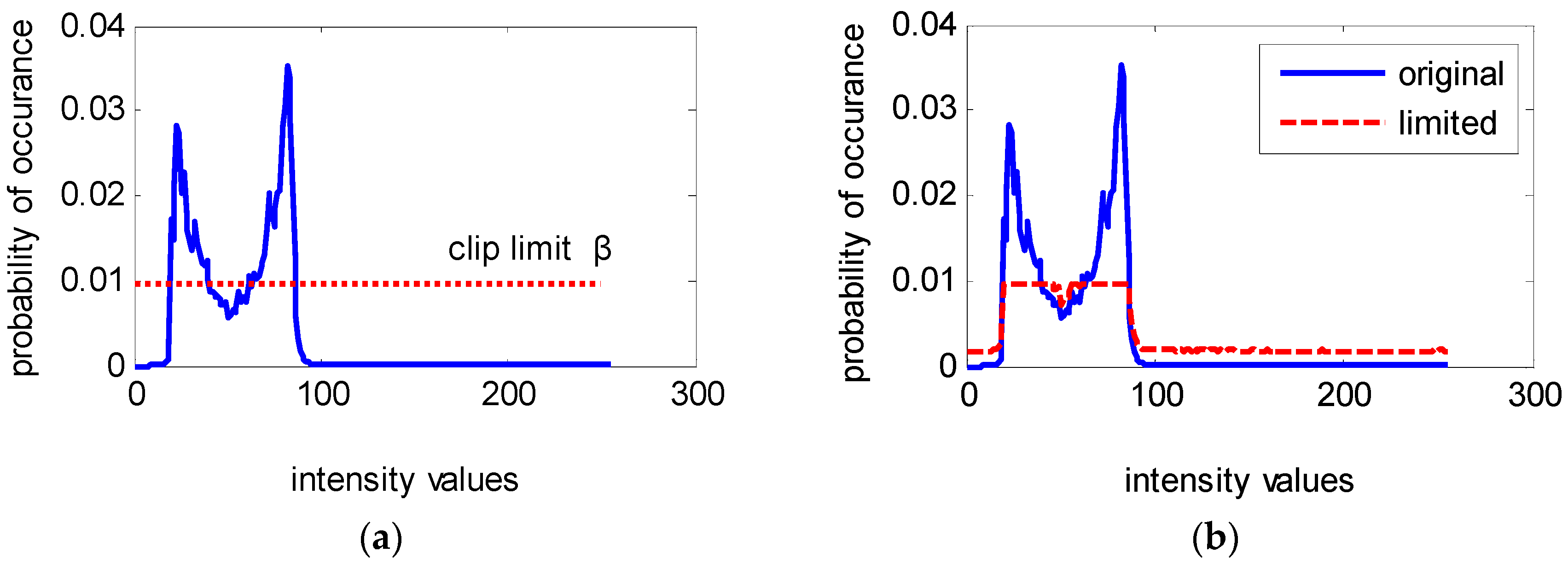

**Figure 4.**Clipping and redistribution of clipped histogram equalization. (

**a**) Histogram of the original input image; (

**b**) Histogram of the original input image and the modified histogram after redistribution; (

**c**) The cumulative density function of original and modified histograms with β = 2.5 N

_{av}; (

**d**) The cumulative density function of original and modified histograms with β = 1.5 N

_{av}.

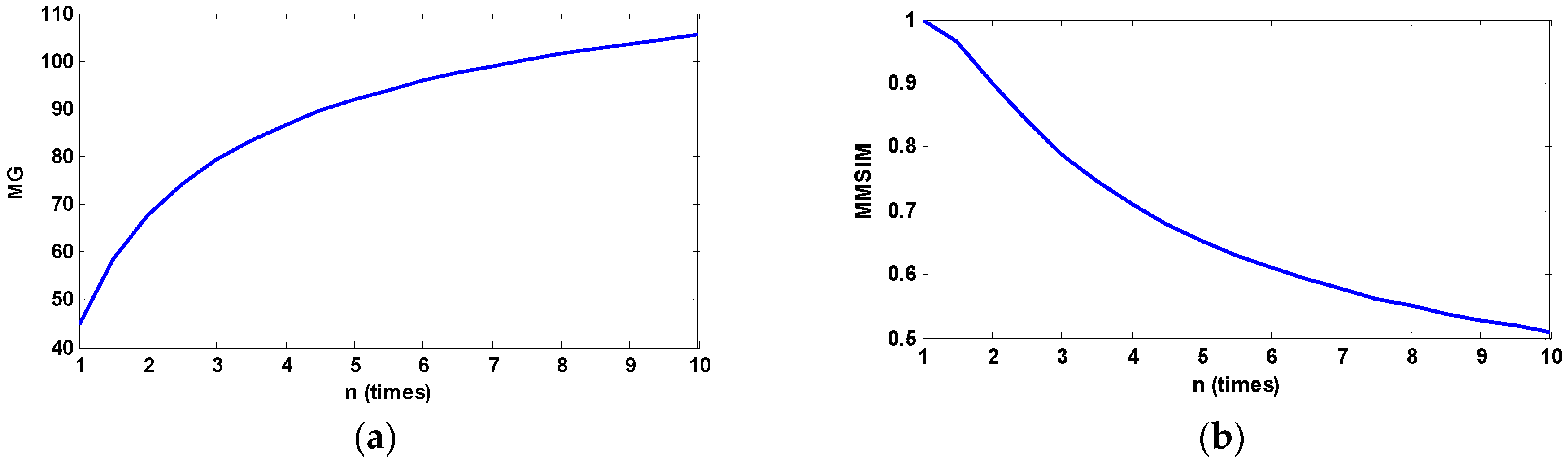

**Figure 5.**The relationships between the two measures and n. (

**a**) MG of the enhanced image with different n values; (

**b**) MMSIM of the enhanced image with different n values.

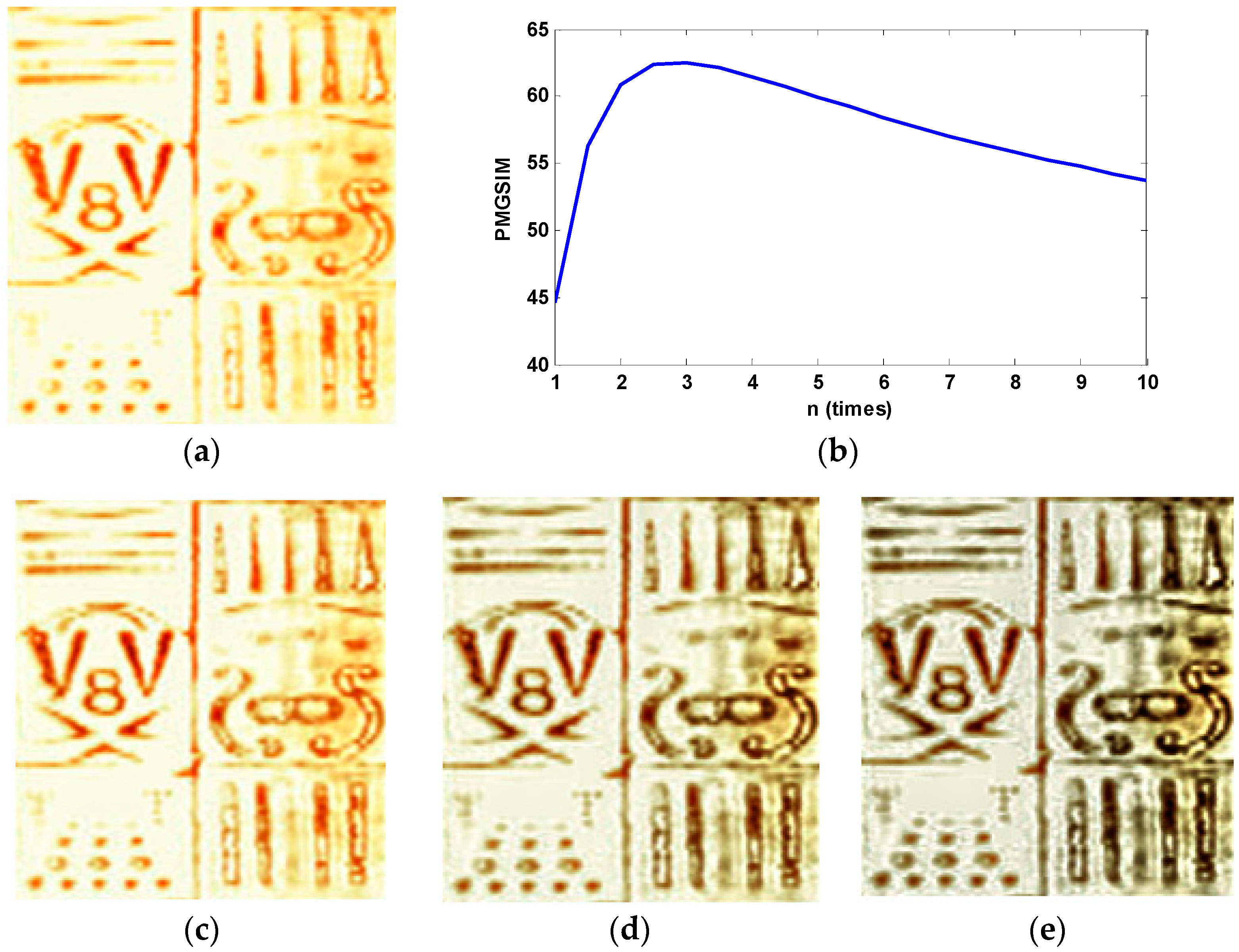

**Figure 6.**Examples of the proposed POSHEOC with different n values. (

**a**) The original ultrasonic logging image; (

**b**) PMGSIM of the enhanced image with different n values; (

**c**) The enhanced result of the proposed POSHEOC with n = 1.5; (

**d**) The enhanced result of the proposed POSHEOC with n = 3; (

**e**) The enhanced result of the proposed POSHEOC with n = 6.

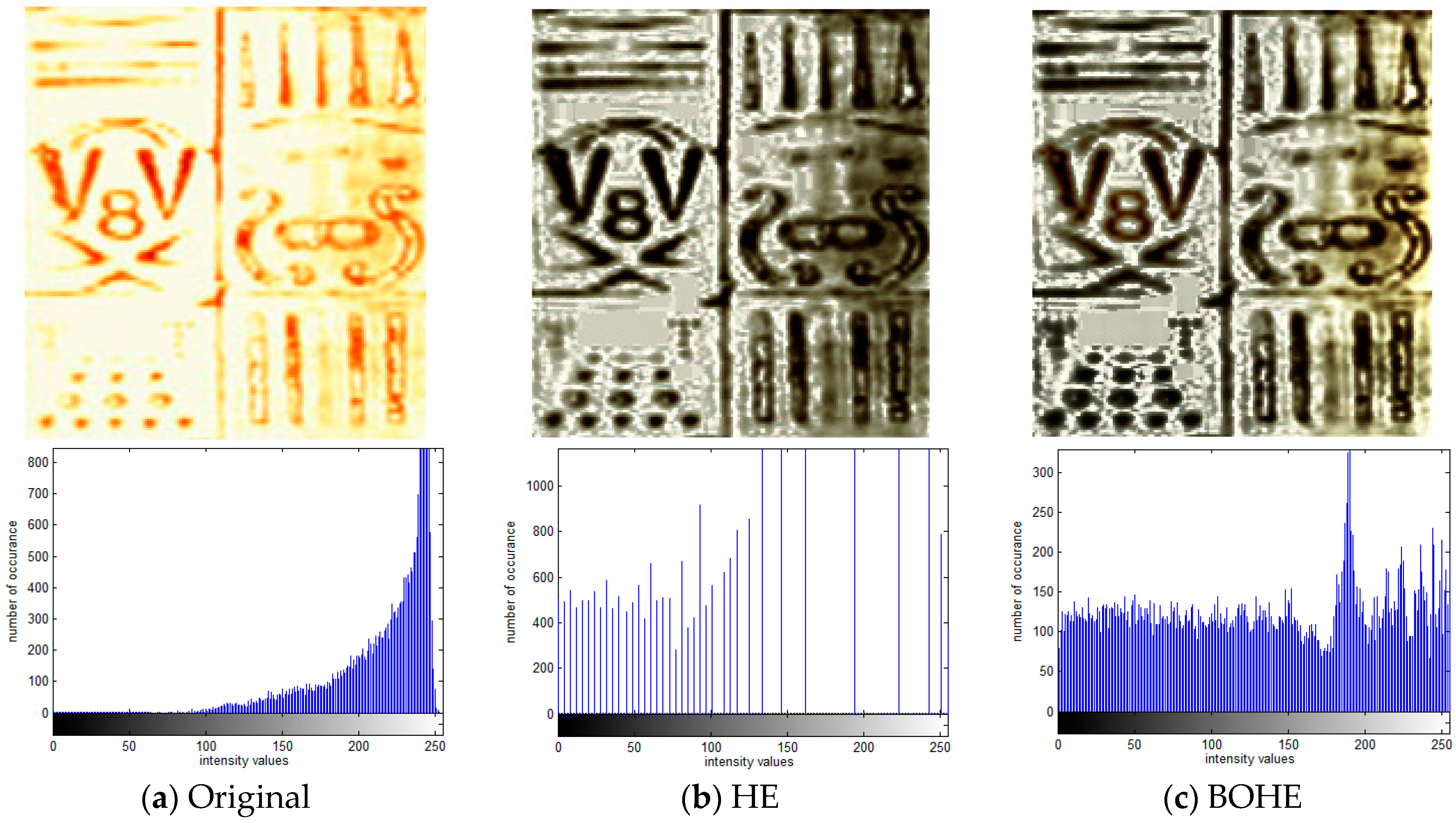

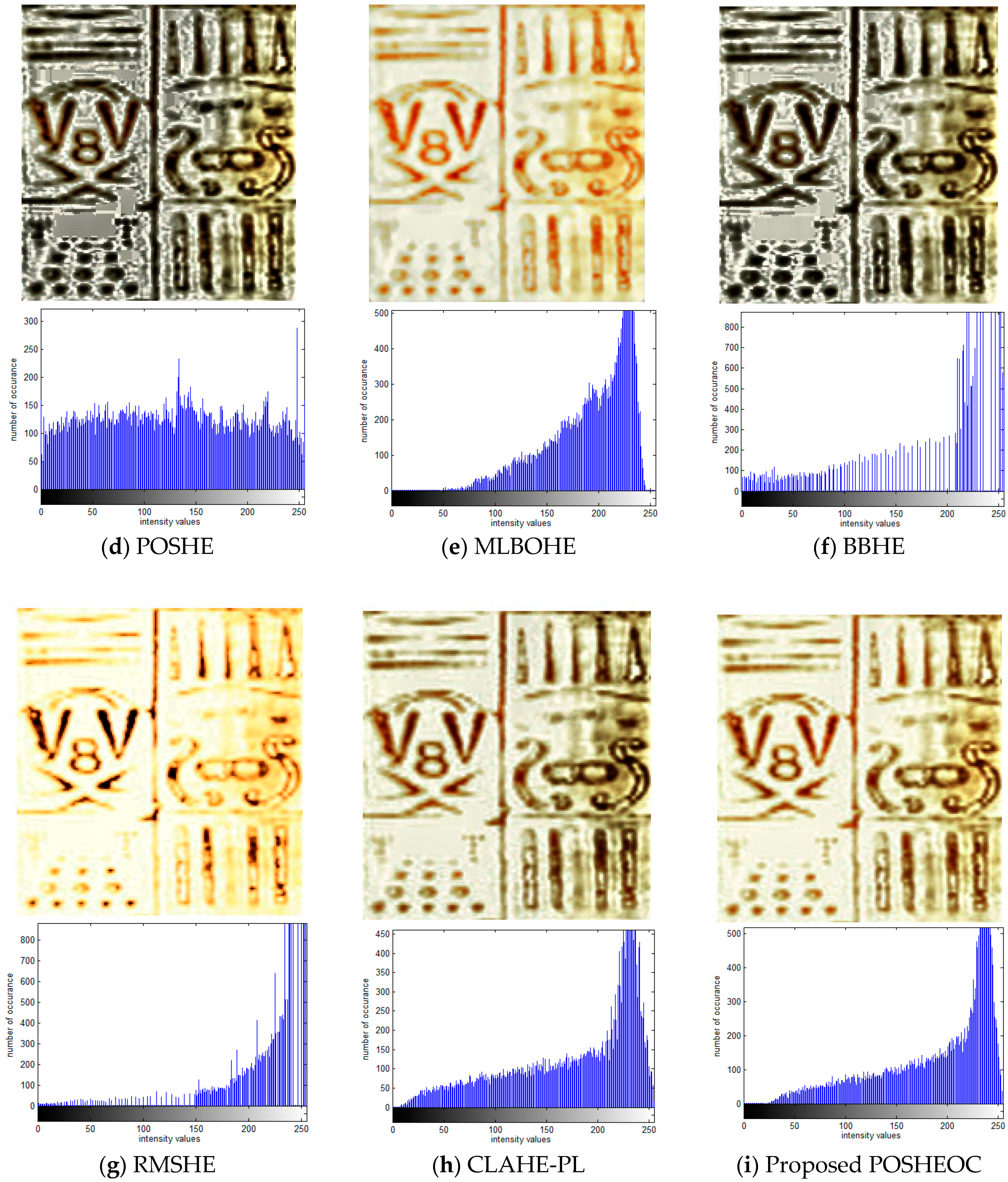

**Figure 7.**Comparison of enhancement results with corresponding statistical histogram using various techniques for ultrasonic logging image of the model well. (

**a**) Original image; (

**b**) HE; (

**c**) BOHE; (

**d**) POSHE; (

**e**) MLBOHE; (

**f**) BBHE; (

**g**) RMSHE; (

**h**) CLAHE-PL; (

**i**) Proposed POSHEOC.

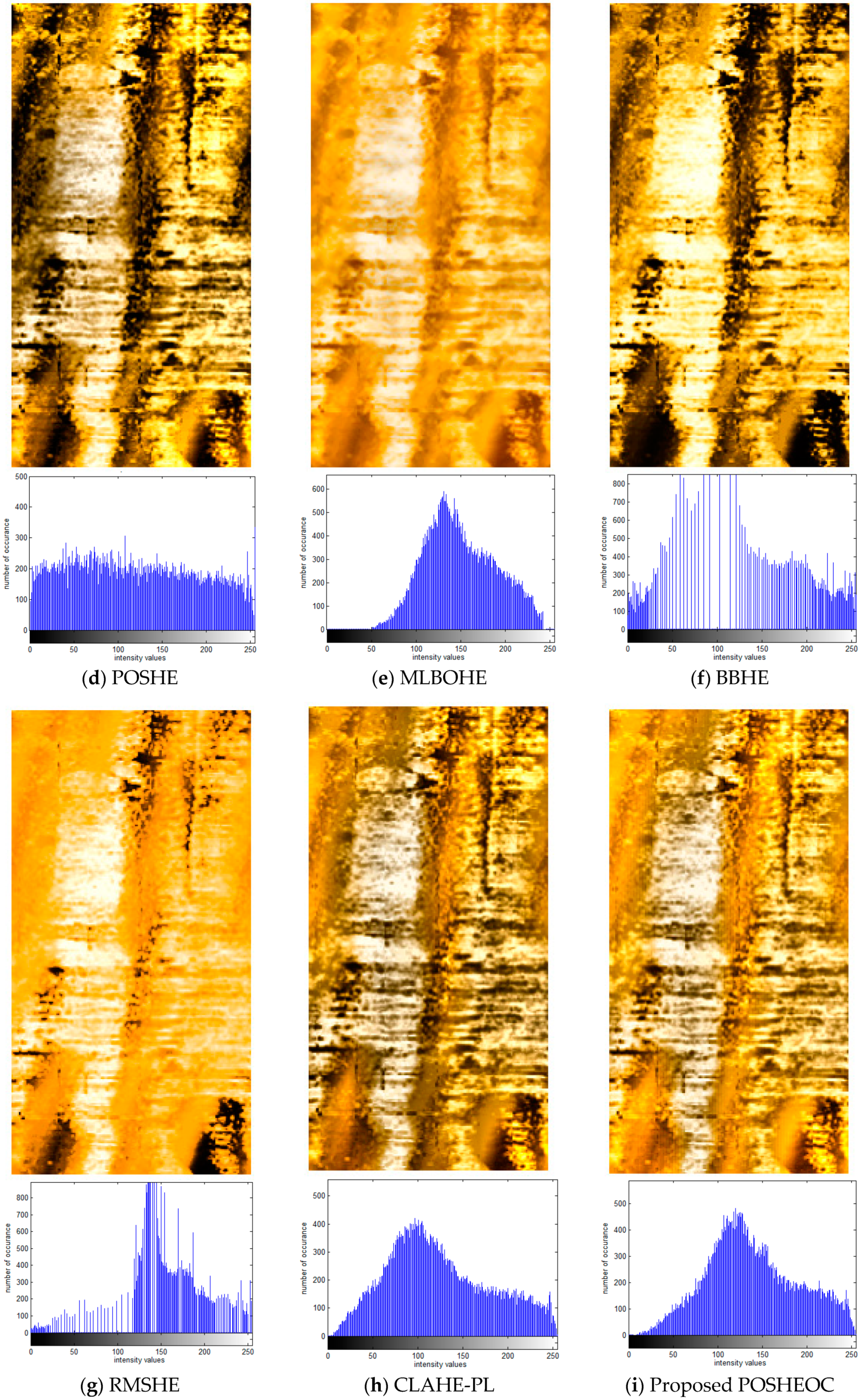

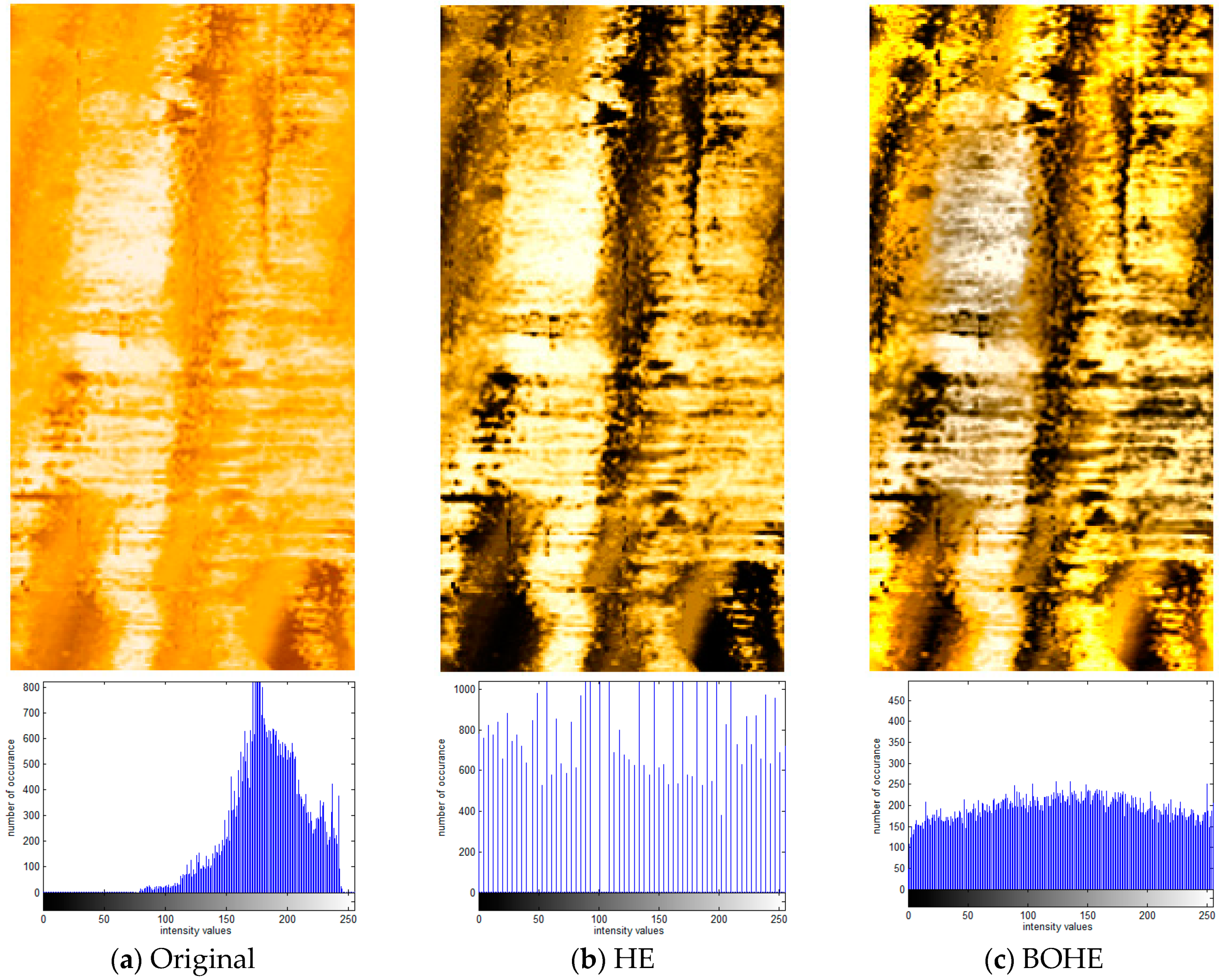

**Figure 8.**Comparison of enhancement results with corresponding statistical histogram using various techniques for ultrasonic logging image of Changqingyi well. (

**a**) Original image; (

**b**) HE; (

**c**) BOHE; (

**d**) POSHE; (

**e**) MLBOHE; (

**f**) BBHE; (

**g**) RMSHE; (

**h**) CLAHE-PL; (

**i**) Proposed POSHEOC.

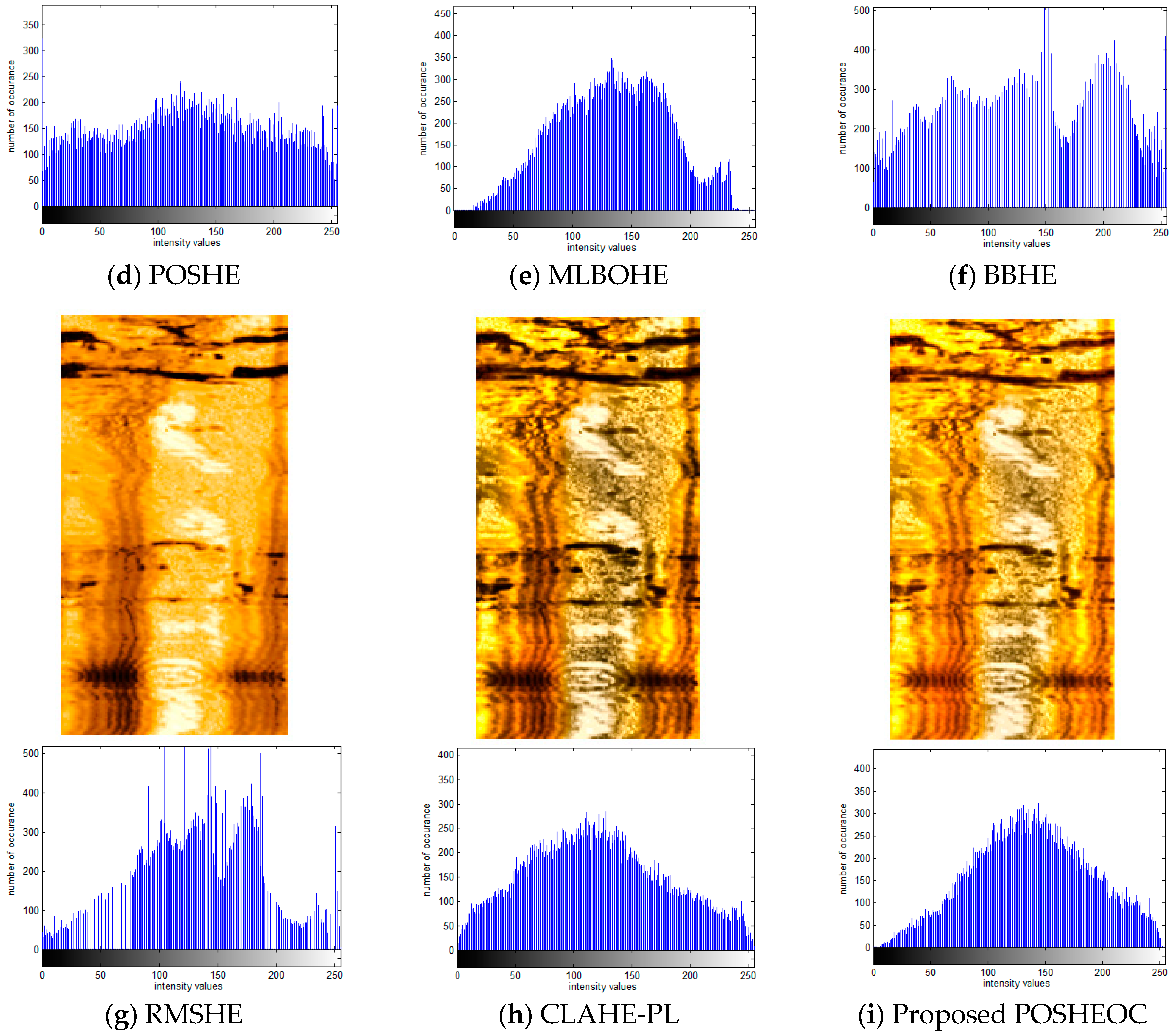

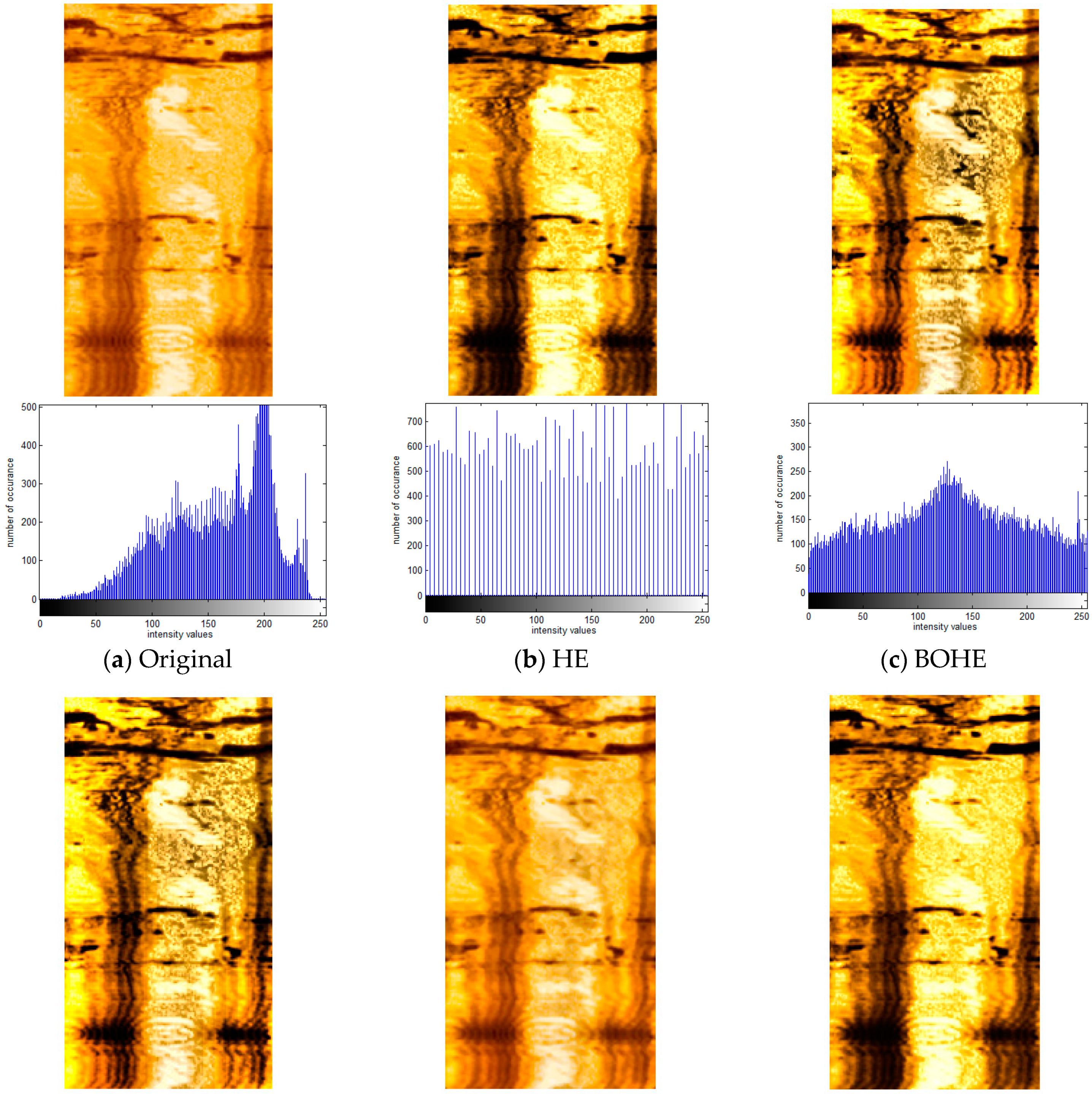

**Figure 9.**Comparison of enhancement results with corresponding statistical histogram using various techniques for ultrasonic logging image of Changqingli well. (

**a**) Original image; (

**b**) HE; (

**c**) BOHE; (

**d**) POSHE; (

**e**) MLBOHE; (

**f**) BBHE; (

**g**) RMSHE; (

**h**) CLAHE-PL; (

**i**) Proposed POSHEOC.

Methods | Objective Indexes | ||||
---|---|---|---|---|---|

PMGSIM | PSNR | IE | AMBE | LC | |

HE | 41.1477 | 7.8129 | 5.2915 | 91.3723 | 0.3517 |

BOHE | 32.7773 | 7.1055 | 7.9546 | 97.4517 | 0.5681 |

POSHE | 41.5468 | 7.7988 | 7.9259 | 91.5251 | 0.6086 |

MLBOHE | 45.2901 | 15.7386 | 6.9873 | 38.0596 | 0.1769 |

BBHE | 55.4418 | 14.5983 | 5.9073 | 25.1141 | 0.3563 |

RMSHE | 52.2859 | 25.1331 | 5.9667 | 1.7287 | 0.1913 |

CLAHE-PL | 60.1273 | 13.6930 | 7.4505 | 41.4485 | 0.2067 |

POSHEOC | 62.5286 | 16.6169 | 7.2052 | 27.7857 | 0.2773 |

**Table 2.**Quantitative results for ultrasonic logging image of Changqingyi well with various methods.

Methods | Objective Indexes | ||||
---|---|---|---|---|---|

PMGSIM | PSNR | IE | AMBE | LC | |

HE | 52.4388 | 13.7409 | 5.8441 | 31.0693 | 0.2991 |

BOHE | 48.6238 | 10.8948 | 7.9774 | 54.0931 | 0.5068 |

POSHE | 54.3196 | 12.7994 | 7.9665 | 38.2192 | 0.5249 |

MLBOHE | 40.7913 | 16.7165 | 7.2906 | 34.4128 | 0.1624 |

BBHE | 52.9611 | 14.4309 | 6.8055 | 24.2409 | 0.4237 |

RMSHE | 47.6993 | 24.7405 | 6.7605 | 2.7983 | 0.2098 |

CLAHE-PL | 58.4960 | 14.5198 | 7.7645 | 35.4124 | 0.2783 |

POSHEOC | 61.1664 | 17.2683 | 7.6481 | 19.6878 | 0.3606 |

**Table 3.**Quantitative results for ultrasonic logging image of Changqingli well with various methods.

Methods | Objective Indexes | ||||
---|---|---|---|---|---|

PMGSIM | PSNR | IE | AMBE | LC | |

HE | 49.2776 | 17.8113 | 5.9706 | 8.2204 | 0.2409 |

BOHE | 53.4988 | 14.5454 | 7.9473 | 29.0144 | 0.4281 |

POSHE | 54.6502 | 16.6845 | 7.9561 | 8.4551 | 0.2990 |

MLBOHE | 40.1781 | 19.3844 | 7.5268 | 24.8180 | 0.1898 |

BBHE | 49.7495 | 18.2670 | 7.2280 | 4.1289 | 0.3378 |

RMSHE | 44.0206 | 29.3174 | 7.2733 | 0.7827 | 0.2234 |

CLAHE-PL | 56.4173 | 16.8092 | 7.8462 | 16.0812 | 0.2857 |

POSHEOC | 58.2492 | 18.5768 | 7.6870 | 2.3548 | 0.3450 |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Fu, Q.; Zhang, Z.; Celenk, M.; Wu, A.
A POSHE-Based Optimum Clip-Limit Contrast Enhancement Method for Ultrasonic Logging Images. *Sensors* **2018**, *18*, 3954.
https://doi.org/10.3390/s18113954

**AMA Style**

Fu Q, Zhang Z, Celenk M, Wu A.
A POSHE-Based Optimum Clip-Limit Contrast Enhancement Method for Ultrasonic Logging Images. *Sensors*. 2018; 18(11):3954.
https://doi.org/10.3390/s18113954

**Chicago/Turabian Style**

Fu, Qingqing, Zhengbing Zhang, Mehmet Celenk, and Aiping Wu.
2018. "A POSHE-Based Optimum Clip-Limit Contrast Enhancement Method for Ultrasonic Logging Images" *Sensors* 18, no. 11: 3954.
https://doi.org/10.3390/s18113954
