# Property Analysis of the Real-Time Uncalibrated Phase Delay Product Generated by Regional Reference Stations and Its Influence on Precise Point Positioning Ambiguity Resolution

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. RTPPP-AR and RT UPD Estimation

#### 2.1. RTPPP-AR Method

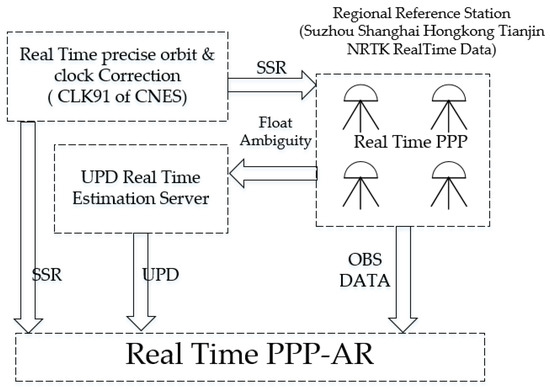

#### 2.2. UPD Real-Time Estimation for Satellite Terminal

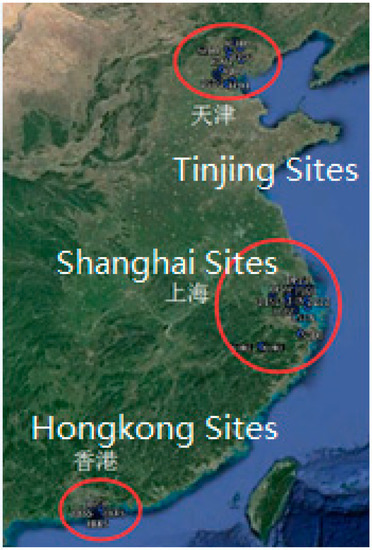

## 3. Experiment Results and Discussion

#### 3.1. Real-Time Uncorrected Phase Delay UPD Characteristic of Satellite Terminal

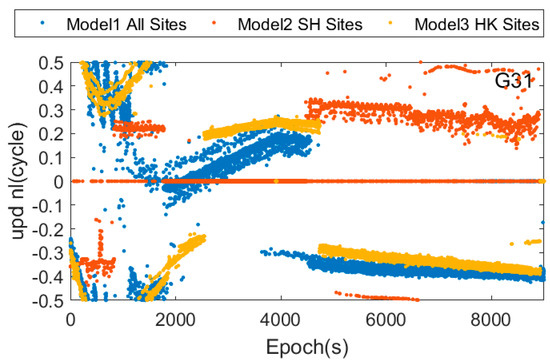

#### 3.2. UPD Estimated by Regional Stations for RTPPP-AR Positioning Experiments

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Bisnath, S.; Gao, Y. Current state of precise point positioning and future prospects and limitations. In Proceedings of the IUGG 24th General Assembly, Perugia, Italy, 2–13 July 2007. [Google Scholar]
- Zumberge, J.F.; Heflin, M.B.; Jefferson, D.C.; Watkins, M.M.; Webb, F.H. Precise point positioning for the efficient and robust analysis of GPS data from large networks. J. Geophys. Res.
**1997**, 102, 5005–5017. [Google Scholar] [CrossRef] - Abdel-Salam, M. Precise Point Positioning Using Un-Differenced Code and Carrier Phase Observations; UCGE Reports No. 20229; University of Calgary: Calgary, AB, Canada, 2005. [Google Scholar]
- Kouba, J.; Hérous, P. Precise point positioning using IGS orbit and clock products. GPS Solut.
**2001**, 5, 12–28. [Google Scholar] [CrossRef] - Wang, J.; Satirapod, C.; Rizos, C. Stochastic assessment of GPS carrier phase measurements for precise static relative positioning. J. Geod.
**2002**, 76, 95–104. [Google Scholar] [CrossRef] - Bisnath, S.B.; Langley, R.B. Precise orbit determination of low earth orbiters with GPS point positioning. In Proceedings of the Institute of Navigation National Technical Meeting, Long Beach, CA, USA, 22–24 January 2001; pp. 725–733. [Google Scholar]
- Geng, J.; Meng, X.; Dodson, A.H.; Teferle, F.N. Integer ambiguity resolution in precise point positioning: Method comparison. J. Geod.
**2010**, 84, 569–581. [Google Scholar] [CrossRef] - Gao, Y.; Shen, X. A new method for carrier-phase-based precise point positioning. Navigation
**2002**, 49, 109–116. [Google Scholar] [CrossRef] - Bertiger, W.; Desai, S.D.; Haines, B.; Harvey, N.; Moore, A.W.; Owen, S.; Weiss, J.P. Single receiver phase ambiguity resolution with GPS data. J. Geod.
**2010**, 84, 327–337. [Google Scholar] [CrossRef] - Bock, H.; Jäggi, A.; Dach, R.; Schaer, S. GPS single-frequency orbit determination for low Earth orbiting satellites. Adv. Space Res.
**2009**, 43, 783–791. [Google Scholar] [CrossRef] - Beran, T. Single-Frequency, Single-Receiver Spaceborne GPS Orbit Determination. Ph.D. Thesis, Department of Geodesy and Geomatics Engineering, University of New Brunswick, Fredericton, NB, Canada, 2008. [Google Scholar]
- Chen, W.; Hu, C.; Li, Z.; Chen, Y.; Ding, X.; Gao, S.; Ji, S. Kinematic GPS precise point positioning for sea level monitoring with GPS buoy. J. Glob. Position. Syst.
**2004**, 3, 302–307. [Google Scholar] [CrossRef] - Banville, S.; Langley, R. Improving real-time kinematic PPP with instantaneous cycle-slip correction. In Proceedings of the ION GNSS 2009, Savannah, GA, USA, 16–19 September 2009. [Google Scholar]
- Li, X.; Ge, M.; Dai, X.; Ren, X.; Fritsche, M.; Wickert, J.; Schuh, H. Accuracy and reliability of multi-GNSS real-time precise positioning: GPS, GLONASS, BeiDou, and Galileo. J. Geod.
**2015**, 89, 607–635. [Google Scholar] [CrossRef] - Li, X.; Ge, M.; Lu, C.; Zhang, Y.; Wang, R.; Wickert, J.; Schuh, H. High-rate GPS seismology using real-time precise point positioning with ambiguity resolution. IEEE Trans. Geosci. Remote Sens.
**2014**, 52, 6165–6180. [Google Scholar] - Ge, M.; Gendt, G.; Rothacher, M.; Shi, C.; Liu, J. Resolution of GPS carrier-phase ambiguities in precise point positioning (PPP) with daily observations. J. Geod.
**2008**, 82, 389–399. [Google Scholar] [CrossRef] - Collins, P.; Bisnath, S.; Lahaye, F.; Héroux, P. Undifferenced GPS ambiguity resolution using the decoupled clock model and ambiguity datum fixing. J. Inst. Navig.
**2011**, 57, 123–135. [Google Scholar] [CrossRef] - Laurichesse, D.; Mercier, F.; Berthias, J.P.; Broca, P.; Cerri, L. Integer ambiguity resolution on undifferenced GPS phase measurements and its application to PPP and satellite precise orbit determination. J. Inst. Navig.
**2009**, 56, 135–149. [Google Scholar] [CrossRef] - Li, X.; Zhang, X. Improving the estimation of uncalibrated fractional phase offsets for PPP ambiguity resolution. J. Navig.
**2012**, 65, 513–529. [Google Scholar] [CrossRef] - Zhang, X.H.; Li, X.X. New method for precise ambiguity integer resolution PPP and experiment. Geomat. Inf. Sci. Wuhan Univ.
**2010**, 35, 657–660. [Google Scholar] - Zhang, X.; Li, P.; Li, X.; Feng, Z.; Xiang, Z. An analysis of time-varying property of widelane carier phase ambiguity fractional bias. Acta Geod. Cartogr. Sin.
**2013**, 42, 798–803, 809. [Google Scholar] - Li, L.; Cui, Y.; Wang, Y.; Lv, Z. Improvement of narow-lane fractional cycle bias estimation and analysis of its time-varying property. Acta Geod. Cartogr. Sin.
**2017**, 46, 34–43. [Google Scholar] - Geng, J.; Teferle, F.N.; Shi, C.; Meng, X.; Dodson, A.H.; Liu, J. Ambiguity resolution in precise point position with hourly data. GPS Solut.
**2009**, 13, 263–270. [Google Scholar] [CrossRef] - Gabor, M.J.; Nerem, R.S. GPS carrier phase ambiguity resolution using satellite-satellite single difference. In Proceedings of the ION GNSS 12th International Technical Meeting of the Satellite Division, Nashville, TN, USA, 14–17 September 1999; pp. 1569–1578. [Google Scholar]
- Loyer, S.; Perosanz, F.; Mercier, F.; Capdevilleet, H.; Marty, J. Zero-difference GPS ambiguity resolution at CNES-CLS IGS analysis center. J. Geod.
**2012**, 86, 991–1003. [Google Scholar] [CrossRef] - Li, X.; Ge, M.; Zhang, H.; Wickert, J. A method for improving uncalibrated phase delay estimation and ambiguity-fixing in real-time precise point positioning. J. Geod.
**2013**, 87, 405–416. [Google Scholar] [CrossRef] - Melbourne, W.G. The case for ranging in GPS-based geodetic systems. In Proceedings of the First International Symposium on Precise Positioning with the Global Positioning System, Rockville, MD, USA, 15–19 April 1985; pp. 373–386. [Google Scholar]
- Wei, M.; Schwarz, K.P. Fast ambiguity resolution using an integer nonlinear programming method. In Proceedings of the ION GNSS, Palm Springs, CA, USA, 12–15 September 1995; pp. 1101–1110. [Google Scholar]
- Li, X.; Zhang, X.; Li, P. Rapid precise orbit determination and positioning based zero-difference integer ambiguity. Chin. J. Geophys.
**2012**, 55, 833–840. [Google Scholar] - Li, P.; Zhang, X. Precise point positioning with partial ambiguity fixing. Sensors
**2015**, 15, 13627–13643. [Google Scholar] [CrossRef] [PubMed] - Shi, J. Precise point positioning integer ambiguity resolution with decoupled clocks. Geodesy
**2012**. [Google Scholar] [CrossRef] - Li, X.X.; Zhang, X.H.; Li, P. PPP for rapid precise positioning and orbit determination with zero-difference integer ambiguity fixing. Chin. J. Geophys.
**2012**, 55, 833–840. [Google Scholar] - Teunissen, P.J.G. The least squares ambiguity decorrelation adjustment: A method for fast GPS integer estimation. J. Geod.
**1995**, 70, 65–82. [Google Scholar] [CrossRef] - Qin, Y.Y.; Zhang, H.Y.; Wang, S.H. Theory of Kalman. Filter and Integrated Navigation; Northwestern Polytechnical University Press: Xi’an, China, 2007. [Google Scholar]
- Geng, J.; Shi, C.; Ge, M.; Dodson, A.H.; Lou, Y.; Zhao, Q.; Liu, J. Improving the estimation of fractional-cycle biases for ambiguity resolution in precise point positioning. J. Geod.
**2012**, 86, 579–589. [Google Scholar] [CrossRef] - Li, X.; Zhang, X.; Ge, M. Regional reference network augmented precise point positioning for instantaneous ambiguity resolution. J. Geod.
**2011**, 85, 151–158. [Google Scholar] [CrossRef] - Teunissen, P.J.G.; Odijk, D.; Zhang, B. PPP-RTK: Results of CORS network-based PPP with integer ambiguity resolution. J. Aeronaut. Astronaut. Aviat. Ser. A
**2010**, 42, 223–230. [Google Scholar] - Wübbena, G.; Schmitz, M.; Bagge, A. PPP-RTK: Precise Point Positioning Using State-Space Representation in RTK Networks. In Proceedings of the International Technical Meeting of the Satellite Division of the Institute of Navigation, Long Beach, CA, USA, 13–16 September, 2005; pp. 2584–2594. [Google Scholar]

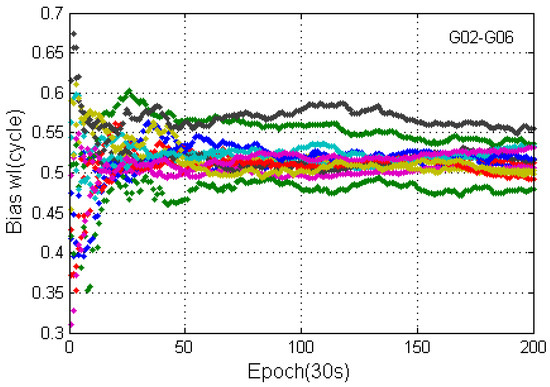

**Figure 3.**The fractional values of the wide lane ambiguity of G06 (reference satellite G02) at different stations.

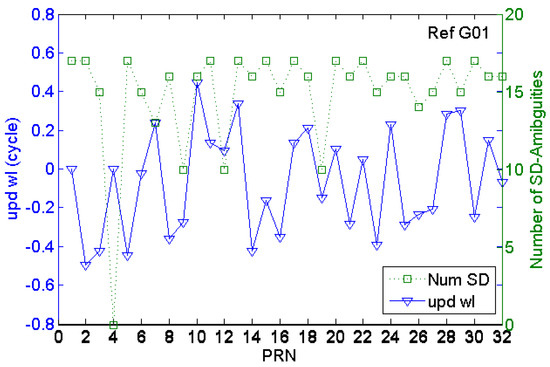

**Figure 4.**GPS satellite wide-lane ambiguity and number of single-difference ambiguities for calculation.

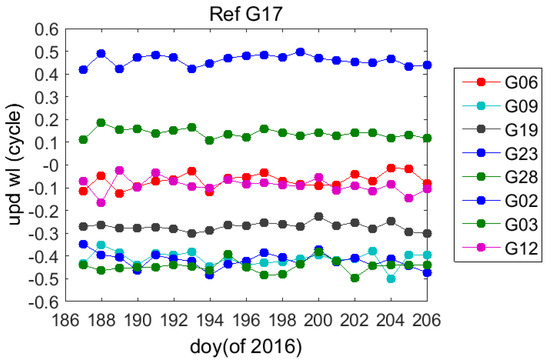

**Figure 5.**Wide-lane uncalibrated phase delay of the GPS satellite between the 187th and the 206th day of 2016.

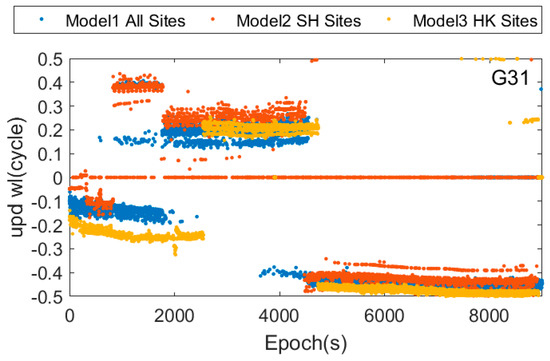

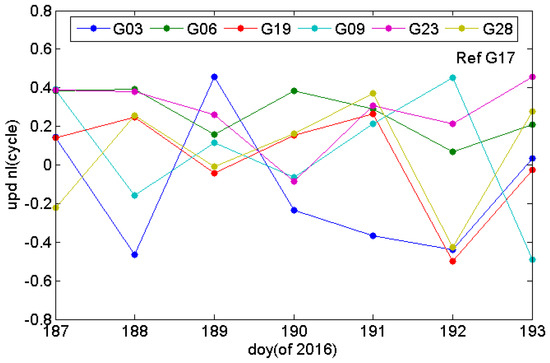

**Figure 6.**Narrow-lane uncalibrated phase delay of the GPS satellite between the 187th and the 193th day of 2016.

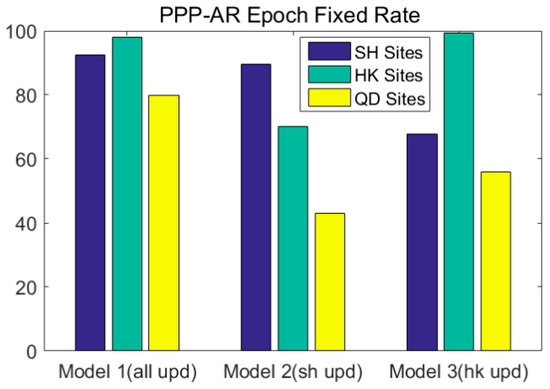

**Figure 9.**RTPPP-AR average percentage ambiguity fixed rates of different regional stations in different UPD models (reference station coordinates are set to known).

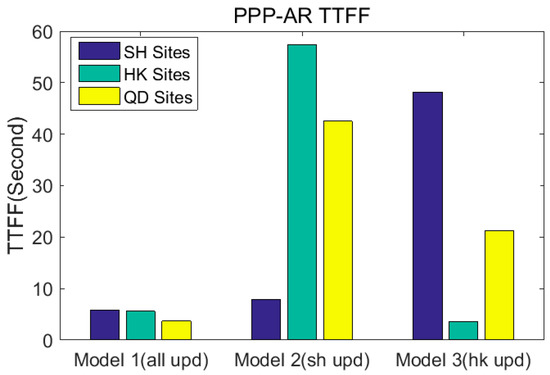

**Figure 10.**Average TTFF for RTPPP-AR of different regional stations in different UPD models (reference station coordinates are set to known).

**Table 1.**Wide-lane uncalibrated phase delay STD of the GPS satellite between the 187th and the 206th day of 2016.

PRN | G02 | G03 | G06 | G09 | G12 | G19 | G23 | G28 |
---|---|---|---|---|---|---|---|---|

STD [cycles] | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.02 |

STD [m] | 0.026 | 0.026 | 0.026 | 0.026 | 0.026 | 0.017 | 0.017 | 0.017 |

**Table 2.**Narrow-lane uncalibrated phase delay STD of the GPS satellite between the 187th and the 193th day of 2016.

PRN | G03 | G06 | G09 | G19 | G23 | G28 |
---|---|---|---|---|---|---|

STD [cycles] | 0.32 | 0.12 | 0.31 | 0.24 | 0.17 | 0.27 |

STD [m] | 0.034 | 0.013 | 0.032 | 0.026 | 0.018 | 0.029 |

Model | Stations for UPD Estimation | Strategy Information |
---|---|---|

Model 1: ALL Sites UPD Model | 37 stations in total | All 37 stations were adopted for UPD estimation, and the UPD results were adopted for RTPPP-AR calculation of all stations. |

Model 2: Shanghai UPD Model | YIWU, XUCH, CJZZ, DING, DPZZ, FUQI, JD01, JSWZ, JZZZ, LJIN, LNGN, XTZZ, ZQZZ (14 stations) | 14 stations in Shanghai regions were adopted for UPD estimation, and the UPD results were adopted for RTPPP-AR calculation of all stations. |

Model 3: Hong Kong UPD Model | HKKS, HKKT, HKLM, HKMW, HKNP, HKOH, HKPC, HKSC, HKSL, HKSS, HKST, HKTK, HKWS (13 stations) | 13 stations in Hong Kong were adopted for UPD estimation, and the UPD results were adopted for RTPPP-AR calculation of all stations. |

**Table 4.**Percentage of epoch ambiguity fixed rates for RTPPP-AR of Different Regional Stations in Different UPD Models (reference station coordinates are set to known).

Station | Model | Station | Model | Station | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|

1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |||

YIWU | 95.6 | 90.3 | 80.9 | HKKS | 92.3 | 69.2 | 98.9 | SZ01 | 85.8 | 52.8 | 52.5 |

XUCH | 87.8 | 75.8 | 59.1 | HKKT | 98.8 | 74.0 | 99.0 | TG01 | 88.0 | 46.1 | 57.6 |

CJZZ | 91.3 | 93.3 | 74.2 | HKLM | 99.1 | 83.3 | 99.8 | TGT0 | 80.7 | 57.0 | 56.8 |

DING | 89.9 | 84.6 | 55.9 | HKMW | 91.0 | 63.3 | 98.8 | TP01 | 86.6 | 68.8 | 56.0 |

DPZZ | 96.0 | 96.4 | 75.9 | HKNP | 99.2 | 78.0 | 99.2 | WK01 | 73.6 | 46.7 | 47.5 |

FUQI | 77.1 | 86.2 | 23.3 | HKOH | 98.7 | 64.1 | 99.0 | XLH0 | 86.5 | 62.8 | 51.4 |

JD01 | 92.8 | 92.3 | 56.9 | HKPC | 99.3 | 70.3 | 99.6 | XQ01 | 61.1 | 39.7 | 35.7 |

JSWZ | 92.8 | 93.4 | 76.3 | HKSC | 99.3 | 73.7 | 99.8 | XY01 | 83.4 | 65.9 | 76.2 |

JZZZ | 96.2 | 93.3 | 88.3 | HKSL | 99.2 | 56.8 | 99.8 | YL01 | 81.7 | 69.3 | 57.5 |

LJIN | 96.8 | 92.8 | 49.0 | HKSS | 99.1 | 65.0 | 99.3 | BD01 | 60.7 | 28.6 | 28.4 |

XTZZ | 96.3 | 92.7 | 93.7 | HKST | 99.0 | 69.8 | 99.4 | DG01 | 90.4 | 66.5 | 50.6 |

ZQZZ | 97.0 | 82.6 | 79.2 | HKTK | 98.0 | 72.9 | 99.1 | ||||

HKWS | 99.4 | 71.5 | 99.4 | ||||||||

Average | 92.5 | 89.48 | 67.7 | Average | 97.9 | 70.2 | 99.3 | Average | 79.9 | 42.9 | 55.8 |

Stations in Shanghai, etc. (SH Sites) | Stations in Hong Kong (HK Sites) | Stations in Tianjin (QD Sites) |

**Table 5.**TTFF for RTPPP-AR of different regional stations in different UPD models (reference station coordinates are set to known).

Station | Model | Station | Model | Station | Model | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|

1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |||

YIWU | 26 | 1 | 79 | HKKS | 1 | 92 | 1 | SZ01 | 1 | 42 | 37 |

XUCH | 2 | 14 | 89 | HKKT | 1 | 12 | 2 | TG01 | 3 | 47 | 68 |

CJZZ | 17 | 15 | 51 | HKLM | 3 | 50 | 2 | TGT0 | 4 | 45 | 7 |

DING | 2 | 1 | 54 | HKMW | 13 | 84 | 11 | TP01 | 1 | 63 | 5 |

DPZZ | 1 | 9 | 33 | HKNP | 24 | 83 | 2 | WK01 | 17 | 26 | 24 |

FUQI | 7 | 5 | 29 | HKOH | 3 | 88 | 8 | XLH0 | 9 | 52 | 24 |

JD01 | 6 | 23 | 82 | HKPC | 5 | 84 | 3 | XQ01 | 1 | 49 | 3 |

JSWZ | 2 | 7 | 31 | HKSC | 1 | 15 | 1 | XY01 | 1 | 26 | 10 |

JZZZ | 2 | 3 | 36 | HKSL | 2 | 75 | 1 | YL01 | 1 | 46 | 11 |

LJIN | 1 | 8 | 34 | HKSS | 1 | 82 | 1 | BD01 | 2 | 21 | 26 |

XTZZ | 2 | 5 | 35 | HKST | 12 | 23 | 10 | DG01 | 1 | 50 | 18 |

ZQZZ | 1 | 4 | 25 | HKTK | 1 | 86 | 1 | ||||

HKWS | 1 | 6 | 1 | ||||||||

Average | 5.8 | 7.9 | 48.2 | Average | 5.6 | 57.3 | 3.6 | Average | 3.7 | 42.5 | 21.2 |

Stations in Shanghai, etc. (SH Sites) | Stations in Hong Kong (HK Sites) | Stations in Tianjin (QD Sites) |

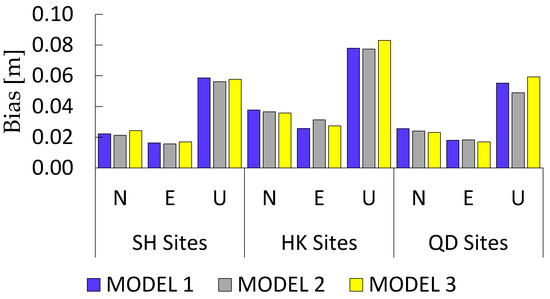

**Table 6.**Statistical sheet for RTPPP-AR positioning accuracies of different regional stations in different models.

Regional Station | Bias [m] | MODEL 1 | MODEL 2 | MODEL 3 | Average [m] |
---|---|---|---|---|---|

SH Sites | N | 0.022 | 0.021 | 0.024 | 0.022 |

E | 0.016 | 0.016 | 0.017 | 0.016 | |

U | 0.059 | 0.056 | 0.058 | 0.058 | |

HK Sites | N | 0.038 | 0.037 | 0.036 | 0.037 |

E | 0.026 | 0.031 | 0.027 | 0.028 | |

U | 0.078 | 0.077 | 0.083 | 0.079 | |

QD Sites | N | 0.026 | 0.024 | 0.023 | 0.024 |

E | 0.018 | 0.018 | 0.017 | 0.018 | |

U | 0.055 | 0.049 | 0.059 | 0.054 |
