Open AccessArticle
Sensors 2016, 16(12), 2003;

Data-Driven Multiresolution Camera Using the Foveal Adaptive Pyramid

Dpto. Tecnología Electrónica, University of Málaga, Campus de Teatinos, 29071 Málaga, Spain
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 23 August 2016 / Revised: 16 November 2016 / Accepted: 18 November 2016 / Published: 26 November 2016
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2016)
Full-Text   |   PDF [2526 KB, uploaded 26 November 2016]   |

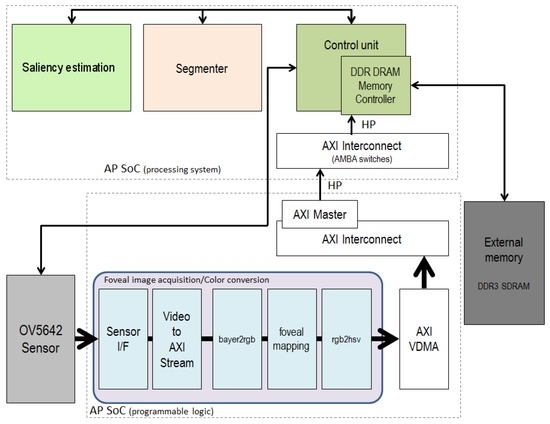

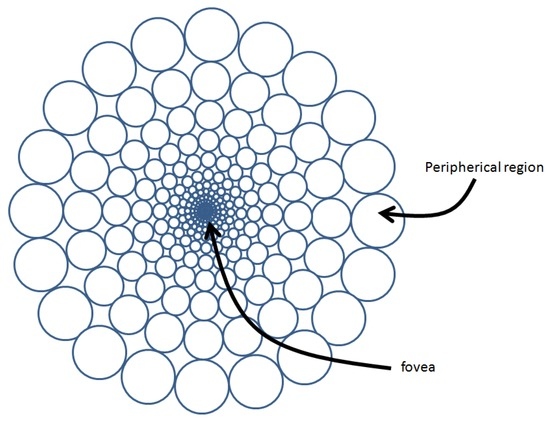

There exist image processing applications, such as tracking or pattern recognition, that are not necessarily precise enough to maintain the same resolution across the whole image sensor. In fact, they must only keep it as high as possible in a relatively small region, but covering a wide field of view. This is the aim of foveal vision systems. Briefly, they propose to sense a large field of view at a spatially-variant resolution: one relatively small region, the fovea, is mapped at a high resolution, while the rest of the image is captured at a lower resolution. In these systems, this fovea must be moved, from one region of interest to another one, to scan a visual scene. It is interesting that the part of the scene that is covered by the fovea should not be merely spatial, but closely related to perceptual objects. Segmentation and attention are then intimately tied together: while the segmentation process is responsible for extracting perceptively-coherent entities from the scene (proto-objects), attention can guide segmentation. From this loop, the concept of foveal attention arises. This work proposes a hardware system for mapping a uniformly-sampled sensor to a space-variant one. Furthermore, this mapping is tied with a software-based, foveal attention mechanism that takes as input the stream of generated foveal images. The whole hardware/software architecture has been designed to be embedded within an all programmable system on chip (AP SoC). Our results show the flexibility of the data port for exchanging information between the mapping and attention parts of the architecture and the good performance rates of the mapping procedure. Experimental evaluation also demonstrates that the segmentation method and the attention model provide results comparable to other more computationally-expensive algorithms. View Full-Text
Keywords: foveal images; irregular pyramids; hierarchical segmentation; visual attention; hardware/software co-design; AP SoC foveal images; irregular pyramids; hierarchical segmentation; visual attention; hardware/software co-design; AP SoC

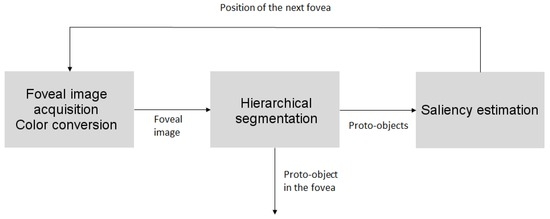

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

González, M.; Sánchez-Pedraza, A.; Marfil, R.; Rodríguez, J.A.; Bandera, A. Data-Driven Multiresolution Camera Using the Foveal Adaptive Pyramid. Sensors 2016, 16, 2003.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
